◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11423 - FVM(AUST)EURO4 ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#44429) — 291 parça
çizim 111162
34 127 22 16 322 16 21 297 126 20 376 74 74 107 128 81 81 269 269 269 375
BalonParca AdiParca NoAdetTipApplied Date A B
16 BRACKET; PIPE CLIP
(F) 		1-34656-009-0 02 1 0710-0712 ●
16 BRACKET; PIPE CLIP
(F) 		1-34656-009-0 04 1 0801- ●
16 BRACKET; PIPE CLIP
(H) 		1-47478-588-0 01 1 0710- ●
16 BRACKET; PIPE CLIP
(H) 		1-47478-588-0 01 1 0710- ●
16 BRACKET; PIPE CLIP
(I) 		1-47478-589-0 01 1 0710-0710 ●
16 BRACKET; PIPE CLIP
(J) 		1-47479-249-0 01 1 0710-0710 ●
16 BRACKET; PIPE CLIP
(J) 		1-47479-249-0 01 1 0710- ●
16 BRACKET; PIPE CLIP
(J) 		1-47479-249-0 01 1 0710- ●
16 BRACKET; PIPE CLIP
(G) 		1-47479-598-0 02 1 0710-0712 ●
16 BRACKET; PIPE CLIP
(A) 		1-47475-868-0 01 1 0710- ●
16 BRACKET; PIPE CLIP
(B) 		1-47479-546-0 02 1 0710- ●
16 BRACKET; PIPE CLIP
(C) 		1-47479-720-0 02 1 0710- ●
16 BRACKET; PIPE CLIP
(D) 		1-47479-815-0 01 1 0710- ●
16 BRACKET; PIPE CLIP
(E) 		1-47479-901-0 02 1 0710-0712 ●
16 BRACKET; PIPE CLIP
(E) 		1-47479-901-0 01 1 0801- ●
20 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0710-0907 ●
20 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0710-0907 ●
20 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0908-0908 ●
20 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0908- ●
20 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0908- ●
20 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0907 ● ●
20 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 04 1 0908-0908 ●
20 BOLT; CLIP
(B) M8X10 FLANGE 		0-28050-810-0 02 1 0908- ●
20 BOLT; CLIP
(B) M8X10 FLANGE 		0-28050-810-0 02 1 0710-0712 ●
20 BOLT; CLIP
(B) M8X10 FLANGE 		0-28050-810-0 03 1 0801-0907 ●
20 BOLT; CLIP
(B) M8X10 FLANGE 		0-28050-810-0 01 1 0908- ●
20 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0908- ●
21 NUT; CLIP
M8 		0-91110-508-0 01 1 0710-0907 ●
21 NUT; CLIP
M8 		0-91110-508-0 01 1 0908- ●
21 NUT; CLIP
M8 		0-91110-508-0 01 1 0908- ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0710-0710 ● ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0710-0710 ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0710-0907 ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0908- ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0908- ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0710-0710 ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0710-0712 ● ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0710-0712 ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0801-0907 ● ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0908- ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0801- ●
22 BRACKET; CLIP
L=100 H=30 		1-47477-645-2 01 1 0710-0910 ● ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0908- ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0710-0908 ● ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 07 1 0710-0907 ● ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 11 1 0908- ● ●
74 CLIP; NYLON TUBE
(B) ID=12 & 15 		1-09709-281-1 01 1 0710- ● ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0712-0712 ● ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0801-0907 ● ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0801-0907 ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0908-0911 ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0912- ● ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0912- ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 03 1 0812- ● ●
81 BRACKET; CLIP
(G) 		8-98021-994-1 01 1 0710-0710 ●
81 BRACKET; CLIP
(I) 		1-82699-527-1 01 1 0710-0711 ●
81 BRACKET; CLIP
(F) 		1-47479-693-0 02 1 0712- ●
81 BRACKET; CLIP
(E) L=100 H=30 		1-47477-645-2 04 1 0710-0812 ● ●
81 BRACKET; CLIP
(K) 		8-98129-212-0 04 1 0901-1012 ● ●
81 BRACKET; CLIP
(L) 		8-98177-873-0 04 1 1101- ● ●
81 BRACKET; CLIP
(J) L=65 		1-47477-713-0 01 1 0710-0902 ● ●
81 BRACKET; CLIP
(J) L=65 B=25 		8-98135-584-0 01 1 0903- ● ●
81 BRACKET; CLIP
(D) L=60 H=30 		1-47477-716-1 02 1 0710- ● ●
81 BRACKET; CLIP
(A) L=170 		1-47479-380-0 01 1 0710- ● ●
81 BRACKET; CLIP
(F) 		1-47479-693-0 01 1 0710-0809 ● ●
81 BRACKET; CLIP
(F) 		1-47479-693-0 01 1 0710-0809 ●
81 BRACKET; CLIP
(F) 		1-47479-693-0 01 1 0810-0907 ● ●
81 BRACKET; CLIP
(B) 		8-98031-420-2 01 1 0710- ● ●
81 BRACKET; CLIP
(H) 		8-98047-730-0 02 1 0710-0710 ● ●
81 BRACKET; CLIP
(M) 		8-98186-380-0 01 1 1106- ● ●
81 BRACKET; CLIP
(C) L=150 H=30 		1-47477-629-2 01 1 0710- ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 47 1 0710-0907 ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0801-0801 ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0801-0907 ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0801-0907 ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 02 1 0710-0801 ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 03 1 0802-0811 ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 20 1 0710-0802 ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 25 1 0803-0907 ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 49 1 0908- ● ●
107 CLIP; NYLON TUBE
H.S.A SYSTEM<6EP> (B) ID=35 L=33 		1-09700-945-0 01 1 0710- ● ●
107 CLIP; NYLON TUBE
EXC. H.S.A SYSTEM<6EP> (B) ID=39 L=33 		8-98009-359-0 01 1 0710- ● ●
126 BOLT; CLIP BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0710-0907 ●
126 BOLT; CLIP BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0710-0907 ●
126 BOLT; CLIP BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0908- ●
126 BOLT; CLIP BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0908- ●
126 BOLT; CLIP BRKT
(A) M8X35 FLANGE 		0-28650-835-0 04 1 0710-0710 ●
126 BOLT; CLIP BRKT
(A) M8X35 FLANGE 		0-28650-835-0 02 1 0710- ●
126 BOLT; CLIP BRKT
(A) M8X35 FLANGE 		0-28650-835-0 02 1 0710- ●
126 BOLT; CLIP BRKT
(A) M8X10 FLANGE 		0-28050-810-0 04 1 0710-0712 ●
126 BOLT; CLIP BRKT
(A) M8X10 FLANGE 		0-28050-810-0 02 1 0801- ●
126 BOLT; CLIP BRKT
(A) M8X25 FLANGE 		0-28650-825-0 04 1 0710- ●
126 BOLT; CLIP BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0710- ●
126 BOLT; CLIP BRKT
(B) M10X35 FLANGE 		0-28651-035-0 01 1 0710- ●
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 04 1 0710-0710 ●
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0710- ●
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0710- ●
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 0710- ●
127 NUT; CLIP BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 0710- ●
128 CLIP; NYLON TUBE
L=350 		1-09707-183-0 01 1 0908- ●
269 CLIP; BAND,NYLON TUBE
(B) ID=26 L=27 		1-09701-006-0 06 1 0710-0710 ●
269 CLIP; BAND,NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 03 1 0710-0802 ●
269 CLIP; BAND,NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 03 1 0710-0802 ●
269 CLIP; BAND,NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 06 1 0803- ●
269 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0908- ●
269 CLIP; BAND,NYLON TUBE
(C) ID=11X2 L=20 		0-95325-035-0 02 1 0710- ●
269 CLIP; BAND,NYLON TUBE
(B) ID=35 L=33 		1-09700-945-0 06 1 0710-0710 ●
269 CLIP; BAND,NYLON TUBE
(D) ID=39 L=33 		8-98009-359-0 06 1 0710- ●
269 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0710-0712 ●
269 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 02 1 0801- ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
322 BRACKET; CLIP 1-47479-598-0 02 1 0710- ● ●
375 CLIP; AIR PIPE
L=350 		1-09707-183-0 02 1 0710-0811 ● ●
375 CLIP; AIR PIPE
L=350 		1-09707-183-0 01 1 0712-0906 ● ●
375 CLIP; AIR PIPE
L=350 		1-09707-183-0 01 1 0907- ● ●
375 CLIP; AIR PIPE
L=350 		1-09707-183-0 01 1 0907- ● ●
376 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0710- ● ●

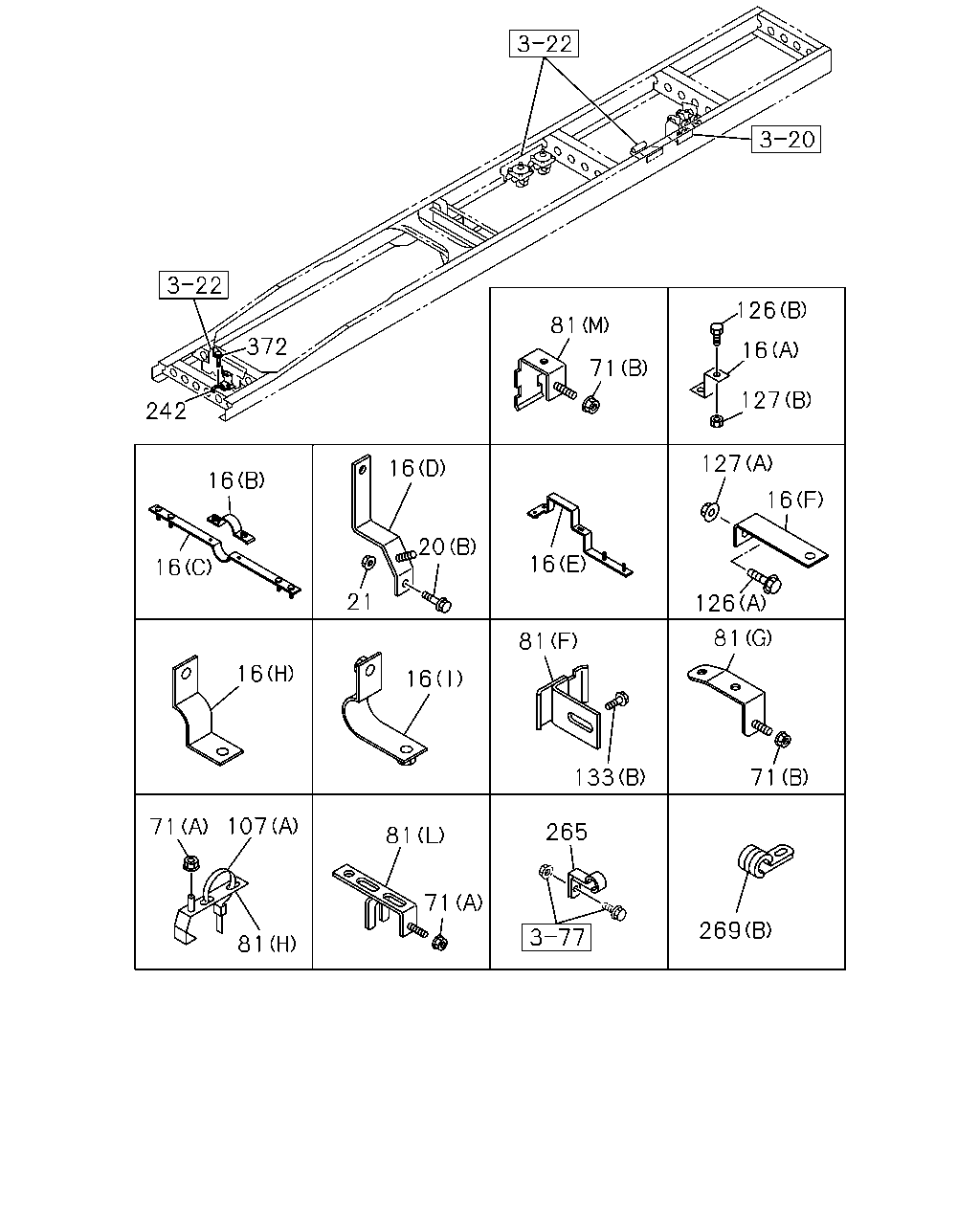

çizim 111169
126 81 372 16 71 127 242 127 16 16 16 20 16 16 21 126 81 81 16 16 133 71 107 71 265 81 71 269 81
BalonParca AdiParca NoAdetTipApplied Date A B
16 BRACKET; PIPE CLIP
(F) 		1-34656-009-0 02 1 0710-0712 ●
16 BRACKET; PIPE CLIP
(F) 		1-34656-009-0 04 1 0801- ●
16 BRACKET; PIPE CLIP
(H) 		1-47478-588-0 01 1 0710- ●
16 BRACKET; PIPE CLIP
(H) 		1-47478-588-0 01 1 0710- ●
16 BRACKET; PIPE CLIP
(I) 		1-47478-589-0 01 1 0710-0710 ●
16 BRACKET; PIPE CLIP
(J) 		1-47479-249-0 01 1 0710-0710 ●
16 BRACKET; PIPE CLIP
(J) 		1-47479-249-0 01 1 0710- ●
16 BRACKET; PIPE CLIP
(J) 		1-47479-249-0 01 1 0710- ●
16 BRACKET; PIPE CLIP
(G) 		1-47479-598-0 02 1 0710-0712 ●
16 BRACKET; PIPE CLIP
(A) 		1-47475-868-0 01 1 0710- ●
16 BRACKET; PIPE CLIP
(B) 		1-47479-546-0 02 1 0710- ●
16 BRACKET; PIPE CLIP
(C) 		1-47479-720-0 02 1 0710- ●
16 BRACKET; PIPE CLIP
(D) 		1-47479-815-0 01 1 0710- ●
16 BRACKET; PIPE CLIP
(E) 		1-47479-901-0 02 1 0710-0712 ●
16 BRACKET; PIPE CLIP
(E) 		1-47479-901-0 01 1 0801- ●
20 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0710-0907 ●
20 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0710-0907 ●
20 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0908-0908 ●
20 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0908- ●
20 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0908- ●
20 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0907 ● ●
20 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 04 1 0908-0908 ●
20 BOLT; CLIP
(B) M8X10 FLANGE 		0-28050-810-0 02 1 0908- ●
20 BOLT; CLIP
(B) M8X10 FLANGE 		0-28050-810-0 02 1 0710-0712 ●
20 BOLT; CLIP
(B) M8X10 FLANGE 		0-28050-810-0 03 1 0801-0907 ●
20 BOLT; CLIP
(B) M8X10 FLANGE 		0-28050-810-0 01 1 0908- ●
20 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0908- ●
21 NUT; CLIP
M8 		0-91110-508-0 01 1 0710-0907 ●
21 NUT; CLIP
M8 		0-91110-508-0 01 1 0908- ●
21 NUT; CLIP
M8 		0-91110-508-0 01 1 0908- ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0710-0710 ● ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0710-0710 ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0710-0907 ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0908- ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0908- ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0710-0710 ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0710-0712 ● ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0710-0712 ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0801-0907 ● ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0908- ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0801- ●
71 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 0710-0907 ●
71 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0908- ●
71 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 0710-0710 ● ●
71 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 13 1 0710-0907 ● ●
71 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 0801-0907 ● ●
71 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 0908- ●
71 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 08 1 0812- ● ●
71 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1106- ● ●
81 BRACKET; CLIP
(G) 		8-98021-994-1 01 1 0710-0710 ●
81 BRACKET; CLIP
(I) 		1-82699-527-1 01 1 0710-0711 ●
81 BRACKET; CLIP
(F) 		1-47479-693-0 02 1 0712- ●
81 BRACKET; CLIP
(E) L=100 H=30 		1-47477-645-2 04 1 0710-0812 ● ●
81 BRACKET; CLIP
(K) 		8-98129-212-0 04 1 0901-1012 ● ●
81 BRACKET; CLIP
(L) 		8-98177-873-0 04 1 1101- ● ●
81 BRACKET; CLIP
(J) L=65 		1-47477-713-0 01 1 0710-0902 ● ●
81 BRACKET; CLIP
(J) L=65 B=25 		8-98135-584-0 01 1 0903- ● ●
81 BRACKET; CLIP
(D) L=60 H=30 		1-47477-716-1 02 1 0710- ● ●
81 BRACKET; CLIP
(A) L=170 		1-47479-380-0 01 1 0710- ● ●
81 BRACKET; CLIP
(F) 		1-47479-693-0 01 1 0710-0809 ● ●
81 BRACKET; CLIP
(F) 		1-47479-693-0 01 1 0710-0809 ●
81 BRACKET; CLIP
(F) 		1-47479-693-0 01 1 0810-0907 ● ●
81 BRACKET; CLIP
(B) 		8-98031-420-2 01 1 0710- ● ●
81 BRACKET; CLIP
(H) 		8-98047-730-0 02 1 0710-0710 ● ●
81 BRACKET; CLIP
(M) 		8-98186-380-0 01 1 1106- ● ●
81 BRACKET; CLIP
(C) L=150 H=30 		1-47477-629-2 01 1 0710- ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 47 1 0710-0907 ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0801-0801 ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0801-0907 ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0801-0907 ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 02 1 0710-0801 ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 03 1 0802-0811 ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 20 1 0710-0802 ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 25 1 0803-0907 ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 49 1 0908- ● ●
107 CLIP; NYLON TUBE
H.S.A SYSTEM<6EP> (B) ID=35 L=33 		1-09700-945-0 01 1 0710- ● ●
107 CLIP; NYLON TUBE
EXC. H.S.A SYSTEM<6EP> (B) ID=39 L=33 		8-98009-359-0 01 1 0710- ● ●
126 BOLT; CLIP BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0710-0907 ●
126 BOLT; CLIP BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0710-0907 ●
126 BOLT; CLIP BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0908- ●
126 BOLT; CLIP BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0908- ●
126 BOLT; CLIP BRKT
(A) M8X35 FLANGE 		0-28650-835-0 04 1 0710-0710 ●
126 BOLT; CLIP BRKT
(A) M8X35 FLANGE 		0-28650-835-0 02 1 0710- ●
126 BOLT; CLIP BRKT
(A) M8X35 FLANGE 		0-28650-835-0 02 1 0710- ●
126 BOLT; CLIP BRKT
(A) M8X10 FLANGE 		0-28050-810-0 04 1 0710-0712 ●
126 BOLT; CLIP BRKT
(A) M8X10 FLANGE 		0-28050-810-0 02 1 0801- ●
126 BOLT; CLIP BRKT
(A) M8X25 FLANGE 		0-28650-825-0 04 1 0710- ●
126 BOLT; CLIP BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0710- ●
126 BOLT; CLIP BRKT
(B) M10X35 FLANGE 		0-28651-035-0 01 1 0710- ●
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 04 1 0710-0710 ●
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0710- ●
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0710- ●
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 0710- ●
127 NUT; CLIP BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 0710- ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 05 1 0710-0907 ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0908- ● ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0908- ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0710-0907 ●
133 BOLT; BRKT
(B) M8X35 FLANGE 		0-28650-835-0 02 1 0908- ●
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0710-0712 ● ●
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0801-0907 ● ●
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 06 1 0710-0802 ● ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 06 1 0803-0811 ● ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0812-0907 ● ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0908- ●
133 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0812- ● ●
133 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0812- ● ●
242 BRACKET; PIPE CLIP 8-98074-610-0 01 1 0710- ● ●
265 CLIP; NYLON TUBE
ID=21 H=25.5 L=26 		8-94176-806-0 01 1 0710- ● ●
269 CLIP; BAND,NYLON TUBE
(B) ID=26 L=27 		1-09701-006-0 06 1 0710-0710 ●
269 CLIP; BAND,NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 03 1 0710-0802 ●
269 CLIP; BAND,NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 03 1 0710-0802 ●
269 CLIP; BAND,NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 06 1 0803- ●
269 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0908- ●
269 CLIP; BAND,NYLON TUBE
(C) ID=11X2 L=20 		0-95325-035-0 02 1 0710- ●
269 CLIP; BAND,NYLON TUBE
(B) ID=35 L=33 		1-09700-945-0 06 1 0710-0710 ●
269 CLIP; BAND,NYLON TUBE
(D) ID=39 L=33 		8-98009-359-0 06 1 0710- ●
269 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0710-0712 ●
269 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 02 1 0801- ●
372 BOLT; CLIP BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0710-0712 ● ●
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0801- ● ●

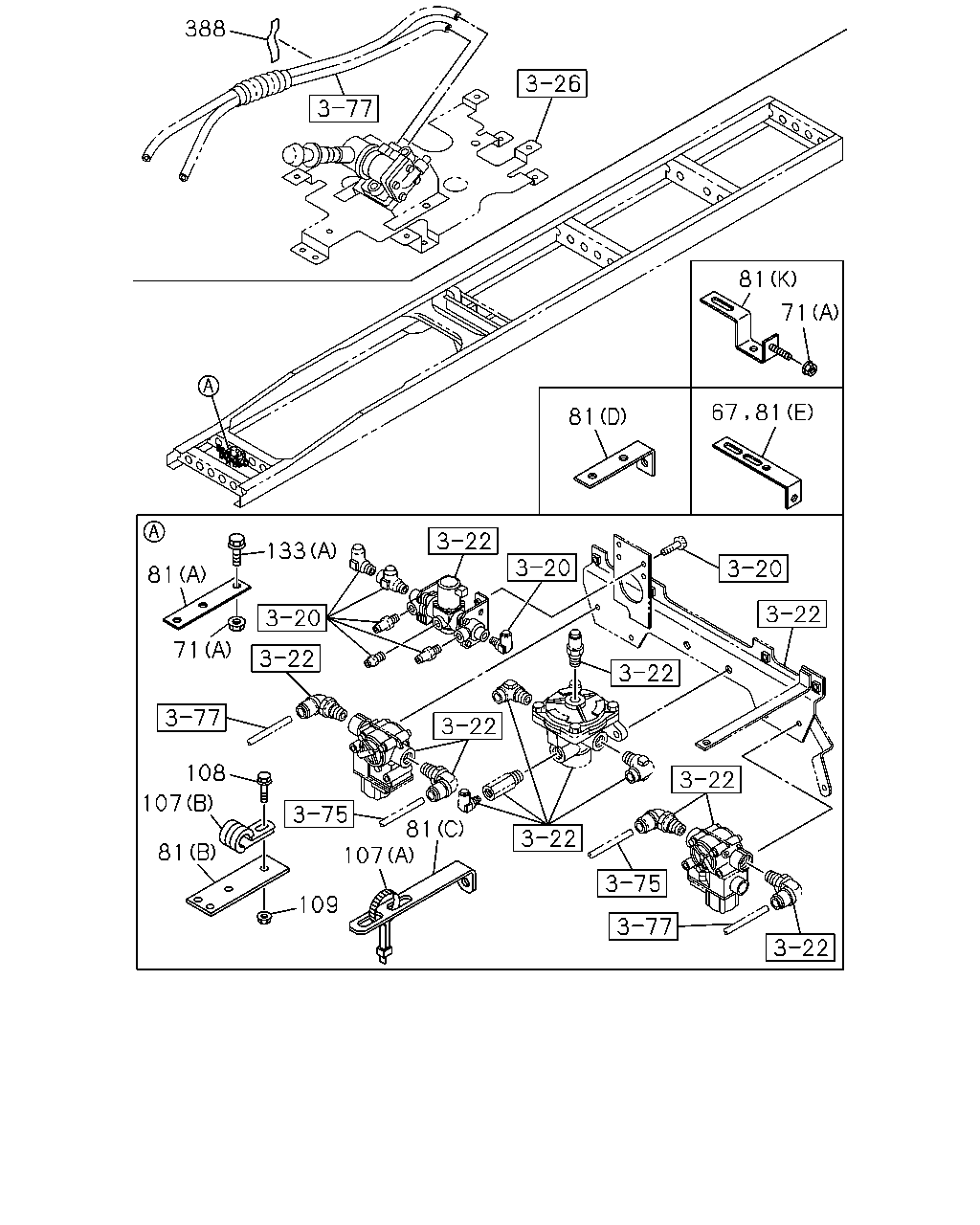

çizim 111171
388 81 71 81 133 81 71 108 107 81 81 107 109 67 81
BalonParca AdiParca NoAdetTipApplied Date A B
67 BRACKET; CLIP
L=100 H=30 		1-47477-645-2 02 1 0801- ●
71 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 0710-0907 ●
71 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0908- ●
71 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 0710-0710 ● ●
71 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 13 1 0710-0907 ● ●
71 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 0801-0907 ● ●
71 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 0908- ●
71 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 08 1 0812- ● ●
71 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1106- ● ●
81 BRACKET; CLIP
(G) 		8-98021-994-1 01 1 0710-0710 ●
81 BRACKET; CLIP
(I) 		1-82699-527-1 01 1 0710-0711 ●
81 BRACKET; CLIP
(F) 		1-47479-693-0 02 1 0712- ●
81 BRACKET; CLIP
(E) L=100 H=30 		1-47477-645-2 04 1 0710-0812 ● ●
81 BRACKET; CLIP
(K) 		8-98129-212-0 04 1 0901-1012 ● ●
81 BRACKET; CLIP
(L) 		8-98177-873-0 04 1 1101- ● ●
81 BRACKET; CLIP
(J) L=65 		1-47477-713-0 01 1 0710-0902 ● ●
81 BRACKET; CLIP
(J) L=65 B=25 		8-98135-584-0 01 1 0903- ● ●
81 BRACKET; CLIP
(D) L=60 H=30 		1-47477-716-1 02 1 0710- ● ●
81 BRACKET; CLIP
(A) L=170 		1-47479-380-0 01 1 0710- ● ●
81 BRACKET; CLIP
(F) 		1-47479-693-0 01 1 0710-0809 ● ●
81 BRACKET; CLIP
(F) 		1-47479-693-0 01 1 0710-0809 ●
81 BRACKET; CLIP
(F) 		1-47479-693-0 01 1 0810-0907 ● ●
81 BRACKET; CLIP
(B) 		8-98031-420-2 01 1 0710- ● ●
81 BRACKET; CLIP
(H) 		8-98047-730-0 02 1 0710-0710 ● ●
81 BRACKET; CLIP
(M) 		8-98186-380-0 01 1 1106- ● ●
81 BRACKET; CLIP
(C) L=150 H=30 		1-47477-629-2 01 1 0710- ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 47 1 0710-0907 ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0801-0801 ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0801-0907 ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0801-0907 ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 02 1 0710-0801 ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 03 1 0802-0811 ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 20 1 0710-0802 ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 25 1 0803-0907 ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 49 1 0908- ● ●
107 CLIP; NYLON TUBE
H.S.A SYSTEM<6EP> (B) ID=35 L=33 		1-09700-945-0 01 1 0710- ● ●
107 CLIP; NYLON TUBE
EXC. H.S.A SYSTEM<6EP> (B) ID=39 L=33 		8-98009-359-0 01 1 0710- ● ●
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0710- ● ●
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ● ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 05 1 0710-0907 ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0908- ● ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0908- ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0710-0907 ●
133 BOLT; BRKT
(B) M8X35 FLANGE 		0-28650-835-0 02 1 0908- ●
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0710-0712 ● ●
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0801-0907 ● ●
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 06 1 0710-0802 ● ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 06 1 0803-0811 ● ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0812-0907 ● ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0908- ●
133 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0812- ● ●
133 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0812- ● ●
388 SEAL
100X40 		1-72498-022-1 03 1 0710- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
