◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11423 - FVM(AUST)EURO4 ▶ 3 - Brakes, Brake System ▶ 3-77 - BRAKE PIPING; AIR,REAR ▶
3-77 — BRAKE PIPING; AIR,REAR (#44428) — 58 parça

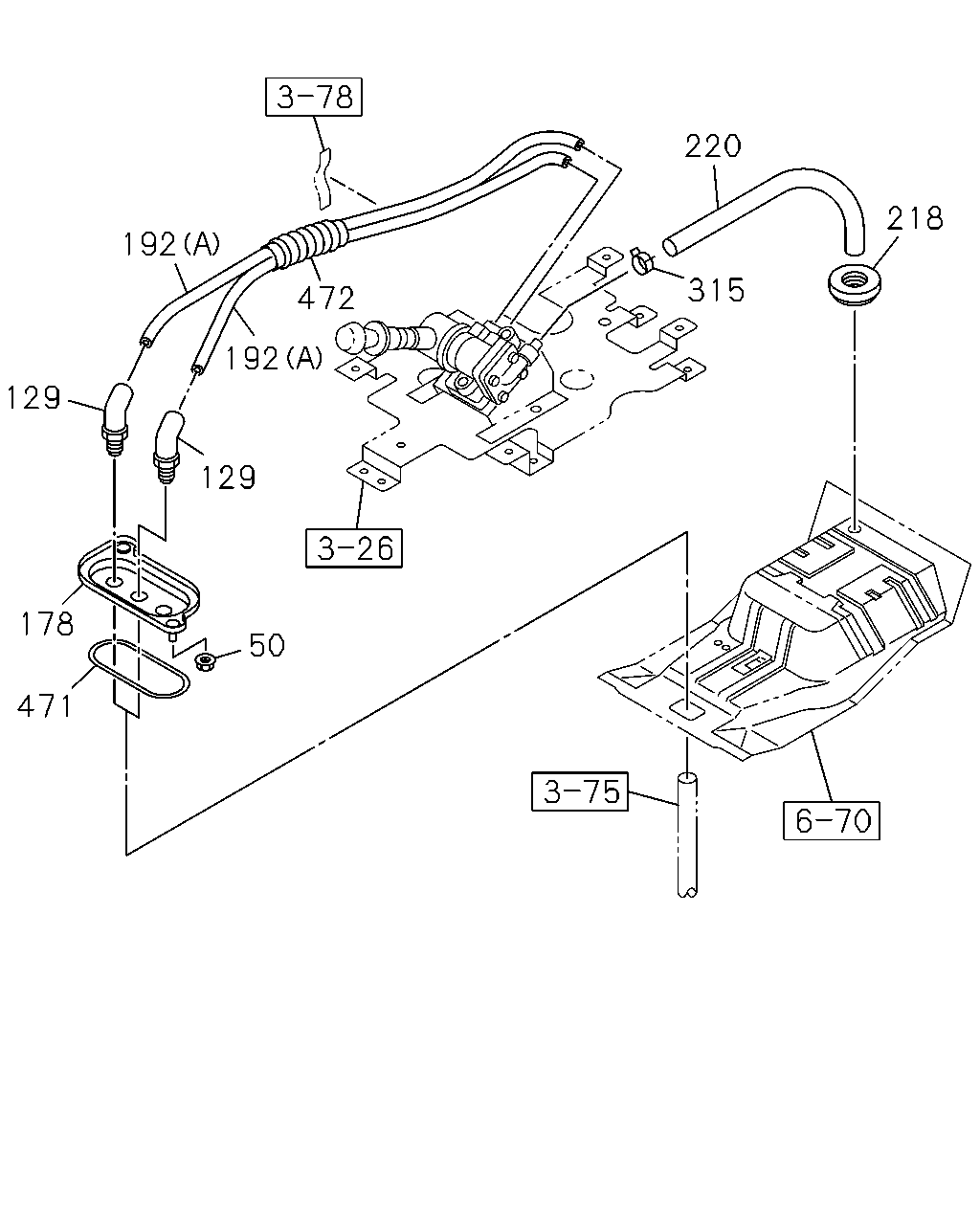

çizim 111157
220 218 192 315 472 192 129 129 178 50 471
BalonParca AdiParca NoAdetTipApplied Date A B
50 NUT; UNION BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
129 CONNECTOR; NYLON TUBE 8-97611-963-1 01 1 0710- ● ●
129 CONNECTOR; NYLON TUBE 8-97611-963-1 01 1 0710- ● ●
178 BRACKET; UNION 8-98017-054-1 01 1 0710- ● ●
192 TUBE; NYLON
(B) REARWARD L=880 OD=8 		1-49218-612-1 01 1 0710- ●
192 TUBE; NYLON
(B) FORWARD L=960 OD=8 		1-49218-613-1 01 1 0710- ●
192 TUBE; NYLON
(B) FORWARD L=1050 OD=8 		1-49218-619-1 01 1 0710- ●
192 TUBE; NYLON
(B) REARWARD L=970 OD=8 		1-49218-624-1 01 1 0710- ●
192 TUBE; NYLON
(C) L=220 OD=12 		8-98107-956-0 01 1 0712- ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0710- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0710- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 0710- ● ●
218 GROMMET; VINYL HOSE
OD=24 		9-61166-007-0 01 1 0912- ● ●
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 0912- ● ●
315 CLIP
ID=14 		8-94238-572-0 01 1 0912- ● ●
471 SEAL; BRKT 1-79738-832-0 01 1 0710- ● ●
472 TUBE; SPUTTER 8-98067-708-0 01 1 0710- ● ●

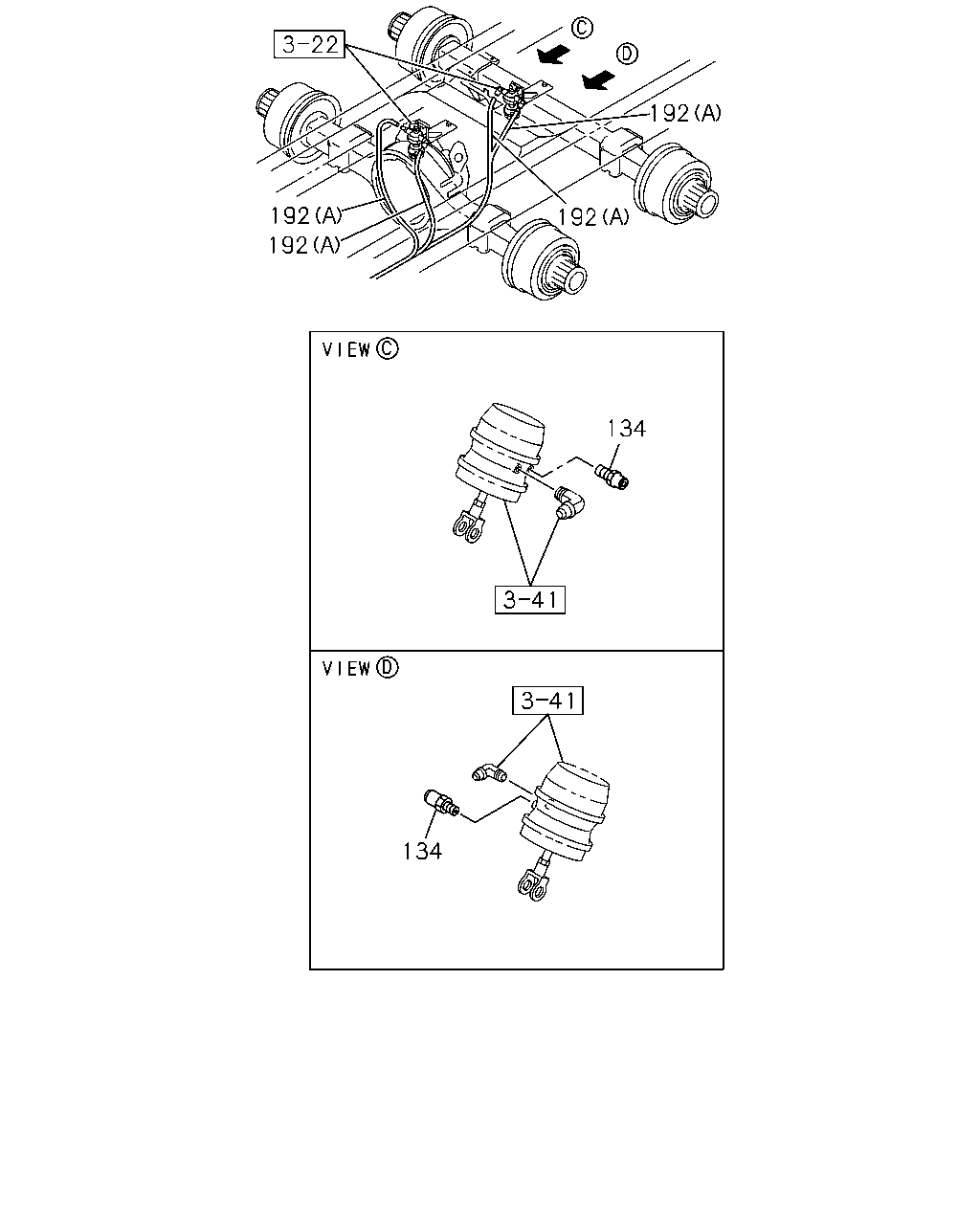

çizim 111164
192 192 192 192 134 134
BalonParca AdiParca NoAdetTipApplied Date A B
134 CONNECTOR 1-09660-968-0 02 1 0710- ●
192 TUBE; NYLON
(B) REARWARD L=880 OD=8 		1-49218-612-1 01 1 0710- ●
192 TUBE; NYLON
(B) FORWARD L=960 OD=8 		1-49218-613-1 01 1 0710- ●
192 TUBE; NYLON
(B) FORWARD L=1050 OD=8 		1-49218-619-1 01 1 0710- ●
192 TUBE; NYLON
(B) REARWARD L=970 OD=8 		1-49218-624-1 01 1 0710- ●
192 TUBE; NYLON
(C) L=220 OD=12 		8-98107-956-0 01 1 0712- ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0710- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0710- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 0710- ● ●

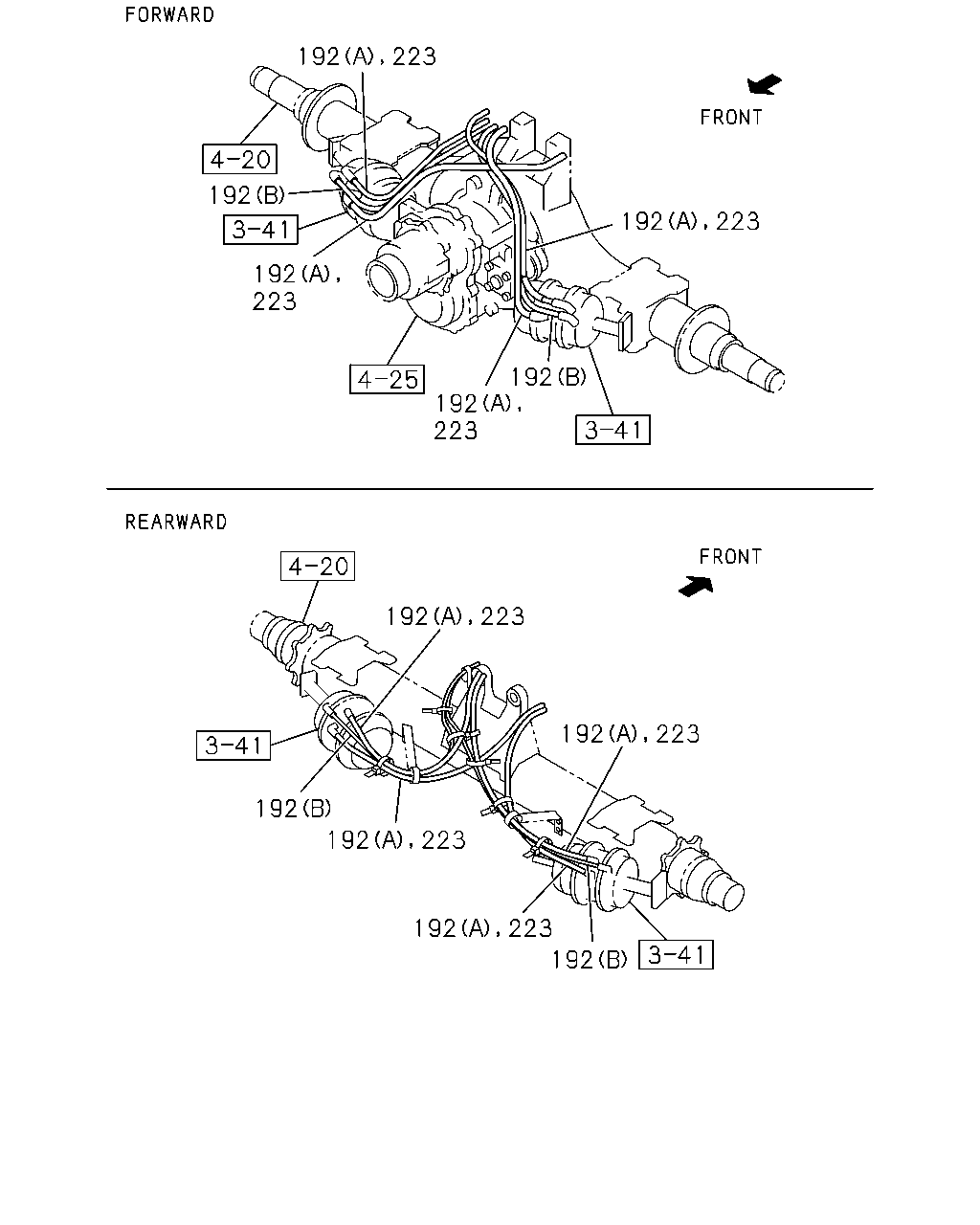

çizim 111166
192 223 192 192 223 192 223 192 192 223 192 223 192 223 192 192 223 223 192 192
BalonParca AdiParca NoAdetTipApplied Date A B
192 TUBE; NYLON
(B) REARWARD L=880 OD=8 		1-49218-612-1 01 1 0710- ●
192 TUBE; NYLON
(B) FORWARD L=960 OD=8 		1-49218-613-1 01 1 0710- ●
192 TUBE; NYLON
(B) FORWARD L=1050 OD=8 		1-49218-619-1 01 1 0710- ●
192 TUBE; NYLON
(B) REARWARD L=970 OD=8 		1-49218-624-1 01 1 0710- ●
192 TUBE; NYLON
(C) L=220 OD=12 		8-98107-956-0 01 1 0712- ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0710- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0710- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 0710- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0710- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 0710- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 AR 1 0710- ● ●

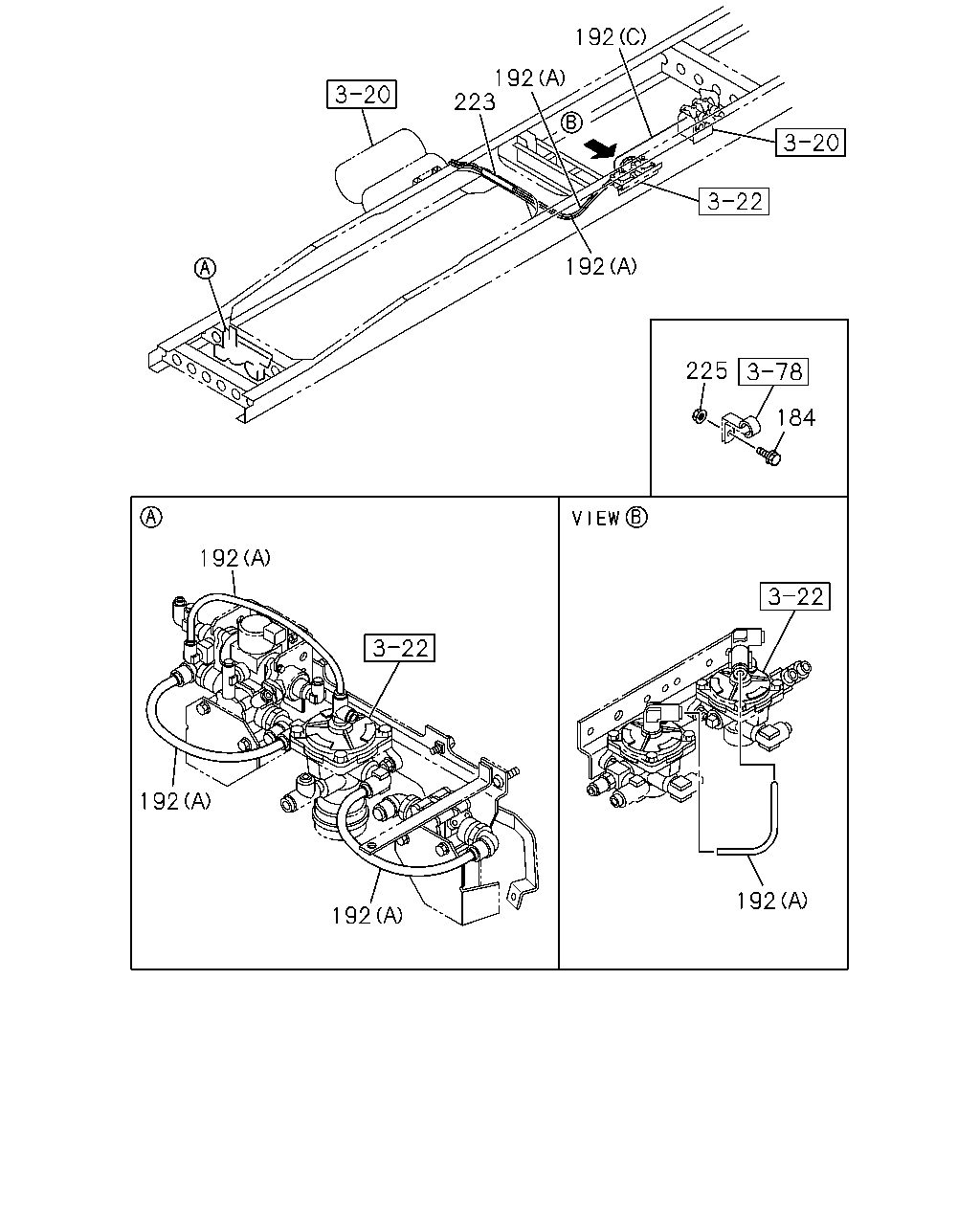

çizim 111168
192 192 223 192 225 184 192 192 192 192
BalonParca AdiParca NoAdetTipApplied Date A B
184 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0710- ● ●
192 TUBE; NYLON
(B) REARWARD L=880 OD=8 		1-49218-612-1 01 1 0710- ●
192 TUBE; NYLON
(B) FORWARD L=960 OD=8 		1-49218-613-1 01 1 0710- ●
192 TUBE; NYLON
(B) FORWARD L=1050 OD=8 		1-49218-619-1 01 1 0710- ●
192 TUBE; NYLON
(B) REARWARD L=970 OD=8 		1-49218-624-1 01 1 0710- ●
192 TUBE; NYLON
(C) L=220 OD=12 		8-98107-956-0 01 1 0712- ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0710- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0710- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 0710- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0710- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 0710- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 AR 1 0710- ● ●
225 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●
