Sayfa 3-41 - Isuzu EPC

3-41 — REAR BRAKE POWER CHAMBER (#44423) — 253 parça

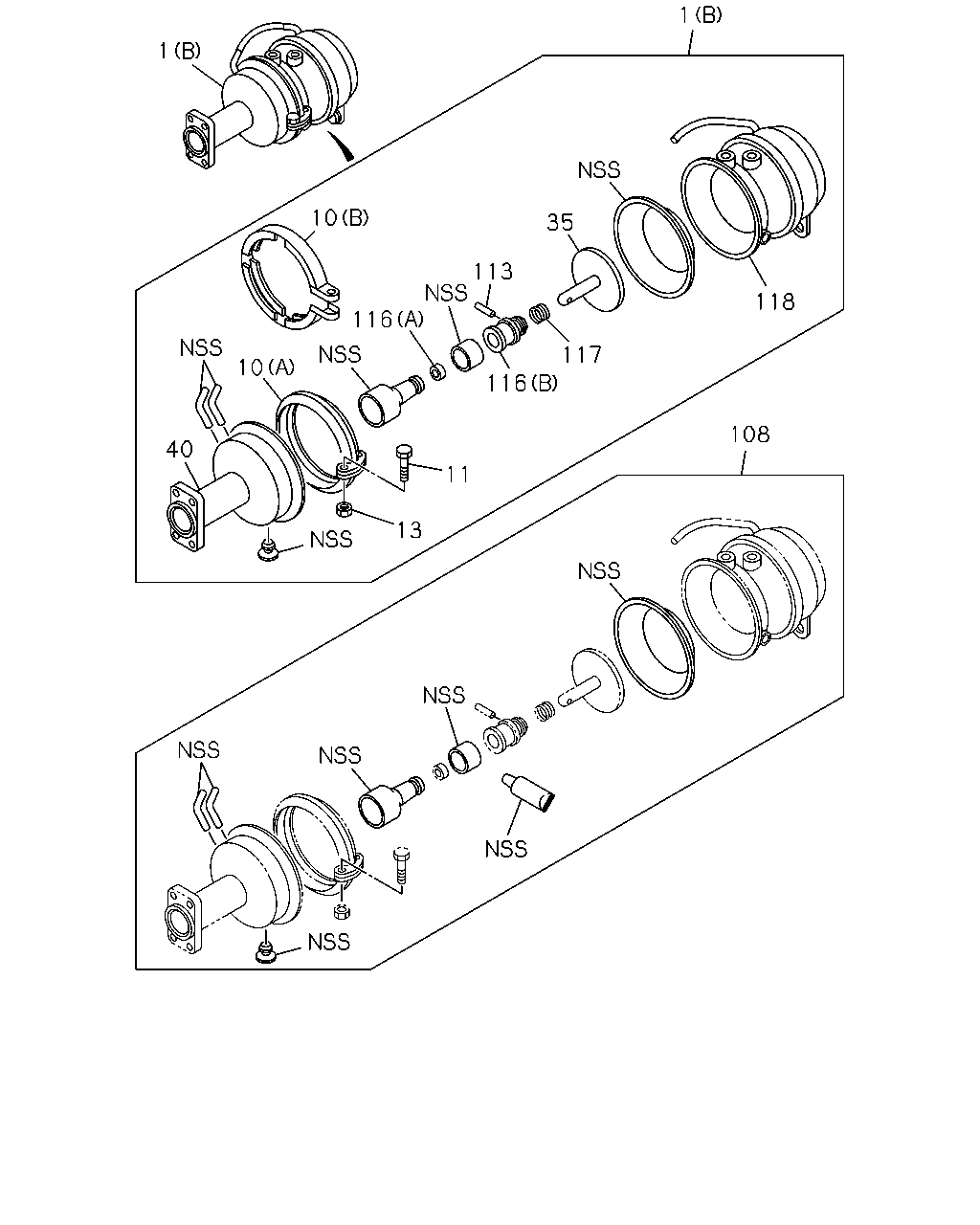

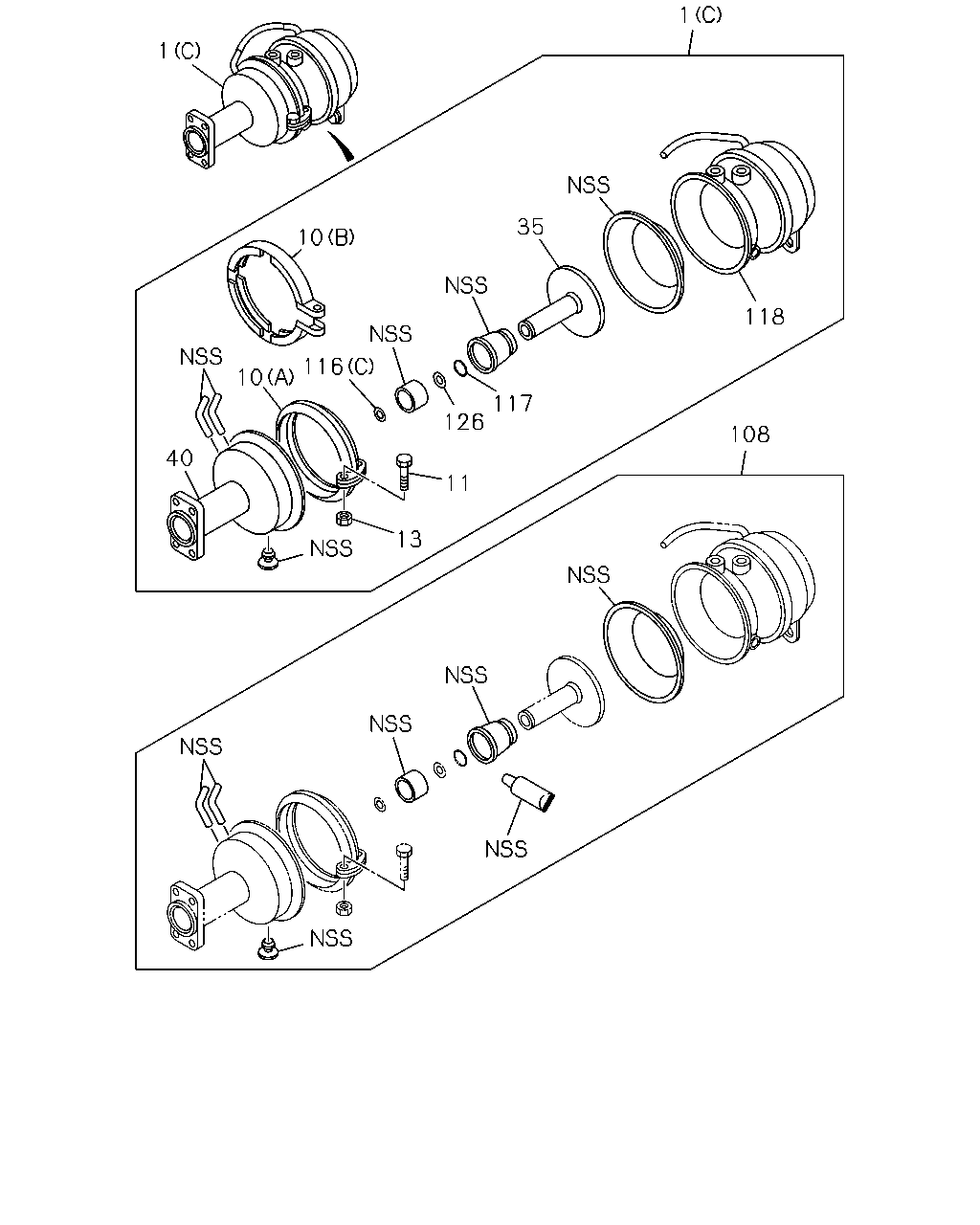

1 1 10 35 113 118 116 117 10 116 108 40 11 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; SPRING (A)	1-48250-943-0	01	1	0710-1205	●
1	CHAMBER ASM; SPRING (A)	1-48250-943-0	01	1	0710-1205	●
1	CHAMBER ASM; SPRING (A)	1-48250-957-0	01	1	1206-	●
1	CHAMBER ASM; SPRING (A)	1-48250-957-0	01	1	1206-	●
1	CHAMBER ASM; SPRING (A)	1-48250-944-0	01	1	0710-1205	●
1	CHAMBER ASM; SPRING (A)	1-48250-944-0	01	1	0710-1205	●
1	CHAMBER ASM; SPRING (A)	1-48250-958-0	01	1	1206-	●
1	CHAMBER ASM; SPRING (A)	1-48250-958-0	01	1	1206-	●
1	CHAMBER ASM; SPRING (B) REARWARD	1-48250-902-0	01	1	0710-0910		●
1	CHAMBER ASM; SPRING (C) REARWARD	8-98145-686-0	01	1	0911-1005		●
1	CHAMBER ASM; SPRING (D) REARWARD	1-87412-083-0	01	1	1006-		●
1	CHAMBER ASM; SPRING (B) REARWARD	1-48250-903-0	01	1	0710-0910		●
1	CHAMBER ASM; SPRING (C) REARWARD	8-98145-687-0	01	1	0911-1005		●
1	CHAMBER ASM; SPRING (D) REARWARD	1-87412-084-0	01	1	1006-		●
1	CHAMBER ASM; SPRING (B) FORWARD	1-48250-906-2	01	1	0710-0910		●
1	CHAMBER ASM; SPRING (C) FORWARD	8-98145-690-0	01	1	0911-1005		●
1	CHAMBER ASM; SPRING (D) FORWARD	1-87412-089-0	01	1	1006-		●
1	CHAMBER ASM; SPRING (B) FORWARD	1-48250-907-2	01	1	0710-0910		●
1	CHAMBER ASM; SPRING (C) FORWARD	8-98145-691-0	01	1	0911-1005		●
1	CHAMBER ASM; SPRING (D) FORWARD	1-87412-090-0	01	1	1006-		●
10	RING; CLAMP,SPR CHAMBER (A) REARWARD	1-48269-148-0	02	1	0710-1005		●
10	RING; CLAMP,SPR CHAMBER (B) REARWARD	8-98167-056-0	02	1	1006-		●
10	RING; CLAMP,SPR CHAMBER (A) FORWARD	1-48269-149-0	02	1	0710-0901		●
10	RING; CLAMP,SPR CHAMBER (B) FORWARD	1-48269-256-0	02	1	0902-		●
11	BOLT; CLAMP RING REARWARD	1-48269-146-0	04	1	0710-0901		●
11	BOLT; CLAMP RING REARWARD	1-48269-146-0	04	1	0710-0901		●
11	BOLT; CLAMP RING REARWARD	1-48269-146-0	04	1	0902-1005		●
11	BOLT; CLAMP RING FORWARD	1-48269-257-0	02	1	0902-1005		●
11	BOLT; CLAMP RING FORWARD	1-48269-257-0	02	1	1006-		●
11	BOLT; CLAMP RING FORWARD	1-48269-257-0	02	1	1006-		●
13	NUT; CLAMP RING	1-48269-147-0	04	1	0710-0901		●
13	NUT; CLAMP RING	1-48269-147-0	02	1	0902-		●
13	NUT; CLAMP RING	1-48269-147-0	02	1	0902-		●
35	PLATE; ROD END,SPR CHAMBER REARWARD	1-48263-019-0	02	1	0710-0910		●
35	PLATE; ROD END,SPR CHAMBER REARWARD	8-98146-971-0	02	1	0911-		●
35	PLATE; ROD END,SPR CHAMBER FORWARD	1-48263-021-0	02	1	0710-0910		●
35	PLATE; ROD END,SPR CHAMBER FORWARD	8-98146-972-0	02	1	0911-		●
40	COVER ASM; LWR,SPR CHAMBER FORWARD	1-48251-134-1	01	1	0710-		●
40	COVER ASM; LWR,SPR CHAMBER FORWARD	1-48251-135-1	01	1	0710-		●
40	COVER ASM; LWR,SPR CHAMBER REARWARD	1-48251-138-1	01	1	0710-		●
40	COVER ASM; LWR,SPR CHAMBER REARWARD	1-48251-139-1	01	1	0710-		●
108	REPAIR KIT; SPR CHAMBER FORWARD	1-85576-320-0	02	1	0710-0910		●
108	REPAIR KIT; SPR CHAMBER FORWARD	8-98146-982-0	02	1	0911-		●
108	REPAIR KIT; SPR CHAMBER REARWARD	1-85576-321-0	02	1	0710-0910		●
108	REPAIR KIT; SPR CHAMBER REARWARD	8-98146-981-0	02	1	0911-		●
113	PIN; SPR CHAMBER	1-48269-153-0	02	1	0710-0910		●
113	PIN; SPR CHAMBER	1-48269-153-0	02	1	0710-0910		●
116	GUIDE; SPR CHAMBER (A)	1-48269-152-0	02	1	0710-0910		●
116	GUIDE; SPR CHAMBER (A)	1-48269-152-0	02	1	0710-0910		●
116	GUIDE; SPR CHAMBER (C)	8-98146-963-0	02	1	0911-		●
116	GUIDE; SPR CHAMBER (C)	8-98146-963-0	02	1	0911-		●
116	GUIDE; SPR CHAMBER (B)	1-48269-154-0	02	1	0710-0910		●
116	GUIDE; SPR CHAMBER (B)	1-48269-154-0	02	1	0710-0910		●
117	RING; SPR CHAMBER	1-48269-155-0	02	1	0710-0910		●
117	RING; SPR CHAMBER	1-48269-155-0	02	1	0710-0910		●
117	RING; SPR CHAMBER	8-98146-966-0	02	1	0911-		●
117	RING; SPR CHAMBER	8-98146-966-0	02	1	0911-		●
118	CHAMBER; PIGGY BACK FORWARD	1-48251-183-1	01	1	0710-1005		●
118	CHAMBER; PIGGY BACK FORWARD	1-87412-111-0	01	1	1006-		●
118	CHAMBER; PIGGY BACK FORWARD	1-48251-184-1	01	1	0710-1005		●
118	CHAMBER; PIGGY BACK FORWARD	1-87412-112-0	01	1	1006-		●
118	CHAMBER; PIGGY BACK REARWARD	1-48251-187-1	01	1	0710-1005		●
118	CHAMBER; PIGGY BACK REARWARD	1-87412-107-0	01	1	1006-		●
118	CHAMBER; PIGGY BACK REARWARD	1-48251-188-1	01	1	0710-1005		●
118	CHAMBER; PIGGY BACK REARWARD	1-87412-108-0	01	1	1006-		●

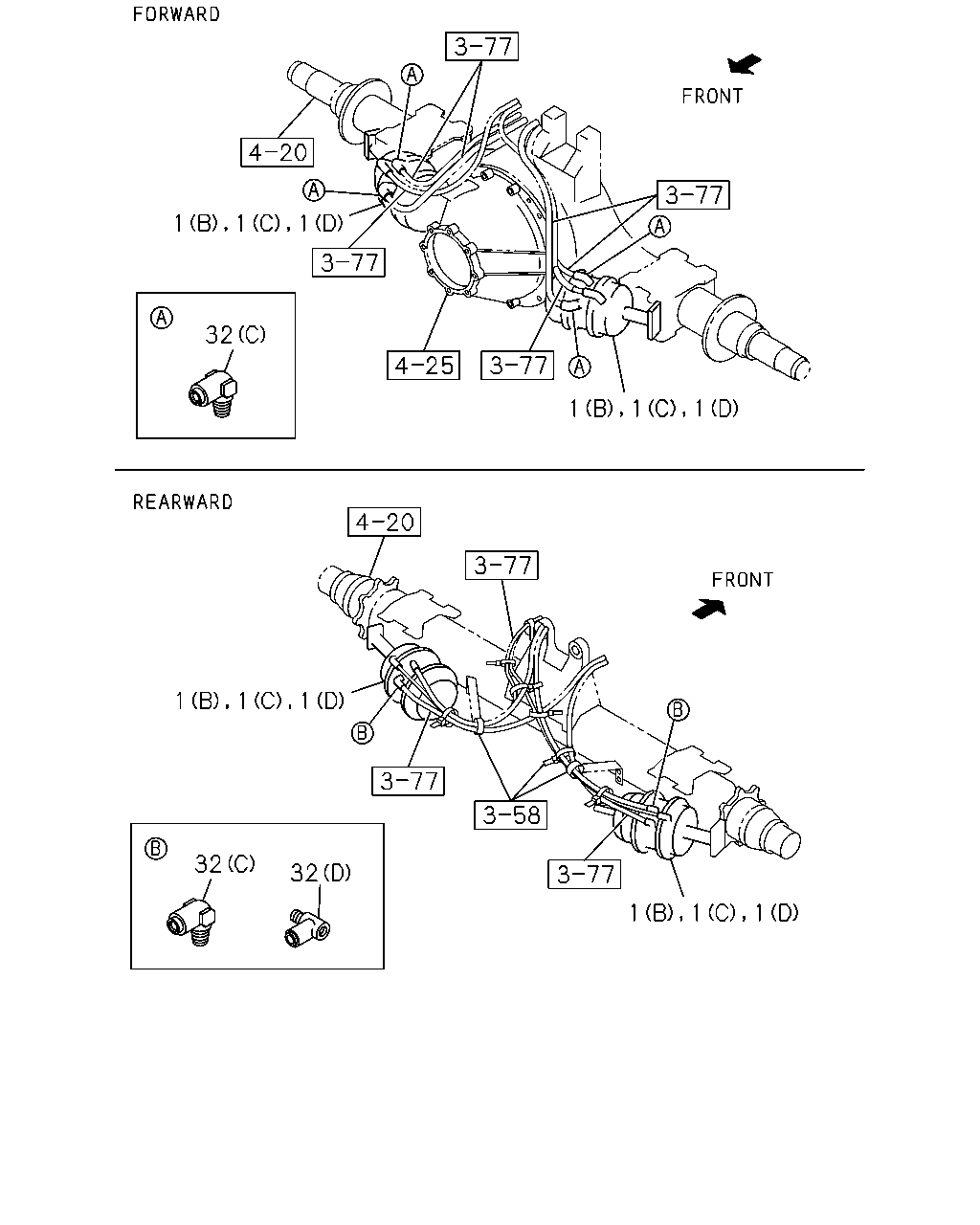

1 1 1 32 1 1 1 1 1 1 32 32 1 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; SPRING (A)	1-48250-943-0	01	1	0710-1205	●
1	CHAMBER ASM; SPRING (A)	1-48250-943-0	01	1	0710-1205	●
1	CHAMBER ASM; SPRING (A)	1-48250-957-0	01	1	1206-	●
1	CHAMBER ASM; SPRING (A)	1-48250-957-0	01	1	1206-	●
1	CHAMBER ASM; SPRING (A)	1-48250-944-0	01	1	0710-1205	●
1	CHAMBER ASM; SPRING (A)	1-48250-944-0	01	1	0710-1205	●
1	CHAMBER ASM; SPRING (A)	1-48250-958-0	01	1	1206-	●
1	CHAMBER ASM; SPRING (A)	1-48250-958-0	01	1	1206-	●
1	CHAMBER ASM; SPRING (B) REARWARD	1-48250-902-0	01	1	0710-0910		●
1	CHAMBER ASM; SPRING (C) REARWARD	8-98145-686-0	01	1	0911-1005		●
1	CHAMBER ASM; SPRING (D) REARWARD	1-87412-083-0	01	1	1006-		●
1	CHAMBER ASM; SPRING (B) REARWARD	1-48250-903-0	01	1	0710-0910		●
1	CHAMBER ASM; SPRING (C) REARWARD	8-98145-687-0	01	1	0911-1005		●
1	CHAMBER ASM; SPRING (D) REARWARD	1-87412-084-0	01	1	1006-		●
1	CHAMBER ASM; SPRING (B) FORWARD	1-48250-906-2	01	1	0710-0910		●
1	CHAMBER ASM; SPRING (C) FORWARD	8-98145-690-0	01	1	0911-1005		●
1	CHAMBER ASM; SPRING (D) FORWARD	1-87412-089-0	01	1	1006-		●
1	CHAMBER ASM; SPRING (B) FORWARD	1-48250-907-2	01	1	0710-0910		●
1	CHAMBER ASM; SPRING (C) FORWARD	8-98145-691-0	01	1	0911-1005		●
1	CHAMBER ASM; SPRING (D) FORWARD	1-87412-090-0	01	1	1006-		●
32	CONNECTOR; SPR CHAMBER (A)	1-09660-804-0	01	1	0710-	●
32	CONNECTOR; SPR CHAMBER (B) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	05	1	0710-	●
32	CONNECTOR; SPR CHAMBER (C) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0710-		●
32	CONNECTOR; SPR CHAMBER (C) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0710-		●
32	CONNECTOR; SPR CHAMBER (D) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	0710-		●

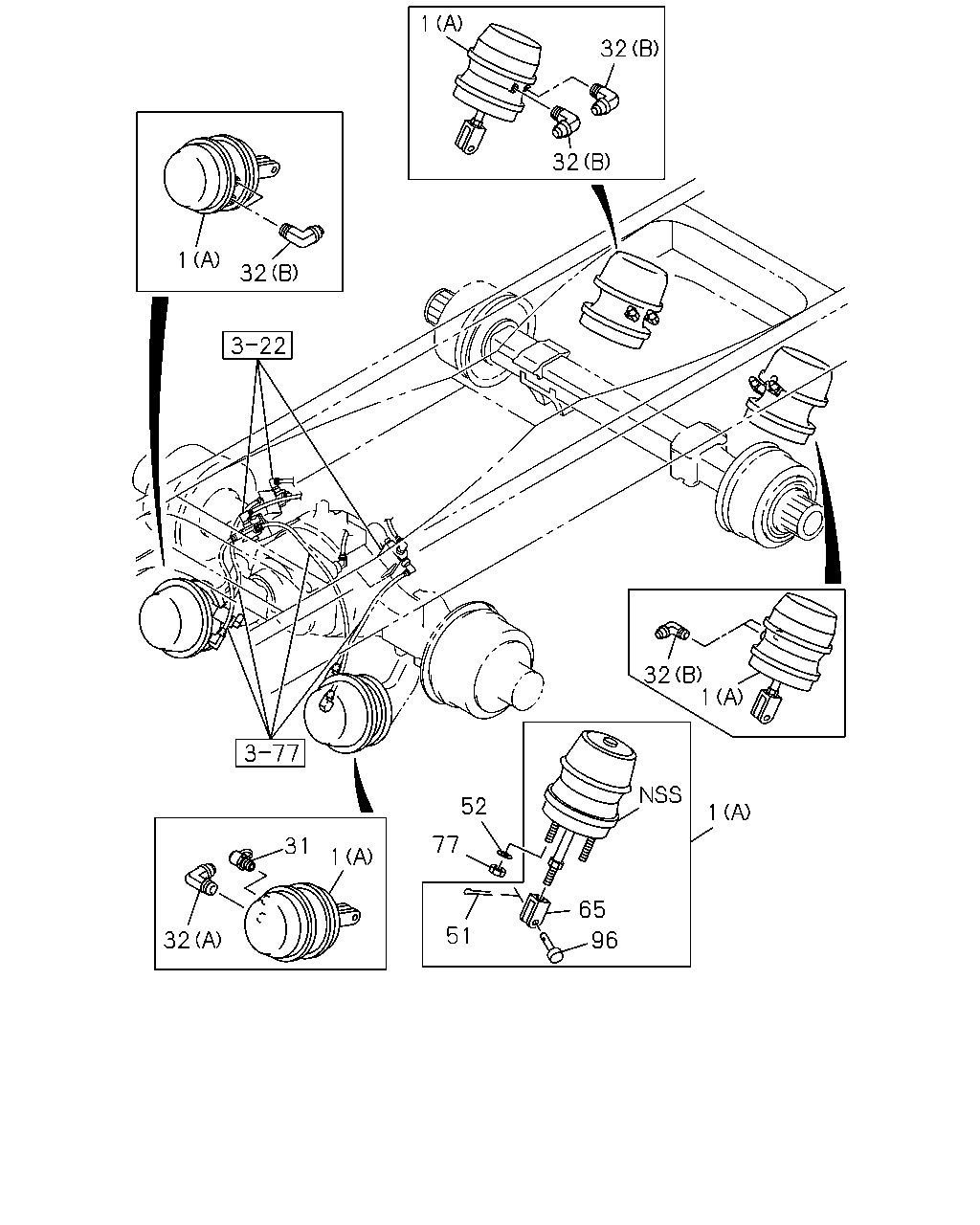

1 32 32 1 32 32 1 52 1 77 31 1 65 51 32 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; SPRING (A)	1-48250-943-0	01	1	0710-1205	●
1	CHAMBER ASM; SPRING (A)	1-48250-943-0	01	1	0710-1205	●
1	CHAMBER ASM; SPRING (A)	1-48250-957-0	01	1	1206-	●
1	CHAMBER ASM; SPRING (A)	1-48250-957-0	01	1	1206-	●
1	CHAMBER ASM; SPRING (A)	1-48250-944-0	01	1	0710-1205	●
1	CHAMBER ASM; SPRING (A)	1-48250-944-0	01	1	0710-1205	●
1	CHAMBER ASM; SPRING (A)	1-48250-958-0	01	1	1206-	●
1	CHAMBER ASM; SPRING (A)	1-48250-958-0	01	1	1206-	●
1	CHAMBER ASM; SPRING (B) REARWARD	1-48250-902-0	01	1	0710-0910		●
1	CHAMBER ASM; SPRING (C) REARWARD	8-98145-686-0	01	1	0911-1005		●
1	CHAMBER ASM; SPRING (D) REARWARD	1-87412-083-0	01	1	1006-		●
1	CHAMBER ASM; SPRING (B) REARWARD	1-48250-903-0	01	1	0710-0910		●
1	CHAMBER ASM; SPRING (C) REARWARD	8-98145-687-0	01	1	0911-1005		●
1	CHAMBER ASM; SPRING (D) REARWARD	1-87412-084-0	01	1	1006-		●
1	CHAMBER ASM; SPRING (B) FORWARD	1-48250-906-2	01	1	0710-0910		●
1	CHAMBER ASM; SPRING (C) FORWARD	8-98145-690-0	01	1	0911-1005		●
1	CHAMBER ASM; SPRING (D) FORWARD	1-87412-089-0	01	1	1006-		●
1	CHAMBER ASM; SPRING (B) FORWARD	1-48250-907-2	01	1	0710-0910		●
1	CHAMBER ASM; SPRING (C) FORWARD	8-98145-691-0	01	1	0911-1005		●
1	CHAMBER ASM; SPRING (D) FORWARD	1-87412-090-0	01	1	1006-		●
31	CONNECTOR	1-47459-013-1	01	1	0710-	●
32	CONNECTOR; SPR CHAMBER (A)	1-09660-804-0	01	1	0710-	●
32	CONNECTOR; SPR CHAMBER (B) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	05	1	0710-	●
32	CONNECTOR; SPR CHAMBER (C) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0710-		●
32	CONNECTOR; SPR CHAMBER (C) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0710-		●
32	CONNECTOR; SPR CHAMBER (D) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	0710-		●
51	PIN; SPLIT	1-48259-275-0	02	1	0710-	●
52	WASHER; PL	1-41519-038-0	04	1	0710-	●
52	WASHER; PL	1-41519-038-0	04	1	0710-	●
65	JOINT; JAW	1-48259-321-0	02	1	0710-	●
77	NUT; SPR CHAMBER BRK	1-87050-052-0	04	1	0710-	●
77	NUT; SPR CHAMBER BRK	1-87050-052-0	04	1	0710-	●
96	PIN; JAW JOINT	1-48259-273-0	02	1	0710-	●

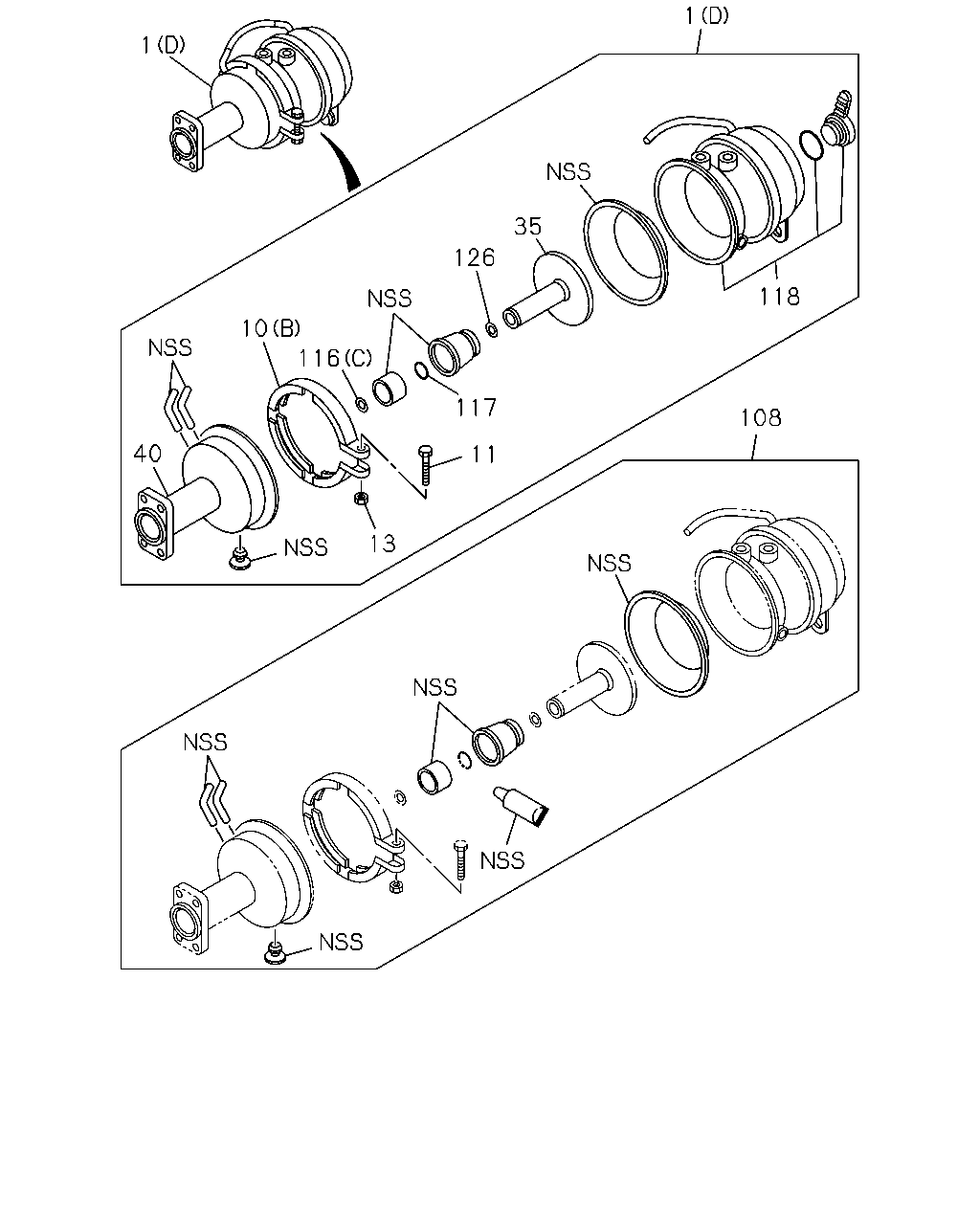

1 1 35 126 118 10 116 117 108 40 11 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; SPRING (A)	1-48250-943-0	01	1	0710-1205	●
1	CHAMBER ASM; SPRING (A)	1-48250-943-0	01	1	0710-1205	●
1	CHAMBER ASM; SPRING (A)	1-48250-957-0	01	1	1206-	●
1	CHAMBER ASM; SPRING (A)	1-48250-957-0	01	1	1206-	●
1	CHAMBER ASM; SPRING (A)	1-48250-944-0	01	1	0710-1205	●
1	CHAMBER ASM; SPRING (A)	1-48250-944-0	01	1	0710-1205	●
1	CHAMBER ASM; SPRING (A)	1-48250-958-0	01	1	1206-	●
1	CHAMBER ASM; SPRING (A)	1-48250-958-0	01	1	1206-	●
1	CHAMBER ASM; SPRING (B) REARWARD	1-48250-902-0	01	1	0710-0910		●
1	CHAMBER ASM; SPRING (C) REARWARD	8-98145-686-0	01	1	0911-1005		●
1	CHAMBER ASM; SPRING (D) REARWARD	1-87412-083-0	01	1	1006-		●
1	CHAMBER ASM; SPRING (B) REARWARD	1-48250-903-0	01	1	0710-0910		●
1	CHAMBER ASM; SPRING (C) REARWARD	8-98145-687-0	01	1	0911-1005		●
1	CHAMBER ASM; SPRING (D) REARWARD	1-87412-084-0	01	1	1006-		●
1	CHAMBER ASM; SPRING (B) FORWARD	1-48250-906-2	01	1	0710-0910		●
1	CHAMBER ASM; SPRING (C) FORWARD	8-98145-690-0	01	1	0911-1005		●
1	CHAMBER ASM; SPRING (D) FORWARD	1-87412-089-0	01	1	1006-		●
1	CHAMBER ASM; SPRING (B) FORWARD	1-48250-907-2	01	1	0710-0910		●
1	CHAMBER ASM; SPRING (C) FORWARD	8-98145-691-0	01	1	0911-1005		●
1	CHAMBER ASM; SPRING (D) FORWARD	1-87412-090-0	01	1	1006-		●
10	RING; CLAMP,SPR CHAMBER (A) REARWARD	1-48269-148-0	02	1	0710-1005		●
10	RING; CLAMP,SPR CHAMBER (B) REARWARD	8-98167-056-0	02	1	1006-		●
10	RING; CLAMP,SPR CHAMBER (A) FORWARD	1-48269-149-0	02	1	0710-0901		●
10	RING; CLAMP,SPR CHAMBER (B) FORWARD	1-48269-256-0	02	1	0902-		●
11	BOLT; CLAMP RING REARWARD	1-48269-146-0	04	1	0710-0901		●
11	BOLT; CLAMP RING REARWARD	1-48269-146-0	04	1	0710-0901		●
11	BOLT; CLAMP RING REARWARD	1-48269-146-0	04	1	0902-1005		●
11	BOLT; CLAMP RING FORWARD	1-48269-257-0	02	1	0902-1005		●
11	BOLT; CLAMP RING FORWARD	1-48269-257-0	02	1	1006-		●
11	BOLT; CLAMP RING FORWARD	1-48269-257-0	02	1	1006-		●
13	NUT; CLAMP RING	1-48269-147-0	04	1	0710-0901		●
13	NUT; CLAMP RING	1-48269-147-0	02	1	0902-		●
13	NUT; CLAMP RING	1-48269-147-0	02	1	0902-		●
35	PLATE; ROD END,SPR CHAMBER REARWARD	1-48263-019-0	02	1	0710-0910		●
35	PLATE; ROD END,SPR CHAMBER REARWARD	8-98146-971-0	02	1	0911-		●
35	PLATE; ROD END,SPR CHAMBER FORWARD	1-48263-021-0	02	1	0710-0910		●
35	PLATE; ROD END,SPR CHAMBER FORWARD	8-98146-972-0	02	1	0911-		●
40	COVER ASM; LWR,SPR CHAMBER FORWARD	1-48251-134-1	01	1	0710-		●
40	COVER ASM; LWR,SPR CHAMBER FORWARD	1-48251-135-1	01	1	0710-		●
40	COVER ASM; LWR,SPR CHAMBER REARWARD	1-48251-138-1	01	1	0710-		●
40	COVER ASM; LWR,SPR CHAMBER REARWARD	1-48251-139-1	01	1	0710-		●
108	REPAIR KIT; SPR CHAMBER FORWARD	1-85576-320-0	02	1	0710-0910		●
108	REPAIR KIT; SPR CHAMBER FORWARD	8-98146-982-0	02	1	0911-		●
108	REPAIR KIT; SPR CHAMBER REARWARD	1-85576-321-0	02	1	0710-0910		●
108	REPAIR KIT; SPR CHAMBER REARWARD	8-98146-981-0	02	1	0911-		●
116	GUIDE; SPR CHAMBER (A)	1-48269-152-0	02	1	0710-0910		●
116	GUIDE; SPR CHAMBER (A)	1-48269-152-0	02	1	0710-0910		●
116	GUIDE; SPR CHAMBER (C)	8-98146-963-0	02	1	0911-		●
116	GUIDE; SPR CHAMBER (C)	8-98146-963-0	02	1	0911-		●
116	GUIDE; SPR CHAMBER (B)	1-48269-154-0	02	1	0710-0910		●
116	GUIDE; SPR CHAMBER (B)	1-48269-154-0	02	1	0710-0910		●
117	RING; SPR CHAMBER	1-48269-155-0	02	1	0710-0910		●
117	RING; SPR CHAMBER	1-48269-155-0	02	1	0710-0910		●
117	RING; SPR CHAMBER	8-98146-966-0	02	1	0911-		●
117	RING; SPR CHAMBER	8-98146-966-0	02	1	0911-		●
118	CHAMBER; PIGGY BACK FORWARD	1-48251-183-1	01	1	0710-1005		●
118	CHAMBER; PIGGY BACK FORWARD	1-87412-111-0	01	1	1006-		●
118	CHAMBER; PIGGY BACK FORWARD	1-48251-184-1	01	1	0710-1005		●
118	CHAMBER; PIGGY BACK FORWARD	1-87412-112-0	01	1	1006-		●
118	CHAMBER; PIGGY BACK REARWARD	1-48251-187-1	01	1	0710-1005		●
118	CHAMBER; PIGGY BACK REARWARD	1-87412-107-0	01	1	1006-		●
118	CHAMBER; PIGGY BACK REARWARD	1-48251-188-1	01	1	0710-1005		●
118	CHAMBER; PIGGY BACK REARWARD	1-87412-108-0	01	1	1006-		●
126	SHIM	8-98146-965-0	AR	1	0911-		●
126	SHIM	8-98146-965-0	AR	1	0911-		●

1 1 35 10 118 116 10 117 126 108 40 11 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; SPRING (A)	1-48250-943-0	01	1	0710-1205	●
1	CHAMBER ASM; SPRING (A)	1-48250-943-0	01	1	0710-1205	●
1	CHAMBER ASM; SPRING (A)	1-48250-957-0	01	1	1206-	●
1	CHAMBER ASM; SPRING (A)	1-48250-957-0	01	1	1206-	●
1	CHAMBER ASM; SPRING (A)	1-48250-944-0	01	1	0710-1205	●
1	CHAMBER ASM; SPRING (A)	1-48250-944-0	01	1	0710-1205	●
1	CHAMBER ASM; SPRING (A)	1-48250-958-0	01	1	1206-	●
1	CHAMBER ASM; SPRING (A)	1-48250-958-0	01	1	1206-	●
1	CHAMBER ASM; SPRING (B) REARWARD	1-48250-902-0	01	1	0710-0910		●
1	CHAMBER ASM; SPRING (C) REARWARD	8-98145-686-0	01	1	0911-1005		●
1	CHAMBER ASM; SPRING (D) REARWARD	1-87412-083-0	01	1	1006-		●
1	CHAMBER ASM; SPRING (B) REARWARD	1-48250-903-0	01	1	0710-0910		●
1	CHAMBER ASM; SPRING (C) REARWARD	8-98145-687-0	01	1	0911-1005		●
1	CHAMBER ASM; SPRING (D) REARWARD	1-87412-084-0	01	1	1006-		●
1	CHAMBER ASM; SPRING (B) FORWARD	1-48250-906-2	01	1	0710-0910		●
1	CHAMBER ASM; SPRING (C) FORWARD	8-98145-690-0	01	1	0911-1005		●
1	CHAMBER ASM; SPRING (D) FORWARD	1-87412-089-0	01	1	1006-		●
1	CHAMBER ASM; SPRING (B) FORWARD	1-48250-907-2	01	1	0710-0910		●
1	CHAMBER ASM; SPRING (C) FORWARD	8-98145-691-0	01	1	0911-1005		●
1	CHAMBER ASM; SPRING (D) FORWARD	1-87412-090-0	01	1	1006-		●
10	RING; CLAMP,SPR CHAMBER (A) REARWARD	1-48269-148-0	02	1	0710-1005		●
10	RING; CLAMP,SPR CHAMBER (B) REARWARD	8-98167-056-0	02	1	1006-		●
10	RING; CLAMP,SPR CHAMBER (A) FORWARD	1-48269-149-0	02	1	0710-0901		●
10	RING; CLAMP,SPR CHAMBER (B) FORWARD	1-48269-256-0	02	1	0902-		●
11	BOLT; CLAMP RING REARWARD	1-48269-146-0	04	1	0710-0901		●
11	BOLT; CLAMP RING REARWARD	1-48269-146-0	04	1	0710-0901		●
11	BOLT; CLAMP RING REARWARD	1-48269-146-0	04	1	0902-1005		●
11	BOLT; CLAMP RING FORWARD	1-48269-257-0	02	1	0902-1005		●
11	BOLT; CLAMP RING FORWARD	1-48269-257-0	02	1	1006-		●
11	BOLT; CLAMP RING FORWARD	1-48269-257-0	02	1	1006-		●
13	NUT; CLAMP RING	1-48269-147-0	04	1	0710-0901		●
13	NUT; CLAMP RING	1-48269-147-0	02	1	0902-		●
13	NUT; CLAMP RING	1-48269-147-0	02	1	0902-		●
35	PLATE; ROD END,SPR CHAMBER REARWARD	1-48263-019-0	02	1	0710-0910		●
35	PLATE; ROD END,SPR CHAMBER REARWARD	8-98146-971-0	02	1	0911-		●
35	PLATE; ROD END,SPR CHAMBER FORWARD	1-48263-021-0	02	1	0710-0910		●
35	PLATE; ROD END,SPR CHAMBER FORWARD	8-98146-972-0	02	1	0911-		●
40	COVER ASM; LWR,SPR CHAMBER FORWARD	1-48251-134-1	01	1	0710-		●
40	COVER ASM; LWR,SPR CHAMBER FORWARD	1-48251-135-1	01	1	0710-		●
40	COVER ASM; LWR,SPR CHAMBER REARWARD	1-48251-138-1	01	1	0710-		●
40	COVER ASM; LWR,SPR CHAMBER REARWARD	1-48251-139-1	01	1	0710-		●
108	REPAIR KIT; SPR CHAMBER FORWARD	1-85576-320-0	02	1	0710-0910		●
108	REPAIR KIT; SPR CHAMBER FORWARD	8-98146-982-0	02	1	0911-		●
108	REPAIR KIT; SPR CHAMBER REARWARD	1-85576-321-0	02	1	0710-0910		●
108	REPAIR KIT; SPR CHAMBER REARWARD	8-98146-981-0	02	1	0911-		●
116	GUIDE; SPR CHAMBER (A)	1-48269-152-0	02	1	0710-0910		●
116	GUIDE; SPR CHAMBER (A)	1-48269-152-0	02	1	0710-0910		●
116	GUIDE; SPR CHAMBER (C)	8-98146-963-0	02	1	0911-		●
116	GUIDE; SPR CHAMBER (C)	8-98146-963-0	02	1	0911-		●
116	GUIDE; SPR CHAMBER (B)	1-48269-154-0	02	1	0710-0910		●
116	GUIDE; SPR CHAMBER (B)	1-48269-154-0	02	1	0710-0910		●
117	RING; SPR CHAMBER	1-48269-155-0	02	1	0710-0910		●
117	RING; SPR CHAMBER	1-48269-155-0	02	1	0710-0910		●
117	RING; SPR CHAMBER	8-98146-966-0	02	1	0911-		●
117	RING; SPR CHAMBER	8-98146-966-0	02	1	0911-		●
118	CHAMBER; PIGGY BACK FORWARD	1-48251-183-1	01	1	0710-1005		●
118	CHAMBER; PIGGY BACK FORWARD	1-87412-111-0	01	1	1006-		●
118	CHAMBER; PIGGY BACK FORWARD	1-48251-184-1	01	1	0710-1005		●
118	CHAMBER; PIGGY BACK FORWARD	1-87412-112-0	01	1	1006-		●
118	CHAMBER; PIGGY BACK REARWARD	1-48251-187-1	01	1	0710-1005		●
118	CHAMBER; PIGGY BACK REARWARD	1-87412-107-0	01	1	1006-		●
118	CHAMBER; PIGGY BACK REARWARD	1-48251-188-1	01	1	0710-1005		●
118	CHAMBER; PIGGY BACK REARWARD	1-87412-108-0	01	1	1006-		●
126	SHIM	8-98146-965-0	AR	1	0911-		●
126	SHIM	8-98146-965-0	AR	1	0911-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
