◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11423 - FVM(AUST)EURO4 ▶ 3 - Brakes, Brake System ▶ 3-22 - AIR CONTROL PARTS ▶
3-22 — AIR CONTROL PARTS (#44419) — 234 parça
çizim 111131
188 204
BalonParca AdiParca NoAdetTipApplied Date A B
188 REPAIR KIT; HSA VLV
H.S.A SYSTEM<6EP> 		1-85576-304-1 01 1 0710- ● ●
204 PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-194-0 01 1 0710- ● ●

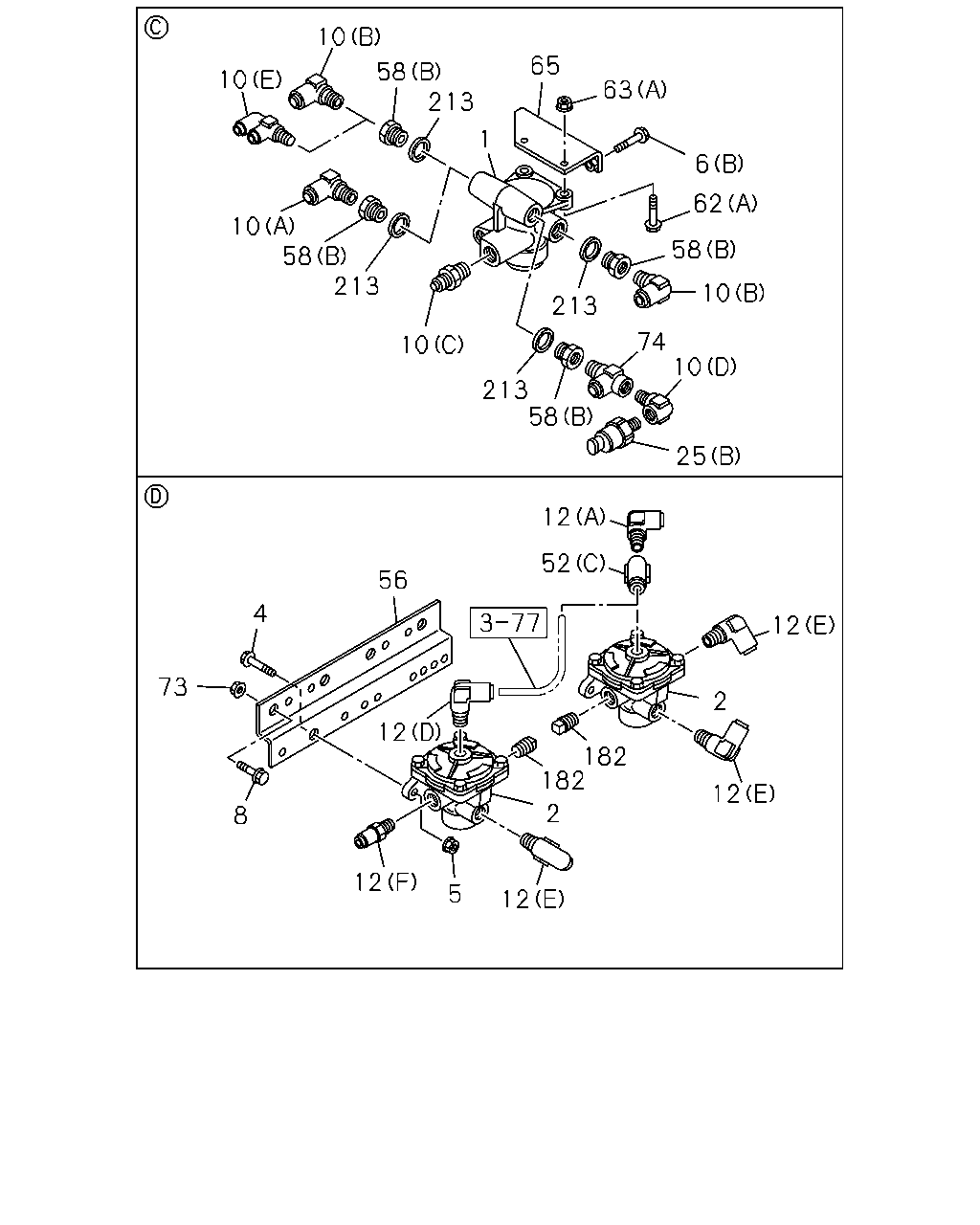

çizim 111134
10 65 58 213 10 63 1 6 62 10 58 213 58 10 213 74 10 10 213 58 25 12 52 56 4 12 73 2 12 182 182 12 2 8 12 5 12
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; RELAY RWD RR 1-48240-354-1 01 1 0710- ● ●
2 VALVE; RELAY 1-48210-997-0 01 1 0710- ● ●
2 VALVE; RELAY 1-48210-997-0 02 1 0710- ● ●
4 BOLT; RELAY VLV TO BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0710- ● ●
4 BOLT; RELAY VLV TO BRKT
M10X30 FLANGE 		0-28651-030-0 04 1 0710-0805 ●
4 BOLT; RELAY VLV TO BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 0806- ●
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 0710- ● ●
5 NUT
M10 FLANGE 		0-91180-210-0 04 1 0710- ●
6 BOLT; VLV
(A) M8X80 FLANGE 		0-28050-880-0 04 1 0710-1408 ● ●
6 BOLT; VLV
(A) M8X85 		1-09044-074-0 04 1 1409- ● ●
6 BOLT; VLV
(B) M8X35 FLANGE 		0-28650-835-0 02 1 0710- ● ●
8 BOLT; BRKT
M10X40 FLANGE 		0-28051-040-0 04 1 0710- ●
8 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 03 1 0710- ●
10 CONNECTOR
(D) PT1/4 2WAY 		1-09660-693-0 01 1 0710- ● ●
10 CONNECTOR
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0710- ● ●
10 CONNECTOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0710-0711 ● ●
10 CONNECTOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0712- ●
10 CONNECTOR
(C) DIN12 & M22 STRAIGHT 		1-09661-050-0 01 1 0710- ● ●
10 CONNECTOR
(E) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 02 1 0712- ●
12 CONNECTOR; RELAY VLV
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0710- ●
12 CONNECTOR; RELAY VLV
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0710- ● ●
12 CONNECTOR; RELAY VLV
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0710- ● ●
12 CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0710- ● ●
12 CONNECTOR; RELAY VLV
(F) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0710- ● ●
12 CONNECTOR; RELAY VLV
(B) 		1-09661-207-0 01 1 0710- ● ●
12 CONNECTOR; RELAY VLV
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0710- ●
25 SWITCH; PRESSURE
(A) STAMP 5.5 		8-97609-249-0 01 1 0710- ● ●
25 SWITCH; PRESSURE
(B) 		8-98010-856-1 01 1 0710- ● ●
52 CONNECTOR; RELAY VLV
(C) 		1-09661-537-0 01 1 0710-0811 ● ●
52 CONNECTOR; RELAY VLV
(C) DIN8 & RC1/4 & R3/8 3WAY 		8-97620-116-0 01 1 0812- ● ●
52 CONNECTOR; RELAY VLV
H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0710- ● ●
52 CONNECTOR; RELAY VLV
EXC. H.S.A SYSTEM<6EP> (B) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0710- ● ●
56 BRACKET; RELAY VLV 1-47479-937-0 01 1 0710- ●
58 ADAPTER
(B) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 0710- ● ●
58 ADAPTER
(A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0710- ● ●
58 ADAPTER
(C) 		1-48219-154-0 01 1 0710- ● ●
58 ADAPTER
(C) 		1-48219-154-0 02 1 0710- ● ●
62 BOLT; BRKT FIX
(B) M8X20 FLANGE 		0-28050-820-0 02 1 0710-0711 ●
62 BOLT; BRKT FIX
(B) M8X20 FLANGE 		0-28050-820-0 02 1 0710-0711 ●
62 BOLT; BRKT FIX
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0712-0803 ●
62 BOLT; BRKT FIX
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0712-0803 ●
62 BOLT; BRKT FIX
(B) M8X25 FLANGE 		0-28650-825-0 04 1 0804- ●
62 BOLT; BRKT FIX
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0710- ● ●
63 NUT; BRKT FIX
(B) M8 		0-91110-508-0 02 1 0710-0711 ●
63 NUT; BRKT FIX
(B) M8 		0-91110-508-0 02 1 0710-0711 ●
63 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ● ●
63 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 0712-0803 ● ●
63 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 0712-0803 ●
63 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 0712-0803 ●
63 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 04 1 0804- ●
63 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 0804- ● ●
65 BRACKET; RELAY VLV RR 1-47471-032-0 01 1 0710- ● ●
73 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0710- ●
73 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0710- ●
74 CONNECTOR; 3WAY 1-09661-536-0 01 1 0710- ● ●
182 PLUG; RELAY VLV
PT3/8 		9-09204-517-0 03 1 0710- ●
182 PLUG; RELAY VLV
PT3/8 		9-09204-517-0 02 1 0710- ●
213 GASKET
ID=22.5 		9-09571-422-0 04 1 0710- ● ●

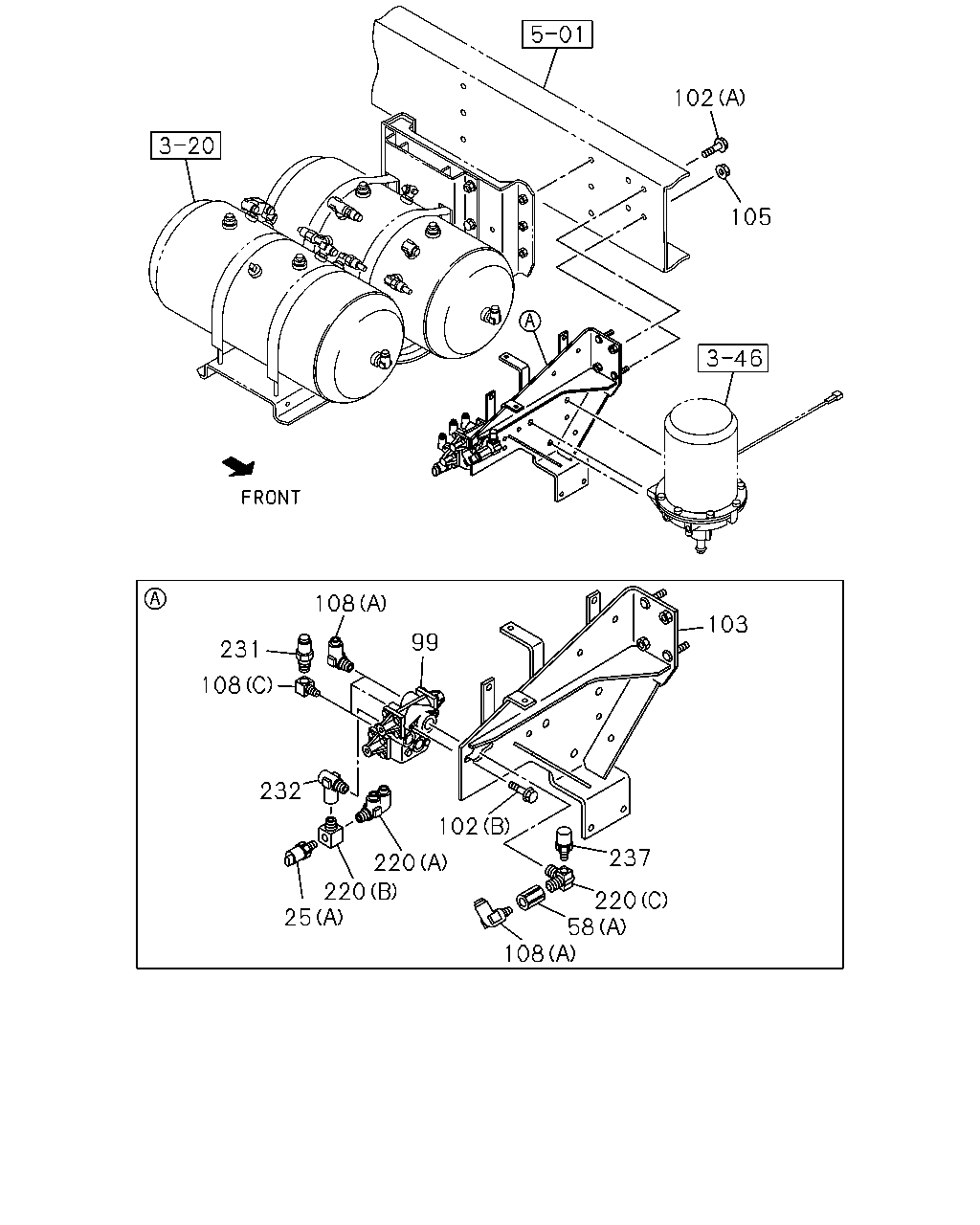

çizim 111135
102 105 108 103 99 231 108 232 102 237 220 220 25 220 58 108
BalonParca AdiParca NoAdetTipApplied Date A B
25 SWITCH; PRESSURE
(A) STAMP 5.5 		8-97609-249-0 01 1 0710- ● ●
25 SWITCH; PRESSURE
(B) 		8-98010-856-1 01 1 0710- ● ●
58 ADAPTER
(B) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 0710- ● ●
58 ADAPTER
(A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0710- ● ●
58 ADAPTER
(C) 		1-48219-154-0 01 1 0710- ● ●
58 ADAPTER
(C) 		1-48219-154-0 02 1 0710- ● ●
99 VALVE; PROTECTION 1-48110-294-2 01 1 0710- ● ●
102 BOLT; PROTECTION VALVE
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0710- ● ●
102 BOLT; PROTECTION VALVE
(A) M10X40 FLANGE 		0-28051-040-0 02 1 0710-0711 ● ●
102 BOLT; PROTECTION VALVE
(A) M10X35 FLANGE 		0-28651-035-0 02 1 0712- ● ●
103 BRACKET; PROTECTION VALVE 8-98073-219-1 01 1 0710-0710 ● ●
103 BRACKET; PROTECTION VALVE 8-98100-094-0 01 1 0710-0801 ● ●
103 BRACKET; PROTECTION VALVE 8-98073-219-1 01 1 0802-0805 ● ●
103 BRACKET; PROTECTION VALVE 8-98119-704-0 01 1 0806- ● ●
105 NUT; BRKT,VALVE
M10 FLANGE 		0-91180-210-0 02 1 0710- ● ●
108 CONNECTOR; ELBOW
(C) PT3/8 ELBOW 		1-09660-696-0 01 1 0710- ● ●
108 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0710- ● ●
108 CONNECTOR; ELBOW
(B) DIN12 & M22 ELBOW 		1-09661-497-0 04 1 0710- ● ●
220 CONNECTOR; 3WAY
(B) 		1-09656-708-0 01 1 0710-1101 ● ●
220 CONNECTOR; 3WAY
(B) 		8-98166-127-0 01 1 1102- ● ●
220 CONNECTOR; 3WAY
(A) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0710- ● ●
220 CONNECTOR; 3WAY
(C) 		8-98031-238-0 01 1 0710- ● ●
231 CONNECTOR; NYLON TUBE
DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0710- ● ●
232 VALVE; CHECK 8-98032-527-0 01 1 0710- ● ●
237 VALVE; SAFETY 1-48320-012-2 01 1 0710- ● ●

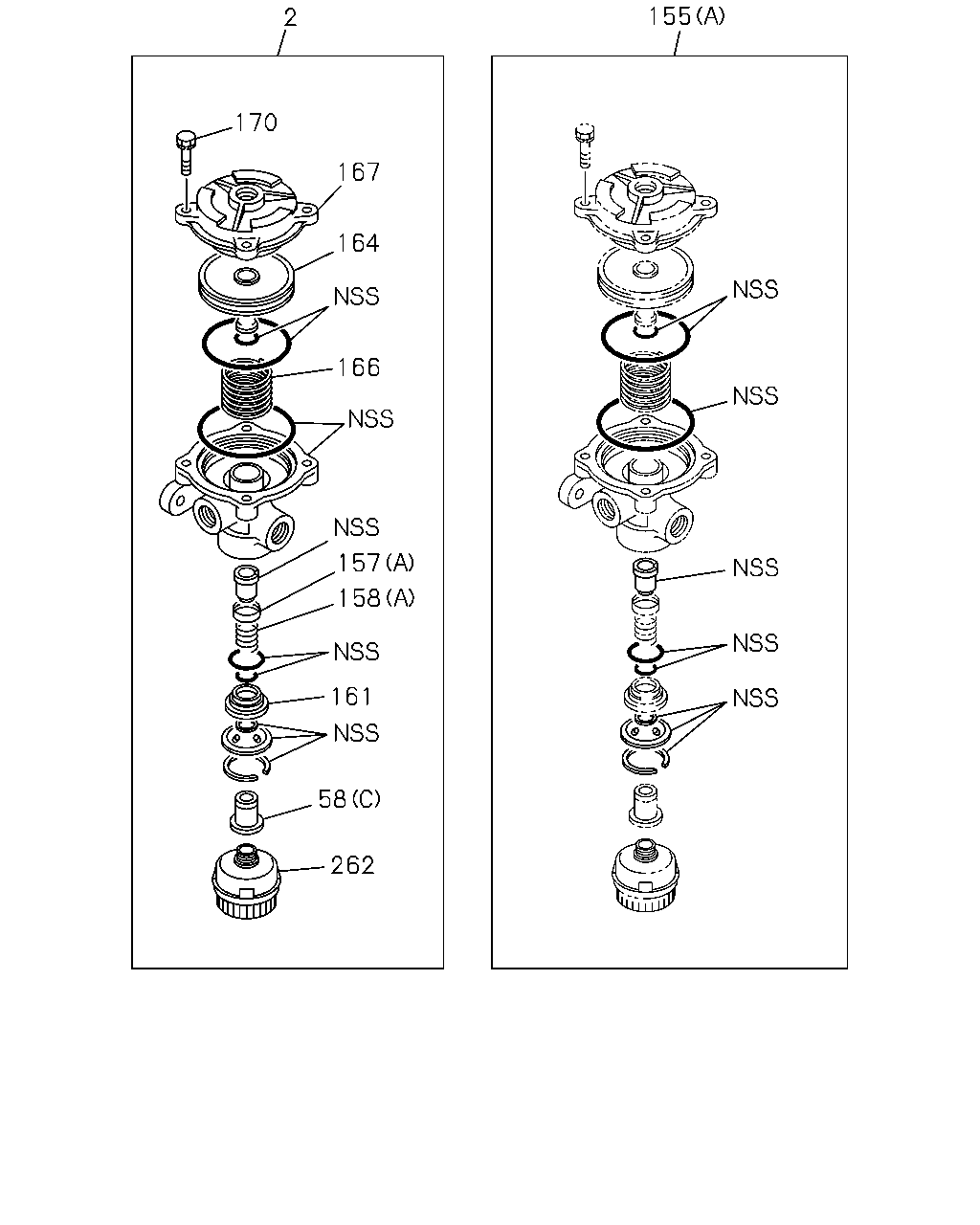

çizim 111137
155 2 170 167 164 166 157 158 161 58 262
BalonParca AdiParca NoAdetTipApplied Date A B
2 VALVE; RELAY 1-48210-997-0 01 1 0710- ● ●
2 VALVE; RELAY 1-48210-997-0 02 1 0710- ● ●
58 ADAPTER
(B) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 0710- ● ●
58 ADAPTER
(A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0710- ● ●
58 ADAPTER
(C) 		1-48219-154-0 01 1 0710- ● ●
58 ADAPTER
(C) 		1-48219-154-0 02 1 0710- ● ●
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-294-0 01 1 0710- ● ●
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-294-0 02 1 0710- ● ●
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-408-0 01 1 0710- ● ●
157 RETAINER; VALVE
(B) 		1-48419-036-0 01 1 0710-0803 ●
157 RETAINER; VALVE
(B) 		1-48419-036-0 01 1 0710-0803 ●
157 RETAINER; VALVE
(B) 		1-48419-036-0 02 1 0804-1008 ●
157 RETAINER; VALVE
(B) 		1-48419-020-0 02 1 1009- ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0710- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 02 1 0710- ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 0710-0803 ●
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 0710-0803 ●
158 SPRING; VALVE
(B) 		9-48419-003-0 02 1 0804- ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0710- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 02 1 0710- ● ●
161 GUIDE; VALVE 1-48129-014-0 01 1 0710- ● ●
161 GUIDE; VALVE 1-48129-014-0 02 1 0710- ● ●
164 PISTON; RELAY VALVE 1-48219-071-0 01 1 0710- ● ●
164 PISTON; RELAY VALVE 1-48219-071-0 02 1 0710- ● ●
166 SPRING; PISTON 1-47819-090-0 01 1 0710- ● ●
166 SPRING; PISTON 1-47819-090-0 02 1 0710- ● ●
167 COVER; VALVE 1-48219-070-0 01 1 0710- ● ●
167 COVER; VALVE 1-48219-070-0 02 1 0710- ● ●
170 SCREW; COVER TO BODY 1-48219-039-0 04 1 0710- ● ●
170 SCREW; COVER TO BODY 1-48219-039-0 08 1 0710- ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 0710-0712 ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 0710-0712 ●
262 SILENCER; RELAY VALVE 1-48219-149-0 03 1 0801-0803 ●
262 SILENCER; RELAY VALVE 1-48219-149-0 04 1 0804- ●
262 SILENCER; RELAY VALVE 1-48219-149-0 02 1 0710-0712 ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 0801-0803 ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 0804- ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 02 1 0801- ●

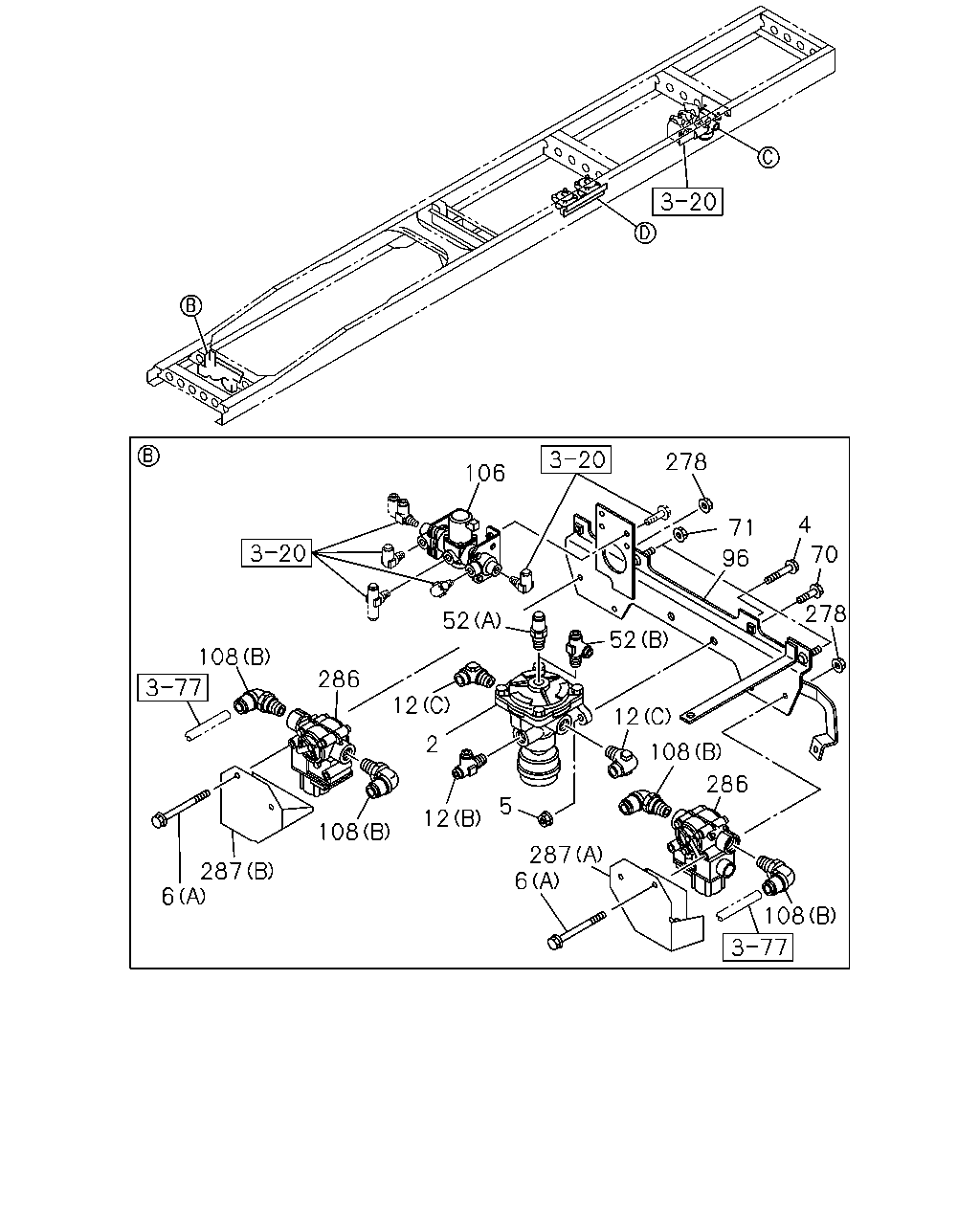

çizim 111139
278 106 4 71 70 96 278 52 52 108 286 12 12 2 108 286 5 12 108 287 6 287 6 108
BalonParca AdiParca NoAdetTipApplied Date A B
2 VALVE; RELAY 1-48210-997-0 01 1 0710- ● ●
2 VALVE; RELAY 1-48210-997-0 02 1 0710- ● ●
4 BOLT; RELAY VLV TO BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0710- ● ●
4 BOLT; RELAY VLV TO BRKT
M10X30 FLANGE 		0-28651-030-0 04 1 0710-0805 ●
4 BOLT; RELAY VLV TO BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 0806- ●
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 0710- ● ●
5 NUT
M10 FLANGE 		0-91180-210-0 04 1 0710- ●
6 BOLT; VLV
(A) M8X80 FLANGE 		0-28050-880-0 04 1 0710-1408 ● ●
6 BOLT; VLV
(A) M8X85 		1-09044-074-0 04 1 1409- ● ●
6 BOLT; VLV
(B) M8X35 FLANGE 		0-28650-835-0 02 1 0710- ● ●
12 CONNECTOR; RELAY VLV
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0710- ●
12 CONNECTOR; RELAY VLV
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0710- ● ●
12 CONNECTOR; RELAY VLV
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0710- ● ●
12 CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0710- ● ●
12 CONNECTOR; RELAY VLV
(F) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0710- ● ●
12 CONNECTOR; RELAY VLV
(B) 		1-09661-207-0 01 1 0710- ● ●
12 CONNECTOR; RELAY VLV
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0710- ●
52 CONNECTOR; RELAY VLV
(C) 		1-09661-537-0 01 1 0710-0811 ● ●
52 CONNECTOR; RELAY VLV
(C) DIN8 & RC1/4 & R3/8 3WAY 		8-97620-116-0 01 1 0812- ● ●
52 CONNECTOR; RELAY VLV
H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0710- ● ●
52 CONNECTOR; RELAY VLV
EXC. H.S.A SYSTEM<6EP> (B) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0710- ● ●
70 BOLT; AIR VLV
M8X25 FLANGE 		0-28650-825-0 02 1 0710- ● ●
71 NUT; AIR VLV
M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
96 BRACKET 8-98074-613-3 01 1 0710-1408 ● ●
96 BRACKET 8-98273-496-0 01 1 1409- ● ●
106 VALVE; HSA
H.S.A SYSTEM<6EP> 		1-46362-123-1 01 1 0710- ● ●
108 CONNECTOR; ELBOW
(C) PT3/8 ELBOW 		1-09660-696-0 01 1 0710- ● ●
108 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0710- ● ●
108 CONNECTOR; ELBOW
(B) DIN12 & M22 ELBOW 		1-09661-497-0 04 1 0710- ● ●
278 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 04 1 0710-0712 ● ●
286 MODULATOR; FRT 1-48240-115-0 02 1 0710-1408 ● ●
286 MODULATOR; FRT 8-98215-454-0 02 1 1409- ● ●
287 COVER; MODULATOR
(A) 		1-47479-611-1 01 1 0710-1408 ● ●
287 COVER; MODULATOR
(A) 		8-98273-493-0 01 1 1409- ● ●
287 COVER; MODULATOR
(B) 		8-98073-401-0 01 1 0710-1408 ● ●
287 COVER; MODULATOR
(B) 		8-98273-494-0 01 1 1409- ● ●

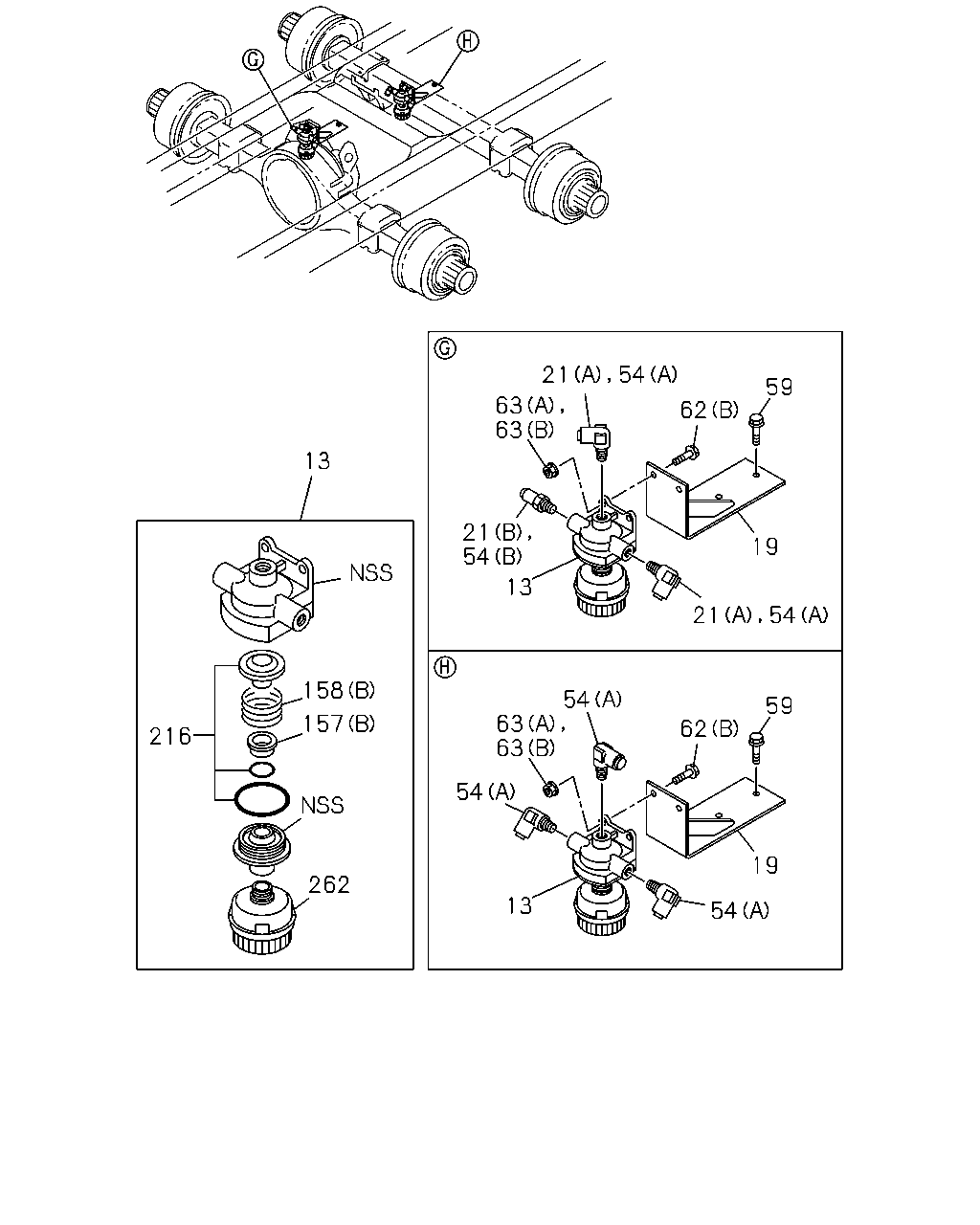

çizim 111141
21 54 59 63 63 62 13 21 54 19 13 21 54 158 54 63 63 59 157 62 216 54 19 262 13 54
BalonParca AdiParca NoAdetTipApplied Date A B
13 VALVE ASM; QUICK RELEASE 1-48410-733-0 01 1 0710-0803 ●
13 VALVE ASM; QUICK RELEASE 1-48410-733-0 01 1 0710-0803 ●
13 VALVE ASM; QUICK RELEASE 1-48410-733-0 02 1 0804-1008 ●
13 VALVE ASM; QUICK RELEASE 8-98170-207-0 02 1 1009- ●
19 BRACKET; QUICK RELEASE VLV
FORWARD 		8-98179-172-0 01 1 1108- ●
19 BRACKET; QUICK RELEASE VLV 8-98033-795-0 01 1 0710-0803 ●
19 BRACKET; QUICK RELEASE VLV 8-98033-795-0 01 1 0710-0803 ●
19 BRACKET; QUICK RELEASE VLV 8-98033-795-0 02 1 0804-1107 ●
19 BRACKET; QUICK RELEASE VLV
REARWARD 		8-98033-795-0 01 1 1108- ●
21 CONNECTOR; QUICK RELEASE VLV
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1108- ●
21 CONNECTOR; QUICK RELEASE VLV
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1108- ●
54 CONNECTOR; QUICK RELEASE VLV
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0710-0803 ●
54 CONNECTOR; QUICK RELEASE VLV
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0710-0803 ●
54 CONNECTOR; QUICK RELEASE VLV
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 05 1 0804-1107 ●
54 CONNECTOR; QUICK RELEASE VLV
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1108- ●
54 CONNECTOR; QUICK RELEASE VLV
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0710-1107 ●
59 BOLT; RELEASE VALVE FIX
M8X16 FLANGE 		0-28050-816-0 04 1 0710- ●
62 BOLT; BRKT FIX
(B) M8X20 FLANGE 		0-28050-820-0 02 1 0710-0711 ●
62 BOLT; BRKT FIX
(B) M8X20 FLANGE 		0-28050-820-0 02 1 0710-0711 ●
62 BOLT; BRKT FIX
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0712-0803 ●
62 BOLT; BRKT FIX
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0712-0803 ●
62 BOLT; BRKT FIX
(B) M8X25 FLANGE 		0-28650-825-0 04 1 0804- ●
62 BOLT; BRKT FIX
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0710- ● ●
63 NUT; BRKT FIX
(B) M8 		0-91110-508-0 02 1 0710-0711 ●
63 NUT; BRKT FIX
(B) M8 		0-91110-508-0 02 1 0710-0711 ●
63 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ● ●
63 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 0712-0803 ● ●
63 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 0712-0803 ●
63 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 0712-0803 ●
63 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 04 1 0804- ●
63 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 0804- ● ●
157 RETAINER; VALVE
(B) 		1-48419-036-0 01 1 0710-0803 ●
157 RETAINER; VALVE
(B) 		1-48419-036-0 01 1 0710-0803 ●
157 RETAINER; VALVE
(B) 		1-48419-036-0 02 1 0804-1008 ●
157 RETAINER; VALVE
(B) 		1-48419-020-0 02 1 1009- ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0710- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 02 1 0710- ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 0710-0803 ●
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 0710-0803 ●
158 SPRING; VALVE
(B) 		9-48419-003-0 02 1 0804- ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0710- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 02 1 0710- ● ●
216 REPAIR KIT; QUICK RELEASE VLV 1-85579-062-0 01 1 0710-0803 ●
216 REPAIR KIT; QUICK RELEASE VLV 1-85579-062-0 01 1 0710-0803 ●
216 REPAIR KIT; QUICK RELEASE VLV 1-85579-062-0 02 1 0804-1008 ●
216 REPAIR KIT; QUICK RELEASE VLV 8-98171-596-0 02 1 1009- ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 0710-0712 ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 0710-0712 ●
262 SILENCER; RELAY VALVE 1-48219-149-0 03 1 0801-0803 ●
262 SILENCER; RELAY VALVE 1-48219-149-0 04 1 0804- ●
262 SILENCER; RELAY VALVE 1-48219-149-0 02 1 0710-0712 ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 0801-0803 ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 0804- ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 02 1 0801- ●

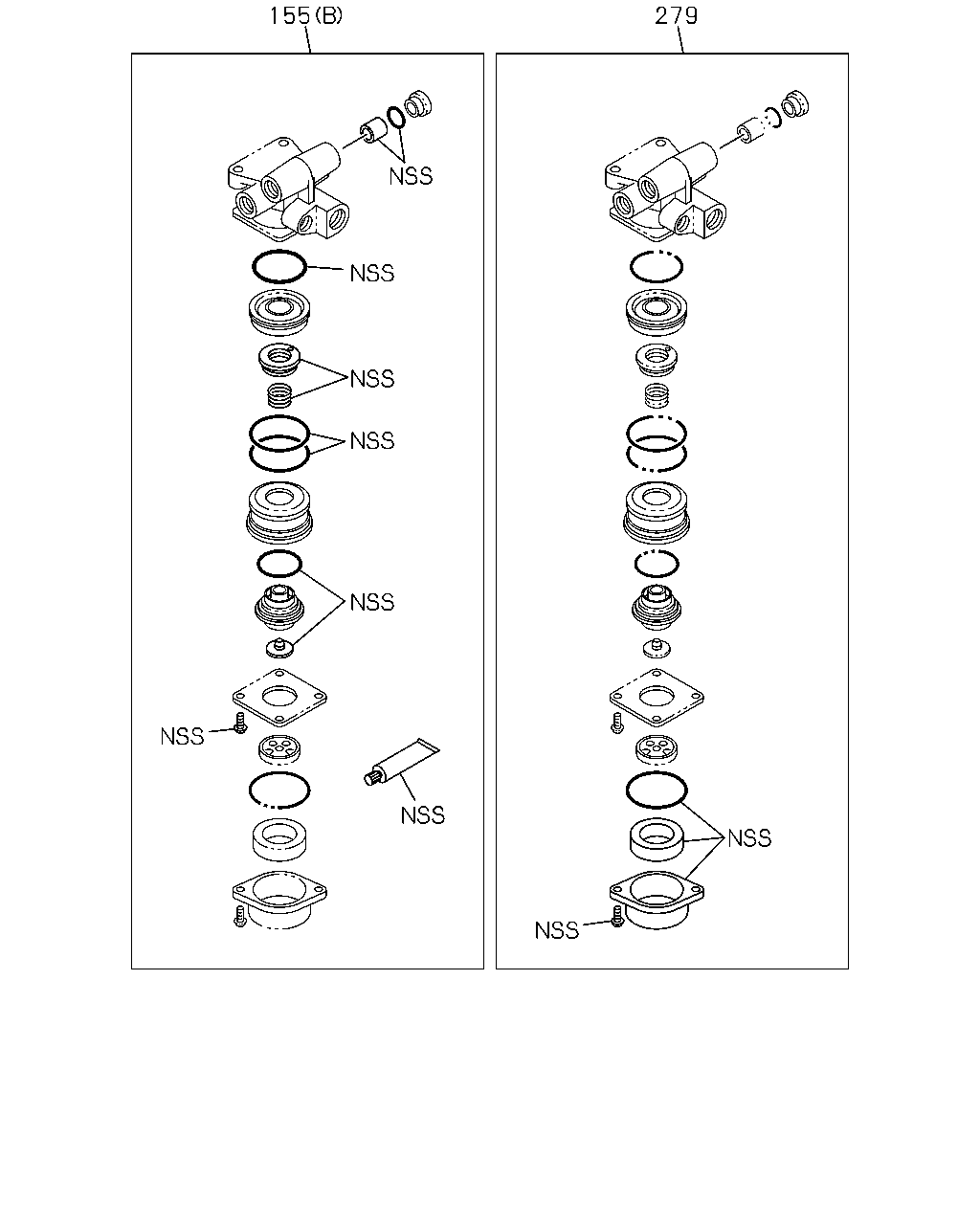

çizim 111143
155 279
BalonParca AdiParca NoAdetTipApplied Date A B
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-294-0 01 1 0710- ● ●
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-294-0 02 1 0710- ● ●
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-408-0 01 1 0710- ● ●
279 REPAIR KIT; SILENCER 1-85576-409-0 01 1 0710- ● ●
çizim 111158
195 201 106 189 192 204 202 190 198 203 205 196 199 200 198 205 197 201 199 201 196 203 197 200
BalonParca AdiParca NoAdetTipApplied Date A B
106 VALVE; HSA
H.S.A SYSTEM<6EP> 		1-46362-123-1 01 1 0710- ● ●
189 VALVE ASM; SOLENOID,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-247-0 01 1 0710- ● ●
190 BODY; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-234-0 01 1 0710- ● ●
192 SPRING; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-181-0 01 1 0710- ● ●
195 SCREW; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-191-0 04 1 0710- ● ●
196 PISTON; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-232-0 02 1 0710- ● ●
197 SPRING; INNER,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-161-0 02 1 0710- ● ●
198 PIN; STRAIGHT,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-122-0 02 1 0710- ● ●
199 RETAINER; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-121-0 02 1 0710- ● ●
200 SPRING; OUTER,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-120-0 02 1 0710- ● ●
201 COVER; HSA VLV
H.S.A SYSTEM<6EP> (A) 		1-46366-118-1 02 1 0710- ● ●
201 COVER; HSA VLV
H.S.A SYSTEM<6EP> (B) 		1-46366-241-0 01 1 0710- ● ●
202 FILTER; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-117-1 02 1 0710- ● ●
203 SCREW; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-116-1 06 1 0710- ● ●
204 PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-194-0 01 1 0710- ● ●
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (A) 		1-46366-149-0 01 1 0710- ● ●
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (B) 		1-46366-150-0 01 1 0710- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
