◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11423 - FVM(AUST)EURO4 ▶ 3 - Brakes, Brake System ▶ 3-20 - AIR TANK ▶
3-20 — AIR TANK (#44418) — 244 parça

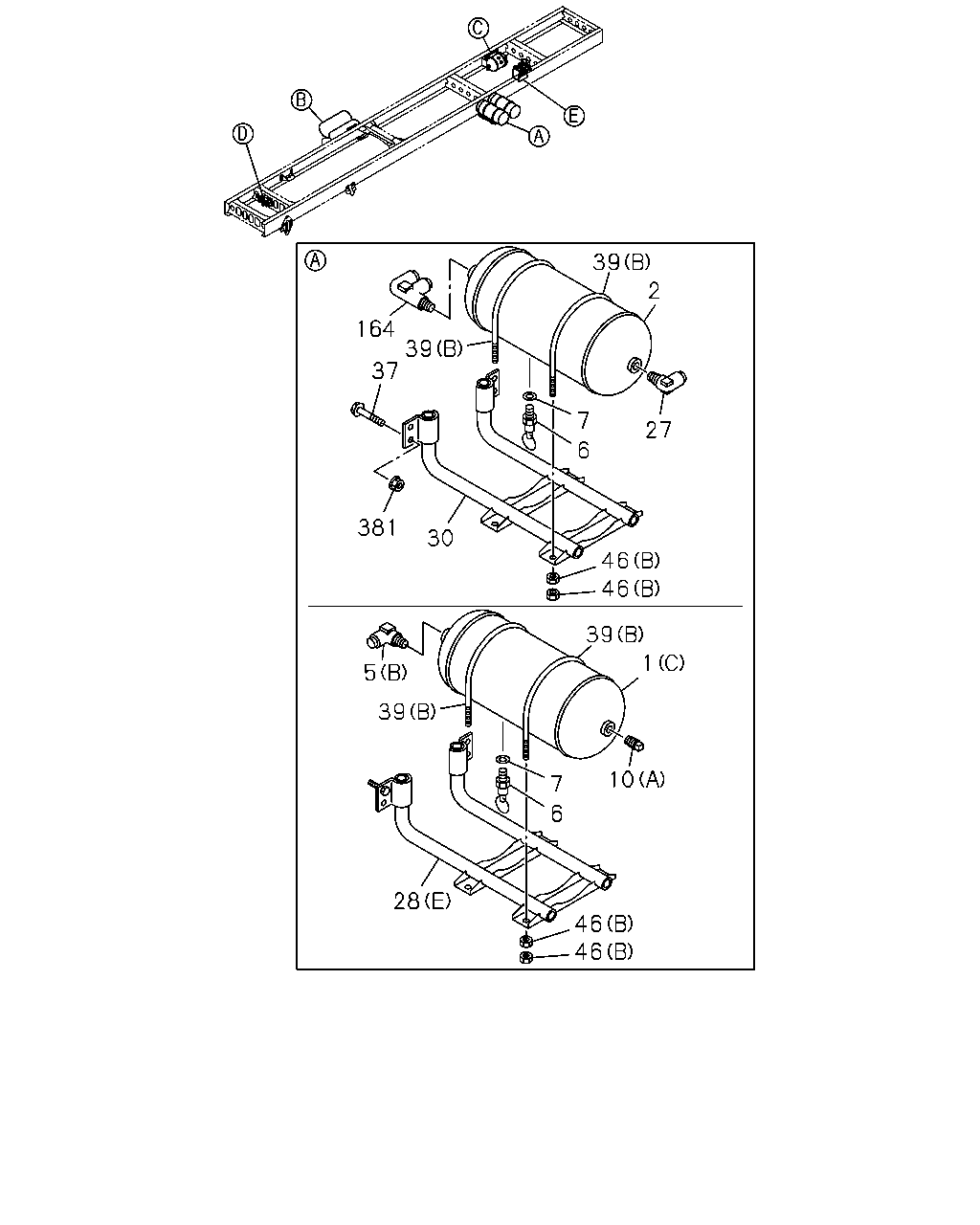

çizim 111125
39 2 164 39 37 7 27 6 381 30 46 46 39 1 5 39 10 7 6 28 46 46
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; AIR
(B) 		8-98090-803-1 01 1 0710-0906 ● ●
1 TANK ASM; AIR
(B) 		8-98081-870-1 01 1 0907- ● ●
1 TANK ASM; AIR
COUNTRY NEW ZEALAND(CX6) (C) 		1-48371-435-0 01 1 0806- ●
1 TANK ASM; AIR
(A) 		1-48370-961-0 02 1 0710- ● ●
2 TANK; AIR 1-48371-435-0 01 1 0710- ● ●
5 UNION; AIR TANK
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0710-0711 ●
5 UNION; AIR TANK
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0712- ●
5 UNION; AIR TANK
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0710-0711 ● ●
5 UNION; AIR TANK
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0712- ● ●
5 UNION; AIR TANK
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0712-0805 ●
5 UNION; AIR TANK
COUNTRY NEW ZEALAND(CX6) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0806- ●
5 UNION; AIR TANK
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0806- ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0710-0710 ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0710-0710 ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0710-0805 ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0710-0805 ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0806- ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0806- ● ●
6 COCK; DRAIN,AIR TANK
COUNTRY NEW ZEALAND(CX6) 		1-48312-015-0 01 1 0806- ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 04 1 0710- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0710-0710 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0710-0710 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0710-0805 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0710-0805 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0806- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0806- ● ●
7 GASKET; DRAIN COCK
COUNTRY NEW ZEALAND(CX6) ID=14 		1-09630-145-0 01 1 0806- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 0710- ● ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 0710-0710 ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 0710-0711 ● ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 0712- ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 01 1 0710-0711 ● ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 01 1 0712-0805 ● ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 01 1 0712-0805 ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 01 1 0806- ● ●
10 PLUG; AIR TANK
COUNTRY NEW ZEALAND(CX6) (A) PT3/8 		9-09204-517-0 01 1 0806- ●
10 PLUG; AIR TANK
(B) PT3/4 		9-09204-526-0 04 1 0710- ● ●
27 UNION; ELBOW,AIR TANK
DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0710- ● ●
28 BRACKET; AIR TANK
(D) 		8-98092-756-1 01 1 0710- ● ●
28 BRACKET; AIR TANK
(C) 		8-98092-757-0 01 1 0710- ● ●
28 BRACKET; AIR TANK
COUNTRY NEW ZEALAND(CX6) (E) 		8-98047-746-2 01 1 0806- ●
28 BRACKET; AIR TANK
(A) 		8-98048-199-0 01 1 0710- ● ●
28 BRACKET; AIR TANK
(B) 		8-98048-200-2 01 1 0710- ● ●
30 BRACKET; AIR TANK,SUB 8-98047-746-2 01 1 0710- ● ●
37 BOLT; AIR TANK
M14X50 		0-20851-450-0 02 1 0710-0805 ● ●
37 BOLT; AIR TANK
M14X50 		0-20851-450-0 02 1 0806-0807 ● ●
37 BOLT; AIR TANK
COUNTRY NEW ZEALAND(CX6) M14X50 		0-20851-450-0 02 1 0806-0807 ●
37 BOLT; AIR TANK
M14X50 		0-20851-450-0 03 1 0808- ● ●
37 BOLT; AIR TANK
COUNTRY NEW ZEALAND(CX6) M14X50 		0-20851-450-0 03 1 0808- ●
37 BOLT; AIR TANK
M12X40 FLANGE 		0-28651-240-0 06 1 0710- ● ●
39 U-BOLT; AIR TANK
(A) M10X35 FLANGE 		0-28651-035-0 04 1 0710-0906 ● ●
39 U-BOLT; AIR TANK
(C) L=210 		1-48317-458-1 02 1 0710- ● ●
39 U-BOLT; AIR TANK
(B) 		1-48317-289-0 02 1 0710-0805 ● ●
39 U-BOLT; AIR TANK
(B) 		1-48317-289-0 02 1 0806- ● ●
39 U-BOLT; AIR TANK
COUNTRY NEW ZEALAND(CX6) (B) 		1-48317-289-0 02 1 0806- ●
46 NUT; U-BOLT
(A) M10 		0-91110-510-0 04 1 0710-0906 ● ●
46 NUT; U-BOLT
(B) M8 		0-91110-508-0 08 1 0710-0805 ● ●
46 NUT; U-BOLT
(B) M8 		0-91110-508-0 08 1 0710-0805 ● ●
46 NUT; U-BOLT
(B) M8 		0-91110-508-0 08 1 0806- ● ●
46 NUT; U-BOLT
(B) M8 		0-91110-508-0 08 1 0806- ● ●
46 NUT; U-BOLT
COUNTRY NEW ZEALAND(CX6) (B) M8 		0-91110-508-0 08 1 0806- ●
164 CONNECTOR; SUB AIR TANK
DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0710- ● ●
381 NUT; SUB TANK
M14 		0-91110-514-0 04 1 0710-0805 ● ●
381 NUT; SUB TANK
M14 		0-91110-514-0 04 1 0806- ● ●
381 NUT; SUB TANK
COUNTRY NEW ZEALAND(CX6) M14 		0-91110-514-0 04 1 0806- ●

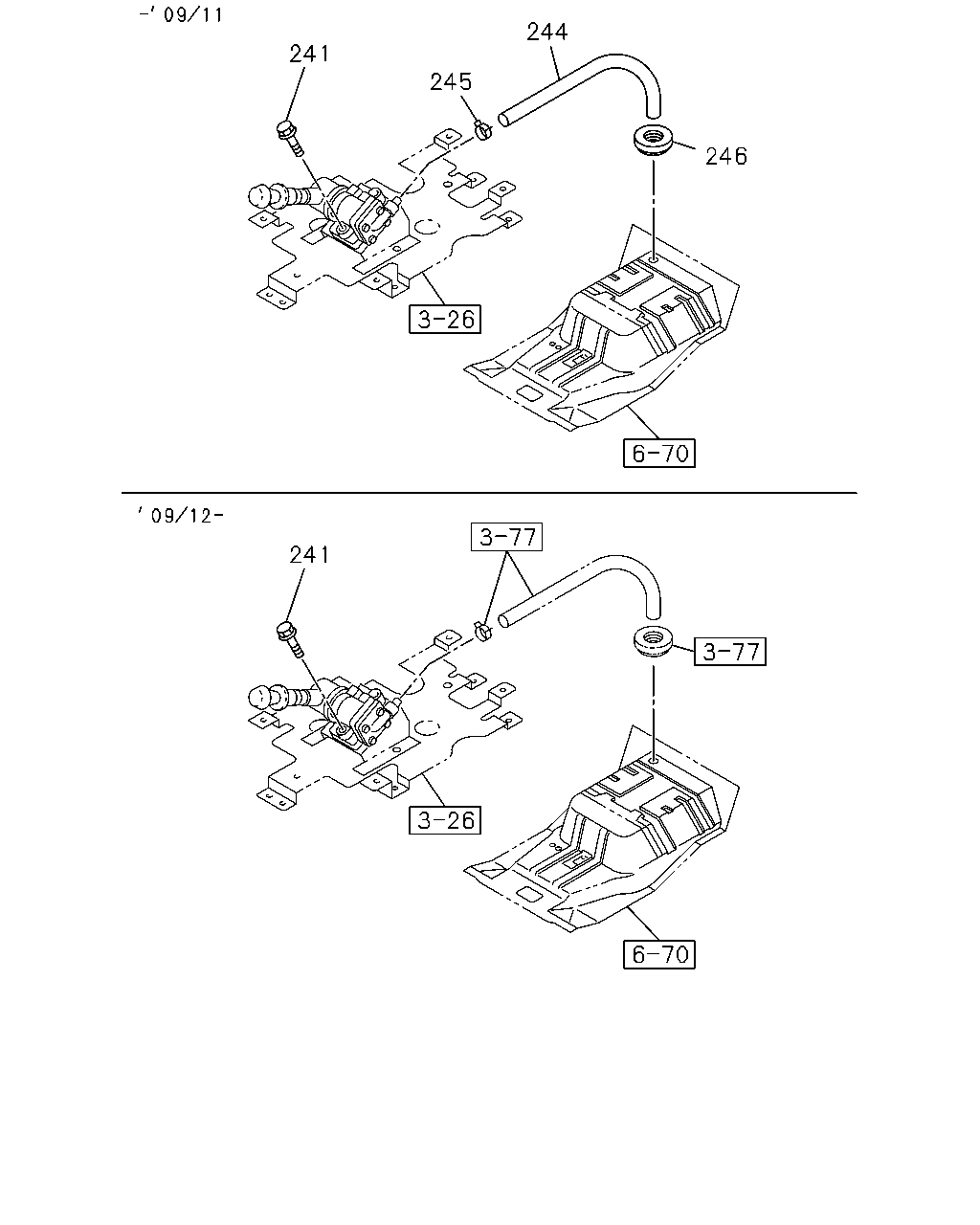

çizim 111129
244 241 245 246 241
BalonParca AdiParca NoAdetTipApplied Date A B
241 BOLT; SET,CONT VLV
M8X70 FLANGE 		0-28050-870-0 02 1 0710- ● ●
244 PIPE; VINYL,EXH
L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 0710-0911 ● ●
245 CLIP; VINYL PIPE
ID=14 		8-94238-572-0 01 1 0710-0911 ● ●
246 GROMMET; VINYL PIPE
OD=24 		9-61166-007-0 01 1 0710-0911 ● ●

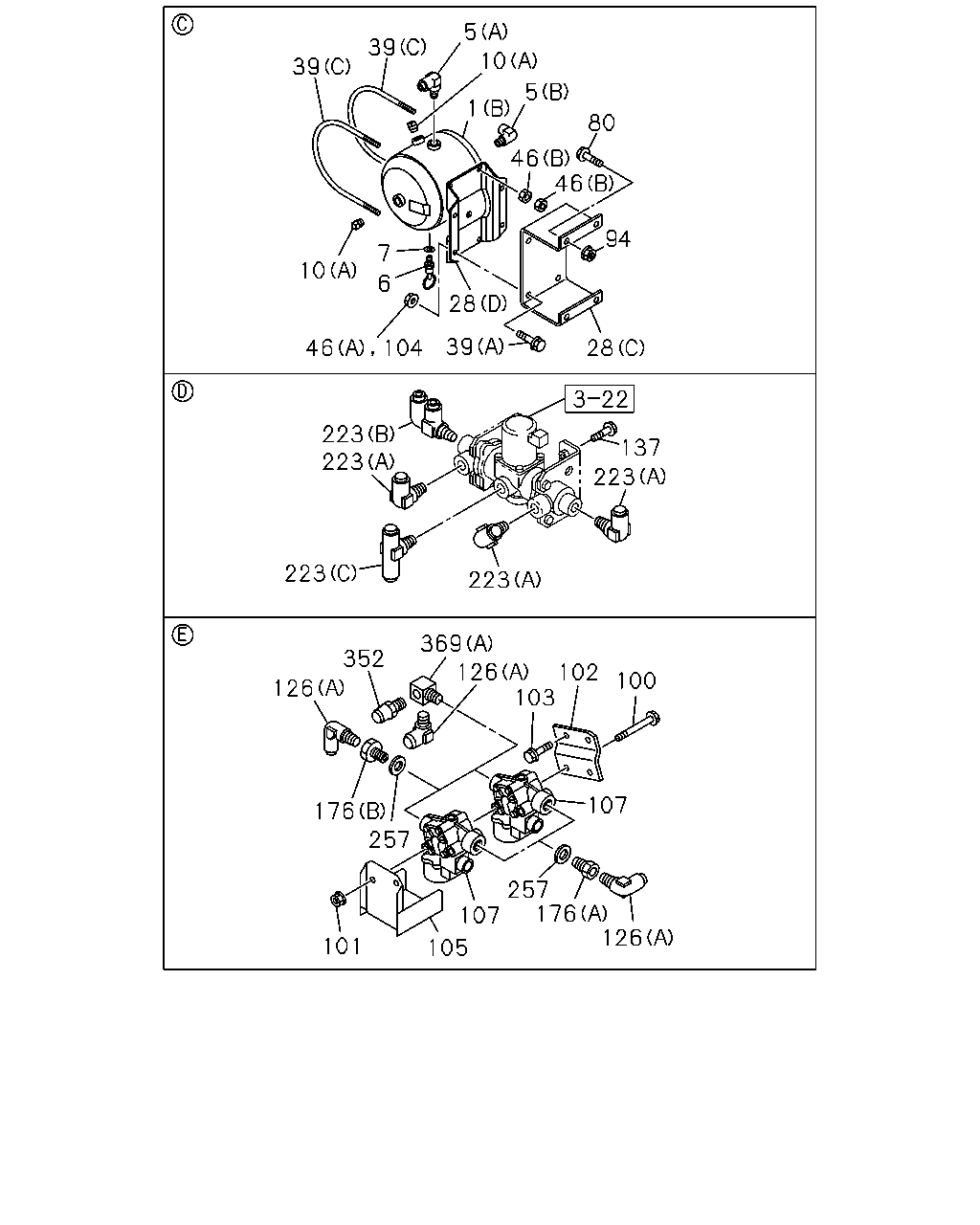

çizim 111130
5 39 10 39 5 1 80 46 46 94 7 10 6 28 39 46 104 28 223 223 137 223 223 223 369 126 102 103 352 100 126 107 176 257 257 107 176 126 101 105
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; AIR
(B) 		8-98090-803-1 01 1 0710-0906 ● ●
1 TANK ASM; AIR
(B) 		8-98081-870-1 01 1 0907- ● ●
1 TANK ASM; AIR
COUNTRY NEW ZEALAND(CX6) (C) 		1-48371-435-0 01 1 0806- ●
1 TANK ASM; AIR
(A) 		1-48370-961-0 02 1 0710- ● ●
5 UNION; AIR TANK
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0710-0711 ●
5 UNION; AIR TANK
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0712- ●
5 UNION; AIR TANK
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0710-0711 ● ●
5 UNION; AIR TANK
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0712- ● ●
5 UNION; AIR TANK
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0712-0805 ●
5 UNION; AIR TANK
COUNTRY NEW ZEALAND(CX6) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0806- ●
5 UNION; AIR TANK
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0806- ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0710-0710 ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0710-0710 ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0710-0805 ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0710-0805 ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0806- ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0806- ● ●
6 COCK; DRAIN,AIR TANK
COUNTRY NEW ZEALAND(CX6) 		1-48312-015-0 01 1 0806- ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 04 1 0710- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0710-0710 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0710-0710 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0710-0805 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0710-0805 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0806- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0806- ● ●
7 GASKET; DRAIN COCK
COUNTRY NEW ZEALAND(CX6) ID=14 		1-09630-145-0 01 1 0806- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 0710- ● ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 0710-0710 ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 0710-0711 ● ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 0712- ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 01 1 0710-0711 ● ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 01 1 0712-0805 ● ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 01 1 0712-0805 ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 01 1 0806- ● ●
10 PLUG; AIR TANK
COUNTRY NEW ZEALAND(CX6) (A) PT3/8 		9-09204-517-0 01 1 0806- ●
10 PLUG; AIR TANK
(B) PT3/4 		9-09204-526-0 04 1 0710- ● ●
28 BRACKET; AIR TANK
(D) 		8-98092-756-1 01 1 0710- ● ●
28 BRACKET; AIR TANK
(C) 		8-98092-757-0 01 1 0710- ● ●
28 BRACKET; AIR TANK
COUNTRY NEW ZEALAND(CX6) (E) 		8-98047-746-2 01 1 0806- ●
28 BRACKET; AIR TANK
(A) 		8-98048-199-0 01 1 0710- ● ●
28 BRACKET; AIR TANK
(B) 		8-98048-200-2 01 1 0710- ● ●
39 U-BOLT; AIR TANK
(A) M10X35 FLANGE 		0-28651-035-0 04 1 0710-0906 ● ●
39 U-BOLT; AIR TANK
(C) L=210 		1-48317-458-1 02 1 0710- ● ●
39 U-BOLT; AIR TANK
(B) 		1-48317-289-0 02 1 0710-0805 ● ●
39 U-BOLT; AIR TANK
(B) 		1-48317-289-0 02 1 0806- ● ●
39 U-BOLT; AIR TANK
COUNTRY NEW ZEALAND(CX6) (B) 		1-48317-289-0 02 1 0806- ●
46 NUT; U-BOLT
(A) M10 		0-91110-510-0 04 1 0710-0906 ● ●
46 NUT; U-BOLT
(B) M8 		0-91110-508-0 08 1 0710-0805 ● ●
46 NUT; U-BOLT
(B) M8 		0-91110-508-0 08 1 0710-0805 ● ●
46 NUT; U-BOLT
(B) M8 		0-91110-508-0 08 1 0806- ● ●
46 NUT; U-BOLT
(B) M8 		0-91110-508-0 08 1 0806- ● ●
46 NUT; U-BOLT
COUNTRY NEW ZEALAND(CX6) (B) M8 		0-91110-508-0 08 1 0806- ●
80 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 0710-0711 ● ●
80 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 03 1 0712-0806 ● ●
80 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 0807-0906 ● ●
80 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 0907-1003 ● ●
80 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 0907-1003 ● ●
80 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 1004- ● ●
80 BOLT; BRKT
M12X35 FLANGE 		0-28651-235-0 06 1 0710- ● ●
80 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1004- ● ●
94 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 04 1 0710-0711 ● ●
94 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 03 1 0712-0712 ● ●
94 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 04 1 0801- ● ●
100 BOLT; MODULATOR
M8X150 FLANGE 		0-28055-815-0 02 1 0710-0804 ● ●
100 BOLT; MODULATOR
M8X140 FLANGE 		0-28055-814-0 02 1 0805- ● ●
101 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
102 BRACKET; MODULATOR 8-98034-539-2 01 1 0710-1408 ● ●
102 BRACKET; MODULATOR 8-98273-170-0 01 1 1409- ● ●
103 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0710- ● ●
104 NUT; BRKT
M12 FLANGE 		0-91180-212-0 03 1 0710- ● ●
104 NUT; BRKT
M10 		0-91110-510-0 04 1 0907- ● ●
105 COVER; MODULATOR 1-47479-792-0 01 1 0710-1408 ●
105 COVER; MODULATOR 8-98272-749-0 01 1 1409- ●
107 MODULATOR; RR 1-48240-115-0 02 1 0710-1408 ● ●
107 MODULATOR; RR 8-98215-454-0 02 1 1409- ● ●
126 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0710- ●
126 CONNECTOR; ELBOW
COUNTRY NEW ZEALAND(CX6) (C) PT3/8 ELBOW 		1-09660-696-0 01 1 0806- ●
126 CONNECTOR; ELBOW
(B) PT1/4 2WAY 		1-09660-693-0 04 1 0710- ● ●
126 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0710-0710 ●
126 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0710- ●
137 BOLT; BRKT
H.S.A SYSTEM<6EP> M8X25 FLANGE 		0-28650-825-0 04 1 0710- ● ●
176 ADAPTER
(A) PT3/8 		1-09664-210-0 01 1 0710- ●
176 ADAPTER
(B) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 0710- ● ●
223 UNION
H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 03 1 0710- ● ●
223 UNION
H.S.A SYSTEM<6EP> (B) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0710- ● ●
223 UNION
H.S.A SYSTEM<6EP> (C) 		1-09661-073-0 01 1 0710- ● ●
257 GASKET; PLUG
ID=22.5 		9-09571-422-0 04 1 0710- ● ●
352 CONNECTOR; STRAIGHT
DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 0710- ●
352 CONNECTOR; STRAIGHT
DIN12 & R3/8 STRAIGHT 		1-09660-965-0 04 1 0710-0710 ●
352 CONNECTOR; STRAIGHT
DIN12 & R3/8 STRAIGHT 		1-09660-965-0 03 1 0710- ●
369 CONNECTOR; 3WAY
COUNTRY NEW ZEALAND(CX6) (C) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0806- ●
369 CONNECTOR; 3WAY
(B) 		1-09656-708-0 04 1 0710-1101 ● ●
369 CONNECTOR; 3WAY
(B) 		8-98166-127-0 04 1 1102- ● ●
369 CONNECTOR; 3WAY
(A) PT3/8 3WAY 		1-09661-300-0 02 1 0710-1111 ● ●
369 CONNECTOR; 3WAY
(A) 		8-98203-578-0 02 1 1112-1408 ● ●
369 CONNECTOR; 3WAY
(A) PT3/8 3WAY 		1-09661-300-0 02 1 1409- ● ●

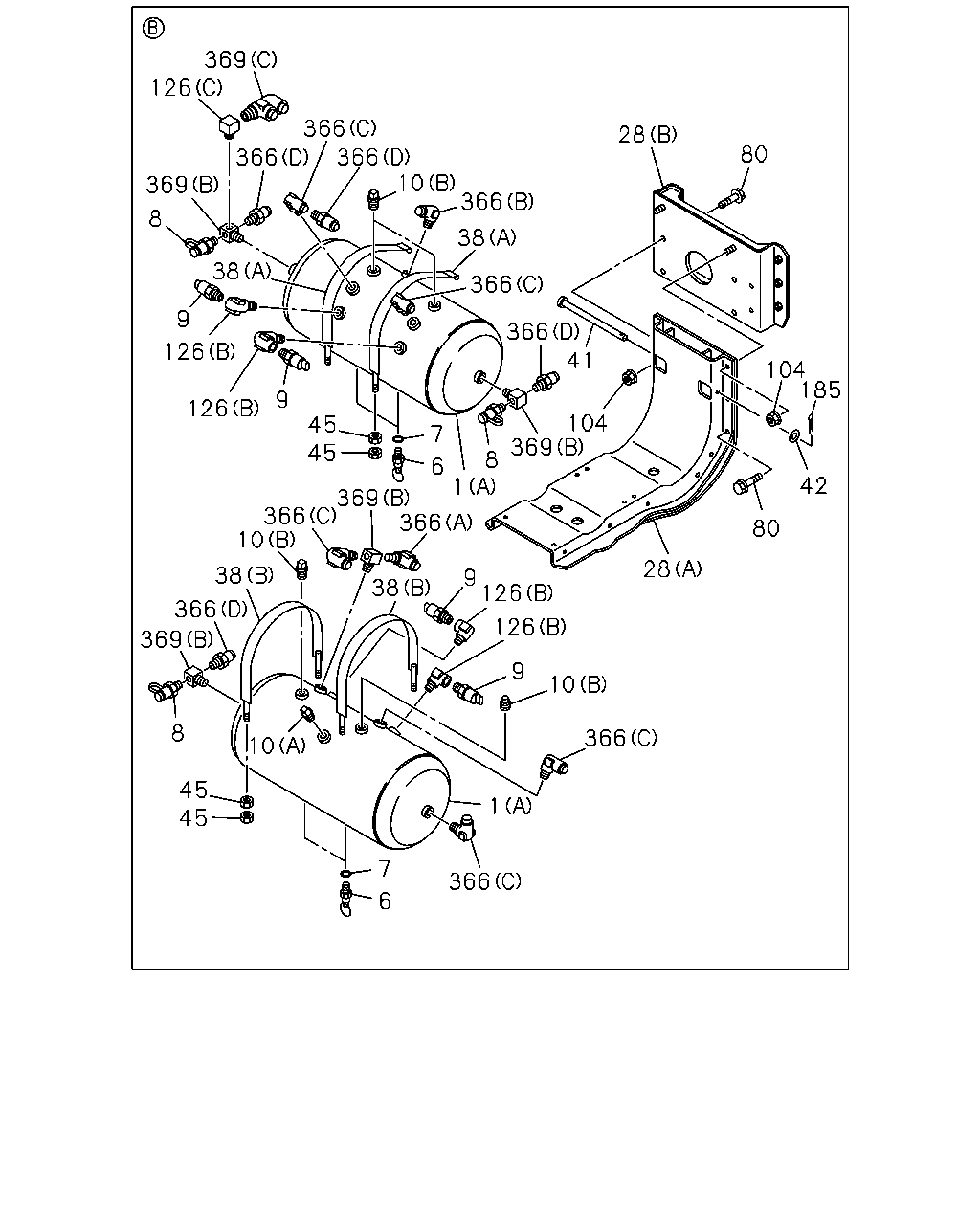

çizim 111132
369 126 366 28 80 366 10 366 366 369 8 38 38 366 9 366 126 41 104 185 9 126 104 369 45 45 7 8 1 6 42 369 366 366 10 80 28 38 9 126 38 366 126 369 9 10 8 366 10 45 45 1 7 366 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; AIR
(B) 		8-98090-803-1 01 1 0710-0906 ● ●
1 TANK ASM; AIR
(B) 		8-98081-870-1 01 1 0907- ● ●
1 TANK ASM; AIR
COUNTRY NEW ZEALAND(CX6) (C) 		1-48371-435-0 01 1 0806- ●
1 TANK ASM; AIR
(A) 		1-48370-961-0 02 1 0710- ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0710-0710 ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0710-0710 ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0710-0805 ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0710-0805 ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0806- ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0806- ● ●
6 COCK; DRAIN,AIR TANK
COUNTRY NEW ZEALAND(CX6) 		1-48312-015-0 01 1 0806- ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 04 1 0710- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0710-0710 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0710-0710 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0710-0805 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0710-0805 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0806- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0806- ● ●
7 GASKET; DRAIN COCK
COUNTRY NEW ZEALAND(CX6) ID=14 		1-09630-145-0 01 1 0806- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 0710- ● ●
8 CONNECTOR; AIR TANK 1-47459-013-1 03 1 0710- ● ●
9 SWITCH; LOW PRESSURE GAGE,AIR TANK 8-97615-622-0 04 1 0710- ● ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 0710-0710 ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 0710-0711 ● ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 0712- ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 01 1 0710-0711 ● ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 01 1 0712-0805 ● ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 01 1 0712-0805 ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 01 1 0806- ● ●
10 PLUG; AIR TANK
COUNTRY NEW ZEALAND(CX6) (A) PT3/8 		9-09204-517-0 01 1 0806- ●
10 PLUG; AIR TANK
(B) PT3/4 		9-09204-526-0 04 1 0710- ● ●
28 BRACKET; AIR TANK
(D) 		8-98092-756-1 01 1 0710- ● ●
28 BRACKET; AIR TANK
(C) 		8-98092-757-0 01 1 0710- ● ●
28 BRACKET; AIR TANK
COUNTRY NEW ZEALAND(CX6) (E) 		8-98047-746-2 01 1 0806- ●
28 BRACKET; AIR TANK
(A) 		8-98048-199-0 01 1 0710- ● ●
28 BRACKET; AIR TANK
(B) 		8-98048-200-2 01 1 0710- ● ●
38 BAND; AIR TANK
(A) 		1-48317-108-2 02 1 0710- ● ●
38 BAND; AIR TANK
(B) 		1-48317-109-2 02 1 0710- ● ●
41 PIN; BAND FIX 1-09744-068-0 01 1 0710- ● ●
42 WASHER; PL
ID=10.5 		9-09164-510-0 01 1 0710-1101 ● ●
42 WASHER; PL
ID=10.5 		0-91614-510-0 01 1 1102- ● ●
45 NUT; AIR TANK,MAIN
M8 		0-91110-508-0 12 1 0710- ● ●
80 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 0710-0711 ● ●
80 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 03 1 0712-0806 ● ●
80 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 0807-0906 ● ●
80 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 0907-1003 ● ●
80 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 0907-1003 ● ●
80 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 1004- ● ●
80 BOLT; BRKT
M12X35 FLANGE 		0-28651-235-0 06 1 0710- ● ●
80 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1004- ● ●
104 NUT; BRKT
M12 FLANGE 		0-91180-212-0 03 1 0710- ● ●
104 NUT; BRKT
M10 		0-91110-510-0 04 1 0907- ● ●
126 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0710- ●
126 CONNECTOR; ELBOW
COUNTRY NEW ZEALAND(CX6) (C) PT3/8 ELBOW 		1-09660-696-0 01 1 0806- ●
126 CONNECTOR; ELBOW
(B) PT1/4 2WAY 		1-09660-693-0 04 1 0710- ● ●
126 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0710-0710 ●
126 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0710- ●
185 PIN; SNAP
L=32.6 		8-98062-280-0 01 1 0710- ● ●
366 CONNECTOR; NYLON TUBE
EXC. COUNTRY NEW ZEALAND(CX6) (D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 03 1 0806- ●
366 CONNECTOR; NYLON TUBE
(D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 03 1 0806- ●
366 CONNECTOR; NYLON TUBE
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0710- ● ●
366 CONNECTOR; NYLON TUBE
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0710- ● ●
366 CONNECTOR; NYLON TUBE
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 05 1 0710- ● ●
366 CONNECTOR; NYLON TUBE
(D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 03 1 0710-0805 ● ●
366 CONNECTOR; NYLON TUBE
COUNTRY NEW ZEALAND(CX6) (D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 0806- ●
369 CONNECTOR; 3WAY
COUNTRY NEW ZEALAND(CX6) (C) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0806- ●
369 CONNECTOR; 3WAY
(B) 		1-09656-708-0 04 1 0710-1101 ● ●
369 CONNECTOR; 3WAY
(B) 		8-98166-127-0 04 1 1102- ● ●
369 CONNECTOR; 3WAY
(A) PT3/8 3WAY 		1-09661-300-0 02 1 0710-1111 ● ●
369 CONNECTOR; 3WAY
(A) 		8-98203-578-0 02 1 1112-1408 ● ●
369 CONNECTOR; 3WAY
(A) PT3/8 3WAY 		1-09661-300-0 02 1 1409- ● ●

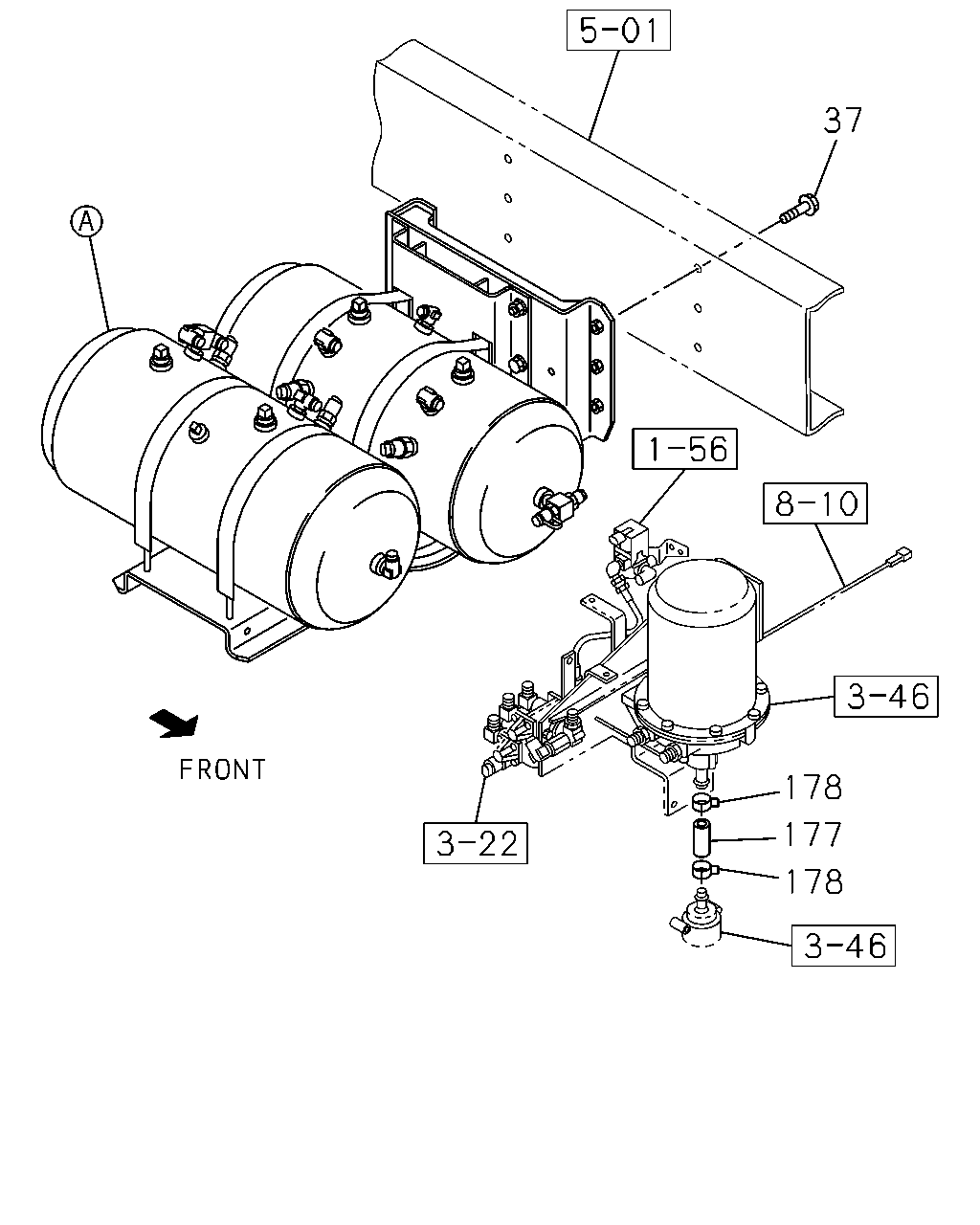

çizim 111133
37 178 177 178
BalonParca AdiParca NoAdetTipApplied Date A B
37 BOLT; AIR TANK
M14X50 		0-20851-450-0 02 1 0710-0805 ● ●
37 BOLT; AIR TANK
M14X50 		0-20851-450-0 02 1 0806-0807 ● ●
37 BOLT; AIR TANK
COUNTRY NEW ZEALAND(CX6) M14X50 		0-20851-450-0 02 1 0806-0807 ●
37 BOLT; AIR TANK
M14X50 		0-20851-450-0 03 1 0808- ● ●
37 BOLT; AIR TANK
COUNTRY NEW ZEALAND(CX6) M14X50 		0-20851-450-0 03 1 0808- ●
37 BOLT; AIR TANK
M12X40 FLANGE 		0-28651-240-0 06 1 0710- ● ●
177 HOSE; RUBBER,DRAIN
L=60 SERVICED BY L=3000 		0-03566-300-0 01 1 0710- ● ●
178 CLIP; HOSE
ID=21 		8-94242-034-0 02 1 0710- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
