6-01 — FRONT BUMPER (#44415) — 42 parça

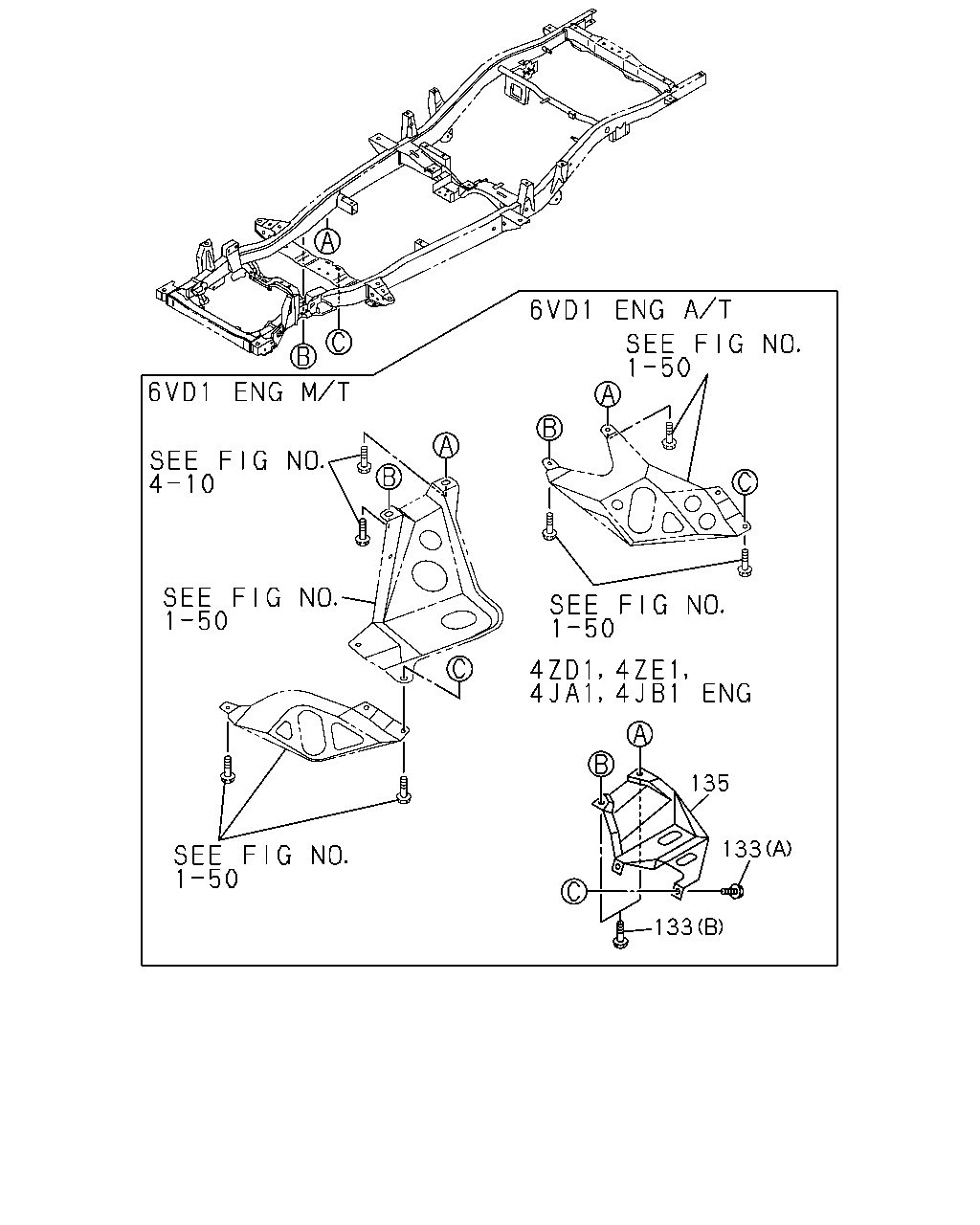

çizim 19739
135 133 133
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
133 07.875 BOLT; PROTECTOR FIX
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) UNDER GUARD<ES7> 03.706 (A) M10X20 W/LK&PL WASHER 		0-50141-020-0 02 1 9611-9711 ● ● ● ●
133 07.875 BOLT; PROTECTOR FIX
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.706 (A) M10X20 W/LK&PL WASHER 		0-50141-020-0 02 1 9611-9711 ● ● ● ●
133 07.875 BOLT; PROTECTOR FIX
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) UNDER GUARD<ES7> 03.690 (B) M10X28 W/LK&PL WASHER 		8-97104-788-0 02 1 9611-9711 ● ● ● ●
133 07.875 BOLT; PROTECTOR FIX
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.690 (B) M10X28 W/LK&PL WASHER 		8-97104-788-0 02 1 9611-9711 ● ● ● ●
135 04.510 PROTECTOR; TRANSFER
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) UNDER GUARD<ES7> 		8-97019-355-1 01 1 9611-9711 ● ● ● ●
135 04.510 PROTECTOR; TRANSFER
4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97019-355-1 01 1 9611-9711 ● ● ● ●

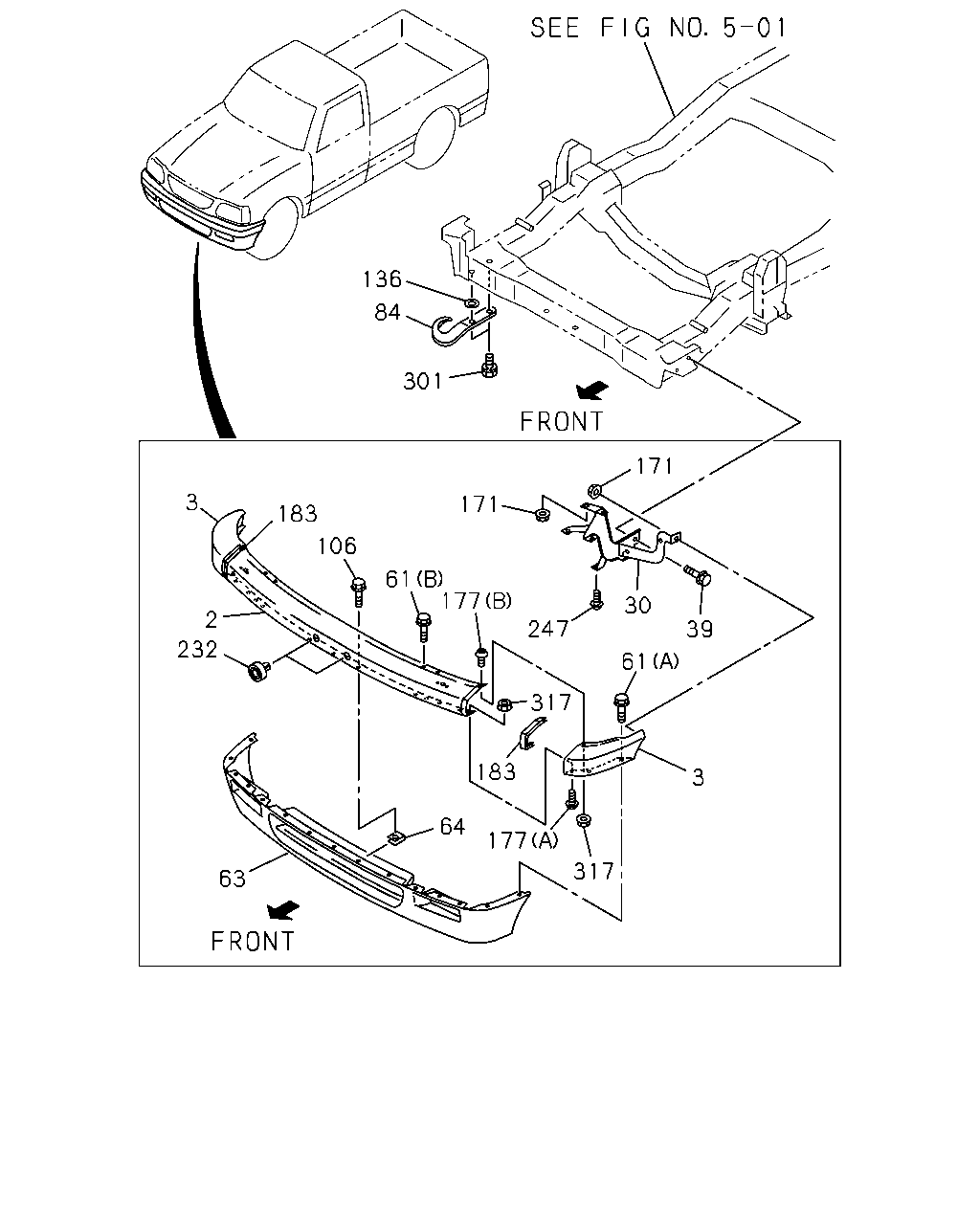

çizim 69883
136 84 301 171 171 183 61 247 2 232 39 61 317 183 3 64 317 63 30 177 106 3 177
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 07.831 BUMPER; FRT,CENTER
FRONT BUMPER CHROME<V46> 		8-97111-501-0 01 1 9611- ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER 8-97111-501-0 01 1 9611- ●
2 07.831 BUMPER; FRT,CENTER
EXC. FRONT BUMPER CHROME<V46> 		8-97111-500-0 01 1 9611- ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER 8-97111-500-0 01 1 9611- ●
3 07.831 BUMPER; FRT,SIDE
FRONT BUMPER CHROME<V46> 		8-97111-560-1 01 1 9611- ● ● ● ● ● ●
3 07.831 BUMPER; FRT,SIDE 8-97111-560-1 01 1 9611- ●
3 07.831 BUMPER; FRT,SIDE
FRONT BUMPER CHROME<V46> 		8-97111-557-1 01 1 9611- ● ● ● ● ● ●
3 07.831 BUMPER; FRT,SIDE 8-97111-557-1 01 1 9611- ●
3 07.831 BUMPER; FRT,SIDE
EXC. FRONT BUMPER CHROME<V46> 		8-97111-559-1 01 1 9611- ● ● ● ● ● ●
3 07.831 BUMPER; FRT,SIDE 8-97111-559-1 01 1 9611- ●
3 07.831 BUMPER; FRT,SIDE
EXC. FRONT BUMPER CHROME<V46> 		8-97111-556-1 01 1 9611- ● ● ● ● ● ●
3 07.831 BUMPER; FRT,SIDE 8-97111-556-1 01 1 9611- ●
30 07.869 BRACKET; FRT BUMPER 8-97111-876-1 01 1 9611- ● ● ● ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER 8-97111-875-1 01 1 9611- ● ● ● ● ● ● ● ●
39 07.874 BOLT; BUMPER TO BODY
M12X30 FLANGE 		0-28691-230-0 04 1 9611- ● ● ● ● ● ● ● ●
61 07.832 BOLT; BACK BAR
07.874 (A) M8X20 DACRO-COATING 		8-94241-821-0 04 1 9611- ● ● ● ● ● ● ● ●
61 07.832 BOLT; BACK BAR
FRONT BUMPER CHROME<V46> 07.874 (B) M8X20 CR-PLATING 		8-94241-804-0 04 1 9611- ● ● ● ● ● ●
61 07.832 BOLT; BACK BAR
07.874 (B) M8X20 CR-PLATING 		8-94241-804-0 04 1 9611- ●
61 07.832 BOLT; BACK BAR
EXC. FRONT BUMPER CHROME<V46> 07.874 (B) M8X20 BLACK-HEAD 		8-94241-820-0 04 1 9611- ● ● ● ● ● ●
61 07.832 BOLT; BACK BAR
07.874 (B) M8X20 BLACK-HEAD 		8-94241-820-0 04 1 9611- ●
63 07.831 AIR DAM; FRT BUMPER 8-97110-314-0 01 1 9611- ● ● ● ● ● ● ● ●
64 07.829 NUT; CLIP 8-94471-330-2 15 1 9611- ● ● ● ● ● ● ● ●
84 07.068 HOOK
TOW HOOK FRT & RR<V70> 07.330 		8-94183-262-0 01 1 9611- ● ● ● ●
106 07.829 BOLT; AIR DAM
12.187 M6X16 W/LK&PL WASHER 		0-50140-616-0 15 1 9611- ● ● ● ● ● ● ● ●
136 07.330 WASHER; PL,HOOK
TOW HOOK FRT & RR<V70> ID=12.5 		1-09503-021-0 01 1 9611- ● ● ● ●
171 07.869 NUT; BACK BAR
07.833 M8 W/LK WASHER 		8-94327-073-0 10 1 9611- ● ● ● ● ● ● ● ●
177 07.869 BOLT
07.874 (A) M8X20 DACRO-COATING 		8-94241-821-0 02 1 9611- ● ● ● ● ● ● ● ●
177 07.869 BOLT
FRONT BUMPER CHROME<V46> 07.874 (B) M8X20 CR-PLATING 		8-94241-804-0 02 1 9611- ● ● ● ● ● ●
177 07.869 BOLT
07.874 (B) M8X20 CR-PLATING 		8-94241-804-0 02 1 9611- ●
177 07.869 BOLT
EXC. FRONT BUMPER CHROME<V46> 07.874 (B) M8X20 BLACK-HEAD 		8-94241-820-0 02 1 9611- ● ● ● ● ● ●
177 07.869 BOLT
07.874 (B) M8X20 BLACK-HEAD 		8-94241-820-0 02 1 9611- ●
183 07.832 FINISHER; FRT BUMPER 8-97111-562-0 02 1 9611- ● ● ● ● ● ● ● ●
232 07.800 NUT; EXPANSION,LICENSE PLATE
07.832 M6 EXPANSION NUT 		8-94215-358-1 02 1 9611- ● ● ● ● ● ● ● ●
247 07.874 SCREW; BUMPER TO AIR DAM
08.155 		8-97032-653-0 02 1 9611- ● ● ● ● ● ● ● ●
301 07.068 BOLT; HOOK TO FRAME
TOW HOOK FRT & RR<V70> 00.004 M10X45 W/LK WASHER 		0-50041-045-0 02 1 9611- ● ● ● ●
317 07.833 NUT; CENTER TO SIDE
M8 W/LK WASHER 		8-94327-073-0 04 1 9611- ● ● ● ● ● ● ● ●
