1 |

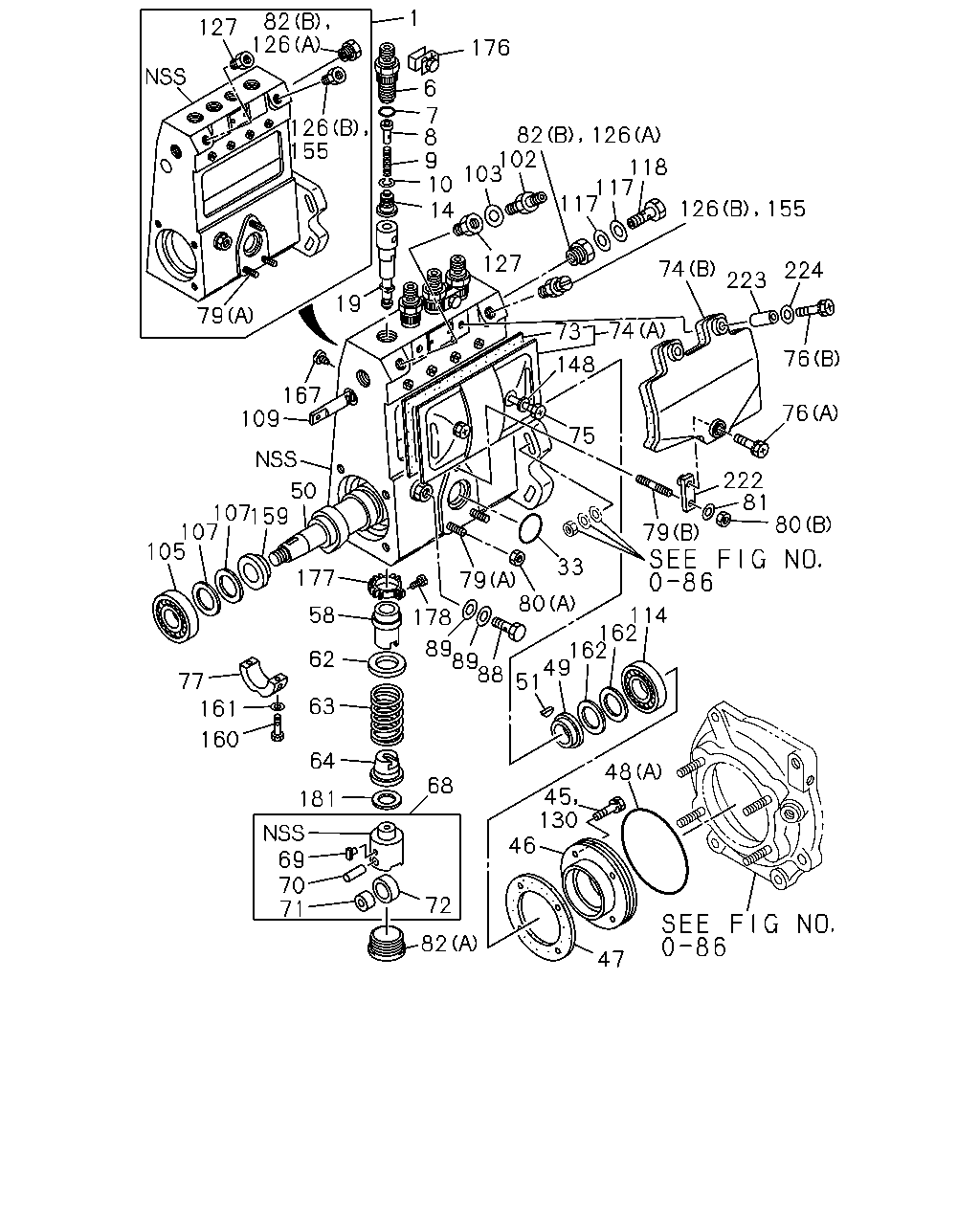

03.330 HOUSING; PUMP,FUEL INJ
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052
|
8-97089-304-0 |
01 |
1 |
- |
| |
1 |
03.330 HOUSING; PUMP,FUEL INJ
ASM PART: D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783
|
8-97137-799-0 |
01 |
1 |
- |
| |
6 |
03.306 HOLDER; DELIVERY VLV,INJ PUMP
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
5-15644-017-0 |
04 |
1 |
- |
| |
7 |
03.306 GASKET; HOLDER,DELIVERY VLV
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
1-09623-052-0 |
04 |
1 |
- |
| |
8 |
03.302 STOPPER; DELIVERY VLV,INJ PUMP
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
8-97083-335-0 |
04 |
1 |
- |
| |
9 |
03.302 SPRING; DELIVERY VLV
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
1-15643-003-0 |
04 |
1 |
- |
| |
10 |
03.340 GASKET; DELIVERY VLV,INJ PUMP
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
1-15649-001-0 |
04 |
1 |
- |
| |
14 |
03.302 VALVE; DELIVERY,INJ PUMP
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
8-94362-694-0 |
04 |
1 |
- |
| |
19 |
03.330 PLUNGER ASM; INJ PUMP
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
8-97083-334-0 |
04 |
1 |
- |
| |
33 |
03.904 GASKET; FUEL FEED PUMP,INJ PUMP
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
1-15629-058-0 |
01 |
1 |
- |
| |
45 |
03.302 BOLT; FRT COVER TO HSG
ASM PART: E = 8-97146-783-0, 97146783
|
1-15619-282-0 |
04 |
1 |
- |
| |
46 |
03.300 COVER; FRT,PUMP HSG
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
1-15629-047-0 |
01 |
1 |
- |
| |
47 |
03.306 SHIM; FRT COVER,INJ PUMP HSG
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
8-97083-337-0 |
01 |
1 |
- |
| |
48 |
03.306 GASKET; FRT COVER TO HSG
(A) ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661
|
8-97026-918-0 |
01 |
1 |
- |
| |
49 |
03.306 RING; FRT BRG,CM/SHF
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
1-15629-004-0 |
01 |
1 |
- |
| |
50 |
03.306 CAMSHAFT; INJ PUMP
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
8-97026-916-0 |
01 |
1 |
- |
| |
51 |
03.340 KEY; DRIVE GEAR,INJ PUMP
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
8-94239-370-0 |
01 |
1 |
- |
| |
58 |
03.330 SLEEVE; CONT,INJ PUMP
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
9-81225-058-0 |
04 |
1 |
- |
| |
62 |
03.320 SEAT; PLUNGER SPRING,INJ PUMP
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
9-81235-015-0 |
04 |
1 |
- |
| |
63 |
03.302 SPRING; PLUNGER,INJ PUMP
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
8-94387-977-0 |
04 |
1 |
- |
| |
64 |
03.320 SEAT; PLUNGER SPRING LWR,INJ PUM
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
9-81235-021-0 |
04 |
1 |
- |
| |
68 |
03.300 TAPPET; CM/SHF,INJ PUMP
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
5-15622-009-0 |
04 |
1 |
- |
| |
69 |
03.300 GUIDE; TAPPET,INJ PUMP
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
5-15619-041-0 |
04 |
1 |
- |
| |
70 |
03.300 PIN; TAPPET ROLLER,INJ PUMP
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
5-15622-006-0 |
04 |
1 |
- |
| |
71 |
03.300 BUSHING; TAPPET ROLLER,INJ PUMP
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
1-15629-001-0 |
04 |
1 |
- |
| |
72 |
03.300 ROLLER; TAPPET,INJ PUMP
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
1-15622-003-0 |
04 |
1 |
- |
| |
73 |
03.306 GASKET; COVER TO HSG
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
8-94386-596-0 |
01 |
1 |
- |
| |
74 |
03.300 COVER; HSG,INJ PUMP
(A) ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
8-94171-109-0 |
01 |
1 |
- |
| |
74 |
03.300 COVER; HSG,INJ PUMP
(B) ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052
|
8-97089-305-0 |
01 |
1 |
- |
| |
75 |
03.330 SCREW; COVER TO HSG
00.015
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
1-15619-003-0 |
02 |
1 |
- |
| |
76 |
03.306 BOLT; COVER TO HSG
09.190, (A)
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052
|
1-83579-524-0 |
01 |
1 |
- |
| |
76 |
03.306 BOLT; COVER TO HSG
(B) ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052
|
9-88410-094-0 |
02 |
1 |
- |
| |
77 |
03.306 BEARING; CM/SHF CENTER,INJ PUMP
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
1-15629-014-0 |
02 |
1 |
- |
| |
79 |
03.302 STUD; FUEL FEED PUMP TO HSG
03.901, (A)
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052
|
9-81215-115-0 |
02 |
1 |
- |
| |
79 |
03.302 STUD; FUEL FEED PUMP TO HSG
03.901, (A)
ASM PART: D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783
|
9-81215-115-0 |
03 |
1 |
- |
| |
79 |
03.302 STUD; FUEL FEED PUMP TO HSG
(B) ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052
|
9-88410-380-0 |
01 |
1 |
- |
| |
80 |
03.901 NUT; FUEL FEED PUMP FIX
(A) ASM PART: D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783
|
8-94171-110-0 |
03 |
1 |
- |
| |
80 |
03.901 NUT; FUEL FEED PUMP FIX
(A) ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052
|
8-94171-110-0 |
02 |
1 |
- |
| |
80 |
03.901 NUT; FUEL FEED PUMP FIX
16.176, (B)
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052
|
9-09110-406-0 |
01 |
1 |
- |
| |
81 |
08.931 WASHER; LK,FUEL FEED PUMP FIX
00.206, ID=6.1
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052
|
9-09150-506-0 |
01 |
1 |
- |
| |
82 |
03.306 PLUG; HSG,INJ PUMP
03.302, (B)
ASM PART: D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783
|
1-15619-073-0 |
01 |
1 |
- |
| |
82 |
03.306 PLUG; HSG,INJ PUMP
(A) ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
5-15619-136-0 |
04 |
1 |
- |
| |
88 |
01.531 BOLT; EYE,OIL FEED,INJ PUMP
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
1-15619-092-0 |
01 |
1 |
- |
| |
89 |
01.531 GASKET; OIL FEED BOLT,INJ PUMP
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
1-15719-093-0 |
02 |
1 |
- |
| |
102 |
03.318 VALVE; OVERFLOW,INJ PUMP
ASM PART: D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783
|
1-13260-001-1 |
01 |
1 |
- |
| |
102 |
03.318 VALVE; OVERFLOW,INJ PUMP
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052
|
1-13263-331-1 |
01 |
1 |
- |
| |
103 |
03.332 GASKET; OVERFLOW VLV,INJ PUMP
03.163, ID=14.2 OD=19.2
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
1-09630-085-0 |
01 |
1 |
- |
| |
105 |
03.306 BEARING; CM/SHF RR,INJ PUMP
NTN ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
5-09800-038-0 |
01 |
1 |
- |
| |
105 |
03.306 BEARING; CM/SHF RR,INJ PUMP
03.300, NSK
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
9-00090-677-0 |
01 |
1 |
- |
| |
107 |
03.306 SHIM; RR BEARING,CM/SHF
T=2.40
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
1-15639-088-0 |
AR |
1 |
- |
| |
107 |
03.306 SHIM; RR BEARING,CM/SHF
T=0.70
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
5-15619-039-0 |
AR |
1 |
- |
| |
107 |
03.306 SHIM; RR BEARING,CM/SHF
T=0.10
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
5-15629-015-0 |
AR |
1 |
- |
| |
107 |
03.306 SHIM; RR BEARING,CM/SHF
T=0.12
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
5-15629-016-0 |
AR |
1 |
- |
| |
107 |
03.306 SHIM; RR BEARING,CM/SHF
T=0.14
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
5-15629-017-0 |
AR |
1 |
- |
| |
107 |
03.306 SHIM; RR BEARING,CM/SHF
T=0.16
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
5-15629-018-0 |
AR |
1 |
- |
| |
107 |
03.306 SHIM; RR BEARING,CM/SHF
T=0.18
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
5-15629-019-0 |
AR |
1 |
- |
| |
107 |
03.306 SHIM; RR BEARING,CM/SHF
T=0.50
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
5-15629-020-0 |
AR |
1 |
- |
| |
107 |
03.306 SHIM; RR BEARING,CM/SHF
T=1.00
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
5-15629-038-0 |
AR |
1 |
- |
| |
107 |
03.306 SHIM; RR BEARING,CM/SHF
T=1.40
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
5-15629-090-0 |
AR |
1 |
- |
| |
107 |
03.306 SHIM; RR BEARING,CM/SHF
T=0.30
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
9-81225-033-0 |
AR |
1 |
- |
| |
109 |
03.300 RACK; CONT,INJ PUMP
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
5-15637-002-0 |
01 |
1 |
- |
| |
114 |
03.306 BEARING; CM/SHF FRT,INJ PUMP
NSK ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
1-15629-002-0 |
01 |
1 |
- |
| |
114 |
03.306 BEARING; CM/SHF FRT,INJ PUMP
TOYO ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
1-15629-003-0 |
01 |
1 |
- |
| |
117 |
03.162 GASKET; EYE BOLT,INJ PUMP
03.163, ID=14.2 OD=19.2
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052
|
1-09630-085-0 |
02 |
1 |
- |
| |
118 |
03.162 BOLT; EYE,FUEL INL,INJ PUMP
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052
|
1-15759-011-0 |
01 |
1 |
- |
| |
126 |
03.302 ADAPTER; EYE BOLT,PUMP HSG
03.318, (B)
ASM PART: D = 8-97136-661-0, 97136661, E = 8-97146-783-0, 97146783
|
1-15629-057-0 |
01 |
1 |
- |
| |
126 |
03.302 ADAPTER; EYE BOLT,PUMP HSG
03.162, (A)
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052
|
9-81235-017-0 |
01 |
1 |
- |
| |
127 |
03.330 ADAPTER; FUEL PIPE
03.302
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
1-15619-035-0 |
01 |
1 |
- |
| |
130 |
03.302 SCREW; FRT COVER TO HSG
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661
|
1-15619-282-0 |
04 |
1 |
- |
| |
148 |
03.306 GASKET; COVER FIX BOLT
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
9-81215-144-0 |
02 |
1 |
- |
| |
155 |
03.318 BOLT; AIR BLEED,INJ PUMP
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052
|
1-15619-024-0 |
01 |
1 |
- |
| |
159 |
03.306 RING; RR BEARING,CM/SHF,INJ PUMP
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
9-81225-047-0 |
01 |
1 |
- |
| |
160 |
03.330 SCREW; CENTER BRG,INJ PUMP
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
9-88410-066-0 |
04 |
1 |
- |
| |
161 |
03.306 GASKET; SCREW,CENTER BRG
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
9-81225-043-0 |
04 |
1 |
- |
| |
162 |
03.306 SHIM; FRT BRG,CM/SHF
T=0.30
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
1-15629-007-0 |
AR |
1 |
- |
| |
162 |
03.306 SHIM; FRT BRG,CM/SHF
T=1.00
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
1-15629-008-0 |
AR |
1 |
- |
| |
162 |
03.306 SHIM; FRT BRG,CM/SHF
T=0.70
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
1-15629-105-0 |
AR |
1 |
- |
| |
162 |
03.306 SHIM; FRT BRG,CM/SHF
T=0.10
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
9-81225-049-0 |
AR |
1 |
- |
| |
162 |
03.306 SHIM; FRT BRG,CM/SHF
T=0.12
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
9-81225-050-0 |
AR |
1 |
- |
| |
162 |
03.306 SHIM; FRT BRG,CM/SHF
T=0.14
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
9-81225-051-0 |
AR |
1 |
- |
| |
162 |
03.306 SHIM; FRT BRG,CM/SHF
T=0.16
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
9-81225-052-0 |
AR |
1 |
- |
| |
162 |
03.306 SHIM; FRT BRG,CM/SHF
T=0.18
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
9-81225-053-0 |
AR |
1 |
- |
| |
162 |
03.306 SHIM; FRT BRG,CM/SHF
T=0.50
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
9-81225-054-0 |
AR |
1 |
- |
| |
167 |
03.330 BOLT; CONT RACK,INJ PUMP
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
1-15639-003-0 |
01 |
1 |
- |
| |
176 |
03.302 PLATE; LK,DELIVERY VLV HOLDER
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
5-15625-001-0 |
02 |
1 |
- |
| |
177 |
03.330 PINION; CONT SLEEVE,INJ PUMP
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
9-81225-057-0 |
04 |
1 |
- |
| |
178 |
03.320 SCREW; PINION,INJ PUMP
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
9-81235-003-0 |
04 |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=0.60
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
5-15619-001-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=0.70
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
5-15619-002-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=0.80
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
5-15619-003-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=0.90
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
5-15619-004-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=1.00
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
5-15619-005-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=1.10
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
5-15619-007-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=1.20
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
5-15619-008-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=1.30
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
5-15619-009-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=1.40
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
5-15619-010-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=0.55
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
5-15619-011-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=0.65
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
5-15619-012-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=0.75
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
5-15619-013-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=0.85
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
5-15619-015-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=0.20
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
5-15619-025-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=0.25
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
5-15619-026-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=0.35
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
5-15619-027-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=0.30
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
5-15619-034-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=0.40
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
5-15619-035-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=0.50
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
5-15619-036-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=0.45
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
5-15619-037-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=1.50
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
5-15619-106-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=1.60
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
5-15619-107-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=1.35
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
5-15619-108-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=1.45
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
5-15619-109-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=1.55
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
5-15619-110-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=0.95
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
9-81235-042-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=1.05
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
9-81235-043-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=1.15
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
9-81235-044-0 |
AR |
1 |
- |
| |
181 |
03.306 SHIM; TAPPET,INJ PUMP
T=1.25
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052, D = 8-97136-661-0, 97136661,
E = 8-97146-783-0, 97146783
|
9-81235-045-0 |
AR |
1 |
- |
| |
222 |
03.330 PLATE; HOUSING
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052
|
8-97083-339-0 |
01 |
1 |
- |
| |
223 |
03.330 COLLAR; HOUSING COVER
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052
|
8-97085-005-0 |
02 |
1 |
- |
| |
224 |
03.330 WASHER; COVER FIX.BOLT
02.183, ID=6.4 OD=14
ASM PART: A = 8-97075-397-2, 97075397, B = 8-97114-004-0, 97114004,
C = 8-97114-052-0, 97114052
|
9-09160-606-0 |
02 |
1 |
- |
