Sayfa 0-65 - Isuzu EPC

0-65 — STARTER (#44401) — 517 parça

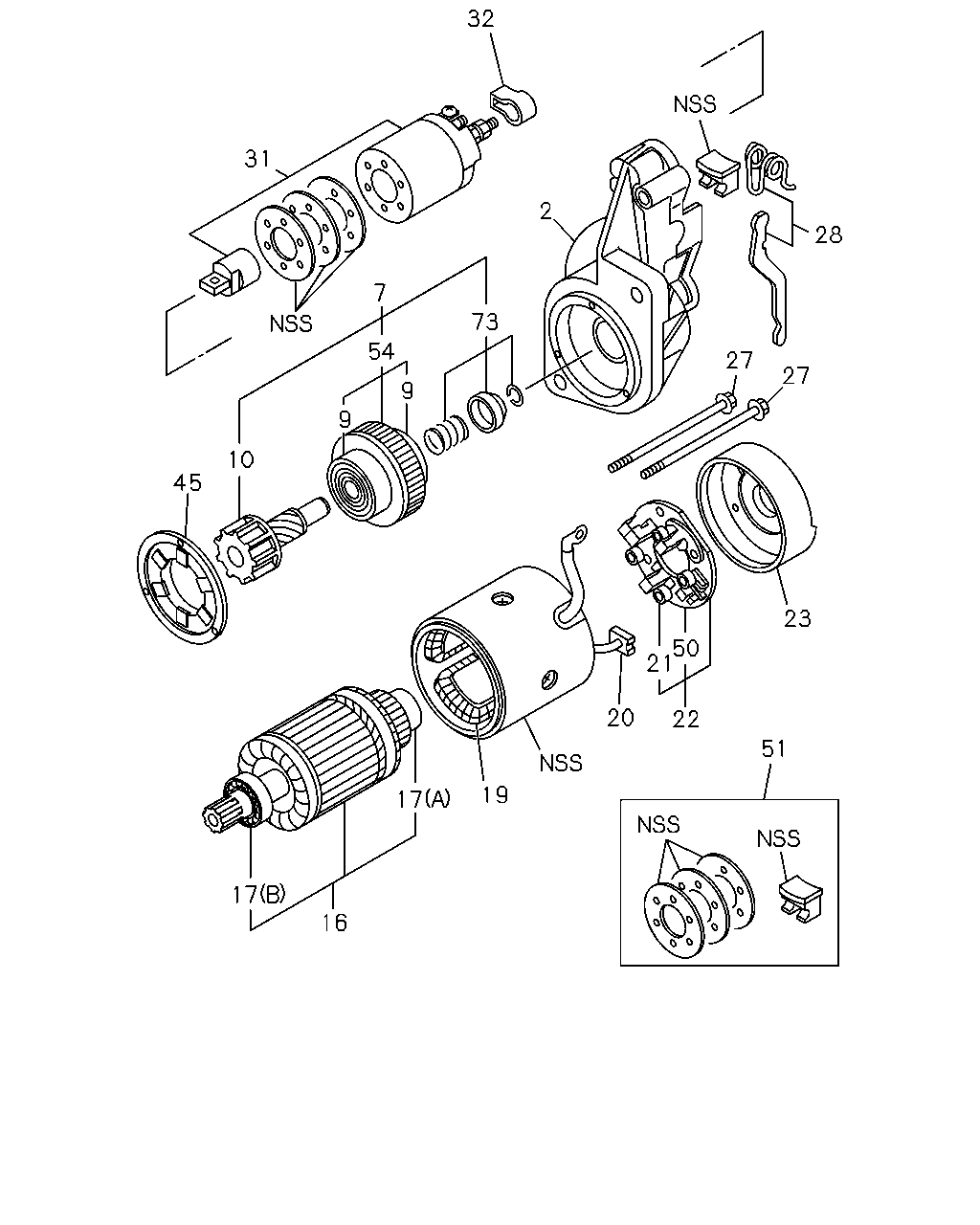

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
51	02.104 COVER SET; DUST ENGAGE SW STARTE ASM PART: B = 8-94333-438-0, 94333438	8-94152-982-0	01	1	-
51	02.104 COVER SET; DUST ENGAGE SW STARTE ASM PART: E = 8-97095-811-5, 97095811	8-97025-681-0	01	1	-9707
51	02.104 COVER SET; DUST ENGAGE SW STARTE ASM PART: D = 8-97065-526-0, 97065526	8-97025-681-0	01	1	-
51	02.104 COVER SET; DUST ENGAGE SW STARTE ASM PART: F = 8-97100-926-2, 97100926, K = 8-97216-186-1, 97216186	8-97030-403-0	01	1	-
51	02.104 COVER SET; DUST ENGAGE SW STARTE ASM PART: E = 8-97095-811-5, 97095811	8-97179-778-0	01	1	9708-
51	02.104 COVER SET; DUST ENGAGE SW STARTE ASM PART: J = 8-97216-185-0, 97216185	8-97179-778-0	01	1	-

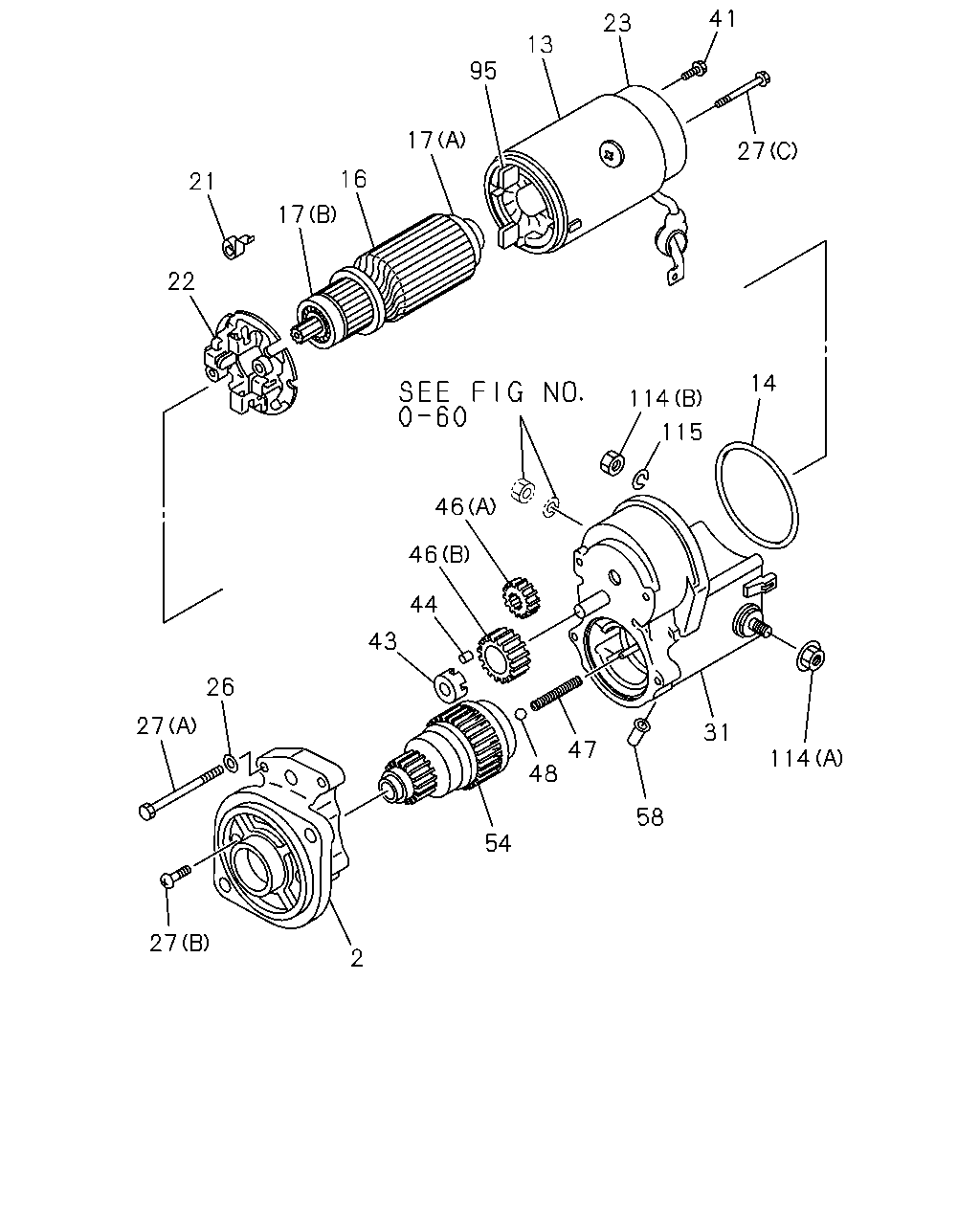

23 58 27 13 14 77 38 32 22 95 17 95 17 41 16 115 82 34 1 114 1 58 46 43 46 44 60 31 115 114 43 47 48 54 2 27

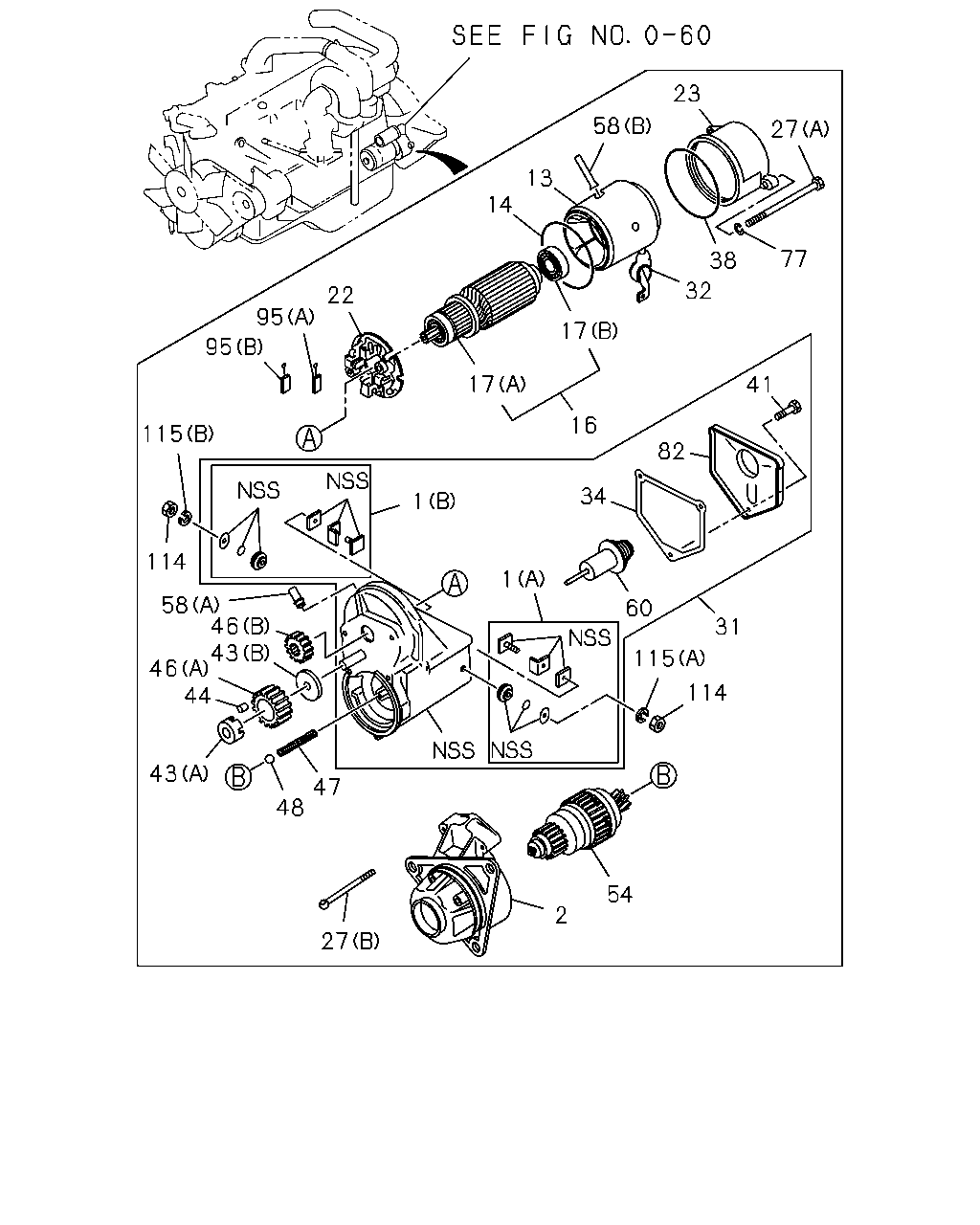

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.102 SEAL KIT; STARTER (A) ASM PART: A = 1-81100-234-1, 94039465	1-81129-506-0	01	1	-
1	02.102 SEAL KIT; STARTER (B) ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81129-507-0	01	1	-
1	02.102 SEAL KIT; STARTER (A) ASM PART: G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81129-719-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81113-092-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: B = 8-94333-438-0, 94333438	8-94152-979-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: C = 8-97042-997-0, 97042997	8-94167-435-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: D = 8-97065-526-0, 97065526	8-97025-678-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: F = 8-97100-926-2, 97100926, K = 8-97216-186-1, 97216186	8-97030-400-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97115-765-0	01	1	-9707
2	02.085 CASE; PINION,STARTER ASM PART: H = 8-97120-356-2, 97120356	8-97142-908-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97179-775-0	01	1	9708-
2	02.085 CASE; PINION,STARTER ASM PART: J = 8-97216-185-0, 97216185	8-97179-775-0	01	1	-
13	02.049 YOKE; STARTER ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749	1-81111-003-0	01	1	-
13	02.049 YOKE; STARTER ASM PART: I = 8-97174-043-0, 97174043	1-81111-011-0	01	1	-
13	02.049 YOKE; STARTER ASM PART: C = 8-97042-997-0, 97042997	8-94167-425-0	01	1	-
13	02.049 YOKE; STARTER ASM PART: H = 8-97120-356-2, 97120356	8-97135-497-0	01	1	-
14	02.087 GASKET; YOKE,STARTER 02.070 ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81129-502-0	01	1	-
14	02.087 GASKET; YOKE,STARTER ASM PART: C = 8-97042-997-0, 97042997	8-94167-428-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81121-042-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: B = 8-94333-438-0, 94333438	8-94152-967-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: D = 8-97065-526-0, 97065526, E = 8-97095-811-5, 97095811	8-94365-477-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: F = 8-97100-926-2, 97100926, K = 8-97216-186-1, 97216186	8-97025-667-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: C = 8-97042-997-0, 97042997	8-97083-193-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: H = 8-97120-356-2, 97120356	8-97112-869-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: J = 8-97216-185-0, 97216185	8-97179-769-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97179-769-0	01	1	9708-
17	02.083 BEARING; ARMATURE,STARTER (A) ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81129-495-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	5-09800-081-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (A) ASM PART: F = 8-97100-926-2, 97100926, K = 8-97216-186-1, 97216186	5-81129-113-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: B = 8-94333-438-0, 94333438	8-94152-968-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (A) ASM PART: B = 8-94333-438-0, 94333438, D = 8-97065-526-0, 97065526, E = 8-97095-811-5, 97095811, J = 8-97216-185-0, 97216185	8-94228-436-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: H = 8-97120-356-2, 97120356	8-94377-240-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: D = 8-97065-526-0, 97065526, E = 8-97095-811-5, 97095811, F = 8-97100-926-2, 97100926, J = 8-97216-185-0, 97216185, K = 8-97216-186-1, 97216186	8-97030-387-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: C = 8-97042-997-0, 97042997	8-97083-195-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (A) ASM PART: H = 8-97120-356-2, 97120356	8-97112-954-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER 02.052 ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81118-043-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: C = 8-97042-997-0, 97042997	8-94167-430-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: B = 8-94333-438-0, 94333438	8-94337-866-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: D = 8-97065-526-0, 97065526, E = 8-97095-811-5, 97095811, J = 8-97216-185-0, 97216185	8-97025-670-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: F = 8-97100-926-2, 97100926, K = 8-97216-186-1, 97216186	8-97078-463-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: H = 8-97120-356-2, 97120356	8-97112-873-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81115-188-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: B = 8-94333-438-0, 94333438	8-94337-865-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: F = 8-97100-926-2, 97100926	8-97030-390-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: D = 8-97065-526-0, 97065526	8-97065-604-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: H = 8-97120-356-2, 97120356	8-97112-875-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97115-764-0	01	1	-9610
23	02.067 COVER; RR COVER STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97171-493-0	01	1	9611-
23	02.067 COVER; RR COVER STARTER ASM PART: J = 8-97216-185-0, 97216185	8-97171-493-0	01	1	-
27	02.077 BOLT; THROUGH,STARTER (B) ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81129-483-0	03	1	-
27	02.077 BOLT; THROUGH,STARTER (A) ASM PART: A = 1-81100-234-1, 94039465	1-81129-498-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (A) ASM PART: G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81129-675-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (A) ASM PART: C = 8-97042-997-0, 97042997	8-94167-433-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (B) ASM PART: C = 8-97042-997-0, 97042997	8-94167-434-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER ASM PART: B = 8-94333-438-0, 94333438, D = 8-97065-526-0, 97065526	8-94242-071-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER ASM PART: F = 8-97100-926-2, 97100926, K = 8-97216-186-1, 97216186	8-97030-404-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (B) ASM PART: H = 8-97120-356-2, 97120356	8-97112-881-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (C) ASM PART: H = 8-97120-356-2, 97120356	8-97112-957-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER ASM PART: E = 8-97095-811-5, 97095811, J = 8-97216-185-0, 97216185	8-97117-106-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER 01.062, M6X16 W/LK WASHER ASM PART: B = 8-94333-438-0, 94333438	9-01910-616-0	03	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81151-067-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: B = 8-94333-438-0, 94333438	8-94152-981-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: D = 8-97065-526-0, 97065526	8-97025-677-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97025-677-0	01	1	-9605
31	02.100 SWITCH; ENGAGE STARTER ASM PART: F = 8-97100-926-2, 97100926	8-97065-602-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: C = 8-97042-997-0, 97042997	8-97083-196-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: H = 8-97120-356-2, 97120356	8-97142-907-1	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: J = 8-97216-185-0, 97216185	8-97161-789-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97161-789-0	01	1	9606-
32	02.115 COVER; RUBBER,STARTER 02.102 ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81129-504-0	01	1	-
32	02.115 COVER; RUBBER,STARTER ASM PART: H = 8-97120-356-2, 97120356	5-81119-029-0	01	1	-
32	02.115 COVER; RUBBER,STARTER HITACHI ASM PART: B = 8-94333-438-0, 94333438, D = 8-97065-526-0, 97065526, E = 8-97095-811-5, 97095811, F = 8-97100-926-2, 97100926	5-81129-069-0	01	1	-
34	02.070 GASKET; TERMINAL ENGAGE SW START ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81129-500-0	01	1	-
38	02.070 GASKET; RR COVER,STARTER ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81129-502-0	01	1	-
38	02.070 GASKET; RR COVER,STARTER 02.049 ASM PART: H = 8-97120-356-2, 97120356	8-94170-214-0	02	1	-
38	02.070 GASKET; RR COVER,STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97115-763-0	01	1	9708-
38	02.070 GASKET; RR COVER,STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97115-763-0	02	1	-9707
38	02.070 GASKET; RR COVER,STARTER ASM PART: J = 8-97216-185-0, 97216185	8-97115-763-0	01	1	-
41	02.067 SCREW; RR COVER,STARTER ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81129-667-0	03	1	-
41	02.067 SCREW; RR COVER,STARTER ASM PART: E = 8-97095-811-5, 97095811, J = 8-97216-185-0, 97216185	8-97117-107-0	02	1	-
41	02.067 SCREW; RR COVER,STARTER ASM PART: H = 8-97120-356-2, 97120356	8-97142-903-0	02	1	-
43	02.086 RETAINER; PINION STARTER ASM PART: C = 8-97042-997-0, 97042997	5-81129-100-0	01	1	-
43	02.086 RETAINER; PINION STARTER (A) ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	5-81129-121-0	01	1	-
43	02.086 RETAINER; PINION STARTER 02.108, (B) ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	5-81129-127-0	01	1	-
43	02.086 RETAINER; PINION STARTER ASM PART: H = 8-97120-356-2, 97120356	8-94377-246-0	01	1	-
44	02.086 ROLLER; PINION STARTER ASM PART: C = 8-97042-997-0, 97042997, H = 8-97120-356-2, 97120356	5-81129-099-0	05	1	-
44	02.086 ROLLER; PINION STARTER ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	5-81129-120-0	05	1	-
46	02.086 GEAR; CLU STARTER (A) ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81123-034-0	01	1	-
46	02.086 GEAR; CLU STARTER (B) ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81123-035-0	01	1	-
46	02.086 GEAR; CLU STARTER (A) ASM PART: C = 8-97042-997-0, 97042997	5-81123-010-0	01	1	-
46	02.086 GEAR; CLU STARTER (B) ASM PART: C = 8-97042-997-0, 97042997	8-94167-427-0	01	1	-
46	02.086 GEAR; CLU STARTER (B) ASM PART: H = 8-97120-356-2, 97120356	8-97078-649-0	01	1	-
46	02.086 GEAR; CLU STARTER (A) ASM PART: H = 8-97120-356-2, 97120356	8-97142-904-0	01	1	-
47	02.086 SPRING; PINION STARTER 02.108 ASM PART: C = 8-97042-997-0, 97042997	5-81129-096-0	01	1	-
47	02.086 SPRING; PINION STARTER ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	5-81129-119-0	01	1	-
47	02.086 SPRING; PINION STARTER ASM PART: H = 8-97120-356-2, 97120356	8-94377-245-0	01	1	-
48	02.108 BALL; PINION,STARTER ASM PART: A = 1-81100-234-1, 94039465, C = 8-97042-997-0, 97042997, G = 8-97119-749-0, 97119749, H = 8-97120-356-2, 97120356, I = 8-97174-043-0, 97174043	5-81129-092-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81122-049-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: C = 8-97042-997-0, 97042997	5-81124-003-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: B = 8-94333-438-0, 94333438	8-94334-977-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: D = 8-97065-526-0, 97065526	8-97025-672-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97025-672-0	01	1	-9707
54	02.086 CLUTCH; PINION,STARTER ASM PART: F = 8-97100-926-2, 97100926	8-97030-394-0	01	1	-9406
54	02.086 CLUTCH; PINION,STARTER ASM PART: F = 8-97100-926-2, 97100926	8-97115-816-0	01	1	9407-
54	02.086 CLUTCH; PINION,STARTER ASM PART: K = 8-97216-186-1, 97216186	8-97115-816-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: H = 8-97120-356-2, 97120356	8-97148-687-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97179-771-0	01	1	9708-
54	02.086 CLUTCH; PINION,STARTER ASM PART: J = 8-97216-185-0, 97216185	8-97179-771-0	01	1	-
58	03.330 PIPE; DRAIN RR COVER STARTER (B) ASM PART: A = 1-81100-234-1, 94039465	1-81129-668-0	01	1	-
58	03.330 PIPE; DRAIN RR COVER STARTER ASM PART: C = 8-97042-997-0, 97042997	1-81129-677-0	02	1	-
58	03.330 PIPE; DRAIN RR COVER STARTER (A) ASM PART: G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81129-717-0	01	1	-
58	03.330 PIPE; DRAIN RR COVER STARTER (B) ASM PART: G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81129-718-0	01	1	-
58	03.330 PIPE; DRAIN RR COVER STARTER 02.067 ASM PART: H = 8-97120-356-2, 97120356	8-97041-421-0	01	1	-
60	02.113 PLUNGER; ENGAGE SW STARTER ASM PART: G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81129-499-0	01	1	-
60	02.113 PLUNGER; ENGAGE SW STARTER ASM PART: A = 1-81100-234-1, 94039465	1-81129-669-0	01	1	-
77	02.063 WASHER; THROUGH BOLT,STARTER ASM PART: A = 1-81100-234-1, 94039465	9-88130-033-0	02	1	-
82	02.108 COVER; DUST ENGAGE SW STARTER ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81129-501-0	01	1	-
95	02.051 BRUSH ASM; STARTER (A) ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81116-048-0	02	1	-
95	02.051 BRUSH ASM; STARTER (B) ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81116-049-0	02	1	-
95	02.051 BRUSH ASM; STARTER ASM PART: C = 8-97042-997-0, 97042997	8-97083-194-0	01	1	-
114	02.055 NUT; TERMINAL 02.042, (A) ASM PART: C = 8-97042-997-0, 97042997	5-09400-042-0	01	1	-
114	02.055 NUT; TERMINAL 02.102 ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	5-81129-126-0	02	1	-
114	02.055 NUT; TERMINAL 02.102, (A) ASM PART: H = 8-97120-356-2, 97120356	8-94109-763-0	01	1	-
114	02.055 NUT; TERMINAL (B) ASM PART: H = 8-97120-356-2, 97120356	8-94377-238-0	01	1	-
114	02.055 NUT; TERMINAL 00.002, (B) ASM PART: C = 8-97042-997-0, 97042997	9-09110-508-0	01	1	-
115	02.063 WASHER; TERMINAL (A) ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	5-81129-129-0	01	1	-
115	02.063 WASHER; TERMINAL 02.102, (B) ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	5-81129-134-0	01	1	-
115	02.063 WASHER; TERMINAL 00.002, ID=8.2 ASM PART: C = 8-97042-997-0, 97042997	9-09150-508-0	01	1	-

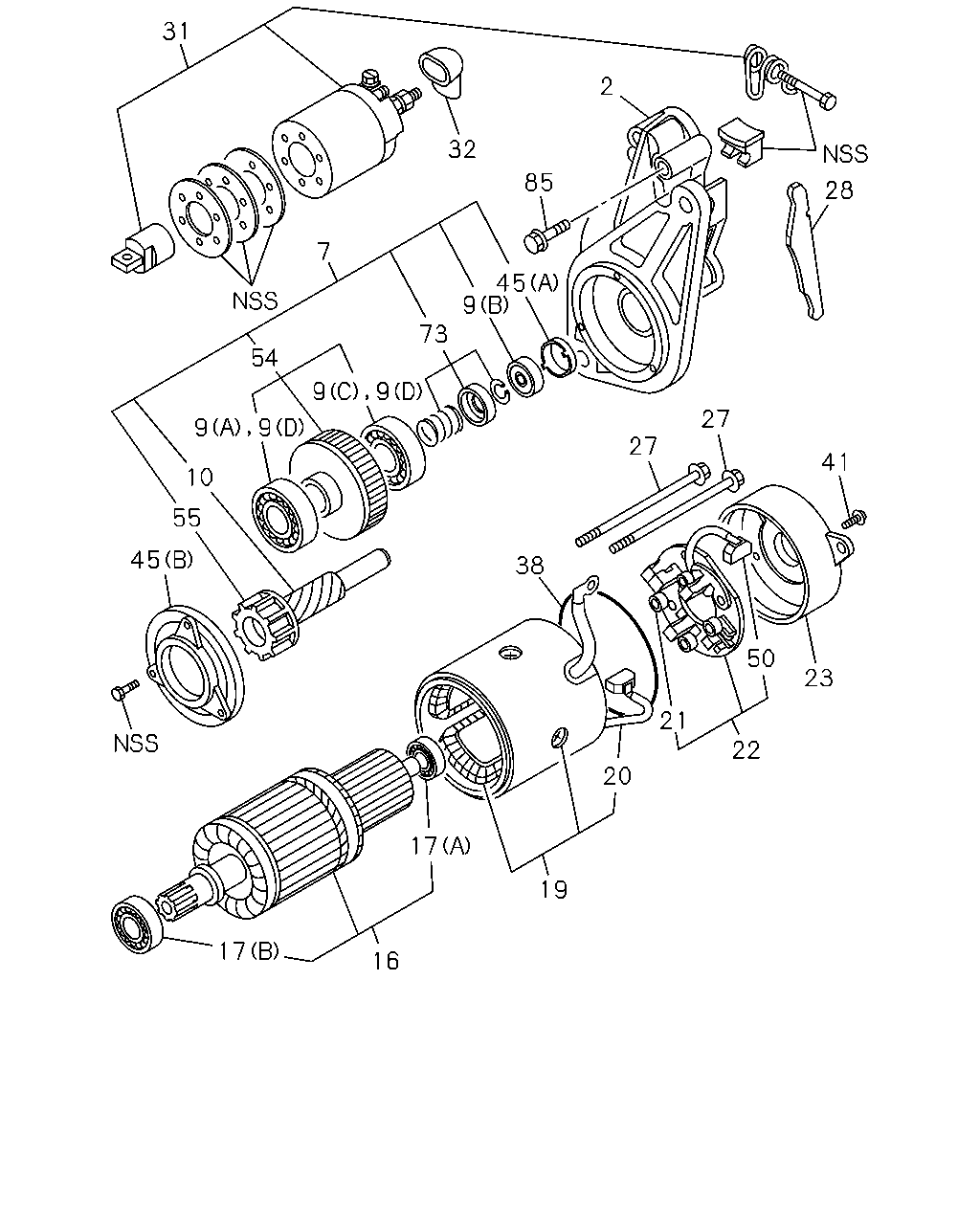

31 2 32 85 28 7 45 9 73 54 27 9 9 27 41 10 55 45 38 50 23 21 22 20 17 19 17 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	02.085 CASE; PINION,STARTER ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81113-092-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: B = 8-94333-438-0, 94333438	8-94152-979-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: C = 8-97042-997-0, 97042997	8-94167-435-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: D = 8-97065-526-0, 97065526	8-97025-678-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: F = 8-97100-926-2, 97100926, K = 8-97216-186-1, 97216186	8-97030-400-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97115-765-0	01	1	-9707
2	02.085 CASE; PINION,STARTER ASM PART: H = 8-97120-356-2, 97120356	8-97142-908-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97179-775-0	01	1	9708-
2	02.085 CASE; PINION,STARTER ASM PART: J = 8-97216-185-0, 97216185	8-97179-775-0	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: B = 8-94333-438-0, 94333438	8-94334-976-0	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: D = 8-97065-526-0, 97065526	8-97025-671-0	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97025-671-0	01	1	-9605
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: F = 8-97100-926-2, 97100926	8-97030-393-0	01	1	-9406
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: K = 8-97216-186-1, 97216186	8-97115-815-0	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: F = 8-97100-926-2, 97100926	8-97115-815-0	01	1	9407-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97161-793-0	01	1	9606-9707
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97179-770-0	01	1	9708-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: J = 8-97216-185-0, 97216185	8-97179-770-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER ASM PART: B = 8-94333-438-0, 94333438	8-94228-468-0	02	1	-
9	02.083 BEARING; GEAR SHAFT STARTER 24V 4.0KW(C) 24V 4.5KW(D) ASM PART: D = 8-97065-526-0, 97065526, E = 8-97095-811-5, 97095811, J = 8-97216-185-0, 97216185	8-97025-673-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER 24V 4.0KW(C) 24V 4.5KW(D) ASM PART: F = 8-97100-926-2, 97100926, K = 8-97216-186-1, 97216186	8-97025-673-0	02	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (A) ASM PART: D = 8-97065-526-0, 97065526, E = 8-97095-811-5, 97095811, J = 8-97216-185-0, 97216185	8-97025-674-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (B) ASM PART: D = 8-97065-526-0, 97065526, E = 8-97095-811-5, 97095811, F = 8-97100-926-2, 97100926, J = 8-97216-185-0, 97216185, K = 8-97216-186-1, 97216186	8-97025-676-0	01	1	-
10	02.086 SHAFT; GEAR STARTER ASM PART: B = 8-94333-438-0, 94333438	8-94152-976-0	01	1	-
10	02.086 SHAFT; GEAR STARTER ASM PART: D = 8-97065-526-0, 97065526	8-97025-675-0	01	1	-
10	02.086 SHAFT; GEAR STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97025-675-0	01	1	-9605
10	02.086 SHAFT; GEAR STARTER ASM PART: F = 8-97100-926-2, 97100926, K = 8-97216-186-1, 97216186	8-97030-395-0	01	1	-
10	02.086 SHAFT; GEAR STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97131-794-0	01	1	9606-9707
10	02.086 SHAFT; GEAR STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97179-772-0	01	1	9708-
10	02.086 SHAFT; GEAR STARTER ASM PART: J = 8-97216-185-0, 97216185	8-97179-772-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81121-042-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: B = 8-94333-438-0, 94333438	8-94152-967-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: D = 8-97065-526-0, 97065526, E = 8-97095-811-5, 97095811	8-94365-477-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: F = 8-97100-926-2, 97100926, K = 8-97216-186-1, 97216186	8-97025-667-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: C = 8-97042-997-0, 97042997	8-97083-193-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: H = 8-97120-356-2, 97120356	8-97112-869-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: J = 8-97216-185-0, 97216185	8-97179-769-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97179-769-0	01	1	9708-
17	02.083 BEARING; ARMATURE,STARTER (A) ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81129-495-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	5-09800-081-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (A) ASM PART: F = 8-97100-926-2, 97100926, K = 8-97216-186-1, 97216186	5-81129-113-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: B = 8-94333-438-0, 94333438	8-94152-968-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (A) ASM PART: B = 8-94333-438-0, 94333438, D = 8-97065-526-0, 97065526, E = 8-97095-811-5, 97095811, J = 8-97216-185-0, 97216185	8-94228-436-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: H = 8-97120-356-2, 97120356	8-94377-240-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: D = 8-97065-526-0, 97065526, E = 8-97095-811-5, 97095811, F = 8-97100-926-2, 97100926, J = 8-97216-185-0, 97216185, K = 8-97216-186-1, 97216186	8-97030-387-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: C = 8-97042-997-0, 97042997	8-97083-195-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (A) ASM PART: H = 8-97120-356-2, 97120356	8-97112-954-0	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: B = 8-94333-438-0, 94333438	8-94152-969-0	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: D = 8-97065-526-0, 97065526	8-97025-668-0	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97025-668-0	01	1	-9610
19	02.049 COIL; FIELD,STARTER ASM PART: F = 8-97100-926-2, 97100926	8-97078-461-0	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97171-491-0	01	1	9611-
20	02.051 BRUSH; (+),STARTER ASM PART: B = 8-94333-438-0, 94333438, D = 8-97065-526-0, 97065526, E = 8-97095-811-5, 97095811, J = 8-97216-185-0, 97216185	8-94152-970-0	02	1	-
20	02.051 BRUSH; (+),STARTER ASM PART: F = 8-97100-926-2, 97100926, K = 8-97216-186-1, 97216186	8-97078-462-0	02	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: F = 8-97100-926-2, 97100926, K = 8-97216-186-1, 97216186	5-81117-012-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: C = 8-97042-997-0, 97042997	5-81117-015-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: B = 8-94333-438-0, 94333438, D = 8-97065-526-0, 97065526, E = 8-97095-811-5, 97095811, J = 8-97216-185-0, 97216185	8-94152-972-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: H = 8-97120-356-2, 97120356	8-97112-880-0	04	1	-
22	02.051 HOLDER; BRUSH STARTER 02.052 ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81118-043-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: C = 8-97042-997-0, 97042997	8-94167-430-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: B = 8-94333-438-0, 94333438	8-94337-866-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: D = 8-97065-526-0, 97065526, E = 8-97095-811-5, 97095811, J = 8-97216-185-0, 97216185	8-97025-670-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: F = 8-97100-926-2, 97100926, K = 8-97216-186-1, 97216186	8-97078-463-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: H = 8-97120-356-2, 97120356	8-97112-873-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81115-188-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: B = 8-94333-438-0, 94333438	8-94337-865-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: F = 8-97100-926-2, 97100926	8-97030-390-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: D = 8-97065-526-0, 97065526	8-97065-604-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: H = 8-97120-356-2, 97120356	8-97112-875-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97115-764-0	01	1	-9610
23	02.067 COVER; RR COVER STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97171-493-0	01	1	9611-
23	02.067 COVER; RR COVER STARTER ASM PART: J = 8-97216-185-0, 97216185	8-97171-493-0	01	1	-
27	02.077 BOLT; THROUGH,STARTER (B) ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81129-483-0	03	1	-
27	02.077 BOLT; THROUGH,STARTER (A) ASM PART: A = 1-81100-234-1, 94039465	1-81129-498-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (A) ASM PART: G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81129-675-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (A) ASM PART: C = 8-97042-997-0, 97042997	8-94167-433-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (B) ASM PART: C = 8-97042-997-0, 97042997	8-94167-434-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER ASM PART: B = 8-94333-438-0, 94333438, D = 8-97065-526-0, 97065526	8-94242-071-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER ASM PART: F = 8-97100-926-2, 97100926, K = 8-97216-186-1, 97216186	8-97030-404-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (B) ASM PART: H = 8-97120-356-2, 97120356	8-97112-881-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (C) ASM PART: H = 8-97120-356-2, 97120356	8-97112-957-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER ASM PART: E = 8-97095-811-5, 97095811, J = 8-97216-185-0, 97216185	8-97117-106-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER 01.062, M6X16 W/LK WASHER ASM PART: B = 8-94333-438-0, 94333438	9-01910-616-0	03	1	-
28	02.108 LEVER; SHIFT,STARTER ASM PART: B = 8-94333-438-0, 94333438	8-94152-980-0	01	1	-
28	02.108 LEVER; SHIFT,STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97025-680-0	01	1	-9605
28	02.108 LEVER; SHIFT,STARTER ASM PART: D = 8-97065-526-0, 97065526	8-97025-680-0	01	1	-
28	02.108 LEVER; SHIFT,STARTER ASM PART: F = 8-97100-926-2, 97100926, K = 8-97216-186-1, 97216186	8-97030-402-0	01	1	-
28	02.108 LEVER; SHIFT,STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97161-790-0	01	1	9606-9707
28	02.108 LEVER; SHIFT,STARTER ASM PART: J = 8-97216-185-0, 97216185	8-97179-776-0	01	1	-
28	02.108 LEVER; SHIFT,STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97179-776-0	01	1	9708-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81151-067-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: B = 8-94333-438-0, 94333438	8-94152-981-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: D = 8-97065-526-0, 97065526	8-97025-677-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97025-677-0	01	1	-9605
31	02.100 SWITCH; ENGAGE STARTER ASM PART: F = 8-97100-926-2, 97100926	8-97065-602-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: C = 8-97042-997-0, 97042997	8-97083-196-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: H = 8-97120-356-2, 97120356	8-97142-907-1	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: J = 8-97216-185-0, 97216185	8-97161-789-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97161-789-0	01	1	9606-
32	02.115 COVER; RUBBER,STARTER 02.102 ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81129-504-0	01	1	-
32	02.115 COVER; RUBBER,STARTER ASM PART: H = 8-97120-356-2, 97120356	5-81119-029-0	01	1	-
32	02.115 COVER; RUBBER,STARTER HITACHI ASM PART: B = 8-94333-438-0, 94333438, D = 8-97065-526-0, 97065526, E = 8-97095-811-5, 97095811, F = 8-97100-926-2, 97100926	5-81129-069-0	01	1	-
38	02.070 GASKET; RR COVER,STARTER ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81129-502-0	01	1	-
38	02.070 GASKET; RR COVER,STARTER 02.049 ASM PART: H = 8-97120-356-2, 97120356	8-94170-214-0	02	1	-
38	02.070 GASKET; RR COVER,STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97115-763-0	01	1	9708-
38	02.070 GASKET; RR COVER,STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97115-763-0	02	1	-9707
38	02.070 GASKET; RR COVER,STARTER ASM PART: J = 8-97216-185-0, 97216185	8-97115-763-0	01	1	-
41	02.067 SCREW; RR COVER,STARTER ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81129-667-0	03	1	-
41	02.067 SCREW; RR COVER,STARTER ASM PART: E = 8-97095-811-5, 97095811, J = 8-97216-185-0, 97216185	8-97117-107-0	02	1	-
41	02.067 SCREW; RR COVER,STARTER ASM PART: H = 8-97120-356-2, 97120356	8-97142-903-0	02	1	-
45	02.042 RETAINER; BEARING,STARTER ASM PART: B = 8-94333-438-0, 94333438	8-94334-978-0	01	1	-
45	02.042 RETAINER; BEARING,STARTER (A) ASM PART: D = 8-97065-526-0, 97065526, E = 8-97095-811-5, 97095811, F = 8-97100-926-2, 97100926, J = 8-97216-185-0, 97216185, K = 8-97216-186-1, 97216186	8-94435-567-0	01	1	-
45	02.042 RETAINER; BEARING,STARTER (B) ASM PART: E = 8-97095-811-5, 97095811	8-97025-679-0	01	1	-9707
45	02.042 RETAINER; BEARING,STARTER (B) ASM PART: D = 8-97065-526-0, 97065526	8-97025-679-0	01	1	-
45	02.042 RETAINER; BEARING,STARTER (B) ASM PART: F = 8-97100-926-2, 97100926, K = 8-97216-186-1, 97216186	8-97030-401-0	01	1	-
45	02.042 RETAINER; BEARING,STARTER (B) ASM PART: E = 8-97095-811-5, 97095811	8-97179-774-0	01	1	9708-
45	02.042 RETAINER; BEARING,STARTER (B) ASM PART: J = 8-97216-185-0, 97216185	8-97179-774-0	01	1	-
50	02.051 BRUSH; (-),STARTER ASM PART: B = 8-94333-438-0, 94333438, D = 8-97065-526-0, 97065526, E = 8-97095-811-5, 97095811, J = 8-97216-185-0, 97216185	8-94152-973-0	02	1	-
50	02.051 BRUSH; (-),STARTER ASM PART: F = 8-97100-926-2, 97100926, K = 8-97216-186-1, 97216186	8-97078-464-0	02	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81122-049-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: C = 8-97042-997-0, 97042997	5-81124-003-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: B = 8-94333-438-0, 94333438	8-94334-977-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: D = 8-97065-526-0, 97065526	8-97025-672-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97025-672-0	01	1	-9707
54	02.086 CLUTCH; PINION,STARTER ASM PART: F = 8-97100-926-2, 97100926	8-97030-394-0	01	1	-9406
54	02.086 CLUTCH; PINION,STARTER ASM PART: F = 8-97100-926-2, 97100926	8-97115-816-0	01	1	9407-
54	02.086 CLUTCH; PINION,STARTER ASM PART: K = 8-97216-186-1, 97216186	8-97115-816-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: H = 8-97120-356-2, 97120356	8-97148-687-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97179-771-0	01	1	9708-
54	02.086 CLUTCH; PINION,STARTER ASM PART: J = 8-97216-185-0, 97216185	8-97179-771-0	01	1	-
55	02.086 PINION; CLU,STARTER ASM PART: F = 8-97100-926-2, 97100926, K = 8-97216-186-1, 97216186	8-97030-397-0	01	1	-
73	02.063 STOPPER SET; PINION ASM PART: B = 8-94333-438-0, 94333438	8-94152-978-0	01	1	-
73	02.063 STOPPER SET; PINION REAR ASM PART: D = 8-97065-526-0, 97065526, E = 8-97095-811-5, 97095811, F = 8-97100-926-2, 97100926, J = 8-97216-185-0, 97216185, K = 8-97216-186-1, 97216186	8-97030-396-0	01	1	-
73	02.063 STOPPER SET; PINION FRONT ASM PART: F = 8-97100-926-2, 97100926, K = 8-97216-186-1, 97216186	8-97030-398-0	01	1	-
85	02.102 BOLT; ENGAGE SW FIX,STARTER ASM PART: B = 8-94333-438-0, 94333438, D = 8-97065-526-0, 97065526, E = 8-97095-811-5, 97095811, F = 8-97100-926-2, 97100926, J = 8-97216-185-0, 97216185, K = 8-97216-186-1, 97216186	8-94408-500-0	02	1	-

41 23 13 95 17 27 16 21 17 22 14 114 115 46 46 44 43 26 27 31 47 48 114 58 54 27 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	02.085 CASE; PINION,STARTER ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81113-092-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: B = 8-94333-438-0, 94333438	8-94152-979-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: C = 8-97042-997-0, 97042997	8-94167-435-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: D = 8-97065-526-0, 97065526	8-97025-678-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: F = 8-97100-926-2, 97100926, K = 8-97216-186-1, 97216186	8-97030-400-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97115-765-0	01	1	-9707
2	02.085 CASE; PINION,STARTER ASM PART: H = 8-97120-356-2, 97120356	8-97142-908-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97179-775-0	01	1	9708-
2	02.085 CASE; PINION,STARTER ASM PART: J = 8-97216-185-0, 97216185	8-97179-775-0	01	1	-
13	02.049 YOKE; STARTER ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749	1-81111-003-0	01	1	-
13	02.049 YOKE; STARTER ASM PART: I = 8-97174-043-0, 97174043	1-81111-011-0	01	1	-
13	02.049 YOKE; STARTER ASM PART: C = 8-97042-997-0, 97042997	8-94167-425-0	01	1	-
13	02.049 YOKE; STARTER ASM PART: H = 8-97120-356-2, 97120356	8-97135-497-0	01	1	-
14	02.087 GASKET; YOKE,STARTER 02.070 ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81129-502-0	01	1	-
14	02.087 GASKET; YOKE,STARTER ASM PART: C = 8-97042-997-0, 97042997	8-94167-428-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81121-042-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: B = 8-94333-438-0, 94333438	8-94152-967-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: D = 8-97065-526-0, 97065526, E = 8-97095-811-5, 97095811	8-94365-477-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: F = 8-97100-926-2, 97100926, K = 8-97216-186-1, 97216186	8-97025-667-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: C = 8-97042-997-0, 97042997	8-97083-193-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: H = 8-97120-356-2, 97120356	8-97112-869-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: J = 8-97216-185-0, 97216185	8-97179-769-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97179-769-0	01	1	9708-
17	02.083 BEARING; ARMATURE,STARTER (A) ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81129-495-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	5-09800-081-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (A) ASM PART: F = 8-97100-926-2, 97100926, K = 8-97216-186-1, 97216186	5-81129-113-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: B = 8-94333-438-0, 94333438	8-94152-968-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (A) ASM PART: B = 8-94333-438-0, 94333438, D = 8-97065-526-0, 97065526, E = 8-97095-811-5, 97095811, J = 8-97216-185-0, 97216185	8-94228-436-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: H = 8-97120-356-2, 97120356	8-94377-240-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: D = 8-97065-526-0, 97065526, E = 8-97095-811-5, 97095811, F = 8-97100-926-2, 97100926, J = 8-97216-185-0, 97216185, K = 8-97216-186-1, 97216186	8-97030-387-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: C = 8-97042-997-0, 97042997	8-97083-195-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (A) ASM PART: H = 8-97120-356-2, 97120356	8-97112-954-0	01	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: F = 8-97100-926-2, 97100926, K = 8-97216-186-1, 97216186	5-81117-012-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: C = 8-97042-997-0, 97042997	5-81117-015-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: B = 8-94333-438-0, 94333438, D = 8-97065-526-0, 97065526, E = 8-97095-811-5, 97095811, J = 8-97216-185-0, 97216185	8-94152-972-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: H = 8-97120-356-2, 97120356	8-97112-880-0	04	1	-
22	02.051 HOLDER; BRUSH STARTER 02.052 ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81118-043-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: C = 8-97042-997-0, 97042997	8-94167-430-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: B = 8-94333-438-0, 94333438	8-94337-866-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: D = 8-97065-526-0, 97065526, E = 8-97095-811-5, 97095811, J = 8-97216-185-0, 97216185	8-97025-670-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: F = 8-97100-926-2, 97100926, K = 8-97216-186-1, 97216186	8-97078-463-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: H = 8-97120-356-2, 97120356	8-97112-873-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81115-188-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: B = 8-94333-438-0, 94333438	8-94337-865-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: F = 8-97100-926-2, 97100926	8-97030-390-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: D = 8-97065-526-0, 97065526	8-97065-604-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: H = 8-97120-356-2, 97120356	8-97112-875-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97115-764-0	01	1	-9610
23	02.067 COVER; RR COVER STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97171-493-0	01	1	9611-
23	02.067 COVER; RR COVER STARTER ASM PART: J = 8-97216-185-0, 97216185	8-97171-493-0	01	1	-
26	02.077 SEAL; THROUGH BOLT STARTER 02.085 ASM PART: C = 8-97042-997-0, 97042997	5-81129-211-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (B) ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81129-483-0	03	1	-
27	02.077 BOLT; THROUGH,STARTER (A) ASM PART: A = 1-81100-234-1, 94039465	1-81129-498-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (A) ASM PART: G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81129-675-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (A) ASM PART: C = 8-97042-997-0, 97042997	8-94167-433-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (B) ASM PART: C = 8-97042-997-0, 97042997	8-94167-434-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER ASM PART: B = 8-94333-438-0, 94333438, D = 8-97065-526-0, 97065526	8-94242-071-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER ASM PART: F = 8-97100-926-2, 97100926, K = 8-97216-186-1, 97216186	8-97030-404-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (B) ASM PART: H = 8-97120-356-2, 97120356	8-97112-881-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (C) ASM PART: H = 8-97120-356-2, 97120356	8-97112-957-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER ASM PART: E = 8-97095-811-5, 97095811, J = 8-97216-185-0, 97216185	8-97117-106-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER 01.062, M6X16 W/LK WASHER ASM PART: B = 8-94333-438-0, 94333438	9-01910-616-0	03	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81151-067-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: B = 8-94333-438-0, 94333438	8-94152-981-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: D = 8-97065-526-0, 97065526	8-97025-677-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97025-677-0	01	1	-9605
31	02.100 SWITCH; ENGAGE STARTER ASM PART: F = 8-97100-926-2, 97100926	8-97065-602-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: C = 8-97042-997-0, 97042997	8-97083-196-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: H = 8-97120-356-2, 97120356	8-97142-907-1	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: J = 8-97216-185-0, 97216185	8-97161-789-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97161-789-0	01	1	9606-
41	02.067 SCREW; RR COVER,STARTER ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81129-667-0	03	1	-
41	02.067 SCREW; RR COVER,STARTER ASM PART: E = 8-97095-811-5, 97095811, J = 8-97216-185-0, 97216185	8-97117-107-0	02	1	-
41	02.067 SCREW; RR COVER,STARTER ASM PART: H = 8-97120-356-2, 97120356	8-97142-903-0	02	1	-
43	02.086 RETAINER; PINION STARTER ASM PART: C = 8-97042-997-0, 97042997	5-81129-100-0	01	1	-
43	02.086 RETAINER; PINION STARTER (A) ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	5-81129-121-0	01	1	-
43	02.086 RETAINER; PINION STARTER 02.108, (B) ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	5-81129-127-0	01	1	-
43	02.086 RETAINER; PINION STARTER ASM PART: H = 8-97120-356-2, 97120356	8-94377-246-0	01	1	-
44	02.086 ROLLER; PINION STARTER ASM PART: C = 8-97042-997-0, 97042997, H = 8-97120-356-2, 97120356	5-81129-099-0	05	1	-
44	02.086 ROLLER; PINION STARTER ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	5-81129-120-0	05	1	-
46	02.086 GEAR; CLU STARTER (A) ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81123-034-0	01	1	-
46	02.086 GEAR; CLU STARTER (B) ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81123-035-0	01	1	-
46	02.086 GEAR; CLU STARTER (A) ASM PART: C = 8-97042-997-0, 97042997	5-81123-010-0	01	1	-
46	02.086 GEAR; CLU STARTER (B) ASM PART: C = 8-97042-997-0, 97042997	8-94167-427-0	01	1	-
46	02.086 GEAR; CLU STARTER (B) ASM PART: H = 8-97120-356-2, 97120356	8-97078-649-0	01	1	-
46	02.086 GEAR; CLU STARTER (A) ASM PART: H = 8-97120-356-2, 97120356	8-97142-904-0	01	1	-
47	02.086 SPRING; PINION STARTER 02.108 ASM PART: C = 8-97042-997-0, 97042997	5-81129-096-0	01	1	-
47	02.086 SPRING; PINION STARTER ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	5-81129-119-0	01	1	-
47	02.086 SPRING; PINION STARTER ASM PART: H = 8-97120-356-2, 97120356	8-94377-245-0	01	1	-
48	02.108 BALL; PINION,STARTER ASM PART: A = 1-81100-234-1, 94039465, C = 8-97042-997-0, 97042997, G = 8-97119-749-0, 97119749, H = 8-97120-356-2, 97120356, I = 8-97174-043-0, 97174043	5-81129-092-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81122-049-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: C = 8-97042-997-0, 97042997	5-81124-003-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: B = 8-94333-438-0, 94333438	8-94334-977-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: D = 8-97065-526-0, 97065526	8-97025-672-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97025-672-0	01	1	-9707
54	02.086 CLUTCH; PINION,STARTER ASM PART: F = 8-97100-926-2, 97100926	8-97030-394-0	01	1	-9406
54	02.086 CLUTCH; PINION,STARTER ASM PART: F = 8-97100-926-2, 97100926	8-97115-816-0	01	1	9407-
54	02.086 CLUTCH; PINION,STARTER ASM PART: K = 8-97216-186-1, 97216186	8-97115-816-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: H = 8-97120-356-2, 97120356	8-97148-687-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97179-771-0	01	1	9708-
54	02.086 CLUTCH; PINION,STARTER ASM PART: J = 8-97216-185-0, 97216185	8-97179-771-0	01	1	-
58	03.330 PIPE; DRAIN RR COVER STARTER (B) ASM PART: A = 1-81100-234-1, 94039465	1-81129-668-0	01	1	-
58	03.330 PIPE; DRAIN RR COVER STARTER ASM PART: C = 8-97042-997-0, 97042997	1-81129-677-0	02	1	-
58	03.330 PIPE; DRAIN RR COVER STARTER (A) ASM PART: G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81129-717-0	01	1	-
58	03.330 PIPE; DRAIN RR COVER STARTER (B) ASM PART: G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81129-718-0	01	1	-
58	03.330 PIPE; DRAIN RR COVER STARTER 02.067 ASM PART: H = 8-97120-356-2, 97120356	8-97041-421-0	01	1	-
95	02.051 BRUSH ASM; STARTER (A) ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81116-048-0	02	1	-
95	02.051 BRUSH ASM; STARTER (B) ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81116-049-0	02	1	-
95	02.051 BRUSH ASM; STARTER ASM PART: C = 8-97042-997-0, 97042997	8-97083-194-0	01	1	-
114	02.055 NUT; TERMINAL 02.042, (A) ASM PART: C = 8-97042-997-0, 97042997	5-09400-042-0	01	1	-
114	02.055 NUT; TERMINAL 02.102 ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	5-81129-126-0	02	1	-
114	02.055 NUT; TERMINAL 02.102, (A) ASM PART: H = 8-97120-356-2, 97120356	8-94109-763-0	01	1	-
114	02.055 NUT; TERMINAL (B) ASM PART: H = 8-97120-356-2, 97120356	8-94377-238-0	01	1	-
114	02.055 NUT; TERMINAL 00.002, (B) ASM PART: C = 8-97042-997-0, 97042997	9-09110-508-0	01	1	-
115	02.063 WASHER; TERMINAL (A) ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	5-81129-129-0	01	1	-
115	02.063 WASHER; TERMINAL 02.102, (B) ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	5-81129-134-0	01	1	-
115	02.063 WASHER; TERMINAL 00.002, ID=8.2 ASM PART: C = 8-97042-997-0, 97042997	9-09150-508-0	01	1	-

32 31 2 28 7 73 54 27 27 9 9 10 45 23 50 21 20 22 51 19 17 17 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	02.085 CASE; PINION,STARTER ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81113-092-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: B = 8-94333-438-0, 94333438	8-94152-979-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: C = 8-97042-997-0, 97042997	8-94167-435-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: D = 8-97065-526-0, 97065526	8-97025-678-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: F = 8-97100-926-2, 97100926, K = 8-97216-186-1, 97216186	8-97030-400-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97115-765-0	01	1	-9707
2	02.085 CASE; PINION,STARTER ASM PART: H = 8-97120-356-2, 97120356	8-97142-908-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97179-775-0	01	1	9708-
2	02.085 CASE; PINION,STARTER ASM PART: J = 8-97216-185-0, 97216185	8-97179-775-0	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: B = 8-94333-438-0, 94333438	8-94334-976-0	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: D = 8-97065-526-0, 97065526	8-97025-671-0	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97025-671-0	01	1	-9605
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: F = 8-97100-926-2, 97100926	8-97030-393-0	01	1	-9406
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: K = 8-97216-186-1, 97216186	8-97115-815-0	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: F = 8-97100-926-2, 97100926	8-97115-815-0	01	1	9407-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97161-793-0	01	1	9606-9707
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97179-770-0	01	1	9708-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: J = 8-97216-185-0, 97216185	8-97179-770-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER ASM PART: B = 8-94333-438-0, 94333438	8-94228-468-0	02	1	-
9	02.083 BEARING; GEAR SHAFT STARTER 24V 4.0KW(C) 24V 4.5KW(D) ASM PART: D = 8-97065-526-0, 97065526, E = 8-97095-811-5, 97095811, J = 8-97216-185-0, 97216185	8-97025-673-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER 24V 4.0KW(C) 24V 4.5KW(D) ASM PART: F = 8-97100-926-2, 97100926, K = 8-97216-186-1, 97216186	8-97025-673-0	02	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (A) ASM PART: D = 8-97065-526-0, 97065526, E = 8-97095-811-5, 97095811, J = 8-97216-185-0, 97216185	8-97025-674-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (B) ASM PART: D = 8-97065-526-0, 97065526, E = 8-97095-811-5, 97095811, F = 8-97100-926-2, 97100926, J = 8-97216-185-0, 97216185, K = 8-97216-186-1, 97216186	8-97025-676-0	01	1	-
10	02.086 SHAFT; GEAR STARTER ASM PART: B = 8-94333-438-0, 94333438	8-94152-976-0	01	1	-
10	02.086 SHAFT; GEAR STARTER ASM PART: D = 8-97065-526-0, 97065526	8-97025-675-0	01	1	-
10	02.086 SHAFT; GEAR STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97025-675-0	01	1	-9605
10	02.086 SHAFT; GEAR STARTER ASM PART: F = 8-97100-926-2, 97100926, K = 8-97216-186-1, 97216186	8-97030-395-0	01	1	-
10	02.086 SHAFT; GEAR STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97131-794-0	01	1	9606-9707
10	02.086 SHAFT; GEAR STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97179-772-0	01	1	9708-
10	02.086 SHAFT; GEAR STARTER ASM PART: J = 8-97216-185-0, 97216185	8-97179-772-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81121-042-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: B = 8-94333-438-0, 94333438	8-94152-967-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: D = 8-97065-526-0, 97065526, E = 8-97095-811-5, 97095811	8-94365-477-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: F = 8-97100-926-2, 97100926, K = 8-97216-186-1, 97216186	8-97025-667-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: C = 8-97042-997-0, 97042997	8-97083-193-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: H = 8-97120-356-2, 97120356	8-97112-869-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: J = 8-97216-185-0, 97216185	8-97179-769-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97179-769-0	01	1	9708-
17	02.083 BEARING; ARMATURE,STARTER (A) ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81129-495-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	5-09800-081-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (A) ASM PART: F = 8-97100-926-2, 97100926, K = 8-97216-186-1, 97216186	5-81129-113-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: B = 8-94333-438-0, 94333438	8-94152-968-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (A) ASM PART: B = 8-94333-438-0, 94333438, D = 8-97065-526-0, 97065526, E = 8-97095-811-5, 97095811, J = 8-97216-185-0, 97216185	8-94228-436-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: H = 8-97120-356-2, 97120356	8-94377-240-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: D = 8-97065-526-0, 97065526, E = 8-97095-811-5, 97095811, F = 8-97100-926-2, 97100926, J = 8-97216-185-0, 97216185, K = 8-97216-186-1, 97216186	8-97030-387-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: C = 8-97042-997-0, 97042997	8-97083-195-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (A) ASM PART: H = 8-97120-356-2, 97120356	8-97112-954-0	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: B = 8-94333-438-0, 94333438	8-94152-969-0	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: D = 8-97065-526-0, 97065526	8-97025-668-0	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97025-668-0	01	1	-9610
19	02.049 COIL; FIELD,STARTER ASM PART: F = 8-97100-926-2, 97100926	8-97078-461-0	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97171-491-0	01	1	9611-
20	02.051 BRUSH; (+),STARTER ASM PART: B = 8-94333-438-0, 94333438, D = 8-97065-526-0, 97065526, E = 8-97095-811-5, 97095811, J = 8-97216-185-0, 97216185	8-94152-970-0	02	1	-
20	02.051 BRUSH; (+),STARTER ASM PART: F = 8-97100-926-2, 97100926, K = 8-97216-186-1, 97216186	8-97078-462-0	02	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: F = 8-97100-926-2, 97100926, K = 8-97216-186-1, 97216186	5-81117-012-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: C = 8-97042-997-0, 97042997	5-81117-015-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: B = 8-94333-438-0, 94333438, D = 8-97065-526-0, 97065526, E = 8-97095-811-5, 97095811, J = 8-97216-185-0, 97216185	8-94152-972-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: H = 8-97120-356-2, 97120356	8-97112-880-0	04	1	-
22	02.051 HOLDER; BRUSH STARTER 02.052 ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81118-043-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: C = 8-97042-997-0, 97042997	8-94167-430-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: B = 8-94333-438-0, 94333438	8-94337-866-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: D = 8-97065-526-0, 97065526, E = 8-97095-811-5, 97095811, J = 8-97216-185-0, 97216185	8-97025-670-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: F = 8-97100-926-2, 97100926, K = 8-97216-186-1, 97216186	8-97078-463-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: H = 8-97120-356-2, 97120356	8-97112-873-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81115-188-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: B = 8-94333-438-0, 94333438	8-94337-865-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: F = 8-97100-926-2, 97100926	8-97030-390-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: D = 8-97065-526-0, 97065526	8-97065-604-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: H = 8-97120-356-2, 97120356	8-97112-875-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97115-764-0	01	1	-9610
23	02.067 COVER; RR COVER STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97171-493-0	01	1	9611-
23	02.067 COVER; RR COVER STARTER ASM PART: J = 8-97216-185-0, 97216185	8-97171-493-0	01	1	-
27	02.077 BOLT; THROUGH,STARTER (B) ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81129-483-0	03	1	-
27	02.077 BOLT; THROUGH,STARTER (A) ASM PART: A = 1-81100-234-1, 94039465	1-81129-498-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (A) ASM PART: G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81129-675-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (A) ASM PART: C = 8-97042-997-0, 97042997	8-94167-433-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (B) ASM PART: C = 8-97042-997-0, 97042997	8-94167-434-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER ASM PART: B = 8-94333-438-0, 94333438, D = 8-97065-526-0, 97065526	8-94242-071-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER ASM PART: F = 8-97100-926-2, 97100926, K = 8-97216-186-1, 97216186	8-97030-404-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (B) ASM PART: H = 8-97120-356-2, 97120356	8-97112-881-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (C) ASM PART: H = 8-97120-356-2, 97120356	8-97112-957-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER ASM PART: E = 8-97095-811-5, 97095811, J = 8-97216-185-0, 97216185	8-97117-106-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER 01.062, M6X16 W/LK WASHER ASM PART: B = 8-94333-438-0, 94333438	9-01910-616-0	03	1	-
28	02.108 LEVER; SHIFT,STARTER ASM PART: B = 8-94333-438-0, 94333438	8-94152-980-0	01	1	-
28	02.108 LEVER; SHIFT,STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97025-680-0	01	1	-9605
28	02.108 LEVER; SHIFT,STARTER ASM PART: D = 8-97065-526-0, 97065526	8-97025-680-0	01	1	-
28	02.108 LEVER; SHIFT,STARTER ASM PART: F = 8-97100-926-2, 97100926, K = 8-97216-186-1, 97216186	8-97030-402-0	01	1	-
28	02.108 LEVER; SHIFT,STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97161-790-0	01	1	9606-9707
28	02.108 LEVER; SHIFT,STARTER ASM PART: J = 8-97216-185-0, 97216185	8-97179-776-0	01	1	-
28	02.108 LEVER; SHIFT,STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97179-776-0	01	1	9708-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81151-067-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: B = 8-94333-438-0, 94333438	8-94152-981-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: D = 8-97065-526-0, 97065526	8-97025-677-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97025-677-0	01	1	-9605
31	02.100 SWITCH; ENGAGE STARTER ASM PART: F = 8-97100-926-2, 97100926	8-97065-602-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: C = 8-97042-997-0, 97042997	8-97083-196-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: H = 8-97120-356-2, 97120356	8-97142-907-1	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: J = 8-97216-185-0, 97216185	8-97161-789-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97161-789-0	01	1	9606-
32	02.115 COVER; RUBBER,STARTER 02.102 ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81129-504-0	01	1	-
32	02.115 COVER; RUBBER,STARTER ASM PART: H = 8-97120-356-2, 97120356	5-81119-029-0	01	1	-
32	02.115 COVER; RUBBER,STARTER HITACHI ASM PART: B = 8-94333-438-0, 94333438, D = 8-97065-526-0, 97065526, E = 8-97095-811-5, 97095811, F = 8-97100-926-2, 97100926	5-81129-069-0	01	1	-
45	02.042 RETAINER; BEARING,STARTER ASM PART: B = 8-94333-438-0, 94333438	8-94334-978-0	01	1	-
45	02.042 RETAINER; BEARING,STARTER (A) ASM PART: D = 8-97065-526-0, 97065526, E = 8-97095-811-5, 97095811, F = 8-97100-926-2, 97100926, J = 8-97216-185-0, 97216185, K = 8-97216-186-1, 97216186	8-94435-567-0	01	1	-
45	02.042 RETAINER; BEARING,STARTER (B) ASM PART: E = 8-97095-811-5, 97095811	8-97025-679-0	01	1	-9707
45	02.042 RETAINER; BEARING,STARTER (B) ASM PART: D = 8-97065-526-0, 97065526	8-97025-679-0	01	1	-
45	02.042 RETAINER; BEARING,STARTER (B) ASM PART: F = 8-97100-926-2, 97100926, K = 8-97216-186-1, 97216186	8-97030-401-0	01	1	-
45	02.042 RETAINER; BEARING,STARTER (B) ASM PART: E = 8-97095-811-5, 97095811	8-97179-774-0	01	1	9708-
45	02.042 RETAINER; BEARING,STARTER (B) ASM PART: J = 8-97216-185-0, 97216185	8-97179-774-0	01	1	-
50	02.051 BRUSH; (-),STARTER ASM PART: B = 8-94333-438-0, 94333438, D = 8-97065-526-0, 97065526, E = 8-97095-811-5, 97095811, J = 8-97216-185-0, 97216185	8-94152-973-0	02	1	-
50	02.051 BRUSH; (-),STARTER ASM PART: F = 8-97100-926-2, 97100926, K = 8-97216-186-1, 97216186	8-97078-464-0	02	1	-
51	02.104 COVER SET; DUST ENGAGE SW STARTE ASM PART: B = 8-94333-438-0, 94333438	8-94152-982-0	01	1	-
51	02.104 COVER SET; DUST ENGAGE SW STARTE ASM PART: E = 8-97095-811-5, 97095811	8-97025-681-0	01	1	-9707
51	02.104 COVER SET; DUST ENGAGE SW STARTE ASM PART: D = 8-97065-526-0, 97065526	8-97025-681-0	01	1	-
51	02.104 COVER SET; DUST ENGAGE SW STARTE ASM PART: F = 8-97100-926-2, 97100926, K = 8-97216-186-1, 97216186	8-97030-403-0	01	1	-
51	02.104 COVER SET; DUST ENGAGE SW STARTE ASM PART: E = 8-97095-811-5, 97095811	8-97179-778-0	01	1	9708-
51	02.104 COVER SET; DUST ENGAGE SW STARTE ASM PART: J = 8-97216-185-0, 97216185	8-97179-778-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: A = 1-81100-234-1, 94039465, G = 8-97119-749-0, 97119749, I = 8-97174-043-0, 97174043	1-81122-049-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: C = 8-97042-997-0, 97042997	5-81124-003-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: B = 8-94333-438-0, 94333438	8-94334-977-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: D = 8-97065-526-0, 97065526	8-97025-672-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97025-672-0	01	1	-9707
54	02.086 CLUTCH; PINION,STARTER ASM PART: F = 8-97100-926-2, 97100926	8-97030-394-0	01	1	-9406
54	02.086 CLUTCH; PINION,STARTER ASM PART: F = 8-97100-926-2, 97100926	8-97115-816-0	01	1	9407-
54	02.086 CLUTCH; PINION,STARTER ASM PART: K = 8-97216-186-1, 97216186	8-97115-816-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: H = 8-97120-356-2, 97120356	8-97148-687-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: E = 8-97095-811-5, 97095811	8-97179-771-0	01	1	9708-
54	02.086 CLUTCH; PINION,STARTER ASM PART: J = 8-97216-185-0, 97216185	8-97179-771-0	01	1	-
73	02.063 STOPPER SET; PINION ASM PART: B = 8-94333-438-0, 94333438	8-94152-978-0	01	1	-
73	02.063 STOPPER SET; PINION REAR ASM PART: D = 8-97065-526-0, 97065526, E = 8-97095-811-5, 97095811, F = 8-97100-926-2, 97100926, J = 8-97216-185-0, 97216185, K = 8-97216-186-1, 97216186	8-97030-396-0	01	1	-
73	02.063 STOPPER SET; PINION FRONT ASM PART: F = 8-97100-926-2, 97100926, K = 8-97216-186-1, 97216186	8-97030-398-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
