◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 10676 - LT 111,112,132,133 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-56 - AUTO TRANS CONTROL LINK ▶
2-56 — AUTO TRANS CONTROL LINK (#4440) — 101 parça

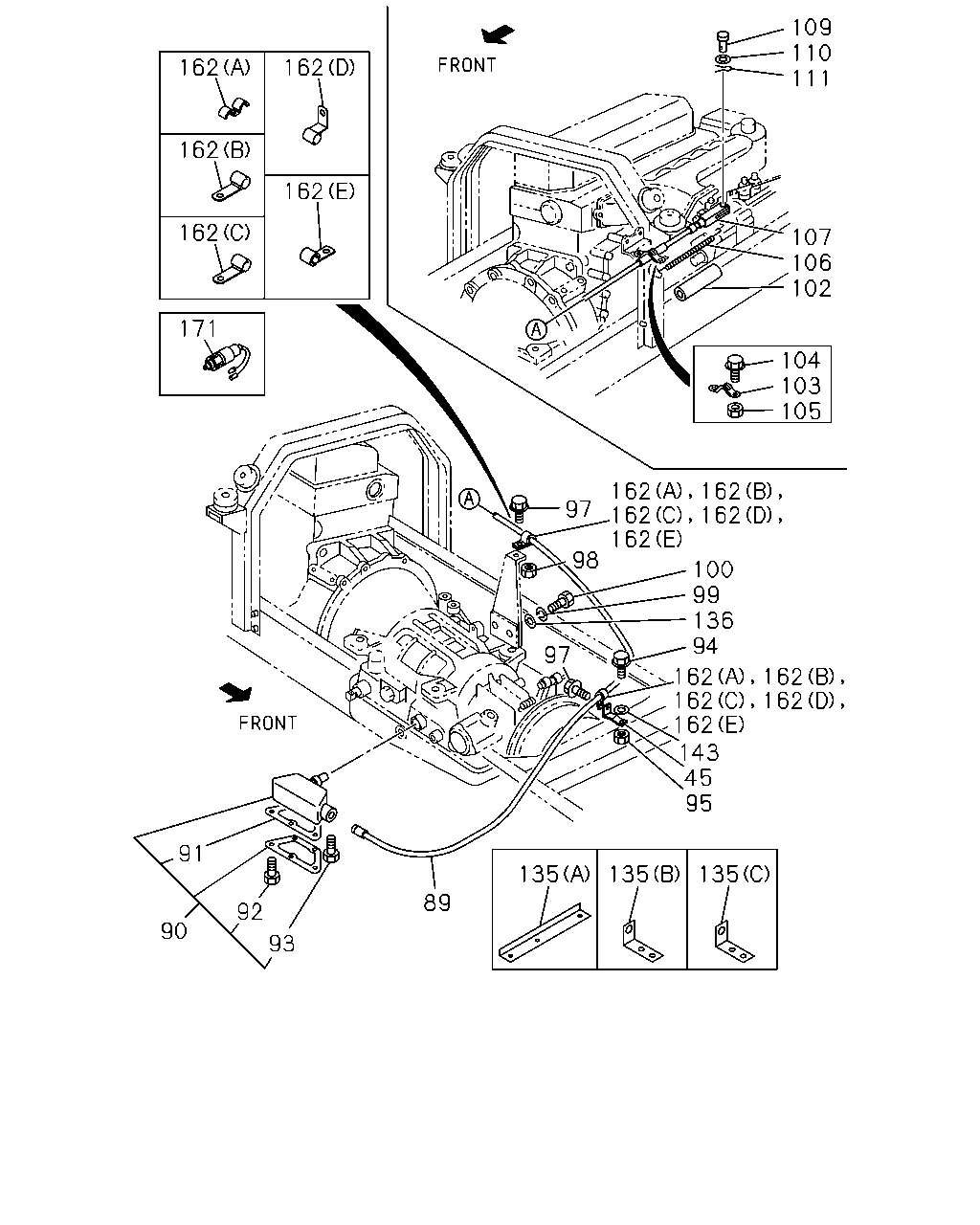

çizim 5061
109 110 111 162 162 162 162 107 106 102 162 171 104 103 105 162 162 162 162 162 97 98 100 99 136 94 97 162 162 143 45 95 162 162 91 135 135 135 89 92 90 93 162
BalonParca AdiParca NoAdetTipApplied Date
45 CLIP; CONT CABLE
ID=15 L=42 		9-09716-203-1 01 1 9101-9504
89 CABLE; CONT 1-34650-054-0 01 1 9101-9504
90 ACTUATOR; THROTTLE 1-34511-002-0 01 1 9101-9504
91 GASKET; COVER,THROTTLE ACTUATOR 1-34519-002-0 01 1 9101-9504
92 SCREW; COVER,THROTTLE ACTUATOR 1-09189-002-0 04 1 9101-9504
93 SCREW; THROTTLE ACTUATOR TO CABLE 1-09189-001-0 01 1 9101-9504
94 BOLT; CLIP
5/8"X30 		1-09040-013-0 01 1 9101-9504
94 BOLT; CLIP
1/2-13UNE X28 		1-09087-031-0 02 1 9101-9504
94 BOLT; CLIP
M8X20 W/LK WASHER 		9-01900-820-0 01 1 9101-9204
94 BOLT; CLIP
M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205-9504
95 NUT; CLIP
M8 		9-09110-408-0 02 1 9101-9504
95 NUT; CLIP
M12 		9-99110-412-0 01 1 9101-9504
97 BOLT; CLIP
M6X16 W/LK WASHER 		0-50040-616-0 01 1 9101-9504
97 BOLT; CLIP
M8X20 W/LK WASHER 		0-50040-820-0 01 1 9101-9504
98 NUT; CLIP,THROTTLE CONT
M6 		9-09110-406-0 01 1 9101-9504
98 NUT; CLIP,THROTTLE CONT
M8 		9-09110-408-0 01 1 9101-9504
99 WASHER; LK,BRKT
ID=13 		1-09500-002-0 02 1 9101-9504
99 WASHER; LK,BRKT
ID=16.2 		9-09150-516-0 01 1 9101-9312
100 BOLT; BRKT FIX
M12X40 		9-01961-240-0 01 1 9101-9204
100 BOLT; BRKT FIX
M12X40 W/LK&PL WASHER 		0-50141-240-0 01 1 9205-9504
102 COVER; GEAR CONT 1-09369-012-0 01 1 9101-9504
103 CLIP; WIRE END 1-09709-052-0 01 1 9101-9504
104 BOLT; CLIP
M6X16 W/LK WASHER 		0-50040-616-0 02 1 9101-9504
105 NUT; CLIP
M6 		9-09110-406-0 02 1 9101-9504
106 SPRING; RETURN,CONT CABLE 9-09942-002-0 01 1 9101-9504
107 JOINT; JAW,CONT CABLE 1-09768-014-1 01 1 9101-9504
109 PIN; CONT CABLE
OD=6 L=20 		9-08223-620-0 01 1 9101-9504
110 WASHER; PL,CONT CABLE
ID=6.4 		9-09160-506-0 01 1 9101-9504
111 PIN; SNAP,CONT CABLE
L=21.2 		1-09747-003-0 01 1 9101-9504
135 BRACKET; CLIP
(A) 		1-23335-287-2 01 1 9101-9504
135 BRACKET; CLIP
(B) 		1-47465-644-0 01 1 9101-9504
135 BRACKET; CLIP
(C) 		1-47475-059-0 01 1 9101-9504
136 WASHER; PL,BRKT
ID=12.5 OD=26 		9-09160-612-0 01 1 9101-9504
143 WASHER; PL,CLIP
ID=8.4 OD=18 		9-09160-608-0 01 1 9101-9504
162 CLIP; THROTTLE CABLE
(A) ID=16 & 16 L=17.5 & 17.5 		1-09700-662-0 02 1 9101-9504
162 CLIP; THROTTLE CABLE
RIGHT HAND DRIVE(LTR5FB) NEW ZEALAND EQUIPMENT<PK5>,AUSTRALIA EQUIPMENT<RR3> (A) ID=16 & 16 L=17.5 & 17.5 		1-09700-662-0 02 1 9101-9504
162 CLIP; THROTTLE CABLE
WHEEL BASE 5000MM(50W),WHEEL BASE 5700MM(57W) (A) ID=16 & 16 L=17.5 & 17.5 		1-09700-662-0 02 1 9101-9504
162 CLIP; THROTTLE CABLE
(D) ID=11 H=20 L=20 		5-09700-351-0 01 1 9101-9504
162 CLIP; THROTTLE CABLE
(B) ID=11 L=20 		9-09525-032-0 01 1 9101-9504
162 CLIP; THROTTLE CABLE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) ID=14.5 		9-09916-724-1 02 1 9101-9504
162 CLIP; THROTTLE CABLE
WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) ID=16 		1-09700-200-0 04 1 9101-9504
162 CLIP; THROTTLE CABLE
WHEEL BASE 5700MM(57W) (C) ID=16 		1-09700-200-0 02 1 9101-9504
162 CLIP; THROTTLE CABLE
WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) ID=16 		1-09700-200-0 03 1 9101-9504
162 CLIP; THROTTLE CABLE
RIGHT HAND DRIVE(LTR5FB) WHEEL BASE 5700MM(57W) NEW ZEALAND EQUIPMENT<PK5>,AUSTRALIA EQUIPMENT<RR3> (C) ID=16 		1-09700-200-0 01 1 9101-9504
171 SWITCH; LOCKUP 1-82410-128-0 01 1 9709-9805
171 SWITCH; LOCKUP
6BD1 TC ENG(L29) EXH BRK<NF8> 		1-82410-128-0 01 1 9101-9504

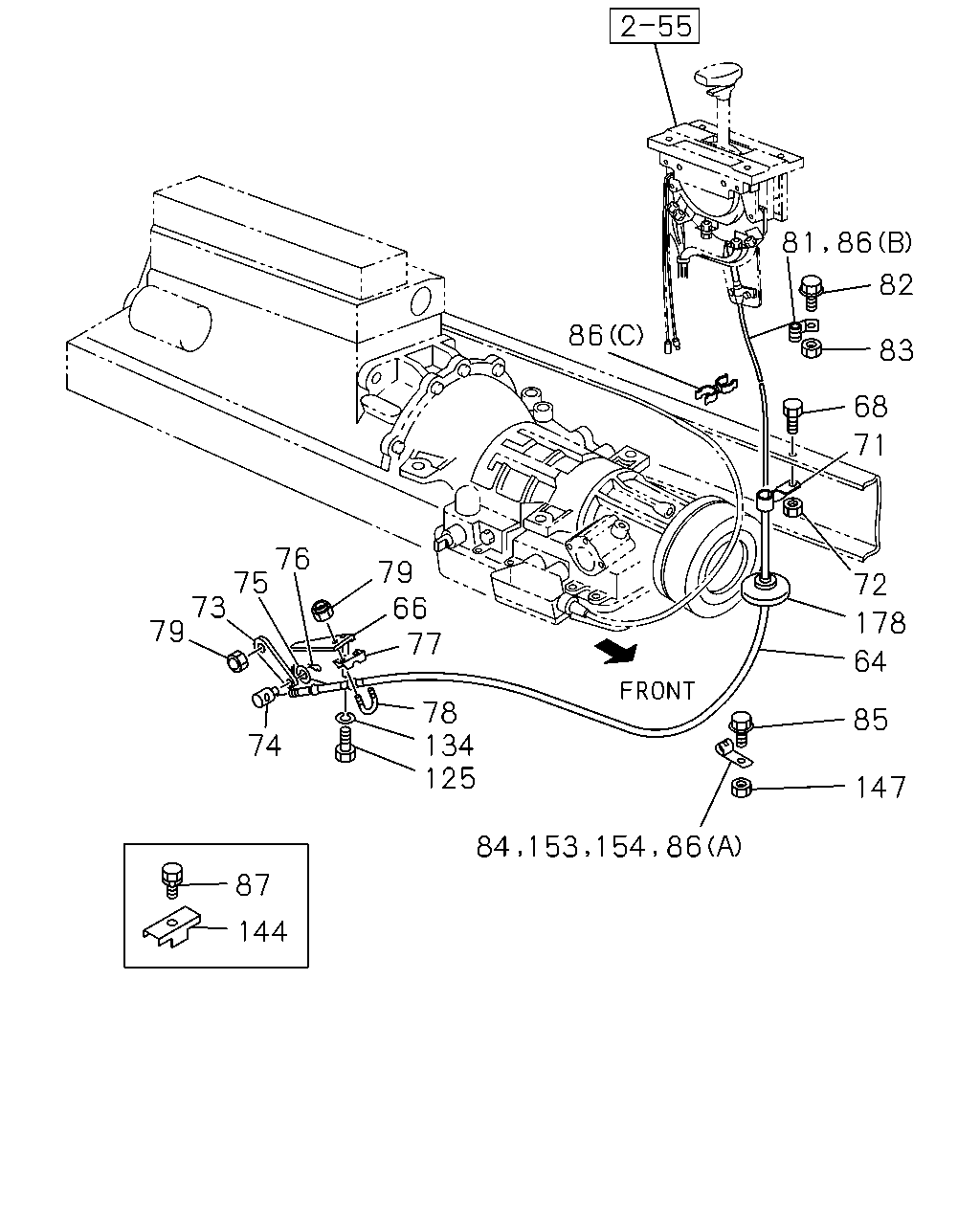

çizim 36553
82 86 83 68 71 76 75 73 79 72 79 66 77 178 64 78 134 125 85 74 147 87 144 81 86 86 154 153 84
BalonParca AdiParca NoAdetTipApplied Date
64 CABLE; A/T CONT
WHEEL BASE 5000MM(50W) L=9250 		1-34650-044-2 01 1 9101-9504
64 CABLE; A/T CONT
WHEEL BASE 5700MM(57W) L=10050 		1-34650-046-2 01 1 9101-9504
66 BRACKET; MTG,A/T CONT CABLE 1-34656-020-1 01 1 9101-9504
68 BOLT; A/T CONT CABLE
M8X16 W/LK WASHER 		9-01900-816-0 01 1 9101-9204
68 BOLT; A/T CONT CABLE
M8X16 W/LK WASHER 		0-50040-816-0 01 1 9205-9504
71 CLIP; A/T CONT CABLE
ID=11 L=35 		9-09917-036-1 01 1 9101-9504
72 NUT; A/T CONT CABLE
M6 		9-09110-406-0 01 1 9101-9504
72 NUT; A/T CONT CABLE
M8 		9-09110-408-0 01 1 9101-9504
73 ARM; A/T 1-34651-006-0 01 1 9101-9504
74 TRUNNION; A/T CONT CABLE 1-34659-005-0 01 1 9101-9504
75 WASHER; PL,CONT CABLE TO A/T
ID=8.4 		9-09160-508-0 01 1 9101-9504
76 PIN; SNAP,A/T CONT
L=27.7 		1-09747-005-0 01 1 9101-9504
77 SHIM; A/T CONT CABLE 1-34659-008-0 01 1 9101-9504
78 U-BOLT; A/T CONT CABLE 1-34659-004-0 01 1 9101-9504
79 NUT; CONT CABLE 1-09487-013-0 02 1 9101-9504
81 CLIP; A/T CONT CABLE 9-09916-266-0 01 1 9101-9504
82 BOLT; A/T CONT CABLE
M6X20 W/LK WASHER 		9-01900-620-0 01 1 9101-9204
82 BOLT; A/T CONT CABLE
M6X20 W/LK WASHER 		0-50040-620-0 01 1 9205-9504
83 NUT; A/T CONT CABLE
M6 		9-09110-406-0 01 1 9101-9504
84 CLIP; A/T CONT CABLE
ID=11 L=20 		9-09525-032-0 02 1 9101-9504
84 CLIP; A/T CONT CABLE
ID=14.5 		9-09916-724-1 01 1 9101-9504
85 BOLT; A/T CONT CABLE
M6X16 W/LK WASHER 		0-50040-616-0 02 1 9101-9504
85 BOLT; A/T CONT CABLE
M8X35 W/LK WASHER 		9-01900-835-0 01 1 9101-9204
85 BOLT; A/T CONT CABLE
M8X35 W/LK WASHER 		0-50040-835-0 01 1 9205-9504
86 CLIP; CONT CABLE,FRAME
(A) 		1-09700-200-0 03 1 9101-9504
86 CLIP; CONT CABLE,FRAME
(C) 		8-94314-293-0 01 1 9101-9504
86 CLIP; CONT CABLE,FRAME
(B) 		9-09916-266-0 05 1 9101-9504
86 CLIP; CONT CABLE,FRAME
WHEEL BASE 5700MM(57W) (B) 		9-09916-266-0 01 1 9101-9504
87 BOLT; CLIP
M6X20 W/LK WASHER 		9-01900-620-0 10 1 9101-9204
87 BOLT; CLIP
M6X20 W/LK WASHER 		0-50040-620-0 10 1 9205-9504
87 BOLT; CLIP
M8X20 W/LK WASHER 		9-01900-820-0 03 1 9101-9204
87 BOLT; CLIP
M8X20 W/LK WASHER 		0-50040-820-0 03 1 9205-9504
87 BOLT; CLIP
WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M6X20 W/LK WASHER 		9-01900-620-0 04 1 9101-9204
87 BOLT; CLIP
WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M6X20 W/LK WASHER 		0-50040-620-0 04 1 9205-9504
87 BOLT; CLIP
WHEEL BASE 5700MM(57W) M6X20 W/LK WASHER 		9-01900-620-0 03 1 9101-9204
87 BOLT; CLIP
WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M6X20 W/LK WASHER 		9-01900-620-0 03 1 9101-9204
87 BOLT; CLIP
WHEEL BASE 5700MM(57W) M6X20 W/LK WASHER 		0-50040-620-0 03 1 9205-9504
87 BOLT; CLIP
WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M6X20 W/LK WASHER 		0-50040-620-0 03 1 9205-9504
87 BOLT; CLIP
RIGHT HAND DRIVE(LTR5FB) NEW ZEALAND EQUIPMENT<PK5>,AUSTRALIA EQUIPMENT<RR3> M8X20 W/LK WASHER 		9-01900-820-0 02 1 9101-9204
87 BOLT; CLIP
WHEEL BASE 5000MM(50W),WHEEL BASE 5700MM(57W) M8X20 W/LK WASHER 		9-01900-820-0 02 1 9101-9204
87 BOLT; CLIP
RIGHT HAND DRIVE(LTR5FB) NEW ZEALAND EQUIPMENT<PK5>,AUSTRALIA EQUIPMENT<RR3> M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205-9504
87 BOLT; CLIP
WHEEL BASE 5000MM(50W),WHEEL BASE 5700MM(57W) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205-9504
87 BOLT; CLIP
RIGHT HAND DRIVE(LTR5FB) WHEEL BASE 5700MM(57W) NEW ZEALAND EQUIPMENT<PK5>,AUSTRALIA EQUIPMENT<RR3> M6X20 W/LK WASHER 		9-01900-620-0 01 1 9101-9204
87 BOLT; CLIP
RIGHT HAND DRIVE(LTR5FB) WHEEL BASE 5700MM(57W) NEW ZEALAND EQUIPMENT<PK5>,AUSTRALIA EQUIPMENT<RR3> M6X20 W/LK WASHER 		0-50040-620-0 01 1 9205-9504
125 BOLT; BRKT
M16X35 		0-20801-635-0 01 1 9101-9404
125 BOLT; BRKT
M16X30 		0-20801-630-0 01 1 9405-9504
134 WASHER; LK,BRKT
ID=16.2 		9-09150-516-0 01 1 9101-9504
144 BRACKET; CLIP,CONT CABLE,C/MBR 1-47475-427-1 01 1 9101-9504
147 NUT; CLIP
M6 		9-09110-406-0 10 1 9101-9504
147 NUT; CLIP
WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M6 		9-09110-406-0 04 1 9101-9504
147 NUT; CLIP
WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M6 		9-09110-406-0 03 1 9101-9504
147 NUT; CLIP
RIGHT HAND DRIVE(LTR5FB) WHEEL BASE 5700MM(57W) NEW ZEALAND EQUIPMENT<PK5>,AUSTRALIA EQUIPMENT<RR3> M6 		9-09110-406-0 01 1 9101-9504
153 CLIP; CABLE,S/MBR
ID=16 		1-09700-200-0 02 1 9101-9504
154 CLIP; CABLE,BRKT,S/ABS
ID=14.5 		9-09916-724-1 01 1 9101-9504
178 GROMMET; CONT CABLE 8-94202-821-0 01 1 9101-9504
