◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50696 - NPR/NQR-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#44399) — 1140 parça

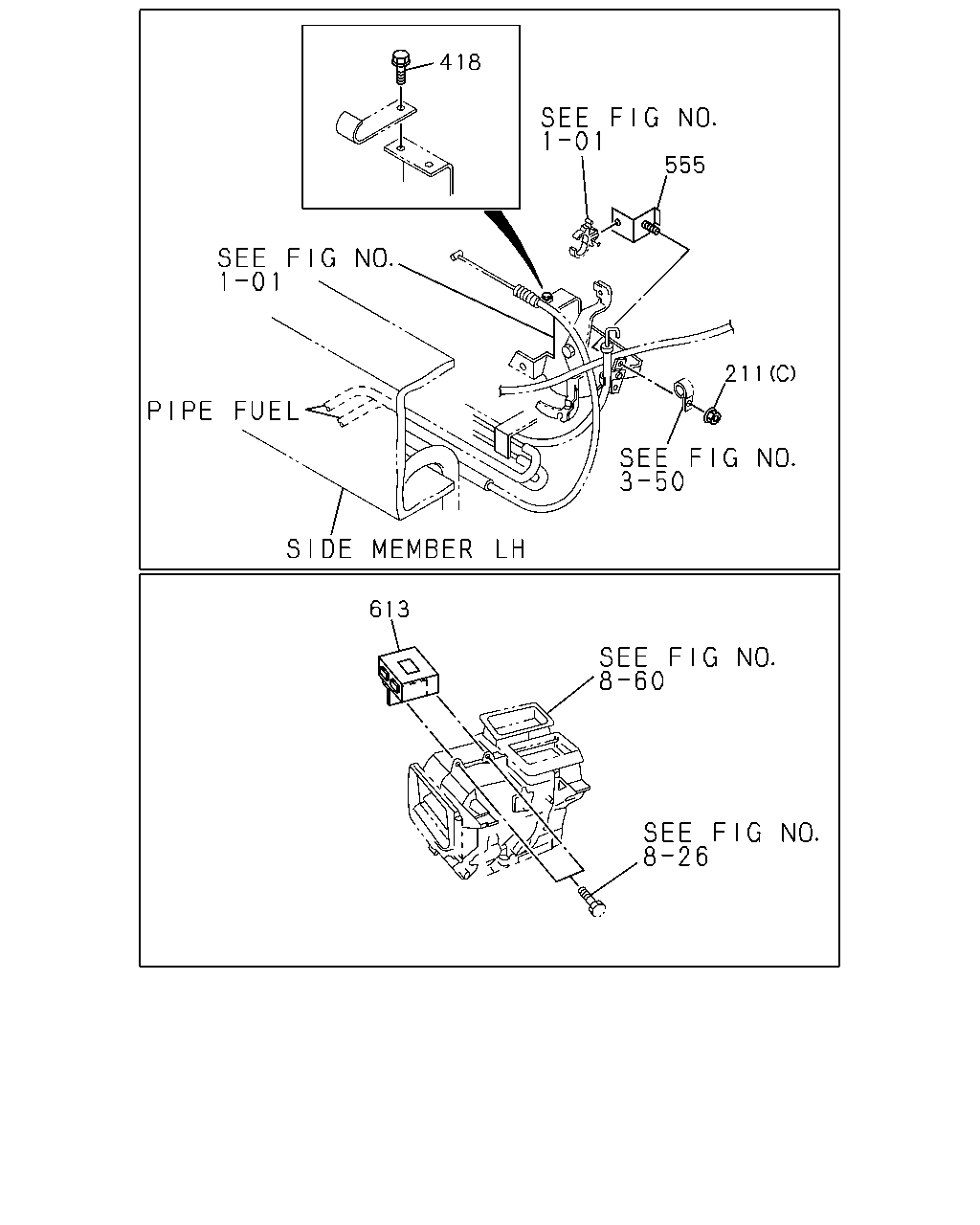

çizim 18902
418 555 211 613
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
211 02.343 NUT; CABLE FIX
07.633 M8 FLANGE 		0-91150-108-0 01 1 9312-9510 ● ● ●
211 02.343 NUT; CABLE FIX
04.785 M10 FLANGE 		0-91150-110-0 01 1 9312-9312 ● ● ●
211 02.343 NUT; CABLE FIX
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9312-9711 ●
211 02.343 NUT; CABLE FIX
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9712- ● ● ●
211 02.343 NUT; CABLE FIX
01.062 (A) M6 FLANGE 		0-91150-206-0 01 1 9312-9312 ●
211 02.343 NUT; CABLE FIX
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 9712- ●
418 02.559 BOLT; CLIP
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE 		0-28680-825-0 01 1 9712- ●
555 03.485 BRACKET; ENG STOP
(A) 		8-97121-595-0 01 1 9511-9701 ●
555 03.485 BRACKET; ENG STOP
(A) 		8-97119-039-2 01 1 9702-9711 ●
555 03.485 BRACKET; ENG STOP
(A) 		8-97119-039-2 01 1 9712- ● ● ●
555 03.485 BRACKET; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97113-497-1 01 1 9511-9711 ●
555 03.485 BRACKET; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97113-497-1 01 1 9712- ● ● ●
555 03.485 BRACKET; ENG STOP
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97188-280-0 01 1 9712- ●
613 03.670 CONTROL UNIT; ENG
CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) 		8-97193-507-0 01 1 9712-9712 ●
613 03.670 CONTROL UNIT; ENG
CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) 		8-97203-990-1 01 1 9801-9804 ●
613 03.670 CONTROL UNIT; ENG
CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) 		8-97209-709-1 01 1 9805-9809 ●
613 03.670 CONTROL UNIT; ENG
CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) 		8-97212-111-0 01 1 9810- ●
613 03.670 CONTROL UNIT; ENG
CHARGE AIR COOLER<6PL> EXC. HONG KONG EQUIPMENT(PQ1) 		8-97193-505-0 01 1 9712-9712 ●
613 03.670 CONTROL UNIT; ENG
CHARGE AIR COOLER<6PL> EXC. HONG KONG EQUIPMENT(PQ1) 		8-97203-988-3 01 1 9801-9809 ●
613 03.670 CONTROL UNIT; ENG
CHARGE AIR COOLER<6PL> EXC. HONG KONG EQUIPMENT(PQ1) 		8-97212-110-0 01 1 9810- ●
çizim 19024
211 553 489 490 211 403
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
211 02.343 NUT; CABLE FIX
07.633 M8 FLANGE 		0-91150-108-0 01 1 9312-9510 ● ● ●
211 02.343 NUT; CABLE FIX
04.785 M10 FLANGE 		0-91150-110-0 01 1 9312-9312 ● ● ●
211 02.343 NUT; CABLE FIX
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9312-9711 ●
211 02.343 NUT; CABLE FIX
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9712- ● ● ●
211 02.343 NUT; CABLE FIX
01.062 (A) M6 FLANGE 		0-91150-206-0 01 1 9312-9312 ●
211 02.343 NUT; CABLE FIX
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 9712- ●
403 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-0 02 1 9312-9510 ● ●
403 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 02 1 9511- ●
403 02.343 CLIP; CABLE 8-97093-555-2 01 1 9312-9502 ●
403 02.343 CLIP; CABLE 8-97125-981-0 01 1 9503-9510 ●
489 03.483 BOLT; ENG STOPPER
03.417 M10X25 FLANGE 		0-28081-025-0 01 1 9312-9510 ● ● ● ●
490 03.485 NUT; ENG STOP
07.829 (A) M6 FLANGE 		5-09440-004-0 01 1 9312-9510 ● ● ●
490 03.485 NUT; ENG STOP
07.829 (A) M6 FLANGE 		5-09440-004-0 01 1 9511- ● ●
490 03.485 NUT; ENG STOP
04.785 (B) M10 FLANGE 		0-91150-110-0 02 1 9312-9510 ● ● ● ●
553 03.485 MOTOR ASM; ENG STOP
NPR/NQR SGL CAB&LONG(NP**SK) 		8-97065-453-1 01 1 9312-9510 ●
553 03.485 MOTOR ASM; ENG STOP 8-97073-522-1 01 1 9312-9510 ●
553 03.485 MOTOR ASM; ENG STOP 8-97116-800-0 01 1 9511- ●
553 03.485 MOTOR ASM; ENG STOP 8-97065-454-2 01 1 9312-9510 ●
553 03.485 MOTOR ASM; ENG STOP 8-97122-819-0 01 1 9511- ●
553 03.485 MOTOR ASM; ENG STOP
DUMP CHASSIS(V4D) 		8-97063-958-0 01 1 9312-9510 ●
553 03.485 MOTOR ASM; ENG STOP
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97122-820-2 01 1 9511-9706 ●
553 03.485 MOTOR ASM; ENG STOP
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97183-914-0 01 1 9707-9711 ●
553 03.485 MOTOR ASM; ENG STOP
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97183-914-0 01 1 9712-9806 ● ● ●
553 03.485 MOTOR ASM; ENG STOP
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97189-552-0 01 1 9807- ● ● ●
553 03.485 MOTOR ASM; ENG STOP
MINI BUS CHASSIS<V4B> 		8-97063-950-0 01 1 9312-9510 ●
553 03.485 MOTOR ASM; ENG STOP
EXC. MINI BUS CHASSIS<V4B>,DUMP CHASSIS(V4D) 		8-97063-951-1 01 1 9312-9510 ●
553 03.485 MOTOR ASM; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97119-552-0 01 1 9511-9711 ●
553 03.485 MOTOR ASM; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97119-552-0 01 1 9712-9806 ● ● ●
553 03.485 MOTOR ASM; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97189-550-0 01 1 9807- ● ● ●
553 03.485 MOTOR ASM; ENG STOP
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97170-348-2 01 1 9712-9801 ●
553 03.485 MOTOR ASM; ENG STOP
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> VOLTAGE 24V<7AE> (A) 		8-97170-348-2 01 1 9802- ●
553 03.485 MOTOR ASM; ENG STOP
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE> 		8-97149-018-2 01 1 9802-9806 ●
553 03.485 MOTOR ASM; ENG STOP
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE> (A) 		8-97189-532-0 01 1 9807- ●

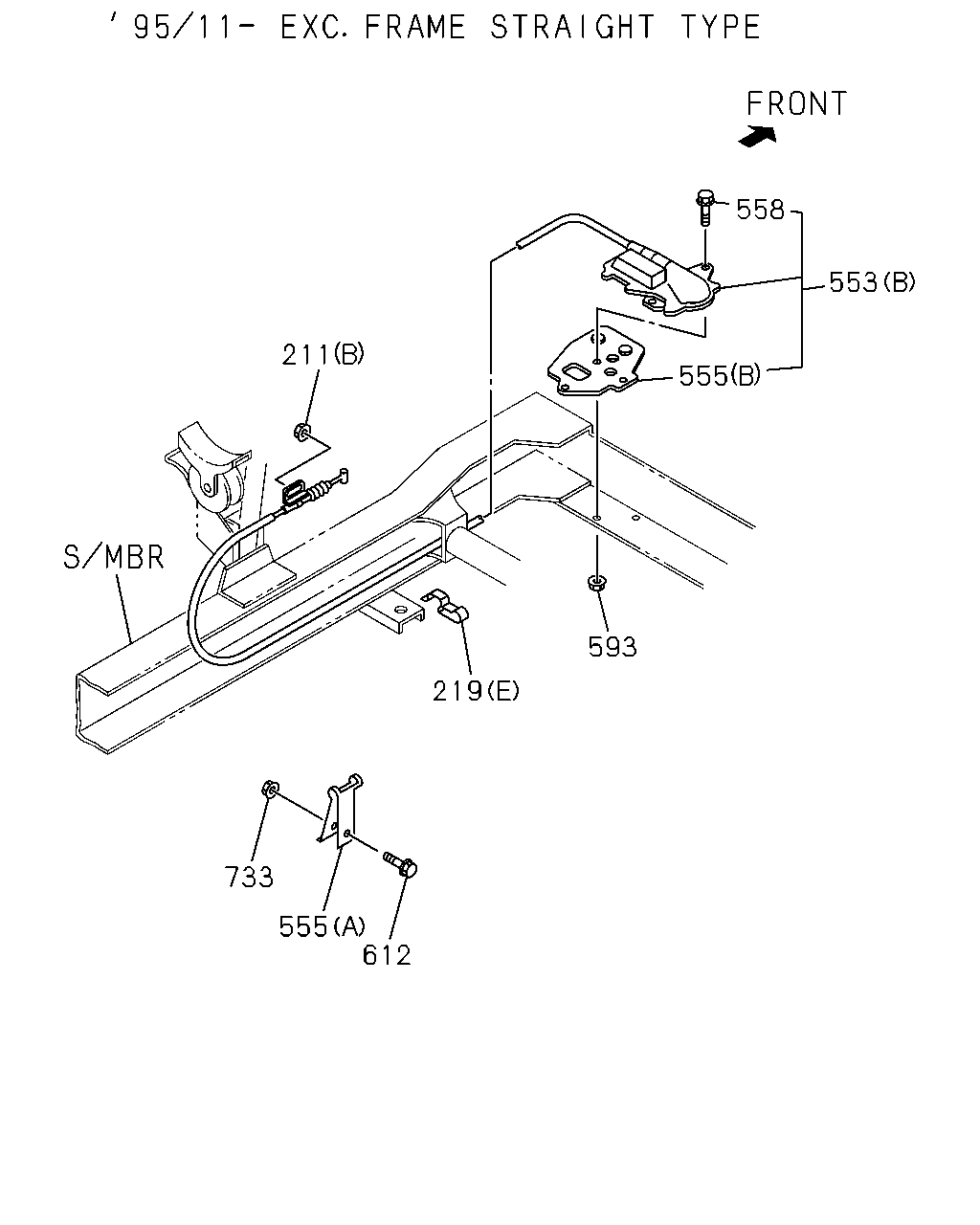

çizim 19062
558 553 211 555 593 219 733 555 612
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
211 02.343 NUT; CABLE FIX
07.633 M8 FLANGE 		0-91150-108-0 01 1 9312-9510 ● ● ●
211 02.343 NUT; CABLE FIX
04.785 M10 FLANGE 		0-91150-110-0 01 1 9312-9312 ● ● ●
211 02.343 NUT; CABLE FIX
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9312-9711 ●
211 02.343 NUT; CABLE FIX
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9712- ● ● ●
211 02.343 NUT; CABLE FIX
01.062 (A) M6 FLANGE 		0-91150-206-0 01 1 9312-9312 ●
211 02.343 NUT; CABLE FIX
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 9712- ●
219 03.483 CLIP; ENG STOP CABLE
03.630 (A) ID=18 L=51 		5-09700-320-0 02 1 9312-9403 ● ● ●
219 03.483 CLIP; ENG STOP CABLE
03.630 (A) ID=18 L=51 		5-09700-320-0 01 1 9404-9510 ● ● ●
219 03.483 CLIP; ENG STOP CABLE
02.559 (C) L=250 		5-09707-030-0 01 1 9511-9705 ● ●
219 03.483 CLIP; ENG STOP CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (C) L=250 		5-09707-030-1 01 1 9706- ● ●
219 03.483 CLIP; ENG STOP CABLE
03.430 (B) ID=17 		8-94449-734-1 01 1 9312-9510 ● ● ●
219 03.483 CLIP; ENG STOP CABLE
04.342 (D) ID=8.3 & 10 		8-94176-792-0 01 1 9511-9511 ● ●
219 03.483 CLIP; ENG STOP CABLE
POWER STEERING<N40> 04.342 (D) ID=8.3 & 10 		8-94176-792-0 01 1 9512-9705 ● ●
219 03.483 CLIP; ENG STOP CABLE
POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 04.342 (D) ID=8.3 & 10 		8-94176-792-0 01 1 9706- ● ●
219 03.483 CLIP; ENG STOP CABLE
FRAME STRAIGHT TYPE<7KJ> 02.559 (C) L=250 		5-09707-030-1 02 1 9604- ●
219 03.483 CLIP; ENG STOP CABLE
FRAME STRAIGHT TYPE<7KJ> 04.930 (G) ID=10 H=40 		8-94462-219-0 01 1 9604- ●
219 03.483 CLIP; ENG STOP CABLE
01.240 (A) ID=14 L=47 		5-09700-319-0 01 1 9511-9705 ● ●
219 03.483 CLIP; ENG STOP CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (A) ID=14 L=47 		5-09700-319-0 01 1 9706- ● ●
219 03.483 CLIP; ENG STOP CABLE
03.162 (C) L=140 		5-09707-031-0 01 1 9511-9705 ● ●
219 03.483 CLIP; ENG STOP CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140 		5-09707-031-0 01 1 9706-9711 ● ●
219 03.483 CLIP; ENG STOP CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140 		5-09707-031-1 01 1 9712- ● ●
219 03.483 CLIP; ENG STOP CABLE
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140 		5-09707-031-1 01 1 9712- ●
219 03.483 CLIP; ENG STOP CABLE
02.525 (E) T=4.5 & 9 		5-09709-023-0 01 1 9511-9711 ●
219 03.483 CLIP; ENG STOP CABLE
02.525 (E) T=4.5 & 9 		5-09709-023-0 01 1 9712- ● ● ●
219 03.483 CLIP; ENG STOP CABLE
FRAME STRAIGHT TYPE<7KJ> 04.686 (F) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9511-9706 ●
219 03.483 CLIP; ENG STOP CABLE
FRAME STRAIGHT TYPE<7KJ> 03.162 (F) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 9707-9711 ●
219 03.483 CLIP; ENG STOP CABLE
FRAME STRAIGHT TYPE<7KJ> 03.162 (F) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 9712- ● ● ●
219 03.483 CLIP; ENG STOP CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.115 (E) T=9 & 10.5 		8-97041-091-0 01 1 9511-9711 ●
219 03.483 CLIP; ENG STOP CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.115 (E) T=9 & 10.5 		8-97041-091-0 01 1 9712- ● ● ●
553 03.485 MOTOR ASM; ENG STOP
NPR/NQR SGL CAB&LONG(NP**SK) 		8-97065-453-1 01 1 9312-9510 ●
553 03.485 MOTOR ASM; ENG STOP 8-97073-522-1 01 1 9312-9510 ●
553 03.485 MOTOR ASM; ENG STOP 8-97116-800-0 01 1 9511- ●
553 03.485 MOTOR ASM; ENG STOP 8-97065-454-2 01 1 9312-9510 ●
553 03.485 MOTOR ASM; ENG STOP 8-97122-819-0 01 1 9511- ●
553 03.485 MOTOR ASM; ENG STOP
DUMP CHASSIS(V4D) 		8-97063-958-0 01 1 9312-9510 ●
553 03.485 MOTOR ASM; ENG STOP
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97122-820-2 01 1 9511-9706 ●
553 03.485 MOTOR ASM; ENG STOP
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97183-914-0 01 1 9707-9711 ●
553 03.485 MOTOR ASM; ENG STOP
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97183-914-0 01 1 9712-9806 ● ● ●
553 03.485 MOTOR ASM; ENG STOP
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97189-552-0 01 1 9807- ● ● ●
553 03.485 MOTOR ASM; ENG STOP
MINI BUS CHASSIS<V4B> 		8-97063-950-0 01 1 9312-9510 ●
553 03.485 MOTOR ASM; ENG STOP
EXC. MINI BUS CHASSIS<V4B>,DUMP CHASSIS(V4D) 		8-97063-951-1 01 1 9312-9510 ●
553 03.485 MOTOR ASM; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97119-552-0 01 1 9511-9711 ●
553 03.485 MOTOR ASM; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97119-552-0 01 1 9712-9806 ● ● ●
553 03.485 MOTOR ASM; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97189-550-0 01 1 9807- ● ● ●
553 03.485 MOTOR ASM; ENG STOP
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97170-348-2 01 1 9712-9801 ●
553 03.485 MOTOR ASM; ENG STOP
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> VOLTAGE 24V<7AE> (A) 		8-97170-348-2 01 1 9802- ●
553 03.485 MOTOR ASM; ENG STOP
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE> 		8-97149-018-2 01 1 9802-9806 ●
553 03.485 MOTOR ASM; ENG STOP
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE> (A) 		8-97189-532-0 01 1 9807- ●
555 03.485 BRACKET; ENG STOP
(A) 		8-97121-595-0 01 1 9511-9701 ●
555 03.485 BRACKET; ENG STOP
(A) 		8-97119-039-2 01 1 9702-9711 ●
555 03.485 BRACKET; ENG STOP
(A) 		8-97119-039-2 01 1 9712- ● ● ●
555 03.485 BRACKET; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97113-497-1 01 1 9511-9711 ●
555 03.485 BRACKET; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97113-497-1 01 1 9712- ● ● ●
555 03.485 BRACKET; ENG STOP
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97188-280-0 01 1 9712- ●
558 03.485 SCREW; BRKT TO MOTOR
EXC. FRAME STRAIGHT TYPE<7KJ> 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 9511- ● ● ●
593 02.483 NUT; BRKT
04.785 M10 FLANGE 		0-91150-110-0 02 1 9511-9711 ● ● ●
593 02.483 NUT; BRKT
04.785 M10 FLANGE 		0-91150-110-0 02 1 9712- ● ● ● ● ●
612 02.510 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9511-9512 ●
612 02.510 BOLT; BRKT
02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9601-9701 ●
612 02.510 BOLT; BRKT
16.585 M8X20 		1-09981-468-0 01 1 9702-9711 ●
612 02.510 BOLT; BRKT
16.585 M8X20 		1-09981-468-0 01 1 9712- ● ● ●
733 02.343 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 01 1 9511-9711 ●
733 02.343 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 01 1 9712- ● ● ●

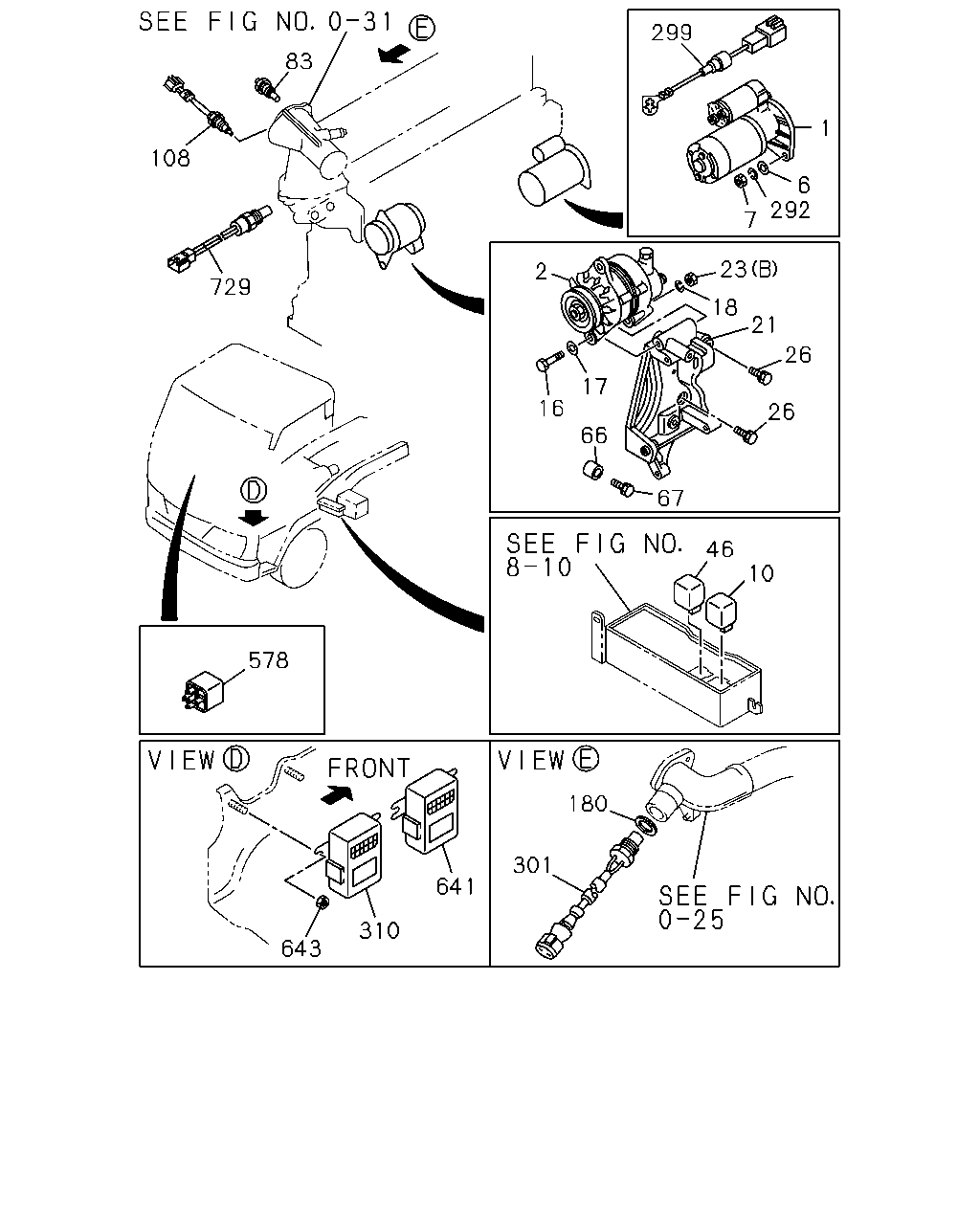

çizim 67462
299 83 1 108 6 292 7 23 2 729 18 21 26 17 16 26 66 67 46 10 578 180 301 641 310 643
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-94333-438-0 01 1 9312-9510 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. EAST MALAYSIA EQUIPMENT(PM6), WEST MALAYSIA EQUIPMENT(RWP) 24V 3.5KW 		8-94333-438-0 01 1 9312-9510 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. EAST MALAYSIA EQUIPMENT(PM6), WEST MALAYSIA EQUIPMENT(RWP) 24V 3.5KW 		8-94333-438-0 01 1 9511-9711 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 3.5KW 		8-94333-438-0 01 1 9712- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.2KW DENSO 		8-97042-997-0 01 1 9312-9511 ●

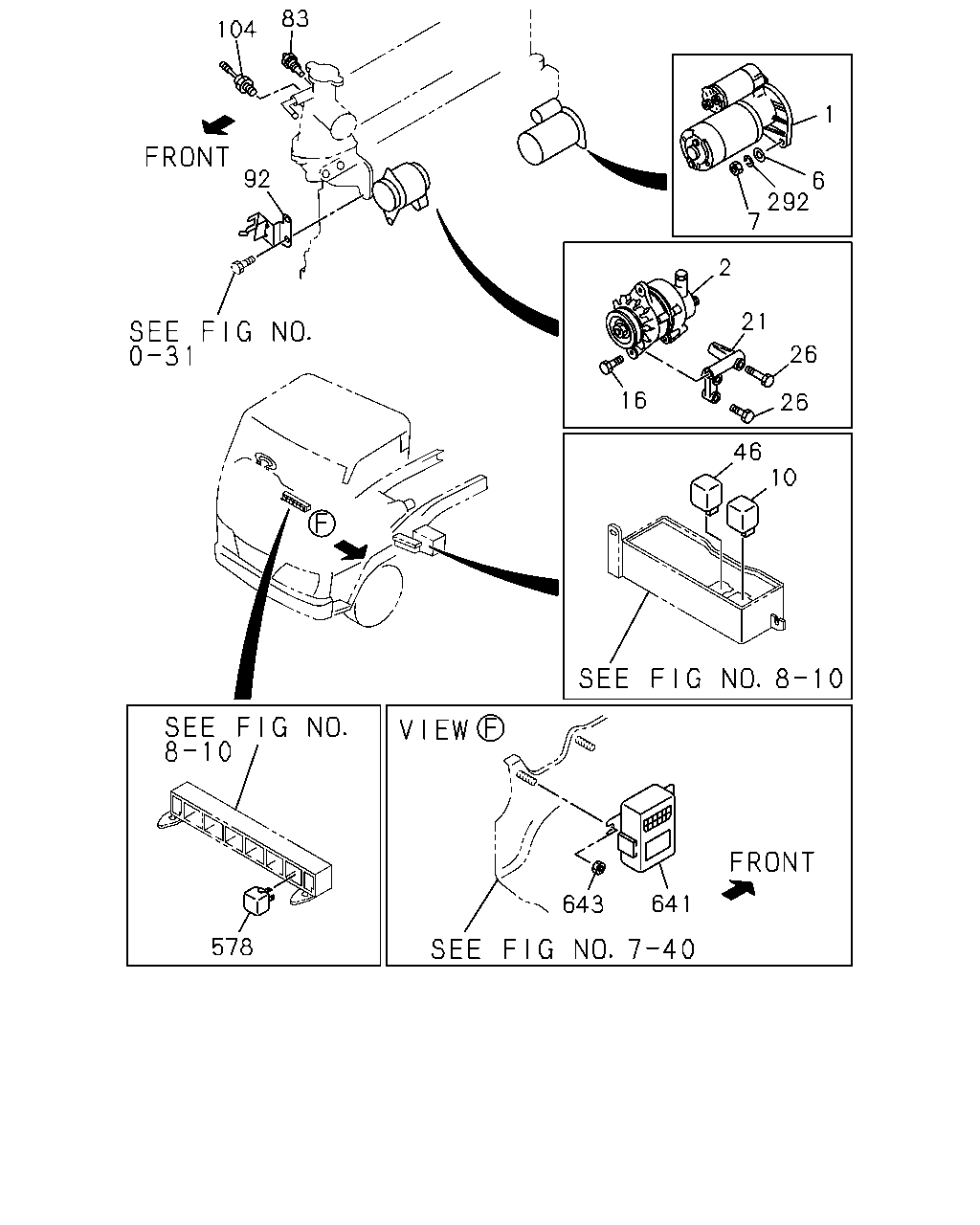

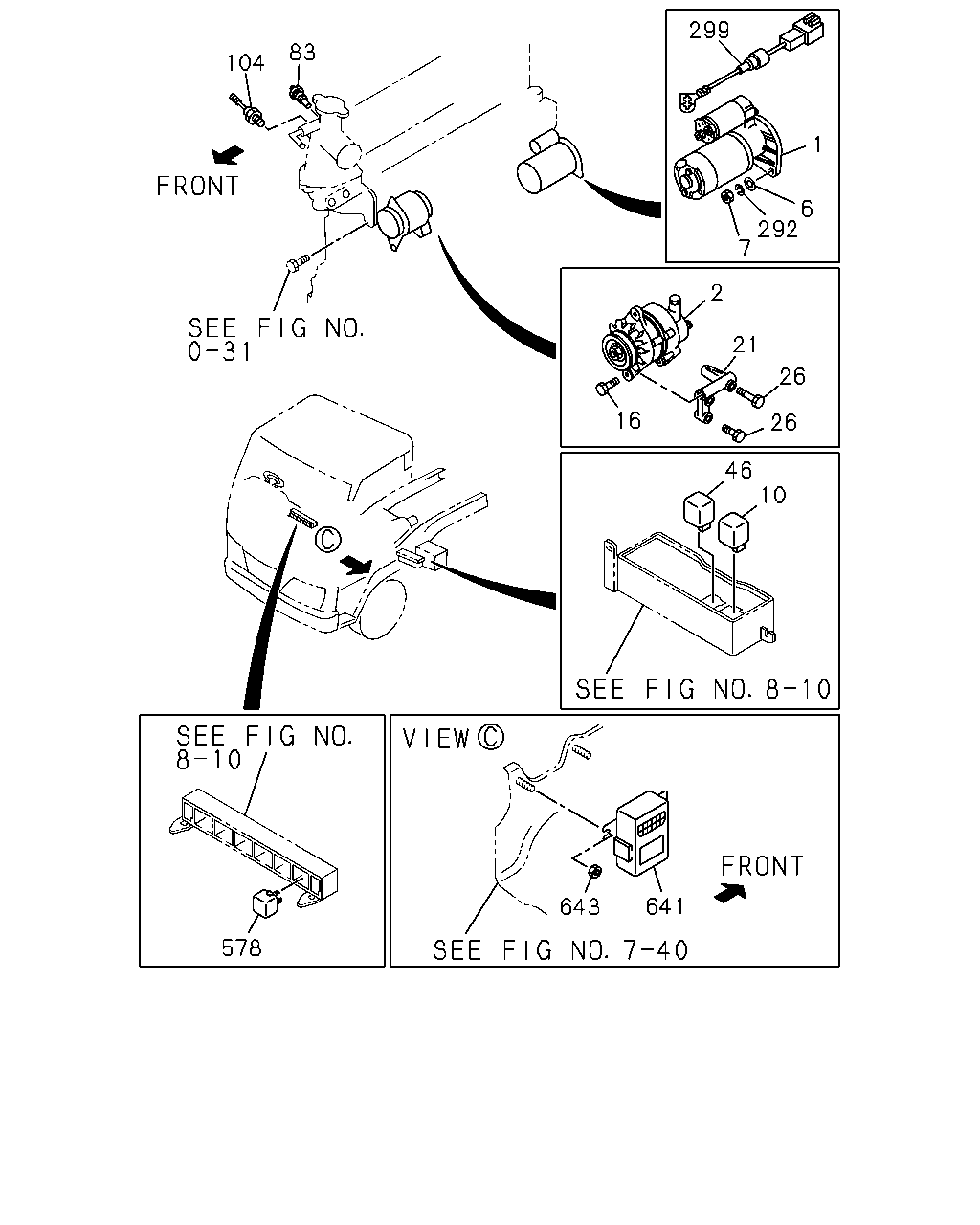

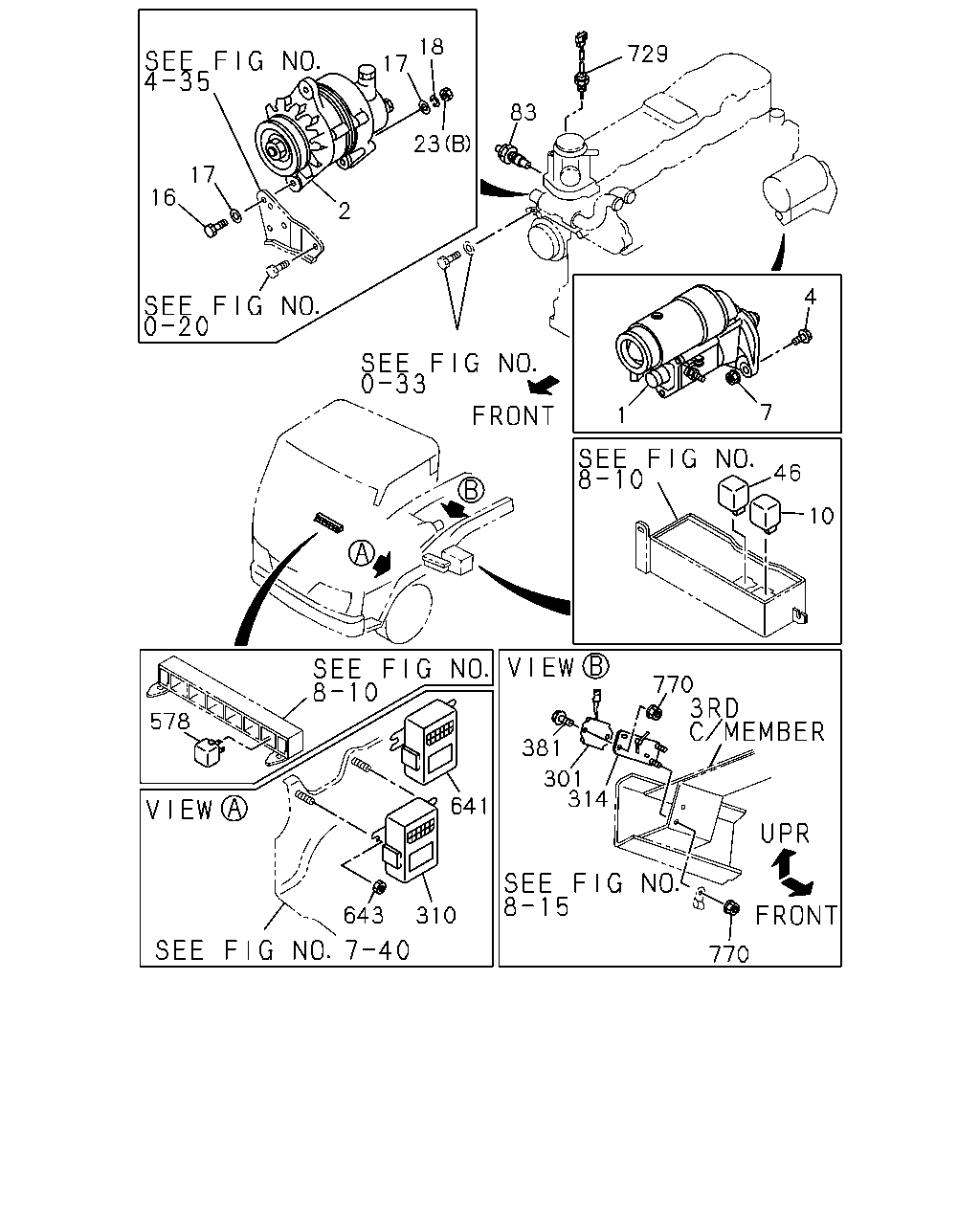

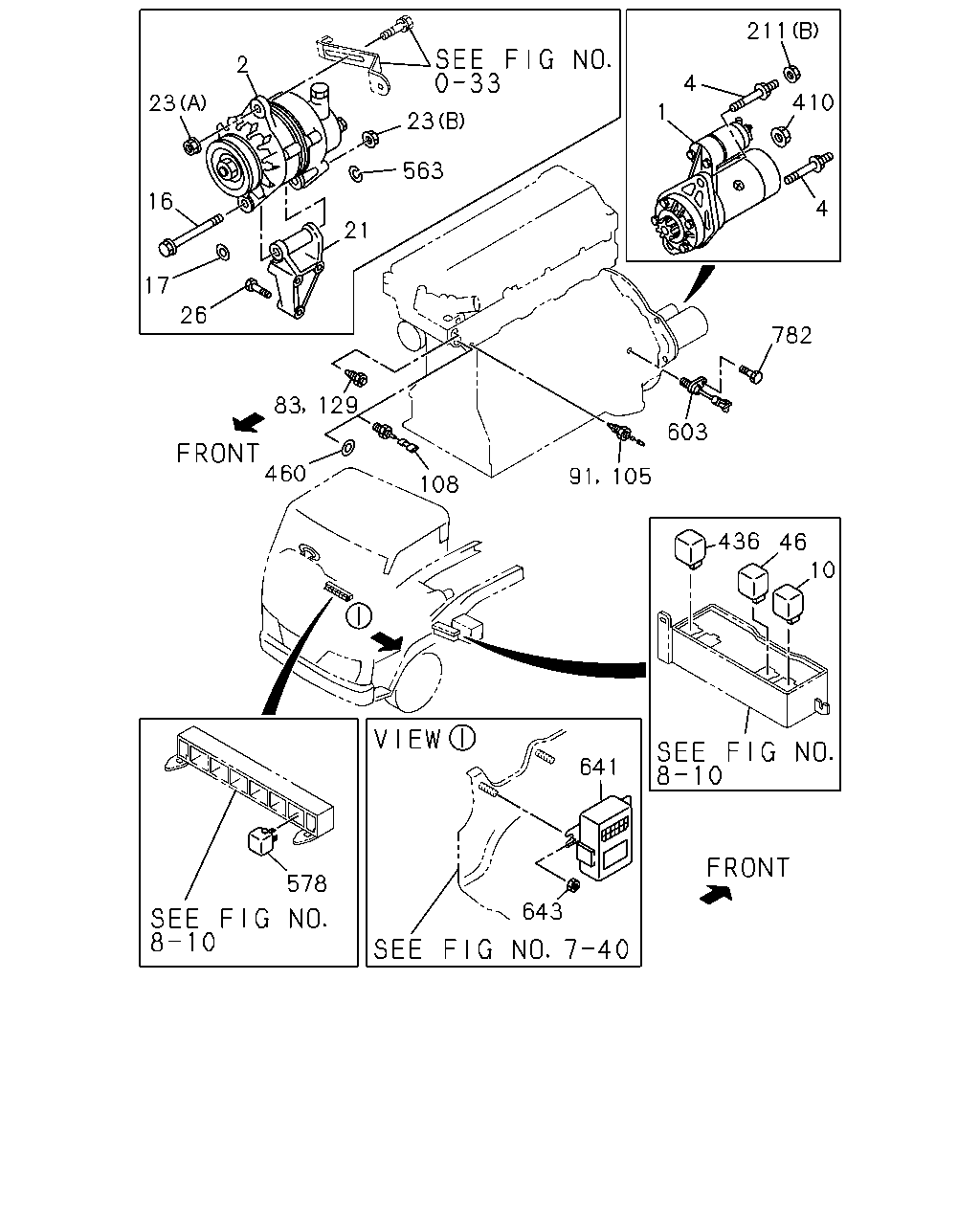

1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. EURO2 SPECIFICATION<7AF> 12V 2.2KW DENSO 		8-97042-997-0 01 1 9512-9604 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EURO2 SPECIFICATION<7AF> 12V 2.0KW 		8-97120-356-0 01 1 9512-9604 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 9605- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 3.0KW 		1-81100-234-1 01 1 9312-9409 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 3.0KW 		8-97119-749-0 01 1 9410-9701 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 3.0KW 		8-97174-043-0 01 1 9702- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(RWP) 24V 4.5KW DENSO 		8-94334-150-0 01 1 9312-9711 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97100-926-1 01 1 9312-9711 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97100-926-2 01 1 9712- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI 		8-97100-926-2 01 1 9712- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW 		8-97065-526-0 01 1 9312-9404 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW 		8-97095-811-3 01 1 9405-9711 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW 		8-97095-811-5 01 1 9712- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A HITACHI 		8-97029-226-0 01 1 9312-9510 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97073-924-1 01 1 9312-9802 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-657-0 01 1 9803- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 70A 		8-97023-733-1 01 1 9312-9611 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 70A 		8-97171-178-0 01 1 9612- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(RWP) 24V 25A DENSO 		8-94334-152-0 01 1 9312-9711 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR DENSO(7KH) 24V 50A 		8-97170-163-1 01 1 9712- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. EAST MALAYSIA EQUIPMENT(PM6), WEST MALAYSIA EQUIPMENT(RWP), GENERATOR24V40A(6MN) 24V 25A HITACHI 		8-94389-772-1 01 1 9312-9711 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V40A(6MN) 24V 25A HITACHI 		8-94389-772-1 01 1 9712- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V40A(6MN) 24V 40A HITACHI 		8-97013-171-2 01 1 9312- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR DENSO(7KH) 24V 35A 		8-97115-044-0 01 1 9503-9711 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR DENSO(7KH) 24V 35A 		8-97115-044-0 01 1 9712- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V35A(K83) 24V 35A 		8-97075-882-2 01 1 9312-9510 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A 		8-97075-883-2 01 1 9312-9603 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A 		8-97148-496-1 01 1 9604-9711 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR DENSO(7KH) 24V 50A 		8-97144-392-1 01 1 9712-9801 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2), GENERATORDENSO(7KH) 24V 50A 		8-97144-392-1 01 1 9802- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A 		8-97143-011-1 01 1 9706-9711 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A 		8-97175-390-1 01 1 9712- ● ●
6 02.042 WASHER; PL,STARTER
03.430 ID=12.5 		9-09160-512-0 02 1 9312-9510 ● ●
6 02.042 WASHER; PL,STARTER
03.430 ID=12.5 		9-09160-512-0 02 1 9511- ●
6 02.042 WASHER; PL,STARTER
03.430 ID=12.5 		9-09160-512-0 03 1 9312- ●
7 02.042 NUT; STARTER
05.816 M12 		9-99110-412-0 02 1 9312-9510 ● ●
7 02.042 NUT; STARTER
05.816 M12 		9-99110-412-0 02 1 9511-9511 ●
7 02.042 NUT; STARTER
EURO2 SPECIFICATION<7AF> 05.816 M12 		9-99110-412-0 02 1 9512-9711 ●
7 02.042 NUT; STARTER
05.816 M12 		9-99110-412-0 02 1 9512-9711 ●
7 02.042 NUT; STARTER
05.816 M12 		9-99110-412-0 02 1 9712- ● ●
7 02.042 NUT; STARTER
05.586 M12 FLANGE 		0-91150-112-0 02 1 9312- ●
7 02.042 NUT; STARTER
05.816 M12 		9-99110-412-0 03 1 9312- ●
10 02.100 RELAY; STARTER 8-97036-359-1 01 1 9312-9506 ●
10 02.100 RELAY; STARTER
VOLTAGE 24V<7AE> 		8-97036-359-1 01 1 9312-9506 ● ● ●
10 02.100 RELAY; STARTER 8-97036-359-1 01 1 9507-9510 ● ● ●
10 02.100 RELAY; STARTER 8-97036-359-1 01 1 9511-9704 ● ●
10 02.100 RELAY; STARTER
02.510 24V 50A 		8-97173-947-0 01 1 9705-9705 ● ●
10 02.100 RELAY; STARTER
VOLTAGE 24V<7AE> 02.510 24V 50A 		8-97173-947-0 01 1 9706-9711 ● ●
10 02.100 RELAY; STARTER
VOLTAGE 24V<7AE> 02.510 24V 50A 		8-97173-947-0 01 1 9712- ● ● ● ●
10 02.100 RELAY; STARTER
EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97036-358-1 01 1 9312-9506 ● ● ●
10 02.100 RELAY; STARTER
12V 80A 		8-97036-358-1 01 1 9507-9704 ● ●
10 02.100 RELAY; STARTER
02.510 12V 80A 		8-97173-951-0 01 1 9705-9705 ● ●
10 02.100 RELAY; STARTER
EXC. VOLTAGE 24V<7AE> 02.510 12V 80A 		8-97173-951-0 01 1 9706- ● ● ● ●
16 02.277 BOLT; GEN
01.840 M10X35 W/LK&PL WASHER 		0-50141-035-0 02 1 9312-9510 ● ●
16 02.277 BOLT; GEN
01.840 M10X35 W/LK&PL WASHER 		0-50141-035-0 02 1 9511- ●
16 02.277 BOLT; GEN
M10X133 		5-09000-169-1 01 1 9312-9612 ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 9701- ●
16 02.277 BOLT; GEN
M10X134 		8-94314-385-1 01 1 9312-9501 ●
16 02.277 BOLT; GEN
M10X127 		8-97065-159-1 01 1 9312-9409 ●
16 02.277 BOLT; GEN
EXC. GENERATOR DENSO(7KH) M10X127 		8-97065-159-1 01 1 9410-9503 ●
16 02.277 BOLT; GEN
M10X127 		8-97065-159-1 01 1 9502-9502 ●
16 02.277 BOLT; GEN
M10X127 		8-97065-159-1 01 1 9504-9605 ●
16 02.277 BOLT; GEN
EXC. GENERATOR DENSO(7KH) M10X127 		8-97065-159-1 01 1 9504-9605 ●
16 02.277 BOLT; GEN
M10X133 		8-97146-998-0 01 1 9606-9711 ●
16 02.277 BOLT; GEN
EXC. GENERATOR DENSO(7KH) M10X133 		8-97146-998-0 01 1 9606-9711 ●
16 02.277 BOLT; GEN
M10X133 		8-97146-998-0 01 1 9712- ●
16 02.277 BOLT; GEN
EXC. GENERATOR DENSO(7KH) M10X133 		8-97146-998-0 01 1 9712- ● ● ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60),GENERATOR DENSO(7KH) 02.317 M8X40 W/WASHER 		8-97011-792-4 01 1 9604-9711 ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60),GENERATOR DENSO(7KH) 02.317 M8X40 W/WASHER 		8-97011-792-4 01 1 9712- ● ● ●
16 02.277 BOLT; GEN
GENERATOR DENSO(7KH) M10X120 FLANGE 		0-28086-012-0 01 1 9410-9711 ●
16 02.277 BOLT; GEN
GENERATOR DENSO(7KH) M10X120 FLANGE 		0-28086-012-0 01 1 9712- ● ●
16 02.277 BOLT; GEN
GENERATOR DENSO(7KH) 00.780 M8X30 W/LK WASHER 		0-50040-830-0 01 1 9604-9711 ●
16 02.277 BOLT; GEN
GENERATOR DENSO(7KH) 03.415 M8X35 FLANGE 		0-28080-835-0 01 1 9712- ● ●
17 02.277 WASHER; PL,GEN
16.682 ID=10.5 OD=22 		9-09160-610-0 02 1 9312-9612 ●
17 02.277 WASHER; PL,GEN
04.085 ID=10.5 OD=22 		9-09164-610-0 01 1 9312-9501 ●
17 02.277 WASHER; PL,GEN
GENERATOR DENSO(7KH) 07.874 ID=10.5 OD=18 		9-09160-510-0 01 1 9410-9711 ●
17 02.277 WASHER; PL,GEN
GENERATOR DENSO(7KH) 16.716 ID=8.4 OD=18 		9-09160-608-0 01 1 9604-9711 ●
17 02.277 WASHER; PL,GEN
GENERATOR DENSO(7KH) 16.716 ID=8.4 OD=18 		9-09160-608-0 01 1 9712- ● ●
18 02.317 WASHER; LK,GEN
00.002 ID=10.2 		9-09150-510-0 01 1 9312-9501 ● ●
18 02.317 WASHER; LK,GEN
00.002 ID=10.2 		9-09150-510-0 01 1 9502-9612 ●
21 02.277 BRACKET; GEN 8-94334-346-0 01 1 9312-9510 ● ●
21 02.277 BRACKET; GEN 8-94334-346-0 01 1 9511-9610 ●
21 02.277 BRACKET; GEN 8-97162-519-0 01 1 9611- ●
21 02.277 BRACKET; GEN 8-97073-122-1 01 1 9312- ●
21 02.277 BRACKET; GEN 8-97075-884-2 01 1 9312-9711 ●
21 02.277 BRACKET; GEN 8-97075-884-2 01 1 9712- ● ● ●
23 02.277 NUT; GEN
00.002 (B) M10 		9-09110-510-0 01 1 9312-9501 ● ●
23 02.277 NUT; GEN
00.002 (B) M10 		9-09110-510-0 01 1 9502-9612 ●
23 02.277 NUT; GEN
07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 9312-9502 ●
23 02.277 NUT; GEN
EXC. GENERATOR DENSO(7KH) 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 9503-9711 ●
23 02.277 NUT; GEN
EXC. GENERATOR DENSO(7KH) 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 9712- ● ● ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 9312-9501 ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 9502-9502 ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 9503-9612 ● ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 9701-9711 ● ● ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 9712- ● ● ● ● ●
26 02.277 BOLT; GEN BRKT
09.008 M10X90 W/LK WASHER 		0-50041-090-0 01 1 9312-9510 ● ● ●
26 02.277 BOLT; GEN BRKT
09.008 M10X90 W/LK WASHER 		0-50041-090-0 01 1 9511- ● ●
26 02.277 BOLT; GEN BRKT
01.652 M10X25 W/LK WASHER 		0-50041-025-0 01 1 9312-9510 ● ●
26 02.277 BOLT; GEN BRKT
01.652 M10X25 W/LK WASHER 		0-50041-025-0 01 1 9511- ●
26 02.277 BOLT; GEN BRKT
00.724 M10X55 		5-09030-038-1 01 1 9312-9510 ● ●
26 02.277 BOLT; GEN BRKT
00.724 M10X55 		5-09030-038-1 01 1 9511- ●
26 02.277 BOLT; GEN BRKT
M10X22 W/LK WASHER 		0-50041-022-0 01 1 9312- ●
26 02.277 BOLT; GEN BRKT
09.171 M10X30 W/LK WASHER 		0-50041-030-0 01 1 9312- ●
26 02.277 BOLT; GEN BRKT
00.004 M10X40 W/LK WASHER 		0-50041-040-0 01 1 9312- ●
26 02.277 BOLT; GEN BRKT
08.900 M10X50 FLANGE 		0-28181-050-0 01 1 9312-9711 ●
26 02.277 BOLT; GEN BRKT
08.900 M10X50 FLANGE 		0-28181-050-0 01 1 9712- ● ● ●
26 02.277 BOLT; GEN BRKT
03.890 M10X70 FLANGE 		0-28181-070-0 02 1 9312-9711 ●
26 02.277 BOLT; GEN BRKT
03.890 M10X70 FLANGE 		0-28181-070-0 02 1 9712- ● ● ●
46 02.510 RELAY; GLOW PLUG
02.100 		8-97036-359-1 01 1 9312-9406 ●
46 02.510 RELAY; GLOW PLUG
VOLTAGE 24V<7AE> 02.100 		8-97036-359-1 01 1 9312-9406 ● ● ●
46 02.510 RELAY; GLOW PLUG
02.100 		8-97036-359-1 01 1 9407-9506 ●
46 02.510 RELAY; GLOW PLUG
VOLTAGE 24V<7AE> 02.100 		8-97036-359-1 01 1 9407-9506 ● ●
46 02.510 RELAY; GLOW PLUG
02.100 		8-97036-359-1 01 1 9507-9510 ● ● ●
46 02.510 RELAY; GLOW PLUG
02.100 		8-97036-359-1 01 1 9511-9606 ●
46 02.510 RELAY; GLOW PLUG
EXC. THAILAND EQUIPMENT(PM9) 02.100 		8-97036-359-1 01 1 9511-9606 ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> VOLTAGE 24V<7AE> 02.100 		8-97036-359-1 01 1 9607-9704 ● ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> VOLTAGE 24V<7AE> 24V 50A 		8-97173-947-0 01 1 9705-9711 ● ●
46 02.510 RELAY; GLOW PLUG
VOLTAGE 24V<7AE> FAST GLOW SYSTEM<KM6> 24V 50A 		8-97173-947-0 01 1 9712- ● ● ● ●
46 02.510 RELAY; GLOW PLUG
EXC. VOLTAGE 24V<7AE> 02.100 12V 80A 		8-97036-358-1 02 1 9312-9506 ● ● ●
46 02.510 RELAY; GLOW PLUG
02.100 12V 80A 		8-97036-358-1 02 1 9507-9704 ● ●
46 02.510 RELAY; GLOW PLUG
12V 80A 		8-97173-951-0 02 1 9705-9705 ● ●
46 02.510 RELAY; GLOW PLUG
EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 02 1 9706-9711 ● ● ● ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 02 1 9712- ● ●
46 02.510 RELAY; GLOW PLUG
NPR SHORT(NP***C) EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 01 1 9802- ●
46 02.510 RELAY; GLOW PLUG
NPR/NQR SGL CAB&MIDDLE(NPC5SF) NPR/NQR SGL CAB&LONG(NPC5SK) FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 01 1 9802- ●
66 02.500 SPACER; STAY,CMPR BRKT 8-94320-815-0 01 1 9312- ●
67 02.317 BOLT; STAY
00.004 M10X40 W/LK WASHER 		0-50041-040-0 01 1 9312- ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9312-9406 ● ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9407-9502 ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9503-9510 ● ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9511-9711 ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9712- ● ● ● ●
83 01.150 THERMOMETER UNIT
EXC. CHARGE AIR COOLER<6PL> DENSO 		8-94235-691-0 01 1 9712- ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9312-9406 ● ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9407-9502 ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9503-9510 ● ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9511-9711 ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9712- ● ● ● ●
83 01.150 THERMOMETER UNIT
EXC. CHARGE AIR COOLER<6PL> YAZAKI 		8-94237-861-0 01 1 9712- ●
83 01.150 THERMOMETER UNIT 8-94400-370-0 01 1 9312- ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9407-9502 ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9407-9502 ●
108 01.150 SWITCH; THERMO 8-97025-469-0 01 1 9312- ●
108 01.150 SWITCH; THERMO 8-97021-507-1 01 1 9312-9511 ●
108 01.150 SWITCH; THERMO
CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) 		8-97189-295-0 01 1 9712-9804 ●
108 01.150 SWITCH; THERMO
CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 		8-97189-295-0 01 1 9805- ●
108 01.150 SWITCH; THERMO
EXC. CHARGE AIR COOLER<6PL> 		8-97021-507-1 01 1 9712-9802 ●
180 02.510 GASKET; DROPPING RESISTOR
ID=30.5 OD=38.0 		9-09571-430-0 01 1 9312- ●
292 02.042 WASHER; LK,STARTER
04.634 ID=12.2 		9-09150-512-0 02 1 9312-9510 ● ●
292 02.042 WASHER; LK,STARTER
04.634 ID=12.2 		9-09150-512-0 02 1 9511- ●
292 02.042 WASHER; LK,STARTER
04.634 ID=12.2 		9-09150-512-0 03 1 9312- ●
299 02.341 CABLE; STARTER
NPR/NQR SGL CAB&LONG(NP**SK) 		8-94159-038-0 01 1 9312-9406 ●
299 02.341 CABLE; STARTER 8-94159-038-0 01 1 9407-9510 ●
299 02.341 CABLE; STARTER
NPR/NQR SGL CAB&MIDDLE(NP**SF) A/T 4 SPEED-JATCO(RMK) 		8-97075-013-0 01 1 9505-9510 ●
299 02.341 CABLE; STARTER 8-97075-013-0 01 1 9511- ●
301 02.510 RESISTOR; DROPPING 8-94389-802-1 01 1 9312-9711 ●
301 02.510 RESISTOR; DROPPING
FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 		8-94389-802-1 01 1 9712- ●
301 02.510 RESISTOR; DROPPING 8-97047-956-0 01 1 9312- ●
310 02.510 CONTROLLER; QOS
EXC. THAILAND EQUIPMENT(PM9) 		8-97047-029-0 01 1 9312-9402 ●
310 02.510 CONTROLLER; QOS 8-97047-029-0 01 1 9403- ●
310 02.510 CONTROLLER; QOS
NPR/NQR SGL CAB&MIDDLE(NP**SF) EXC. THAILAND EQUIPMENT(PM9) 		8-97070-393-0 01 1 9312-9402 ●
310 02.510 CONTROLLER; QOS
NPR/NQR SGL CAB&MIDDLE(NP**SF) 		8-97070-393-0 01 1 9403-9506 ●
310 02.510 CONTROLLER; QOS 8-97070-393-0 01 1 9507- ●
578 02.510 RELAY; CHARGE WARNING 8-97063-440-0 01 1 9312-9506 ●
578 02.510 RELAY; CHARGE WARNING
VOLTAGE 24V<7AE> 		8-97063-440-0 01 1 9312-9506 ● ● ●
578 02.510 RELAY; CHARGE WARNING 8-97063-440-0 01 1 9507-9510 ● ● ●
578 02.510 RELAY; CHARGE WARNING 8-97063-440-0 01 1 9511-9705 ● ●
578 02.510 RELAY; CHARGE WARNING
VOLTAGE 24V<7AE> 		8-97063-440-0 01 1 9706-9711 ● ●
578 02.510 RELAY; CHARGE WARNING
VOLTAGE 24V<7AE> 		8-97063-440-1 01 1 9712- ● ● ● ●
578 02.510 RELAY; CHARGE WARNING
EXC. VOLTAGE 24V<7AE> 12V 		8-97063-441-0 01 1 9312-9506 ● ● ●
578 02.510 RELAY; CHARGE WARNING
12V 		8-97063-441-1 01 1 9507-9705 ● ●
578 02.510 RELAY; CHARGE WARNING
EXC. VOLTAGE 24V<7AE> 12V 		8-97063-441-1 01 1 9706- ● ● ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97047-028-0 01 1 9312-9402 ● ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97047-028-0 01 1 9403-9510 ● ● ● ● ● ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97047-028-0 01 1 9511-9606 ● ● ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97047-028-0 01 1 9607-9711 ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> EXC. CHARGE AIR COOLER<6PL> 		8-97047-028-0 01 1 9712-9809 ● ● ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> EXC. CHARGE AIR COOLER<6PL> 		8-97215-648-0 01 1 9810- ● ● ● ●
643 02.510 NUT; TIMER,QOS
EXC. THAILAND EQUIPMENT(PM9) 04.594 M6 FLANGE 		0-91150-106-0 02 1 9312-9510 ● ● ● ● ● ● ●
643 02.510 NUT; TIMER,QOS
04.594 M6 FLANGE 		0-91150-106-0 02 1 9511-9606 ● ● ●
643 02.510 NUT; TIMER,QOS
EXC. THAILAND EQUIPMENT(PM9) 04.594 M6 FLANGE 		0-91150-106-0 02 1 9511-9606 ●
643 02.510 NUT; TIMER,QOS
04.594 M6 FLANGE 		0-91150-106-0 02 1 9607-9711 ● ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> 04.594 M6 FLANGE 		0-91150-106-0 02 1 9607-9711 ● ●
643 02.510 NUT; TIMER,QOS
04.594 M6 FLANGE 		0-91150-106-0 02 1 9712- ● ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> EXC. CHARGE AIR COOLER<6PL> 04.594 M6 FLANGE 		0-91150-106-0 02 1 9712- ● ● ● ●
729 01.150 SENSOR; QOS THERMO 8-97018-064-0 01 1 9312- ●
729 01.150 SENSOR; QOS THERMO 8-97032-870-1 01 1 9312- ●

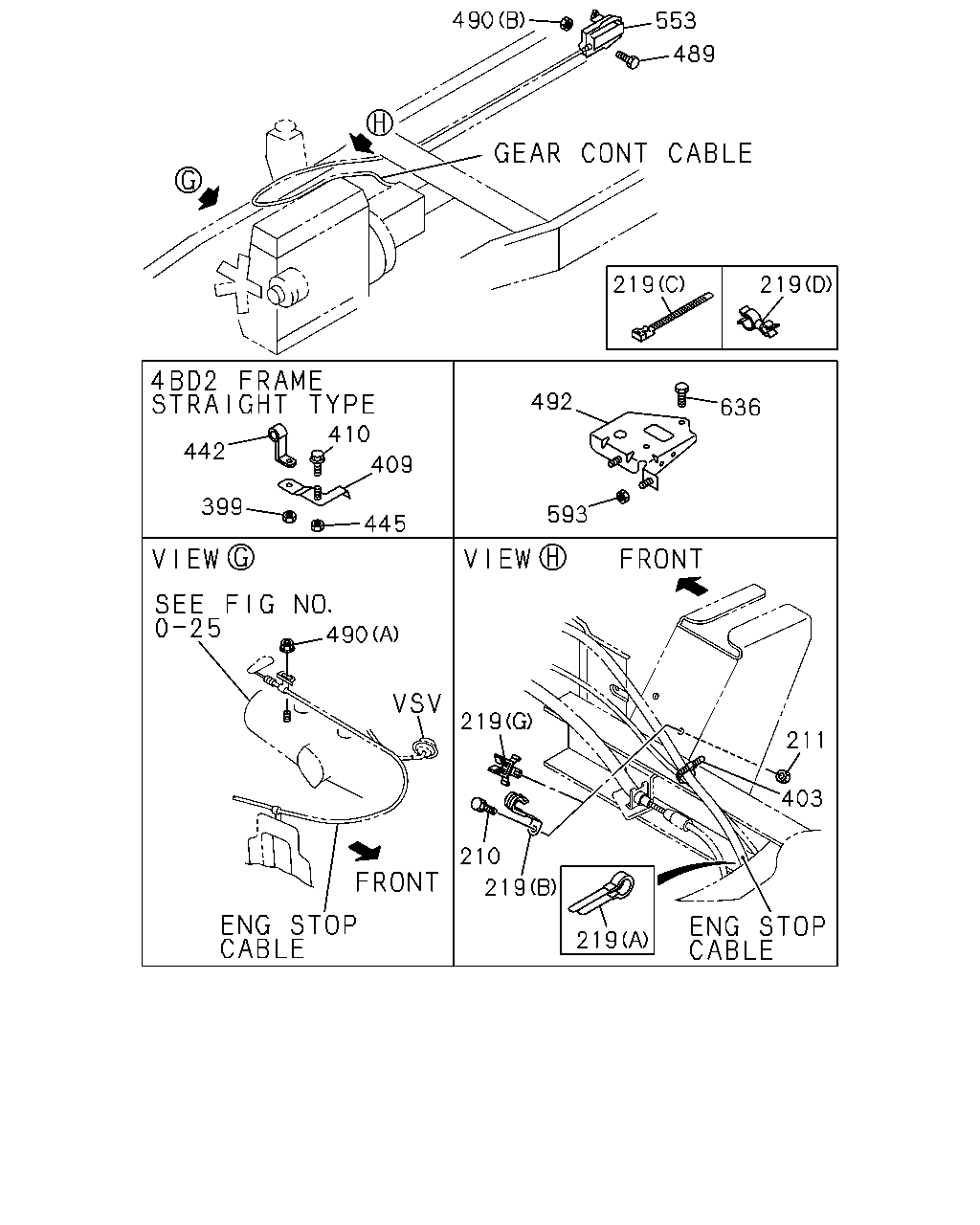

çizim 67465
490 553 489 219 219 492 636 410 442 409 399 593 445 490 219 211 403 210 219 219
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
210 02.510 BOLT; CABLE FIX
03.417 M10X25 FLANGE 		0-28081-025-0 01 1 9312-9312 ● ● ●
210 02.510 BOLT; CABLE FIX
01.531 M8X25 FLANGE 		0-28080-825-0 01 1 9312-9510 ● ● ●
211 02.343 NUT; CABLE FIX
07.633 M8 FLANGE 		0-91150-108-0 01 1 9312-9510 ● ● ●
211 02.343 NUT; CABLE FIX
04.785 M10 FLANGE 		0-91150-110-0 01 1 9312-9312 ● ● ●
211 02.343 NUT; CABLE FIX
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9312-9711 ●
211 02.343 NUT; CABLE FIX
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9712- ● ● ●
211 02.343 NUT; CABLE FIX
01.062 (A) M6 FLANGE 		0-91150-206-0 01 1 9312-9312 ●
211 02.343 NUT; CABLE FIX
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 9712- ●
219 03.483 CLIP; ENG STOP CABLE
03.630 (A) ID=18 L=51 		5-09700-320-0 02 1 9312-9403 ● ● ●
219 03.483 CLIP; ENG STOP CABLE
03.630 (A) ID=18 L=51 		5-09700-320-0 01 1 9404-9510 ● ● ●
219 03.483 CLIP; ENG STOP CABLE
02.559 (C) L=250 		5-09707-030-0 01 1 9511-9705 ● ●
219 03.483 CLIP; ENG STOP CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (C) L=250 		5-09707-030-1 01 1 9706- ● ●
219 03.483 CLIP; ENG STOP CABLE
03.430 (B) ID=17 		8-94449-734-1 01 1 9312-9510 ● ● ●
219 03.483 CLIP; ENG STOP CABLE
04.342 (D) ID=8.3 & 10 		8-94176-792-0 01 1 9511-9511 ● ●
219 03.483 CLIP; ENG STOP CABLE
POWER STEERING<N40> 04.342 (D) ID=8.3 & 10 		8-94176-792-0 01 1 9512-9705 ● ●
219 03.483 CLIP; ENG STOP CABLE
POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 04.342 (D) ID=8.3 & 10 		8-94176-792-0 01 1 9706- ● ●
219 03.483 CLIP; ENG STOP CABLE
FRAME STRAIGHT TYPE<7KJ> 02.559 (C) L=250 		5-09707-030-1 02 1 9604- ●
219 03.483 CLIP; ENG STOP CABLE
FRAME STRAIGHT TYPE<7KJ> 04.930 (G) ID=10 H=40 		8-94462-219-0 01 1 9604- ●
219 03.483 CLIP; ENG STOP CABLE
01.240 (A) ID=14 L=47 		5-09700-319-0 01 1 9511-9705 ● ●
219 03.483 CLIP; ENG STOP CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (A) ID=14 L=47 		5-09700-319-0 01 1 9706- ● ●
219 03.483 CLIP; ENG STOP CABLE
03.162 (C) L=140 		5-09707-031-0 01 1 9511-9705 ● ●
219 03.483 CLIP; ENG STOP CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140 		5-09707-031-0 01 1 9706-9711 ● ●
219 03.483 CLIP; ENG STOP CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140 		5-09707-031-1 01 1 9712- ● ●
219 03.483 CLIP; ENG STOP CABLE
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140 		5-09707-031-1 01 1 9712- ●
219 03.483 CLIP; ENG STOP CABLE
02.525 (E) T=4.5 & 9 		5-09709-023-0 01 1 9511-9711 ●
219 03.483 CLIP; ENG STOP CABLE
02.525 (E) T=4.5 & 9 		5-09709-023-0 01 1 9712- ● ● ●
219 03.483 CLIP; ENG STOP CABLE
FRAME STRAIGHT TYPE<7KJ> 04.686 (F) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9511-9706 ●
219 03.483 CLIP; ENG STOP CABLE
FRAME STRAIGHT TYPE<7KJ> 03.162 (F) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 9707-9711 ●
219 03.483 CLIP; ENG STOP CABLE
FRAME STRAIGHT TYPE<7KJ> 03.162 (F) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 9712- ● ● ●
219 03.483 CLIP; ENG STOP CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.115 (E) T=9 & 10.5 		8-97041-091-0 01 1 9511-9711 ●
219 03.483 CLIP; ENG STOP CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.115 (E) T=9 & 10.5 		8-97041-091-0 01 1 9712- ● ● ●
399 02.559 NUT; CLIP
FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9604- ●
403 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-0 02 1 9312-9510 ● ●
403 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 02 1 9511- ●
403 02.343 CLIP; CABLE 8-97093-555-2 01 1 9312-9502 ●
403 02.343 CLIP; CABLE 8-97125-981-0 01 1 9503-9510 ●
409 02.343 BRACKET; GRAND,ENG
FRAME STRAIGHT TYPE<7KJ> 		8-97091-887-0 01 1 9604- ●
410 02.343 BOLT; BRKT,GRAND
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9604- ●
410 02.343 BOLT; BRKT,GRAND
12.187 M8X20 W/LK&PL WASHER 		0-50140-820-0 01 1 9312-9711 ●
410 02.343 BOLT; BRKT,GRAND
12.187 M8X20 W/LK&PL WASHER 		0-50140-820-0 01 1 9712- ● ● ●
442 02.559 CLIP; GRAND
FRAME STRAIGHT TYPE<7KJ> 04.439 ID=13 H=75 L=25 		1-09700-601-0 01 1 9604- ●
445 02.483 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9604- ●
489 03.483 BOLT; ENG STOPPER
03.417 M10X25 FLANGE 		0-28081-025-0 01 1 9312-9510 ● ● ● ●
490 03.485 NUT; ENG STOP
07.829 (A) M6 FLANGE 		5-09440-004-0 01 1 9312-9510 ● ● ●
490 03.485 NUT; ENG STOP
07.829 (A) M6 FLANGE 		5-09440-004-0 01 1 9511- ● ●
490 03.485 NUT; ENG STOP
04.785 (B) M10 FLANGE 		0-91150-110-0 02 1 9312-9510 ● ● ● ●
492 03.483 BRACKET; ENG STOPPER
03.485 		8-97113-497-1 01 1 9511-9705 ● ●
492 03.483 BRACKET; ENG STOPPER
EXC. FRAME STRAIGHT TYPE<7KJ> 03.485 		8-97113-497-1 01 1 9706- ● ●
492 03.483 BRACKET; ENG STOPPER
FRAME STRAIGHT TYPE<7KJ> 		8-97127-037-0 01 1 9511-9711 ●
492 03.483 BRACKET; ENG STOPPER
FRAME STRAIGHT TYPE<7KJ> 		8-97127-037-0 01 1 9712-9801 ● ● ●
492 03.483 BRACKET; ENG STOPPER
FRAME STRAIGHT TYPE<7KJ> 		8-97127-037-0 01 1 9802- ● ● ● ●
553 03.485 MOTOR ASM; ENG STOP
NPR/NQR SGL CAB&LONG(NP**SK) 		8-97065-453-1 01 1 9312-9510 ●
553 03.485 MOTOR ASM; ENG STOP 8-97073-522-1 01 1 9312-9510 ●
553 03.485 MOTOR ASM; ENG STOP 8-97116-800-0 01 1 9511- ●
553 03.485 MOTOR ASM; ENG STOP 8-97065-454-2 01 1 9312-9510 ●
553 03.485 MOTOR ASM; ENG STOP 8-97122-819-0 01 1 9511- ●
553 03.485 MOTOR ASM; ENG STOP
DUMP CHASSIS(V4D) 		8-97063-958-0 01 1 9312-9510 ●
553 03.485 MOTOR ASM; ENG STOP
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97122-820-2 01 1 9511-9706 ●
553 03.485 MOTOR ASM; ENG STOP
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97183-914-0 01 1 9707-9711 ●
553 03.485 MOTOR ASM; ENG STOP
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97183-914-0 01 1 9712-9806 ● ● ●
553 03.485 MOTOR ASM; ENG STOP
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97189-552-0 01 1 9807- ● ● ●
553 03.485 MOTOR ASM; ENG STOP
MINI BUS CHASSIS<V4B> 		8-97063-950-0 01 1 9312-9510 ●
553 03.485 MOTOR ASM; ENG STOP
EXC. MINI BUS CHASSIS<V4B>,DUMP CHASSIS(V4D) 		8-97063-951-1 01 1 9312-9510 ●
553 03.485 MOTOR ASM; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97119-552-0 01 1 9511-9711 ●
553 03.485 MOTOR ASM; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97119-552-0 01 1 9712-9806 ● ● ●
553 03.485 MOTOR ASM; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97189-550-0 01 1 9807- ● ● ●
553 03.485 MOTOR ASM; ENG STOP
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97170-348-2 01 1 9712-9801 ●
553 03.485 MOTOR ASM; ENG STOP
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> VOLTAGE 24V<7AE> (A) 		8-97170-348-2 01 1 9802- ●
553 03.485 MOTOR ASM; ENG STOP
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE> 		8-97149-018-2 01 1 9802-9806 ●
553 03.485 MOTOR ASM; ENG STOP
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE> (A) 		8-97189-532-0 01 1 9807- ●
593 02.483 NUT; BRKT
04.785 M10 FLANGE 		0-91150-110-0 02 1 9511-9711 ● ● ●
593 02.483 NUT; BRKT
04.785 M10 FLANGE 		0-91150-110-0 02 1 9712- ● ● ● ● ●
636 02.510 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9511-9711 ● ●
636 02.510 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9511-9711 ●
636 02.510 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9712- ● ●
636 02.510 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9712- ● ● ●
çizim 67508
18 729 17 83 23 17 16 2 4 7 1 46 10 770 578 381 301 314 641 643 310 770
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-94333-438-0 01 1 9312-9510 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. EAST MALAYSIA EQUIPMENT(PM6), WEST MALAYSIA EQUIPMENT(RWP) 24V 3.5KW 		8-94333-438-0 01 1 9312-9510 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. EAST MALAYSIA EQUIPMENT(PM6), WEST MALAYSIA EQUIPMENT(RWP) 24V 3.5KW 		8-94333-438-0 01 1 9511-9711 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 3.5KW 		8-94333-438-0 01 1 9712- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.2KW DENSO 		8-97042-997-0 01 1 9312-9511 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. EURO2 SPECIFICATION<7AF> 12V 2.2KW DENSO 		8-97042-997-0 01 1 9512-9604 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EURO2 SPECIFICATION<7AF> 12V 2.0KW 		8-97120-356-0 01 1 9512-9604 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 9605- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 3.0KW 		1-81100-234-1 01 1 9312-9409 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 3.0KW 		8-97119-749-0 01 1 9410-9701 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 3.0KW 		8-97174-043-0 01 1 9702- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(RWP) 24V 4.5KW DENSO 		8-94334-150-0 01 1 9312-9711 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97100-926-1 01 1 9312-9711 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97100-926-2 01 1 9712- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI 		8-97100-926-2 01 1 9712- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW 		8-97065-526-0 01 1 9312-9404 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW 		8-97095-811-3 01 1 9405-9711 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW 		8-97095-811-5 01 1 9712- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A HITACHI 		8-97029-226-0 01 1 9312-9510 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97073-924-1 01 1 9312-9802 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-657-0 01 1 9803- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 70A 		8-97023-733-1 01 1 9312-9611 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 70A 		8-97171-178-0 01 1 9612- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(RWP) 24V 25A DENSO 		8-94334-152-0 01 1 9312-9711 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR DENSO(7KH) 24V 50A 		8-97170-163-1 01 1 9712- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. EAST MALAYSIA EQUIPMENT(PM6), WEST MALAYSIA EQUIPMENT(RWP), GENERATOR24V40A(6MN) 24V 25A HITACHI 		8-94389-772-1 01 1 9312-9711 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V40A(6MN) 24V 25A HITACHI 		8-94389-772-1 01 1 9712- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V40A(6MN) 24V 40A HITACHI 		8-97013-171-2 01 1 9312- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR DENSO(7KH) 24V 35A 		8-97115-044-0 01 1 9503-9711 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR DENSO(7KH) 24V 35A 		8-97115-044-0 01 1 9712- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V35A(K83) 24V 35A 		8-97075-882-2 01 1 9312-9510 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A 		8-97075-883-2 01 1 9312-9603 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A 		8-97148-496-1 01 1 9604-9711 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR DENSO(7KH) 24V 50A 		8-97144-392-1 01 1 9712-9801 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2), GENERATORDENSO(7KH) 24V 50A 		8-97144-392-1 01 1 9802- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A 		8-97143-011-1 01 1 9706-9711 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A 		8-97175-390-1 01 1 9712- ● ●
4 02.042 BOLT; STARTER
00.002 M12X84 		8-94107-769-2 02 1 9312-9703 ●
4 02.042 BOLT; STARTER
M12X80 		0-28081-280-0 02 1 9704- ●
4 02.042 BOLT; STARTER
EURO2 SPECIFICATION<7AF> 04.898 M12X50 		0-10806-250-0 02 1 9512-9711 ●
4 02.042 BOLT; STARTER
04.898 M12X50 		0-10806-250-0 02 1 9712- ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97072-825-1 02 1 9312-9711 ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97072-825-1 02 1 9712-9808 ● ● ●
4 02.042 BOLT; STARTER
A/T 4 SPEED-JATCO(RMK) M10X15,M14X75 L=103 		8-97072-825-1 02 1 9809- ●
4 02.042 BOLT; STARTER
FLOOR REMOTE SHIFT<M11> M10X15,M14X75 L=103 		8-97212-602-0 02 1 9809- ● ● ●
7 02.042 NUT; STARTER
05.816 M12 		9-99110-412-0 02 1 9312-9510 ● ●
7 02.042 NUT; STARTER
05.816 M12 		9-99110-412-0 02 1 9511-9511 ●
7 02.042 NUT; STARTER
EURO2 SPECIFICATION<7AF> 05.816 M12 		9-99110-412-0 02 1 9512-9711 ●
7 02.042 NUT; STARTER
05.816 M12 		9-99110-412-0 02 1 9512-9711 ●
7 02.042 NUT; STARTER
05.816 M12 		9-99110-412-0 02 1 9712- ● ●
7 02.042 NUT; STARTER
05.586 M12 FLANGE 		0-91150-112-0 02 1 9312- ●
7 02.042 NUT; STARTER
05.816 M12 		9-99110-412-0 03 1 9312- ●
10 02.100 RELAY; STARTER 8-97036-359-1 01 1 9312-9506 ●
10 02.100 RELAY; STARTER
VOLTAGE 24V<7AE> 		8-97036-359-1 01 1 9312-9506 ● ● ●
10 02.100 RELAY; STARTER 8-97036-359-1 01 1 9507-9510 ● ● ●
10 02.100 RELAY; STARTER 8-97036-359-1 01 1 9511-9704 ● ●
10 02.100 RELAY; STARTER
02.510 24V 50A 		8-97173-947-0 01 1 9705-9705 ● ●
10 02.100 RELAY; STARTER
VOLTAGE 24V<7AE> 02.510 24V 50A 		8-97173-947-0 01 1 9706-9711 ● ●
10 02.100 RELAY; STARTER
VOLTAGE 24V<7AE> 02.510 24V 50A 		8-97173-947-0 01 1 9712- ● ● ● ●
10 02.100 RELAY; STARTER
EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97036-358-1 01 1 9312-9506 ● ● ●
10 02.100 RELAY; STARTER
12V 80A 		8-97036-358-1 01 1 9507-9704 ● ●
10 02.100 RELAY; STARTER
02.510 12V 80A 		8-97173-951-0 01 1 9705-9705 ● ●
10 02.100 RELAY; STARTER
EXC. VOLTAGE 24V<7AE> 02.510 12V 80A 		8-97173-951-0 01 1 9706- ● ● ● ●
16 02.277 BOLT; GEN
01.840 M10X35 W/LK&PL WASHER 		0-50141-035-0 02 1 9312-9510 ● ●
16 02.277 BOLT; GEN
01.840 M10X35 W/LK&PL WASHER 		0-50141-035-0 02 1 9511- ●
16 02.277 BOLT; GEN
M10X133 		5-09000-169-1 01 1 9312-9612 ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 9701- ●
16 02.277 BOLT; GEN
M10X134 		8-94314-385-1 01 1 9312-9501 ●
16 02.277 BOLT; GEN
M10X127 		8-97065-159-1 01 1 9312-9409 ●
16 02.277 BOLT; GEN
EXC. GENERATOR DENSO(7KH) M10X127 		8-97065-159-1 01 1 9410-9503 ●
16 02.277 BOLT; GEN
M10X127 		8-97065-159-1 01 1 9502-9502 ●
16 02.277 BOLT; GEN
M10X127 		8-97065-159-1 01 1 9504-9605 ●
16 02.277 BOLT; GEN
EXC. GENERATOR DENSO(7KH) M10X127 		8-97065-159-1 01 1 9504-9605 ●
16 02.277 BOLT; GEN
M10X133 		8-97146-998-0 01 1 9606-9711 ●
16 02.277 BOLT; GEN
EXC. GENERATOR DENSO(7KH) M10X133 		8-97146-998-0 01 1 9606-9711 ●
16 02.277 BOLT; GEN
M10X133 		8-97146-998-0 01 1 9712- ●
16 02.277 BOLT; GEN
EXC. GENERATOR DENSO(7KH) M10X133 		8-97146-998-0 01 1 9712- ● ● ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60),GENERATOR DENSO(7KH) 02.317 M8X40 W/WASHER 		8-97011-792-4 01 1 9604-9711 ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60),GENERATOR DENSO(7KH) 02.317 M8X40 W/WASHER 		8-97011-792-4 01 1 9712- ● ● ●
16 02.277 BOLT; GEN
GENERATOR DENSO(7KH) M10X120 FLANGE 		0-28086-012-0 01 1 9410-9711 ●
16 02.277 BOLT; GEN
GENERATOR DENSO(7KH) M10X120 FLANGE 		0-28086-012-0 01 1 9712- ● ●
16 02.277 BOLT; GEN
GENERATOR DENSO(7KH) 00.780 M8X30 W/LK WASHER 		0-50040-830-0 01 1 9604-9711 ●
16 02.277 BOLT; GEN
GENERATOR DENSO(7KH) 03.415 M8X35 FLANGE 		0-28080-835-0 01 1 9712- ● ●
17 02.277 WASHER; PL,GEN
16.682 ID=10.5 OD=22 		9-09160-610-0 02 1 9312-9612 ●
17 02.277 WASHER; PL,GEN
04.085 ID=10.5 OD=22 		9-09164-610-0 01 1 9312-9501 ●
17 02.277 WASHER; PL,GEN
GENERATOR DENSO(7KH) 07.874 ID=10.5 OD=18 		9-09160-510-0 01 1 9410-9711 ●
17 02.277 WASHER; PL,GEN
GENERATOR DENSO(7KH) 16.716 ID=8.4 OD=18 		9-09160-608-0 01 1 9604-9711 ●
17 02.277 WASHER; PL,GEN
GENERATOR DENSO(7KH) 16.716 ID=8.4 OD=18 		9-09160-608-0 01 1 9712- ● ●
18 02.317 WASHER; LK,GEN
00.002 ID=10.2 		9-09150-510-0 01 1 9312-9501 ● ●
18 02.317 WASHER; LK,GEN
00.002 ID=10.2 		9-09150-510-0 01 1 9502-9612 ●
23 02.277 NUT; GEN
00.002 (B) M10 		9-09110-510-0 01 1 9312-9501 ● ●
23 02.277 NUT; GEN
00.002 (B) M10 		9-09110-510-0 01 1 9502-9612 ●
23 02.277 NUT; GEN
07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 9312-9502 ●
23 02.277 NUT; GEN
EXC. GENERATOR DENSO(7KH) 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 9503-9711 ●
23 02.277 NUT; GEN
EXC. GENERATOR DENSO(7KH) 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 9712- ● ● ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 9312-9501 ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 9502-9502 ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 9503-9612 ● ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 9701-9711 ● ● ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 9712- ● ● ● ● ●
46 02.510 RELAY; GLOW PLUG
02.100 		8-97036-359-1 01 1 9312-9406 ●
46 02.510 RELAY; GLOW PLUG
VOLTAGE 24V<7AE> 02.100 		8-97036-359-1 01 1 9312-9406 ● ● ●
46 02.510 RELAY; GLOW PLUG
02.100 		8-97036-359-1 01 1 9407-9506 ●
46 02.510 RELAY; GLOW PLUG
VOLTAGE 24V<7AE> 02.100 		8-97036-359-1 01 1 9407-9506 ● ●
46 02.510 RELAY; GLOW PLUG
02.100 		8-97036-359-1 01 1 9507-9510 ● ● ●
46 02.510 RELAY; GLOW PLUG
02.100 		8-97036-359-1 01 1 9511-9606 ●
46 02.510 RELAY; GLOW PLUG
EXC. THAILAND EQUIPMENT(PM9) 02.100 		8-97036-359-1 01 1 9511-9606 ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> VOLTAGE 24V<7AE> 02.100 		8-97036-359-1 01 1 9607-9704 ● ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> VOLTAGE 24V<7AE> 24V 50A 		8-97173-947-0 01 1 9705-9711 ● ●
46 02.510 RELAY; GLOW PLUG
VOLTAGE 24V<7AE> FAST GLOW SYSTEM<KM6> 24V 50A 		8-97173-947-0 01 1 9712- ● ● ● ●
46 02.510 RELAY; GLOW PLUG
EXC. VOLTAGE 24V<7AE> 02.100 12V 80A 		8-97036-358-1 02 1 9312-9506 ● ● ●
46 02.510 RELAY; GLOW PLUG
02.100 12V 80A 		8-97036-358-1 02 1 9507-9704 ● ●
46 02.510 RELAY; GLOW PLUG
12V 80A 		8-97173-951-0 02 1 9705-9705 ● ●
46 02.510 RELAY; GLOW PLUG
EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 02 1 9706-9711 ● ● ● ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 02 1 9712- ● ●
46 02.510 RELAY; GLOW PLUG
NPR SHORT(NP***C) EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 01 1 9802- ●
46 02.510 RELAY; GLOW PLUG
NPR/NQR SGL CAB&MIDDLE(NPC5SF) NPR/NQR SGL CAB&LONG(NPC5SK) FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 01 1 9802- ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9312-9406 ● ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9407-9502 ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9503-9510 ● ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9511-9711 ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9712- ● ● ● ●
83 01.150 THERMOMETER UNIT
EXC. CHARGE AIR COOLER<6PL> DENSO 		8-94235-691-0 01 1 9712- ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9312-9406 ● ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9407-9502 ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9503-9510 ● ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9511-9711 ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9712- ● ● ● ●
83 01.150 THERMOMETER UNIT
EXC. CHARGE AIR COOLER<6PL> YAZAKI 		8-94237-861-0 01 1 9712- ●
83 01.150 THERMOMETER UNIT 8-94400-370-0 01 1 9312- ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9407-9502 ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9407-9502 ●
301 02.510 RESISTOR; DROPPING 8-94389-802-1 01 1 9312-9711 ●
301 02.510 RESISTOR; DROPPING
FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 		8-94389-802-1 01 1 9712- ●
301 02.510 RESISTOR; DROPPING 8-97047-956-0 01 1 9312- ●
310 02.510 CONTROLLER; QOS
EXC. THAILAND EQUIPMENT(PM9) 		8-97047-029-0 01 1 9312-9402 ●
310 02.510 CONTROLLER; QOS 8-97047-029-0 01 1 9403- ●
310 02.510 CONTROLLER; QOS
NPR/NQR SGL CAB&MIDDLE(NP**SF) EXC. THAILAND EQUIPMENT(PM9) 		8-97070-393-0 01 1 9312-9402 ●
310 02.510 CONTROLLER; QOS
NPR/NQR SGL CAB&MIDDLE(NP**SF) 		8-97070-393-0 01 1 9403-9506 ●
310 02.510 CONTROLLER; QOS 8-97070-393-0 01 1 9507- ●
314 02.500 BRACKET; DROPPING RESISTOR 8-97061-910-2 01 1 9312- ●
381 02.183 BOLT; DROPPING RESISTOR
04.686 M6X25 FLANGE 		0-28080-625-0 02 1 9312-9702 ●
381 02.183 BOLT; DROPPING RESISTOR
02.334 M6X25 FLANGE 		0-28680-625-0 02 1 9703- ●
578 02.510 RELAY; CHARGE WARNING 8-97063-440-0 01 1 9312-9506 ●
578 02.510 RELAY; CHARGE WARNING
VOLTAGE 24V<7AE> 		8-97063-440-0 01 1 9312-9506 ● ● ●
578 02.510 RELAY; CHARGE WARNING 8-97063-440-0 01 1 9507-9510 ● ● ●
578 02.510 RELAY; CHARGE WARNING 8-97063-440-0 01 1 9511-9705 ● ●
578 02.510 RELAY; CHARGE WARNING
VOLTAGE 24V<7AE> 		8-97063-440-0 01 1 9706-9711 ● ●
578 02.510 RELAY; CHARGE WARNING
VOLTAGE 24V<7AE> 		8-97063-440-1 01 1 9712- ● ● ● ●
578 02.510 RELAY; CHARGE WARNING
EXC. VOLTAGE 24V<7AE> 12V 		8-97063-441-0 01 1 9312-9506 ● ● ●
578 02.510 RELAY; CHARGE WARNING
12V 		8-97063-441-1 01 1 9507-9705 ● ●
578 02.510 RELAY; CHARGE WARNING
EXC. VOLTAGE 24V<7AE> 12V 		8-97063-441-1 01 1 9706- ● ● ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97047-028-0 01 1 9312-9402 ● ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97047-028-0 01 1 9403-9510 ● ● ● ● ● ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97047-028-0 01 1 9511-9606 ● ● ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97047-028-0 01 1 9607-9711 ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> EXC. CHARGE AIR COOLER<6PL> 		8-97047-028-0 01 1 9712-9809 ● ● ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> EXC. CHARGE AIR COOLER<6PL> 		8-97215-648-0 01 1 9810- ● ● ● ●
643 02.510 NUT; TIMER,QOS
EXC. THAILAND EQUIPMENT(PM9) 04.594 M6 FLANGE 		0-91150-106-0 02 1 9312-9510 ● ● ● ● ● ● ●
643 02.510 NUT; TIMER,QOS
04.594 M6 FLANGE 		0-91150-106-0 02 1 9511-9606 ● ● ●
643 02.510 NUT; TIMER,QOS
EXC. THAILAND EQUIPMENT(PM9) 04.594 M6 FLANGE 		0-91150-106-0 02 1 9511-9606 ●
643 02.510 NUT; TIMER,QOS
04.594 M6 FLANGE 		0-91150-106-0 02 1 9607-9711 ● ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> 04.594 M6 FLANGE 		0-91150-106-0 02 1 9607-9711 ● ●
643 02.510 NUT; TIMER,QOS
04.594 M6 FLANGE 		0-91150-106-0 02 1 9712- ● ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> EXC. CHARGE AIR COOLER<6PL> 04.594 M6 FLANGE 		0-91150-106-0 02 1 9712- ● ● ● ●
729 01.150 SENSOR; QOS THERMO 8-97018-064-0 01 1 9312- ●
729 01.150 SENSOR; QOS THERMO 8-97032-870-1 01 1 9312- ●
770 02.183 NUT; DROPPING REGISTER
04.594 M6 FLANGE 		0-91150-106-0 04 1 9312- ●
çizim 67815
211 2 4 410 23 1 23 563 16 4 21 17 26 782 83 129 603 460 91 105 108 436 46 10 641 578 643
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-94333-438-0 01 1 9312-9510 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. EAST MALAYSIA EQUIPMENT(PM6), WEST MALAYSIA EQUIPMENT(RWP) 24V 3.5KW 		8-94333-438-0 01 1 9312-9510 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. EAST MALAYSIA EQUIPMENT(PM6), WEST MALAYSIA EQUIPMENT(RWP) 24V 3.5KW 		8-94333-438-0 01 1 9511-9711 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 3.5KW 		8-94333-438-0 01 1 9712- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.2KW DENSO 		8-97042-997-0 01 1 9312-9511 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. EURO2 SPECIFICATION<7AF> 12V 2.2KW DENSO 		8-97042-997-0 01 1 9512-9604 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EURO2 SPECIFICATION<7AF> 12V 2.0KW 		8-97120-356-0 01 1 9512-9604 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 9605- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 3.0KW 		1-81100-234-1 01 1 9312-9409 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 3.0KW 		8-97119-749-0 01 1 9410-9701 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 3.0KW 		8-97174-043-0 01 1 9702- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(RWP) 24V 4.5KW DENSO 		8-94334-150-0 01 1 9312-9711 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97100-926-1 01 1 9312-9711 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97100-926-2 01 1 9712- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI 		8-97100-926-2 01 1 9712- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW 		8-97065-526-0 01 1 9312-9404 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW 		8-97095-811-3 01 1 9405-9711 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW 		8-97095-811-5 01 1 9712- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A HITACHI 		8-97029-226-0 01 1 9312-9510 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97073-924-1 01 1 9312-9802 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-657-0 01 1 9803- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 70A 		8-97023-733-1 01 1 9312-9611 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 70A 		8-97171-178-0 01 1 9612- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(RWP) 24V 25A DENSO 		8-94334-152-0 01 1 9312-9711 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR DENSO(7KH) 24V 50A 		8-97170-163-1 01 1 9712- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. EAST MALAYSIA EQUIPMENT(PM6), WEST MALAYSIA EQUIPMENT(RWP), GENERATOR24V40A(6MN) 24V 25A HITACHI 		8-94389-772-1 01 1 9312-9711 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V40A(6MN) 24V 25A HITACHI 		8-94389-772-1 01 1 9712- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V40A(6MN) 24V 40A HITACHI 		8-97013-171-2 01 1 9312- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR DENSO(7KH) 24V 35A 		8-97115-044-0 01 1 9503-9711 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR DENSO(7KH) 24V 35A 		8-97115-044-0 01 1 9712- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V35A(K83) 24V 35A 		8-97075-882-2 01 1 9312-9510 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A 		8-97075-883-2 01 1 9312-9603 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A 		8-97148-496-1 01 1 9604-9711 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR DENSO(7KH) 24V 50A 		8-97144-392-1 01 1 9712-9801 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2), GENERATORDENSO(7KH) 24V 50A 		8-97144-392-1 01 1 9802- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A 		8-97143-011-1 01 1 9706-9711 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A 		8-97175-390-1 01 1 9712- ● ●
4 02.042 BOLT; STARTER
00.002 M12X84 		8-94107-769-2 02 1 9312-9703 ●
4 02.042 BOLT; STARTER
M12X80 		0-28081-280-0 02 1 9704- ●
4 02.042 BOLT; STARTER
EURO2 SPECIFICATION<7AF> 04.898 M12X50 		0-10806-250-0 02 1 9512-9711 ●
4 02.042 BOLT; STARTER
04.898 M12X50 		0-10806-250-0 02 1 9712- ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97072-825-1 02 1 9312-9711 ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97072-825-1 02 1 9712-9808 ● ● ●
4 02.042 BOLT; STARTER
A/T 4 SPEED-JATCO(RMK) M10X15,M14X75 L=103 		8-97072-825-1 02 1 9809- ●
4 02.042 BOLT; STARTER
FLOOR REMOTE SHIFT<M11> M10X15,M14X75 L=103 		8-97212-602-0 02 1 9809- ● ● ●
10 02.100 RELAY; STARTER 8-97036-359-1 01 1 9312-9506 ●
10 02.100 RELAY; STARTER
VOLTAGE 24V<7AE> 		8-97036-359-1 01 1 9312-9506 ● ● ●
10 02.100 RELAY; STARTER 8-97036-359-1 01 1 9507-9510 ● ● ●
10 02.100 RELAY; STARTER 8-97036-359-1 01 1 9511-9704 ● ●
10 02.100 RELAY; STARTER
02.510 24V 50A 		8-97173-947-0 01 1 9705-9705 ● ●
10 02.100 RELAY; STARTER
VOLTAGE 24V<7AE> 02.510 24V 50A 		8-97173-947-0 01 1 9706-9711 ● ●
10 02.100 RELAY; STARTER
VOLTAGE 24V<7AE> 02.510 24V 50A 		8-97173-947-0 01 1 9712- ● ● ● ●
10 02.100 RELAY; STARTER
EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97036-358-1 01 1 9312-9506 ● ● ●
10 02.100 RELAY; STARTER
12V 80A 		8-97036-358-1 01 1 9507-9704 ● ●
10 02.100 RELAY; STARTER
02.510 12V 80A 		8-97173-951-0 01 1 9705-9705 ● ●
10 02.100 RELAY; STARTER
EXC. VOLTAGE 24V<7AE> 02.510 12V 80A 		8-97173-951-0 01 1 9706- ● ● ● ●
16 02.277 BOLT; GEN
01.840 M10X35 W/LK&PL WASHER 		0-50141-035-0 02 1 9312-9510 ● ●
16 02.277 BOLT; GEN
01.840 M10X35 W/LK&PL WASHER 		0-50141-035-0 02 1 9511- ●
16 02.277 BOLT; GEN
M10X133 		5-09000-169-1 01 1 9312-9612 ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 9701- ●
16 02.277 BOLT; GEN
M10X134 		8-94314-385-1 01 1 9312-9501 ●
16 02.277 BOLT; GEN
M10X127 		8-97065-159-1 01 1 9312-9409 ●
16 02.277 BOLT; GEN
EXC. GENERATOR DENSO(7KH) M10X127 		8-97065-159-1 01 1 9410-9503 ●
16 02.277 BOLT; GEN
M10X127 		8-97065-159-1 01 1 9502-9502 ●
16 02.277 BOLT; GEN
M10X127 		8-97065-159-1 01 1 9504-9605 ●
16 02.277 BOLT; GEN
EXC. GENERATOR DENSO(7KH) M10X127 		8-97065-159-1 01 1 9504-9605 ●
16 02.277 BOLT; GEN
M10X133 		8-97146-998-0 01 1 9606-9711 ●
16 02.277 BOLT; GEN
EXC. GENERATOR DENSO(7KH) M10X133 		8-97146-998-0 01 1 9606-9711 ●
16 02.277 BOLT; GEN
M10X133 		8-97146-998-0 01 1 9712- ●
16 02.277 BOLT; GEN
EXC. GENERATOR DENSO(7KH) M10X133 		8-97146-998-0 01 1 9712- ● ● ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60),GENERATOR DENSO(7KH) 02.317 M8X40 W/WASHER 		8-97011-792-4 01 1 9604-9711 ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60),GENERATOR DENSO(7KH) 02.317 M8X40 W/WASHER 		8-97011-792-4 01 1 9712- ● ● ●
16 02.277 BOLT; GEN
GENERATOR DENSO(7KH) M10X120 FLANGE 		0-28086-012-0 01 1 9410-9711 ●
16 02.277 BOLT; GEN
GENERATOR DENSO(7KH) M10X120 FLANGE 		0-28086-012-0 01 1 9712- ● ●
16 02.277 BOLT; GEN
GENERATOR DENSO(7KH) 00.780 M8X30 W/LK WASHER 		0-50040-830-0 01 1 9604-9711 ●
16 02.277 BOLT; GEN
GENERATOR DENSO(7KH) 03.415 M8X35 FLANGE 		0-28080-835-0 01 1 9712- ● ●
17 02.277 WASHER; PL,GEN
16.682 ID=10.5 OD=22 		9-09160-610-0 02 1 9312-9612 ●
17 02.277 WASHER; PL,GEN
04.085 ID=10.5 OD=22 		9-09164-610-0 01 1 9312-9501 ●
17 02.277 WASHER; PL,GEN
GENERATOR DENSO(7KH) 07.874 ID=10.5 OD=18 		9-09160-510-0 01 1 9410-9711 ●
17 02.277 WASHER; PL,GEN
GENERATOR DENSO(7KH) 16.716 ID=8.4 OD=18 		9-09160-608-0 01 1 9604-9711 ●
17 02.277 WASHER; PL,GEN
GENERATOR DENSO(7KH) 16.716 ID=8.4 OD=18 		9-09160-608-0 01 1 9712- ● ●
21 02.277 BRACKET; GEN 8-94334-346-0 01 1 9312-9510 ● ●
21 02.277 BRACKET; GEN 8-94334-346-0 01 1 9511-9610 ●
21 02.277 BRACKET; GEN 8-97162-519-0 01 1 9611- ●
21 02.277 BRACKET; GEN 8-97073-122-1 01 1 9312- ●
21 02.277 BRACKET; GEN 8-97075-884-2 01 1 9312-9711 ●
21 02.277 BRACKET; GEN 8-97075-884-2 01 1 9712- ● ● ●
23 02.277 NUT; GEN
00.002 (B) M10 		9-09110-510-0 01 1 9312-9501 ● ●
23 02.277 NUT; GEN
00.002 (B) M10 		9-09110-510-0 01 1 9502-9612 ●
23 02.277 NUT; GEN
07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 9312-9502 ●
23 02.277 NUT; GEN
EXC. GENERATOR DENSO(7KH) 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 9503-9711 ●
23 02.277 NUT; GEN
EXC. GENERATOR DENSO(7KH) 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 9712- ● ● ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 9312-9501 ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 9502-9502 ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 9503-9612 ● ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 9701-9711 ● ● ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 9712- ● ● ● ● ●
26 02.277 BOLT; GEN BRKT
09.008 M10X90 W/LK WASHER 		0-50041-090-0 01 1 9312-9510 ● ● ●
26 02.277 BOLT; GEN BRKT
09.008 M10X90 W/LK WASHER 		0-50041-090-0 01 1 9511- ● ●
26 02.277 BOLT; GEN BRKT
01.652 M10X25 W/LK WASHER 		0-50041-025-0 01 1 9312-9510 ● ●
26 02.277 BOLT; GEN BRKT
01.652 M10X25 W/LK WASHER 		0-50041-025-0 01 1 9511- ●
26 02.277 BOLT; GEN BRKT
00.724 M10X55 		5-09030-038-1 01 1 9312-9510 ● ●
26 02.277 BOLT; GEN BRKT
00.724 M10X55 		5-09030-038-1 01 1 9511- ●
26 02.277 BOLT; GEN BRKT
M10X22 W/LK WASHER 		0-50041-022-0 01 1 9312- ●
26 02.277 BOLT; GEN BRKT
09.171 M10X30 W/LK WASHER 		0-50041-030-0 01 1 9312- ●
26 02.277 BOLT; GEN BRKT
00.004 M10X40 W/LK WASHER 		0-50041-040-0 01 1 9312- ●
26 02.277 BOLT; GEN BRKT
08.900 M10X50 FLANGE 		0-28181-050-0 01 1 9312-9711 ●
26 02.277 BOLT; GEN BRKT
08.900 M10X50 FLANGE 		0-28181-050-0 01 1 9712- ● ● ●
26 02.277 BOLT; GEN BRKT
03.890 M10X70 FLANGE 		0-28181-070-0 02 1 9312-9711 ●
26 02.277 BOLT; GEN BRKT
03.890 M10X70 FLANGE 		0-28181-070-0 02 1 9712- ● ● ●
46 02.510 RELAY; GLOW PLUG
02.100 		8-97036-359-1 01 1 9312-9406 ●
46 02.510 RELAY; GLOW PLUG
VOLTAGE 24V<7AE> 02.100 		8-97036-359-1 01 1 9312-9406 ● ● ●
46 02.510 RELAY; GLOW PLUG
02.100 		8-97036-359-1 01 1 9407-9506 ●
46 02.510 RELAY; GLOW PLUG
VOLTAGE 24V<7AE> 02.100 		8-97036-359-1 01 1 9407-9506 ● ●
46 02.510 RELAY; GLOW PLUG
02.100 		8-97036-359-1 01 1 9507-9510 ● ● ●
46 02.510 RELAY; GLOW PLUG
02.100 		8-97036-359-1 01 1 9511-9606 ●
46 02.510 RELAY; GLOW PLUG
EXC. THAILAND EQUIPMENT(PM9) 02.100 		8-97036-359-1 01 1 9511-9606 ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> VOLTAGE 24V<7AE> 02.100 		8-97036-359-1 01 1 9607-9704 ● ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> VOLTAGE 24V<7AE> 24V 50A 		8-97173-947-0 01 1 9705-9711 ● ●
46 02.510 RELAY; GLOW PLUG
VOLTAGE 24V<7AE> FAST GLOW SYSTEM<KM6> 24V 50A 		8-97173-947-0 01 1 9712- ● ● ● ●
46 02.510 RELAY; GLOW PLUG
EXC. VOLTAGE 24V<7AE> 02.100 12V 80A 		8-97036-358-1 02 1 9312-9506 ● ● ●
46 02.510 RELAY; GLOW PLUG
02.100 12V 80A 		8-97036-358-1 02 1 9507-9704 ● ●
46 02.510 RELAY; GLOW PLUG
12V 80A 		8-97173-951-0 02 1 9705-9705 ● ●
46 02.510 RELAY; GLOW PLUG
EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 02 1 9706-9711 ● ● ● ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 02 1 9712- ● ●
46 02.510 RELAY; GLOW PLUG
NPR SHORT(NP***C) EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 01 1 9802- ●
46 02.510 RELAY; GLOW PLUG
NPR/NQR SGL CAB&MIDDLE(NPC5SF) NPR/NQR SGL CAB&LONG(NPC5SK) FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 01 1 9802- ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9312-9406 ● ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9407-9502 ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9503-9510 ● ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9511-9711 ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9712- ● ● ● ●
83 01.150 THERMOMETER UNIT
EXC. CHARGE AIR COOLER<6PL> DENSO 		8-94235-691-0 01 1 9712- ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9312-9406 ● ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9407-9502 ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9503-9510 ● ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9511-9711 ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9712- ● ● ● ●
83 01.150 THERMOMETER UNIT
EXC. CHARGE AIR COOLER<6PL> YAZAKI 		8-94237-861-0 01 1 9712- ●
83 01.150 THERMOMETER UNIT 8-94400-370-0 01 1 9312- ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9407-9502 ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9407-9502 ●
91 01.150 SWITCH; THERMO HTR
CHARGE AIR COOLER<6PL> 03.883 		8-97038-625-0 01 1 9712- ●
105 01.150 SWITCH; THERMO,QOS 8-94121-152-1 01 1 9312-9711 ●
105 01.150 SWITCH; THERMO,QOS 8-94121-152-1 01 1 9712- ● ●
105 01.150 SWITCH; THERMO,QOS
POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> 		8-94121-152-1 01 1 9712- ●
108 01.150 SWITCH; THERMO 8-97025-469-0 01 1 9312- ●
108 01.150 SWITCH; THERMO 8-97021-507-1 01 1 9312-9511 ●
108 01.150 SWITCH; THERMO
CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) 		8-97189-295-0 01 1 9712-9804 ●
108 01.150 SWITCH; THERMO
CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 		8-97189-295-0 01 1 9805- ●
108 01.150 SWITCH; THERMO
EXC. CHARGE AIR COOLER<6PL> 		8-97021-507-1 01 1 9712-9802 ●
129 01.150 SENSOR; GLOW PLUG,THERMO
CHARGE AIR COOLER<6PL> UNISIA JECS 		8-97167-008-0 01 1 9712- ●
129 01.150 SENSOR; GLOW PLUG,THERMO
CHARGE AIR COOLER<6PL> TRANSTRON 		8-97170-327-0 01 1 9712- ●
211 02.343 NUT; CABLE FIX
07.633 M8 FLANGE 		0-91150-108-0 01 1 9312-9510 ● ● ●
211 02.343 NUT; CABLE FIX
04.785 M10 FLANGE 		0-91150-110-0 01 1 9312-9312 ● ● ●
211 02.343 NUT; CABLE FIX
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9312-9711 ●
211 02.343 NUT; CABLE FIX
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9712- ● ● ●
211 02.343 NUT; CABLE FIX
01.062 (A) M6 FLANGE 		0-91150-206-0 01 1 9312-9312 ●
211 02.343 NUT; CABLE FIX
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 9712- ●
410 02.343 BOLT; BRKT,GRAND
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9604- ●
410 02.343 BOLT; BRKT,GRAND
12.187 M8X20 W/LK&PL WASHER 		0-50140-820-0 01 1 9312-9711 ●
410 02.343 BOLT; BRKT,GRAND
12.187 M8X20 W/LK&PL WASHER 		0-50140-820-0 01 1 9712- ● ● ●
436 02.510 RELAY; FAST IDLE (Q-CONTROL)
CHARGE AIR COOLER<6PL> 24V 12.5A JIDECO 		8-97062-815-1 01 1 9712-9801 ●
436 02.510 RELAY; FAST IDLE (Q-CONTROL)
CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> 24V 12.5A JIDECO 		8-97062-815-1 01 1 9802- ●
436 02.510 RELAY; FAST IDLE (Q-CONTROL)
NPR SGL CAB&SHORT(NPC5SC) NPR/NQR SGL CAB&MIDDLE(NPC5SF) NPR/NQR SGL CAB&LONG(NPC5SK) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9802- ●
460 02.363 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). 01.252 ID=16.2 OD=24 		9-09571-416-0 01 1 9512-9604 ●
460 02.363 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). 04.868 ID=16.2 		1-09630-086-0 01 1 9712- ●
563 03.485 WASHER; SPRING
GENERATOR DENSO(7KH) 00.002 ID=10.2 		9-09150-510-0 01 1 9410-9711 ●
578 02.510 RELAY; CHARGE WARNING 8-97063-440-0 01 1 9312-9506 ●
578 02.510 RELAY; CHARGE WARNING
VOLTAGE 24V<7AE> 		8-97063-440-0 01 1 9312-9506 ● ● ●
578 02.510 RELAY; CHARGE WARNING 8-97063-440-0 01 1 9507-9510 ● ● ●
578 02.510 RELAY; CHARGE WARNING 8-97063-440-0 01 1 9511-9705 ● ●
578 02.510 RELAY; CHARGE WARNING
VOLTAGE 24V<7AE> 		8-97063-440-0 01 1 9706-9711 ● ●
578 02.510 RELAY; CHARGE WARNING
VOLTAGE 24V<7AE> 		8-97063-440-1 01 1 9712- ● ● ● ●
578 02.510 RELAY; CHARGE WARNING
EXC. VOLTAGE 24V<7AE> 12V 		8-97063-441-0 01 1 9312-9506 ● ● ●
578 02.510 RELAY; CHARGE WARNING
12V 		8-97063-441-1 01 1 9507-9705 ● ●
578 02.510 RELAY; CHARGE WARNING
EXC. VOLTAGE 24V<7AE> 12V 		8-97063-441-1 01 1 9706- ● ● ● ●
603 02.510 SENSOR; TACHO
TACHOMETER<U16> 09.750 		8-94370-581-0 01 1 9312-9406 ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97047-028-0 01 1 9312-9402 ● ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97047-028-0 01 1 9403-9510 ● ● ● ● ● ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97047-028-0 01 1 9511-9606 ● ● ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97047-028-0 01 1 9607-9711 ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> EXC. CHARGE AIR COOLER<6PL> 		8-97047-028-0 01 1 9712-9809 ● ● ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> EXC. CHARGE AIR COOLER<6PL> 		8-97215-648-0 01 1 9810- ● ● ● ●
643 02.510 NUT; TIMER,QOS
EXC. THAILAND EQUIPMENT(PM9) 04.594 M6 FLANGE 		0-91150-106-0 02 1 9312-9510 ● ● ● ● ● ● ●
643 02.510 NUT; TIMER,QOS
04.594 M6 FLANGE 		0-91150-106-0 02 1 9511-9606 ● ● ●
643 02.510 NUT; TIMER,QOS
EXC. THAILAND EQUIPMENT(PM9) 04.594 M6 FLANGE 		0-91150-106-0 02 1 9511-9606 ●
643 02.510 NUT; TIMER,QOS
04.594 M6 FLANGE 		0-91150-106-0 02 1 9607-9711 ● ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> 04.594 M6 FLANGE 		0-91150-106-0 02 1 9607-9711 ● ●
643 02.510 NUT; TIMER,QOS
04.594 M6 FLANGE 		0-91150-106-0 02 1 9712- ● ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> EXC. CHARGE AIR COOLER<6PL> 04.594 M6 FLANGE 		0-91150-106-0 02 1 9712- ● ● ● ●
782 02.510 BOLT; SENSOR
00.738 M6X16 FLANGE 		0-28080-616-0 01 1 9312-9603 ●
çizim 68170
299 83 104 1 6 292 7 2 21 26 16 26 46 10 641 643 578
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-94333-438-0 01 1 9312-9510 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. EAST MALAYSIA EQUIPMENT(PM6), WEST MALAYSIA EQUIPMENT(RWP) 24V 3.5KW 		8-94333-438-0 01 1 9312-9510 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. EAST MALAYSIA EQUIPMENT(PM6), WEST MALAYSIA EQUIPMENT(RWP) 24V 3.5KW 		8-94333-438-0 01 1 9511-9711 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 3.5KW 		8-94333-438-0 01 1 9712- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.2KW DENSO 		8-97042-997-0 01 1 9312-9511 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. EURO2 SPECIFICATION<7AF> 12V 2.2KW DENSO 		8-97042-997-0 01 1 9512-9604 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EURO2 SPECIFICATION<7AF> 12V 2.0KW 		8-97120-356-0 01 1 9512-9604 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 9605- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 3.0KW 		1-81100-234-1 01 1 9312-9409 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 3.0KW 		8-97119-749-0 01 1 9410-9701 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 3.0KW 		8-97174-043-0 01 1 9702- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(RWP) 24V 4.5KW DENSO 		8-94334-150-0 01 1 9312-9711 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97100-926-1 01 1 9312-9711 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97100-926-2 01 1 9712- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI 		8-97100-926-2 01 1 9712- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW 		8-97065-526-0 01 1 9312-9404 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW 		8-97095-811-3 01 1 9405-9711 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW 		8-97095-811-5 01 1 9712- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A HITACHI 		8-97029-226-0 01 1 9312-9510 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97073-924-1 01 1 9312-9802 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-657-0 01 1 9803- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 70A 		8-97023-733-1 01 1 9312-9611 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 70A 		8-97171-178-0 01 1 9612- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(RWP) 24V 25A DENSO 		8-94334-152-0 01 1 9312-9711 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR DENSO(7KH) 24V 50A 		8-97170-163-1 01 1 9712- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. EAST MALAYSIA EQUIPMENT(PM6), WEST MALAYSIA EQUIPMENT(RWP), GENERATOR24V40A(6MN) 24V 25A HITACHI 		8-94389-772-1 01 1 9312-9711 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V40A(6MN) 24V 25A HITACHI 		8-94389-772-1 01 1 9712- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V40A(6MN) 24V 40A HITACHI 		8-97013-171-2 01 1 9312- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR DENSO(7KH) 24V 35A 		8-97115-044-0 01 1 9503-9711 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR DENSO(7KH) 24V 35A 		8-97115-044-0 01 1 9712- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V35A(K83) 24V 35A 		8-97075-882-2 01 1 9312-9510 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A 		8-97075-883-2 01 1 9312-9603 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A 		8-97148-496-1 01 1 9604-9711 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR DENSO(7KH) 24V 50A 		8-97144-392-1 01 1 9712-9801 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2), GENERATORDENSO(7KH) 24V 50A 		8-97144-392-1 01 1 9802- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A 		8-97143-011-1 01 1 9706-9711 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A 		8-97175-390-1 01 1 9712- ● ●
6 02.042 WASHER; PL,STARTER
03.430 ID=12.5 		9-09160-512-0 02 1 9312-9510 ● ●
6 02.042 WASHER; PL,STARTER
03.430 ID=12.5 		9-09160-512-0 02 1 9511- ●
6 02.042 WASHER; PL,STARTER
03.430 ID=12.5 		9-09160-512-0 03 1 9312- ●
7 02.042 NUT; STARTER
05.816 M12 		9-99110-412-0 02 1 9312-9510 ● ●
7 02.042 NUT; STARTER
05.816 M12 		9-99110-412-0 02 1 9511-9511 ●
7 02.042 NUT; STARTER
EURO2 SPECIFICATION<7AF> 05.816 M12 		9-99110-412-0 02 1 9512-9711 ●
7 02.042 NUT; STARTER
05.816 M12 		9-99110-412-0 02 1 9512-9711 ●
7 02.042 NUT; STARTER
05.816 M12 		9-99110-412-0 02 1 9712- ● ●
7 02.042 NUT; STARTER
05.586 M12 FLANGE 		0-91150-112-0 02 1 9312- ●
7 02.042 NUT; STARTER
05.816 M12 		9-99110-412-0 03 1 9312- ●
10 02.100 RELAY; STARTER 8-97036-359-1 01 1 9312-9506 ●
10 02.100 RELAY; STARTER
VOLTAGE 24V<7AE> 		8-97036-359-1 01 1 9312-9506 ● ● ●
10 02.100 RELAY; STARTER 8-97036-359-1 01 1 9507-9510 ● ● ●
10 02.100 RELAY; STARTER 8-97036-359-1 01 1 9511-9704 ● ●
10 02.100 RELAY; STARTER
02.510 24V 50A 		8-97173-947-0 01 1 9705-9705 ● ●
10 02.100 RELAY; STARTER
VOLTAGE 24V<7AE> 02.510 24V 50A 		8-97173-947-0 01 1 9706-9711 ● ●
10 02.100 RELAY; STARTER
VOLTAGE 24V<7AE> 02.510 24V 50A 		8-97173-947-0 01 1 9712- ● ● ● ●
10 02.100 RELAY; STARTER
EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97036-358-1 01 1 9312-9506 ● ● ●
10 02.100 RELAY; STARTER
12V 80A 		8-97036-358-1 01 1 9507-9704 ● ●
10 02.100 RELAY; STARTER
02.510 12V 80A 		8-97173-951-0 01 1 9705-9705 ● ●
10 02.100 RELAY; STARTER
EXC. VOLTAGE 24V<7AE> 02.510 12V 80A 		8-97173-951-0 01 1 9706- ● ● ● ●
16 02.277 BOLT; GEN
01.840 M10X35 W/LK&PL WASHER 		0-50141-035-0 02 1 9312-9510 ● ●
16 02.277 BOLT; GEN
01.840 M10X35 W/LK&PL WASHER 		0-50141-035-0 02 1 9511- ●
16 02.277 BOLT; GEN
M10X133 		5-09000-169-1 01 1 9312-9612 ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 9701- ●
16 02.277 BOLT; GEN
M10X134 		8-94314-385-1 01 1 9312-9501 ●
16 02.277 BOLT; GEN
M10X127 		8-97065-159-1 01 1 9312-9409 ●
16 02.277 BOLT; GEN
EXC. GENERATOR DENSO(7KH) M10X127 		8-97065-159-1 01 1 9410-9503 ●
16 02.277 BOLT; GEN
M10X127 		8-97065-159-1 01 1 9502-9502 ●
16 02.277 BOLT; GEN
M10X127 		8-97065-159-1 01 1 9504-9605 ●
16 02.277 BOLT; GEN
EXC. GENERATOR DENSO(7KH) M10X127 		8-97065-159-1 01 1 9504-9605 ●
16 02.277 BOLT; GEN
M10X133 		8-97146-998-0 01 1 9606-9711 ●
16 02.277 BOLT; GEN
EXC. GENERATOR DENSO(7KH) M10X133 		8-97146-998-0 01 1 9606-9711 ●
16 02.277 BOLT; GEN
M10X133 		8-97146-998-0 01 1 9712- ●
16 02.277 BOLT; GEN
EXC. GENERATOR DENSO(7KH) M10X133 		8-97146-998-0 01 1 9712- ● ● ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60),GENERATOR DENSO(7KH) 02.317 M8X40 W/WASHER 		8-97011-792-4 01 1 9604-9711 ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60),GENERATOR DENSO(7KH) 02.317 M8X40 W/WASHER 		8-97011-792-4 01 1 9712- ● ● ●
16 02.277 BOLT; GEN
GENERATOR DENSO(7KH) M10X120 FLANGE 		0-28086-012-0 01 1 9410-9711 ●
16 02.277 BOLT; GEN
GENERATOR DENSO(7KH) M10X120 FLANGE 		0-28086-012-0 01 1 9712- ● ●
16 02.277 BOLT; GEN
GENERATOR DENSO(7KH) 00.780 M8X30 W/LK WASHER 		0-50040-830-0 01 1 9604-9711 ●
16 02.277 BOLT; GEN
GENERATOR DENSO(7KH) 03.415 M8X35 FLANGE 		0-28080-835-0 01 1 9712- ● ●
21 02.277 BRACKET; GEN 8-94334-346-0 01 1 9312-9510 ● ●
21 02.277 BRACKET; GEN 8-94334-346-0 01 1 9511-9610 ●
21 02.277 BRACKET; GEN 8-97162-519-0 01 1 9611- ●
21 02.277 BRACKET; GEN 8-97073-122-1 01 1 9312- ●
21 02.277 BRACKET; GEN 8-97075-884-2 01 1 9312-9711 ●
21 02.277 BRACKET; GEN 8-97075-884-2 01 1 9712- ● ● ●
26 02.277 BOLT; GEN BRKT
09.008 M10X90 W/LK WASHER 		0-50041-090-0 01 1 9312-9510 ● ● ●
26 02.277 BOLT; GEN BRKT
09.008 M10X90 W/LK WASHER 		0-50041-090-0 01 1 9511- ● ●
26 02.277 BOLT; GEN BRKT
01.652 M10X25 W/LK WASHER 		0-50041-025-0 01 1 9312-9510 ● ●
26 02.277 BOLT; GEN BRKT
01.652 M10X25 W/LK WASHER 		0-50041-025-0 01 1 9511- ●
26 02.277 BOLT; GEN BRKT
00.724 M10X55 		5-09030-038-1 01 1 9312-9510 ● ●
26 02.277 BOLT; GEN BRKT
00.724 M10X55 		5-09030-038-1 01 1 9511- ●
26 02.277 BOLT; GEN BRKT
M10X22 W/LK WASHER 		0-50041-022-0 01 1 9312- ●
26 02.277 BOLT; GEN BRKT
09.171 M10X30 W/LK WASHER 		0-50041-030-0 01 1 9312- ●
26 02.277 BOLT; GEN BRKT
00.004 M10X40 W/LK WASHER 		0-50041-040-0 01 1 9312- ●
26 02.277 BOLT; GEN BRKT
08.900 M10X50 FLANGE 		0-28181-050-0 01 1 9312-9711 ●
26 02.277 BOLT; GEN BRKT
08.900 M10X50 FLANGE 		0-28181-050-0 01 1 9712- ● ● ●
26 02.277 BOLT; GEN BRKT
03.890 M10X70 FLANGE 		0-28181-070-0 02 1 9312-9711 ●
26 02.277 BOLT; GEN BRKT
03.890 M10X70 FLANGE 		0-28181-070-0 02 1 9712- ● ● ●
46 02.510 RELAY; GLOW PLUG
02.100 		8-97036-359-1 01 1 9312-9406 ●
46 02.510 RELAY; GLOW PLUG
VOLTAGE 24V<7AE> 02.100 		8-97036-359-1 01 1 9312-9406 ● ● ●
46 02.510 RELAY; GLOW PLUG
02.100 		8-97036-359-1 01 1 9407-9506 ●
46 02.510 RELAY; GLOW PLUG
VOLTAGE 24V<7AE> 02.100 		8-97036-359-1 01 1 9407-9506 ● ●
46 02.510 RELAY; GLOW PLUG
02.100 		8-97036-359-1 01 1 9507-9510 ● ● ●
46 02.510 RELAY; GLOW PLUG
02.100 		8-97036-359-1 01 1 9511-9606 ●
46 02.510 RELAY; GLOW PLUG
EXC. THAILAND EQUIPMENT(PM9) 02.100 		8-97036-359-1 01 1 9511-9606 ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> VOLTAGE 24V<7AE> 02.100 		8-97036-359-1 01 1 9607-9704 ● ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> VOLTAGE 24V<7AE> 24V 50A 		8-97173-947-0 01 1 9705-9711 ● ●
46 02.510 RELAY; GLOW PLUG
VOLTAGE 24V<7AE> FAST GLOW SYSTEM<KM6> 24V 50A 		8-97173-947-0 01 1 9712- ● ● ● ●
46 02.510 RELAY; GLOW PLUG
EXC. VOLTAGE 24V<7AE> 02.100 12V 80A 		8-97036-358-1 02 1 9312-9506 ● ● ●
46 02.510 RELAY; GLOW PLUG
02.100 12V 80A 		8-97036-358-1 02 1 9507-9704 ● ●
46 02.510 RELAY; GLOW PLUG
12V 80A 		8-97173-951-0 02 1 9705-9705 ● ●
46 02.510 RELAY; GLOW PLUG
EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 02 1 9706-9711 ● ● ● ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 02 1 9712- ● ●
46 02.510 RELAY; GLOW PLUG
NPR SHORT(NP***C) EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 01 1 9802- ●
46 02.510 RELAY; GLOW PLUG
NPR/NQR SGL CAB&MIDDLE(NPC5SF) NPR/NQR SGL CAB&LONG(NPC5SK) FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 01 1 9802- ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9312-9406 ● ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9407-9502 ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9503-9510 ● ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9511-9711 ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9712- ● ● ● ●
83 01.150 THERMOMETER UNIT
EXC. CHARGE AIR COOLER<6PL> DENSO 		8-94235-691-0 01 1 9712- ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9312-9406 ● ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9407-9502 ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9503-9510 ● ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9511-9711 ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9712- ● ● ● ●
83 01.150 THERMOMETER UNIT
EXC. CHARGE AIR COOLER<6PL> YAZAKI 		8-94237-861-0 01 1 9712- ●
83 01.150 THERMOMETER UNIT 8-94400-370-0 01 1 9312- ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9407-9502 ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9407-9502 ●
104 01.150 SWITCH; THERMO,GLOW PLUG 8-94121-152-1 01 1 9312-9510 ● ●
104 01.150 SWITCH; THERMO,GLOW PLUG 8-94121-152-1 01 1 9511- ●
292 02.042 WASHER; LK,STARTER
04.634 ID=12.2 		9-09150-512-0 02 1 9312-9510 ● ●
292 02.042 WASHER; LK,STARTER
04.634 ID=12.2 		9-09150-512-0 02 1 9511- ●
292 02.042 WASHER; LK,STARTER
04.634 ID=12.2 		9-09150-512-0 03 1 9312- ●
299 02.341 CABLE; STARTER
NPR/NQR SGL CAB&LONG(NP**SK) 		8-94159-038-0 01 1 9312-9406 ●
299 02.341 CABLE; STARTER 8-94159-038-0 01 1 9407-9510 ●
299 02.341 CABLE; STARTER
NPR/NQR SGL CAB&MIDDLE(NP**SF) A/T 4 SPEED-JATCO(RMK) 		8-97075-013-0 01 1 9505-9510 ●
299 02.341 CABLE; STARTER 8-97075-013-0 01 1 9511- ●
578 02.510 RELAY; CHARGE WARNING 8-97063-440-0 01 1 9312-9506 ●
578 02.510 RELAY; CHARGE WARNING
VOLTAGE 24V<7AE> 		8-97063-440-0 01 1 9312-9506 ● ● ●
578 02.510 RELAY; CHARGE WARNING 8-97063-440-0 01 1 9507-9510 ● ● ●
578 02.510 RELAY; CHARGE WARNING 8-97063-440-0 01 1 9511-9705 ● ●
578 02.510 RELAY; CHARGE WARNING
VOLTAGE 24V<7AE> 		8-97063-440-0 01 1 9706-9711 ● ●
578 02.510 RELAY; CHARGE WARNING
VOLTAGE 24V<7AE> 		8-97063-440-1 01 1 9712- ● ● ● ●
578 02.510 RELAY; CHARGE WARNING
EXC. VOLTAGE 24V<7AE> 12V 		8-97063-441-0 01 1 9312-9506 ● ● ●
578 02.510 RELAY; CHARGE WARNING
12V 		8-97063-441-1 01 1 9507-9705 ● ●
578 02.510 RELAY; CHARGE WARNING
EXC. VOLTAGE 24V<7AE> 12V 		8-97063-441-1 01 1 9706- ● ● ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97047-028-0 01 1 9312-9402 ● ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97047-028-0 01 1 9403-9510 ● ● ● ● ● ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97047-028-0 01 1 9511-9606 ● ● ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97047-028-0 01 1 9607-9711 ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> EXC. CHARGE AIR COOLER<6PL> 		8-97047-028-0 01 1 9712-9809 ● ● ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> EXC. CHARGE AIR COOLER<6PL> 		8-97215-648-0 01 1 9810- ● ● ● ●
643 02.510 NUT; TIMER,QOS
EXC. THAILAND EQUIPMENT(PM9) 04.594 M6 FLANGE 		0-91150-106-0 02 1 9312-9510 ● ● ● ● ● ● ●
643 02.510 NUT; TIMER,QOS
04.594 M6 FLANGE 		0-91150-106-0 02 1 9511-9606 ● ● ●
643 02.510 NUT; TIMER,QOS
EXC. THAILAND EQUIPMENT(PM9) 04.594 M6 FLANGE 		0-91150-106-0 02 1 9511-9606 ●
643 02.510 NUT; TIMER,QOS
04.594 M6 FLANGE 		0-91150-106-0 02 1 9607-9711 ● ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> 04.594 M6 FLANGE 		0-91150-106-0 02 1 9607-9711 ● ●
643 02.510 NUT; TIMER,QOS
04.594 M6 FLANGE 		0-91150-106-0 02 1 9712- ● ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> EXC. CHARGE AIR COOLER<6PL> 04.594 M6 FLANGE 		0-91150-106-0 02 1 9712- ● ● ● ●
çizim 68243
83 104 1 92 6 292 7 2 21 26 16 26 46 10 641 643 578
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-94333-438-0 01 1 9312-9510 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. EAST MALAYSIA EQUIPMENT(PM6), WEST MALAYSIA EQUIPMENT(RWP) 24V 3.5KW 		8-94333-438-0 01 1 9312-9510 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. EAST MALAYSIA EQUIPMENT(PM6), WEST MALAYSIA EQUIPMENT(RWP) 24V 3.5KW 		8-94333-438-0 01 1 9511-9711 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 3.5KW 		8-94333-438-0 01 1 9712- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.2KW DENSO 		8-97042-997-0 01 1 9312-9511 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. EURO2 SPECIFICATION<7AF> 12V 2.2KW DENSO 		8-97042-997-0 01 1 9512-9604 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EURO2 SPECIFICATION<7AF> 12V 2.0KW 		8-97120-356-0 01 1 9512-9604 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 9605- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 3.0KW 		1-81100-234-1 01 1 9312-9409 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 3.0KW 		8-97119-749-0 01 1 9410-9701 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 3.0KW 		8-97174-043-0 01 1 9702- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(RWP) 24V 4.5KW DENSO 		8-94334-150-0 01 1 9312-9711 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97100-926-1 01 1 9312-9711 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97100-926-2 01 1 9712- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI 		8-97100-926-2 01 1 9712- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW 		8-97065-526-0 01 1 9312-9404 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW 		8-97095-811-3 01 1 9405-9711 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW 		8-97095-811-5 01 1 9712- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A HITACHI 		8-97029-226-0 01 1 9312-9510 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97073-924-1 01 1 9312-9802 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-657-0 01 1 9803- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 70A 		8-97023-733-1 01 1 9312-9611 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 70A 		8-97171-178-0 01 1 9612- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(RWP) 24V 25A DENSO 		8-94334-152-0 01 1 9312-9711 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR DENSO(7KH) 24V 50A 		8-97170-163-1 01 1 9712- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. EAST MALAYSIA EQUIPMENT(PM6), WEST MALAYSIA EQUIPMENT(RWP), GENERATOR24V40A(6MN) 24V 25A HITACHI 		8-94389-772-1 01 1 9312-9711 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V40A(6MN) 24V 25A HITACHI 		8-94389-772-1 01 1 9712- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V40A(6MN) 24V 40A HITACHI 		8-97013-171-2 01 1 9312- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR DENSO(7KH) 24V 35A 		8-97115-044-0 01 1 9503-9711 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR DENSO(7KH) 24V 35A 		8-97115-044-0 01 1 9712- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V35A(K83) 24V 35A 		8-97075-882-2 01 1 9312-9510 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A 		8-97075-883-2 01 1 9312-9603 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A 		8-97148-496-1 01 1 9604-9711 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR DENSO(7KH) 24V 50A 		8-97144-392-1 01 1 9712-9801 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2), GENERATORDENSO(7KH) 24V 50A 		8-97144-392-1 01 1 9802- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A 		8-97143-011-1 01 1 9706-9711 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A 		8-97175-390-1 01 1 9712- ● ●
6 02.042 WASHER; PL,STARTER
03.430 ID=12.5 		9-09160-512-0 02 1 9312-9510 ● ●
6 02.042 WASHER; PL,STARTER
03.430 ID=12.5 		9-09160-512-0 02 1 9511- ●
6 02.042 WASHER; PL,STARTER
03.430 ID=12.5 		9-09160-512-0 03 1 9312- ●
7 02.042 NUT; STARTER
05.816 M12 		9-99110-412-0 02 1 9312-9510 ● ●
7 02.042 NUT; STARTER
05.816 M12 		9-99110-412-0 02 1 9511-9511 ●
7 02.042 NUT; STARTER
EURO2 SPECIFICATION<7AF> 05.816 M12 		9-99110-412-0 02 1 9512-9711 ●
7 02.042 NUT; STARTER
05.816 M12 		9-99110-412-0 02 1 9512-9711 ●
7 02.042 NUT; STARTER
05.816 M12 		9-99110-412-0 02 1 9712- ● ●
7 02.042 NUT; STARTER
05.586 M12 FLANGE 		0-91150-112-0 02 1 9312- ●
7 02.042 NUT; STARTER
05.816 M12 		9-99110-412-0 03 1 9312- ●
10 02.100 RELAY; STARTER 8-97036-359-1 01 1 9312-9506 ●
10 02.100 RELAY; STARTER
VOLTAGE 24V<7AE> 		8-97036-359-1 01 1 9312-9506 ● ● ●
10 02.100 RELAY; STARTER 8-97036-359-1 01 1 9507-9510 ● ● ●
10 02.100 RELAY; STARTER 8-97036-359-1 01 1 9511-9704 ● ●
10 02.100 RELAY; STARTER
02.510 24V 50A 		8-97173-947-0 01 1 9705-9705 ● ●
10 02.100 RELAY; STARTER
VOLTAGE 24V<7AE> 02.510 24V 50A 		8-97173-947-0 01 1 9706-9711 ● ●
10 02.100 RELAY; STARTER
VOLTAGE 24V<7AE> 02.510 24V 50A 		8-97173-947-0 01 1 9712- ● ● ● ●
10 02.100 RELAY; STARTER
EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97036-358-1 01 1 9312-9506 ● ● ●
10 02.100 RELAY; STARTER
12V 80A 		8-97036-358-1 01 1 9507-9704 ● ●
10 02.100 RELAY; STARTER
02.510 12V 80A 		8-97173-951-0 01 1 9705-9705 ● ●
10 02.100 RELAY; STARTER
EXC. VOLTAGE 24V<7AE> 02.510 12V 80A 		8-97173-951-0 01 1 9706- ● ● ● ●
16 02.277 BOLT; GEN
01.840 M10X35 W/LK&PL WASHER 		0-50141-035-0 02 1 9312-9510 ● ●
16 02.277 BOLT; GEN
01.840 M10X35 W/LK&PL WASHER 		0-50141-035-0 02 1 9511- ●
16 02.277 BOLT; GEN
M10X133 		5-09000-169-1 01 1 9312-9612 ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 9701- ●
16 02.277 BOLT; GEN
M10X134 		8-94314-385-1 01 1 9312-9501 ●
16 02.277 BOLT; GEN
M10X127 		8-97065-159-1 01 1 9312-9409 ●
16 02.277 BOLT; GEN
EXC. GENERATOR DENSO(7KH) M10X127 		8-97065-159-1 01 1 9410-9503 ●
16 02.277 BOLT; GEN
M10X127 		8-97065-159-1 01 1 9502-9502 ●
16 02.277 BOLT; GEN
M10X127 		8-97065-159-1 01 1 9504-9605 ●
16 02.277 BOLT; GEN
EXC. GENERATOR DENSO(7KH) M10X127 		8-97065-159-1 01 1 9504-9605 ●
16 02.277 BOLT; GEN
M10X133 		8-97146-998-0 01 1 9606-9711 ●
16 02.277 BOLT; GEN
EXC. GENERATOR DENSO(7KH) M10X133 		8-97146-998-0 01 1 9606-9711 ●
16 02.277 BOLT; GEN
M10X133 		8-97146-998-0 01 1 9712- ●
16 02.277 BOLT; GEN
EXC. GENERATOR DENSO(7KH) M10X133 		8-97146-998-0 01 1 9712- ● ● ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60),GENERATOR DENSO(7KH) 02.317 M8X40 W/WASHER 		8-97011-792-4 01 1 9604-9711 ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60),GENERATOR DENSO(7KH) 02.317 M8X40 W/WASHER 		8-97011-792-4 01 1 9712- ● ● ●
16 02.277 BOLT; GEN
GENERATOR DENSO(7KH) M10X120 FLANGE 		0-28086-012-0 01 1 9410-9711 ●
16 02.277 BOLT; GEN
GENERATOR DENSO(7KH) M10X120 FLANGE 		0-28086-012-0 01 1 9712- ● ●
16 02.277 BOLT; GEN
GENERATOR DENSO(7KH) 00.780 M8X30 W/LK WASHER 		0-50040-830-0 01 1 9604-9711 ●
16 02.277 BOLT; GEN
GENERATOR DENSO(7KH) 03.415 M8X35 FLANGE 		0-28080-835-0 01 1 9712- ● ●
21 02.277 BRACKET; GEN 8-94334-346-0 01 1 9312-9510 ● ●
21 02.277 BRACKET; GEN 8-94334-346-0 01 1 9511-9610 ●
21 02.277 BRACKET; GEN 8-97162-519-0 01 1 9611- ●
21 02.277 BRACKET; GEN 8-97073-122-1 01 1 9312- ●
21 02.277 BRACKET; GEN 8-97075-884-2 01 1 9312-9711 ●
21 02.277 BRACKET; GEN 8-97075-884-2 01 1 9712- ● ● ●
26 02.277 BOLT; GEN BRKT
09.008 M10X90 W/LK WASHER 		0-50041-090-0 01 1 9312-9510 ● ● ●
26 02.277 BOLT; GEN BRKT
09.008 M10X90 W/LK WASHER 		0-50041-090-0 01 1 9511- ● ●
26 02.277 BOLT; GEN BRKT
01.652 M10X25 W/LK WASHER 		0-50041-025-0 01 1 9312-9510 ● ●
26 02.277 BOLT; GEN BRKT
01.652 M10X25 W/LK WASHER 		0-50041-025-0 01 1 9511- ●
26 02.277 BOLT; GEN BRKT
00.724 M10X55 		5-09030-038-1 01 1 9312-9510 ● ●
26 02.277 BOLT; GEN BRKT
00.724 M10X55 		5-09030-038-1 01 1 9511- ●
26 02.277 BOLT; GEN BRKT
M10X22 W/LK WASHER 		0-50041-022-0 01 1 9312- ●
26 02.277 BOLT; GEN BRKT
09.171 M10X30 W/LK WASHER 		0-50041-030-0 01 1 9312- ●
26 02.277 BOLT; GEN BRKT
00.004 M10X40 W/LK WASHER 		0-50041-040-0 01 1 9312- ●
26 02.277 BOLT; GEN BRKT
08.900 M10X50 FLANGE 		0-28181-050-0 01 1 9312-9711 ●
26 02.277 BOLT; GEN BRKT
08.900 M10X50 FLANGE 		0-28181-050-0 01 1 9712- ● ● ●
26 02.277 BOLT; GEN BRKT
03.890 M10X70 FLANGE 		0-28181-070-0 02 1 9312-9711 ●
26 02.277 BOLT; GEN BRKT
03.890 M10X70 FLANGE 		0-28181-070-0 02 1 9712- ● ● ●
46 02.510 RELAY; GLOW PLUG
02.100 		8-97036-359-1 01 1 9312-9406 ●
46 02.510 RELAY; GLOW PLUG
VOLTAGE 24V<7AE> 02.100 		8-97036-359-1 01 1 9312-9406 ● ● ●
46 02.510 RELAY; GLOW PLUG
02.100 		8-97036-359-1 01 1 9407-9506 ●
46 02.510 RELAY; GLOW PLUG
VOLTAGE 24V<7AE> 02.100 		8-97036-359-1 01 1 9407-9506 ● ●
46 02.510 RELAY; GLOW PLUG
02.100 		8-97036-359-1 01 1 9507-9510 ● ● ●
46 02.510 RELAY; GLOW PLUG
02.100 		8-97036-359-1 01 1 9511-9606 ●
46 02.510 RELAY; GLOW PLUG
EXC. THAILAND EQUIPMENT(PM9) 02.100 		8-97036-359-1 01 1 9511-9606 ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> VOLTAGE 24V<7AE> 02.100 		8-97036-359-1 01 1 9607-9704 ● ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> VOLTAGE 24V<7AE> 24V 50A 		8-97173-947-0 01 1 9705-9711 ● ●
46 02.510 RELAY; GLOW PLUG
VOLTAGE 24V<7AE> FAST GLOW SYSTEM<KM6> 24V 50A 		8-97173-947-0 01 1 9712- ● ● ● ●
46 02.510 RELAY; GLOW PLUG
EXC. VOLTAGE 24V<7AE> 02.100 12V 80A 		8-97036-358-1 02 1 9312-9506 ● ● ●
46 02.510 RELAY; GLOW PLUG
02.100 12V 80A 		8-97036-358-1 02 1 9507-9704 ● ●
46 02.510 RELAY; GLOW PLUG
12V 80A 		8-97173-951-0 02 1 9705-9705 ● ●
46 02.510 RELAY; GLOW PLUG
EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 02 1 9706-9711 ● ● ● ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 02 1 9712- ● ●
46 02.510 RELAY; GLOW PLUG
NPR SHORT(NP***C) EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 01 1 9802- ●
46 02.510 RELAY; GLOW PLUG
NPR/NQR SGL CAB&MIDDLE(NPC5SF) NPR/NQR SGL CAB&LONG(NPC5SK) FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 01 1 9802- ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9312-9406 ● ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9407-9502 ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9503-9510 ● ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9511-9711 ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9712- ● ● ● ●
83 01.150 THERMOMETER UNIT
EXC. CHARGE AIR COOLER<6PL> DENSO 		8-94235-691-0 01 1 9712- ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9312-9406 ● ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9407-9502 ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9503-9510 ● ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9511-9711 ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9712- ● ● ● ●
83 01.150 THERMOMETER UNIT
EXC. CHARGE AIR COOLER<6PL> YAZAKI 		8-94237-861-0 01 1 9712- ●
83 01.150 THERMOMETER UNIT 8-94400-370-0 01 1 9312- ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9407-9502 ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9407-9502 ●
92 01.251 CLIP; SENSOR CONNECTOR
TACHOMETER<U16> 		8-97021-314-0 01 1 9312-9606 ●
92 01.251 CLIP; SENSOR CONNECTOR 8-97021-314-0 01 1 9607- ●
104 01.150 SWITCH; THERMO,GLOW PLUG 8-94121-152-1 01 1 9312-9510 ● ●
104 01.150 SWITCH; THERMO,GLOW PLUG 8-94121-152-1 01 1 9511- ●
292 02.042 WASHER; LK,STARTER
04.634 ID=12.2 		9-09150-512-0 02 1 9312-9510 ● ●
292 02.042 WASHER; LK,STARTER
04.634 ID=12.2 		9-09150-512-0 02 1 9511- ●
292 02.042 WASHER; LK,STARTER
04.634 ID=12.2 		9-09150-512-0 03 1 9312- ●
578 02.510 RELAY; CHARGE WARNING 8-97063-440-0 01 1 9312-9506 ●
578 02.510 RELAY; CHARGE WARNING
VOLTAGE 24V<7AE> 		8-97063-440-0 01 1 9312-9506 ● ● ●
578 02.510 RELAY; CHARGE WARNING 8-97063-440-0 01 1 9507-9510 ● ● ●
578 02.510 RELAY; CHARGE WARNING 8-97063-440-0 01 1 9511-9705 ● ●
578 02.510 RELAY; CHARGE WARNING
VOLTAGE 24V<7AE> 		8-97063-440-0 01 1 9706-9711 ● ●
578 02.510 RELAY; CHARGE WARNING
VOLTAGE 24V<7AE> 		8-97063-440-1 01 1 9712- ● ● ● ●
578 02.510 RELAY; CHARGE WARNING
EXC. VOLTAGE 24V<7AE> 12V 		8-97063-441-0 01 1 9312-9506 ● ● ●
578 02.510 RELAY; CHARGE WARNING
12V 		8-97063-441-1 01 1 9507-9705 ● ●
578 02.510 RELAY; CHARGE WARNING
EXC. VOLTAGE 24V<7AE> 12V 		8-97063-441-1 01 1 9706- ● ● ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97047-028-0 01 1 9312-9402 ● ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97047-028-0 01 1 9403-9510 ● ● ● ● ● ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97047-028-0 01 1 9511-9606 ● ● ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97047-028-0 01 1 9607-9711 ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> EXC. CHARGE AIR COOLER<6PL> 		8-97047-028-0 01 1 9712-9809 ● ● ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> EXC. CHARGE AIR COOLER<6PL> 		8-97215-648-0 01 1 9810- ● ● ● ●
643 02.510 NUT; TIMER,QOS
EXC. THAILAND EQUIPMENT(PM9) 04.594 M6 FLANGE 		0-91150-106-0 02 1 9312-9510 ● ● ● ● ● ● ●
643 02.510 NUT; TIMER,QOS
04.594 M6 FLANGE 		0-91150-106-0 02 1 9511-9606 ● ● ●
643 02.510 NUT; TIMER,QOS
EXC. THAILAND EQUIPMENT(PM9) 04.594 M6 FLANGE 		0-91150-106-0 02 1 9511-9606 ●
643 02.510 NUT; TIMER,QOS
04.594 M6 FLANGE 		0-91150-106-0 02 1 9607-9711 ● ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> 04.594 M6 FLANGE 		0-91150-106-0 02 1 9607-9711 ● ●
643 02.510 NUT; TIMER,QOS
04.594 M6 FLANGE 		0-91150-106-0 02 1 9712- ● ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> EXC. CHARGE AIR COOLER<6PL> 04.594 M6 FLANGE 		0-91150-106-0 02 1 9712- ● ● ● ●
çizim 70697
697 636 553 211 492 733 593 219 219 555 428 612
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
211 02.343 NUT; CABLE FIX
07.633 M8 FLANGE 		0-91150-108-0 01 1 9312-9510 ● ● ●
211 02.343 NUT; CABLE FIX
04.785 M10 FLANGE 		0-91150-110-0 01 1 9312-9312 ● ● ●
211 02.343 NUT; CABLE FIX
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9312-9711 ●
211 02.343 NUT; CABLE FIX
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9712- ● ● ●
211 02.343 NUT; CABLE FIX
01.062 (A) M6 FLANGE 		0-91150-206-0 01 1 9312-9312 ●
211 02.343 NUT; CABLE FIX
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 9712- ●
219 03.483 CLIP; ENG STOP CABLE
03.630 (A) ID=18 L=51 		5-09700-320-0 02 1 9312-9403 ● ● ●
219 03.483 CLIP; ENG STOP CABLE
03.630 (A) ID=18 L=51 		5-09700-320-0 01 1 9404-9510 ● ● ●
219 03.483 CLIP; ENG STOP CABLE
02.559 (C) L=250 		5-09707-030-0 01 1 9511-9705 ● ●
219 03.483 CLIP; ENG STOP CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (C) L=250 		5-09707-030-1 01 1 9706- ● ●
219 03.483 CLIP; ENG STOP CABLE
03.430 (B) ID=17 		8-94449-734-1 01 1 9312-9510 ● ● ●
219 03.483 CLIP; ENG STOP CABLE
04.342 (D) ID=8.3 & 10 		8-94176-792-0 01 1 9511-9511 ● ●
219 03.483 CLIP; ENG STOP CABLE
POWER STEERING<N40> 04.342 (D) ID=8.3 & 10 		8-94176-792-0 01 1 9512-9705 ● ●
219 03.483 CLIP; ENG STOP CABLE
POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 04.342 (D) ID=8.3 & 10 		8-94176-792-0 01 1 9706- ● ●
219 03.483 CLIP; ENG STOP CABLE
FRAME STRAIGHT TYPE<7KJ> 02.559 (C) L=250 		5-09707-030-1 02 1 9604- ●
219 03.483 CLIP; ENG STOP CABLE
FRAME STRAIGHT TYPE<7KJ> 04.930 (G) ID=10 H=40 		8-94462-219-0 01 1 9604- ●
219 03.483 CLIP; ENG STOP CABLE
01.240 (A) ID=14 L=47 		5-09700-319-0 01 1 9511-9705 ● ●
219 03.483 CLIP; ENG STOP CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (A) ID=14 L=47 		5-09700-319-0 01 1 9706- ● ●
219 03.483 CLIP; ENG STOP CABLE
03.162 (C) L=140 		5-09707-031-0 01 1 9511-9705 ● ●
219 03.483 CLIP; ENG STOP CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140 		5-09707-031-0 01 1 9706-9711 ● ●
219 03.483 CLIP; ENG STOP CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140 		5-09707-031-1 01 1 9712- ● ●
219 03.483 CLIP; ENG STOP CABLE
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140 		5-09707-031-1 01 1 9712- ●
219 03.483 CLIP; ENG STOP CABLE
02.525 (E) T=4.5 & 9 		5-09709-023-0 01 1 9511-9711 ●
219 03.483 CLIP; ENG STOP CABLE
02.525 (E) T=4.5 & 9 		5-09709-023-0 01 1 9712- ● ● ●
219 03.483 CLIP; ENG STOP CABLE
FRAME STRAIGHT TYPE<7KJ> 04.686 (F) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9511-9706 ●
219 03.483 CLIP; ENG STOP CABLE
FRAME STRAIGHT TYPE<7KJ> 03.162 (F) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 9707-9711 ●
219 03.483 CLIP; ENG STOP CABLE
FRAME STRAIGHT TYPE<7KJ> 03.162 (F) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 9712- ● ● ●
219 03.483 CLIP; ENG STOP CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.115 (E) T=9 & 10.5 		8-97041-091-0 01 1 9511-9711 ●
219 03.483 CLIP; ENG STOP CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.115 (E) T=9 & 10.5 		8-97041-091-0 01 1 9712- ● ● ●
428 02.559 CLIP; HARNESS
FRAME STRAIGHT TYPE<7KJ> 04.342 ID=14-12 		8-94379-592-0 01 1 9511-9711 ●
428 02.559 CLIP; HARNESS
FRAME STRAIGHT TYPE<7KJ> 04.342 ID=14-12 		8-94379-592-0 01 1 9712-9712 ● ● ●
492 03.483 BRACKET; ENG STOPPER
03.485 		8-97113-497-1 01 1 9511-9705 ● ●
492 03.483 BRACKET; ENG STOPPER
EXC. FRAME STRAIGHT TYPE<7KJ> 03.485 		8-97113-497-1 01 1 9706- ● ●
492 03.483 BRACKET; ENG STOPPER
FRAME STRAIGHT TYPE<7KJ> 		8-97127-037-0 01 1 9511-9711 ●
492 03.483 BRACKET; ENG STOPPER
FRAME STRAIGHT TYPE<7KJ> 		8-97127-037-0 01 1 9712-9801 ● ● ●
492 03.483 BRACKET; ENG STOPPER
FRAME STRAIGHT TYPE<7KJ> 		8-97127-037-0 01 1 9802- ● ● ● ●
553 03.485 MOTOR ASM; ENG STOP
NPR/NQR SGL CAB&LONG(NP**SK) 		8-97065-453-1 01 1 9312-9510 ●
553 03.485 MOTOR ASM; ENG STOP 8-97073-522-1 01 1 9312-9510 ●
553 03.485 MOTOR ASM; ENG STOP 8-97116-800-0 01 1 9511- ●
553 03.485 MOTOR ASM; ENG STOP 8-97065-454-2 01 1 9312-9510 ●
553 03.485 MOTOR ASM; ENG STOP 8-97122-819-0 01 1 9511- ●
553 03.485 MOTOR ASM; ENG STOP
DUMP CHASSIS(V4D) 		8-97063-958-0 01 1 9312-9510 ●
553 03.485 MOTOR ASM; ENG STOP
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97122-820-2 01 1 9511-9706 ●
553 03.485 MOTOR ASM; ENG STOP
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97183-914-0 01 1 9707-9711 ●
553 03.485 MOTOR ASM; ENG STOP
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97183-914-0 01 1 9712-9806 ● ● ●
553 03.485 MOTOR ASM; ENG STOP
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97189-552-0 01 1 9807- ● ● ●
553 03.485 MOTOR ASM; ENG STOP
MINI BUS CHASSIS<V4B> 		8-97063-950-0 01 1 9312-9510 ●
553 03.485 MOTOR ASM; ENG STOP
EXC. MINI BUS CHASSIS<V4B>,DUMP CHASSIS(V4D) 		8-97063-951-1 01 1 9312-9510 ●
553 03.485 MOTOR ASM; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97119-552-0 01 1 9511-9711 ●
553 03.485 MOTOR ASM; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97119-552-0 01 1 9712-9806 ● ● ●
553 03.485 MOTOR ASM; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97189-550-0 01 1 9807- ● ● ●
553 03.485 MOTOR ASM; ENG STOP
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97170-348-2 01 1 9712-9801 ●
553 03.485 MOTOR ASM; ENG STOP
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> VOLTAGE 24V<7AE> (A) 		8-97170-348-2 01 1 9802- ●
553 03.485 MOTOR ASM; ENG STOP
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE> 		8-97149-018-2 01 1 9802-9806 ●
553 03.485 MOTOR ASM; ENG STOP
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE> (A) 		8-97189-532-0 01 1 9807- ●
555 03.485 BRACKET; ENG STOP
(A) 		8-97121-595-0 01 1 9511-9701 ●
555 03.485 BRACKET; ENG STOP
(A) 		8-97119-039-2 01 1 9702-9711 ●
555 03.485 BRACKET; ENG STOP
(A) 		8-97119-039-2 01 1 9712- ● ● ●
555 03.485 BRACKET; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97113-497-1 01 1 9511-9711 ●
555 03.485 BRACKET; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97113-497-1 01 1 9712- ● ● ●
555 03.485 BRACKET; ENG STOP
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97188-280-0 01 1 9712- ●
593 02.483 NUT; BRKT
04.785 M10 FLANGE 		0-91150-110-0 02 1 9511-9711 ● ● ●
593 02.483 NUT; BRKT
04.785 M10 FLANGE 		0-91150-110-0 02 1 9712- ● ● ● ● ●
612 02.510 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9511-9512 ●
612 02.510 BOLT; BRKT
02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9601-9701 ●
612 02.510 BOLT; BRKT
16.585 M8X20 		1-09981-468-0 01 1 9702-9711 ●
612 02.510 BOLT; BRKT
16.585 M8X20 		1-09981-468-0 01 1 9712- ● ● ●
636 02.510 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9511-9711 ● ●
636 02.510 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9511-9711 ●
636 02.510 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9712- ● ●
636 02.510 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9712- ● ● ●
697 03.726 HARNESS; CABLE
FRAME STRAIGHT TYPE<7KJ> 		8-97126-038-0 01 1 9511-9711 ●
697 03.726 HARNESS; CABLE
FRAME STRAIGHT TYPE<7KJ> 		8-97126-038-0 01 1 9712-9712 ● ● ●
697 03.726 HARNESS; CABLE
FRAME STRAIGHT TYPE<7KJ> 		8-97203-779-0 01 1 9801-9804 ● ● ●
697 03.726 HARNESS; CABLE
FRAME STRAIGHT TYPE<7KJ> 		8-97126-038-0 01 1 9805- ● ● ●
733 02.343 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 01 1 9511-9711 ●
733 02.343 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 01 1 9712- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
