0-56 — EMISSION SYSTEM (#44397) — 92 parça

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
	21	03.675 HOSE; HD COVER TO COMMON CHAMBER L=378	8-94381-403-0	01	1	9312-9510	●
	21	03.675 HOSE; HD COVER TO COMMON CHAMBER L=378	8-97016-031-1	01	1	9704-		●

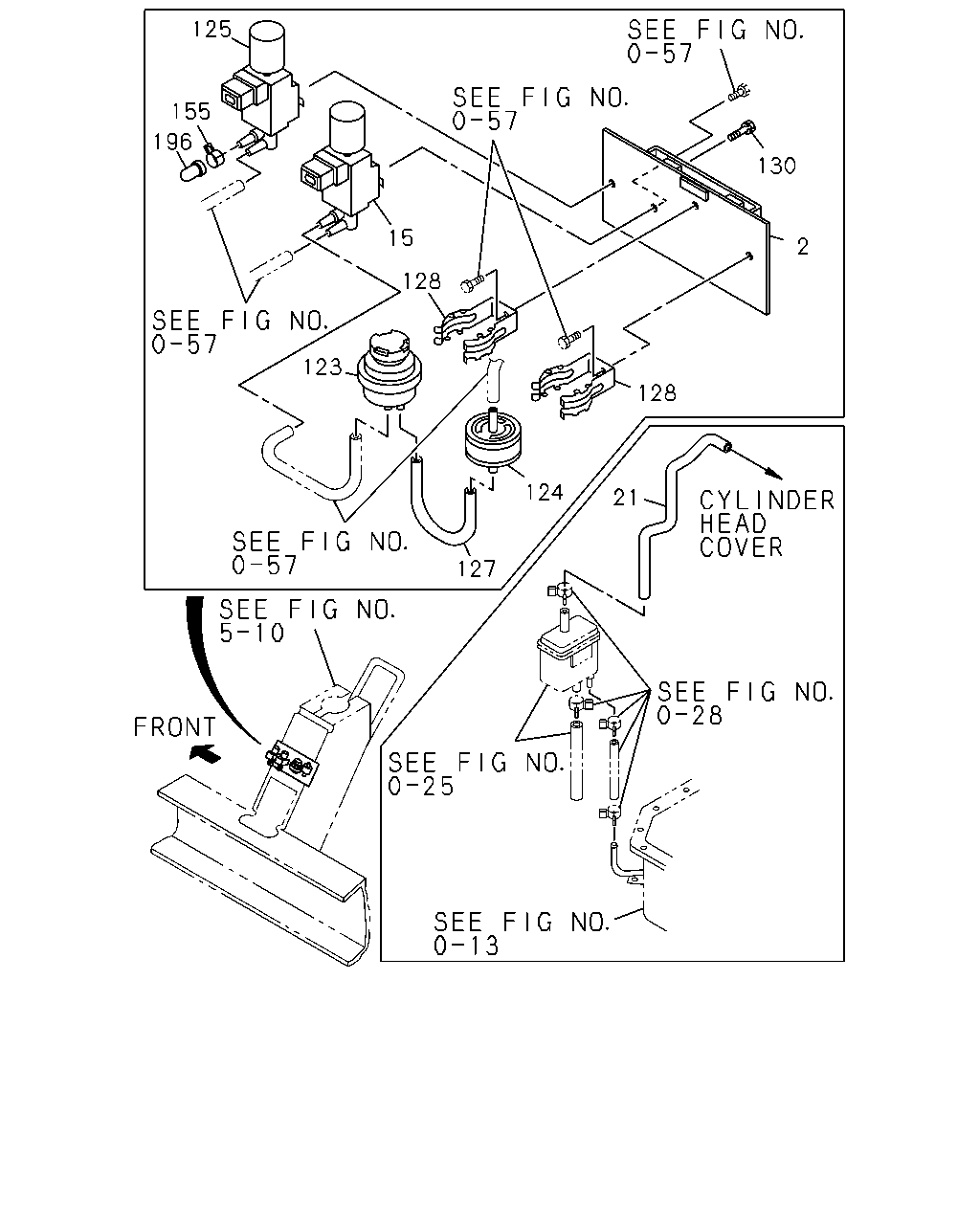

125 155 196 130 15 2 128 123 128 124 21 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	03.671 BRACKET; VSV	8-97042-701-0	01	1	9312-		●
2	03.671 BRACKET; VSV CHARGE AIR COOLER<6PL> EXC. HONG KONG EQUIPMENT(PQ1)	8-97192-228-0	01	1	9712-9804			●
2	03.671 BRACKET; VSV CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97192-228-0	01	1	9805-			●
2	03.671 BRACKET; VSV HONG KONG EQUIPMENT(PQ1) CHARGE AIR COOLER<6PL>	8-97171-198-3	01	1	9712-9804			●
2	03.671 BRACKET; VSV CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97171-198-3	01	1	9805-			●
15	03.670 VALVE; VAC SW 03.130	8-94384-336-0	01	1	9312-		●
15	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> (A)	8-97023-543-0	01	1	9712-9804			●
15	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> (A)	8-97023-543-0	01	1	9805-			●
15	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE>,EURO2 SPECIFICATION<7AF> (A)	8-94384-335-0	01	1	9805-			●
15	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE>,EURO2 SPECIFICATION<7AF> (B)	8-97137-812-0	01	1	9805-			●
15	03.670 VALVE; VAC SW HONG KONG EQUIPMENT(PQ1) CHARGE AIR COOLER<6PL> (B)	8-97184-183-0	01	1	9712-9804			●
15	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EXC. EURO2 SPECIFICATION<7AF> (B)	8-97184-183-0	01	1	9805-			●
21	03.675 HOSE; HD COVER TO COMMON CHAMBER L=378	8-94381-403-0	01	1	9312-9510	●
21	03.675 HOSE; HD COVER TO COMMON CHAMBER L=378	8-97016-031-1	01	1	9704-		●
123	03.682 REGULATOR; VAC	8-97025-458-0	01	1	9312-		●
124	03.670 VALVE; DELAY 03.415 PINK	8-94145-108-0	01	1	9312-		●
125	03.670 VALVE; VAC SW,FAST IDLE	8-94384-335-0	01	1	9312-9408		●
127	03.675 HOSE; RUBBER,VSV TO DELAY VLV,EX 08.962 L=90 SERVICED BY L=3000	0-04730-300-0	01	1	9312-		●
128	03.672 BRACKET; VAC SW	8-94315-281-1	02	1	9312-		●
130	03.671 BOLT; VSV BRKT 03.704 M8X16 W/LK WASHER	0-50040-816-0	02	1	9312-		●
155	03.675 CLIP; RUBBER HOSE,VSV 03.278	8-97015-188-0	01	1	9312-9405		●
196	03.417 CAP; RUBBER	8-94175-224-0	01	1	9312-9408		●

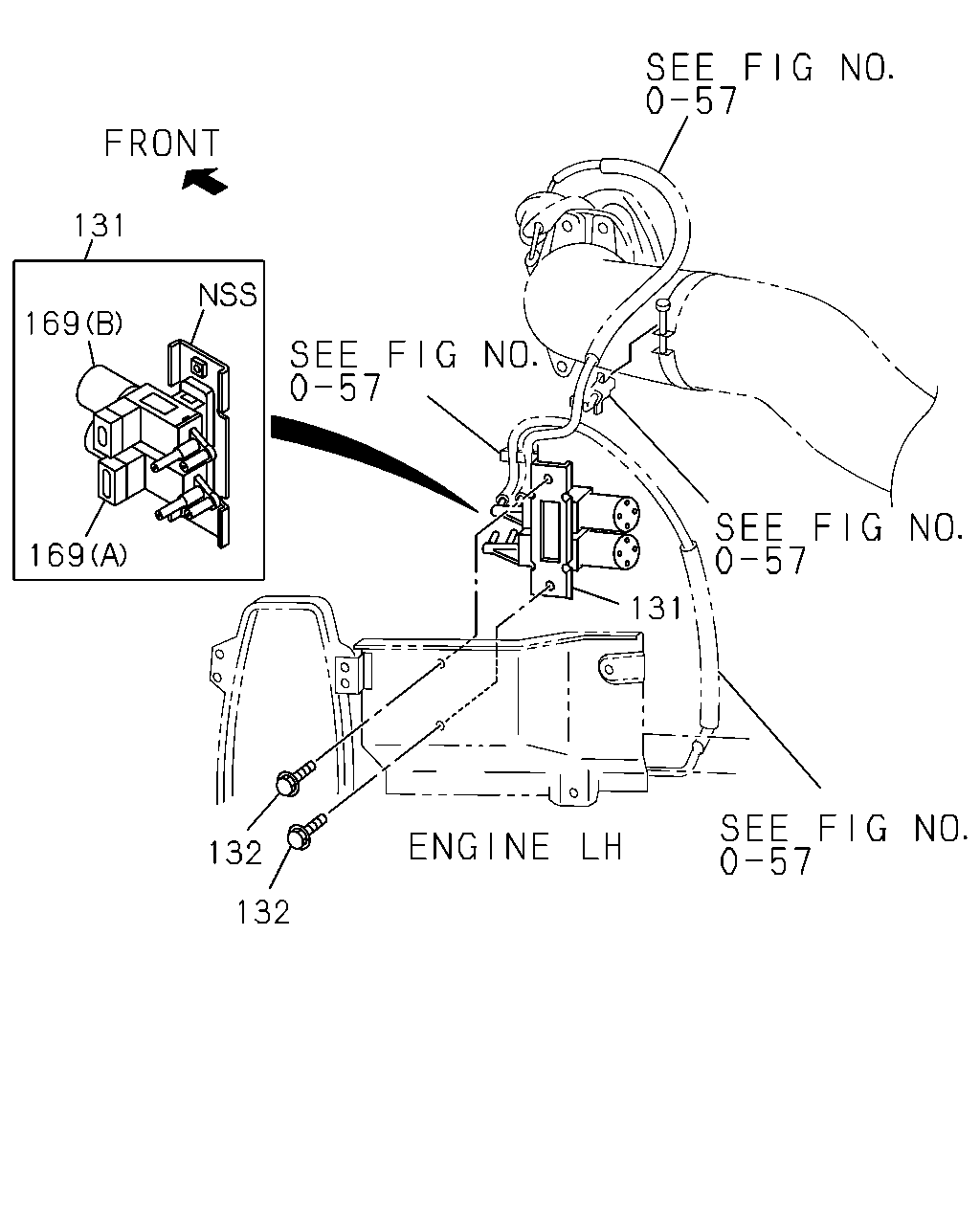

131 169 169 131 132 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C	D	E
131	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8>	8-97030-324-1	01	1	9312-9407		●
131	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8>	8-97030-324-1	01	1	9408-9711		●
131	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97030-324-1	01	1	9712-	●	●	●
131	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97116-759-0	01	1	9408-9711		●
131	03.670 VALVE; VAC SWITCHING EXC. AIR CONDITIONER MANUAL CONT(C60),CHARGE AIR COOLER<6PL>	8-97116-759-0	01	1	9712-	●	●	●
131	03.670 VALVE; VAC SWITCHING CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE>,EURO2 SPECIFICATION<7AF>	8-97182-889-0	01	1	9805-	●
131	03.670 VALVE; VAC SWITCHING HONG KONG EQUIPMENT(PQ1) CHARGE AIR COOLER<6PL>	8-97184-200-0	01	1	9712-9804	●
131	03.670 VALVE; VAC SWITCHING CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EXC. EURO2 SPECIFICATION<7AF>	8-97184-200-0	01	1	9805-	●
132	03.680 BOLT; VSV BRKT EXHAUST BRAKE<NF8> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9312-9711		●
132	03.680 BOLT; VSV BRKT EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9712-	●	●	●
169	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8> (A)	8-97012-878-0	01	1	9312-9407		●
169	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> (A)	8-97012-878-0	01	1	9408-9711		●
169	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (A)	8-97012-878-0	01	1	9712-	●	●	●
169	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8> (B)	8-97021-705-1	01	1	9312-9711		●
169	03.670 VALVE; VAC SWITCHING EXC. CHARGE AIR COOLER<6PL> (B)	8-97021-705-1	01	1	9712-	●	●	●

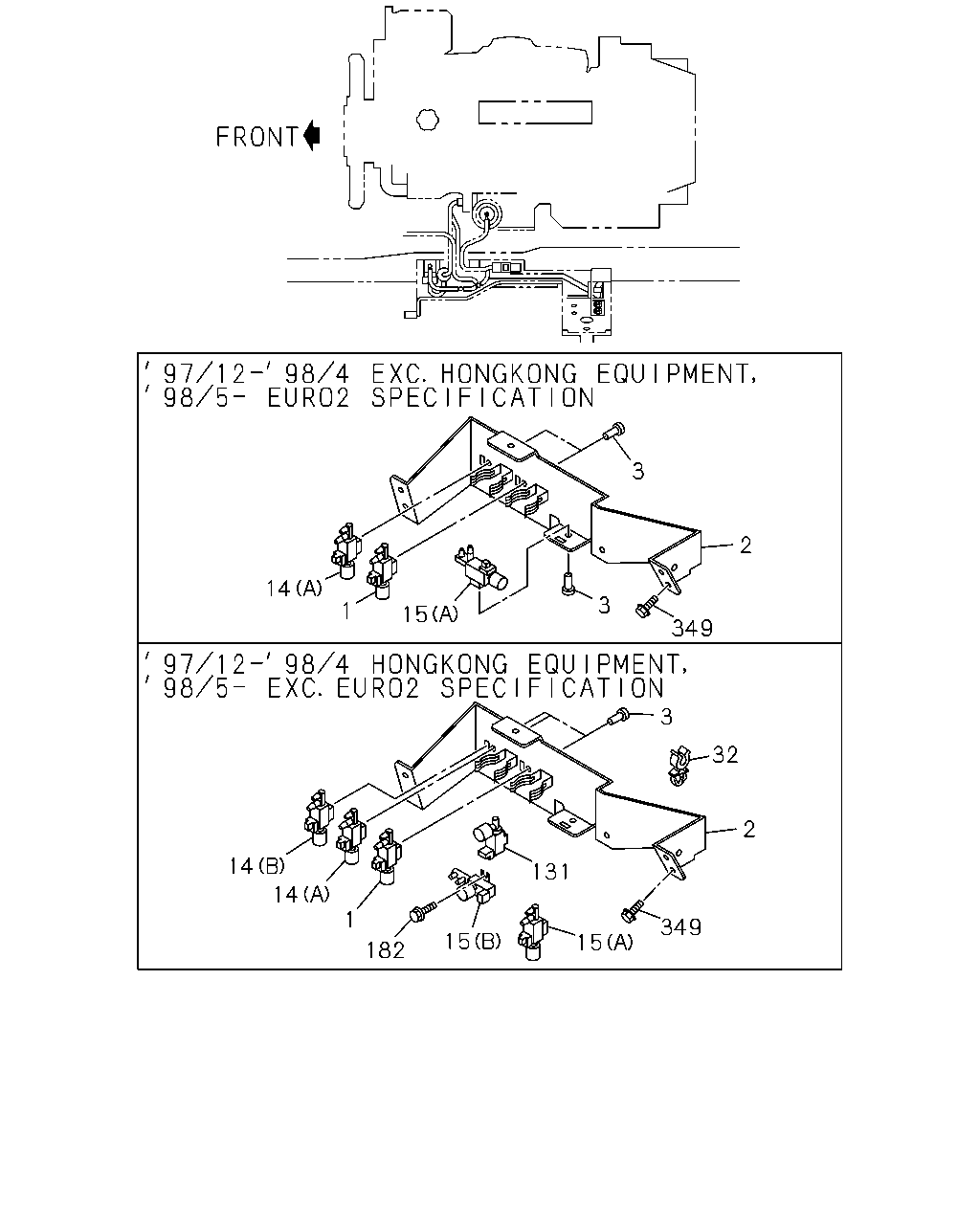

3 2 14 3 1 15 349 3 32 2 14 131 14 1 349 15 15 182

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	D	E
1	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL>	8-97023-544-0	01	1	9712-9804		●
1	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE>	8-97023-544-0	01	1	9805-		●
1	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE>,EURO2 SPECIFICATION<7AF> 03.130	8-94384-336-0	01	1	9805-		●
2	03.671 BRACKET; VSV	8-97042-701-0	01	1	9312-	●
2	03.671 BRACKET; VSV CHARGE AIR COOLER<6PL> EXC. HONG KONG EQUIPMENT(PQ1)	8-97192-228-0	01	1	9712-9804		●
2	03.671 BRACKET; VSV CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97192-228-0	01	1	9805-		●
2	03.671 BRACKET; VSV HONG KONG EQUIPMENT(PQ1) CHARGE AIR COOLER<6PL>	8-97171-198-3	01	1	9712-9804		●
2	03.671 BRACKET; VSV CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97171-198-3	01	1	9805-		●
3	03.670 BOLT; VSV CHARGE AIR COOLER<6PL> 09.655 M5X8 W/LK WASHER	9-03910-508-0	03	1	9712-		●
3	03.670 BOLT; VSV HONG KONG EQUIPMENT(PQ1) CHARGE AIR COOLER<6PL> 09.655 M5X8 W/LK WASHER	9-03910-508-0	02	1	9712-9804		●
3	03.670 BOLT; VSV CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 09.655 M5X8 W/LK WASHER	9-03910-508-0	02	1	9805-		●
14	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> (A)	8-97023-543-0	01	1	9712-9804		●
14	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> (A)	8-97023-543-0	01	1	9805-		●
14	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE>,EURO2 SPECIFICATION<7AF> (A)	8-94384-335-0	01	1	9805-		●
14	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE>,EURO2 SPECIFICATION<7AF> 03.130 (B)	8-94384-336-0	01	1	9805-		●
14	03.670 VALVE; VAC SW HONG KONG EQUIPMENT(PQ1) CHARGE AIR COOLER<6PL> (B)	8-97023-544-0	01	1	9712-9804		●
14	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EXC. EURO2 SPECIFICATION<7AF> (B)	8-97023-544-0	01	1	9805-		●
15	03.670 VALVE; VAC SW 03.130	8-94384-336-0	01	1	9312-	●
15	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> (A)	8-97023-543-0	01	1	9712-9804		●
15	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> (A)	8-97023-543-0	01	1	9805-		●
15	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE>,EURO2 SPECIFICATION<7AF> (A)	8-94384-335-0	01	1	9805-		●
15	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE>,EURO2 SPECIFICATION<7AF> (B)	8-97137-812-0	01	1	9805-		●
15	03.670 VALVE; VAC SW HONG KONG EQUIPMENT(PQ1) CHARGE AIR COOLER<6PL> (B)	8-97184-183-0	01	1	9712-9804		●
15	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EXC. EURO2 SPECIFICATION<7AF> (B)	8-97184-183-0	01	1	9805-		●
32	03.680 CLIP; EGR HOSE HONG KONG EQUIPMENT(PQ1) CHARGE AIR COOLER<6PL> 03.162	8-94253-984-0	01	1	9712-9804		●
32	03.680 CLIP; EGR HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 03.162	8-94253-984-0	01	1	9805-		●
131	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8>	8-97030-324-1	01	1	9312-9407			●
131	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8>	8-97030-324-1	01	1	9408-9711			●
131	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97030-324-1	01	1	9712-		●	●	●
131	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97116-759-0	01	1	9408-9711			●
131	03.670 VALVE; VAC SWITCHING EXC. AIR CONDITIONER MANUAL CONT(C60),CHARGE AIR COOLER<6PL>	8-97116-759-0	01	1	9712-		●	●	●
131	03.670 VALVE; VAC SWITCHING CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE>,EURO2 SPECIFICATION<7AF>	8-97182-889-0	01	1	9805-		●
131	03.670 VALVE; VAC SWITCHING HONG KONG EQUIPMENT(PQ1) CHARGE AIR COOLER<6PL>	8-97184-200-0	01	1	9712-9804		●
131	03.670 VALVE; VAC SWITCHING CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EXC. EURO2 SPECIFICATION<7AF>	8-97184-200-0	01	1	9805-		●
182	03.670 BOLT; VLV HONG KONG EQUIPMENT(PQ1) CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9712-9804		●
182	03.670 BOLT; VLV CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9805-		●
349	03.671 BOLT; CASE CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9712-		●

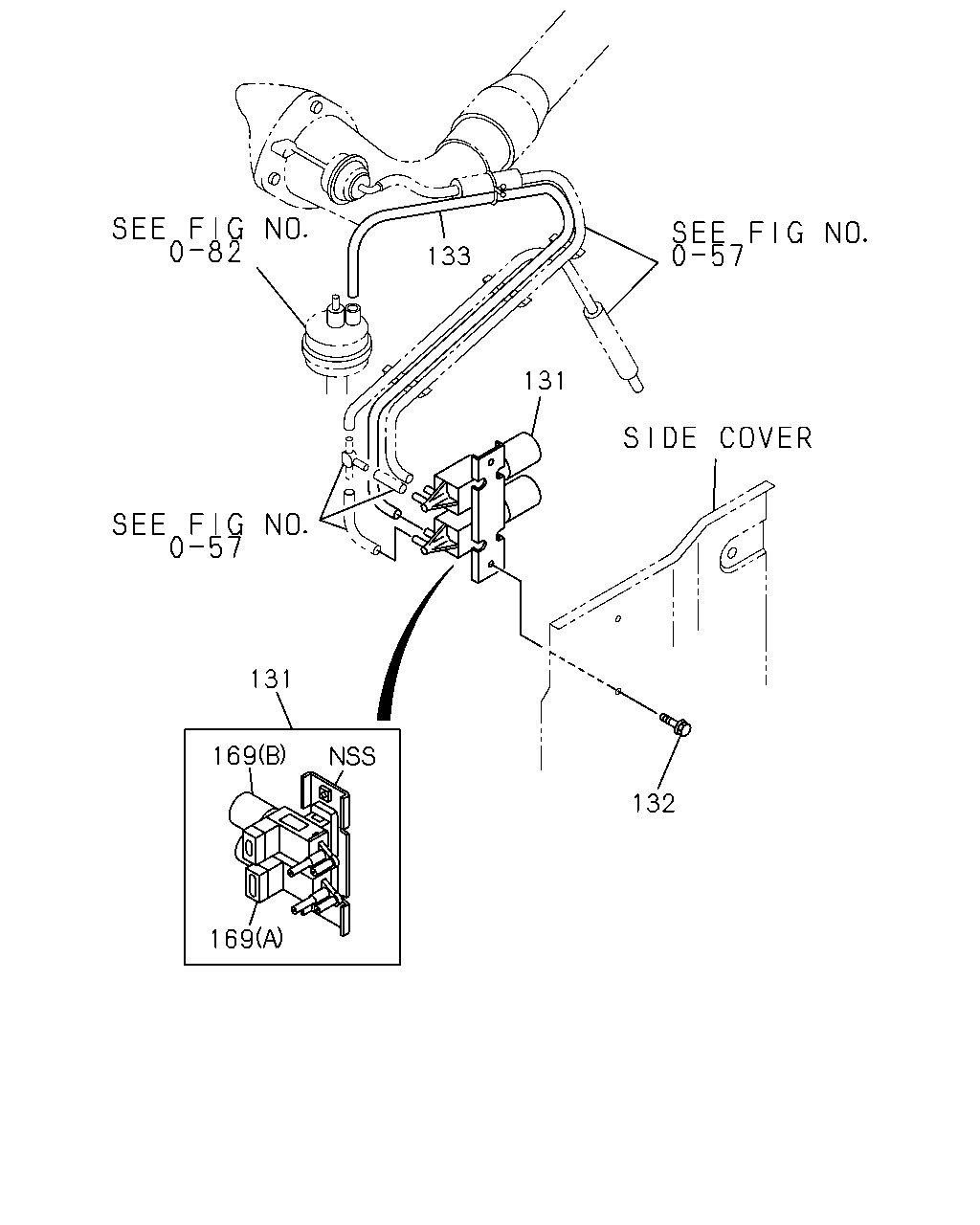

133 131 131 169 132 169

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C	D	E
131	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8>	8-97030-324-1	01	1	9312-9407		●
131	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8>	8-97030-324-1	01	1	9408-9711		●
131	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97030-324-1	01	1	9712-	●	●	●
131	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97116-759-0	01	1	9408-9711		●
131	03.670 VALVE; VAC SWITCHING EXC. AIR CONDITIONER MANUAL CONT(C60),CHARGE AIR COOLER<6PL>	8-97116-759-0	01	1	9712-	●	●	●
131	03.670 VALVE; VAC SWITCHING CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE>,EURO2 SPECIFICATION<7AF>	8-97182-889-0	01	1	9805-	●
131	03.670 VALVE; VAC SWITCHING HONG KONG EQUIPMENT(PQ1) CHARGE AIR COOLER<6PL>	8-97184-200-0	01	1	9712-9804	●
131	03.670 VALVE; VAC SWITCHING CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EXC. EURO2 SPECIFICATION<7AF>	8-97184-200-0	01	1	9805-	●
132	03.680 BOLT; VSV BRKT EXHAUST BRAKE<NF8> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9312-9711		●
132	03.680 BOLT; VSV BRKT EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9712-	●	●	●
133	03.675 HOSE; RUBBER,VSV TO INJ PUMP AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 08.962 L=490 SERVICED BY L=3000	0-04730-300-0	01	1	9712-	●
169	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8> (A)	8-97012-878-0	01	1	9312-9407		●
169	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> (A)	8-97012-878-0	01	1	9408-9711		●
169	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (A)	8-97012-878-0	01	1	9712-	●	●	●
169	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8> (B)	8-97021-705-1	01	1	9312-9711		●
169	03.670 VALVE; VAC SWITCHING EXC. CHARGE AIR COOLER<6PL> (B)	8-97021-705-1	01	1	9712-	●	●	●
