Sayfa 0-52 - Isuzu EPC

0-52 — OIL AND VACUUM PIPING; ENGINE (#44396) — 338 parça

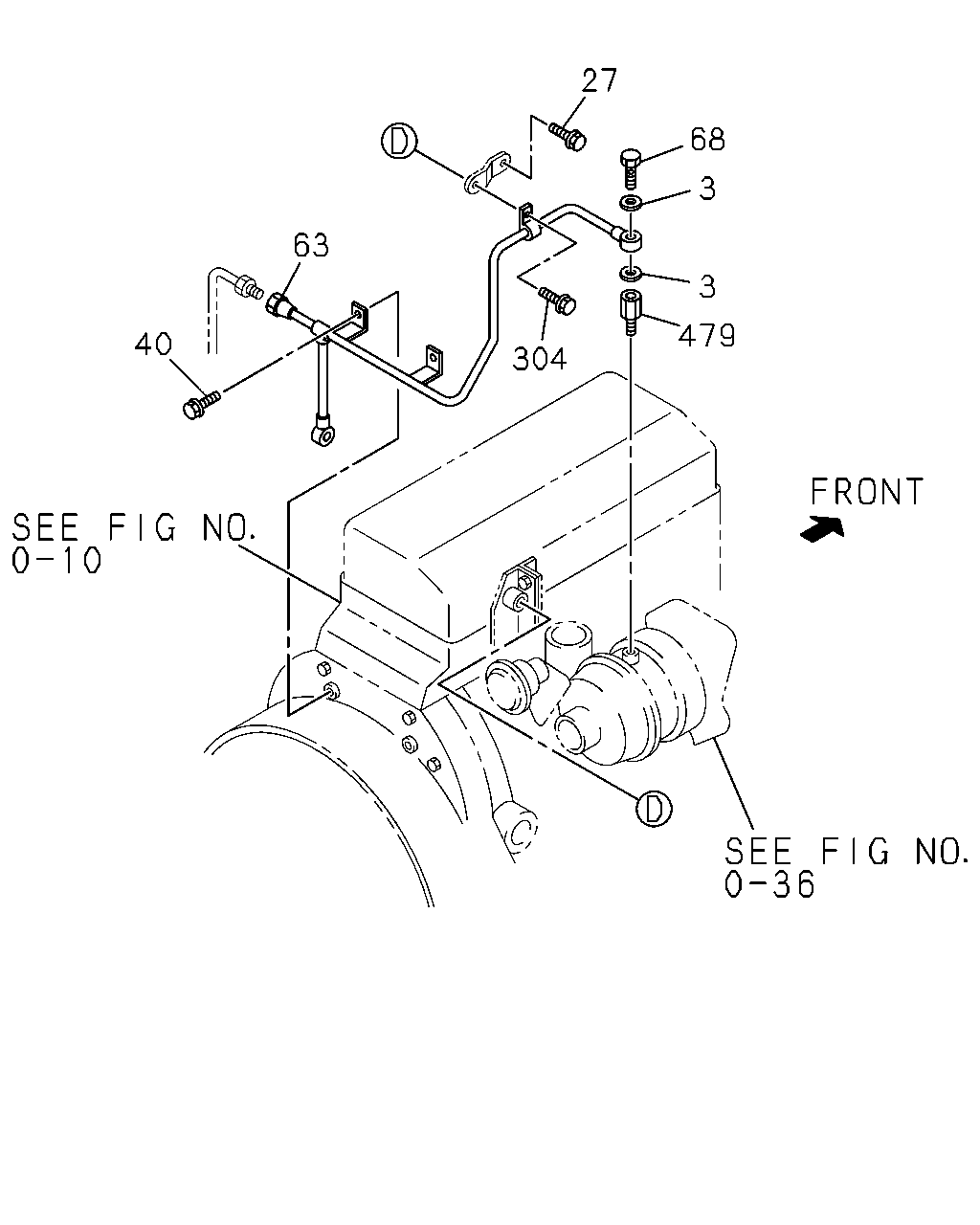

68 71 38 63 71 68 71 38 258 22 63 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
22	01.531 SPACER; TURBOCHARGER OIL PIPE	8-94420-751-0	01	1	9312-	●
38	01.531 CONNECTOR; OIL PIPE M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	9312-9510	●	●
38	01.531 CONNECTOR; OIL PIPE M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	9511-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-94382-465-0	01	1	9312-9510		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97046-163-0	01	1	9312-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED CHARGE AIR COOLER<6PL>	8-97182-991-2	01	1	9712-			●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EXC. CHARGE AIR COOLER<6PL>	8-97182-990-0	01	1	9712-			●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER M12X28 FLANGE	8-94436-933-0	01	1	9312-9510	●	●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER M12X28 FLANGE	8-94436-933-0	01	1	9511-	●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER CHARGE AIR COOLER<6PL> M12X28 FLANGE	8-97166-518-0	01	1	9712-			●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER EXC. CHARGE AIR COOLER<6PL> M10X26	8-97081-817-0	01	1	9712-			●
71	01.531 GASKET; OIL PIPE,HD TO TURBOCHAR 08.955 ID=12.2	9-09571-412-0	02	1	9312-9510	●	●
71	01.531 GASKET; OIL PIPE,HD TO TURBOCHAR 08.955 ID=12.2	9-09571-412-0	02	1	9511-	●
258	03.358 BOLT; OIL PIPE CLIP,TC OIL DRAIN 01.840 M10X35 W/LK&PL WASHER	0-50141-035-0	01	1	9312-	●

27 68 3 63 3 479 40 304

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=10.2 OD=19	9-09572-010-0	04	1	9312-9510	●	●		●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=10.2 OD=19	9-09572-010-0	04	1	9511-	●			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	04	1	9312-9711					●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> ID=10.2 OD=15.2	1-09630-083-0	05	1	9712-			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	1-09630-083-0	04	1	9712-					●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> ID=10.2 OD=15.2	1-09630-083-0	04	1	9712-			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 08.955 ID=12.2	9-09571-412-0	02	1	9712-			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> ID=10.2 OD=15.2	1-09630-083-0	02	1	9712-			●
27	01.531 BOLT; OIL PIPE FIX M8X45 W/LK&PL WASHER	0-50140-845-0	04	1	9312-9510	●	●
27	01.531 BOLT; OIL PIPE FIX M8X45 W/LK&PL WASHER	0-50140-845-0	04	1	9511-	●
27	01.531 BOLT; OIL PIPE FIX 08.900 (A) M8X20 W/LK WASHER	0-50040-820-0	02	1	9312-				●
27	01.531 BOLT; OIL PIPE FIX 03.706 (B) M8X40 W/LK WASHER	0-50040-840-0	02	1	9312-				●
27	01.531 BOLT; OIL PIPE FIX GENERATOR DENSO(7KH) M8X12,M10X20 L=42	8-97118-911-0	01	1	9503-9711					●
27	01.531 BOLT; OIL PIPE FIX GENERATOR DENSO(7KH) M8X12,M10X20 L=42	8-97118-911-0	01	1	9712-					●	●
27	01.531 BOLT; OIL PIPE FIX EXC. GENERATOR DENSO(7KH) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9511-9711					●
27	01.531 BOLT; OIL PIPE FIX EXC. GENERATOR DENSO(7KH) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9712-9805					●	●
27	01.531 BOLT; OIL PIPE FIX EXC. GENERATOR DENSO(7KH) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9806-					●	●
27	01.531 BOLT; OIL PIPE FIX CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9806-			●
27	01.531 BOLT; OIL PIPE FIX CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9712-9805			●
27	01.531 BOLT; OIL PIPE FIX EXC. CHARGE AIR COOLER<6PL> 03.415 M8X35 FLANGE	0-28080-835-0	01	1	9712-			●
40	01.531 BOLT; OIL PIPE M8X50 W/LK WASHER	0-50040-850-0	02	1	9312-9404	●	●
40	01.531 BOLT; OIL PIPE 01.540 M8X45 FLANGE	0-28080-845-0	02	1	9405-9510	●	●
40	01.531 BOLT; OIL PIPE 01.540 M8X45 FLANGE	0-28080-845-0	02	1	9511-	●
40	01.531 BOLT; OIL PIPE 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	9312-9510	●	●		●
40	01.531 BOLT; OIL PIPE 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	9312-9510				●
40	01.531 BOLT; OIL PIPE 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	9511-	●			●
40	01.531 BOLT; OIL PIPE 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	9511-				●
40	01.531 BOLT; OIL PIPE CHARGE AIR COOLER<6PL> 03.604 M10X16 FLANGE	0-28181-016-0	02	1	9712-			●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-94382-465-0	01	1	9312-9510		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97046-163-0	01	1	9312-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED CHARGE AIR COOLER<6PL>	8-97182-991-2	01	1	9712-			●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EXC. CHARGE AIR COOLER<6PL>	8-97182-990-0	01	1	9712-			●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER M12X28 FLANGE	8-94436-933-0	01	1	9312-9510	●	●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER M12X28 FLANGE	8-94436-933-0	01	1	9511-	●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER CHARGE AIR COOLER<6PL> M12X28 FLANGE	8-97166-518-0	01	1	9712-			●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER EXC. CHARGE AIR COOLER<6PL> M10X26	8-97081-817-0	01	1	9712-			●
304	01.540 BOLT; BRKT,OIL PIPE CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9712-			●
479	01.531 ADAPTER 01.800	8-94436-891-0	01	1	9407-9510	●	●
479	01.531 ADAPTER 01.800	8-94436-891-0	01	1	9511-9711	●
479	01.531 ADAPTER 01.800	8-94436-891-0	01	1	9712-	●
479	01.531 ADAPTER CHARGE AIR COOLER<6PL> 01.800	8-94436-891-0	01	1	9712-			●

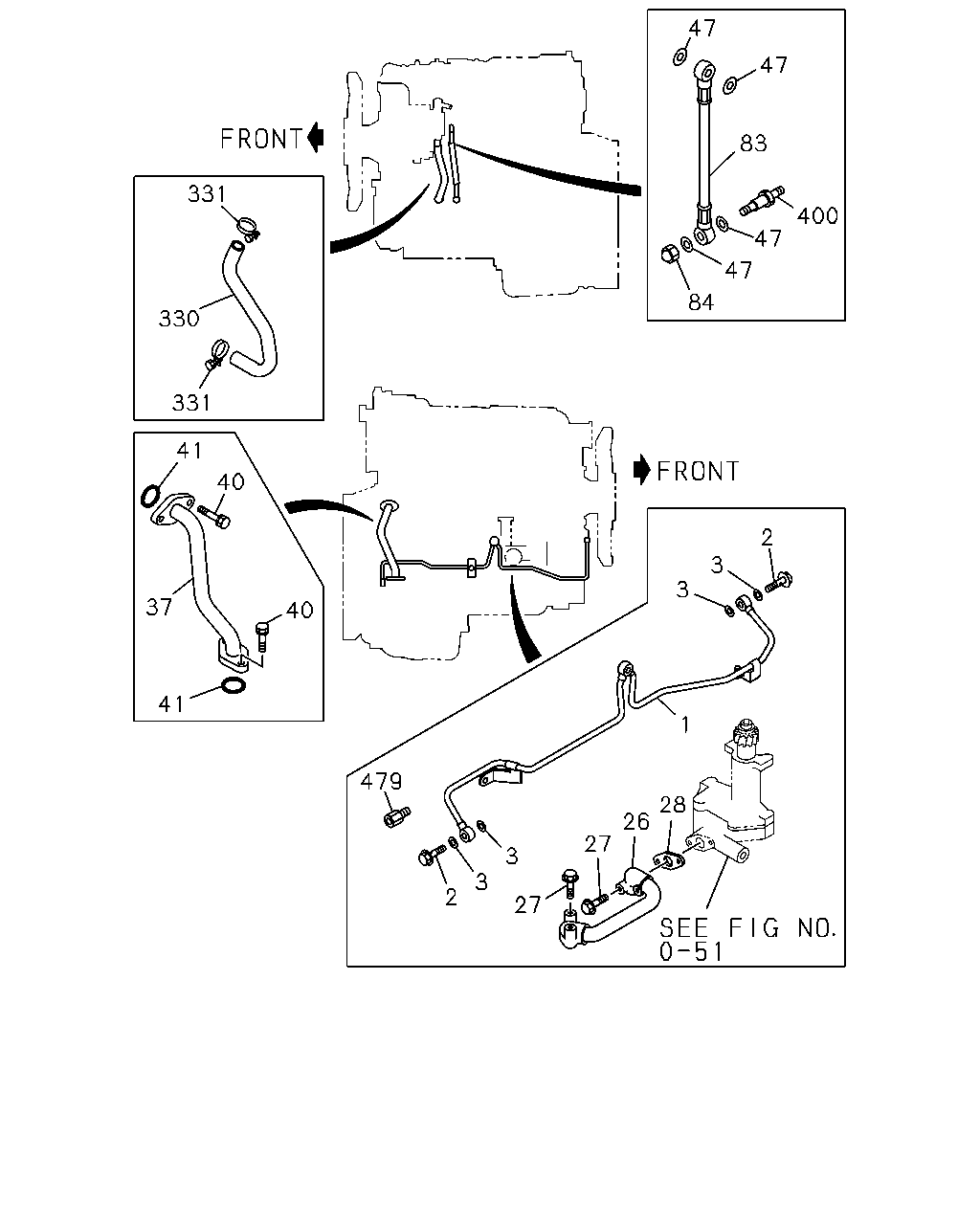

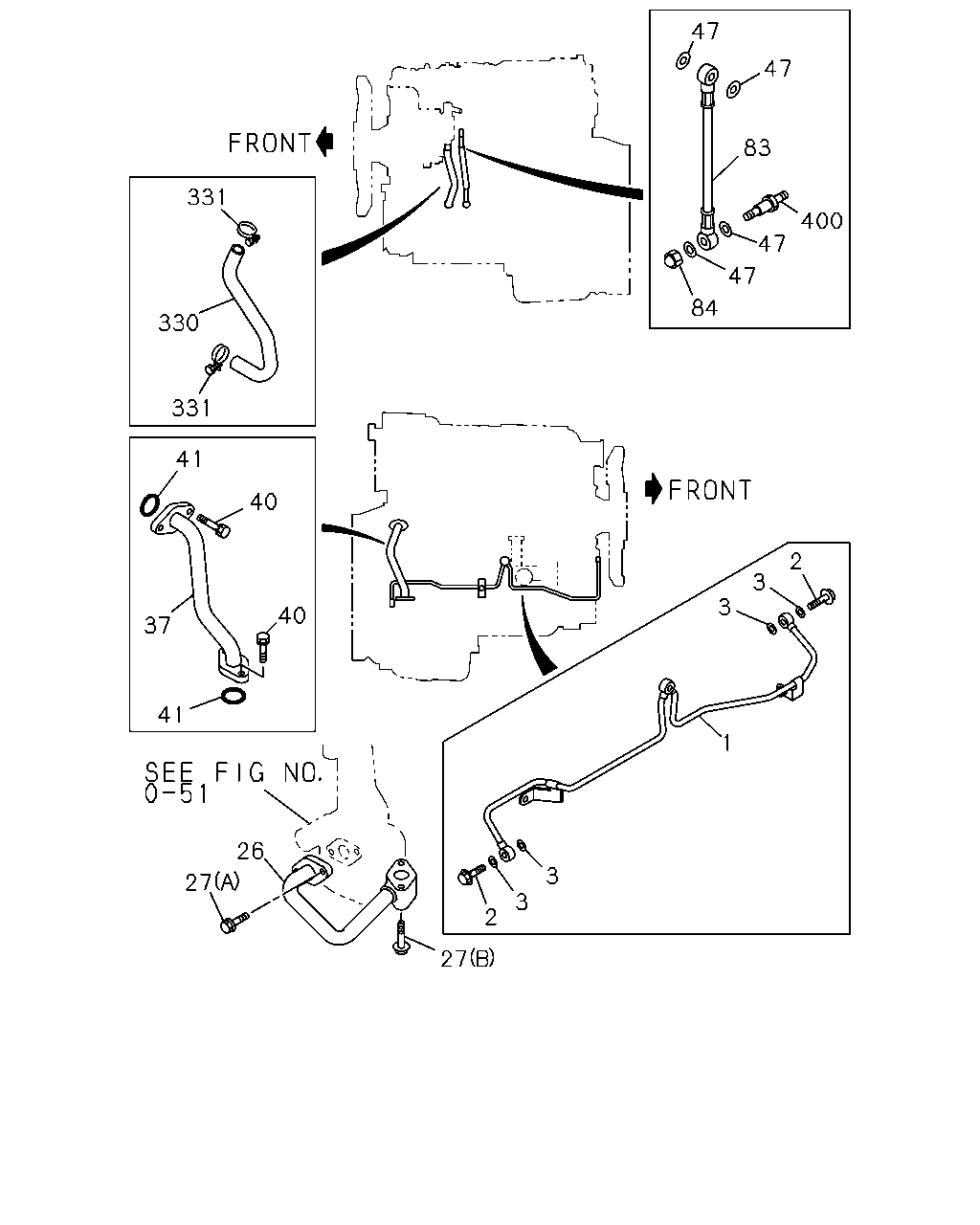

47 47 83 331 400 47 47 84 330 331 41 40 2 3 3 37 40 41 1 479 28 26 27 3 3 2 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	01.519 PIPE; OIL,INJ PUMP TO C/BL	8-97046-162-0	01	1	9312-9510	●	●		●
1	01.519 PIPE; OIL,INJ PUMP TO C/BL	8-97046-162-0	01	1	9511-	●			●
1	01.519 PIPE; OIL,INJ PUMP TO C/BL	8-97093-547-0	01	1	9312-9711					●
1	01.519 PIPE; OIL,INJ PUMP TO C/BL	8-97093-547-0	01	1	9712-					●	●
1	01.519 PIPE; OIL,INJ PUMP TO C/BL CHARGE AIR COOLER<6PL>	8-97148-923-2	01	1	9712-			●
1	01.519 PIPE; OIL,INJ PUMP TO C/BL EXC. CHARGE AIR COOLER<6PL>	8-97074-790-1	01	1	9712-			●
2	01.531 BOLT; EYE,OIL PIPE M10X22	1-09675-028-0	02	1	9312-9510	●	●		●
2	01.531 BOLT; EYE,OIL PIPE M10X22	1-09675-028-0	02	1	9511-	●			●
2	01.531 BOLT; EYE,OIL PIPE M10X21 FLANGE	1-09675-077-0	02	1	9312-9711					●
2	01.531 BOLT; EYE,OIL PIPE CHARGE AIR COOLER<6PL> (B) M10X21 FLANGE	1-09675-077-0	01	1	9712-9712			●
2	01.531 BOLT; EYE,OIL PIPE M10X21 FLANGE	1-09675-077-0	02	1	9712-					●	●
2	01.531 BOLT; EYE,OIL PIPE CHARGE AIR COOLER<6PL> (A) M10X40 FLANGE	8-97182-847-0	01	1	9712-			●
2	01.531 BOLT; EYE,OIL PIPE EXC. CHARGE AIR COOLER<6PL> (A) M10X36	1-09675-183-0	01	1	9712-			●
2	01.531 BOLT; EYE,OIL PIPE EXC. CHARGE AIR COOLER<6PL> 03.280 (B) M10X24	9-09906-205-1	01	1	9712-9712			●
2	01.531 BOLT; EYE,OIL PIPE 03.280 (B) M10X24	9-09906-205-1	01	1	9801-			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=10.2 OD=19	9-09572-010-0	04	1	9312-9510	●	●		●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=10.2 OD=19	9-09572-010-0	04	1	9511-	●			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	04	1	9312-9711					●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> ID=10.2 OD=15.2	1-09630-083-0	05	1	9712-			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	1-09630-083-0	04	1	9712-					●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> ID=10.2 OD=15.2	1-09630-083-0	04	1	9712-			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 08.955 ID=12.2	9-09571-412-0	02	1	9712-			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> ID=10.2 OD=15.2	1-09630-083-0	02	1	9712-			●
26	01.519 PIPE; OIL,PUMP TO C/BL	8-94131-060-2	01	1	9312-9510	●	●
26	01.519 PIPE; OIL,PUMP TO C/BL	8-94131-060-2	01	1	9511-	●
26	01.519 PIPE; OIL,PUMP TO C/BL	8-97080-301-0	01	1	9312-							●
26	01.519 PIPE; OIL,PUMP TO C/BL	8-94114-580-1	01	1	9312-				●
27	01.531 BOLT; OIL PIPE FIX M8X45 W/LK&PL WASHER	0-50140-845-0	04	1	9312-9510	●	●
27	01.531 BOLT; OIL PIPE FIX M8X45 W/LK&PL WASHER	0-50140-845-0	04	1	9511-	●
27	01.531 BOLT; OIL PIPE FIX 08.900 (A) M8X20 W/LK WASHER	0-50040-820-0	02	1	9312-				●
27	01.531 BOLT; OIL PIPE FIX 03.706 (B) M8X40 W/LK WASHER	0-50040-840-0	02	1	9312-				●
27	01.531 BOLT; OIL PIPE FIX GENERATOR DENSO(7KH) M8X12,M10X20 L=42	8-97118-911-0	01	1	9503-9711					●
27	01.531 BOLT; OIL PIPE FIX GENERATOR DENSO(7KH) M8X12,M10X20 L=42	8-97118-911-0	01	1	9712-					●	●
27	01.531 BOLT; OIL PIPE FIX EXC. GENERATOR DENSO(7KH) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9511-9711					●
27	01.531 BOLT; OIL PIPE FIX EXC. GENERATOR DENSO(7KH) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9712-9805					●	●
27	01.531 BOLT; OIL PIPE FIX EXC. GENERATOR DENSO(7KH) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9806-					●	●
27	01.531 BOLT; OIL PIPE FIX CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9806-			●
27	01.531 BOLT; OIL PIPE FIX CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9712-9805			●
27	01.531 BOLT; OIL PIPE FIX EXC. CHARGE AIR COOLER<6PL> 03.415 M8X35 FLANGE	0-28080-835-0	01	1	9712-			●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=18	9-09921-188-0	02	1	9312-9510	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=18	9-09921-188-0	02	1	9511-	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11	5-09623-002-0	02	1	9312-							●
37	01.519 PIPE; OIL,FILTER TO COOLER	8-94169-775-1	01	1	9312-9510	●	●
37	01.519 PIPE; OIL,FILTER TO COOLER	8-94169-775-1	01	1	9511-	●
37	01.519 PIPE; OIL,FILTER TO COOLER	8-94158-760-0	01	1	9312-				●
40	01.531 BOLT; OIL PIPE M8X50 W/LK WASHER	0-50040-850-0	02	1	9312-9404	●	●
40	01.531 BOLT; OIL PIPE 01.540 M8X45 FLANGE	0-28080-845-0	02	1	9405-9510	●	●
40	01.531 BOLT; OIL PIPE 01.540 M8X45 FLANGE	0-28080-845-0	02	1	9511-	●
40	01.531 BOLT; OIL PIPE 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	9312-9510	●	●		●
40	01.531 BOLT; OIL PIPE 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	9312-9510				●
40	01.531 BOLT; OIL PIPE 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	9511-	●			●
40	01.531 BOLT; OIL PIPE 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	9511-				●
40	01.531 BOLT; OIL PIPE CHARGE AIR COOLER<6PL> 03.604 M10X16 FLANGE	0-28181-016-0	02	1	9712-			●
41	01.531 GASKET; OIL COOLER ID=25.4	8-97026-590-0	02	1	9312-9510	●	●		●
41	01.531 GASKET; OIL COOLER ID=25.4	8-97026-590-0	02	1	9511-	●			●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 08.955 ID=10.2 OD=19	9-09572-010-0	04	1	9312-9510	●	●		●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 08.955 ID=10.2 OD=19	9-09572-010-0	04	1	9511-	●			●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP L=240	8-94159-048-1	01	1	9312-9510	●	●		●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP L=240	8-94159-048-1	01	1	9511-	●			●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP (B)	8-97029-287-1	01	1	9312-9409					●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP EXC. GENERATOR DENSO(7KH) (B)	8-97029-287-1	01	1	9410-9510					●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP EXC. GENERATOR DENSO(7KH) (B)	8-97139-538-0	01	1	9511-9711					●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP EXC. GENERATOR DENSO(7KH) (B)	8-97139-538-0	01	1	9712-					●	●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP GENERATOR DENSO(7KH) (A)	8-97117-095-0	01	1	9410-9711					●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP GENERATOR DENSO(7KH) (A)	8-97117-095-0	01	1	9712-					●	●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP (B)	8-97029-287-1	01	1	9712-			●
84	01.531 NUT; CAP,OIL PIPE M10	9-09844-022-0	01	1	9312-9510	●	●		●
84	01.531 NUT; CAP,OIL PIPE M10	9-09844-022-0	01	1	9511-	●			●
330	03.278 HOSE; VAC PUMP,RETURN 03.280	8-94454-709-0	01	1	9312-9510	●	●
330	03.278 HOSE; VAC PUMP,RETURN GENERATOR 24V40A(6MN) 03.280	8-94454-709-0	01	1	9312-9510				●
330	03.278 HOSE; VAC PUMP,RETURN 03.280	8-94454-709-0	01	1	9511-	●
330	03.278 HOSE; VAC PUMP,RETURN GENERATOR 24V40A(6MN) 03.280	8-94454-709-0	01	1	9511-				●
330	03.278 HOSE; VAC PUMP,RETURN	8-97073-920-1	01	1	9312-							●
330	03.278 HOSE; VAC PUMP,RETURN EXC. GENERATOR 24V40A(6MN) 01.540	8-94159-047-0	01	1	9312-				●
331	03.278 CLAMP; VAC HOSE,PUMP RETURN 03.280 ID=17.1	8-94122-679-0	02	1	9312-9510	●	●		●
331	03.278 CLAMP; VAC HOSE,PUMP RETURN 03.280 ID=17.1	8-94122-679-0	02	1	9511-	●			●
331	03.278 CLAMP; VAC HOSE,PUMP RETURN 01.516 ID=17	1-09707-158-0	02	1	9312-9402							●
331	03.278 CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	02	1	9403-							●
400	01.531 NIPPLE; VAC PUMP,OIL	8-94107-560-0	01	1	9312-9510		●		●
400	01.531 NIPPLE; VAC PUMP,OIL	8-94107-560-0	01	1	9511-				●
400	01.531 NIPPLE; VAC PUMP,OIL 03.280	5-09654-013-0	01	1	9312-	●
479	01.531 ADAPTER 01.800	8-94436-891-0	01	1	9407-9510	●	●
479	01.531 ADAPTER 01.800	8-94436-891-0	01	1	9511-9711	●
479	01.531 ADAPTER 01.800	8-94436-891-0	01	1	9712-	●
479	01.531 ADAPTER CHARGE AIR COOLER<6PL> 01.800	8-94436-891-0	01	1	9712-			●

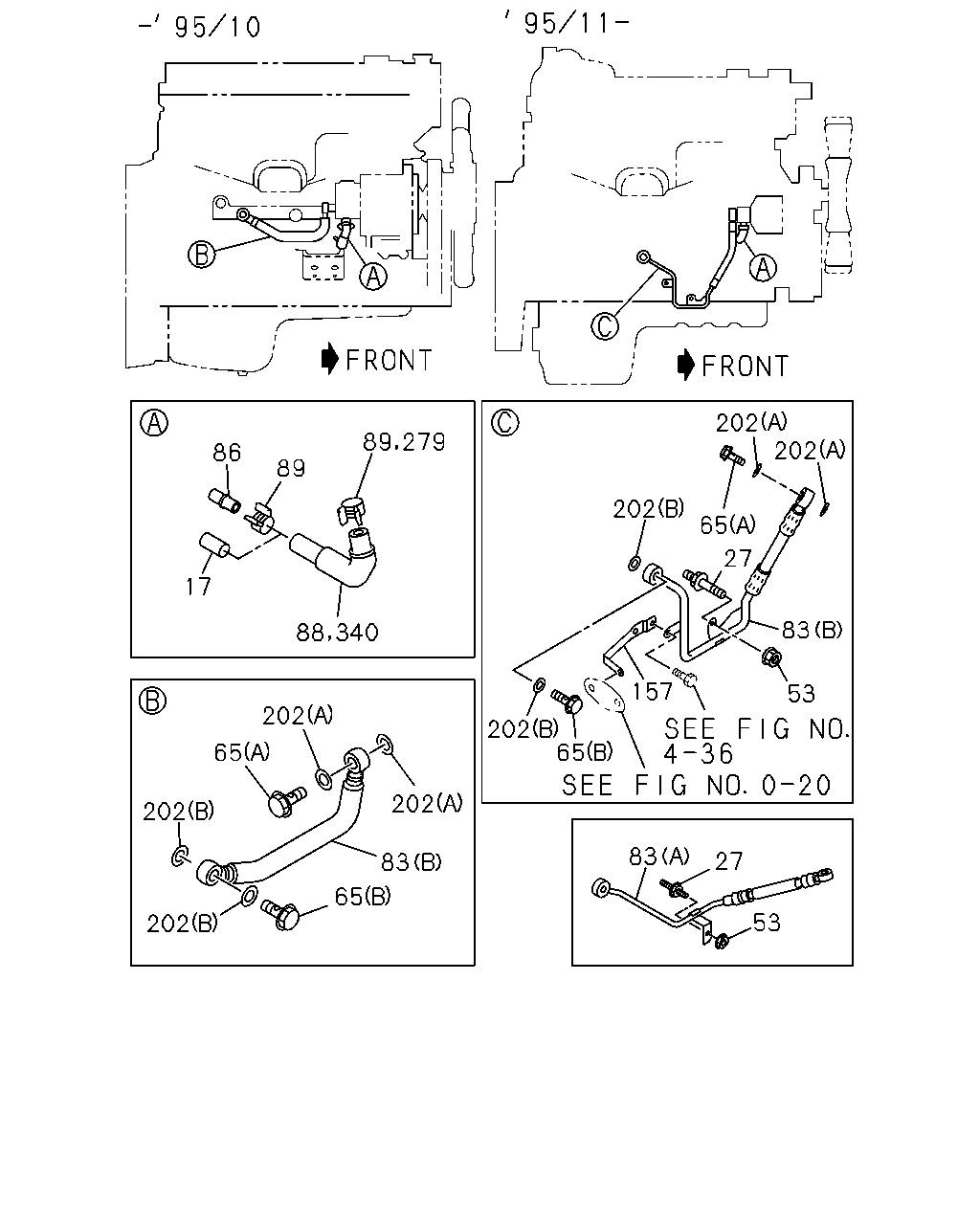

202 89 279 202 86 89 202 65 27 17 83 88 340 157 53 202 202 65 65 202 202 83 27 83 65 53 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
17	01.531 CAP; OIL PIPE 03.407 ID=12 L=30	8-94249-289-0	01	1	9711-9711					●
17	01.531 CAP; OIL PIPE 03.407 ID=12 L=30	8-94249-289-0	01	1	9801-			●		●	●
27	01.531 BOLT; OIL PIPE FIX M8X45 W/LK&PL WASHER	0-50140-845-0	04	1	9312-9510	●	●
27	01.531 BOLT; OIL PIPE FIX M8X45 W/LK&PL WASHER	0-50140-845-0	04	1	9511-	●
27	01.531 BOLT; OIL PIPE FIX 08.900 (A) M8X20 W/LK WASHER	0-50040-820-0	02	1	9312-				●
27	01.531 BOLT; OIL PIPE FIX 03.706 (B) M8X40 W/LK WASHER	0-50040-840-0	02	1	9312-				●
27	01.531 BOLT; OIL PIPE FIX GENERATOR DENSO(7KH) M8X12,M10X20 L=42	8-97118-911-0	01	1	9503-9711					●
27	01.531 BOLT; OIL PIPE FIX GENERATOR DENSO(7KH) M8X12,M10X20 L=42	8-97118-911-0	01	1	9712-					●	●
27	01.531 BOLT; OIL PIPE FIX EXC. GENERATOR DENSO(7KH) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9511-9711					●
27	01.531 BOLT; OIL PIPE FIX EXC. GENERATOR DENSO(7KH) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9712-9805					●	●
27	01.531 BOLT; OIL PIPE FIX EXC. GENERATOR DENSO(7KH) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9806-					●	●
27	01.531 BOLT; OIL PIPE FIX CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9806-			●
27	01.531 BOLT; OIL PIPE FIX CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9712-9805			●
27	01.531 BOLT; OIL PIPE FIX EXC. CHARGE AIR COOLER<6PL> 03.415 M8X35 FLANGE	0-28080-835-0	01	1	9712-			●
53	01.531 NUT; OIL PIPE GENERATOR DENSO(7KH) 07.633 M8 FLANGE	0-91150-108-0	01	1	9503-9711					●
53	01.531 NUT; OIL PIPE GENERATOR DENSO(7KH) 07.633 M8 FLANGE	0-91150-108-0	01	1	9712-9805					●	●
53	01.531 NUT; OIL PIPE 07.633 M8 FLANGE	0-91150-108-0	01	1	9806-					●	●
65	01.531 BOLT; JOINT,OIL PIPE (A) M10X21 FLANGE	1-09675-078-0	01	1	9312-9711					●
65	01.531 BOLT; JOINT,OIL PIPE (A) M10X21 FLANGE	1-09675-078-0	01	1	9712-			●		●	●
65	01.531 BOLT; JOINT,OIL PIPE (B) M14X33 FLANGE	1-09675-088-0	01	1	9312-9711					●
65	01.531 BOLT; JOINT,OIL PIPE (B) M14X33 FLANGE	1-09675-088-0	01	1	9712-9805			●		●	●
65	01.531 BOLT; JOINT,OIL PIPE 03.162 (B) M14X27 FLANGE	1-09675-086-0	01	1	9806-			●		●	●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP L=240	8-94159-048-1	01	1	9312-9510	●	●		●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP L=240	8-94159-048-1	01	1	9511-	●			●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP (B)	8-97029-287-1	01	1	9312-9409					●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP EXC. GENERATOR DENSO(7KH) (B)	8-97029-287-1	01	1	9410-9510					●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP EXC. GENERATOR DENSO(7KH) (B)	8-97139-538-0	01	1	9511-9711					●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP EXC. GENERATOR DENSO(7KH) (B)	8-97139-538-0	01	1	9712-					●	●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP GENERATOR DENSO(7KH) (A)	8-97117-095-0	01	1	9410-9711					●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP GENERATOR DENSO(7KH) (A)	8-97117-095-0	01	1	9712-					●	●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP (B)	8-97029-287-1	01	1	9712-			●
86	01.519 PIPE; OIL,VAC PUMP RETURN 01.430	8-94455-311-1	01	1	9312-9711					●
86	01.519 PIPE; OIL,VAC PUMP RETURN 01.430	8-94455-311-1	01	1	9712-			●		●	●
88	04.681 HOSE; VAC,VAC PUMP RETURN	8-94339-073-3	01	1	9312-9406					●
89	04.681 CLIP; VAC HOSE 03.280 931213- ID=17.1	8-94122-679-0	01	1	9312-9510					●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	9511-9711					●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	9511-9711					●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	9712-			●		●	●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	9712-			●		●	●
89	04.681 CLIP; VAC HOSE EXC. EAST MALAYSIA EQUIPMENT(PM6), THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP),INDONESIA EQUIPMENT(S4S) 03.280 ID=17.1	8-94122-679-0	02	1	9312-9312					●
157	01.519 BRACKET; OIL PIPE EXC. POWER STEERING<N40> 06.672	8-97139-294-0	01	1	9511-9711					●
157	01.519 BRACKET; OIL PIPE EXC. POWER STEERING<N40>,SINGAPORE EQUIPMENT(S9Y) 06.672	8-97139-294-0	01	1	9712-9805					●
157	01.519 BRACKET; OIL PIPE EXC. POWER STEERING<N40> 06.672	8-97139-294-0	01	1	9712-9805						●
157	01.519 BRACKET; OIL PIPE EXC. POWER STEERING<N40>,SINGAPORE EQUIPMENT(S9Y)	8-97209-355-0	01	1	9806-					●
157	01.519 BRACKET; OIL PIPE EXC. POWER STEERING<N40>	8-97209-355-0	01	1	9806-						●
157	01.519 BRACKET; OIL PIPE CHARGE AIR COOLER<6PL>	8-97181-586-0	01	1	9712-			●
202	01.531 GASKET; OIL PIPE (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	9312-9711					●
202	01.531 GASKET; OIL PIPE (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	9712-			●		●	●
202	01.531 GASKET; OIL PIPE 03.163 (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	9312-9711					●
202	01.531 GASKET; OIL PIPE 03.163 (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	9712-			●		●	●
279	01.750 CLIP; RUBBER HOSE 03.280 ID=17.1	8-94122-679-0	01	1	9312-9510					●
340	03.280 HOSE; VAC PUMP,RETURN GENERATOR DENSO(7KH) 04.681	8-97117-121-0	01	1	9503-9711					●
340	03.280 HOSE; VAC PUMP,RETURN GENERATOR DENSO(7KH) 04.681	8-97117-121-0	01	1	9712-					●	●
340	03.280 HOSE; VAC PUMP,RETURN EXC. GENERATOR DENSO(7KH) 04.681	8-94339-073-3	01	1	9503-9711					●
340	03.280 HOSE; VAC PUMP,RETURN EXC. GENERATOR DENSO(7KH) 04.681	8-94339-073-3	01	1	9712-			●		●	●

474 473 474 308 310 473 311 474 474 310 310 306 310 312 309 307 339 339 332 339 338 339 331 330 28 331 26 335 57 29 29

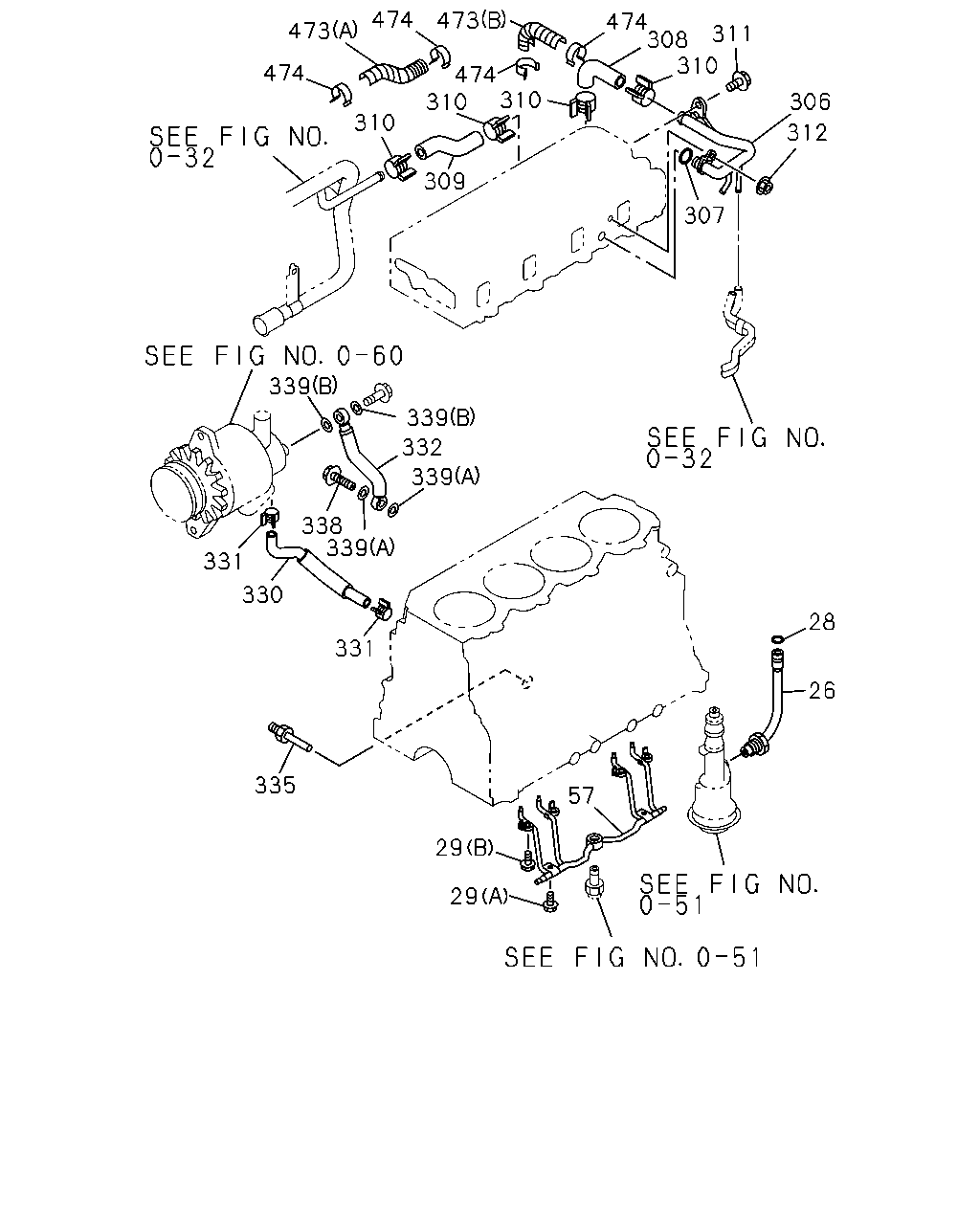

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	D	G
26	01.519 PIPE; OIL,PUMP TO C/BL	8-94131-060-2	01	1	9312-9510	●	●
26	01.519 PIPE; OIL,PUMP TO C/BL	8-94131-060-2	01	1	9511-	●
26	01.519 PIPE; OIL,PUMP TO C/BL	8-97080-301-0	01	1	9312-				●
26	01.519 PIPE; OIL,PUMP TO C/BL	8-94114-580-1	01	1	9312-			●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=18	9-09921-188-0	02	1	9312-9510	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=18	9-09921-188-0	02	1	9511-	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11	5-09623-002-0	02	1	9312-				●
29	01.531 BOLT; OIL PIPE,OIL JET 00.206 (A) M8X12 W/LK WASHER	0-50040-812-0	02	1	9312-9804				●
29	01.531 BOLT; OIL PIPE,OIL JET 00.206 (A) M8X10 FLANGE	0-28080-810-0	02	1	9805-				●
29	01.531 BOLT; OIL PIPE,OIL JET 01.540 (B) M6X25 W/LK&PL WASHER	0-50140-625-0	04	1	9312-				●
57	01.519 PIPE; OIL,OIL JET	8-97043-741-0	01	1	9312-				●
306	01.519 PIPE ASM; CYL HD TO OIL COOLER	8-97063-031-1	01	1	9312-9701				●
306	01.519 PIPE ASM; CYL HD TO OIL COOLER	8-97176-316-0	01	1	9702-				●
307	01.531 GASKET; WATER PIPE 04.107	9-09561-218-0	01	1	9312-9412				●
307	01.531 GASKET; WATER PIPE	8-97124-640-0	01	1	9501-				●
308	01.540 HOSE; OIL COOLER FEED	8-97078-193-3	01	1	9312-				●
309	01.540 HOSE; OIL COOLER RETURN	8-97080-197-1	01	1	9312-9701				●
309	01.540 HOSE; OIL COOLER RETURN	8-97147-960-0	01	1	9702-				●
310	01.540 CLIP; WATER HOSE FIX 01.166 ID=20.8	8-94125-862-0	04	1	9312-				●
311	01.531 BOLT; PIPE FIX 00.662 M8X14 FLANGE	0-28080-814-0	01	1	9312-				●
312	01.531 NUT; PIPE FIX 00.854 M8 FLANGE	5-09440-005-0	01	1	9312-				●
330	03.278 HOSE; VAC PUMP,RETURN 03.280	8-94454-709-0	01	1	9312-9510	●	●
330	03.278 HOSE; VAC PUMP,RETURN GENERATOR 24V40A(6MN) 03.280	8-94454-709-0	01	1	9312-9510			●
330	03.278 HOSE; VAC PUMP,RETURN 03.280	8-94454-709-0	01	1	9511-	●
330	03.278 HOSE; VAC PUMP,RETURN GENERATOR 24V40A(6MN) 03.280	8-94454-709-0	01	1	9511-			●
330	03.278 HOSE; VAC PUMP,RETURN	8-97073-920-1	01	1	9312-				●
330	03.278 HOSE; VAC PUMP,RETURN EXC. GENERATOR 24V40A(6MN) 01.540	8-94159-047-0	01	1	9312-			●
331	03.278 CLAMP; VAC HOSE,PUMP RETURN 03.280 ID=17.1	8-94122-679-0	02	1	9312-9510	●	●	●
331	03.278 CLAMP; VAC HOSE,PUMP RETURN 03.280 ID=17.1	8-94122-679-0	02	1	9511-	●		●
331	03.278 CLAMP; VAC HOSE,PUMP RETURN 01.516 ID=17	1-09707-158-0	02	1	9312-9402				●
331	03.278 CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	02	1	9403-				●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-94443-644-1	01	1	9312-				●
335	01.531 STOPPER; OIL PIPE	8-94443-643-0	01	1	9312-9804				●
335	01.531 STOPPER; OIL PIPE	8-97203-568-0	01	1	9805-				●
338	01.531 BOLT; JOINT,OIL PIPE M8X24	5-09675-024-0	01	1	9312-9404				●
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE BOLT	5-09675-018-1	01	1	9405-				●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=8.2 OD=17	9-09572-008-0	02	1	9312-9404				●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	9405-				●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9312-				●
473	01.540 INSULATOR; HOSE (A)	8-97101-331-0	01	1	9312-				●
473	01.540 INSULATOR; HOSE (B)	8-97101-333-1	01	1	9312-				●
474	01.540 CLIP; INSULATOR	8-97101-337-0	04	1	9312-				●

3 3 3 3 3 3 2 2 1 1 3 3 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.519 PIPE; OIL,INJ PUMP TO C/BL	8-97046-162-0	01	1	9312-9510	●	●		●
1	01.519 PIPE; OIL,INJ PUMP TO C/BL	8-97046-162-0	01	1	9511-	●			●
1	01.519 PIPE; OIL,INJ PUMP TO C/BL	8-97093-547-0	01	1	9312-9711					●
1	01.519 PIPE; OIL,INJ PUMP TO C/BL	8-97093-547-0	01	1	9712-					●	●
1	01.519 PIPE; OIL,INJ PUMP TO C/BL CHARGE AIR COOLER<6PL>	8-97148-923-2	01	1	9712-			●
1	01.519 PIPE; OIL,INJ PUMP TO C/BL EXC. CHARGE AIR COOLER<6PL>	8-97074-790-1	01	1	9712-			●
2	01.531 BOLT; EYE,OIL PIPE M10X22	1-09675-028-0	02	1	9312-9510	●	●		●
2	01.531 BOLT; EYE,OIL PIPE M10X22	1-09675-028-0	02	1	9511-	●			●
2	01.531 BOLT; EYE,OIL PIPE M10X21 FLANGE	1-09675-077-0	02	1	9312-9711					●
2	01.531 BOLT; EYE,OIL PIPE CHARGE AIR COOLER<6PL> (B) M10X21 FLANGE	1-09675-077-0	01	1	9712-9712			●
2	01.531 BOLT; EYE,OIL PIPE M10X21 FLANGE	1-09675-077-0	02	1	9712-					●	●
2	01.531 BOLT; EYE,OIL PIPE CHARGE AIR COOLER<6PL> (A) M10X40 FLANGE	8-97182-847-0	01	1	9712-			●
2	01.531 BOLT; EYE,OIL PIPE EXC. CHARGE AIR COOLER<6PL> (A) M10X36	1-09675-183-0	01	1	9712-			●
2	01.531 BOLT; EYE,OIL PIPE EXC. CHARGE AIR COOLER<6PL> 03.280 (B) M10X24	9-09906-205-1	01	1	9712-9712			●
2	01.531 BOLT; EYE,OIL PIPE 03.280 (B) M10X24	9-09906-205-1	01	1	9801-			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=10.2 OD=19	9-09572-010-0	04	1	9312-9510	●	●		●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=10.2 OD=19	9-09572-010-0	04	1	9511-	●			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	04	1	9312-9711					●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> ID=10.2 OD=15.2	1-09630-083-0	05	1	9712-			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	1-09630-083-0	04	1	9712-					●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> ID=10.2 OD=15.2	1-09630-083-0	04	1	9712-			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 08.955 ID=12.2	9-09571-412-0	02	1	9712-			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> ID=10.2 OD=15.2	1-09630-083-0	02	1	9712-			●

47 47 83 331 400 47 47 84 330 331 41 40 2 3 3 40 37 41 1 26 3 27 3 2 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	01.519 PIPE; OIL,INJ PUMP TO C/BL	8-97046-162-0	01	1	9312-9510	●	●		●
1	01.519 PIPE; OIL,INJ PUMP TO C/BL	8-97046-162-0	01	1	9511-	●			●
1	01.519 PIPE; OIL,INJ PUMP TO C/BL	8-97093-547-0	01	1	9312-9711					●
1	01.519 PIPE; OIL,INJ PUMP TO C/BL	8-97093-547-0	01	1	9712-					●	●
1	01.519 PIPE; OIL,INJ PUMP TO C/BL CHARGE AIR COOLER<6PL>	8-97148-923-2	01	1	9712-			●
1	01.519 PIPE; OIL,INJ PUMP TO C/BL EXC. CHARGE AIR COOLER<6PL>	8-97074-790-1	01	1	9712-			●
2	01.531 BOLT; EYE,OIL PIPE M10X22	1-09675-028-0	02	1	9312-9510	●	●		●
2	01.531 BOLT; EYE,OIL PIPE M10X22	1-09675-028-0	02	1	9511-	●			●
2	01.531 BOLT; EYE,OIL PIPE M10X21 FLANGE	1-09675-077-0	02	1	9312-9711					●
2	01.531 BOLT; EYE,OIL PIPE CHARGE AIR COOLER<6PL> (B) M10X21 FLANGE	1-09675-077-0	01	1	9712-9712			●
2	01.531 BOLT; EYE,OIL PIPE M10X21 FLANGE	1-09675-077-0	02	1	9712-					●	●
2	01.531 BOLT; EYE,OIL PIPE CHARGE AIR COOLER<6PL> (A) M10X40 FLANGE	8-97182-847-0	01	1	9712-			●
2	01.531 BOLT; EYE,OIL PIPE EXC. CHARGE AIR COOLER<6PL> (A) M10X36	1-09675-183-0	01	1	9712-			●
2	01.531 BOLT; EYE,OIL PIPE EXC. CHARGE AIR COOLER<6PL> 03.280 (B) M10X24	9-09906-205-1	01	1	9712-9712			●
2	01.531 BOLT; EYE,OIL PIPE 03.280 (B) M10X24	9-09906-205-1	01	1	9801-			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=10.2 OD=19	9-09572-010-0	04	1	9312-9510	●	●		●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=10.2 OD=19	9-09572-010-0	04	1	9511-	●			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	04	1	9312-9711					●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> ID=10.2 OD=15.2	1-09630-083-0	05	1	9712-			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	1-09630-083-0	04	1	9712-					●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> ID=10.2 OD=15.2	1-09630-083-0	04	1	9712-			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 08.955 ID=12.2	9-09571-412-0	02	1	9712-			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> ID=10.2 OD=15.2	1-09630-083-0	02	1	9712-			●
26	01.519 PIPE; OIL,PUMP TO C/BL	8-94131-060-2	01	1	9312-9510	●	●
26	01.519 PIPE; OIL,PUMP TO C/BL	8-94131-060-2	01	1	9511-	●
26	01.519 PIPE; OIL,PUMP TO C/BL	8-97080-301-0	01	1	9312-							●
26	01.519 PIPE; OIL,PUMP TO C/BL	8-94114-580-1	01	1	9312-				●
27	01.531 BOLT; OIL PIPE FIX M8X45 W/LK&PL WASHER	0-50140-845-0	04	1	9312-9510	●	●
27	01.531 BOLT; OIL PIPE FIX M8X45 W/LK&PL WASHER	0-50140-845-0	04	1	9511-	●
27	01.531 BOLT; OIL PIPE FIX 08.900 (A) M8X20 W/LK WASHER	0-50040-820-0	02	1	9312-				●
27	01.531 BOLT; OIL PIPE FIX 03.706 (B) M8X40 W/LK WASHER	0-50040-840-0	02	1	9312-				●
27	01.531 BOLT; OIL PIPE FIX GENERATOR DENSO(7KH) M8X12,M10X20 L=42	8-97118-911-0	01	1	9503-9711					●
27	01.531 BOLT; OIL PIPE FIX GENERATOR DENSO(7KH) M8X12,M10X20 L=42	8-97118-911-0	01	1	9712-					●	●
27	01.531 BOLT; OIL PIPE FIX EXC. GENERATOR DENSO(7KH) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9511-9711					●
27	01.531 BOLT; OIL PIPE FIX EXC. GENERATOR DENSO(7KH) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9712-9805					●	●
27	01.531 BOLT; OIL PIPE FIX EXC. GENERATOR DENSO(7KH) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9806-					●	●
27	01.531 BOLT; OIL PIPE FIX CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9806-			●
27	01.531 BOLT; OIL PIPE FIX CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9712-9805			●
27	01.531 BOLT; OIL PIPE FIX EXC. CHARGE AIR COOLER<6PL> 03.415 M8X35 FLANGE	0-28080-835-0	01	1	9712-			●
37	01.519 PIPE; OIL,FILTER TO COOLER	8-94169-775-1	01	1	9312-9510	●	●
37	01.519 PIPE; OIL,FILTER TO COOLER	8-94169-775-1	01	1	9511-	●
37	01.519 PIPE; OIL,FILTER TO COOLER	8-94158-760-0	01	1	9312-				●
40	01.531 BOLT; OIL PIPE M8X50 W/LK WASHER	0-50040-850-0	02	1	9312-9404	●	●
40	01.531 BOLT; OIL PIPE 01.540 M8X45 FLANGE	0-28080-845-0	02	1	9405-9510	●	●
40	01.531 BOLT; OIL PIPE 01.540 M8X45 FLANGE	0-28080-845-0	02	1	9511-	●
40	01.531 BOLT; OIL PIPE 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	9312-9510	●	●		●
40	01.531 BOLT; OIL PIPE 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	9312-9510				●
40	01.531 BOLT; OIL PIPE 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	9511-	●			●
40	01.531 BOLT; OIL PIPE 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	9511-				●
40	01.531 BOLT; OIL PIPE CHARGE AIR COOLER<6PL> 03.604 M10X16 FLANGE	0-28181-016-0	02	1	9712-			●
41	01.531 GASKET; OIL COOLER ID=25.4	8-97026-590-0	02	1	9312-9510	●	●		●
41	01.531 GASKET; OIL COOLER ID=25.4	8-97026-590-0	02	1	9511-	●			●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 08.955 ID=10.2 OD=19	9-09572-010-0	04	1	9312-9510	●	●		●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 08.955 ID=10.2 OD=19	9-09572-010-0	04	1	9511-	●			●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP L=240	8-94159-048-1	01	1	9312-9510	●	●		●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP L=240	8-94159-048-1	01	1	9511-	●			●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP (B)	8-97029-287-1	01	1	9312-9409					●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP EXC. GENERATOR DENSO(7KH) (B)	8-97029-287-1	01	1	9410-9510					●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP EXC. GENERATOR DENSO(7KH) (B)	8-97139-538-0	01	1	9511-9711					●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP EXC. GENERATOR DENSO(7KH) (B)	8-97139-538-0	01	1	9712-					●	●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP GENERATOR DENSO(7KH) (A)	8-97117-095-0	01	1	9410-9711					●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP GENERATOR DENSO(7KH) (A)	8-97117-095-0	01	1	9712-					●	●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP (B)	8-97029-287-1	01	1	9712-			●
84	01.531 NUT; CAP,OIL PIPE M10	9-09844-022-0	01	1	9312-9510	●	●		●
84	01.531 NUT; CAP,OIL PIPE M10	9-09844-022-0	01	1	9511-	●			●
330	03.278 HOSE; VAC PUMP,RETURN 03.280	8-94454-709-0	01	1	9312-9510	●	●
330	03.278 HOSE; VAC PUMP,RETURN GENERATOR 24V40A(6MN) 03.280	8-94454-709-0	01	1	9312-9510				●
330	03.278 HOSE; VAC PUMP,RETURN 03.280	8-94454-709-0	01	1	9511-	●
330	03.278 HOSE; VAC PUMP,RETURN GENERATOR 24V40A(6MN) 03.280	8-94454-709-0	01	1	9511-				●
330	03.278 HOSE; VAC PUMP,RETURN	8-97073-920-1	01	1	9312-							●
330	03.278 HOSE; VAC PUMP,RETURN EXC. GENERATOR 24V40A(6MN) 01.540	8-94159-047-0	01	1	9312-				●
331	03.278 CLAMP; VAC HOSE,PUMP RETURN 03.280 ID=17.1	8-94122-679-0	02	1	9312-9510	●	●		●
331	03.278 CLAMP; VAC HOSE,PUMP RETURN 03.280 ID=17.1	8-94122-679-0	02	1	9511-	●			●
331	03.278 CLAMP; VAC HOSE,PUMP RETURN 01.516 ID=17	1-09707-158-0	02	1	9312-9402							●
331	03.278 CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	02	1	9403-							●
400	01.531 NIPPLE; VAC PUMP,OIL	8-94107-560-0	01	1	9312-9510		●		●
400	01.531 NIPPLE; VAC PUMP,OIL	8-94107-560-0	01	1	9511-				●
400	01.531 NIPPLE; VAC PUMP,OIL 03.280	5-09654-013-0	01	1	9312-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
