Sayfa 0-50 - Isuzu EPC

0-50 — OIL COOLER AND OIL FILTER (#44394) — 304 parça

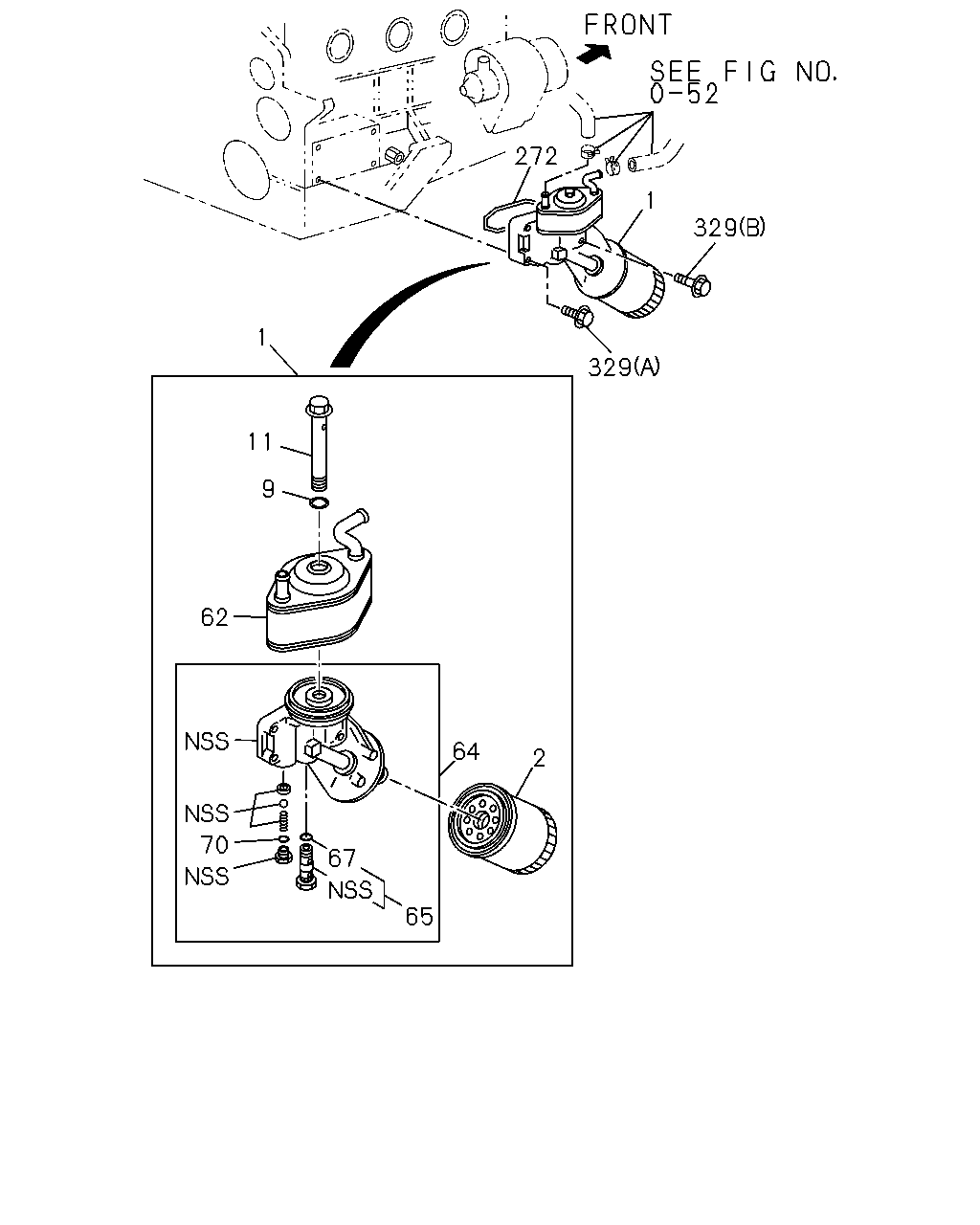

272 1 329 1 329 11 9 62 64 2 70 67 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	01.540 FILTER & COOLER ASM; OIL	8-97080-378-3	01	1	9312-9511	●
1	01.540 FILTER & COOLER ASM; OIL EXC. EURO2 SPECIFICATION<7AF>	8-97080-378-3	01	1	9512-9701	●
1	01.540 FILTER & COOLER ASM; OIL EURO2 SPECIFICATION<7AF>	8-97120-286-0	01	1	9512-9701	●
1	01.540 FILTER & COOLER ASM; OIL	8-97120-286-2	01	1	9702-	●
2	01.836 ELEMENT; OIL FILTER (A) OD=102 H=80	8-94340-259-1	01	1	9312-9510		●	●
2	01.836 ELEMENT; OIL FILTER (B) OD=80 H=100	8-94463-713-1	01	1	9312-9510		●	●
2	01.836 ELEMENT; OIL FILTER	8-94360-427-1	01	1	9312-	●
2	01.836 ELEMENT; OIL FILTER	8-97025-464-2	01	1	9312-9608				●
2	01.836 ELEMENT; OIL FILTER	8-97148-280-0	01	1	9609-				●
2	01.836 ELEMENT; OIL FILTER (A) OD=102 H=80	8-94340-259-1	01	1	9511-9603			●
2	01.836 ELEMENT; OIL FILTER (B) OD=80 H=100	8-94463-713-1	01	1	9511-9603			●
2	01.836 ELEMENT; OIL FILTER (A) OD=102 H=80	8-94340-259-1	01	1	9604-			●
2	01.836 ELEMENT; OIL FILTER (B) OD=80 H=100	8-94463-713-1	01	1	9604-			●
2	01.836 ELEMENT; OIL FILTER	8-97096-777-0	01	1	9312-9508					●
2	01.836 ELEMENT; OIL FILTER	8-97136-470-0	01	1	9509-9609					●
2	01.836 ELEMENT; OIL FILTER	8-97148-270-0	01	1	9610-9711					●
2	01.836 ELEMENT; OIL FILTER	8-97148-270-0	01	1	9712-					●	●	●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97047-000-0	01	1	9312-	●
11	01.840 BOLT; CENTER	8-97094-724-1	01	1	9312-9511	●
11	01.840 BOLT; CENTER EXC. EURO2 SPECIFICATION<7AF>	8-97094-724-1	01	1	9512-9701	●
11	01.840 BOLT; CENTER EURO2 SPECIFICATION<7AF>	8-97144-713-0	01	1	9512-9701	●
11	01.840 BOLT; CENTER	8-97144-713-0	01	1	9702-	●
62	01.540 COOLER ASM; OIL	8-97081-589-0	01	1	9312-9511	●
62	01.540 COOLER ASM; OIL EXC. EURO2 SPECIFICATION<7AF>	8-97081-589-0	01	1	9512-9701	●
62	01.540 COOLER ASM; OIL EURO2 SPECIFICATION<7AF>	8-97144-716-0	01	1	9512-9701	●
62	01.540 COOLER ASM; OIL	8-97144-716-1	01	1	9702-	●
64	01.540 BODY; OIL FILTER & OIL COOLER	8-97081-588-3	01	1	9312-9511	●
64	01.540 BODY; OIL FILTER & OIL COOLER EXC. EURO2 SPECIFICATION<7AF>	8-97081-588-3	01	1	9512-9701	●
64	01.540 BODY; OIL FILTER & OIL COOLER EURO2 SPECIFICATION<7AF>	8-97144-712-0	01	1	9512-9701	●
64	01.540 BODY; OIL FILTER & OIL COOLER	8-97144-712-0	01	1	9702-	●
65	01.540 VALVE; OIL COOLER	8-94450-772-0	01	1	9312-	●
67	01.550 GASKET; VLV 01.837	9-09920-975-0	01	1	9312-	●
70	01.844 GASKET; PLUG,OIL FILTER	9-09921-193-0	01	1	9312-	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-670-0	01	1	9312-9510		●	●	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-670-0	01	1	9511-			●	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97065-983-0	01	1	9312-	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-676-0	02	1	9312-9711					●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-676-0	02	1	9712-					●	●	●
329	01.840 BOLT; OIL FILTER 01.540 (A) M8X35 W/LK WASHER	0-50040-835-0	02	1	9312-	●
329	01.840 BOLT; OIL FILTER 00.206 (B) M8X65 W/LK WASHER	8-94205-986-1	02	1	9312-	●

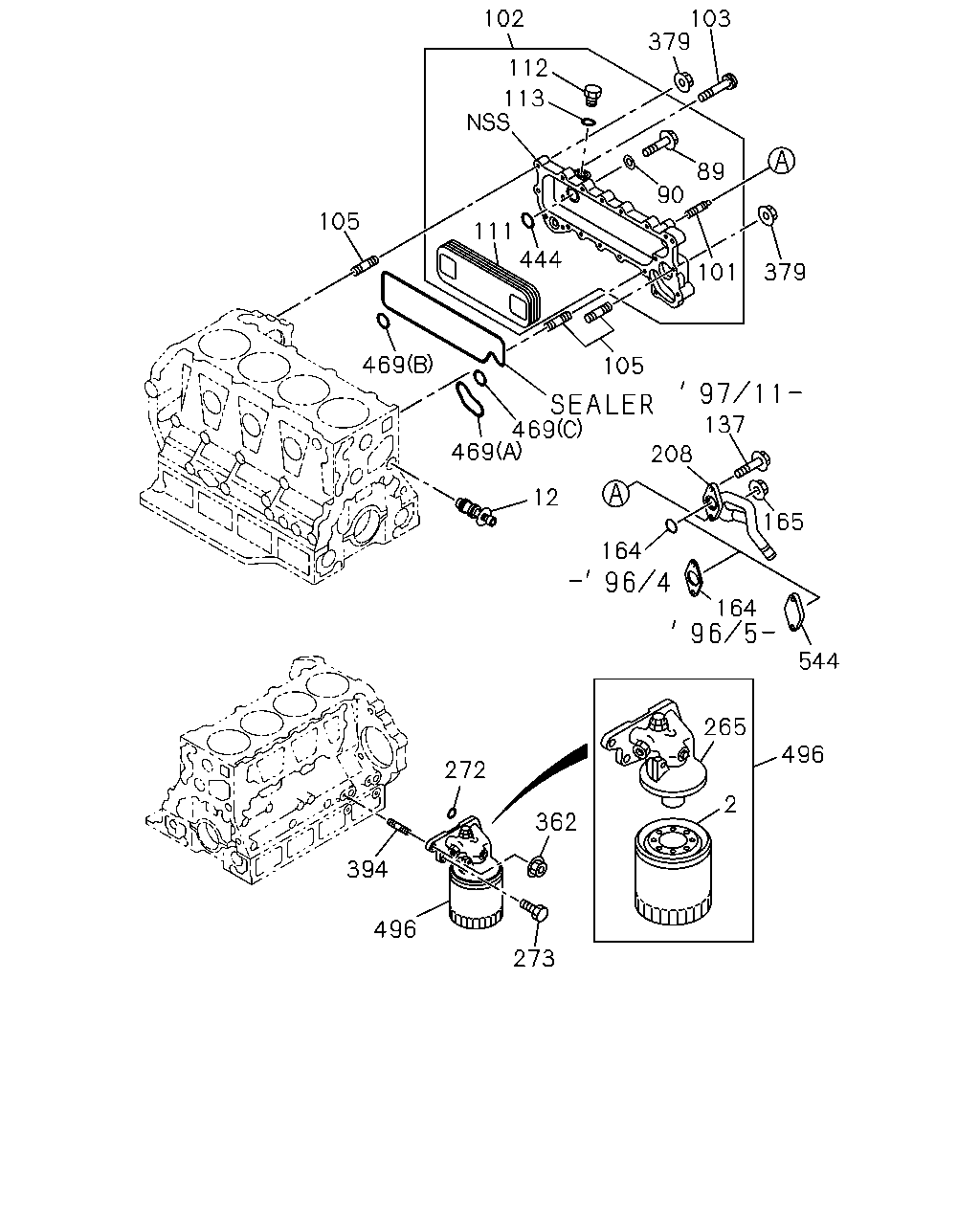

102 103 379 112 113 89 90 105 111 444 101 379 469 105 137 469 469 208 12 165 164 164 544 265 496 272 2 362 394 496 273

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
2	01.836 ELEMENT; OIL FILTER (A) OD=102 H=80	8-94340-259-1	01	1	9312-9510		●	●
2	01.836 ELEMENT; OIL FILTER (B) OD=80 H=100	8-94463-713-1	01	1	9312-9510		●	●
2	01.836 ELEMENT; OIL FILTER	8-94360-427-1	01	1	9312-	●
2	01.836 ELEMENT; OIL FILTER	8-97025-464-2	01	1	9312-9608				●
2	01.836 ELEMENT; OIL FILTER	8-97148-280-0	01	1	9609-				●
2	01.836 ELEMENT; OIL FILTER (A) OD=102 H=80	8-94340-259-1	01	1	9511-9603			●
2	01.836 ELEMENT; OIL FILTER (B) OD=80 H=100	8-94463-713-1	01	1	9511-9603			●
2	01.836 ELEMENT; OIL FILTER (A) OD=102 H=80	8-94340-259-1	01	1	9604-			●
2	01.836 ELEMENT; OIL FILTER (B) OD=80 H=100	8-94463-713-1	01	1	9604-			●
2	01.836 ELEMENT; OIL FILTER	8-97096-777-0	01	1	9312-9508					●
2	01.836 ELEMENT; OIL FILTER	8-97136-470-0	01	1	9509-9609					●
2	01.836 ELEMENT; OIL FILTER	8-97148-270-0	01	1	9610-9711					●
2	01.836 ELEMENT; OIL FILTER	8-97148-270-0	01	1	9712-					●	●	●
12	01.540 VALVE ASM; BYPASS	8-97075-754-0	01	1	9312-9711					●
12	01.540 VALVE ASM; BYPASS EXC. CHARGE AIR COOLER<6PL>	8-97013-566-2	01	1	9712-							●
12	01.540 VALVE ASM; BYPASS	8-97075-754-0	01	1	9712-					●	●
12	01.540 VALVE ASM; BYPASS CHARGE AIR COOLER<6PL>	8-97075-754-0	01	1	9712-							●
89	01.540 BOLT; ELEMENT TO CASE M8X16	5-11289-009-0	04	1	9312-9510		●	●
89	01.540 BOLT; ELEMENT TO CASE M8X16	5-11289-009-0	04	1	9511-			●
89	01.540 BOLT; ELEMENT TO CASE 01.062 M8X16 FLANGE	0-28020-816-0	04	1	9312-				●
89	01.540 BOLT; ELEMENT TO CASE 01.062 M8X16 FLANGE	0-28020-816-0	02	1	9312-9510					●
89	01.540 BOLT; ELEMENT TO CASE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9511-9708					●
89	01.540 BOLT; ELEMENT TO CASE 01.062 M8X16 FLANGE	0-28080-816-0	04	1	9709-9711					●
89	01.540 BOLT; ELEMENT TO CASE 01.062 M8X16 FLANGE	0-28080-816-0	04	1	9712-					●	●	●
90	01.540 GASKET; BOLT,OIL COOLER 01.550	1-21729-043-0	04	1	9312-9406		●	●	●	●
90	01.540 GASKET; BOLT,OIL COOLER 01.550	1-21729-043-0	04	1	9407-9502		●	●	●
90	01.540 GASKET; BOLT,OIL COOLER 01.550	1-21729-043-0	04	1	9503-9510		●	●	●	●
90	01.540 GASKET; BOLT,OIL COOLER 01.550	1-21729-043-0	04	1	9511-9711			●	●	●
90	01.540 GASKET; BOLT,OIL COOLER 01.550	1-21729-043-0	04	1	9712-			●	●	●	●	●
90	01.540 GASKET; BOLT,OIL COOLER 01.550	1-21729-043-0	04	1	9407-9502					●
101	01.540 STUD; OIL COOLER TO PIPE 05.506	0-49540-822-0	02	1	9312-9708					●
101	01.540 STUD; OIL COOLER TO PIPE 03.407 M8X20 L=38	0-49740-820-0	01	1	9709-9711					●
101	01.540 STUD; OIL COOLER TO PIPE 03.407 M8X20 L=38	0-49740-820-0	01	1	9712-					●	●	●
102	01.540 COOLER ASM; OIL	8-94438-371-0	01	1	9312-9510		●	●
102	01.540 COOLER ASM; OIL	8-94438-371-0	01	1	9511-			●
102	01.540 COOLER ASM; OIL	8-94372-120-1	01	1	9312-				●
102	01.540 COOLER ASM; OIL	8-97027-982-2	01	1	9312-9708					●
102	01.540 COOLER ASM; OIL	8-97178-779-1	01	1	9709-9711					●
102	01.540 COOLER ASM; OIL	8-97178-779-1	01	1	9712-					●	●
102	01.540 COOLER ASM; OIL	8-97178-814-1	01	1	9712-							●
103	01.540 BOLT; OIL COOLER 01.073 M8X25 W/LK WASHER	0-50040-825-0	02	1	9312-9510		●	●	●
103	01.540 BOLT; OIL COOLER 01.073 M8X25 W/LK WASHER	0-50040-825-0	02	1	9511-			●	●
103	01.540 BOLT; OIL COOLER 00.727 M8X32 W/LK WASHER	0-50040-832-0	06	1	9312-9510		●	●	●
103	01.540 BOLT; OIL COOLER 00.727 M8X32 W/LK WASHER	0-50040-832-0	06	1	9511-			●	●
103	01.540 BOLT; OIL COOLER M8X35 W/LK WASHER	0-50040-835-0	09	1	9312-9510		●	●	●
103	01.540 BOLT; OIL COOLER M8X35 W/LK WASHER	0-50040-835-0	09	1	9511-			●	●
103	01.540 BOLT; OIL COOLER M8X28 W/LK WASHER	0-50040-828-0	05	1	9312-			●	●
103	01.540 BOLT; OIL COOLER 03.415 M8X35 FLANGE	0-28080-835-0	14	1	9312-9708					●
103	01.540 BOLT; OIL COOLER 03.415 M8X35 FLANGE	0-28080-835-0	07	1	9709-9711					●
103	01.540 BOLT; OIL COOLER 03.415 M8X35 FLANGE	0-28080-835-0	07	1	9712-					●	●
103	01.540 BOLT; OIL COOLER 07.010 M8X20 FLANGE	0-28080-820-0	07	1	9709-9711					●
103	01.540 BOLT; OIL COOLER 07.010 M8X20 FLANGE	0-28080-820-0	07	1	9712-					●	●
103	01.540 BOLT; OIL COOLER 07.010 M8X20 FLANGE	0-28080-820-0	08	1	9712-							●
103	01.540 BOLT; OIL COOLER 03.415 M8X35 FLANGE	0-28080-835-0	08	1	9712-							●
105	01.540 STUD; OIL COOLER M8X52 L=63	8-97016-314-0	03	1	9312-9711					●
105	01.540 STUD; OIL COOLER M8X52 L=63	8-97016-314-0	03	1	9712-					●	●	●
111	01.540 CORE; OIL COOLER	8-94438-354-0	01	1	9312-9510		●	●
111	01.540 CORE; OIL COOLER	8-94438-354-0	01	1	9511-			●
111	01.540 CORE; OIL COOLER	8-97030-830-0	01	1	9312-				●
111	01.540 CORE; OIL COOLER	8-97028-739-0	01	1	9312-9711					●
111	01.540 CORE; OIL COOLER	8-97028-739-0	01	1	9712-					●	●
111	01.540 CORE; OIL COOLER	8-97033-802-0	01	1	9712-							●
112	01.540 PLUG; OIL COOLER CASE	8-94416-170-0	01	1	9312-9510		●	●
112	01.540 PLUG; OIL COOLER CASE	8-94416-170-0	01	1	9511-			●
112	01.540 PLUG; OIL COOLER CASE	8-97040-358-0	01	1	9312-				●
112	01.540 PLUG; OIL COOLER CASE	8-97028-587-0	01	1	9312-9510					●
112	01.540 PLUG; OIL COOLER CASE 04.104 M18X12	9-99202-318-0	01	1	9511-9711					●
112	01.540 PLUG; OIL COOLER CASE 04.104 M18X12	9-99202-318-0	01	1	9712-					●	●
112	01.540 PLUG; OIL COOLER CASE	8-97028-587-0	01	1	9712-							●
113	01.540 GASKET; PLUG,OIL COOLER CASE 08.955 ID=20.5 OD=28.0	9-09571-420-0	01	1	9312-9510		●	●	●
113	01.540 GASKET; PLUG,OIL COOLER CASE 08.955 ID=20.5 OD=28.0	9-09571-420-0	01	1	9511-			●	●
113	01.540 GASKET; PLUG,OIL COOLER CASE 06.673 ID=18	9-09571-418-0	01	1	9312-9711					●
113	01.540 GASKET; PLUG,OIL COOLER CASE 06.673 ID=18	9-09571-418-0	01	1	9712-					●	●	●
137	01.840 BOLT 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9711-9711					●
137	01.840 BOLT 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9712-					●	●	●
164	01.550 GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=23.3	1-09623-395-0	01	1	9312-9604					●
164	01.550 GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97146-684-0	01	1	9605-9711					●
164	01.550 GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97146-684-0	01	1	9712-					●	●	●
165	01.540 NUT; HTR PIPE 07.633 M8 FLANGE	0-91150-108-0	02	1	9312-9710					●
165	01.540 NUT; HTR PIPE 07.633 M8 FLANGE	0-91150-108-0	01	1	9711-9711					●
165	01.540 NUT; HTR PIPE 07.633 M8 FLANGE	0-91150-108-0	01	1	9712-					●	●	●
208	01.540 PIPE; WATER,HTR HEATER & DEFROSTER(C41) 08.846	8-97064-658-1	01	1	9312-9406					●
208	01.540 PIPE; WATER,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97108-313-1	01	1	9407-9604					●
208	01.540 PIPE; WATER,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97146-519-0	01	1	9605-9711					●
208	01.540 PIPE; WATER,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97146-519-0	01	1	9712-					●
208	01.540 PIPE; WATER,HTR	8-97146-519-0	01	1	9712-							●
208	01.540 PIPE; WATER,HTR HEATER & DEFROSTER(C41)	8-97146-519-0	01	1	9712-						●
265	01.837 BODY; OIL FILTER	8-97104-390-0	01	1	9312-9504				●
265	01.837 BODY; OIL FILTER	8-97129-546-1	01	1	9505-				●
265	01.837 BODY; OIL FILTER	8-94114-583-1	01	1	9604-			●
265	01.837 BODY; OIL FILTER	8-97096-677-1	01	1	9312-9711					●
265	01.837 BODY; OIL FILTER	8-97096-677-2	01	1	9712-					●	●	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-670-0	01	1	9312-9510		●	●	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-670-0	01	1	9511-			●	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97065-983-0	01	1	9312-	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-676-0	02	1	9312-9711					●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-676-0	02	1	9712-					●	●	●
273	01.840 BOLT; OIL FILTER 03.890 M10X32 W/LK WASHER	0-50141-032-0	02	1	9312-9510		●	●
273	01.840 BOLT; OIL FILTER 03.890 M10X32 W/LK WASHER	0-50141-032-0	02	1	9511-			●
273	01.840 BOLT; OIL FILTER M10X140	8-94148-616-1	01	1	9312-9510		●	●
273	01.840 BOLT; OIL FILTER M10X140	8-94148-616-1	01	1	9511-			●
273	01.840 BOLT; OIL FILTER M10X109	8-94148-617-1	01	1	9312-9510		●	●
273	01.840 BOLT; OIL FILTER M10X109	8-94148-617-1	02	1	9511-				●
273	01.840 BOLT; OIL FILTER 03.890 M10X32 W/LK WASHER	0-50141-032-0	01	1	9312-9401				●
273	01.840 BOLT; OIL FILTER 03.417 M10X25 FLANGE	0-28081-025-0	02	1	9402-9703				●
273	01.840 BOLT; OIL FILTER 03.417 M10X25 FLANGE	0-28081-025-0	01	1	9704-				●
273	01.840 BOLT; OIL FILTER M10X35 W/LK&PL WASHER	0-50141-035-0	01	1	9312-9401				●
273	01.840 BOLT; OIL FILTER M10X109	8-94148-617-1	02	1	9312-9510				●
273	01.840 BOLT; OIL FILTER M10X109	8-94148-617-1	01	1	9511-			●
273	01.840 BOLT; OIL FILTER 03.162 M10X35 FLANGE	0-28681-035-0	01	1	9704-				●
273	01.840 BOLT; OIL FILTER 04.525 M10X30 FLANGE	0-28181-030-0	02	1	9312-9606					●
273	01.840 BOLT; OIL FILTER 08.900 M10X30 FLANGE	0-28781-030-0	02	1	9607-9711					●
273	01.840 BOLT; OIL FILTER 08.900 M10X30 FLANGE	0-28781-030-0	02	1	9712-					●	●	●
362	01.837 NUT; OIL FILTER 04.785 M10 FLANGE	0-91150-110-0	02	1	9312-9711					●
362	01.837 NUT; OIL FILTER 04.785 M10 FLANGE	0-91150-110-0	02	1	9712-					●	●	●
379	01.540 NUT; OIL COOLER 07.633 M8 FLANGE	0-91150-108-0	03	1	9312-9711					●
379	01.540 NUT; OIL COOLER 07.633 M8 FLANGE	0-91150-108-0	03	1	9712-					●	●	●
394	01.837 STUD; OIL FILTER M10X36.5 L=48.5	8-94396-145-0	02	1	9312-9406					●
394	01.837 STUD; OIL FILTER M10X36.5 L=48.5	8-94396-145-0	02	1	9503-9612					●
394	01.837 STUD; OIL FILTER 03.275 M10X25 L=40	0-49841-025-0	02	1	9701-9711					●
394	01.837 STUD; OIL FILTER 03.275 M10X25 L=40	0-49841-025-0	02	1	9712-					●	●	●
444	01.550 GASKET; ELEMENT TO BODY	5-11282-011-0	02	1	9312-9510		●	●	●
444	01.550 GASKET; ELEMENT TO BODY	5-11282-011-0	02	1	9511-			●	●
444	01.550 GASKET; ELEMENT TO BODY	8-97028-586-0	02	1	9312-9711					●
444	01.550 GASKET; ELEMENT TO BODY	8-97028-586-0	02	1	9712-					●	●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97019-653-0	01	1	9312-9510		●	●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97019-653-0	01	1	9511-			●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94338-878-1	01	1	9312-9711					●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94338-878-1	01	1	9712-					●	●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-713-0	01	1	9312-9711					●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-713-0	01	1	9712-					●	●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=26.2	8-94399-716-1	01	1	9312-9701					●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=26.35	8-97137-500-0	01	1	9702-9711					●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=26.35	8-97137-500-0	01	1	9712-					●	●	●
496	01.835 FILTER ASM; OIL	8-94340-258-0	01	1	9312-9510		●	●
496	01.835 FILTER ASM; OIL	8-94340-258-0	01	1	9511-			●
496	01.835 FILTER ASM; OIL	8-97104-352-0	01	1	9312-9504				●
496	01.835 FILTER ASM; OIL	8-97129-545-0	01	1	9505-9608				●
496	01.835 FILTER ASM; OIL	8-97148-278-1	01	1	9609-				●
496	01.835 FILTER ASM; OIL	8-97096-668-0	01	1	9312-9508					●
496	01.835 FILTER ASM; OIL	8-97136-471-0	01	1	9509-9609					●
496	01.835 FILTER ASM; OIL	8-97148-268-0	01	1	9610-9711					●
496	01.835 FILTER ASM; OIL	8-97148-268-1	01	1	9712-					●	●	●
544	08.845 COVER; HEATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97147-028-0	01	1	9712-					●
544	08.845 COVER; HEATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),CHARGE AIRCOOLER<6PL>	8-97147-028-0	01	1	9712-							●
544	08.845 COVER; HEATER EXC. HEATER & DEFROSTER(C41)	8-97147-028-0	01	1	9712-						●

103 159 112 102 113 89 111 90 469 444 272 496 274 273 274 273 496 496 265 2 496 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
2	01.836 ELEMENT; OIL FILTER (A) OD=102 H=80	8-94340-259-1	01	1	9312-9510		●	●
2	01.836 ELEMENT; OIL FILTER (B) OD=80 H=100	8-94463-713-1	01	1	9312-9510		●	●
2	01.836 ELEMENT; OIL FILTER	8-94360-427-1	01	1	9312-	●
2	01.836 ELEMENT; OIL FILTER	8-97025-464-2	01	1	9312-9608				●
2	01.836 ELEMENT; OIL FILTER	8-97148-280-0	01	1	9609-				●
2	01.836 ELEMENT; OIL FILTER (A) OD=102 H=80	8-94340-259-1	01	1	9511-9603			●
2	01.836 ELEMENT; OIL FILTER (B) OD=80 H=100	8-94463-713-1	01	1	9511-9603			●
2	01.836 ELEMENT; OIL FILTER (A) OD=102 H=80	8-94340-259-1	01	1	9604-			●
2	01.836 ELEMENT; OIL FILTER (B) OD=80 H=100	8-94463-713-1	01	1	9604-			●
2	01.836 ELEMENT; OIL FILTER	8-97096-777-0	01	1	9312-9508					●
2	01.836 ELEMENT; OIL FILTER	8-97136-470-0	01	1	9509-9609					●
2	01.836 ELEMENT; OIL FILTER	8-97148-270-0	01	1	9610-9711					●
2	01.836 ELEMENT; OIL FILTER	8-97148-270-0	01	1	9712-					●	●	●
89	01.540 BOLT; ELEMENT TO CASE M8X16	5-11289-009-0	04	1	9312-9510		●	●
89	01.540 BOLT; ELEMENT TO CASE M8X16	5-11289-009-0	04	1	9511-			●
89	01.540 BOLT; ELEMENT TO CASE 01.062 M8X16 FLANGE	0-28020-816-0	04	1	9312-				●
89	01.540 BOLT; ELEMENT TO CASE 01.062 M8X16 FLANGE	0-28020-816-0	02	1	9312-9510					●
89	01.540 BOLT; ELEMENT TO CASE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9511-9708					●
89	01.540 BOLT; ELEMENT TO CASE 01.062 M8X16 FLANGE	0-28080-816-0	04	1	9709-9711					●
89	01.540 BOLT; ELEMENT TO CASE 01.062 M8X16 FLANGE	0-28080-816-0	04	1	9712-					●	●	●
90	01.540 GASKET; BOLT,OIL COOLER 01.550	1-21729-043-0	04	1	9312-9406		●	●	●	●
90	01.540 GASKET; BOLT,OIL COOLER 01.550	1-21729-043-0	04	1	9407-9502		●	●	●
90	01.540 GASKET; BOLT,OIL COOLER 01.550	1-21729-043-0	04	1	9503-9510		●	●	●	●
90	01.540 GASKET; BOLT,OIL COOLER 01.550	1-21729-043-0	04	1	9511-9711			●	●	●
90	01.540 GASKET; BOLT,OIL COOLER 01.550	1-21729-043-0	04	1	9712-			●	●	●	●	●
90	01.540 GASKET; BOLT,OIL COOLER 01.550	1-21729-043-0	04	1	9407-9502					●
102	01.540 COOLER ASM; OIL	8-94438-371-0	01	1	9312-9510		●	●
102	01.540 COOLER ASM; OIL	8-94438-371-0	01	1	9511-			●
102	01.540 COOLER ASM; OIL	8-94372-120-1	01	1	9312-				●
102	01.540 COOLER ASM; OIL	8-97027-982-2	01	1	9312-9708					●
102	01.540 COOLER ASM; OIL	8-97178-779-1	01	1	9709-9711					●
102	01.540 COOLER ASM; OIL	8-97178-779-1	01	1	9712-					●	●
102	01.540 COOLER ASM; OIL	8-97178-814-1	01	1	9712-							●
103	01.540 BOLT; OIL COOLER 01.073 M8X25 W/LK WASHER	0-50040-825-0	02	1	9312-9510		●	●	●
103	01.540 BOLT; OIL COOLER 01.073 M8X25 W/LK WASHER	0-50040-825-0	02	1	9511-			●	●
103	01.540 BOLT; OIL COOLER 00.727 M8X32 W/LK WASHER	0-50040-832-0	06	1	9312-9510		●	●	●
103	01.540 BOLT; OIL COOLER 00.727 M8X32 W/LK WASHER	0-50040-832-0	06	1	9511-			●	●
103	01.540 BOLT; OIL COOLER M8X35 W/LK WASHER	0-50040-835-0	09	1	9312-9510		●	●	●
103	01.540 BOLT; OIL COOLER M8X35 W/LK WASHER	0-50040-835-0	09	1	9511-			●	●
103	01.540 BOLT; OIL COOLER M8X28 W/LK WASHER	0-50040-828-0	05	1	9312-			●	●
103	01.540 BOLT; OIL COOLER 03.415 M8X35 FLANGE	0-28080-835-0	14	1	9312-9708					●
103	01.540 BOLT; OIL COOLER 03.415 M8X35 FLANGE	0-28080-835-0	07	1	9709-9711					●
103	01.540 BOLT; OIL COOLER 03.415 M8X35 FLANGE	0-28080-835-0	07	1	9712-					●	●
103	01.540 BOLT; OIL COOLER 07.010 M8X20 FLANGE	0-28080-820-0	07	1	9709-9711					●
103	01.540 BOLT; OIL COOLER 07.010 M8X20 FLANGE	0-28080-820-0	07	1	9712-					●	●
103	01.540 BOLT; OIL COOLER 07.010 M8X20 FLANGE	0-28080-820-0	08	1	9712-							●
103	01.540 BOLT; OIL COOLER 03.415 M8X35 FLANGE	0-28080-835-0	08	1	9712-							●
111	01.540 CORE; OIL COOLER	8-94438-354-0	01	1	9312-9510		●	●
111	01.540 CORE; OIL COOLER	8-94438-354-0	01	1	9511-			●
111	01.540 CORE; OIL COOLER	8-97030-830-0	01	1	9312-				●
111	01.540 CORE; OIL COOLER	8-97028-739-0	01	1	9312-9711					●
111	01.540 CORE; OIL COOLER	8-97028-739-0	01	1	9712-					●	●
111	01.540 CORE; OIL COOLER	8-97033-802-0	01	1	9712-							●
112	01.540 PLUG; OIL COOLER CASE	8-94416-170-0	01	1	9312-9510		●	●
112	01.540 PLUG; OIL COOLER CASE	8-94416-170-0	01	1	9511-			●
112	01.540 PLUG; OIL COOLER CASE	8-97040-358-0	01	1	9312-				●
112	01.540 PLUG; OIL COOLER CASE	8-97028-587-0	01	1	9312-9510					●
112	01.540 PLUG; OIL COOLER CASE 04.104 M18X12	9-99202-318-0	01	1	9511-9711					●
112	01.540 PLUG; OIL COOLER CASE 04.104 M18X12	9-99202-318-0	01	1	9712-					●	●
112	01.540 PLUG; OIL COOLER CASE	8-97028-587-0	01	1	9712-							●
113	01.540 GASKET; PLUG,OIL COOLER CASE 08.955 ID=20.5 OD=28.0	9-09571-420-0	01	1	9312-9510		●	●	●
113	01.540 GASKET; PLUG,OIL COOLER CASE 08.955 ID=20.5 OD=28.0	9-09571-420-0	01	1	9511-			●	●
113	01.540 GASKET; PLUG,OIL COOLER CASE 06.673 ID=18	9-09571-418-0	01	1	9312-9711					●
113	01.540 GASKET; PLUG,OIL COOLER CASE 06.673 ID=18	9-09571-418-0	01	1	9712-					●	●	●
159	02.313 CLIP; CABLE HARNESS,OIL COOLER 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9312-9410		●	●
159	02.313 CLIP; CABLE HARNESS,OIL COOLER 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	04	1	9312-9410				●
159	02.313 CLIP; CABLE HARNESS,OIL COOLER 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9411-9510		●	●	●
159	02.313 CLIP; CABLE HARNESS,OIL COOLER 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9511-			●	●
265	01.837 BODY; OIL FILTER	8-97104-390-0	01	1	9312-9504				●
265	01.837 BODY; OIL FILTER	8-97129-546-1	01	1	9505-				●
265	01.837 BODY; OIL FILTER	8-94114-583-1	01	1	9604-			●
265	01.837 BODY; OIL FILTER	8-97096-677-1	01	1	9312-9711					●
265	01.837 BODY; OIL FILTER	8-97096-677-2	01	1	9712-					●	●	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-670-0	01	1	9312-9510		●	●	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-670-0	01	1	9511-			●	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97065-983-0	01	1	9312-	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-676-0	02	1	9312-9711					●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-676-0	02	1	9712-					●	●	●
273	01.840 BOLT; OIL FILTER 03.890 M10X32 W/LK WASHER	0-50141-032-0	02	1	9312-9510		●	●
273	01.840 BOLT; OIL FILTER 03.890 M10X32 W/LK WASHER	0-50141-032-0	02	1	9511-			●
273	01.840 BOLT; OIL FILTER M10X140	8-94148-616-1	01	1	9312-9510		●	●
273	01.840 BOLT; OIL FILTER M10X140	8-94148-616-1	01	1	9511-			●
273	01.840 BOLT; OIL FILTER M10X109	8-94148-617-1	01	1	9312-9510		●	●
273	01.840 BOLT; OIL FILTER M10X109	8-94148-617-1	02	1	9511-				●
273	01.840 BOLT; OIL FILTER 03.890 M10X32 W/LK WASHER	0-50141-032-0	01	1	9312-9401				●
273	01.840 BOLT; OIL FILTER 03.417 M10X25 FLANGE	0-28081-025-0	02	1	9402-9703				●
273	01.840 BOLT; OIL FILTER 03.417 M10X25 FLANGE	0-28081-025-0	01	1	9704-				●
273	01.840 BOLT; OIL FILTER M10X35 W/LK&PL WASHER	0-50141-035-0	01	1	9312-9401				●
273	01.840 BOLT; OIL FILTER M10X109	8-94148-617-1	02	1	9312-9510				●
273	01.840 BOLT; OIL FILTER M10X109	8-94148-617-1	01	1	9511-			●
273	01.840 BOLT; OIL FILTER 03.162 M10X35 FLANGE	0-28681-035-0	01	1	9704-				●
273	01.840 BOLT; OIL FILTER 04.525 M10X30 FLANGE	0-28181-030-0	02	1	9312-9606					●
273	01.840 BOLT; OIL FILTER 08.900 M10X30 FLANGE	0-28781-030-0	02	1	9607-9711					●
273	01.840 BOLT; OIL FILTER 08.900 M10X30 FLANGE	0-28781-030-0	02	1	9712-					●	●	●
274	01.844 GASKET; OIL FILTER 08.955 ID=10.2 OD=19	9-09572-010-0	02	1	9312-9510		●	●	●
274	01.844 GASKET; OIL FILTER 08.955 ID=10.2 OD=19	9-09572-010-0	02	1	9511-			●	●
444	01.550 GASKET; ELEMENT TO BODY	5-11282-011-0	02	1	9312-9510		●	●	●
444	01.550 GASKET; ELEMENT TO BODY	5-11282-011-0	02	1	9511-			●	●
444	01.550 GASKET; ELEMENT TO BODY	8-97028-586-0	02	1	9312-9711					●
444	01.550 GASKET; ELEMENT TO BODY	8-97028-586-0	02	1	9712-					●	●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97019-653-0	01	1	9312-9510		●	●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97019-653-0	01	1	9511-			●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94338-878-1	01	1	9312-9711					●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94338-878-1	01	1	9712-					●	●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-713-0	01	1	9312-9711					●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-713-0	01	1	9712-					●	●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=26.2	8-94399-716-1	01	1	9312-9701					●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=26.35	8-97137-500-0	01	1	9702-9711					●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=26.35	8-97137-500-0	01	1	9712-					●	●	●
496	01.835 FILTER ASM; OIL	8-94340-258-0	01	1	9312-9510		●	●
496	01.835 FILTER ASM; OIL	8-94340-258-0	01	1	9511-			●
496	01.835 FILTER ASM; OIL	8-97104-352-0	01	1	9312-9504				●
496	01.835 FILTER ASM; OIL	8-97129-545-0	01	1	9505-9608				●
496	01.835 FILTER ASM; OIL	8-97148-278-1	01	1	9609-				●
496	01.835 FILTER ASM; OIL	8-97096-668-0	01	1	9312-9508					●
496	01.835 FILTER ASM; OIL	8-97136-471-0	01	1	9509-9609					●
496	01.835 FILTER ASM; OIL	8-97148-268-0	01	1	9610-9711					●
496	01.835 FILTER ASM; OIL	8-97148-268-1	01	1	9712-					●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
