Sayfa 0-42 - Isuzu EPC

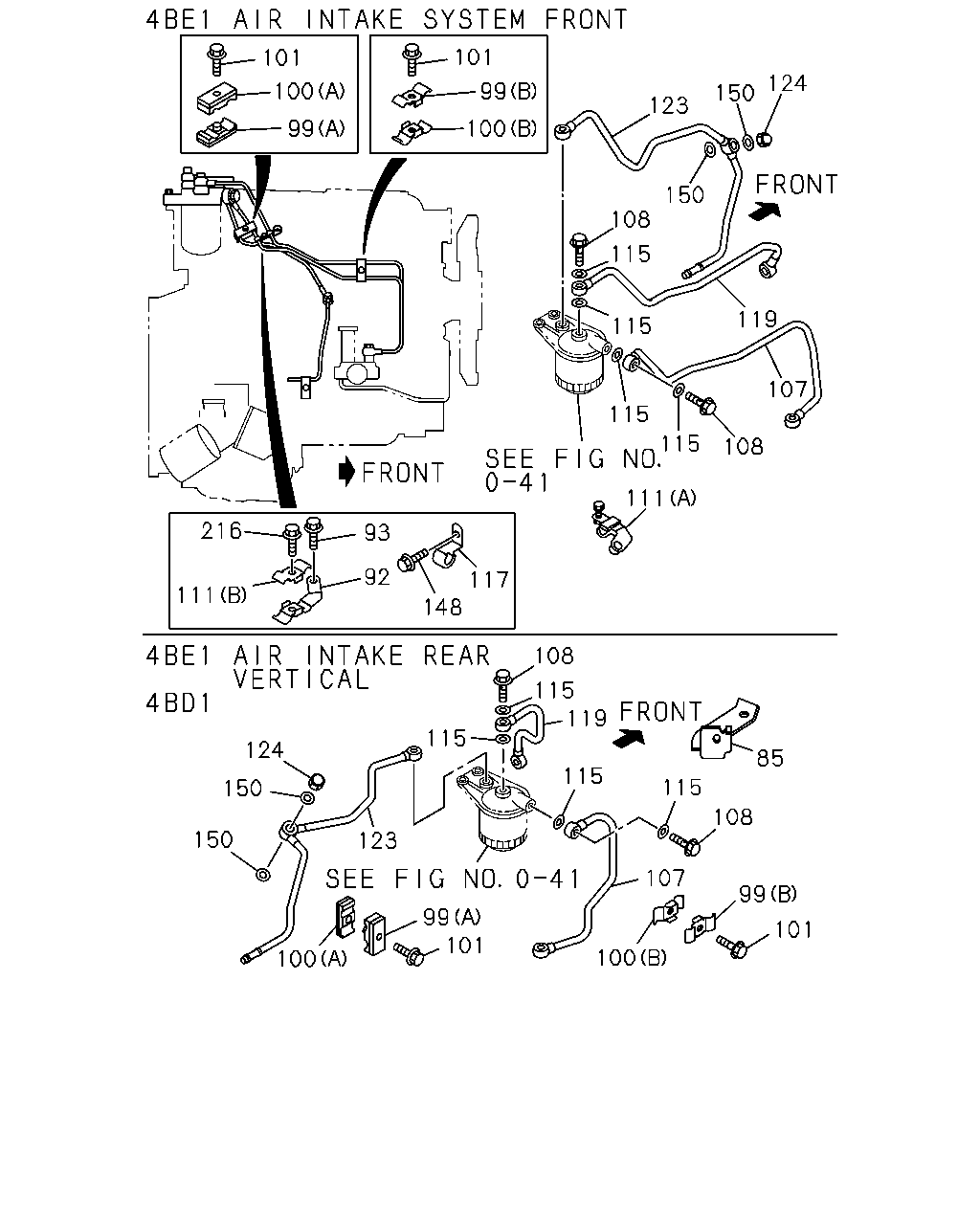

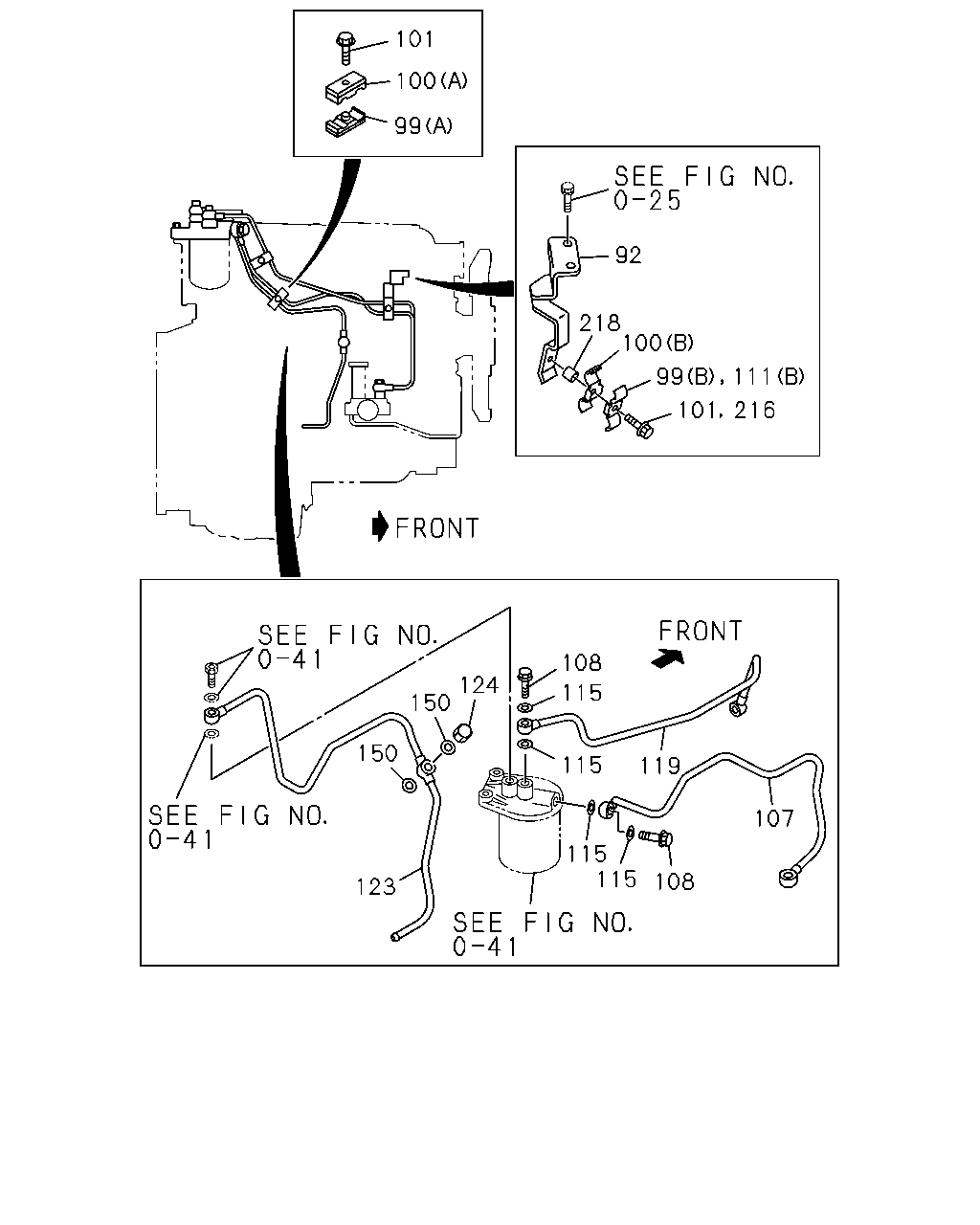

0-42 — FUEL PUMP AND PIPE (#44393) — 501 parça

101 101 124 100 99 150 123 99 100 150 108 115 119 115 107 115 115 108 111 216 93 92 117 148 111 108 115 119 115 124 85 115 115 150 108 150 123 107 99 99 101 101 100 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
85	03.454 BRACKET; ACCEL CABLE,FUEL FILTER T=2.3	8-94454-963-2	01	1	9312-9510	●
85	03.454 BRACKET; ACCEL CABLE,FUEL FILTER AIR INTAKE REAR VERTICAL<KJ3> T=2.3	8-94454-963-2	01	1	9312-9510		●
85	03.454 BRACKET; ACCEL CABLE,FUEL FILTER AIR INTAKE REAR VERTICAL<KJ3> T=2.3	8-94454-963-2	01	1	9511-		●
92	03.162 BRACKET; FUEL PIPE	8-97072-136-0	01	1	9312-			●
92	03.162 BRACKET; FUEL PIPE AIR INTAKE SYSTEM FRONT<6PC>	8-97064-282-0	01	1	9312-		●
92	03.162 BRACKET; FUEL PIPE	8-97085-387-2	01	1	9312-9510				●
92	03.162 BRACKET; FUEL PIPE CHARGE AIR COOLER<6PL> (A)	8-97166-995-1	01	1	9712-					●
92	03.162 BRACKET; FUEL PIPE CHARGE AIR COOLER<6PL> (B)	8-97173-465-1	01	1	9712-					●
93	03.162 BOLT; PIPE BRKT AIR INTAKE SYSTEM FRONT<6PC> 12.187 M8X16 W/LK&PL WASHER	0-50140-816-0	01	1	9312-		●
99	03.162 CLIP; "A",FUEL PIPE (B) ID=10 & 10 L=25	9-09716-114-0	01	1	9312-9401	●		●
99	03.162 CLIP; "A",FUEL PIPE AIR INTAKE REAR VERTICAL<KJ3> (B) ID=10 & 10 L=25	9-09716-114-0	01	1	9312-9401		●
99	03.162 CLIP; "A",FUEL PIPE (A) ID=6 & 7.5	8-94107-500-0	01	1	9312-9401	●	●	●
99	03.162 CLIP; "A",FUEL PIPE (B) ID=10 & 10 L=25	9-09716-114-0	01	1	9402-9510	●	●	●
99	03.162 CLIP; "A",FUEL PIPE (B) ID=10 & 10 L=25	9-09716-114-0	01	1	9511-		●	●
99	03.162 CLIP; "A",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-359-0	01	1	9312-9401			●
99	03.162 CLIP; "A",FUEL PIPE AIR INTAKE SYSTEM FRONT<6PC> (A) ID=6.0 & 9.5	8-94100-359-0	01	1	9312-9401		●
99	03.162 CLIP; "A",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-359-0	01	1	9402-9510	●	●	●
99	03.162 CLIP; "A",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-359-0	01	1	9402-9510		●
99	03.162 CLIP; "A",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-359-0	01	1	9511-9601		●	●
99	03.162 CLIP; "A",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-359-0	01	1	9511-9601		●
99	03.162 CLIP; "A",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-359-0	01	1	9602-9711		●	●
99	03.162 CLIP; "A",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-359-0	01	1	9602-9711		●	●
99	03.162 CLIP; "A",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-359-0	01	1	9712-		●	●
99	03.162 CLIP; "A",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-359-0	01	1	9712-			●
99	03.162 CLIP; "A",FUEL PIPE EXC. HIGH ALTITUDE COMPENSATOR(EE2), NEW ZEALAND EQUIPMENT(PK5), SINGAPOREEQUIPMENT(S9Y) (A) ID=6.0 & 9.5	8-94100-359-0	01	1	9712-		●
99	03.162 CLIP; "A",FUEL PIPE AIR INTAKE SYSTEM FRONT<6PC> (B) ID=10 & 10 L=25	9-09716-114-0	02	1	9312-9401		●
99	03.162 CLIP; "A",FUEL PIPE 03.330 ID=6.1 & 9.6	8-97016-323-0	03	1	9312-9402				●
99	03.162 CLIP; "A",FUEL PIPE 03.330 ID=6.1 & 9.6	8-97016-323-0	01	1	9403-9510				●
100	03.162 CLIP; "B",FUEL PIPE (B) ID=10 & 10 L=25 W/NUT	9-09716-124-0	01	1	9312-9401	●
100	03.162 CLIP; "B",FUEL PIPE AIR INTAKE REAR VERTICAL<KJ3> (B) ID=10 & 10 L=25 W/NUT	9-09716-124-0	01	1	9312-9401		●
100	03.162 CLIP; "B",FUEL PIPE (A) ID=6 & 7.5	8-94107-499-0	01	1	9312-9401	●	●	●
100	03.162 CLIP; "B",FUEL PIPE (B) ID=10 & 10 L=25 W/NUT	9-09716-124-0	01	1	9402-9510	●	●	●
100	03.162 CLIP; "B",FUEL PIPE (B) ID=10 & 10 L=25 W/NUT	9-09716-124-0	01	1	9511-		●	●
100	03.162 CLIP; "B",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-360-0	01	1	9312-9401			●
100	03.162 CLIP; "B",FUEL PIPE AIR INTAKE SYSTEM FRONT<6PC> (A) ID=6.0 & 9.5	8-94100-360-0	01	1	9312-9401		●
100	03.162 CLIP; "B",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-360-0	01	1	9402-9510	●	●	●
100	03.162 CLIP; "B",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-360-0	01	1	9402-9510		●
100	03.162 CLIP; "B",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-360-0	01	1	9511-9601		●	●
100	03.162 CLIP; "B",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-360-0	01	1	9511-9601		●
100	03.162 CLIP; "B",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-360-0	01	1	9602-9711		●	●
100	03.162 CLIP; "B",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-360-0	01	1	9602-9711		●	●
100	03.162 CLIP; "B",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-360-0	01	1	9712-		●	●
100	03.162 CLIP; "B",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-360-0	01	1	9712-			●
100	03.162 CLIP; "B",FUEL PIPE EXC. HIGH ALTITUDE COMPENSATOR(EE2), NEW ZEALAND EQUIPMENT(PK5), SINGAPOREEQUIPMENT(S9Y) (A) ID=6.0 & 9.5	8-94100-360-0	01	1	9712-		●
100	03.162 CLIP; "B",FUEL PIPE AIR INTAKE SYSTEM FRONT<6PC> (B) ID=10 & 10 L=25 W/NUT	9-09716-124-0	02	1	9312-9401		●
100	03.162 CLIP; "B",FUEL PIPE 03.330 (A) ID=6.1 & 9.6	8-97016-322-0	01	1	9312-9510				●
100	03.162 CLIP; "B",FUEL PIPE 01.516 (B)	8-97020-736-1	01	1	9312-9402				●
100	03.162 CLIP; "B",FUEL PIPE (B)	8-97108-315-0	01	1	9503-9711				●
100	03.162 CLIP; "B",FUEL PIPE (B)	8-97108-315-0	01	1	9712-				●	●	●
101	03.162 BOLT; FUEL CLIP 04.054 M6X25 W/LK WASHER	0-50040-625-0	02	1	9312-9510	●	●	●
101	03.162 BOLT; FUEL CLIP 04.054 M6X25 W/LK WASHER	0-50040-625-0	01	1	9511-			●
101	03.162 BOLT; FUEL CLIP AIR INTAKE SYSTEM FRONT<6PC> 04.054 M6X25 W/LK WASHER	0-50040-625-0	01	1	9511-		●
101	03.162 BOLT; FUEL CLIP 03.634 M6X30 W/LK&PL WASHER	0-50140-630-0	01	1	9312-9401			●
101	03.162 BOLT; FUEL CLIP AIR INTAKE SYSTEM FRONT<6PC> 04.054 M6X25 W/LK WASHER	0-50040-625-0	02	1	9312-9401		●
101	03.162 BOLT; FUEL CLIP 04.054 M6X25 W/LK WASHER	0-50040-625-0	01	1	9402-9510			●
101	03.162 BOLT; FUEL CLIP AIR INTAKE SYSTEM FRONT<6PC> 04.054 M6X25 W/LK WASHER	0-50040-625-0	01	1	9402-9510		●
101	03.162 BOLT; FUEL CLIP 04.054 M6X25 W/LK WASHER	0-50040-625-0	02	1	9511-		●	●
101	03.162 BOLT; FUEL CLIP 04.686 (A) M6X25 FLANGE	0-28080-625-0	01	1	9312-9510				●
101	03.162 BOLT; FUEL CLIP 03.405 (B) M6X35 FLANGE	0-28080-635-0	01	1	9312-9402				●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL	8-94410-031-0	01	1	9312-9510	●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL OD=10	8-97010-637-1	01	1	9312-			●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL AIR INTAKE REAR VERTICAL<KJ3>	8-94141-127-0	01	1	9312-		●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL AIR INTAKE SYSTEM FRONT<6PC>	8-97020-408-0	01	1	9312-		●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL	8-97080-924-0	01	1	9312-9510				●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL	8-97088-046-3	01	1	9511-9711				●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL	8-97088-046-3	01	1	9712-				●		●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL CHARGE AIR COOLER<6PL>	8-97148-967-3	01	1	9712-					●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL EXC. CHARGE AIR COOLER<6PL>	8-97147-786-0	01	1	9712-					●
108	03.162 BOLT; JOINT,FUEL FILTER M14X29 EYE BOLT	9-09906-325-1	02	1	9312-9510	●	●	●
108	03.162 BOLT; JOINT,FUEL FILTER M14X29 EYE BOLT	9-09906-325-1	02	1	9511-		●	●
108	03.162 BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	9312-9711				●
108	03.162 BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	9712-9801				●	●	●
108	03.162 BOLT; JOINT,FUEL FILTER CHARGE AIR COOLER<6PL> M14X27 FLANGE	1-09675-086-0	01	1	9802-					●
108	03.162 BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	9802-				●		●
108	03.162 BOLT; JOINT,FUEL FILTER POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> M14X27 FLANGE	1-09675-086-0	02	1	9802-					●
111	03.162 CLIP; FUEL PIPE AIR INTAKE SYSTEM FRONT<6PC> (A)	8-94428-909-0	01	1	9312-		●
111	03.162 CLIP; FUEL PIPE AIR INTAKE SYSTEM FRONT<6PC> (B) ID=10 & 10 L=25	9-09716-114-0	01	1	9312-9406		●
111	03.162 CLIP; FUEL PIPE (B) ID=10 & 10 L=25	9-09716-114-0	01	1	9407-			●
111	03.162 CLIP; FUEL PIPE AIR INTAKE SYSTEM FRONT<6PC> (B) ID=10 & 10 L=25	9-09716-114-0	01	1	9407-		●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9312-9406	●	●	●	●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9407-9502	●	●	●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9503-9510	●	●	●	●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9511-9711		●	●	●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9712-9801		●	●	●	●	●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) CHARGE AIR COOLER<6PL> 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9802-					●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9802-9807		●	●	●		●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. CHARGE AIR COOLER<6PL> 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9802-9807					●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9808-		●	●	●		●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9808-					●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9407-9502				●
117	03.162 CLIP; FUEL PIPE AIR INTAKE SYSTEM FRONT<6PC>	9-09916-621-1	01	1	9511-		●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU	8-94109-730-0	01	1	9312-9510	●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU OD=10	8-97010-638-0	01	1	9312-			●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU AIR INTAKE REAR VERTICAL<KJ3>	5-15411-851-0	01	1	9312-		●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU AIR INTAKE SYSTEM FRONT<6PC>	8-97020-409-0	01	1	9312-		●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU	8-97080-925-1	01	1	9312-9510				●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU	8-97088-047-0	01	1	9511-9711				●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU	8-97088-047-0	01	1	9712-				●		●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU CHARGE AIR COOLER<6PL>	8-97148-968-3	01	1	9712-9806					●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU CHARGE AIR COOLER<6PL>	8-97211-149-0	01	1	9807-					●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU EXC. CHARGE AIR COOLER<6PL>	8-97078-801-1	01	1	9712-					●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF	8-94132-928-1	01	1	9312-9510	●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF OD=6.35	8-97048-597-1	01	1	9312-			●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF AIR INTAKE REAR VERTICAL<KJ3>	8-97025-146-0	01	1	9312-		●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF AIR INTAKE SYSTEM FRONT<6PC>	8-97025-132-1	01	1	9312-		●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF	8-97070-345-3	01	1	9312-9510				●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF	8-97118-894-1	01	1	9511-9711				●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF	8-97118-894-1	01	1	9712-				●		●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL>	8-97118-894-1	01	1	9712-					●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF CHARGE AIR COOLER<6PL>	8-97148-970-2	01	1	9712-					●
124	03.162 NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9312-9406	●	●	●	●
124	03.162 NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9407-9502	●	●	●
124	03.162 NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9503-9510	●	●	●	●
124	03.162 NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9511-9711		●	●	●
124	03.162 NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9712-9807		●	●	●		●
124	03.162 NUT; CAP,FUEL PIPE EXC. CHARGE AIR COOLER<6PL> M14	1-09468-002-1	01	1	9712-9807					●
124	03.162 NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9808-		●	●	●		●
124	03.162 NUT; CAP,FUEL PIPE EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> M14	1-09468-002-1	01	1	9808-					●
124	03.162 NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9407-9502				●
148	03.162 BOLT; BRKT AIR INTAKE SYSTEM FRONT<6PC> 01.540 M6X25 W/LK&PL WASHER	0-50140-625-0	01	1	9511-		●
148	03.162 BOLT; BRKT CHARGE AIR COOLER<6PL> 02.334 (B) M6X25 FLANGE	0-28680-625-0	02	1	9712-					●
148	03.162 BOLT; BRKT CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) 00.724 (A) M8X16 FLANGE	0-28090-816-0	02	1	9712-					●
148	03.162 BOLT; BRKT UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> 00.724 (A) M8X16 FLANGE	0-28090-816-0	01	1	9712-					●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9312-9406	●	●	●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9407-9502	●	●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9503-9510	●	●	●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9511-9711		●	●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9712-9712		●	●	●		●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. CHARGE AIR COOLER<6PL> 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9712-9712					●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9801-		●	●	●	●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9407-9502				●
216	03.162 BOLT; CLIP,FUEL PIPE 03.634 M6X30 W/LK&PL WASHER	0-50140-630-0	01	1	9402-			●
216	03.162 BOLT; CLIP,FUEL PIPE AIR INTAKE SYSTEM FRONT<6PC> 04.054 M6X25 W/LK WASHER	0-50040-625-0	01	1	9312-		●

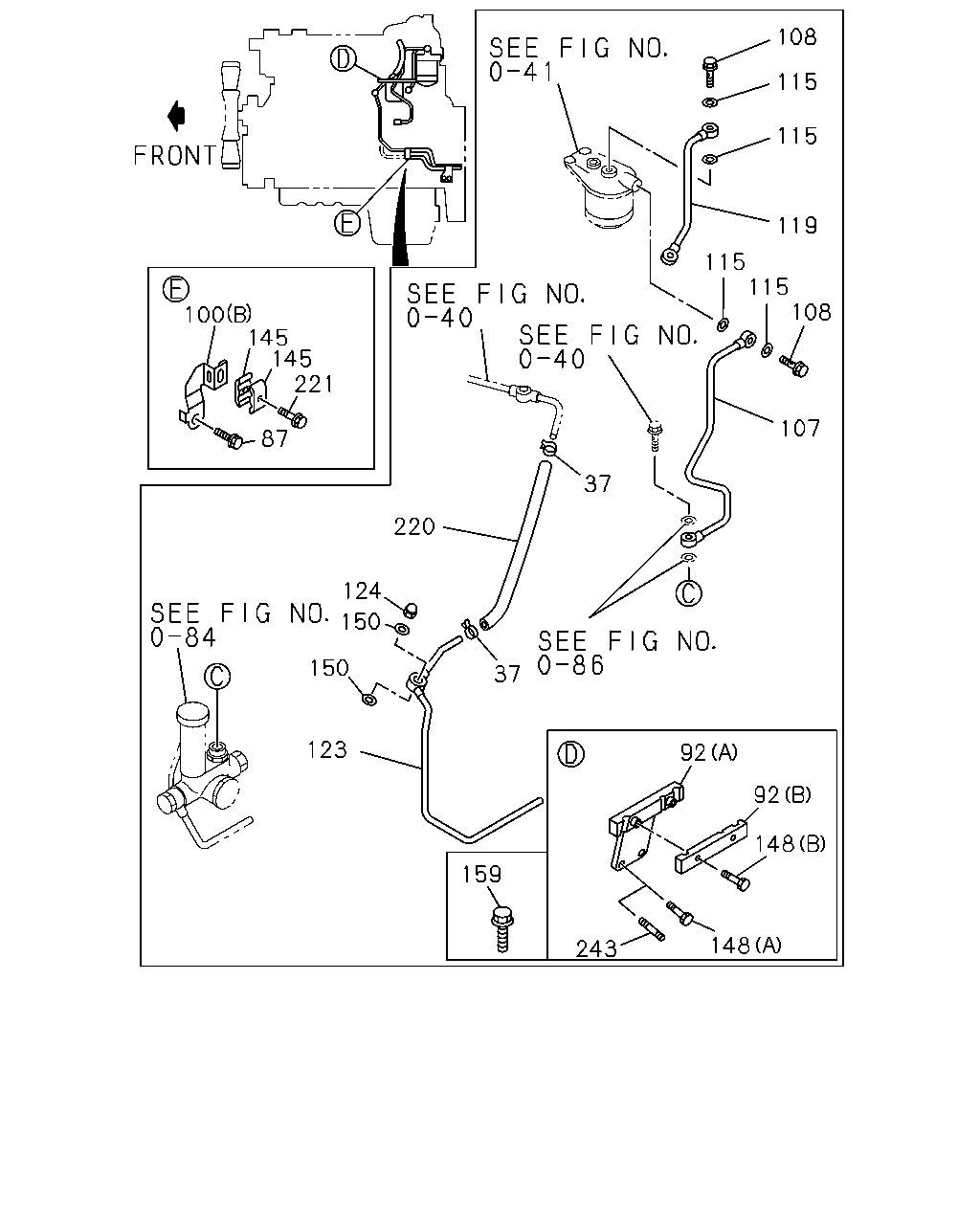

108 115 123 115 124 150 119 150 159 142 115 115 92 108 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
92	03.162 BRACKET; FUEL PIPE	8-97072-136-0	01	1	9312-			●
92	03.162 BRACKET; FUEL PIPE AIR INTAKE SYSTEM FRONT<6PC>	8-97064-282-0	01	1	9312-		●
92	03.162 BRACKET; FUEL PIPE	8-97085-387-2	01	1	9312-9510				●
92	03.162 BRACKET; FUEL PIPE CHARGE AIR COOLER<6PL> (A)	8-97166-995-1	01	1	9712-					●
92	03.162 BRACKET; FUEL PIPE CHARGE AIR COOLER<6PL> (B)	8-97173-465-1	01	1	9712-					●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL	8-94410-031-0	01	1	9312-9510	●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL OD=10	8-97010-637-1	01	1	9312-			●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL AIR INTAKE REAR VERTICAL<KJ3>	8-94141-127-0	01	1	9312-		●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL AIR INTAKE SYSTEM FRONT<6PC>	8-97020-408-0	01	1	9312-		●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL	8-97080-924-0	01	1	9312-9510				●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL	8-97088-046-3	01	1	9511-9711				●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL	8-97088-046-3	01	1	9712-				●		●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL CHARGE AIR COOLER<6PL>	8-97148-967-3	01	1	9712-					●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL EXC. CHARGE AIR COOLER<6PL>	8-97147-786-0	01	1	9712-					●
108	03.162 BOLT; JOINT,FUEL FILTER M14X29 EYE BOLT	9-09906-325-1	02	1	9312-9510	●	●	●
108	03.162 BOLT; JOINT,FUEL FILTER M14X29 EYE BOLT	9-09906-325-1	02	1	9511-		●	●
108	03.162 BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	9312-9711				●
108	03.162 BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	9712-9801				●	●	●
108	03.162 BOLT; JOINT,FUEL FILTER CHARGE AIR COOLER<6PL> M14X27 FLANGE	1-09675-086-0	01	1	9802-					●
108	03.162 BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	9802-				●		●
108	03.162 BOLT; JOINT,FUEL FILTER POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> M14X27 FLANGE	1-09675-086-0	02	1	9802-					●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9312-9406	●	●	●	●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9407-9502	●	●	●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9503-9510	●	●	●	●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9511-9711		●	●	●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9712-9801		●	●	●	●	●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) CHARGE AIR COOLER<6PL> 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9802-					●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9802-9807		●	●	●		●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. CHARGE AIR COOLER<6PL> 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9802-9807					●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9808-		●	●	●		●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9808-					●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9407-9502				●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU	8-94109-730-0	01	1	9312-9510	●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU OD=10	8-97010-638-0	01	1	9312-			●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU AIR INTAKE REAR VERTICAL<KJ3>	5-15411-851-0	01	1	9312-		●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU AIR INTAKE SYSTEM FRONT<6PC>	8-97020-409-0	01	1	9312-		●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU	8-97080-925-1	01	1	9312-9510				●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU	8-97088-047-0	01	1	9511-9711				●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU	8-97088-047-0	01	1	9712-				●		●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU CHARGE AIR COOLER<6PL>	8-97148-968-3	01	1	9712-9806					●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU CHARGE AIR COOLER<6PL>	8-97211-149-0	01	1	9807-					●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU EXC. CHARGE AIR COOLER<6PL>	8-97078-801-1	01	1	9712-					●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF	8-94132-928-1	01	1	9312-9510	●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF OD=6.35	8-97048-597-1	01	1	9312-			●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF AIR INTAKE REAR VERTICAL<KJ3>	8-97025-146-0	01	1	9312-		●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF AIR INTAKE SYSTEM FRONT<6PC>	8-97025-132-1	01	1	9312-		●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF	8-97070-345-3	01	1	9312-9510				●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF	8-97118-894-1	01	1	9511-9711				●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF	8-97118-894-1	01	1	9712-				●		●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL>	8-97118-894-1	01	1	9712-					●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF CHARGE AIR COOLER<6PL>	8-97148-970-2	01	1	9712-					●
124	03.162 NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9312-9406	●	●	●	●
124	03.162 NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9407-9502	●	●	●
124	03.162 NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9503-9510	●	●	●	●
124	03.162 NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9511-9711		●	●	●
124	03.162 NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9712-9807		●	●	●		●
124	03.162 NUT; CAP,FUEL PIPE EXC. CHARGE AIR COOLER<6PL> M14	1-09468-002-1	01	1	9712-9807					●
124	03.162 NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9808-		●	●	●		●
124	03.162 NUT; CAP,FUEL PIPE EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> M14	1-09468-002-1	01	1	9808-					●
124	03.162 NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9407-9502				●
142	03.162 CLIP; FUEL PIPE 03.145 ID=7 L=16	9-09524-622-0	01	1	9312-9510				●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9312-9406	●	●	●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9407-9502	●	●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9503-9510	●	●	●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9511-9711		●	●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9712-9712		●	●	●		●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. CHARGE AIR COOLER<6PL> 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9712-9712					●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9801-		●	●	●	●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9407-9502				●
159	03.162 BOLT; CLIP 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9312-9510				●
159	03.162 BOLT; CLIP CHARGE AIR COOLER<6PL> 02.500 M6X10 FLANGE	0-28080-610-0	01	1	9712-9804					●
159	03.162 BOLT; CLIP CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9805-					●

108 115 115 119 115 115 108 100 145 145 221 107 87 37 220 124 150 150 37 123 92 92 148 159 148 243

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
37	03.162 CLIP; FUEL HOSE 01.219 ID=12	8-94238-610-0	02	1	9511-9711				●
37	03.162 CLIP; FUEL HOSE 01.219 ID=12	8-94238-610-0	02	1	9712-				●	●	●
87	03.162 BOLT; STAY,FUEL PIPE 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9312-9711				●
87	03.162 BOLT; STAY,FUEL PIPE 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9712-				●		●
87	03.162 BOLT; STAY,FUEL PIPE POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9712-					●
92	03.162 BRACKET; FUEL PIPE	8-97072-136-0	01	1	9312-			●
92	03.162 BRACKET; FUEL PIPE AIR INTAKE SYSTEM FRONT<6PC>	8-97064-282-0	01	1	9312-		●
92	03.162 BRACKET; FUEL PIPE	8-97085-387-2	01	1	9312-9510				●
92	03.162 BRACKET; FUEL PIPE CHARGE AIR COOLER<6PL> (A)	8-97166-995-1	01	1	9712-					●
92	03.162 BRACKET; FUEL PIPE CHARGE AIR COOLER<6PL> (B)	8-97173-465-1	01	1	9712-					●
100	03.162 CLIP; "B",FUEL PIPE (B) ID=10 & 10 L=25 W/NUT	9-09716-124-0	01	1	9312-9401	●
100	03.162 CLIP; "B",FUEL PIPE AIR INTAKE REAR VERTICAL<KJ3> (B) ID=10 & 10 L=25 W/NUT	9-09716-124-0	01	1	9312-9401		●
100	03.162 CLIP; "B",FUEL PIPE (A) ID=6 & 7.5	8-94107-499-0	01	1	9312-9401	●	●	●
100	03.162 CLIP; "B",FUEL PIPE (B) ID=10 & 10 L=25 W/NUT	9-09716-124-0	01	1	9402-9510	●	●	●
100	03.162 CLIP; "B",FUEL PIPE (B) ID=10 & 10 L=25 W/NUT	9-09716-124-0	01	1	9511-		●	●
100	03.162 CLIP; "B",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-360-0	01	1	9312-9401			●
100	03.162 CLIP; "B",FUEL PIPE AIR INTAKE SYSTEM FRONT<6PC> (A) ID=6.0 & 9.5	8-94100-360-0	01	1	9312-9401		●
100	03.162 CLIP; "B",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-360-0	01	1	9402-9510	●	●	●
100	03.162 CLIP; "B",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-360-0	01	1	9402-9510		●
100	03.162 CLIP; "B",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-360-0	01	1	9511-9601		●	●
100	03.162 CLIP; "B",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-360-0	01	1	9511-9601		●
100	03.162 CLIP; "B",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-360-0	01	1	9602-9711		●	●
100	03.162 CLIP; "B",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-360-0	01	1	9602-9711		●	●
100	03.162 CLIP; "B",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-360-0	01	1	9712-		●	●
100	03.162 CLIP; "B",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-360-0	01	1	9712-			●
100	03.162 CLIP; "B",FUEL PIPE EXC. HIGH ALTITUDE COMPENSATOR(EE2), NEW ZEALAND EQUIPMENT(PK5), SINGAPOREEQUIPMENT(S9Y) (A) ID=6.0 & 9.5	8-94100-360-0	01	1	9712-		●
100	03.162 CLIP; "B",FUEL PIPE AIR INTAKE SYSTEM FRONT<6PC> (B) ID=10 & 10 L=25 W/NUT	9-09716-124-0	02	1	9312-9401		●
100	03.162 CLIP; "B",FUEL PIPE 03.330 (A) ID=6.1 & 9.6	8-97016-322-0	01	1	9312-9510				●
100	03.162 CLIP; "B",FUEL PIPE 01.516 (B)	8-97020-736-1	01	1	9312-9402				●
100	03.162 CLIP; "B",FUEL PIPE (B)	8-97108-315-0	01	1	9503-9711				●
100	03.162 CLIP; "B",FUEL PIPE (B)	8-97108-315-0	01	1	9712-				●	●	●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL	8-94410-031-0	01	1	9312-9510	●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL OD=10	8-97010-637-1	01	1	9312-			●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL AIR INTAKE REAR VERTICAL<KJ3>	8-94141-127-0	01	1	9312-		●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL AIR INTAKE SYSTEM FRONT<6PC>	8-97020-408-0	01	1	9312-		●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL	8-97080-924-0	01	1	9312-9510				●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL	8-97088-046-3	01	1	9511-9711				●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL	8-97088-046-3	01	1	9712-				●		●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL CHARGE AIR COOLER<6PL>	8-97148-967-3	01	1	9712-					●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL EXC. CHARGE AIR COOLER<6PL>	8-97147-786-0	01	1	9712-					●
108	03.162 BOLT; JOINT,FUEL FILTER M14X29 EYE BOLT	9-09906-325-1	02	1	9312-9510	●	●	●
108	03.162 BOLT; JOINT,FUEL FILTER M14X29 EYE BOLT	9-09906-325-1	02	1	9511-		●	●
108	03.162 BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	9312-9711				●
108	03.162 BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	9712-9801				●	●	●
108	03.162 BOLT; JOINT,FUEL FILTER CHARGE AIR COOLER<6PL> M14X27 FLANGE	1-09675-086-0	01	1	9802-					●
108	03.162 BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	9802-				●		●
108	03.162 BOLT; JOINT,FUEL FILTER POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> M14X27 FLANGE	1-09675-086-0	02	1	9802-					●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9312-9406	●	●	●	●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9407-9502	●	●	●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9503-9510	●	●	●	●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9511-9711		●	●	●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9712-9801		●	●	●	●	●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) CHARGE AIR COOLER<6PL> 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9802-					●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9802-9807		●	●	●		●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. CHARGE AIR COOLER<6PL> 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9802-9807					●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9808-		●	●	●		●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9808-					●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9407-9502				●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU	8-94109-730-0	01	1	9312-9510	●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU OD=10	8-97010-638-0	01	1	9312-			●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU AIR INTAKE REAR VERTICAL<KJ3>	5-15411-851-0	01	1	9312-		●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU AIR INTAKE SYSTEM FRONT<6PC>	8-97020-409-0	01	1	9312-		●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU	8-97080-925-1	01	1	9312-9510				●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU	8-97088-047-0	01	1	9511-9711				●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU	8-97088-047-0	01	1	9712-				●		●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU CHARGE AIR COOLER<6PL>	8-97148-968-3	01	1	9712-9806					●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU CHARGE AIR COOLER<6PL>	8-97211-149-0	01	1	9807-					●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU EXC. CHARGE AIR COOLER<6PL>	8-97078-801-1	01	1	9712-					●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF	8-94132-928-1	01	1	9312-9510	●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF OD=6.35	8-97048-597-1	01	1	9312-			●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF AIR INTAKE REAR VERTICAL<KJ3>	8-97025-146-0	01	1	9312-		●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF AIR INTAKE SYSTEM FRONT<6PC>	8-97025-132-1	01	1	9312-		●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF	8-97070-345-3	01	1	9312-9510				●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF	8-97118-894-1	01	1	9511-9711				●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF	8-97118-894-1	01	1	9712-				●		●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL>	8-97118-894-1	01	1	9712-					●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF CHARGE AIR COOLER<6PL>	8-97148-970-2	01	1	9712-					●
124	03.162 NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9312-9406	●	●	●	●
124	03.162 NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9407-9502	●	●	●
124	03.162 NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9503-9510	●	●	●	●
124	03.162 NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9511-9711		●	●	●
124	03.162 NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9712-9807		●	●	●		●
124	03.162 NUT; CAP,FUEL PIPE EXC. CHARGE AIR COOLER<6PL> M14	1-09468-002-1	01	1	9712-9807					●
124	03.162 NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9808-		●	●	●		●
124	03.162 NUT; CAP,FUEL PIPE EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> M14	1-09468-002-1	01	1	9808-					●
124	03.162 NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9407-9502				●
145	03.162 CLIP; FUEL PIPE 03.330 ID=6.1 & 9.6	8-97016-323-0	02	1	9503-9711				●
145	03.162 CLIP; FUEL PIPE 03.330 ID=6.1 & 9.6	8-97016-323-0	02	1	9712-				●	●	●
148	03.162 BOLT; BRKT AIR INTAKE SYSTEM FRONT<6PC> 01.540 M6X25 W/LK&PL WASHER	0-50140-625-0	01	1	9511-		●
148	03.162 BOLT; BRKT CHARGE AIR COOLER<6PL> 02.334 (B) M6X25 FLANGE	0-28680-625-0	02	1	9712-					●
148	03.162 BOLT; BRKT CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) 00.724 (A) M8X16 FLANGE	0-28090-816-0	02	1	9712-					●
148	03.162 BOLT; BRKT UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> 00.724 (A) M8X16 FLANGE	0-28090-816-0	01	1	9712-					●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9312-9406	●	●	●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9407-9502	●	●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9503-9510	●	●	●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9511-9711		●	●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9712-9712		●	●	●		●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. CHARGE AIR COOLER<6PL> 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9712-9712					●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9801-		●	●	●	●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9407-9502				●
159	03.162 BOLT; CLIP 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9312-9510				●
159	03.162 BOLT; CLIP CHARGE AIR COOLER<6PL> 02.500 M6X10 FLANGE	0-28080-610-0	01	1	9712-9804					●
159	03.162 BOLT; CLIP CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9805-					●
220	03.163 HOSE; FUEL L=280 SERVICED BY L=3000	0-01256-300-0	01	1	9511-9711				●
220	03.163 HOSE; FUEL L=280 SERVICED BY L=3000	0-01256-300-0	01	1	9712-				●		●
220	03.163 HOSE; FUEL POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> L=280 SERVICED BY L=3000	0-01256-300-0	01	1	9712-					●
220	03.163 HOSE; FUEL CHARGE AIR COOLER<6PL> L=180 SERVICED BY L=3000	0-01256-300-0	01	1	9712-					●
221	03.163 BOLT; FUEL PIPE M6X40 FLANGE	0-28680-640-0	01	1	9503-9711				●
221	03.163 BOLT; FUEL PIPE M6X40 FLANGE	0-28680-640-0	01	1	9712-				●	●	●
243	03.278 STUD; BRKT UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> M6X14,M8X17 L=42	5-09309-006-1	01	1	9712-					●

207 207

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
207	03.890 GASKET; EYE BOLT 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9312-9510	●	●	●	●
207	03.890 GASKET; EYE BOLT 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9511-9711		●	●	●
207	03.890 GASKET; EYE BOLT 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9712-		●	●	●		●
207	03.890 GASKET; EYE BOLT EXC. CHARGE AIR COOLER<6PL> 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9712-					●

100 101 99 100 100 145 145 99 101 221 99 87 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
87	03.162 BOLT; STAY,FUEL PIPE 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9312-9711				●
87	03.162 BOLT; STAY,FUEL PIPE 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9712-				●		●
87	03.162 BOLT; STAY,FUEL PIPE POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9712-					●
99	03.162 CLIP; "A",FUEL PIPE (B) ID=10 & 10 L=25	9-09716-114-0	01	1	9312-9401	●		●
99	03.162 CLIP; "A",FUEL PIPE AIR INTAKE REAR VERTICAL<KJ3> (B) ID=10 & 10 L=25	9-09716-114-0	01	1	9312-9401		●
99	03.162 CLIP; "A",FUEL PIPE (A) ID=6 & 7.5	8-94107-500-0	01	1	9312-9401	●	●	●
99	03.162 CLIP; "A",FUEL PIPE (B) ID=10 & 10 L=25	9-09716-114-0	01	1	9402-9510	●	●	●
99	03.162 CLIP; "A",FUEL PIPE (B) ID=10 & 10 L=25	9-09716-114-0	01	1	9511-		●	●
99	03.162 CLIP; "A",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-359-0	01	1	9312-9401			●
99	03.162 CLIP; "A",FUEL PIPE AIR INTAKE SYSTEM FRONT<6PC> (A) ID=6.0 & 9.5	8-94100-359-0	01	1	9312-9401		●
99	03.162 CLIP; "A",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-359-0	01	1	9402-9510	●	●	●
99	03.162 CLIP; "A",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-359-0	01	1	9402-9510		●
99	03.162 CLIP; "A",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-359-0	01	1	9511-9601		●	●
99	03.162 CLIP; "A",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-359-0	01	1	9511-9601		●
99	03.162 CLIP; "A",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-359-0	01	1	9602-9711		●	●
99	03.162 CLIP; "A",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-359-0	01	1	9602-9711		●	●
99	03.162 CLIP; "A",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-359-0	01	1	9712-		●	●
99	03.162 CLIP; "A",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-359-0	01	1	9712-			●
99	03.162 CLIP; "A",FUEL PIPE EXC. HIGH ALTITUDE COMPENSATOR(EE2), NEW ZEALAND EQUIPMENT(PK5), SINGAPOREEQUIPMENT(S9Y) (A) ID=6.0 & 9.5	8-94100-359-0	01	1	9712-		●
99	03.162 CLIP; "A",FUEL PIPE AIR INTAKE SYSTEM FRONT<6PC> (B) ID=10 & 10 L=25	9-09716-114-0	02	1	9312-9401		●
99	03.162 CLIP; "A",FUEL PIPE 03.330 ID=6.1 & 9.6	8-97016-323-0	03	1	9312-9402				●
99	03.162 CLIP; "A",FUEL PIPE 03.330 ID=6.1 & 9.6	8-97016-323-0	01	1	9403-9510				●
100	03.162 CLIP; "B",FUEL PIPE (B) ID=10 & 10 L=25 W/NUT	9-09716-124-0	01	1	9312-9401	●
100	03.162 CLIP; "B",FUEL PIPE AIR INTAKE REAR VERTICAL<KJ3> (B) ID=10 & 10 L=25 W/NUT	9-09716-124-0	01	1	9312-9401		●
100	03.162 CLIP; "B",FUEL PIPE (A) ID=6 & 7.5	8-94107-499-0	01	1	9312-9401	●	●	●
100	03.162 CLIP; "B",FUEL PIPE (B) ID=10 & 10 L=25 W/NUT	9-09716-124-0	01	1	9402-9510	●	●	●
100	03.162 CLIP; "B",FUEL PIPE (B) ID=10 & 10 L=25 W/NUT	9-09716-124-0	01	1	9511-		●	●
100	03.162 CLIP; "B",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-360-0	01	1	9312-9401			●
100	03.162 CLIP; "B",FUEL PIPE AIR INTAKE SYSTEM FRONT<6PC> (A) ID=6.0 & 9.5	8-94100-360-0	01	1	9312-9401		●
100	03.162 CLIP; "B",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-360-0	01	1	9402-9510	●	●	●
100	03.162 CLIP; "B",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-360-0	01	1	9402-9510		●
100	03.162 CLIP; "B",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-360-0	01	1	9511-9601		●	●
100	03.162 CLIP; "B",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-360-0	01	1	9511-9601		●
100	03.162 CLIP; "B",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-360-0	01	1	9602-9711		●	●
100	03.162 CLIP; "B",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-360-0	01	1	9602-9711		●	●
100	03.162 CLIP; "B",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-360-0	01	1	9712-		●	●
100	03.162 CLIP; "B",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-360-0	01	1	9712-			●
100	03.162 CLIP; "B",FUEL PIPE EXC. HIGH ALTITUDE COMPENSATOR(EE2), NEW ZEALAND EQUIPMENT(PK5), SINGAPOREEQUIPMENT(S9Y) (A) ID=6.0 & 9.5	8-94100-360-0	01	1	9712-		●
100	03.162 CLIP; "B",FUEL PIPE AIR INTAKE SYSTEM FRONT<6PC> (B) ID=10 & 10 L=25 W/NUT	9-09716-124-0	02	1	9312-9401		●
100	03.162 CLIP; "B",FUEL PIPE 03.330 (A) ID=6.1 & 9.6	8-97016-322-0	01	1	9312-9510				●
100	03.162 CLIP; "B",FUEL PIPE 01.516 (B)	8-97020-736-1	01	1	9312-9402				●
100	03.162 CLIP; "B",FUEL PIPE (B)	8-97108-315-0	01	1	9503-9711				●
100	03.162 CLIP; "B",FUEL PIPE (B)	8-97108-315-0	01	1	9712-				●	●	●
101	03.162 BOLT; FUEL CLIP 04.054 M6X25 W/LK WASHER	0-50040-625-0	02	1	9312-9510	●	●	●
101	03.162 BOLT; FUEL CLIP 04.054 M6X25 W/LK WASHER	0-50040-625-0	01	1	9511-			●
101	03.162 BOLT; FUEL CLIP AIR INTAKE SYSTEM FRONT<6PC> 04.054 M6X25 W/LK WASHER	0-50040-625-0	01	1	9511-		●
101	03.162 BOLT; FUEL CLIP 03.634 M6X30 W/LK&PL WASHER	0-50140-630-0	01	1	9312-9401			●
101	03.162 BOLT; FUEL CLIP AIR INTAKE SYSTEM FRONT<6PC> 04.054 M6X25 W/LK WASHER	0-50040-625-0	02	1	9312-9401		●
101	03.162 BOLT; FUEL CLIP 04.054 M6X25 W/LK WASHER	0-50040-625-0	01	1	9402-9510			●
101	03.162 BOLT; FUEL CLIP AIR INTAKE SYSTEM FRONT<6PC> 04.054 M6X25 W/LK WASHER	0-50040-625-0	01	1	9402-9510		●
101	03.162 BOLT; FUEL CLIP 04.054 M6X25 W/LK WASHER	0-50040-625-0	02	1	9511-		●	●
101	03.162 BOLT; FUEL CLIP 04.686 (A) M6X25 FLANGE	0-28080-625-0	01	1	9312-9510				●
101	03.162 BOLT; FUEL CLIP 03.405 (B) M6X35 FLANGE	0-28080-635-0	01	1	9312-9402				●
145	03.162 CLIP; FUEL PIPE 03.330 ID=6.1 & 9.6	8-97016-323-0	02	1	9503-9711				●
145	03.162 CLIP; FUEL PIPE 03.330 ID=6.1 & 9.6	8-97016-323-0	02	1	9712-				●	●	●
221	03.163 BOLT; FUEL PIPE M6X40 FLANGE	0-28680-640-0	01	1	9503-9711				●
221	03.163 BOLT; FUEL PIPE M6X40 FLANGE	0-28680-640-0	01	1	9712-				●	●	●

101 100 99 92 218 100 99 111 101 216 108 124 115 150 150 115 119 107 115 115 108 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
92	03.162 BRACKET; FUEL PIPE	8-97072-136-0	01	1	9312-			●
92	03.162 BRACKET; FUEL PIPE AIR INTAKE SYSTEM FRONT<6PC>	8-97064-282-0	01	1	9312-		●
92	03.162 BRACKET; FUEL PIPE	8-97085-387-2	01	1	9312-9510				●
92	03.162 BRACKET; FUEL PIPE CHARGE AIR COOLER<6PL> (A)	8-97166-995-1	01	1	9712-					●
92	03.162 BRACKET; FUEL PIPE CHARGE AIR COOLER<6PL> (B)	8-97173-465-1	01	1	9712-					●
99	03.162 CLIP; "A",FUEL PIPE (B) ID=10 & 10 L=25	9-09716-114-0	01	1	9312-9401	●		●
99	03.162 CLIP; "A",FUEL PIPE AIR INTAKE REAR VERTICAL<KJ3> (B) ID=10 & 10 L=25	9-09716-114-0	01	1	9312-9401		●
99	03.162 CLIP; "A",FUEL PIPE (A) ID=6 & 7.5	8-94107-500-0	01	1	9312-9401	●	●	●
99	03.162 CLIP; "A",FUEL PIPE (B) ID=10 & 10 L=25	9-09716-114-0	01	1	9402-9510	●	●	●
99	03.162 CLIP; "A",FUEL PIPE (B) ID=10 & 10 L=25	9-09716-114-0	01	1	9511-		●	●
99	03.162 CLIP; "A",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-359-0	01	1	9312-9401			●
99	03.162 CLIP; "A",FUEL PIPE AIR INTAKE SYSTEM FRONT<6PC> (A) ID=6.0 & 9.5	8-94100-359-0	01	1	9312-9401		●
99	03.162 CLIP; "A",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-359-0	01	1	9402-9510	●	●	●
99	03.162 CLIP; "A",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-359-0	01	1	9402-9510		●
99	03.162 CLIP; "A",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-359-0	01	1	9511-9601		●	●
99	03.162 CLIP; "A",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-359-0	01	1	9511-9601		●
99	03.162 CLIP; "A",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-359-0	01	1	9602-9711		●	●
99	03.162 CLIP; "A",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-359-0	01	1	9602-9711		●	●
99	03.162 CLIP; "A",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-359-0	01	1	9712-		●	●
99	03.162 CLIP; "A",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-359-0	01	1	9712-			●
99	03.162 CLIP; "A",FUEL PIPE EXC. HIGH ALTITUDE COMPENSATOR(EE2), NEW ZEALAND EQUIPMENT(PK5), SINGAPOREEQUIPMENT(S9Y) (A) ID=6.0 & 9.5	8-94100-359-0	01	1	9712-		●
99	03.162 CLIP; "A",FUEL PIPE AIR INTAKE SYSTEM FRONT<6PC> (B) ID=10 & 10 L=25	9-09716-114-0	02	1	9312-9401		●
99	03.162 CLIP; "A",FUEL PIPE 03.330 ID=6.1 & 9.6	8-97016-323-0	03	1	9312-9402				●
99	03.162 CLIP; "A",FUEL PIPE 03.330 ID=6.1 & 9.6	8-97016-323-0	01	1	9403-9510				●
100	03.162 CLIP; "B",FUEL PIPE (B) ID=10 & 10 L=25 W/NUT	9-09716-124-0	01	1	9312-9401	●
100	03.162 CLIP; "B",FUEL PIPE AIR INTAKE REAR VERTICAL<KJ3> (B) ID=10 & 10 L=25 W/NUT	9-09716-124-0	01	1	9312-9401		●
100	03.162 CLIP; "B",FUEL PIPE (A) ID=6 & 7.5	8-94107-499-0	01	1	9312-9401	●	●	●
100	03.162 CLIP; "B",FUEL PIPE (B) ID=10 & 10 L=25 W/NUT	9-09716-124-0	01	1	9402-9510	●	●	●
100	03.162 CLIP; "B",FUEL PIPE (B) ID=10 & 10 L=25 W/NUT	9-09716-124-0	01	1	9511-		●	●
100	03.162 CLIP; "B",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-360-0	01	1	9312-9401			●
100	03.162 CLIP; "B",FUEL PIPE AIR INTAKE SYSTEM FRONT<6PC> (A) ID=6.0 & 9.5	8-94100-360-0	01	1	9312-9401		●
100	03.162 CLIP; "B",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-360-0	01	1	9402-9510	●	●	●
100	03.162 CLIP; "B",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-360-0	01	1	9402-9510		●
100	03.162 CLIP; "B",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-360-0	01	1	9511-9601		●	●
100	03.162 CLIP; "B",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-360-0	01	1	9511-9601		●
100	03.162 CLIP; "B",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-360-0	01	1	9602-9711		●	●
100	03.162 CLIP; "B",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-360-0	01	1	9602-9711		●	●
100	03.162 CLIP; "B",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-360-0	01	1	9712-		●	●
100	03.162 CLIP; "B",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-360-0	01	1	9712-			●
100	03.162 CLIP; "B",FUEL PIPE EXC. HIGH ALTITUDE COMPENSATOR(EE2), NEW ZEALAND EQUIPMENT(PK5), SINGAPOREEQUIPMENT(S9Y) (A) ID=6.0 & 9.5	8-94100-360-0	01	1	9712-		●
100	03.162 CLIP; "B",FUEL PIPE AIR INTAKE SYSTEM FRONT<6PC> (B) ID=10 & 10 L=25 W/NUT	9-09716-124-0	02	1	9312-9401		●
100	03.162 CLIP; "B",FUEL PIPE 03.330 (A) ID=6.1 & 9.6	8-97016-322-0	01	1	9312-9510				●
100	03.162 CLIP; "B",FUEL PIPE 01.516 (B)	8-97020-736-1	01	1	9312-9402				●
100	03.162 CLIP; "B",FUEL PIPE (B)	8-97108-315-0	01	1	9503-9711				●
100	03.162 CLIP; "B",FUEL PIPE (B)	8-97108-315-0	01	1	9712-				●	●	●
101	03.162 BOLT; FUEL CLIP 04.054 M6X25 W/LK WASHER	0-50040-625-0	02	1	9312-9510	●	●	●
101	03.162 BOLT; FUEL CLIP 04.054 M6X25 W/LK WASHER	0-50040-625-0	01	1	9511-			●
101	03.162 BOLT; FUEL CLIP AIR INTAKE SYSTEM FRONT<6PC> 04.054 M6X25 W/LK WASHER	0-50040-625-0	01	1	9511-		●
101	03.162 BOLT; FUEL CLIP 03.634 M6X30 W/LK&PL WASHER	0-50140-630-0	01	1	9312-9401			●
101	03.162 BOLT; FUEL CLIP AIR INTAKE SYSTEM FRONT<6PC> 04.054 M6X25 W/LK WASHER	0-50040-625-0	02	1	9312-9401		●
101	03.162 BOLT; FUEL CLIP 04.054 M6X25 W/LK WASHER	0-50040-625-0	01	1	9402-9510			●
101	03.162 BOLT; FUEL CLIP AIR INTAKE SYSTEM FRONT<6PC> 04.054 M6X25 W/LK WASHER	0-50040-625-0	01	1	9402-9510		●
101	03.162 BOLT; FUEL CLIP 04.054 M6X25 W/LK WASHER	0-50040-625-0	02	1	9511-		●	●
101	03.162 BOLT; FUEL CLIP 04.686 (A) M6X25 FLANGE	0-28080-625-0	01	1	9312-9510				●
101	03.162 BOLT; FUEL CLIP 03.405 (B) M6X35 FLANGE	0-28080-635-0	01	1	9312-9402				●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL	8-94410-031-0	01	1	9312-9510	●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL OD=10	8-97010-637-1	01	1	9312-			●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL AIR INTAKE REAR VERTICAL<KJ3>	8-94141-127-0	01	1	9312-		●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL AIR INTAKE SYSTEM FRONT<6PC>	8-97020-408-0	01	1	9312-		●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL	8-97080-924-0	01	1	9312-9510				●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL	8-97088-046-3	01	1	9511-9711				●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL	8-97088-046-3	01	1	9712-				●		●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL CHARGE AIR COOLER<6PL>	8-97148-967-3	01	1	9712-					●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL EXC. CHARGE AIR COOLER<6PL>	8-97147-786-0	01	1	9712-					●
108	03.162 BOLT; JOINT,FUEL FILTER M14X29 EYE BOLT	9-09906-325-1	02	1	9312-9510	●	●	●
108	03.162 BOLT; JOINT,FUEL FILTER M14X29 EYE BOLT	9-09906-325-1	02	1	9511-		●	●
108	03.162 BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	9312-9711				●
108	03.162 BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	9712-9801				●	●	●
108	03.162 BOLT; JOINT,FUEL FILTER CHARGE AIR COOLER<6PL> M14X27 FLANGE	1-09675-086-0	01	1	9802-					●
108	03.162 BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	9802-				●		●
108	03.162 BOLT; JOINT,FUEL FILTER POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> M14X27 FLANGE	1-09675-086-0	02	1	9802-					●
111	03.162 CLIP; FUEL PIPE AIR INTAKE SYSTEM FRONT<6PC> (A)	8-94428-909-0	01	1	9312-		●
111	03.162 CLIP; FUEL PIPE AIR INTAKE SYSTEM FRONT<6PC> (B) ID=10 & 10 L=25	9-09716-114-0	01	1	9312-9406		●
111	03.162 CLIP; FUEL PIPE (B) ID=10 & 10 L=25	9-09716-114-0	01	1	9407-			●
111	03.162 CLIP; FUEL PIPE AIR INTAKE SYSTEM FRONT<6PC> (B) ID=10 & 10 L=25	9-09716-114-0	01	1	9407-		●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9312-9406	●	●	●	●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9407-9502	●	●	●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9503-9510	●	●	●	●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9511-9711		●	●	●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9712-9801		●	●	●	●	●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) CHARGE AIR COOLER<6PL> 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9802-					●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9802-9807		●	●	●		●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. CHARGE AIR COOLER<6PL> 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9802-9807					●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9808-		●	●	●		●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9808-					●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9407-9502				●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU	8-94109-730-0	01	1	9312-9510	●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU OD=10	8-97010-638-0	01	1	9312-			●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU AIR INTAKE REAR VERTICAL<KJ3>	5-15411-851-0	01	1	9312-		●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU AIR INTAKE SYSTEM FRONT<6PC>	8-97020-409-0	01	1	9312-		●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU	8-97080-925-1	01	1	9312-9510				●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU	8-97088-047-0	01	1	9511-9711				●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU	8-97088-047-0	01	1	9712-				●		●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU CHARGE AIR COOLER<6PL>	8-97148-968-3	01	1	9712-9806					●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU CHARGE AIR COOLER<6PL>	8-97211-149-0	01	1	9807-					●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU EXC. CHARGE AIR COOLER<6PL>	8-97078-801-1	01	1	9712-					●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF	8-94132-928-1	01	1	9312-9510	●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF OD=6.35	8-97048-597-1	01	1	9312-			●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF AIR INTAKE REAR VERTICAL<KJ3>	8-97025-146-0	01	1	9312-		●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF AIR INTAKE SYSTEM FRONT<6PC>	8-97025-132-1	01	1	9312-		●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF	8-97070-345-3	01	1	9312-9510				●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF	8-97118-894-1	01	1	9511-9711				●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF	8-97118-894-1	01	1	9712-				●		●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL>	8-97118-894-1	01	1	9712-					●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF CHARGE AIR COOLER<6PL>	8-97148-970-2	01	1	9712-					●
124	03.162 NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9312-9406	●	●	●	●
124	03.162 NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9407-9502	●	●	●
124	03.162 NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9503-9510	●	●	●	●
124	03.162 NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9511-9711		●	●	●
124	03.162 NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9712-9807		●	●	●		●
124	03.162 NUT; CAP,FUEL PIPE EXC. CHARGE AIR COOLER<6PL> M14	1-09468-002-1	01	1	9712-9807					●
124	03.162 NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9808-		●	●	●		●
124	03.162 NUT; CAP,FUEL PIPE EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> M14	1-09468-002-1	01	1	9808-					●
124	03.162 NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9407-9502				●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9312-9406	●	●	●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9407-9502	●	●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9503-9510	●	●	●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9511-9711		●	●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9712-9712		●	●	●		●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. CHARGE AIR COOLER<6PL> 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9712-9712					●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9801-		●	●	●	●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9407-9502				●
216	03.162 BOLT; CLIP,FUEL PIPE 03.634 M6X30 W/LK&PL WASHER	0-50140-630-0	01	1	9402-			●
216	03.162 BOLT; CLIP,FUEL PIPE AIR INTAKE SYSTEM FRONT<6PC> 04.054 M6X25 W/LK WASHER	0-50040-625-0	01	1	9312-		●
218	03.162 PIECE; DISTANCE	8-97064-314-0	01	1	9312-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
