Sayfa 0-41 - Isuzu EPC

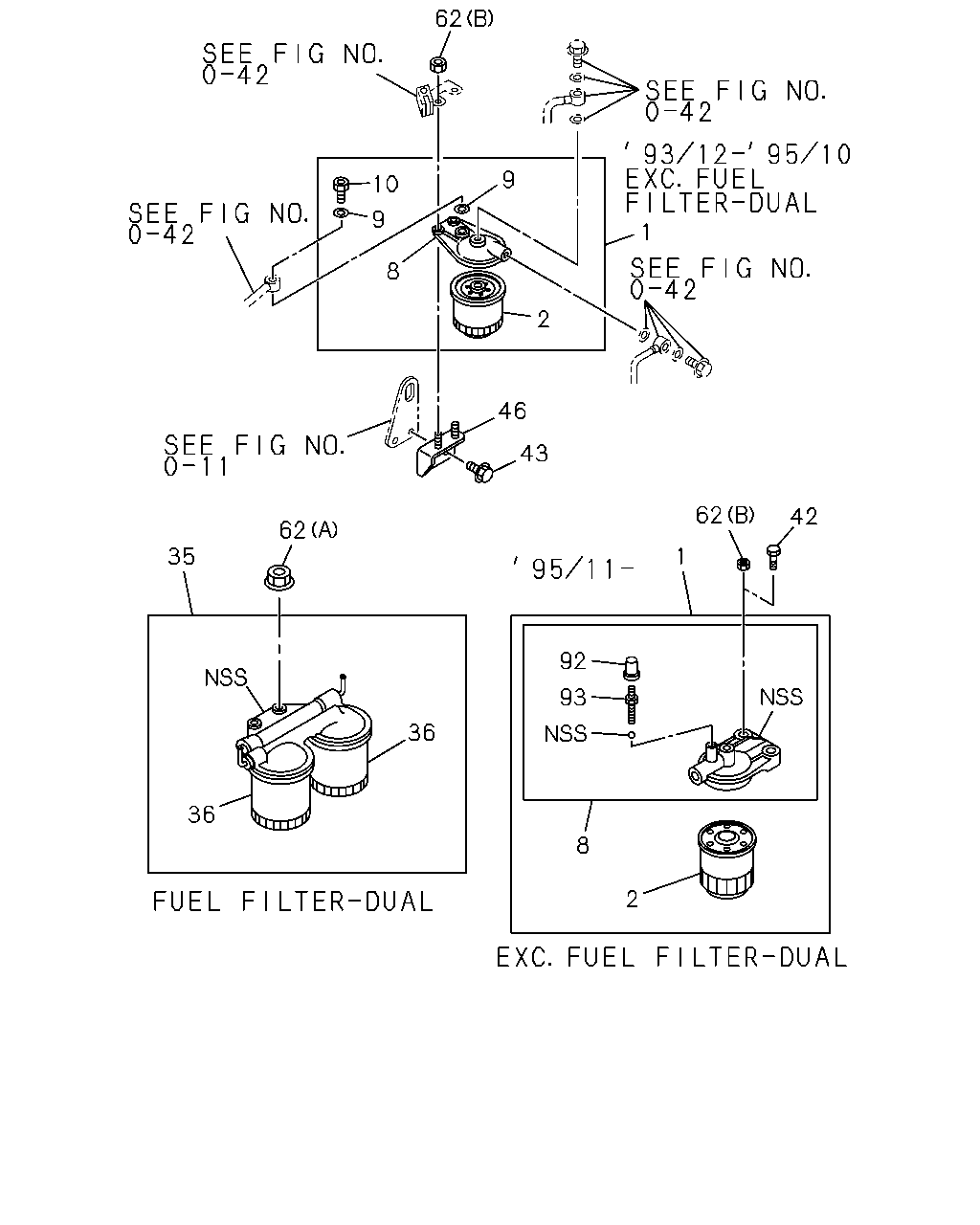

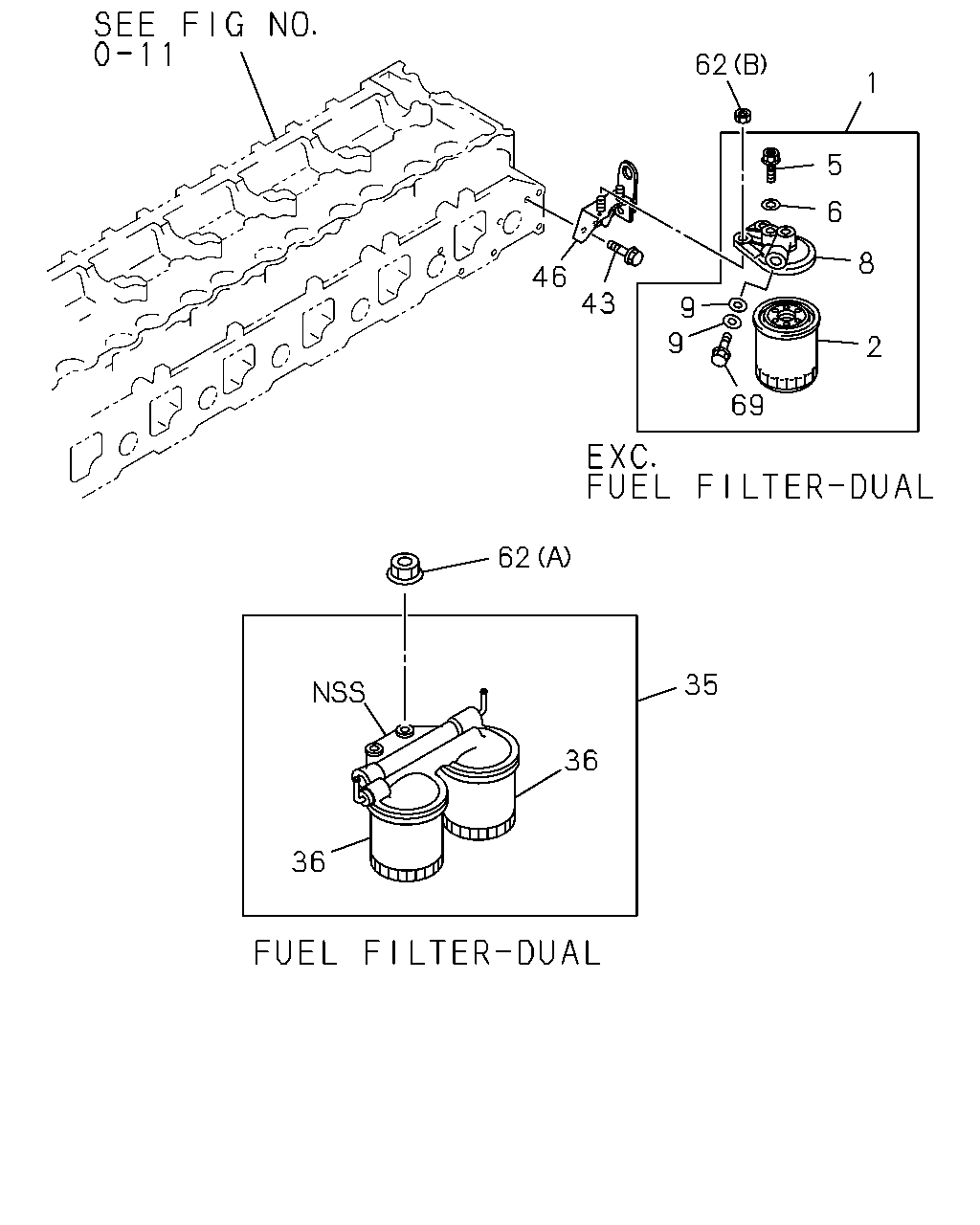

0-41 — FUEL FILTER AND BRACKET (#44392) — 302 parça

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
	89	03.417 BRACKET; INT PIPE	8-94381-352-0	01	1	9312-9510	●	●
	89	03.417 BRACKET; INT PIPE	8-94381-352-0	01	1	9511-		●

62 1 66 56 2 2 62 1 8 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.890 FILTER ASM; FUEL	8-94151-745-1	01	1	9312-9510	●		●
1	03.890 FILTER ASM; FUEL	8-94151-745-1	01	1	9511-9707			●
1	03.890 FILTER ASM; FUEL	8-97179-854-0	01	1	9708-		●	●
1	03.890 FILTER ASM; FUEL FUEL FILTER-DUAL<S6B>	8-97070-864-0	01	1	9312-				●
1	03.890 FILTER ASM; FUEL EXC. FUEL FILTER-DUAL<S6B>	8-97070-865-0	01	1	9312-				●
1	03.890 FILTER ASM; FUEL	8-94414-795-3	01	1	9312-9707		●
1	03.890 FILTER ASM; FUEL	8-94370-620-3	01	1	9312-9510					●
1	03.890 FILTER ASM; FUEL	8-97117-333-0	01	1	9511-9702					●
1	03.890 FILTER ASM; FUEL	8-97171-451-1	01	1	9703-9711					●
1	03.890 FILTER ASM; FUEL	8-97171-451-1	01	1	9712-					●	●
1	03.890 FILTER ASM; FUEL POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL>	8-97171-451-1	01	1	9712-							●
1	03.890 FILTER ASM; FUEL CHARGE AIR COOLER<6PL>	1-13200-890-0	01	1	9712-							●
2	03.890 ELEMENT KIT; FUEL FILTER	8-94151-744-0	01	1	9312-9510	●		●
2	03.890 ELEMENT KIT; FUEL FILTER	8-94151-744-0	01	1	9511-9707			●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL FILTER-DUAL<S6B> 01.836	8-94144-613-0	02	1	9312-				●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. FUEL FILTER-DUAL<S6B>	8-94246-908-0	01	1	9312-				●
2	03.890 ELEMENT KIT; FUEL FILTER	8-94414-796-2	01	1	9312-9707		●
2	03.890 ELEMENT KIT; FUEL FILTER	8-94370-621-3	01	1	9312-9510					●
2	03.890 ELEMENT KIT; FUEL FILTER	8-97116-125-0	01	1	9511-9702					●
2	03.890 ELEMENT KIT; FUEL FILTER	8-97172-549-0	01	1	9703-9707					●
2	03.890 ELEMENT KIT; FUEL FILTER	8-97172-549-0	01	1	9708-9711		●	●		●
2	03.890 ELEMENT KIT; FUEL FILTER	8-97172-549-0	01	1	9712-9807		●	●		●	●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. CHARGE AIR COOLER<6PL>	8-97172-549-0	01	1	9712-9807							●
2	03.890 ELEMENT KIT; FUEL FILTER	8-97172-549-0	01	1	9808-		●	●		●	●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL>	8-97172-549-0	01	1	9808-							●
2	03.890 ELEMENT KIT; FUEL FILTER CHARGE AIR COOLER<6PL>	1-13240-079-1	01	1	9712-							●
8	03.890 COVER; FUEL FILTER	5-13212-075-1	01	1	9312-9406	●	●	●		●
8	03.890 COVER; FUEL FILTER	5-13212-075-1	01	1	9407-9502	●	●	●
8	03.890 COVER; FUEL FILTER	5-13212-075-1	01	1	9503-9510	●	●	●		●
8	03.890 COVER; FUEL FILTER	5-13212-075-1	01	1	9511-9707		●	●
8	03.890 COVER; FUEL FILTER	8-94132-948-0	01	1	9708-		●	●
8	03.890 COVER; FUEL FILTER EXC. FUEL FILTER-DUAL<S6B>	8-94254-730-0	01	1	9312-				●
8	03.890 COVER; FUEL FILTER	5-13212-075-1	01	1	9407-9502					●
8	03.890 COVER; FUEL FILTER	8-97126-076-0	01	1	9511-9702					●
8	03.890 COVER; FUEL FILTER	8-97172-543-1	01	1	9703-9711					●
8	03.890 COVER; FUEL FILTER	8-97172-543-1	01	1	9712-					●	●
8	03.890 COVER; FUEL FILTER POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL>	8-97172-543-1	01	1	9712-							●
8	03.890 COVER; FUEL FILTER CHARGE AIR COOLER<6PL>	1-13212-108-0	01	1	9712-							●
56	03.890 PLUG; FUEL FILTER FUEL FILTER-DUAL<S6B>	5-13226-001-0	01	1	9604-9711				●
62	03.895 NUT; FUEL FILTER 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9312-9410				●
62	03.895 NUT; FUEL FILTER FUEL FILTER-DUAL<S6B> EXC. MINI BUS CHASSIS<V4B> 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9411-9510	●	●	●		●
62	03.895 NUT; FUEL FILTER 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9411-9510				●
62	03.895 NUT; FUEL FILTER FRAME STRAIGHT TYPE<7KJ> 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9511-9702					●
62	03.895 NUT; FUEL FILTER 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9703-9704				●
62	03.895 NUT; FUEL FILTER FUEL FILTER-DUAL<S6B> EXC. MINI BUS CHASSIS<V4B> 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9703-9704		●	●		●
62	03.895 NUT; FUEL FILTER FRAME STRAIGHT TYPE<7KJ> 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9703-9704					●
62	03.895 NUT; FUEL FILTER 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9705-9711				●
62	03.895 NUT; FUEL FILTER FUEL FILTER-DUAL<S6B> 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9705-9711		●	●		●
62	03.895 NUT; FUEL FILTER 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9712-				●
62	03.895 NUT; FUEL FILTER FUEL FILTER-DUAL<S6B> 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9712-		●	●		●	●	●
62	03.895 NUT; FUEL FILTER 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	9312-9711					●
62	03.895 NUT; FUEL FILTER 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	9712-					●	●
62	03.895 NUT; FUEL FILTER CHARGE AIR COOLER<6PL> 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	9712-							●
66	03.890 GASKET; PLUG,FUEL FILTER FUEL FILTER-DUAL<S6B> 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9604-9711				●

62 9 10 9 1 8 2 46 43 62 42 62 35 1 92 93 36 36 8 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.890 FILTER ASM; FUEL	8-94151-745-1	01	1	9312-9510	●		●
1	03.890 FILTER ASM; FUEL	8-94151-745-1	01	1	9511-9707			●
1	03.890 FILTER ASM; FUEL	8-97179-854-0	01	1	9708-		●	●
1	03.890 FILTER ASM; FUEL FUEL FILTER-DUAL<S6B>	8-97070-864-0	01	1	9312-				●
1	03.890 FILTER ASM; FUEL EXC. FUEL FILTER-DUAL<S6B>	8-97070-865-0	01	1	9312-				●
1	03.890 FILTER ASM; FUEL	8-94414-795-3	01	1	9312-9707		●
1	03.890 FILTER ASM; FUEL	8-94370-620-3	01	1	9312-9510					●
1	03.890 FILTER ASM; FUEL	8-97117-333-0	01	1	9511-9702					●
1	03.890 FILTER ASM; FUEL	8-97171-451-1	01	1	9703-9711					●
1	03.890 FILTER ASM; FUEL	8-97171-451-1	01	1	9712-					●	●
1	03.890 FILTER ASM; FUEL POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL>	8-97171-451-1	01	1	9712-							●
1	03.890 FILTER ASM; FUEL CHARGE AIR COOLER<6PL>	1-13200-890-0	01	1	9712-							●
2	03.890 ELEMENT KIT; FUEL FILTER	8-94151-744-0	01	1	9312-9510	●		●
2	03.890 ELEMENT KIT; FUEL FILTER	8-94151-744-0	01	1	9511-9707			●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL FILTER-DUAL<S6B> 01.836	8-94144-613-0	02	1	9312-				●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. FUEL FILTER-DUAL<S6B>	8-94246-908-0	01	1	9312-				●
2	03.890 ELEMENT KIT; FUEL FILTER	8-94414-796-2	01	1	9312-9707		●
2	03.890 ELEMENT KIT; FUEL FILTER	8-94370-621-3	01	1	9312-9510					●
2	03.890 ELEMENT KIT; FUEL FILTER	8-97116-125-0	01	1	9511-9702					●
2	03.890 ELEMENT KIT; FUEL FILTER	8-97172-549-0	01	1	9703-9707					●
2	03.890 ELEMENT KIT; FUEL FILTER	8-97172-549-0	01	1	9708-9711		●	●		●
2	03.890 ELEMENT KIT; FUEL FILTER	8-97172-549-0	01	1	9712-9807		●	●		●	●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. CHARGE AIR COOLER<6PL>	8-97172-549-0	01	1	9712-9807							●
2	03.890 ELEMENT KIT; FUEL FILTER	8-97172-549-0	01	1	9808-		●	●		●	●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL>	8-97172-549-0	01	1	9808-							●
2	03.890 ELEMENT KIT; FUEL FILTER CHARGE AIR COOLER<6PL>	1-13240-079-1	01	1	9712-							●
8	03.890 COVER; FUEL FILTER	5-13212-075-1	01	1	9312-9406	●	●	●		●
8	03.890 COVER; FUEL FILTER	5-13212-075-1	01	1	9407-9502	●	●	●
8	03.890 COVER; FUEL FILTER	5-13212-075-1	01	1	9503-9510	●	●	●		●
8	03.890 COVER; FUEL FILTER	5-13212-075-1	01	1	9511-9707		●	●
8	03.890 COVER; FUEL FILTER	8-94132-948-0	01	1	9708-		●	●
8	03.890 COVER; FUEL FILTER EXC. FUEL FILTER-DUAL<S6B>	8-94254-730-0	01	1	9312-				●
8	03.890 COVER; FUEL FILTER	5-13212-075-1	01	1	9407-9502					●
8	03.890 COVER; FUEL FILTER	8-97126-076-0	01	1	9511-9702					●
8	03.890 COVER; FUEL FILTER	8-97172-543-1	01	1	9703-9711					●
8	03.890 COVER; FUEL FILTER	8-97172-543-1	01	1	9712-					●	●
8	03.890 COVER; FUEL FILTER POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL>	8-97172-543-1	01	1	9712-							●
8	03.890 COVER; FUEL FILTER CHARGE AIR COOLER<6PL>	1-13212-108-0	01	1	9712-							●
9	03.890 GASKET; EYE JOINT ALSO INCLUDED IN GASKET SET(ENGINE). 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9312-9510	●	●	●
9	03.890 GASKET; EYE JOINT ALSO INCLUDED IN GASKET SET(ENGINE). 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9511-9707		●	●
9	03.890 GASKET; EYE JOINT ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	9708-9711		●	●
9	03.890 GASKET; EYE JOINT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09630-085-0	02	1	9712-		●	●
9	03.890 GASKET; EYE JOINT ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	9712-							●
9	03.890 GASKET; EYE JOINT ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	9312-9510					●
10	03.890 VALVE; OVERFLOW,FUEL FILTER 03.164	9-13260-056-1	01	1	9312-9502	●	●	●
10	03.890 VALVE; OVERFLOW,FUEL FILTER 03.164	9-13260-056-1	01	1	9503-9510	●	●	●		●
10	03.890 VALVE; OVERFLOW,FUEL FILTER 03.164	9-13260-056-2	01	1	9511-9707		●	●
10	03.890 VALVE; OVERFLOW,FUEL FILTER	1-13260-047-0	01	1	9708-		●	●
10	03.890 VALVE; OVERFLOW,FUEL FILTER 03.164	9-13260-056-2	01	1	9312-9406					●
10	03.890 VALVE; OVERFLOW,FUEL FILTER 03.164	9-13260-056-1	01	1	9407-9502					●
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER-DUAL<S6B>	8-97070-864-0	02	1	9312-9406	●		●		●
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER-DUAL<S6B>	8-97070-864-0	01	1	9407-9408	●		●		●
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER-DUAL<S6B>	8-97070-864-0	01	1	9409-9510	●	●	●		●
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER-DUAL<S6B>	8-97070-864-0	01	1	9511-9711		●	●		●
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER-DUAL<S6B>	8-97070-864-0	01	1	9712-		●	●		●	●	●
36	03.890 ELEMENT; FUEL FILTER FUEL FILTER-DUAL<S6B> 01.836	8-94144-613-0	02	1	9312-9408	●		●		●
36	03.890 ELEMENT; FUEL FILTER FUEL FILTER-DUAL<S6B> 01.836	8-94144-613-0	02	1	9409-9510	●	●	●		●
36	03.890 ELEMENT; FUEL FILTER FUEL FILTER-DUAL<S6B> 01.836	8-94144-613-0	02	1	9511-9711		●	●		●
36	03.890 ELEMENT; FUEL FILTER FUEL FILTER-DUAL<S6B> 01.836	8-94144-613-0	02	1	9712-		●	●		●	●	●
42	03.890 BOLT; FUEL FILTER 03.613 M10X30 W/LK&PL WASHER	0-50141-030-0	02	1	9312-9510	●	●	●
42	03.890 BOLT; FUEL FILTER 03.613 M10X30 W/LK&PL WASHER	0-50141-030-0	02	1	9511-		●	●
42	03.890 BOLT; FUEL FILTER 08.900 M10X30 FLANGE	0-28781-030-0	02	1	9712-9803							●
42	03.890 BOLT; FUEL FILTER EXC. CHARGE AIR COOLER<6PL> 08.900 M10X30 FLANGE	0-28781-030-0	02	1	9804-							●
43	03.890 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE	0-28081-030-0	03	1	9511-9704					●
43	03.890 BOLT; BRKT 00.029 M12X28 FLANGE	0-28181-228-0	02	1	9712-					●	●
43	03.890 BOLT; BRKT CHARGE AIR COOLER<6PL> M12X25	0-28781-225-0	02	1	9712-							●
46	03.890 BRACKET	8-94313-323-1	01	1	9312-9711					●
46	03.890 BRACKET	8-94313-323-1	01	1	9712-					●	●
46	03.890 BRACKET CHARGE AIR COOLER<6PL>	8-97148-962-2	01	1	9712-							●
46	03.890 BRACKET EXC. CHARGE AIR COOLER<6PL>	8-97061-452-0	01	1	9712-							●
62	03.895 NUT; FUEL FILTER 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9312-9410				●
62	03.895 NUT; FUEL FILTER FUEL FILTER-DUAL<S6B> EXC. MINI BUS CHASSIS<V4B> 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9411-9510	●	●	●		●
62	03.895 NUT; FUEL FILTER 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9411-9510				●
62	03.895 NUT; FUEL FILTER FRAME STRAIGHT TYPE<7KJ> 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9511-9702					●
62	03.895 NUT; FUEL FILTER 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9703-9704				●
62	03.895 NUT; FUEL FILTER FUEL FILTER-DUAL<S6B> EXC. MINI BUS CHASSIS<V4B> 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9703-9704		●	●		●
62	03.895 NUT; FUEL FILTER FRAME STRAIGHT TYPE<7KJ> 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9703-9704					●
62	03.895 NUT; FUEL FILTER 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9705-9711				●
62	03.895 NUT; FUEL FILTER FUEL FILTER-DUAL<S6B> 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9705-9711		●	●		●
62	03.895 NUT; FUEL FILTER 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9712-				●
62	03.895 NUT; FUEL FILTER FUEL FILTER-DUAL<S6B> 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9712-		●	●		●	●	●
62	03.895 NUT; FUEL FILTER 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	9312-9711					●
62	03.895 NUT; FUEL FILTER 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	9712-					●	●
62	03.895 NUT; FUEL FILTER CHARGE AIR COOLER<6PL> 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	9712-							●
92	03.417 CAP; FUEL FILTER	8-97117-109-0	02	1	9511-9702					●
92	03.417 CAP; FUEL FILTER	8-97172-548-0	01	1	9703-9711					●
92	03.417 CAP; FUEL FILTER	8-97172-548-0	01	1	9712-					●	●
92	03.417 CAP; FUEL FILTER POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL>	8-97172-548-0	01	1	9712-							●
93	03.890 CONNECTOR; FUEL FILTER	8-97143-658-0	01	1	9511-9702					●
93	03.890 CONNECTOR; FUEL FILTER	8-97172-546-1	01	1	9703-9711					●
93	03.890 CONNECTOR; FUEL FILTER	8-97172-546-1	01	1	9712-					●	●
93	03.890 CONNECTOR; FUEL FILTER POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL>	8-97172-546-1	01	1	9712-							●

42 9 10 1 9 8 2 62 35 36 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.890 FILTER ASM; FUEL	8-94151-745-1	01	1	9312-9510	●		●
1	03.890 FILTER ASM; FUEL	8-94151-745-1	01	1	9511-9707			●
1	03.890 FILTER ASM; FUEL	8-97179-854-0	01	1	9708-		●	●
1	03.890 FILTER ASM; FUEL FUEL FILTER-DUAL<S6B>	8-97070-864-0	01	1	9312-				●
1	03.890 FILTER ASM; FUEL EXC. FUEL FILTER-DUAL<S6B>	8-97070-865-0	01	1	9312-				●
1	03.890 FILTER ASM; FUEL	8-94414-795-3	01	1	9312-9707		●
1	03.890 FILTER ASM; FUEL	8-94370-620-3	01	1	9312-9510					●
1	03.890 FILTER ASM; FUEL	8-97117-333-0	01	1	9511-9702					●
1	03.890 FILTER ASM; FUEL	8-97171-451-1	01	1	9703-9711					●
1	03.890 FILTER ASM; FUEL	8-97171-451-1	01	1	9712-					●	●
1	03.890 FILTER ASM; FUEL POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL>	8-97171-451-1	01	1	9712-							●
1	03.890 FILTER ASM; FUEL CHARGE AIR COOLER<6PL>	1-13200-890-0	01	1	9712-							●
2	03.890 ELEMENT KIT; FUEL FILTER	8-94151-744-0	01	1	9312-9510	●		●
2	03.890 ELEMENT KIT; FUEL FILTER	8-94151-744-0	01	1	9511-9707			●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL FILTER-DUAL<S6B> 01.836	8-94144-613-0	02	1	9312-				●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. FUEL FILTER-DUAL<S6B>	8-94246-908-0	01	1	9312-				●
2	03.890 ELEMENT KIT; FUEL FILTER	8-94414-796-2	01	1	9312-9707		●
2	03.890 ELEMENT KIT; FUEL FILTER	8-94370-621-3	01	1	9312-9510					●
2	03.890 ELEMENT KIT; FUEL FILTER	8-97116-125-0	01	1	9511-9702					●
2	03.890 ELEMENT KIT; FUEL FILTER	8-97172-549-0	01	1	9703-9707					●
2	03.890 ELEMENT KIT; FUEL FILTER	8-97172-549-0	01	1	9708-9711		●	●		●
2	03.890 ELEMENT KIT; FUEL FILTER	8-97172-549-0	01	1	9712-9807		●	●		●	●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. CHARGE AIR COOLER<6PL>	8-97172-549-0	01	1	9712-9807							●
2	03.890 ELEMENT KIT; FUEL FILTER	8-97172-549-0	01	1	9808-		●	●		●	●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL>	8-97172-549-0	01	1	9808-							●
2	03.890 ELEMENT KIT; FUEL FILTER CHARGE AIR COOLER<6PL>	1-13240-079-1	01	1	9712-							●
8	03.890 COVER; FUEL FILTER	5-13212-075-1	01	1	9312-9406	●	●	●		●
8	03.890 COVER; FUEL FILTER	5-13212-075-1	01	1	9407-9502	●	●	●
8	03.890 COVER; FUEL FILTER	5-13212-075-1	01	1	9503-9510	●	●	●		●
8	03.890 COVER; FUEL FILTER	5-13212-075-1	01	1	9511-9707		●	●
8	03.890 COVER; FUEL FILTER	8-94132-948-0	01	1	9708-		●	●
8	03.890 COVER; FUEL FILTER EXC. FUEL FILTER-DUAL<S6B>	8-94254-730-0	01	1	9312-				●
8	03.890 COVER; FUEL FILTER	5-13212-075-1	01	1	9407-9502					●
8	03.890 COVER; FUEL FILTER	8-97126-076-0	01	1	9511-9702					●
8	03.890 COVER; FUEL FILTER	8-97172-543-1	01	1	9703-9711					●
8	03.890 COVER; FUEL FILTER	8-97172-543-1	01	1	9712-					●	●
8	03.890 COVER; FUEL FILTER POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL>	8-97172-543-1	01	1	9712-							●
8	03.890 COVER; FUEL FILTER CHARGE AIR COOLER<6PL>	1-13212-108-0	01	1	9712-							●
9	03.890 GASKET; EYE JOINT ALSO INCLUDED IN GASKET SET(ENGINE). 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9312-9510	●	●	●
9	03.890 GASKET; EYE JOINT ALSO INCLUDED IN GASKET SET(ENGINE). 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9511-9707		●	●
9	03.890 GASKET; EYE JOINT ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	9708-9711		●	●
9	03.890 GASKET; EYE JOINT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09630-085-0	02	1	9712-		●	●
9	03.890 GASKET; EYE JOINT ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	9712-							●
9	03.890 GASKET; EYE JOINT ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	9312-9510					●
10	03.890 VALVE; OVERFLOW,FUEL FILTER 03.164	9-13260-056-1	01	1	9312-9502	●	●	●
10	03.890 VALVE; OVERFLOW,FUEL FILTER 03.164	9-13260-056-1	01	1	9503-9510	●	●	●		●
10	03.890 VALVE; OVERFLOW,FUEL FILTER 03.164	9-13260-056-2	01	1	9511-9707		●	●
10	03.890 VALVE; OVERFLOW,FUEL FILTER	1-13260-047-0	01	1	9708-		●	●
10	03.890 VALVE; OVERFLOW,FUEL FILTER 03.164	9-13260-056-2	01	1	9312-9406					●
10	03.890 VALVE; OVERFLOW,FUEL FILTER 03.164	9-13260-056-1	01	1	9407-9502					●
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER-DUAL<S6B>	8-97070-864-0	02	1	9312-9406	●		●		●
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER-DUAL<S6B>	8-97070-864-0	01	1	9407-9408	●		●		●
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER-DUAL<S6B>	8-97070-864-0	01	1	9409-9510	●	●	●		●
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER-DUAL<S6B>	8-97070-864-0	01	1	9511-9711		●	●		●
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER-DUAL<S6B>	8-97070-864-0	01	1	9712-		●	●		●	●	●
36	03.890 ELEMENT; FUEL FILTER FUEL FILTER-DUAL<S6B> 01.836	8-94144-613-0	02	1	9312-9408	●		●		●
36	03.890 ELEMENT; FUEL FILTER FUEL FILTER-DUAL<S6B> 01.836	8-94144-613-0	02	1	9409-9510	●	●	●		●
36	03.890 ELEMENT; FUEL FILTER FUEL FILTER-DUAL<S6B> 01.836	8-94144-613-0	02	1	9511-9711		●	●		●
36	03.890 ELEMENT; FUEL FILTER FUEL FILTER-DUAL<S6B> 01.836	8-94144-613-0	02	1	9712-		●	●		●	●	●
42	03.890 BOLT; FUEL FILTER 03.613 M10X30 W/LK&PL WASHER	0-50141-030-0	02	1	9312-9510	●	●	●
42	03.890 BOLT; FUEL FILTER 03.613 M10X30 W/LK&PL WASHER	0-50141-030-0	02	1	9511-		●	●
42	03.890 BOLT; FUEL FILTER 08.900 M10X30 FLANGE	0-28781-030-0	02	1	9712-9803							●
42	03.890 BOLT; FUEL FILTER EXC. CHARGE AIR COOLER<6PL> 08.900 M10X30 FLANGE	0-28781-030-0	02	1	9804-							●
62	03.895 NUT; FUEL FILTER 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9312-9410				●
62	03.895 NUT; FUEL FILTER FUEL FILTER-DUAL<S6B> EXC. MINI BUS CHASSIS<V4B> 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9411-9510	●	●	●		●
62	03.895 NUT; FUEL FILTER 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9411-9510				●
62	03.895 NUT; FUEL FILTER FRAME STRAIGHT TYPE<7KJ> 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9511-9702					●
62	03.895 NUT; FUEL FILTER 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9703-9704				●
62	03.895 NUT; FUEL FILTER FUEL FILTER-DUAL<S6B> EXC. MINI BUS CHASSIS<V4B> 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9703-9704		●	●		●
62	03.895 NUT; FUEL FILTER FRAME STRAIGHT TYPE<7KJ> 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9703-9704					●
62	03.895 NUT; FUEL FILTER 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9705-9711				●
62	03.895 NUT; FUEL FILTER FUEL FILTER-DUAL<S6B> 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9705-9711		●	●		●
62	03.895 NUT; FUEL FILTER 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9712-				●
62	03.895 NUT; FUEL FILTER FUEL FILTER-DUAL<S6B> 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9712-		●	●		●	●	●
62	03.895 NUT; FUEL FILTER 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	9312-9711					●
62	03.895 NUT; FUEL FILTER 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	9712-					●	●
62	03.895 NUT; FUEL FILTER CHARGE AIR COOLER<6PL> 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	9712-							●

62 1 5 6 8 46 43 9 9 2 69 62 35 36 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.890 FILTER ASM; FUEL	8-94151-745-1	01	1	9312-9510	●		●
1	03.890 FILTER ASM; FUEL	8-94151-745-1	01	1	9511-9707			●
1	03.890 FILTER ASM; FUEL	8-97179-854-0	01	1	9708-		●	●
1	03.890 FILTER ASM; FUEL FUEL FILTER-DUAL<S6B>	8-97070-864-0	01	1	9312-				●
1	03.890 FILTER ASM; FUEL EXC. FUEL FILTER-DUAL<S6B>	8-97070-865-0	01	1	9312-				●
1	03.890 FILTER ASM; FUEL	8-94414-795-3	01	1	9312-9707		●
1	03.890 FILTER ASM; FUEL	8-94370-620-3	01	1	9312-9510					●
1	03.890 FILTER ASM; FUEL	8-97117-333-0	01	1	9511-9702					●
1	03.890 FILTER ASM; FUEL	8-97171-451-1	01	1	9703-9711					●
1	03.890 FILTER ASM; FUEL	8-97171-451-1	01	1	9712-					●	●
1	03.890 FILTER ASM; FUEL POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL>	8-97171-451-1	01	1	9712-							●
1	03.890 FILTER ASM; FUEL CHARGE AIR COOLER<6PL>	1-13200-890-0	01	1	9712-							●
2	03.890 ELEMENT KIT; FUEL FILTER	8-94151-744-0	01	1	9312-9510	●		●
2	03.890 ELEMENT KIT; FUEL FILTER	8-94151-744-0	01	1	9511-9707			●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL FILTER-DUAL<S6B> 01.836	8-94144-613-0	02	1	9312-				●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. FUEL FILTER-DUAL<S6B>	8-94246-908-0	01	1	9312-				●
2	03.890 ELEMENT KIT; FUEL FILTER	8-94414-796-2	01	1	9312-9707		●
2	03.890 ELEMENT KIT; FUEL FILTER	8-94370-621-3	01	1	9312-9510					●
2	03.890 ELEMENT KIT; FUEL FILTER	8-97116-125-0	01	1	9511-9702					●
2	03.890 ELEMENT KIT; FUEL FILTER	8-97172-549-0	01	1	9703-9707					●
2	03.890 ELEMENT KIT; FUEL FILTER	8-97172-549-0	01	1	9708-9711		●	●		●
2	03.890 ELEMENT KIT; FUEL FILTER	8-97172-549-0	01	1	9712-9807		●	●		●	●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. CHARGE AIR COOLER<6PL>	8-97172-549-0	01	1	9712-9807							●
2	03.890 ELEMENT KIT; FUEL FILTER	8-97172-549-0	01	1	9808-		●	●		●	●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL>	8-97172-549-0	01	1	9808-							●
2	03.890 ELEMENT KIT; FUEL FILTER CHARGE AIR COOLER<6PL>	1-13240-079-1	01	1	9712-							●
5	03.890 BOLT; FUEL FILTER CHARGE AIR COOLER<6PL> 08.971 M14X9	9-99202-314-0	01	1	9712-							●
6	03.890 GASKET; FUEL FILTER CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	01	1	9712-							●
8	03.890 COVER; FUEL FILTER	5-13212-075-1	01	1	9312-9406	●	●	●		●
8	03.890 COVER; FUEL FILTER	5-13212-075-1	01	1	9407-9502	●	●	●
8	03.890 COVER; FUEL FILTER	5-13212-075-1	01	1	9503-9510	●	●	●		●
8	03.890 COVER; FUEL FILTER	5-13212-075-1	01	1	9511-9707		●	●
8	03.890 COVER; FUEL FILTER	8-94132-948-0	01	1	9708-		●	●
8	03.890 COVER; FUEL FILTER EXC. FUEL FILTER-DUAL<S6B>	8-94254-730-0	01	1	9312-				●
8	03.890 COVER; FUEL FILTER	5-13212-075-1	01	1	9407-9502					●
8	03.890 COVER; FUEL FILTER	8-97126-076-0	01	1	9511-9702					●
8	03.890 COVER; FUEL FILTER	8-97172-543-1	01	1	9703-9711					●
8	03.890 COVER; FUEL FILTER	8-97172-543-1	01	1	9712-					●	●
8	03.890 COVER; FUEL FILTER POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL>	8-97172-543-1	01	1	9712-							●
8	03.890 COVER; FUEL FILTER CHARGE AIR COOLER<6PL>	1-13212-108-0	01	1	9712-							●
9	03.890 GASKET; EYE JOINT ALSO INCLUDED IN GASKET SET(ENGINE). 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9312-9510	●	●	●
9	03.890 GASKET; EYE JOINT ALSO INCLUDED IN GASKET SET(ENGINE). 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9511-9707		●	●
9	03.890 GASKET; EYE JOINT ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	9708-9711		●	●
9	03.890 GASKET; EYE JOINT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09630-085-0	02	1	9712-		●	●
9	03.890 GASKET; EYE JOINT ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	9712-							●
9	03.890 GASKET; EYE JOINT ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	9312-9510					●
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER-DUAL<S6B>	8-97070-864-0	02	1	9312-9406	●		●		●
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER-DUAL<S6B>	8-97070-864-0	01	1	9407-9408	●		●		●
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER-DUAL<S6B>	8-97070-864-0	01	1	9409-9510	●	●	●		●
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER-DUAL<S6B>	8-97070-864-0	01	1	9511-9711		●	●		●
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER-DUAL<S6B>	8-97070-864-0	01	1	9712-		●	●		●	●	●
36	03.890 ELEMENT; FUEL FILTER FUEL FILTER-DUAL<S6B> 01.836	8-94144-613-0	02	1	9312-9408	●		●		●
36	03.890 ELEMENT; FUEL FILTER FUEL FILTER-DUAL<S6B> 01.836	8-94144-613-0	02	1	9409-9510	●	●	●		●
36	03.890 ELEMENT; FUEL FILTER FUEL FILTER-DUAL<S6B> 01.836	8-94144-613-0	02	1	9511-9711		●	●		●
36	03.890 ELEMENT; FUEL FILTER FUEL FILTER-DUAL<S6B> 01.836	8-94144-613-0	02	1	9712-		●	●		●	●	●
43	03.890 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE	0-28081-030-0	03	1	9511-9704					●
43	03.890 BOLT; BRKT 00.029 M12X28 FLANGE	0-28181-228-0	02	1	9712-					●	●
43	03.890 BOLT; BRKT CHARGE AIR COOLER<6PL> M12X25	0-28781-225-0	02	1	9712-							●
46	03.890 BRACKET	8-94313-323-1	01	1	9312-9711					●
46	03.890 BRACKET	8-94313-323-1	01	1	9712-					●	●
46	03.890 BRACKET CHARGE AIR COOLER<6PL>	8-97148-962-2	01	1	9712-							●
46	03.890 BRACKET EXC. CHARGE AIR COOLER<6PL>	8-97061-452-0	01	1	9712-							●
62	03.895 NUT; FUEL FILTER 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9312-9410				●
62	03.895 NUT; FUEL FILTER FUEL FILTER-DUAL<S6B> EXC. MINI BUS CHASSIS<V4B> 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9411-9510	●	●	●		●
62	03.895 NUT; FUEL FILTER 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9411-9510				●
62	03.895 NUT; FUEL FILTER FRAME STRAIGHT TYPE<7KJ> 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9511-9702					●
62	03.895 NUT; FUEL FILTER 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9703-9704				●
62	03.895 NUT; FUEL FILTER FUEL FILTER-DUAL<S6B> EXC. MINI BUS CHASSIS<V4B> 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9703-9704		●	●		●
62	03.895 NUT; FUEL FILTER FRAME STRAIGHT TYPE<7KJ> 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9703-9704					●
62	03.895 NUT; FUEL FILTER 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9705-9711				●
62	03.895 NUT; FUEL FILTER FUEL FILTER-DUAL<S6B> 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9705-9711		●	●		●
62	03.895 NUT; FUEL FILTER 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9712-				●
62	03.895 NUT; FUEL FILTER FUEL FILTER-DUAL<S6B> 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9712-		●	●		●	●	●
62	03.895 NUT; FUEL FILTER 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	9312-9711					●
62	03.895 NUT; FUEL FILTER 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	9712-					●	●
62	03.895 NUT; FUEL FILTER CHARGE AIR COOLER<6PL> 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	9712-							●
69	03.890 BOLT; EYE,FUEL FILTER CHARGE AIR COOLER<6PL>	1-15619-310-0	01	1	9712-							●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
