◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50696 - NPR/NQR-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-37 - TURBOCHARGER ▶
0-37 — TURBOCHARGER (#44390) — 13 parça

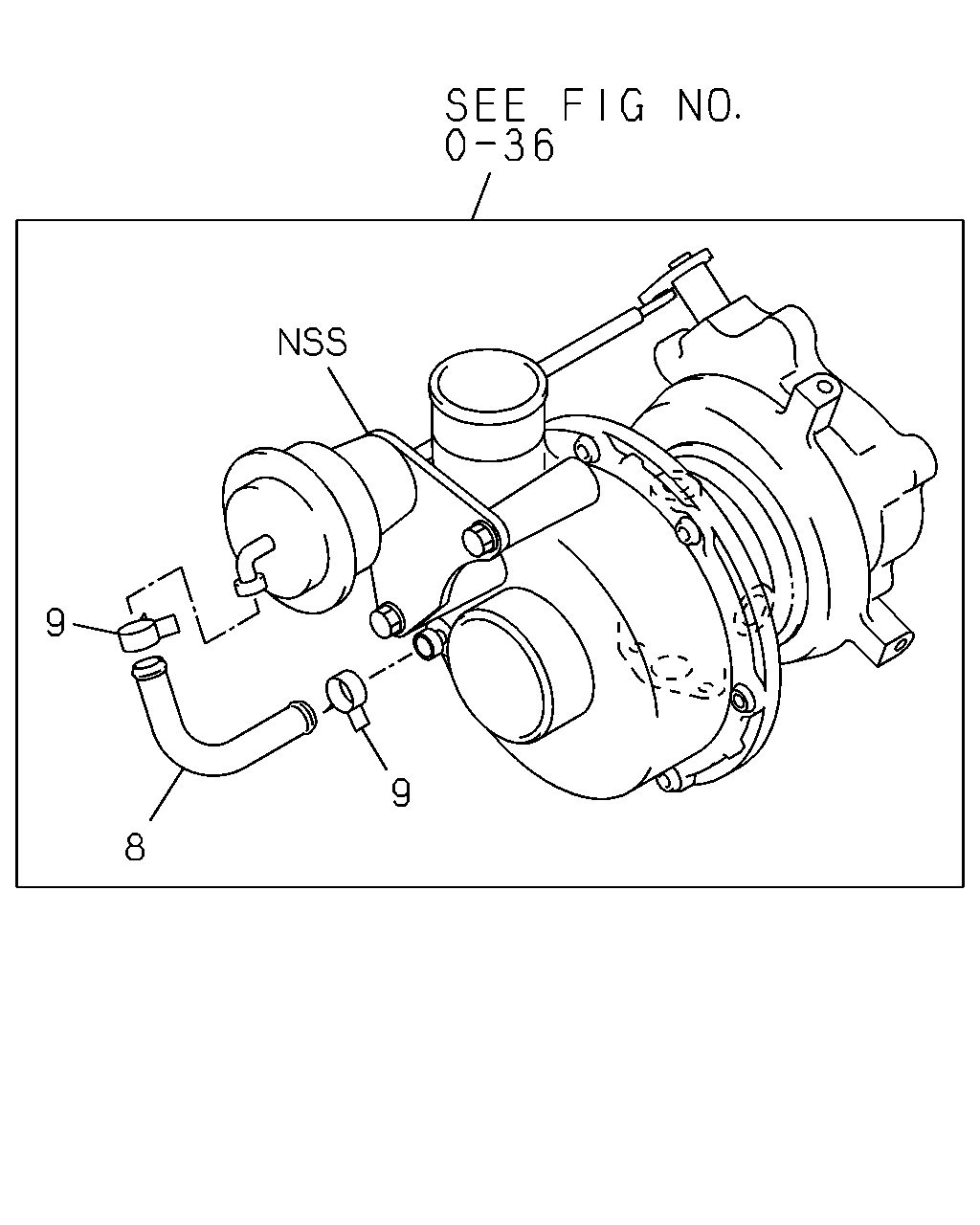

çizim 16518
9 9 8
BalonParca AdiParca NoAdetTipApplied Date
8 03.342 HOSE; ACTUATOR TO BLOWER HSG,TC
ASM PART: B = 8-97105-618-1, 97105618 		8-97182-741-0 01 1 -
8 03.342 HOSE; ACTUATOR TO BLOWER HSG,TC
ASM PART: D = 8-97208-966-1, 97208966 		8-97215-553-0 01 1 -
8 03.342 HOSE; ACTUATOR TO BLOWER HSG,TC
ASM PART: A = 8-97103-857-0, 97103857 		8-97219-075-0 01 1 -
8 03.342 HOSE; ACTUATOR TO BLOWER HSG,TC
ASM PART: C = 8-97189-452-0, 97189452 		8-97221-200-0 01 1 -
9 03.342 CLIP; ACTUATOR HOSE,TURBOCHARGER
ASM PART: A = 8-97103-857-0, 97103857 		5-09707-057-0 02 1 -
9 03.342 CLIP; ACTUATOR HOSE,TURBOCHARGER
ASM PART: B = 8-97105-618-1, 97105618, C = 8-97189-452-0, 97189452, D = 8-97208-966-1, 97208966 		8-97182-742-0 02 1 -

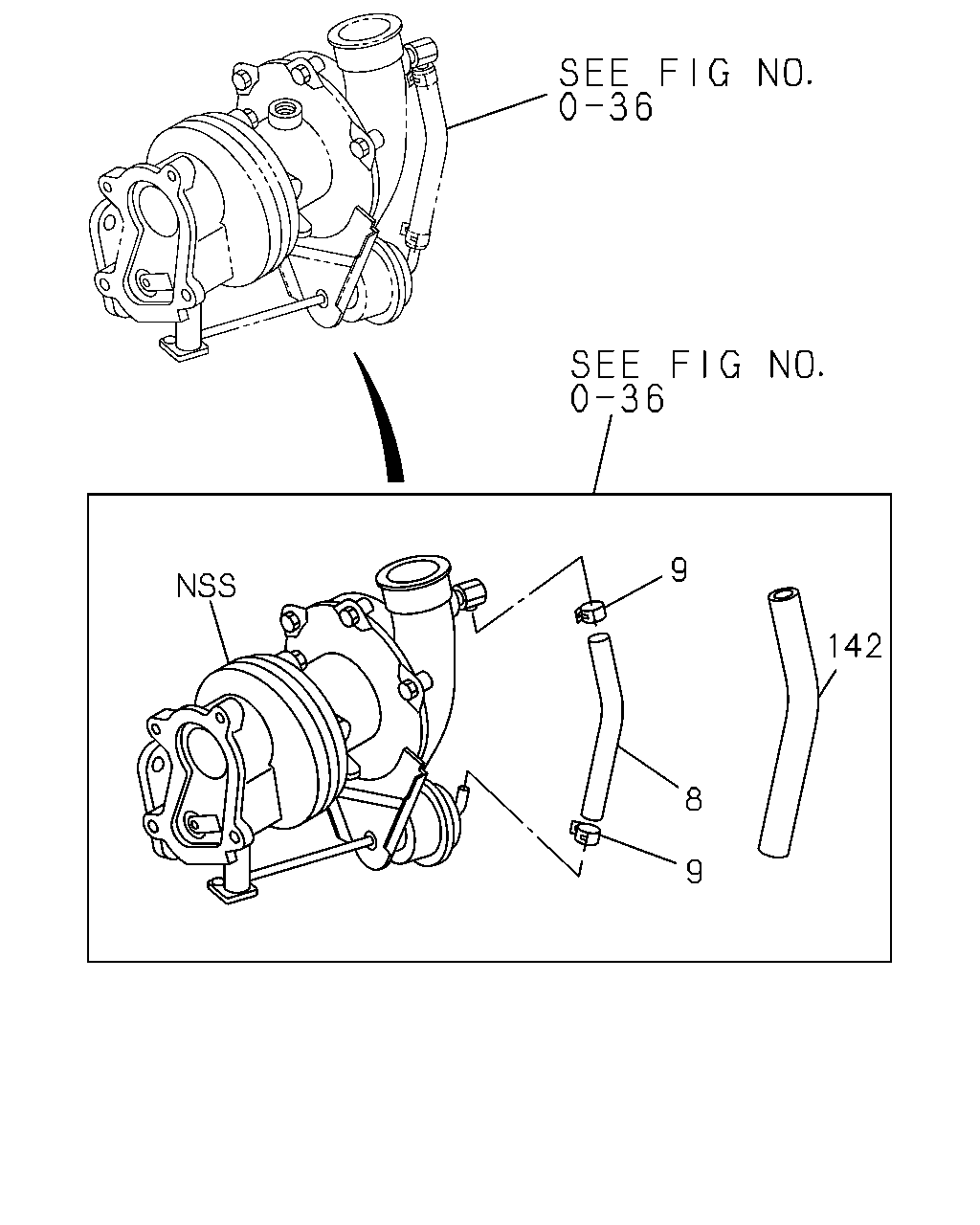

çizim 70609
9 142 8 9
BalonParca AdiParca NoAdetTipApplied Date
8 03.342 HOSE; ACTUATOR TO BLOWER HSG,TC
ASM PART: B = 8-97105-618-1, 97105618 		8-97182-741-0 01 1 -
8 03.342 HOSE; ACTUATOR TO BLOWER HSG,TC
ASM PART: D = 8-97208-966-1, 97208966 		8-97215-553-0 01 1 -
8 03.342 HOSE; ACTUATOR TO BLOWER HSG,TC
ASM PART: A = 8-97103-857-0, 97103857 		8-97219-075-0 01 1 -
8 03.342 HOSE; ACTUATOR TO BLOWER HSG,TC
ASM PART: C = 8-97189-452-0, 97189452 		8-97221-200-0 01 1 -
9 03.342 CLIP; ACTUATOR HOSE,TURBOCHARGER
ASM PART: A = 8-97103-857-0, 97103857 		5-09707-057-0 02 1 -
9 03.342 CLIP; ACTUATOR HOSE,TURBOCHARGER
ASM PART: B = 8-97105-618-1, 97105618, C = 8-97189-452-0, 97189452, D = 8-97208-966-1, 97208966 		8-97182-742-0 02 1 -
142 03.373 COVER; HOSE,TURBOCHARGER
ASM PART: C = 8-97189-452-0, 97189452 		8-97221-201-0 01 1 -
