Isuzu WW
▶
TRUCKS
▶
NPR
▶
50696 - NPR/NQR-RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-35 - ENGINE CONTROL VALVE AND LEVER
▶

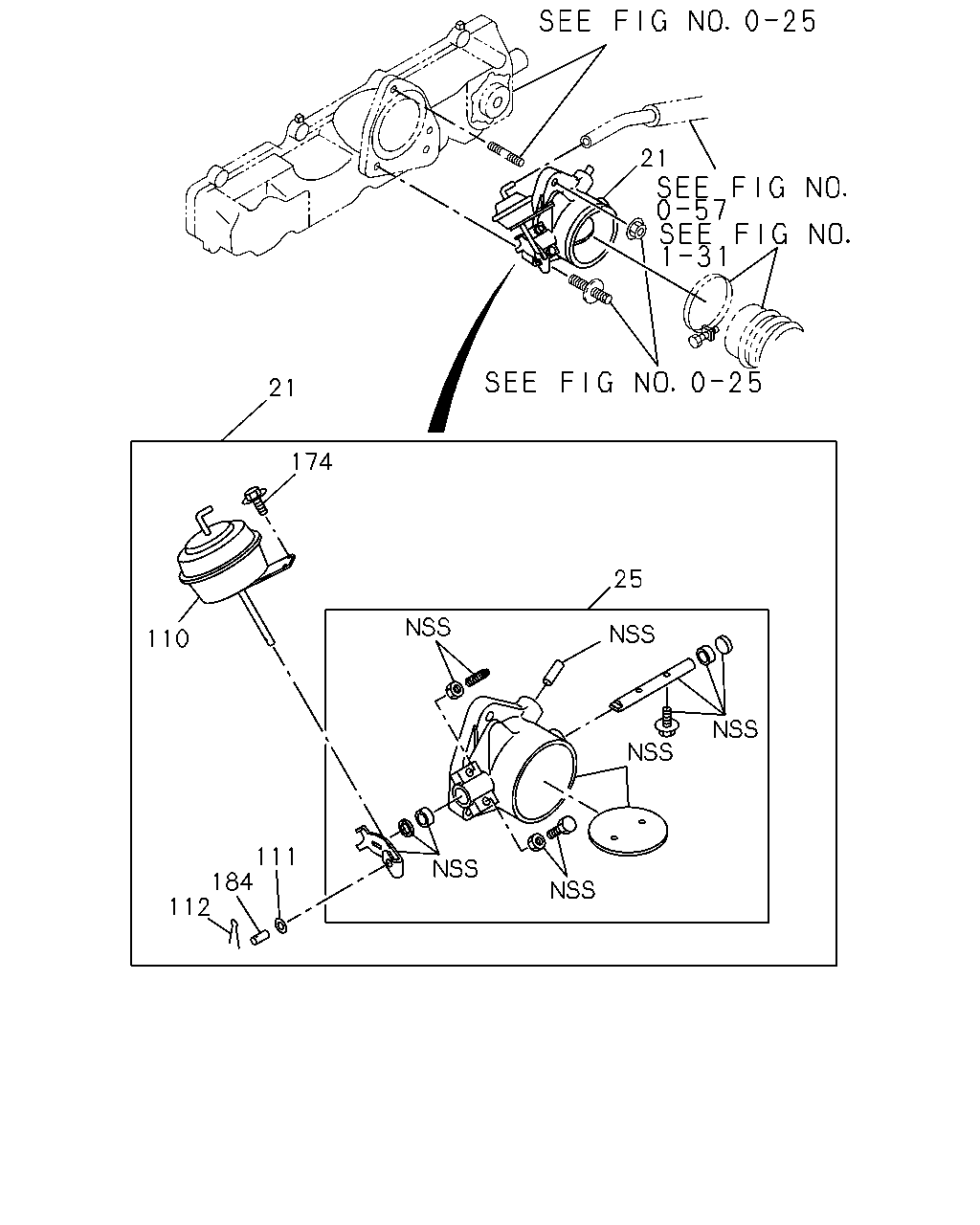

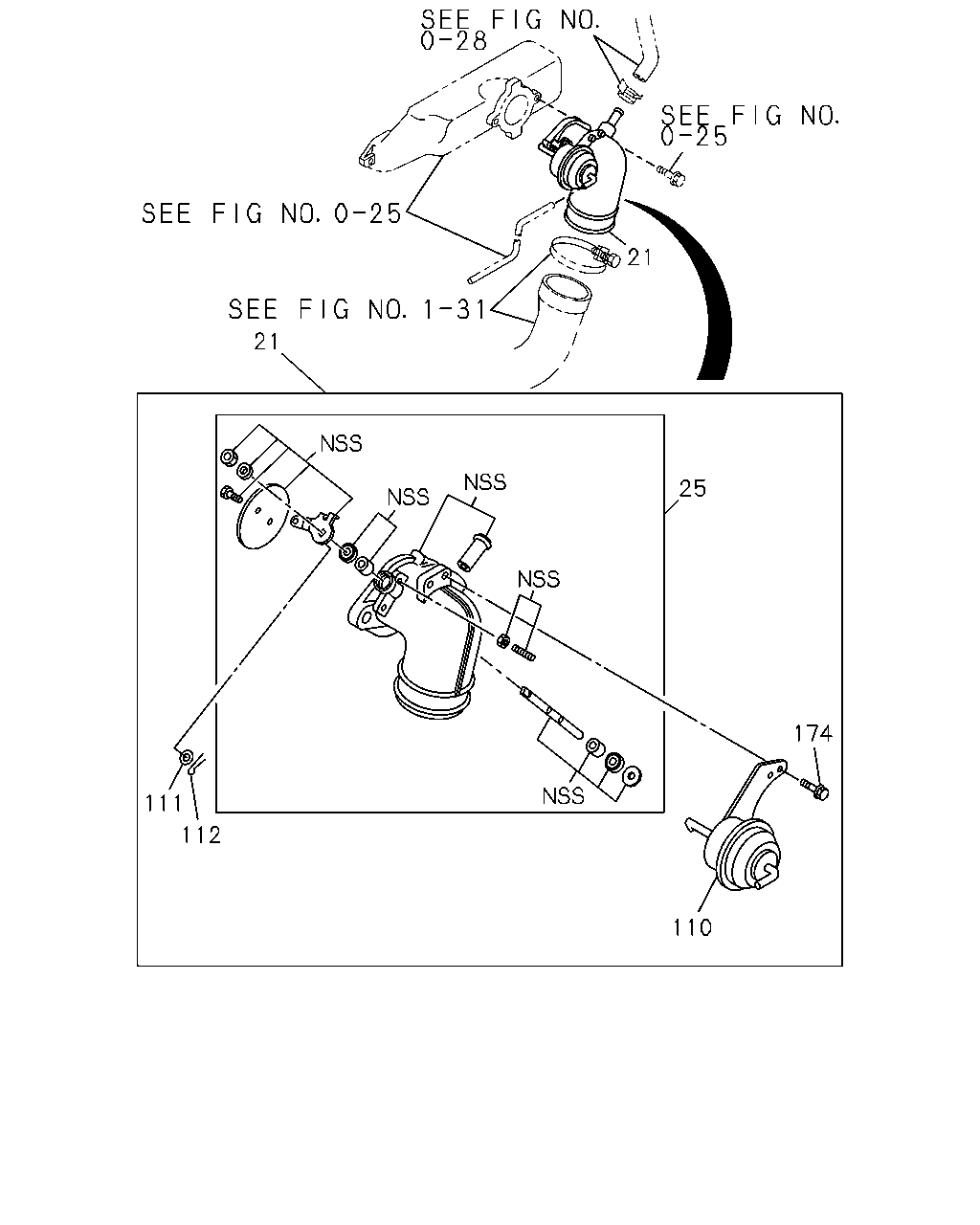

0-35 — ENGINE CONTROL VALVE AND LEVER
(#44388) — 59 parça
Tümü
A - 4JG2 ENG
B - 4HF1 ENG
C - 4HE1 ENG
D - 4BD1 ENG
E - 4BE1 ENG
F - 4BD2 ENG
◀
[035A] 4HE1 (4 parça)
[035A] 4BD1,4BD2,4BE1 (10 parça)
[035A] 4JG2 (22 parça)
[035A] 4HF1 (23 parça)
▶
21
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
21
03.440 VALVE ASM; THROTTLE
EXHAUST BRAKE<NF8>
8-97042-996-0
01
1
9312-9711
●
21
03.440 VALVE ASM; THROTTLE
AIR INTAKE SYSTEM FRONT<6PC>
8-97042-996-0
01
1
9712-
●
21
03.440 VALVE ASM; THROTTLE
EXHAUST BRAKE<NF8>
8-97093-529-0
01
1
9312-9510
●
21
03.440 VALVE ASM; THROTTLE
8-97135-660-1
01
1
9712-
●
242
252
252
245
245
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
242
03.431 LINK ASM
8-94338-420-0
01
1
9312-9510
●
242
03.431 LINK ASM
8-94152-024-0
01
1
9312-
●
●
245
03.425 NUT; LINK
03.463 M5 LH THREAD
9-09840-277-0
01
1
9312-9510
●
●
●
245
03.425 NUT; LINK
03.463 M5 LH THREAD
9-09840-277-0
01
1
9511-
●
●
245
03.425 NUT; LINK
02.664 RH THREAD
9-99111-405-0
01
1
9312-9510
●
●
●
245
03.425 NUT; LINK
02.664 RH THREAD M5
9-99111-405-0
01
1
9511-
●
●
252
03.425 JOINT ASM; BALL
RH THREAD
8-94151-299-0
01
1
9312-9510
●
252
03.425 JOINT ASM; BALL
LH THREAD
8-94151-300-0
01
1
9312-9510
●
252
03.425 JOINT ASM; BALL
RH THREAD
1-09760-002-0
01
1
9312-
●
●
252
03.425 JOINT ASM; BALL
LH THREAD
1-09760-003-0
01
1
9312-
●
●
21
21
25
174
111
112
110
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
21
03.440 VALVE ASM; THROTTLE
EXHAUST BRAKE<NF8>
8-97042-996-0
01
1
9312-9711
●
21
03.440 VALVE ASM; THROTTLE
AIR INTAKE SYSTEM FRONT<6PC>
8-97042-996-0
01
1
9712-
●
21
03.440 VALVE ASM; THROTTLE
EXHAUST BRAKE<NF8>
8-97093-529-0
01
1
9312-9510
●
21
03.440 VALVE ASM; THROTTLE
8-97135-660-1
01
1
9712-
●
25
03.440 BODY ASM; THROTTLE
EXHAUST BRAKE<NF8>
8-97094-116-0
01
1
9312-9711
●
25
03.440 BODY ASM; THROTTLE
AIR INTAKE SYSTEM FRONT<6PC>
8-97094-116-0
01
1
9712-
●
25
03.440 BODY ASM; THROTTLE
EXHAUST BRAKE<NF8>
8-97022-146-3
01
1
9312-9510
●
110
03.440 CHAMBER ASM; DIAPH
EXHAUST BRAKE<NF8>
8-97019-267-0
01
1
9312-9711
●
110
03.440 CHAMBER ASM; DIAPH
AIR INTAKE SYSTEM FRONT<6PC>
8-97019-267-0
01
1
9712-
●
110
03.440 CHAMBER ASM; DIAPH
EXHAUST BRAKE<NF8>
8-97096-809-0
01
1
9312-9510
●
111
03.440 WASHER; SPLIT PIN
EXHAUST BRAKE<NF8>
8-94467-828-0
01
1
9312-9406
●
●
111
03.440 WASHER; SPLIT PIN
EXHAUST BRAKE<NF8>
8-94467-828-0
01
1
9407-9502
●
111
03.440 WASHER; SPLIT PIN
EXHAUST BRAKE<NF8>
8-94467-828-0
01
1
9503-9510
●
●
111
03.440 WASHER; SPLIT PIN
EXHAUST BRAKE<NF8>
8-94467-828-0
01
1
9511-9711
●
111
03.440 WASHER; SPLIT PIN
AIR INTAKE SYSTEM FRONT<6PC>
8-94467-828-0
01
1
9712-
●
111
03.440 WASHER; SPLIT PIN
EXHAUST BRAKE<NF8>
8-94467-828-0
01
1
9407-9502
●
112
03.440 PIN; SPLIT,LEVER
EXHAUST BRAKE<NF8>
9-08112-010-0
01
1
9312-9711
●
112
03.440 PIN; SPLIT,LEVER
AIR INTAKE SYSTEM FRONT<6PC>
9-08112-010-0
01
1
9712-
●
112
03.440 PIN; SPLIT,LEVER
EXHAUST BRAKE<NF8>
8-97079-213-0
01
1
9312-9510
●
174
03.440 BOLT; CHAMBER
EXHAUST BRAKE<NF8> 00.685 M6X12 W/LK WASHER
0-50040-612-0
02
1
9312-9711
●
174
03.440 BOLT; CHAMBER
AIR INTAKE SYSTEM FRONT<6PC> 00.685 M6X12 W/LK WASHER
0-50040-612-0
02
1
9712-
●
174
03.440 BOLT; CHAMBER
EXHAUST BRAKE<NF8> 16.341 M6X12 W/LK WASHER
9-01900-612-0
02
1
9312-9510
●
21
21
174
25
110
111
184
112
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
21
03.440 VALVE ASM; THROTTLE
EXHAUST BRAKE<NF8>
8-97042-996-0
01
1
9312-9711
●
21
03.440 VALVE ASM; THROTTLE
AIR INTAKE SYSTEM FRONT<6PC>
8-97042-996-0
01
1
9712-
●
21
03.440 VALVE ASM; THROTTLE
EXHAUST BRAKE<NF8>
8-97093-529-0
01
1
9312-9510
●
21
03.440 VALVE ASM; THROTTLE
8-97135-660-1
01
1
9712-
●
25
03.440 BODY ASM; THROTTLE
EXHAUST BRAKE<NF8>
8-97094-116-0
01
1
9312-9711
●
25
03.440 BODY ASM; THROTTLE
AIR INTAKE SYSTEM FRONT<6PC>
8-97094-116-0
01
1
9712-
●
25
03.440 BODY ASM; THROTTLE
EXHAUST BRAKE<NF8>
8-97022-146-3
01
1
9312-9510
●
110
03.440 CHAMBER ASM; DIAPH
EXHAUST BRAKE<NF8>
8-97019-267-0
01
1
9312-9711
●
110
03.440 CHAMBER ASM; DIAPH
AIR INTAKE SYSTEM FRONT<6PC>
8-97019-267-0
01
1
9712-
●
110
03.440 CHAMBER ASM; DIAPH
EXHAUST BRAKE<NF8>
8-97096-809-0
01
1
9312-9510
●
111
03.440 WASHER; SPLIT PIN
EXHAUST BRAKE<NF8>
8-94467-828-0
01
1
9312-9406
●
●
111
03.440 WASHER; SPLIT PIN
EXHAUST BRAKE<NF8>
8-94467-828-0
01
1
9407-9502
●
111
03.440 WASHER; SPLIT PIN
EXHAUST BRAKE<NF8>
8-94467-828-0
01
1
9503-9510
●
●
111
03.440 WASHER; SPLIT PIN
EXHAUST BRAKE<NF8>
8-94467-828-0
01
1
9511-9711
●
111
03.440 WASHER; SPLIT PIN
AIR INTAKE SYSTEM FRONT<6PC>
8-94467-828-0
01
1
9712-
●
111
03.440 WASHER; SPLIT PIN
EXHAUST BRAKE<NF8>
8-94467-828-0
01
1
9407-9502
●
112
03.440 PIN; SPLIT,LEVER
EXHAUST BRAKE<NF8>
9-08112-010-0
01
1
9312-9711
●
112
03.440 PIN; SPLIT,LEVER
AIR INTAKE SYSTEM FRONT<6PC>
9-08112-010-0
01
1
9712-
●
112
03.440 PIN; SPLIT,LEVER
EXHAUST BRAKE<NF8>
8-97079-213-0
01
1
9312-9510
●
174
03.440 BOLT; CHAMBER
EXHAUST BRAKE<NF8> 00.685 M6X12 W/LK WASHER
0-50040-612-0
02
1
9312-9711
●
174
03.440 BOLT; CHAMBER
AIR INTAKE SYSTEM FRONT<6PC> 00.685 M6X12 W/LK WASHER
0-50040-612-0
02
1
9712-
●
174
03.440 BOLT; CHAMBER
EXHAUST BRAKE<NF8> 16.341 M6X12 W/LK WASHER
9-01900-612-0
02
1
9312-9510
●
184
03.440 PIN; LEVER
EXHAUST BRAKE<NF8>
8-97022-150-1
01
1
9312-9510
●
