◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50696 - NPR/NQR-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-33 - FAN AND FAN BELT ▶
0-33 — FAN AND FAN BELT (#44387) — 625 parça

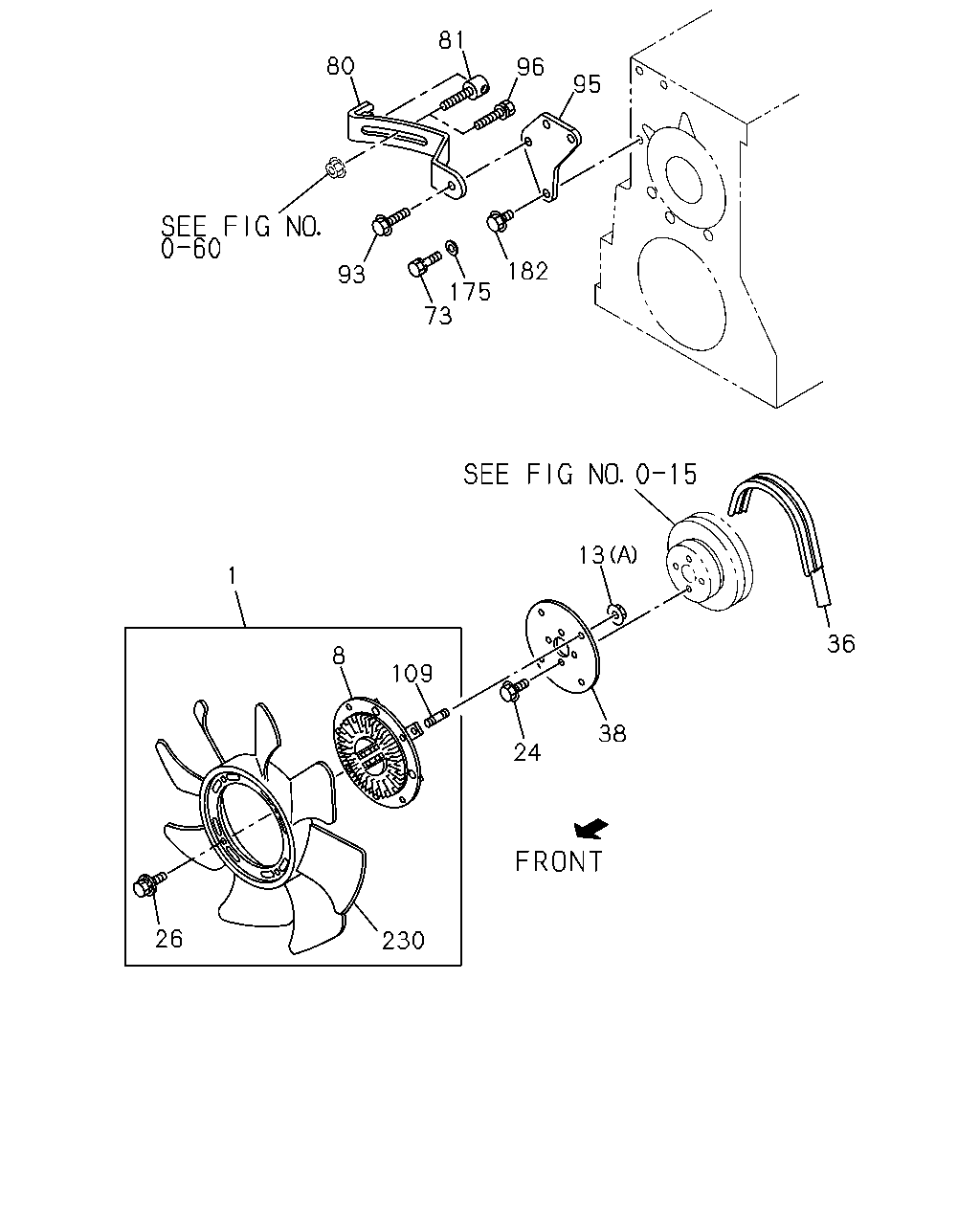

çizim 19131
81 80 96 95 182 93 175 73 13 1 36 8 109 38 24 26 230
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 01.064 FAN; COOLING 8-94440-998-2 01 1 9312-9510 ●
1 01.064 FAN; COOLING 8-97081-738-0 01 1 9312-9505 ●
1 01.064 FAN; COOLING
OD=410 		8-97129-769-0 01 1 9506- ●
1 01.064 FAN; COOLING 5-13662-012-1 01 1 9312-9711 ●
1 01.064 FAN; COOLING 5-13662-012-1 01 1 9712- ●
1 01.064 FAN; COOLING
CHARGE AIR COOLER<6PL> 		5-13662-012-1 01 1 9712- ●
1 01.064 FAN; COOLING
FAN FLUID DRIVE<KA3> 		8-97118-158-0 01 1 9312- ●
1 01.064 FAN; COOLING
EXC. FAN FLUID DRIVE<KA3> 		8-94367-363-1 01 1 9312- ●
1 01.064 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) 		8-97088-812-3 01 1 9312-9503 ●
1 01.064 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) 		8-97129-768-0 01 1 9504-9506 ●
1 01.064 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) 		8-97135-865-0 01 1 9507-9510 ●
1 01.064 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) 		8-97141-195-1 01 1 9511-9711 ●
1 01.064 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) 		8-97141-195-1 01 1 9712- ●
1 01.064 FAN; COOLING
EXC. CHARGE AIR COOLER<6PL> 		8-97141-195-1 01 1 9712- ●
1 01.064 FAN; COOLING 8-97141-195-1 01 1 9712- ●
1 01.064 FAN; COOLING
M/T MXA5R(RMT),M/T MXA5S(RNA) 		8-97088-813-1 01 1 9312-9411 ●
1 01.064 FAN; COOLING
M/T MXA5R(RMT),M/T MXA5S(RNA) 		8-97123-906-0 01 1 9412-9503 ●
1 01.064 FAN; COOLING
M/T MXA5R(RMT),M/T MXA5S(RNA) 		8-97129-772-1 01 1 9504-9611 ●
1 01.064 FAN; COOLING
FLOOR REMOTE SHIFT<M11> 		8-97129-772-1 01 1 9612- ●
8 01.064 CLUTCH; COOLING FAN 8-94478-984-0 01 1 9312-9510 ●
8 01.064 CLUTCH; COOLING FAN
01.055 		8-97094-661-0 01 1 9312-9505 ●
8 01.064 CLUTCH; COOLING FAN 8-97129-735-0 01 1 9506- ●
8 01.064 CLUTCH; COOLING FAN 8-97045-151-0 01 1 9312- ●
8 01.064 CLUTCH; COOLING FAN
FAN FLUID DRIVE<KA3> 		8-97095-204-0 01 1 9312- ●
8 01.064 CLUTCH; COOLING FAN
A/T 4 SPEED-JATCO(RMK) 		8-97088-802-0 01 1 9312-9503 ●
8 01.064 CLUTCH; COOLING FAN
A/T 4 SPEED-JATCO(RMK) 		8-97129-733-0 01 1 9504-9510 ●
8 01.064 CLUTCH; COOLING FAN
A/T 4 SPEED-JATCO(RMK) 		8-97139-299-0 01 1 9511-9711 ●
8 01.064 CLUTCH; COOLING FAN
A/T 4 SPEED-JATCO(RMK) 		8-97139-299-0 01 1 9712- ●
8 01.064 CLUTCH; COOLING FAN
EXC. CHARGE AIR COOLER<6PL> 		8-97139-299-0 01 1 9712- ●
8 01.064 CLUTCH; COOLING FAN 8-97139-299-0 01 1 9712- ●
8 01.064 CLUTCH; COOLING FAN
M/T MXA5R(RMT),M/T MXA5S(RNA) 		8-97088-803-0 01 1 9312-9411 ●
8 01.064 CLUTCH; COOLING FAN
M/T MXA5R(RMT),M/T MXA5S(RNA) 		8-97123-948-0 01 1 9412-9503 ●
8 01.064 CLUTCH; COOLING FAN
M/T MXA5R(RMT),M/T MXA5S(RNA) 		8-97129-738-0 01 1 9504-9611 ●
8 01.064 CLUTCH; COOLING FAN
FLOOR REMOTE SHIFT<M11> 		8-97129-738-0 01 1 9612- ●
8 01.064 CLUTCH; COOLING FAN
CHARGE AIR COOLER<6PL> 		8-97148-797-0 01 1 9712- ●
13 01.062 NUT; COOLING FAN
04.594 (B) M6 FLANGE 		0-91150-106-0 04 1 9312-9403 ●
13 01.062 NUT; COOLING FAN
07.829 (B) M6 FLANGE 		5-09440-004-0 04 1 9404-9711 ●
13 01.062 NUT; COOLING FAN
07.829 (B) M6 FLANGE 		5-09440-004-0 04 1 9712- ●
13 01.062 NUT; COOLING FAN
CHARGE AIR COOLER<6PL> 07.829 (B) M6 FLANGE 		5-09440-004-0 04 1 9712- ●
13 01.062 NUT; COOLING FAN
07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 9312-9711 ● ●
13 01.062 NUT; COOLING FAN
FAN FLUID DRIVE<KA3> 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 9312-9711 ●
13 01.062 NUT; COOLING FAN
07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 9712- ● ● ● ●
13 01.062 NUT; COOLING FAN
FAN FLUID DRIVE<KA3> 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 9712- ●
24 01.062 BOLT; FAN
04.785 M8X18 W/LK WASHER 		0-50040-818-0 04 1 9312-9510 ●
24 01.062 BOLT; FAN
FAN FLUID DRIVE<KA3> 04.785 M8X18 W/LK WASHER 		0-50040-818-0 04 1 9312-9510 ●
24 01.062 BOLT; FAN
AUSTRALIA EQUIPMENT(RR3) 04.785 M8X18 W/LK WASHER 		0-50040-818-0 04 1 9511-9711 ●
24 01.062 BOLT; FAN
00.727 M8X22 W/LK WASHER 		0-50040-822-0 04 1 9312-9510 ●
24 01.062 BOLT; FAN
08.900 M8X20 W/LK WASHER 		0-50040-820-0 04 1 9312-9712 ●
24 01.062 BOLT; FAN
M8X16 FLANGE 		0-28080-816-0 04 1 9801-9804 ●
24 01.062 BOLT; FAN
AUSTRALIA EQUIPMENT(RR3) M8X16 FLANGE 		0-28080-816-0 04 1 9801-9804 ●
24 01.062 BOLT; FAN
AUSTRALIA EQUIPMENT(RR3) 04.785 M8X18 W/LK WASHER 		0-50040-818-0 04 1 9805- ●
24 01.062 BOLT; FAN
07.010 M8X20 FLANGE 		0-28080-820-0 04 1 9805- ●
24 01.062 BOLT; FAN
AUSTRALIA EQUIPMENT(RR3) 04.785 M8X18 W/LK WASHER 		0-50040-818-0 04 1 9712-9712 ●
24 01.062 BOLT; FAN
08.900 M8X18 FLANGE 		0-28080-818-0 04 1 9312-9711 ●
24 01.062 BOLT; FAN
08.900 M8X18 FLANGE 		0-28080-818-0 04 1 9712- ● ● ●
26 01.062 BOLT; FAN TO CLU 8-94478-986-0 04 1 9312-9312 ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 9312-9711 ●
26 01.062 BOLT; FAN TO CLU
FAN FLUID DRIVE<KA3> 		8-94389-764-0 04 1 9312-9312 ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 9401-9406 ●
26 01.062 BOLT; FAN TO CLU
FAN FLUID DRIVE<KA3> 		8-94389-764-0 04 1 9401-9406 ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 9407-9503 ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 9504-9510 ●
26 01.062 BOLT; FAN TO CLU
M/T MXA5R(RMT),M/T MXA5S(RNA) 		8-94389-764-0 04 1 9504-9510 ●
26 01.062 BOLT; FAN TO CLU
M/T MXA5R(RMT),M/T MXA5S(RNA) 		8-94389-764-0 04 1 9511-9611 ●
26 01.062 BOLT; FAN TO CLU
FLOOR REMOTE SHIFT<M11> 		8-94389-764-0 04 1 9612-9711 ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 9712- ●
26 01.062 BOLT; FAN TO CLU
FLOOR REMOTE SHIFT<M11> 		8-94389-764-0 04 1 9712- ●
26 01.062 BOLT; FAN TO CLU
A/T 4 SPEED-JATCO(RMK) 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 9312-9711 ●
26 01.062 BOLT; FAN TO CLU
A/T 4 SPEED-JATCO(RMK) 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 9712- ●
26 01.062 BOLT; FAN TO CLU
EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 9712- ●
26 01.062 BOLT; FAN TO CLU
01.428 M6X12 FLANGE 		0-28080-612-0 04 1 9712- ●
26 01.062 BOLT; FAN TO CLU
M/T MXA5R(RMT),M/T MXA5S(RNA) 03.670 M6X20 FLANGE 		0-28080-620-0 04 1 9312-9503 ●
36 01.066 BELT; COOLING FAN
L=1196 		1-13671-216-1 01 1 9312-9510 ● ●
36 01.066 BELT; COOLING FAN
L=1196 		1-13671-216-1 01 1 9511- ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97043-551-0 01 1 9312-9511 ●
36 01.066 BELT; COOLING FAN
EXC. EURO2 SPECIFICATION<7AF> L=1041 MITSUBOSHI 		8-97043-551-0 01 1 9512-9701 ●
36 01.066 BELT; COOLING FAN
EURO2 SPECIFICATION<7AF> L=1041 MITSUBOSHI 		8-97141-514-0 01 1 9512-9701 ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97141-514-0 01 1 9702- ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8970147011) 		8-97014-252-1 01 1 9312-9409 ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8970944470) 		8-97094-446-2 01 1 9410-9706 ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-0 01 1 9707-9711 ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-0 01 1 9712- ● ● ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(5136711280) MITSUBOSHI 		5-13671-127-0 01 1 9312- ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 9408-9502 ●
38 01.062 SPACER; FAN
FAN FLUID DRIVE<KA3> 		8-97108-643-0 01 1 9408-9502 ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 9503-9510 ● ●
38 01.062 SPACER; FAN
FAN FLUID DRIVE<KA3> 		8-97108-643-0 01 1 9503-9510 ●
38 01.062 SPACER; FAN
FAN FLUID DRIVE<KA3> 		8-97108-643-0 01 1 9511-9711 ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 9511-9711 ●
38 01.062 SPACER; FAN
FAN FLUID DRIVE<KA3> 		8-97108-643-0 01 1 9712-9804 ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 9712-9804 ● ● ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 9805- ● ● ● ●
38 01.062 SPACER; FAN
FAN FLUID DRIVE<KA3> 		8-97108-643-0 01 1 9805- ●
38 01.062 SPACER; FAN 5-13642-078-0 01 1 9312-9405 ● ● ●
38 01.062 SPACER; FAN
FAN FLUID DRIVE<KA3> 		5-13642-078-0 01 1 9312-9405 ●
38 01.062 SPACER; FAN 5-13642-078-0 01 1 9406-9407 ● ●
38 01.062 SPACER; FAN
FAN FLUID DRIVE<KA3> 		5-13642-078-0 01 1 9406-9407 ●
38 01.062 SPACER; FAN 5-13642-078-0 01 1 9408-9804 ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 9406-9502 ●
73 02.277 BOLT; GEN TO ADJ PLATE
GENERATOR DENSO(7KH) 00.780 M8X30 W/LK WASHER 		0-50040-830-0 01 1 9410- ●
80 02.317 PLATE; ADJ 8-94157-836-1 01 1 9312-9510 ● ●
80 02.317 PLATE; ADJ
GENERATOR 24V40A(6MN) 		8-94157-836-1 01 1 9312-9510 ●
80 02.317 PLATE; ADJ 8-94157-836-1 01 1 9511- ●
80 02.317 PLATE; ADJ
GENERATOR 24V40A(6MN) 		8-94157-836-1 01 1 9511- ●
80 02.317 PLATE; ADJ 8-97080-556-1 01 1 9312- ●
80 02.317 PLATE; ADJ
EXC. GENERATOR 24V40A(6MN) 		8-94129-602-0 01 1 9312- ●
80 02.317 PLATE; ADJ 8-97061-466-1 01 1 9312-9702 ●
80 02.317 PLATE; ADJ 8-97172-415-0 01 1 9703-9711 ●
80 02.317 PLATE; ADJ 8-97172-415-0 01 1 9712- ● ● ●
81 02.317 PIECE; SLIDING
AIR CONDITIONER MANUAL CONT(C60) 		8-97086-228-1 01 1 9312-9409 ●
81 02.317 PIECE; SLIDING
AIR CONDITIONER MANUAL CONT(C60) EXC. GENERATOR DENSO(7KH) 		8-97086-228-1 01 1 9410-9711 ●
81 02.317 PIECE; SLIDING
AIR CONDITIONER MANUAL CONT(C60) EXC. GENERATOR DENSO(7KH) 		8-97086-228-1 01 1 9712- ● ● ●
93 02.317 BOLT; ADJ PLATE BRKT
03.417 M10X25 FLANGE 		0-28081-025-0 01 1 9312-9606 ●
93 02.317 BOLT; ADJ PLATE BRKT
03.405 M10X25 FLANGE 		0-28681-025-0 01 1 9607-9711 ●
93 02.317 BOLT; ADJ PLATE BRKT
03.405 M10X25 FLANGE 		0-28681-025-0 01 1 9712- ● ● ●
95 02.317 BRACKET; ADJ PLATE 8-97037-510-0 01 1 9312-9711 ●
95 02.317 BRACKET; ADJ PLATE 8-97037-510-0 01 1 9712- ● ● ●
96 02.317 BOLT; ADJ PLATE
00.780 (A) M8X30 W/LK WASHER 		0-50040-830-0 01 1 9312-9510 ● ● ●
96 02.317 BOLT; ADJ PLATE
00.780 (A) M8X30 W/LK WASHER 		0-50040-830-0 01 1 9511- ● ●
96 02.317 BOLT; ADJ PLATE
03.613 (B) M10X30 W/LK&PL WASHER 		0-50141-030-0 01 1 9312-9510 ● ● ●
96 02.317 BOLT; ADJ PLATE
03.613 (B) M10X30 W/LK&PL WASHER 		0-50141-030-0 01 1 9511- ● ●
96 02.317 BOLT; ADJ PLATE
01.540 (A) M8X45 FLANGE 		0-28080-845-0 01 1 9312- ●
96 02.317 BOLT; ADJ PLATE
01.073 (B) M8X25 W/LK WASHER 		0-50040-825-0 01 1 9312- ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) EXC. GENERATOR DENSO(7KH) 01.073 M8X120 FLANGE 		8-97062-091-1 01 1 9503-9701 ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) EXC. GENERATOR DENSO(7KH) M8X130 FLANGE 		8-97172-720-1 01 1 9702-9711 ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) EXC. GENERATOR DENSO(7KH) M8X130 FLANGE 		8-97172-720-1 01 1 9712- ● ● ●
96 02.317 BOLT; ADJ PLATE
EXC. AIR CONDITIONER MANUAL CONT(C60),GENERATOR DENSO(7KH) M8X40 W/WASHER 		8-97011-792-4 01 1 9503- ●
109 01.062 STUD; FAN CLU
M8X13.5 L=22 		8-97049-577-1 04 1 9407-9611 ●
109 01.062 STUD; FAN CLU
NPR SGL CAB&SHORT(NPC5SC) NPR/NQR SGL CAB&MIDDLE(NPC5SF) NPR/NQR SGL CAB&LONG(NPC5SK) NQR SGL CAB&EXTEND LONG(NPC5SN) NPR DBL CAB&MIDDLE(NPC5WF) FLOOR REMOTE SHIFT<M11> M8X13.5 L=22 		8-97049-577-1 04 1 9612-9711 ●
109 01.062 STUD; FAN CLU
NPR/NQR SGL CAB&MIDDLE(NP**SF) A/T 4 SPEED-JATCO(RMK) M8X13.5 L=22 		8-97049-577-1 04 1 9612-9711 ●
109 01.062 STUD; FAN CLU
FLOOR REMOTE SHIFT<M11> M8X13.5 L=22 		8-97049-577-1 04 1 9712- ●
109 01.062 STUD; FAN CLU
NPR/NQR SGL CAB&MIDDLE(NP**SF) A/T 4 SPEED-JATCO(RMK) M8X13.5 L=22 		8-97049-577-1 04 1 9712- ●
109 01.062 STUD; FAN CLU
EXC. CHARGE AIR COOLER<6PL> M8X13.5 L=22 		8-97049-577-1 04 1 9712- ●
109 01.062 STUD; FAN CLU
M8X13.5 L=22 		8-97049-577-1 04 1 9712- ●
175 02.317 WASHER; PL,ADJ PLATE
GENERATOR DENSO(7KH) 16.716 ID=8.4 OD=18 		9-09160-608-0 01 1 9410- ●
182 01.062 BOLT; BRKT
00.004 M8X32 FLANGE 		0-28080-832-0 03 1 9312-9510 ●
182 01.062 BOLT; BRKT
02.183 M8X35 FLANGE 		0-28680-835-0 03 1 9511-9711 ●
182 01.062 BOLT; BRKT
02.183 M8X35 FLANGE 		0-28680-835-0 03 1 9712- ● ● ●
230 01.055 FAN; COOLING
01.604 		8-94478-985-0 01 1 9312-9510 ●
230 01.055 FAN; COOLING
01.064 		8-97094-660-0 01 1 9312- ●
230 01.055 FAN; COOLING
FAN FLUID DRIVE<KA3> 		8-97077-619-0 01 1 9312-9406 ●
230 01.055 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) 01.604 		8-97029-606-0 01 1 9312-9506 ●
230 01.055 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) 		8-97135-864-0 01 1 9507-9510 ●
230 01.055 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) 		8-97140-854-1 01 1 9511-9711 ●
230 01.055 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) 		8-97140-854-1 01 1 9712- ●
230 01.055 FAN; COOLING
EXC. CHARGE AIR COOLER<6PL> 		8-97140-854-1 01 1 9712- ●
230 01.055 FAN; COOLING 8-97140-854-1 01 1 9712- ●
230 01.055 FAN; COOLING
M/T MXA5R(RMT),M/T MXA5S(RNA) 		8-97078-662-1 01 1 9312-9611 ●
230 01.055 FAN; COOLING
FLOOR REMOTE SHIFT<M11> 		8-97078-662-1 01 1 9612- ●

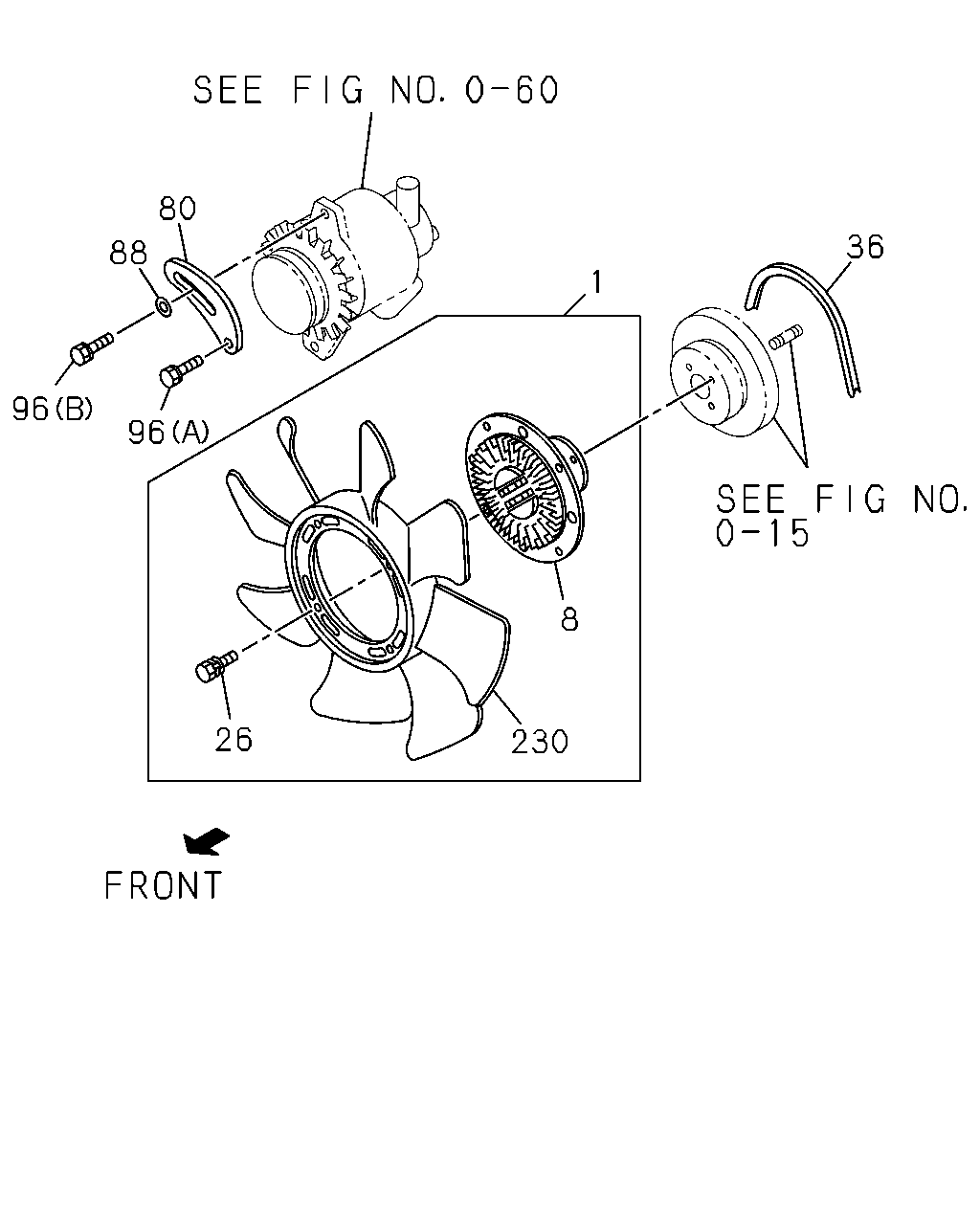

çizim 67549
80 36 88 1 96 96 8 26 230
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 01.064 FAN; COOLING 8-94440-998-2 01 1 9312-9510 ●
1 01.064 FAN; COOLING 8-97081-738-0 01 1 9312-9505 ●
1 01.064 FAN; COOLING
OD=410 		8-97129-769-0 01 1 9506- ●
1 01.064 FAN; COOLING 5-13662-012-1 01 1 9312-9711 ●
1 01.064 FAN; COOLING 5-13662-012-1 01 1 9712- ●
1 01.064 FAN; COOLING
CHARGE AIR COOLER<6PL> 		5-13662-012-1 01 1 9712- ●
1 01.064 FAN; COOLING
FAN FLUID DRIVE<KA3> 		8-97118-158-0 01 1 9312- ●
1 01.064 FAN; COOLING
EXC. FAN FLUID DRIVE<KA3> 		8-94367-363-1 01 1 9312- ●
1 01.064 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) 		8-97088-812-3 01 1 9312-9503 ●
1 01.064 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) 		8-97129-768-0 01 1 9504-9506 ●
1 01.064 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) 		8-97135-865-0 01 1 9507-9510 ●
1 01.064 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) 		8-97141-195-1 01 1 9511-9711 ●
1 01.064 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) 		8-97141-195-1 01 1 9712- ●
1 01.064 FAN; COOLING
EXC. CHARGE AIR COOLER<6PL> 		8-97141-195-1 01 1 9712- ●
1 01.064 FAN; COOLING 8-97141-195-1 01 1 9712- ●
1 01.064 FAN; COOLING
M/T MXA5R(RMT),M/T MXA5S(RNA) 		8-97088-813-1 01 1 9312-9411 ●
1 01.064 FAN; COOLING
M/T MXA5R(RMT),M/T MXA5S(RNA) 		8-97123-906-0 01 1 9412-9503 ●
1 01.064 FAN; COOLING
M/T MXA5R(RMT),M/T MXA5S(RNA) 		8-97129-772-1 01 1 9504-9611 ●
1 01.064 FAN; COOLING
FLOOR REMOTE SHIFT<M11> 		8-97129-772-1 01 1 9612- ●
8 01.064 CLUTCH; COOLING FAN 8-94478-984-0 01 1 9312-9510 ●
8 01.064 CLUTCH; COOLING FAN
01.055 		8-97094-661-0 01 1 9312-9505 ●
8 01.064 CLUTCH; COOLING FAN 8-97129-735-0 01 1 9506- ●
8 01.064 CLUTCH; COOLING FAN 8-97045-151-0 01 1 9312- ●
8 01.064 CLUTCH; COOLING FAN
FAN FLUID DRIVE<KA3> 		8-97095-204-0 01 1 9312- ●
8 01.064 CLUTCH; COOLING FAN
A/T 4 SPEED-JATCO(RMK) 		8-97088-802-0 01 1 9312-9503 ●
8 01.064 CLUTCH; COOLING FAN
A/T 4 SPEED-JATCO(RMK) 		8-97129-733-0 01 1 9504-9510 ●
8 01.064 CLUTCH; COOLING FAN
A/T 4 SPEED-JATCO(RMK) 		8-97139-299-0 01 1 9511-9711 ●
8 01.064 CLUTCH; COOLING FAN
A/T 4 SPEED-JATCO(RMK) 		8-97139-299-0 01 1 9712- ●
8 01.064 CLUTCH; COOLING FAN
EXC. CHARGE AIR COOLER<6PL> 		8-97139-299-0 01 1 9712- ●
8 01.064 CLUTCH; COOLING FAN 8-97139-299-0 01 1 9712- ●
8 01.064 CLUTCH; COOLING FAN
M/T MXA5R(RMT),M/T MXA5S(RNA) 		8-97088-803-0 01 1 9312-9411 ●
8 01.064 CLUTCH; COOLING FAN
M/T MXA5R(RMT),M/T MXA5S(RNA) 		8-97123-948-0 01 1 9412-9503 ●
8 01.064 CLUTCH; COOLING FAN
M/T MXA5R(RMT),M/T MXA5S(RNA) 		8-97129-738-0 01 1 9504-9611 ●
8 01.064 CLUTCH; COOLING FAN
FLOOR REMOTE SHIFT<M11> 		8-97129-738-0 01 1 9612- ●
8 01.064 CLUTCH; COOLING FAN
CHARGE AIR COOLER<6PL> 		8-97148-797-0 01 1 9712- ●
26 01.062 BOLT; FAN TO CLU 8-94478-986-0 04 1 9312-9312 ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 9312-9711 ●
26 01.062 BOLT; FAN TO CLU
FAN FLUID DRIVE<KA3> 		8-94389-764-0 04 1 9312-9312 ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 9401-9406 ●
26 01.062 BOLT; FAN TO CLU
FAN FLUID DRIVE<KA3> 		8-94389-764-0 04 1 9401-9406 ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 9407-9503 ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 9504-9510 ●
26 01.062 BOLT; FAN TO CLU
M/T MXA5R(RMT),M/T MXA5S(RNA) 		8-94389-764-0 04 1 9504-9510 ●
26 01.062 BOLT; FAN TO CLU
M/T MXA5R(RMT),M/T MXA5S(RNA) 		8-94389-764-0 04 1 9511-9611 ●
26 01.062 BOLT; FAN TO CLU
FLOOR REMOTE SHIFT<M11> 		8-94389-764-0 04 1 9612-9711 ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 9712- ●
26 01.062 BOLT; FAN TO CLU
FLOOR REMOTE SHIFT<M11> 		8-94389-764-0 04 1 9712- ●
26 01.062 BOLT; FAN TO CLU
A/T 4 SPEED-JATCO(RMK) 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 9312-9711 ●
26 01.062 BOLT; FAN TO CLU
A/T 4 SPEED-JATCO(RMK) 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 9712- ●
26 01.062 BOLT; FAN TO CLU
EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 9712- ●
26 01.062 BOLT; FAN TO CLU
01.428 M6X12 FLANGE 		0-28080-612-0 04 1 9712- ●
26 01.062 BOLT; FAN TO CLU
M/T MXA5R(RMT),M/T MXA5S(RNA) 03.670 M6X20 FLANGE 		0-28080-620-0 04 1 9312-9503 ●
36 01.066 BELT; COOLING FAN
L=1196 		1-13671-216-1 01 1 9312-9510 ● ●
36 01.066 BELT; COOLING FAN
L=1196 		1-13671-216-1 01 1 9511- ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97043-551-0 01 1 9312-9511 ●
36 01.066 BELT; COOLING FAN
EXC. EURO2 SPECIFICATION<7AF> L=1041 MITSUBOSHI 		8-97043-551-0 01 1 9512-9701 ●
36 01.066 BELT; COOLING FAN
EURO2 SPECIFICATION<7AF> L=1041 MITSUBOSHI 		8-97141-514-0 01 1 9512-9701 ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97141-514-0 01 1 9702- ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8970147011) 		8-97014-252-1 01 1 9312-9409 ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8970944470) 		8-97094-446-2 01 1 9410-9706 ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-0 01 1 9707-9711 ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-0 01 1 9712- ● ● ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(5136711280) MITSUBOSHI 		5-13671-127-0 01 1 9312- ●
80 02.317 PLATE; ADJ 8-94157-836-1 01 1 9312-9510 ● ●
80 02.317 PLATE; ADJ
GENERATOR 24V40A(6MN) 		8-94157-836-1 01 1 9312-9510 ●
80 02.317 PLATE; ADJ 8-94157-836-1 01 1 9511- ●
80 02.317 PLATE; ADJ
GENERATOR 24V40A(6MN) 		8-94157-836-1 01 1 9511- ●
80 02.317 PLATE; ADJ 8-97080-556-1 01 1 9312- ●
80 02.317 PLATE; ADJ
EXC. GENERATOR 24V40A(6MN) 		8-94129-602-0 01 1 9312- ●
80 02.317 PLATE; ADJ 8-97061-466-1 01 1 9312-9702 ●
80 02.317 PLATE; ADJ 8-97172-415-0 01 1 9703-9711 ●
80 02.317 PLATE; ADJ 8-97172-415-0 01 1 9712- ● ● ●
88 02.317 WASHER; PL,ADJ PLATE
07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 9312-9510 ● ● ● ●
88 02.317 WASHER; PL,ADJ PLATE
07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 9511- ● ● ●
96 02.317 BOLT; ADJ PLATE
00.780 (A) M8X30 W/LK WASHER 		0-50040-830-0 01 1 9312-9510 ● ● ●
96 02.317 BOLT; ADJ PLATE
00.780 (A) M8X30 W/LK WASHER 		0-50040-830-0 01 1 9511- ● ●
96 02.317 BOLT; ADJ PLATE
03.613 (B) M10X30 W/LK&PL WASHER 		0-50141-030-0 01 1 9312-9510 ● ● ●
96 02.317 BOLT; ADJ PLATE
03.613 (B) M10X30 W/LK&PL WASHER 		0-50141-030-0 01 1 9511- ● ●
96 02.317 BOLT; ADJ PLATE
01.540 (A) M8X45 FLANGE 		0-28080-845-0 01 1 9312- ●
96 02.317 BOLT; ADJ PLATE
01.073 (B) M8X25 W/LK WASHER 		0-50040-825-0 01 1 9312- ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) EXC. GENERATOR DENSO(7KH) 01.073 M8X120 FLANGE 		8-97062-091-1 01 1 9503-9701 ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) EXC. GENERATOR DENSO(7KH) M8X130 FLANGE 		8-97172-720-1 01 1 9702-9711 ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) EXC. GENERATOR DENSO(7KH) M8X130 FLANGE 		8-97172-720-1 01 1 9712- ● ● ●
96 02.317 BOLT; ADJ PLATE
EXC. AIR CONDITIONER MANUAL CONT(C60),GENERATOR DENSO(7KH) M8X40 W/WASHER 		8-97011-792-4 01 1 9503- ●
230 01.055 FAN; COOLING
01.604 		8-94478-985-0 01 1 9312-9510 ●
230 01.055 FAN; COOLING
01.064 		8-97094-660-0 01 1 9312- ●
230 01.055 FAN; COOLING
FAN FLUID DRIVE<KA3> 		8-97077-619-0 01 1 9312-9406 ●
230 01.055 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) 01.604 		8-97029-606-0 01 1 9312-9506 ●
230 01.055 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) 		8-97135-864-0 01 1 9507-9510 ●
230 01.055 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) 		8-97140-854-1 01 1 9511-9711 ●
230 01.055 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) 		8-97140-854-1 01 1 9712- ●
230 01.055 FAN; COOLING
EXC. CHARGE AIR COOLER<6PL> 		8-97140-854-1 01 1 9712- ●
230 01.055 FAN; COOLING 8-97140-854-1 01 1 9712- ●
230 01.055 FAN; COOLING
M/T MXA5R(RMT),M/T MXA5S(RNA) 		8-97078-662-1 01 1 9312-9611 ●
230 01.055 FAN; COOLING
FLOOR REMOTE SHIFT<M11> 		8-97078-662-1 01 1 9612- ●

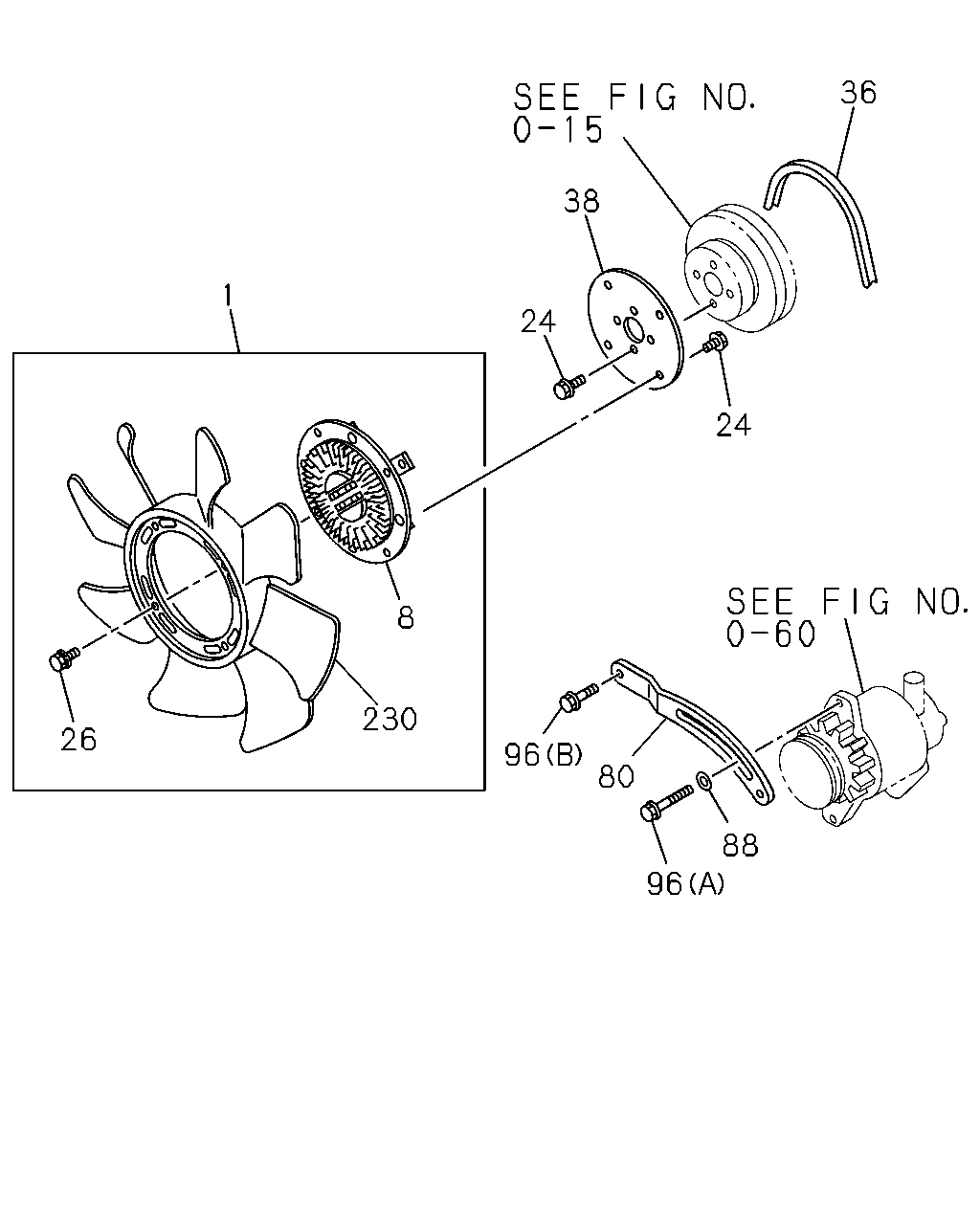

çizim 67741
36 38 1 24 24 8 230 26 96 80 88 96
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 01.064 FAN; COOLING 8-94440-998-2 01 1 9312-9510 ●
1 01.064 FAN; COOLING 8-97081-738-0 01 1 9312-9505 ●
1 01.064 FAN; COOLING
OD=410 		8-97129-769-0 01 1 9506- ●
1 01.064 FAN; COOLING 5-13662-012-1 01 1 9312-9711 ●
1 01.064 FAN; COOLING 5-13662-012-1 01 1 9712- ●
1 01.064 FAN; COOLING
CHARGE AIR COOLER<6PL> 		5-13662-012-1 01 1 9712- ●
1 01.064 FAN; COOLING
FAN FLUID DRIVE<KA3> 		8-97118-158-0 01 1 9312- ●
1 01.064 FAN; COOLING
EXC. FAN FLUID DRIVE<KA3> 		8-94367-363-1 01 1 9312- ●
1 01.064 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) 		8-97088-812-3 01 1 9312-9503 ●
1 01.064 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) 		8-97129-768-0 01 1 9504-9506 ●
1 01.064 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) 		8-97135-865-0 01 1 9507-9510 ●
1 01.064 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) 		8-97141-195-1 01 1 9511-9711 ●
1 01.064 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) 		8-97141-195-1 01 1 9712- ●
1 01.064 FAN; COOLING
EXC. CHARGE AIR COOLER<6PL> 		8-97141-195-1 01 1 9712- ●
1 01.064 FAN; COOLING 8-97141-195-1 01 1 9712- ●
1 01.064 FAN; COOLING
M/T MXA5R(RMT),M/T MXA5S(RNA) 		8-97088-813-1 01 1 9312-9411 ●
1 01.064 FAN; COOLING
M/T MXA5R(RMT),M/T MXA5S(RNA) 		8-97123-906-0 01 1 9412-9503 ●
1 01.064 FAN; COOLING
M/T MXA5R(RMT),M/T MXA5S(RNA) 		8-97129-772-1 01 1 9504-9611 ●
1 01.064 FAN; COOLING
FLOOR REMOTE SHIFT<M11> 		8-97129-772-1 01 1 9612- ●
8 01.064 CLUTCH; COOLING FAN 8-94478-984-0 01 1 9312-9510 ●
8 01.064 CLUTCH; COOLING FAN
01.055 		8-97094-661-0 01 1 9312-9505 ●
8 01.064 CLUTCH; COOLING FAN 8-97129-735-0 01 1 9506- ●
8 01.064 CLUTCH; COOLING FAN 8-97045-151-0 01 1 9312- ●
8 01.064 CLUTCH; COOLING FAN
FAN FLUID DRIVE<KA3> 		8-97095-204-0 01 1 9312- ●
8 01.064 CLUTCH; COOLING FAN
A/T 4 SPEED-JATCO(RMK) 		8-97088-802-0 01 1 9312-9503 ●
8 01.064 CLUTCH; COOLING FAN
A/T 4 SPEED-JATCO(RMK) 		8-97129-733-0 01 1 9504-9510 ●
8 01.064 CLUTCH; COOLING FAN
A/T 4 SPEED-JATCO(RMK) 		8-97139-299-0 01 1 9511-9711 ●
8 01.064 CLUTCH; COOLING FAN
A/T 4 SPEED-JATCO(RMK) 		8-97139-299-0 01 1 9712- ●
8 01.064 CLUTCH; COOLING FAN
EXC. CHARGE AIR COOLER<6PL> 		8-97139-299-0 01 1 9712- ●
8 01.064 CLUTCH; COOLING FAN 8-97139-299-0 01 1 9712- ●
8 01.064 CLUTCH; COOLING FAN
M/T MXA5R(RMT),M/T MXA5S(RNA) 		8-97088-803-0 01 1 9312-9411 ●
8 01.064 CLUTCH; COOLING FAN
M/T MXA5R(RMT),M/T MXA5S(RNA) 		8-97123-948-0 01 1 9412-9503 ●
8 01.064 CLUTCH; COOLING FAN
M/T MXA5R(RMT),M/T MXA5S(RNA) 		8-97129-738-0 01 1 9504-9611 ●
8 01.064 CLUTCH; COOLING FAN
FLOOR REMOTE SHIFT<M11> 		8-97129-738-0 01 1 9612- ●
8 01.064 CLUTCH; COOLING FAN
CHARGE AIR COOLER<6PL> 		8-97148-797-0 01 1 9712- ●
24 01.062 BOLT; FAN
04.785 M8X18 W/LK WASHER 		0-50040-818-0 04 1 9312-9510 ●
24 01.062 BOLT; FAN
FAN FLUID DRIVE<KA3> 04.785 M8X18 W/LK WASHER 		0-50040-818-0 04 1 9312-9510 ●
24 01.062 BOLT; FAN
AUSTRALIA EQUIPMENT(RR3) 04.785 M8X18 W/LK WASHER 		0-50040-818-0 04 1 9511-9711 ●
24 01.062 BOLT; FAN
00.727 M8X22 W/LK WASHER 		0-50040-822-0 04 1 9312-9510 ●
24 01.062 BOLT; FAN
08.900 M8X20 W/LK WASHER 		0-50040-820-0 04 1 9312-9712 ●
24 01.062 BOLT; FAN
M8X16 FLANGE 		0-28080-816-0 04 1 9801-9804 ●
24 01.062 BOLT; FAN
AUSTRALIA EQUIPMENT(RR3) M8X16 FLANGE 		0-28080-816-0 04 1 9801-9804 ●
24 01.062 BOLT; FAN
AUSTRALIA EQUIPMENT(RR3) 04.785 M8X18 W/LK WASHER 		0-50040-818-0 04 1 9805- ●
24 01.062 BOLT; FAN
07.010 M8X20 FLANGE 		0-28080-820-0 04 1 9805- ●
24 01.062 BOLT; FAN
AUSTRALIA EQUIPMENT(RR3) 04.785 M8X18 W/LK WASHER 		0-50040-818-0 04 1 9712-9712 ●
24 01.062 BOLT; FAN
08.900 M8X18 FLANGE 		0-28080-818-0 04 1 9312-9711 ●
24 01.062 BOLT; FAN
08.900 M8X18 FLANGE 		0-28080-818-0 04 1 9712- ● ● ●
26 01.062 BOLT; FAN TO CLU 8-94478-986-0 04 1 9312-9312 ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 9312-9711 ●
26 01.062 BOLT; FAN TO CLU
FAN FLUID DRIVE<KA3> 		8-94389-764-0 04 1 9312-9312 ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 9401-9406 ●
26 01.062 BOLT; FAN TO CLU
FAN FLUID DRIVE<KA3> 		8-94389-764-0 04 1 9401-9406 ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 9407-9503 ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 9504-9510 ●
26 01.062 BOLT; FAN TO CLU
M/T MXA5R(RMT),M/T MXA5S(RNA) 		8-94389-764-0 04 1 9504-9510 ●
26 01.062 BOLT; FAN TO CLU
M/T MXA5R(RMT),M/T MXA5S(RNA) 		8-94389-764-0 04 1 9511-9611 ●
26 01.062 BOLT; FAN TO CLU
FLOOR REMOTE SHIFT<M11> 		8-94389-764-0 04 1 9612-9711 ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 9712- ●
26 01.062 BOLT; FAN TO CLU
FLOOR REMOTE SHIFT<M11> 		8-94389-764-0 04 1 9712- ●
26 01.062 BOLT; FAN TO CLU
A/T 4 SPEED-JATCO(RMK) 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 9312-9711 ●
26 01.062 BOLT; FAN TO CLU
A/T 4 SPEED-JATCO(RMK) 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 9712- ●
26 01.062 BOLT; FAN TO CLU
EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 9712- ●
26 01.062 BOLT; FAN TO CLU
01.428 M6X12 FLANGE 		0-28080-612-0 04 1 9712- ●
26 01.062 BOLT; FAN TO CLU
M/T MXA5R(RMT),M/T MXA5S(RNA) 03.670 M6X20 FLANGE 		0-28080-620-0 04 1 9312-9503 ●
36 01.066 BELT; COOLING FAN
L=1196 		1-13671-216-1 01 1 9312-9510 ● ●
36 01.066 BELT; COOLING FAN
L=1196 		1-13671-216-1 01 1 9511- ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97043-551-0 01 1 9312-9511 ●
36 01.066 BELT; COOLING FAN
EXC. EURO2 SPECIFICATION<7AF> L=1041 MITSUBOSHI 		8-97043-551-0 01 1 9512-9701 ●
36 01.066 BELT; COOLING FAN
EURO2 SPECIFICATION<7AF> L=1041 MITSUBOSHI 		8-97141-514-0 01 1 9512-9701 ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97141-514-0 01 1 9702- ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8970147011) 		8-97014-252-1 01 1 9312-9409 ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8970944470) 		8-97094-446-2 01 1 9410-9706 ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-0 01 1 9707-9711 ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-0 01 1 9712- ● ● ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(5136711280) MITSUBOSHI 		5-13671-127-0 01 1 9312- ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 9408-9502 ●
38 01.062 SPACER; FAN
FAN FLUID DRIVE<KA3> 		8-97108-643-0 01 1 9408-9502 ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 9503-9510 ● ●
38 01.062 SPACER; FAN
FAN FLUID DRIVE<KA3> 		8-97108-643-0 01 1 9503-9510 ●
38 01.062 SPACER; FAN
FAN FLUID DRIVE<KA3> 		8-97108-643-0 01 1 9511-9711 ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 9511-9711 ●
38 01.062 SPACER; FAN
FAN FLUID DRIVE<KA3> 		8-97108-643-0 01 1 9712-9804 ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 9712-9804 ● ● ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 9805- ● ● ● ●
38 01.062 SPACER; FAN
FAN FLUID DRIVE<KA3> 		8-97108-643-0 01 1 9805- ●
38 01.062 SPACER; FAN 5-13642-078-0 01 1 9312-9405 ● ● ●
38 01.062 SPACER; FAN
FAN FLUID DRIVE<KA3> 		5-13642-078-0 01 1 9312-9405 ●
38 01.062 SPACER; FAN 5-13642-078-0 01 1 9406-9407 ● ●
38 01.062 SPACER; FAN
FAN FLUID DRIVE<KA3> 		5-13642-078-0 01 1 9406-9407 ●
38 01.062 SPACER; FAN 5-13642-078-0 01 1 9408-9804 ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 9406-9502 ●
80 02.317 PLATE; ADJ 8-94157-836-1 01 1 9312-9510 ● ●
80 02.317 PLATE; ADJ
GENERATOR 24V40A(6MN) 		8-94157-836-1 01 1 9312-9510 ●
80 02.317 PLATE; ADJ 8-94157-836-1 01 1 9511- ●
80 02.317 PLATE; ADJ
GENERATOR 24V40A(6MN) 		8-94157-836-1 01 1 9511- ●
80 02.317 PLATE; ADJ 8-97080-556-1 01 1 9312- ●
80 02.317 PLATE; ADJ
EXC. GENERATOR 24V40A(6MN) 		8-94129-602-0 01 1 9312- ●
80 02.317 PLATE; ADJ 8-97061-466-1 01 1 9312-9702 ●
80 02.317 PLATE; ADJ 8-97172-415-0 01 1 9703-9711 ●
80 02.317 PLATE; ADJ 8-97172-415-0 01 1 9712- ● ● ●
88 02.317 WASHER; PL,ADJ PLATE
07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 9312-9510 ● ● ● ●
88 02.317 WASHER; PL,ADJ PLATE
07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 9511- ● ● ●
96 02.317 BOLT; ADJ PLATE
00.780 (A) M8X30 W/LK WASHER 		0-50040-830-0 01 1 9312-9510 ● ● ●
96 02.317 BOLT; ADJ PLATE
00.780 (A) M8X30 W/LK WASHER 		0-50040-830-0 01 1 9511- ● ●
96 02.317 BOLT; ADJ PLATE
03.613 (B) M10X30 W/LK&PL WASHER 		0-50141-030-0 01 1 9312-9510 ● ● ●
96 02.317 BOLT; ADJ PLATE
03.613 (B) M10X30 W/LK&PL WASHER 		0-50141-030-0 01 1 9511- ● ●
96 02.317 BOLT; ADJ PLATE
01.540 (A) M8X45 FLANGE 		0-28080-845-0 01 1 9312- ●
96 02.317 BOLT; ADJ PLATE
01.073 (B) M8X25 W/LK WASHER 		0-50040-825-0 01 1 9312- ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) EXC. GENERATOR DENSO(7KH) 01.073 M8X120 FLANGE 		8-97062-091-1 01 1 9503-9701 ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) EXC. GENERATOR DENSO(7KH) M8X130 FLANGE 		8-97172-720-1 01 1 9702-9711 ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) EXC. GENERATOR DENSO(7KH) M8X130 FLANGE 		8-97172-720-1 01 1 9712- ● ● ●
96 02.317 BOLT; ADJ PLATE
EXC. AIR CONDITIONER MANUAL CONT(C60),GENERATOR DENSO(7KH) M8X40 W/WASHER 		8-97011-792-4 01 1 9503- ●
230 01.055 FAN; COOLING
01.604 		8-94478-985-0 01 1 9312-9510 ●
230 01.055 FAN; COOLING
01.064 		8-97094-660-0 01 1 9312- ●
230 01.055 FAN; COOLING
FAN FLUID DRIVE<KA3> 		8-97077-619-0 01 1 9312-9406 ●
230 01.055 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) 01.604 		8-97029-606-0 01 1 9312-9506 ●
230 01.055 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) 		8-97135-864-0 01 1 9507-9510 ●
230 01.055 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) 		8-97140-854-1 01 1 9511-9711 ●
230 01.055 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) 		8-97140-854-1 01 1 9712- ●
230 01.055 FAN; COOLING
EXC. CHARGE AIR COOLER<6PL> 		8-97140-854-1 01 1 9712- ●
230 01.055 FAN; COOLING 8-97140-854-1 01 1 9712- ●
230 01.055 FAN; COOLING
M/T MXA5R(RMT),M/T MXA5S(RNA) 		8-97078-662-1 01 1 9312-9611 ●
230 01.055 FAN; COOLING
FLOOR REMOTE SHIFT<M11> 		8-97078-662-1 01 1 9612- ●

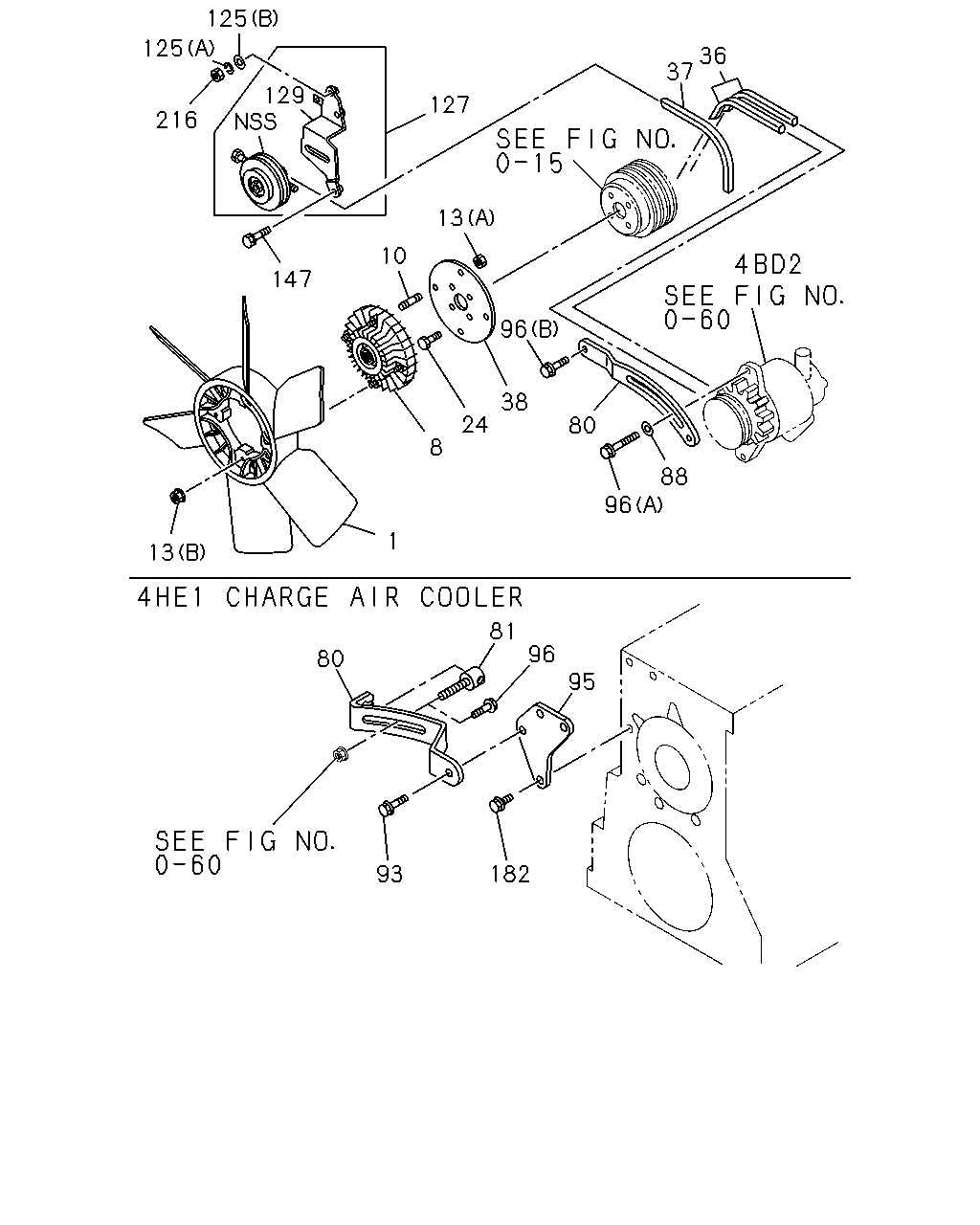

çizim 68819
125 125 36 37 129 127 216 13 10 147 96 38 24 80 8 88 96 1 13 81 96 80 95 93 182
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 01.064 FAN; COOLING 8-94440-998-2 01 1 9312-9510 ●
1 01.064 FAN; COOLING 8-97081-738-0 01 1 9312-9505 ●
1 01.064 FAN; COOLING
OD=410 		8-97129-769-0 01 1 9506- ●
1 01.064 FAN; COOLING 5-13662-012-1 01 1 9312-9711 ●
1 01.064 FAN; COOLING 5-13662-012-1 01 1 9712- ●
1 01.064 FAN; COOLING
CHARGE AIR COOLER<6PL> 		5-13662-012-1 01 1 9712- ●
1 01.064 FAN; COOLING
FAN FLUID DRIVE<KA3> 		8-97118-158-0 01 1 9312- ●
1 01.064 FAN; COOLING
EXC. FAN FLUID DRIVE<KA3> 		8-94367-363-1 01 1 9312- ●
1 01.064 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) 		8-97088-812-3 01 1 9312-9503 ●
1 01.064 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) 		8-97129-768-0 01 1 9504-9506 ●
1 01.064 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) 		8-97135-865-0 01 1 9507-9510 ●
1 01.064 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) 		8-97141-195-1 01 1 9511-9711 ●
1 01.064 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) 		8-97141-195-1 01 1 9712- ●
1 01.064 FAN; COOLING
EXC. CHARGE AIR COOLER<6PL> 		8-97141-195-1 01 1 9712- ●
1 01.064 FAN; COOLING 8-97141-195-1 01 1 9712- ●
1 01.064 FAN; COOLING
M/T MXA5R(RMT),M/T MXA5S(RNA) 		8-97088-813-1 01 1 9312-9411 ●
1 01.064 FAN; COOLING
M/T MXA5R(RMT),M/T MXA5S(RNA) 		8-97123-906-0 01 1 9412-9503 ●
1 01.064 FAN; COOLING
M/T MXA5R(RMT),M/T MXA5S(RNA) 		8-97129-772-1 01 1 9504-9611 ●
1 01.064 FAN; COOLING
FLOOR REMOTE SHIFT<M11> 		8-97129-772-1 01 1 9612- ●
8 01.064 CLUTCH; COOLING FAN 8-94478-984-0 01 1 9312-9510 ●
8 01.064 CLUTCH; COOLING FAN
01.055 		8-97094-661-0 01 1 9312-9505 ●
8 01.064 CLUTCH; COOLING FAN 8-97129-735-0 01 1 9506- ●
8 01.064 CLUTCH; COOLING FAN 8-97045-151-0 01 1 9312- ●
8 01.064 CLUTCH; COOLING FAN
FAN FLUID DRIVE<KA3> 		8-97095-204-0 01 1 9312- ●
8 01.064 CLUTCH; COOLING FAN
A/T 4 SPEED-JATCO(RMK) 		8-97088-802-0 01 1 9312-9503 ●
8 01.064 CLUTCH; COOLING FAN
A/T 4 SPEED-JATCO(RMK) 		8-97129-733-0 01 1 9504-9510 ●
8 01.064 CLUTCH; COOLING FAN
A/T 4 SPEED-JATCO(RMK) 		8-97139-299-0 01 1 9511-9711 ●
8 01.064 CLUTCH; COOLING FAN
A/T 4 SPEED-JATCO(RMK) 		8-97139-299-0 01 1 9712- ●
8 01.064 CLUTCH; COOLING FAN
EXC. CHARGE AIR COOLER<6PL> 		8-97139-299-0 01 1 9712- ●
8 01.064 CLUTCH; COOLING FAN 8-97139-299-0 01 1 9712- ●
8 01.064 CLUTCH; COOLING FAN
M/T MXA5R(RMT),M/T MXA5S(RNA) 		8-97088-803-0 01 1 9312-9411 ●
8 01.064 CLUTCH; COOLING FAN
M/T MXA5R(RMT),M/T MXA5S(RNA) 		8-97123-948-0 01 1 9412-9503 ●
8 01.064 CLUTCH; COOLING FAN
M/T MXA5R(RMT),M/T MXA5S(RNA) 		8-97129-738-0 01 1 9504-9611 ●
8 01.064 CLUTCH; COOLING FAN
FLOOR REMOTE SHIFT<M11> 		8-97129-738-0 01 1 9612- ●
8 01.064 CLUTCH; COOLING FAN
CHARGE AIR COOLER<6PL> 		8-97148-797-0 01 1 9712- ●
10 01.062 STUD; FAN CLU TO PLATE
01.428 M8X20 L=32 		9-04110-820-0 04 1 9312-9711 ●
10 01.062 STUD; FAN CLU TO PLATE
01.428 M8X20 L=32 		9-04110-820-0 04 1 9712- ●
10 01.062 STUD; FAN CLU TO PLATE
CHARGE AIR COOLER<6PL> 01.428 M8X20 L=32 		9-04110-820-0 04 1 9712- ●
13 01.062 NUT; COOLING FAN
04.594 (B) M6 FLANGE 		0-91150-106-0 04 1 9312-9403 ●
13 01.062 NUT; COOLING FAN
07.829 (B) M6 FLANGE 		5-09440-004-0 04 1 9404-9711 ●
13 01.062 NUT; COOLING FAN
07.829 (B) M6 FLANGE 		5-09440-004-0 04 1 9712- ●
13 01.062 NUT; COOLING FAN
CHARGE AIR COOLER<6PL> 07.829 (B) M6 FLANGE 		5-09440-004-0 04 1 9712- ●
13 01.062 NUT; COOLING FAN
07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 9312-9711 ● ●
13 01.062 NUT; COOLING FAN
FAN FLUID DRIVE<KA3> 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 9312-9711 ●
13 01.062 NUT; COOLING FAN
07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 9712- ● ● ● ●
13 01.062 NUT; COOLING FAN
FAN FLUID DRIVE<KA3> 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 9712- ●
24 01.062 BOLT; FAN
04.785 M8X18 W/LK WASHER 		0-50040-818-0 04 1 9312-9510 ●
24 01.062 BOLT; FAN
FAN FLUID DRIVE<KA3> 04.785 M8X18 W/LK WASHER 		0-50040-818-0 04 1 9312-9510 ●
24 01.062 BOLT; FAN
AUSTRALIA EQUIPMENT(RR3) 04.785 M8X18 W/LK WASHER 		0-50040-818-0 04 1 9511-9711 ●
24 01.062 BOLT; FAN
00.727 M8X22 W/LK WASHER 		0-50040-822-0 04 1 9312-9510 ●
24 01.062 BOLT; FAN
08.900 M8X20 W/LK WASHER 		0-50040-820-0 04 1 9312-9712 ●
24 01.062 BOLT; FAN
M8X16 FLANGE 		0-28080-816-0 04 1 9801-9804 ●
24 01.062 BOLT; FAN
AUSTRALIA EQUIPMENT(RR3) M8X16 FLANGE 		0-28080-816-0 04 1 9801-9804 ●
24 01.062 BOLT; FAN
AUSTRALIA EQUIPMENT(RR3) 04.785 M8X18 W/LK WASHER 		0-50040-818-0 04 1 9805- ●
24 01.062 BOLT; FAN
07.010 M8X20 FLANGE 		0-28080-820-0 04 1 9805- ●
24 01.062 BOLT; FAN
AUSTRALIA EQUIPMENT(RR3) 04.785 M8X18 W/LK WASHER 		0-50040-818-0 04 1 9712-9712 ●
24 01.062 BOLT; FAN
08.900 M8X18 FLANGE 		0-28080-818-0 04 1 9312-9711 ●
24 01.062 BOLT; FAN
08.900 M8X18 FLANGE 		0-28080-818-0 04 1 9712- ● ● ●
36 01.066 BELT; COOLING FAN
L=1196 		1-13671-216-1 01 1 9312-9510 ● ●
36 01.066 BELT; COOLING FAN
L=1196 		1-13671-216-1 01 1 9511- ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97043-551-0 01 1 9312-9511 ●
36 01.066 BELT; COOLING FAN
EXC. EURO2 SPECIFICATION<7AF> L=1041 MITSUBOSHI 		8-97043-551-0 01 1 9512-9701 ●
36 01.066 BELT; COOLING FAN
EURO2 SPECIFICATION<7AF> L=1041 MITSUBOSHI 		8-97141-514-0 01 1 9512-9701 ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97141-514-0 01 1 9702- ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8970147011) 		8-97014-252-1 01 1 9312-9409 ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8970944470) 		8-97094-446-2 01 1 9410-9706 ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-0 01 1 9707-9711 ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-0 01 1 9712- ● ● ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(5136711280) MITSUBOSHI 		5-13671-127-0 01 1 9312- ●
37 01.066 BELT; COOLING FAN,CR/SHF TO IDLE
L=1080 MITSUBOSHI 		5-13670-004-1 01 1 9312- ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 9408-9502 ●
38 01.062 SPACER; FAN
FAN FLUID DRIVE<KA3> 		8-97108-643-0 01 1 9408-9502 ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 9503-9510 ● ●
38 01.062 SPACER; FAN
FAN FLUID DRIVE<KA3> 		8-97108-643-0 01 1 9503-9510 ●
38 01.062 SPACER; FAN
FAN FLUID DRIVE<KA3> 		8-97108-643-0 01 1 9511-9711 ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 9511-9711 ●
38 01.062 SPACER; FAN
FAN FLUID DRIVE<KA3> 		8-97108-643-0 01 1 9712-9804 ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 9712-9804 ● ● ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 9805- ● ● ● ●
38 01.062 SPACER; FAN
FAN FLUID DRIVE<KA3> 		8-97108-643-0 01 1 9805- ●
38 01.062 SPACER; FAN 5-13642-078-0 01 1 9312-9405 ● ● ●
38 01.062 SPACER; FAN
FAN FLUID DRIVE<KA3> 		5-13642-078-0 01 1 9312-9405 ●
38 01.062 SPACER; FAN 5-13642-078-0 01 1 9406-9407 ● ●
38 01.062 SPACER; FAN
FAN FLUID DRIVE<KA3> 		5-13642-078-0 01 1 9406-9407 ●
38 01.062 SPACER; FAN 5-13642-078-0 01 1 9408-9804 ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 9406-9502 ●
80 02.317 PLATE; ADJ 8-94157-836-1 01 1 9312-9510 ● ●
80 02.317 PLATE; ADJ
GENERATOR 24V40A(6MN) 		8-94157-836-1 01 1 9312-9510 ●
80 02.317 PLATE; ADJ 8-94157-836-1 01 1 9511- ●
80 02.317 PLATE; ADJ
GENERATOR 24V40A(6MN) 		8-94157-836-1 01 1 9511- ●
80 02.317 PLATE; ADJ 8-97080-556-1 01 1 9312- ●
80 02.317 PLATE; ADJ
EXC. GENERATOR 24V40A(6MN) 		8-94129-602-0 01 1 9312- ●
80 02.317 PLATE; ADJ 8-97061-466-1 01 1 9312-9702 ●
80 02.317 PLATE; ADJ 8-97172-415-0 01 1 9703-9711 ●
80 02.317 PLATE; ADJ 8-97172-415-0 01 1 9712- ● ● ●
81 02.317 PIECE; SLIDING
AIR CONDITIONER MANUAL CONT(C60) 		8-97086-228-1 01 1 9312-9409 ●
81 02.317 PIECE; SLIDING
AIR CONDITIONER MANUAL CONT(C60) EXC. GENERATOR DENSO(7KH) 		8-97086-228-1 01 1 9410-9711 ●
81 02.317 PIECE; SLIDING
AIR CONDITIONER MANUAL CONT(C60) EXC. GENERATOR DENSO(7KH) 		8-97086-228-1 01 1 9712- ● ● ●
88 02.317 WASHER; PL,ADJ PLATE
07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 9312-9510 ● ● ● ●
88 02.317 WASHER; PL,ADJ PLATE
07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 9511- ● ● ●
93 02.317 BOLT; ADJ PLATE BRKT
03.417 M10X25 FLANGE 		0-28081-025-0 01 1 9312-9606 ●
93 02.317 BOLT; ADJ PLATE BRKT
03.405 M10X25 FLANGE 		0-28681-025-0 01 1 9607-9711 ●
93 02.317 BOLT; ADJ PLATE BRKT
03.405 M10X25 FLANGE 		0-28681-025-0 01 1 9712- ● ● ●
95 02.317 BRACKET; ADJ PLATE 8-97037-510-0 01 1 9312-9711 ●
95 02.317 BRACKET; ADJ PLATE 8-97037-510-0 01 1 9712- ● ● ●
96 02.317 BOLT; ADJ PLATE
00.780 (A) M8X30 W/LK WASHER 		0-50040-830-0 01 1 9312-9510 ● ● ●
96 02.317 BOLT; ADJ PLATE
00.780 (A) M8X30 W/LK WASHER 		0-50040-830-0 01 1 9511- ● ●
96 02.317 BOLT; ADJ PLATE
03.613 (B) M10X30 W/LK&PL WASHER 		0-50141-030-0 01 1 9312-9510 ● ● ●
96 02.317 BOLT; ADJ PLATE
03.613 (B) M10X30 W/LK&PL WASHER 		0-50141-030-0 01 1 9511- ● ●
96 02.317 BOLT; ADJ PLATE
01.540 (A) M8X45 FLANGE 		0-28080-845-0 01 1 9312- ●
96 02.317 BOLT; ADJ PLATE
01.073 (B) M8X25 W/LK WASHER 		0-50040-825-0 01 1 9312- ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) EXC. GENERATOR DENSO(7KH) 01.073 M8X120 FLANGE 		8-97062-091-1 01 1 9503-9701 ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) EXC. GENERATOR DENSO(7KH) M8X130 FLANGE 		8-97172-720-1 01 1 9702-9711 ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) EXC. GENERATOR DENSO(7KH) M8X130 FLANGE 		8-97172-720-1 01 1 9712- ● ● ●
96 02.317 BOLT; ADJ PLATE
EXC. AIR CONDITIONER MANUAL CONT(C60),GENERATOR DENSO(7KH) M8X40 W/WASHER 		8-97011-792-4 01 1 9503- ●
125 01.060 WASHER
00.002 (A) ID=10.2 		9-09150-510-0 02 1 9312- ●
125 01.060 WASHER
06.896 (B) ID=10.5 		9-09164-510-0 02 1 9312- ●
127 01.062 PULLEY ASM; IDLE,FAN 8-97044-815-3 01 1 9312- ●
129 01.060 BRACKET; IDLE PULLEY,FAN 8-97044-816-1 01 1 9312- ●
147 01.060 BOLT; BELT TENSIONER
11.377 M10X20 W/LK WASHER 		0-50041-020-0 01 1 9312- ●
182 01.062 BOLT; BRKT
00.004 M8X32 FLANGE 		0-28080-832-0 03 1 9312-9510 ●
182 01.062 BOLT; BRKT
02.183 M8X35 FLANGE 		0-28680-835-0 03 1 9511-9711 ●
182 01.062 BOLT; BRKT
02.183 M8X35 FLANGE 		0-28680-835-0 03 1 9712- ● ● ●
216 01.062 NUT; PULLEY
09.011 M10 		9-09110-410-0 02 1 9312- ●

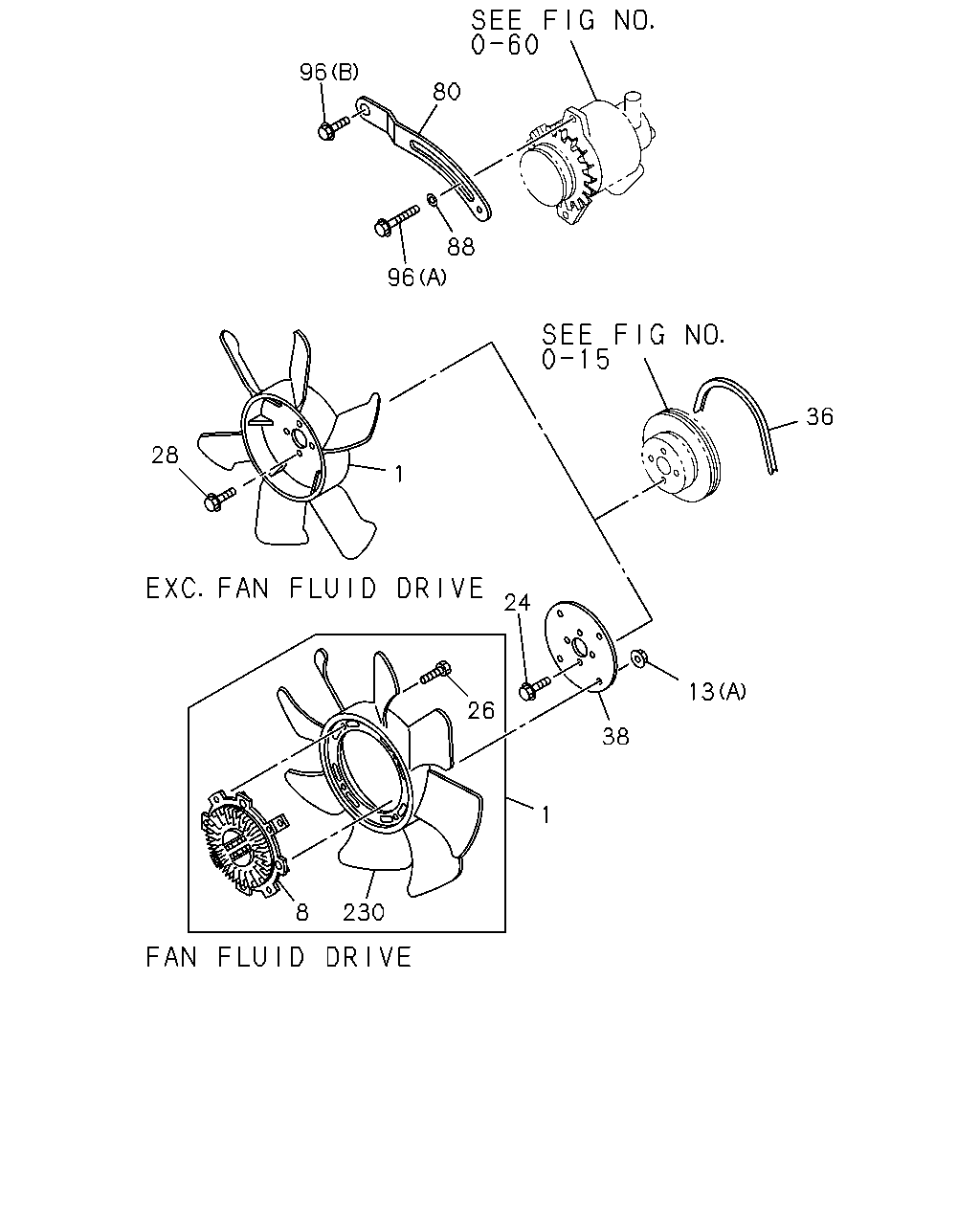

çizim 68820
96 80 88 96 36 28 1 24 13 26 38 1 8 230
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 01.064 FAN; COOLING 8-94440-998-2 01 1 9312-9510 ●
1 01.064 FAN; COOLING 8-97081-738-0 01 1 9312-9505 ●
1 01.064 FAN; COOLING
OD=410 		8-97129-769-0 01 1 9506- ●
1 01.064 FAN; COOLING 5-13662-012-1 01 1 9312-9711 ●
1 01.064 FAN; COOLING 5-13662-012-1 01 1 9712- ●
1 01.064 FAN; COOLING
CHARGE AIR COOLER<6PL> 		5-13662-012-1 01 1 9712- ●
1 01.064 FAN; COOLING
FAN FLUID DRIVE<KA3> 		8-97118-158-0 01 1 9312- ●
1 01.064 FAN; COOLING
EXC. FAN FLUID DRIVE<KA3> 		8-94367-363-1 01 1 9312- ●
1 01.064 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) 		8-97088-812-3 01 1 9312-9503 ●
1 01.064 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) 		8-97129-768-0 01 1 9504-9506 ●
1 01.064 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) 		8-97135-865-0 01 1 9507-9510 ●
1 01.064 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) 		8-97141-195-1 01 1 9511-9711 ●
1 01.064 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) 		8-97141-195-1 01 1 9712- ●
1 01.064 FAN; COOLING
EXC. CHARGE AIR COOLER<6PL> 		8-97141-195-1 01 1 9712- ●
1 01.064 FAN; COOLING 8-97141-195-1 01 1 9712- ●
1 01.064 FAN; COOLING
M/T MXA5R(RMT),M/T MXA5S(RNA) 		8-97088-813-1 01 1 9312-9411 ●
1 01.064 FAN; COOLING
M/T MXA5R(RMT),M/T MXA5S(RNA) 		8-97123-906-0 01 1 9412-9503 ●
1 01.064 FAN; COOLING
M/T MXA5R(RMT),M/T MXA5S(RNA) 		8-97129-772-1 01 1 9504-9611 ●
1 01.064 FAN; COOLING
FLOOR REMOTE SHIFT<M11> 		8-97129-772-1 01 1 9612- ●
8 01.064 CLUTCH; COOLING FAN 8-94478-984-0 01 1 9312-9510 ●
8 01.064 CLUTCH; COOLING FAN
01.055 		8-97094-661-0 01 1 9312-9505 ●
8 01.064 CLUTCH; COOLING FAN 8-97129-735-0 01 1 9506- ●
8 01.064 CLUTCH; COOLING FAN 8-97045-151-0 01 1 9312- ●
8 01.064 CLUTCH; COOLING FAN
FAN FLUID DRIVE<KA3> 		8-97095-204-0 01 1 9312- ●
8 01.064 CLUTCH; COOLING FAN
A/T 4 SPEED-JATCO(RMK) 		8-97088-802-0 01 1 9312-9503 ●
8 01.064 CLUTCH; COOLING FAN
A/T 4 SPEED-JATCO(RMK) 		8-97129-733-0 01 1 9504-9510 ●
8 01.064 CLUTCH; COOLING FAN
A/T 4 SPEED-JATCO(RMK) 		8-97139-299-0 01 1 9511-9711 ●
8 01.064 CLUTCH; COOLING FAN
A/T 4 SPEED-JATCO(RMK) 		8-97139-299-0 01 1 9712- ●
8 01.064 CLUTCH; COOLING FAN
EXC. CHARGE AIR COOLER<6PL> 		8-97139-299-0 01 1 9712- ●
8 01.064 CLUTCH; COOLING FAN 8-97139-299-0 01 1 9712- ●
8 01.064 CLUTCH; COOLING FAN
M/T MXA5R(RMT),M/T MXA5S(RNA) 		8-97088-803-0 01 1 9312-9411 ●
8 01.064 CLUTCH; COOLING FAN
M/T MXA5R(RMT),M/T MXA5S(RNA) 		8-97123-948-0 01 1 9412-9503 ●
8 01.064 CLUTCH; COOLING FAN
M/T MXA5R(RMT),M/T MXA5S(RNA) 		8-97129-738-0 01 1 9504-9611 ●
8 01.064 CLUTCH; COOLING FAN
FLOOR REMOTE SHIFT<M11> 		8-97129-738-0 01 1 9612- ●
8 01.064 CLUTCH; COOLING FAN
CHARGE AIR COOLER<6PL> 		8-97148-797-0 01 1 9712- ●
13 01.062 NUT; COOLING FAN
04.594 (B) M6 FLANGE 		0-91150-106-0 04 1 9312-9403 ●
13 01.062 NUT; COOLING FAN
07.829 (B) M6 FLANGE 		5-09440-004-0 04 1 9404-9711 ●
13 01.062 NUT; COOLING FAN
07.829 (B) M6 FLANGE 		5-09440-004-0 04 1 9712- ●
13 01.062 NUT; COOLING FAN
CHARGE AIR COOLER<6PL> 07.829 (B) M6 FLANGE 		5-09440-004-0 04 1 9712- ●
13 01.062 NUT; COOLING FAN
07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 9312-9711 ● ●
13 01.062 NUT; COOLING FAN
FAN FLUID DRIVE<KA3> 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 9312-9711 ●
13 01.062 NUT; COOLING FAN
07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 9712- ● ● ● ●
13 01.062 NUT; COOLING FAN
FAN FLUID DRIVE<KA3> 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 9712- ●
24 01.062 BOLT; FAN
04.785 M8X18 W/LK WASHER 		0-50040-818-0 04 1 9312-9510 ●
24 01.062 BOLT; FAN
FAN FLUID DRIVE<KA3> 04.785 M8X18 W/LK WASHER 		0-50040-818-0 04 1 9312-9510 ●
24 01.062 BOLT; FAN
AUSTRALIA EQUIPMENT(RR3) 04.785 M8X18 W/LK WASHER 		0-50040-818-0 04 1 9511-9711 ●
24 01.062 BOLT; FAN
00.727 M8X22 W/LK WASHER 		0-50040-822-0 04 1 9312-9510 ●
24 01.062 BOLT; FAN
08.900 M8X20 W/LK WASHER 		0-50040-820-0 04 1 9312-9712 ●
24 01.062 BOLT; FAN
M8X16 FLANGE 		0-28080-816-0 04 1 9801-9804 ●
24 01.062 BOLT; FAN
AUSTRALIA EQUIPMENT(RR3) M8X16 FLANGE 		0-28080-816-0 04 1 9801-9804 ●
24 01.062 BOLT; FAN
AUSTRALIA EQUIPMENT(RR3) 04.785 M8X18 W/LK WASHER 		0-50040-818-0 04 1 9805- ●
24 01.062 BOLT; FAN
07.010 M8X20 FLANGE 		0-28080-820-0 04 1 9805- ●
24 01.062 BOLT; FAN
AUSTRALIA EQUIPMENT(RR3) 04.785 M8X18 W/LK WASHER 		0-50040-818-0 04 1 9712-9712 ●
24 01.062 BOLT; FAN
08.900 M8X18 FLANGE 		0-28080-818-0 04 1 9312-9711 ●
24 01.062 BOLT; FAN
08.900 M8X18 FLANGE 		0-28080-818-0 04 1 9712- ● ● ●
26 01.062 BOLT; FAN TO CLU 8-94478-986-0 04 1 9312-9312 ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 9312-9711 ●
26 01.062 BOLT; FAN TO CLU
FAN FLUID DRIVE<KA3> 		8-94389-764-0 04 1 9312-9312 ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 9401-9406 ●
26 01.062 BOLT; FAN TO CLU
FAN FLUID DRIVE<KA3> 		8-94389-764-0 04 1 9401-9406 ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 9407-9503 ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 9504-9510 ●
26 01.062 BOLT; FAN TO CLU
M/T MXA5R(RMT),M/T MXA5S(RNA) 		8-94389-764-0 04 1 9504-9510 ●
26 01.062 BOLT; FAN TO CLU
M/T MXA5R(RMT),M/T MXA5S(RNA) 		8-94389-764-0 04 1 9511-9611 ●
26 01.062 BOLT; FAN TO CLU
FLOOR REMOTE SHIFT<M11> 		8-94389-764-0 04 1 9612-9711 ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 9712- ●
26 01.062 BOLT; FAN TO CLU
FLOOR REMOTE SHIFT<M11> 		8-94389-764-0 04 1 9712- ●
26 01.062 BOLT; FAN TO CLU
A/T 4 SPEED-JATCO(RMK) 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 9312-9711 ●
26 01.062 BOLT; FAN TO CLU
A/T 4 SPEED-JATCO(RMK) 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 9712- ●
26 01.062 BOLT; FAN TO CLU
EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 9712- ●
26 01.062 BOLT; FAN TO CLU
01.428 M6X12 FLANGE 		0-28080-612-0 04 1 9712- ●
26 01.062 BOLT; FAN TO CLU
M/T MXA5R(RMT),M/T MXA5S(RNA) 03.670 M6X20 FLANGE 		0-28080-620-0 04 1 9312-9503 ●
28 01.062 BOLT; COOLING FAN
EXC. FAN FLUID DRIVE<KA3> 03.704 M8X16 W/LK WASHER 		0-50040-816-0 04 1 9312-9510 ●
28 01.062 BOLT; COOLING FAN
EXC. AUSTRALIA EQUIPMENT(RR3) 03.704 M8X16 W/LK WASHER 		0-50040-816-0 04 1 9511-9712 ●
28 01.062 BOLT; COOLING FAN
EXC. FAN FLUID DRIVE<KA3>,NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) M8X16 FLANGE 		0-28080-816-0 04 1 9801-9804 ●
36 01.066 BELT; COOLING FAN
L=1196 		1-13671-216-1 01 1 9312-9510 ● ●
36 01.066 BELT; COOLING FAN
L=1196 		1-13671-216-1 01 1 9511- ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97043-551-0 01 1 9312-9511 ●
36 01.066 BELT; COOLING FAN
EXC. EURO2 SPECIFICATION<7AF> L=1041 MITSUBOSHI 		8-97043-551-0 01 1 9512-9701 ●
36 01.066 BELT; COOLING FAN
EURO2 SPECIFICATION<7AF> L=1041 MITSUBOSHI 		8-97141-514-0 01 1 9512-9701 ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97141-514-0 01 1 9702- ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8970147011) 		8-97014-252-1 01 1 9312-9409 ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8970944470) 		8-97094-446-2 01 1 9410-9706 ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-0 01 1 9707-9711 ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-0 01 1 9712- ● ● ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(5136711280) MITSUBOSHI 		5-13671-127-0 01 1 9312- ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 9408-9502 ●
38 01.062 SPACER; FAN
FAN FLUID DRIVE<KA3> 		8-97108-643-0 01 1 9408-9502 ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 9503-9510 ● ●
38 01.062 SPACER; FAN
FAN FLUID DRIVE<KA3> 		8-97108-643-0 01 1 9503-9510 ●
38 01.062 SPACER; FAN
FAN FLUID DRIVE<KA3> 		8-97108-643-0 01 1 9511-9711 ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 9511-9711 ●
38 01.062 SPACER; FAN
FAN FLUID DRIVE<KA3> 		8-97108-643-0 01 1 9712-9804 ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 9712-9804 ● ● ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 9805- ● ● ● ●
38 01.062 SPACER; FAN
FAN FLUID DRIVE<KA3> 		8-97108-643-0 01 1 9805- ●
38 01.062 SPACER; FAN 5-13642-078-0 01 1 9312-9405 ● ● ●
38 01.062 SPACER; FAN
FAN FLUID DRIVE<KA3> 		5-13642-078-0 01 1 9312-9405 ●
38 01.062 SPACER; FAN 5-13642-078-0 01 1 9406-9407 ● ●
38 01.062 SPACER; FAN
FAN FLUID DRIVE<KA3> 		5-13642-078-0 01 1 9406-9407 ●
38 01.062 SPACER; FAN 5-13642-078-0 01 1 9408-9804 ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 9406-9502 ●
80 02.317 PLATE; ADJ 8-94157-836-1 01 1 9312-9510 ● ●
80 02.317 PLATE; ADJ
GENERATOR 24V40A(6MN) 		8-94157-836-1 01 1 9312-9510 ●
80 02.317 PLATE; ADJ 8-94157-836-1 01 1 9511- ●
80 02.317 PLATE; ADJ
GENERATOR 24V40A(6MN) 		8-94157-836-1 01 1 9511- ●
80 02.317 PLATE; ADJ 8-97080-556-1 01 1 9312- ●
80 02.317 PLATE; ADJ
EXC. GENERATOR 24V40A(6MN) 		8-94129-602-0 01 1 9312- ●
80 02.317 PLATE; ADJ 8-97061-466-1 01 1 9312-9702 ●
80 02.317 PLATE; ADJ 8-97172-415-0 01 1 9703-9711 ●
80 02.317 PLATE; ADJ 8-97172-415-0 01 1 9712- ● ● ●
88 02.317 WASHER; PL,ADJ PLATE
07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 9312-9510 ● ● ● ●
88 02.317 WASHER; PL,ADJ PLATE
07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 9511- ● ● ●
96 02.317 BOLT; ADJ PLATE
00.780 (A) M8X30 W/LK WASHER 		0-50040-830-0 01 1 9312-9510 ● ● ●
96 02.317 BOLT; ADJ PLATE
00.780 (A) M8X30 W/LK WASHER 		0-50040-830-0 01 1 9511- ● ●
96 02.317 BOLT; ADJ PLATE
03.613 (B) M10X30 W/LK&PL WASHER 		0-50141-030-0 01 1 9312-9510 ● ● ●
96 02.317 BOLT; ADJ PLATE
03.613 (B) M10X30 W/LK&PL WASHER 		0-50141-030-0 01 1 9511- ● ●
96 02.317 BOLT; ADJ PLATE
01.540 (A) M8X45 FLANGE 		0-28080-845-0 01 1 9312- ●
96 02.317 BOLT; ADJ PLATE
01.073 (B) M8X25 W/LK WASHER 		0-50040-825-0 01 1 9312- ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) EXC. GENERATOR DENSO(7KH) 01.073 M8X120 FLANGE 		8-97062-091-1 01 1 9503-9701 ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) EXC. GENERATOR DENSO(7KH) M8X130 FLANGE 		8-97172-720-1 01 1 9702-9711 ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) EXC. GENERATOR DENSO(7KH) M8X130 FLANGE 		8-97172-720-1 01 1 9712- ● ● ●
96 02.317 BOLT; ADJ PLATE
EXC. AIR CONDITIONER MANUAL CONT(C60),GENERATOR DENSO(7KH) M8X40 W/WASHER 		8-97011-792-4 01 1 9503- ●
230 01.055 FAN; COOLING
01.604 		8-94478-985-0 01 1 9312-9510 ●
230 01.055 FAN; COOLING
01.064 		8-97094-660-0 01 1 9312- ●
230 01.055 FAN; COOLING
FAN FLUID DRIVE<KA3> 		8-97077-619-0 01 1 9312-9406 ●
230 01.055 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) 01.604 		8-97029-606-0 01 1 9312-9506 ●
230 01.055 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) 		8-97135-864-0 01 1 9507-9510 ●
230 01.055 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) 		8-97140-854-1 01 1 9511-9711 ●
230 01.055 FAN; COOLING
A/T 4 SPEED-JATCO(RMK) 		8-97140-854-1 01 1 9712- ●
230 01.055 FAN; COOLING
EXC. CHARGE AIR COOLER<6PL> 		8-97140-854-1 01 1 9712- ●
230 01.055 FAN; COOLING 8-97140-854-1 01 1 9712- ●
230 01.055 FAN; COOLING
M/T MXA5R(RMT),M/T MXA5S(RNA) 		8-97078-662-1 01 1 9312-9611 ●
230 01.055 FAN; COOLING
FLOOR REMOTE SHIFT<M11> 		8-97078-662-1 01 1 9612- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
