Sayfa 0-25 - Isuzu EPC

0-25 — INLET MANIFOLD (#44381) — 681 parça

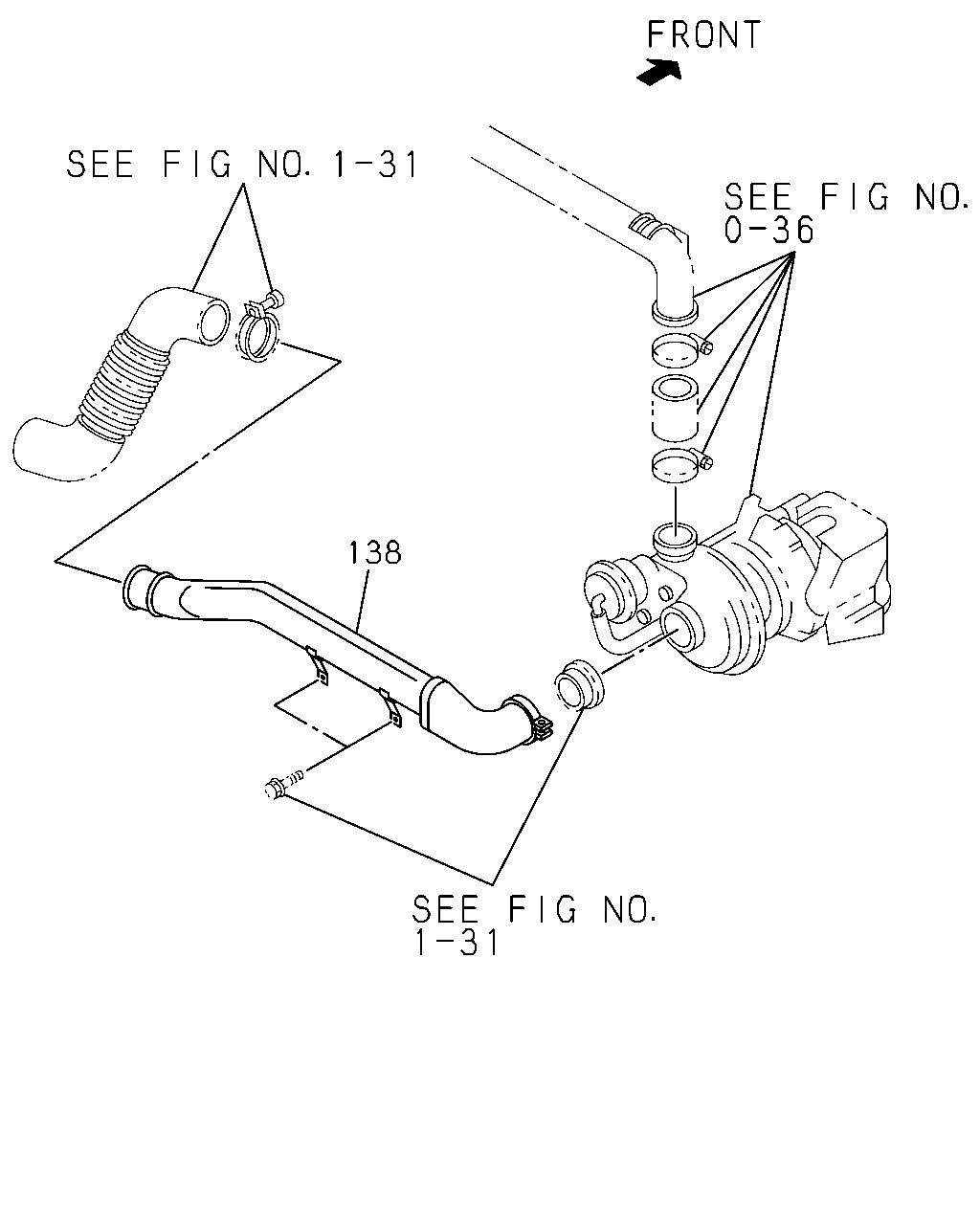

138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
138	03.265 PIPE; INL AIR INTAKE REAR VERTICAL<KJ3> (A)	8-94311-856-0	01	1	9312-	●
138	03.265 PIPE; INL AIR INTAKE REAR VERTICAL<KJ3> (B)	8-94479-568-1	01	1	9312-	●
138	03.265 PIPE; INL AIR INTAKE SYSTEM FRONT<6PC> (A)	8-94325-607-2	01	1	9312-	●
138	03.265 PIPE; INL AIR INTAKE SYSTEM FRONT<6PC> (B)	8-94473-520-0	01	1	9312-	●
138	03.265 PIPE; INL TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>,HYDRO BRAKE BOOSTER<7QQ>	8-97038-292-3	01	1	9712-9801		●
138	03.265 PIPE; INL AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>,HYDRO BRAKE BOOSTER<7QQ>	8-97038-292-3	01	1	9802-9808		●
138	03.265 PIPE; INL AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>,HYDRO BRAKE BOOSTER<7QQ>	8-97214-593-0	01	1	9809-		●
138	03.265 PIPE; INL TURBOCHARGER(K51) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL>	8-97182-908-1	01	1	9712-9801		●
138	03.265 PIPE; INL AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL>	8-97182-908-1	01	1	9802-9808		●
138	03.265 PIPE; INL AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL>	8-97214-594-0	01	1	9809-		●

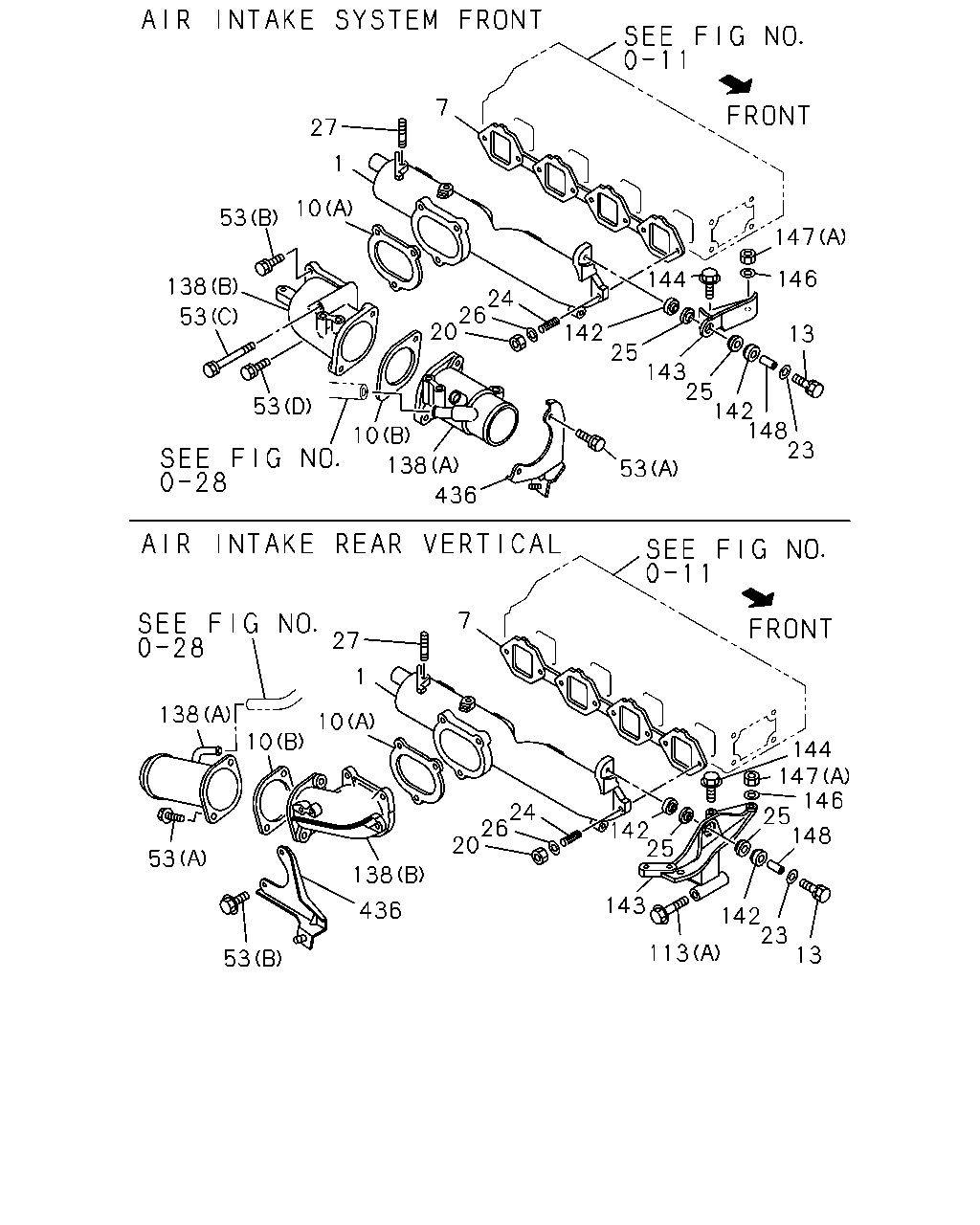

7 27 1 10 53 147 144 146 138 24 26 20 53 142 25 13 143 25 142 148 23 53 10 138 53 436 7 27 1 138 10 10 144 147 146 25 148 24 26 20 142 25 53 138 143 436 142 23 13 113 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.265 MANIFOLD; INL	8-94147-397-1	01	1	9312-9510			●
1	03.265 MANIFOLD; INL	8-97107-744-0	01	1	9312-9511				●
1	03.265 MANIFOLD; INL EXC. EURO2 SPECIFICATION<7AF>	8-97107-744-0	01	1	9512-9711				●
1	03.265 MANIFOLD; INL EURO2 SPECIFICATION<7AF>	8-97141-689-1	01	1	9512-9701				●
1	03.265 MANIFOLD; INL EURO2 SPECIFICATION<7AF>	8-97147-920-0	01	1	9702-9711				●
1	03.265 MANIFOLD; INL	8-97147-920-0	01	1	9712-				●
1	03.265 MANIFOLD; INL	8-97091-897-0	01	1	9312-					●
1	03.265 MANIFOLD; INL	8-97064-280-1	01	1	9312-	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-94116-988-0	01	1	9312-9510	●		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-94116-988-0	01	1	9511-	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A)	8-97066-741-1	01	1	9312-9511				●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. EURO2 SPECIFICATION<7AF> (A)	8-97066-741-1	01	1	9512-9711				●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97144-623-0	04	1	9712-				●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EURO2 SPECIFICATION<7AF> (B)	8-97144-623-0	04	1	9512-9711				●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97105-616-0	01	1	9312-					●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=61	8-94370-676-0	01	1	9312-9510			●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97144-622-0	01	1	9712-				●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EURO2 SPECIFICATION<7AF> (B)	8-97144-622-0	01	1	9512-9711				●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.270 (A) ID=64X89	8-94370-677-0	01	1	9312-	●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.270 (B) ID=66	8-94370-678-0	01	1	9312-	●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A)	8-97035-883-0	01	1	9312-9511				●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. EURO2 SPECIFICATION<7AF> (A)	8-97035-883-0	01	1	9512-9711				●
13	03.275 BOLT; INL MANIF 03.706 M8X40 W/LK WASHER	0-50040-840-0	01	1	9312-9510	●		●
13	03.275 BOLT; INL MANIF 03.706 M8X40 W/LK WASHER	0-50040-840-0	01	1	9511-	●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9312-				●	●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	07	1	9312-9510						●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	08	1	9511-9711						●
13	03.275 BOLT; INL MANIF EXC. CHARGE AIR COOLER<6PL> M8X30 FLANGE	0-28080-830-0	07	1	9712-		●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	08	1	9712-						●	●
13	03.275 BOLT; INL MANIF CHARGE AIR COOLER<6PL> 04.686 M8X30 FLANGE	0-28680-830-0	06	1	9712-9804		●
13	03.275 BOLT; INL MANIF CHARGE AIR COOLER<6PL> M8X30 FLANGE	0-28080-830-0	06	1	9805-		●
20	03.275 NUT; INL MANIF M8 FLANGE	5-14129-011-0	08	1	9312-9510	●		●
20	03.275 NUT; INL MANIF M8 FLANGE	5-14129-011-0	08	1	9511-	●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	9312-				●	●
20	03.275 NUT; INL MANIF AIR INTAKE REAR VERTICAL<KJ3> 00.002 M8	9-09110-508-0	02	1	9312-	●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	9312-9510						●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	04	1	9511-9607						●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	9607-9711						●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-						●	●
20	03.275 NUT; INL MANIF POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-		●
23	03.275 WASHER; PL,INL MANIF OD=28.6	8-94155-884-1	01	1	9312-9510	●		●
23	03.275 WASHER; PL,INL MANIF OD=28.6	8-94155-884-1	01	1	9511-	●
23	03.275 WASHER; PL,INL MANIF 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9312-				●
24	03.278 SPRING; INL MANIF 03.275	5-09580-105-0	08	1	9312-9510	●		●
24	03.278 SPRING; INL MANIF 03.275	5-09580-105-0	08	1	9511-	●
25	03.288 SEAT; SPRING,INL MANIF	5-14129-008-0	02	1	9312-	●
26	03.275 WASHER; PL,SPRING SEAT 06.172 ID=12.5	9-09164-512-0	08	1	9312-9510	●		●
26	03.275 WASHER; PL,SPRING SEAT 06.172 ID=12.5	9-09164-512-0	08	1	9511-	●
27	03.275 STUD; INL MANIF 08.981 M6X16 L=25	9-04110-616-0	01	1	9312-9510	●		●
27	03.275 STUD; INL MANIF 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	9312-				●
27	03.275 STUD; INL MANIF 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	9312-				●
27	03.275 STUD; INL MANIF 03.162 M6X20 L=29	9-04110-620-0	01	1	9312-9510					●
27	03.275 STUD; INL MANIF 03.162 M6X20 L=29	9-04110-620-0	01	1	9511-	●				●
53	03.602 BOLT; INL PIPE 09.173 (A) M10X25 W/LK WASHER	0-50051-025-0	02	1	9312-	●
53	03.602 BOLT; INL PIPE AIR INTAKE REAR VERTICAL<KJ3> 00.029 (B) M10X35 W/LK&PL WASHER	0-50151-035-0	03	1	9312-	●
53	03.602 BOLT; INL PIPE AIR INTAKE SYSTEM FRONT<6PC> 00.029 (B) M10X35 W/LK&PL WASHER	0-50151-035-0	01	1	9312-	●
53	03.602 BOLT; INL PIPE AIR INTAKE SYSTEM FRONT<6PC> 03.275 (C) M10X90 W/LK&PL WASHER	0-50151-090-0	01	1	9312-	●
53	03.602 BOLT; INL PIPE AIR INTAKE SYSTEM FRONT<6PC> 00.029 (D) M10X50	8-94429-402-1	01	1	9312-	●
113	03.275 BOLT; STAY (C) M10X20	0-20801-020-0	01	1	9312-9510			●
113	03.275 BOLT; STAY 04.785 (B) M8X18 W/LK WASHER	0-50040-818-0	01	1	9312-9510			●		●
113	03.275 BOLT; STAY 04.785 (B) M8X18 W/LK WASHER	0-50040-818-0	01	1	9511-					●
113	03.275 BOLT; STAY (A) M10X80 W/LK WASHER	0-50041-080-0	01	1	9312-9510			●		●
113	03.275 BOLT; STAY AIR INTAKE REAR VERTICAL<KJ3> (A) M10X80 W/LK WASHER	0-50041-080-0	01	1	9312-9510	●
113	03.275 BOLT; STAY (A) M10X80 W/LK WASHER	0-50041-080-0	01	1	9511-9702					●
113	03.275 BOLT; STAY AIR INTAKE REAR VERTICAL<KJ3> (A) M10X80 W/LK WASHER	0-50041-080-0	01	1	9511-9702	●
113	03.275 BOLT; STAY (A) M10X80 W/LK WASHER	0-50041-080-0	01	1	9703-9711					●
113	03.275 BOLT; STAY (A) M10X80 W/LK WASHER	0-50041-080-0	01	1	9712-					●
113	03.275 BOLT; STAY AIR INTAKE REAR VERTICAL<KJ3> (A) M10X80 W/LK WASHER	0-50041-080-0	01	1	9712-	●
113	03.275 BOLT; STAY 11.377 (C) M10X20 W/LK WASHER	0-50041-020-0	02	1	9312-					●
138	03.265 PIPE; INL AIR INTAKE REAR VERTICAL<KJ3> (A)	8-94311-856-0	01	1	9312-	●
138	03.265 PIPE; INL AIR INTAKE REAR VERTICAL<KJ3> (B)	8-94479-568-1	01	1	9312-	●
138	03.265 PIPE; INL AIR INTAKE SYSTEM FRONT<6PC> (A)	8-94325-607-2	01	1	9312-	●
138	03.265 PIPE; INL AIR INTAKE SYSTEM FRONT<6PC> (B)	8-94473-520-0	01	1	9312-	●
138	03.265 PIPE; INL TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>,HYDRO BRAKE BOOSTER<7QQ>	8-97038-292-3	01	1	9712-9801		●
138	03.265 PIPE; INL AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>,HYDRO BRAKE BOOSTER<7QQ>	8-97038-292-3	01	1	9802-9808		●
138	03.265 PIPE; INL AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>,HYDRO BRAKE BOOSTER<7QQ>	8-97214-593-0	01	1	9809-		●
138	03.265 PIPE; INL TURBOCHARGER(K51) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL>	8-97182-908-1	01	1	9712-9801		●
138	03.265 PIPE; INL AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL>	8-97182-908-1	01	1	9802-9808		●
138	03.265 PIPE; INL AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL>	8-97214-594-0	01	1	9809-		●
142	03.275 RUBBER; MTG,INL MANIF TO BRKT 03.463	8-94255-643-1	02	1	9312-9510	●		●
142	03.275 RUBBER; MTG,INL MANIF TO BRKT 03.463	8-94255-643-1	02	1	9511-	●
143	03.273 BRACKET; INL MANIF FRT AIR INTAKE REAR VERTICAL<KJ3>	8-94362-911-0	01	1	9312-	●
143	03.273 BRACKET; INL MANIF FRT AIR INTAKE SYSTEM FRONT<6PC>	8-94129-708-2	01	1	9312-	●
144	03.275 BOLT; BRKT FIX 06.525 M10X32 W/LK WASHER	0-50041-032-0	01	1	9312-9510	●		●		●
144	03.275 BOLT; BRKT FIX 06.525 M10X32 W/LK WASHER	0-50041-032-0	01	1	9511-9803	●				●
144	03.275 BOLT; BRKT FIX 03.162 M10X35 FLANGE	0-28681-035-0	01	1	9804-	●				●
146	03.275 WASHER; LK,BRKT 00.002 ID=10.2	9-09150-510-0	01	1	9312-9510	●		●		●
146	03.275 WASHER; LK,BRKT 00.002 ID=10.2	9-09150-510-0	01	1	9511-	●				●
147	03.275 NUT; BRKT 00.002 (A) M10	9-09110-510-0	01	1	9312-9510	●		●		●
147	03.275 NUT; BRKT 00.002 (A) M10	9-09110-510-0	01	1	9511-	●				●
147	03.275 NUT; BRKT 04.785 (B) M10 FLANGE	0-91150-110-0	01	1	9312-9610					●
147	03.275 NUT; BRKT EXC. MINI BUS CHASSIS<V4B> 04.785 (B) M10 FLANGE	0-91150-110-0	01	1	9611-					●
148	03.275 BUSHING; SPACER,INL MANIF TO BRK OD=12 L=20.5	8-94255-642-1	01	1	9312-9510	●		●
148	03.275 BUSHING; SPACER,INL MANIF TO BRK OD=12 L=20.5	8-94255-642-1	01	1	9511-	●
436	03.162 BRACKET; FUEL CUT	8-94337-856-0	01	1	9312-9510			●
436	03.162 BRACKET; FUEL CUT AIR INTAKE REAR VERTICAL<KJ3>	8-97029-837-1	01	1	9312-	●
436	03.162 BRACKET; FUEL CUT AIR INTAKE SYSTEM FRONT<6PC>	8-97024-306-0	01	1	9312-	●

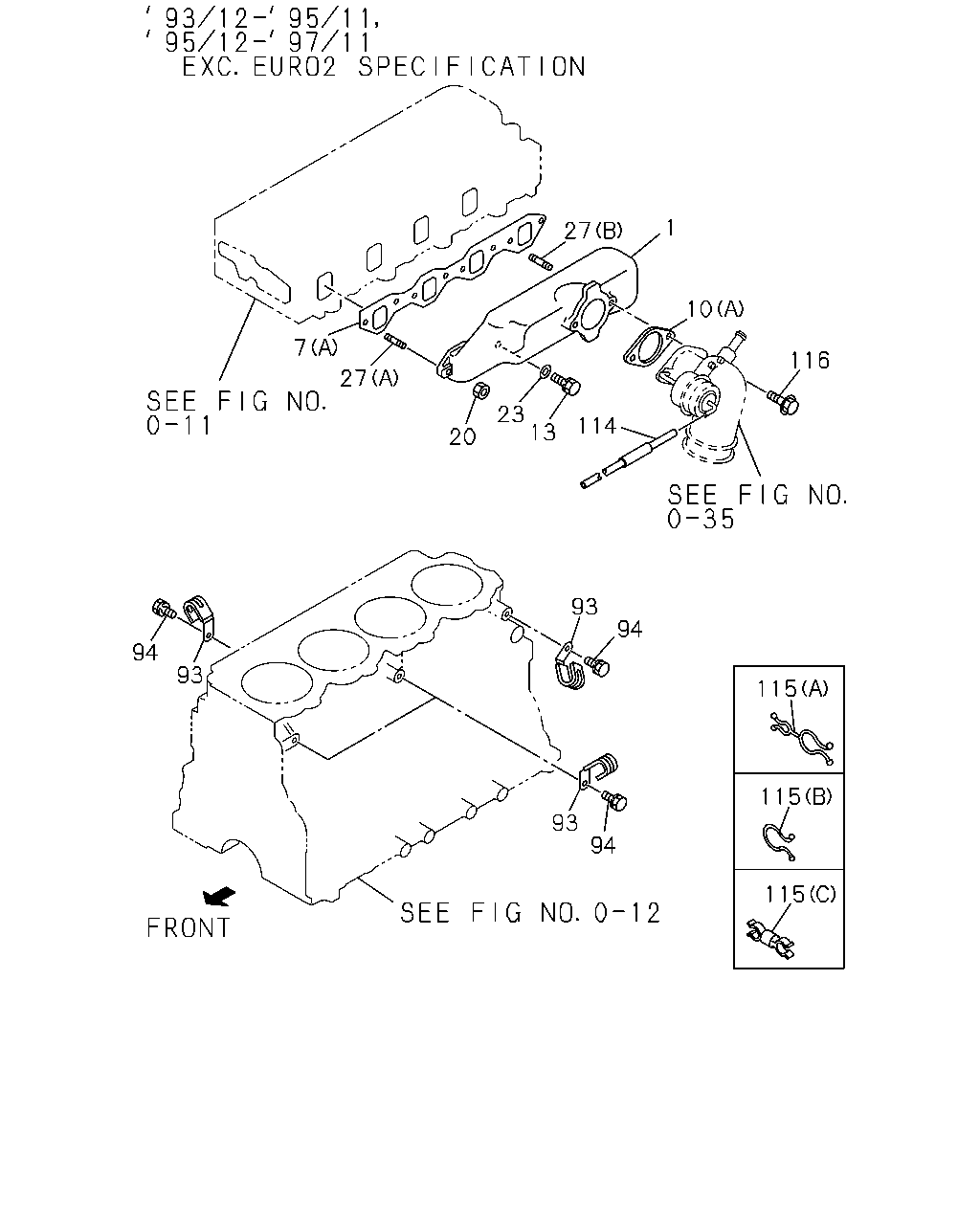

1 27 7 7 7 7 27 10 116 13 23 20 114 115 115 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.265 MANIFOLD; INL	8-94147-397-1	01	1	9312-9510			●
1	03.265 MANIFOLD; INL	8-97107-744-0	01	1	9312-9511				●
1	03.265 MANIFOLD; INL EXC. EURO2 SPECIFICATION<7AF>	8-97107-744-0	01	1	9512-9711				●
1	03.265 MANIFOLD; INL EURO2 SPECIFICATION<7AF>	8-97141-689-1	01	1	9512-9701				●
1	03.265 MANIFOLD; INL EURO2 SPECIFICATION<7AF>	8-97147-920-0	01	1	9702-9711				●
1	03.265 MANIFOLD; INL	8-97147-920-0	01	1	9712-				●
1	03.265 MANIFOLD; INL	8-97091-897-0	01	1	9312-					●
1	03.265 MANIFOLD; INL	8-97064-280-1	01	1	9312-	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-94116-988-0	01	1	9312-9510	●		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-94116-988-0	01	1	9511-	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A)	8-97066-741-1	01	1	9312-9511				●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. EURO2 SPECIFICATION<7AF> (A)	8-97066-741-1	01	1	9512-9711				●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97144-623-0	04	1	9712-				●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EURO2 SPECIFICATION<7AF> (B)	8-97144-623-0	04	1	9512-9711				●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97105-616-0	01	1	9312-					●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=61	8-94370-676-0	01	1	9312-9510			●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97144-622-0	01	1	9712-				●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EURO2 SPECIFICATION<7AF> (B)	8-97144-622-0	01	1	9512-9711				●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.270 (A) ID=64X89	8-94370-677-0	01	1	9312-	●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.270 (B) ID=66	8-94370-678-0	01	1	9312-	●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A)	8-97035-883-0	01	1	9312-9511				●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. EURO2 SPECIFICATION<7AF> (A)	8-97035-883-0	01	1	9512-9711				●
13	03.275 BOLT; INL MANIF 03.706 M8X40 W/LK WASHER	0-50040-840-0	01	1	9312-9510	●		●
13	03.275 BOLT; INL MANIF 03.706 M8X40 W/LK WASHER	0-50040-840-0	01	1	9511-	●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9312-				●	●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	07	1	9312-9510						●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	08	1	9511-9711						●
13	03.275 BOLT; INL MANIF EXC. CHARGE AIR COOLER<6PL> M8X30 FLANGE	0-28080-830-0	07	1	9712-		●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	08	1	9712-						●	●
13	03.275 BOLT; INL MANIF CHARGE AIR COOLER<6PL> 04.686 M8X30 FLANGE	0-28680-830-0	06	1	9712-9804		●
13	03.275 BOLT; INL MANIF CHARGE AIR COOLER<6PL> M8X30 FLANGE	0-28080-830-0	06	1	9805-		●
20	03.275 NUT; INL MANIF M8 FLANGE	5-14129-011-0	08	1	9312-9510	●		●
20	03.275 NUT; INL MANIF M8 FLANGE	5-14129-011-0	08	1	9511-	●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	9312-				●	●
20	03.275 NUT; INL MANIF AIR INTAKE REAR VERTICAL<KJ3> 00.002 M8	9-09110-508-0	02	1	9312-	●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	9312-9510						●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	04	1	9511-9607						●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	9607-9711						●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-						●	●
20	03.275 NUT; INL MANIF POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-		●
23	03.275 WASHER; PL,INL MANIF OD=28.6	8-94155-884-1	01	1	9312-9510	●		●
23	03.275 WASHER; PL,INL MANIF OD=28.6	8-94155-884-1	01	1	9511-	●
23	03.275 WASHER; PL,INL MANIF 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9312-				●
27	03.275 STUD; INL MANIF 08.981 M6X16 L=25	9-04110-616-0	01	1	9312-9510	●		●
27	03.275 STUD; INL MANIF 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	9312-				●
27	03.275 STUD; INL MANIF 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	9312-				●
27	03.275 STUD; INL MANIF 03.162 M6X20 L=29	9-04110-620-0	01	1	9312-9510					●
27	03.275 STUD; INL MANIF 03.162 M6X20 L=29	9-04110-620-0	01	1	9511-	●				●
114	03.265 HOSE; VAC,INT THROTTLE L=1320	8-97096-148-1	01	1	9312-				●
115	03.265 CLIP; VAC HOSE,INT THROTTLE 08.852 (A) ID=8 & 23	5-09707-002-0	01	1	9312-				●
115	03.265 CLIP; VAC HOSE,INT THROTTLE 08.852 (A) ID=8 & 16	5-09707-032-0	03	1	9312-				●
115	03.265 CLIP; VAC HOSE,INT THROTTLE 03.430 (C) ID=6 & 6	8-94400-853-0	01	1	9312-9706				●
115	03.265 CLIP; VAC HOSE,INT THROTTLE 03.483 (C) ID=6 & 6	8-94463-708-0	01	1	9707-				●
115	03.265 CLIP; VAC HOSE,INT THROTTLE 03.278 (B) ID=37	8-94481-468-0	01	1	9312-				●
116	03.275 BOLT; MANIF TO INL PIPE 09.173 M10X25 W/LK WASHER	0-50051-025-0	02	1	9312-9706				●
116	03.275 BOLT; MANIF TO INL PIPE 01.540 M10X20 FLANGE	0-28181-020-0	02	1	9707-				●

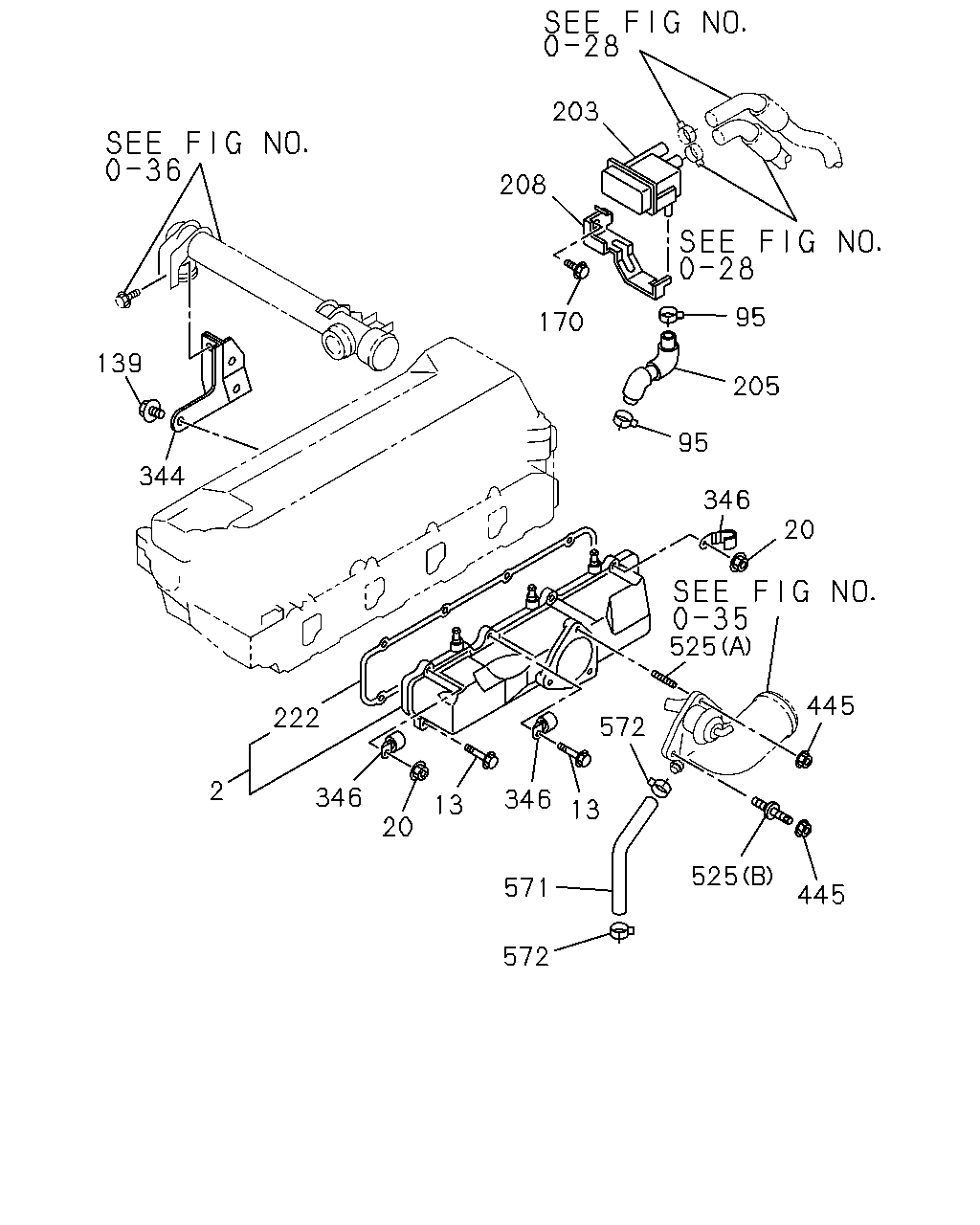

203 208 95 170 139 205 95 344 346 20 525 445 222 572 2 346 346 13 13 20 525 571 445 572

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
2	03.407 COVER; INL (A)	8-97033-719-1	01	1	9312-9510						●
2	03.407 COVER; INL EXC. EXHAUST BRAKE<NF8> (B)	8-97122-603-1	01	1	9511-9711						●
2	03.407 COVER; INL EXC. CHARGE AIR COOLER<6PL>	8-97074-680-1	01	1	9712-		●
2	03.407 COVER; INL EXHAUST BRAKE<NF8> (B)	8-97109-000-4	01	1	9511-9608						●
2	03.407 COVER; INL EXHAUST BRAKE<NF8> (B)	8-97146-864-1	01	1	9609-9711						●
2	03.407 COVER; INL (B)	8-97146-864-2	01	1	9712-						●	●
2	03.407 COVER; INL CHARGE AIR COOLER<6PL>	8-97190-248-1	01	1	9712-		●
13	03.275 BOLT; INL MANIF 03.706 M8X40 W/LK WASHER	0-50040-840-0	01	1	9312-9510	●		●
13	03.275 BOLT; INL MANIF 03.706 M8X40 W/LK WASHER	0-50040-840-0	01	1	9511-	●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9312-				●	●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	07	1	9312-9510						●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	08	1	9511-9711						●
13	03.275 BOLT; INL MANIF EXC. CHARGE AIR COOLER<6PL> M8X30 FLANGE	0-28080-830-0	07	1	9712-		●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	08	1	9712-						●	●
13	03.275 BOLT; INL MANIF CHARGE AIR COOLER<6PL> 04.686 M8X30 FLANGE	0-28680-830-0	06	1	9712-9804		●
13	03.275 BOLT; INL MANIF CHARGE AIR COOLER<6PL> M8X30 FLANGE	0-28080-830-0	06	1	9805-		●
20	03.275 NUT; INL MANIF M8 FLANGE	5-14129-011-0	08	1	9312-9510	●		●
20	03.275 NUT; INL MANIF M8 FLANGE	5-14129-011-0	08	1	9511-	●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	9312-				●	●
20	03.275 NUT; INL MANIF AIR INTAKE REAR VERTICAL<KJ3> 00.002 M8	9-09110-508-0	02	1	9312-	●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	9312-9510						●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	04	1	9511-9607						●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	9607-9711						●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-						●	●
20	03.275 NUT; INL MANIF POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-		●
95	03.278 CLIP; RUBBER HOSE 06.672 ID=21	8-94242-034-0	01	1	9312-9703					●
95	03.278 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> 03.162 (B) L=140	5-09707-031-1	01	1	9712-		●
95	03.278 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> 03.163 (A) UPPER ID=11	8-94238-570-0	01	1	9712-		●
95	03.278 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> 01.097 (A) LOWER ID=11	8-94238-925-0	01	1	9712-		●
95	03.278 CLIP; RUBBER HOSE EXC. CHARGE AIR COOLER<6PL> 01.219 ID=13	8-94238-571-0	02	1	9712-		●
139	03.162 BOLT; BRKT FIX EXC. CHARGE AIR COOLER<6PL> 00.662 M8X14 FLANGE	0-28080-814-0	02	1	9712-		●
170	03.162 BOLT; BRKT 02.483 (B) M12X20 FLANGE	0-28181-220-0	01	1	9712-		●
170	03.162 BOLT; BRKT CHARGE AIR COOLER<6PL> 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	9712-		●
203	01.780 TANK; CATCH,PRESSURE CONT VLV	8-97065-544-0	01	1	9312-9510			●
203	01.780 TANK; CATCH,PRESSURE CONT VLV	8-97065-544-0	01	1	9704-					●
203	01.780 TANK; CATCH,PRESSURE CONT VLV	8-97088-685-1	01	1	9712-		●
205	01.745 HOSE; OIL DRAIN 00.413 L=220	1-09360-755-0	01	1	9312-9510			●
205	01.745 HOSE; OIL DRAIN 00.413 L=220	1-09360-755-0	01	1	9704-					●
205	01.745 HOSE; OIL DRAIN CHARGE AIR COOLER<6PL>	8-97149-011-1	01	1	9712-		●
205	01.745 HOSE; OIL DRAIN EXC. CHARGE AIR COOLER<6PL>	8-97088-684-1	01	1	9712-		●
208	01.750 BRACKET; CATCH TANK,OIL	8-94381-356-0	01	1	9312-9510			●
208	01.750 BRACKET; CATCH TANK,OIL	8-94381-356-0	01	1	9704-					●
208	01.750 BRACKET; CATCH TANK,OIL CHARGE AIR COOLER<6PL>	8-97166-887-0	01	1	9712-		●
208	01.750 BRACKET; CATCH TANK,OIL EXC. CHARGE AIR COOLER<6PL>	8-97094-449-0	01	1	9712-		●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97084-938-2	01	1	9511-9711						●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97084-938-2	01	1	9712-						●	●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD) CHARGE AIR COOLER<6PL>	8-97170-807-0	01	1	9712-		●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. CHARGE AIR COOLER<6PL>	8-97074-682-0	01	1	9712-		●
344	03.407 BRACKET; INL PIPE (A)	8-97020-125-0	01	1	9312-9610					●
344	03.407 BRACKET; INL PIPE EXC. MINI BUS CHASSIS<V4B> (A)	8-97020-125-0	01	1	9611-					●
344	03.407 BRACKET; INL PIPE (B)	8-97062-684-0	01	1	9312-					●
344	03.407 BRACKET; INL PIPE EXC. CHARGE AIR COOLER<6PL>	8-97065-482-3	01	1	9712-		●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	05	1	9312-9510						●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9511-9711						●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9712-9712		●				●	●
346	02.559 CLIP; ENG HARNESS CHARGE AIR COOLER<6PL> 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	04	1	9801-		●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9801-						●	●
346	02.559 CLIP; ENG HARNESS POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9801-		●
445	03.275 NUT; THROTTLE BODY TO MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	9312-9510						●
445	03.275 NUT; THROTTLE BODY TO MANIF EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-		●
525	03.275 STUD; CONT VLV 01.428 (A) M8X20 L=38	8-97021-431-0	02	1	9312-9510						●
525	03.275 STUD; CONT VLV 03.270 (B)	8-97033-689-0	01	1	9312-9510						●
525	03.275 STUD; CONT VLV EXC. CHARGE AIR COOLER<6PL> 01.428 (A) M8X20 L=38	8-97021-431-0	02	1	9712-		●
525	03.275 STUD; CONT VLV EXC. CHARGE AIR COOLER<6PL> 03.270 (B)	8-97033-689-0	01	1	9712-		●
571	03.265 HOSE; AIR BOOST CHARGE AIR COOLER<6PL> 08.962 L=350 SERVICED BY L=3000	0-01254-300-0	01	1	9712-		●
571	03.265 HOSE; AIR BOOST EXC. CHARGE AIR COOLER<6PL> 08.962 L=230 SERVICED BY L=3000	0-01254-300-0	01	1	9712-		●
572	03.407 CLIP; BOOST HOSE 03.163 ID=11	8-94238-570-0	02	1	9712-		●

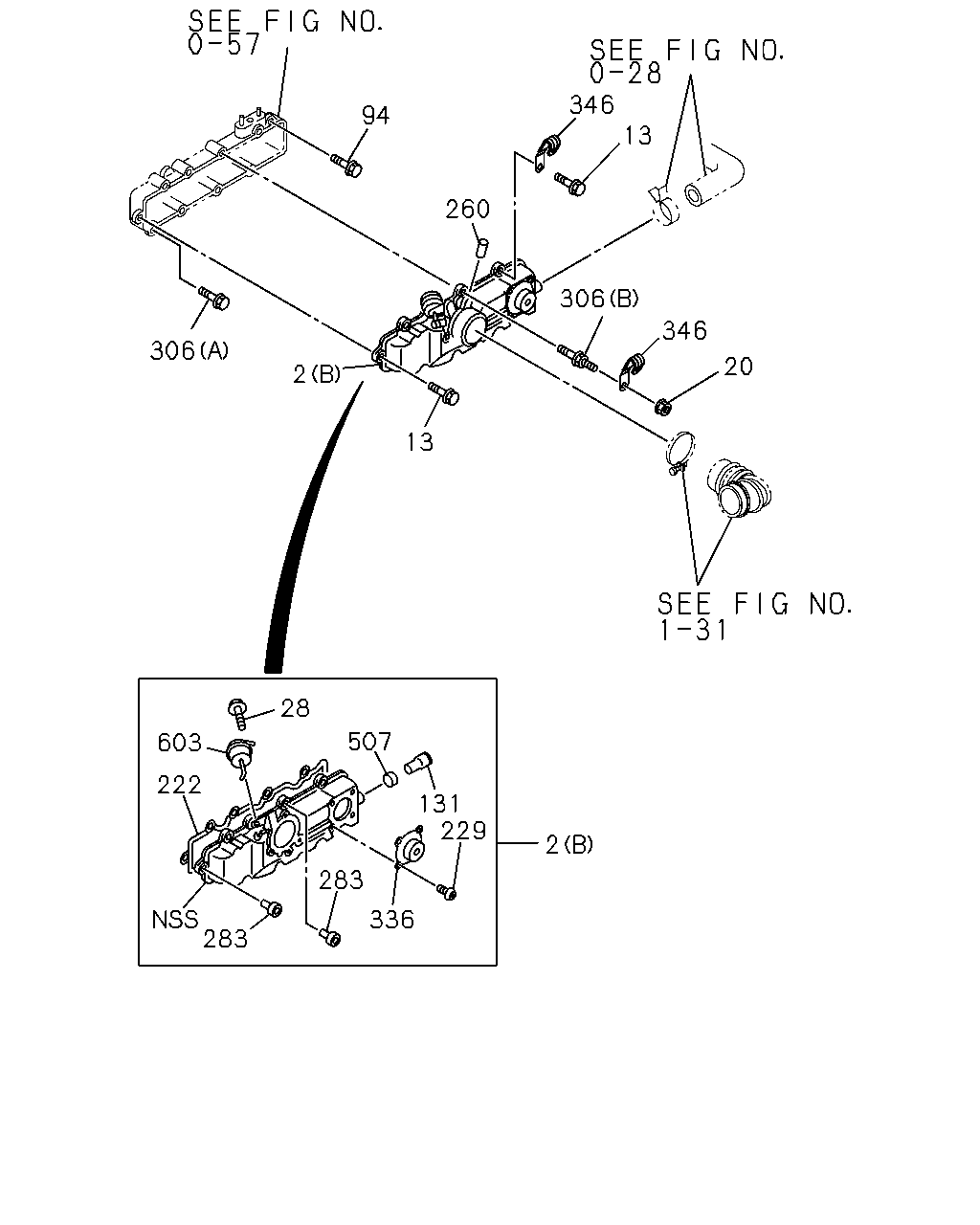

346 94 13 260 306 346 306 20 2 13 28 507 603 222 131 229 2 283 283 336

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
2	03.407 COVER; INL (A)	8-97033-719-1	01	1	9312-9510						●
2	03.407 COVER; INL EXC. EXHAUST BRAKE<NF8> (B)	8-97122-603-1	01	1	9511-9711						●
2	03.407 COVER; INL EXC. CHARGE AIR COOLER<6PL>	8-97074-680-1	01	1	9712-		●
2	03.407 COVER; INL EXHAUST BRAKE<NF8> (B)	8-97109-000-4	01	1	9511-9608						●
2	03.407 COVER; INL EXHAUST BRAKE<NF8> (B)	8-97146-864-1	01	1	9609-9711						●
2	03.407 COVER; INL (B)	8-97146-864-2	01	1	9712-						●	●
2	03.407 COVER; INL CHARGE AIR COOLER<6PL>	8-97190-248-1	01	1	9712-		●
13	03.275 BOLT; INL MANIF 03.706 M8X40 W/LK WASHER	0-50040-840-0	01	1	9312-9510	●		●
13	03.275 BOLT; INL MANIF 03.706 M8X40 W/LK WASHER	0-50040-840-0	01	1	9511-	●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9312-				●	●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	07	1	9312-9510						●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	08	1	9511-9711						●
13	03.275 BOLT; INL MANIF EXC. CHARGE AIR COOLER<6PL> M8X30 FLANGE	0-28080-830-0	07	1	9712-		●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	08	1	9712-						●	●
13	03.275 BOLT; INL MANIF CHARGE AIR COOLER<6PL> 04.686 M8X30 FLANGE	0-28680-830-0	06	1	9712-9804		●
13	03.275 BOLT; INL MANIF CHARGE AIR COOLER<6PL> M8X30 FLANGE	0-28080-830-0	06	1	9805-		●
20	03.275 NUT; INL MANIF M8 FLANGE	5-14129-011-0	08	1	9312-9510	●		●
20	03.275 NUT; INL MANIF M8 FLANGE	5-14129-011-0	08	1	9511-	●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	9312-				●	●
20	03.275 NUT; INL MANIF AIR INTAKE REAR VERTICAL<KJ3> 00.002 M8	9-09110-508-0	02	1	9312-	●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	9312-9510						●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	04	1	9511-9607						●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	9607-9711						●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-						●	●
20	03.275 NUT; INL MANIF POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-		●
28	03.278 BOLT; CHAMBER 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9803-						●	●
94	02.559 BOLT 08.900 M8X12 FLANGE	0-28080-812-0	03	1	9312-9406				●
94	02.559 BOLT 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9607-9711						●
94	02.559 BOLT 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9712-						●	●
94	02.559 BOLT CHARGE AIR COOLER<6PL> 01.540 M8X45 FLANGE	0-28080-845-0	04	1	9712-		●
94	02.559 BOLT CHARGE AIR COOLER<6PL> 01.780 M8X50 FLANGE	0-28080-850-0	02	1	9712-		●
131	03.278 PIPE; PCV,INL	8-97102-601-0	01	1	9511-9711						●
131	03.278 PIPE; PCV,INL	8-97102-601-0	01	1	9712-						●	●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97084-938-2	01	1	9511-9711						●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97084-938-2	01	1	9712-						●	●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD) CHARGE AIR COOLER<6PL>	8-97170-807-0	01	1	9712-		●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. CHARGE AIR COOLER<6PL>	8-97074-682-0	01	1	9712-		●
229	03.278 SCREW; VENTILATION VLV 16.345 M4X8 TAPPING	0-71080-408-0	06	1	9312-9412						●
229	03.278 SCREW; VENTILATION VLV 16.345 M4X8 TAPPING	0-71080-408-0	12	1	9501-9510						●
229	03.278 SCREW; VENTILATION VLV 06.321 M4X8 W/LK WASHER	9-03910-408-0	04	1	9511-9711						●
229	03.278 SCREW; VENTILATION VLV 06.321 M4X8 W/LK WASHER	9-03910-408-0	04	1	9712-						●	●
260	03.278 CAP; RUBBER EXHAUST BRAKE<NF8> 01.780 ID=4	8-94217-809-0	01	1	9511-9711						●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	9712-9712						●	●
260	03.278 CAP; RUBBER POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> 01.780 ID=4	8-94217-809-0	01	1	9712-9712		●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	9801-		●				●	●
283	03.265 RUBBER OD=23	8-97105-689-6	10	1	9511-9711						●
283	03.265 RUBBER OD=23	8-97105-689-6	10	1	9712-						●	●
306	03.265 BOLT; VLV 01.540 (A) M8X45 FLANGE	0-28080-845-0	05	1	9511-9711						●
306	03.265 BOLT; VLV 01.540 (A) M8X45 FLANGE	0-28080-845-0	05	1	9712-						●	●
306	03.265 BOLT; VLV (B)	8-97088-145-0	02	1	9511-9607						●
336	03.415 VALVE; VENTILATION 03.270	8-97010-548-0	01	1	9312-9510						●
336	03.415 VALVE; VENTILATION	8-97119-887-0	01	1	9511-9711						●
336	03.415 VALVE; VENTILATION	8-97119-887-0	01	1	9712-						●	●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	05	1	9312-9510						●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9511-9711						●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9712-9712		●				●	●
346	02.559 CLIP; ENG HARNESS CHARGE AIR COOLER<6PL> 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	04	1	9801-		●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9801-						●	●
346	02.559 CLIP; ENG HARNESS POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9801-		●
507	03.415 ORIFICE	8-97088-649-0	01	1	9511-9711						●
507	03.415 ORIFICE	8-97088-649-0	01	1	9712-						●	●
603	03.278 CHAMBER; THROTTLE EXHAUST BRAKE<NF8>	8-97162-186-0	01	1	9511-9701						●
603	03.278 CHAMBER; THROTTLE	8-97204-780-0	01	1	9702-						●	●

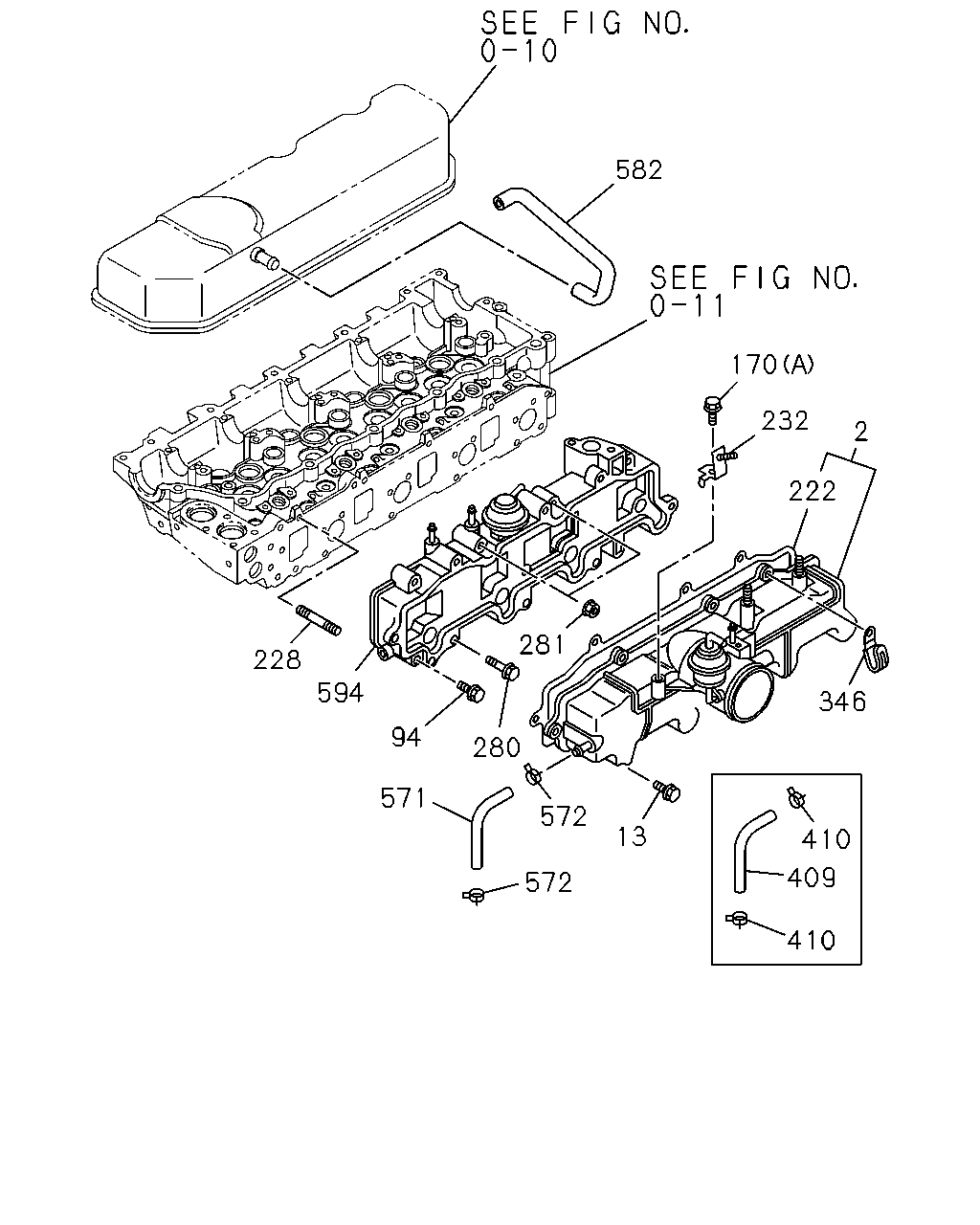

582 170 232 2 222 281 228 594 346 94 280 571 572 13 410 409 572 410

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
2	03.407 COVER; INL (A)	8-97033-719-1	01	1	9312-9510						●
2	03.407 COVER; INL EXC. EXHAUST BRAKE<NF8> (B)	8-97122-603-1	01	1	9511-9711						●
2	03.407 COVER; INL EXC. CHARGE AIR COOLER<6PL>	8-97074-680-1	01	1	9712-		●
2	03.407 COVER; INL EXHAUST BRAKE<NF8> (B)	8-97109-000-4	01	1	9511-9608						●
2	03.407 COVER; INL EXHAUST BRAKE<NF8> (B)	8-97146-864-1	01	1	9609-9711						●
2	03.407 COVER; INL (B)	8-97146-864-2	01	1	9712-						●	●
2	03.407 COVER; INL CHARGE AIR COOLER<6PL>	8-97190-248-1	01	1	9712-		●
13	03.275 BOLT; INL MANIF 03.706 M8X40 W/LK WASHER	0-50040-840-0	01	1	9312-9510	●		●
13	03.275 BOLT; INL MANIF 03.706 M8X40 W/LK WASHER	0-50040-840-0	01	1	9511-	●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9312-				●	●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	07	1	9312-9510						●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	08	1	9511-9711						●
13	03.275 BOLT; INL MANIF EXC. CHARGE AIR COOLER<6PL> M8X30 FLANGE	0-28080-830-0	07	1	9712-		●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	08	1	9712-						●	●
13	03.275 BOLT; INL MANIF CHARGE AIR COOLER<6PL> 04.686 M8X30 FLANGE	0-28680-830-0	06	1	9712-9804		●
13	03.275 BOLT; INL MANIF CHARGE AIR COOLER<6PL> M8X30 FLANGE	0-28080-830-0	06	1	9805-		●
94	02.559 BOLT 08.900 M8X12 FLANGE	0-28080-812-0	03	1	9312-9406				●
94	02.559 BOLT 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9607-9711						●
94	02.559 BOLT 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9712-						●	●
94	02.559 BOLT CHARGE AIR COOLER<6PL> 01.540 M8X45 FLANGE	0-28080-845-0	04	1	9712-		●
94	02.559 BOLT CHARGE AIR COOLER<6PL> 01.780 M8X50 FLANGE	0-28080-850-0	02	1	9712-		●
170	03.162 BOLT; BRKT 02.483 (B) M12X20 FLANGE	0-28181-220-0	01	1	9712-		●
170	03.162 BOLT; BRKT CHARGE AIR COOLER<6PL> 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	9712-		●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97084-938-2	01	1	9511-9711						●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97084-938-2	01	1	9712-						●	●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD) CHARGE AIR COOLER<6PL>	8-97170-807-0	01	1	9712-		●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. CHARGE AIR COOLER<6PL>	8-97074-682-0	01	1	9712-		●
228	03.407 STUD; INL COVER 00.413 M8X30 L=41	8-97016-313-0	02	1	9312-9510						●
228	03.407 STUD; INL COVER CHARGE AIR COOLER<6PL> M8X84 L=95	8-97181-739-0	02	1	9712-		●
232	03.407 BRACKET; INJ PIPE CHARGE AIR COOLER<6PL>	8-97190-249-0	01	1	9712-		●
280	03.403 BOLT; INL COVER CHARGE AIR COOLER<6PL> 09.171 M8X80 FLANGE	0-28080-880-0	01	1	9712-		●
281	03.407 NUT; INL COVER CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-		●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	05	1	9312-9510						●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9511-9711						●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9712-9712		●				●	●
346	02.559 CLIP; ENG HARNESS CHARGE AIR COOLER<6PL> 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	04	1	9801-		●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9801-						●	●
346	02.559 CLIP; ENG HARNESS POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9801-		●
409	03.407 HOSE; RUB,BOOST CONT 08.962 L=310 SERVICED BY L=3000	0-01254-300-0	01	1	9312-9711					●
409	03.407 HOSE; RUB,BOOST CONT 08.962 L=310 SERVICED BY L=3000	0-01254-300-0	01	1	9712-					●
409	03.407 HOSE; RUB,BOOST CONT CHARGE AIR COOLER<6PL> 08.962 L=310 SERVICED BY L=3000	0-01254-300-0	01	1	9712-		●
410	03.407 CLIP; RUB HOSE,BOOST CONT 03.163 ID=11	8-94238-570-0	02	1	9312-9711					●
410	03.407 CLIP; RUB HOSE,BOOST CONT 03.163 ID=11	8-94238-570-0	02	1	9712-					●
410	03.407 CLIP; RUB HOSE,BOOST CONT CHARGE AIR COOLER<6PL> 03.163 ID=11	8-94238-570-0	02	1	9712-		●
571	03.265 HOSE; AIR BOOST CHARGE AIR COOLER<6PL> 08.962 L=350 SERVICED BY L=3000	0-01254-300-0	01	1	9712-		●
571	03.265 HOSE; AIR BOOST EXC. CHARGE AIR COOLER<6PL> 08.962 L=230 SERVICED BY L=3000	0-01254-300-0	01	1	9712-		●
572	03.407 CLIP; BOOST HOSE 03.163 ID=11	8-94238-570-0	02	1	9712-		●
582	03.675 HOSE; RUBBER PCV	8-97108-926-0	01	1	9312-9703					●
582	03.675 HOSE; RUBBER PCV CHARGE AIR COOLER<6PL>	8-97108-926-0	01	1	9712-9801		●
594	03.278 CASE CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1)	8-97148-948-4	01	1	9712-		●
594	03.278 CASE UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL>	8-97187-617-0	01	1	9712-		●

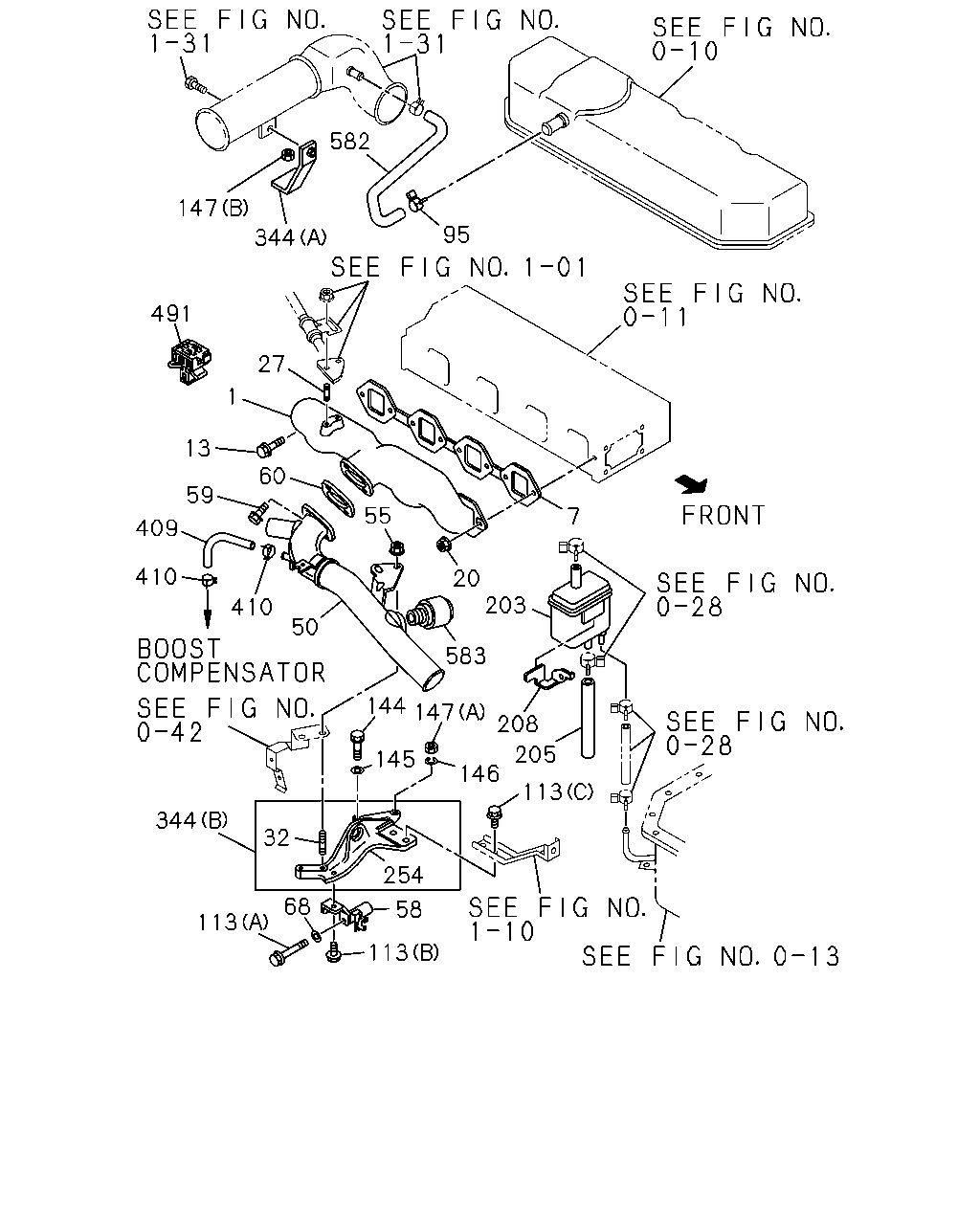

582 147 95 344 491 27 1 13 60 59 55 7 409 410 20 203 410 50 583 144 147 208 205 145 146 113 344 32 254 68 58 113 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.265 MANIFOLD; INL	8-94147-397-1	01	1	9312-9510			●
1	03.265 MANIFOLD; INL	8-97107-744-0	01	1	9312-9511				●
1	03.265 MANIFOLD; INL EXC. EURO2 SPECIFICATION<7AF>	8-97107-744-0	01	1	9512-9711				●
1	03.265 MANIFOLD; INL EURO2 SPECIFICATION<7AF>	8-97141-689-1	01	1	9512-9701				●
1	03.265 MANIFOLD; INL EURO2 SPECIFICATION<7AF>	8-97147-920-0	01	1	9702-9711				●
1	03.265 MANIFOLD; INL	8-97147-920-0	01	1	9712-				●
1	03.265 MANIFOLD; INL	8-97091-897-0	01	1	9312-					●
1	03.265 MANIFOLD; INL	8-97064-280-1	01	1	9312-	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-94116-988-0	01	1	9312-9510	●		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-94116-988-0	01	1	9511-	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A)	8-97066-741-1	01	1	9312-9511				●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. EURO2 SPECIFICATION<7AF> (A)	8-97066-741-1	01	1	9512-9711				●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97144-623-0	04	1	9712-				●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EURO2 SPECIFICATION<7AF> (B)	8-97144-623-0	04	1	9512-9711				●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97105-616-0	01	1	9312-					●
13	03.275 BOLT; INL MANIF 03.706 M8X40 W/LK WASHER	0-50040-840-0	01	1	9312-9510	●		●
13	03.275 BOLT; INL MANIF 03.706 M8X40 W/LK WASHER	0-50040-840-0	01	1	9511-	●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9312-				●	●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	07	1	9312-9510						●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	08	1	9511-9711						●
13	03.275 BOLT; INL MANIF EXC. CHARGE AIR COOLER<6PL> M8X30 FLANGE	0-28080-830-0	07	1	9712-		●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	08	1	9712-						●	●
13	03.275 BOLT; INL MANIF CHARGE AIR COOLER<6PL> 04.686 M8X30 FLANGE	0-28680-830-0	06	1	9712-9804		●
13	03.275 BOLT; INL MANIF CHARGE AIR COOLER<6PL> M8X30 FLANGE	0-28080-830-0	06	1	9805-		●
20	03.275 NUT; INL MANIF M8 FLANGE	5-14129-011-0	08	1	9312-9510	●		●
20	03.275 NUT; INL MANIF M8 FLANGE	5-14129-011-0	08	1	9511-	●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	9312-				●	●
20	03.275 NUT; INL MANIF AIR INTAKE REAR VERTICAL<KJ3> 00.002 M8	9-09110-508-0	02	1	9312-	●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	9312-9510						●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	04	1	9511-9607						●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	9607-9711						●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-						●	●
20	03.275 NUT; INL MANIF POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-		●
27	03.275 STUD; INL MANIF 08.981 M6X16 L=25	9-04110-616-0	01	1	9312-9510	●		●
27	03.275 STUD; INL MANIF 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	9312-				●
27	03.275 STUD; INL MANIF 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	9312-				●
27	03.275 STUD; INL MANIF 03.162 M6X20 L=29	9-04110-620-0	01	1	9312-9510					●
27	03.275 STUD; INL MANIF 03.162 M6X20 L=29	9-04110-620-0	01	1	9511-	●				●
32	03.403 STUD; INL PIPE 03.275 M10X24 L=41	9-09630-020-0	02	1	9312-					●
50	03.265 PIPE; INL	8-97105-612-1	01	1	9312-					●
50	03.265 PIPE; INL EXC. MINI BUS CHASSIS<V4B>	8-97171-340-0	01	1	9704-9711					●
55	03.407 NUT; INL PIPE 04.785 M10 FLANGE	0-91150-110-0	02	1	9312-					●
58	03.275 STAY; INL MANIF	8-94483-085-1	01	1	9312-9510			●
58	03.275 STAY; INL MANIF	8-97031-516-0	01	1	9312-					●
59	03.403 BOLT; INL PIPE TO MANIF 00.029 M10X35 W/LK&PL WASHER	0-50151-035-0	02	1	9312-9510			●		●
59	03.403 BOLT; INL PIPE TO MANIF 00.029 M10X35 W/LK&PL WASHER	0-50151-035-0	02	1	9511-					●
60	03.270 GASKET; INL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97105-617-0	01	1	9312-					●
68	03.265 WASHER; PL,INL DUCT 00.002 ID=10.2	9-09150-510-0	01	1	9312-9510			●		●
68	03.265 WASHER; PL,INL DUCT 00.002 ID=10.2	9-09150-510-0	01	1	9511-					●
95	03.278 CLIP; RUBBER HOSE 06.672 ID=21	8-94242-034-0	01	1	9312-9703					●
95	03.278 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> 03.162 (B) L=140	5-09707-031-1	01	1	9712-		●
95	03.278 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> 03.163 (A) UPPER ID=11	8-94238-570-0	01	1	9712-		●
95	03.278 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> 01.097 (A) LOWER ID=11	8-94238-925-0	01	1	9712-		●
95	03.278 CLIP; RUBBER HOSE EXC. CHARGE AIR COOLER<6PL> 01.219 ID=13	8-94238-571-0	02	1	9712-		●
113	03.275 BOLT; STAY (C) M10X20	0-20801-020-0	01	1	9312-9510			●
113	03.275 BOLT; STAY 04.785 (B) M8X18 W/LK WASHER	0-50040-818-0	01	1	9312-9510			●		●
113	03.275 BOLT; STAY 04.785 (B) M8X18 W/LK WASHER	0-50040-818-0	01	1	9511-					●
113	03.275 BOLT; STAY (A) M10X80 W/LK WASHER	0-50041-080-0	01	1	9312-9510			●		●
113	03.275 BOLT; STAY AIR INTAKE REAR VERTICAL<KJ3> (A) M10X80 W/LK WASHER	0-50041-080-0	01	1	9312-9510	●
113	03.275 BOLT; STAY (A) M10X80 W/LK WASHER	0-50041-080-0	01	1	9511-9702					●
113	03.275 BOLT; STAY AIR INTAKE REAR VERTICAL<KJ3> (A) M10X80 W/LK WASHER	0-50041-080-0	01	1	9511-9702	●
113	03.275 BOLT; STAY (A) M10X80 W/LK WASHER	0-50041-080-0	01	1	9703-9711					●
113	03.275 BOLT; STAY (A) M10X80 W/LK WASHER	0-50041-080-0	01	1	9712-					●
113	03.275 BOLT; STAY AIR INTAKE REAR VERTICAL<KJ3> (A) M10X80 W/LK WASHER	0-50041-080-0	01	1	9712-	●
113	03.275 BOLT; STAY 11.377 (C) M10X20 W/LK WASHER	0-50041-020-0	02	1	9312-					●
144	03.275 BOLT; BRKT FIX 06.525 M10X32 W/LK WASHER	0-50041-032-0	01	1	9312-9510	●		●		●
144	03.275 BOLT; BRKT FIX 06.525 M10X32 W/LK WASHER	0-50041-032-0	01	1	9511-9803	●				●
144	03.275 BOLT; BRKT FIX 03.162 M10X35 FLANGE	0-28681-035-0	01	1	9804-	●				●
145	03.275 WASHER; BRKT TO HD BOLT	8-94256-979-0	01	1	9312-9510			●		●
145	03.275 WASHER; BRKT TO HD BOLT	8-94256-979-0	01	1	9511-					●
146	03.275 WASHER; LK,BRKT 00.002 ID=10.2	9-09150-510-0	01	1	9312-9510	●		●		●
146	03.275 WASHER; LK,BRKT 00.002 ID=10.2	9-09150-510-0	01	1	9511-	●				●
147	03.275 NUT; BRKT 00.002 (A) M10	9-09110-510-0	01	1	9312-9510	●		●		●
147	03.275 NUT; BRKT 00.002 (A) M10	9-09110-510-0	01	1	9511-	●				●
147	03.275 NUT; BRKT 04.785 (B) M10 FLANGE	0-91150-110-0	01	1	9312-9610					●
147	03.275 NUT; BRKT EXC. MINI BUS CHASSIS<V4B> 04.785 (B) M10 FLANGE	0-91150-110-0	01	1	9611-					●
203	01.780 TANK; CATCH,PRESSURE CONT VLV	8-97065-544-0	01	1	9312-9510			●
203	01.780 TANK; CATCH,PRESSURE CONT VLV	8-97065-544-0	01	1	9704-					●
203	01.780 TANK; CATCH,PRESSURE CONT VLV	8-97088-685-1	01	1	9712-		●
205	01.745 HOSE; OIL DRAIN 00.413 L=220	1-09360-755-0	01	1	9312-9510			●
205	01.745 HOSE; OIL DRAIN 00.413 L=220	1-09360-755-0	01	1	9704-					●
205	01.745 HOSE; OIL DRAIN CHARGE AIR COOLER<6PL>	8-97149-011-1	01	1	9712-		●
205	01.745 HOSE; OIL DRAIN EXC. CHARGE AIR COOLER<6PL>	8-97088-684-1	01	1	9712-		●
208	01.750 BRACKET; CATCH TANK,OIL	8-94381-356-0	01	1	9312-9510			●
208	01.750 BRACKET; CATCH TANK,OIL	8-94381-356-0	01	1	9704-					●
208	01.750 BRACKET; CATCH TANK,OIL CHARGE AIR COOLER<6PL>	8-97166-887-0	01	1	9712-		●
208	01.750 BRACKET; CATCH TANK,OIL EXC. CHARGE AIR COOLER<6PL>	8-97094-449-0	01	1	9712-		●
254	01.277 BRACKET; FAN GUIDE,TOP 03.273	8-94129-880-0	01	1	9312-9510			●
254	01.277 BRACKET; FAN GUIDE,TOP	8-94461-977-1	01	1	9312-					●
344	03.407 BRACKET; INL PIPE (A)	8-97020-125-0	01	1	9312-9610					●
344	03.407 BRACKET; INL PIPE EXC. MINI BUS CHASSIS<V4B> (A)	8-97020-125-0	01	1	9611-					●
344	03.407 BRACKET; INL PIPE (B)	8-97062-684-0	01	1	9312-					●
344	03.407 BRACKET; INL PIPE EXC. CHARGE AIR COOLER<6PL>	8-97065-482-3	01	1	9712-		●
409	03.407 HOSE; RUB,BOOST CONT 08.962 L=310 SERVICED BY L=3000	0-01254-300-0	01	1	9312-9711					●
409	03.407 HOSE; RUB,BOOST CONT 08.962 L=310 SERVICED BY L=3000	0-01254-300-0	01	1	9712-					●
409	03.407 HOSE; RUB,BOOST CONT CHARGE AIR COOLER<6PL> 08.962 L=310 SERVICED BY L=3000	0-01254-300-0	01	1	9712-		●
410	03.407 CLIP; RUB HOSE,BOOST CONT 03.163 ID=11	8-94238-570-0	02	1	9312-9711					●
410	03.407 CLIP; RUB HOSE,BOOST CONT 03.163 ID=11	8-94238-570-0	02	1	9712-					●
410	03.407 CLIP; RUB HOSE,BOOST CONT CHARGE AIR COOLER<6PL> 03.163 ID=11	8-94238-570-0	02	1	9712-		●
491	01.152 CLIP; CONNECTOR	8-94377-313-1	01	1	9312-					●
582	03.675 HOSE; RUBBER PCV	8-97108-926-0	01	1	9312-9703					●
582	03.675 HOSE; RUBBER PCV CHARGE AIR COOLER<6PL>	8-97108-926-0	01	1	9712-9801		●
583	03.675 VALVE; SAFETY	8-97109-340-0	01	1	9312-9409					●

1 27 10 7 116 27 23 13 114 20 93 94 94 93 115 115 93 94 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.265 MANIFOLD; INL	8-94147-397-1	01	1	9312-9510			●
1	03.265 MANIFOLD; INL	8-97107-744-0	01	1	9312-9511				●
1	03.265 MANIFOLD; INL EXC. EURO2 SPECIFICATION<7AF>	8-97107-744-0	01	1	9512-9711				●
1	03.265 MANIFOLD; INL EURO2 SPECIFICATION<7AF>	8-97141-689-1	01	1	9512-9701				●
1	03.265 MANIFOLD; INL EURO2 SPECIFICATION<7AF>	8-97147-920-0	01	1	9702-9711				●
1	03.265 MANIFOLD; INL	8-97147-920-0	01	1	9712-				●
1	03.265 MANIFOLD; INL	8-97091-897-0	01	1	9312-					●
1	03.265 MANIFOLD; INL	8-97064-280-1	01	1	9312-	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-94116-988-0	01	1	9312-9510	●		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-94116-988-0	01	1	9511-	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A)	8-97066-741-1	01	1	9312-9511				●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. EURO2 SPECIFICATION<7AF> (A)	8-97066-741-1	01	1	9512-9711				●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97144-623-0	04	1	9712-				●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EURO2 SPECIFICATION<7AF> (B)	8-97144-623-0	04	1	9512-9711				●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97105-616-0	01	1	9312-					●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=61	8-94370-676-0	01	1	9312-9510			●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97144-622-0	01	1	9712-				●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EURO2 SPECIFICATION<7AF> (B)	8-97144-622-0	01	1	9512-9711				●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.270 (A) ID=64X89	8-94370-677-0	01	1	9312-	●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.270 (B) ID=66	8-94370-678-0	01	1	9312-	●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A)	8-97035-883-0	01	1	9312-9511				●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. EURO2 SPECIFICATION<7AF> (A)	8-97035-883-0	01	1	9512-9711				●
13	03.275 BOLT; INL MANIF 03.706 M8X40 W/LK WASHER	0-50040-840-0	01	1	9312-9510	●		●
13	03.275 BOLT; INL MANIF 03.706 M8X40 W/LK WASHER	0-50040-840-0	01	1	9511-	●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9312-				●	●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	07	1	9312-9510						●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	08	1	9511-9711						●
13	03.275 BOLT; INL MANIF EXC. CHARGE AIR COOLER<6PL> M8X30 FLANGE	0-28080-830-0	07	1	9712-		●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	08	1	9712-						●	●
13	03.275 BOLT; INL MANIF CHARGE AIR COOLER<6PL> 04.686 M8X30 FLANGE	0-28680-830-0	06	1	9712-9804		●
13	03.275 BOLT; INL MANIF CHARGE AIR COOLER<6PL> M8X30 FLANGE	0-28080-830-0	06	1	9805-		●
20	03.275 NUT; INL MANIF M8 FLANGE	5-14129-011-0	08	1	9312-9510	●		●
20	03.275 NUT; INL MANIF M8 FLANGE	5-14129-011-0	08	1	9511-	●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	9312-				●	●
20	03.275 NUT; INL MANIF AIR INTAKE REAR VERTICAL<KJ3> 00.002 M8	9-09110-508-0	02	1	9312-	●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	9312-9510						●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	04	1	9511-9607						●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	9607-9711						●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-						●	●
20	03.275 NUT; INL MANIF POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-		●
23	03.275 WASHER; PL,INL MANIF OD=28.6	8-94155-884-1	01	1	9312-9510	●		●
23	03.275 WASHER; PL,INL MANIF OD=28.6	8-94155-884-1	01	1	9511-	●
23	03.275 WASHER; PL,INL MANIF 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9312-				●
27	03.275 STUD; INL MANIF 08.981 M6X16 L=25	9-04110-616-0	01	1	9312-9510	●		●
27	03.275 STUD; INL MANIF 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	9312-				●
27	03.275 STUD; INL MANIF 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	9312-				●
27	03.275 STUD; INL MANIF 03.162 M6X20 L=29	9-04110-620-0	01	1	9312-9510					●
27	03.275 STUD; INL MANIF 03.162 M6X20 L=29	9-04110-620-0	01	1	9511-	●				●
93	02.559 CLIP; HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9312-9406				●
94	02.559 BOLT 08.900 M8X12 FLANGE	0-28080-812-0	03	1	9312-9406				●
94	02.559 BOLT 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9607-9711						●
94	02.559 BOLT 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9712-						●	●
94	02.559 BOLT CHARGE AIR COOLER<6PL> 01.540 M8X45 FLANGE	0-28080-845-0	04	1	9712-		●
94	02.559 BOLT CHARGE AIR COOLER<6PL> 01.780 M8X50 FLANGE	0-28080-850-0	02	1	9712-		●
114	03.265 HOSE; VAC,INT THROTTLE L=1320	8-97096-148-1	01	1	9312-				●
115	03.265 CLIP; VAC HOSE,INT THROTTLE 08.852 (A) ID=8 & 23	5-09707-002-0	01	1	9312-				●
115	03.265 CLIP; VAC HOSE,INT THROTTLE 08.852 (A) ID=8 & 16	5-09707-032-0	03	1	9312-				●
115	03.265 CLIP; VAC HOSE,INT THROTTLE 03.430 (C) ID=6 & 6	8-94400-853-0	01	1	9312-9706				●
115	03.265 CLIP; VAC HOSE,INT THROTTLE 03.483 (C) ID=6 & 6	8-94463-708-0	01	1	9707-				●
115	03.265 CLIP; VAC HOSE,INT THROTTLE 03.278 (B) ID=37	8-94481-468-0	01	1	9312-				●
116	03.275 BOLT; MANIF TO INL PIPE 09.173 M10X25 W/LK WASHER	0-50051-025-0	02	1	9312-9706				●
116	03.275 BOLT; MANIF TO INL PIPE 01.540 M10X20 FLANGE	0-28181-020-0	02	1	9707-				●

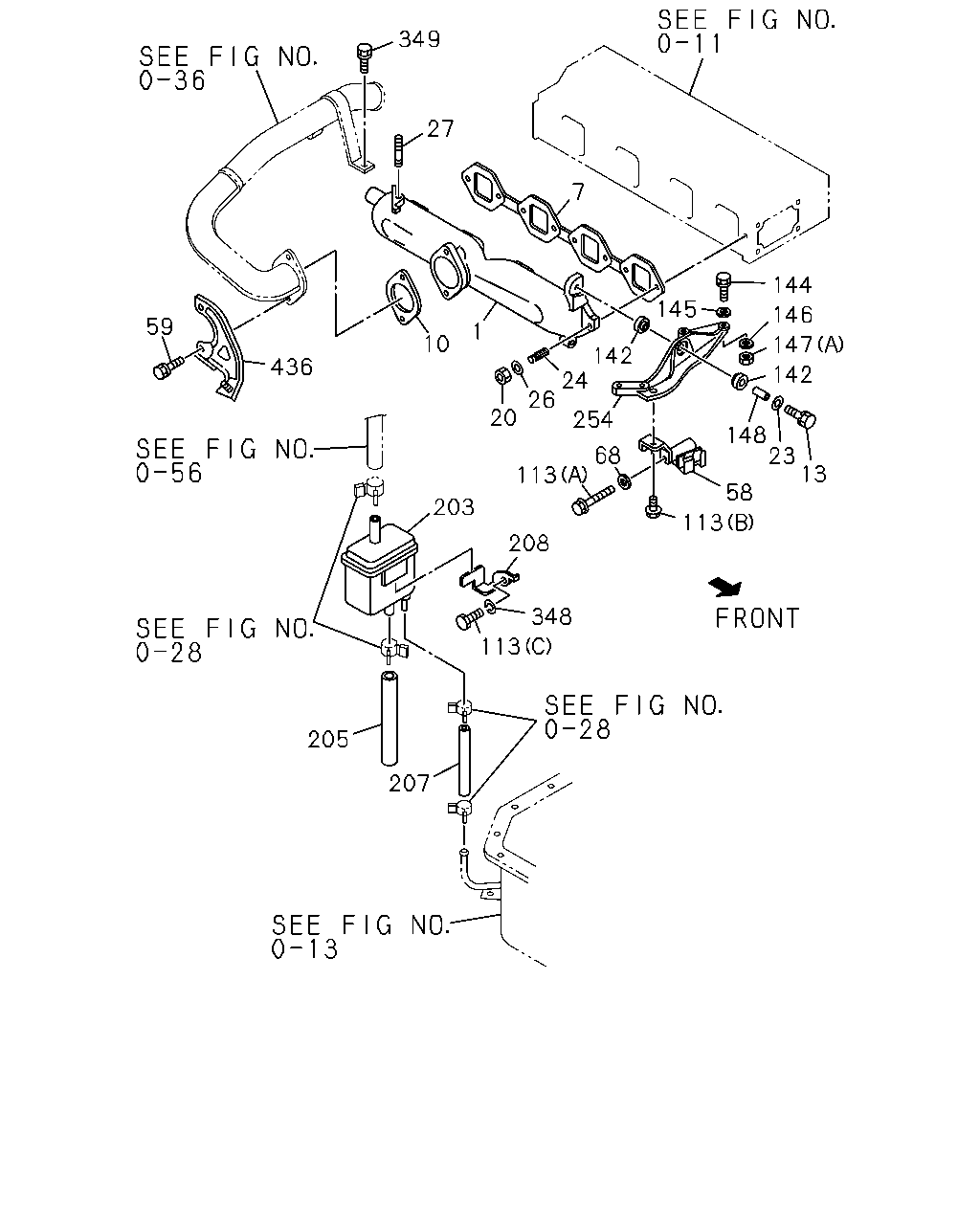

349 27 7 144 145 146 59 1 10 147 142 24 26 436 142 20 254 148 23 13 68 113 58 203 113 208 348 113 205 207

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.265 MANIFOLD; INL	8-94147-397-1	01	1	9312-9510			●
1	03.265 MANIFOLD; INL	8-97107-744-0	01	1	9312-9511				●
1	03.265 MANIFOLD; INL EXC. EURO2 SPECIFICATION<7AF>	8-97107-744-0	01	1	9512-9711				●
1	03.265 MANIFOLD; INL EURO2 SPECIFICATION<7AF>	8-97141-689-1	01	1	9512-9701				●
1	03.265 MANIFOLD; INL EURO2 SPECIFICATION<7AF>	8-97147-920-0	01	1	9702-9711				●
1	03.265 MANIFOLD; INL	8-97147-920-0	01	1	9712-				●
1	03.265 MANIFOLD; INL	8-97091-897-0	01	1	9312-					●
1	03.265 MANIFOLD; INL	8-97064-280-1	01	1	9312-	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-94116-988-0	01	1	9312-9510	●		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-94116-988-0	01	1	9511-	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A)	8-97066-741-1	01	1	9312-9511				●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. EURO2 SPECIFICATION<7AF> (A)	8-97066-741-1	01	1	9512-9711				●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97144-623-0	04	1	9712-				●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EURO2 SPECIFICATION<7AF> (B)	8-97144-623-0	04	1	9512-9711				●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97105-616-0	01	1	9312-					●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=61	8-94370-676-0	01	1	9312-9510			●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97144-622-0	01	1	9712-				●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EURO2 SPECIFICATION<7AF> (B)	8-97144-622-0	01	1	9512-9711				●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.270 (A) ID=64X89	8-94370-677-0	01	1	9312-	●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.270 (B) ID=66	8-94370-678-0	01	1	9312-	●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A)	8-97035-883-0	01	1	9312-9511				●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. EURO2 SPECIFICATION<7AF> (A)	8-97035-883-0	01	1	9512-9711				●
13	03.275 BOLT; INL MANIF 03.706 M8X40 W/LK WASHER	0-50040-840-0	01	1	9312-9510	●		●
13	03.275 BOLT; INL MANIF 03.706 M8X40 W/LK WASHER	0-50040-840-0	01	1	9511-	●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9312-				●	●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	07	1	9312-9510						●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	08	1	9511-9711						●
13	03.275 BOLT; INL MANIF EXC. CHARGE AIR COOLER<6PL> M8X30 FLANGE	0-28080-830-0	07	1	9712-		●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	08	1	9712-						●	●
13	03.275 BOLT; INL MANIF CHARGE AIR COOLER<6PL> 04.686 M8X30 FLANGE	0-28680-830-0	06	1	9712-9804		●
13	03.275 BOLT; INL MANIF CHARGE AIR COOLER<6PL> M8X30 FLANGE	0-28080-830-0	06	1	9805-		●
20	03.275 NUT; INL MANIF M8 FLANGE	5-14129-011-0	08	1	9312-9510	●		●
20	03.275 NUT; INL MANIF M8 FLANGE	5-14129-011-0	08	1	9511-	●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	9312-				●	●
20	03.275 NUT; INL MANIF AIR INTAKE REAR VERTICAL<KJ3> 00.002 M8	9-09110-508-0	02	1	9312-	●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	9312-9510						●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	04	1	9511-9607						●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	9607-9711						●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-						●	●
20	03.275 NUT; INL MANIF POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-		●
23	03.275 WASHER; PL,INL MANIF OD=28.6	8-94155-884-1	01	1	9312-9510	●		●
23	03.275 WASHER; PL,INL MANIF OD=28.6	8-94155-884-1	01	1	9511-	●
23	03.275 WASHER; PL,INL MANIF 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9312-				●
24	03.278 SPRING; INL MANIF 03.275	5-09580-105-0	08	1	9312-9510	●		●
24	03.278 SPRING; INL MANIF 03.275	5-09580-105-0	08	1	9511-	●
26	03.275 WASHER; PL,SPRING SEAT 06.172 ID=12.5	9-09164-512-0	08	1	9312-9510	●		●
26	03.275 WASHER; PL,SPRING SEAT 06.172 ID=12.5	9-09164-512-0	08	1	9511-	●
27	03.275 STUD; INL MANIF 08.981 M6X16 L=25	9-04110-616-0	01	1	9312-9510	●		●
27	03.275 STUD; INL MANIF 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	9312-				●
27	03.275 STUD; INL MANIF 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	9312-				●
27	03.275 STUD; INL MANIF 03.162 M6X20 L=29	9-04110-620-0	01	1	9312-9510					●
27	03.275 STUD; INL MANIF 03.162 M6X20 L=29	9-04110-620-0	01	1	9511-	●				●
58	03.275 STAY; INL MANIF	8-94483-085-1	01	1	9312-9510			●
58	03.275 STAY; INL MANIF	8-97031-516-0	01	1	9312-					●
59	03.403 BOLT; INL PIPE TO MANIF 00.029 M10X35 W/LK&PL WASHER	0-50151-035-0	02	1	9312-9510			●		●
59	03.403 BOLT; INL PIPE TO MANIF 00.029 M10X35 W/LK&PL WASHER	0-50151-035-0	02	1	9511-					●
68	03.265 WASHER; PL,INL DUCT 00.002 ID=10.2	9-09150-510-0	01	1	9312-9510			●		●
68	03.265 WASHER; PL,INL DUCT 00.002 ID=10.2	9-09150-510-0	01	1	9511-					●
113	03.275 BOLT; STAY (C) M10X20	0-20801-020-0	01	1	9312-9510			●
113	03.275 BOLT; STAY 04.785 (B) M8X18 W/LK WASHER	0-50040-818-0	01	1	9312-9510			●		●
113	03.275 BOLT; STAY 04.785 (B) M8X18 W/LK WASHER	0-50040-818-0	01	1	9511-					●
113	03.275 BOLT; STAY (A) M10X80 W/LK WASHER	0-50041-080-0	01	1	9312-9510			●		●
113	03.275 BOLT; STAY AIR INTAKE REAR VERTICAL<KJ3> (A) M10X80 W/LK WASHER	0-50041-080-0	01	1	9312-9510	●
113	03.275 BOLT; STAY (A) M10X80 W/LK WASHER	0-50041-080-0	01	1	9511-9702					●
113	03.275 BOLT; STAY AIR INTAKE REAR VERTICAL<KJ3> (A) M10X80 W/LK WASHER	0-50041-080-0	01	1	9511-9702	●
113	03.275 BOLT; STAY (A) M10X80 W/LK WASHER	0-50041-080-0	01	1	9703-9711					●
113	03.275 BOLT; STAY (A) M10X80 W/LK WASHER	0-50041-080-0	01	1	9712-					●
113	03.275 BOLT; STAY AIR INTAKE REAR VERTICAL<KJ3> (A) M10X80 W/LK WASHER	0-50041-080-0	01	1	9712-	●
113	03.275 BOLT; STAY 11.377 (C) M10X20 W/LK WASHER	0-50041-020-0	02	1	9312-					●
142	03.275 RUBBER; MTG,INL MANIF TO BRKT 03.463	8-94255-643-1	02	1	9312-9510	●		●
142	03.275 RUBBER; MTG,INL MANIF TO BRKT 03.463	8-94255-643-1	02	1	9511-	●
144	03.275 BOLT; BRKT FIX 06.525 M10X32 W/LK WASHER	0-50041-032-0	01	1	9312-9510	●		●		●
144	03.275 BOLT; BRKT FIX 06.525 M10X32 W/LK WASHER	0-50041-032-0	01	1	9511-9803	●				●
144	03.275 BOLT; BRKT FIX 03.162 M10X35 FLANGE	0-28681-035-0	01	1	9804-	●				●
145	03.275 WASHER; BRKT TO HD BOLT	8-94256-979-0	01	1	9312-9510			●		●
145	03.275 WASHER; BRKT TO HD BOLT	8-94256-979-0	01	1	9511-					●
146	03.275 WASHER; LK,BRKT 00.002 ID=10.2	9-09150-510-0	01	1	9312-9510	●		●		●
146	03.275 WASHER; LK,BRKT 00.002 ID=10.2	9-09150-510-0	01	1	9511-	●				●
147	03.275 NUT; BRKT 00.002 (A) M10	9-09110-510-0	01	1	9312-9510	●		●		●
147	03.275 NUT; BRKT 00.002 (A) M10	9-09110-510-0	01	1	9511-	●				●
147	03.275 NUT; BRKT 04.785 (B) M10 FLANGE	0-91150-110-0	01	1	9312-9610					●
147	03.275 NUT; BRKT EXC. MINI BUS CHASSIS<V4B> 04.785 (B) M10 FLANGE	0-91150-110-0	01	1	9611-					●
148	03.275 BUSHING; SPACER,INL MANIF TO BRK OD=12 L=20.5	8-94255-642-1	01	1	9312-9510	●		●
148	03.275 BUSHING; SPACER,INL MANIF TO BRK OD=12 L=20.5	8-94255-642-1	01	1	9511-	●
203	01.780 TANK; CATCH,PRESSURE CONT VLV	8-97065-544-0	01	1	9312-9510			●
203	01.780 TANK; CATCH,PRESSURE CONT VLV	8-97065-544-0	01	1	9704-					●
203	01.780 TANK; CATCH,PRESSURE CONT VLV	8-97088-685-1	01	1	9712-		●
205	01.745 HOSE; OIL DRAIN 00.413 L=220	1-09360-755-0	01	1	9312-9510			●
205	01.745 HOSE; OIL DRAIN 00.413 L=220	1-09360-755-0	01	1	9704-					●
205	01.745 HOSE; OIL DRAIN CHARGE AIR COOLER<6PL>	8-97149-011-1	01	1	9712-		●
205	01.745 HOSE; OIL DRAIN EXC. CHARGE AIR COOLER<6PL>	8-97088-684-1	01	1	9712-		●
207	01.745 HOSE; RUBBER,CATCH TANK TO OIL P L=100 SERVICED BY L=1000	8-94423-801-0	01	1	9312-9510			●
208	01.750 BRACKET; CATCH TANK,OIL	8-94381-356-0	01	1	9312-9510			●
208	01.750 BRACKET; CATCH TANK,OIL	8-94381-356-0	01	1	9704-					●
208	01.750 BRACKET; CATCH TANK,OIL CHARGE AIR COOLER<6PL>	8-97166-887-0	01	1	9712-		●
208	01.750 BRACKET; CATCH TANK,OIL EXC. CHARGE AIR COOLER<6PL>	8-97094-449-0	01	1	9712-		●
254	01.277 BRACKET; FAN GUIDE,TOP 03.273	8-94129-880-0	01	1	9312-9510			●
254	01.277 BRACKET; FAN GUIDE,TOP	8-94461-977-1	01	1	9312-					●
348	02.559 WASHER; LK 00.002 ID=10.2	9-09150-510-0	01	1	9312-9510			●
349	03.417 BOLT; BRKT,INL PIPE 12.187 M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9312-9510			●
349	03.417 BOLT; BRKT,INL PIPE CHARGE AIR COOLER<6PL> 04.595 M8X20 FLANGE	0-28480-820-0	04	1	9712-		●
436	03.162 BRACKET; FUEL CUT	8-94337-856-0	01	1	9312-9510			●
436	03.162 BRACKET; FUEL CUT AIR INTAKE REAR VERTICAL<KJ3>	8-97029-837-1	01	1	9312-	●
436	03.162 BRACKET; FUEL CUT AIR INTAKE SYSTEM FRONT<6PC>	8-97024-306-0	01	1	9312-	●

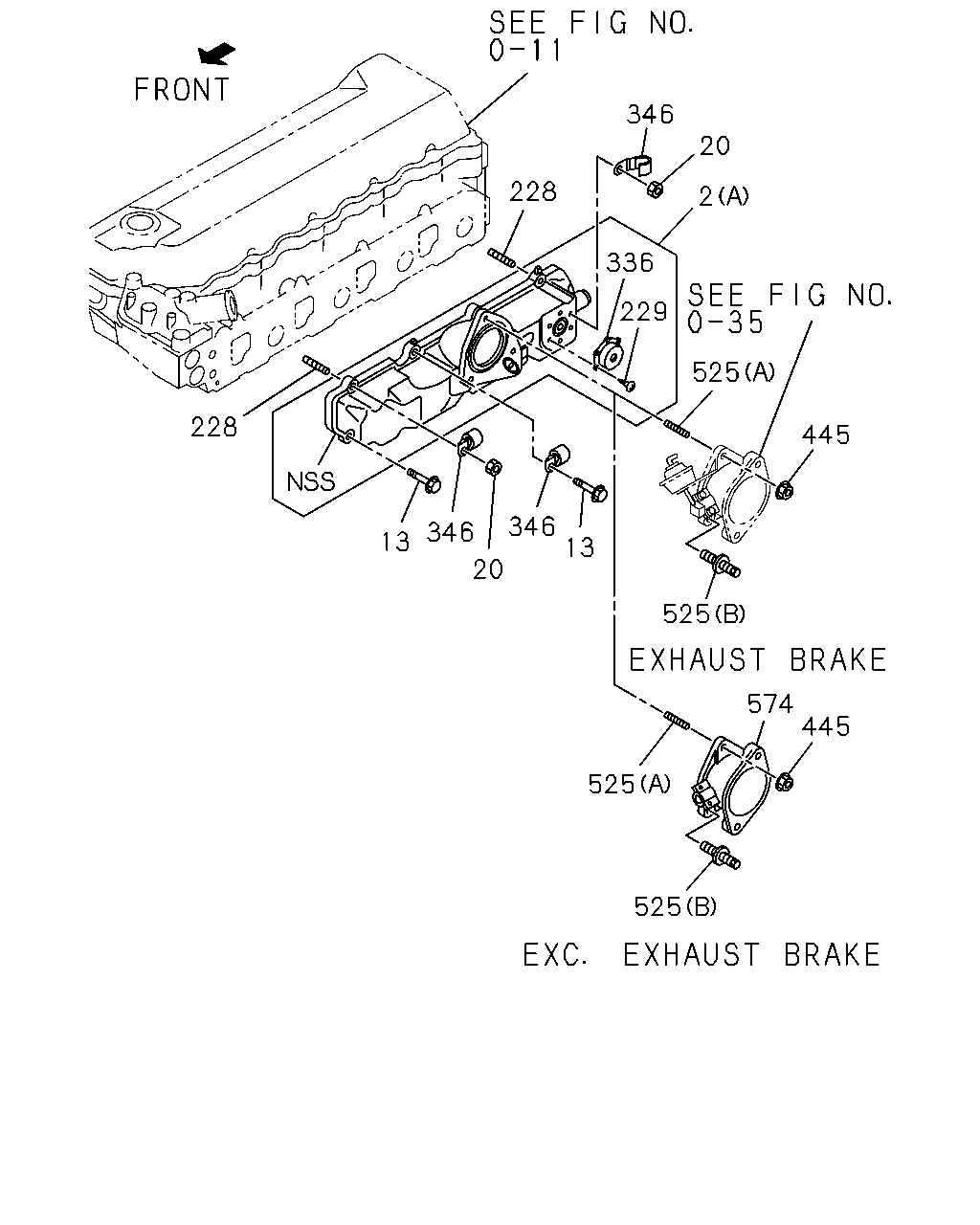

346 20 228 2 336 229 525 228 445 346 346 13 13 20 525 574 445 525 525

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
2	03.407 COVER; INL (A)	8-97033-719-1	01	1	9312-9510						●
2	03.407 COVER; INL EXC. EXHAUST BRAKE<NF8> (B)	8-97122-603-1	01	1	9511-9711						●
2	03.407 COVER; INL EXC. CHARGE AIR COOLER<6PL>	8-97074-680-1	01	1	9712-		●
2	03.407 COVER; INL EXHAUST BRAKE<NF8> (B)	8-97109-000-4	01	1	9511-9608						●
2	03.407 COVER; INL EXHAUST BRAKE<NF8> (B)	8-97146-864-1	01	1	9609-9711						●
2	03.407 COVER; INL (B)	8-97146-864-2	01	1	9712-						●	●
2	03.407 COVER; INL CHARGE AIR COOLER<6PL>	8-97190-248-1	01	1	9712-		●
13	03.275 BOLT; INL MANIF 03.706 M8X40 W/LK WASHER	0-50040-840-0	01	1	9312-9510	●		●
13	03.275 BOLT; INL MANIF 03.706 M8X40 W/LK WASHER	0-50040-840-0	01	1	9511-	●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9312-				●	●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	07	1	9312-9510						●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	08	1	9511-9711						●
13	03.275 BOLT; INL MANIF EXC. CHARGE AIR COOLER<6PL> M8X30 FLANGE	0-28080-830-0	07	1	9712-		●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	08	1	9712-						●	●
13	03.275 BOLT; INL MANIF CHARGE AIR COOLER<6PL> 04.686 M8X30 FLANGE	0-28680-830-0	06	1	9712-9804		●
13	03.275 BOLT; INL MANIF CHARGE AIR COOLER<6PL> M8X30 FLANGE	0-28080-830-0	06	1	9805-		●
20	03.275 NUT; INL MANIF M8 FLANGE	5-14129-011-0	08	1	9312-9510	●		●
20	03.275 NUT; INL MANIF M8 FLANGE	5-14129-011-0	08	1	9511-	●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	9312-				●	●
20	03.275 NUT; INL MANIF AIR INTAKE REAR VERTICAL<KJ3> 00.002 M8	9-09110-508-0	02	1	9312-	●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	9312-9510						●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	04	1	9511-9607						●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	9607-9711						●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-						●	●
20	03.275 NUT; INL MANIF POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-		●
228	03.407 STUD; INL COVER 00.413 M8X30 L=41	8-97016-313-0	02	1	9312-9510						●
228	03.407 STUD; INL COVER CHARGE AIR COOLER<6PL> M8X84 L=95	8-97181-739-0	02	1	9712-		●
229	03.278 SCREW; VENTILATION VLV 16.345 M4X8 TAPPING	0-71080-408-0	06	1	9312-9412						●
229	03.278 SCREW; VENTILATION VLV 16.345 M4X8 TAPPING	0-71080-408-0	12	1	9501-9510						●
229	03.278 SCREW; VENTILATION VLV 06.321 M4X8 W/LK WASHER	9-03910-408-0	04	1	9511-9711						●
229	03.278 SCREW; VENTILATION VLV 06.321 M4X8 W/LK WASHER	9-03910-408-0	04	1	9712-						●	●
336	03.415 VALVE; VENTILATION 03.270	8-97010-548-0	01	1	9312-9510						●
336	03.415 VALVE; VENTILATION	8-97119-887-0	01	1	9511-9711						●
336	03.415 VALVE; VENTILATION	8-97119-887-0	01	1	9712-						●	●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	05	1	9312-9510						●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9511-9711						●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9712-9712		●				●	●
346	02.559 CLIP; ENG HARNESS CHARGE AIR COOLER<6PL> 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	04	1	9801-		●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9801-						●	●
346	02.559 CLIP; ENG HARNESS POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9801-		●
445	03.275 NUT; THROTTLE BODY TO MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	9312-9510						●
445	03.275 NUT; THROTTLE BODY TO MANIF EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-		●
525	03.275 STUD; CONT VLV 01.428 (A) M8X20 L=38	8-97021-431-0	02	1	9312-9510						●
525	03.275 STUD; CONT VLV 03.270 (B)	8-97033-689-0	01	1	9312-9510						●
525	03.275 STUD; CONT VLV EXC. CHARGE AIR COOLER<6PL> 01.428 (A) M8X20 L=38	8-97021-431-0	02	1	9712-		●
525	03.275 STUD; CONT VLV EXC. CHARGE AIR COOLER<6PL> 03.270 (B)	8-97033-689-0	01	1	9712-		●
574	03.275 SPACER; INL PIPE EXC. EXHAUST BRAKE<NF8>	8-97102-422-0	01	1	9312-9510						●

203 95 170 205 208 95 95 333 349

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	E
95	03.278 CLIP; RUBBER HOSE 06.672 ID=21	8-94242-034-0	01	1	9312-9703			●
95	03.278 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> 03.162 (B) L=140	5-09707-031-1	01	1	9712-	●
95	03.278 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> 03.163 (A) UPPER ID=11	8-94238-570-0	01	1	9712-	●
95	03.278 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> 01.097 (A) LOWER ID=11	8-94238-925-0	01	1	9712-	●
95	03.278 CLIP; RUBBER HOSE EXC. CHARGE AIR COOLER<6PL> 01.219 ID=13	8-94238-571-0	02	1	9712-	●
170	03.162 BOLT; BRKT 02.483 (B) M12X20 FLANGE	0-28181-220-0	01	1	9712-	●
170	03.162 BOLT; BRKT CHARGE AIR COOLER<6PL> 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	9712-	●
203	01.780 TANK; CATCH,PRESSURE CONT VLV	8-97065-544-0	01	1	9312-9510		●
203	01.780 TANK; CATCH,PRESSURE CONT VLV	8-97065-544-0	01	1	9704-			●
203	01.780 TANK; CATCH,PRESSURE CONT VLV	8-97088-685-1	01	1	9712-	●
205	01.745 HOSE; OIL DRAIN 00.413 L=220	1-09360-755-0	01	1	9312-9510		●
205	01.745 HOSE; OIL DRAIN 00.413 L=220	1-09360-755-0	01	1	9704-			●
205	01.745 HOSE; OIL DRAIN CHARGE AIR COOLER<6PL>	8-97149-011-1	01	1	9712-	●
205	01.745 HOSE; OIL DRAIN EXC. CHARGE AIR COOLER<6PL>	8-97088-684-1	01	1	9712-	●
208	01.750 BRACKET; CATCH TANK,OIL	8-94381-356-0	01	1	9312-9510		●
208	01.750 BRACKET; CATCH TANK,OIL	8-94381-356-0	01	1	9704-			●
208	01.750 BRACKET; CATCH TANK,OIL CHARGE AIR COOLER<6PL>	8-97166-887-0	01	1	9712-	●
208	01.750 BRACKET; CATCH TANK,OIL EXC. CHARGE AIR COOLER<6PL>	8-97094-449-0	01	1	9712-	●
333	03.278 HOSE; RUBBER,INL PIPE CHARGE AIR COOLER<6PL>	8-97189-631-0	01	1	9712-	●
349	03.417 BOLT; BRKT,INL PIPE 12.187 M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9312-9510		●
349	03.417 BOLT; BRKT,INL PIPE CHARGE AIR COOLER<6PL> 04.595 M8X20 FLANGE	0-28480-820-0	04	1	9712-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
