◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 10676 - LT 111,112,132,133 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-53 - TRANSMISSION OIL COOLER SYSTEM ▶
2-53 — TRANSMISSION OIL COOLER SYSTEM (#4438) — 28 parça

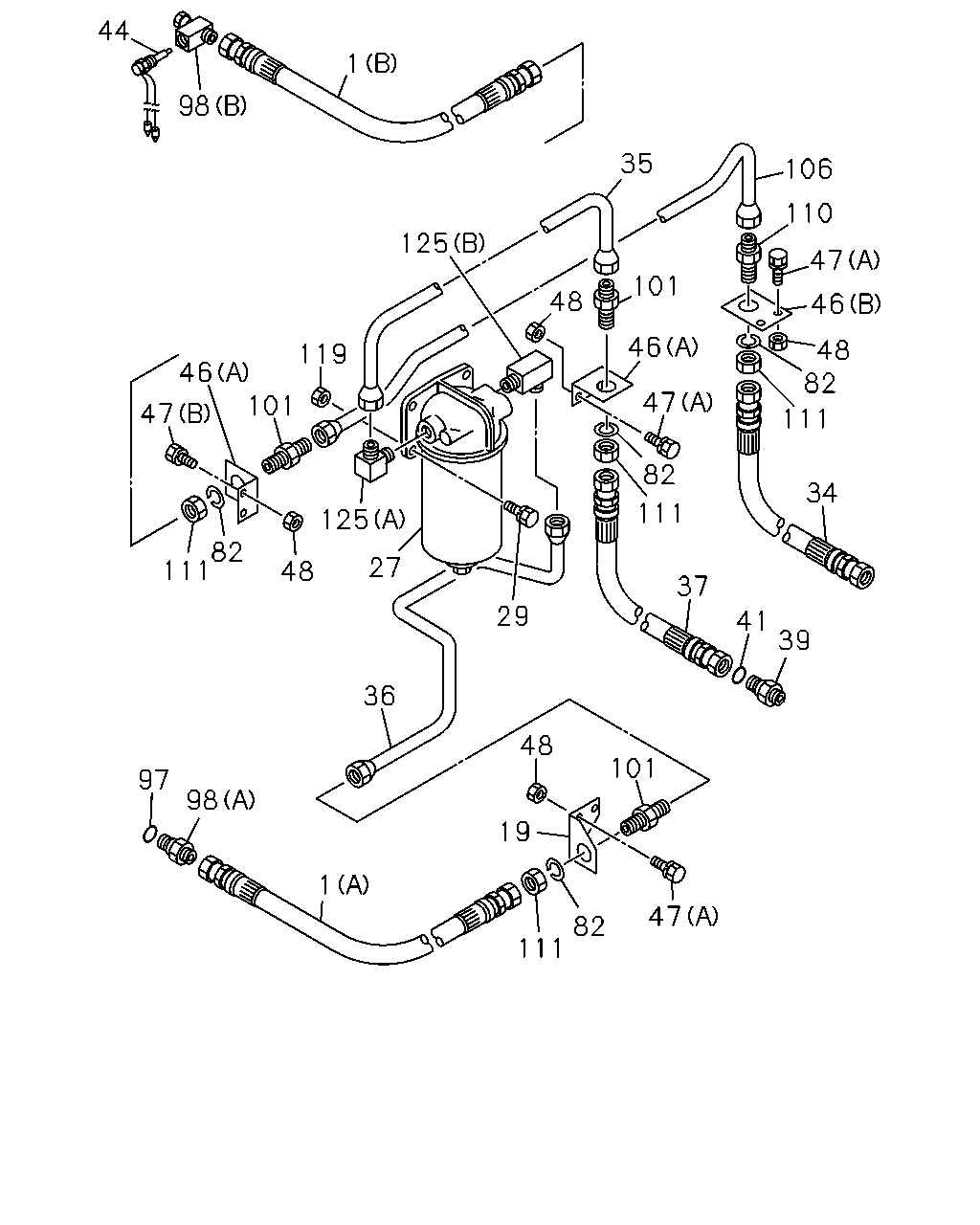

çizim 6378
44 1 98 35 106 110 125 47 46 101 48 46 48 82 111 119 46 101 47 47 82 111 34 125 82 111 27 48 37 29 41 39 36 48 101 97 98 19 1 47 82 111
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; ATF
(B) 		1-09364-278-0 01 1 9101-9504
1 HOSE; ATF
(A) 		1-09364-572-0 01 1 9101-9504
19 BRACKET; FLEX HOSE 1-32569-039-0 01 1 9101-9504
27 FILTER ASM; OIL 1-13200-260-0 01 1 9101-9504
29 BOLT; FILTER TO BRKT
M10X35 W/LK WASHER 		0-50041-035-0 04 1 9101-9504
34 HOSE; FLEX,RAD TO OIL COOLER PIPE 1-09364-127-0 01 1 9101-9504
35 PIPE; OIL,OIL COOLER TO FILTER 1-32571-030-0 01 1 9101-9504
36 PIPE; OIL,FILTER TO A/T 1-32571-048-0 01 1 9101-9504
37 HOSE; FLEX,OIL COOLER PIPE TO A/T 1-09364-423-0 01 1 9101-9504
39 CONNECTOR; FLEX HOSE,A/T 1-09660-079-1 01 1 9101-9504
41 GASKET; FLEX HOSE,A/T 9-09920-642-0 01 1 9101-9504
44 SWITCH; OIL THERMO 1-82450-025-0 01 1 9101-9504
46 BRACKET; OIL PIPE
(A) 		1-32569-038-0 02 1 9101-9504
46 BRACKET; OIL PIPE
(B) 		1-32569-040-0 01 1 9101-9504
47 BOLT; BRKT TO FRAME
(A) M10X25 W/LK WASHER 		0-50041-025-0 06 1 9101-9504
47 BOLT; BRKT TO FRAME
(B) M10X30 W/LK WASHER 		0-50041-030-0 02 1 9101-9504
48 NUT; BRKT
M10 		9-09110-510-0 08 1 9101-9504
82 WASHER; LK,UNION 1-09500-004-0 04 1 9101-9504
97 GASKET; CONNECTOR 9-09920-642-0 01 1 9101-9504
98 CONNECTOR; HOSE & SW
(A) 		1-09660-079-1 01 1 9101-9504
98 CONNECTOR; HOSE & SW
(B) 		1-09664-071-0 01 1 9101-9504
101 UNION; FLEX HOSE 1-09660-107-0 03 1 9101-9504
106 PIPE ASM; OIL,COOLER TO UNION 1-32571-027-0 01 1 9101-9504
110 UNION; OIL PIPE 1-09660-107-0 01 1 9101-9504
111 NUT; UNION 1-09400-023-0 04 1 9101-9504
119 NUT; FILTER TO BRKT
M10 		9-09110-510-0 04 1 9101-9504
125 CONNECTOR; OIL FILTER
(A) 		1-09660-044-1 01 1 9101-9504
125 CONNECTOR; OIL FILTER
(B) 		1-09660-171-1 01 1 9101-9504
