Sayfa 0-15 - Isuzu EPC

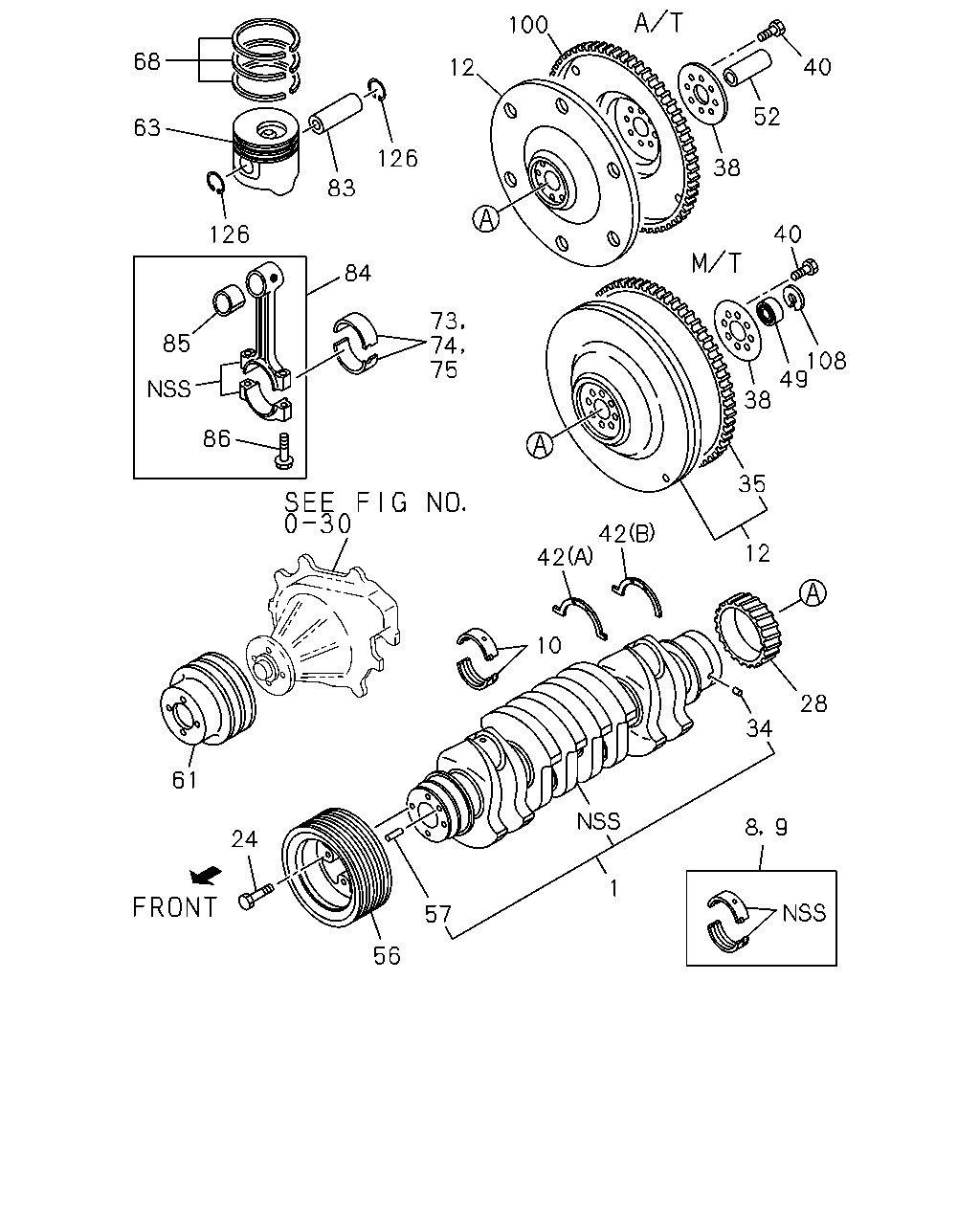

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#44378) — 539 parça

100 68 40 12 52 63 126 38 83 40 126 84 73 74 75 85 108 49 38 86 35 42 12 42 10 28 34 61 8 9 24 1 57 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	00.646 CRANKSHAFT	5-12310-189-1	01	1	9312-9510	●	●
1	00.646 CRANKSHAFT	5-12310-189-1	01	1	9511-		●
1	00.646 CRANKSHAFT	8-97023-182-1	01	1	9312-			●
1	00.646 CRANKSHAFT	8-94416-373-2	01	1	9312-				●
1	00.646 CRANKSHAFT	8-97033-171-2	01	1	9312-9408					●
1	00.646 CRANKSHAFT	8-97112-981-0	01	1	9409-9711					●
1	00.646 CRANKSHAFT	8-97112-981-1	01	1	9712-					●	●
1	00.646 CRANKSHAFT	8-97165-483-0	01	1	9712-							●
8	00.094 METAL KIT; CRANKSHAFT,U/S=0.25	8-97064-883-0	01	1	9312-				●
8	00.094 METAL KIT; CRANKSHAFT,U/S=0.25	8-97174-988-0	01	1	9312-9711					●
8	00.094 METAL KIT; CRANKSHAFT,U/S=0.25	8-97174-988-0	01	1	9712-					●	●
9	00.094 METAL KIT; CRANKSHAFT,U/S=0.50	8-97064-884-0	01	1	9312-				●
9	00.094 METAL KIT; CRANKSHAFT,U/S=0.50	8-97174-989-0	01	1	9312-9711					●
9	00.094 METAL KIT; CRANKSHAFT,U/S=0.50	8-97174-989-0	01	1	9712-					●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9312-9711			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9312-9711			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9312-9711			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9712-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9712-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9712-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97045-915-0	05	1	9312-9711					●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97045-915-0	05	1	9712-					●	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97045-916-0	05	1	9312-9711					●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97045-916-0	05	1	9712-					●	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97045-917-0	05	1	9312-9711					●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97045-917-0	05	1	9712-					●	●	●
12	00.666 FLYWHEEL	8-94343-053-1	01	1	9312-9510	●	●
12	00.666 FLYWHEEL	8-94343-053-1	01	1	9511-		●
12	00.666 FLYWHEEL	8-97034-430-2	01	1	9312-			●
12	00.666 FLYWHEEL	8-94372-128-1	01	1	9312-				●
12	00.666 FLYWHEEL A/T 4 SPEED-JATCO(RMK)	8-97027-933-1	01	1	9312-9711					●
12	00.666 FLYWHEEL A/T 4 SPEED-JATCO(RMK)	8-97027-933-1	01	1	9712-					●	●
12	00.666 FLYWHEEL M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97077-585-1	01	1	9312-9406					●
12	00.666 FLYWHEEL M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97115-782-0	01	1	9407-9612					●
12	00.666 FLYWHEEL M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97169-129-0	01	1	9701-9711					●
12	00.666 FLYWHEEL M/T MXA5R(RMT)	8-97169-129-2	01	1	9712-					●	●
12	00.666 FLYWHEEL EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97169-129-2	01	1	9712-							●
12	00.666 FLYWHEEL HYDRO BRAKE BOOSTER<7QQ>	8-97166-516-0	01	1	9712-							●
24	00.659 BOLT; DAMPER M16X42	8-97028-733-0	04	1	9312-9711					●
24	00.659 BOLT; DAMPER M16X42	8-97028-733-0	04	1	9712-					●	●	●
28	00.728 GEAR; CR/SHF Z=25	9-12521-043-0	01	1	9312-9510	●	●		●
28	00.728 GEAR; CR/SHF Z=25	9-12521-043-0	01	1	9511-9511		●		●
28	00.728 GEAR; CR/SHF Z=25	1-12521-008-0	01	1	9511-9806		●		●
28	00.728 GEAR; CR/SHF Z=25	8-97137-910-1	01	1	9807-		●		●
28	00.728 GEAR; CR/SHF Z=42	8-94370-784-3	01	1	9312-9404					●
28	00.728 GEAR; CR/SHF Z=42	8-97110-040-4	01	1	9405-9711					●
28	00.728 GEAR; CR/SHF Z=42	8-97110-040-4	01	1	9712-					●	●
28	00.728 GEAR; CR/SHF Z=42	8-97110-041-4	01	1	9712-							●
34	00.738 PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	9312-9711					●
34	00.738 PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	9712-					●	●	●
35	00.673 GEAR; RING	8-94468-412-0	01	1	9312-9510	●	●		●
35	00.673 GEAR; RING	8-94468-412-0	01	1	9511-		●		●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	9312-			●
35	00.673 GEAR; RING M/T MXA5R(RMT),M/T MXA5S(RNA) Z=138	8-97046-366-0	01	1	9312-9612					●
35	00.673 GEAR; RING M/T MXA5R(RMT),M/T MXA5S(RNA) Z=138	8-97169-134-0	01	1	9701-9711					●
35	00.673 GEAR; RING M/T MXA5R(RMT) Z=138	8-97169-134-0	01	1	9712-					●	●
35	00.673 GEAR; RING EXC. HYDRO BRAKE BOOSTER<7QQ> Z=138	8-97169-134-0	01	1	9712-							●
35	00.673 GEAR; RING HYDRO BRAKE BOOSTER<7QQ> Z=138	8-97046-366-0	01	1	9712-							●
38	00.862 WASHER; FLYWHEEL 00.669	5-12336-003-0	01	1	9312-9510	●	●		●
38	00.862 WASHER; FLYWHEEL 00.669	5-12336-003-0	01	1	9511-		●		●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	9312-			●
38	00.862 WASHER; FLYWHEEL A/T 4 SPEED-JATCO(RMK) 00.669	8-97013-377-1	01	1	9312-9711					●
38	00.862 WASHER; FLYWHEEL A/T 4 SPEED-JATCO(RMK) 00.669	8-97013-377-1	01	1	9712-					●	●
38	00.862 WASHER; FLYWHEEL M/T MXA5R(RMT),M/T MXA5S(RNA) 00.669	8-94310-615-0	01	1	9312-9711					●
38	00.862 WASHER; FLYWHEEL M/T MXA5R(RMT) 00.669	8-94310-615-0	01	1	9712-					●	●
38	00.862 WASHER; FLYWHEEL EXC. HYDRO BRAKE BOOSTER<7QQ> 00.669	8-94310-615-0	01	1	9712-							●
38	00.862 WASHER; FLYWHEEL HYDRO BRAKE BOOSTER<7QQ> ID=55 OD=110	8-94397-496-1	01	1	9712-							●
40	00.669 BOLT; FLYWHEEL M14X36	8-97028-730-0	06	1	9312-9510	●	●		●
40	00.669 BOLT; FLYWHEEL M14X36	8-97028-730-0	06	1	9511-		●		●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	9312-			●
40	00.669 BOLT; FLYWHEEL A/T 4 SPEED-JATCO(RMK) M16X72	8-97065-516-1	08	1	9312-9408					●
40	00.669 BOLT; FLYWHEEL A/T 4 SPEED-JATCO(RMK) M16X51	8-94334-870-1	08	1	9409-9711					●
40	00.669 BOLT; FLYWHEEL A/T 4 SPEED-JATCO(RMK) M16X51	8-94334-870-1	08	1	9712-					●	●
40	00.669 BOLT; FLYWHEEL M/T MXA5R(RMT),M/T MXA5S(RNA) M16X62	8-97065-517-1	08	1	9312-9408					●
40	00.669 BOLT; FLYWHEEL M/T MXA5R(RMT),M/T MXA5S(RNA) M18X33	8-97112-999-0	08	1	9409-9702					●
40	00.669 BOLT; FLYWHEEL M/T MXA5R(RMT),M/T MXA5S(RNA) M16X42	8-97178-013-0	08	1	9703-9711					●
40	00.669 BOLT; FLYWHEEL M/T MXA5R(RMT) M16X42	8-97178-013-0	08	1	9712-					●	●
40	00.669 BOLT; FLYWHEEL M16X42	8-97178-013-0	08	1	9712-							●
42	00.095 WASHER; THRUST,CR/SHF	8-97071-358-0	02	1	9402-9510	●	●		●
42	00.095 WASHER; THRUST,CR/SHF	8-97071-358-0	02	1	9511-		●		●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9312-			●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	9312-9711					●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	9712-					●	●	●
42	00.095 WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	9312-9711					●
42	00.095 WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	9712-					●	●	●
49	00.669 BEARING; PILOT M/T MXA5R(RMT),M/T MXA5S(RNA) 00.649	8-97031-741-0	01	1	9312-9711					●
49	00.669 BEARING; PILOT M/T MXA5R(RMT) 00.649	8-97031-741-0	01	1	9712-					●	●
49	00.669 BEARING; PILOT EXC. HYDRO BRAKE BOOSTER<7QQ> 00.649	8-97031-741-0	01	1	9712-							●
49	00.669 BEARING; PILOT HYDRO BRAKE BOOSTER<7QQ>	8-97166-589-0	01	1	9712-							●
52	00.669 SLEEVE; CONV PILOT A/T 4 SPEED-JATCO(RMK)	8-97026-319-1	01	1	9312-9711					●
52	00.669 SLEEVE; CONV PILOT A/T 4 SPEED-JATCO(RMK)	8-97026-319-1	01	1	9712-					●	●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-94460-623-1	01	1	9312-9707			●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-97182-904-0	01	1	9708-			●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97088-477-4	01	1	9405-9712					●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97088-477-4	01	1	9712-					●	●	●
57	00.662 PIN; PULLEY 08.939 OD=8 L=16	9-08150-816-0	02	1	9312-9711					●
57	00.662 PIN; PULLEY 08.939 OD=8 L=16	9-08150-816-0	02	1	9712-					●	●	●
61	00.659 PULLEY; FAN DRIVE 01.062 1-GROOVE	5-13663-057-0	01	1	9312-9510	●			●
61	00.659 PULLEY; FAN DRIVE 01.062 1-GROOVE	5-13663-057-0	01	1	9511-				●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	9312-			●
61	00.659 PULLEY; FAN DRIVE 3-GROOVE	8-97044-891-2	01	1	9312-		●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-94389-413-1	01	1	9312-					●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-97174-757-1	01	1	9712-						●	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-836-0	04	1	9312-9510	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-837-0	04	1	9312-9510	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-616-0	04	1	9312-9511			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-617-0	04	1	9312-9511			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EURO2 SPECIFICATION<7AF> GRADE=AX	8-97176-618-0	04	1	9512-9711			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-618-0	04	1	9712-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EURO2 SPECIFICATION<7AF> GRADE=CX	8-97176-619-0	04	1	9512-9711			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-619-0	04	1	9712-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. EURO2 SPECIFICATION<7AF> GRADE=AX	8-97176-616-0	04	1	9512-9711			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=AX	8-97183-664-0	04	1	9712-							●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. EURO2 SPECIFICATION<7AF> GRADE=CX	8-97176-617-0	04	1	9512-9711			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=CX	8-97183-665-0	04	1	9712-							●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-642-0	04	1	9312-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-643-0	04	1	9312-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-648-0	04	1	9312-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-649-0	04	1	9312-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97176-655-0	04	1	9312-9603					●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97176-657-0	04	1	9604-9704					●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97183-667-0	04	1	9705-					●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. CHARGE AIR COOLER<6PL> GRADE=AX	8-97176-652-0	04	1	9712-							●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. CHARGE AIR COOLER<6PL> GRADE=CX	8-97176-653-0	04	1	9712-							●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97183-666-0	04	1	9712-						●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	5-12121-004-2	04	1	9312-9407	●	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	5-12121-004-2	04	1	9408-9510	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97080-215-0	04	1	9312-9611			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. EXC. EURO2 SPECIFICATION<7AF>	8-97080-215-0	04	1	9612-9708			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. EURO2 SPECIFICATION<7AF>	8-97147-984-0	04	1	9612-9708			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97147-984-0	04	1	9709-			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97117-686-0	04	1	9408-		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94418-918-0	04	1	9312-				●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97028-691-0	04	1	9312-9510					●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97109-462-0	04	1	9511-					●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL>	8-97166-992-0	04	1	9712-							●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. EXC. CHARGE AIR COOLER<6PL>	8-97078-779-0	04	1	9712-							●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97105-867-0	04	1	9712-						●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97011-031-0	04	1	9312-9510	●	●		●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9312-			●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97011-031-0	04	1	9511-		●		●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97045-800-0	04	1	9312-9710					●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-97045-801-0	04	1	9312-9711					●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-97045-801-0	04	1	9712-					●	●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97045-800-0	04	1	9711-9711					●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97045-800-0	04	1	9712-					●	●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-94395-757-0	04	1	9712-							●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97131-186-0	04	1	9712-							●
74	00.616 METAL SET; CONN ROD,U/S=0.25	5-87310-090-1	04	1	9312-9510	●	●		●
74	00.616 METAL SET; CONN ROD,U/S=0.25	5-87310-090-1	04	1	9511-		●		●
74	00.616 METAL SET; CONN ROD,U/S=0.25	8-97175-127-0	04	1	9312-9711					●
74	00.616 METAL SET; CONN ROD,U/S=0.25	8-97175-127-0	04	1	9712-					●	●
75	00.616 METAL SET; CONN ROD,U/S=0.50	5-87310-091-1	04	1	9312-9510	●	●		●
75	00.616 METAL SET; CONN ROD,U/S=0.50	5-87310-091-1	04	1	9511-		●		●
75	00.616 METAL SET; CONN ROD,U/S=0.50	8-97175-128-0	04	1	9312-9711					●
75	00.616 METAL SET; CONN ROD,U/S=0.50	8-97175-128-0	04	1	9712-					●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	9-12211-604-0	04	1	9312-9510	●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	9-12211-604-0	04	1	9511-		●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	9312-			●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	5-12211-022-0	04	1	9312-				●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-0	04	1	9312-9711					●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	04	1	9712-					●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-731-1	04	1	9712-							●
84	00.603 ROD ASM; CONN	1-12230-104-1	04	1	9312-9510	●	●
84	00.603 ROD ASM; CONN	1-12230-104-1	04	1	9511-		●
84	00.603 ROD ASM; CONN	8-97062-300-0	04	1	9312-			●
84	00.603 ROD ASM; CONN	8-97011-030-0	04	1	9312-				●
84	00.603 ROD ASM; CONN	8-94473-443-6	04	1	9312-9506					●
84	00.603 ROD ASM; CONN	8-97135-032-0	04	1	9507-9711					●
84	00.603 ROD ASM; CONN	8-97135-032-0	04	1	9712-					●	●
84	00.603 ROD ASM; CONN	8-94399-661-1	04	1	9712-							●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-027-0	04	1	9312-9510	●	●		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-027-0	04	1	9511-		●		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	9312-			●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	04	1	9312-9711					●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	04	1	9712-					●	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	04	1	9712-							●
86	00.623 BOLT; CONNROD M20X49.5	1-12235-027-1	08	1	9312-9510	●	●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	9312-			●
86	00.623 BOLT; CONNROD M20X49.5	1-12235-027-1	08	1	9511-		●
86	00.623 BOLT; CONNROD M12X61	8-97011-094-0	08	1	9312-				●
86	00.623 BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	08	1	9312-9711					●
86	00.623 BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	08	1	9712-					●	●	●
100	00.666 PLATE; FLEX A/T 4 SPEED-JATCO(RMK)	8-97046-365-2	01	1	9312-9711					●
100	00.666 PLATE; FLEX A/T 4 SPEED-JATCO(RMK)	8-97046-365-2	01	1	9712-					●	●
108	00.096 RING; SNAP,BRG SET M/T MXA5R(RMT),M/T MXA5S(RNA) 04.012 OD=45.5	9-09180-142-0	01	1	9312-9406					●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94107-575-0	08	1	9312-9510	●	●		●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94107-575-1	08	1	9511-		●		●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94460-687-0	08	1	9312-			●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94318-798-2	08	1	9312-9711					●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94318-798-2	08	1	9712-					●	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-081-1	08	1	9712-							●

60 61 62 68 42 42 63 126 126 83 73 37 10 85 1 87 84 31 86 56 40 38 130 14 58 43 35 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	00.646 CRANKSHAFT	5-12310-189-1	01	1	9312-9510	●	●
1	00.646 CRANKSHAFT	5-12310-189-1	01	1	9511-		●
1	00.646 CRANKSHAFT	8-97023-182-1	01	1	9312-			●
1	00.646 CRANKSHAFT	8-94416-373-2	01	1	9312-				●
1	00.646 CRANKSHAFT	8-97033-171-2	01	1	9312-9408					●
1	00.646 CRANKSHAFT	8-97112-981-0	01	1	9409-9711					●
1	00.646 CRANKSHAFT	8-97112-981-1	01	1	9712-					●	●
1	00.646 CRANKSHAFT	8-97165-483-0	01	1	9712-							●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9312-9711			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9312-9711			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9312-9711			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9712-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9712-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9712-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97045-915-0	05	1	9312-9711					●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97045-915-0	05	1	9712-					●	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97045-916-0	05	1	9312-9711					●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97045-916-0	05	1	9712-					●	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97045-917-0	05	1	9312-9711					●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97045-917-0	05	1	9712-					●	●	●
12	00.666 FLYWHEEL	8-94343-053-1	01	1	9312-9510	●	●
12	00.666 FLYWHEEL	8-94343-053-1	01	1	9511-		●
12	00.666 FLYWHEEL	8-97034-430-2	01	1	9312-			●
12	00.666 FLYWHEEL	8-94372-128-1	01	1	9312-				●
12	00.666 FLYWHEEL A/T 4 SPEED-JATCO(RMK)	8-97027-933-1	01	1	9312-9711					●
12	00.666 FLYWHEEL A/T 4 SPEED-JATCO(RMK)	8-97027-933-1	01	1	9712-					●	●
12	00.666 FLYWHEEL M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97077-585-1	01	1	9312-9406					●
12	00.666 FLYWHEEL M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97115-782-0	01	1	9407-9612					●
12	00.666 FLYWHEEL M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97169-129-0	01	1	9701-9711					●
12	00.666 FLYWHEEL M/T MXA5R(RMT)	8-97169-129-2	01	1	9712-					●	●
12	00.666 FLYWHEEL EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97169-129-2	01	1	9712-							●
12	00.666 FLYWHEEL HYDRO BRAKE BOOSTER<7QQ>	8-97166-516-0	01	1	9712-							●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-0	01	1	9407-			●
31	00.662 KEY; FEATHER,CR/SHF 00.729	9-08030-743-0	01	1	9312-			●
35	00.673 GEAR; RING	8-94468-412-0	01	1	9312-9510	●	●		●
35	00.673 GEAR; RING	8-94468-412-0	01	1	9511-		●		●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	9312-			●
35	00.673 GEAR; RING M/T MXA5R(RMT),M/T MXA5S(RNA) Z=138	8-97046-366-0	01	1	9312-9612					●
35	00.673 GEAR; RING M/T MXA5R(RMT),M/T MXA5S(RNA) Z=138	8-97169-134-0	01	1	9701-9711					●
35	00.673 GEAR; RING M/T MXA5R(RMT) Z=138	8-97169-134-0	01	1	9712-					●	●
35	00.673 GEAR; RING EXC. HYDRO BRAKE BOOSTER<7QQ> Z=138	8-97169-134-0	01	1	9712-							●
35	00.673 GEAR; RING HYDRO BRAKE BOOSTER<7QQ> Z=138	8-97046-366-0	01	1	9712-							●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649	9-00090-679-0	01	1	9312-9510	●	●	●	●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649	9-00090-679-0	01	1	9511-		●	●	●
38	00.862 WASHER; FLYWHEEL 00.669	5-12336-003-0	01	1	9312-9510	●	●		●
38	00.862 WASHER; FLYWHEEL 00.669	5-12336-003-0	01	1	9511-		●		●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	9312-			●
38	00.862 WASHER; FLYWHEEL A/T 4 SPEED-JATCO(RMK) 00.669	8-97013-377-1	01	1	9312-9711					●
38	00.862 WASHER; FLYWHEEL A/T 4 SPEED-JATCO(RMK) 00.669	8-97013-377-1	01	1	9712-					●	●
38	00.862 WASHER; FLYWHEEL M/T MXA5R(RMT),M/T MXA5S(RNA) 00.669	8-94310-615-0	01	1	9312-9711					●
38	00.862 WASHER; FLYWHEEL M/T MXA5R(RMT) 00.669	8-94310-615-0	01	1	9712-					●	●
38	00.862 WASHER; FLYWHEEL EXC. HYDRO BRAKE BOOSTER<7QQ> 00.669	8-94310-615-0	01	1	9712-							●
38	00.862 WASHER; FLYWHEEL HYDRO BRAKE BOOSTER<7QQ> ID=55 OD=110	8-94397-496-1	01	1	9712-							●
40	00.669 BOLT; FLYWHEEL M14X36	8-97028-730-0	06	1	9312-9510	●	●		●
40	00.669 BOLT; FLYWHEEL M14X36	8-97028-730-0	06	1	9511-		●		●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	9312-			●
40	00.669 BOLT; FLYWHEEL A/T 4 SPEED-JATCO(RMK) M16X72	8-97065-516-1	08	1	9312-9408					●
40	00.669 BOLT; FLYWHEEL A/T 4 SPEED-JATCO(RMK) M16X51	8-94334-870-1	08	1	9409-9711					●
40	00.669 BOLT; FLYWHEEL A/T 4 SPEED-JATCO(RMK) M16X51	8-94334-870-1	08	1	9712-					●	●
40	00.669 BOLT; FLYWHEEL M/T MXA5R(RMT),M/T MXA5S(RNA) M16X62	8-97065-517-1	08	1	9312-9408					●
40	00.669 BOLT; FLYWHEEL M/T MXA5R(RMT),M/T MXA5S(RNA) M18X33	8-97112-999-0	08	1	9409-9702					●
40	00.669 BOLT; FLYWHEEL M/T MXA5R(RMT),M/T MXA5S(RNA) M16X42	8-97178-013-0	08	1	9703-9711					●
40	00.669 BOLT; FLYWHEEL M/T MXA5R(RMT) M16X42	8-97178-013-0	08	1	9712-					●	●
40	00.669 BOLT; FLYWHEEL M16X42	8-97178-013-0	08	1	9712-							●
42	00.095 WASHER; THRUST,CR/SHF	8-97071-358-0	02	1	9402-9510	●	●		●
42	00.095 WASHER; THRUST,CR/SHF	8-97071-358-0	02	1	9511-		●		●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9312-			●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	9312-9711					●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	9712-					●	●	●
42	00.095 WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	9312-9711					●
42	00.095 WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	9712-					●	●	●
43	00.662 BOLT; CR/SHF PULLEY M16X29 FLANGE	8-94433-406-0	01	1	9312-9312			●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	9401-			●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-94460-623-1	01	1	9312-9707			●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-97182-904-0	01	1	9708-			●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97088-477-4	01	1	9405-9712					●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97088-477-4	01	1	9712-					●	●	●
58	00.659 BOLT; CR/SHF PULLEY 04.785 M8X18 W/LK WASHER	0-50040-818-0	04	1	9312-9707			●
60	01.060 STUD; FAN FIX 01.073 M6X18 L=27	9-04110-618-0	04	1	9312-			●
61	00.659 PULLEY; FAN DRIVE 01.062 1-GROOVE	5-13663-057-0	01	1	9312-9510	●			●
61	00.659 PULLEY; FAN DRIVE 01.062 1-GROOVE	5-13663-057-0	01	1	9511-				●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	9312-			●
61	00.659 PULLEY; FAN DRIVE 3-GROOVE	8-97044-891-2	01	1	9312-		●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-94389-413-1	01	1	9312-					●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-97174-757-1	01	1	9712-						●	●
62	01.060 NUT; FAN PULLEY 07.829 M6 FLANGE	5-09440-004-0	04	1	9312-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-836-0	04	1	9312-9510	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-837-0	04	1	9312-9510	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-616-0	04	1	9312-9511			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-617-0	04	1	9312-9511			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EURO2 SPECIFICATION<7AF> GRADE=AX	8-97176-618-0	04	1	9512-9711			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-618-0	04	1	9712-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EURO2 SPECIFICATION<7AF> GRADE=CX	8-97176-619-0	04	1	9512-9711			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-619-0	04	1	9712-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. EURO2 SPECIFICATION<7AF> GRADE=AX	8-97176-616-0	04	1	9512-9711			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=AX	8-97183-664-0	04	1	9712-							●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. EURO2 SPECIFICATION<7AF> GRADE=CX	8-97176-617-0	04	1	9512-9711			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=CX	8-97183-665-0	04	1	9712-							●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-642-0	04	1	9312-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-643-0	04	1	9312-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-648-0	04	1	9312-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-649-0	04	1	9312-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97176-655-0	04	1	9312-9603					●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97176-657-0	04	1	9604-9704					●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97183-667-0	04	1	9705-					●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. CHARGE AIR COOLER<6PL> GRADE=AX	8-97176-652-0	04	1	9712-							●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. CHARGE AIR COOLER<6PL> GRADE=CX	8-97176-653-0	04	1	9712-							●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97183-666-0	04	1	9712-						●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	5-12121-004-2	04	1	9312-9407	●	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	5-12121-004-2	04	1	9408-9510	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97080-215-0	04	1	9312-9611			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. EXC. EURO2 SPECIFICATION<7AF>	8-97080-215-0	04	1	9612-9708			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. EURO2 SPECIFICATION<7AF>	8-97147-984-0	04	1	9612-9708			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97147-984-0	04	1	9709-			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97117-686-0	04	1	9408-		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94418-918-0	04	1	9312-				●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97028-691-0	04	1	9312-9510					●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97109-462-0	04	1	9511-					●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL>	8-97166-992-0	04	1	9712-							●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. EXC. CHARGE AIR COOLER<6PL>	8-97078-779-0	04	1	9712-							●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97105-867-0	04	1	9712-						●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97011-031-0	04	1	9312-9510	●	●		●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9312-			●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97011-031-0	04	1	9511-		●		●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97045-800-0	04	1	9312-9710					●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-97045-801-0	04	1	9312-9711					●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-97045-801-0	04	1	9712-					●	●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97045-800-0	04	1	9711-9711					●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97045-800-0	04	1	9712-					●	●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-94395-757-0	04	1	9712-							●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97131-186-0	04	1	9712-							●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	9-12211-604-0	04	1	9312-9510	●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	9-12211-604-0	04	1	9511-		●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	9312-			●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	5-12211-022-0	04	1	9312-				●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-0	04	1	9312-9711					●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	04	1	9712-					●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-731-1	04	1	9712-							●
84	00.603 ROD ASM; CONN	1-12230-104-1	04	1	9312-9510	●	●
84	00.603 ROD ASM; CONN	1-12230-104-1	04	1	9511-		●
84	00.603 ROD ASM; CONN	8-97062-300-0	04	1	9312-			●
84	00.603 ROD ASM; CONN	8-97011-030-0	04	1	9312-				●
84	00.603 ROD ASM; CONN	8-94473-443-6	04	1	9312-9506					●
84	00.603 ROD ASM; CONN	8-97135-032-0	04	1	9507-9711					●
84	00.603 ROD ASM; CONN	8-97135-032-0	04	1	9712-					●	●
84	00.603 ROD ASM; CONN	8-94399-661-1	04	1	9712-							●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-027-0	04	1	9312-9510	●	●		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-027-0	04	1	9511-		●		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	9312-			●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	04	1	9312-9711					●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	04	1	9712-					●	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	04	1	9712-							●
86	00.623 BOLT; CONNROD M20X49.5	1-12235-027-1	08	1	9312-9510	●	●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	9312-			●
86	00.623 BOLT; CONNROD M20X49.5	1-12235-027-1	08	1	9511-		●
86	00.623 BOLT; CONNROD M12X61	8-97011-094-0	08	1	9312-				●
86	00.623 BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	08	1	9312-9711					●
86	00.623 BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	08	1	9712-					●	●	●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	9312-			●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94107-575-0	08	1	9312-9510	●	●		●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94107-575-1	08	1	9511-		●		●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94460-687-0	08	1	9312-			●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94318-798-2	08	1	9312-9711					●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94318-798-2	08	1	9712-					●	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-081-1	08	1	9712-							●
130	00.662 PIN; STRAIGHT 08.939 OD=4 L=12	9-08160-412-0	01	1	9312-9707			●

61 12 68 63 126 35 83 126 84 40 38 73 74 75 85 37 86 32 48 48 18 28 1 18 18 7 8 9 59 42 44 18 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	00.646 CRANKSHAFT	5-12310-189-1	01	1	9312-9510	●	●
1	00.646 CRANKSHAFT	5-12310-189-1	01	1	9511-		●
1	00.646 CRANKSHAFT	8-97023-182-1	01	1	9312-			●
1	00.646 CRANKSHAFT	8-94416-373-2	01	1	9312-				●
1	00.646 CRANKSHAFT	8-97033-171-2	01	1	9312-9408					●
1	00.646 CRANKSHAFT	8-97112-981-0	01	1	9409-9711					●
1	00.646 CRANKSHAFT	8-97112-981-1	01	1	9712-					●	●
1	00.646 CRANKSHAFT	8-97165-483-0	01	1	9712-							●
7	00.094 METAL KIT; CRANKSHAFT,STANDARD	8-97071-662-0	01	1	9312-9510	●	●
7	00.094 METAL KIT; CRANKSHAFT,STANDARD	8-97071-662-0	01	1	9511-		●
7	00.094 METAL KIT; CRANKSHAFT,STANDARD	8-97071-660-0	01	1	9312-				●
8	00.094 METAL KIT; CRANKSHAFT,U/S=0.25	8-97064-883-0	01	1	9312-				●
8	00.094 METAL KIT; CRANKSHAFT,U/S=0.25	8-97174-988-0	01	1	9312-9711					●
8	00.094 METAL KIT; CRANKSHAFT,U/S=0.25	8-97174-988-0	01	1	9712-					●	●
9	00.094 METAL KIT; CRANKSHAFT,U/S=0.50	8-97064-884-0	01	1	9312-				●
9	00.094 METAL KIT; CRANKSHAFT,U/S=0.50	8-97174-989-0	01	1	9312-9711					●
9	00.094 METAL KIT; CRANKSHAFT,U/S=0.50	8-97174-989-0	01	1	9712-					●	●
12	00.666 FLYWHEEL	8-94343-053-1	01	1	9312-9510	●	●
12	00.666 FLYWHEEL	8-94343-053-1	01	1	9511-		●
12	00.666 FLYWHEEL	8-97034-430-2	01	1	9312-			●
12	00.666 FLYWHEEL	8-94372-128-1	01	1	9312-				●
12	00.666 FLYWHEEL A/T 4 SPEED-JATCO(RMK)	8-97027-933-1	01	1	9312-9711					●
12	00.666 FLYWHEEL A/T 4 SPEED-JATCO(RMK)	8-97027-933-1	01	1	9712-					●	●
12	00.666 FLYWHEEL M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97077-585-1	01	1	9312-9406					●
12	00.666 FLYWHEEL M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97115-782-0	01	1	9407-9612					●
12	00.666 FLYWHEEL M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97169-129-0	01	1	9701-9711					●
12	00.666 FLYWHEEL M/T MXA5R(RMT)	8-97169-129-2	01	1	9712-					●	●
12	00.666 FLYWHEEL EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97169-129-2	01	1	9712-							●
12	00.666 FLYWHEEL HYDRO BRAKE BOOSTER<7QQ>	8-97166-516-0	01	1	9712-							●
18	00.659 PULLEY; CR/SHF	8-94100-454-0	01	1	9312-9509	●
18	00.659 PULLEY; CR/SHF	8-97138-018-0	01	1	9510-9510	●
18	00.659 PULLEY; CR/SHF 09.180 (A) 1-GROOVE YELLOW MARK	8-94408-361-0	01	1	9312-		●
18	00.659 PULLEY; CR/SHF 02.270 (B) 3-GROOVE W/DAMPER	8-97025-441-0	01	1	9312-9506		●
18	00.659 PULLEY; CR/SHF (B) 3-GROOVE W/DAMPER	8-97135-549-0	01	1	9507-		●
18	00.659 PULLEY; CR/SHF 2-GROOVE	8-94341-943-0	01	1	9312-9703				●
18	00.659 PULLEY; CR/SHF 2-GROOVE	8-97173-059-0	01	1	9704-				●
28	00.728 GEAR; CR/SHF Z=25	9-12521-043-0	01	1	9312-9510	●	●		●
28	00.728 GEAR; CR/SHF Z=25	9-12521-043-0	01	1	9511-9511		●		●
28	00.728 GEAR; CR/SHF Z=25	1-12521-008-0	01	1	9511-9806		●		●
28	00.728 GEAR; CR/SHF Z=25	8-97137-910-1	01	1	9807-		●		●
28	00.728 GEAR; CR/SHF Z=42	8-94370-784-3	01	1	9312-9404					●
28	00.728 GEAR; CR/SHF Z=42	8-97110-040-4	01	1	9405-9711					●
28	00.728 GEAR; CR/SHF Z=42	8-97110-040-4	01	1	9712-					●	●
28	00.728 GEAR; CR/SHF Z=42	8-97110-041-4	01	1	9712-							●
32	00.669 PIN; FLYWHEEL 08.939 OD=12 L=20	9-08161-220-0	01	1	9312-9510	●	●		●
32	00.669 PIN; FLYWHEEL 08.939 OD=12 L=20	9-08161-220-0	01	1	9511-		●		●
35	00.673 GEAR; RING	8-94468-412-0	01	1	9312-9510	●	●		●
35	00.673 GEAR; RING	8-94468-412-0	01	1	9511-		●		●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	9312-			●
35	00.673 GEAR; RING M/T MXA5R(RMT),M/T MXA5S(RNA) Z=138	8-97046-366-0	01	1	9312-9612					●
35	00.673 GEAR; RING M/T MXA5R(RMT),M/T MXA5S(RNA) Z=138	8-97169-134-0	01	1	9701-9711					●
35	00.673 GEAR; RING M/T MXA5R(RMT) Z=138	8-97169-134-0	01	1	9712-					●	●
35	00.673 GEAR; RING EXC. HYDRO BRAKE BOOSTER<7QQ> Z=138	8-97169-134-0	01	1	9712-							●
35	00.673 GEAR; RING HYDRO BRAKE BOOSTER<7QQ> Z=138	8-97046-366-0	01	1	9712-							●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649	9-00090-679-0	01	1	9312-9510	●	●	●	●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649	9-00090-679-0	01	1	9511-		●	●	●
38	00.862 WASHER; FLYWHEEL 00.669	5-12336-003-0	01	1	9312-9510	●	●		●
38	00.862 WASHER; FLYWHEEL 00.669	5-12336-003-0	01	1	9511-		●		●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	9312-			●
38	00.862 WASHER; FLYWHEEL A/T 4 SPEED-JATCO(RMK) 00.669	8-97013-377-1	01	1	9312-9711					●
38	00.862 WASHER; FLYWHEEL A/T 4 SPEED-JATCO(RMK) 00.669	8-97013-377-1	01	1	9712-					●	●
38	00.862 WASHER; FLYWHEEL M/T MXA5R(RMT),M/T MXA5S(RNA) 00.669	8-94310-615-0	01	1	9312-9711					●
38	00.862 WASHER; FLYWHEEL M/T MXA5R(RMT) 00.669	8-94310-615-0	01	1	9712-					●	●
38	00.862 WASHER; FLYWHEEL EXC. HYDRO BRAKE BOOSTER<7QQ> 00.669	8-94310-615-0	01	1	9712-							●
38	00.862 WASHER; FLYWHEEL HYDRO BRAKE BOOSTER<7QQ> ID=55 OD=110	8-94397-496-1	01	1	9712-							●
40	00.669 BOLT; FLYWHEEL M14X36	8-97028-730-0	06	1	9312-9510	●	●		●
40	00.669 BOLT; FLYWHEEL M14X36	8-97028-730-0	06	1	9511-		●		●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	9312-			●
40	00.669 BOLT; FLYWHEEL A/T 4 SPEED-JATCO(RMK) M16X72	8-97065-516-1	08	1	9312-9408					●
40	00.669 BOLT; FLYWHEEL A/T 4 SPEED-JATCO(RMK) M16X51	8-94334-870-1	08	1	9409-9711					●
40	00.669 BOLT; FLYWHEEL A/T 4 SPEED-JATCO(RMK) M16X51	8-94334-870-1	08	1	9712-					●	●
40	00.669 BOLT; FLYWHEEL M/T MXA5R(RMT),M/T MXA5S(RNA) M16X62	8-97065-517-1	08	1	9312-9408					●
40	00.669 BOLT; FLYWHEEL M/T MXA5R(RMT),M/T MXA5S(RNA) M18X33	8-97112-999-0	08	1	9409-9702					●
40	00.669 BOLT; FLYWHEEL M/T MXA5R(RMT),M/T MXA5S(RNA) M16X42	8-97178-013-0	08	1	9703-9711					●
40	00.669 BOLT; FLYWHEEL M/T MXA5R(RMT) M16X42	8-97178-013-0	08	1	9712-					●	●
40	00.669 BOLT; FLYWHEEL M16X42	8-97178-013-0	08	1	9712-							●
42	00.095 WASHER; THRUST,CR/SHF	8-97071-358-0	02	1	9402-9510	●	●		●
42	00.095 WASHER; THRUST,CR/SHF	8-97071-358-0	02	1	9511-		●		●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9312-			●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	9312-9711					●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	9712-					●	●	●
42	00.095 WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	9312-9711					●
42	00.095 WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	9712-					●	●	●
44	00.662 NUT; CR/SHF FRT 06.861 M27	5-12378-002-0	01	1	9312-9510	●	●		●
44	00.662 NUT; CR/SHF FRT 06.861 M27	5-12378-002-0	01	1	9511-		●		●
48	00.662 KEY; WOODRUFF,CR/SHF	8-94107-597-0	02	1	9312-9510	●	●		●
48	00.662 KEY; WOODRUFF,CR/SHF	8-94107-597-0	02	1	9511-		●		●
59	00.662 WASHER; CR/SHF PULLEY	5-09503-024-0	01	1	9312-9510	●	●		●
59	00.662 WASHER; CR/SHF PULLEY	5-09503-024-0	01	1	9511-		●		●
61	00.659 PULLEY; FAN DRIVE 01.062 1-GROOVE	5-13663-057-0	01	1	9312-9510	●			●
61	00.659 PULLEY; FAN DRIVE 01.062 1-GROOVE	5-13663-057-0	01	1	9511-				●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	9312-			●
61	00.659 PULLEY; FAN DRIVE 3-GROOVE	8-97044-891-2	01	1	9312-		●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-94389-413-1	01	1	9312-					●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-97174-757-1	01	1	9712-						●	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-836-0	04	1	9312-9510	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-837-0	04	1	9312-9510	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-616-0	04	1	9312-9511			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-617-0	04	1	9312-9511			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EURO2 SPECIFICATION<7AF> GRADE=AX	8-97176-618-0	04	1	9512-9711			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-618-0	04	1	9712-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EURO2 SPECIFICATION<7AF> GRADE=CX	8-97176-619-0	04	1	9512-9711			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-619-0	04	1	9712-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. EURO2 SPECIFICATION<7AF> GRADE=AX	8-97176-616-0	04	1	9512-9711			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=AX	8-97183-664-0	04	1	9712-							●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. EURO2 SPECIFICATION<7AF> GRADE=CX	8-97176-617-0	04	1	9512-9711			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=CX	8-97183-665-0	04	1	9712-							●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-642-0	04	1	9312-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-643-0	04	1	9312-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-648-0	04	1	9312-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-649-0	04	1	9312-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97176-655-0	04	1	9312-9603					●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97176-657-0	04	1	9604-9704					●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97183-667-0	04	1	9705-					●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. CHARGE AIR COOLER<6PL> GRADE=AX	8-97176-652-0	04	1	9712-							●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. CHARGE AIR COOLER<6PL> GRADE=CX	8-97176-653-0	04	1	9712-							●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97183-666-0	04	1	9712-						●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	5-12121-004-2	04	1	9312-9407	●	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	5-12121-004-2	04	1	9408-9510	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97080-215-0	04	1	9312-9611			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. EXC. EURO2 SPECIFICATION<7AF>	8-97080-215-0	04	1	9612-9708			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. EURO2 SPECIFICATION<7AF>	8-97147-984-0	04	1	9612-9708			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97147-984-0	04	1	9709-			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97117-686-0	04	1	9408-		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94418-918-0	04	1	9312-				●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97028-691-0	04	1	9312-9510					●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97109-462-0	04	1	9511-					●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL>	8-97166-992-0	04	1	9712-							●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. EXC. CHARGE AIR COOLER<6PL>	8-97078-779-0	04	1	9712-							●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97105-867-0	04	1	9712-						●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97011-031-0	04	1	9312-9510	●	●		●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9312-			●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97011-031-0	04	1	9511-		●		●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97045-800-0	04	1	9312-9710					●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-97045-801-0	04	1	9312-9711					●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-97045-801-0	04	1	9712-					●	●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97045-800-0	04	1	9711-9711					●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97045-800-0	04	1	9712-					●	●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-94395-757-0	04	1	9712-							●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97131-186-0	04	1	9712-							●
74	00.616 METAL SET; CONN ROD,U/S=0.25	5-87310-090-1	04	1	9312-9510	●	●		●
74	00.616 METAL SET; CONN ROD,U/S=0.25	5-87310-090-1	04	1	9511-		●		●
74	00.616 METAL SET; CONN ROD,U/S=0.25	8-97175-127-0	04	1	9312-9711					●
74	00.616 METAL SET; CONN ROD,U/S=0.25	8-97175-127-0	04	1	9712-					●	●
75	00.616 METAL SET; CONN ROD,U/S=0.50	5-87310-091-1	04	1	9312-9510	●	●		●
75	00.616 METAL SET; CONN ROD,U/S=0.50	5-87310-091-1	04	1	9511-		●		●
75	00.616 METAL SET; CONN ROD,U/S=0.50	8-97175-128-0	04	1	9312-9711					●
75	00.616 METAL SET; CONN ROD,U/S=0.50	8-97175-128-0	04	1	9712-					●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	9-12211-604-0	04	1	9312-9510	●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	9-12211-604-0	04	1	9511-		●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	9312-			●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	5-12211-022-0	04	1	9312-				●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-0	04	1	9312-9711					●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	04	1	9712-					●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-731-1	04	1	9712-							●
84	00.603 ROD ASM; CONN	1-12230-104-1	04	1	9312-9510	●	●
84	00.603 ROD ASM; CONN	1-12230-104-1	04	1	9511-		●
84	00.603 ROD ASM; CONN	8-97062-300-0	04	1	9312-			●
84	00.603 ROD ASM; CONN	8-97011-030-0	04	1	9312-				●
84	00.603 ROD ASM; CONN	8-94473-443-6	04	1	9312-9506					●
84	00.603 ROD ASM; CONN	8-97135-032-0	04	1	9507-9711					●
84	00.603 ROD ASM; CONN	8-97135-032-0	04	1	9712-					●	●
84	00.603 ROD ASM; CONN	8-94399-661-1	04	1	9712-							●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-027-0	04	1	9312-9510	●	●		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-027-0	04	1	9511-		●		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	9312-			●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	04	1	9312-9711					●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	04	1	9712-					●	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	04	1	9712-							●
86	00.623 BOLT; CONNROD M20X49.5	1-12235-027-1	08	1	9312-9510	●	●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	9312-			●
86	00.623 BOLT; CONNROD M20X49.5	1-12235-027-1	08	1	9511-		●
86	00.623 BOLT; CONNROD M12X61	8-97011-094-0	08	1	9312-				●
86	00.623 BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	08	1	9312-9711					●
86	00.623 BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	08	1	9712-					●	●	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94107-575-0	08	1	9312-9510	●	●		●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94107-575-1	08	1	9511-		●		●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94460-687-0	08	1	9312-			●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94318-798-2	08	1	9312-9711					●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94318-798-2	08	1	9712-					●	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-081-1	08	1	9712-							●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
