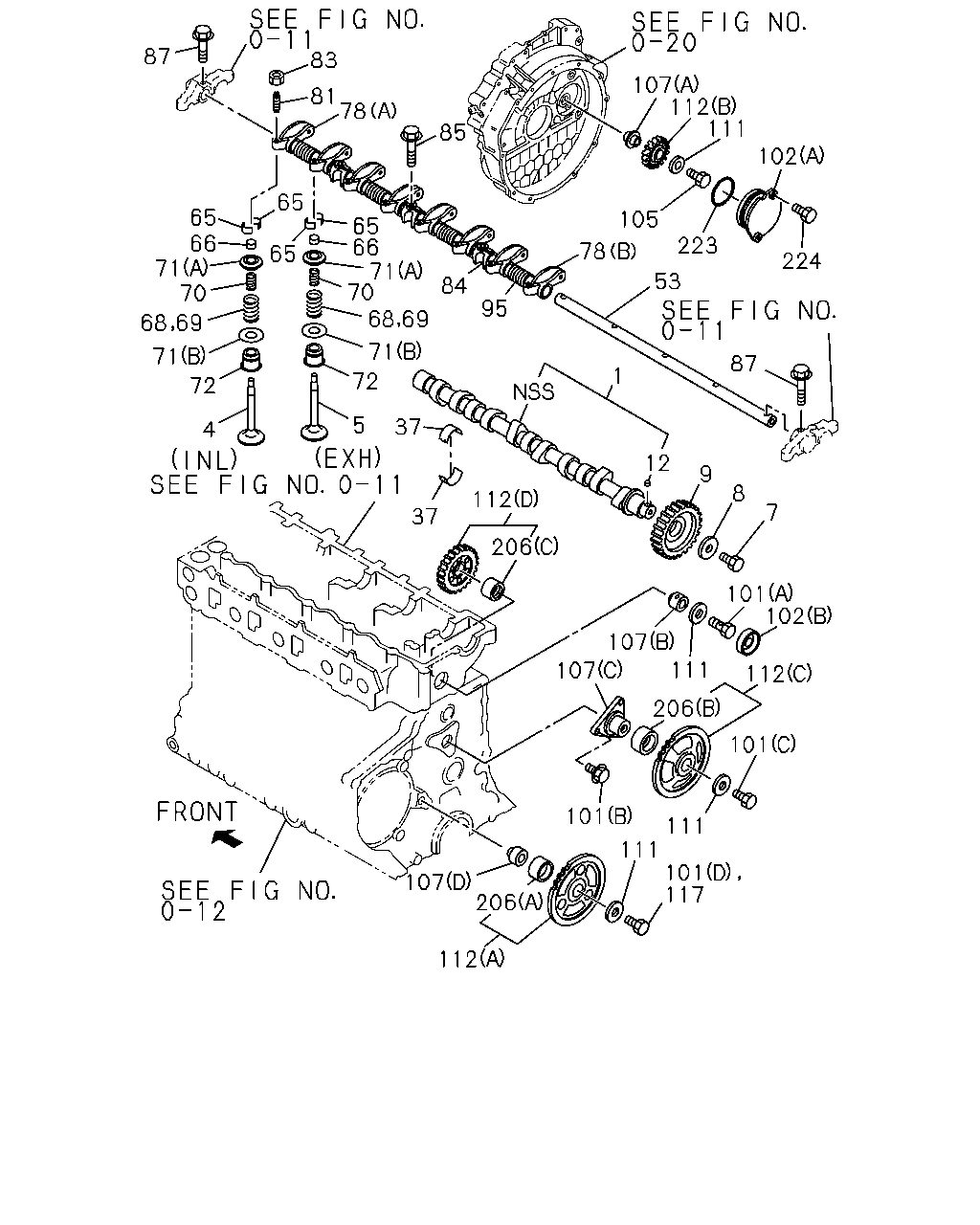

0-14 — CAMSHAFT AND VALVE (#44377) — 636 parça

87 83 107 112 111 81 78 85 102 65 65 66 105 65 66 71 70 68 223 78 65 224 71 70 53 84 95 68 71 71 87 1 72 72 5 37 4 12 9 8 112 7 37 206 101 102 107 111 107 112 206 101 101 111 111 101 117 107 206 112 69 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	00.519 CAMSHAFT	8-94409-412-0	01	1	9312-9510	●	●	●
1	00.519 CAMSHAFT	8-94409-412-0	01	1	9511-		●	●
1	00.519 CAMSHAFT	8-94127-797-4	01	1	9312-				●
1	00.519 CAMSHAFT	8-97077-829-0	01	1	9312-9711					●
1	00.519 CAMSHAFT	8-97077-829-0	01	1	9712-					●	●
1	00.519 CAMSHAFT	8-97077-830-0	01	1	9712-							●
4	00.296 VALVE; INL	8-97028-702-0	04	1	9312-9510	●
4	00.296 VALVE; INL	8-97080-214-1	04	1	9312-9505				●
4	00.296 VALVE; INL	8-97131-729-0	04	1	9506-				●
4	00.296 VALVE; INL	8-97034-379-0	04	1	9312-		●	●
4	00.296 VALVE; INL	8-97033-864-1	04	1	9312-9510					●
4	00.296 VALVE; INL	8-94394-160-1	04	1	9511-9705					●
4	00.296 VALVE; INL	8-97171-398-0	04	1	9706-9711					●
4	00.296 VALVE; INL	8-97171-398-0	04	1	9712-					●	●
4	00.296 VALVE; INL	8-97033-864-1	04	1	9712-							●
5	00.297 VALVE; EXH	8-97028-706-0	04	1	9312-9510	●
5	00.297 VALVE; EXH	8-97065-970-0	04	1	9312-9409				●
5	00.297 VALVE; EXH	8-97118-767-0	04	1	9410-				●
5	00.297 VALVE; EXH	8-97085-066-2	04	1	9312-			●
5	00.297 VALVE; EXH	8-97028-707-2	04	1	9312-		●
5	00.297 VALVE; EXH	8-97019-337-0	04	1	9312-9705					●
5	00.297 VALVE; EXH	8-97171-399-0	04	1	9706-9711					●
5	00.297 VALVE; EXH	8-97171-399-0	04	1	9712-					●	●
5	00.297 VALVE; EXH CHARGE AIR COOLER<6PL>	8-97189-114-0	04	1	9712-							●
5	00.297 VALVE; EXH EXC. CHARGE AIR COOLER<6PL>	8-97019-337-0	04	1	9712-							●
7	00.738 BOLT; CM/SHF GEAR M14X39	5-09000-236-0	01	1	9312-9510	●	●	●
7	00.738 BOLT; CM/SHF GEAR M14X39	5-09000-236-0	01	1	9511-		●	●
7	00.738 BOLT; CM/SHF GEAR 08.900 M14X40	9-92061-440-0	01	1	9312-9711					●
7	00.738 BOLT; CM/SHF GEAR 08.900 M14X40	9-92061-440-0	01	1	9712-					●	●	●
8	00.738 WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9312-9406	●	●	●		●
8	00.738 WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9407-9502	●	●	●
8	00.738 WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9503-9510	●	●	●		●
8	00.738 WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9511-9711		●	●		●
8	00.738 WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9712-		●	●		●	●	●
8	00.738 WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9407-9502					●
9	00.736 GEAR; CM/SHF Z=50	9-12522-147-1	01	1	9312-9510	●	●	●
9	00.736 GEAR; CM/SHF Z=50	1-12522-016-2	01	1	9511-		●	●
9	00.736 GEAR; CM/SHF Z=35	8-97094-440-1	01	1	9312-9510					●
9	00.736 GEAR; CM/SHF Z=70 OD=208.6	8-97088-057-2	01	1	9511-9711					●
9	00.736 GEAR; CM/SHF Z=70 OD=208.6	8-97088-057-2	01	1	9712-9809					●	●	●
9	00.736 GEAR; CM/SHF Z=70 OD=208.6	8-97088-057-2	01	1	9810-					●	●
9	00.736 GEAR; CM/SHF POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> Z=70 OD=208.6	8-97088-057-2	01	1	9810-							●
9	00.736 GEAR; CM/SHF CHARGE AIR COOLER<6PL> Z=35	8-97094-440-2	01	1	9810-							●
12	00.738 KEY; CAM GEAR SET	8-94399-487-0	01	1	9312-9711					●
12	00.738 KEY; CAM GEAR SET	8-94399-487-0	01	1	9712-					●	●	●
37	00.539 METAL; CM/SHF	8-94393-380-0	10	1	9312-9408					●
37	00.539 METAL; CM/SHF	8-97112-638-0	10	1	9409-9711					●
37	00.539 METAL; CM/SHF	8-97112-638-0	10	1	9712-					●	●	●
53	00.353 SHAFT; ROCKER ARM	8-94129-551-0	01	1	9312-9510	●	●	●
53	00.353 SHAFT; ROCKER ARM	8-94129-551-0	01	1	9511-		●	●
53	00.353 SHAFT; ROCKER ARM	8-97036-197-0	01	1	9312-				●
53	00.353 SHAFT; ROCKER ARM	8-94343-205-0	01	1	9604-				●
53	00.353 SHAFT; ROCKER ARM JBK	8-97074-617-0	01	1	9312-9711					●
53	00.353 SHAFT; ROCKER ARM JBK	8-97074-617-0	01	1	9712-					●	●	●
53	00.353 SHAFT; ROCKER ARM KEIHIN SEIMITSU	8-97174-567-0	01	1	9705-9711					●
53	00.353 SHAFT; ROCKER ARM KEIHIN SEIMITSU	8-97174-567-0	01	1	9712-					●	●	●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	9312-9406	●	●	●		●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	9407-9502	●	●	●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	9503-9510	●	●	●		●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	9511-9711		●	●		●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	9712-		●	●		●	●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9312-				●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	9407-9502					●
66	00.303 CAP; VLV STEM END	8-97075-453-0	08	1	9312-9711					●
66	00.303 CAP; VLV STEM END	8-97075-453-0	08	1	9712-9805					●	●	●
66	00.303 CAP; VLV STEM END	8-97188-300-0	08	1	9806-					●	●	●
68	00.303 SPRING; VLV ID=26.25	8-94433-247-0	08	1	9312-				●
68	00.303 SPRING; VLV ID=28.5	8-97023-559-0	08	1	9312-9711					●
68	00.303 SPRING; VLV ID=28.5	8-97023-559-0	08	1	9712-					●	●
69	00.303 SPRING; VLV,OUTER	8-94125-512-0	08	1	9312-9510	●	●	●
69	00.303 SPRING; VLV,OUTER	8-94125-512-0	08	1	9511-		●	●
69	00.303 SPRING; VLV,OUTER EXHAUST MARK GREEN	8-97120-905-0	04	1	9712-							●
69	00.303 SPRING; VLV,OUTER INLET MARK PINK	8-97120-912-0	04	1	9712-							●
70	00.303 SPRING; VLV,INNER	8-94125-511-0	08	1	9312-9510	●	●	●
70	00.303 SPRING; VLV,INNER	8-94125-511-0	08	1	9511-		●	●
70	00.303 SPRING; VLV,INNER EXHAUST MARK GREEN	8-97120-899-0	04	1	9712-							●
70	00.303 SPRING; VLV,INNER INLET MARK PINK	8-97120-911-0	04	1	9712-							●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	9312-9510	●	●	●	●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	9511-		●	●	●
71	00.309 SEAT; SPR (A) OD=32	8-94114-579-0	08	1	9312-9510	●	●	●
71	00.309 SEAT; SPR (A) OD=32	8-94114-579-0	08	1	9511-		●	●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	9312-				●
71	00.309 SEAT; SPR (A) OD=38	8-94385-029-1	08	1	9312-9711					●
71	00.309 SEAT; SPR (A) OD=38	8-94385-029-1	08	1	9712-					●	●	●
71	00.309 SEAT; SPR (B) ID=14.3 OD=40	8-94399-526-0	08	1	9312-9711					●
71	00.309 SEAT; SPR (B) ID=14.3 OD=40	8-94399-526-1	08	1	9712-					●	●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	1-12569-015-0	08	1	9312-9410	●	●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97120-167-0	08	1	9411-9510	●	●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97120-167-0	08	1	9511-		●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 00.283	5-12569-006-0	08	1	9312-9511				●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. EURO2 SPECIFICATION<7AF> 00.283	5-12569-006-0	08	1	9512-9604				●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EURO2 SPECIFICATION<7AF>	8-97120-307-0	08	1	9512-9604				●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97120-307-0	08	1	9605-				●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-94396-609-2	08	1	9312-9711					●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-94396-609-2	08	1	9712-					●	●	●
78	00.333 ARM; ROCKER	1-12611-249-0	08	1	9312-9510	●	●	●
78	00.333 ARM; ROCKER	1-12611-249-0	08	1	9511-		●	●
78	00.333 ARM; ROCKER	8-94152-344-0	08	1	9312-				●
78	00.333 ARM; ROCKER (B) JBK	8-97014-258-1	04	1	9312-9711					●
78	00.333 ARM; ROCKER (B) JBK	8-97014-258-1	04	1	9712-					●	●	●
78	00.333 ARM; ROCKER (A) JBK	8-97074-614-0	04	1	9312-9711					●
78	00.333 ARM; ROCKER (A) JBK	8-97074-614-0	04	1	9712-					●	●	●
78	00.333 ARM; ROCKER (A) KEIHIN SEIMITSU	8-97174-562-0	04	1	9705-9711					●
78	00.333 ARM; ROCKER (A) KEIHIN SEIMITSU	8-97174-562-0	04	1	9712-					●	●	●
78	00.333 ARM; ROCKER (B) KEIHIN SEIMITSU	8-97174-565-0	04	1	9705-9711					●
78	00.333 ARM; ROCKER (B) KEIHIN SEIMITSU	8-97174-565-0	04	1	9712-					●	●	●
81	00.429 SCREW; ADJ,ROCKER ARM	9-12616-042-0	08	1	9312-9510	●	●	●
81	00.429 SCREW; ADJ,ROCKER ARM	9-12616-042-0	08	1	9511-		●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8X30	8-94152-283-1	08	1	9312-				●
81	00.429 SCREW; ADJ,ROCKER ARM	8-94367-526-2	08	1	9312-9704					●
81	00.429 SCREW; ADJ,ROCKER ARM	8-94367-526-2	16	1	9705-9711					●
81	00.429 SCREW; ADJ,ROCKER ARM	8-94367-526-2	16	1	9712-					●	●	●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	9312-9510	●	●	●	●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	9511-		●	●	●
83	00.787 NUT; ADJ SCREW,LK 03.459 M10	9-09111-510-0	08	1	9312-9602					●
83	00.787 NUT; ADJ SCREW,LK 06.822 M10	9-09111-410-0	08	1	9603-9704					●
83	00.787 NUT; ADJ SCREW,LK 06.822 M10	9-09111-410-0	16	1	9705-9711					●
83	00.787 NUT; ADJ SCREW,LK 06.822 M10	9-09111-410-0	16	1	9712-					●	●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER	9-12628-105-0	04	1	9312-9510	●	●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER	9-12628-105-0	04	1	9511-		●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	9312-				●
84	00.349 BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	9312-9711					●
84	00.349 BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	9712-					●	●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER KEIHIN SEIMITSU	8-97174-568-0	03	1	9705-9711					●
84	00.349 BRACKET; ROCKER SHAFT,INTER KEIHIN SEIMITSU	8-97174-568-0	03	1	9712-					●	●	●
85	00.349 BOLT; BRKT M8X65	1-09000-567-0	06	1	9312-9510	●	●	●
85	00.349 BOLT; BRKT M8X65	1-09000-567-0	06	1	9511-		●	●
85	00.349 BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	9312-				●
85	00.349 BOLT; BRKT M10X62 FLANGE	8-94393-131-0	03	1	9312-9711					●
85	00.349 BOLT; BRKT M10X62 FLANGE	8-94393-131-0	03	1	9712-					●	●	●
85	00.349 BOLT; BRKT M10X62 FLANGE	8-97174-650-0	03	1	9705-9711					●
85	00.349 BOLT; BRKT M10X62 FLANGE	8-97174-650-0	03	1	9712-					●	●	●
87	00.349 BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	9312-				●
87	00.349 BOLT; ROCKER SHAFT 03.415 M8X35 FLANGE	0-28080-835-0	02	1	9312-9704					●
87	00.349 BOLT; ROCKER SHAFT 03.415 M8X35 FLANGE	0-28080-835-0	04	1	9705-9711					●
87	00.349 BOLT; ROCKER SHAFT 03.415 M8X35 FLANGE	0-28080-835-0	04	1	9712-					●	●	●
95	00.376 SPRING; ROCKER SHAFT	1-09580-335-0	03	1	9312-9510	●	●	●
95	00.376 SPRING; ROCKER SHAFT	1-09580-335-0	03	1	9511-		●	●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9312-				●
95	00.376 SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	9312-9711					●
95	00.376 SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	9712-					●	●	●
95	00.376 SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	9705-9711					●
95	00.376 SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	9712-					●	●	●
101	00.724 BOLT; THRUST COLLAR M10X55	5-09030-038-1	02	1	9312-9510	●	●	●
101	00.724 BOLT; THRUST COLLAR M10X55	5-09030-038-1	02	1	9511-		●	●
101	00.724 BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	9312-9711					●
101	00.724 BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	9712-					●	●	●
101	00.724 BOLT; THRUST COLLAR (D) M14X65	8-97066-798-0	01	1	9312-9405					●
101	00.724 BOLT; THRUST COLLAR (B) M8X14	8-97073-782-0	03	1	9312-9711					●
101	00.724 BOLT; THRUST COLLAR (B) M8X14	8-97073-782-0	03	1	9712-					●	●	●
101	00.724 BOLT; THRUST COLLAR (C) M14X30	9-92361-430-0	01	1	9312-9711					●
101	00.724 BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	9712-					●	●	●
102	00.724 COVER; IDLE GEAR (A)	8-94334-681-1	01	1	9312-9711					●
102	00.724 COVER; IDLE GEAR (A)	8-94334-681-1	01	1	9712-					●	●	●
102	00.724 COVER; IDLE GEAR 00.253 (B) OD=51	8-94396-229-0	01	1	9312-9710					●
102	00.724 COVER; IDLE GEAR (B) OD=51	8-97096-826-0	01	1	9711-9711					●
102	00.724 COVER; IDLE GEAR (B) OD=51	8-97096-826-0	01	1	9712-					●	●	●
105	00.724 BOLT; IDLE GEAR SHAFT 08.900 M14X60	9-91666-460-0	01	1	9312-9409					●
105	00.724 BOLT; IDLE GEAR SHAFT POWER STEERING<N40> 08.900 M14X60	9-91666-460-0	01	1	9410-9711					●
105	00.724 BOLT; IDLE GEAR SHAFT POWER STEERING<N40> 08.900 M14X60	9-91666-460-0	01	1	9712-					●	●
105	00.724 BOLT; IDLE GEAR SHAFT 08.900 M14X60	9-91666-460-0	01	1	9712-							●
107	00.724 SHAFT; IDLE GEAR	9-12531-030-0	01	1	9312-9402	●	●	●
107	00.724 SHAFT; IDLE GEAR	8-97101-281-0	01	1	9403-9510	●	●	●
107	00.724 SHAFT; IDLE GEAR	8-97101-281-0	01	1	9511-9804		●	●
107	00.724 SHAFT; IDLE GEAR	9-12531-030-0	01	1	9805-		●	●
107	00.724 SHAFT; IDLE GEAR (A)	8-94334-682-0	01	1	9312-9409					●
107	00.724 SHAFT; IDLE GEAR POWER STEERING<N40> (A)	8-94334-682-0	01	1	9410-9711					●
107	00.724 SHAFT; IDLE GEAR POWER STEERING<N40> (A)	8-94334-682-0	01	1	9712-					●	●
107	00.724 SHAFT; IDLE GEAR (A)	8-94334-682-0	01	1	9712-							●
107	00.724 SHAFT; IDLE GEAR (D)	8-94399-245-4	01	1	9312-9406					●
107	00.724 SHAFT; IDLE GEAR (B)	8-97065-555-1	01	1	9312-9711					●
107	00.724 SHAFT; IDLE GEAR (B)	8-97186-398-0	01	1	9712-9712					●
107	00.724 SHAFT; IDLE GEAR (B)	8-97186-398-0	01	1	9712-					●	●	●
107	00.724 SHAFT; IDLE GEAR (C)	8-97075-401-1	01	1	9312-9711					●
107	00.724 SHAFT; IDLE GEAR (C)	8-97189-244-0	01	1	9712-9712					●
107	00.724 SHAFT; IDLE GEAR (C)	8-97189-244-0	01	1	9712-					●	●	●
107	00.724 SHAFT; IDLE GEAR (D)	8-97104-380-0	01	1	9407-9711					●
107	00.724 SHAFT; IDLE GEAR (D)	8-97104-380-0	01	1	9712-					●	●	●
111	00.724 COLLAR; THRUST,IDLE GEAR	5-12535-001-1	01	1	9312-9510	●	●	●
111	00.724 COLLAR; THRUST,IDLE GEAR	5-12535-001-1	01	1	9511-		●	●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-94370-688-0	04	1	9312-9409					●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-94370-688-0	03	1	9410-9510					●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> ID=14.5 OD=46	8-94370-688-0	03	1	9511-9605					●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> ID=14.5 OD=46	8-97137-065-0	03	1	9606-9710					●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> ID=14.5 OD=46	8-97137-065-0	01	1	9711-9711					●
111	00.724 COLLAR; THRUST,IDLE GEAR CHARGE AIR COOLER<6PL> ID=14.5 OD=46	8-97137-065-0	04	1	9712-9807							●
111	00.724 COLLAR; THRUST,IDLE GEAR CHARGE AIR COOLER<6PL> ID=14.5 OD=46	8-97209-728-0	04	1	9808-							●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> ID=14.5 OD=46	8-94370-688-0	01	1	9410-9510					●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-94370-688-0	01	1	9511-9605					●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97137-065-0	01	1	9606-9710					●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97137-065-0	03	1	9711-9711					●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> ID=14.5 OD=46	8-97137-065-0	01	1	9712-9807					●	●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> ID=14.5 OD=46	8-97137-065-0	01	1	9712-9807							●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> ID=14.5 OD=46	8-97209-728-0	01	1	9808-					●	●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> ID=14.5 OD=46	8-97209-728-0	01	1	9808-							●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97137-065-0	03	1	9712-9807					●	●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> ID=14.5 OD=46	8-97137-065-0	03	1	9712-9807							●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-0	03	1	9808-					●	●
111	00.724 COLLAR; THRUST,IDLE GEAR EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> ID=14.5 OD=46	8-97209-728-0	03	1	9808-							●
112	00.724 GEAR; IDLE Z=51	9-12523-801-4	01	1	9312-9510	●	●	●
112	00.724 GEAR; IDLE Z=51	9-12523-801-4	01	1	9511-9511		●	●
112	00.724 GEAR; IDLE Z=51	8-94133-937-3	01	1	9511-		●	●
112	00.724 GEAR; IDLE (B) Z=34	8-94341-671-4	01	1	9312-9409					●
112	00.724 GEAR; IDLE POWER STEERING<N40> (B) Z=34	8-97120-005-0	01	1	9410-9711					●
112	00.724 GEAR; IDLE POWER STEERING<N40> (B) Z=34	8-97120-005-0	01	1	9712-					●	●
112	00.724 GEAR; IDLE (B) Z=34	8-97120-005-0	01	1	9712-							●
112	00.724 GEAR; IDLE (D) Z=41	8-94396-834-1	01	1	9312-9408					●
112	00.724 GEAR; IDLE (D) Z=41	8-97112-607-0	01	1	9409-9510					●
112	00.724 GEAR; IDLE (D) Z=82	8-97088-055-1	01	1	9511-9711					●
112	00.724 GEAR; IDLE (D) Z=82	8-97088-055-1	01	1	9712-9809					●	●	●
112	00.724 GEAR; IDLE (D) Z=82	8-97088-055-1	01	1	9810-					●	●
112	00.724 GEAR; IDLE POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> (D) Z=82	8-97088-055-1	01	1	9810-							●
112	00.724 GEAR; IDLE (A) Z=72-30	8-97094-544-1	01	1	9312-9510					●
112	00.724 GEAR; IDLE (A) Z=72-60	8-97114-602-1	01	1	9511-9711					●
112	00.724 GEAR; IDLE (A) Z=72-60	8-97114-602-1	01	1	9712-9809					●	●	●
112	00.724 GEAR; IDLE (A) Z=72-60	8-97114-602-1	01	1	9810-					●	●
112	00.724 GEAR; IDLE POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> (A) Z=72-60	8-97114-602-1	01	1	9810-							●
112	00.724 GEAR; IDLE (C) Z=61	8-97094-546-1	01	1	9312-9510					●
112	00.724 GEAR; IDLE (C) Z=122	8-97088-053-1	01	1	9511-9711					●
112	00.724 GEAR; IDLE (C) Z=122	8-97088-053-1	01	1	9712-9809					●	●	●
112	00.724 GEAR; IDLE (C) Z=122	8-97088-053-1	01	1	9810-					●	●
112	00.724 GEAR; IDLE POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> (C) Z=122	8-97088-053-1	01	1	9810-							●
112	00.724 GEAR; IDLE CHARGE AIR COOLER<6PL> (C) Z=61	8-94393-439-3	01	1	9810-							●
112	00.724 GEAR; IDLE CHARGE AIR COOLER<6PL> (D) Z=41	8-97112-607-0	01	1	9810-							●
112	00.724 GEAR; IDLE CHARGE AIR COOLER<6PL> (A) Z=72-30	8-97212-794-0	01	1	9810-							●
117	00.662 BOLT; FLANGE 00.685 M6X12 W/LK WASHER	0-50040-612-0	04	1	9312-9606				●
117	00.662 BOLT; FLANGE EXC. EURO2 SPECIFICATION<7AF> 00.685 M6X12 W/LK WASHER	0-50040-612-0	04	1	9607-9607				●
117	00.662 BOLT; FLANGE M14X65 FLANGE	8-97113-167-0	01	1	9406-9711					●
117	00.662 BOLT; FLANGE M14X65 FLANGE	8-97113-167-0	01	1	9712-					●	●	●
206	00.724 BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	1-12528-006-0	01	1	9312-9711					●
206	00.724 BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	1-12528-006-0	01	1	9712-					●	●	●
206	00.724 BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-94369-339-0	01	1	9312-9406					●
206	00.724 BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-97112-608-0	01	1	9407-9711					●
206	00.724 BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-97112-608-0	01	1	9712-					●	●	●
206	00.724 BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-94369-340-0	01	1	9312-9711					●
206	00.724 BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-94369-340-0	01	1	9712-					●	●	●
223	00.724 GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). 04.854 ID=105.6	1-09623-247-0	01	1	9312-9711					●
223	00.724 GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). 04.854 ID=105.6	1-09623-247-0	01	1	9712-					●	●	●
224	00.724 BOLT; COVER 00.662 M8X14 FLANGE	0-28080-814-0	04	1	9312-9407					●
224	00.724 BOLT; COVER 00.662 M8X14 FLANGE	0-28080-814-0	02	1	9408-9606					●
224	00.724 BOLT; COVER 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9607-9711					●
224	00.724 BOLT; COVER 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9712-					●	●	●

14 101 111 112 7 8 107 9 10 11 88 1 93 94 89 95 83 81 59 58 85 65 65 86 65 65 71 71 53 55 70 70 84 79 78 69 69 71 71 5 4 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	00.519 CAMSHAFT	8-94409-412-0	01	1	9312-9510	●	●	●
1	00.519 CAMSHAFT	8-94409-412-0	01	1	9511-		●	●
1	00.519 CAMSHAFT	8-94127-797-4	01	1	9312-				●
1	00.519 CAMSHAFT	8-97077-829-0	01	1	9312-9711					●
1	00.519 CAMSHAFT	8-97077-829-0	01	1	9712-					●	●
1	00.519 CAMSHAFT	8-97077-830-0	01	1	9712-							●
4	00.296 VALVE; INL	8-97028-702-0	04	1	9312-9510	●
4	00.296 VALVE; INL	8-97080-214-1	04	1	9312-9505				●
4	00.296 VALVE; INL	8-97131-729-0	04	1	9506-				●
4	00.296 VALVE; INL	8-97034-379-0	04	1	9312-		●	●
4	00.296 VALVE; INL	8-97033-864-1	04	1	9312-9510					●
4	00.296 VALVE; INL	8-94394-160-1	04	1	9511-9705					●
4	00.296 VALVE; INL	8-97171-398-0	04	1	9706-9711					●
4	00.296 VALVE; INL	8-97171-398-0	04	1	9712-					●	●
4	00.296 VALVE; INL	8-97033-864-1	04	1	9712-							●
5	00.297 VALVE; EXH	8-97028-706-0	04	1	9312-9510	●
5	00.297 VALVE; EXH	8-97065-970-0	04	1	9312-9409				●
5	00.297 VALVE; EXH	8-97118-767-0	04	1	9410-				●
5	00.297 VALVE; EXH	8-97085-066-2	04	1	9312-			●
5	00.297 VALVE; EXH	8-97028-707-2	04	1	9312-		●
5	00.297 VALVE; EXH	8-97019-337-0	04	1	9312-9705					●
5	00.297 VALVE; EXH	8-97171-399-0	04	1	9706-9711					●
5	00.297 VALVE; EXH	8-97171-399-0	04	1	9712-					●	●
5	00.297 VALVE; EXH CHARGE AIR COOLER<6PL>	8-97189-114-0	04	1	9712-							●
5	00.297 VALVE; EXH EXC. CHARGE AIR COOLER<6PL>	8-97019-337-0	04	1	9712-							●
7	00.738 BOLT; CM/SHF GEAR M14X39	5-09000-236-0	01	1	9312-9510	●	●	●
7	00.738 BOLT; CM/SHF GEAR M14X39	5-09000-236-0	01	1	9511-		●	●
7	00.738 BOLT; CM/SHF GEAR 08.900 M14X40	9-92061-440-0	01	1	9312-9711					●
7	00.738 BOLT; CM/SHF GEAR 08.900 M14X40	9-92061-440-0	01	1	9712-					●	●	●
8	00.738 WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9312-9406	●	●	●		●
8	00.738 WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9407-9502	●	●	●
8	00.738 WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9503-9510	●	●	●		●
8	00.738 WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9511-9711		●	●		●
8	00.738 WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9712-		●	●		●	●	●
8	00.738 WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9407-9502					●
9	00.736 GEAR; CM/SHF Z=50	9-12522-147-1	01	1	9312-9510	●	●	●
9	00.736 GEAR; CM/SHF Z=50	1-12522-016-2	01	1	9511-		●	●
9	00.736 GEAR; CM/SHF Z=35	8-97094-440-1	01	1	9312-9510					●
9	00.736 GEAR; CM/SHF Z=70 OD=208.6	8-97088-057-2	01	1	9511-9711					●
9	00.736 GEAR; CM/SHF Z=70 OD=208.6	8-97088-057-2	01	1	9712-9809					●	●	●
9	00.736 GEAR; CM/SHF Z=70 OD=208.6	8-97088-057-2	01	1	9810-					●	●
9	00.736 GEAR; CM/SHF POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> Z=70 OD=208.6	8-97088-057-2	01	1	9810-							●
9	00.736 GEAR; CM/SHF CHARGE AIR COOLER<6PL> Z=35	8-97094-440-2	01	1	9810-							●
10	00.533 PLATE; THRUST	9-11681-015-0	01	1	9312-9510	●	●	●
10	00.533 PLATE; THRUST	9-11681-015-0	01	1	9511-		●	●
11	00.533 BOLT; THRUST PLATE TO C/BL 01.073 M8X25 W/LK WASHER	0-50040-825-0	02	1	9312-9510	●	●	●
11	00.533 BOLT; THRUST PLATE TO C/BL 01.073 M8X25 W/LK WASHER	0-50040-825-0	02	1	9511-		●	●
14	00.738 KEY; CM/SHF 08.960	9-08010-720-0	01	1	9312-9510	●	●	●
14	00.738 KEY; CM/SHF 08.960	9-08010-720-0	01	1	9511-		●	●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	9312-				●
53	00.353 SHAFT; ROCKER ARM	8-94129-551-0	01	1	9312-9510	●	●	●
53	00.353 SHAFT; ROCKER ARM	8-94129-551-0	01	1	9511-		●	●
53	00.353 SHAFT; ROCKER ARM	8-97036-197-0	01	1	9312-				●
53	00.353 SHAFT; ROCKER ARM	8-94343-205-0	01	1	9604-				●
53	00.353 SHAFT; ROCKER ARM JBK	8-97074-617-0	01	1	9312-9711					●
53	00.353 SHAFT; ROCKER ARM JBK	8-97074-617-0	01	1	9712-					●	●	●
53	00.353 SHAFT; ROCKER ARM KEIHIN SEIMITSU	8-97174-567-0	01	1	9705-9711					●
53	00.353 SHAFT; ROCKER ARM KEIHIN SEIMITSU	8-97174-567-0	01	1	9712-					●	●	●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9312-9510	●	●	●	●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9511-		●	●	●
58	00.349 BRACKET; ROCKER SHAFT,FRT	5-12628-012-0	01	1	9312-9510	●	●	●
58	00.349 BRACKET; ROCKER SHAFT,FRT	5-12628-012-0	01	1	9511-		●	●
59	00.349 GASKET; ROCKER SHAFT 00.356	5-09623-060-0	01	1	9312-9510	●	●	●
59	00.349 GASKET; ROCKER SHAFT 00.356	5-09623-060-0	01	1	9511-		●	●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	9312-9406	●	●	●		●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	9407-9502	●	●	●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	9503-9510	●	●	●		●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	9511-9711		●	●		●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	9712-		●	●		●	●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9312-				●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	9407-9502					●
69	00.303 SPRING; VLV,OUTER	8-94125-512-0	08	1	9312-9510	●	●	●
69	00.303 SPRING; VLV,OUTER	8-94125-512-0	08	1	9511-		●	●
69	00.303 SPRING; VLV,OUTER EXHAUST MARK GREEN	8-97120-905-0	04	1	9712-							●
69	00.303 SPRING; VLV,OUTER INLET MARK PINK	8-97120-912-0	04	1	9712-							●
70	00.303 SPRING; VLV,INNER	8-94125-511-0	08	1	9312-9510	●	●	●
70	00.303 SPRING; VLV,INNER	8-94125-511-0	08	1	9511-		●	●
70	00.303 SPRING; VLV,INNER EXHAUST MARK GREEN	8-97120-899-0	04	1	9712-							●
70	00.303 SPRING; VLV,INNER INLET MARK PINK	8-97120-911-0	04	1	9712-							●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	9312-9510	●	●	●	●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	9511-		●	●	●
71	00.309 SEAT; SPR (A) OD=32	8-94114-579-0	08	1	9312-9510	●	●	●
71	00.309 SEAT; SPR (A) OD=32	8-94114-579-0	08	1	9511-		●	●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	9312-				●
71	00.309 SEAT; SPR (A) OD=38	8-94385-029-1	08	1	9312-9711					●
71	00.309 SEAT; SPR (A) OD=38	8-94385-029-1	08	1	9712-					●	●	●
71	00.309 SEAT; SPR (B) ID=14.3 OD=40	8-94399-526-0	08	1	9312-9711					●
71	00.309 SEAT; SPR (B) ID=14.3 OD=40	8-94399-526-1	08	1	9712-					●	●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	1-12569-015-0	08	1	9312-9410	●	●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97120-167-0	08	1	9411-9510	●	●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97120-167-0	08	1	9511-		●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 00.283	5-12569-006-0	08	1	9312-9511				●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. EURO2 SPECIFICATION<7AF> 00.283	5-12569-006-0	08	1	9512-9604				●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EURO2 SPECIFICATION<7AF>	8-97120-307-0	08	1	9512-9604				●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97120-307-0	08	1	9605-				●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-94396-609-2	08	1	9312-9711					●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-94396-609-2	08	1	9712-					●	●	●
78	00.333 ARM; ROCKER	1-12611-249-0	08	1	9312-9510	●	●	●
78	00.333 ARM; ROCKER	1-12611-249-0	08	1	9511-		●	●
78	00.333 ARM; ROCKER	8-94152-344-0	08	1	9312-				●
78	00.333 ARM; ROCKER (B) JBK	8-97014-258-1	04	1	9312-9711					●
78	00.333 ARM; ROCKER (B) JBK	8-97014-258-1	04	1	9712-					●	●	●
78	00.333 ARM; ROCKER (A) JBK	8-97074-614-0	04	1	9312-9711					●
78	00.333 ARM; ROCKER (A) JBK	8-97074-614-0	04	1	9712-					●	●	●
78	00.333 ARM; ROCKER (A) KEIHIN SEIMITSU	8-97174-562-0	04	1	9705-9711					●
78	00.333 ARM; ROCKER (A) KEIHIN SEIMITSU	8-97174-562-0	04	1	9712-					●	●	●
78	00.333 ARM; ROCKER (B) KEIHIN SEIMITSU	8-97174-565-0	04	1	9705-9711					●
78	00.333 ARM; ROCKER (B) KEIHIN SEIMITSU	8-97174-565-0	04	1	9712-					●	●	●
79	00.349 RING; SNAP,RR END,ROCKER SHAFT ID=17.5	9-09180-019-0	01	1	9312-9510	●	●	●
79	00.349 RING; SNAP,RR END,ROCKER SHAFT ID=17.5	9-09180-019-0	01	1	9511-		●	●
81	00.429 SCREW; ADJ,ROCKER ARM	9-12616-042-0	08	1	9312-9510	●	●	●
81	00.429 SCREW; ADJ,ROCKER ARM	9-12616-042-0	08	1	9511-		●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8X30	8-94152-283-1	08	1	9312-				●
81	00.429 SCREW; ADJ,ROCKER ARM	8-94367-526-2	08	1	9312-9704					●
81	00.429 SCREW; ADJ,ROCKER ARM	8-94367-526-2	16	1	9705-9711					●
81	00.429 SCREW; ADJ,ROCKER ARM	8-94367-526-2	16	1	9712-					●	●	●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	9312-9510	●	●	●	●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	9511-		●	●	●
83	00.787 NUT; ADJ SCREW,LK 03.459 M10	9-09111-510-0	08	1	9312-9602					●
83	00.787 NUT; ADJ SCREW,LK 06.822 M10	9-09111-410-0	08	1	9603-9704					●
83	00.787 NUT; ADJ SCREW,LK 06.822 M10	9-09111-410-0	16	1	9705-9711					●
83	00.787 NUT; ADJ SCREW,LK 06.822 M10	9-09111-410-0	16	1	9712-					●	●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER	9-12628-105-0	04	1	9312-9510	●	●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER	9-12628-105-0	04	1	9511-		●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	9312-				●
84	00.349 BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	9312-9711					●
84	00.349 BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	9712-					●	●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER KEIHIN SEIMITSU	8-97174-568-0	03	1	9705-9711					●
84	00.349 BRACKET; ROCKER SHAFT,INTER KEIHIN SEIMITSU	8-97174-568-0	03	1	9712-					●	●	●
85	00.349 BOLT; BRKT M8X65	1-09000-567-0	06	1	9312-9510	●	●	●
85	00.349 BOLT; BRKT M8X65	1-09000-567-0	06	1	9511-		●	●
85	00.349 BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	9312-				●
85	00.349 BOLT; BRKT M10X62 FLANGE	8-94393-131-0	03	1	9312-9711					●
85	00.349 BOLT; BRKT M10X62 FLANGE	8-94393-131-0	03	1	9712-					●	●	●
85	00.349 BOLT; BRKT M10X62 FLANGE	8-97174-650-0	03	1	9705-9711					●
85	00.349 BOLT; BRKT M10X62 FLANGE	8-97174-650-0	03	1	9712-					●	●	●
86	00.349 WASHER; ROCKER ARM FIX 00.373	9-09851-430-0	06	1	9312-9510	●	●	●
86	00.349 WASHER; ROCKER ARM FIX 00.373	9-09851-430-0	06	1	9511-		●	●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	9312-				●
88	00.426 ROD; PUSH	1-12575-036-0	08	1	9312-9510	●		●
88	00.426 ROD; PUSH	1-12575-036-0	08	1	9511-			●
88	00.426 ROD; PUSH	8-97071-673-0	08	1	9312-				●
88	00.426 ROD; PUSH	8-94146-132-0	08	1	9312-		●
89	00.459 TAPPET; VLV	8-94366-277-1	08	1	9312-9510	●	●	●
89	00.459 TAPPET; VLV	8-94366-277-1	08	1	9511-		●	●
89	00.459 TAPPET; VLV	8-94438-305-0	08	1	9312-				●
93	00.349 NUT; BRKT	1-09400-116-0	03	1	9312-9510	●	●	●
93	00.349 NUT; BRKT	1-09400-116-0	03	1	9511-		●	●
94	00.373 WASHER; PL,BRKT	9-09851-430-0	03	1	9312-9510	●	●	●
94	00.373 WASHER; PL,BRKT	9-09851-430-0	03	1	9511-		●	●
95	00.376 SPRING; ROCKER SHAFT	1-09580-335-0	03	1	9312-9510	●	●	●
95	00.376 SPRING; ROCKER SHAFT	1-09580-335-0	03	1	9511-		●	●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9312-				●
95	00.376 SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	9312-9711					●
95	00.376 SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	9712-					●	●	●
95	00.376 SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	9705-9711					●
95	00.376 SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	9712-					●	●	●
101	00.724 BOLT; THRUST COLLAR M10X55	5-09030-038-1	02	1	9312-9510	●	●	●
101	00.724 BOLT; THRUST COLLAR M10X55	5-09030-038-1	02	1	9511-		●	●
101	00.724 BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	9312-9711					●
101	00.724 BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	9712-					●	●	●
101	00.724 BOLT; THRUST COLLAR (D) M14X65	8-97066-798-0	01	1	9312-9405					●
101	00.724 BOLT; THRUST COLLAR (B) M8X14	8-97073-782-0	03	1	9312-9711					●
101	00.724 BOLT; THRUST COLLAR (B) M8X14	8-97073-782-0	03	1	9712-					●	●	●
101	00.724 BOLT; THRUST COLLAR (C) M14X30	9-92361-430-0	01	1	9312-9711					●
101	00.724 BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	9712-					●	●	●
107	00.724 SHAFT; IDLE GEAR	9-12531-030-0	01	1	9312-9402	●	●	●
107	00.724 SHAFT; IDLE GEAR	8-97101-281-0	01	1	9403-9510	●	●	●
107	00.724 SHAFT; IDLE GEAR	8-97101-281-0	01	1	9511-9804		●	●
107	00.724 SHAFT; IDLE GEAR	9-12531-030-0	01	1	9805-		●	●
107	00.724 SHAFT; IDLE GEAR (A)	8-94334-682-0	01	1	9312-9409					●
107	00.724 SHAFT; IDLE GEAR POWER STEERING<N40> (A)	8-94334-682-0	01	1	9410-9711					●
107	00.724 SHAFT; IDLE GEAR POWER STEERING<N40> (A)	8-94334-682-0	01	1	9712-					●	●
107	00.724 SHAFT; IDLE GEAR (A)	8-94334-682-0	01	1	9712-							●
107	00.724 SHAFT; IDLE GEAR (D)	8-94399-245-4	01	1	9312-9406					●
107	00.724 SHAFT; IDLE GEAR (B)	8-97065-555-1	01	1	9312-9711					●
107	00.724 SHAFT; IDLE GEAR (B)	8-97186-398-0	01	1	9712-9712					●
107	00.724 SHAFT; IDLE GEAR (B)	8-97186-398-0	01	1	9712-					●	●	●
107	00.724 SHAFT; IDLE GEAR (C)	8-97075-401-1	01	1	9312-9711					●
107	00.724 SHAFT; IDLE GEAR (C)	8-97189-244-0	01	1	9712-9712					●
107	00.724 SHAFT; IDLE GEAR (C)	8-97189-244-0	01	1	9712-					●	●	●
107	00.724 SHAFT; IDLE GEAR (D)	8-97104-380-0	01	1	9407-9711					●
107	00.724 SHAFT; IDLE GEAR (D)	8-97104-380-0	01	1	9712-					●	●	●
111	00.724 COLLAR; THRUST,IDLE GEAR	5-12535-001-1	01	1	9312-9510	●	●	●
111	00.724 COLLAR; THRUST,IDLE GEAR	5-12535-001-1	01	1	9511-		●	●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-94370-688-0	04	1	9312-9409					●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-94370-688-0	03	1	9410-9510					●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> ID=14.5 OD=46	8-94370-688-0	03	1	9511-9605					●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> ID=14.5 OD=46	8-97137-065-0	03	1	9606-9710					●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> ID=14.5 OD=46	8-97137-065-0	01	1	9711-9711					●
111	00.724 COLLAR; THRUST,IDLE GEAR CHARGE AIR COOLER<6PL> ID=14.5 OD=46	8-97137-065-0	04	1	9712-9807							●
111	00.724 COLLAR; THRUST,IDLE GEAR CHARGE AIR COOLER<6PL> ID=14.5 OD=46	8-97209-728-0	04	1	9808-							●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> ID=14.5 OD=46	8-94370-688-0	01	1	9410-9510					●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-94370-688-0	01	1	9511-9605					●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97137-065-0	01	1	9606-9710					●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97137-065-0	03	1	9711-9711					●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> ID=14.5 OD=46	8-97137-065-0	01	1	9712-9807					●	●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> ID=14.5 OD=46	8-97137-065-0	01	1	9712-9807							●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> ID=14.5 OD=46	8-97209-728-0	01	1	9808-					●	●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> ID=14.5 OD=46	8-97209-728-0	01	1	9808-							●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97137-065-0	03	1	9712-9807					●	●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> ID=14.5 OD=46	8-97137-065-0	03	1	9712-9807							●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-0	03	1	9808-					●	●
111	00.724 COLLAR; THRUST,IDLE GEAR EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> ID=14.5 OD=46	8-97209-728-0	03	1	9808-							●
112	00.724 GEAR; IDLE Z=51	9-12523-801-4	01	1	9312-9510	●	●	●
112	00.724 GEAR; IDLE Z=51	9-12523-801-4	01	1	9511-9511		●	●
112	00.724 GEAR; IDLE Z=51	8-94133-937-3	01	1	9511-		●	●
112	00.724 GEAR; IDLE (B) Z=34	8-94341-671-4	01	1	9312-9409					●
112	00.724 GEAR; IDLE POWER STEERING<N40> (B) Z=34	8-97120-005-0	01	1	9410-9711					●
112	00.724 GEAR; IDLE POWER STEERING<N40> (B) Z=34	8-97120-005-0	01	1	9712-					●	●
112	00.724 GEAR; IDLE (B) Z=34	8-97120-005-0	01	1	9712-							●
112	00.724 GEAR; IDLE (D) Z=41	8-94396-834-1	01	1	9312-9408					●
112	00.724 GEAR; IDLE (D) Z=41	8-97112-607-0	01	1	9409-9510					●
112	00.724 GEAR; IDLE (D) Z=82	8-97088-055-1	01	1	9511-9711					●
112	00.724 GEAR; IDLE (D) Z=82	8-97088-055-1	01	1	9712-9809					●	●	●
112	00.724 GEAR; IDLE (D) Z=82	8-97088-055-1	01	1	9810-					●	●
112	00.724 GEAR; IDLE POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> (D) Z=82	8-97088-055-1	01	1	9810-							●
112	00.724 GEAR; IDLE (A) Z=72-30	8-97094-544-1	01	1	9312-9510					●
112	00.724 GEAR; IDLE (A) Z=72-60	8-97114-602-1	01	1	9511-9711					●
112	00.724 GEAR; IDLE (A) Z=72-60	8-97114-602-1	01	1	9712-9809					●	●	●
112	00.724 GEAR; IDLE (A) Z=72-60	8-97114-602-1	01	1	9810-					●	●
112	00.724 GEAR; IDLE POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> (A) Z=72-60	8-97114-602-1	01	1	9810-							●
112	00.724 GEAR; IDLE (C) Z=61	8-97094-546-1	01	1	9312-9510					●
112	00.724 GEAR; IDLE (C) Z=122	8-97088-053-1	01	1	9511-9711					●
112	00.724 GEAR; IDLE (C) Z=122	8-97088-053-1	01	1	9712-9809					●	●	●
112	00.724 GEAR; IDLE (C) Z=122	8-97088-053-1	01	1	9810-					●	●
112	00.724 GEAR; IDLE POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> (C) Z=122	8-97088-053-1	01	1	9810-							●
112	00.724 GEAR; IDLE CHARGE AIR COOLER<6PL> (C) Z=61	8-94393-439-3	01	1	9810-							●
112	00.724 GEAR; IDLE CHARGE AIR COOLER<6PL> (D) Z=41	8-97112-607-0	01	1	9810-							●
112	00.724 GEAR; IDLE CHARGE AIR COOLER<6PL> (A) Z=72-30	8-97212-794-0	01	1	9810-							●

65 87 55 71 86 65 68 72 71 85 86 88 83 81 53 54 95 78 84 78 56 55 89 144 5 50 4 46 36 14 47 1 49 43 48 45 44 31 123 121 41 42 138 137 116 120 119 118 148 146 145 124 146 117 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	00.519 CAMSHAFT	8-94409-412-0	01	1	9312-9510	●	●	●
1	00.519 CAMSHAFT	8-94409-412-0	01	1	9511-		●	●
1	00.519 CAMSHAFT	8-94127-797-4	01	1	9312-				●
1	00.519 CAMSHAFT	8-97077-829-0	01	1	9312-9711					●
1	00.519 CAMSHAFT	8-97077-829-0	01	1	9712-					●	●
1	00.519 CAMSHAFT	8-97077-830-0	01	1	9712-							●
4	00.296 VALVE; INL	8-97028-702-0	04	1	9312-9510	●
4	00.296 VALVE; INL	8-97080-214-1	04	1	9312-9505				●
4	00.296 VALVE; INL	8-97131-729-0	04	1	9506-				●
4	00.296 VALVE; INL	8-97034-379-0	04	1	9312-		●	●
4	00.296 VALVE; INL	8-97033-864-1	04	1	9312-9510					●
4	00.296 VALVE; INL	8-94394-160-1	04	1	9511-9705					●
4	00.296 VALVE; INL	8-97171-398-0	04	1	9706-9711					●
4	00.296 VALVE; INL	8-97171-398-0	04	1	9712-					●	●
4	00.296 VALVE; INL	8-97033-864-1	04	1	9712-							●
5	00.297 VALVE; EXH	8-97028-706-0	04	1	9312-9510	●
5	00.297 VALVE; EXH	8-97065-970-0	04	1	9312-9409				●
5	00.297 VALVE; EXH	8-97118-767-0	04	1	9410-				●
5	00.297 VALVE; EXH	8-97085-066-2	04	1	9312-			●
5	00.297 VALVE; EXH	8-97028-707-2	04	1	9312-		●
5	00.297 VALVE; EXH	8-97019-337-0	04	1	9312-9705					●
5	00.297 VALVE; EXH	8-97171-399-0	04	1	9706-9711					●
5	00.297 VALVE; EXH	8-97171-399-0	04	1	9712-					●	●
5	00.297 VALVE; EXH CHARGE AIR COOLER<6PL>	8-97189-114-0	04	1	9712-							●
5	00.297 VALVE; EXH EXC. CHARGE AIR COOLER<6PL>	8-97019-337-0	04	1	9712-							●
14	00.738 KEY; CM/SHF 08.960	9-08010-720-0	01	1	9312-9510	●	●	●
14	00.738 KEY; CM/SHF 08.960	9-08010-720-0	01	1	9511-		●	●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	9312-				●
31	00.736 SPROCKET; CM/SHF Z=44	8-97043-288-0	01	1	9312-9503				●
31	00.736 SPROCKET; CM/SHF Z=44	8-97116-059-0	01	1	9504-9607				●
31	00.736 SPROCKET; CM/SHF Z=44	8-97147-983-0	01	1	9608-				●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) OD=56 T=7.0	8-97080-562-0	01	1	9312-				●
41	00.662 FLANGE; CAM PULLEY	8-94157-492-0	01	1	9312-				●
42	00.662 BOLT; FLANGE CAM 04.785 M8X18 W/LK WASHER	0-50040-818-0	03	1	9312-				●
43	00.662 BOLT; PULLEY 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	9312-				●
44	00.738 BOLT 00.533 M12X47	8-94433-407-0	01	1	9312-				●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	9312-				●
46	00.736 CENTER ASM; TIMING PULLEY	8-94133-513-1	01	1	9312-9501				●
46	00.736 CENTER ASM; TIMING PULLEY	8-97118-491-0	01	1	9502-				●
47	00.662 PIN; STRAIGHT,CENTER 08.939 OD=4 L=12	9-08160-412-0	01	1	9312-				●
48	00.724 BOLT; RET 01.540 M8X35 W/LK WASHER	0-50040-835-0	05	1	9312-				●
49	00.724 RETAINER; OIL SEAL,CM/SHF	8-94133-516-2	01	1	9312-				●
50	00.724 GASKET; RET ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97080-893-0	01	1	9312-				●
53	00.353 SHAFT; ROCKER ARM	8-94129-551-0	01	1	9312-9510	●	●	●
53	00.353 SHAFT; ROCKER ARM	8-94129-551-0	01	1	9511-		●	●
53	00.353 SHAFT; ROCKER ARM	8-97036-197-0	01	1	9312-				●
53	00.353 SHAFT; ROCKER ARM	8-94343-205-0	01	1	9604-				●
53	00.353 SHAFT; ROCKER ARM JBK	8-97074-617-0	01	1	9312-9711					●
53	00.353 SHAFT; ROCKER ARM JBK	8-97074-617-0	01	1	9712-					●	●	●
53	00.353 SHAFT; ROCKER ARM KEIHIN SEIMITSU	8-97174-567-0	01	1	9705-9711					●
53	00.353 SHAFT; ROCKER ARM KEIHIN SEIMITSU	8-97174-567-0	01	1	9712-					●	●	●
54	00.349 WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	9312-				●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9312-9510	●	●	●	●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9511-		●	●	●
56	00.349 RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	9312-				●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	9312-9406	●	●	●		●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	9407-9502	●	●	●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	9503-9510	●	●	●		●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	9511-9711		●	●		●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	9712-		●	●		●	●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9312-				●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	9407-9502					●
68	00.303 SPRING; VLV ID=26.25	8-94433-247-0	08	1	9312-				●
68	00.303 SPRING; VLV ID=28.5	8-97023-559-0	08	1	9312-9711					●
68	00.303 SPRING; VLV ID=28.5	8-97023-559-0	08	1	9712-					●	●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	9312-9510	●	●	●	●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	9511-		●	●	●
71	00.309 SEAT; SPR (A) OD=32	8-94114-579-0	08	1	9312-9510	●	●	●
71	00.309 SEAT; SPR (A) OD=32	8-94114-579-0	08	1	9511-		●	●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	9312-				●
71	00.309 SEAT; SPR (A) OD=38	8-94385-029-1	08	1	9312-9711					●
71	00.309 SEAT; SPR (A) OD=38	8-94385-029-1	08	1	9712-					●	●	●
71	00.309 SEAT; SPR (B) ID=14.3 OD=40	8-94399-526-0	08	1	9312-9711					●
71	00.309 SEAT; SPR (B) ID=14.3 OD=40	8-94399-526-1	08	1	9712-					●	●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	1-12569-015-0	08	1	9312-9410	●	●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97120-167-0	08	1	9411-9510	●	●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97120-167-0	08	1	9511-		●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 00.283	5-12569-006-0	08	1	9312-9511				●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. EURO2 SPECIFICATION<7AF> 00.283	5-12569-006-0	08	1	9512-9604				●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EURO2 SPECIFICATION<7AF>	8-97120-307-0	08	1	9512-9604				●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97120-307-0	08	1	9605-				●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-94396-609-2	08	1	9312-9711					●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-94396-609-2	08	1	9712-					●	●	●
78	00.333 ARM; ROCKER	1-12611-249-0	08	1	9312-9510	●	●	●
78	00.333 ARM; ROCKER	1-12611-249-0	08	1	9511-		●	●
78	00.333 ARM; ROCKER	8-94152-344-0	08	1	9312-				●
78	00.333 ARM; ROCKER (B) JBK	8-97014-258-1	04	1	9312-9711					●
78	00.333 ARM; ROCKER (B) JBK	8-97014-258-1	04	1	9712-					●	●	●
78	00.333 ARM; ROCKER (A) JBK	8-97074-614-0	04	1	9312-9711					●
78	00.333 ARM; ROCKER (A) JBK	8-97074-614-0	04	1	9712-					●	●	●
78	00.333 ARM; ROCKER (A) KEIHIN SEIMITSU	8-97174-562-0	04	1	9705-9711					●
78	00.333 ARM; ROCKER (A) KEIHIN SEIMITSU	8-97174-562-0	04	1	9712-					●	●	●
78	00.333 ARM; ROCKER (B) KEIHIN SEIMITSU	8-97174-565-0	04	1	9705-9711					●
78	00.333 ARM; ROCKER (B) KEIHIN SEIMITSU	8-97174-565-0	04	1	9712-					●	●	●
81	00.429 SCREW; ADJ,ROCKER ARM	9-12616-042-0	08	1	9312-9510	●	●	●
81	00.429 SCREW; ADJ,ROCKER ARM	9-12616-042-0	08	1	9511-		●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8X30	8-94152-283-1	08	1	9312-				●
81	00.429 SCREW; ADJ,ROCKER ARM	8-94367-526-2	08	1	9312-9704					●
81	00.429 SCREW; ADJ,ROCKER ARM	8-94367-526-2	16	1	9705-9711					●
81	00.429 SCREW; ADJ,ROCKER ARM	8-94367-526-2	16	1	9712-					●	●	●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	9312-9510	●	●	●	●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	9511-		●	●	●
83	00.787 NUT; ADJ SCREW,LK 03.459 M10	9-09111-510-0	08	1	9312-9602					●
83	00.787 NUT; ADJ SCREW,LK 06.822 M10	9-09111-410-0	08	1	9603-9704					●
83	00.787 NUT; ADJ SCREW,LK 06.822 M10	9-09111-410-0	16	1	9705-9711					●
83	00.787 NUT; ADJ SCREW,LK 06.822 M10	9-09111-410-0	16	1	9712-					●	●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER	9-12628-105-0	04	1	9312-9510	●	●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER	9-12628-105-0	04	1	9511-		●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	9312-				●
84	00.349 BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	9312-9711					●
84	00.349 BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	9712-					●	●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER KEIHIN SEIMITSU	8-97174-568-0	03	1	9705-9711					●
84	00.349 BRACKET; ROCKER SHAFT,INTER KEIHIN SEIMITSU	8-97174-568-0	03	1	9712-					●	●	●
85	00.349 BOLT; BRKT M8X65	1-09000-567-0	06	1	9312-9510	●	●	●
85	00.349 BOLT; BRKT M8X65	1-09000-567-0	06	1	9511-		●	●
85	00.349 BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	9312-				●
85	00.349 BOLT; BRKT M10X62 FLANGE	8-94393-131-0	03	1	9312-9711					●
85	00.349 BOLT; BRKT M10X62 FLANGE	8-94393-131-0	03	1	9712-					●	●	●
85	00.349 BOLT; BRKT M10X62 FLANGE	8-97174-650-0	03	1	9705-9711					●
85	00.349 BOLT; BRKT M10X62 FLANGE	8-97174-650-0	03	1	9712-					●	●	●
86	00.349 WASHER; ROCKER ARM FIX 00.373	9-09851-430-0	06	1	9312-9510	●	●	●
86	00.349 WASHER; ROCKER ARM FIX 00.373	9-09851-430-0	06	1	9511-		●	●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	9312-				●
87	00.349 BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	9312-				●
87	00.349 BOLT; ROCKER SHAFT 03.415 M8X35 FLANGE	0-28080-835-0	02	1	9312-9704					●
87	00.349 BOLT; ROCKER SHAFT 03.415 M8X35 FLANGE	0-28080-835-0	04	1	9705-9711					●
87	00.349 BOLT; ROCKER SHAFT 03.415 M8X35 FLANGE	0-28080-835-0	04	1	9712-					●	●	●
88	00.426 ROD; PUSH	1-12575-036-0	08	1	9312-9510	●		●
88	00.426 ROD; PUSH	1-12575-036-0	08	1	9511-			●
88	00.426 ROD; PUSH	8-97071-673-0	08	1	9312-				●
88	00.426 ROD; PUSH	8-94146-132-0	08	1	9312-		●
89	00.459 TAPPET; VLV	8-94366-277-1	08	1	9312-9510	●	●	●
89	00.459 TAPPET; VLV	8-94366-277-1	08	1	9511-		●	●
89	00.459 TAPPET; VLV	8-94438-305-0	08	1	9312-				●
95	00.376 SPRING; ROCKER SHAFT	1-09580-335-0	03	1	9312-9510	●	●	●
95	00.376 SPRING; ROCKER SHAFT	1-09580-335-0	03	1	9511-		●	●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9312-				●
95	00.376 SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	9312-9711					●
95	00.376 SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	9712-					●	●	●
95	00.376 SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	9705-9711					●
95	00.376 SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	9712-					●	●	●
116	00.659 PULLEY; TIMING,INJ PUMP Z=44 B=37.7	8-97043-289-0	01	1	9312-				●
117	00.662 BOLT; FLANGE 00.685 M6X12 W/LK WASHER	0-50040-612-0	04	1	9312-9606				●
117	00.662 BOLT; FLANGE EXC. EURO2 SPECIFICATION<7AF> 00.685 M6X12 W/LK WASHER	0-50040-612-0	04	1	9607-9607				●
117	00.662 BOLT; FLANGE M14X65 FLANGE	8-97113-167-0	01	1	9406-9711					●
117	00.662 BOLT; FLANGE M14X65 FLANGE	8-97113-167-0	01	1	9712-					●	●	●
118	00.662 FLANGE; INJ PUMP PULLEY 03.340	5-12539-020-0	01	1	9312-9606				●
118	00.662 FLANGE; INJ PUMP PULLEY EXC. EURO2 SPECIFICATION<7AF> 03.340	5-12539-020-0	01	1	9607-9607				●
119	00.662 NUT; PULLEY 03.340 M14	8-94226-565-0	01	1	9312-				●
120	00.662 WASHER; LK,PULLEY,INJ PUMP 03.340	8-94226-554-0	01	1	9312-				●
121	00.724 BOLT; IDLE PULLEY M12X57 FLANGE	8-94433-408-1	01	1	9312-				●
123	00.724 PULLEY; IDLE,TIMING	8-94382-215-1	01	1	9312-				●
124	00.659 PULLEY; TIMING,CR/SHF Z=22	8-94133-501-3	01	1	9312-				●
137	00.724 BOLT; TENSIONER M12X57 FLANGE	8-94433-408-1	01	1	9312-				●
138	00.724 TENSIONER; TIMING BELT	8-94382-214-1	01	1	9312-				●
144	00.724 BELT; TIMING BLUE	8-97065-986-0	01	1	9312-9503				●
144	00.724 BELT; TIMING BLUE	8-94380-679-0	01	1	9504-				●
145	00.724 NUT; FLANGE 03.340 M8	8-94224-829-0	01	1	9312-9606				●
145	00.724 NUT; FLANGE 01.540 M8 FLANGE	0-91150-208-0	01	1	9607-				●
146	00.724 WASHER; PL,TENSION LEVER 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	9312-				●
147	00.724 BOLT; TENSION LEVER 02.559 M6X20 W/LK&PL WASHER	0-50140-620-0	01	1	9312-9605				●
147	00.724 BOLT; TENSION LEVER 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9606-				●
148	00.724 LEVER; TENSION,TIMING BELT	8-94167-317-0	01	1	9312-9605				●
148	00.724 LEVER; TENSION,TIMING BELT	8-97146-370-0	01	1	9606-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
