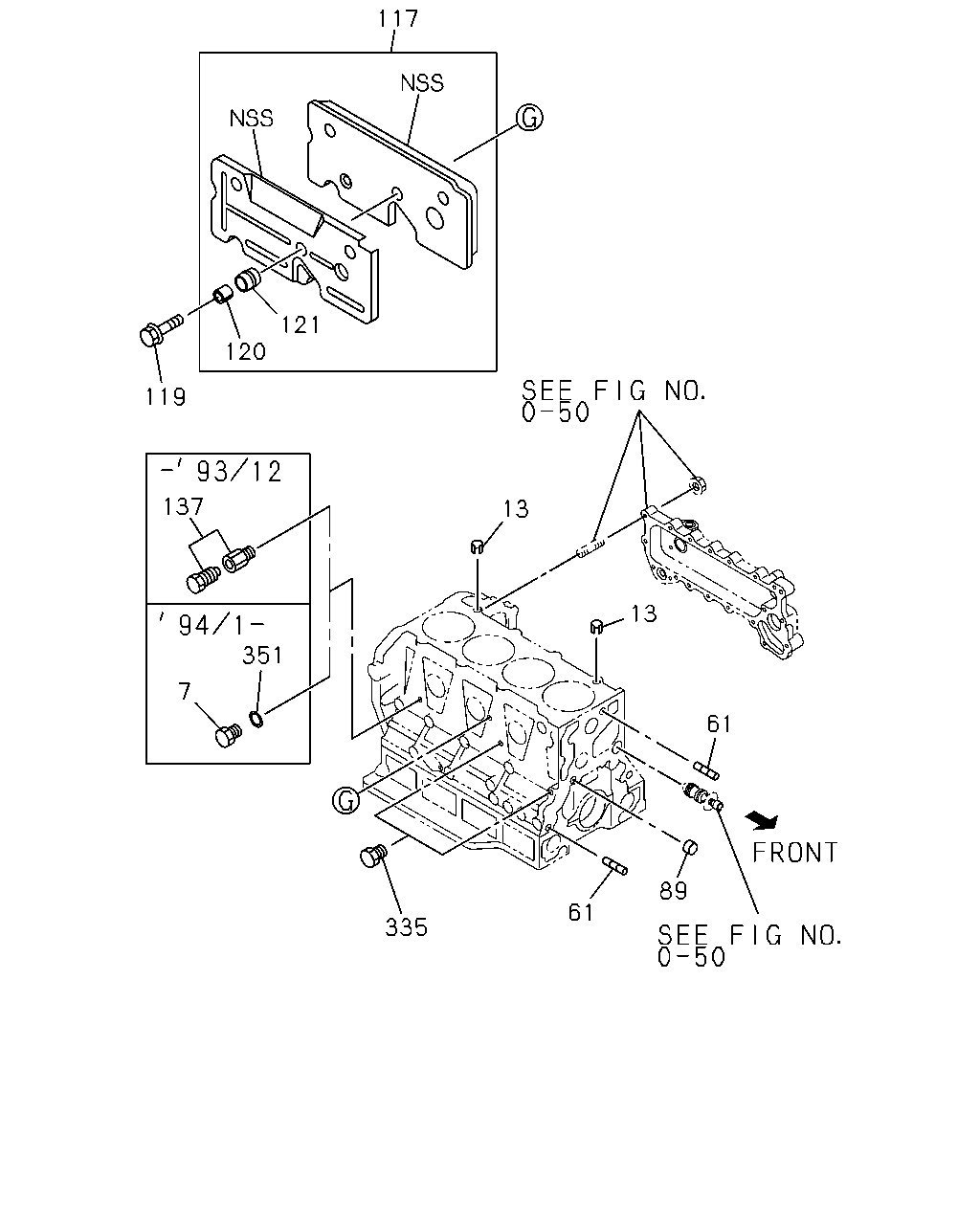

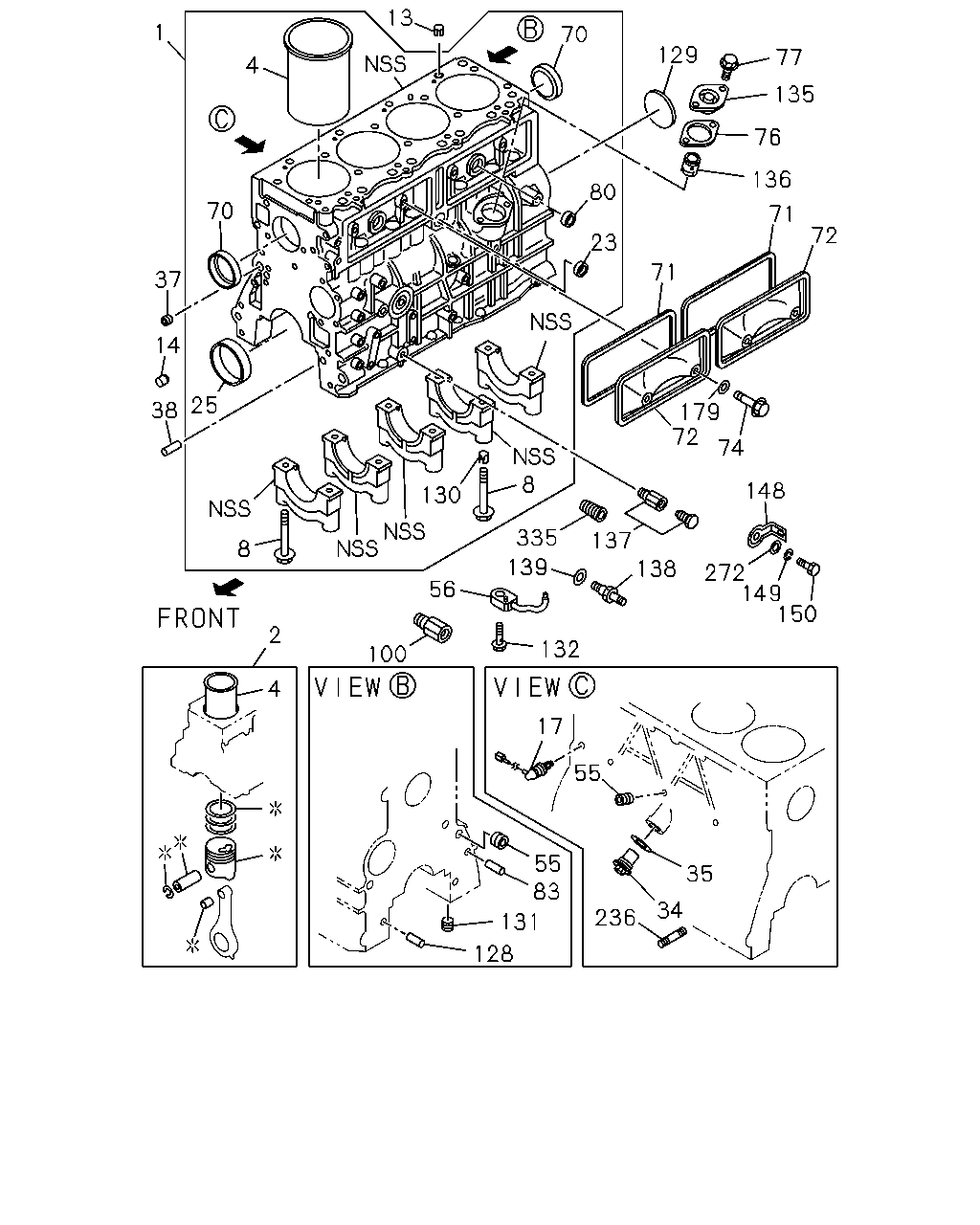

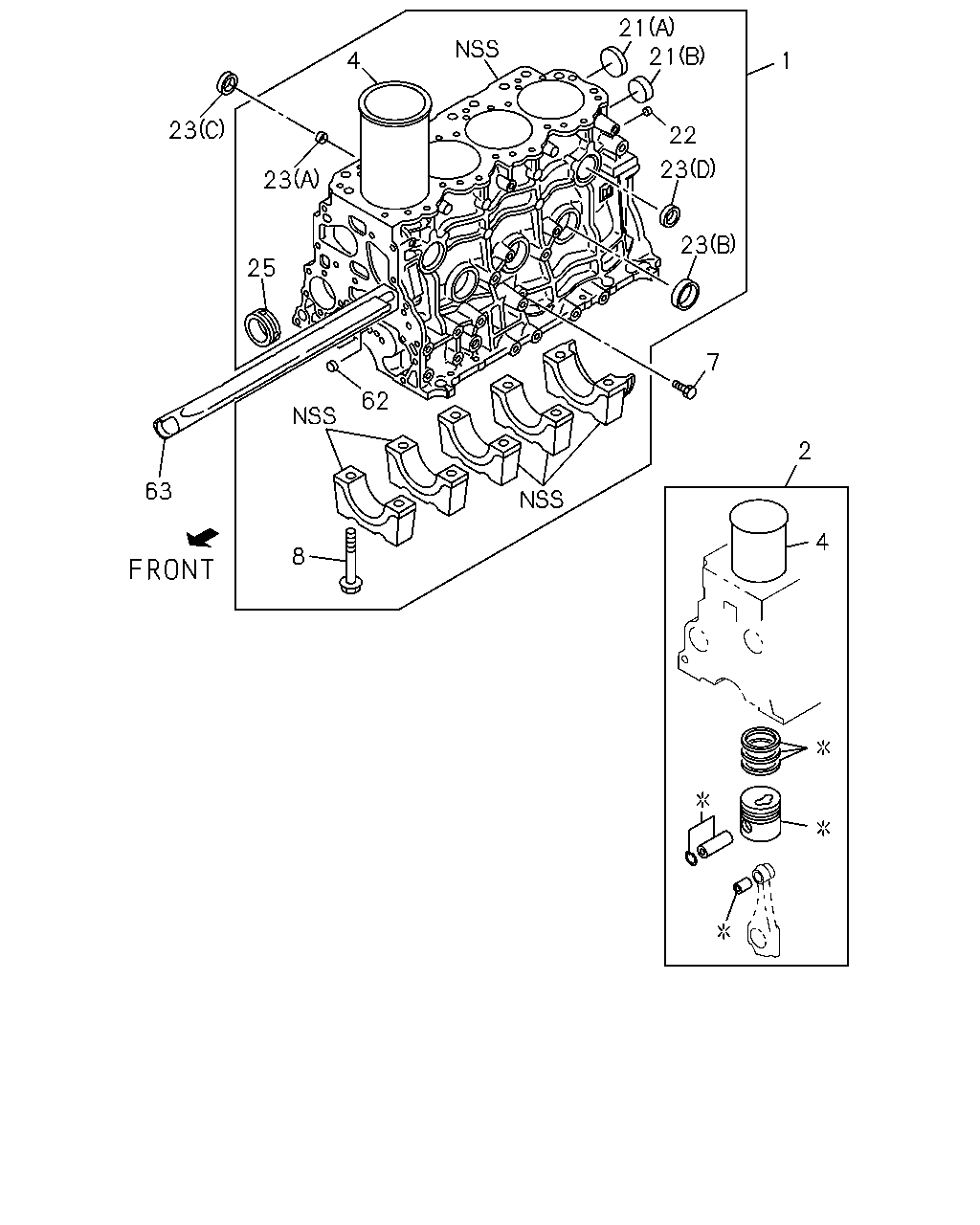

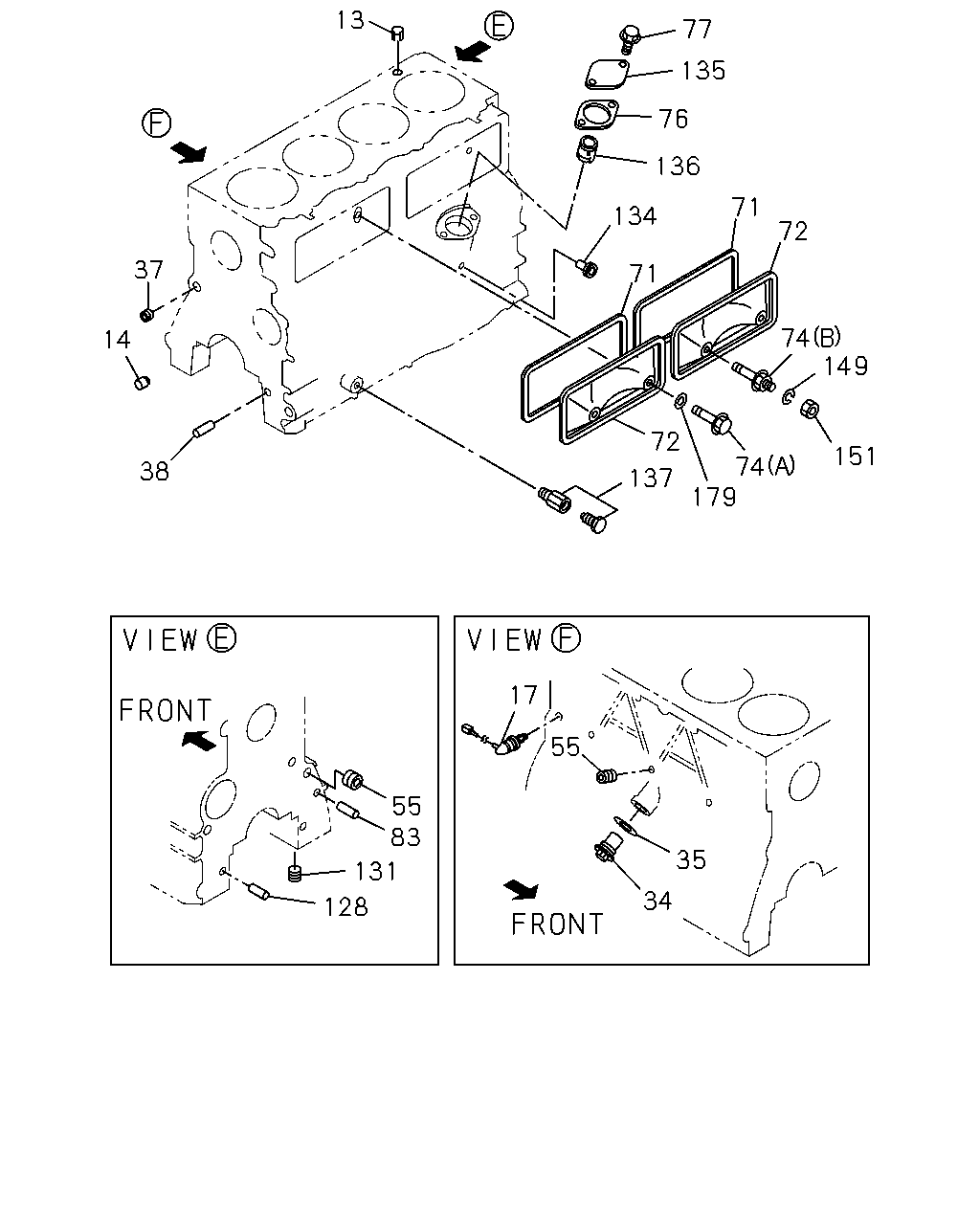

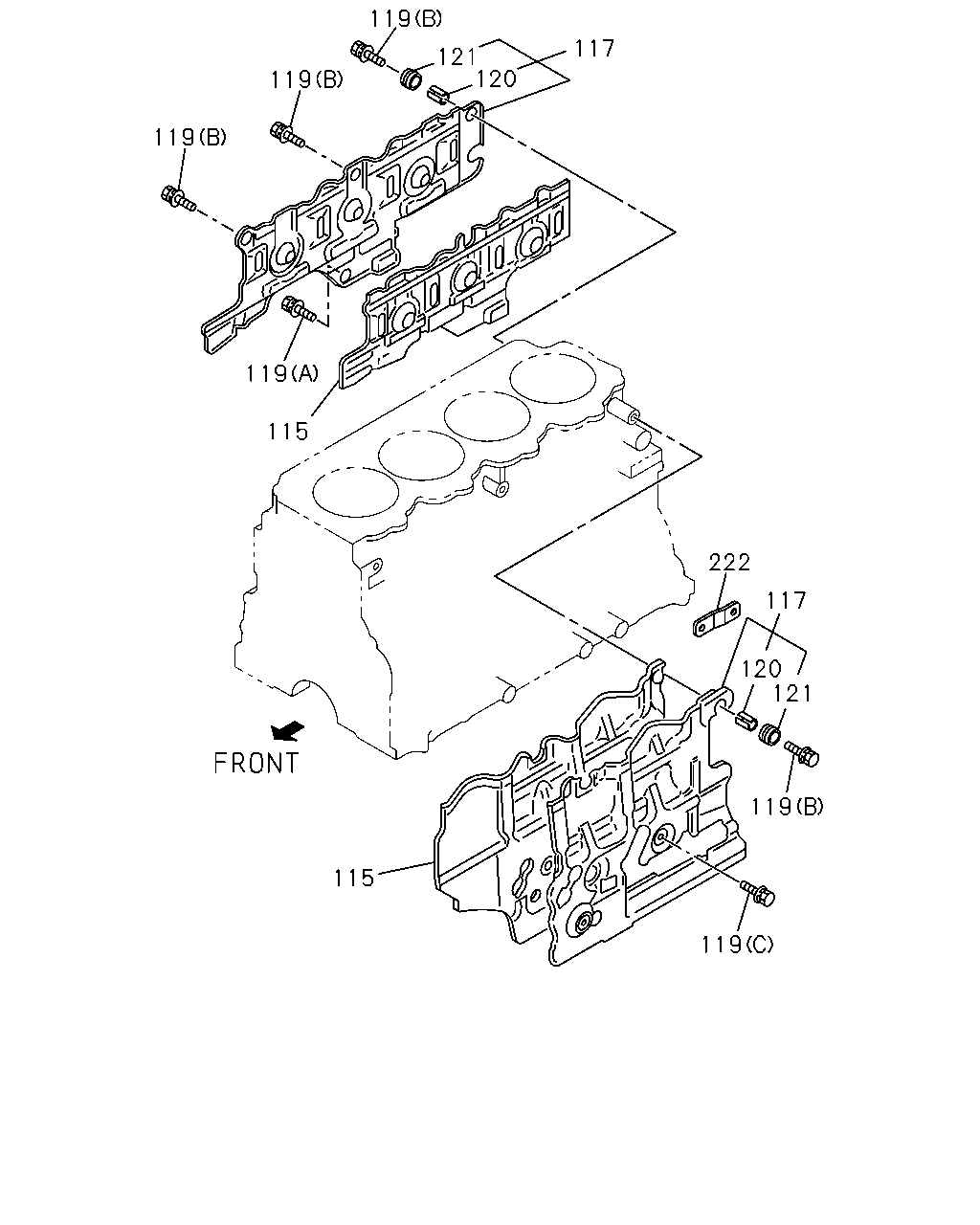

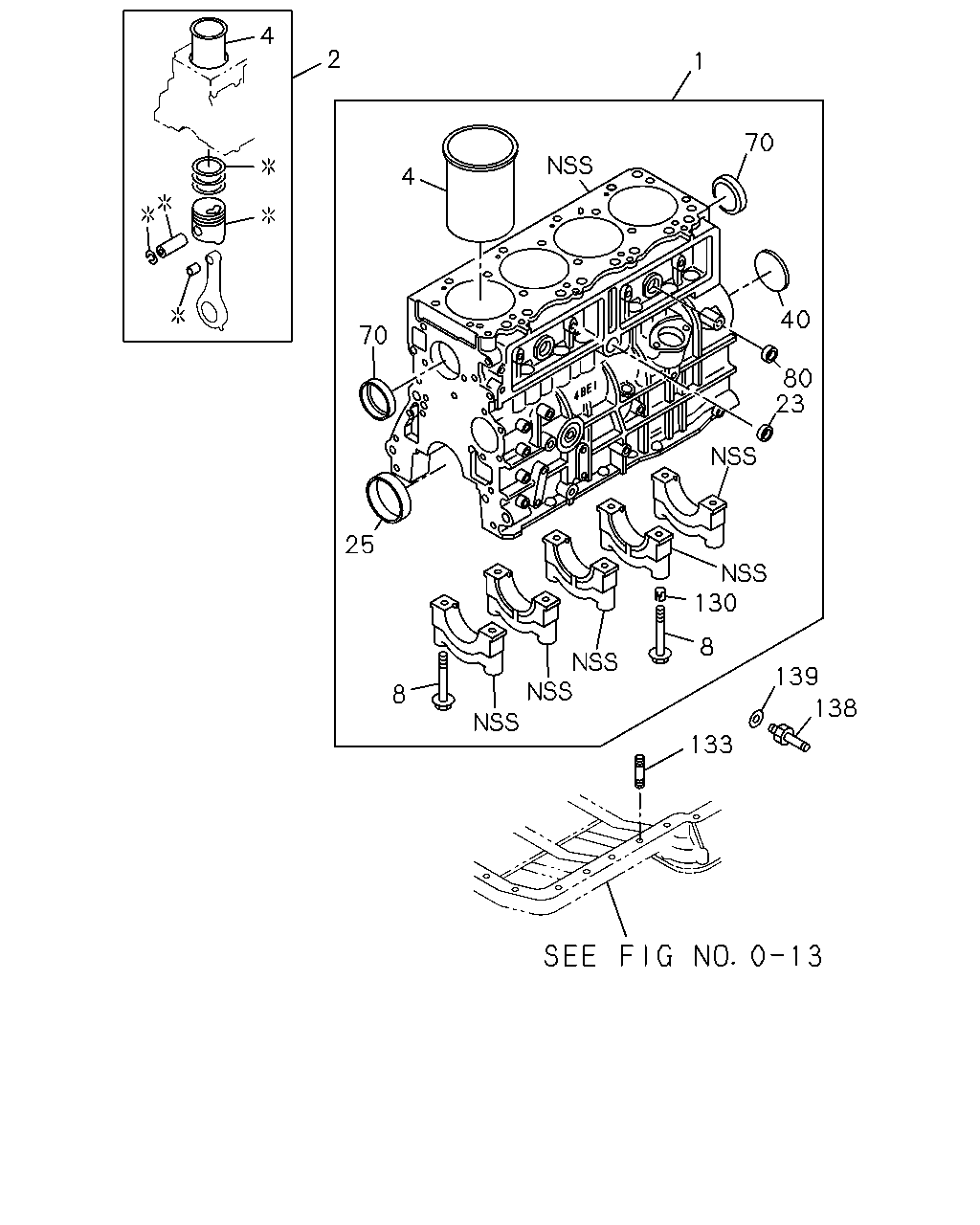

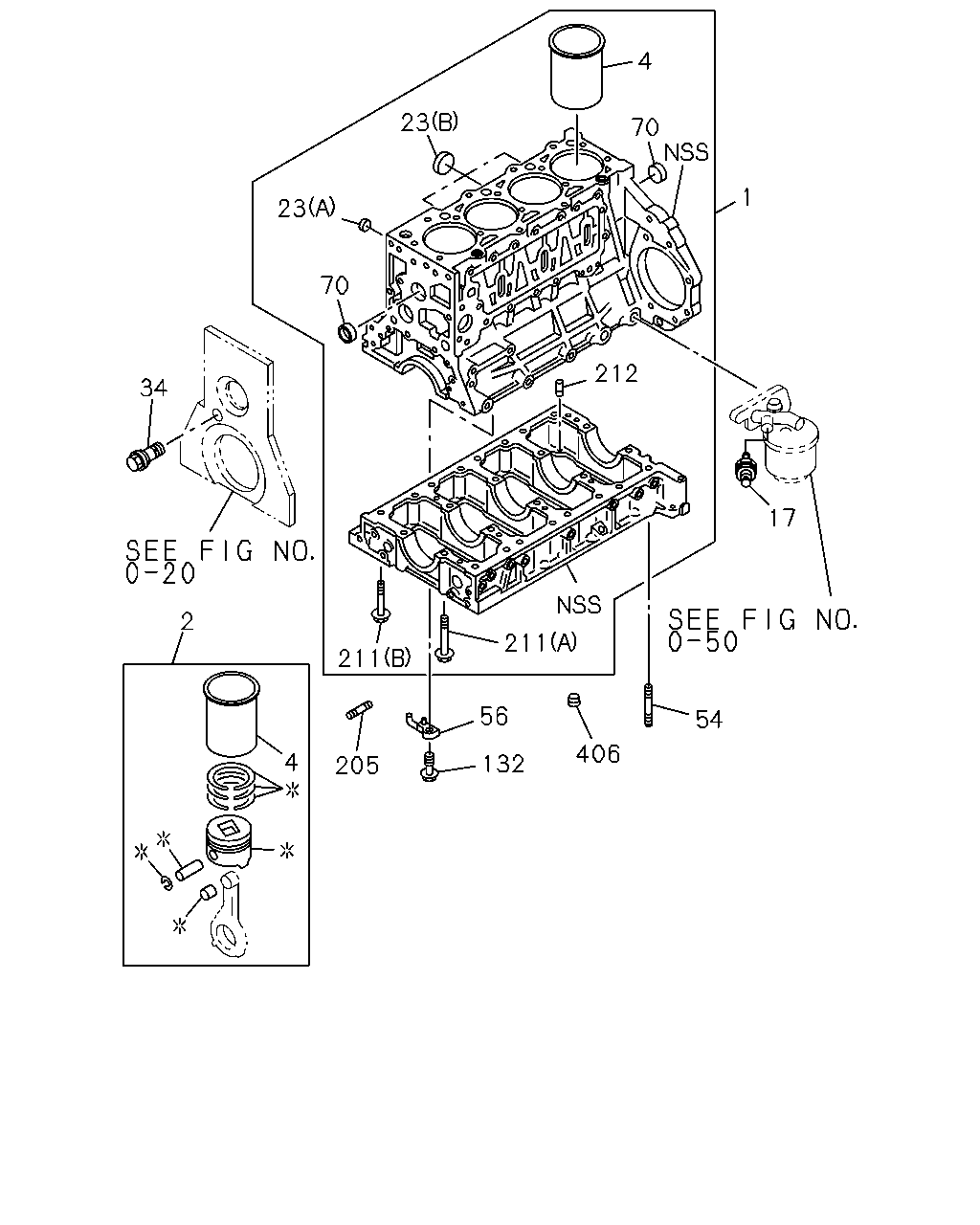

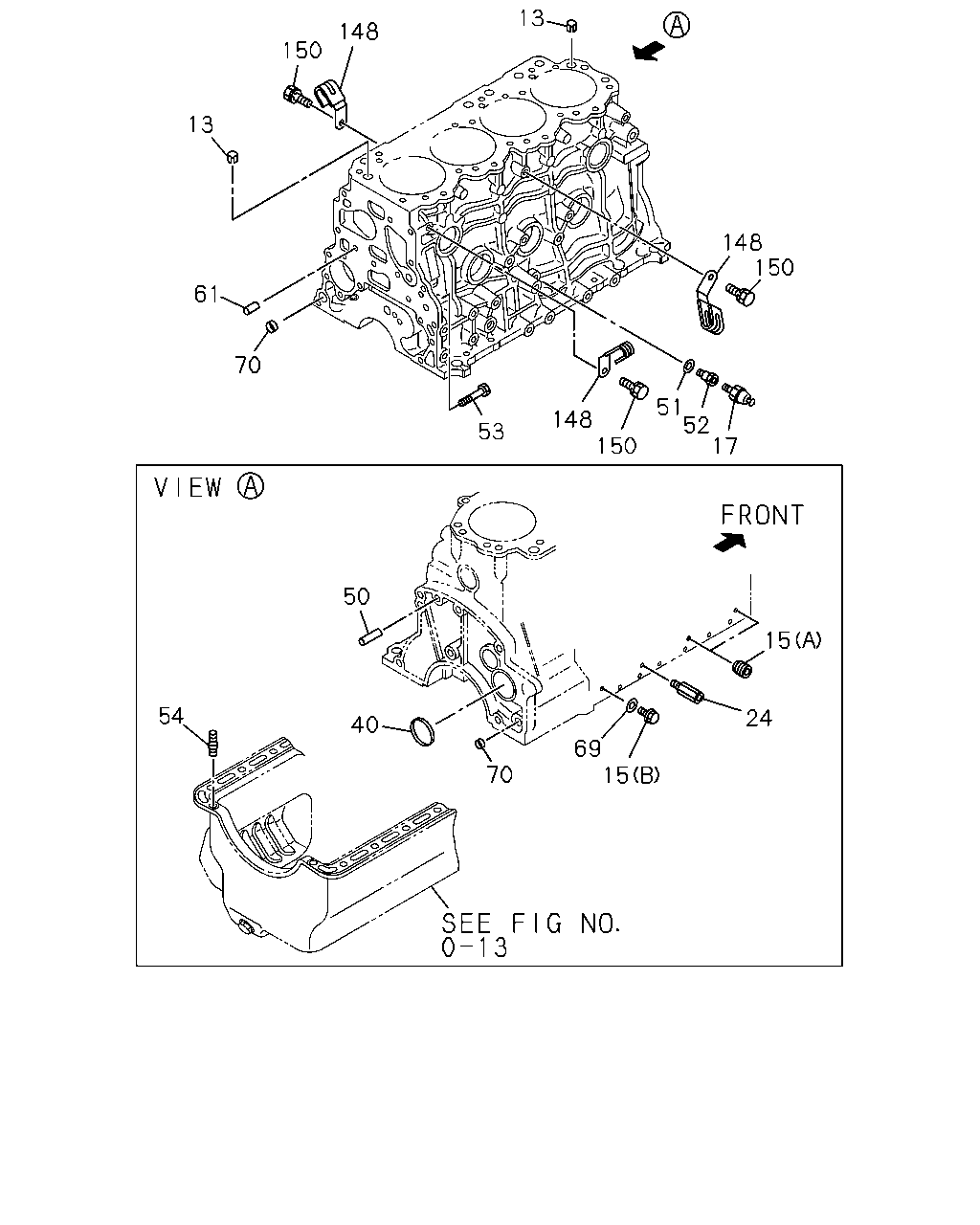

0-12 — CYLINDER BLOCK (#44375) — 847 parça

13 1 70 129 77 4 135 76 136 80 70 71 72 23 71 37 14 25 38 179 72 74 8 148 130 335 137 8 139 138 272 149 150 56 2 132 100 4 17 55 55 83 35 34 236 131 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	00.033 BLOCK ASM; CYL	8-94130-535-5	01	1	9312-9510	●
1	00.033 BLOCK ASM; CYL	8-97043-280-0	01	1	9312-		●
1	00.033 BLOCK ASM; CYL	8-97025-444-1	01	1	9312-			●
1	00.033 BLOCK ASM; CYL	8-97017-152-1	01	1	9312-				●
1	00.033 BLOCK ASM; CYL	8-97092-832-0	01	1	9312-9312					●
1	00.033 BLOCK ASM; CYL	8-97103-761-1	01	1	9401-9410					●
1	00.033 BLOCK ASM; CYL	8-97119-775-0	01	1	9411-9510					●
1	00.033 BLOCK ASM; CYL	8-97074-833-6	01	1	9511-9604					●
1	00.033 BLOCK ASM; CYL	8-97146-438-5	01	1	9605-9711					●
1	00.033 BLOCK ASM; CYL	8-97163-853-2	01	1	9712-					●
1	00.033 BLOCK ASM; CYL	8-97148-885-1	01	1	9712-						●
1	00.033 BLOCK ASM; CYL	8-97191-846-2	01	1	9712-							●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1	5-87813-342-0	04	1	9312-9510	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=2	5-87813-343-0	04	1	9312-9510	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3	5-87813-344-0	04	1	9312-9510	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=4	5-87813-345-0	04	1	9312-9510	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1	5-87813-205-0	04	1	9312-9511		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=2	5-87813-206-0	04	1	9312-9511		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3	5-87813-207-0	04	1	9312-9511		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=4	5-87813-208-0	04	1	9312-9511		●
2	00.030 LINER SET; ENG CYL EURO2 SPECIFICATION<7AF> 00.094 GRADE=1	5-87813-209-0	04	1	9512-9711		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1	5-87813-209-0	04	1	9712-		●
2	00.030 LINER SET; ENG CYL EURO2 SPECIFICATION<7AF> 00.094 GRADE=2	5-87813-210-0	04	1	9512-9711		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=2	5-87813-210-0	04	1	9712-		●
2	00.030 LINER SET; ENG CYL EURO2 SPECIFICATION<7AF> 00.094 GRADE=3	5-87813-211-0	04	1	9512-9711		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3	5-87813-211-0	04	1	9712-		●
2	00.030 LINER SET; ENG CYL EURO2 SPECIFICATION<7AF> 00.094 GRADE=4	5-87813-212-0	04	1	9512-9711		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=4	5-87813-212-0	04	1	9712-		●
2	00.030 LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<7AF> 00.094 GRADE=1	5-87813-205-0	04	1	9512-9711		●
2	00.030 LINER SET; ENG CYL EXC. CHARGE AIR COOLER<6PL> GRADE=1X	5-87813-328-0	04	1	9712-						●
2	00.030 LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<7AF> 00.094 GRADE=2	5-87813-206-0	04	1	9512-9711		●
2	00.030 LINER SET; ENG CYL EXC. CHARGE AIR COOLER<6PL> GRADE=3X	5-87813-329-0	04	1	9712-						●
2	00.030 LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<7AF> 00.094 GRADE=3	5-87813-207-0	04	1	9512-9711		●
2	00.030 LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<7AF> 00.094 GRADE=4	5-87813-208-0	04	1	9512-9711		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1	5-87813-152-0	04	1	9312-			●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=2	5-87813-153-0	04	1	9312-			●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3	5-87813-154-0	04	1	9312-			●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=4	5-87813-155-0	04	1	9312-			●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1	5-87813-160-0	01	1	9312-				●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=2	5-87813-161-0	01	1	9312-				●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3	5-87813-162-0	01	1	9312-				●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=4	5-87813-163-0	01	1	9312-				●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1X	5-87813-332-0	04	1	9312-9502					●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3X	5-87813-333-0	04	1	9312-9502					●
2	00.030 LINER SET; ENG CYL HONG KONG EQUIPMENT(PQ1) 00.094 GRADE=1X	5-87813-334-0	04	1	9503-9510					●
2	00.030 LINER SET; ENG CYL HONG KONG EQUIPMENT(PQ1) 00.094 GRADE=3X	5-87813-335-0	04	1	9503-9510					●
2	00.030 LINER SET; ENG CYL EXC. HONG KONG EQUIPMENT(PQ1) 00.094 GRADE=1X	5-87813-332-0	04	1	9503-9510					●
2	00.030 LINER SET; ENG CYL EXC. HONG KONG EQUIPMENT(PQ1) 00.094 GRADE=3X	5-87813-333-0	04	1	9503-9510					●
2	00.030 LINER SET; ENG CYL GRADE=1X	5-87813-336-0	04	1	9511-9704					●
2	00.030 LINER SET; ENG CYL GRADE=1X	5-87813-390-0	04	1	9705-9711					●
2	00.030 LINER SET; ENG CYL GRADE=3X	5-87813-337-0	04	1	9511-9704					●
2	00.030 LINER SET; ENG CYL GRADE=3X	5-87813-391-0	04	1	9705-9711					●
2	00.030 LINER SET; ENG CYL GRADE=1X	5-87813-390-0	04	1	9712-					●
2	00.030 LINER SET; ENG CYL GRADE=3X	5-87813-391-0	04	1	9712-					●
2	00.030 LINER SET; ENG CYL CHARGE AIR COOLER<6PL> GRADE=1	5-87813-409-0	04	1	9712-9809						●
2	00.030 LINER SET; ENG CYL CHARGE AIR COOLER<6PL> GRADE=3X	5-87813-410-0	04	1	9712-9809						●
2	00.030 LINER SET; ENG CYL GRADE=1X	5-87813-392-0	04	1	9712-							●
2	00.030 LINER SET; ENG CYL GRADE=3X	5-87813-393-0	04	1	9712-							●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	1-11261-240-0	04	1	9312-9510	●		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	1-11261-241-0	04	1	9312-9510	●		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	1-11261-242-0	04	1	9312-9510	●		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	1-11261-243-0	04	1	9312-9510	●		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	1-11261-244-0	04	1	9312-9510	●		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	1-11261-245-0	04	1	9312-9510	●		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	1-11261-246-0	04	1	9312-9510	●		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	1-11261-247-0	04	1	9312-9510	●		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-699-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-700-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-701-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-702-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-703-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-704-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-705-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-706-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	1-11261-240-0	04	1	9511-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	1-11261-241-0	04	1	9511-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	1-11261-242-0	04	1	9511-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	1-11261-243-0	04	1	9511-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	1-11261-244-0	04	1	9511-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	1-11261-245-0	04	1	9511-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	1-11261-246-0	04	1	9511-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	1-11261-247-0	04	1	9511-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-715-0	04	1	9312-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-716-0	04	1	9312-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-717-0	04	1	9312-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-718-0	04	1	9312-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-719-0	04	1	9312-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-720-0	04	1	9312-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-721-0	04	1	9312-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-722-0	04	1	9312-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-97176-727-0	04	1	9312-					●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-97176-728-0	04	1	9312-					●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	8-97176-723-0	04	1	9712-						●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	8-97176-724-0	04	1	9712-						●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	8-97176-725-0	04	1	9712-						●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	8-97176-726-0	04	1	9712-						●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-97176-729-0	04	1	9712-							●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-97176-730-0	04	1	9712-							●
8	00.056 BOLT; BRG CAP M16X119	1-09000-469-1	10	1	9312-9510	●		●	●
8	00.056 BOLT; BRG CAP M16X119	1-09000-469-1	10	1	9511-			●	●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	9312-		●
13	00.293 DOWEL; C/BL TO HD OD=16	8-94148-079-0	02	1	9312-9510	●		●	●
13	00.293 DOWEL; C/BL TO HD OD=16	8-94148-079-0	02	1	9511-			●	●
13	00.293 DOWEL; C/BL TO HD	8-94453-344-0	02	1	9312-		●
13	00.293 DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	9312-9711					●
13	00.293 DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	9712-					●	●	●
14	00.206 DOWEL; TIMING GEAR CASE TO C/BL OD=11 L=8	9-11229-058-1	01	1	9312-9510	●		●	●
14	00.206 DOWEL; TIMING GEAR CASE TO C/BL OD=11 L=8	9-11229-058-1	01	1	9511-			●	●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9312-9406	●	●	●		●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9407-9502	●	●	●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9503-9510	●	●	●		●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9511-9711		●	●		●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9712-		●	●
17	01.800 SWITCH; OIL PRESSURE	8-97078-086-0	01	1	9312-				●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9407-9502					●
17	01.800 SWITCH; OIL PRESSURE	8-97176-230-0	01	1	9712-					●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR OD=28	5-11219-014-0	01	1	9312-9510	●		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR OD=28	5-11219-014-0	01	1	9511-			●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (A) OD=18	5-11219-008-0	03	1	9312-		●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	02	1	9312-		●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	03	1	9312-		●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=45	1-09600-005-1	03	1	9312-9406		●			●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=45	1-09600-005-1	03	1	9407-9502		●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=45	1-09600-005-1	03	1	9503-9711		●			●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=45	1-09600-005-1	03	1	9712-		●			●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.293 (A) OD=25	1-09600-016-0	01	1	9312-9711					●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.293 (A) OD=25	1-09600-016-0	01	1	9712-					●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=45	1-09600-005-1	03	1	9407-9502					●
25	00.539 METAL; CM/SHF FRONT	9-11691-048-0	01	1	9312-9510	●		●	●
25	00.539 METAL; CM/SHF FRONT	9-11691-048-0	01	1	9511-			●	●
25	00.539 METAL; CM/SHF CENTER & REAR	9-11693-035-0	02	1	9312-9510	●		●	●
25	00.539 METAL; CM/SHF CENTER & REAR	9-11693-035-0	02	1	9511-			●	●
25	00.539 METAL; CM/SHF CENTER & REAR	8-94427-201-2	02	1	9312-		●
25	00.539 METAL; CM/SHF FRONT	8-94427-206-2	01	1	9312-		●
34	01.609 VALVE; OIL RELIEF	8-97023-339-0	01	1	9312-9510	●		●	●
34	01.609 VALVE; OIL RELIEF	8-97023-339-0	01	1	9511-			●	●
34	01.609 VALVE; OIL RELIEF	8-94386-047-1	01	1	9312-9711					●
34	01.609 VALVE; OIL RELIEF	8-94386-047-1	01	1	9712-					●	●	●
35	01.609 GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	9312-9510	●		●	●
35	01.609 GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	9511-			●	●
37	01.531 PLUG; OIL GALLERY	8-97025-440-0	02	1	9312-9510	●		●	●
37	01.531 PLUG; OIL GALLERY	8-97025-440-0	02	1	9511-			●	●
38	00.206 PIN; TIMING GEAR CASE OD=10 L=50	9-08151-050-0	01	1	9312-9510	●		●	●
38	00.206 PIN; TIMING GEAR CASE OD=10 L=50	9-08151-050-0	01	1	9511-			●	●
55	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	07	1	9312-9510	●		●
55	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	07	1	9511-			●
55	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	06	1	9312-				●
56	01.519 JET; OIL,PISTON COOLING	8-94319-699-0	04	1	9312-9510	●
56	01.519 JET; OIL,PISTON COOLING	8-97025-462-1	04	1	9312-			●
56	01.519 JET; OIL,PISTON COOLING	8-94370-579-0	04	1	9312-9711					●
56	01.519 JET; OIL,PISTON COOLING	8-94370-579-0	04	1	9712-					●		●
56	01.519 JET; OIL,PISTON COOLING	8-94399-166-0	04	1	9712-						●
70	00.034 CUP; SEALING,FRT & RR OD=60	1-09600-052-0	02	1	9312-9510	●		●	●
70	00.034 CUP; SEALING,FRT & RR OD=60	1-09600-052-0	02	1	9511-			●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	9312-		●
70	00.034 CUP; SEALING,FRT & RR OD=40	8-94399-639-0	04	1	9312-9711					●
70	00.034 CUP; SEALING,FRT & RR OD=40	8-94399-639-0	04	1	9712-					●	●	●
70	00.034 CUP; SEALING,FRT & RR 00.293 OD=25	1-09600-016-0	01	1	9712-						●
71	00.443 GASKET; COVER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94367-368-1	02	1	9312-9510	●		●	●
71	00.443 GASKET; COVER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94367-368-1	02	1	9511-			●	●
72	00.439 COVER; TAPPET CHAMBER	8-97028-525-0	02	1	9312-9510	●		●	●
72	00.439 COVER; TAPPET CHAMBER	8-97028-525-0	02	1	9511-			●	●
74	00.443 BOLT; COVER TO C/BL M8X56 FLANGE	8-94367-530-1	04	1	9312-9510	●		●
74	00.443 BOLT; COVER TO C/BL M8X56 FLANGE	8-94367-530-1	04	1	9511-			●
74	00.443 BOLT; COVER TO C/BL (A) M8X56 FLANGE	8-94367-530-1	03	1	9312-				●
74	00.443 BOLT; COVER TO C/BL (B) M8X56	8-94367-531-1	01	1	9312-				●
76	01.724 GASKET; COVER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 01.531	9-09565-348-0	01	1	9312-9510	●		●
76	01.724 GASKET; COVER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 01.531	9-09565-348-0	01	1	9511-			●
76	01.724 GASKET; COVER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-668-0	01	1	9312-				●
77	01.653 BOLT; COVER TO C/BL 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	9312-9510	●		●
77	01.653 BOLT; COVER TO C/BL 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	9511-			●
77	01.653 BOLT; COVER TO C/BL 04.785 M8X18 W/LK WASHER	0-50040-818-0	02	1	9312-				●
80	00.034 CUP; SEALING,TAPPET CHAMBER OD=32	1-09600-012-1	02	1	9312-9510	●		●	●
80	00.034 CUP; SEALING,TAPPET CHAMBER OD=32	1-09600-012-1	02	1	9511-			●	●
83	00.685 PIN; FLYWHEEL HSG 08.939 OD=10 L=18	9-08151-018-0	02	1	9312-9510	●		●	●
83	00.685 PIN; FLYWHEEL HSG 08.939 OD=10 L=18	9-08151-018-0	02	1	9511-			●	●
100	01.800 ADAPTER; OIL FEED PIPE	8-94436-891-0	01	1	9312-9406	●		●
128	00.056 PIN; STRAIGHT,OIL SEAL RET 08.939 OD=8 L=16	9-08150-816-0	02	1	9312-9510	●		●	●
128	00.056 PIN; STRAIGHT,OIL SEAL RET 08.939 OD=8 L=16	9-08150-816-0	02	1	9511-			●	●
129	00.553 PLUG; PLATE,C/BL OD=67	9-09860-019-0	01	1	9312-9510	●		●
129	00.553 PLUG; PLATE,C/BL OD=67	9-09860-019-0	01	1	9511-			●
130	00.056 DOWEL; BRG CAP	5-11257-001-1	01	1	9312-9510	●		●	●
130	00.056 DOWEL; BRG CAP	5-11257-001-1	01	1	9511-			●	●
131	00.034 PLUG; TAPER,C/BL PT3/8	9-99205-517-0	01	1	9312-9510	●		●	●
131	00.034 PLUG; TAPER,C/BL PT3/8	9-99205-517-0	01	1	9511-			●	●
132	01.519 VALVE; CHECK,OIL M10X18.5	1-13161-012-0	04	1	9312-9406	●		●		●
132	01.519 VALVE; CHECK,OIL M10X18.5	1-13161-012-0	04	1	9407-9502	●		●
132	01.519 VALVE; CHECK,OIL M10X18.5	1-13161-012-0	04	1	9503-9510	●		●		●
132	01.519 VALVE; CHECK,OIL M10X18.5	1-13161-012-0	04	1	9511-9711			●		●
132	01.519 VALVE; CHECK,OIL M10X18.5	1-13161-012-0	04	1	9712-			●		●	●	●
132	01.519 VALVE; CHECK,OIL M10X18.5	1-13161-012-0	04	1	9407-9502					●
135	01.723 COVER; OIL PUMP	1-11219-129-1	01	1	9312-9510	●		●
135	01.723 COVER; OIL PUMP	1-11219-129-1	01	1	9511-			●
135	01.723 COVER; OIL PUMP	8-94254-920-0	01	1	9312-				●
136	01.639 BUSHING; DRIVE SHAFT,OIL PUMP	9-11224-602-1	01	1	9312-9510	●		●
136	01.639 BUSHING; DRIVE SHAFT,OIL PUMP	9-11224-602-1	01	1	9511-			●
136	01.639 BUSHING; DRIVE SHAFT,OIL PUMP	8-94105-115-1	01	1	9312-				●
137	00.034 COCK; DRAIN,WATER	1-09680-025-0	01	1	9312-9312	●		●	●	●
137	00.034 COCK; DRAIN,WATER	1-09680-025-0	01	1	9401-9510	●		●	●
137	00.034 COCK; DRAIN,WATER	1-09680-025-0	01	1	9511-			●	●
138	01.531 NIPPLE; OIL RETURN,VAC PUMP 03.280	5-09744-015-2	01	1	9312-9510	●		●	●
138	01.531 NIPPLE; OIL RETURN,VAC PUMP 03.280	5-09744-015-2	01	1	9511-			●	●
139	03.280 GASKET; NIPPLE,VAC PUMP OIL RETU 08.929 ID=14.2 OD=20.0	9-09571-614-0	01	1	9312-9510	●		●	●
139	03.280 GASKET; NIPPLE,VAC PUMP OIL RETU 08.929 ID=14.2 OD=20.0	9-09571-614-0	01	1	9511-			●	●
148	02.313 CLIP; HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9407-		●
148	02.313 CLIP; HARNESS	8-94171-825-0	01	1	9606-			●
149	01.540 WASHER; LK,CLIP,HARNESS 00.002 ID=10.2	9-09150-510-0	01	1	9312-9510	●
149	01.540 WASHER; LK,CLIP,HARNESS 00.002 ID=10.2	9-09150-510-0	01	1	9606-			●
149	01.540 WASHER; LK,CLIP,HARNESS 00.002 ID=8.2	9-09150-508-0	01	1	9312-				●
150	02.313 BOLT; CLIP 08.900 M8X12 FLANGE	0-28080-812-0	03	1	9407-		●
150	02.313 BOLT; CLIP 04.642 M10X16	0-20801-016-0	01	1	9606-			●
179	03.278 GASKET; COVER TO BOLT ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=8.2 OD=17	9-09572-008-0	04	1	9312-9510	●		●	●
179	03.278 GASKET; COVER TO BOLT ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=8.2 OD=17	9-09572-008-0	04	1	9511-			●	●
236	00.029 STUD; ENG FOOT M10X18 L=33	5-09300-029-0	01	1	9312-9510	●		●
236	00.029 STUD; ENG FOOT M10X18 L=33	5-09300-029-0	01	1	9511-			●
272	01.540 WASHER 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	9312-9510	●
272	01.540 WASHER 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	9606-			●
335	01.531 PLUG; C/BL,SIDE 00.034 NPTF1-11 1/2	1-09605-065-1	01	1	9312-			●
335	01.531 PLUG; C/BL,SIDE M14X16.5	8-97018-606-0	04	1	9312-9312					●
335	01.531 PLUG; C/BL,SIDE M14X16.5	8-97018-606-0	02	1	9401-9612					●
335	01.531 PLUG; C/BL,SIDE M14X16.5	8-97018-606-0	01	1	9612-9711					●
335	01.531 PLUG; C/BL,SIDE M14X16.5	8-97018-606-0	01	1	9712-					●		●
335	01.531 PLUG; C/BL,SIDE EAST MALAYSIA EQUIPMENT(PM6), THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP),INDONESIA EQUIPMENT(S4S) M14X16.5	8-97018-606-0	01	1	9312-9312					●
335	01.531 PLUG; C/BL,SIDE M14X16.5	8-97018-606-0	02	1	9712-						●

13 148 150 13 148 150 61 70 51 52 17 148 150 53 50 15 54 24 40 69 15 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
13	00.293 DOWEL; C/BL TO HD OD=16	8-94148-079-0	02	1	9312-9510	●		●	●
13	00.293 DOWEL; C/BL TO HD OD=16	8-94148-079-0	02	1	9511-			●	●
13	00.293 DOWEL; C/BL TO HD	8-94453-344-0	02	1	9312-		●
13	00.293 DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	9312-9711					●
13	00.293 DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	9712-					●	●	●
15	01.531 PLUG; OIL GALLERY (A) PT1/8	1-09605-050-0	02	1	9312-		●
15	01.531 PLUG; OIL GALLERY 03.001 (B) M14X14	8-94152-613-0	01	1	9312-		●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9312-9406	●	●	●		●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9407-9502	●	●	●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9503-9510	●	●	●		●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9511-9711		●	●		●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9712-		●	●
17	01.800 SWITCH; OIL PRESSURE	8-97078-086-0	01	1	9312-				●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9407-9502					●
17	01.800 SWITCH; OIL PRESSURE	8-97176-230-0	01	1	9712-					●	●	●
24	01.531 NIPPLE; OIL FEED,VAC PUMP	8-94443-670-1	01	1	9312-		●
40	00.034 CUP; SEALING,C/BL RR 00.253 OD=56	8-94250-514-0	01	1	9312-		●
40	00.034 CUP; SEALING,C/BL RR OD=67	8-94344-462-0	01	1	9312-				●
50	00.685 PIN; STRAIGHT,RR PLATE 08.939 OD=10 L=32	9-08161-032-0	01	1	9312-		●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	9312-		●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-749-1	01	1	9312-9602		●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B EURO2 SPECIFICATION<7AF>	8-94167-750-2	01	1	9603-9711		●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-750-2	01	1	9712-		●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B EXC. EURO2 SPECIFICATION<7AF>	8-94167-749-1	01	1	9610-9711		●
53	00.862 BOLT; REAMER 00.683 M10X52	9-09806-020-0	01	1	9312-		●
54	01.428 STUD; OIL PAN TO BLOCK	8-94133-974-2	10	1	9312-9403		●
54	01.428 STUD; OIL PAN TO BLOCK	8-94133-974-2	08	1	9404-9410		●
54	01.428 STUD; OIL PAN TO BLOCK	8-94133-974-2	10	1	9411-		●
54	01.428 STUD; OIL PAN TO BLOCK AUSTRALIA EQUIPMENT(RR3) M8X41.5	5-11369-101-0	07	1	9312-				●
54	01.428 STUD; OIL PAN TO BLOCK M8X20 L=38	8-97021-431-0	03	1	9312-9510					●
54	01.428 STUD; OIL PAN TO BLOCK M8X20 L=32	9-04110-820-0	04	1	9405-9604					●
54	01.428 STUD; OIL PAN TO BLOCK EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) M8X20 L=38	8-97021-431-0	03	1	9712-						●
61	00.206 PIN; STRAIGHT 00.669 OD=10 L=20	9-08151-020-0	02	1	9312-		●
61	00.206 PIN; STRAIGHT L=22	8-94483-674-0	04	1	9312-9604					●
61	00.206 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	04	1	9605-9606					●
61	00.206 PIN; STRAIGHT L=22	8-94483-674-0	04	1	9606-9711					●
61	00.206 PIN; STRAIGHT L=22	8-94483-674-0	04	1	9712-					●	●	●
69	01.531 GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9312-		●
70	00.034 CUP; SEALING,FRT & RR OD=60	1-09600-052-0	02	1	9312-9510	●		●	●
70	00.034 CUP; SEALING,FRT & RR OD=60	1-09600-052-0	02	1	9511-			●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	9312-		●
70	00.034 CUP; SEALING,FRT & RR OD=40	8-94399-639-0	04	1	9312-9711					●
70	00.034 CUP; SEALING,FRT & RR OD=40	8-94399-639-0	04	1	9712-					●	●	●
70	00.034 CUP; SEALING,FRT & RR 00.293 OD=25	1-09600-016-0	01	1	9712-						●
148	02.313 CLIP; HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9407-		●
148	02.313 CLIP; HARNESS	8-94171-825-0	01	1	9606-			●
150	02.313 BOLT; CLIP 08.900 M8X12 FLANGE	0-28080-812-0	03	1	9407-		●
150	02.313 BOLT; CLIP 04.642 M10X16	0-20801-016-0	01	1	9606-			●

117 121 120 119 137 13 13 351 7 61 89 61 335

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	9503-		●
7	00.034 PLUG; WATER DRAIN 04.105 M10X7	9-09861-010-0	01	1	9401-9711					●
7	00.034 PLUG; WATER DRAIN 04.105 M10X7	9-09861-010-0	01	1	9712-					●	●	●
13	00.293 DOWEL; C/BL TO HD OD=16	8-94148-079-0	02	1	9312-9510	●		●	●
13	00.293 DOWEL; C/BL TO HD OD=16	8-94148-079-0	02	1	9511-			●	●
13	00.293 DOWEL; C/BL TO HD	8-94453-344-0	02	1	9312-		●
13	00.293 DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	9312-9711					●
13	00.293 DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	9712-					●	●	●
61	00.206 PIN; STRAIGHT 00.669 OD=10 L=20	9-08151-020-0	02	1	9312-		●
61	00.206 PIN; STRAIGHT L=22	8-94483-674-0	04	1	9312-9604					●
61	00.206 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	04	1	9605-9606					●
61	00.206 PIN; STRAIGHT L=22	8-94483-674-0	04	1	9606-9711					●
61	00.206 PIN; STRAIGHT L=22	8-94483-674-0	04	1	9712-					●	●	●
89	00.034 CUP; SEALING,OIL GALLERY 03.265 OD=20	9-11219-192-0	03	1	9312-9711					●
89	00.034 CUP; SEALING,OIL GALLERY 03.265 OD=20	9-11219-192-0	03	1	9712-					●	●	●
117	00.030 COVER ASM; C/BL EURO2 SPECIFICATION<7AF>	8-97141-686-0	01	1	9610-9711		●
117	00.030 COVER ASM; C/BL	8-97141-686-0	01	1	9712-		●
117	00.030 COVER ASM; C/BL EURO2 SPECIFICATION<7AF>	8-97141-685-1	01	1	9610-9711		●
117	00.030 COVER ASM; C/BL	8-97141-685-1	01	1	9712-		●
117	00.030 COVER ASM; C/BL	8-97075-841-3	01	1	9312-9408					●
117	00.030 COVER ASM; C/BL	8-97118-347-0	01	1	9409-9510					●
117	00.030 COVER ASM; C/BL	8-97118-347-0	01	1	9712-						●
119	00.034 BOLT; COVER FIX EURO2 SPECIFICATION<7AF> 00.206 (C) M8X12 W/LK WASHER	0-50040-812-0	01	1	9610-9711		●
119	00.034 BOLT; COVER FIX 00.206 (C) M8X12 W/LK WASHER	0-50040-812-0	01	1	9712-9804		●
119	00.034 BOLT; COVER FIX 00.206 (C) M8X10 FLANGE	0-28080-810-0	01	1	9805-		●
119	00.034 BOLT; COVER FIX EURO2 SPECIFICATION<7AF> 11.377 (C) M10X20 W/LK WASHER	0-50041-020-0	01	1	9610-9711		●
119	00.034 BOLT; COVER FIX 11.377 (C) M10X20 W/LK WASHER	0-50041-020-0	01	1	9712-		●
119	00.034 BOLT; COVER FIX EURO2 SPECIFICATION<7AF> (A) M10X28	8-94329-952-1	01	1	9610-9711		●
119	00.034 BOLT; COVER FIX (A) M10X28	8-94329-952-1	01	1	9712-		●
119	00.034 BOLT; COVER FIX EURO2 SPECIFICATION<7AF> (B) M8X22 W/LK&PL WASHER	8-94329-953-1	05	1	9610-9711		●
119	00.034 BOLT; COVER FIX (B) M8X22 W/LK&PL WASHER	8-94329-953-1	05	1	9712-		●
119	00.034 BOLT; COVER FIX M8X22 W/LK&PL WASHER	8-94329-953-1	04	1	9312-9405					●
119	00.034 BOLT; COVER FIX M8X22 W/LK&PL WASHER	8-94329-953-1	03	1	9406-9510					●
119	00.034 BOLT; COVER FIX M8X22 W/LK&PL WASHER	8-94329-953-1	03	1	9712-						●
120	00.034 BUSHING; MTG RUBBER EURO2 SPECIFICATION<7AF> OD=13 T=9.5	8-94140-427-1	06	1	9702-9711		●
120	00.034 BUSHING; MTG RUBBER OD=13 T=9.5	8-94140-427-1	06	1	9712-		●
120	00.034 BUSHING; MTG RUBBER OD=13 T=9.5	8-94140-427-1	04	1	9312-9510					●
120	00.034 BUSHING; MTG RUBBER OD=13 T=9.5	8-94140-427-1	04	1	9712-						●
121	00.034 RUBBER; MTG,COVER EURO2 SPECIFICATION<7AF> OD=22	8-94140-428-1	06	1	9702-9711		●
121	00.034 RUBBER; MTG,COVER OD=22	8-94140-428-1	06	1	9712-		●
121	00.034 RUBBER; MTG,COVER OD=22	8-94140-428-1	04	1	9312-9510					●
121	00.034 RUBBER; MTG,COVER OD=22	8-94140-428-1	04	1	9712-						●
137	00.034 COCK; DRAIN,WATER	1-09680-025-0	01	1	9312-9312	●		●	●	●
137	00.034 COCK; DRAIN,WATER	1-09680-025-0	01	1	9401-9510	●		●	●
137	00.034 COCK; DRAIN,WATER	1-09680-025-0	01	1	9511-			●	●
335	01.531 PLUG; C/BL,SIDE 00.034 NPTF1-11 1/2	1-09605-065-1	01	1	9312-			●
335	01.531 PLUG; C/BL,SIDE M14X16.5	8-97018-606-0	04	1	9312-9312					●
335	01.531 PLUG; C/BL,SIDE M14X16.5	8-97018-606-0	02	1	9401-9612					●
335	01.531 PLUG; C/BL,SIDE M14X16.5	8-97018-606-0	01	1	9612-9711					●
335	01.531 PLUG; C/BL,SIDE M14X16.5	8-97018-606-0	01	1	9712-					●		●
335	01.531 PLUG; C/BL,SIDE EAST MALAYSIA EQUIPMENT(PM6), THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP),INDONESIA EQUIPMENT(S4S) M14X16.5	8-97018-606-0	01	1	9312-9312					●
335	01.531 PLUG; C/BL,SIDE M14X16.5	8-97018-606-0	02	1	9712-						●
351	01.531 GASKET; COCK,WATER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=10.2 OD=16.0	9-09571-410-0	01	1	9401-9602					●
351	01.531 GASKET; COCK,WATER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	9603-9711					●
351	01.531 GASKET; COCK,WATER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	9712-					●	●	●

119 117 121 120 119 119 119 115 222 117 120 121 119 115 119

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	E	F
115	00.034 RUBBER; SPACE EURO2 SPECIFICATION<7AF>	8-97141-688-2	01	1	9512-9711	●
115	00.034 RUBBER; SPACE	8-97141-688-2	01	1	9712-	●
115	00.034 RUBBER; SPACE EURO2 SPECIFICATION<7AF>	8-97141-687-0	01	1	9610-9711	●
115	00.034 RUBBER; SPACE	8-97141-687-0	01	1	9712-	●
117	00.030 COVER ASM; C/BL EURO2 SPECIFICATION<7AF>	8-97141-686-0	01	1	9610-9711	●
117	00.030 COVER ASM; C/BL	8-97141-686-0	01	1	9712-	●
117	00.030 COVER ASM; C/BL EURO2 SPECIFICATION<7AF>	8-97141-685-1	01	1	9610-9711	●
117	00.030 COVER ASM; C/BL	8-97141-685-1	01	1	9712-	●
117	00.030 COVER ASM; C/BL	8-97075-841-3	01	1	9312-9408		●
117	00.030 COVER ASM; C/BL	8-97118-347-0	01	1	9409-9510		●
117	00.030 COVER ASM; C/BL	8-97118-347-0	01	1	9712-			●
119	00.034 BOLT; COVER FIX EURO2 SPECIFICATION<7AF> 00.206 (C) M8X12 W/LK WASHER	0-50040-812-0	01	1	9610-9711	●
119	00.034 BOLT; COVER FIX 00.206 (C) M8X12 W/LK WASHER	0-50040-812-0	01	1	9712-9804	●
119	00.034 BOLT; COVER FIX 00.206 (C) M8X10 FLANGE	0-28080-810-0	01	1	9805-	●
119	00.034 BOLT; COVER FIX EURO2 SPECIFICATION<7AF> 11.377 (C) M10X20 W/LK WASHER	0-50041-020-0	01	1	9610-9711	●
119	00.034 BOLT; COVER FIX 11.377 (C) M10X20 W/LK WASHER	0-50041-020-0	01	1	9712-	●
119	00.034 BOLT; COVER FIX EURO2 SPECIFICATION<7AF> (A) M10X28	8-94329-952-1	01	1	9610-9711	●
119	00.034 BOLT; COVER FIX (A) M10X28	8-94329-952-1	01	1	9712-	●
119	00.034 BOLT; COVER FIX EURO2 SPECIFICATION<7AF> (B) M8X22 W/LK&PL WASHER	8-94329-953-1	05	1	9610-9711	●
119	00.034 BOLT; COVER FIX (B) M8X22 W/LK&PL WASHER	8-94329-953-1	05	1	9712-	●
119	00.034 BOLT; COVER FIX M8X22 W/LK&PL WASHER	8-94329-953-1	04	1	9312-9405		●
119	00.034 BOLT; COVER FIX M8X22 W/LK&PL WASHER	8-94329-953-1	03	1	9406-9510		●
119	00.034 BOLT; COVER FIX M8X22 W/LK&PL WASHER	8-94329-953-1	03	1	9712-			●
120	00.034 BUSHING; MTG RUBBER EURO2 SPECIFICATION<7AF> OD=13 T=9.5	8-94140-427-1	06	1	9702-9711	●
120	00.034 BUSHING; MTG RUBBER OD=13 T=9.5	8-94140-427-1	06	1	9712-	●
120	00.034 BUSHING; MTG RUBBER OD=13 T=9.5	8-94140-427-1	04	1	9312-9510		●
120	00.034 BUSHING; MTG RUBBER OD=13 T=9.5	8-94140-427-1	04	1	9712-			●
121	00.034 RUBBER; MTG,COVER EURO2 SPECIFICATION<7AF> OD=22	8-94140-428-1	06	1	9702-9711	●
121	00.034 RUBBER; MTG,COVER OD=22	8-94140-428-1	06	1	9712-	●
121	00.034 RUBBER; MTG,COVER OD=22	8-94140-428-1	04	1	9312-9510		●
121	00.034 RUBBER; MTG,COVER OD=22	8-94140-428-1	04	1	9712-			●
222	00.340 BRACKET; COVER,C/BL EURO2 SPECIFICATION<7AF>	8-94460-512-0	01	1	9610-9711	●
222	00.340 BRACKET; COVER,C/BL	8-94460-512-0	01	1	9712-	●

21 21 4 1 23 22 23 23 23 25 7 62 2 63 4 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	00.033 BLOCK ASM; CYL	8-94130-535-5	01	1	9312-9510	●
1	00.033 BLOCK ASM; CYL	8-97043-280-0	01	1	9312-		●
1	00.033 BLOCK ASM; CYL	8-97025-444-1	01	1	9312-			●
1	00.033 BLOCK ASM; CYL	8-97017-152-1	01	1	9312-				●
1	00.033 BLOCK ASM; CYL	8-97092-832-0	01	1	9312-9312					●
1	00.033 BLOCK ASM; CYL	8-97103-761-1	01	1	9401-9410					●
1	00.033 BLOCK ASM; CYL	8-97119-775-0	01	1	9411-9510					●
1	00.033 BLOCK ASM; CYL	8-97074-833-6	01	1	9511-9604					●
1	00.033 BLOCK ASM; CYL	8-97146-438-5	01	1	9605-9711					●
1	00.033 BLOCK ASM; CYL	8-97163-853-2	01	1	9712-					●
1	00.033 BLOCK ASM; CYL	8-97148-885-1	01	1	9712-						●
1	00.033 BLOCK ASM; CYL	8-97191-846-2	01	1	9712-							●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1	5-87813-342-0	04	1	9312-9510	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=2	5-87813-343-0	04	1	9312-9510	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3	5-87813-344-0	04	1	9312-9510	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=4	5-87813-345-0	04	1	9312-9510	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1	5-87813-205-0	04	1	9312-9511		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=2	5-87813-206-0	04	1	9312-9511		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3	5-87813-207-0	04	1	9312-9511		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=4	5-87813-208-0	04	1	9312-9511		●
2	00.030 LINER SET; ENG CYL EURO2 SPECIFICATION<7AF> 00.094 GRADE=1	5-87813-209-0	04	1	9512-9711		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1	5-87813-209-0	04	1	9712-		●
2	00.030 LINER SET; ENG CYL EURO2 SPECIFICATION<7AF> 00.094 GRADE=2	5-87813-210-0	04	1	9512-9711		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=2	5-87813-210-0	04	1	9712-		●
2	00.030 LINER SET; ENG CYL EURO2 SPECIFICATION<7AF> 00.094 GRADE=3	5-87813-211-0	04	1	9512-9711		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3	5-87813-211-0	04	1	9712-		●
2	00.030 LINER SET; ENG CYL EURO2 SPECIFICATION<7AF> 00.094 GRADE=4	5-87813-212-0	04	1	9512-9711		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=4	5-87813-212-0	04	1	9712-		●
2	00.030 LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<7AF> 00.094 GRADE=1	5-87813-205-0	04	1	9512-9711		●
2	00.030 LINER SET; ENG CYL EXC. CHARGE AIR COOLER<6PL> GRADE=1X	5-87813-328-0	04	1	9712-						●
2	00.030 LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<7AF> 00.094 GRADE=2	5-87813-206-0	04	1	9512-9711		●
2	00.030 LINER SET; ENG CYL EXC. CHARGE AIR COOLER<6PL> GRADE=3X	5-87813-329-0	04	1	9712-						●
2	00.030 LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<7AF> 00.094 GRADE=3	5-87813-207-0	04	1	9512-9711		●
2	00.030 LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<7AF> 00.094 GRADE=4	5-87813-208-0	04	1	9512-9711		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1	5-87813-152-0	04	1	9312-			●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=2	5-87813-153-0	04	1	9312-			●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3	5-87813-154-0	04	1	9312-			●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=4	5-87813-155-0	04	1	9312-			●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1	5-87813-160-0	01	1	9312-				●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=2	5-87813-161-0	01	1	9312-				●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3	5-87813-162-0	01	1	9312-				●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=4	5-87813-163-0	01	1	9312-				●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1X	5-87813-332-0	04	1	9312-9502					●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3X	5-87813-333-0	04	1	9312-9502					●
2	00.030 LINER SET; ENG CYL HONG KONG EQUIPMENT(PQ1) 00.094 GRADE=1X	5-87813-334-0	04	1	9503-9510					●
2	00.030 LINER SET; ENG CYL HONG KONG EQUIPMENT(PQ1) 00.094 GRADE=3X	5-87813-335-0	04	1	9503-9510					●
2	00.030 LINER SET; ENG CYL EXC. HONG KONG EQUIPMENT(PQ1) 00.094 GRADE=1X	5-87813-332-0	04	1	9503-9510					●
2	00.030 LINER SET; ENG CYL EXC. HONG KONG EQUIPMENT(PQ1) 00.094 GRADE=3X	5-87813-333-0	04	1	9503-9510					●
2	00.030 LINER SET; ENG CYL GRADE=1X	5-87813-336-0	04	1	9511-9704					●
2	00.030 LINER SET; ENG CYL GRADE=1X	5-87813-390-0	04	1	9705-9711					●
2	00.030 LINER SET; ENG CYL GRADE=3X	5-87813-337-0	04	1	9511-9704					●
2	00.030 LINER SET; ENG CYL GRADE=3X	5-87813-391-0	04	1	9705-9711					●
2	00.030 LINER SET; ENG CYL GRADE=1X	5-87813-390-0	04	1	9712-					●
2	00.030 LINER SET; ENG CYL GRADE=3X	5-87813-391-0	04	1	9712-					●
2	00.030 LINER SET; ENG CYL CHARGE AIR COOLER<6PL> GRADE=1	5-87813-409-0	04	1	9712-9809						●
2	00.030 LINER SET; ENG CYL CHARGE AIR COOLER<6PL> GRADE=3X	5-87813-410-0	04	1	9712-9809						●
2	00.030 LINER SET; ENG CYL GRADE=1X	5-87813-392-0	04	1	9712-							●
2	00.030 LINER SET; ENG CYL GRADE=3X	5-87813-393-0	04	1	9712-							●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	1-11261-240-0	04	1	9312-9510	●		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	1-11261-241-0	04	1	9312-9510	●		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	1-11261-242-0	04	1	9312-9510	●		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	1-11261-243-0	04	1	9312-9510	●		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	1-11261-244-0	04	1	9312-9510	●		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	1-11261-245-0	04	1	9312-9510	●		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	1-11261-246-0	04	1	9312-9510	●		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	1-11261-247-0	04	1	9312-9510	●		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-699-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-700-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-701-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-702-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-703-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-704-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-705-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-706-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	1-11261-240-0	04	1	9511-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	1-11261-241-0	04	1	9511-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	1-11261-242-0	04	1	9511-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	1-11261-243-0	04	1	9511-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	1-11261-244-0	04	1	9511-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	1-11261-245-0	04	1	9511-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	1-11261-246-0	04	1	9511-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	1-11261-247-0	04	1	9511-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-715-0	04	1	9312-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-716-0	04	1	9312-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-717-0	04	1	9312-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-718-0	04	1	9312-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-719-0	04	1	9312-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-720-0	04	1	9312-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-721-0	04	1	9312-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-722-0	04	1	9312-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-97176-727-0	04	1	9312-					●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-97176-728-0	04	1	9312-					●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	8-97176-723-0	04	1	9712-						●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	8-97176-724-0	04	1	9712-						●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	8-97176-725-0	04	1	9712-						●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	8-97176-726-0	04	1	9712-						●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-97176-729-0	04	1	9712-							●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-97176-730-0	04	1	9712-							●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	9503-		●
7	00.034 PLUG; WATER DRAIN 04.105 M10X7	9-09861-010-0	01	1	9401-9711					●
7	00.034 PLUG; WATER DRAIN 04.105 M10X7	9-09861-010-0	01	1	9712-					●	●	●
8	00.056 BOLT; BRG CAP M16X119	1-09000-469-1	10	1	9312-9510	●		●	●
8	00.056 BOLT; BRG CAP M16X119	1-09000-469-1	10	1	9511-			●	●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	9312-		●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	9312-		●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	9312-		●
22	00.034 CUP; SEALING,DUCT HOLE 00.253 OD=12.3	5-09600-013-0	01	1	9312-		●
23	00.034 CUP; SEALING,C/BL FRT & RR OD=28	5-11219-014-0	01	1	9312-9510	●		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR OD=28	5-11219-014-0	01	1	9511-			●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (A) OD=18	5-11219-008-0	03	1	9312-		●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	02	1	9312-		●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	03	1	9312-		●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=45	1-09600-005-1	03	1	9312-9406		●			●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=45	1-09600-005-1	03	1	9407-9502		●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=45	1-09600-005-1	03	1	9503-9711		●			●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=45	1-09600-005-1	03	1	9712-		●			●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.293 (A) OD=25	1-09600-016-0	01	1	9312-9711					●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.293 (A) OD=25	1-09600-016-0	01	1	9712-					●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=45	1-09600-005-1	03	1	9407-9502					●
25	00.539 METAL; CM/SHF FRONT	9-11691-048-0	01	1	9312-9510	●		●	●
25	00.539 METAL; CM/SHF FRONT	9-11691-048-0	01	1	9511-			●	●
25	00.539 METAL; CM/SHF CENTER & REAR	9-11693-035-0	02	1	9312-9510	●		●	●
25	00.539 METAL; CM/SHF CENTER & REAR	9-11693-035-0	02	1	9511-			●	●
25	00.539 METAL; CM/SHF CENTER & REAR	8-94427-201-2	02	1	9312-		●
25	00.539 METAL; CM/SHF FRONT	8-94427-206-2	01	1	9312-		●
62	00.034 CUP; SEALING,C/BL FRT OD=14	5-11219-011-0	01	1	9312-		●
63	01.153 DUCT; WATER,C/BL	8-94456-794-2	01	1	9312-		●

4 2 1 70 4 40 70 80 23 25 130 8 139 8 138 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	00.033 BLOCK ASM; CYL	8-94130-535-5	01	1	9312-9510	●
1	00.033 BLOCK ASM; CYL	8-97043-280-0	01	1	9312-		●
1	00.033 BLOCK ASM; CYL	8-97025-444-1	01	1	9312-			●
1	00.033 BLOCK ASM; CYL	8-97017-152-1	01	1	9312-				●
1	00.033 BLOCK ASM; CYL	8-97092-832-0	01	1	9312-9312					●
1	00.033 BLOCK ASM; CYL	8-97103-761-1	01	1	9401-9410					●
1	00.033 BLOCK ASM; CYL	8-97119-775-0	01	1	9411-9510					●
1	00.033 BLOCK ASM; CYL	8-97074-833-6	01	1	9511-9604					●
1	00.033 BLOCK ASM; CYL	8-97146-438-5	01	1	9605-9711					●
1	00.033 BLOCK ASM; CYL	8-97163-853-2	01	1	9712-					●
1	00.033 BLOCK ASM; CYL	8-97148-885-1	01	1	9712-						●
1	00.033 BLOCK ASM; CYL	8-97191-846-2	01	1	9712-							●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1	5-87813-342-0	04	1	9312-9510	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=2	5-87813-343-0	04	1	9312-9510	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3	5-87813-344-0	04	1	9312-9510	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=4	5-87813-345-0	04	1	9312-9510	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1	5-87813-205-0	04	1	9312-9511		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=2	5-87813-206-0	04	1	9312-9511		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3	5-87813-207-0	04	1	9312-9511		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=4	5-87813-208-0	04	1	9312-9511		●
2	00.030 LINER SET; ENG CYL EURO2 SPECIFICATION<7AF> 00.094 GRADE=1	5-87813-209-0	04	1	9512-9711		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1	5-87813-209-0	04	1	9712-		●
2	00.030 LINER SET; ENG CYL EURO2 SPECIFICATION<7AF> 00.094 GRADE=2	5-87813-210-0	04	1	9512-9711		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=2	5-87813-210-0	04	1	9712-		●
2	00.030 LINER SET; ENG CYL EURO2 SPECIFICATION<7AF> 00.094 GRADE=3	5-87813-211-0	04	1	9512-9711		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3	5-87813-211-0	04	1	9712-		●
2	00.030 LINER SET; ENG CYL EURO2 SPECIFICATION<7AF> 00.094 GRADE=4	5-87813-212-0	04	1	9512-9711		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=4	5-87813-212-0	04	1	9712-		●
2	00.030 LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<7AF> 00.094 GRADE=1	5-87813-205-0	04	1	9512-9711		●
2	00.030 LINER SET; ENG CYL EXC. CHARGE AIR COOLER<6PL> GRADE=1X	5-87813-328-0	04	1	9712-						●
2	00.030 LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<7AF> 00.094 GRADE=2	5-87813-206-0	04	1	9512-9711		●
2	00.030 LINER SET; ENG CYL EXC. CHARGE AIR COOLER<6PL> GRADE=3X	5-87813-329-0	04	1	9712-						●
2	00.030 LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<7AF> 00.094 GRADE=3	5-87813-207-0	04	1	9512-9711		●
2	00.030 LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<7AF> 00.094 GRADE=4	5-87813-208-0	04	1	9512-9711		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1	5-87813-152-0	04	1	9312-			●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=2	5-87813-153-0	04	1	9312-			●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3	5-87813-154-0	04	1	9312-			●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=4	5-87813-155-0	04	1	9312-			●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1	5-87813-160-0	01	1	9312-				●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=2	5-87813-161-0	01	1	9312-				●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3	5-87813-162-0	01	1	9312-				●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=4	5-87813-163-0	01	1	9312-				●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1X	5-87813-332-0	04	1	9312-9502					●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3X	5-87813-333-0	04	1	9312-9502					●
2	00.030 LINER SET; ENG CYL HONG KONG EQUIPMENT(PQ1) 00.094 GRADE=1X	5-87813-334-0	04	1	9503-9510					●
2	00.030 LINER SET; ENG CYL HONG KONG EQUIPMENT(PQ1) 00.094 GRADE=3X	5-87813-335-0	04	1	9503-9510					●
2	00.030 LINER SET; ENG CYL EXC. HONG KONG EQUIPMENT(PQ1) 00.094 GRADE=1X	5-87813-332-0	04	1	9503-9510					●
2	00.030 LINER SET; ENG CYL EXC. HONG KONG EQUIPMENT(PQ1) 00.094 GRADE=3X	5-87813-333-0	04	1	9503-9510					●
2	00.030 LINER SET; ENG CYL GRADE=1X	5-87813-336-0	04	1	9511-9704					●
2	00.030 LINER SET; ENG CYL GRADE=1X	5-87813-390-0	04	1	9705-9711					●
2	00.030 LINER SET; ENG CYL GRADE=3X	5-87813-337-0	04	1	9511-9704					●
2	00.030 LINER SET; ENG CYL GRADE=3X	5-87813-391-0	04	1	9705-9711					●
2	00.030 LINER SET; ENG CYL GRADE=1X	5-87813-390-0	04	1	9712-					●
2	00.030 LINER SET; ENG CYL GRADE=3X	5-87813-391-0	04	1	9712-					●
2	00.030 LINER SET; ENG CYL CHARGE AIR COOLER<6PL> GRADE=1	5-87813-409-0	04	1	9712-9809						●
2	00.030 LINER SET; ENG CYL CHARGE AIR COOLER<6PL> GRADE=3X	5-87813-410-0	04	1	9712-9809						●
2	00.030 LINER SET; ENG CYL GRADE=1X	5-87813-392-0	04	1	9712-							●
2	00.030 LINER SET; ENG CYL GRADE=3X	5-87813-393-0	04	1	9712-							●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	1-11261-240-0	04	1	9312-9510	●		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	1-11261-241-0	04	1	9312-9510	●		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	1-11261-242-0	04	1	9312-9510	●		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	1-11261-243-0	04	1	9312-9510	●		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	1-11261-244-0	04	1	9312-9510	●		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	1-11261-245-0	04	1	9312-9510	●		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	1-11261-246-0	04	1	9312-9510	●		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	1-11261-247-0	04	1	9312-9510	●		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-699-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-700-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-701-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-702-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-703-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-704-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-705-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-706-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	1-11261-240-0	04	1	9511-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	1-11261-241-0	04	1	9511-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	1-11261-242-0	04	1	9511-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	1-11261-243-0	04	1	9511-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	1-11261-244-0	04	1	9511-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	1-11261-245-0	04	1	9511-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	1-11261-246-0	04	1	9511-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	1-11261-247-0	04	1	9511-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-715-0	04	1	9312-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-716-0	04	1	9312-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-717-0	04	1	9312-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-718-0	04	1	9312-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-719-0	04	1	9312-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-720-0	04	1	9312-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-721-0	04	1	9312-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-722-0	04	1	9312-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-97176-727-0	04	1	9312-					●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-97176-728-0	04	1	9312-					●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	8-97176-723-0	04	1	9712-						●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	8-97176-724-0	04	1	9712-						●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	8-97176-725-0	04	1	9712-						●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	8-97176-726-0	04	1	9712-						●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-97176-729-0	04	1	9712-							●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-97176-730-0	04	1	9712-							●
8	00.056 BOLT; BRG CAP M16X119	1-09000-469-1	10	1	9312-9510	●		●	●
8	00.056 BOLT; BRG CAP M16X119	1-09000-469-1	10	1	9511-			●	●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	9312-		●
23	00.034 CUP; SEALING,C/BL FRT & RR OD=28	5-11219-014-0	01	1	9312-9510	●		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR OD=28	5-11219-014-0	01	1	9511-			●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (A) OD=18	5-11219-008-0	03	1	9312-		●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	02	1	9312-		●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	03	1	9312-		●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=45	1-09600-005-1	03	1	9312-9406		●			●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=45	1-09600-005-1	03	1	9407-9502		●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=45	1-09600-005-1	03	1	9503-9711		●			●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=45	1-09600-005-1	03	1	9712-		●			●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.293 (A) OD=25	1-09600-016-0	01	1	9312-9711					●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.293 (A) OD=25	1-09600-016-0	01	1	9712-					●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=45	1-09600-005-1	03	1	9407-9502					●
25	00.539 METAL; CM/SHF FRONT	9-11691-048-0	01	1	9312-9510	●		●	●
25	00.539 METAL; CM/SHF FRONT	9-11691-048-0	01	1	9511-			●	●
25	00.539 METAL; CM/SHF CENTER & REAR	9-11693-035-0	02	1	9312-9510	●		●	●
25	00.539 METAL; CM/SHF CENTER & REAR	9-11693-035-0	02	1	9511-			●	●
25	00.539 METAL; CM/SHF CENTER & REAR	8-94427-201-2	02	1	9312-		●
25	00.539 METAL; CM/SHF FRONT	8-94427-206-2	01	1	9312-		●
40	00.034 CUP; SEALING,C/BL RR 00.253 OD=56	8-94250-514-0	01	1	9312-		●
40	00.034 CUP; SEALING,C/BL RR OD=67	8-94344-462-0	01	1	9312-				●
70	00.034 CUP; SEALING,FRT & RR OD=60	1-09600-052-0	02	1	9312-9510	●		●	●
70	00.034 CUP; SEALING,FRT & RR OD=60	1-09600-052-0	02	1	9511-			●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	9312-		●
70	00.034 CUP; SEALING,FRT & RR OD=40	8-94399-639-0	04	1	9312-9711					●
70	00.034 CUP; SEALING,FRT & RR OD=40	8-94399-639-0	04	1	9712-					●	●	●
70	00.034 CUP; SEALING,FRT & RR 00.293 OD=25	1-09600-016-0	01	1	9712-						●
80	00.034 CUP; SEALING,TAPPET CHAMBER OD=32	1-09600-012-1	02	1	9312-9510	●		●	●
80	00.034 CUP; SEALING,TAPPET CHAMBER OD=32	1-09600-012-1	02	1	9511-			●	●
130	00.056 DOWEL; BRG CAP	5-11257-001-1	01	1	9312-9510	●		●	●
130	00.056 DOWEL; BRG CAP	5-11257-001-1	01	1	9511-			●	●
133	00.446 STUD; BED PLATE	9-04100-840-0	04	1	9312-9510				●
133	00.446 STUD; BED PLATE 03.275 M8X40 L=52	9-04110-840-0	04	1	9511-9603				●
133	00.446 STUD; BED PLATE	9-04100-840-0	04	1	9706-9708				●
133	00.446 STUD; BED PLATE 03.275 M8X40 L=52	9-04110-840-0	04	1	9709-				●
138	01.531 NIPPLE; OIL RETURN,VAC PUMP 03.280	5-09744-015-2	01	1	9312-9510	●		●	●
138	01.531 NIPPLE; OIL RETURN,VAC PUMP 03.280	5-09744-015-2	01	1	9511-			●	●
139	03.280 GASKET; NIPPLE,VAC PUMP OIL RETU 08.929 ID=14.2 OD=20.0	9-09571-614-0	01	1	9312-9510	●		●	●
139	03.280 GASKET; NIPPLE,VAC PUMP OIL RETU 08.929 ID=14.2 OD=20.0	9-09571-614-0	01	1	9511-			●	●

4 23 70 1 23 70 212 34 17 2 211 211 56 54 406 4 132 205

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	00.033 BLOCK ASM; CYL	8-94130-535-5	01	1	9312-9510	●
1	00.033 BLOCK ASM; CYL	8-97043-280-0	01	1	9312-		●
1	00.033 BLOCK ASM; CYL	8-97025-444-1	01	1	9312-			●
1	00.033 BLOCK ASM; CYL	8-97017-152-1	01	1	9312-				●
1	00.033 BLOCK ASM; CYL	8-97092-832-0	01	1	9312-9312					●
1	00.033 BLOCK ASM; CYL	8-97103-761-1	01	1	9401-9410					●
1	00.033 BLOCK ASM; CYL	8-97119-775-0	01	1	9411-9510					●
1	00.033 BLOCK ASM; CYL	8-97074-833-6	01	1	9511-9604					●
1	00.033 BLOCK ASM; CYL	8-97146-438-5	01	1	9605-9711					●
1	00.033 BLOCK ASM; CYL	8-97163-853-2	01	1	9712-					●
1	00.033 BLOCK ASM; CYL	8-97148-885-1	01	1	9712-						●
1	00.033 BLOCK ASM; CYL	8-97191-846-2	01	1	9712-							●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1	5-87813-342-0	04	1	9312-9510	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=2	5-87813-343-0	04	1	9312-9510	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3	5-87813-344-0	04	1	9312-9510	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=4	5-87813-345-0	04	1	9312-9510	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1	5-87813-205-0	04	1	9312-9511		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=2	5-87813-206-0	04	1	9312-9511		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3	5-87813-207-0	04	1	9312-9511		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=4	5-87813-208-0	04	1	9312-9511		●
2	00.030 LINER SET; ENG CYL EURO2 SPECIFICATION<7AF> 00.094 GRADE=1	5-87813-209-0	04	1	9512-9711		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1	5-87813-209-0	04	1	9712-		●
2	00.030 LINER SET; ENG CYL EURO2 SPECIFICATION<7AF> 00.094 GRADE=2	5-87813-210-0	04	1	9512-9711		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=2	5-87813-210-0	04	1	9712-		●
2	00.030 LINER SET; ENG CYL EURO2 SPECIFICATION<7AF> 00.094 GRADE=3	5-87813-211-0	04	1	9512-9711		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3	5-87813-211-0	04	1	9712-		●
2	00.030 LINER SET; ENG CYL EURO2 SPECIFICATION<7AF> 00.094 GRADE=4	5-87813-212-0	04	1	9512-9711		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=4	5-87813-212-0	04	1	9712-		●
2	00.030 LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<7AF> 00.094 GRADE=1	5-87813-205-0	04	1	9512-9711		●
2	00.030 LINER SET; ENG CYL EXC. CHARGE AIR COOLER<6PL> GRADE=1X	5-87813-328-0	04	1	9712-						●
2	00.030 LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<7AF> 00.094 GRADE=2	5-87813-206-0	04	1	9512-9711		●
2	00.030 LINER SET; ENG CYL EXC. CHARGE AIR COOLER<6PL> GRADE=3X	5-87813-329-0	04	1	9712-						●
2	00.030 LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<7AF> 00.094 GRADE=3	5-87813-207-0	04	1	9512-9711		●
2	00.030 LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<7AF> 00.094 GRADE=4	5-87813-208-0	04	1	9512-9711		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1	5-87813-152-0	04	1	9312-			●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=2	5-87813-153-0	04	1	9312-			●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3	5-87813-154-0	04	1	9312-			●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=4	5-87813-155-0	04	1	9312-			●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1	5-87813-160-0	01	1	9312-				●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=2	5-87813-161-0	01	1	9312-				●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3	5-87813-162-0	01	1	9312-				●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=4	5-87813-163-0	01	1	9312-				●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1X	5-87813-332-0	04	1	9312-9502					●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3X	5-87813-333-0	04	1	9312-9502					●
2	00.030 LINER SET; ENG CYL HONG KONG EQUIPMENT(PQ1) 00.094 GRADE=1X	5-87813-334-0	04	1	9503-9510					●
2	00.030 LINER SET; ENG CYL HONG KONG EQUIPMENT(PQ1) 00.094 GRADE=3X	5-87813-335-0	04	1	9503-9510					●
2	00.030 LINER SET; ENG CYL EXC. HONG KONG EQUIPMENT(PQ1) 00.094 GRADE=1X	5-87813-332-0	04	1	9503-9510					●
2	00.030 LINER SET; ENG CYL EXC. HONG KONG EQUIPMENT(PQ1) 00.094 GRADE=3X	5-87813-333-0	04	1	9503-9510					●
2	00.030 LINER SET; ENG CYL GRADE=1X	5-87813-336-0	04	1	9511-9704					●
2	00.030 LINER SET; ENG CYL GRADE=1X	5-87813-390-0	04	1	9705-9711					●
2	00.030 LINER SET; ENG CYL GRADE=3X	5-87813-337-0	04	1	9511-9704					●
2	00.030 LINER SET; ENG CYL GRADE=3X	5-87813-391-0	04	1	9705-9711					●
2	00.030 LINER SET; ENG CYL GRADE=1X	5-87813-390-0	04	1	9712-					●
2	00.030 LINER SET; ENG CYL GRADE=3X	5-87813-391-0	04	1	9712-					●
2	00.030 LINER SET; ENG CYL CHARGE AIR COOLER<6PL> GRADE=1	5-87813-409-0	04	1	9712-9809						●
2	00.030 LINER SET; ENG CYL CHARGE AIR COOLER<6PL> GRADE=3X	5-87813-410-0	04	1	9712-9809						●
2	00.030 LINER SET; ENG CYL GRADE=1X	5-87813-392-0	04	1	9712-							●
2	00.030 LINER SET; ENG CYL GRADE=3X	5-87813-393-0	04	1	9712-							●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	1-11261-240-0	04	1	9312-9510	●		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	1-11261-241-0	04	1	9312-9510	●		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	1-11261-242-0	04	1	9312-9510	●		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	1-11261-243-0	04	1	9312-9510	●		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	1-11261-244-0	04	1	9312-9510	●		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	1-11261-245-0	04	1	9312-9510	●		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	1-11261-246-0	04	1	9312-9510	●		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	1-11261-247-0	04	1	9312-9510	●		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-699-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-700-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-701-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-702-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-703-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-704-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-705-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-706-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	1-11261-240-0	04	1	9511-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	1-11261-241-0	04	1	9511-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	1-11261-242-0	04	1	9511-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	1-11261-243-0	04	1	9511-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	1-11261-244-0	04	1	9511-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	1-11261-245-0	04	1	9511-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	1-11261-246-0	04	1	9511-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	1-11261-247-0	04	1	9511-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-715-0	04	1	9312-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-716-0	04	1	9312-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-717-0	04	1	9312-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-718-0	04	1	9312-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-719-0	04	1	9312-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-720-0	04	1	9312-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-721-0	04	1	9312-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-722-0	04	1	9312-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-97176-727-0	04	1	9312-					●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-97176-728-0	04	1	9312-					●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	8-97176-723-0	04	1	9712-						●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	8-97176-724-0	04	1	9712-						●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	8-97176-725-0	04	1	9712-						●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	8-97176-726-0	04	1	9712-						●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-97176-729-0	04	1	9712-							●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-97176-730-0	04	1	9712-							●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9312-9406	●	●	●		●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9407-9502	●	●	●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9503-9510	●	●	●		●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9511-9711		●	●		●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9712-		●	●
17	01.800 SWITCH; OIL PRESSURE	8-97078-086-0	01	1	9312-				●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9407-9502					●
17	01.800 SWITCH; OIL PRESSURE	8-97176-230-0	01	1	9712-					●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR OD=28	5-11219-014-0	01	1	9312-9510	●		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR OD=28	5-11219-014-0	01	1	9511-			●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (A) OD=18	5-11219-008-0	03	1	9312-		●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	02	1	9312-		●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	03	1	9312-		●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=45	1-09600-005-1	03	1	9312-9406		●			●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=45	1-09600-005-1	03	1	9407-9502		●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=45	1-09600-005-1	03	1	9503-9711		●			●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=45	1-09600-005-1	03	1	9712-		●			●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.293 (A) OD=25	1-09600-016-0	01	1	9312-9711					●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.293 (A) OD=25	1-09600-016-0	01	1	9712-					●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=45	1-09600-005-1	03	1	9407-9502					●
34	01.609 VALVE; OIL RELIEF	8-97023-339-0	01	1	9312-9510	●		●	●
34	01.609 VALVE; OIL RELIEF	8-97023-339-0	01	1	9511-			●	●
34	01.609 VALVE; OIL RELIEF	8-94386-047-1	01	1	9312-9711					●
34	01.609 VALVE; OIL RELIEF	8-94386-047-1	01	1	9712-					●	●	●
54	01.428 STUD; OIL PAN TO BLOCK	8-94133-974-2	10	1	9312-9403		●
54	01.428 STUD; OIL PAN TO BLOCK	8-94133-974-2	08	1	9404-9410		●
54	01.428 STUD; OIL PAN TO BLOCK	8-94133-974-2	10	1	9411-		●
54	01.428 STUD; OIL PAN TO BLOCK AUSTRALIA EQUIPMENT(RR3) M8X41.5	5-11369-101-0	07	1	9312-				●
54	01.428 STUD; OIL PAN TO BLOCK M8X20 L=38	8-97021-431-0	03	1	9312-9510					●
54	01.428 STUD; OIL PAN TO BLOCK M8X20 L=32	9-04110-820-0	04	1	9405-9604					●
54	01.428 STUD; OIL PAN TO BLOCK EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) M8X20 L=38	8-97021-431-0	03	1	9712-						●
56	01.519 JET; OIL,PISTON COOLING	8-94319-699-0	04	1	9312-9510	●
56	01.519 JET; OIL,PISTON COOLING	8-97025-462-1	04	1	9312-			●
56	01.519 JET; OIL,PISTON COOLING	8-94370-579-0	04	1	9312-9711					●
56	01.519 JET; OIL,PISTON COOLING	8-94370-579-0	04	1	9712-					●		●
56	01.519 JET; OIL,PISTON COOLING	8-94399-166-0	04	1	9712-						●
70	00.034 CUP; SEALING,FRT & RR OD=60	1-09600-052-0	02	1	9312-9510	●		●	●
70	00.034 CUP; SEALING,FRT & RR OD=60	1-09600-052-0	02	1	9511-			●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	9312-		●
70	00.034 CUP; SEALING,FRT & RR OD=40	8-94399-639-0	04	1	9312-9711					●
70	00.034 CUP; SEALING,FRT & RR OD=40	8-94399-639-0	04	1	9712-					●	●	●
70	00.034 CUP; SEALING,FRT & RR 00.293 OD=25	1-09600-016-0	01	1	9712-						●
132	01.519 VALVE; CHECK,OIL M10X18.5	1-13161-012-0	04	1	9312-9406	●		●		●
132	01.519 VALVE; CHECK,OIL M10X18.5	1-13161-012-0	04	1	9407-9502	●		●
132	01.519 VALVE; CHECK,OIL M10X18.5	1-13161-012-0	04	1	9503-9510	●		●		●
132	01.519 VALVE; CHECK,OIL M10X18.5	1-13161-012-0	04	1	9511-9711			●		●
132	01.519 VALVE; CHECK,OIL M10X18.5	1-13161-012-0	04	1	9712-			●		●	●	●
132	01.519 VALVE; CHECK,OIL M10X18.5	1-13161-012-0	04	1	9407-9502					●
205	01.428 STUD; PUMP HOLE 00.206 M8X18 L=29	8-97028-541-0	01	1	9503-9510					●
205	01.428 STUD; PUMP HOLE M8X18 L=30	9-04110-818-0	01	1	9503-9510					●
211	01.428 BOLT; CRANKCASE (B) M10X82	8-94399-553-2	17	1	9312-9711					●
211	01.428 BOLT; CRANKCASE (B) M10X82	8-94399-553-2	17	1	9712-					●	●	●
211	01.428 BOLT; CRANKCASE 00.293 (A) M14X115 W/FLANGE	8-97077-638-0	10	1	9312-9711					●
211	01.428 BOLT; CRANKCASE 00.293 (A) M14X115 W/FLANGE	8-97077-638-0	10	1	9712-					●	●	●
212	01.428 PIN; CRANKCASE 00.206 L=22	8-94483-674-0	02	1	9312-9604					●
212	01.428 PIN; CRANKCASE 04.510 OD=10 L=20	8-97135-423-0	02	1	9605-9711					●
212	01.428 PIN; CRANKCASE 04.510 OD=10 L=20	8-97135-423-0	02	1	9712-					●	●	●
406	01.531 PLUG; CRANK CASE 01.073 PT3/8	5-09605-005-0	02	1	9312-9711					●
406	01.531 PLUG; CRANK CASE 01.073 PT3/8	5-09605-005-0	02	1	9712-					●	●	●

13 77 135 76 136 71 134 72 37 71 74 149 14 72 151 74 179 38 137 17 55 55 83 35 131 34 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
13	00.293 DOWEL; C/BL TO HD OD=16	8-94148-079-0	02	1	9312-9510	●		●	●
13	00.293 DOWEL; C/BL TO HD OD=16	8-94148-079-0	02	1	9511-			●	●
13	00.293 DOWEL; C/BL TO HD	8-94453-344-0	02	1	9312-		●
13	00.293 DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	9312-9711					●
13	00.293 DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	9712-					●	●	●
14	00.206 DOWEL; TIMING GEAR CASE TO C/BL OD=11 L=8	9-11229-058-1	01	1	9312-9510	●		●	●
14	00.206 DOWEL; TIMING GEAR CASE TO C/BL OD=11 L=8	9-11229-058-1	01	1	9511-			●	●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9312-9406	●	●	●		●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9407-9502	●	●	●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9503-9510	●	●	●		●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9511-9711		●	●		●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9712-		●	●
17	01.800 SWITCH; OIL PRESSURE	8-97078-086-0	01	1	9312-				●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9407-9502					●
17	01.800 SWITCH; OIL PRESSURE	8-97176-230-0	01	1	9712-					●	●	●
34	01.609 VALVE; OIL RELIEF	8-97023-339-0	01	1	9312-9510	●		●	●
34	01.609 VALVE; OIL RELIEF	8-97023-339-0	01	1	9511-			●	●
34	01.609 VALVE; OIL RELIEF	8-94386-047-1	01	1	9312-9711					●
34	01.609 VALVE; OIL RELIEF	8-94386-047-1	01	1	9712-					●	●	●
35	01.609 GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	9312-9510	●		●	●
35	01.609 GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	9511-			●	●
37	01.531 PLUG; OIL GALLERY	8-97025-440-0	02	1	9312-9510	●		●	●
37	01.531 PLUG; OIL GALLERY	8-97025-440-0	02	1	9511-			●	●
38	00.206 PIN; TIMING GEAR CASE OD=10 L=50	9-08151-050-0	01	1	9312-9510	●		●	●
38	00.206 PIN; TIMING GEAR CASE OD=10 L=50	9-08151-050-0	01	1	9511-			●	●
55	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	07	1	9312-9510	●		●
55	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	07	1	9511-			●
55	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	06	1	9312-				●
71	00.443 GASKET; COVER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94367-368-1	02	1	9312-9510	●		●	●
71	00.443 GASKET; COVER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94367-368-1	02	1	9511-			●	●
72	00.439 COVER; TAPPET CHAMBER	8-97028-525-0	02	1	9312-9510	●		●	●
72	00.439 COVER; TAPPET CHAMBER	8-97028-525-0	02	1	9511-			●	●
74	00.443 BOLT; COVER TO C/BL M8X56 FLANGE	8-94367-530-1	04	1	9312-9510	●		●
74	00.443 BOLT; COVER TO C/BL M8X56 FLANGE	8-94367-530-1	04	1	9511-			●
74	00.443 BOLT; COVER TO C/BL (A) M8X56 FLANGE	8-94367-530-1	03	1	9312-				●
74	00.443 BOLT; COVER TO C/BL (B) M8X56	8-94367-531-1	01	1	9312-				●
76	01.724 GASKET; COVER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 01.531	9-09565-348-0	01	1	9312-9510	●		●
76	01.724 GASKET; COVER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 01.531	9-09565-348-0	01	1	9511-			●
76	01.724 GASKET; COVER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-668-0	01	1	9312-				●
77	01.653 BOLT; COVER TO C/BL 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	9312-9510	●		●
77	01.653 BOLT; COVER TO C/BL 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	9511-			●
77	01.653 BOLT; COVER TO C/BL 04.785 M8X18 W/LK WASHER	0-50040-818-0	02	1	9312-				●
83	00.685 PIN; FLYWHEEL HSG 08.939 OD=10 L=18	9-08151-018-0	02	1	9312-9510	●		●	●
83	00.685 PIN; FLYWHEEL HSG 08.939 OD=10 L=18	9-08151-018-0	02	1	9511-			●	●
128	00.056 PIN; STRAIGHT,OIL SEAL RET 08.939 OD=8 L=16	9-08150-816-0	02	1	9312-9510	●		●	●
128	00.056 PIN; STRAIGHT,OIL SEAL RET 08.939 OD=8 L=16	9-08150-816-0	02	1	9511-			●	●
131	00.034 PLUG; TAPER,C/BL PT3/8	9-99205-517-0	01	1	9312-9510	●		●	●
131	00.034 PLUG; TAPER,C/BL PT3/8	9-99205-517-0	01	1	9511-			●	●
134	01.531 PLUG; OIL PUMP	8-94105-114-2	01	1	9312-				●
135	01.723 COVER; OIL PUMP	1-11219-129-1	01	1	9312-9510	●		●
135	01.723 COVER; OIL PUMP	1-11219-129-1	01	1	9511-			●
135	01.723 COVER; OIL PUMP	8-94254-920-0	01	1	9312-				●
136	01.639 BUSHING; DRIVE SHAFT,OIL PUMP	9-11224-602-1	01	1	9312-9510	●		●
136	01.639 BUSHING; DRIVE SHAFT,OIL PUMP	9-11224-602-1	01	1	9511-			●
136	01.639 BUSHING; DRIVE SHAFT,OIL PUMP	8-94105-115-1	01	1	9312-				●
137	00.034 COCK; DRAIN,WATER	1-09680-025-0	01	1	9312-9312	●		●	●	●
137	00.034 COCK; DRAIN,WATER	1-09680-025-0	01	1	9401-9510	●		●	●
137	00.034 COCK; DRAIN,WATER	1-09680-025-0	01	1	9511-			●	●
149	01.540 WASHER; LK,CLIP,HARNESS 00.002 ID=10.2	9-09150-510-0	01	1	9312-9510	●
149	01.540 WASHER; LK,CLIP,HARNESS 00.002 ID=10.2	9-09150-510-0	01	1	9606-			●
149	01.540 WASHER; LK,CLIP,HARNESS 00.002 ID=8.2	9-09150-508-0	01	1	9312-				●
151	02.313 NUT; CLIP HARNESS 02.559 M8	9-09110-408-0	01	1	9312-				●
179	03.278 GASKET; COVER TO BOLT ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=8.2 OD=17	9-09572-008-0	04	1	9312-9510	●		●	●
179	03.278 GASKET; COVER TO BOLT ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=8.2 OD=17	9-09572-008-0	04	1	9511-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
