Sayfa 0-10 - Isuzu EPC

0-10 — CYLINDER HEAD COVER (#44373) — 304 parça

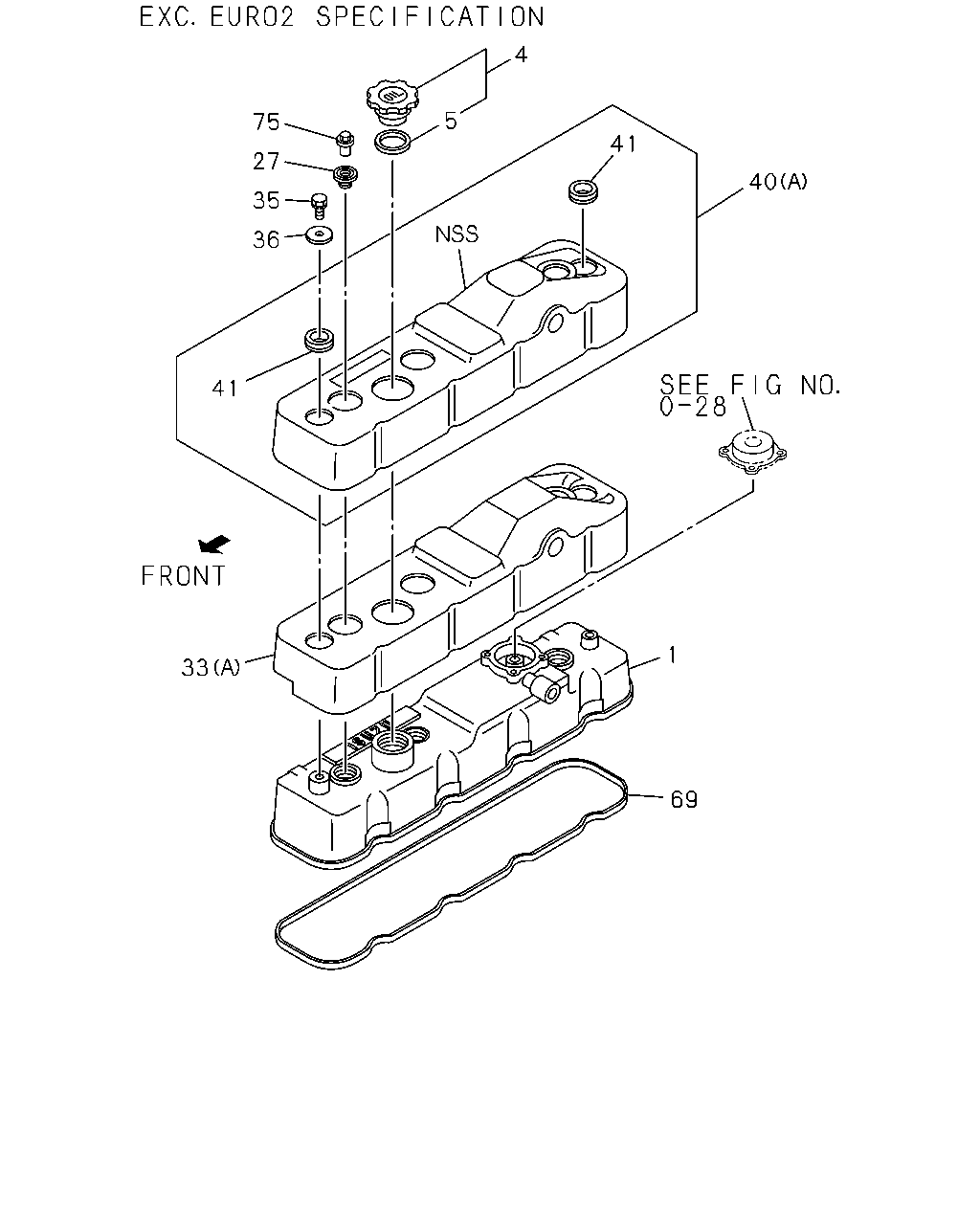

4 75 5 27 35 40 79 73 79 33 1 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	00.386 COVER; CYL HD	8-97063-303-0	01	1	9312-9510	●	●
1	00.386 COVER; CYL HD	8-97063-303-0	01	1	9511-		●
1	00.386 COVER; CYL HD	8-94476-696-0	01	1	9312-			●
1	00.386 COVER; CYL HD	8-97044-610-0	01	1	9312-9606				●
1	00.386 COVER; CYL HD	8-97164-311-0	01	1	9607-9610				●
1	00.386 COVER; CYL HD	8-97044-610-0	01	1	9611-				●
1	00.386 COVER; CYL HD	8-97092-072-2	01	1	9312-9401					●
1	00.386 COVER; CYL HD	8-97102-511-2	01	1	9402-9510					●
1	00.386 COVER; CYL HD	8-97113-025-2	01	1	9511-9609					●
1	00.386 COVER; CYL HD EXC. WEST MALAYSIA EQUIPMENT(RWP)	8-97113-025-2	01	1	9610-9711					●
1	00.386 COVER; CYL HD	8-97113-025-2	01	1	9712-					●	●	●
1	00.386 COVER; CYL HD WEST MALAYSIA EQUIPMENT(RWP)	8-97169-494-0	01	1	9610-9711					●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	9312-9510	●	●	●	●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	9511-9711		●	●	●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	9712-		●	●	●	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	9312-9510	●	●	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	9511-9711		●	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	9712-		●	●	●	●	●	●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 00.413	9-11179-030-0	03	1	9312-9510	●	●		●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 00.413	9-11179-030-0	03	1	9511-		●		●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 00.413 ID=20.0	8-94153-051-0	03	1	9312-9501			●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=19.5	8-94202-456-3	03	1	9502-			●
33	00.386 RUBBER; SPACE,CYL HD COVER (A)	8-94133-734-6	01	1	9312-9511			●
33	00.386 RUBBER; SPACE,CYL HD COVER EXC. EURO2 SPECIFICATION<7AF> (A)	8-94133-734-6	01	1	9512-9701			●
33	00.386 RUBBER; SPACE,CYL HD COVER EXC. EURO2 SPECIFICATION<7AF> (A)	8-97147-921-0	01	1	9702-9711			●
33	00.386 RUBBER; SPACE,CYL HD COVER EURO2 SPECIFICATION<7AF> (B)	8-97141-691-2	01	1	9512-			●
35	00.293 BOLT; NOISE SHIELD COVER 08.900 M8X14	0-20800-814-0	02	1	9312-9601			●
35	00.293 BOLT; NOISE SHIELD COVER EXC. EURO2 SPECIFICATION<7AF> 08.900 M8X14	0-20800-814-0	02	1	9602-9706			●
35	00.293 BOLT; NOISE SHIELD COVER EXC. EURO2 SPECIFICATION<7AF> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9707-9711			●
35	00.293 BOLT; NOISE SHIELD COVER EURO2 SPECIFICATION<7AF> 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	02	1	9512-9601			●
35	00.293 BOLT; NOISE SHIELD COVER 03.415 M8X35 FLANGE	0-28080-835-0	13	1	9312-9510					●
35	00.293 BOLT; NOISE SHIELD COVER 03.275 M8X30 FLANGE	0-28080-830-0	13	1	9511-9606					●
35	00.293 BOLT; NOISE SHIELD COVER 04.686 M8X30 FLANGE	0-28680-830-0	13	1	9607-9711					●
35	00.293 BOLT; NOISE SHIELD COVER 04.686 M8X30 FLANGE	0-28680-830-0	13	1	9712-					●	●	●
40	00.386 COVER	8-94365-033-0	01	1	9312-9510	●	●
40	00.386 COVER	8-94365-033-0	01	1	9511-		●
40	00.386 COVER (A)	8-94133-732-2	01	1	9312-9511			●
40	00.386 COVER EXC. EURO2 SPECIFICATION<7AF> (A)	8-94133-732-2	01	1	9512-9711			●
40	00.386 COVER EURO2 SPECIFICATION<7AF> (B)	8-97141-690-3	01	1	9512-			●
40	00.386 COVER	8-97044-611-0	01	1	9312-				●
40	00.386 COVER	8-97092-074-3	01	1	9312-9510					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-94462-559-0	01	1	9312-9510	●	●		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-94462-559-0	01	1	9511-		●		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-94247-903-1	01	1	9312-9502			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97118-768-0	01	1	9503-9511			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. EURO2 SPECIFICATION<7AF>	8-97118-768-0	01	1	9512-9605			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97161-131-0	01	1	9606-			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EURO2 SPECIFICATION<7AF>	8-97141-535-0	01	1	9512-9605			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97019-846-1	01	1	9312-9510					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97105-690-2	01	1	9511-9711					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97105-690-2	01	1	9712-					●	●	●
73	00.413 WASHER; PL,HD COVER EURO2 SPECIFICATION<7AF> 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	9602-			●
75	00.413 NUT; CAP,HD COVER M8 CAP NUT OD=22	8-94340-192-0	03	1	9312-9510	●	●		●
75	00.413 NUT; CAP,HD COVER M8 CAP NUT OD=22	8-94340-192-0	03	1	9511-		●		●
75	00.413 NUT; CAP,HD COVER M8 OD=19	8-94158-108-0	03	1	9312-			●
79	00.293 BOLT; COVER EURO2 SPECIFICATION<7AF> 08.900 M8X14	0-20800-814-0	02	1	9602-9711			●
79	00.293 BOLT; COVER EURO2 SPECIFICATION<7AF> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9712-			●
79	00.293 BOLT; COVER EURO2 SPECIFICATION<7AF> 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	9602-			●

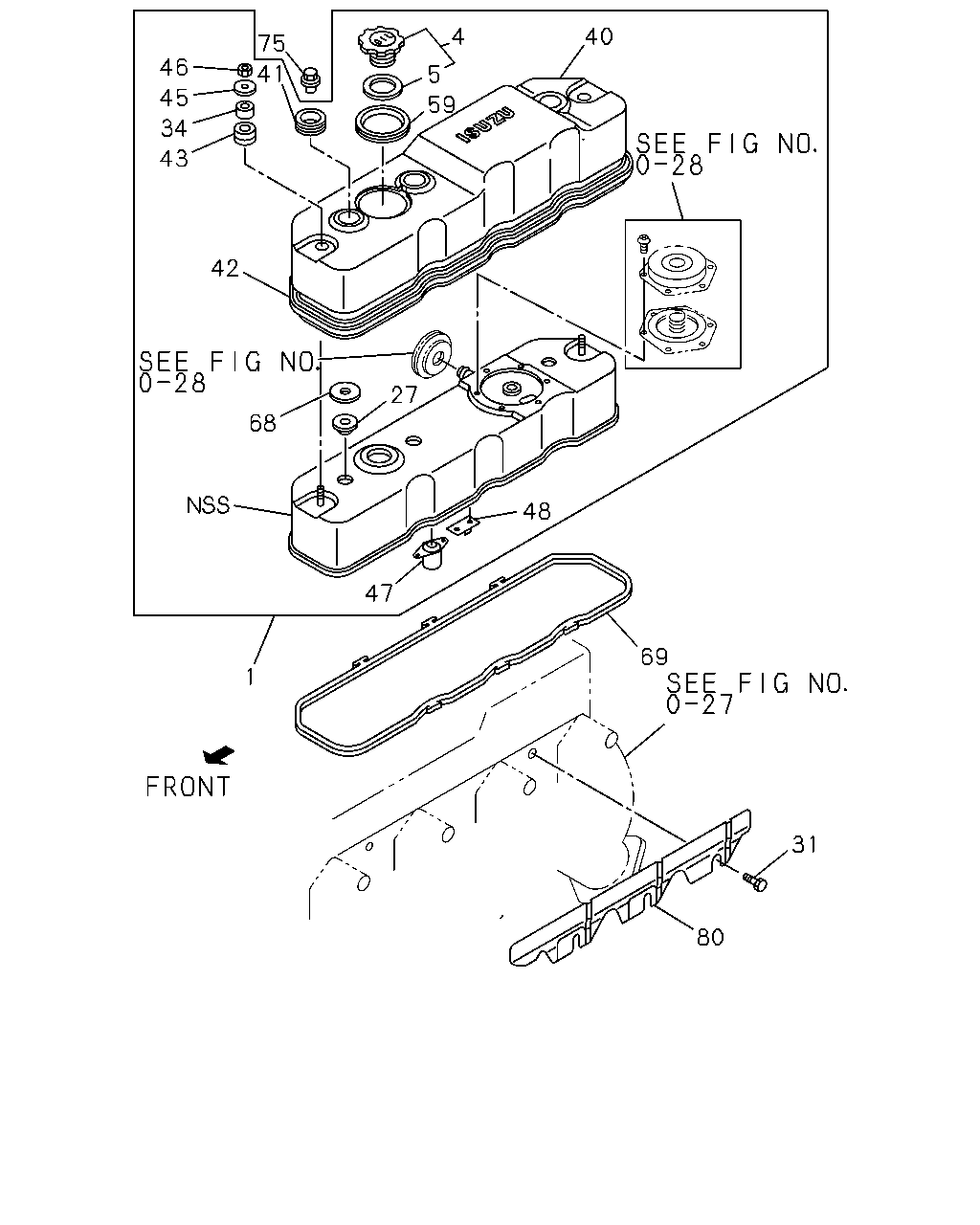

40 4 75 46 41 5 45 59 34 43 42 27 68 48 47 69 1 31 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	00.386 COVER; CYL HD	8-97063-303-0	01	1	9312-9510	●	●
1	00.386 COVER; CYL HD	8-97063-303-0	01	1	9511-		●
1	00.386 COVER; CYL HD	8-94476-696-0	01	1	9312-			●
1	00.386 COVER; CYL HD	8-97044-610-0	01	1	9312-9606				●
1	00.386 COVER; CYL HD	8-97164-311-0	01	1	9607-9610				●
1	00.386 COVER; CYL HD	8-97044-610-0	01	1	9611-				●
1	00.386 COVER; CYL HD	8-97092-072-2	01	1	9312-9401					●
1	00.386 COVER; CYL HD	8-97102-511-2	01	1	9402-9510					●
1	00.386 COVER; CYL HD	8-97113-025-2	01	1	9511-9609					●
1	00.386 COVER; CYL HD EXC. WEST MALAYSIA EQUIPMENT(RWP)	8-97113-025-2	01	1	9610-9711					●
1	00.386 COVER; CYL HD	8-97113-025-2	01	1	9712-					●	●	●
1	00.386 COVER; CYL HD WEST MALAYSIA EQUIPMENT(RWP)	8-97169-494-0	01	1	9610-9711					●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	9312-9510	●	●	●	●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	9511-9711		●	●	●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	9712-		●	●	●	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	9312-9510	●	●	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	9511-9711		●	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	9712-		●	●	●	●	●	●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 00.413	9-11179-030-0	03	1	9312-9510	●	●		●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 00.413	9-11179-030-0	03	1	9511-		●		●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 00.413 ID=20.0	8-94153-051-0	03	1	9312-9501			●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=19.5	8-94202-456-3	03	1	9502-			●
31	00.413 BOLT; HEAT PROTECTOR 12.187 M8X16 W/LK&PL WASHER	0-50140-816-0	01	1	9312-9510	●	●		●
31	00.413 BOLT; HEAT PROTECTOR 12.187 M8X16 W/LK&PL WASHER	0-50140-816-0	01	1	9511-		●		●
34	00.413 BUSHING; MTG RUBBER,CYL HD COVER 00.034 OD=13 T=9.5	8-94140-427-1	02	1	9312-9510	●	●		●
34	00.413 BUSHING; MTG RUBBER,CYL HD COVER 00.034 OD=13 T=9.5	8-94140-427-1	02	1	9511-		●		●
40	00.386 COVER	8-94365-033-0	01	1	9312-9510	●	●
40	00.386 COVER	8-94365-033-0	01	1	9511-		●
40	00.386 COVER (A)	8-94133-732-2	01	1	9312-9511			●
40	00.386 COVER EXC. EURO2 SPECIFICATION<7AF> (A)	8-94133-732-2	01	1	9512-9711			●
40	00.386 COVER EURO2 SPECIFICATION<7AF> (B)	8-97141-690-3	01	1	9512-			●
40	00.386 COVER	8-97044-611-0	01	1	9312-				●
40	00.386 COVER	8-97092-074-3	01	1	9312-9510					●
41	00.413 GROMMET; HD COVER,OUTER	1-19389-004-0	03	1	9312-9510	●	●		●
41	00.413 GROMMET; HD COVER,OUTER	1-19389-004-0	03	1	9511-		●		●
41	00.413 GROMMET; HD COVER,OUTER	8-94256-959-0	02	1	9312-9511			●
41	00.413 GROMMET; HD COVER,OUTER EXC. EURO2 SPECIFICATION<7AF>	8-94256-959-0	02	1	9512-9711			●
42	00.413 SEAL; RUBBER,HD COVER,OUTER	5-19389-006-1	01	1	9312-9510	●	●
42	00.413 SEAL; RUBBER,HD COVER,OUTER	5-19389-006-1	01	1	9511-		●
43	00.413 RUBBER; MTG,HD COVER,OUTER 00.034 OD=22	8-94140-428-1	02	1	9312-9510	●	●		●
43	00.413 RUBBER; MTG,HD COVER,OUTER 00.034 OD=22	8-94140-428-1	02	1	9511-		●		●
43	00.413 RUBBER; MTG,HD COVER,OUTER	8-97092-075-0	09	1	9312-9412					●
43	00.413 RUBBER; MTG,HD COVER,OUTER	8-97092-075-0	07	1	9501-9510					●
43	00.413 RUBBER; MTG,HD COVER,OUTER 03.265 OD=23	8-97105-689-6	15	1	9511-9711					●
43	00.413 RUBBER; MTG,HD COVER,OUTER 03.265 OD=23	8-97105-689-6	15	1	9712-					●	●	●
45	00.413 WASHER; LK,HD COVER,OUTER 06.760 ID=8.4 OD=22	9-09160-708-0	02	1	9312-9510	●	●		●
45	00.413 WASHER; LK,HD COVER,OUTER 06.760 ID=8.4 OD=22	9-09160-708-0	02	1	9511-9607		●		●
45	00.413 WASHER; LK,HD COVER,OUTER 06.760 ID=8.4 OD=22	9-09160-708-0	02	1	9607-		●		●
46	00.413 NUT; HD COVER,OUTER 02.559 M8	9-09110-408-0	02	1	9312-9510	●	●		●
46	00.413 NUT; HD COVER,OUTER 02.559 M8	9-09110-408-0	02	1	9511-9607		●		●
46	00.413 NUT; HD COVER,OUTER 02.559 M8	9-09110-408-0	02	1	9607-		●		●
47	01.745 FLOAT; HD COVER	1-11179-094-0	02	1	9312-9510	●	●
47	01.745 FLOAT; HD COVER	1-11179-094-0	02	1	9511-		●
48	00.293 PLATE; BAFFLE,CYL HD COVER	1-11179-099-0	01	1	9312-9510	●	●
48	00.293 PLATE; BAFFLE,CYL HD COVER	1-11179-099-0	01	1	9511-		●
59	00.413 GROMMET; OIL FILLER 01.758 ID=50 OD=67	5-11173-021-1	01	1	9312-9510	●	●		●
59	00.413 GROMMET; OIL FILLER 01.758 ID=50 OD=67	5-11173-021-1	01	1	9511-		●		●
68	00.413 WASHER; CAP NUT,HD COVER	9-11179-105-0	03	1	9312-9510	●	●		●
68	00.413 WASHER; CAP NUT,HD COVER	9-11179-105-0	03	1	9511-		●		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-94462-559-0	01	1	9312-9510	●	●		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-94462-559-0	01	1	9511-		●		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-94247-903-1	01	1	9312-9502			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97118-768-0	01	1	9503-9511			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. EURO2 SPECIFICATION<7AF>	8-97118-768-0	01	1	9512-9605			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97161-131-0	01	1	9606-			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EURO2 SPECIFICATION<7AF>	8-97141-535-0	01	1	9512-9605			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97019-846-1	01	1	9312-9510					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97105-690-2	01	1	9511-9711					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97105-690-2	01	1	9712-					●	●	●
75	00.413 NUT; CAP,HD COVER M8 CAP NUT OD=22	8-94340-192-0	03	1	9312-9510	●	●		●
75	00.413 NUT; CAP,HD COVER M8 CAP NUT OD=22	8-94340-192-0	03	1	9511-		●		●
75	00.413 NUT; CAP,HD COVER M8 OD=19	8-94158-108-0	03	1	9312-			●
80	00.413 PROTECTOR; HEAT,SEAL RUBBER	8-94381-354-0	01	1	9312-9510	●			●
80	00.413 PROTECTOR; HEAT,SEAL RUBBER	8-94381-354-0	01	1	9511-				●
80	00.413 PROTECTOR; HEAT,SEAL RUBBER	8-97011-062-0	01	1	9312-		●

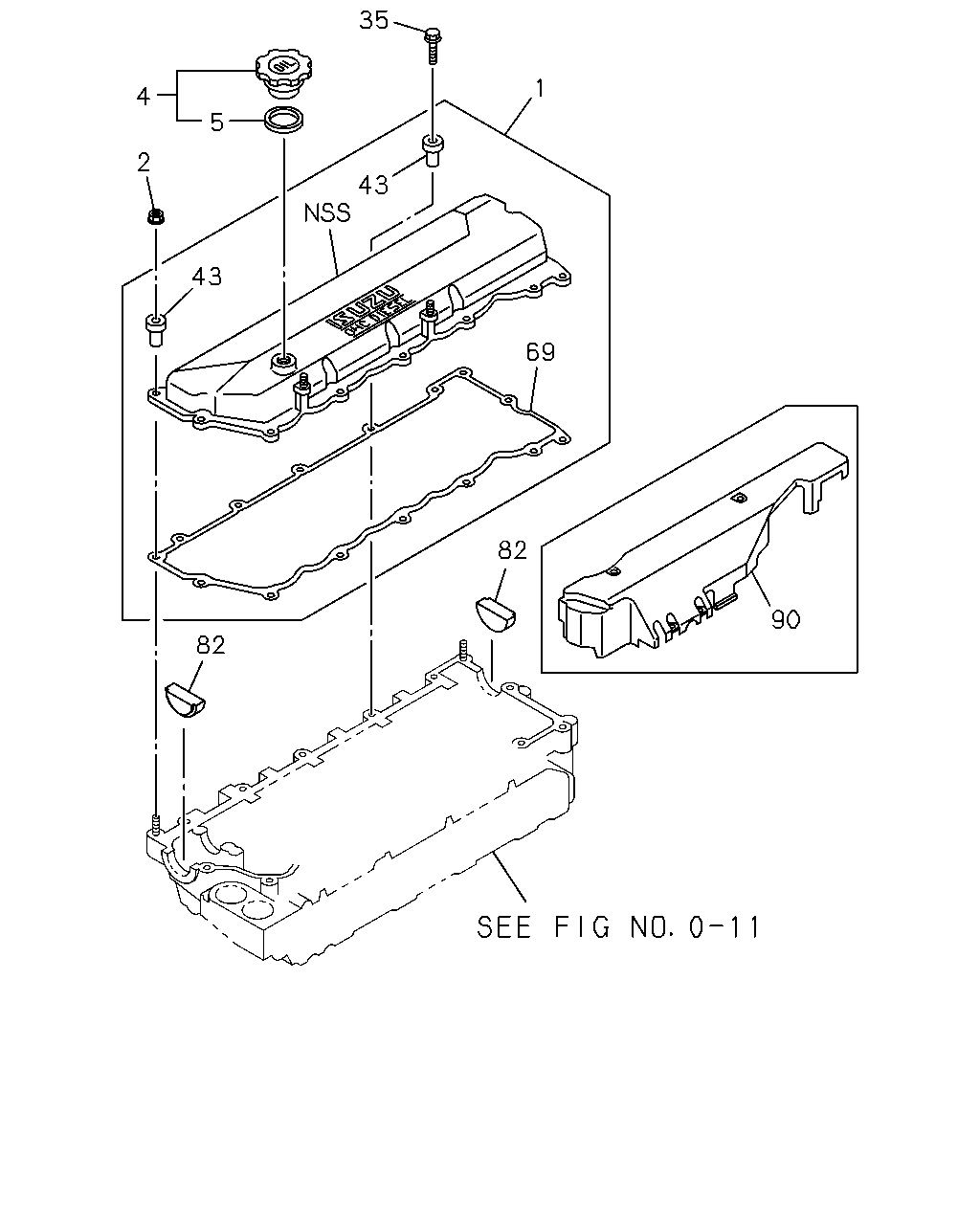

35 1 4 5 2 43 43 69 82 90 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	00.386 COVER; CYL HD	8-97063-303-0	01	1	9312-9510	●	●
1	00.386 COVER; CYL HD	8-97063-303-0	01	1	9511-		●
1	00.386 COVER; CYL HD	8-94476-696-0	01	1	9312-			●
1	00.386 COVER; CYL HD	8-97044-610-0	01	1	9312-9606				●
1	00.386 COVER; CYL HD	8-97164-311-0	01	1	9607-9610				●
1	00.386 COVER; CYL HD	8-97044-610-0	01	1	9611-				●
1	00.386 COVER; CYL HD	8-97092-072-2	01	1	9312-9401					●
1	00.386 COVER; CYL HD	8-97102-511-2	01	1	9402-9510					●
1	00.386 COVER; CYL HD	8-97113-025-2	01	1	9511-9609					●
1	00.386 COVER; CYL HD EXC. WEST MALAYSIA EQUIPMENT(RWP)	8-97113-025-2	01	1	9610-9711					●
1	00.386 COVER; CYL HD	8-97113-025-2	01	1	9712-					●	●	●
1	00.386 COVER; CYL HD WEST MALAYSIA EQUIPMENT(RWP)	8-97169-494-0	01	1	9610-9711					●
2	00.413 NUT; COVER,HD 07.633 M8 FLANGE	0-91150-108-0	02	1	9312-9711					●
2	00.413 NUT; COVER,HD 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-					●	●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	9312-9510	●	●	●	●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	9511-9711		●	●	●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	9712-		●	●	●	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	9312-9510	●	●	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	9511-9711		●	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	9712-		●	●	●	●	●	●
35	00.293 BOLT; NOISE SHIELD COVER 08.900 M8X14	0-20800-814-0	02	1	9312-9601			●
35	00.293 BOLT; NOISE SHIELD COVER EXC. EURO2 SPECIFICATION<7AF> 08.900 M8X14	0-20800-814-0	02	1	9602-9706			●
35	00.293 BOLT; NOISE SHIELD COVER EXC. EURO2 SPECIFICATION<7AF> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9707-9711			●
35	00.293 BOLT; NOISE SHIELD COVER EURO2 SPECIFICATION<7AF> 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	02	1	9512-9601			●
35	00.293 BOLT; NOISE SHIELD COVER 03.415 M8X35 FLANGE	0-28080-835-0	13	1	9312-9510					●
35	00.293 BOLT; NOISE SHIELD COVER 03.275 M8X30 FLANGE	0-28080-830-0	13	1	9511-9606					●
35	00.293 BOLT; NOISE SHIELD COVER 04.686 M8X30 FLANGE	0-28680-830-0	13	1	9607-9711					●
35	00.293 BOLT; NOISE SHIELD COVER 04.686 M8X30 FLANGE	0-28680-830-0	13	1	9712-					●	●	●
43	00.413 RUBBER; MTG,HD COVER,OUTER 00.034 OD=22	8-94140-428-1	02	1	9312-9510	●	●		●
43	00.413 RUBBER; MTG,HD COVER,OUTER 00.034 OD=22	8-94140-428-1	02	1	9511-		●		●
43	00.413 RUBBER; MTG,HD COVER,OUTER	8-97092-075-0	09	1	9312-9412					●
43	00.413 RUBBER; MTG,HD COVER,OUTER	8-97092-075-0	07	1	9501-9510					●
43	00.413 RUBBER; MTG,HD COVER,OUTER 03.265 OD=23	8-97105-689-6	15	1	9511-9711					●
43	00.413 RUBBER; MTG,HD COVER,OUTER 03.265 OD=23	8-97105-689-6	15	1	9712-					●	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-94462-559-0	01	1	9312-9510	●	●		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-94462-559-0	01	1	9511-		●		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-94247-903-1	01	1	9312-9502			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97118-768-0	01	1	9503-9511			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. EURO2 SPECIFICATION<7AF>	8-97118-768-0	01	1	9512-9605			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97161-131-0	01	1	9606-			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EURO2 SPECIFICATION<7AF>	8-97141-535-0	01	1	9512-9605			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97019-846-1	01	1	9312-9510					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97105-690-2	01	1	9511-9711					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97105-690-2	01	1	9712-					●	●	●
82	00.386 PLUG; CYL HD COVER	8-94399-605-0	02	1	9312-9711					●
82	00.386 PLUG; CYL HD COVER	8-94399-605-0	02	1	9712-					●	●	●
90	00.386 COVER; NOZZLE,INJ	8-97036-411-1	01	1	9312-9510					●
90	00.386 COVER; NOZZLE,INJ CHARGE AIR COOLER<6PL>	8-97175-141-0	01	1	9712-							●

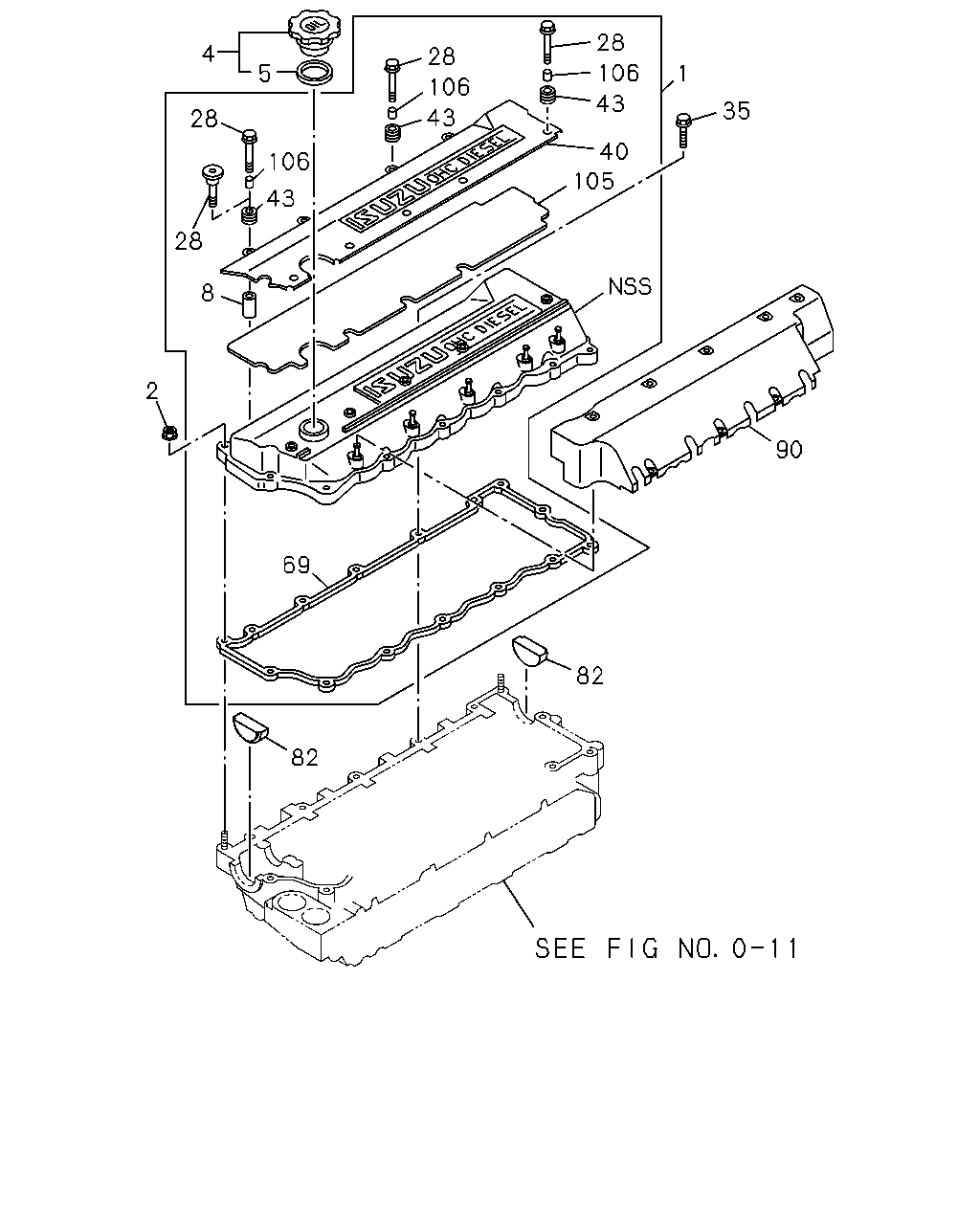

28 4 28 106 5 1 106 43 35 43 28 40 106 105 43 28 8 2 90 69 82 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	00.386 COVER; CYL HD	8-97063-303-0	01	1	9312-9510	●	●
1	00.386 COVER; CYL HD	8-97063-303-0	01	1	9511-		●
1	00.386 COVER; CYL HD	8-94476-696-0	01	1	9312-			●
1	00.386 COVER; CYL HD	8-97044-610-0	01	1	9312-9606				●
1	00.386 COVER; CYL HD	8-97164-311-0	01	1	9607-9610				●
1	00.386 COVER; CYL HD	8-97044-610-0	01	1	9611-				●
1	00.386 COVER; CYL HD	8-97092-072-2	01	1	9312-9401					●
1	00.386 COVER; CYL HD	8-97102-511-2	01	1	9402-9510					●
1	00.386 COVER; CYL HD	8-97113-025-2	01	1	9511-9609					●
1	00.386 COVER; CYL HD EXC. WEST MALAYSIA EQUIPMENT(RWP)	8-97113-025-2	01	1	9610-9711					●
1	00.386 COVER; CYL HD	8-97113-025-2	01	1	9712-					●	●	●
1	00.386 COVER; CYL HD WEST MALAYSIA EQUIPMENT(RWP)	8-97169-494-0	01	1	9610-9711					●
2	00.413 NUT; COVER,HD 07.633 M8 FLANGE	0-91150-108-0	02	1	9312-9711					●
2	00.413 NUT; COVER,HD 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-					●	●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	9312-9510	●	●	●	●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	9511-9711		●	●	●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	9712-		●	●	●	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	9312-9510	●	●	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	9511-9711		●	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	9712-		●	●	●	●	●	●
8	00.413 SPACER; HD COVER	8-97092-076-0	04	1	9312-9510					●
28	00.413 BOLT; HD COVER M6X42	8-97102-101-0	02	1	9312-9510					●
28	00.413 BOLT; HD COVER M6X45	8-97127-606-0	02	1	9312-9510					●
28	00.413 BOLT; HD COVER M6X20	8-97127-607-0	03	1	9312-9510					●
35	00.293 BOLT; NOISE SHIELD COVER 08.900 M8X14	0-20800-814-0	02	1	9312-9601			●
35	00.293 BOLT; NOISE SHIELD COVER EXC. EURO2 SPECIFICATION<7AF> 08.900 M8X14	0-20800-814-0	02	1	9602-9706			●
35	00.293 BOLT; NOISE SHIELD COVER EXC. EURO2 SPECIFICATION<7AF> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9707-9711			●
35	00.293 BOLT; NOISE SHIELD COVER EURO2 SPECIFICATION<7AF> 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	02	1	9512-9601			●
35	00.293 BOLT; NOISE SHIELD COVER 03.415 M8X35 FLANGE	0-28080-835-0	13	1	9312-9510					●
35	00.293 BOLT; NOISE SHIELD COVER 03.275 M8X30 FLANGE	0-28080-830-0	13	1	9511-9606					●
35	00.293 BOLT; NOISE SHIELD COVER 04.686 M8X30 FLANGE	0-28680-830-0	13	1	9607-9711					●
35	00.293 BOLT; NOISE SHIELD COVER 04.686 M8X30 FLANGE	0-28680-830-0	13	1	9712-					●	●	●
40	00.386 COVER	8-94365-033-0	01	1	9312-9510	●	●
40	00.386 COVER	8-94365-033-0	01	1	9511-		●
40	00.386 COVER (A)	8-94133-732-2	01	1	9312-9511			●
40	00.386 COVER EXC. EURO2 SPECIFICATION<7AF> (A)	8-94133-732-2	01	1	9512-9711			●
40	00.386 COVER EURO2 SPECIFICATION<7AF> (B)	8-97141-690-3	01	1	9512-			●
40	00.386 COVER	8-97044-611-0	01	1	9312-				●
40	00.386 COVER	8-97092-074-3	01	1	9312-9510					●
43	00.413 RUBBER; MTG,HD COVER,OUTER 00.034 OD=22	8-94140-428-1	02	1	9312-9510	●	●		●
43	00.413 RUBBER; MTG,HD COVER,OUTER 00.034 OD=22	8-94140-428-1	02	1	9511-		●		●
43	00.413 RUBBER; MTG,HD COVER,OUTER	8-97092-075-0	09	1	9312-9412					●
43	00.413 RUBBER; MTG,HD COVER,OUTER	8-97092-075-0	07	1	9501-9510					●
43	00.413 RUBBER; MTG,HD COVER,OUTER 03.265 OD=23	8-97105-689-6	15	1	9511-9711					●
43	00.413 RUBBER; MTG,HD COVER,OUTER 03.265 OD=23	8-97105-689-6	15	1	9712-					●	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-94462-559-0	01	1	9312-9510	●	●		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-94462-559-0	01	1	9511-		●		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-94247-903-1	01	1	9312-9502			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97118-768-0	01	1	9503-9511			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. EURO2 SPECIFICATION<7AF>	8-97118-768-0	01	1	9512-9605			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97161-131-0	01	1	9606-			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EURO2 SPECIFICATION<7AF>	8-97141-535-0	01	1	9512-9605			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97019-846-1	01	1	9312-9510					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97105-690-2	01	1	9511-9711					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97105-690-2	01	1	9712-					●	●	●
82	00.386 PLUG; CYL HD COVER	8-94399-605-0	02	1	9312-9711					●
82	00.386 PLUG; CYL HD COVER	8-94399-605-0	02	1	9712-					●	●	●
90	00.386 COVER; NOZZLE,INJ	8-97036-411-1	01	1	9312-9510					●
90	00.386 COVER; NOZZLE,INJ CHARGE AIR COOLER<6PL>	8-97175-141-0	01	1	9712-							●
105	00.386 INSULATOR; HD COVER	8-97092-303-1	01	1	9312-9510					●
106	00.386 RETAINER; HD COVER	8-97092-314-0	09	1	9312-9401					●
106	00.386 RETAINER; HD COVER	8-97092-314-0	07	1	9402-9412					●
106	00.386 RETAINER; HD COVER	8-97092-314-0	05	1	9501-9510					●

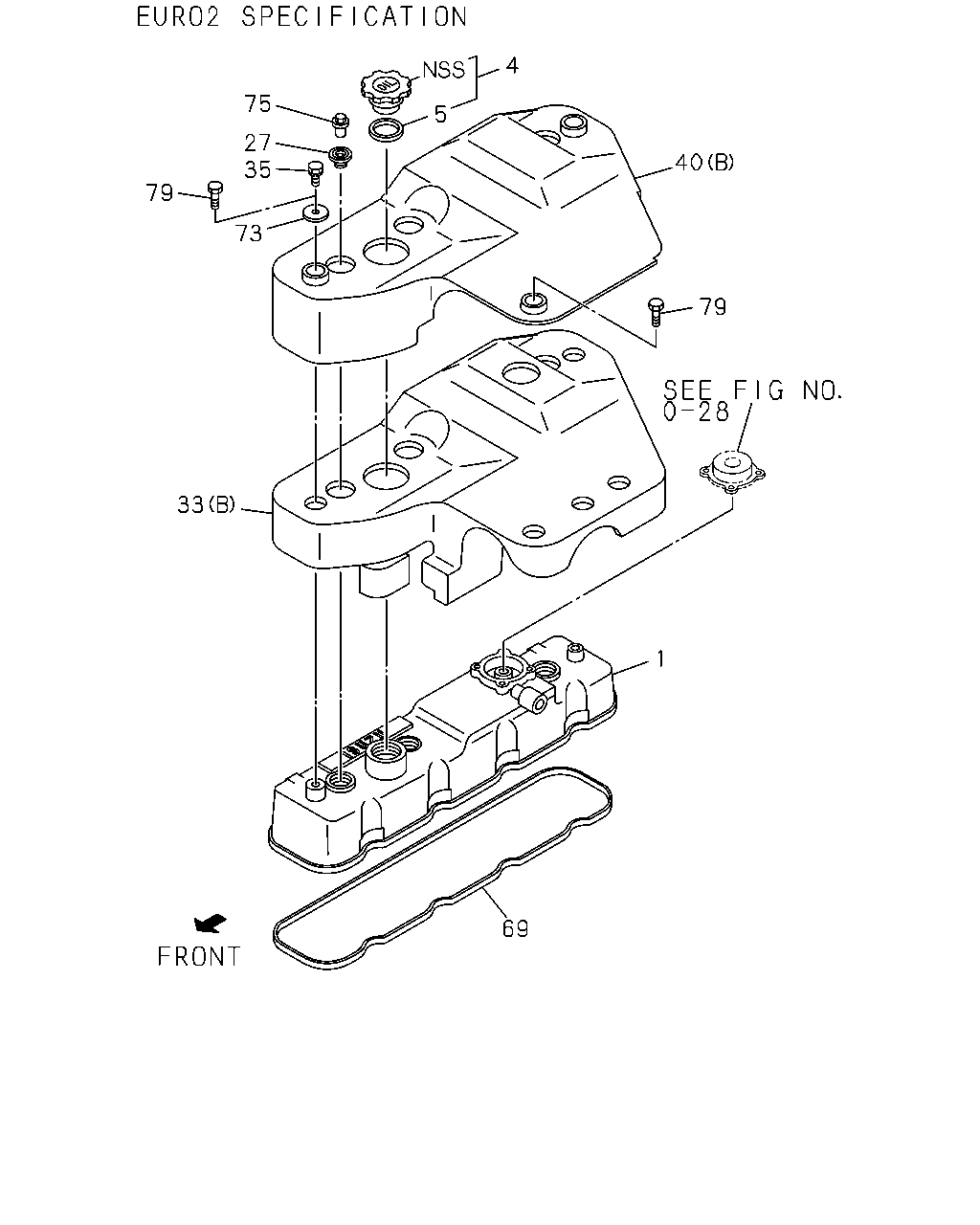

4 5 75 41 27 40 35 36 41 1 33 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	00.386 COVER; CYL HD	8-97063-303-0	01	1	9312-9510	●	●
1	00.386 COVER; CYL HD	8-97063-303-0	01	1	9511-		●
1	00.386 COVER; CYL HD	8-94476-696-0	01	1	9312-			●
1	00.386 COVER; CYL HD	8-97044-610-0	01	1	9312-9606				●
1	00.386 COVER; CYL HD	8-97164-311-0	01	1	9607-9610				●
1	00.386 COVER; CYL HD	8-97044-610-0	01	1	9611-				●
1	00.386 COVER; CYL HD	8-97092-072-2	01	1	9312-9401					●
1	00.386 COVER; CYL HD	8-97102-511-2	01	1	9402-9510					●
1	00.386 COVER; CYL HD	8-97113-025-2	01	1	9511-9609					●
1	00.386 COVER; CYL HD EXC. WEST MALAYSIA EQUIPMENT(RWP)	8-97113-025-2	01	1	9610-9711					●
1	00.386 COVER; CYL HD	8-97113-025-2	01	1	9712-					●	●	●
1	00.386 COVER; CYL HD WEST MALAYSIA EQUIPMENT(RWP)	8-97169-494-0	01	1	9610-9711					●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	9312-9510	●	●	●	●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	9511-9711		●	●	●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	9712-		●	●	●	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	9312-9510	●	●	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	9511-9711		●	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	9712-		●	●	●	●	●	●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 00.413	9-11179-030-0	03	1	9312-9510	●	●		●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 00.413	9-11179-030-0	03	1	9511-		●		●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 00.413 ID=20.0	8-94153-051-0	03	1	9312-9501			●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=19.5	8-94202-456-3	03	1	9502-			●
33	00.386 RUBBER; SPACE,CYL HD COVER (A)	8-94133-734-6	01	1	9312-9511			●
33	00.386 RUBBER; SPACE,CYL HD COVER EXC. EURO2 SPECIFICATION<7AF> (A)	8-94133-734-6	01	1	9512-9701			●
33	00.386 RUBBER; SPACE,CYL HD COVER EXC. EURO2 SPECIFICATION<7AF> (A)	8-97147-921-0	01	1	9702-9711			●
33	00.386 RUBBER; SPACE,CYL HD COVER EURO2 SPECIFICATION<7AF> (B)	8-97141-691-2	01	1	9512-			●
35	00.293 BOLT; NOISE SHIELD COVER 08.900 M8X14	0-20800-814-0	02	1	9312-9601			●
35	00.293 BOLT; NOISE SHIELD COVER EXC. EURO2 SPECIFICATION<7AF> 08.900 M8X14	0-20800-814-0	02	1	9602-9706			●
35	00.293 BOLT; NOISE SHIELD COVER EXC. EURO2 SPECIFICATION<7AF> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9707-9711			●
35	00.293 BOLT; NOISE SHIELD COVER EURO2 SPECIFICATION<7AF> 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	02	1	9512-9601			●
35	00.293 BOLT; NOISE SHIELD COVER 03.415 M8X35 FLANGE	0-28080-835-0	13	1	9312-9510					●
35	00.293 BOLT; NOISE SHIELD COVER 03.275 M8X30 FLANGE	0-28080-830-0	13	1	9511-9606					●
35	00.293 BOLT; NOISE SHIELD COVER 04.686 M8X30 FLANGE	0-28680-830-0	13	1	9607-9711					●
35	00.293 BOLT; NOISE SHIELD COVER 04.686 M8X30 FLANGE	0-28680-830-0	13	1	9712-					●	●	●
36	00.413 WASHER; PL,NOISE SHIELD COVER 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	9312-9601			●
36	00.413 WASHER; PL,NOISE SHIELD COVER EXC. EURO2 SPECIFICATION<7AF> 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	9602-9711			●
40	00.386 COVER	8-94365-033-0	01	1	9312-9510	●	●
40	00.386 COVER	8-94365-033-0	01	1	9511-		●
40	00.386 COVER (A)	8-94133-732-2	01	1	9312-9511			●
40	00.386 COVER EXC. EURO2 SPECIFICATION<7AF> (A)	8-94133-732-2	01	1	9512-9711			●
40	00.386 COVER EURO2 SPECIFICATION<7AF> (B)	8-97141-690-3	01	1	9512-			●
40	00.386 COVER	8-97044-611-0	01	1	9312-				●
40	00.386 COVER	8-97092-074-3	01	1	9312-9510					●
41	00.413 GROMMET; HD COVER,OUTER	1-19389-004-0	03	1	9312-9510	●	●		●
41	00.413 GROMMET; HD COVER,OUTER	1-19389-004-0	03	1	9511-		●		●
41	00.413 GROMMET; HD COVER,OUTER	8-94256-959-0	02	1	9312-9511			●
41	00.413 GROMMET; HD COVER,OUTER EXC. EURO2 SPECIFICATION<7AF>	8-94256-959-0	02	1	9512-9711			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-94462-559-0	01	1	9312-9510	●	●		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-94462-559-0	01	1	9511-		●		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-94247-903-1	01	1	9312-9502			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97118-768-0	01	1	9503-9511			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. EURO2 SPECIFICATION<7AF>	8-97118-768-0	01	1	9512-9605			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97161-131-0	01	1	9606-			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EURO2 SPECIFICATION<7AF>	8-97141-535-0	01	1	9512-9605			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97019-846-1	01	1	9312-9510					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97105-690-2	01	1	9511-9711					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97105-690-2	01	1	9712-					●	●	●
75	00.413 NUT; CAP,HD COVER M8 CAP NUT OD=22	8-94340-192-0	03	1	9312-9510	●	●		●
75	00.413 NUT; CAP,HD COVER M8 CAP NUT OD=22	8-94340-192-0	03	1	9511-		●		●
75	00.413 NUT; CAP,HD COVER M8 OD=19	8-94158-108-0	03	1	9312-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
