◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50696 - NPR/NQR-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#44372) — 835 parça

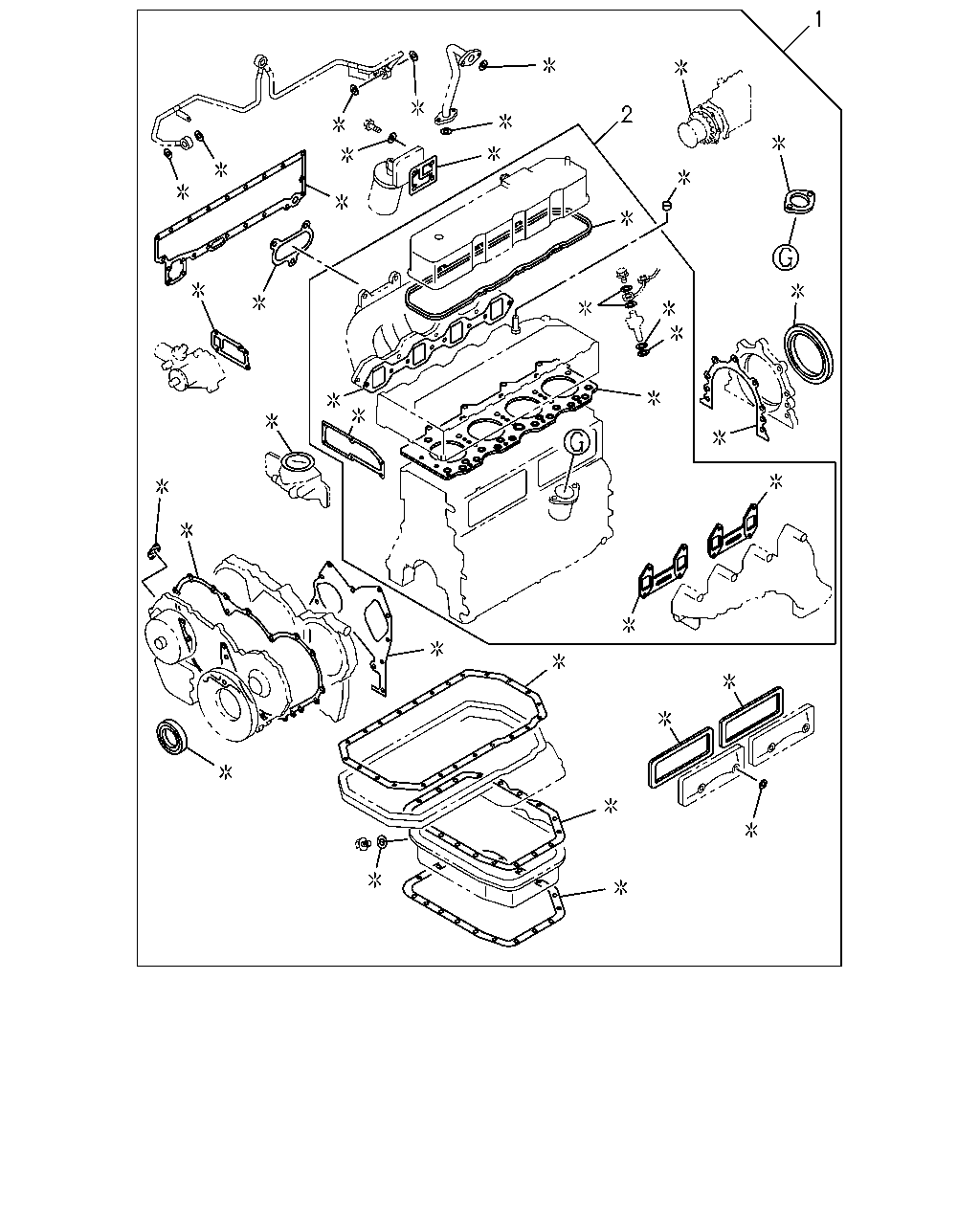

çizim 16021
1 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 00.010 GASKET SET; ENG OVERHAUL
T=1.90 		5-87811-606-0 01 1 9312-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.90 		5-87812-001-0 01 1 9411-9508 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.90 		5-87812-669-0 01 1 9509-9510 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87811-506-0 01 1 9312-9408 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87812-087-0 01 1 9409-9502 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87812-296-0 01 1 9503-9504 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87812-615-0 01 1 9505-9511 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87811-507-0 01 1 9312-9408 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87812-088-0 01 1 9409-9502 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87812-297-0 01 1 9503-9504 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87812-616-0 01 1 9505-9511 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87811-508-0 01 1 9312-9408 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87812-089-0 01 1 9409-9502 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87812-298-0 01 1 9503-9504 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87812-617-0 01 1 9505-9511 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<7AF> T=1.60 1-HOLE 		5-87812-856-0 01 1 9512-9605 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<7AF> T=1.60 1-HOLE 		5-87812-913-0 01 1 9606-9711 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87812-913-1 01 1 9712- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<7AF> T=1.65 2-HOLE 		5-87812-857-0 01 1 9512-9605 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<7AF> T=1.65 2-HOLE 		5-87812-914-0 01 1 9606-9711 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87812-914-1 01 1 9712- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<7AF> T=1.70 3-HOLE 		5-87812-858-0 01 1 9512-9605 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<7AF> T=1.70 3-HOLE 		5-87812-915-0 01 1 9606-9711 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87812-915-1 01 1 9712- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.60 1-HOLE 		5-87812-615-0 01 1 9512-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.60 1-HOLE 		5-87812-832-0 01 1 9603-9604 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.60 1-HOLE 		5-87812-904-0 01 1 9605-9711 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) T=1.70 WO/NOTCH 		5-87813-400-1 01 1 9712-9809 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.65 2-HOLE 		5-87812-616-0 01 1 9512-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.65 2-HOLE 		5-87812-833-0 01 1 9603-9604 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.65 2-HOLE 		5-87812-905-0 01 1 9605-9711 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) T=1.75 1-NOTCH 		5-87813-401-1 01 1 9712-9809 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.70 3-HOLE 		5-87812-617-0 01 1 9512-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.70 3-HOLE 		5-87812-834-0 01 1 9603-9604 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.70 3-HOLE 		5-87812-906-0 01 1 9605-9711 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) T=1.80 2-NOTCH 		5-87813-402-1 01 1 9712-9809 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 		5-87811-642-0 01 1 9312-9408 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 		5-87811-846-0 01 1 9409-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 		5-87812-002-0 01 1 9411-9411 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 		5-87812-300-0 01 1 9412- ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(RR3) T=1.95 1-NOTCH 		5-87811-603-0 01 1 9312-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(RR3) T=1.95 1-NOTCH 		5-87811-998-0 01 1 9411-9508 ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(RR3) T=1.95 1-NOTCH 		5-87812-666-0 01 1 9509-9510 ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(RR3) T=2.00 2-NOTCH 		5-87811-604-0 01 1 9312-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(RR3) T=2.00 2-NOTCH 		5-87811-999-0 01 1 9411-9508 ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(RR3) T=2.00 2-NOTCH 		5-87812-667-0 01 1 9509-9510 ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(RR3) T=2.05 3-NOTCH 		5-87811-605-0 01 1 9312-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(RR3) T=2.05 3-NOTCH 		5-87812-000-0 01 1 9411-9508 ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(RR3) T=2.05 3-NOTCH 		5-87812-668-0 01 1 9509-9510 ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(RR3) T=1.95 1-NOTCH 		5-87812-666-1 01 1 9511- ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(RR3) T=2.00 2-NOTCH 		5-87812-667-1 01 1 9511- ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(RR3) T=2.05 3-NOTCH 		5-87812-668-1 01 1 9511- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. AUSTRALIA EQUIPMENT(RR3) T=1.95 1-NOTCH 		5-87811-600-0 01 1 9312-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. AUSTRALIA EQUIPMENT(RR3) T=1.95 1-NOTCH 		5-87811-995-1 01 1 9411-9510 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. AUSTRALIA EQUIPMENT(RR3) T=2.00 2-NOTCH 		5-87811-601-0 01 1 9312-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. AUSTRALIA EQUIPMENT(RR3) T=2.00 2-NOTCH 		5-87811-996-1 01 1 9411-9510 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. AUSTRALIA EQUIPMENT(RR3) T=2.05 3-NOTCH 		5-87811-602-0 01 1 9312-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. AUSTRALIA EQUIPMENT(RR3) T=2.05 3-NOTCH 		5-87811-997-1 01 1 9411-9510 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. AUSTRALIA EQUIPMENT(RR3) T=1.95 1-NOTCH 		5-87811-995-2 01 1 9511- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. AUSTRALIA EQUIPMENT(RR3) T=2.00 2-NOTCH 		5-87811-996-2 01 1 9511- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. AUSTRALIA EQUIPMENT(RR3) T=2.05 3-NOTCH 		5-87811-997-2 01 1 9511- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=2.05 WO/NOTCH 		5-87811-497-0 01 1 9312-9312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87811-711-0 01 1 9401-9405 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87811-868-2 01 1 9406-9510 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87811-986-0 01 1 9511-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87812-801-1 01 1 9603-9609 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87813-032-0 01 1 9610-9610 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87813-032-1 01 1 9610-9804 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87813-394-0 01 1 9805- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=2.10 1-NOTCH 		5-87811-498-0 01 1 9312-9312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87811-712-0 01 1 9401-9405 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87811-869-2 01 1 9406-9510 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87811-987-0 01 1 9511-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87812-802-1 01 1 9603-9609 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87813-033-0 01 1 9610-9610 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87813-033-1 01 1 9610-9804 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87813-395-0 01 1 9805- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=2.15 2-NOTCH 		5-87811-499-0 01 1 9312-9312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.80 2-NOTCH 		5-87811-713-0 01 1 9401-9405 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.80 2-NOTCH 		5-87811-870-2 01 1 9406-9510 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.80 2-NOTCH 		5-87811-988-0 01 1 9511-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.80 2-NOTCH 		5-87812-803-1 01 1 9603-9609 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.80 2-NOTCH 		5-87813-034-0 01 1 9610-9610 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.80 2-NOTCH 		5-87813-034-1 01 1 9610-9804 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.80 2-NOTCH 		5-87813-396-0 01 1 9805- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87813-230-1 01 1 9712- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87813-231-1 01 1 9712- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87813-232-1 01 1 9712- ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87813-403-1 01 1 9712-9809 ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87813-404-1 01 1 9712-9809 ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87813-405-1 01 1 9712-9809 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87813-346-0 01 1 9712-9804 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87813-397-0 01 1 9805- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.50 1-NOTCH 		5-87813-347-0 01 1 9712-9804 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87813-398-0 01 1 9805- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.55 2-NOTCH 		5-87813-348-0 01 1 9712-9804 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.55 2-NOTCH 		5-87813-399-0 01 1 9805- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.90 		5-87810-469-2 01 1 9312-9406 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.90 		5-87810-465-4 01 1 9407-9410 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.90 		5-87812-006-0 01 1 9411-9510 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-HOLE 		5-87811-509-0 01 1 9312-9408 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-HOLE 		5-87812-090-0 01 1 9409-9502 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-HOLE 		5-87812-245-0 01 1 9503-9511 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-HOLE 		5-87811-510-0 01 1 9312-9408 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-HOLE 		5-87812-091-0 01 1 9409-9502 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-HOLE 		5-87812-246-0 01 1 9503-9511 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-HOLE 		5-87811-511-0 01 1 9312-9408 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-HOLE 		5-87812-092-0 01 1 9409-9502 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-HOLE 		5-87812-247-0 01 1 9503-9511 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<7AF> T=1.60 1-HOLE 		5-87812-859-0 01 1 9512-9605 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<7AF> T=1.60 1-HOLE 		5-87813-021-0 01 1 9606-9711 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-HOLE 		5-87813-021-1 01 1 9712- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<7AF> T=1.65 2-HOLE 		5-87812-860-0 01 1 9512-9605 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<7AF> T=1.65 2-HOLE 		5-87813-022-0 01 1 9606-9711 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-HOLE 		5-87813-022-1 01 1 9712- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<7AF> T=1.70 3-HOLE 		5-87812-861-0 01 1 9512-9605 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<7AF> T=1.70 3-HOLE 		5-87813-023-0 01 1 9606-9711 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-HOLE 		5-87813-023-1 01 1 9712- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.60 1-HOLE 		5-87812-245-0 01 1 9512-9602 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.60 1-HOLE 		5-87812-835-0 01 1 9603-9604 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.60 1-HOLE 		5-87812-907-0 01 1 9605-9711 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87813-406-1 01 1 9712-9809 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.65 2-HOLE 		5-87812-246-0 01 1 9512-9602 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.65 2-HOLE 		5-87812-836-0 01 1 9603-9604 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.65 2-HOLE 		5-87812-908-0 01 1 9605-9711 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87813-407-1 01 1 9712-9809 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.70 3-HOLE 		5-87812-247-0 01 1 9512-9602 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.70 3-HOLE 		5-87812-837-0 01 1 9603-9604 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.70 3-HOLE 		5-87812-909-0 01 1 9605-9711 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87813-408-1 01 1 9712-9809 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 		5-87811-643-0 01 1 9312-9408 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 		5-87811-847-0 01 1 9409-9410 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 		5-87812-007-0 01 1 9411-9411 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 		5-87812-302-0 01 1 9412- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.95 1-NOTCH 		5-87810-543-3 01 1 9312-9410 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.95 1-NOTCH 		5-87812-003-0 01 1 9411-9510 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=2.00 2-NOTCH 		5-87810-544-3 01 1 9312-9410 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=2.00 2-NOTCH 		5-87812-004-0 01 1 9411-9510 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=2.05 3-NOTCH 		5-87810-545-3 01 1 9312-9410 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=2.05 3-NOTCH 		5-87812-005-0 01 1 9411-9510 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.95 1-NOTCH 		5-87812-003-1 01 1 9511- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=2.00 2-NOTCH 		5-87812-004-1 01 1 9511- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=2.05 3-NOTCH 		5-87812-005-1 01 1 9511- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=2.05 WO/NOTCH 		5-87811-124-1 01 1 9312-9312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 WO/NOTCH 		5-87811-714-0 01 1 9401-9405 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 WO/NOTCH 		5-87811-871-2 01 1 9406-9510 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=2.10 1-NOTCH 		5-87811-125-1 01 1 9312-9312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.75 1-NOTCH 		5-87811-715-0 01 1 9401-9405 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.75 1-NOTCH 		5-87811-872-2 01 1 9406-9510 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=2.15 2-NOTCH 		5-87811-126-1 01 1 9312-9312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.80 2-NOTCH 		5-87811-716-0 01 1 9401-9405 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.80 2-NOTCH 		5-87811-873-2 01 1 9406-9510 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 WO/NOTCH 		5-87811-883-0 01 1 9511-9609 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 WO/NOTCH 		5-87813-041-0 01 1 9610-9610 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 WO/NOTCH 		5-87813-041-1 01 1 9610- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.75 1-NOTCH 		5-87811-884-0 01 1 9511-9609 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.75 1-NOTCH 		5-87813-042-0 01 1 9610-9610 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.75 1-NOTCH 		5-87813-042-1 01 1 9610- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.80 2-NOTCH 		5-87811-885-0 01 1 9511-9609 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.80 2-NOTCH 		5-87813-043-0 01 1 9610-9610 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.80 2-NOTCH 		5-87813-043-1 01 1 9610- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87813-233-1 01 1 9712- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87813-234-1 01 1 9712- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87813-235-1 01 1 9712- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 WO/NOTCH 		5-87813-352-0 01 1 9712- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.75 1-NOTCH 		5-87813-353-0 01 1 9712- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.80 2-NOTCH 		5-87813-354-0 01 1 9712- ●

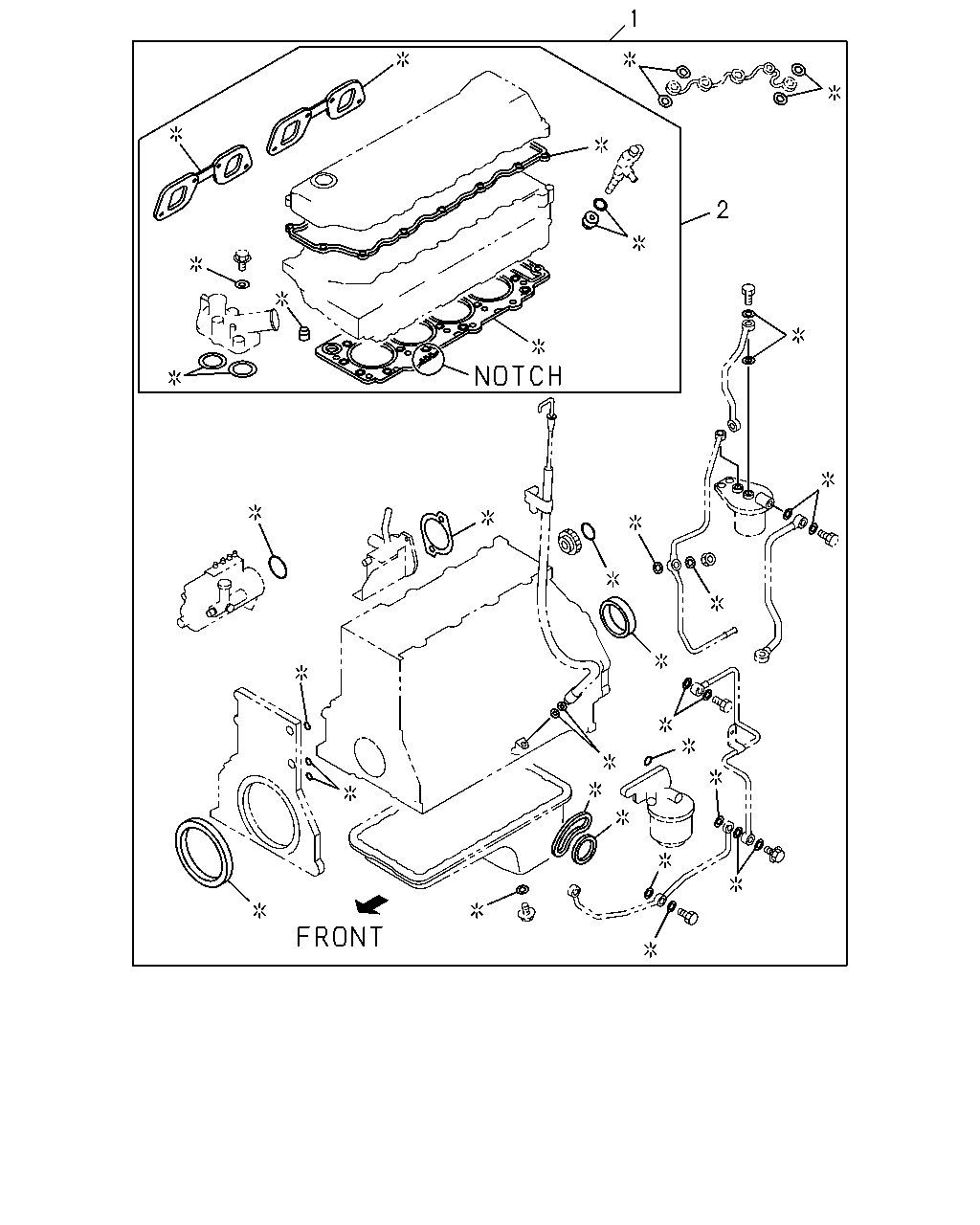

çizim 16147
1 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 00.010 GASKET SET; ENG OVERHAUL
T=1.90 		5-87811-606-0 01 1 9312-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.90 		5-87812-001-0 01 1 9411-9508 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.90 		5-87812-669-0 01 1 9509-9510 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87811-506-0 01 1 9312-9408 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87812-087-0 01 1 9409-9502 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87812-296-0 01 1 9503-9504 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87812-615-0 01 1 9505-9511 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87811-507-0 01 1 9312-9408 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87812-088-0 01 1 9409-9502 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87812-297-0 01 1 9503-9504 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87812-616-0 01 1 9505-9511 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87811-508-0 01 1 9312-9408 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87812-089-0 01 1 9409-9502 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87812-298-0 01 1 9503-9504 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87812-617-0 01 1 9505-9511 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<7AF> T=1.60 1-HOLE 		5-87812-856-0 01 1 9512-9605 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<7AF> T=1.60 1-HOLE 		5-87812-913-0 01 1 9606-9711 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87812-913-1 01 1 9712- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<7AF> T=1.65 2-HOLE 		5-87812-857-0 01 1 9512-9605 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<7AF> T=1.65 2-HOLE 		5-87812-914-0 01 1 9606-9711 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87812-914-1 01 1 9712- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<7AF> T=1.70 3-HOLE 		5-87812-858-0 01 1 9512-9605 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<7AF> T=1.70 3-HOLE 		5-87812-915-0 01 1 9606-9711 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87812-915-1 01 1 9712- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.60 1-HOLE 		5-87812-615-0 01 1 9512-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.60 1-HOLE 		5-87812-832-0 01 1 9603-9604 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.60 1-HOLE 		5-87812-904-0 01 1 9605-9711 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) T=1.70 WO/NOTCH 		5-87813-400-1 01 1 9712-9809 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.65 2-HOLE 		5-87812-616-0 01 1 9512-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.65 2-HOLE 		5-87812-833-0 01 1 9603-9604 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.65 2-HOLE 		5-87812-905-0 01 1 9605-9711 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) T=1.75 1-NOTCH 		5-87813-401-1 01 1 9712-9809 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.70 3-HOLE 		5-87812-617-0 01 1 9512-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.70 3-HOLE 		5-87812-834-0 01 1 9603-9604 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.70 3-HOLE 		5-87812-906-0 01 1 9605-9711 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) T=1.80 2-NOTCH 		5-87813-402-1 01 1 9712-9809 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 		5-87811-642-0 01 1 9312-9408 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 		5-87811-846-0 01 1 9409-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 		5-87812-002-0 01 1 9411-9411 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 		5-87812-300-0 01 1 9412- ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(RR3) T=1.95 1-NOTCH 		5-87811-603-0 01 1 9312-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(RR3) T=1.95 1-NOTCH 		5-87811-998-0 01 1 9411-9508 ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(RR3) T=1.95 1-NOTCH 		5-87812-666-0 01 1 9509-9510 ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(RR3) T=2.00 2-NOTCH 		5-87811-604-0 01 1 9312-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(RR3) T=2.00 2-NOTCH 		5-87811-999-0 01 1 9411-9508 ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(RR3) T=2.00 2-NOTCH 		5-87812-667-0 01 1 9509-9510 ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(RR3) T=2.05 3-NOTCH 		5-87811-605-0 01 1 9312-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(RR3) T=2.05 3-NOTCH 		5-87812-000-0 01 1 9411-9508 ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(RR3) T=2.05 3-NOTCH 		5-87812-668-0 01 1 9509-9510 ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(RR3) T=1.95 1-NOTCH 		5-87812-666-1 01 1 9511- ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(RR3) T=2.00 2-NOTCH 		5-87812-667-1 01 1 9511- ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(RR3) T=2.05 3-NOTCH 		5-87812-668-1 01 1 9511- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. AUSTRALIA EQUIPMENT(RR3) T=1.95 1-NOTCH 		5-87811-600-0 01 1 9312-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. AUSTRALIA EQUIPMENT(RR3) T=1.95 1-NOTCH 		5-87811-995-1 01 1 9411-9510 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. AUSTRALIA EQUIPMENT(RR3) T=2.00 2-NOTCH 		5-87811-601-0 01 1 9312-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. AUSTRALIA EQUIPMENT(RR3) T=2.00 2-NOTCH 		5-87811-996-1 01 1 9411-9510 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. AUSTRALIA EQUIPMENT(RR3) T=2.05 3-NOTCH 		5-87811-602-0 01 1 9312-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. AUSTRALIA EQUIPMENT(RR3) T=2.05 3-NOTCH 		5-87811-997-1 01 1 9411-9510 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. AUSTRALIA EQUIPMENT(RR3) T=1.95 1-NOTCH 		5-87811-995-2 01 1 9511- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. AUSTRALIA EQUIPMENT(RR3) T=2.00 2-NOTCH 		5-87811-996-2 01 1 9511- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. AUSTRALIA EQUIPMENT(RR3) T=2.05 3-NOTCH 		5-87811-997-2 01 1 9511- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=2.05 WO/NOTCH 		5-87811-497-0 01 1 9312-9312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87811-711-0 01 1 9401-9405 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87811-868-2 01 1 9406-9510 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87811-986-0 01 1 9511-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87812-801-1 01 1 9603-9609 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87813-032-0 01 1 9610-9610 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87813-032-1 01 1 9610-9804 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87813-394-0 01 1 9805- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=2.10 1-NOTCH 		5-87811-498-0 01 1 9312-9312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87811-712-0 01 1 9401-9405 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87811-869-2 01 1 9406-9510 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87811-987-0 01 1 9511-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87812-802-1 01 1 9603-9609 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87813-033-0 01 1 9610-9610 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87813-033-1 01 1 9610-9804 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87813-395-0 01 1 9805- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=2.15 2-NOTCH 		5-87811-499-0 01 1 9312-9312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.80 2-NOTCH 		5-87811-713-0 01 1 9401-9405 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.80 2-NOTCH 		5-87811-870-2 01 1 9406-9510 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.80 2-NOTCH 		5-87811-988-0 01 1 9511-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.80 2-NOTCH 		5-87812-803-1 01 1 9603-9609 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.80 2-NOTCH 		5-87813-034-0 01 1 9610-9610 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.80 2-NOTCH 		5-87813-034-1 01 1 9610-9804 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.80 2-NOTCH 		5-87813-396-0 01 1 9805- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87813-230-1 01 1 9712- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87813-231-1 01 1 9712- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87813-232-1 01 1 9712- ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87813-403-1 01 1 9712-9809 ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87813-404-1 01 1 9712-9809 ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87813-405-1 01 1 9712-9809 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87813-346-0 01 1 9712-9804 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87813-397-0 01 1 9805- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.50 1-NOTCH 		5-87813-347-0 01 1 9712-9804 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87813-398-0 01 1 9805- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.55 2-NOTCH 		5-87813-348-0 01 1 9712-9804 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.55 2-NOTCH 		5-87813-399-0 01 1 9805- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.90 		5-87810-469-2 01 1 9312-9406 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.90 		5-87810-465-4 01 1 9407-9410 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.90 		5-87812-006-0 01 1 9411-9510 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-HOLE 		5-87811-509-0 01 1 9312-9408 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-HOLE 		5-87812-090-0 01 1 9409-9502 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-HOLE 		5-87812-245-0 01 1 9503-9511 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-HOLE 		5-87811-510-0 01 1 9312-9408 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-HOLE 		5-87812-091-0 01 1 9409-9502 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-HOLE 		5-87812-246-0 01 1 9503-9511 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-HOLE 		5-87811-511-0 01 1 9312-9408 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-HOLE 		5-87812-092-0 01 1 9409-9502 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-HOLE 		5-87812-247-0 01 1 9503-9511 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<7AF> T=1.60 1-HOLE 		5-87812-859-0 01 1 9512-9605 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<7AF> T=1.60 1-HOLE 		5-87813-021-0 01 1 9606-9711 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-HOLE 		5-87813-021-1 01 1 9712- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<7AF> T=1.65 2-HOLE 		5-87812-860-0 01 1 9512-9605 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<7AF> T=1.65 2-HOLE 		5-87813-022-0 01 1 9606-9711 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-HOLE 		5-87813-022-1 01 1 9712- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<7AF> T=1.70 3-HOLE 		5-87812-861-0 01 1 9512-9605 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<7AF> T=1.70 3-HOLE 		5-87813-023-0 01 1 9606-9711 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-HOLE 		5-87813-023-1 01 1 9712- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.60 1-HOLE 		5-87812-245-0 01 1 9512-9602 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.60 1-HOLE 		5-87812-835-0 01 1 9603-9604 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.60 1-HOLE 		5-87812-907-0 01 1 9605-9711 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87813-406-1 01 1 9712-9809 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.65 2-HOLE 		5-87812-246-0 01 1 9512-9602 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.65 2-HOLE 		5-87812-836-0 01 1 9603-9604 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.65 2-HOLE 		5-87812-908-0 01 1 9605-9711 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87813-407-1 01 1 9712-9809 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.70 3-HOLE 		5-87812-247-0 01 1 9512-9602 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.70 3-HOLE 		5-87812-837-0 01 1 9603-9604 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.70 3-HOLE 		5-87812-909-0 01 1 9605-9711 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87813-408-1 01 1 9712-9809 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 		5-87811-643-0 01 1 9312-9408 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 		5-87811-847-0 01 1 9409-9410 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 		5-87812-007-0 01 1 9411-9411 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 		5-87812-302-0 01 1 9412- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.95 1-NOTCH 		5-87810-543-3 01 1 9312-9410 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.95 1-NOTCH 		5-87812-003-0 01 1 9411-9510 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=2.00 2-NOTCH 		5-87810-544-3 01 1 9312-9410 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=2.00 2-NOTCH 		5-87812-004-0 01 1 9411-9510 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=2.05 3-NOTCH 		5-87810-545-3 01 1 9312-9410 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=2.05 3-NOTCH 		5-87812-005-0 01 1 9411-9510 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.95 1-NOTCH 		5-87812-003-1 01 1 9511- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=2.00 2-NOTCH 		5-87812-004-1 01 1 9511- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=2.05 3-NOTCH 		5-87812-005-1 01 1 9511- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=2.05 WO/NOTCH 		5-87811-124-1 01 1 9312-9312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 WO/NOTCH 		5-87811-714-0 01 1 9401-9405 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 WO/NOTCH 		5-87811-871-2 01 1 9406-9510 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=2.10 1-NOTCH 		5-87811-125-1 01 1 9312-9312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.75 1-NOTCH 		5-87811-715-0 01 1 9401-9405 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.75 1-NOTCH 		5-87811-872-2 01 1 9406-9510 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=2.15 2-NOTCH 		5-87811-126-1 01 1 9312-9312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.80 2-NOTCH 		5-87811-716-0 01 1 9401-9405 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.80 2-NOTCH 		5-87811-873-2 01 1 9406-9510 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 WO/NOTCH 		5-87811-883-0 01 1 9511-9609 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 WO/NOTCH 		5-87813-041-0 01 1 9610-9610 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 WO/NOTCH 		5-87813-041-1 01 1 9610- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.75 1-NOTCH 		5-87811-884-0 01 1 9511-9609 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.75 1-NOTCH 		5-87813-042-0 01 1 9610-9610 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.75 1-NOTCH 		5-87813-042-1 01 1 9610- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.80 2-NOTCH 		5-87811-885-0 01 1 9511-9609 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.80 2-NOTCH 		5-87813-043-0 01 1 9610-9610 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.80 2-NOTCH 		5-87813-043-1 01 1 9610- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87813-233-1 01 1 9712- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87813-234-1 01 1 9712- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87813-235-1 01 1 9712- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 WO/NOTCH 		5-87813-352-0 01 1 9712- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.75 1-NOTCH 		5-87813-353-0 01 1 9712- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.80 2-NOTCH 		5-87813-354-0 01 1 9712- ●

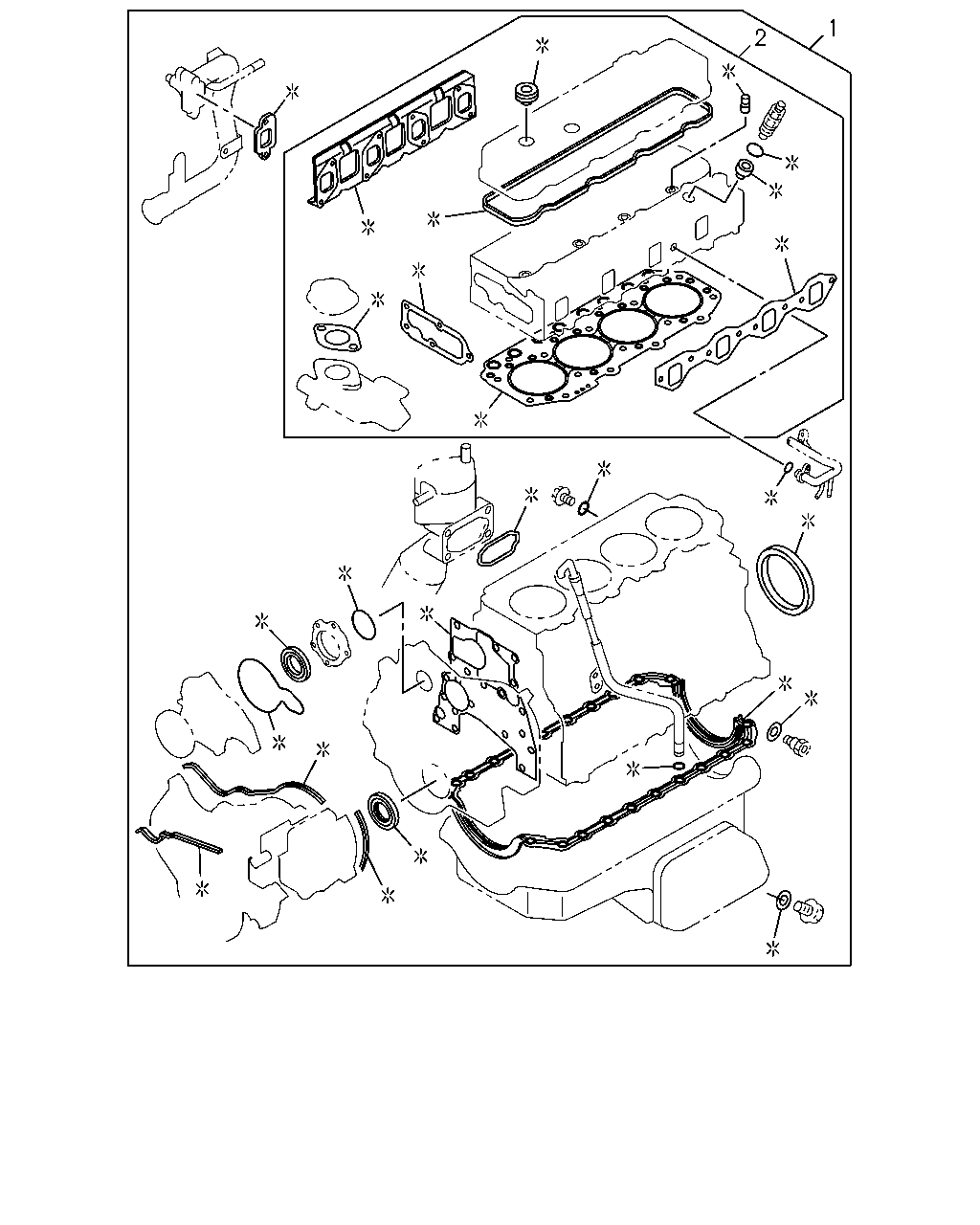

çizim 16263
1 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 00.010 GASKET SET; ENG OVERHAUL
T=1.90 		5-87811-606-0 01 1 9312-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.90 		5-87812-001-0 01 1 9411-9508 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.90 		5-87812-669-0 01 1 9509-9510 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87811-506-0 01 1 9312-9408 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87812-087-0 01 1 9409-9502 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87812-296-0 01 1 9503-9504 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87812-615-0 01 1 9505-9511 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87811-507-0 01 1 9312-9408 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87812-088-0 01 1 9409-9502 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87812-297-0 01 1 9503-9504 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87812-616-0 01 1 9505-9511 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87811-508-0 01 1 9312-9408 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87812-089-0 01 1 9409-9502 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87812-298-0 01 1 9503-9504 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87812-617-0 01 1 9505-9511 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<7AF> T=1.60 1-HOLE 		5-87812-856-0 01 1 9512-9605 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<7AF> T=1.60 1-HOLE 		5-87812-913-0 01 1 9606-9711 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87812-913-1 01 1 9712- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<7AF> T=1.65 2-HOLE 		5-87812-857-0 01 1 9512-9605 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<7AF> T=1.65 2-HOLE 		5-87812-914-0 01 1 9606-9711 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87812-914-1 01 1 9712- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<7AF> T=1.70 3-HOLE 		5-87812-858-0 01 1 9512-9605 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<7AF> T=1.70 3-HOLE 		5-87812-915-0 01 1 9606-9711 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87812-915-1 01 1 9712- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.60 1-HOLE 		5-87812-615-0 01 1 9512-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.60 1-HOLE 		5-87812-832-0 01 1 9603-9604 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.60 1-HOLE 		5-87812-904-0 01 1 9605-9711 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) T=1.70 WO/NOTCH 		5-87813-400-1 01 1 9712-9809 ●

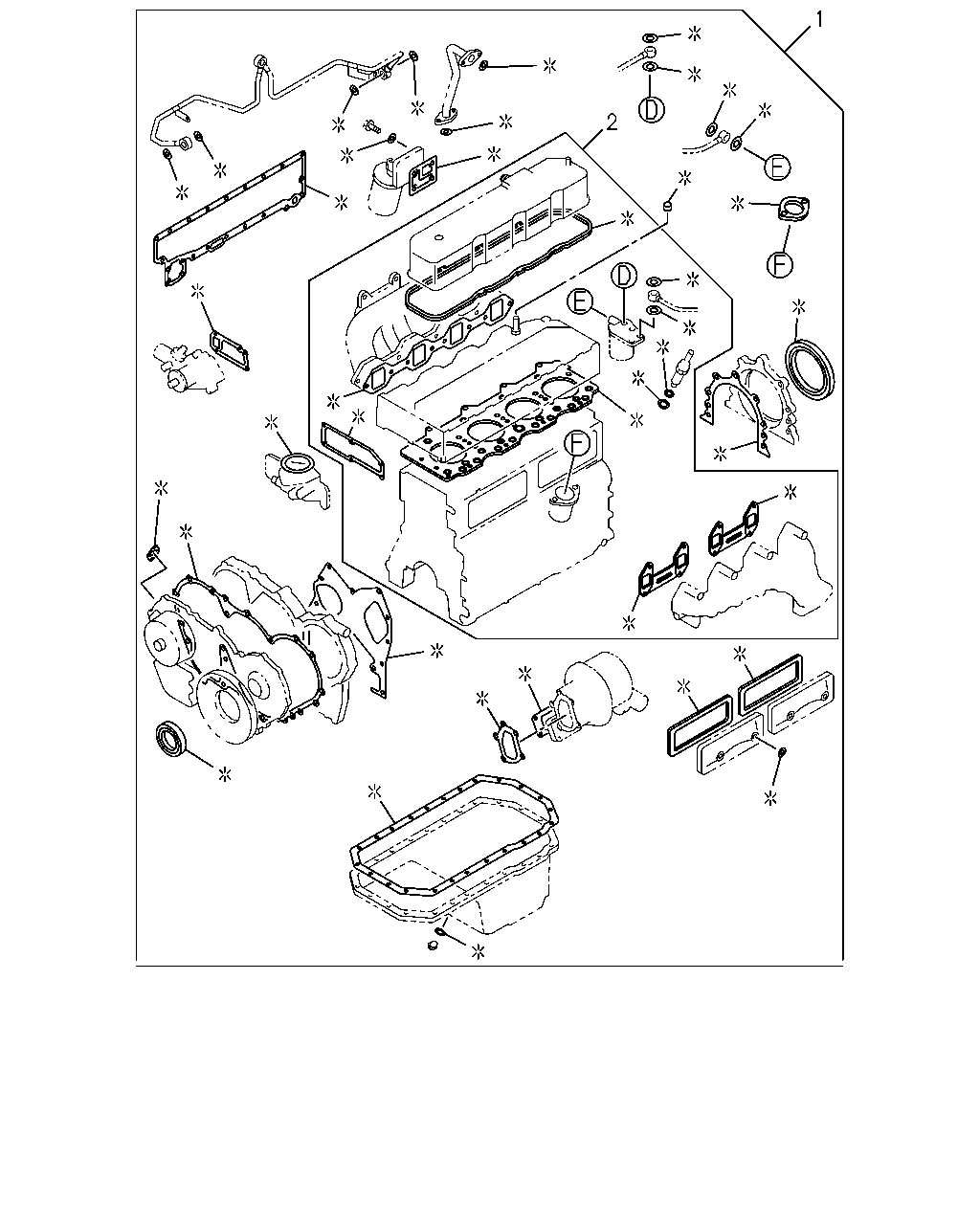

1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.65 2-HOLE 		5-87812-616-0 01 1 9512-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.65 2-HOLE 		5-87812-833-0 01 1 9603-9604 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.65 2-HOLE 		5-87812-905-0 01 1 9605-9711 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) T=1.75 1-NOTCH 		5-87813-401-1 01 1 9712-9809 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.70 3-HOLE 		5-87812-617-0 01 1 9512-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.70 3-HOLE 		5-87812-834-0 01 1 9603-9604 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.70 3-HOLE 		5-87812-906-0 01 1 9605-9711 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) T=1.80 2-NOTCH 		5-87813-402-1 01 1 9712-9809 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 		5-87811-642-0 01 1 9312-9408 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 		5-87811-846-0 01 1 9409-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 		5-87812-002-0 01 1 9411-9411 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 		5-87812-300-0 01 1 9412- ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(RR3) T=1.95 1-NOTCH 		5-87811-603-0 01 1 9312-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(RR3) T=1.95 1-NOTCH 		5-87811-998-0 01 1 9411-9508 ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(RR3) T=1.95 1-NOTCH 		5-87812-666-0 01 1 9509-9510 ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(RR3) T=2.00 2-NOTCH 		5-87811-604-0 01 1 9312-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(RR3) T=2.00 2-NOTCH 		5-87811-999-0 01 1 9411-9508 ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(RR3) T=2.00 2-NOTCH 		5-87812-667-0 01 1 9509-9510 ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(RR3) T=2.05 3-NOTCH 		5-87811-605-0 01 1 9312-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(RR3) T=2.05 3-NOTCH 		5-87812-000-0 01 1 9411-9508 ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(RR3) T=2.05 3-NOTCH 		5-87812-668-0 01 1 9509-9510 ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(RR3) T=1.95 1-NOTCH 		5-87812-666-1 01 1 9511- ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(RR3) T=2.00 2-NOTCH 		5-87812-667-1 01 1 9511- ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(RR3) T=2.05 3-NOTCH 		5-87812-668-1 01 1 9511- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. AUSTRALIA EQUIPMENT(RR3) T=1.95 1-NOTCH 		5-87811-600-0 01 1 9312-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. AUSTRALIA EQUIPMENT(RR3) T=1.95 1-NOTCH 		5-87811-995-1 01 1 9411-9510 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. AUSTRALIA EQUIPMENT(RR3) T=2.00 2-NOTCH 		5-87811-601-0 01 1 9312-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. AUSTRALIA EQUIPMENT(RR3) T=2.00 2-NOTCH 		5-87811-996-1 01 1 9411-9510 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. AUSTRALIA EQUIPMENT(RR3) T=2.05 3-NOTCH 		5-87811-602-0 01 1 9312-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. AUSTRALIA EQUIPMENT(RR3) T=2.05 3-NOTCH 		5-87811-997-1 01 1 9411-9510 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. AUSTRALIA EQUIPMENT(RR3) T=1.95 1-NOTCH 		5-87811-995-2 01 1 9511- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. AUSTRALIA EQUIPMENT(RR3) T=2.00 2-NOTCH 		5-87811-996-2 01 1 9511- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. AUSTRALIA EQUIPMENT(RR3) T=2.05 3-NOTCH 		5-87811-997-2 01 1 9511- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=2.05 WO/NOTCH 		5-87811-497-0 01 1 9312-9312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87811-711-0 01 1 9401-9405 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87811-868-2 01 1 9406-9510 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87811-986-0 01 1 9511-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87812-801-1 01 1 9603-9609 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87813-032-0 01 1 9610-9610 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87813-032-1 01 1 9610-9804 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87813-394-0 01 1 9805- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=2.10 1-NOTCH 		5-87811-498-0 01 1 9312-9312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87811-712-0 01 1 9401-9405 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87811-869-2 01 1 9406-9510 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87811-987-0 01 1 9511-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87812-802-1 01 1 9603-9609 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87813-033-0 01 1 9610-9610 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87813-033-1 01 1 9610-9804 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87813-395-0 01 1 9805- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=2.15 2-NOTCH 		5-87811-499-0 01 1 9312-9312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.80 2-NOTCH 		5-87811-713-0 01 1 9401-9405 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.80 2-NOTCH 		5-87811-870-2 01 1 9406-9510 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.80 2-NOTCH 		5-87811-988-0 01 1 9511-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.80 2-NOTCH 		5-87812-803-1 01 1 9603-9609 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.80 2-NOTCH 		5-87813-034-0 01 1 9610-9610 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.80 2-NOTCH 		5-87813-034-1 01 1 9610-9804 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.80 2-NOTCH 		5-87813-396-0 01 1 9805- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87813-230-1 01 1 9712- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87813-231-1 01 1 9712- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87813-232-1 01 1 9712- ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87813-403-1 01 1 9712-9809 ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87813-404-1 01 1 9712-9809 ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87813-405-1 01 1 9712-9809 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87813-346-0 01 1 9712-9804 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87813-397-0 01 1 9805- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.50 1-NOTCH 		5-87813-347-0 01 1 9712-9804 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87813-398-0 01 1 9805- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.55 2-NOTCH 		5-87813-348-0 01 1 9712-9804 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.55 2-NOTCH 		5-87813-399-0 01 1 9805- ●

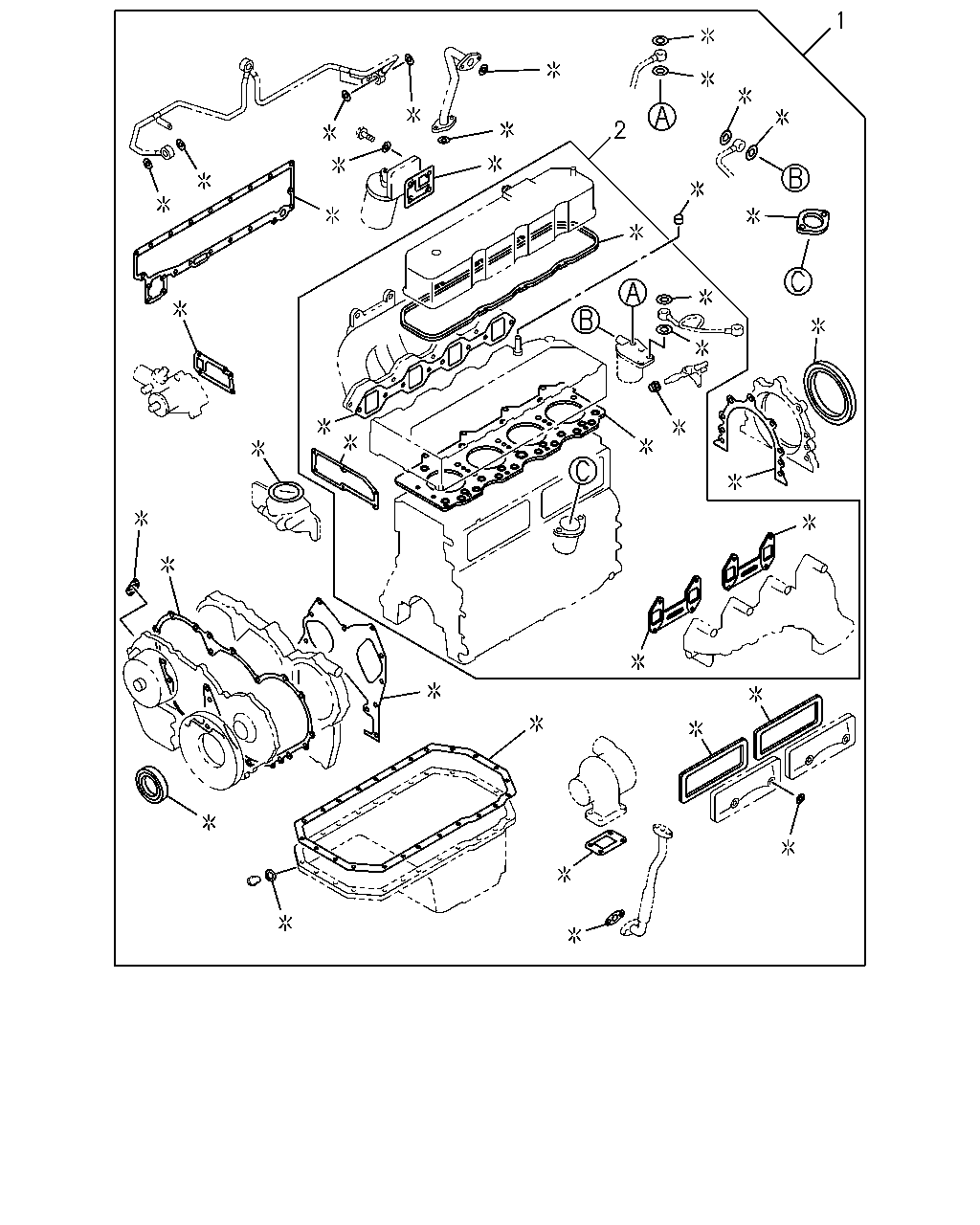

2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.90 		5-87810-469-2 01 1 9312-9406 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.90 		5-87810-465-4 01 1 9407-9410 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.90 		5-87812-006-0 01 1 9411-9510 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-HOLE 		5-87811-509-0 01 1 9312-9408 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-HOLE 		5-87812-090-0 01 1 9409-9502 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-HOLE 		5-87812-245-0 01 1 9503-9511 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-HOLE 		5-87811-510-0 01 1 9312-9408 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-HOLE 		5-87812-091-0 01 1 9409-9502 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-HOLE 		5-87812-246-0 01 1 9503-9511 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-HOLE 		5-87811-511-0 01 1 9312-9408 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-HOLE 		5-87812-092-0 01 1 9409-9502 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-HOLE 		5-87812-247-0 01 1 9503-9511 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<7AF> T=1.60 1-HOLE 		5-87812-859-0 01 1 9512-9605 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<7AF> T=1.60 1-HOLE 		5-87813-021-0 01 1 9606-9711 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-HOLE 		5-87813-021-1 01 1 9712- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<7AF> T=1.65 2-HOLE 		5-87812-860-0 01 1 9512-9605 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<7AF> T=1.65 2-HOLE 		5-87813-022-0 01 1 9606-9711 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-HOLE 		5-87813-022-1 01 1 9712- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<7AF> T=1.70 3-HOLE 		5-87812-861-0 01 1 9512-9605 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<7AF> T=1.70 3-HOLE 		5-87813-023-0 01 1 9606-9711 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-HOLE 		5-87813-023-1 01 1 9712- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.60 1-HOLE 		5-87812-245-0 01 1 9512-9602 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.60 1-HOLE 		5-87812-835-0 01 1 9603-9604 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.60 1-HOLE 		5-87812-907-0 01 1 9605-9711 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87813-406-1 01 1 9712-9809 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.65 2-HOLE 		5-87812-246-0 01 1 9512-9602 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.65 2-HOLE 		5-87812-836-0 01 1 9603-9604 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.65 2-HOLE 		5-87812-908-0 01 1 9605-9711 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87813-407-1 01 1 9712-9809 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.70 3-HOLE 		5-87812-247-0 01 1 9512-9602 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.70 3-HOLE 		5-87812-837-0 01 1 9603-9604 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.70 3-HOLE 		5-87812-909-0 01 1 9605-9711 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87813-408-1 01 1 9712-9809 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 		5-87811-643-0 01 1 9312-9408 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 		5-87811-847-0 01 1 9409-9410 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 		5-87812-007-0 01 1 9411-9411 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 		5-87812-302-0 01 1 9412- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.95 1-NOTCH 		5-87810-543-3 01 1 9312-9410 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.95 1-NOTCH 		5-87812-003-0 01 1 9411-9510 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=2.00 2-NOTCH 		5-87810-544-3 01 1 9312-9410 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=2.00 2-NOTCH 		5-87812-004-0 01 1 9411-9510 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=2.05 3-NOTCH 		5-87810-545-3 01 1 9312-9410 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=2.05 3-NOTCH 		5-87812-005-0 01 1 9411-9510 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.95 1-NOTCH 		5-87812-003-1 01 1 9511- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=2.00 2-NOTCH 		5-87812-004-1 01 1 9511- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=2.05 3-NOTCH 		5-87812-005-1 01 1 9511- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=2.05 WO/NOTCH 		5-87811-124-1 01 1 9312-9312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 WO/NOTCH 		5-87811-714-0 01 1 9401-9405 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 WO/NOTCH 		5-87811-871-2 01 1 9406-9510 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=2.10 1-NOTCH 		5-87811-125-1 01 1 9312-9312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.75 1-NOTCH 		5-87811-715-0 01 1 9401-9405 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.75 1-NOTCH 		5-87811-872-2 01 1 9406-9510 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=2.15 2-NOTCH 		5-87811-126-1 01 1 9312-9312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.80 2-NOTCH 		5-87811-716-0 01 1 9401-9405 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.80 2-NOTCH 		5-87811-873-2 01 1 9406-9510 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 WO/NOTCH 		5-87811-883-0 01 1 9511-9609 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 WO/NOTCH 		5-87813-041-0 01 1 9610-9610 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 WO/NOTCH 		5-87813-041-1 01 1 9610- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.75 1-NOTCH 		5-87811-884-0 01 1 9511-9609 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.75 1-NOTCH 		5-87813-042-0 01 1 9610-9610 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.75 1-NOTCH 		5-87813-042-1 01 1 9610- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.80 2-NOTCH 		5-87811-885-0 01 1 9511-9609 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.80 2-NOTCH 		5-87813-043-0 01 1 9610-9610 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.80 2-NOTCH 		5-87813-043-1 01 1 9610- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87813-233-1 01 1 9712- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87813-234-1 01 1 9712- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87813-235-1 01 1 9712- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 WO/NOTCH 		5-87813-352-0 01 1 9712- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.75 1-NOTCH 		5-87813-353-0 01 1 9712- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.80 2-NOTCH 		5-87813-354-0 01 1 9712- ●
çizim 16269
1 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 00.010 GASKET SET; ENG OVERHAUL
T=1.90 		5-87811-606-0 01 1 9312-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.90 		5-87812-001-0 01 1 9411-9508 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.90 		5-87812-669-0 01 1 9509-9510 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87811-506-0 01 1 9312-9408 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87812-087-0 01 1 9409-9502 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87812-296-0 01 1 9503-9504 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87812-615-0 01 1 9505-9511 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87811-507-0 01 1 9312-9408 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87812-088-0 01 1 9409-9502 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87812-297-0 01 1 9503-9504 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87812-616-0 01 1 9505-9511 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87811-508-0 01 1 9312-9408 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87812-089-0 01 1 9409-9502 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87812-298-0 01 1 9503-9504 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87812-617-0 01 1 9505-9511 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<7AF> T=1.60 1-HOLE 		5-87812-856-0 01 1 9512-9605 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<7AF> T=1.60 1-HOLE 		5-87812-913-0 01 1 9606-9711 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87812-913-1 01 1 9712- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<7AF> T=1.65 2-HOLE 		5-87812-857-0 01 1 9512-9605 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<7AF> T=1.65 2-HOLE 		5-87812-914-0 01 1 9606-9711 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87812-914-1 01 1 9712- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<7AF> T=1.70 3-HOLE 		5-87812-858-0 01 1 9512-9605 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<7AF> T=1.70 3-HOLE 		5-87812-915-0 01 1 9606-9711 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87812-915-1 01 1 9712- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.60 1-HOLE 		5-87812-615-0 01 1 9512-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.60 1-HOLE 		5-87812-832-0 01 1 9603-9604 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.60 1-HOLE 		5-87812-904-0 01 1 9605-9711 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) T=1.70 WO/NOTCH 		5-87813-400-1 01 1 9712-9809 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.65 2-HOLE 		5-87812-616-0 01 1 9512-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.65 2-HOLE 		5-87812-833-0 01 1 9603-9604 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.65 2-HOLE 		5-87812-905-0 01 1 9605-9711 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) T=1.75 1-NOTCH 		5-87813-401-1 01 1 9712-9809 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.70 3-HOLE 		5-87812-617-0 01 1 9512-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.70 3-HOLE 		5-87812-834-0 01 1 9603-9604 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.70 3-HOLE 		5-87812-906-0 01 1 9605-9711 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) T=1.80 2-NOTCH 		5-87813-402-1 01 1 9712-9809 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 		5-87811-642-0 01 1 9312-9408 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 		5-87811-846-0 01 1 9409-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 		5-87812-002-0 01 1 9411-9411 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 		5-87812-300-0 01 1 9412- ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(RR3) T=1.95 1-NOTCH 		5-87811-603-0 01 1 9312-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(RR3) T=1.95 1-NOTCH 		5-87811-998-0 01 1 9411-9508 ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(RR3) T=1.95 1-NOTCH 		5-87812-666-0 01 1 9509-9510 ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(RR3) T=2.00 2-NOTCH 		5-87811-604-0 01 1 9312-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(RR3) T=2.00 2-NOTCH 		5-87811-999-0 01 1 9411-9508 ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(RR3) T=2.00 2-NOTCH 		5-87812-667-0 01 1 9509-9510 ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(RR3) T=2.05 3-NOTCH 		5-87811-605-0 01 1 9312-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(RR3) T=2.05 3-NOTCH 		5-87812-000-0 01 1 9411-9508 ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(RR3) T=2.05 3-NOTCH 		5-87812-668-0 01 1 9509-9510 ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(RR3) T=1.95 1-NOTCH 		5-87812-666-1 01 1 9511- ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(RR3) T=2.00 2-NOTCH 		5-87812-667-1 01 1 9511- ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(RR3) T=2.05 3-NOTCH 		5-87812-668-1 01 1 9511- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. AUSTRALIA EQUIPMENT(RR3) T=1.95 1-NOTCH 		5-87811-600-0 01 1 9312-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. AUSTRALIA EQUIPMENT(RR3) T=1.95 1-NOTCH 		5-87811-995-1 01 1 9411-9510 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. AUSTRALIA EQUIPMENT(RR3) T=2.00 2-NOTCH 		5-87811-601-0 01 1 9312-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. AUSTRALIA EQUIPMENT(RR3) T=2.00 2-NOTCH 		5-87811-996-1 01 1 9411-9510 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. AUSTRALIA EQUIPMENT(RR3) T=2.05 3-NOTCH 		5-87811-602-0 01 1 9312-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. AUSTRALIA EQUIPMENT(RR3) T=2.05 3-NOTCH 		5-87811-997-1 01 1 9411-9510 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. AUSTRALIA EQUIPMENT(RR3) T=1.95 1-NOTCH 		5-87811-995-2 01 1 9511- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. AUSTRALIA EQUIPMENT(RR3) T=2.00 2-NOTCH 		5-87811-996-2 01 1 9511- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. AUSTRALIA EQUIPMENT(RR3) T=2.05 3-NOTCH 		5-87811-997-2 01 1 9511- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=2.05 WO/NOTCH 		5-87811-497-0 01 1 9312-9312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87811-711-0 01 1 9401-9405 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87811-868-2 01 1 9406-9510 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87811-986-0 01 1 9511-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87812-801-1 01 1 9603-9609 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87813-032-0 01 1 9610-9610 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87813-032-1 01 1 9610-9804 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87813-394-0 01 1 9805- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=2.10 1-NOTCH 		5-87811-498-0 01 1 9312-9312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87811-712-0 01 1 9401-9405 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87811-869-2 01 1 9406-9510 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87811-987-0 01 1 9511-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87812-802-1 01 1 9603-9609 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87813-033-0 01 1 9610-9610 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87813-033-1 01 1 9610-9804 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87813-395-0 01 1 9805- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=2.15 2-NOTCH 		5-87811-499-0 01 1 9312-9312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.80 2-NOTCH 		5-87811-713-0 01 1 9401-9405 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.80 2-NOTCH 		5-87811-870-2 01 1 9406-9510 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.80 2-NOTCH 		5-87811-988-0 01 1 9511-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.80 2-NOTCH 		5-87812-803-1 01 1 9603-9609 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.80 2-NOTCH 		5-87813-034-0 01 1 9610-9610 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.80 2-NOTCH 		5-87813-034-1 01 1 9610-9804 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.80 2-NOTCH 		5-87813-396-0 01 1 9805- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87813-230-1 01 1 9712- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87813-231-1 01 1 9712- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87813-232-1 01 1 9712- ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87813-403-1 01 1 9712-9809 ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87813-404-1 01 1 9712-9809 ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87813-405-1 01 1 9712-9809 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87813-346-0 01 1 9712-9804 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87813-397-0 01 1 9805- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.50 1-NOTCH 		5-87813-347-0 01 1 9712-9804 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87813-398-0 01 1 9805- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.55 2-NOTCH 		5-87813-348-0 01 1 9712-9804 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.55 2-NOTCH 		5-87813-399-0 01 1 9805- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.90 		5-87810-469-2 01 1 9312-9406 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.90 		5-87810-465-4 01 1 9407-9410 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.90 		5-87812-006-0 01 1 9411-9510 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-HOLE 		5-87811-509-0 01 1 9312-9408 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-HOLE 		5-87812-090-0 01 1 9409-9502 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-HOLE 		5-87812-245-0 01 1 9503-9511 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-HOLE 		5-87811-510-0 01 1 9312-9408 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-HOLE 		5-87812-091-0 01 1 9409-9502 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-HOLE 		5-87812-246-0 01 1 9503-9511 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-HOLE 		5-87811-511-0 01 1 9312-9408 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-HOLE 		5-87812-092-0 01 1 9409-9502 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-HOLE 		5-87812-247-0 01 1 9503-9511 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<7AF> T=1.60 1-HOLE 		5-87812-859-0 01 1 9512-9605 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<7AF> T=1.60 1-HOLE 		5-87813-021-0 01 1 9606-9711 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-HOLE 		5-87813-021-1 01 1 9712- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<7AF> T=1.65 2-HOLE 		5-87812-860-0 01 1 9512-9605 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<7AF> T=1.65 2-HOLE 		5-87813-022-0 01 1 9606-9711 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-HOLE 		5-87813-022-1 01 1 9712- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<7AF> T=1.70 3-HOLE 		5-87812-861-0 01 1 9512-9605 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<7AF> T=1.70 3-HOLE 		5-87813-023-0 01 1 9606-9711 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-HOLE 		5-87813-023-1 01 1 9712- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.60 1-HOLE 		5-87812-245-0 01 1 9512-9602 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.60 1-HOLE 		5-87812-835-0 01 1 9603-9604 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.60 1-HOLE 		5-87812-907-0 01 1 9605-9711 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87813-406-1 01 1 9712-9809 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.65 2-HOLE 		5-87812-246-0 01 1 9512-9602 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.65 2-HOLE 		5-87812-836-0 01 1 9603-9604 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.65 2-HOLE 		5-87812-908-0 01 1 9605-9711 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87813-407-1 01 1 9712-9809 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.70 3-HOLE 		5-87812-247-0 01 1 9512-9602 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.70 3-HOLE 		5-87812-837-0 01 1 9603-9604 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.70 3-HOLE 		5-87812-909-0 01 1 9605-9711 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87813-408-1 01 1 9712-9809 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 		5-87811-643-0 01 1 9312-9408 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 		5-87811-847-0 01 1 9409-9410 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 		5-87812-007-0 01 1 9411-9411 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 		5-87812-302-0 01 1 9412- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.95 1-NOTCH 		5-87810-543-3 01 1 9312-9410 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.95 1-NOTCH 		5-87812-003-0 01 1 9411-9510 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=2.00 2-NOTCH 		5-87810-544-3 01 1 9312-9410 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=2.00 2-NOTCH 		5-87812-004-0 01 1 9411-9510 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=2.05 3-NOTCH 		5-87810-545-3 01 1 9312-9410 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=2.05 3-NOTCH 		5-87812-005-0 01 1 9411-9510 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.95 1-NOTCH 		5-87812-003-1 01 1 9511- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=2.00 2-NOTCH 		5-87812-004-1 01 1 9511- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=2.05 3-NOTCH 		5-87812-005-1 01 1 9511- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=2.05 WO/NOTCH 		5-87811-124-1 01 1 9312-9312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 WO/NOTCH 		5-87811-714-0 01 1 9401-9405 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 WO/NOTCH 		5-87811-871-2 01 1 9406-9510 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=2.10 1-NOTCH 		5-87811-125-1 01 1 9312-9312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.75 1-NOTCH 		5-87811-715-0 01 1 9401-9405 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.75 1-NOTCH 		5-87811-872-2 01 1 9406-9510 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=2.15 2-NOTCH 		5-87811-126-1 01 1 9312-9312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.80 2-NOTCH 		5-87811-716-0 01 1 9401-9405 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.80 2-NOTCH 		5-87811-873-2 01 1 9406-9510 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 WO/NOTCH 		5-87811-883-0 01 1 9511-9609 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 WO/NOTCH 		5-87813-041-0 01 1 9610-9610 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 WO/NOTCH 		5-87813-041-1 01 1 9610- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.75 1-NOTCH 		5-87811-884-0 01 1 9511-9609 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.75 1-NOTCH 		5-87813-042-0 01 1 9610-9610 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.75 1-NOTCH 		5-87813-042-1 01 1 9610- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.80 2-NOTCH 		5-87811-885-0 01 1 9511-9609 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.80 2-NOTCH 		5-87813-043-0 01 1 9610-9610 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.80 2-NOTCH 		5-87813-043-1 01 1 9610- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87813-233-1 01 1 9712- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87813-234-1 01 1 9712- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87813-235-1 01 1 9712- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 WO/NOTCH 		5-87813-352-0 01 1 9712- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.75 1-NOTCH 		5-87813-353-0 01 1 9712- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.80 2-NOTCH 		5-87813-354-0 01 1 9712- ●
çizim 16444
1 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 00.010 GASKET SET; ENG OVERHAUL
T=1.90 		5-87811-606-0 01 1 9312-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.90 		5-87812-001-0 01 1 9411-9508 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.90 		5-87812-669-0 01 1 9509-9510 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87811-506-0 01 1 9312-9408 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87812-087-0 01 1 9409-9502 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87812-296-0 01 1 9503-9504 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87812-615-0 01 1 9505-9511 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87811-507-0 01 1 9312-9408 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87812-088-0 01 1 9409-9502 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87812-297-0 01 1 9503-9504 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87812-616-0 01 1 9505-9511 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87811-508-0 01 1 9312-9408 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87812-089-0 01 1 9409-9502 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87812-298-0 01 1 9503-9504 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87812-617-0 01 1 9505-9511 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<7AF> T=1.60 1-HOLE 		5-87812-856-0 01 1 9512-9605 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<7AF> T=1.60 1-HOLE 		5-87812-913-0 01 1 9606-9711 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87812-913-1 01 1 9712- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<7AF> T=1.65 2-HOLE 		5-87812-857-0 01 1 9512-9605 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<7AF> T=1.65 2-HOLE 		5-87812-914-0 01 1 9606-9711 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87812-914-1 01 1 9712- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<7AF> T=1.70 3-HOLE 		5-87812-858-0 01 1 9512-9605 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<7AF> T=1.70 3-HOLE 		5-87812-915-0 01 1 9606-9711 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87812-915-1 01 1 9712- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.60 1-HOLE 		5-87812-615-0 01 1 9512-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.60 1-HOLE 		5-87812-832-0 01 1 9603-9604 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.60 1-HOLE 		5-87812-904-0 01 1 9605-9711 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) T=1.70 WO/NOTCH 		5-87813-400-1 01 1 9712-9809 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.65 2-HOLE 		5-87812-616-0 01 1 9512-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.65 2-HOLE 		5-87812-833-0 01 1 9603-9604 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.65 2-HOLE 		5-87812-905-0 01 1 9605-9711 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) T=1.75 1-NOTCH 		5-87813-401-1 01 1 9712-9809 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.70 3-HOLE 		5-87812-617-0 01 1 9512-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.70 3-HOLE 		5-87812-834-0 01 1 9603-9604 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.70 3-HOLE 		5-87812-906-0 01 1 9605-9711 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) T=1.80 2-NOTCH 		5-87813-402-1 01 1 9712-9809 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 		5-87811-642-0 01 1 9312-9408 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 		5-87811-846-0 01 1 9409-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 		5-87812-002-0 01 1 9411-9411 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 		5-87812-300-0 01 1 9412- ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(RR3) T=1.95 1-NOTCH 		5-87811-603-0 01 1 9312-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(RR3) T=1.95 1-NOTCH 		5-87811-998-0 01 1 9411-9508 ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(RR3) T=1.95 1-NOTCH 		5-87812-666-0 01 1 9509-9510 ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(RR3) T=2.00 2-NOTCH 		5-87811-604-0 01 1 9312-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(RR3) T=2.00 2-NOTCH 		5-87811-999-0 01 1 9411-9508 ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(RR3) T=2.00 2-NOTCH 		5-87812-667-0 01 1 9509-9510 ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(RR3) T=2.05 3-NOTCH 		5-87811-605-0 01 1 9312-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(RR3) T=2.05 3-NOTCH 		5-87812-000-0 01 1 9411-9508 ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(RR3) T=2.05 3-NOTCH 		5-87812-668-0 01 1 9509-9510 ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(RR3) T=1.95 1-NOTCH 		5-87812-666-1 01 1 9511- ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(RR3) T=2.00 2-NOTCH 		5-87812-667-1 01 1 9511- ●
1 00.010 GASKET SET; ENG OVERHAUL
AUSTRALIA EQUIPMENT(RR3) T=2.05 3-NOTCH 		5-87812-668-1 01 1 9511- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. AUSTRALIA EQUIPMENT(RR3) T=1.95 1-NOTCH 		5-87811-600-0 01 1 9312-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. AUSTRALIA EQUIPMENT(RR3) T=1.95 1-NOTCH 		5-87811-995-1 01 1 9411-9510 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. AUSTRALIA EQUIPMENT(RR3) T=2.00 2-NOTCH 		5-87811-601-0 01 1 9312-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. AUSTRALIA EQUIPMENT(RR3) T=2.00 2-NOTCH 		5-87811-996-1 01 1 9411-9510 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. AUSTRALIA EQUIPMENT(RR3) T=2.05 3-NOTCH 		5-87811-602-0 01 1 9312-9410 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. AUSTRALIA EQUIPMENT(RR3) T=2.05 3-NOTCH 		5-87811-997-1 01 1 9411-9510 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. AUSTRALIA EQUIPMENT(RR3) T=1.95 1-NOTCH 		5-87811-995-2 01 1 9511- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. AUSTRALIA EQUIPMENT(RR3) T=2.00 2-NOTCH 		5-87811-996-2 01 1 9511- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. AUSTRALIA EQUIPMENT(RR3) T=2.05 3-NOTCH 		5-87811-997-2 01 1 9511- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=2.05 WO/NOTCH 		5-87811-497-0 01 1 9312-9312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87811-711-0 01 1 9401-9405 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87811-868-2 01 1 9406-9510 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87811-986-0 01 1 9511-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87812-801-1 01 1 9603-9609 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87813-032-0 01 1 9610-9610 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87813-032-1 01 1 9610-9804 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87813-394-0 01 1 9805- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=2.10 1-NOTCH 		5-87811-498-0 01 1 9312-9312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87811-712-0 01 1 9401-9405 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87811-869-2 01 1 9406-9510 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87811-987-0 01 1 9511-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87812-802-1 01 1 9603-9609 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87813-033-0 01 1 9610-9610 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87813-033-1 01 1 9610-9804 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87813-395-0 01 1 9805- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=2.15 2-NOTCH 		5-87811-499-0 01 1 9312-9312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.80 2-NOTCH 		5-87811-713-0 01 1 9401-9405 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.80 2-NOTCH 		5-87811-870-2 01 1 9406-9510 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.80 2-NOTCH 		5-87811-988-0 01 1 9511-9602 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.80 2-NOTCH 		5-87812-803-1 01 1 9603-9609 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.80 2-NOTCH 		5-87813-034-0 01 1 9610-9610 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.80 2-NOTCH 		5-87813-034-1 01 1 9610-9804 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.80 2-NOTCH 		5-87813-396-0 01 1 9805- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87813-230-1 01 1 9712- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87813-231-1 01 1 9712- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87813-232-1 01 1 9712- ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87813-403-1 01 1 9712-9809 ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87813-404-1 01 1 9712-9809 ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87813-405-1 01 1 9712-9809 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87813-346-0 01 1 9712-9804 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87813-397-0 01 1 9805- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.50 1-NOTCH 		5-87813-347-0 01 1 9712-9804 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87813-398-0 01 1 9805- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.55 2-NOTCH 		5-87813-348-0 01 1 9712-9804 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.55 2-NOTCH 		5-87813-399-0 01 1 9805- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.90 		5-87810-469-2 01 1 9312-9406 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.90 		5-87810-465-4 01 1 9407-9410 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.90 		5-87812-006-0 01 1 9411-9510 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-HOLE 		5-87811-509-0 01 1 9312-9408 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-HOLE 		5-87812-090-0 01 1 9409-9502 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-HOLE 		5-87812-245-0 01 1 9503-9511 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-HOLE 		5-87811-510-0 01 1 9312-9408 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-HOLE 		5-87812-091-0 01 1 9409-9502 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-HOLE 		5-87812-246-0 01 1 9503-9511 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-HOLE 		5-87811-511-0 01 1 9312-9408 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-HOLE 		5-87812-092-0 01 1 9409-9502 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-HOLE 		5-87812-247-0 01 1 9503-9511 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<7AF> T=1.60 1-HOLE 		5-87812-859-0 01 1 9512-9605 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<7AF> T=1.60 1-HOLE 		5-87813-021-0 01 1 9606-9711 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-HOLE 		5-87813-021-1 01 1 9712- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<7AF> T=1.65 2-HOLE 		5-87812-860-0 01 1 9512-9605 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<7AF> T=1.65 2-HOLE 		5-87813-022-0 01 1 9606-9711 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-HOLE 		5-87813-022-1 01 1 9712- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<7AF> T=1.70 3-HOLE 		5-87812-861-0 01 1 9512-9605 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<7AF> T=1.70 3-HOLE 		5-87813-023-0 01 1 9606-9711 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-HOLE 		5-87813-023-1 01 1 9712- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.60 1-HOLE 		5-87812-245-0 01 1 9512-9602 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.60 1-HOLE 		5-87812-835-0 01 1 9603-9604 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.60 1-HOLE 		5-87812-907-0 01 1 9605-9711 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87813-406-1 01 1 9712-9809 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.65 2-HOLE 		5-87812-246-0 01 1 9512-9602 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.65 2-HOLE 		5-87812-836-0 01 1 9603-9604 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.65 2-HOLE 		5-87812-908-0 01 1 9605-9711 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87813-407-1 01 1 9712-9809 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.70 3-HOLE 		5-87812-247-0 01 1 9512-9602 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.70 3-HOLE 		5-87812-837-0 01 1 9603-9604 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EURO2 SPECIFICATION<7AF> T=1.70 3-HOLE 		5-87812-909-0 01 1 9605-9711 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87813-408-1 01 1 9712-9809 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 		5-87811-643-0 01 1 9312-9408 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 		5-87811-847-0 01 1 9409-9410 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 		5-87812-007-0 01 1 9411-9411 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 		5-87812-302-0 01 1 9412- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.95 1-NOTCH 		5-87810-543-3 01 1 9312-9410 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.95 1-NOTCH 		5-87812-003-0 01 1 9411-9510 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=2.00 2-NOTCH 		5-87810-544-3 01 1 9312-9410 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=2.00 2-NOTCH 		5-87812-004-0 01 1 9411-9510 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=2.05 3-NOTCH 		5-87810-545-3 01 1 9312-9410 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=2.05 3-NOTCH 		5-87812-005-0 01 1 9411-9510 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.95 1-NOTCH 		5-87812-003-1 01 1 9511- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=2.00 2-NOTCH 		5-87812-004-1 01 1 9511- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=2.05 3-NOTCH 		5-87812-005-1 01 1 9511- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=2.05 WO/NOTCH 		5-87811-124-1 01 1 9312-9312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 WO/NOTCH 		5-87811-714-0 01 1 9401-9405 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 WO/NOTCH 		5-87811-871-2 01 1 9406-9510 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=2.10 1-NOTCH 		5-87811-125-1 01 1 9312-9312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.75 1-NOTCH 		5-87811-715-0 01 1 9401-9405 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.75 1-NOTCH 		5-87811-872-2 01 1 9406-9510 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=2.15 2-NOTCH 		5-87811-126-1 01 1 9312-9312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.80 2-NOTCH 		5-87811-716-0 01 1 9401-9405 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.80 2-NOTCH 		5-87811-873-2 01 1 9406-9510 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 WO/NOTCH 		5-87811-883-0 01 1 9511-9609 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 WO/NOTCH 		5-87813-041-0 01 1 9610-9610 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 WO/NOTCH 		5-87813-041-1 01 1 9610- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.75 1-NOTCH 		5-87811-884-0 01 1 9511-9609 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.75 1-NOTCH 		5-87813-042-0 01 1 9610-9610 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.75 1-NOTCH 		5-87813-042-1 01 1 9610- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.80 2-NOTCH 		5-87811-885-0 01 1 9511-9609 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.80 2-NOTCH 		5-87813-043-0 01 1 9610-9610 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.80 2-NOTCH 		5-87813-043-1 01 1 9610- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87813-233-1 01 1 9712- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87813-234-1 01 1 9712- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87813-235-1 01 1 9712- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 WO/NOTCH 		5-87813-352-0 01 1 9712- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.75 1-NOTCH 		5-87813-353-0 01 1 9712- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.80 2-NOTCH 		5-87813-354-0 01 1 9712- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
