Sayfa 9-33 - Isuzu EPC

9-33 — REAR BODY; GATE AND SIDE GUARD (#44370) — 333 parça

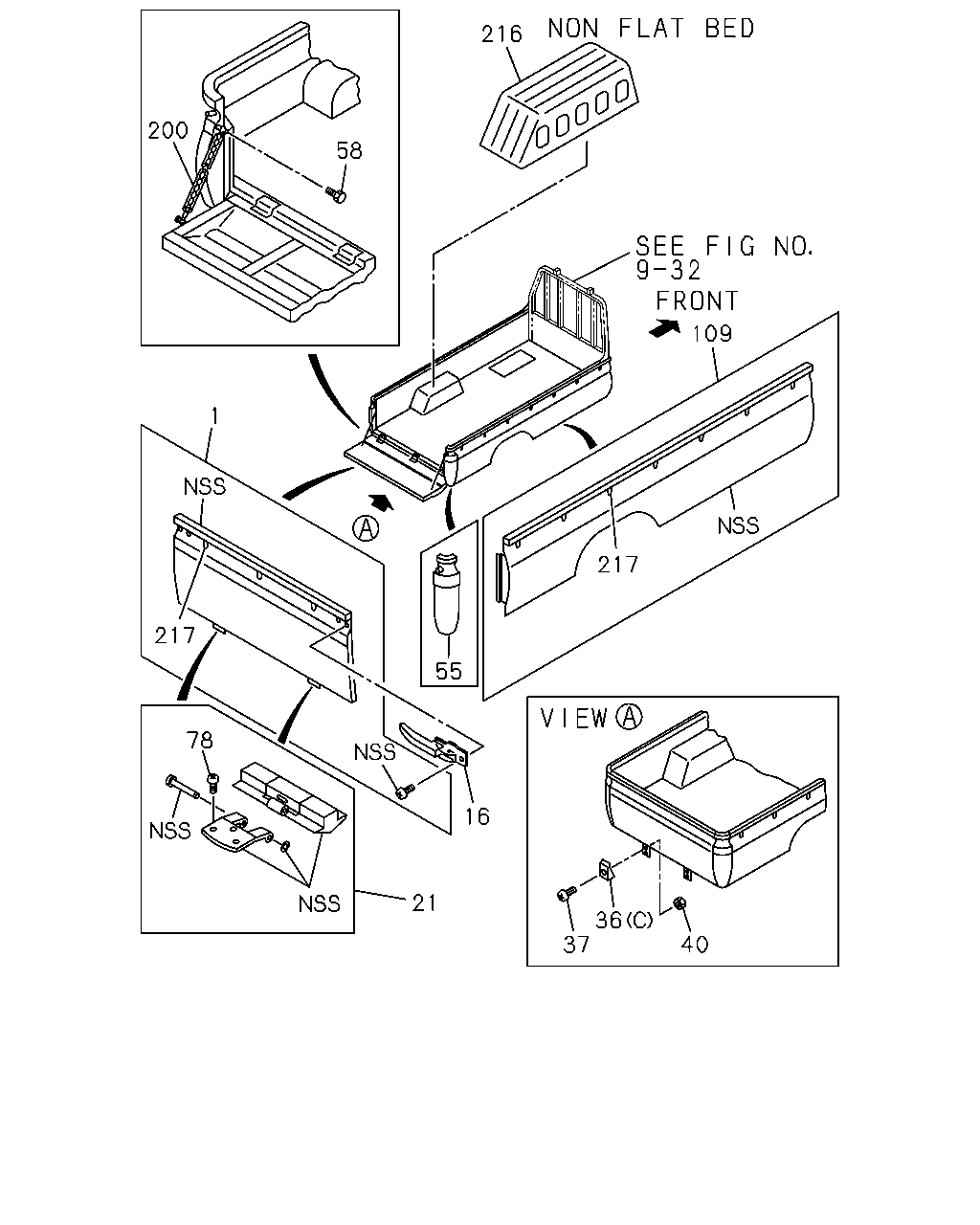

216 200 58 109 1 217 217 55 78 16 21 36 37 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> L=1615 H=398 B=37 PLYWOOD	8-94193-765-0	01	1	9312-9601	●
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> L=1615 H=398 B=37 PLYWOOD	8-94193-765-0	01	1	9602-9710	●	●
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> L=1615 H=398 B=37 PLYWOOD	8-94193-765-1	01	1	9711-	●
1	17.185 GATE ASM; RR RR BODY NON FLAT BED(RS5) L=1512 H=443 B=43 STEEL	8-94197-169-0	01	1	9312-			●
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> L=1787 H=398 B=45 PLYWOOD	8-94193-788-0	01	1	9312-9801				●	●
1	17.185 GATE ASM; RR 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> L=1787 H=398 B=45 PLYWOOD	8-94193-788-1	01	1	9802-				●	●	●
16	17.198 LOCK; RR GATE RR BODY NON FLAT BED(RS5)	8-94197-052-0	01	1	9312-			●
16	17.198 LOCK; RR GATE RR BODY NON FLAT BED(RS5)	8-94197-051-0	01	1	9312-			●
21	17.208 HINGE; LEAF,LWR RR BODY NON FLAT BED(RS5)	8-94197-058-0	03	1	9312-			●
36	17.202 RUBBER; STOPPER,RR GATE RR BODY FLAT BED<RS6> (B)	8-94193-463-0	02	1	9312-9510	●
36	17.202 RUBBER; STOPPER,RR GATE RR BODY NON FLAT BED(RS5) (C)	5-66900-040-1	02	1	9312-			●
36	17.202 RUBBER; STOPPER,RR GATE RR BODY FLAT BED<RS6> 17.507 (A)	5-66950-178-0	02	1	9312-9510				●	●
36	17.202 RUBBER; STOPPER,RR GATE RR BODY FLAT BED<RS6> 17.507 (A)	5-66950-178-0	02	1	9511-					●
36	17.202 RUBBER; STOPPER,RR GATE RR BODY FLAT BED<RS6> (B)	8-94194-010-0	02	1	9312-9510				●	●
37	17.202 SCREW 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> TAKADA	8-94194-119-0	06	1	9312-9510	●			●	●
37	17.202 SCREW 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> TAKADA	8-94194-119-0	12	1	9511-9601	●			●
37	17.202 SCREW RR BODY FLAT BED<RS6> TAKADA	8-94194-119-0	12	1	9602-9611	●	●		●
37	17.202 SCREW RR BODY FLAT BED<RS6> TAKADA	8-94194-119-0	12	1	9612-9710	●	●		●	●
37	17.202 SCREW 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> TAKADA	8-94194-119-0	12	1	9711-9711	●			●	●
37	17.202 SCREW 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> TAKADA	8-94194-119-0	06	1	9712-9801	●			●	●
37	17.202 SCREW 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> TAKADA	8-94194-119-0	06	1	9802-	●			●	●	●
37	17.202 SCREW RR BODY NON FLAT BED(RS5)	8-94197-156-0	02	1	9312-			●
37	17.202 SCREW RR BODY FLAT BED<RS6> TAKADA	8-94194-119-0	14	1	9511-9611					●
40	17.202 NUT; STOPPER RUBBER 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> 17.447 (B) M12	9-09130-412-0	02	1	9312-9601	●			●	●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED<RS6> 17.447 (B) M12	9-09130-412-0	02	1	9602-9710	●	●		●	●
40	17.202 NUT; STOPPER RUBBER 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> 17.447 (B) M12	9-09130-412-0	02	1	9711-9801	●			●	●
40	17.202 NUT; STOPPER RUBBER 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> 17.447 (B) M12	9-09130-412-0	02	1	9802-	●			●	●	●
40	17.202 NUT; STOPPER RUBBER 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> 04.594 (A) M6 FLANGE	0-91150-106-0	06	1	9511-9601	●			●	●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED<RS6> 04.594 (A) M6 FLANGE	0-91150-106-0	06	1	9602-9710	●	●		●	●
40	17.202 NUT; STOPPER RUBBER 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> 04.594 (A) M6 FLANGE	0-91150-106-0	06	1	9711-9801	●			●	●
40	17.202 NUT; STOPPER RUBBER 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> 04.594 (A) M6 FLANGE	0-91150-106-0	06	1	9802-	●			●	●	●
40	17.202 NUT; STOPPER RUBBER RR BODY NON FLAT BED(RS5) M6 FLANGE	8-94197-199-0	02	1	9312-			●
55	17.505 PANEL; RR CORNER RR BODY NON FLAT BED(RS5)	8-94197-167-0	01	1	9312-			●
55	17.505 PANEL; RR CORNER RR BODY NON FLAT BED(RS5)	8-94197-166-0	01	1	9312-			●
58	17.225 BOLT; CHAIN TO RR BODY RR BODY NON FLAT BED(RS5) 01.252 M10X25 W/LK&PL WASHER	0-50141-025-0	02	1	9312-			●
78	17.185 SCREW; HINGE LWR RR BODY NON FLAT BED(RS5)	8-94197-158-0	09	1	9312-			●
109	17.485 PANEL; SIDE RR BODY NON FLAT BED(RS5)	8-94197-163-0	01	1	9312-9501			●
109	17.485 PANEL; SIDE RR BODY NON FLAT BED(RS5)	8-94197-241-0	01	1	9502-			●
109	17.485 PANEL; SIDE RR BODY NON FLAT BED(RS5)	8-94197-162-0	01	1	9312-9501			●
109	17.485 PANEL; SIDE RR BODY NON FLAT BED(RS5)	8-94197-240-0	01	1	9502-			●
200	17.225 CHAIN; REAR GATE RR BODY NON FLAT BED(RS5)	5-66600-033-0	02	1	9312-			●
216	17.505 HOUSE; WHEEL RR BODY NON FLAT BED(RS5)	8-94197-194-0	02	1	9312-			●
217	17.505 HOOK; ROPE RR BODY NON FLAT BED(RS5)	5-66200-016-0	10	1	9312-			●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-466-0	01	1	9312-9601	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-466-0	01	1	9602-9710	●	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-466-0	01	1	9711-	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-465-0	01	1	9312-9601	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-465-0	01	1	9602-9710	●	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-465-0	01	1	9711-	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-466-0	01	1	9312-9801				●	●
341	17.505 SPRING KIT; VERTICAL LOCK 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> TAKADA	8-97594-466-0	01	1	9802-				●	●	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-465-0	01	1	9312-9801				●	●
341	17.505 SPRING KIT; VERTICAL LOCK 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> TAKADA	8-97594-465-0	01	1	9802-				●	●	●

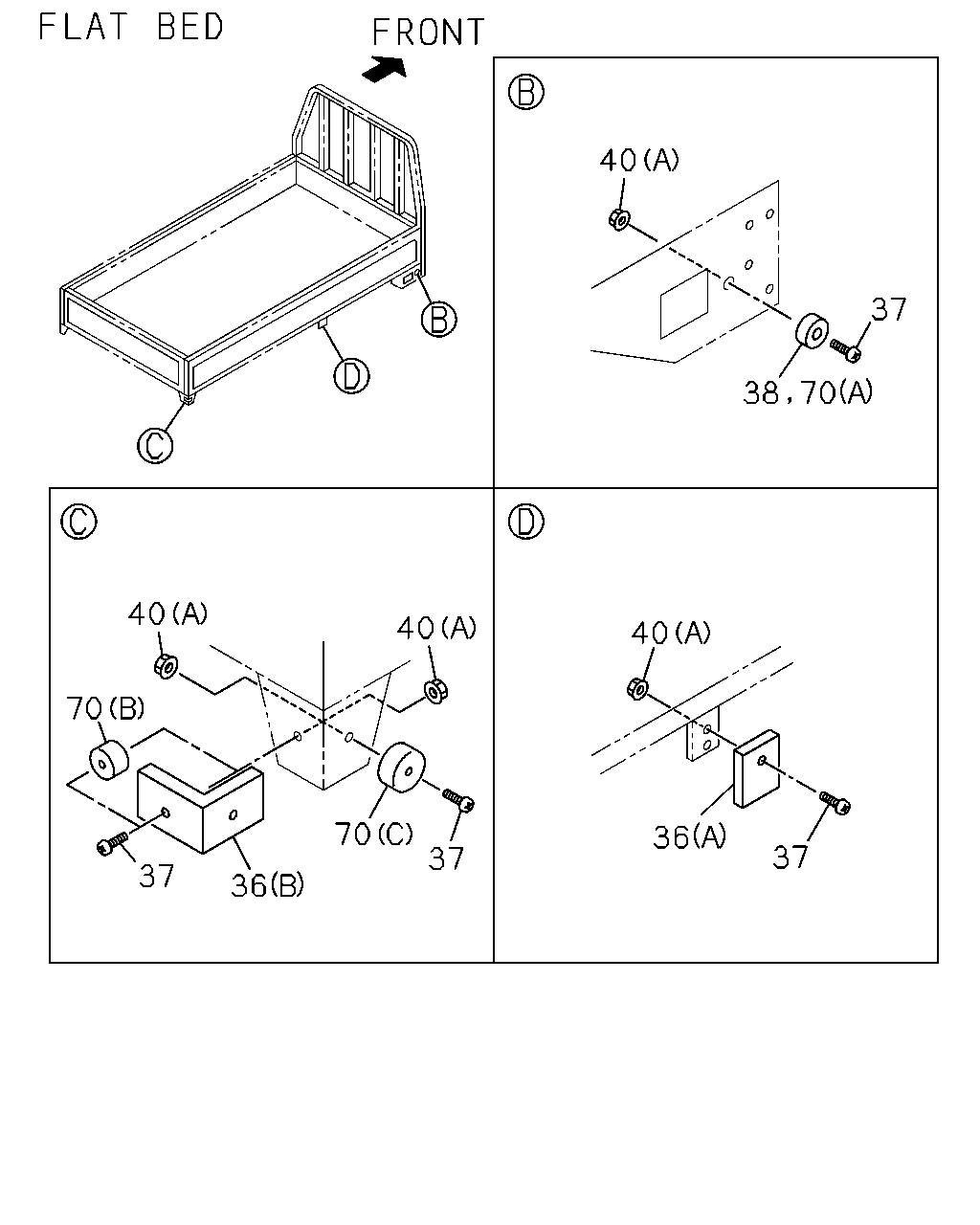

40 37 38 70 40 40 40 70 70 36 37 37 37 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
36	17.202 RUBBER; STOPPER,RR GATE RR BODY FLAT BED<RS6> (B)	8-94193-463-0	02	1	9312-9510	●
36	17.202 RUBBER; STOPPER,RR GATE RR BODY NON FLAT BED(RS5) (C)	5-66900-040-1	02	1	9312-			●
36	17.202 RUBBER; STOPPER,RR GATE RR BODY FLAT BED<RS6> 17.507 (A)	5-66950-178-0	02	1	9312-9510				●	●
36	17.202 RUBBER; STOPPER,RR GATE RR BODY FLAT BED<RS6> 17.507 (A)	5-66950-178-0	02	1	9511-					●
36	17.202 RUBBER; STOPPER,RR GATE RR BODY FLAT BED<RS6> (B)	8-94194-010-0	02	1	9312-9510				●	●
37	17.202 SCREW 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> TAKADA	8-94194-119-0	06	1	9312-9510	●			●	●
37	17.202 SCREW 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> TAKADA	8-94194-119-0	12	1	9511-9601	●			●
37	17.202 SCREW RR BODY FLAT BED<RS6> TAKADA	8-94194-119-0	12	1	9602-9611	●	●		●
37	17.202 SCREW RR BODY FLAT BED<RS6> TAKADA	8-94194-119-0	12	1	9612-9710	●	●		●	●
37	17.202 SCREW 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> TAKADA	8-94194-119-0	12	1	9711-9711	●			●	●
37	17.202 SCREW 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> TAKADA	8-94194-119-0	06	1	9712-9801	●			●	●
37	17.202 SCREW 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> TAKADA	8-94194-119-0	06	1	9802-	●			●	●	●
37	17.202 SCREW RR BODY NON FLAT BED(RS5)	8-94197-156-0	02	1	9312-			●
37	17.202 SCREW RR BODY FLAT BED<RS6> TAKADA	8-94194-119-0	14	1	9511-9611					●
38	17.507 RUBBER; STOPPER,SIDE GATE RR BODY FLAT BED<RS6> OD=45 H=22	5-66950-120-1	02	1	9312-9510	●
38	17.507 RUBBER; STOPPER,SIDE GATE RR BODY FLAT BED<RS6> OD=60 H=22	8-94193-455-0	02	1	9312-9510				●	●
40	17.202 NUT; STOPPER RUBBER 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> 17.447 (B) M12	9-09130-412-0	02	1	9312-9601	●			●	●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED<RS6> 17.447 (B) M12	9-09130-412-0	02	1	9602-9710	●	●		●	●
40	17.202 NUT; STOPPER RUBBER 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> 17.447 (B) M12	9-09130-412-0	02	1	9711-9801	●			●	●
40	17.202 NUT; STOPPER RUBBER 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> 17.447 (B) M12	9-09130-412-0	02	1	9802-	●			●	●	●
40	17.202 NUT; STOPPER RUBBER 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> 04.594 (A) M6 FLANGE	0-91150-106-0	06	1	9511-9601	●			●	●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED<RS6> 04.594 (A) M6 FLANGE	0-91150-106-0	06	1	9602-9710	●	●		●	●
40	17.202 NUT; STOPPER RUBBER 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> 04.594 (A) M6 FLANGE	0-91150-106-0	06	1	9711-9801	●			●	●
40	17.202 NUT; STOPPER RUBBER 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> 04.594 (A) M6 FLANGE	0-91150-106-0	06	1	9802-	●			●	●	●
40	17.202 NUT; STOPPER RUBBER RR BODY NON FLAT BED(RS5) M6 FLANGE	8-94197-199-0	02	1	9312-			●
70	17.490 RUBBER; BUMPER RR BODY FLAT BED<RS6> 17.507 (A) OD=45 H=22	5-66950-120-1	04	1	9511-9601	●
70	17.490 RUBBER; BUMPER RR BODY FLAT BED<RS6> 17.507 (A) OD=45 H=22	5-66950-120-1	04	1	9602-9710	●	●
70	17.490 RUBBER; BUMPER RR BODY FLAT BED<RS6> 17.507 (A) OD=45 H=22	5-66950-120-1	04	1	9711-	●
70	17.490 RUBBER; BUMPER 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> 17.202 (B) OD=45 H=28	8-94192-532-0	02	1	9511-9601	●			●	●
70	17.490 RUBBER; BUMPER RR BODY FLAT BED<RS6> 17.202 (B) OD=45 H=28	8-94192-532-0	02	1	9602-9710	●	●		●	●
70	17.490 RUBBER; BUMPER 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> 17.202 (B) OD=45 H=28	8-94192-532-0	02	1	9711-9801	●			●	●
70	17.490 RUBBER; BUMPER 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> 17.202 (B) OD=45 H=28	8-94192-532-0	02	1	9802-	●			●	●	●
70	17.490 RUBBER; BUMPER RR BODY FLAT BED<RS6> 17.507 (A) OD=60 H=22	8-94193-455-0	02	1	9511-9801				●	●
70	17.490 RUBBER; BUMPER 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> 17.507 (A) OD=60 H=22	8-94193-455-0	02	1	9802-				●	●	●
70	17.490 RUBBER; BUMPER RR BODY FLAT BED<RS6> (C) OD=60 H=28	8-94194-895-0	02	1	9511-9801				●	●
70	17.490 RUBBER; BUMPER 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> (C) OD=60 H=28	8-94194-895-0	02	1	9802-				●	●	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-466-0	01	1	9312-9601	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-466-0	01	1	9602-9710	●	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-466-0	01	1	9711-	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-465-0	01	1	9312-9601	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-465-0	01	1	9602-9710	●	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-465-0	01	1	9711-	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-466-0	01	1	9312-9801				●	●
341	17.505 SPRING KIT; VERTICAL LOCK 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> TAKADA	8-97594-466-0	01	1	9802-				●	●	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-465-0	01	1	9312-9801				●	●
341	17.505 SPRING KIT; VERTICAL LOCK 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> TAKADA	8-97594-465-0	01	1	9802-				●	●	●

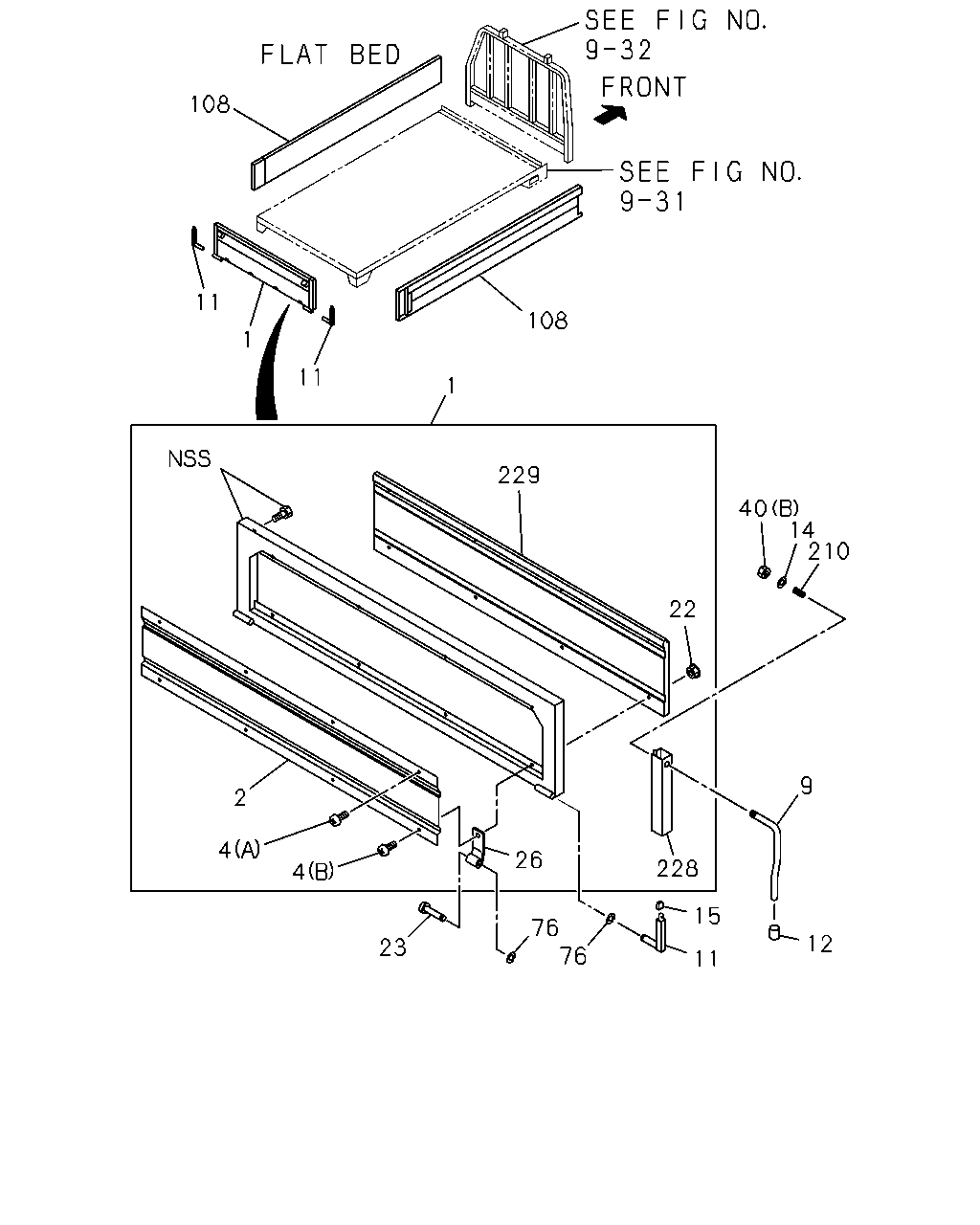

108 11 108 1 11 1 229 40 14 210 22 9 2 4 26 228 4 15 76 76 12 23 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> L=1615 H=398 B=37 PLYWOOD	8-94193-765-0	01	1	9312-9601	●
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> L=1615 H=398 B=37 PLYWOOD	8-94193-765-0	01	1	9602-9710	●	●
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> L=1615 H=398 B=37 PLYWOOD	8-94193-765-1	01	1	9711-	●
1	17.185 GATE ASM; RR RR BODY NON FLAT BED(RS5) L=1512 H=443 B=43 STEEL	8-94197-169-0	01	1	9312-			●
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> L=1787 H=398 B=45 PLYWOOD	8-94193-788-0	01	1	9312-9801				●	●
1	17.185 GATE ASM; RR 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> L=1787 H=398 B=45 PLYWOOD	8-94193-788-1	01	1	9802-				●	●	●
2	17.185 PANEL; RR GATE RR BODY FLAT BED<RS6>	8-94194-024-0	01	1	9312-9601	●
2	17.185 PANEL; RR GATE RR BODY FLAT BED<RS6>	8-94194-024-0	01	1	9602-9710	●	●
2	17.185 PANEL; RR GATE RR BODY FLAT BED<RS6>	8-94194-024-0	01	1	9711-	●
2	17.185 PANEL; RR GATE RR BODY FLAT BED<RS6>	8-94194-025-0	01	1	9312-9801				●	●
2	17.185 PANEL; RR GATE 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6>	8-94194-025-0	01	1	9802-				●	●	●
4	17.185 SCREW; PANEL,RR GATE 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> (A) UPPER M8X16	8-94193-952-0	04	1	9312-9601	●			●	●
4	17.185 SCREW; PANEL,RR GATE RR BODY FLAT BED<RS6> (A) UPPER M8X16	8-94193-952-0	04	1	9602-9710	●	●		●	●
4	17.185 SCREW; PANEL,RR GATE 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> (A) UPPER M8X16	8-94193-952-0	04	1	9711-9801	●			●	●
4	17.185 SCREW; PANEL,RR GATE 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> M8X16	8-94193-952-0	04	1	9802-	●			●	●	●
4	17.185 SCREW; PANEL,RR GATE 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> (B) LOWER M8X21	8-94193-953-0	04	1	9312-9601	●			●	●
4	17.185 SCREW; PANEL,RR GATE RR BODY FLAT BED<RS6> (B) LOWER M8X21	8-94193-953-0	04	1	9602-9710	●	●		●	●
4	17.185 SCREW; PANEL,RR GATE 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> (B) LOWER M8X21	8-94193-953-0	04	1	9711-9801	●			●	●
4	17.185 SCREW; PANEL,RR GATE 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> M8X21	8-94193-953-0	04	1	9802-	●			●	●	●
9	17.204 HANDLE; LATCH,RR GATE 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6>	8-94193-795-0	01	1	9312-9601	●			●	●
9	17.204 HANDLE; LATCH,RR GATE RR BODY FLAT BED<RS6>	8-94193-795-0	01	1	9602-9710	●	●		●	●
9	17.204 HANDLE; LATCH,RR GATE 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6>	8-94193-795-0	01	1	9711-9801	●			●	●
9	17.204 HANDLE; LATCH,RR GATE 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6>	8-94193-795-0	01	1	9802-	●			●	●	●
9	17.204 HANDLE; LATCH,RR GATE 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6>	8-94193-794-0	01	1	9312-9601	●			●	●
9	17.204 HANDLE; LATCH,RR GATE RR BODY FLAT BED<RS6>	8-94193-794-0	01	1	9602-9710	●	●		●	●
9	17.204 HANDLE; LATCH,RR GATE 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6>	8-94193-794-0	01	1	9711-9801	●			●	●
9	17.204 HANDLE; LATCH,RR GATE 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6>	8-94193-794-0	01	1	9802-	●			●	●	●
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED<RS6>	8-94193-144-0	01	1	9312-9601	●
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED<RS6>	8-94193-144-0	01	1	9602-9710	●	●
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED<RS6>	8-94193-144-0	01	1	9711-	●
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED<RS6>	8-94193-143-0	01	1	9312-9601	●
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED<RS6>	8-94193-143-0	01	1	9602-9710	●	●
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED<RS6>	8-94193-143-0	01	1	9711-	●
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED<RS6>	8-94193-347-0	01	1	9312-9801				●	●
11	17.198 LOCK ASM; VERTICAL 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6>	8-94193-347-0	01	1	9802-				●	●	●
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED<RS6>	8-94193-346-0	01	1	9312-9801				●	●
11	17.198 LOCK ASM; VERTICAL 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6>	8-94193-346-0	01	1	9802-				●	●	●
12	17.204 PIECE; END,RR HANDLE 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> TAKADA	8-94193-344-0	02	1	9312-9601	●			●	●
12	17.204 PIECE; END,RR HANDLE RR BODY FLAT BED<RS6> TAKADA	8-94193-344-0	02	1	9602-9611	●	●		●	●
12	17.204 PIECE; END,RR HANDLE RR BODY FLAT BED<RS6> TAKADA	8-94193-344-0	02	1	9612-9710	●	●		●
12	17.204 PIECE; END,RR HANDLE 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> TAKADA	8-94193-344-0	02	1	9711-9801	●			●
12	17.204 PIECE; END,RR HANDLE 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> TAKADA	8-94193-344-0	02	1	9802-	●			●		●
14	17.204 WASHER; PL,HANDLE 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> 06.172 ID=12.5	9-09164-512-0	02	1	9312-9601	●			●	●
14	17.204 WASHER; PL,HANDLE RR BODY FLAT BED<RS6> 06.172 ID=12.5	9-09164-512-0	02	1	9602-9710	●	●		●	●
14	17.204 WASHER; PL,HANDLE 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> 06.172 ID=12.5	9-09164-512-0	02	1	9711-9801	●			●	●
14	17.204 WASHER; PL,HANDLE 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> 06.172 ID=12.5	9-09164-512-0	02	1	9802-	●			●	●	●
15	17.198 CAP; VERTICAL LOCK 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6>	8-94194-022-0	02	1	9312-9601	●			●	●
15	17.198 CAP; VERTICAL LOCK RR BODY FLAT BED<RS6>	8-94194-022-0	02	1	9602-9606	●	●		●	●
15	17.198 CAP; VERTICAL LOCK RR BODY FLAT BED<RS6>	8-94194-022-0	02	1	9607-9704	●	●
22	17.185 NUT; PLATE,RR GATE 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> M8	8-94193-954-0	08	1	9312-9601	●			●	●
22	17.185 NUT; PLATE,RR GATE RR BODY FLAT BED<RS6> M8	8-94193-954-0	08	1	9602-9710	●	●		●	●
22	17.185 NUT; PLATE,RR GATE 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> M8	8-94193-954-0	08	1	9711-9801	●			●	●
22	17.185 NUT; PLATE,RR GATE 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> M8	8-94193-954-0	08	1	9802-	●			●	●	●
23	17.208 PIN; HINGE,RR GATE RR BODY FLAT BED<RS6> OD=12 L=88.5	8-94193-932-0	04	1	9312-9601	●
23	17.208 PIN; HINGE,RR GATE RR BODY FLAT BED<RS6> OD=12 L=88.5	8-94193-932-0	04	1	9602-9710	●	●
23	17.208 PIN; HINGE,RR GATE RR BODY FLAT BED<RS6> OD=12 L=88.5	8-94193-932-0	04	1	9711-	●
23	17.208 PIN; HINGE,RR GATE RR BODY FLAT BED<RS6> OD=10 L=58.5	8-94193-933-0	04	1	9312-9801				●	●
23	17.208 PIN; HINGE,RR GATE 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> OD=10 L=58.5	8-94193-933-0	04	1	9802-				●	●	●
26	17.208 HINGE; UPR,RR GATE RR BODY FLAT BED<RS6>	8-94194-271-0	04	1	9312-9601	●
26	17.208 HINGE; UPR,RR GATE RR BODY FLAT BED<RS6>	8-94194-271-0	04	1	9602-9710	●	●
26	17.208 HINGE; UPR,RR GATE RR BODY FLAT BED<RS6>	8-94194-271-0	04	1	9711-	●
26	17.208 HINGE; UPR,RR GATE RR BODY FLAT BED<RS6>	8-94194-377-0	04	1	9312-9801				●	●
26	17.208 HINGE; UPR,RR GATE 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6>	8-94194-377-0	04	1	9802-				●	●	●
40	17.202 NUT; STOPPER RUBBER 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> 17.447 (B) M12	9-09130-412-0	02	1	9312-9601	●			●	●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED<RS6> 17.447 (B) M12	9-09130-412-0	02	1	9602-9710	●	●		●	●
40	17.202 NUT; STOPPER RUBBER 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> 17.447 (B) M12	9-09130-412-0	02	1	9711-9801	●			●	●
40	17.202 NUT; STOPPER RUBBER 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> 17.447 (B) M12	9-09130-412-0	02	1	9802-	●			●	●	●
40	17.202 NUT; STOPPER RUBBER 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> 04.594 (A) M6 FLANGE	0-91150-106-0	06	1	9511-9601	●			●	●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED<RS6> 04.594 (A) M6 FLANGE	0-91150-106-0	06	1	9602-9710	●	●		●	●
40	17.202 NUT; STOPPER RUBBER 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> 04.594 (A) M6 FLANGE	0-91150-106-0	06	1	9711-9801	●			●	●
40	17.202 NUT; STOPPER RUBBER 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> 04.594 (A) M6 FLANGE	0-91150-106-0	06	1	9802-	●			●	●	●
40	17.202 NUT; STOPPER RUBBER RR BODY NON FLAT BED(RS5) M6 FLANGE	8-94197-199-0	02	1	9312-			●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> SIDE ID=9	8-94194-116-0	16	1	9312-9601	●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> SIDE ID=9	8-94194-116-0	16	1	9602-9710	●	●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> ID=9	8-94194-116-0	16	1	9711-	●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> SIDE ID=9	8-94194-116-0	12	1	9312-9711				●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> AIR INTAKE REAR VERTICAL<KJ3> ID=9	8-94194-116-0	12	1	9712-9801				●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> ID=9	8-94194-116-0	12	1	9802-				●		●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> REAR ID=8	8-94194-117-0	04	1	9312-9801				●	●
76	17.505 RING; SNAP,GATE HINGE PIN 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> ID=8	8-94194-117-0	04	1	9802-				●	●	●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> SIDE ID=9	8-94194-116-0	14	1	9312-					●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=3126 H=398 B=37 PLYWOOD	8-94193-770-0	01	1	9312-9601	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=3126 H=398 B=37 PLYWOOD	8-94193-770-0	01	1	9602-9710	●	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=3126 H=398 B=37 PLYWOOD	8-94193-770-1	01	1	9711-	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=3126 H=398 B=37 PLYWOOD	8-94193-769-0	01	1	9312-9601	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=3126 H=398 B=37 PLYWOOD	8-94193-769-0	01	1	9602-9710	●	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=3126 H=398 B=37 PLYWOOD	8-94193-769-1	01	1	9711-	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6>	8-94194-201-1	01	1	9312-				●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6>	8-94194-200-1	01	1	9312-				●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=4366 H=398 B=45 PLYWOOD	8-94193-787-1	01	1	9312-					●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=4366 H=398 B=45 PLYWOOD	8-94193-786-1	01	1	9312-					●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=3331 H=398 B=45 PLYWOOD	8-94194-003-1	01	1	9802-						●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=3331 H=398 B=45 PLYWOOD	8-94194-004-1	01	1	9802-						●
210	17.505 SPRING; LATCH HANDLE 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> TAKADA	8-94194-192-1	02	1	9312-9601	●			●	●
210	17.505 SPRING; LATCH HANDLE RR BODY FLAT BED<RS6> TAKADA	8-94194-192-1	02	1	9602-9710	●	●		●	●
210	17.505 SPRING; LATCH HANDLE 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> TAKADA	8-94194-192-1	02	1	9711-9801	●			●	●
210	17.505 SPRING; LATCH HANDLE 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> TAKADA	8-94194-192-1	02	1	9802-	●			●	●	●
228	17.505 BRACKET; LATCH HANDLE RR BODY FLAT BED<RS6>	8-94194-279-0	01	1	9312-9601	●
228	17.505 BRACKET; LATCH HANDLE RR BODY FLAT BED<RS6>	8-94194-279-0	01	1	9602-9710	●	●
228	17.505 BRACKET; LATCH HANDLE RR BODY FLAT BED<RS6>	8-94194-279-0	01	1	9711-	●
228	17.505 BRACKET; LATCH HANDLE RR BODY FLAT BED<RS6>	8-94194-278-0	01	1	9312-9601	●
228	17.505 BRACKET; LATCH HANDLE RR BODY FLAT BED<RS6>	8-94194-278-0	01	1	9602-9710	●	●
228	17.505 BRACKET; LATCH HANDLE RR BODY FLAT BED<RS6>	8-94194-278-0	01	1	9711-	●
228	17.505 BRACKET; LATCH HANDLE RR BODY FLAT BED<RS6>	8-94194-376-0	01	1	9312-9801				●	●
228	17.505 BRACKET; LATCH HANDLE 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6>	8-94194-376-0	01	1	9802-				●	●	●
228	17.505 BRACKET; LATCH HANDLE RR BODY FLAT BED<RS6>	8-94194-375-0	01	1	9312-9801				●	●
228	17.505 BRACKET; LATCH HANDLE 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6>	8-94194-375-0	01	1	9802-				●	●	●
229	17.505 BOARD; RR GATE RR BODY FLAT BED<RS6>	8-94194-280-0	01	1	9312-9601	●
229	17.505 BOARD; RR GATE RR BODY FLAT BED<RS6>	8-94194-280-0	01	1	9602-9710	●	●
229	17.505 BOARD; RR GATE RR BODY FLAT BED<RS6>	8-94194-280-0	01	1	9711-	●
229	17.505 BOARD; RR GATE RR BODY FLAT BED<RS6>	8-94194-378-0	01	1	9312-9801				●	●
229	17.505 BOARD; RR GATE 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6>	8-94194-378-0	01	1	9802-				●	●	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-466-0	01	1	9312-9601	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-466-0	01	1	9602-9710	●	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-466-0	01	1	9711-	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-465-0	01	1	9312-9601	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-465-0	01	1	9602-9710	●	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-465-0	01	1	9711-	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-466-0	01	1	9312-9801				●	●
341	17.505 SPRING KIT; VERTICAL LOCK 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> TAKADA	8-97594-466-0	01	1	9802-				●	●	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-465-0	01	1	9312-9801				●	●
341	17.505 SPRING KIT; VERTICAL LOCK 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> TAKADA	8-97594-465-0	01	1	9802-				●	●	●

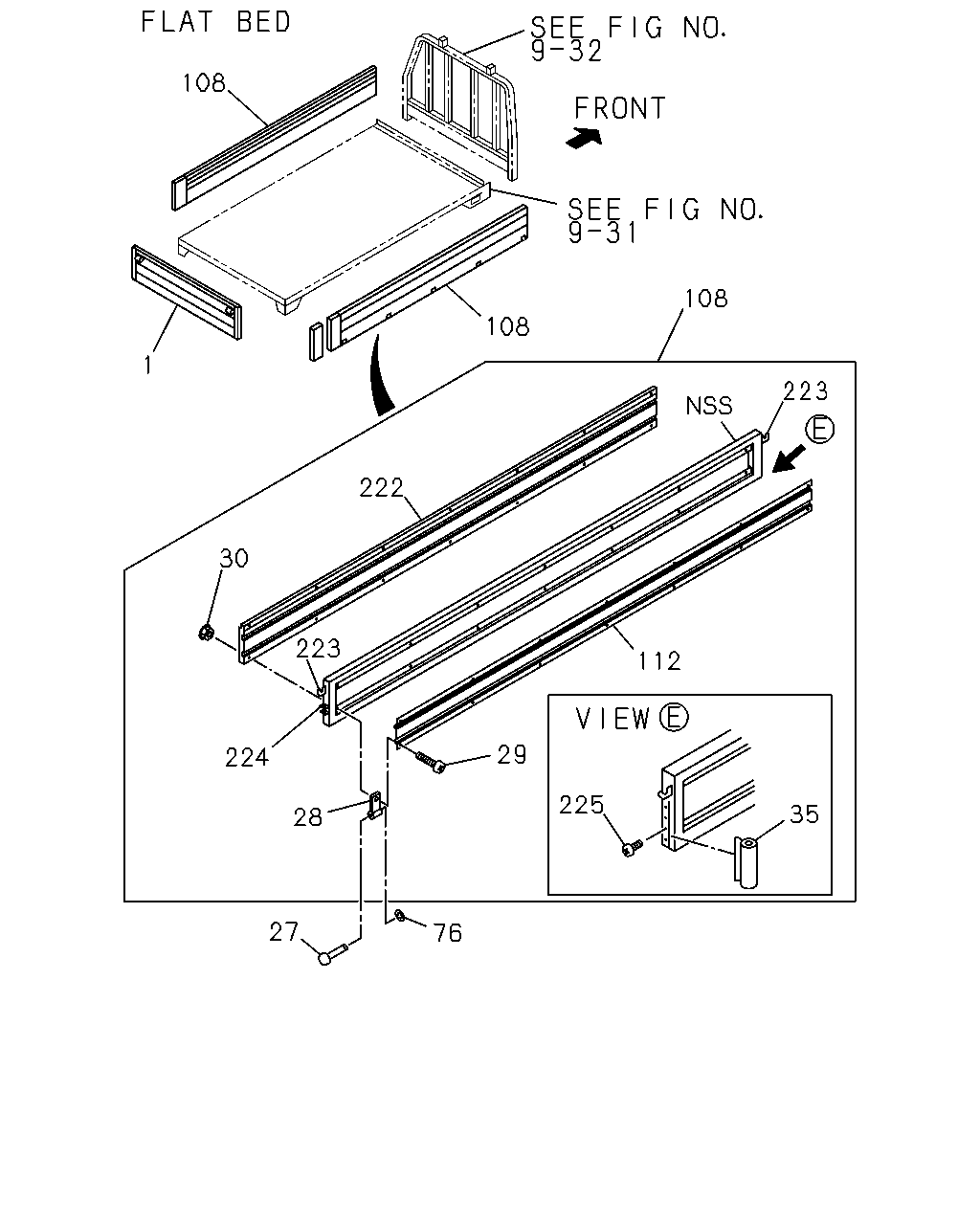

108 108 108 1 223 222 30 223 112 29 224 225 35 28 27 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> L=1615 H=398 B=37 PLYWOOD	8-94193-765-0	01	1	9312-9601	●
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> L=1615 H=398 B=37 PLYWOOD	8-94193-765-0	01	1	9602-9710	●	●
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> L=1615 H=398 B=37 PLYWOOD	8-94193-765-1	01	1	9711-	●
1	17.185 GATE ASM; RR RR BODY NON FLAT BED(RS5) L=1512 H=443 B=43 STEEL	8-94197-169-0	01	1	9312-			●
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> L=1787 H=398 B=45 PLYWOOD	8-94193-788-0	01	1	9312-9801				●	●
1	17.185 GATE ASM; RR 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> L=1787 H=398 B=45 PLYWOOD	8-94193-788-1	01	1	9802-				●	●	●
27	17.208 PIN; HINGE,SIDE GATE 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> OD=12 L=88.5	8-94193-932-0	12	1	9312-9601	●			●
27	17.208 PIN; HINGE,SIDE GATE RR BODY FLAT BED<RS6> OD=12 L=88.5	8-94193-932-0	12	1	9602-9710	●	●		●
27	17.208 PIN; HINGE,SIDE GATE 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> OD=12 L=88.5	8-94193-932-0	12	1	9711-9801	●			●
27	17.208 PIN; HINGE,SIDE GATE 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> OD=12 L=88.5	8-94193-932-0	12	1	9802-	●			●		●
27	17.208 PIN; HINGE,SIDE GATE RR BODY FLAT BED<RS6> OD=12 L=88.5	8-94193-932-0	14	1	9312-					●
28	17.208 HINGE; UPR,SIDE GATE 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6>	8-94194-271-0	12	1	9312-9601	●			●
28	17.208 HINGE; UPR,SIDE GATE RR BODY FLAT BED<RS6>	8-94194-271-0	12	1	9602-9710	●	●		●
28	17.208 HINGE; UPR,SIDE GATE 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6>	8-94194-271-0	12	1	9711-9801	●			●
28	17.208 HINGE; UPR,SIDE GATE 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6>	8-94194-271-0	12	1	9802-	●			●		●
28	17.208 HINGE; UPR,SIDE GATE RR BODY FLAT BED<RS6>	8-94194-271-0	14	1	9312-					●
29	17.455 SCREW; PANEL SIDE GATE 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> 17.185 UPPER M8X16	8-94193-952-0	12	1	9312-9601	●			●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED<RS6> 17.185 UPPER M8X16	8-94193-952-0	12	1	9602-9710	●	●		●
29	17.455 SCREW; PANEL SIDE GATE 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> 17.185 UPPER M8X16	8-94193-952-0	12	1	9711-9801	●			●
29	17.455 SCREW; PANEL SIDE GATE 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> 17.185 UPPER M8X16	8-94193-952-0	12	1	9802-	●			●		●
29	17.455 SCREW; PANEL SIDE GATE 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> 17.185 LOWER M8X21	8-94193-953-0	12	1	9312-9601	●			●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED<RS6> 17.185 LOWER M8X21	8-94193-953-0	12	1	9602-9710	●	●		●
29	17.455 SCREW; PANEL SIDE GATE 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> 17.185 LOWER M8X21	8-94193-953-0	12	1	9711-9801	●			●
29	17.455 SCREW; PANEL SIDE GATE 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> 17.185 LOWER M8X21	8-94193-953-0	12	1	9802-	●			●		●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED<RS6> 17.185 UPPER M8X16	8-94193-952-0	14	1	9312-					●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED<RS6> 17.185 LOWER M8X21	8-94193-953-0	14	1	9312-					●
30	17.455 NUT; PLATE,SIDE GATE 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> 17.185 M8	8-94193-954-0	24	1	9312-9601	●			●
30	17.455 NUT; PLATE,SIDE GATE RR BODY FLAT BED<RS6> 17.185 M8	8-94193-954-0	24	1	9602-9710	●	●		●
30	17.455 NUT; PLATE,SIDE GATE 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> 17.185 M8	8-94193-954-0	24	1	9711-9801	●			●
30	17.455 NUT; PLATE,SIDE GATE 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> 17.185 M8	8-94193-954-0	24	1	9802-	●			●		●
30	17.455 NUT; PLATE,SIDE GATE RR BODY FLAT BED<RS6> 17.185 M8	8-94193-954-0	28	1	9312-					●
35	17.455 WEATHERSTRIP; FRT SIDE GATE 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6>	8-94194-277-0	02	1	9312-9601	●			●	●
35	17.455 WEATHERSTRIP; FRT SIDE GATE RR BODY FLAT BED<RS6>	8-94194-277-0	02	1	9602-9710	●	●		●	●
35	17.455 WEATHERSTRIP; FRT SIDE GATE 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6>	8-94194-277-0	02	1	9711-9801	●			●	●
35	17.455 WEATHERSTRIP; FRT SIDE GATE 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6>	8-94194-277-0	02	1	9802-	●			●	●	●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> SIDE ID=9	8-94194-116-0	16	1	9312-9601	●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> SIDE ID=9	8-94194-116-0	16	1	9602-9710	●	●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> ID=9	8-94194-116-0	16	1	9711-	●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> SIDE ID=9	8-94194-116-0	12	1	9312-9711				●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> AIR INTAKE REAR VERTICAL<KJ3> ID=9	8-94194-116-0	12	1	9712-9801				●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> ID=9	8-94194-116-0	12	1	9802-				●		●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> REAR ID=8	8-94194-117-0	04	1	9312-9801				●	●
76	17.505 RING; SNAP,GATE HINGE PIN 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> ID=8	8-94194-117-0	04	1	9802-				●	●	●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> SIDE ID=9	8-94194-116-0	14	1	9312-					●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=3126 H=398 B=37 PLYWOOD	8-94193-770-0	01	1	9312-9601	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=3126 H=398 B=37 PLYWOOD	8-94193-770-0	01	1	9602-9710	●	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=3126 H=398 B=37 PLYWOOD	8-94193-770-1	01	1	9711-	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=3126 H=398 B=37 PLYWOOD	8-94193-769-0	01	1	9312-9601	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=3126 H=398 B=37 PLYWOOD	8-94193-769-0	01	1	9602-9710	●	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=3126 H=398 B=37 PLYWOOD	8-94193-769-1	01	1	9711-	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6>	8-94194-201-1	01	1	9312-				●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6>	8-94194-200-1	01	1	9312-				●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=4366 H=398 B=45 PLYWOOD	8-94193-787-1	01	1	9312-					●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=4366 H=398 B=45 PLYWOOD	8-94193-786-1	01	1	9312-					●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=3331 H=398 B=45 PLYWOOD	8-94194-003-1	01	1	9802-						●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=3331 H=398 B=45 PLYWOOD	8-94194-004-1	01	1	9802-						●
112	17.455 PANEL; SIDE GATE RR BODY FLAT BED<RS6>	8-94193-323-0	02	1	9312-9601	●
112	17.455 PANEL; SIDE GATE RR BODY FLAT BED<RS6>	8-94193-323-0	02	1	9602-9710	●	●
112	17.455 PANEL; SIDE GATE RR BODY FLAT BED<RS6>	8-94193-323-0	02	1	9711-	●
112	17.455 PANEL; SIDE GATE RR BODY FLAT BED<RS6>	8-94194-856-0	01	1	9312-				●
112	17.455 PANEL; SIDE GATE RR BODY FLAT BED<RS6>	8-94194-855-0	01	1	9312-				●
112	17.455 PANEL; SIDE GATE RR BODY FLAT BED<RS6> 16.575	8-94193-326-0	02	1	9312-					●
112	17.455 PANEL; SIDE GATE RR BODY FLAT BED<RS6>	8-94194-020-0	02	1	9802-						●
222	17.505 BOARD; SIDE GATE RR BODY FLAT BED<RS6>	8-94194-300-0	02	1	9312-9601	●
222	17.505 BOARD; SIDE GATE RR BODY FLAT BED<RS6>	8-94194-300-0	02	1	9602-9710	●	●
222	17.505 BOARD; SIDE GATE RR BODY FLAT BED<RS6>	8-94194-300-0	02	1	9711-	●
222	17.505 BOARD; SIDE GATE RR BODY FLAT BED<RS6>	8-94194-854-0	01	1	9312-				●
222	17.505 BOARD; SIDE GATE RR BODY FLAT BED<RS6>	8-94194-853-0	01	1	9312-				●
222	17.505 BOARD; SIDE GATE RR BODY FLAT BED<RS6>	8-94194-380-0	02	1	9312-					●
222	17.505 BOARD; SIDE GATE RR BODY FLAT BED<RS6>	8-94194-392-0	02	1	9802-						●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> REAR SIDE TAKADA	8-94194-274-0	01	1	9312-9601	●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> REAR SIDE TAKADA	8-94194-274-0	01	1	9602-9710	●	●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> REAR SIDE TAKADA	8-94194-274-0	01	1	9711-	●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> REAR SIDE TAKADA	8-94194-273-0	01	1	9312-9601	●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> REAR SIDE TAKADA	8-94194-273-0	01	1	9602-9710	●	●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> REAR SIDE TAKADA	8-94194-273-0	01	1	9711-	●
223	17.505 HOOK; PLATE 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> FRONT SIDE	8-94194-292-0	01	1	9312-9601	●			●	●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> FRONT SIDE	8-94194-292-0	01	1	9602-9710	●	●		●	●
223	17.505 HOOK; PLATE 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> FRONT SIDE	8-94194-292-0	01	1	9711-9801	●			●	●
223	17.505 HOOK; PLATE 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> FRONT SIDE	8-94194-292-0	01	1	9802-	●			●	●	●
223	17.505 HOOK; PLATE 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> FRONT SIDE	8-94194-291-0	01	1	9312-9601	●			●	●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> FRONT SIDE	8-94194-291-0	01	1	9602-9710	●	●		●	●
223	17.505 HOOK; PLATE 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> FRONT SIDE	8-94194-291-0	01	1	9711-9801	●			●	●
223	17.505 HOOK; PLATE 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> FRONT SIDE	8-94194-291-0	01	1	9802-	●			●	●	●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> REAR SIDE	8-94194-372-0	01	1	9312-9801				●	●
223	17.505 HOOK; PLATE 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> REAR SIDE	8-94194-372-0	01	1	9802-				●	●	●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> REAR SIDE	8-94194-371-0	01	1	9312-9801				●	●
223	17.505 HOOK; PLATE 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> REAR SIDE	8-94194-371-0	01	1	9802-				●	●	●
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-94194-276-0	01	1	9312-9601	●
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-94194-276-0	01	1	9602-9710	●	●
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-94194-276-0	01	1	9711-	●
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-94194-275-0	01	1	9312-9601	●
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-94194-275-0	01	1	9602-9710	●	●
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-94194-275-0	01	1	9711-	●
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED<RS6>	8-94194-374-0	01	1	9312-9801				●	●
224	17.505 HOOK; VERTICAL LOCK 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6>	8-94194-374-0	01	1	9802-				●	●	●
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED<RS6>	8-94194-373-0	01	1	9312-9801				●	●
224	17.505 HOOK; VERTICAL LOCK 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6>	8-94194-373-0	01	1	9802-				●	●	●
225	17.505 CLIP; WEATHERSTRIP 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> TAKADA	8-94194-351-0	08	1	9312-9601	●			●	●
225	17.505 CLIP; WEATHERSTRIP RR BODY FLAT BED<RS6> TAKADA	8-94194-351-0	08	1	9602-9710	●	●		●	●
225	17.505 CLIP; WEATHERSTRIP 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> TAKADA	8-94194-351-0	08	1	9711-9801	●			●	●
225	17.505 CLIP; WEATHERSTRIP 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> TAKADA	8-94194-351-0	08	1	9802-	●			●	●	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-466-0	01	1	9312-9601	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-466-0	01	1	9602-9710	●	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-466-0	01	1	9711-	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-465-0	01	1	9312-9601	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-465-0	01	1	9602-9710	●	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-465-0	01	1	9711-	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-466-0	01	1	9312-9801				●	●
341	17.505 SPRING KIT; VERTICAL LOCK 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> TAKADA	8-97594-466-0	01	1	9802-				●	●	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-465-0	01	1	9312-9801				●	●
341	17.505 SPRING KIT; VERTICAL LOCK 4JB1 ENG(RLF),4BE1 ENG(RLH) RR BODY FLAT BED<RS6> TAKADA	8-97594-465-0	01	1	9802-				●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
