9-32 — REAR BODY; GUARD FRAME (#44369) — 121 parça

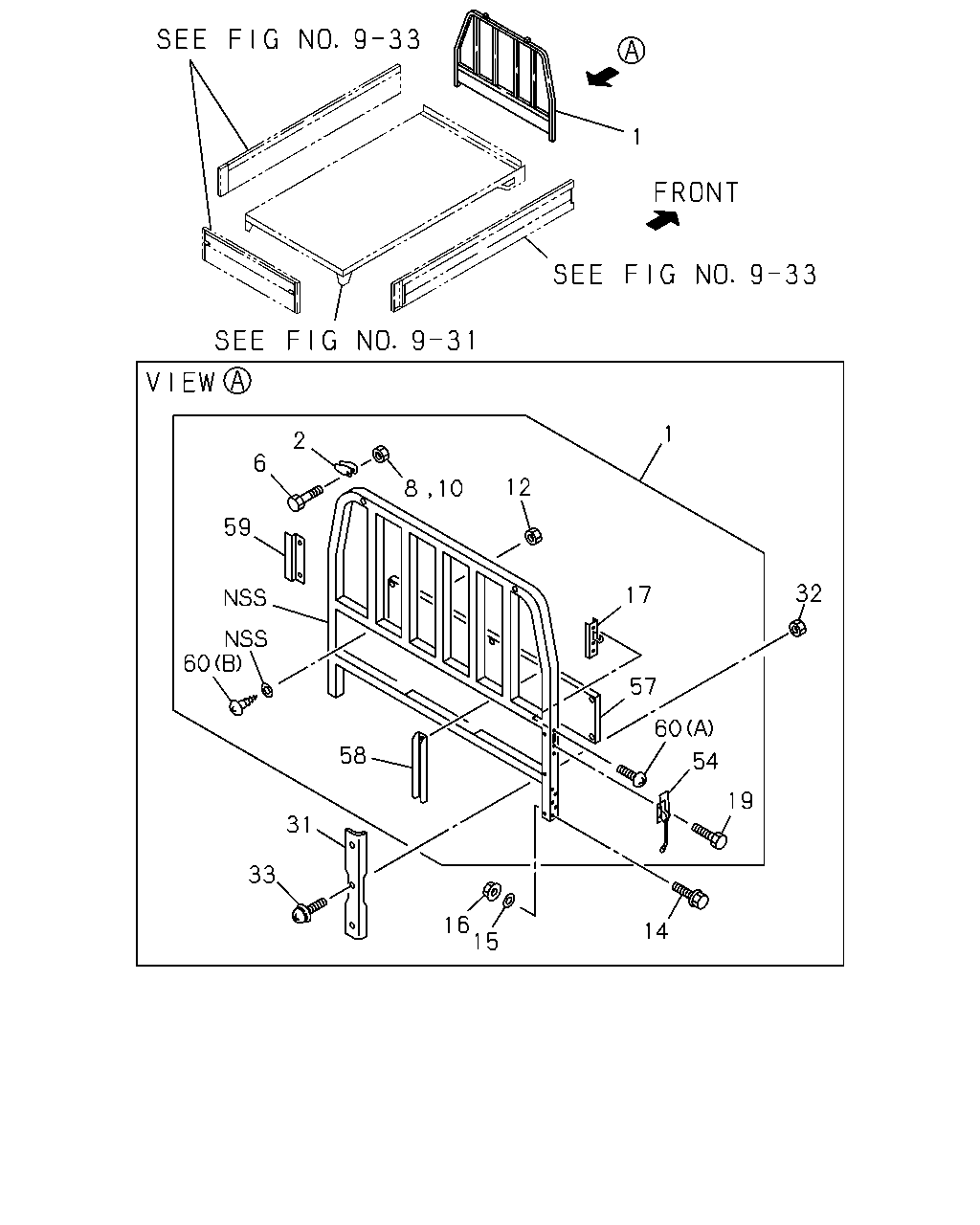

1 1 2 6 12 8 10 59 32 17 60 57 60 58 54 19 31 33 16 15 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6>	8-94194-009-2	01	1	9312-9510	●
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6>	8-94194-591-0	01	1	9511-9601	●
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6>	8-94194-591-0	01	1	9602-9607	●	●
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6>	8-94195-401-1	01	1	9608-9710	●	●
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6>	8-94195-401-1	01	1	9711-9711	●
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6>	8-94195-401-1	01	1	9712-9803	●
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6>	8-94196-086-0	01	1	9804-	●
1	17.455 FRAME; GUARD,RR BODY RR BODY NON FLAT BED(RS5)	8-94197-147-0	01	1	9312-9501			●
1	17.455 FRAME; GUARD,RR BODY RR BODY NON FLAT BED(RS5)	8-94197-229-0	01	1	9502-9711			●
1	17.455 FRAME; GUARD,RR BODY RR BODY NON FLAT BED(RS5)	8-94197-229-0	01	1	9712-			●
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6>	8-94193-875-0	01	1	9312-9510				●	●
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6>	8-94194-596-0	01	1	9511-9606				●	●
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6>	8-94195-304-0	01	1	9607-9702				●	●
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6>	8-94195-092-1	01	1	9703-9711				●	●
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6>	8-94195-092-1	01	1	9712-9801				●	●
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6>	8-94195-092-1	01	1	9802-9803				●	●	●
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6>	8-94196-095-0	01	1	9804-				●	●	●
2	17.447 STOPPER; GUARD FRAME RR BODY FLAT BED<RS6> TAKADA	8-94193-798-0	02	1	9712-	●
2	17.447 STOPPER; GUARD FRAME RR BODY NON FLAT BED(RS5) TAKADA	8-94197-135-0	02	1	9312-			●
6	17.447 BOLT; STOPPER TO GUARD FRAME RR BODY FLAT BED<RS6> TAKADA	8-94193-950-0	02	1	9712-	●
6	17.447 BOLT; STOPPER TO GUARD FRAME RR BODY NON FLAT BED(RS5) TAKADA	8-94197-154-0	02	1	9312-			●
8	17.447 NUT; STOPPER BOLT RR BODY FLAT BED<RS6> M10 TAKADA	8-94193-951-0	02	1	9712-	●
8	17.447 NUT; STOPPER BOLT RR BODY NON FLAT BED(RS5) TAKADA	8-94197-155-0	02	1	9312-			●
10	17.447 NUT; GUARD FRAME STOPPER RR BODY FLAT BED<RS6> M8 FLANGE	8-94193-939-0	08	1	9511-9611				●	●
10	17.447 NUT; GUARD FRAME STOPPER RR BODY FLAT BED<RS6> AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE	8-94193-939-0	08	1	9612-9711				●
10	17.447 NUT; GUARD FRAME STOPPER RR BODY FLAT BED<RS6> AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE	8-94193-939-0	40	1	9612-9711					●
12	17.455 NUT; GUARD FRAME RR BODY FLAT BED<RS6> 17.447 M8 FLANGE	8-94193-939-0	04	1	9712-	●
12	17.455 NUT; GUARD FRAME RR BODY FLAT BED<RS6> 17.447 M8 FLANGE	8-94193-939-0	05	1	9712-9801				●	●
12	17.455 NUT; GUARD FRAME RR BODY FLAT BED<RS6> 17.447 M8 FLANGE	8-94193-939-0	05	1	9802-				●	●	●
14	17.455 BOLT; GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6> M10X22 FLANGE	8-97065-440-0	10	1	9312-9601	●
14	17.455 BOLT; GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6> M10X22 FLANGE	8-97065-440-0	10	1	9602-9710	●	●
14	17.455 BOLT; GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6> M10X22 FLANGE	8-97065-440-0	10	1	9711-	●
14	17.455 BOLT; GUARD FRAME TO GUSSET RR BODY NON FLAT BED(RS5) M10X22 FLANGE	8-97065-440-0	04	1	9502-			●
14	17.455 BOLT; GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6> M10X22 FLANGE	8-97065-440-0	12	1	9312-9801				●	●
14	17.455 BOLT; GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6> M10X22 FLANGE	8-97065-440-0	12	1	9802-				●	●	●
15	17.455 WASHER; PL,GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6>	8-97065-438-0	10	1	9312-9601	●
15	17.455 WASHER; PL,GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6>	8-97065-438-0	10	1	9602-9710	●	●
15	17.455 WASHER; PL,GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6>	8-97065-438-0	10	1	9711-	●
15	17.455 WASHER; PL,GUARD FRAME TO GUSSET RR BODY NON FLAT BED(RS5)	8-97065-438-0	04	1	9502-			●
15	17.455 WASHER; PL,GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6>	8-97065-438-0	12	1	9312-9801				●	●
15	17.455 WASHER; PL,GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6>	8-97065-438-0	12	1	9802-				●	●	●
16	17.455 NUT; GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6> M10 FLANGE	8-97065-439-0	10	1	9312-9601	●
16	17.455 NUT; GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6> M10 FLANGE	8-97065-439-0	10	1	9602-9710	●	●
16	17.455 NUT; GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6> M10 FLANGE	8-97065-439-0	10	1	9711-	●
16	17.455 NUT; GUARD FRAME TO GUSSET RR BODY NON FLAT BED(RS5) M10 FLANGE	8-97065-439-0	02	1	9502-			●
16	17.455 NUT; GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6> M10 FLANGE	8-97065-439-0	12	1	9312-9801				●	●
16	17.455 NUT; GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6> M10 FLANGE	8-97065-439-0	12	1	9802-				●	●	●
17	17.455 HOOK; GUARD FRAME RR BODY FLAT BED<RS6>	8-94194-628-0	02	1	9712-9801	●			●	●
17	17.455 HOOK; GUARD FRAME RR BODY FLAT BED<RS6>	8-94194-628-0	02	1	9802-	●			●	●	●
19	17.455 BOLT; HANDLE TO GUARD FRAME RR BODY FLAT BED<RS6> M8X20	8-94193-942-0	04	1	9712-9801	●			●	●
19	17.455 BOLT; HANDLE TO GUARD FRAME RR BODY FLAT BED<RS6> M8X20	8-94193-942-0	04	1	9802-	●			●	●	●
31	17.455 PROTECTOR; GUARD FRAME RR BODY FLAT BED<RS6> WHITE PRIMER	8-94192-023-2	02	1	9312-9801				●	●
31	17.455 PROTECTOR; GUARD FRAME BODY COLOR ARC WHITE(729),BODY COLORCARDINAL RED(736) RR BODY FLAT BED<RS6> WHITE PRIMER	8-94192-023-2	02	1	9802-				●	●	●
31	17.455 PROTECTOR; GUARD FRAME BODY COLOR ADRIATIC BLUE(730) RR BODY FLAT BED<RS6> PRIMER	8-94192-023-2	02	1	9802-				●	●	●
31	17.455 PROTECTOR; GUARD FRAME BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> BLUE PRIMER	8-94192-023-2	02	1	9802-				●	●	●
32	17.455 NUT; PROTECTOR RR BODY FLAT BED<RS6> M5	8-97065-433-0	06	1	9312-9801				●	●
32	17.455 NUT; PROTECTOR RR BODY FLAT BED<RS6> M5	8-97065-433-0	06	1	9802-				●	●	●
33	17.455 SCREW; PROTECTOR RR BODY FLAT BED<RS6>	8-97065-434-0	06	1	9312-9801				●	●
33	17.455 SCREW; PROTECTOR RR BODY FLAT BED<RS6>	8-97065-434-0	06	1	9802-				●	●	●
54	17.455 HANDLE; LOCK,GATE,FRT RR BODY FLAT BED<RS6> 17.490	8-94193-936-0	02	1	9712-9801	●			●	●
54	17.455 HANDLE; LOCK,GATE,FRT RR BODY FLAT BED<RS6> 17.490	8-94193-936-0	02	1	9802-	●			●	●	●
57	17.400 BOARD; HEADER RR BODY FLAT BED<RS6>	8-94194-455-0	01	1	9712-	●
57	17.400 BOARD; HEADER RR BODY FLAT BED<RS6>	8-94194-459-0	01	1	9712-9801				●	●
57	17.400 BOARD; HEADER RR BODY FLAT BED<RS6>	8-94194-459-0	01	1	9802-				●	●	●
58	17.505 MEMBER; HEADER BOARD RR BODY FLAT BED<RS6> TAKADA	8-94194-452-0	02	1	9712-	●
58	17.505 MEMBER; HEADER BOARD RR BODY FLAT BED<RS6>	8-94195-457-0	02	1	9712-9801				●	●
58	17.505 MEMBER; HEADER BOARD RR BODY FLAT BED<RS6>	8-94195-457-0	02	1	9802-				●	●	●
59	17.455 REINFORCEMENT; HEADER BOARD RR BODY FLAT BED<RS6> TAKADA	8-94194-454-0	01	1	9712-9801	●			●	●
59	17.455 REINFORCEMENT; HEADER BOARD RR BODY FLAT BED<RS6> TAKADA	8-94194-454-0	01	1	9802-	●			●	●	●
59	17.455 REINFORCEMENT; HEADER BOARD RR BODY FLAT BED<RS6> TAKADA	8-94194-453-0	01	1	9712-9801	●			●	●
59	17.455 REINFORCEMENT; HEADER BOARD RR BODY FLAT BED<RS6> TAKADA	8-94194-453-0	01	1	9802-	●			●	●	●
60	17.455 SCREW; BOARD RR BODY FLAT BED<RS6> (A),(B) M8X30	8-94193-938-0	06	1	9712-	●
60	17.455 SCREW; BOARD RR BODY FLAT BED<RS6> (A) M8X30	8-94193-938-0	02	1	9712-9801				●	●
60	17.455 SCREW; BOARD RR BODY FLAT BED<RS6> (A) M8X30	8-94193-938-0	02	1	9802-				●	●	●
60	17.455 SCREW; BOARD RR BODY FLAT BED<RS6> (B) M8X35	8-94193-941-0	05	1	9712-9801				●	●
60	17.455 SCREW; BOARD RR BODY FLAT BED<RS6> (B) M8X35	8-94193-941-0	05	1	9802-				●	●	●

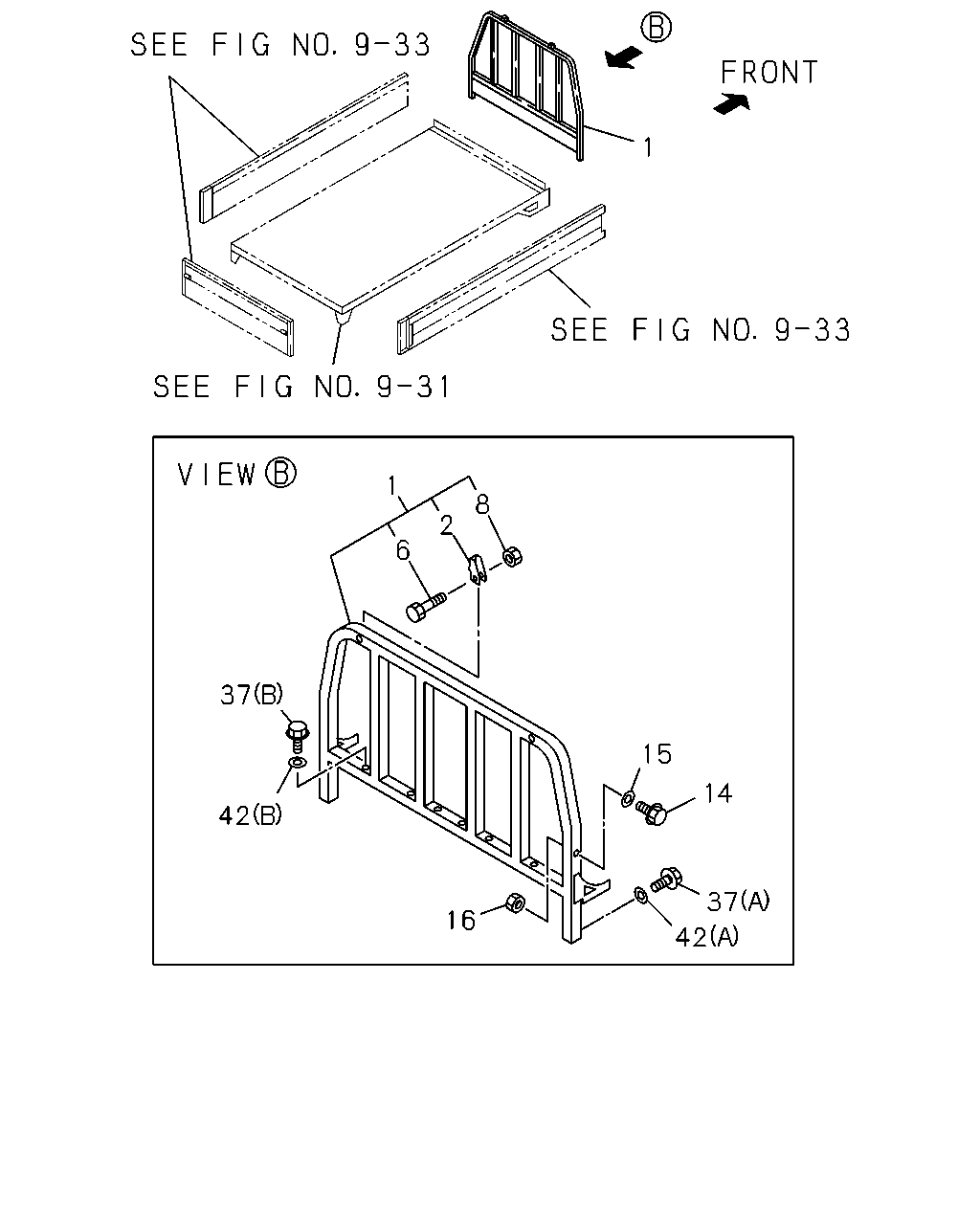

1 1 8 2 6 37 15 14 42 37 16 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6>	8-94194-009-2	01	1	9312-9510	●
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6>	8-94194-591-0	01	1	9511-9601	●
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6>	8-94194-591-0	01	1	9602-9607	●	●
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6>	8-94195-401-1	01	1	9608-9710	●	●
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6>	8-94195-401-1	01	1	9711-9711	●
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6>	8-94195-401-1	01	1	9712-9803	●
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6>	8-94196-086-0	01	1	9804-	●
1	17.455 FRAME; GUARD,RR BODY RR BODY NON FLAT BED(RS5)	8-94197-147-0	01	1	9312-9501			●
1	17.455 FRAME; GUARD,RR BODY RR BODY NON FLAT BED(RS5)	8-94197-229-0	01	1	9502-9711			●
1	17.455 FRAME; GUARD,RR BODY RR BODY NON FLAT BED(RS5)	8-94197-229-0	01	1	9712-			●
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6>	8-94193-875-0	01	1	9312-9510				●	●
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6>	8-94194-596-0	01	1	9511-9606				●	●
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6>	8-94195-304-0	01	1	9607-9702				●	●
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6>	8-94195-092-1	01	1	9703-9711				●	●
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6>	8-94195-092-1	01	1	9712-9801				●	●
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6>	8-94195-092-1	01	1	9802-9803				●	●	●
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6>	8-94196-095-0	01	1	9804-				●	●	●
2	17.447 STOPPER; GUARD FRAME RR BODY FLAT BED<RS6> TAKADA	8-94193-798-0	02	1	9712-	●
2	17.447 STOPPER; GUARD FRAME RR BODY NON FLAT BED(RS5) TAKADA	8-94197-135-0	02	1	9312-			●
6	17.447 BOLT; STOPPER TO GUARD FRAME RR BODY FLAT BED<RS6> TAKADA	8-94193-950-0	02	1	9712-	●
6	17.447 BOLT; STOPPER TO GUARD FRAME RR BODY NON FLAT BED(RS5) TAKADA	8-94197-154-0	02	1	9312-			●
8	17.447 NUT; STOPPER BOLT RR BODY FLAT BED<RS6> M10 TAKADA	8-94193-951-0	02	1	9712-	●
8	17.447 NUT; STOPPER BOLT RR BODY NON FLAT BED(RS5) TAKADA	8-94197-155-0	02	1	9312-			●
14	17.455 BOLT; GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6> M10X22 FLANGE	8-97065-440-0	10	1	9312-9601	●
14	17.455 BOLT; GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6> M10X22 FLANGE	8-97065-440-0	10	1	9602-9710	●	●
14	17.455 BOLT; GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6> M10X22 FLANGE	8-97065-440-0	10	1	9711-	●
14	17.455 BOLT; GUARD FRAME TO GUSSET RR BODY NON FLAT BED(RS5) M10X22 FLANGE	8-97065-440-0	04	1	9502-			●
14	17.455 BOLT; GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6> M10X22 FLANGE	8-97065-440-0	12	1	9312-9801				●	●
14	17.455 BOLT; GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6> M10X22 FLANGE	8-97065-440-0	12	1	9802-				●	●	●
15	17.455 WASHER; PL,GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6>	8-97065-438-0	10	1	9312-9601	●
15	17.455 WASHER; PL,GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6>	8-97065-438-0	10	1	9602-9710	●	●
15	17.455 WASHER; PL,GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6>	8-97065-438-0	10	1	9711-	●
15	17.455 WASHER; PL,GUARD FRAME TO GUSSET RR BODY NON FLAT BED(RS5)	8-97065-438-0	04	1	9502-			●
15	17.455 WASHER; PL,GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6>	8-97065-438-0	12	1	9312-9801				●	●
15	17.455 WASHER; PL,GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6>	8-97065-438-0	12	1	9802-				●	●	●
16	17.455 NUT; GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6> M10 FLANGE	8-97065-439-0	10	1	9312-9601	●
16	17.455 NUT; GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6> M10 FLANGE	8-97065-439-0	10	1	9602-9710	●	●
16	17.455 NUT; GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6> M10 FLANGE	8-97065-439-0	10	1	9711-	●
16	17.455 NUT; GUARD FRAME TO GUSSET RR BODY NON FLAT BED(RS5) M10 FLANGE	8-97065-439-0	02	1	9502-			●
16	17.455 NUT; GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6> M10 FLANGE	8-97065-439-0	12	1	9312-9801				●	●
16	17.455 NUT; GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6> M10 FLANGE	8-97065-439-0	12	1	9802-				●	●	●
37	17.455 BOLT; GUARD FRAME RR BODY NON FLAT BED(RS5) 02.559 (A) M8X25 FLANGE	0-28680-825-0	04	1	9502-			●
37	17.455 BOLT; GUARD FRAME RR BODY NON FLAT BED(RS5) (B) M10X22 FLANGE	8-97065-440-0	06	1	9502-			●
42	17.447 WASHER; PL RR BODY NON FLAT BED(RS5) 17.455 (B)	8-97065-438-0	06	1	9502-			●
42	17.447 WASHER; PL RR BODY NON FLAT BED(RS5) 06.760 (A) ID=8.4 OD=22	9-09160-708-0	04	1	9502-			●
