◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50695 - NKR-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-75 - CONDENSER ▶
8-75 — CONDENSER (#44363) — 363 parça

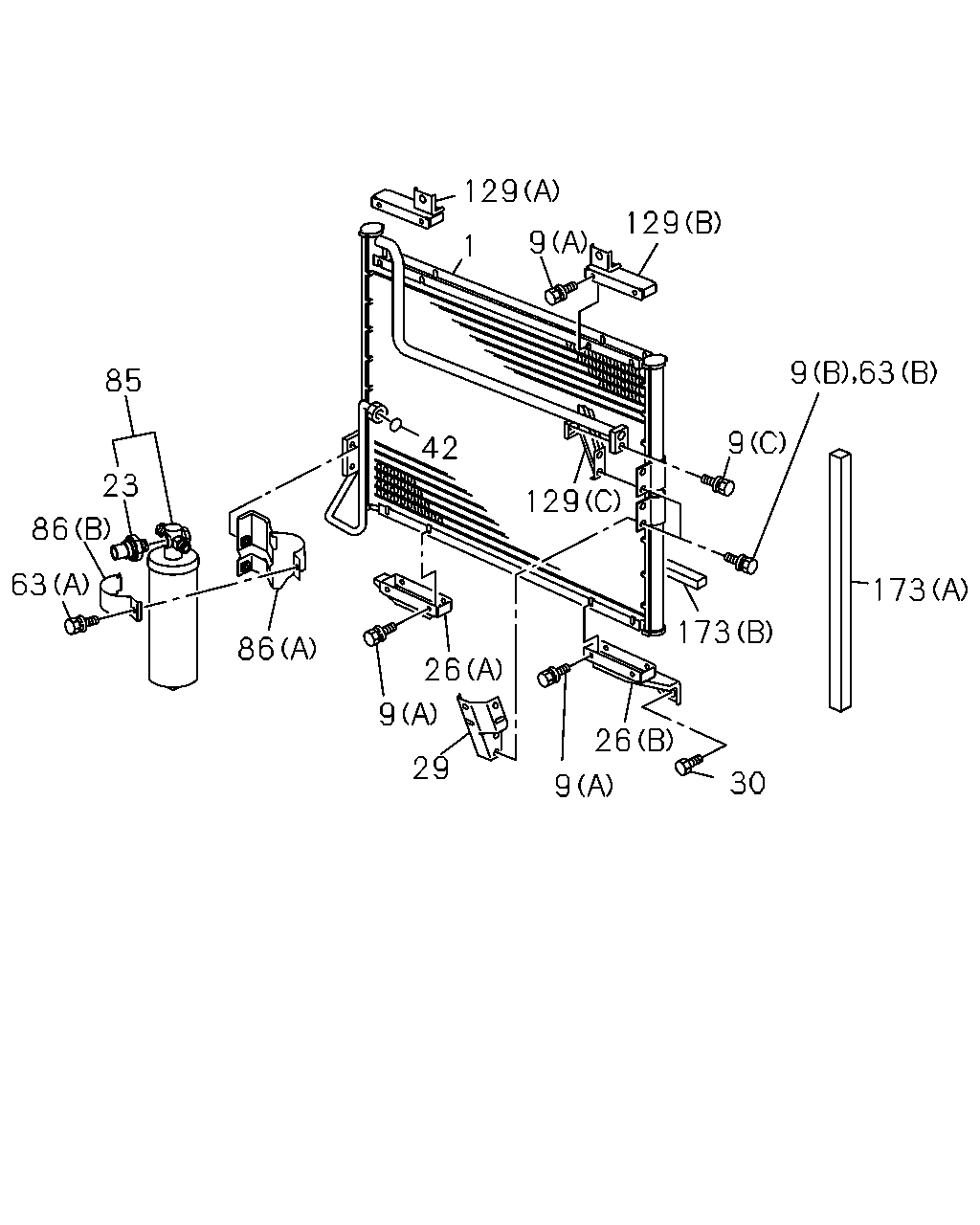

çizim 66790
129 129 9 1 85 9 42 129 23 86 63 173 173 86 26 9 26 29 30 9 9 63
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 09.190 CONDENSER; A/C
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97107-364-0 01 1 9312-9407 ● ● ● ● ●
1 09.190 CONDENSER; A/C
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97107-364-0 01 1 9408-9410 ● ● ● ● ●
1 09.190 CONDENSER; A/C
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 		8-97107-364-0 01 1 9408-9410 ● ● ● ● ●
1 09.190 CONDENSER; A/C
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> 		8-97107-364-2 01 1 9411-9510 ● ● ● ● ●
1 09.190 CONDENSER; A/C
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> 		8-97107-364-2 01 1 9411-9510 ● ● ● ● ●
1 09.190 CONDENSER; A/C
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> 		8-97107-364-2 01 1 9511-9706 ● ● ● ● ●
1 09.190 CONDENSER; A/C
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> 		8-97187-713-0 01 1 9707-9801 ● ● ● ● ●
1 09.190 CONDENSER; A/C
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> 		8-97187-713-0 01 1 9802- ● ● ● ● ● ●
1 09.190 CONDENSER; A/C
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 		8-97108-625-1 01 1 9511-9704 ● ● ● ● ●
1 09.190 CONDENSER; A/C
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 		8-97108-625-0 01 1 9312-9405 ● ● ● ●
1 09.190 CONDENSER; A/C
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 		8-97108-625-1 02 1 9406-9510 ● ● ● ●
1 09.190 CONDENSER; A/C
AIR CON PREPARATORY PACK<S6D> 		8-97123-131-1 01 1 9411- ●
9 09.190 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.175 (B) 		8-97018-669-0 02 1 9312-9407 ● ● ● ● ●
9 09.190 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.175 (B) 		8-97018-669-0 02 1 9408-9410 ● ● ● ● ●
9 09.190 BOLT; BRKT
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 09.175 (B) 		8-97018-669-0 02 1 9408-9410 ● ● ● ● ●
9 09.190 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> 09.175 (B) 		8-97018-669-0 02 1 9411-9507 ● ● ● ● ●
9 09.190 BOLT; BRKT
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> 09.175 (B) 		8-97018-669-0 02 1 9411-9507 ● ● ● ● ●
9 09.190 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> 09.175 (B) 		8-97112-752-0 02 1 9508-9510 ● ● ● ● ●
9 09.190 BOLT; BRKT
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> 09.175 (B) 		8-97112-752-0 02 1 9508-9510 ● ● ● ● ●
9 09.190 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> 09.175 (B) 		8-97112-752-0 02 1 9511-9801 ● ● ● ● ●
9 09.190 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> 09.175 (B) 		8-97112-752-0 02 1 9802- ● ● ● ● ● ●
9 09.190 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.216 (A) 		8-97018-671-0 08 1 9406-9407 ● ● ● ● ●
9 09.190 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.216 (A) 		8-97018-671-0 08 1 9408-9410 ● ● ● ● ●
9 09.190 BOLT; BRKT
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 09.216 (A) 		8-97018-671-0 08 1 9408-9410 ● ● ● ● ●
9 09.190 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> 09.216 (A) 		8-97018-671-0 08 1 9411-9507 ● ● ● ● ●
9 09.190 BOLT; BRKT
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> 09.216 (A) 		8-97018-671-0 08 1 9411-9507 ● ● ● ● ●
9 09.190 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (A) 		8-97114-209-0 08 1 9508-9510 ● ● ● ● ●
9 09.190 BOLT; BRKT
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> (A) 		8-97114-209-0 08 1 9508-9510 ● ● ● ● ●
9 09.190 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (A) 		8-97114-209-0 08 1 9511-9706 ● ● ● ● ●
9 09.190 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (A) 		8-97114-209-0 04 1 9707-9801 ● ● ● ● ●
9 09.190 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (A) 		8-97114-209-0 04 1 9802- ● ● ● ● ● ●
9 09.190 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97091-336-0 01 1 9406-9407 ● ● ● ● ●
9 09.190 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97091-336-0 01 1 9408-9410 ● ● ● ● ●
9 09.190 BOLT; BRKT
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) (C) 		8-97091-336-0 01 1 9408-9410 ● ● ● ● ●
9 09.190 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (C) 		8-97091-336-0 01 1 9411-9510 ● ● ● ● ●
9 09.190 BOLT; BRKT
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> (C) 		8-97091-336-0 01 1 9411-9510 ● ● ● ● ●
9 09.190 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (C) 		8-97091-336-0 01 1 9511-9706 ● ● ● ● ●
9 09.190 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (C) 		8-97178-387-0 01 1 9707-9801 ● ● ● ● ●
9 09.190 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (C) 		8-97178-387-0 01 1 9802- ● ● ● ● ● ●
9 09.190 BOLT; BRKT
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 09.175 (A) 		8-97112-752-0 04 1 9511-9704 ● ● ● ● ●
9 09.190 BOLT; BRKT
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 09.175 (B) 		8-97018-669-0 04 1 9312-9405 ● ● ● ●
9 09.190 BOLT; BRKT
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 09.175 (B) 		8-97018-669-0 08 1 9406-9507 ● ● ● ●
9 09.190 BOLT; BRKT
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 09.175 (B) 		8-97112-752-0 08 1 9508-9510 ● ● ● ●
9 09.190 BOLT; BRKT
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 09.216 (A) 		8-97018-671-0 08 1 9312-9405 ● ● ● ●
9 09.190 BOLT; BRKT
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 09.216 (A) 		8-97018-671-0 16 1 9406-9507 ● ● ● ●
9 09.190 BOLT; BRKT
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97114-209-0 16 1 9508-9510 ● ● ● ●
9 09.190 BOLT; BRKT
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97091-336-0 01 1 9312-9405 ● ● ● ●
9 09.190 BOLT; BRKT
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97091-336-0 02 1 9406-9510 ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) "R-134A" 		8-97095-659-0 01 1 9312- ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) "R-134A" 		8-97095-659-0 01 1 9406-9407 ● ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) "R-134A" 		8-97095-659-0 01 1 9408-9410 ● ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) "R-134A" 		8-97095-659-0 01 1 9408-9410 ● ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> "R-134A" 		8-97095-659-0 01 1 9411-9801 ● ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> "R-134A" 		8-97095-659-0 01 1 9411-9801 ● ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> "R-134A" 		8-97095-659-0 01 1 9802- ● ● ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> "R-134A" 		8-97095-659-0 01 1 9802- ● ● ● ● ● ●
26 09.190 BRACKET; LOW
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97095-961-1 01 1 9406-9407 ● ● ● ● ●
26 09.190 BRACKET; LOW
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97095-961-1 01 1 9408-9410 ● ● ● ● ●
26 09.190 BRACKET; LOW
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) (A) 		8-97095-961-1 01 1 9408-9410 ● ● ● ● ●
26 09.190 BRACKET; LOW
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (A) 		8-97095-961-2 01 1 9411-9510 ● ● ● ● ●
26 09.190 BRACKET; LOW
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> (A) 		8-97095-961-2 01 1 9411-9510 ● ● ● ● ●
26 09.190 BRACKET; LOW
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (A) 		8-97095-961-2 01 1 9511-9801 ● ● ● ● ●
26 09.190 BRACKET; LOW
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (A) 		8-97095-961-2 01 1 9802- ● ● ● ● ● ●
26 09.190 BRACKET; LOW
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97107-368-0 01 1 9406-9407 ● ● ● ● ●
26 09.190 BRACKET; LOW
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97107-368-0 01 1 9408-9410 ● ● ● ● ●
26 09.190 BRACKET; LOW
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) (B) 		8-97107-368-0 01 1 9408-9410 ● ● ● ● ●
26 09.190 BRACKET; LOW
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (B) 		8-97107-368-1 01 1 9411-9510 ● ● ● ● ●
26 09.190 BRACKET; LOW
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> (B) 		8-97107-368-1 01 1 9411-9510 ● ● ● ● ●
26 09.190 BRACKET; LOW
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (B) 		8-97107-368-1 01 1 9511-9801 ● ● ● ● ●
26 09.190 BRACKET; LOW
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (B) 		8-97107-368-1 01 1 9802- ● ● ● ● ● ●
26 09.190 BRACKET; LOW
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97095-961-2 01 1 9312-9510 ● ● ● ●
26 09.190 BRACKET; LOW
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97107-368-1 01 1 9312-9510 ● ● ● ●
29 09.190 BRACKET; SIDE
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97107-366-0 01 1 9312-9407 ● ● ● ● ●
29 09.190 BRACKET; SIDE
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97107-366-0 01 1 9408-9410 ● ● ● ● ●
29 09.190 BRACKET; SIDE
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 		8-97107-366-0 01 1 9408-9410 ● ● ● ● ●
29 09.190 BRACKET; SIDE
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> 		8-97107-366-0 01 1 9411-9510 ● ● ● ● ●
29 09.190 BRACKET; SIDE
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> 		8-97107-366-0 01 1 9411-9510 ● ● ● ● ●
29 09.190 BRACKET; SIDE
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> 		8-97107-366-0 01 1 9511-9801 ● ● ● ● ●
29 09.190 BRACKET; SIDE
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> 		8-97107-366-0 01 1 9802- ● ● ● ● ● ●
29 09.190 BRACKET; SIDE
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 		8-97108-628-1 01 1 9312-9510 ● ● ● ●
29 09.190 BRACKET; SIDE
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 		8-97108-628-1 01 1 9511-9704 ● ● ● ● ●
30 09.190 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT(C60) 00.738 M6X16 FLANGE 		0-28080-616-0 04 1 9312-9510 ● ● ● ● ● ●
30 09.190 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT(C60) 00.738 M6X16 FLANGE 		0-28080-616-0 04 1 9511-9708 ● ● ● ● ● ● ●
30 09.190 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 9709- ● ● ● ● ● ● ●
42 09.190 GASKET; CONDENSER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.214 ID=6 		8-94481-700-0 01 1 9406-9407 ● ● ● ● ●
42 09.190 GASKET; CONDENSER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.214 ID=6 		8-94481-700-0 01 1 9408-9410 ● ● ● ● ●
42 09.190 GASKET; CONDENSER
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 09.214 ID=6 		8-94481-700-0 01 1 9408-9410 ● ● ● ● ●
42 09.190 GASKET; CONDENSER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> 09.214 ID=6 		8-94481-700-0 01 1 9411-9510 ● ● ● ● ●
42 09.190 GASKET; CONDENSER
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> 09.214 ID=6 		8-94481-700-0 01 1 9411-9510 ● ● ● ● ●
42 09.190 GASKET; CONDENSER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> 09.214 ID=6 		8-94481-700-0 01 1 9511-9706 ● ● ● ● ●
42 09.190 GASKET; CONDENSER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.195 ID=6.07 		8-94461-902-0 01 1 9707-9711 ● ● ● ● ●
42 09.190 GASKET; CONDENSER
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 09.214 ID=6 		8-94481-700-0 01 1 9312-9510 ● ● ● ●
42 09.190 GASKET; CONDENSER
AIR CON PREPARATORY PACK<S6D> 09.195 ID=6.07 		8-94461-902-0 01 1 9511-9706 ●
63 09.175 BOLT; RECEIVER TANK
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) M6X20 		1-15729-461-0 01 1 9406-9407 ● ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) M6X20 		1-15729-461-0 01 1 9408-9410 ● ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) (A) M6X20 		1-15729-461-0 01 1 9408-9410 ● ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (A) M6X20 		1-15729-461-0 01 1 9411-9510 ● ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> (A) M6X20 		1-15729-461-0 01 1 9411-9510 ● ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (A) M6X20 		1-15729-461-0 01 1 9511-9706 ● ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (A) 		8-97178-388-0 01 1 9707-9801 ● ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (A) 		8-97178-388-0 01 1 9802- ● ● ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97018-669-0 02 1 9406-9407 ● ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97018-669-0 02 1 9408-9410 ● ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) (B) 		8-97018-669-0 02 1 9408-9410 ● ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (B) 		8-97018-669-0 02 1 9411-9507 ● ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> (B) 		8-97018-669-0 02 1 9411-9507 ● ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (B) 		8-97112-752-0 02 1 9508-9510 ● ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> (B) 		8-97112-752-0 02 1 9508-9510 ● ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (B) 		8-97112-752-0 02 1 9511-9801 ● ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> 		8-97112-752-0 02 1 9802- ● ● ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (A) M6X20 		1-15729-461-0 01 1 9312-9510 ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97018-669-0 02 1 9312-9507 ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97112-752-0 02 1 9508-9510 ● ● ● ●
85 09.172 DRYER; RECEIVER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97107-365-0 01 1 9312-9407 ● ● ● ● ●
85 09.172 DRYER; RECEIVER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97107-365-0 01 1 9408-9410 ● ● ● ● ●
85 09.172 DRYER; RECEIVER
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 		8-97107-365-0 01 1 9408-9410 ● ● ● ● ●
85 09.172 DRYER; RECEIVER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> 		8-97107-365-0 01 1 9411-9507 ● ● ● ● ●
85 09.172 DRYER; RECEIVER
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> 		8-97107-365-0 01 1 9411-9507 ● ● ● ● ●
85 09.172 DRYER; RECEIVER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> 09.195 		8-97096-032-1 01 1 9508-9801 ● ● ● ● ●
85 09.172 DRYER; RECEIVER
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> 09.195 		8-97096-032-1 01 1 9508-9801 ● ● ● ● ●
85 09.172 DRYER; RECEIVER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> 09.195 		8-97096-032-1 01 1 9802- ● ● ● ● ● ●
85 09.172 DRYER; RECEIVER
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> 09.195 		8-97096-032-1 01 1 9802- ● ● ● ● ● ●
85 09.172 DRYER; RECEIVER
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 09.195 		8-97096-032-0 01 1 9312- ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97077-536-1 01 1 9406-9407 ● ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97077-536-1 01 1 9408-9410 ● ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) (B) 		8-97077-536-1 01 1 9408-9410 ● ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (B) 		8-97077-536-2 01 1 9411-9510 ● ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> (B) 		8-97077-536-2 01 1 9411-9510 ● ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (B) 		8-97077-536-2 01 1 9511-9801 ● ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (B) 		8-97077-536-2 01 1 9802- ● ● ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97107-367-0 01 1 9406-9407 ● ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97107-367-0 01 1 9408-9410 ● ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) (A) 		8-97107-367-0 01 1 9408-9410 ● ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (A) 		8-97107-367-1 01 1 9411-9510 ● ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> (A) 		8-97107-367-1 01 1 9411-9510 ● ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (A) 		8-97107-367-1 01 1 9511-9801 ● ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (A) 		8-97107-367-1 01 1 9802- ● ● ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97077-536-2 01 1 9312-9510 ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97107-367-1 01 1 9312-9510 ● ● ● ●
129 09.190 BRACKET; UPR
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (D) 		8-97095-962-1 01 1 9312-9407 ● ● ● ● ●
129 09.190 BRACKET; UPR
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (D) 		8-97095-962-1 01 1 9408-9410 ● ● ● ● ●
129 09.190 BRACKET; UPR
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) (D) 		8-97095-962-1 01 1 9408-9410 ● ● ● ● ●
129 09.190 BRACKET; UPR
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (D) 		8-97095-962-1 01 1 9411-9510 ● ● ● ● ●
129 09.190 BRACKET; UPR
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> (D) 		8-97095-962-1 01 1 9411-9510 ● ● ● ● ●
129 09.190 BRACKET; UPR
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (D) 		8-97095-962-1 01 1 9511-9801 ● ● ● ● ●
129 09.190 BRACKET; UPR
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (D) 		8-97095-962-1 01 1 9802- ● ● ● ● ● ●
129 09.190 BRACKET; UPR
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97095-955-1 01 1 9406-9407 ● ● ● ● ●
129 09.190 BRACKET; UPR
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97095-955-1 01 1 9408-9410 ● ● ● ● ●
129 09.190 BRACKET; UPR
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) (B) 		8-97095-955-1 01 1 9408-9410 ● ● ● ● ●
129 09.190 BRACKET; UPR
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (B) 		8-97095-955-2 01 1 9411-9510 ● ● ● ● ●
129 09.190 BRACKET; UPR
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> (B) 		8-97095-955-2 01 1 9411-9510 ● ● ● ● ●
129 09.190 BRACKET; UPR
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (B) 		8-97095-955-2 01 1 9511-9706 ● ● ● ● ●
129 09.190 BRACKET; UPR
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97095-956-1 01 1 9406-9407 ● ● ● ● ●
129 09.190 BRACKET; UPR
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97095-956-1 01 1 9408-9410 ● ● ● ● ●
129 09.190 BRACKET; UPR
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) (A) 		8-97095-956-1 01 1 9408-9410 ● ● ● ● ●
129 09.190 BRACKET; UPR
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (A) 		8-97095-956-2 01 1 9411-9510 ● ● ● ● ●
129 09.190 BRACKET; UPR
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> (A) 		8-97095-956-2 01 1 9411-9510 ● ● ● ● ●
129 09.190 BRACKET; UPR
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (A) 		8-97095-956-2 01 1 9511-9706 ● ● ● ● ●
129 09.190 BRACKET; UPR
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97095-955-2 01 1 9312-9510 ● ● ● ●
129 09.190 BRACKET; UPR
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97095-956-2 01 1 9312-9510 ● ● ● ●
129 09.190 BRACKET; UPR
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97095-957-1 01 1 9312-9405 ● ● ● ●
129 09.190 BRACKET; UPR
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97095-957-1 02 1 9406-9510 ● ● ● ●
129 09.190 BRACKET; UPR
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97095-957-1 01 1 9511-9704 ● ● ● ● ●
173 09.190 INSULATOR; CONDENSER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97096-033-0 02 1 9312-9407 ● ● ● ● ●
173 09.190 INSULATOR; CONDENSER
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97096-033-0 02 1 9408-9410 ● ● ● ● ● ● ●
173 09.190 INSULATOR; CONDENSER
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) (B) 		8-97096-033-0 02 1 9408-9410 ● ● ● ● ●
173 09.190 INSULATOR; CONDENSER
AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (B) 		8-97096-033-1 02 1 9411-9510 ● ● ● ● ● ● ●
173 09.190 INSULATOR; CONDENSER
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> (B) 		8-97096-033-1 02 1 9411-9510 ● ● ● ● ●
173 09.190 INSULATOR; CONDENSER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (B) 		8-97096-033-1 02 1 9511-9801 ● ● ● ● ●
173 09.190 INSULATOR; CONDENSER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (B) 		8-97096-033-1 02 1 9802- ● ● ● ● ● ●
173 09.190 INSULATOR; CONDENSER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97096-037-0 02 1 9312-9407 ● ● ● ● ●
173 09.190 INSULATOR; CONDENSER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97096-037-0 02 1 9408-9410 ● ● ● ● ●
173 09.190 INSULATOR; CONDENSER
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) (C) 		8-97096-037-0 02 1 9408-9410 ● ● ● ● ●
173 09.190 INSULATOR; CONDENSER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (C) 		8-97096-037-1 02 1 9411-9510 ● ● ● ● ●
173 09.190 INSULATOR; CONDENSER
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> (C) 		8-97096-037-1 02 1 9411-9510 ● ● ● ● ●
173 09.190 INSULATOR; CONDENSER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (C) 		8-97096-037-1 02 1 9511-9801 ● ● ● ● ●
173 09.190 INSULATOR; CONDENSER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (C) 		8-97096-037-1 02 1 9802- ● ● ● ● ● ●
173 09.190 INSULATOR; CONDENSER
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97096-033-1 01 1 9511-9704 ● ● ● ● ●
173 09.190 INSULATOR; CONDENSER
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97096-033-0 01 1 9312-9405 ● ● ● ●
173 09.190 INSULATOR; CONDENSER
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97096-034-1 02 1 9312-9510 ● ● ● ●
173 09.190 INSULATOR; CONDENSER
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97096-034-1 02 1 9511-9704 ● ● ● ● ●

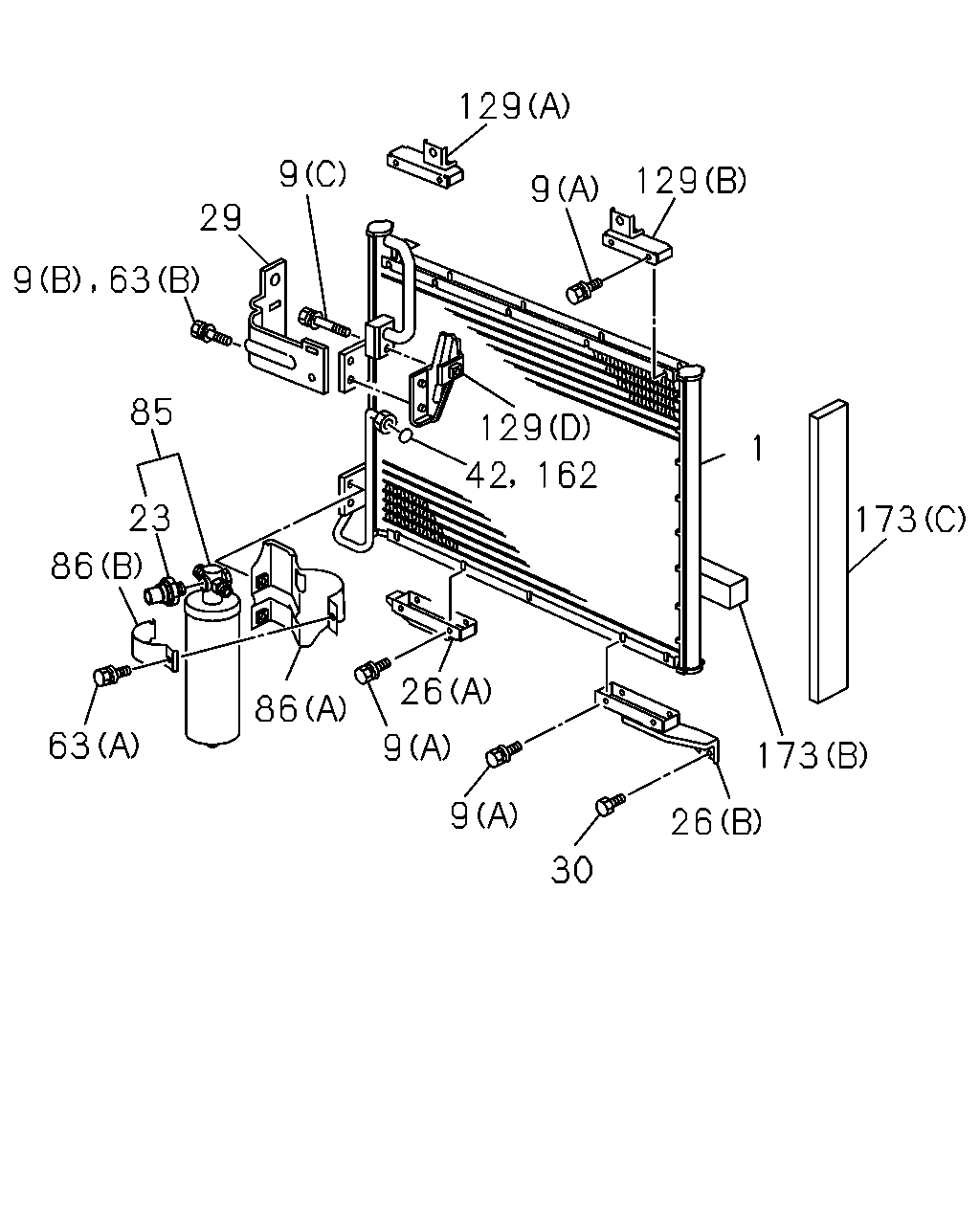

çizim 67373
129 9 129 9 29 9 63 85 129 1 42 162 23 173 86 26 86 63 9 173 9 26 30
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 09.190 CONDENSER; A/C
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97107-364-0 01 1 9312-9407 ● ● ● ● ●
1 09.190 CONDENSER; A/C
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97107-364-0 01 1 9408-9410 ● ● ● ● ●
1 09.190 CONDENSER; A/C
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 		8-97107-364-0 01 1 9408-9410 ● ● ● ● ●
1 09.190 CONDENSER; A/C
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> 		8-97107-364-2 01 1 9411-9510 ● ● ● ● ●
1 09.190 CONDENSER; A/C
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> 		8-97107-364-2 01 1 9411-9510 ● ● ● ● ●
1 09.190 CONDENSER; A/C
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> 		8-97107-364-2 01 1 9511-9706 ● ● ● ● ●
1 09.190 CONDENSER; A/C
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> 		8-97187-713-0 01 1 9707-9801 ● ● ● ● ●
1 09.190 CONDENSER; A/C
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> 		8-97187-713-0 01 1 9802- ● ● ● ● ● ●
1 09.190 CONDENSER; A/C
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 		8-97108-625-1 01 1 9511-9704 ● ● ● ● ●
1 09.190 CONDENSER; A/C
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 		8-97108-625-0 01 1 9312-9405 ● ● ● ●
1 09.190 CONDENSER; A/C
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 		8-97108-625-1 02 1 9406-9510 ● ● ● ●
1 09.190 CONDENSER; A/C
AIR CON PREPARATORY PACK<S6D> 		8-97123-131-1 01 1 9411- ●
9 09.190 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.175 (B) 		8-97018-669-0 02 1 9312-9407 ● ● ● ● ●
9 09.190 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.175 (B) 		8-97018-669-0 02 1 9408-9410 ● ● ● ● ●
9 09.190 BOLT; BRKT
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 09.175 (B) 		8-97018-669-0 02 1 9408-9410 ● ● ● ● ●
9 09.190 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> 09.175 (B) 		8-97018-669-0 02 1 9411-9507 ● ● ● ● ●
9 09.190 BOLT; BRKT
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> 09.175 (B) 		8-97018-669-0 02 1 9411-9507 ● ● ● ● ●
9 09.190 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> 09.175 (B) 		8-97112-752-0 02 1 9508-9510 ● ● ● ● ●
9 09.190 BOLT; BRKT
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> 09.175 (B) 		8-97112-752-0 02 1 9508-9510 ● ● ● ● ●
9 09.190 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> 09.175 (B) 		8-97112-752-0 02 1 9511-9801 ● ● ● ● ●
9 09.190 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> 09.175 (B) 		8-97112-752-0 02 1 9802- ● ● ● ● ● ●
9 09.190 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.216 (A) 		8-97018-671-0 08 1 9406-9407 ● ● ● ● ●
9 09.190 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.216 (A) 		8-97018-671-0 08 1 9408-9410 ● ● ● ● ●
9 09.190 BOLT; BRKT
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 09.216 (A) 		8-97018-671-0 08 1 9408-9410 ● ● ● ● ●
9 09.190 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> 09.216 (A) 		8-97018-671-0 08 1 9411-9507 ● ● ● ● ●
9 09.190 BOLT; BRKT
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> 09.216 (A) 		8-97018-671-0 08 1 9411-9507 ● ● ● ● ●
9 09.190 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (A) 		8-97114-209-0 08 1 9508-9510 ● ● ● ● ●
9 09.190 BOLT; BRKT
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> (A) 		8-97114-209-0 08 1 9508-9510 ● ● ● ● ●
9 09.190 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (A) 		8-97114-209-0 08 1 9511-9706 ● ● ● ● ●
9 09.190 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (A) 		8-97114-209-0 04 1 9707-9801 ● ● ● ● ●
9 09.190 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (A) 		8-97114-209-0 04 1 9802- ● ● ● ● ● ●
9 09.190 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97091-336-0 01 1 9406-9407 ● ● ● ● ●
9 09.190 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97091-336-0 01 1 9408-9410 ● ● ● ● ●
9 09.190 BOLT; BRKT
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) (C) 		8-97091-336-0 01 1 9408-9410 ● ● ● ● ●
9 09.190 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (C) 		8-97091-336-0 01 1 9411-9510 ● ● ● ● ●
9 09.190 BOLT; BRKT
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> (C) 		8-97091-336-0 01 1 9411-9510 ● ● ● ● ●
9 09.190 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (C) 		8-97091-336-0 01 1 9511-9706 ● ● ● ● ●
9 09.190 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (C) 		8-97178-387-0 01 1 9707-9801 ● ● ● ● ●
9 09.190 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (C) 		8-97178-387-0 01 1 9802- ● ● ● ● ● ●
9 09.190 BOLT; BRKT
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 09.175 (A) 		8-97112-752-0 04 1 9511-9704 ● ● ● ● ●
9 09.190 BOLT; BRKT
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 09.175 (B) 		8-97018-669-0 04 1 9312-9405 ● ● ● ●
9 09.190 BOLT; BRKT
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 09.175 (B) 		8-97018-669-0 08 1 9406-9507 ● ● ● ●
9 09.190 BOLT; BRKT
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 09.175 (B) 		8-97112-752-0 08 1 9508-9510 ● ● ● ●
9 09.190 BOLT; BRKT
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 09.216 (A) 		8-97018-671-0 08 1 9312-9405 ● ● ● ●
9 09.190 BOLT; BRKT
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 09.216 (A) 		8-97018-671-0 16 1 9406-9507 ● ● ● ●
9 09.190 BOLT; BRKT
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97114-209-0 16 1 9508-9510 ● ● ● ●
9 09.190 BOLT; BRKT
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97091-336-0 01 1 9312-9405 ● ● ● ●
9 09.190 BOLT; BRKT
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97091-336-0 02 1 9406-9510 ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) "R-134A" 		8-97095-659-0 01 1 9312- ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) "R-134A" 		8-97095-659-0 01 1 9406-9407 ● ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) "R-134A" 		8-97095-659-0 01 1 9408-9410 ● ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) "R-134A" 		8-97095-659-0 01 1 9408-9410 ● ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> "R-134A" 		8-97095-659-0 01 1 9411-9801 ● ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> "R-134A" 		8-97095-659-0 01 1 9411-9801 ● ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> "R-134A" 		8-97095-659-0 01 1 9802- ● ● ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> "R-134A" 		8-97095-659-0 01 1 9802- ● ● ● ● ● ●
26 09.190 BRACKET; LOW
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97095-961-1 01 1 9406-9407 ● ● ● ● ●
26 09.190 BRACKET; LOW
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97095-961-1 01 1 9408-9410 ● ● ● ● ●
26 09.190 BRACKET; LOW
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) (A) 		8-97095-961-1 01 1 9408-9410 ● ● ● ● ●
26 09.190 BRACKET; LOW
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (A) 		8-97095-961-2 01 1 9411-9510 ● ● ● ● ●
26 09.190 BRACKET; LOW
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> (A) 		8-97095-961-2 01 1 9411-9510 ● ● ● ● ●
26 09.190 BRACKET; LOW
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (A) 		8-97095-961-2 01 1 9511-9801 ● ● ● ● ●
26 09.190 BRACKET; LOW
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (A) 		8-97095-961-2 01 1 9802- ● ● ● ● ● ●
26 09.190 BRACKET; LOW
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97107-368-0 01 1 9406-9407 ● ● ● ● ●
26 09.190 BRACKET; LOW
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97107-368-0 01 1 9408-9410 ● ● ● ● ●
26 09.190 BRACKET; LOW
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) (B) 		8-97107-368-0 01 1 9408-9410 ● ● ● ● ●
26 09.190 BRACKET; LOW
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (B) 		8-97107-368-1 01 1 9411-9510 ● ● ● ● ●
26 09.190 BRACKET; LOW
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> (B) 		8-97107-368-1 01 1 9411-9510 ● ● ● ● ●
26 09.190 BRACKET; LOW
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (B) 		8-97107-368-1 01 1 9511-9801 ● ● ● ● ●
26 09.190 BRACKET; LOW
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (B) 		8-97107-368-1 01 1 9802- ● ● ● ● ● ●
26 09.190 BRACKET; LOW
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97095-961-2 01 1 9312-9510 ● ● ● ●
26 09.190 BRACKET; LOW
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97107-368-1 01 1 9312-9510 ● ● ● ●
29 09.190 BRACKET; SIDE
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97107-366-0 01 1 9312-9407 ● ● ● ● ●
29 09.190 BRACKET; SIDE
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97107-366-0 01 1 9408-9410 ● ● ● ● ●
29 09.190 BRACKET; SIDE
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 		8-97107-366-0 01 1 9408-9410 ● ● ● ● ●
29 09.190 BRACKET; SIDE
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> 		8-97107-366-0 01 1 9411-9510 ● ● ● ● ●
29 09.190 BRACKET; SIDE
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> 		8-97107-366-0 01 1 9411-9510 ● ● ● ● ●
29 09.190 BRACKET; SIDE
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> 		8-97107-366-0 01 1 9511-9801 ● ● ● ● ●
29 09.190 BRACKET; SIDE
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> 		8-97107-366-0 01 1 9802- ● ● ● ● ● ●
29 09.190 BRACKET; SIDE
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 		8-97108-628-1 01 1 9312-9510 ● ● ● ●
29 09.190 BRACKET; SIDE
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 		8-97108-628-1 01 1 9511-9704 ● ● ● ● ●
30 09.190 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT(C60) 00.738 M6X16 FLANGE 		0-28080-616-0 04 1 9312-9510 ● ● ● ● ● ●
30 09.190 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT(C60) 00.738 M6X16 FLANGE 		0-28080-616-0 04 1 9511-9708 ● ● ● ● ● ● ●
30 09.190 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 9709- ● ● ● ● ● ● ●
42 09.190 GASKET; CONDENSER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.214 ID=6 		8-94481-700-0 01 1 9406-9407 ● ● ● ● ●
42 09.190 GASKET; CONDENSER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.214 ID=6 		8-94481-700-0 01 1 9408-9410 ● ● ● ● ●
42 09.190 GASKET; CONDENSER
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 09.214 ID=6 		8-94481-700-0 01 1 9408-9410 ● ● ● ● ●
42 09.190 GASKET; CONDENSER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> 09.214 ID=6 		8-94481-700-0 01 1 9411-9510 ● ● ● ● ●
42 09.190 GASKET; CONDENSER
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> 09.214 ID=6 		8-94481-700-0 01 1 9411-9510 ● ● ● ● ●
42 09.190 GASKET; CONDENSER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> 09.214 ID=6 		8-94481-700-0 01 1 9511-9706 ● ● ● ● ●
42 09.190 GASKET; CONDENSER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.195 ID=6.07 		8-94461-902-0 01 1 9707-9711 ● ● ● ● ●
42 09.190 GASKET; CONDENSER
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 09.214 ID=6 		8-94481-700-0 01 1 9312-9510 ● ● ● ●
42 09.190 GASKET; CONDENSER
AIR CON PREPARATORY PACK<S6D> 09.195 ID=6.07 		8-94461-902-0 01 1 9511-9706 ●
63 09.175 BOLT; RECEIVER TANK
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) M6X20 		1-15729-461-0 01 1 9406-9407 ● ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) M6X20 		1-15729-461-0 01 1 9408-9410 ● ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) (A) M6X20 		1-15729-461-0 01 1 9408-9410 ● ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (A) M6X20 		1-15729-461-0 01 1 9411-9510 ● ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> (A) M6X20 		1-15729-461-0 01 1 9411-9510 ● ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (A) M6X20 		1-15729-461-0 01 1 9511-9706 ● ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (A) 		8-97178-388-0 01 1 9707-9801 ● ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (A) 		8-97178-388-0 01 1 9802- ● ● ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97018-669-0 02 1 9406-9407 ● ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97018-669-0 02 1 9408-9410 ● ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) (B) 		8-97018-669-0 02 1 9408-9410 ● ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (B) 		8-97018-669-0 02 1 9411-9507 ● ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> (B) 		8-97018-669-0 02 1 9411-9507 ● ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (B) 		8-97112-752-0 02 1 9508-9510 ● ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> (B) 		8-97112-752-0 02 1 9508-9510 ● ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (B) 		8-97112-752-0 02 1 9511-9801 ● ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> 		8-97112-752-0 02 1 9802- ● ● ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (A) M6X20 		1-15729-461-0 01 1 9312-9510 ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97018-669-0 02 1 9312-9507 ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97112-752-0 02 1 9508-9510 ● ● ● ●
85 09.172 DRYER; RECEIVER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97107-365-0 01 1 9312-9407 ● ● ● ● ●
85 09.172 DRYER; RECEIVER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97107-365-0 01 1 9408-9410 ● ● ● ● ●
85 09.172 DRYER; RECEIVER
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 		8-97107-365-0 01 1 9408-9410 ● ● ● ● ●
85 09.172 DRYER; RECEIVER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> 		8-97107-365-0 01 1 9411-9507 ● ● ● ● ●
85 09.172 DRYER; RECEIVER
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> 		8-97107-365-0 01 1 9411-9507 ● ● ● ● ●
85 09.172 DRYER; RECEIVER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> 09.195 		8-97096-032-1 01 1 9508-9801 ● ● ● ● ●
85 09.172 DRYER; RECEIVER
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> 09.195 		8-97096-032-1 01 1 9508-9801 ● ● ● ● ●
85 09.172 DRYER; RECEIVER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> 09.195 		8-97096-032-1 01 1 9802- ● ● ● ● ● ●
85 09.172 DRYER; RECEIVER
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> 09.195 		8-97096-032-1 01 1 9802- ● ● ● ● ● ●
85 09.172 DRYER; RECEIVER
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 09.195 		8-97096-032-0 01 1 9312- ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97077-536-1 01 1 9406-9407 ● ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97077-536-1 01 1 9408-9410 ● ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) (B) 		8-97077-536-1 01 1 9408-9410 ● ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (B) 		8-97077-536-2 01 1 9411-9510 ● ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> (B) 		8-97077-536-2 01 1 9411-9510 ● ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (B) 		8-97077-536-2 01 1 9511-9801 ● ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (B) 		8-97077-536-2 01 1 9802- ● ● ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97107-367-0 01 1 9406-9407 ● ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97107-367-0 01 1 9408-9410 ● ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) (A) 		8-97107-367-0 01 1 9408-9410 ● ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (A) 		8-97107-367-1 01 1 9411-9510 ● ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> (A) 		8-97107-367-1 01 1 9411-9510 ● ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (A) 		8-97107-367-1 01 1 9511-9801 ● ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (A) 		8-97107-367-1 01 1 9802- ● ● ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97077-536-2 01 1 9312-9510 ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97107-367-1 01 1 9312-9510 ● ● ● ●
129 09.190 BRACKET; UPR
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (D) 		8-97095-962-1 01 1 9312-9407 ● ● ● ● ●
129 09.190 BRACKET; UPR
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (D) 		8-97095-962-1 01 1 9408-9410 ● ● ● ● ●
129 09.190 BRACKET; UPR
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) (D) 		8-97095-962-1 01 1 9408-9410 ● ● ● ● ●
129 09.190 BRACKET; UPR
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (D) 		8-97095-962-1 01 1 9411-9510 ● ● ● ● ●
129 09.190 BRACKET; UPR
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> (D) 		8-97095-962-1 01 1 9411-9510 ● ● ● ● ●
129 09.190 BRACKET; UPR
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (D) 		8-97095-962-1 01 1 9511-9801 ● ● ● ● ●
129 09.190 BRACKET; UPR
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (D) 		8-97095-962-1 01 1 9802- ● ● ● ● ● ●
129 09.190 BRACKET; UPR
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97095-955-1 01 1 9406-9407 ● ● ● ● ●
129 09.190 BRACKET; UPR
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97095-955-1 01 1 9408-9410 ● ● ● ● ●
129 09.190 BRACKET; UPR
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) (B) 		8-97095-955-1 01 1 9408-9410 ● ● ● ● ●
129 09.190 BRACKET; UPR
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (B) 		8-97095-955-2 01 1 9411-9510 ● ● ● ● ●
129 09.190 BRACKET; UPR
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> (B) 		8-97095-955-2 01 1 9411-9510 ● ● ● ● ●
129 09.190 BRACKET; UPR
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (B) 		8-97095-955-2 01 1 9511-9706 ● ● ● ● ●
129 09.190 BRACKET; UPR
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97095-956-1 01 1 9406-9407 ● ● ● ● ●
129 09.190 BRACKET; UPR
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97095-956-1 01 1 9408-9410 ● ● ● ● ●
129 09.190 BRACKET; UPR
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) (A) 		8-97095-956-1 01 1 9408-9410 ● ● ● ● ●
129 09.190 BRACKET; UPR
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (A) 		8-97095-956-2 01 1 9411-9510 ● ● ● ● ●
129 09.190 BRACKET; UPR
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> (A) 		8-97095-956-2 01 1 9411-9510 ● ● ● ● ●
129 09.190 BRACKET; UPR
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (A) 		8-97095-956-2 01 1 9511-9706 ● ● ● ● ●
129 09.190 BRACKET; UPR
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97095-955-2 01 1 9312-9510 ● ● ● ●
129 09.190 BRACKET; UPR
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97095-956-2 01 1 9312-9510 ● ● ● ●
129 09.190 BRACKET; UPR
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97095-957-1 01 1 9312-9405 ● ● ● ●
129 09.190 BRACKET; UPR
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97095-957-1 02 1 9406-9510 ● ● ● ●
129 09.190 BRACKET; UPR
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97095-957-1 01 1 9511-9704 ● ● ● ● ●
162 09.195 GASKET; PIPE TO DRYER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) ID=6.07 		8-94461-902-0 01 1 9712- ● ● ● ● ●
173 09.190 INSULATOR; CONDENSER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97096-033-0 02 1 9312-9407 ● ● ● ● ●
173 09.190 INSULATOR; CONDENSER
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97096-033-0 02 1 9408-9410 ● ● ● ● ● ● ●
173 09.190 INSULATOR; CONDENSER
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) (B) 		8-97096-033-0 02 1 9408-9410 ● ● ● ● ●
173 09.190 INSULATOR; CONDENSER
AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (B) 		8-97096-033-1 02 1 9411-9510 ● ● ● ● ● ● ●
173 09.190 INSULATOR; CONDENSER
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> (B) 		8-97096-033-1 02 1 9411-9510 ● ● ● ● ●
173 09.190 INSULATOR; CONDENSER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (B) 		8-97096-033-1 02 1 9511-9801 ● ● ● ● ●
173 09.190 INSULATOR; CONDENSER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (B) 		8-97096-033-1 02 1 9802- ● ● ● ● ● ●
173 09.190 INSULATOR; CONDENSER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97096-037-0 02 1 9312-9407 ● ● ● ● ●
173 09.190 INSULATOR; CONDENSER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97096-037-0 02 1 9408-9410 ● ● ● ● ●
173 09.190 INSULATOR; CONDENSER
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) (C) 		8-97096-037-0 02 1 9408-9410 ● ● ● ● ●
173 09.190 INSULATOR; CONDENSER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (C) 		8-97096-037-1 02 1 9411-9510 ● ● ● ● ●
173 09.190 INSULATOR; CONDENSER
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> (C) 		8-97096-037-1 02 1 9411-9510 ● ● ● ● ●
173 09.190 INSULATOR; CONDENSER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (C) 		8-97096-037-1 02 1 9511-9801 ● ● ● ● ●
173 09.190 INSULATOR; CONDENSER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> (C) 		8-97096-037-1 02 1 9802- ● ● ● ● ● ●
173 09.190 INSULATOR; CONDENSER
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97096-033-1 01 1 9511-9704 ● ● ● ● ●
173 09.190 INSULATOR; CONDENSER
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97096-033-0 01 1 9312-9405 ● ● ● ●
173 09.190 INSULATOR; CONDENSER
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97096-034-1 02 1 9312-9510 ● ● ● ●
173 09.190 INSULATOR; CONDENSER
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97096-034-1 02 1 9511-9704 ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
