◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 10676 - LT 111,112,132,133 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-42 - AUTO TRANS OIL PAN AND OIL CONTROL ▶
2-42 — AUTO TRANS OIL PAN AND OIL CONTROL (#4436) — 9 parça

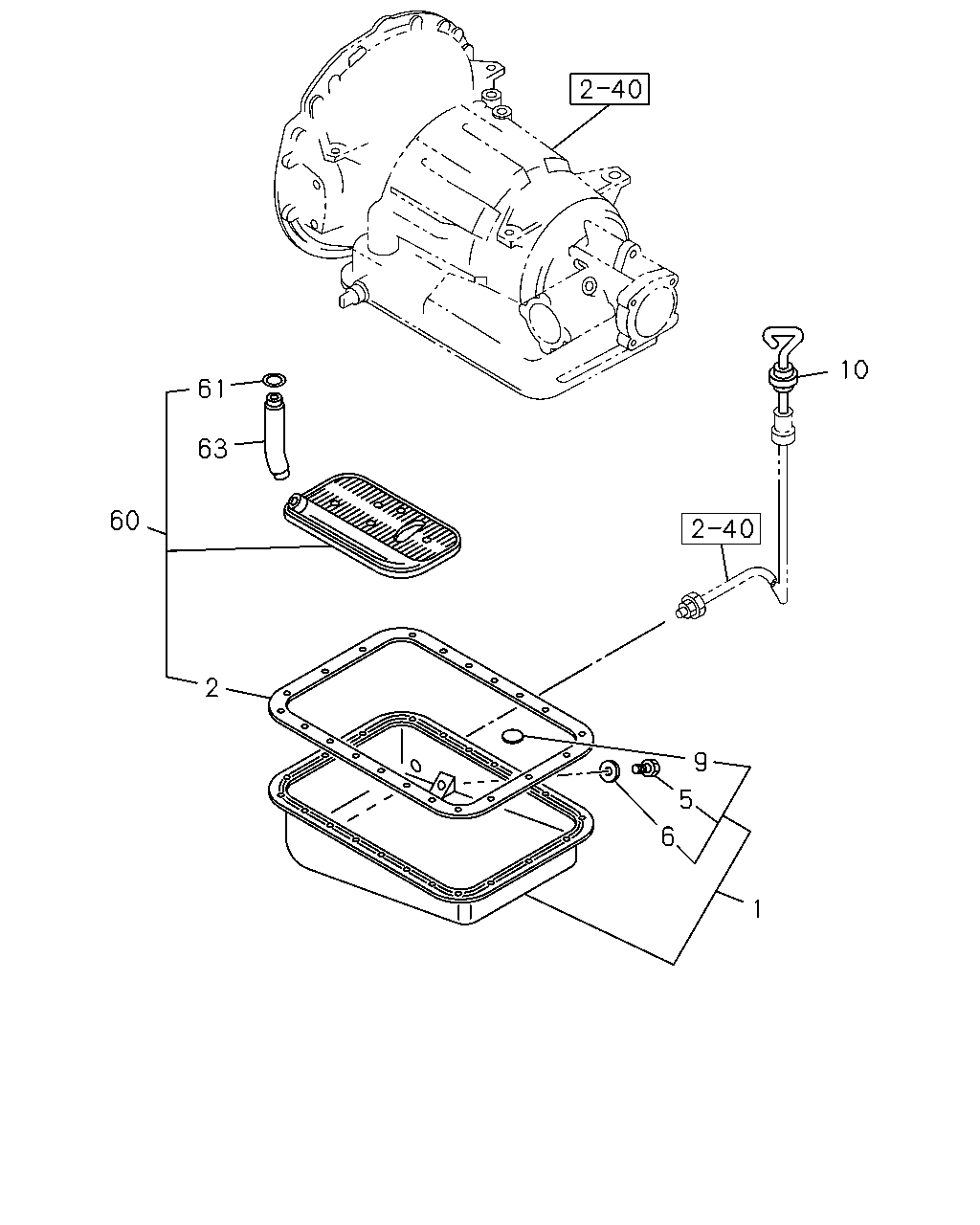

çizim 6326
10 61 63 60 2 9 5 6 1
BalonParca AdiParca NoAdetTipApplied Date
1 PAN ASM; OIL,A/T 1-87830-452-0 01 1 9101-9504
2 GASKET; OIL PAN,A/T 1-34132-008-0 01 1 9101-9504
5 PLUG; OIL PAN 1-34139-002-0 01 1 9101-9504
6 GASKET; OIL PAN TO PLUG 1-09630-044-0 01 1 9101-9504
9 MAGNET; OIL PAN 1-34139-007-0 01 1 9101-9504
10 GAUGE; OIL LEVEL 1-34121-076-0 01 1 9101-9504
60 REPAIR KIT; OIL FILTER,A/T 1-87830-427-0 01 1 9101-9504
61 SEAL; OIL FILTER 1-09623-258-0 01 1 9101-9504
63 PIPE; INT,A/T 1-34129-023-0 01 1 9101-9504
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
