◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50695 - NKR-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-65 - CONTROL LEVER; HEATER AND AIR CON ▶
8-65 — CONTROL LEVER; HEATER AND AIR CON (#44359) — 57 parça

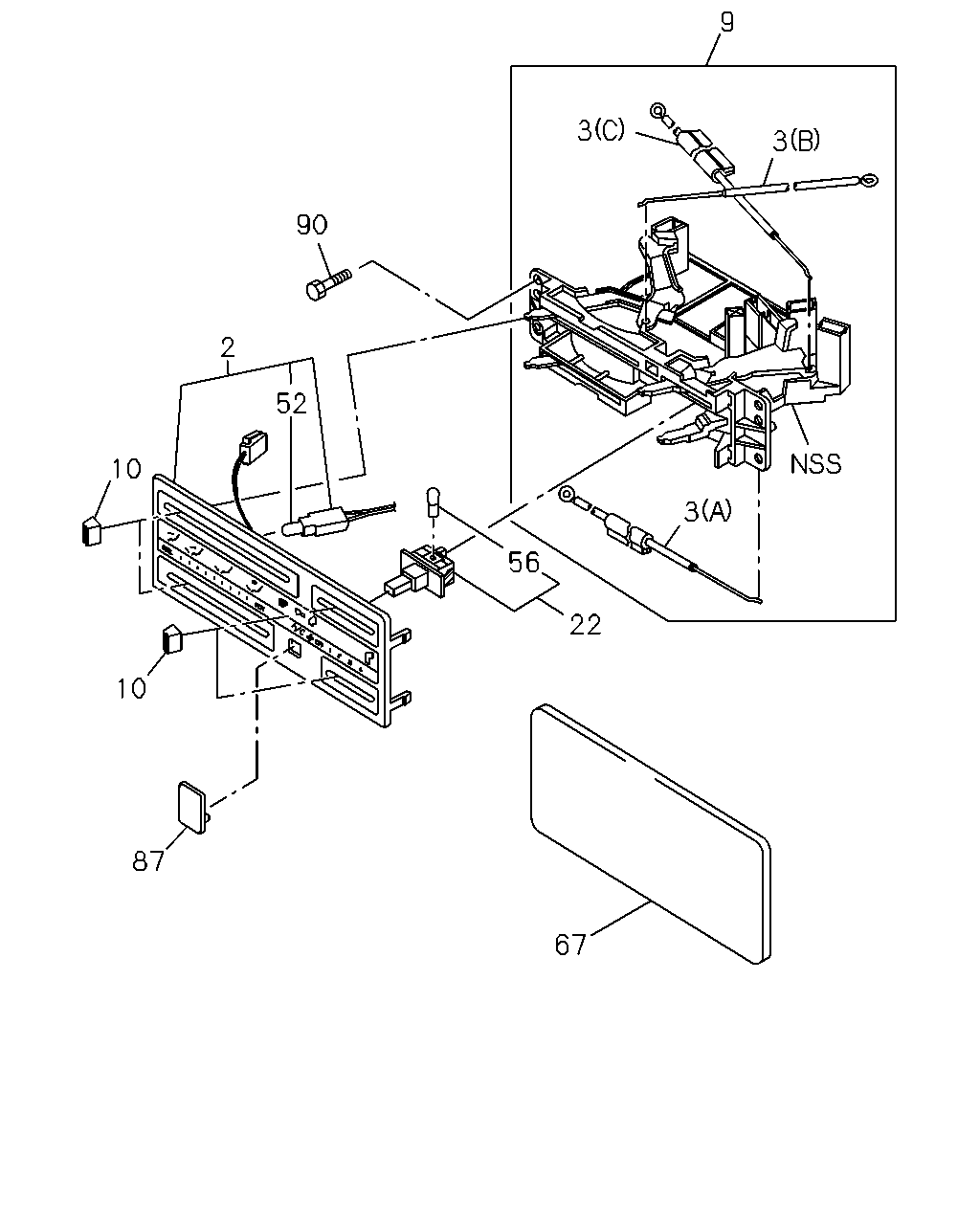

çizim 70617
9 3 3 90 2 52 10 3 56 22 10 87 67
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 08.852 PANEL ASM; CONT,ILLUMINATION
EXC. VOLTAGE 24V<7AE> 		8-97048-330-1 01 1 9312-9801 ● ● ● ● ●
2 08.852 PANEL ASM; CONT,ILLUMINATION
EXC. VOLTAGE 24V<7AE> 		8-97048-330-1 01 1 9802- ● ● ● ● ● ●
2 08.852 PANEL ASM; CONT,ILLUMINATION
VOLTAGE 24V<7AE> 		8-97048-331-1 01 1 9312-9510 ● ● ● ●
2 08.852 PANEL ASM; CONT,ILLUMINATION
VOLTAGE 24V<7AE> 		8-97048-331-2 01 1 9511- ● ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
(B) MODE 		8-97101-674-0 01 1 9312-9407 ● ● ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
(B) MODE 		8-97101-674-0 01 1 9408- ● ● ● ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
(C) FRESH 		8-97101-675-0 01 1 9312-9407 ● ● ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
(C) FRESH 		8-97101-675-0 01 1 9408- ● ● ● ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) MIX 		8-97101-660-0 01 1 9312-9510 ● ● ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) MIX 		8-97101-660-0 01 1 9511- ● ● ● ● ● ● ●
9 08.852 LEVER ASM; HTR & A/C CONT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97069-831-0 01 1 9312-9510 ● ● ● ● ● ●
9 08.852 LEVER ASM; HTR & A/C CONT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97069-831-0 01 1 9511- ● ● ● ● ● ● ●
9 08.852 LEVER ASM; HTR & A/C CONT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97071-219-0 01 1 9312-9510 ● ● ● ● ● ●
9 08.852 LEVER ASM; HTR & A/C CONT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97071-219-0 01 1 9511- ● ● ● ● ● ● ●
10 08.852 KNOB; CONT LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97035-377-0 04 1 9312-9405 ● ● ● ● ● ●
10 08.852 KNOB; CONT LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97114-430-0 04 1 9406-9510 ● ● ● ● ● ●
10 08.852 KNOB; CONT LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97114-430-0 04 1 9511- ● ● ● ● ● ● ●
10 08.852 KNOB; CONT LEVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97035-377-0 03 1 9312-9405 ● ● ● ● ● ●
10 08.852 KNOB; CONT LEVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97114-430-0 03 1 9406-9407 ● ● ● ● ● ●
10 08.852 KNOB; CONT LEVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> 		8-97114-430-0 03 1 9408-9510 ● ● ● ● ● ●
10 08.852 KNOB; CONT LEVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> 		8-97114-430-0 03 1 9511- ● ● ● ● ● ● ●
22 08.852 SWITCH; A/C,MAIN
AIR CONDITIONER MANUAL CONT(C60) EXC. VOLTAGE 24V<7AE> 		8-94442-974-0 01 1 9312-9407 ● ● ● ● ●
22 08.852 SWITCH; A/C,MAIN
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 		8-94442-974-0 01 1 9408-9408 ● ● ● ● ●
22 08.852 SWITCH; A/C,MAIN
AIR CONDITIONER MANUAL CONT(C60) EXC. VOLTAGE 24V<7AE> 		8-94442-974-0 01 1 9408-9408 ● ● ● ● ●
22 08.852 SWITCH; A/C,MAIN
4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97117-963-0 01 1 9409-9409 ● ● ● ● ●
22 08.852 SWITCH; A/C,MAIN
4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97117-963-0 01 1 9510-9510 ● ● ● ● ●
22 08.852 SWITCH; A/C,MAIN
4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR CON PREPARATORY PACK<S6D> 		8-97117-963-0 01 1 9511- ● ● ● ● ● ● ●
22 08.852 SWITCH; A/C,MAIN
4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97117-963-0 01 1 9712-9801 ● ● ● ● ●
22 08.852 SWITCH; A/C,MAIN
4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97117-963-0 01 1 9802- ● ● ● ● ● ●
22 08.852 SWITCH; A/C,MAIN
AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> 		8-97048-329-0 01 1 9312-9510 ● ● ● ●
22 08.852 SWITCH; A/C,MAIN
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 		8-97048-329-1 01 1 9511- ● ● ● ● ●
22 08.852 SWITCH; A/C,MAIN
AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> 		8-97048-329-1 01 1 9511- ● ● ● ● ●
52 08.991 BULB; PANEL ILLUMINATION
EXC. VOLTAGE 24V<7AE> 14V 140MA 		8-97100-290-0 01 1 9312-9801 ● ● ● ● ●
52 08.991 BULB; PANEL ILLUMINATION
EXC. VOLTAGE 24V<7AE> 14V 140MA 		8-97100-290-0 01 1 9802- ● ● ● ● ● ●
52 08.991 BULB; PANEL ILLUMINATION
VOLTAGE 24V<7AE> 28V 65MA 		8-97100-291-0 01 1 9312-9510 ● ● ● ●
52 08.991 BULB; PANEL ILLUMINATION
VOLTAGE 24V<7AE> 28V 65MA 		8-97100-291-0 01 1 9511- ● ● ● ● ●
56 08.991 BULB; SWITCH,A/C
AIR CONDITIONER MANUAL CONT(C60) EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-94337-134-0 01 1 9312-9407 ● ● ● ● ●
56 08.991 BULB; SWITCH,A/C
AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D>, VOLTAGE 24V<7AE> 14V 60MA 		8-94337-134-0 01 1 9408-9801 ● ● ● ● ●
56 08.991 BULB; SWITCH,A/C
AIR CON PREPARATORY PACK<S6D> 14V 60MA 		8-94337-134-0 01 1 9408-9801 ●
56 08.991 BULB; SWITCH,A/C
AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D>, VOLTAGE 24V<7AE> 14V 60MA 		8-94337-134-0 01 1 9802- ● ● ● ● ● ●
56 08.991 BULB; SWITCH,A/C
AIR CON PREPARATORY PACK<S6D> 14V 60MA 		8-94337-134-0 01 1 9802- ●
56 08.991 BULB; SWITCH,A/C
AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> 28V 33MA 		8-97079-939-0 01 1 9312-9510 ● ● ● ●
56 08.991 BULB; SWITCH,A/C
AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> 28V 33MA 		8-97079-939-0 01 1 9511-9708 ● ● ● ● ●
56 08.991 BULB; SWITCH,A/C
AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> 28V 33MA 		8-97182-224-0 01 1 9709- ● ● ● ● ●
67 08.849 CAP; BEZEL,CONT LEVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97071-228-0 01 1 9312-9407 ● ● ● ● ● ●
67 08.849 CAP; BEZEL,CONT LEVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> 		8-97071-228-0 01 1 9408-9510 ● ● ● ● ● ●
67 08.849 CAP; BEZEL,CONT LEVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> 		8-97071-228-0 01 1 9511- ● ● ● ● ● ● ●
87 08.849 CAP; A/C SWITCH
HEATER & DEFROSTER(C41) 		8-97065-448-2 01 1 9312-9405 ● ● ● ● ● ●
87 08.849 CAP; A/C SWITCH
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97065-448-2 01 1 9406-9407 ● ● ● ● ● ●
87 08.849 CAP; A/C SWITCH
EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> 		8-97065-448-2 01 1 9408-9510 ● ● ● ● ● ●
87 08.849 CAP; A/C SWITCH
EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK<S6D> 		8-97065-448-2 01 1 9511- ● ● ● ● ● ● ●
90 08.849 BOLT; CONT PANEL
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 9312-9406 ● ● ● ● ● ●
90 08.849 BOLT; CONT PANEL
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9407-9407 ● ● ● ● ● ●
90 08.849 BOLT; CONT PANEL
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9407-9410 ● ● ● ● ● ●
90 08.849 BOLT; CONT PANEL
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9411-9510 ● ● ● ● ● ●
90 08.849 BOLT; CONT PANEL
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9511-9603 ● ● ● ● ● ● ●
90 08.849 BOLT; CONT PANEL
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 03 1 9604- ● ● ● ● ● ● ●
