Sayfa 8-52 - Isuzu EPC

8-52 — PIPING; AIR CONDITIONING (#44357) — 296 parça

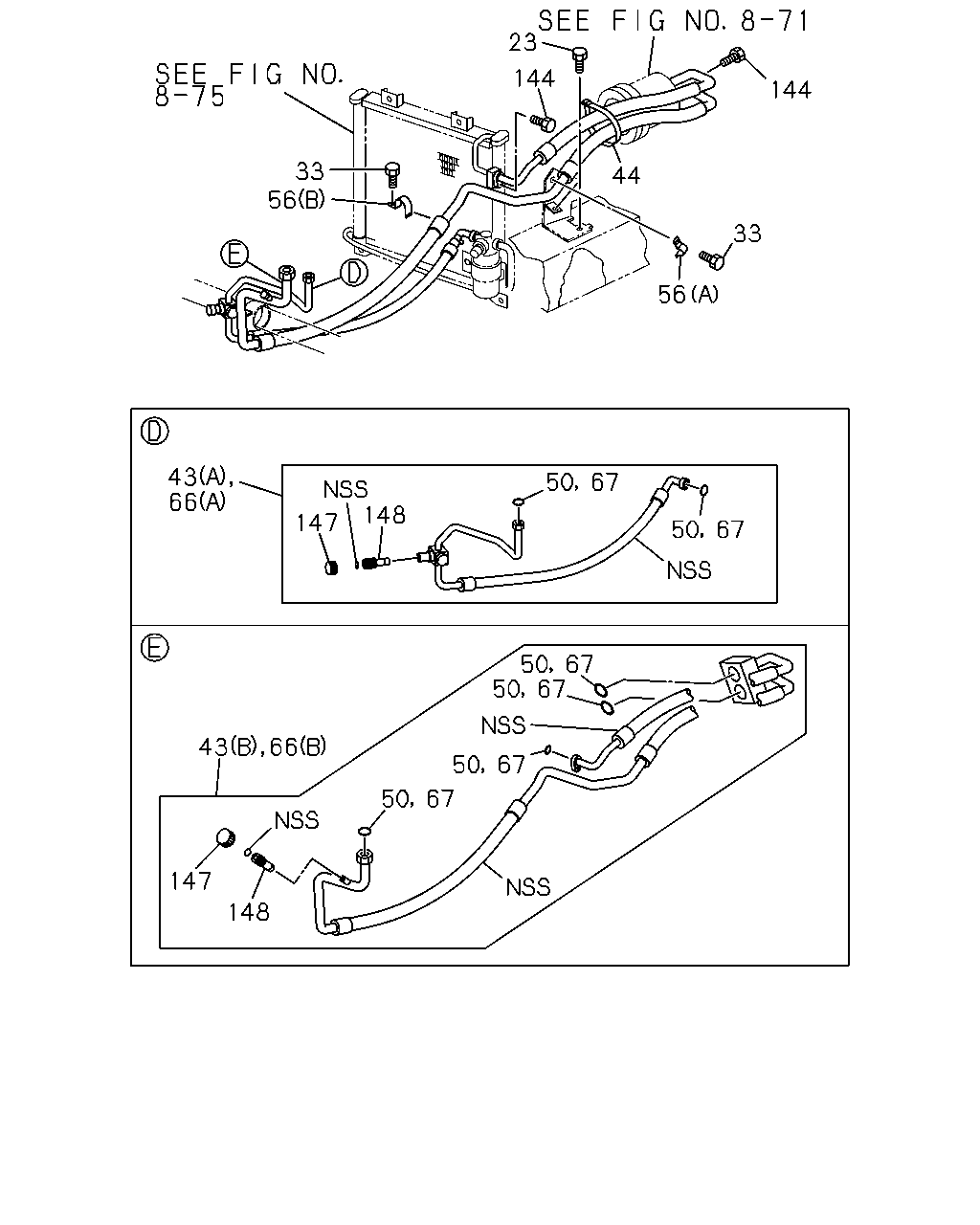

23 144 144 33 56 44 33 56 43 66 50 67 148 147 50 67 50 50 43 66 50 67 50 67 147 148 67 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
23	09.171 BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) 02.559 M6X20 W/LK&PL WASHER	0-50140-620-0	01	1	9312-9510	●	●	●	●	●	●
23	09.171 BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) 02.559 M6X20 W/LK&PL WASHER	0-50140-620-0	01	1	9511-9612	●	●	●	●	●	●	●
23	09.171 BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) 03.670 M6X20 FLANGE	0-28080-620-0	01	1	9701-	●	●	●	●	●	●	●
33	09.920 BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60) 12.187 M6X16 W/LK&PL WASHER	0-50140-616-0	04	1	9312-9402	●	●	●	●	●	●
33	09.920 BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60) 12.187 M6X16 W/LK&PL WASHER	0-50140-616-0	03	1	9403-9510	●	●	●	●	●	●
33	09.920 BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60) 12.187 M6X16 W/LK&PL WASHER	0-50140-616-0	03	1	9511-9612	●	●	●	●	●	●	●
33	09.920 BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60) 00.738 M6X16 FLANGE	0-28080-616-0	03	1	9701-	●	●	●	●	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) (A)	8-97103-570-1	01	1	9312-9407	●	●	●	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97103-570-1	01	1	9408-9510	●		●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97103-570-1	01	1	9511-9704	●		●	●	●		●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97103-570-1	01	1	9705-			●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97103-572-0	01	1	9408-9801	●	●	●	●		●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97103-572-0	01	1	9802-	●	●	●	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97069-967-0	01	1	9312-9510	●		●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97069-967-0	01	1	9511-9704	●		●	●	●		●
44	09.242 CLIP; FLEX HOSE 4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.559 L=250	5-09707-030-0	03	1	9312-9510	●		●	●	●
44	09.242 CLIP; FLEX HOSE 4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.559 L=250	5-09707-030-0	03	1	9511-9704	●		●	●	●		●
44	09.242 CLIP; FLEX HOSE 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.559 L=250	5-09707-030-1	03	1	9705-			●	●
50	09.222 GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 09.195 ID=6.07	8-94461-902-0	02	1	9312-9407	●	●	●	●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.195 ID=6.07	8-94461-902-0	02	1	9408-9510	●		●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.195 ID=6.07	8-94461-902-0	02	1	9511-9704	●		●	●	●		●
50	09.222 GASKET; FLEX HOSE,A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.195 ID=6.07	8-94461-902-0	02	1	9705-9711			●	●
50	09.222 GASKET; FLEX HOSE,A/C 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.195 ID=6.07	8-94461-902-0	02	1	9712-	●	●	●	●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) ID=13.9	8-94113-330-0	01	1	9312-9510	●		●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) ID=13.9	8-94113-330-0	01	1	9511-9704	●		●	●	●		●
50	09.222 GASKET; FLEX HOSE,A/C 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) ID=10.8	8-94113-331-0	01	1	9312-9510	●		●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) ID=10.8	8-94113-331-0	01	1	9511-9704	●		●	●	●		●
50	09.222 GASKET; FLEX HOSE,A/C 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 09.260 ID=11.0	8-94461-900-0	01	1	9312-9510	●		●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 09.260 ID=11.0	8-94461-900-0	01	1	9511-9704	●		●	●	●		●
50	09.222 GASKET; FLEX HOSE,A/C 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 09.260 ID=14.8	8-94461-901-0	01	1	9312-9510	●		●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 09.260 ID=14.8	8-94461-901-0	01	1	9511-9704	●		●	●	●		●
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) 09.190 (A)	8-97024-716-0	03	1	9312-9407	●	●	●	●	●	●
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) 09.190 (A)	8-97024-716-0	02	1	9408-9510	●	●	●	●	●	●
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) 09.190 (A)	8-97024-716-0	02	1	9511-	●	●	●	●	●	●	●
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) 09.276 (B) ID=10 L=20	8-97036-717-0	01	1	9312-9402	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97103-572-0	01	1	9406-9407	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JB1 ENG(RLF),4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97103-572-0	01	1	9408-9510	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JB1 ENG(RLF),4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97103-572-0	01	1	9511-9711	●	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97108-684-0	01	1	9406-9407	●	●	●	●		●
66	09.225 HOSE; FLEX,A/C 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97108-684-1	01	1	9408-9801	●	●	●	●		●
66	09.225 HOSE; FLEX,A/C 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97108-684-1	01	1	9802-	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97103-572-0	01	1	9712-9801	●	●	●	●		●
66	09.225 HOSE; FLEX,A/C 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97103-572-0	01	1	9712-9801	●		●	●	●		●
66	09.225 HOSE; FLEX,A/C 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97103-572-0	01	1	9802-	●		●	●	●		●
66	09.225 HOSE; FLEX,A/C 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97103-572-0	01	1	9802-	●		●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97069-977-0	01	1	9312-9407	●	●	●	●		●
66	09.225 HOSE; FLEX,A/C 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97069-977-1	01	1	9408-9801	●	●	●	●		●
66	09.225 HOSE; FLEX,A/C 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97069-977-1	01	1	9802-	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97108-974-0	01	1	9406-9510	●		●	●	●
66	09.225 HOSE; FLEX,A/C 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97108-974-0	01	1	9511-	●		●	●	●		●
66	09.225 HOSE; FLEX,A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97091-246-2	01	1	9312-			●	●
66	09.225 HOSE; FLEX,A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97103-574-2	01	1	9312-			●	●
67	09.260 GASKET; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.195 ID=6.07	8-94461-902-0	02	1	9712-9801	●	●	●	●		●
67	09.260 GASKET; FLEX HOSE 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 09.195 ID=6.07	8-94461-902-0	02	1	9712-9801	●		●	●	●		●
67	09.260 GASKET; FLEX HOSE 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 09.195 ID=6.07	8-94461-902-0	02	1	9802-	●		●	●	●		●
67	09.260 GASKET; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.195 ID=6.07	8-94461-902-0	02	1	9802-	●		●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.222 ID=13.9	8-94113-330-0	01	1	9312-9405	●	●	●	●		●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.222 ID=13.9	8-94113-330-0	01	1	9406-9407	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.222 ID=13.9	8-94113-330-0	01	1	9408-9408	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> 09.222 ID=13.9	8-94113-330-0	01	1	9408-9408	●	●	●	●		●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.222 ID=13.9	8-94113-330-0	01	1	9408-9409	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 09.222 ID=13.9	8-94113-330-0	01	1	9408-9409	●	●	●	●		●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.222 ID=13.9	8-94113-330-0	01	1	9410-9509	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> 09.222 ID=13.9	8-94113-330-0	01	1	9410-9509	●	●	●	●		●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.222 ID=13.9	8-94113-330-0	01	1	9510-9510	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 09.222 ID=13.9	8-94113-330-0	01	1	9510-9510	●	●	●	●		●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.222 ID=13.9	8-94113-330-0	01	1	9511-9801	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.222 ID=13.9	8-94113-330-0	01	1	9511-9801	●	●	●	●		●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.222 ID=13.9	8-94113-330-0	01	1	9802-	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.222 ID=13.9	8-94113-330-0	01	1	9802-	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) ID=14.8	8-94461-901-0	01	1	9312-9405	●	●	●	●		●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) ID=14.8	8-94461-901-0	01	1	9406-9407	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) ID=14.8	8-94461-901-0	01	1	9408-9409	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) ID=14.8	8-94461-901-0	01	1	9408-9409	●	●	●	●		●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) ID=14.8	8-94461-901-0	01	1	9410-9509	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> ID=14.8	8-94461-901-0	01	1	9410-9509	●	●	●	●		●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) ID=14.8	8-94461-901-0	01	1	9510-9510	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) ID=14.8	8-94461-901-0	01	1	9510-9510	●	●	●	●		●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) ID=14.8	8-94461-901-0	01	1	9511-9801	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=14.8	8-94461-901-0	01	1	9511-9801	●	●	●	●		●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) ID=14.8	8-94461-901-0	01	1	9802-	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=14.8	8-94461-901-0	01	1	9802-	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.222 ID=10.8	8-94113-331-0	01	1	9312-9405			●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.222 ID=10.8	8-94113-331-0	01	1	9406-9407	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.222 ID=10.8	8-94113-331-0	01	1	9408-9409	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 09.222 ID=10.8	8-94113-331-0	01	1	9408-9409	●	●	●	●		●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.222 ID=10.8	8-94113-331-0	01	1	9410-9509	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> 09.222 ID=10.8	8-94113-331-0	01	1	9410-9509	●	●	●	●		●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.222 ID=10.8	8-94113-331-0	01	1	9510-9510	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 09.222 ID=10.8	8-94113-331-0	01	1	9510-9510	●	●	●	●		●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.222 ID=10.8	8-94113-331-0	01	1	9511-9801	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.222 ID=10.8	8-94113-331-0	01	1	9511-9801	●	●	●	●		●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.222 ID=10.8	8-94113-331-0	01	1	9802-	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.222 ID=10.8	8-94113-331-0	01	1	9802-	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) ID=11.0	8-94461-900-0	01	1	9312-9405			●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) ID=11.0	8-94461-900-0	01	1	9406-9407	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) ID=11.0	8-94461-900-0	01	1	9408-9409	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) ID=11.0	8-94461-900-0	01	1	9408-9409	●	●	●	●		●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) ID=11.0	8-94461-900-0	01	1	9410-9509	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> ID=11.0	8-94461-900-0	01	1	9410-9509	●	●	●	●		●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) ID=11.0	8-94461-900-0	01	1	9510-9510	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) ID=11.0	8-94461-900-0	01	1	9510-9510	●	●	●	●		●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) ID=11.0	8-94461-900-0	01	1	9511-9801	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=11.0	8-94461-900-0	01	1	9511-9801	●	●	●	●		●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) ID=11.0	8-94461-900-0	01	1	9802-	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=11.0	8-94461-900-0	01	1	9802-	●	●	●	●	●	●
144	09.242 BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONT(C60) 04.104 M10X45 W/LK&PL WASHER	0-50141-045-0	01	1	9312-9401	●	●	●	●	●	●
144	09.242 BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONT(C60) 01.840 M10X40 W/LK&PL WASHER	0-50141-040-0	01	1	9402-9510	●	●	●	●	●	●
144	09.242 BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONT(C60) 01.840 M10X40 W/LK&PL WASHER	0-50141-040-0	01	1	9511-9612	●	●	●	●	●	●	●
144	09.242 BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONT(C60) 00.685 M10X35 FLANGE	0-28081-035-0	01	1	9701-9705	●	●	●	●	●	●	●
144	09.242 BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONT(C60) 03.162 M10X35 FLANGE	0-28681-035-0	01	1	9706-	●	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.226 CAP MARK L	8-97083-102-0	01	1	9312-9407	●	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.226 CAP MARK L	8-97083-102-0	01	1	9408-9409	●	●	●	●		●
147	09.242 CAP; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 09.226 CAP MARK L	8-97083-102-0	01	1	9408-9409	●	●	●	●		●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.226 CAP MARK L	8-97083-102-0	01	1	9410-9509	●	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> 09.226 CAP MARK L	8-97083-102-0	01	1	9410-9509	●	●	●	●		●
147	09.242 CAP; FLEX HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.226 CAP MARK L	8-97083-102-0	01	1	9510-9704	●	●	●	●		●
147	09.242 CAP; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 09.226 CAP MARK L	8-97083-102-0	01	1	9510-9704	●	●	●	●		●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.226 CAP MARK L	8-97083-102-0	01	1	9705-9801	●	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.226 CAP MARK L	8-97083-102-0	01	1	9705-9801	●	●	●	●		●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.226 CAP MARK L	8-97083-102-0	01	1	9802-	●	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.226 CAP MARK L	8-97083-102-0	01	1	9802-	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) CAP MARK H	8-97083-101-0	01	1	9312-9407	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE 4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) CAP MARK H	8-97083-101-0	01	1	9408-9510	●		●	●	●
147	09.242 CAP; FLEX HOSE 4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) CAP MARK H	8-97083-101-0	01	1	9511-9704	●		●	●	●		●
147	09.242 CAP; FLEX HOSE 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) CAP MARK H	8-97083-101-0	01	1	9705-9711			●	●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) CAP MARK H	8-97083-101-0	01	1	9712-9801	●	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CAP MARK H	8-97083-101-0	01	1	9712-9801	●	●	●	●		●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) CAP MARK H	8-97083-101-0	01	1	9802-	●	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CAP MARK H	8-97083-101-0	01	1	9802-	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 09.226 CAP MARK L	8-97083-102-0	02	1	9406-9510	●		●	●	●
147	09.242 CAP; FLEX HOSE 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 09.226 CAP MARK L	8-97083-102-0	02	1	9511-9704	●		●	●	●		●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60)	8-97083-100-0	01	1	9312-9405	●	●	●	●	●	●	●
148	09.262 VALVE; FLEX HOSE 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60)	8-97083-100-0	02	1	9406-9510	●		●	●	●
148	09.262 VALVE; FLEX HOSE 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60)	8-97083-100-0	02	1	9511-9704	●		●	●	●		●
148	09.262 VALVE; FLEX HOSE 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97083-100-0	02	1	9705-9711			●	●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60)	8-97083-100-0	02	1	9712-9801	●	●	●	●	●	●	●
148	09.262 VALVE; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97083-100-0	02	1	9712-9801	●	●	●	●		●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60)	8-97083-100-0	02	1	9802-	●	●	●	●	●	●	●
148	09.262 VALVE; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97083-100-0	02	1	9802-	●	●	●	●	●	●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60)	8-97083-100-0	01	1	9406-9407	●	●	●	●	●	●	●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60)	8-97083-100-0	01	1	9408-9510	●	●	●	●	●	●	●
148	09.262 VALVE; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D>	8-97083-100-0	01	1	9408-9510	●	●	●	●		●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60)	8-97083-100-0	01	1	9511-9704	●	●	●	●	●	●	●
148	09.262 VALVE; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97083-100-0	01	1	9511-9704	●	●	●	●		●
148	09.262 VALVE; FLEX HOSE 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97083-100-0	01	1	9511-9704			●	●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60)	8-97083-100-0	01	1	9705-9711	●	●	●	●	●	●	●
148	09.262 VALVE; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97083-100-0	01	1	9705-9711	●	●	●	●		●

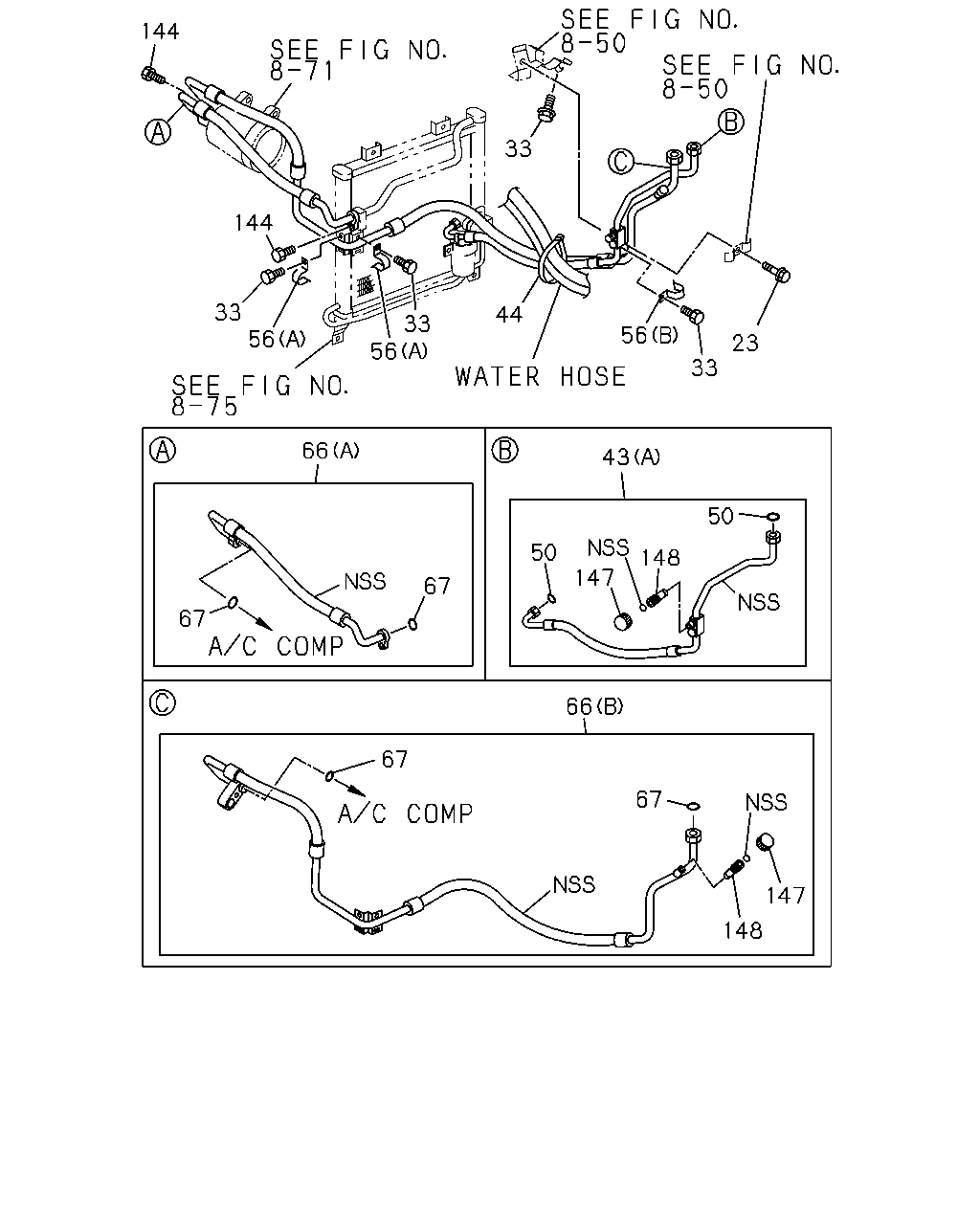

144 33 144 33 56 44 33 56 56 23 33 66 43 50 50 148 147 67 67 66 67 67 147 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
23	09.171 BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) 02.559 M6X20 W/LK&PL WASHER	0-50140-620-0	01	1	9312-9510	●	●	●	●	●	●
23	09.171 BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) 02.559 M6X20 W/LK&PL WASHER	0-50140-620-0	01	1	9511-9612	●	●	●	●	●	●	●
23	09.171 BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) 03.670 M6X20 FLANGE	0-28080-620-0	01	1	9701-	●	●	●	●	●	●	●
33	09.920 BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60) 12.187 M6X16 W/LK&PL WASHER	0-50140-616-0	04	1	9312-9402	●	●	●	●	●	●
33	09.920 BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60) 12.187 M6X16 W/LK&PL WASHER	0-50140-616-0	03	1	9403-9510	●	●	●	●	●	●
33	09.920 BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60) 12.187 M6X16 W/LK&PL WASHER	0-50140-616-0	03	1	9511-9612	●	●	●	●	●	●	●
33	09.920 BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60) 00.738 M6X16 FLANGE	0-28080-616-0	03	1	9701-	●	●	●	●	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) (A)	8-97103-570-1	01	1	9312-9407	●	●	●	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97103-570-1	01	1	9408-9510	●		●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97103-570-1	01	1	9511-9704	●		●	●	●		●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97103-570-1	01	1	9705-			●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97103-572-0	01	1	9408-9801	●	●	●	●		●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97103-572-0	01	1	9802-	●	●	●	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97069-967-0	01	1	9312-9510	●		●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97069-967-0	01	1	9511-9704	●		●	●	●		●
44	09.242 CLIP; FLEX HOSE 4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.559 L=250	5-09707-030-0	03	1	9312-9510	●		●	●	●
44	09.242 CLIP; FLEX HOSE 4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.559 L=250	5-09707-030-0	03	1	9511-9704	●		●	●	●		●
44	09.242 CLIP; FLEX HOSE 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.559 L=250	5-09707-030-1	03	1	9705-			●	●
50	09.222 GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 09.195 ID=6.07	8-94461-902-0	02	1	9312-9407	●	●	●	●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.195 ID=6.07	8-94461-902-0	02	1	9408-9510	●		●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.195 ID=6.07	8-94461-902-0	02	1	9511-9704	●		●	●	●		●
50	09.222 GASKET; FLEX HOSE,A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.195 ID=6.07	8-94461-902-0	02	1	9705-9711			●	●
50	09.222 GASKET; FLEX HOSE,A/C 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.195 ID=6.07	8-94461-902-0	02	1	9712-	●	●	●	●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) ID=13.9	8-94113-330-0	01	1	9312-9510	●		●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) ID=13.9	8-94113-330-0	01	1	9511-9704	●		●	●	●		●
50	09.222 GASKET; FLEX HOSE,A/C 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) ID=10.8	8-94113-331-0	01	1	9312-9510	●		●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) ID=10.8	8-94113-331-0	01	1	9511-9704	●		●	●	●		●
50	09.222 GASKET; FLEX HOSE,A/C 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 09.260 ID=11.0	8-94461-900-0	01	1	9312-9510	●		●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 09.260 ID=11.0	8-94461-900-0	01	1	9511-9704	●		●	●	●		●
50	09.222 GASKET; FLEX HOSE,A/C 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 09.260 ID=14.8	8-94461-901-0	01	1	9312-9510	●		●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 09.260 ID=14.8	8-94461-901-0	01	1	9511-9704	●		●	●	●		●
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) 09.190 (A)	8-97024-716-0	03	1	9312-9407	●	●	●	●	●	●
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) 09.190 (A)	8-97024-716-0	02	1	9408-9510	●	●	●	●	●	●
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) 09.190 (A)	8-97024-716-0	02	1	9511-	●	●	●	●	●	●	●
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) 09.276 (B) ID=10 L=20	8-97036-717-0	01	1	9312-9402	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97103-572-0	01	1	9406-9407	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JB1 ENG(RLF),4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97103-572-0	01	1	9408-9510	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JB1 ENG(RLF),4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97103-572-0	01	1	9511-9711	●	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97108-684-0	01	1	9406-9407	●	●	●	●		●
66	09.225 HOSE; FLEX,A/C 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97108-684-1	01	1	9408-9801	●	●	●	●		●
66	09.225 HOSE; FLEX,A/C 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97108-684-1	01	1	9802-	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97103-572-0	01	1	9712-9801	●	●	●	●		●
66	09.225 HOSE; FLEX,A/C 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97103-572-0	01	1	9712-9801	●		●	●	●		●
66	09.225 HOSE; FLEX,A/C 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97103-572-0	01	1	9802-	●		●	●	●		●
66	09.225 HOSE; FLEX,A/C 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97103-572-0	01	1	9802-	●		●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97069-977-0	01	1	9312-9407	●	●	●	●		●
66	09.225 HOSE; FLEX,A/C 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97069-977-1	01	1	9408-9801	●	●	●	●		●
66	09.225 HOSE; FLEX,A/C 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97069-977-1	01	1	9802-	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97108-974-0	01	1	9406-9510	●		●	●	●
66	09.225 HOSE; FLEX,A/C 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97108-974-0	01	1	9511-	●		●	●	●		●
66	09.225 HOSE; FLEX,A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97091-246-2	01	1	9312-			●	●
66	09.225 HOSE; FLEX,A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97103-574-2	01	1	9312-			●	●
67	09.260 GASKET; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.195 ID=6.07	8-94461-902-0	02	1	9712-9801	●	●	●	●		●
67	09.260 GASKET; FLEX HOSE 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 09.195 ID=6.07	8-94461-902-0	02	1	9712-9801	●		●	●	●		●
67	09.260 GASKET; FLEX HOSE 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 09.195 ID=6.07	8-94461-902-0	02	1	9802-	●		●	●	●		●
67	09.260 GASKET; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.195 ID=6.07	8-94461-902-0	02	1	9802-	●		●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.222 ID=13.9	8-94113-330-0	01	1	9312-9405	●	●	●	●		●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.222 ID=13.9	8-94113-330-0	01	1	9406-9407	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.222 ID=13.9	8-94113-330-0	01	1	9408-9408	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> 09.222 ID=13.9	8-94113-330-0	01	1	9408-9408	●	●	●	●		●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.222 ID=13.9	8-94113-330-0	01	1	9408-9409	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 09.222 ID=13.9	8-94113-330-0	01	1	9408-9409	●	●	●	●		●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.222 ID=13.9	8-94113-330-0	01	1	9410-9509	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> 09.222 ID=13.9	8-94113-330-0	01	1	9410-9509	●	●	●	●		●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.222 ID=13.9	8-94113-330-0	01	1	9510-9510	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 09.222 ID=13.9	8-94113-330-0	01	1	9510-9510	●	●	●	●		●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.222 ID=13.9	8-94113-330-0	01	1	9511-9801	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.222 ID=13.9	8-94113-330-0	01	1	9511-9801	●	●	●	●		●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.222 ID=13.9	8-94113-330-0	01	1	9802-	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.222 ID=13.9	8-94113-330-0	01	1	9802-	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) ID=14.8	8-94461-901-0	01	1	9312-9405	●	●	●	●		●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) ID=14.8	8-94461-901-0	01	1	9406-9407	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) ID=14.8	8-94461-901-0	01	1	9408-9409	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) ID=14.8	8-94461-901-0	01	1	9408-9409	●	●	●	●		●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) ID=14.8	8-94461-901-0	01	1	9410-9509	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> ID=14.8	8-94461-901-0	01	1	9410-9509	●	●	●	●		●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) ID=14.8	8-94461-901-0	01	1	9510-9510	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) ID=14.8	8-94461-901-0	01	1	9510-9510	●	●	●	●		●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) ID=14.8	8-94461-901-0	01	1	9511-9801	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=14.8	8-94461-901-0	01	1	9511-9801	●	●	●	●		●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) ID=14.8	8-94461-901-0	01	1	9802-	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=14.8	8-94461-901-0	01	1	9802-	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.222 ID=10.8	8-94113-331-0	01	1	9312-9405			●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.222 ID=10.8	8-94113-331-0	01	1	9406-9407	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.222 ID=10.8	8-94113-331-0	01	1	9408-9409	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 09.222 ID=10.8	8-94113-331-0	01	1	9408-9409	●	●	●	●		●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.222 ID=10.8	8-94113-331-0	01	1	9410-9509	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> 09.222 ID=10.8	8-94113-331-0	01	1	9410-9509	●	●	●	●		●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.222 ID=10.8	8-94113-331-0	01	1	9510-9510	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 09.222 ID=10.8	8-94113-331-0	01	1	9510-9510	●	●	●	●		●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.222 ID=10.8	8-94113-331-0	01	1	9511-9801	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.222 ID=10.8	8-94113-331-0	01	1	9511-9801	●	●	●	●		●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.222 ID=10.8	8-94113-331-0	01	1	9802-	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.222 ID=10.8	8-94113-331-0	01	1	9802-	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) ID=11.0	8-94461-900-0	01	1	9312-9405			●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) ID=11.0	8-94461-900-0	01	1	9406-9407	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) ID=11.0	8-94461-900-0	01	1	9408-9409	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) ID=11.0	8-94461-900-0	01	1	9408-9409	●	●	●	●		●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) ID=11.0	8-94461-900-0	01	1	9410-9509	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> ID=11.0	8-94461-900-0	01	1	9410-9509	●	●	●	●		●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) ID=11.0	8-94461-900-0	01	1	9510-9510	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) ID=11.0	8-94461-900-0	01	1	9510-9510	●	●	●	●		●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) ID=11.0	8-94461-900-0	01	1	9511-9801	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=11.0	8-94461-900-0	01	1	9511-9801	●	●	●	●		●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) ID=11.0	8-94461-900-0	01	1	9802-	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=11.0	8-94461-900-0	01	1	9802-	●	●	●	●	●	●
144	09.242 BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONT(C60) 04.104 M10X45 W/LK&PL WASHER	0-50141-045-0	01	1	9312-9401	●	●	●	●	●	●
144	09.242 BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONT(C60) 01.840 M10X40 W/LK&PL WASHER	0-50141-040-0	01	1	9402-9510	●	●	●	●	●	●
144	09.242 BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONT(C60) 01.840 M10X40 W/LK&PL WASHER	0-50141-040-0	01	1	9511-9612	●	●	●	●	●	●	●
144	09.242 BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONT(C60) 00.685 M10X35 FLANGE	0-28081-035-0	01	1	9701-9705	●	●	●	●	●	●	●
144	09.242 BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONT(C60) 03.162 M10X35 FLANGE	0-28681-035-0	01	1	9706-	●	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.226 CAP MARK L	8-97083-102-0	01	1	9312-9407	●	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.226 CAP MARK L	8-97083-102-0	01	1	9408-9409	●	●	●	●		●
147	09.242 CAP; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 09.226 CAP MARK L	8-97083-102-0	01	1	9408-9409	●	●	●	●		●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.226 CAP MARK L	8-97083-102-0	01	1	9410-9509	●	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D> 09.226 CAP MARK L	8-97083-102-0	01	1	9410-9509	●	●	●	●		●
147	09.242 CAP; FLEX HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.226 CAP MARK L	8-97083-102-0	01	1	9510-9704	●	●	●	●		●
147	09.242 CAP; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 09.226 CAP MARK L	8-97083-102-0	01	1	9510-9704	●	●	●	●		●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.226 CAP MARK L	8-97083-102-0	01	1	9705-9801	●	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.226 CAP MARK L	8-97083-102-0	01	1	9705-9801	●	●	●	●		●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.226 CAP MARK L	8-97083-102-0	01	1	9802-	●	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.226 CAP MARK L	8-97083-102-0	01	1	9802-	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) CAP MARK H	8-97083-101-0	01	1	9312-9407	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE 4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) CAP MARK H	8-97083-101-0	01	1	9408-9510	●		●	●	●
147	09.242 CAP; FLEX HOSE 4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) CAP MARK H	8-97083-101-0	01	1	9511-9704	●		●	●	●		●
147	09.242 CAP; FLEX HOSE 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) CAP MARK H	8-97083-101-0	01	1	9705-9711			●	●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) CAP MARK H	8-97083-101-0	01	1	9712-9801	●	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CAP MARK H	8-97083-101-0	01	1	9712-9801	●	●	●	●		●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) CAP MARK H	8-97083-101-0	01	1	9802-	●	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CAP MARK H	8-97083-101-0	01	1	9802-	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 09.226 CAP MARK L	8-97083-102-0	02	1	9406-9510	●		●	●	●
147	09.242 CAP; FLEX HOSE 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 09.226 CAP MARK L	8-97083-102-0	02	1	9511-9704	●		●	●	●		●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60)	8-97083-100-0	01	1	9312-9405	●	●	●	●	●	●	●
148	09.262 VALVE; FLEX HOSE 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60)	8-97083-100-0	02	1	9406-9510	●		●	●	●
148	09.262 VALVE; FLEX HOSE 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60)	8-97083-100-0	02	1	9511-9704	●		●	●	●		●
148	09.262 VALVE; FLEX HOSE 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97083-100-0	02	1	9705-9711			●	●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60)	8-97083-100-0	02	1	9712-9801	●	●	●	●	●	●	●
148	09.262 VALVE; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97083-100-0	02	1	9712-9801	●	●	●	●		●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60)	8-97083-100-0	02	1	9802-	●	●	●	●	●	●	●
148	09.262 VALVE; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97083-100-0	02	1	9802-	●	●	●	●	●	●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60)	8-97083-100-0	01	1	9406-9407	●	●	●	●	●	●	●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60)	8-97083-100-0	01	1	9408-9510	●	●	●	●	●	●	●
148	09.262 VALVE; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. AIR CON PREPARATORY PACK<S6D>	8-97083-100-0	01	1	9408-9510	●	●	●	●		●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60)	8-97083-100-0	01	1	9511-9704	●	●	●	●	●	●	●
148	09.262 VALVE; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97083-100-0	01	1	9511-9704	●	●	●	●		●
148	09.262 VALVE; FLEX HOSE 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97083-100-0	01	1	9511-9704			●	●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60)	8-97083-100-0	01	1	9705-9711	●	●	●	●	●	●	●
148	09.262 VALVE; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97083-100-0	01	1	9705-9711	●	●	●	●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
