◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50695 - NKR-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-50 - AIR CONDITIONING SYSTEM; FRONT ▶
8-50 — AIR CONDITIONING SYSTEM; FRONT (#44356) — 134 parça

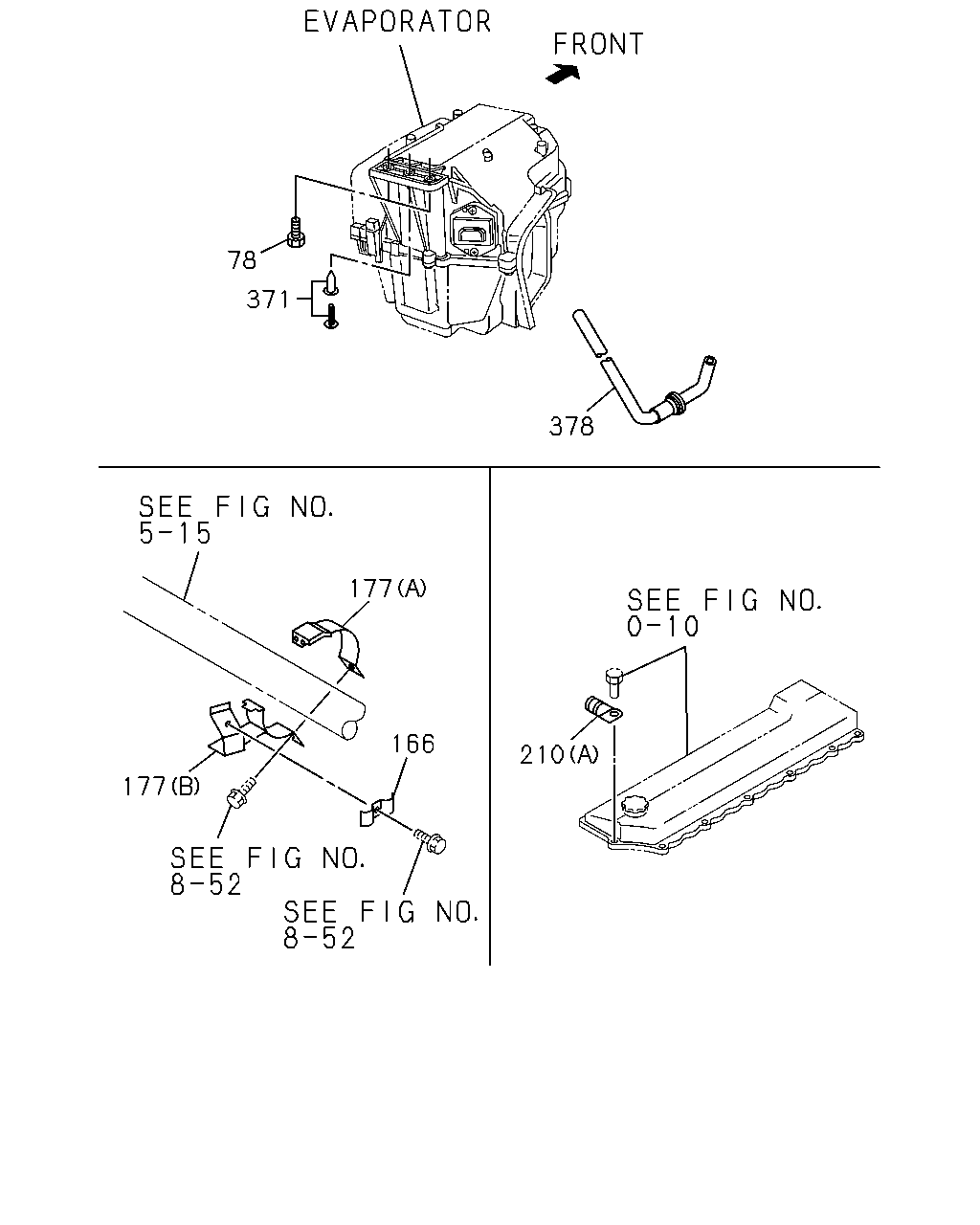

çizim 16220
78 371 378 177 166 210 177
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
78 09.211 BOLT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9606- ● ● ● ● ● ● ●
78 09.211 BOLT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) 01.540 M6X20 		0-28280-620-0 02 1 9312-9407 ● ● ● ● ● ●
78 09.211 BOLT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) 01.540 M6X20 		0-28280-620-0 02 1 9408-9510 ● ● ● ● ● ●
78 09.211 BOLT; EVAP,A/C
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 01.540 M6X20 		0-28280-620-0 02 1 9408-9510 ● ● ● ● ●
78 09.211 BOLT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) 01.540 M6X20 		0-28280-620-0 02 1 9511-9605 ● ● ● ● ● ● ●
78 09.211 BOLT; EVAP,A/C
4JB1 ENG(RLF),4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M6X20 		0-28280-620-0 02 1 9511-9605 ● ● ● ● ● ● ●
78 09.211 BOLT; EVAP,A/C
4JB1 ENG(RLF),4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> 01.540 M6X20 		0-28280-620-0 02 1 9606- ● ● ● ● ● ● ●
78 09.211 BOLT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) 16.335 M8X20 FLANGE 		0-28280-820-0 01 1 9312-9404 ● ● ● ● ● ●
78 09.211 BOLT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) 07.010 M8X20 FLANGE 		0-28080-820-0 01 1 9405-9510 ● ● ● ● ● ●
78 09.211 BOLT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) 07.010 M8X20 FLANGE 		0-28080-820-0 01 1 9511-9605 ● ● ● ● ● ● ●
78 09.211 BOLT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 9606- ● ● ● ● ● ● ●
78 09.211 BOLT; EVAP,A/C
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 00.738 M6X16 FLANGE 		0-28080-616-0 04 1 9406-9407 ● ● ● ● ● ●
78 09.211 BOLT; EVAP,A/C
4JB1 ENG(RLF),4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> 00.738 M6X16 FLANGE 		0-28080-616-0 04 1 9408-9510 ● ● ● ● ● ●
78 09.211 BOLT; EVAP,A/C
4JB1 ENG(RLF),4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> 00.738 M6X16 FLANGE 		0-28080-616-0 04 1 9511- ● ● ● ● ● ● ●
78 09.211 BOLT; EVAP,A/C
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 16.335 M8X20 FLANGE 		0-28280-820-0 01 1 9406-9407 ● ● ● ● ● ●
78 09.211 BOLT; EVAP,A/C
4JB1 ENG(RLF),4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> 16.335 M8X20 FLANGE 		0-28280-820-0 01 1 9408-9510 ● ● ● ● ● ●
78 09.211 BOLT; EVAP,A/C
4JB1 ENG(RLF),4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> 16.335 M8X20 FLANGE 		0-28280-820-0 01 1 9511- ● ● ● ● ● ● ●
78 09.211 BOLT; EVAP,A/C
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 12.187 M6X16 W/LK&PL WASHER 		0-50140-616-0 03 1 9406-9407 ● ● ● ● ● ●
78 09.211 BOLT; EVAP,A/C
4JB1 ENG(RLF),4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> 12.187 M6X16 W/LK&PL WASHER 		0-50140-616-0 03 1 9408-9408 ● ● ● ● ● ●
78 09.211 BOLT; EVAP,A/C
4JB1 ENG(RLF),4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> 12.187 M6X16 W/LK&PL WASHER 		0-50140-616-0 03 1 9408-9510 ● ● ● ● ● ●
78 09.211 BOLT; EVAP,A/C
4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 12.187 M6X16 W/LK&PL WASHER 		0-50140-616-0 03 1 9511-9801 ● ● ● ● ●
78 09.211 BOLT; EVAP,A/C
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 12.187 M6X16 W/LK&PL WASHER 		0-50140-616-0 03 1 9511-9801 ● ● ● ● ●
78 09.211 BOLT; EVAP,A/C
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 12.187 M6X16 W/LK&PL WASHER 		0-50140-616-0 03 1 9802- ● ● ● ● ●
78 09.211 BOLT; EVAP,A/C
4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 12.187 M6X16 W/LK&PL WASHER 		0-50140-616-0 03 1 9802- ● ● ● ● ●
78 09.211 BOLT; EVAP,A/C
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 02.559 M6X20 W/LK&PL WASHER 		0-50140-620-0 01 1 9406-9407 ● ● ● ● ● ●
78 09.211 BOLT; EVAP,A/C
4JB1 ENG(RLF),4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> 02.559 M6X20 W/LK&PL WASHER 		0-50140-620-0 01 1 9408-9408 ● ● ● ● ● ●
78 09.211 BOLT; EVAP,A/C
4JB1 ENG(RLF),4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> 02.559 M6X20 W/LK&PL WASHER 		0-50140-620-0 01 1 9408-9510 ● ● ● ● ● ●
78 09.211 BOLT; EVAP,A/C
4JB1 ENG(RLF),4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> 02.559 M6X20 W/LK&PL WASHER 		0-50140-620-0 01 1 9511- ● ● ● ● ● ● ●
78 09.211 BOLT; EVAP,A/C
4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 01.840 M10X40 W/LK&PL WASHER 		0-50141-040-0 01 1 9406-9408 ● ● ● ● ●
78 09.211 BOLT; EVAP,A/C
4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 01.840 M10X40 W/LK&PL WASHER 		0-50141-040-0 01 1 9408-9801 ● ● ● ● ●
78 09.211 BOLT; EVAP,A/C
4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 01.840 M10X40 W/LK&PL WASHER 		0-50141-040-0 01 1 9802- ● ● ● ● ● ●
78 09.211 BOLT; EVAP,A/C
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 04.104 M10X45 W/LK&PL WASHER 		0-50141-045-0 01 1 9406-9510 ● ● ● ●
78 09.211 BOLT; EVAP,A/C
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 04.104 M10X45 W/LK&PL WASHER 		0-50141-045-0 01 1 9511- ● ● ● ● ●
78 09.211 BOLT; EVAP,A/C
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR CON PREPARATORY PACK<S6D> 02.559 M6X20 W/LK&PL WASHER 		0-50140-620-0 02 1 9510- ●
78 09.211 BOLT; EVAP,A/C
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR CON PREPARATORY PACK<S6D> 09.175 		8-97112-752-0 02 1 9510- ●
166 09.226 BRACKET; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) 		8-97090-310-1 01 1 9312-9510 ● ● ● ● ● ●
166 09.226 BRACKET; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) 		8-97090-310-1 01 1 9511- ● ● ● ● ● ● ●
177 09.242 BRACKET; PIPE
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97087-192-0 01 1 9312-9510 ● ● ● ● ● ●
177 09.242 BRACKET; PIPE
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97087-192-0 01 1 9511- ● ● ● ● ● ● ●
177 09.242 BRACKET; PIPE
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97090-311-1 01 1 9312-9510 ● ● ● ● ● ●
177 09.242 BRACKET; PIPE
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97090-311-1 01 1 9511- ● ● ● ● ● ● ●
210 09.242 CLIP; HARNESS
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 9312-9406 ● ●
210 09.242 CLIP; HARNESS
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 9409- ● ●
210 09.242 CLIP; HARNESS
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9312-9502 ● ●
210 09.242 CLIP; HARNESS
4HF1 ENG(RLS) 00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9503- ● ●
371 09.211 CLIP; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) 04.594 GRAY 		8-94350-828-0 01 1 9312-9504 ● ● ● ● ● ●
378 09.211 HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) 		8-97096-815-0 01 1 9312-9510 ● ● ● ● ● ●
378 09.211 HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) 		8-97096-815-0 01 1 9511- ● ● ● ● ● ● ●

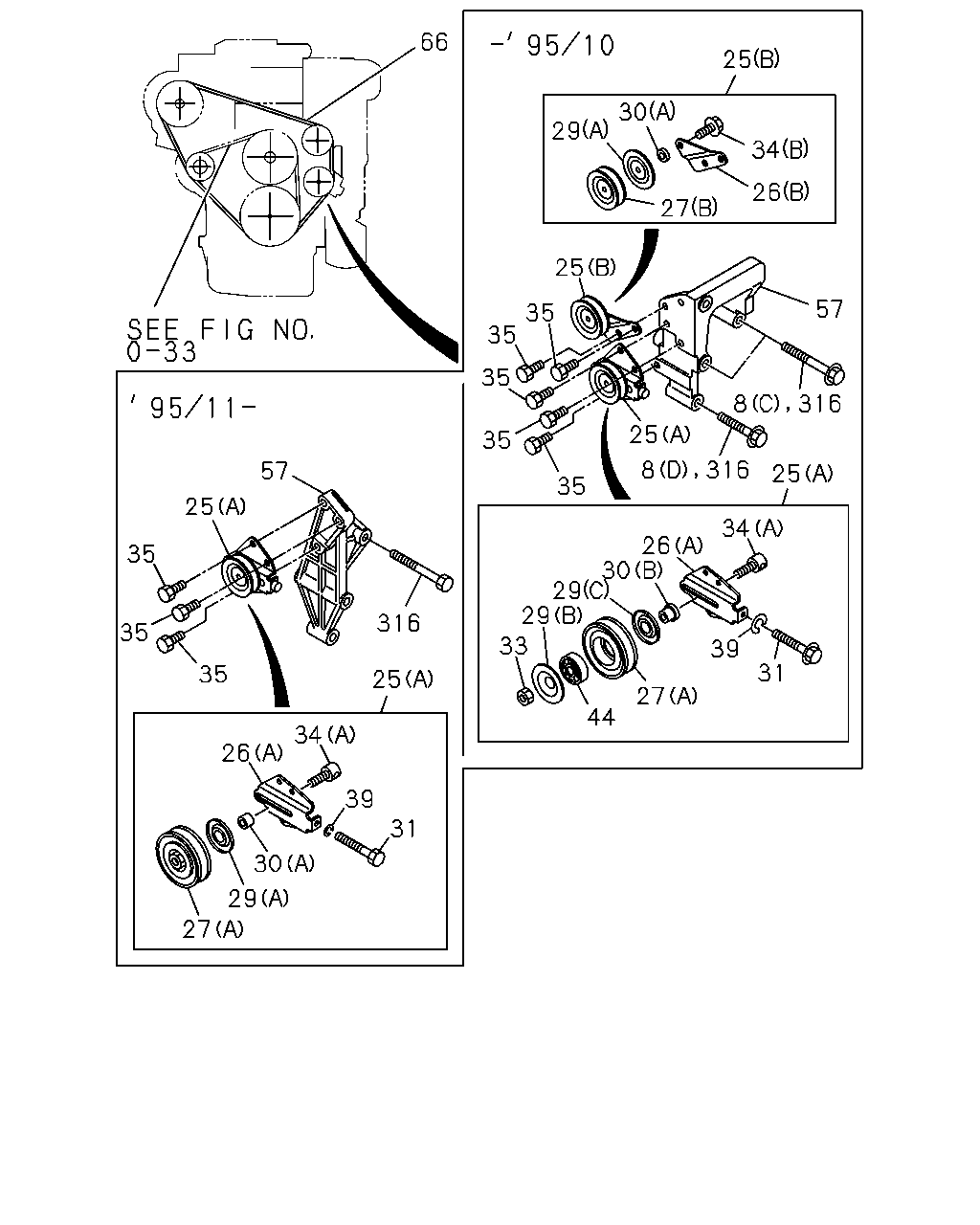

çizim 67532
66 25 30 29 34 26 27 25 57 35 35 35 8 316 25 35 8 316 57 25 35 25 34 26 30 29 29 35 316 35 33 39 31 35 25 27 44 34 26 39 31 30 29 27
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
8 09.171 BOLT; BRKT
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) M10X100 FLANGE 		0-28181-000-0 01 1 9312-9502 ● ●
8 09.171 BOLT; BRKT
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 03.330 (D) M10X60 FLANGE 		0-28181-060-0 02 1 9312-9502 ● ●
8 09.171 BOLT; BRKT
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.173 (A) M10X90 FLANGE 		0-28181-090-0 02 1 9312-9502 ● ●
8 09.171 BOLT; BRKT
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 00.683 (B) M10X55 FLANGE 		8-94399-863-1 02 1 9312-9502 ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 1-GROOVE 		8-94334-696-1 01 1 9312-9610 ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 1-GROOVE 		8-97161-198-0 01 1 9611- ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 1-GROOVE 		8-94334-873-0 01 1 9312-9510 ● ●
26 09.180 BRACKET; IDLE PULLEY,A/C
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97060-361-0 01 1 9312-9502 ● ●
26 09.180 BRACKET; IDLE PULLEY,A/C
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97126-633-0 01 1 9503-9510 ● ●
26 09.180 BRACKET; IDLE PULLEY,A/C
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97060-361-0 01 1 9511-9610 ● ●
26 09.180 BRACKET; IDLE PULLEY,A/C
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97060-362-0 01 1 9312-9510 ● ●
27 09.180 PULLEY; IDLE,A/C
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-94200-984-1 01 1 9312-9502 ● ●
27 09.180 PULLEY; IDLE,A/C
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97126-637-0 01 1 9503-9510 ● ●
27 09.180 PULLEY; IDLE,A/C
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-94200-984-1 01 1 9511-9610 ● ●
27 09.180 PULLEY; IDLE,A/C
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		9-13663-606-0 01 1 9312-9510 ● ●
29 09.181 COVER; DUST,IDLE PULLEY
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		9-13369-603-0 01 1 9312-9610 ● ●
29 09.181 COVER; DUST,IDLE PULLEY
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97126-629-0 01 1 9503-9510 ● ●
29 09.181 COVER; DUST,IDLE PULLEY
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97126-630-0 01 1 9503-9510 ● ●
30 09.181 COLLAR; IDLE PULLEY
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-94340-702-0 02 1 9312-9502 ● ●
30 09.181 COLLAR; IDLE PULLEY
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-94340-702-0 01 1 9503-9610 ● ●
30 09.181 COLLAR; IDLE PULLEY
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97126-632-0 01 1 9503-9510 ● ●
31 09.181 BOLT; ADJ,IDLE PULLEY
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 06.665 		8-94238-324-0 01 1 9312-9502 ● ●
31 09.181 BOLT; ADJ,IDLE PULLEY
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97126-638-0 01 1 9503-9510 ● ●
31 09.181 BOLT; ADJ,IDLE PULLEY
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 06.665 		8-94238-324-0 01 1 9511-9610 ● ●
33 09.181 NUT; IDLER PULLEY
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97126-639-0 01 1 9503-9510 ● ●
34 09.181 SHAFT; IDLE PULLEY
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.277 (B) M10X30 		0-28121-030-0 01 1 9312-9510 ● ●
34 09.181 SHAFT; IDLE PULLEY
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97060-285-0 01 1 9312-9502 ● ●
34 09.181 SHAFT; IDLE PULLEY
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97126-631-0 01 1 9503-9510 ● ●
34 09.181 SHAFT; IDLE PULLEY
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97060-285-0 01 1 9511-9610 ● ●
35 09.181 BOLT; IDLER PULLEY TO C/BL
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.062 M8X16 FLANGE 		0-28080-816-0 05 1 9312-9510 ● ●
35 09.181 BOLT; IDLER PULLEY TO C/BL
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.062 M8X16 FLANGE 		0-28080-816-0 03 1 9511-9610 ● ●
39 09.181 WASHER; LK,ADJ BOLT
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		1-83579-492-0 01 1 9312-9610 ● ●
44 09.180 BEARING; IDLE PULLEY
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97126-636-0 01 1 9503-9510 ● ●
57 09.171 BRACKET; IDLER PULLEY
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97081-262-2 01 1 9312-9510 ● ●
57 09.171 BRACKET; IDLER PULLEY
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97100-809-0 01 1 9511-9511 ● ●
57 09.171 BRACKET; IDLER PULLEY
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97136-248-0 01 1 9512-9610 ● ●
66 01.066 BELT; A/C CMPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569 		8-97014-702-2 01 1 9312-9407 ● ●
66 01.066 BELT; A/C CMPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569 		8-97094-448-1 01 1 9408-9706 ● ●
66 01.066 BELT; A/C CMPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569 		8-97180-183-0 01 1 9707- ● ●
316 09.242 BOLT; BRKT FIX
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.171 M10X100 FLANGE 		0-28181-000-0 01 1 9503-9610 ● ●
316 09.242 BOLT; BRKT FIX
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 04.510 M10X65 FLANGE 		8-94344-540-1 01 1 9611- ● ●
316 09.242 BOLT; BRKT FIX
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 03.330 M10X60 FLANGE 		0-28181-060-0 02 1 9503-9510 ● ●
316 09.242 BOLT; BRKT FIX
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.780 M8X50 FLANGE 		0-28080-850-0 01 1 9511- ● ●
316 09.242 BOLT; BRKT FIX
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 08.900 M10X50 FLANGE 		0-28181-050-0 01 1 9511-9511 ● ●
çizim 68252
66 25 316 316
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
25 09.180 PULLEY ASM; IDLER,CMPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 1-GROOVE 		8-94334-696-1 01 1 9312-9610 ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 1-GROOVE 		8-97161-198-0 01 1 9611- ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 1-GROOVE 		8-94334-873-0 01 1 9312-9510 ● ●
66 01.066 BELT; A/C CMPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569 		8-97014-702-2 01 1 9312-9407 ● ●
66 01.066 BELT; A/C CMPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569 		8-97094-448-1 01 1 9408-9706 ● ●
66 01.066 BELT; A/C CMPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569 		8-97180-183-0 01 1 9707- ● ●
316 09.242 BOLT; BRKT FIX
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.171 M10X100 FLANGE 		0-28181-000-0 01 1 9503-9610 ● ●
316 09.242 BOLT; BRKT FIX
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 04.510 M10X65 FLANGE 		8-94344-540-1 01 1 9611- ● ●
316 09.242 BOLT; BRKT FIX
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 03.330 M10X60 FLANGE 		0-28181-060-0 02 1 9503-9510 ● ●
316 09.242 BOLT; BRKT FIX
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.780 M8X50 FLANGE 		0-28080-850-0 01 1 9511- ● ●
316 09.242 BOLT; BRKT FIX
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 08.900 M10X50 FLANGE 		0-28181-050-0 01 1 9511-9511 ● ●

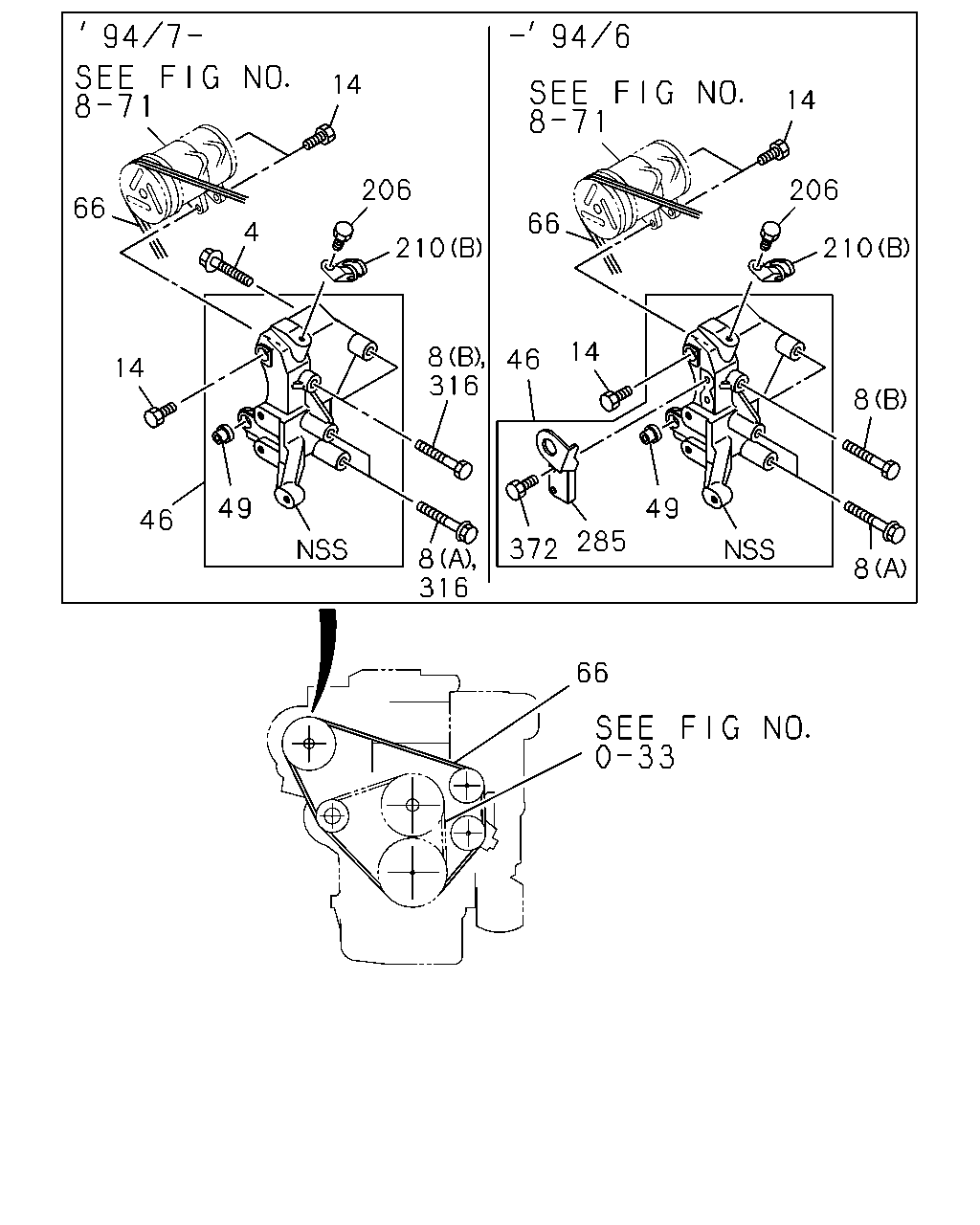

çizim 71190
14 14 206 206 66 66 4 210 210 14 8 316 46 14 8 49 49 46 285 372 8 316 8 66
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
4 09.171 BOLT; A/C CMPR BRKT
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.173 M10X90 FLANGE 		0-28181-090-0 02 1 9503-9511 ● ●
4 09.171 BOLT; A/C CMPR BRKT
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.173 M10X90 FLANGE 		0-28181-090-0 01 1 9512- ● ●
4 09.171 BOLT; A/C CMPR BRKT
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 00.683 M10X55 FLANGE 		8-94399-863-1 02 1 9503- ● ●
8 09.171 BOLT; BRKT
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) M10X100 FLANGE 		0-28181-000-0 01 1 9312-9502 ● ●
8 09.171 BOLT; BRKT
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 03.330 (D) M10X60 FLANGE 		0-28181-060-0 02 1 9312-9502 ● ●
8 09.171 BOLT; BRKT
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.173 (A) M10X90 FLANGE 		0-28181-090-0 02 1 9312-9502 ● ●
8 09.171 BOLT; BRKT
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 00.683 (B) M10X55 FLANGE 		8-94399-863-1 02 1 9312-9502 ● ●
14 09.171 BOLT; CMPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 03.708 M10X40 		0-28281-040-0 04 1 9312- ● ●
46 09.171 BRACKET; CMPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.242 		8-97065-502-2 01 1 9312-9406 ● ●
46 09.171 BRACKET; CMPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97106-228-0 01 1 9407-9412 ● ●
46 09.171 BRACKET; CMPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97126-030-0 01 1 9501-9511 ● ●
46 09.171 BRACKET; CMPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97136-247-0 01 1 9512-9603 ● ●
46 09.171 BRACKET; CMPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97147-029-0 01 1 9604- ● ●
49 09.171 COLLAR; BRKT,CMPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-94201-057-1 02 1 9312-9603 ● ●
49 09.171 COLLAR; BRKT,CMPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97147-059-0 02 1 9604- ● ●
66 01.066 BELT; A/C CMPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569 		8-97014-702-2 01 1 9312-9407 ● ●
66 01.066 BELT; A/C CMPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569 		8-97094-448-1 01 1 9408-9706 ● ●
66 01.066 BELT; A/C CMPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569 		8-97180-183-0 01 1 9707- ● ●
206 09.242 BOLT; CLIP BRKT
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.812 M6X12 FLANGE 		0-28280-612-0 01 1 9312-9406 ● ●
206 09.242 BOLT; CLIP BRKT
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.812 M6X12 FLANGE 		0-28280-612-0 01 1 9409- ● ●
210 09.242 CLIP; HARNESS
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 9312-9406 ● ●
210 09.242 CLIP; HARNESS
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 9409- ● ●
210 09.242 CLIP; HARNESS
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9312-9502 ● ●
210 09.242 CLIP; HARNESS
4HF1 ENG(RLS) 00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9503- ● ●
285 09.190 HANGER; ENG BRKT
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97065-504-1 01 1 9312-9406 ● ●
316 09.242 BOLT; BRKT FIX
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.171 M10X100 FLANGE 		0-28181-000-0 01 1 9503-9610 ● ●
316 09.242 BOLT; BRKT FIX
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 04.510 M10X65 FLANGE 		8-94344-540-1 01 1 9611- ● ●
316 09.242 BOLT; BRKT FIX
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 03.330 M10X60 FLANGE 		0-28181-060-0 02 1 9503-9510 ● ●
316 09.242 BOLT; BRKT FIX
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.780 M8X50 FLANGE 		0-28080-850-0 01 1 9511- ● ●
316 09.242 BOLT; BRKT FIX
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 08.900 M10X50 FLANGE 		0-28181-050-0 01 1 9511-9511 ● ●
372 09.171 BOLT; HANGER,CMPR BRKT
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.540 M10X20 FLANGE 		0-28181-020-0 02 1 9312-9406 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
