Sayfa 8-45 - Isuzu EPC

8-45 — HEATER PIPING (#44355) — 293 parça

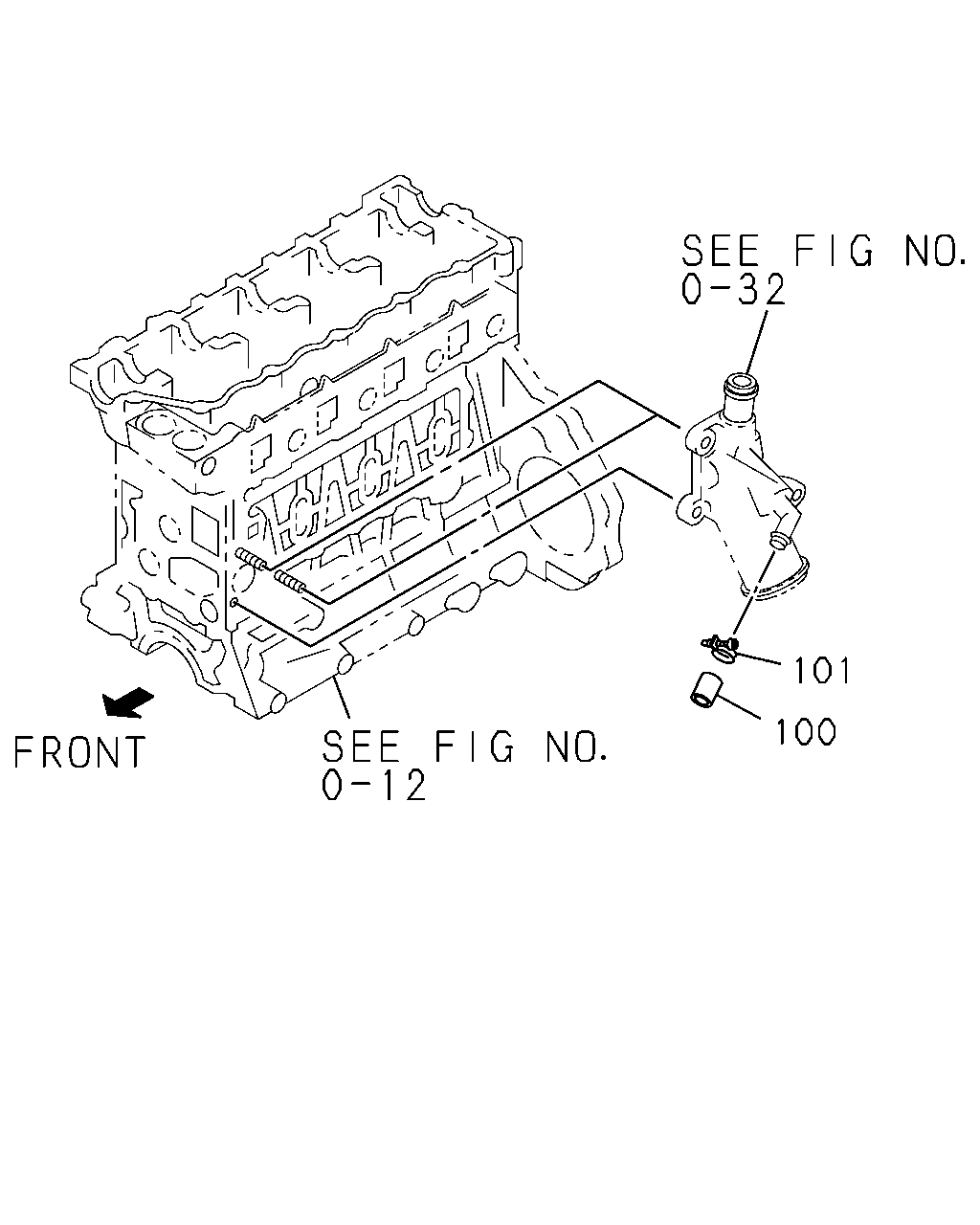

101 100

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
	100	08.846 CAP; RUBBER,WATER PIPE 4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 01.166	8-94107-793-0	01	1	9312-	●	●
	101	08.846 CLIP; CAP,WATER PIPE 4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 01.166 ID=25	8-94233-115-0	01	1	9312-	●	●

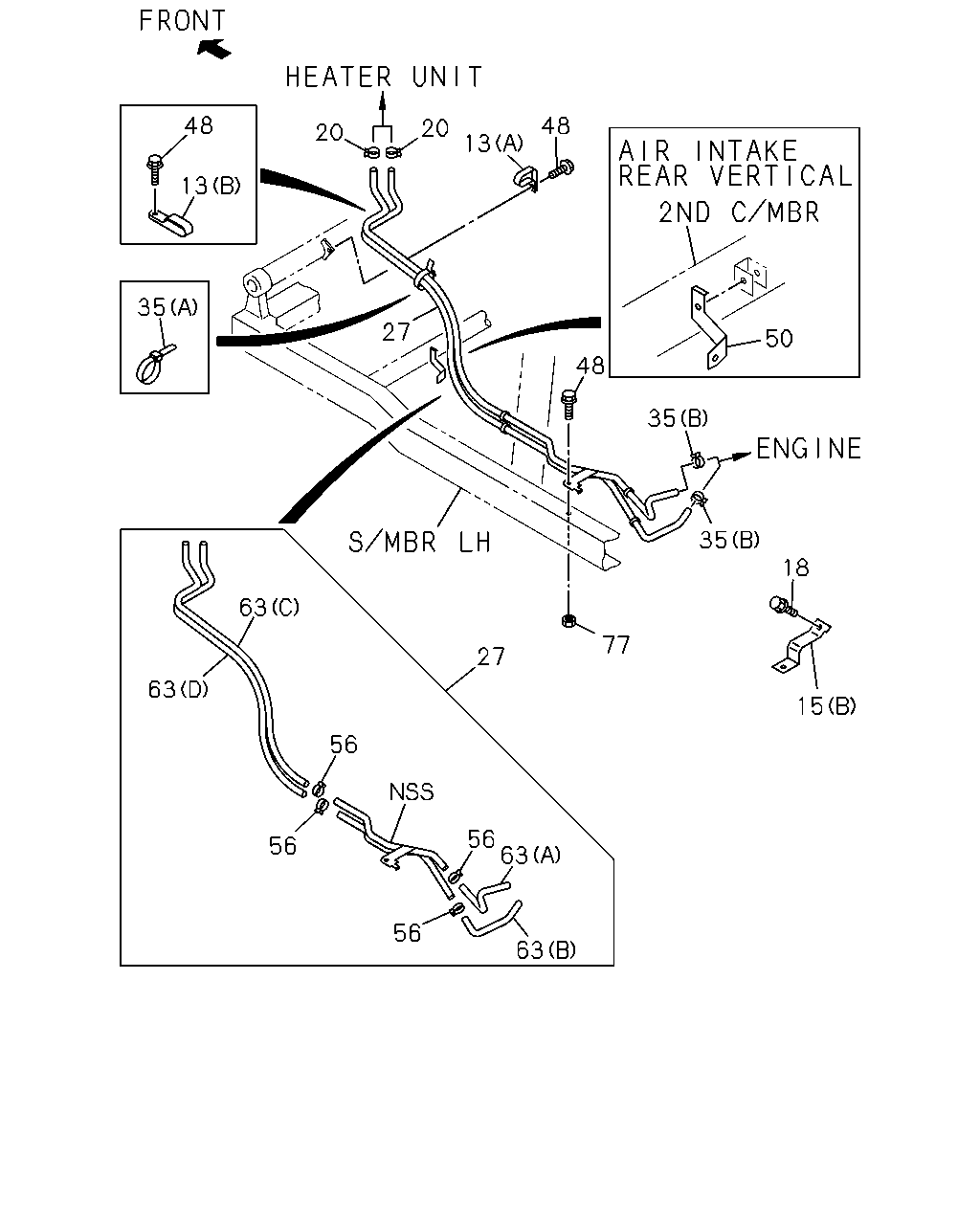

18 20 20 48 25 27 13 15 13 73 35 35 33 48 48 73 34 13 13 77 13 48 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-94124-169-1	01	1	9312-9510	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-94124-169-1	01	1	9511-	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) B=18	9-83651-948-1	01	1	9312-9510	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) B=18	9-83651-948-1	01	1	9511-	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (F) ID=22	8-94382-401-0	02	1	9312-9801	●	●	●	●		●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (F) ID=22	8-94382-401-0	02	1	9802-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	5-83574-003-0	01	1	9312-9510	●	●	●		●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	5-83574-003-0	01	1	9511-	●	●	●		●		●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.866 (E) L=116	8-94148-972-0	01	1	9312-9510	●	●	●		●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.866 (E) L=116	8-94148-972-0	01	1	9511-	●	●	●		●		●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-94480-291-0	01	1	9312-9405	●	●	●		●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.866 (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	9406-9510	●	●	●		●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.866 (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	9511-	●	●	●		●		●
15	08.846 BRACKET; WATER HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97101-872-0	01	1	9312-9510	●	●	●	●	●	●
15	08.846 BRACKET; WATER HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97101-872-0	01	1	9511-	●	●	●	●	●	●	●
15	08.846 BRACKET; WATER HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97107-781-0	01	1	9312-	●	●
18	08.866 BOLT; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.680 M6X12 W/LK&PL WASHER	0-50140-612-0	01	1	9312-9312	●	●	●	●	●	●
18	08.866 BOLT; WATER HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 01.656 M6X14	8-94479-695-1	03	1	9401-9404	●	●	●		●
20	08.866 CLIP; WATER HOSE TO HTR PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 ID=22	8-94382-401-0	04	1	9312-9801	●	●	●	●		●
20	08.866 CLIP; WATER HOSE TO HTR PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 ID=22	8-94382-401-0	04	1	9802-	●	●	●	●	●	●
20	08.866 CLIP; WATER HOSE TO HTR PIPE 4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 ID=22	8-94382-401-0	02	1	9312-9510	●	●	●		●
20	08.866 CLIP; WATER HOSE TO HTR PIPE 4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 ID=22	8-94382-401-0	02	1	9511-	●	●	●		●		●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4BE1 ENG(RLH) HEATER & DEFROSTER(C41)	8-97069-961-3	01	1	9312-9504	●	●	●		●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4BE1 ENG(RLH) HEATER & DEFROSTER(C41)	8-97129-239-0	01	1	9505-9510	●	●	●		●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4BE1 ENG(RLH) HEATER & DEFROSTER(C41)	8-97129-239-0	01	1	9511-	●	●	●		●		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) L=610 SERVICED BY L=3000	0-03266-300-0	01	1	9312-9505	●	●	●	●		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) L=610	8-97134-473-0	01	1	9506-9510	●	●	●	●		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) L=610 SERVICED BY L=3000	0-03266-300-0	01	1	9511-9801	●	●	●	●		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) L=610 SERVICED BY L=3000	0-03266-300-0	01	1	9802-	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BE1 ENG(RLH) HEATER & DEFROSTER(C41)	8-97069-963-3	01	1	9312-9504	●	●	●		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BE1 ENG(RLH) HEATER & DEFROSTER(C41)	8-97129-243-0	01	1	9505-9510	●	●	●		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BE1 ENG(RLH) HEATER & DEFROSTER(C41)	8-97129-243-0	01	1	9511-	●	●	●		●		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS)	8-97071-225-1	01	1	9312-9502	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97071-225-1	01	1	9503-9504	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97129-198-1	01	1	9505-	●	●
33	08.866 UNION; WATER HOSE,ENG OUT 4BE1 ENG(RLH) 01.540	9-09903-497-1	01	1	9312-9407	●	●	●		●
33	08.866 UNION; WATER HOSE,ENG OUT 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 01.540	9-09903-497-1	01	1	9408-9510	●	●	●		●
33	08.866 UNION; WATER HOSE,ENG OUT 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 01.540	9-09903-497-1	01	1	9511-	●	●	●		●		●
34	08.866 UNION; WATER HOSE,ENG IN 4BE1 ENG(RLH) 01.540	9-09903-497-1	01	1	9312-9407	●	●	●		●
34	08.866 UNION; WATER HOSE,ENG IN 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 01.540	9-09903-497-1	01	1	9408-9510	●	●	●		●
34	08.866 UNION; WATER HOSE,ENG IN 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 01.540	9-09903-497-1	01	1	9511-	●	●	●		●		●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-0	02	1	9312-9510	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	9511-	●	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-0	01	1	9312-9404	●	●
35	08.852 CLIP; WATER HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-0	01	1	9405-9510	●	●	●		●
35	08.852 CLIP; WATER HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	01	1	9511-	●	●	●		●		●
35	08.852 CLIP; WATER HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	02	1	9503-	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9707-9711	●	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9712-9801	●	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9802-	●	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9802-	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 00.738 M6X16 FLANGE	0-28080-616-0	01	1	9312-9312	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.656 M6X14	8-94479-695-1	02	1	9401-9410	●	●	●	●		●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.686 M6X14 FLANGE	0-28080-614-0	02	1	9411-9706	●	●	●	●		●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.686 M6X14 FLANGE	0-28080-614-0	01	1	9707-9711	●	●	●	●		●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 07.010 M8X20 FLANGE	0-28080-820-0	02	1	9312-9409	●	●	●	●		●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9410-9502	●	●	●	●		●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9503-9711	●	●	●	●		●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9712-9801		●	●	●			●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9712-9801		●	●				●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9712-9801	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9802-9802		●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9802-9802	●	●	●				●
48	09.262 BOLT; CLIP FIX 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9802-9802	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9803-	●	●	●			●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 00.738 M6X16 FLANGE	0-28080-616-0	02	1	9312-9312	●	●	●		●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 01.656 M6X14	8-94479-695-1	03	1	9405-9410	●	●	●		●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 04.686 M6X14 FLANGE	0-28080-614-0	03	1	9411-9510	●	●	●		●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 04.686 M6X14 FLANGE	0-28080-614-0	03	1	9511-9706	●	●	●		●		●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 04.686 M6X14 FLANGE	0-28080-614-0	02	1	9707-9711	●	●	●		●		●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9712-	●	●	●		●		●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9312-9409	●	●	●		●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9410-9502	●	●	●		●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9503-9510	●	●	●		●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9511-9711	●	●	●		●		●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9712-9802		●	●		●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9803-	●	●	●	●	●	●	●
50	08.846 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> FRT INDEPENDENT SUSPENSION(6PP) 03.405	8-97180-936-0	01	1	9712-			●
50	08.846 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.417	8-97072-530-0	01	1	9712-	●	●	●			●	●
73	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	9312-9510	●	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	9511-	●	●	●	●	●	●	●
77	08.866 NUT; WATER HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.540 M8 FLANGE	0-91150-208-0	02	1	9712-9802	●	●	●			●	●
77	08.866 NUT; WATER HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.540 M8 FLANGE	0-91150-208-0	02	1	9803-	●	●	●		●	●	●
77	08.866 NUT; WATER HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	02	1	9803-	●	●	●		●		●
77	08.866 NUT; WATER HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	01	1	9405-9409	●	●	●		●
77	08.866 NUT; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.540 M8 FLANGE	0-91150-208-0	01	1	9410-9510	●	●	●	●	●	●
77	08.866 NUT; WATER HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	01	1	9410-9510	●	●	●		●
77	08.866 NUT; WATER HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.540 M8 FLANGE	0-91150-208-0	01	1	9511-9711	●	●	●	●		●
77	08.866 NUT; WATER HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	01	1	9511-9711	●	●	●		●		●
77	08.866 NUT; WATER HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.540 M8 FLANGE	0-91150-208-0	01	1	9712-9801		●	●	●	●	●
77	08.866 NUT; WATER HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> FRT INDEPENDENT SUSPENSION(6PP) 01.540 M8 FLANGE	0-91150-208-0	01	1	9712-9801			●	●
77	08.866 NUT; WATER HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	01	1	9712-9801		●
77	08.866 NUT; WATER HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.540 M8 FLANGE	0-91150-208-0	01	1	9802-9802		●	●	●	●	●
77	08.866 NUT; WATER HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> FRT INDEPENDENT SUSPENSION(6PP) 01.540 M8 FLANGE	0-91150-208-0	01	1	9802-9802			●
77	08.866 NUT; WATER HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	01	1	9802-9802	●	●
77	08.866 NUT; WATER HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.540 M8 FLANGE	0-91150-208-0	01	1	9803-		●	●	●	●	●
77	08.866 NUT; WATER HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> FRT INDEPENDENT SUSPENSION(6PP) 01.540 M8 FLANGE	0-91150-208-0	01	1	9803-			●
77	08.866 NUT; WATER HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	01	1	9803-	●	●

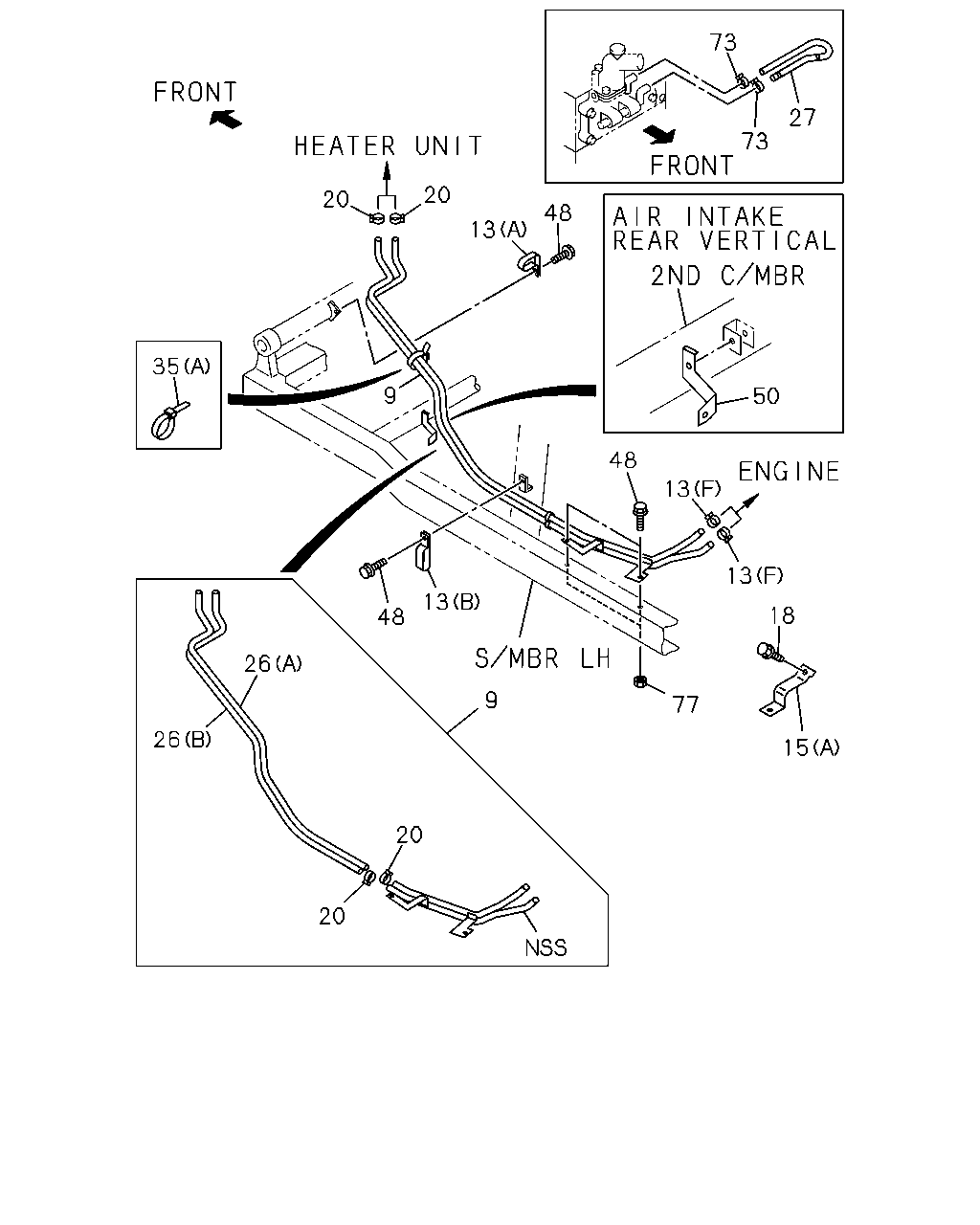

73 27 73 20 20 48 13 35 9 50 48 13 13 13 18 48 26 9 77 26 15 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
9	08.846 PIPE; HTR 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97101-828-1	01	1	9312-9504	●	●	●	●		●
9	08.846 PIPE; HTR 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97129-185-0	01	1	9505-9801	●	●	●	●		●
9	08.846 PIPE; HTR 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97129-185-0	01	1	9802-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-94124-169-1	01	1	9312-9510	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-94124-169-1	01	1	9511-	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) B=18	9-83651-948-1	01	1	9312-9510	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) B=18	9-83651-948-1	01	1	9511-	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (F) ID=22	8-94382-401-0	02	1	9312-9801	●	●	●	●		●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (F) ID=22	8-94382-401-0	02	1	9802-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	5-83574-003-0	01	1	9312-9510	●	●	●		●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	5-83574-003-0	01	1	9511-	●	●	●		●		●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.866 (E) L=116	8-94148-972-0	01	1	9312-9510	●	●	●		●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.866 (E) L=116	8-94148-972-0	01	1	9511-	●	●	●		●		●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-94480-291-0	01	1	9312-9405	●	●	●		●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.866 (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	9406-9510	●	●	●		●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.866 (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	9511-	●	●	●		●		●
15	08.846 BRACKET; WATER HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97101-872-0	01	1	9312-9510	●	●	●	●	●	●
15	08.846 BRACKET; WATER HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97101-872-0	01	1	9511-	●	●	●	●	●	●	●
15	08.846 BRACKET; WATER HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97107-781-0	01	1	9312-	●	●
18	08.866 BOLT; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.680 M6X12 W/LK&PL WASHER	0-50140-612-0	01	1	9312-9312	●	●	●	●	●	●
18	08.866 BOLT; WATER HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 01.656 M6X14	8-94479-695-1	03	1	9401-9404	●	●	●		●
20	08.866 CLIP; WATER HOSE TO HTR PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 ID=22	8-94382-401-0	04	1	9312-9801	●	●	●	●		●
20	08.866 CLIP; WATER HOSE TO HTR PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 ID=22	8-94382-401-0	04	1	9802-	●	●	●	●	●	●
20	08.866 CLIP; WATER HOSE TO HTR PIPE 4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 ID=22	8-94382-401-0	02	1	9312-9510	●	●	●		●
20	08.866 CLIP; WATER HOSE TO HTR PIPE 4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 ID=22	8-94382-401-0	02	1	9511-	●	●	●		●		●
26	08.846 HOSE; HTR 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97107-809-0	01	1	9312-9801	●	●	●	●		●
26	08.846 HOSE; HTR 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97107-809-0	01	1	9802-	●	●	●	●	●	●
26	08.846 HOSE; HTR 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97107-810-0	01	1	9312-9801	●	●	●	●		●
26	08.846 HOSE; HTR 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97107-810-0	01	1	9802-	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) L=610 SERVICED BY L=3000	0-03266-300-0	01	1	9312-9505	●	●	●	●		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) L=610	8-97134-473-0	01	1	9506-9510	●	●	●	●		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) L=610 SERVICED BY L=3000	0-03266-300-0	01	1	9511-9801	●	●	●	●		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) L=610 SERVICED BY L=3000	0-03266-300-0	01	1	9802-	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BE1 ENG(RLH) HEATER & DEFROSTER(C41)	8-97069-963-3	01	1	9312-9504	●	●	●		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BE1 ENG(RLH) HEATER & DEFROSTER(C41)	8-97129-243-0	01	1	9505-9510	●	●	●		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BE1 ENG(RLH) HEATER & DEFROSTER(C41)	8-97129-243-0	01	1	9511-	●	●	●		●		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS)	8-97071-225-1	01	1	9312-9502	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97071-225-1	01	1	9503-9504	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97129-198-1	01	1	9505-	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-0	02	1	9312-9510	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	9511-	●	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-0	01	1	9312-9404	●	●
35	08.852 CLIP; WATER HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-0	01	1	9405-9510	●	●	●		●
35	08.852 CLIP; WATER HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	01	1	9511-	●	●	●		●		●
35	08.852 CLIP; WATER HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	02	1	9503-	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9707-9711	●	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9712-9801	●	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9802-	●	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9802-	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 00.738 M6X16 FLANGE	0-28080-616-0	01	1	9312-9312	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.656 M6X14	8-94479-695-1	02	1	9401-9410	●	●	●	●		●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.686 M6X14 FLANGE	0-28080-614-0	02	1	9411-9706	●	●	●	●		●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.686 M6X14 FLANGE	0-28080-614-0	01	1	9707-9711	●	●	●	●		●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 07.010 M8X20 FLANGE	0-28080-820-0	02	1	9312-9409	●	●	●	●		●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9410-9502	●	●	●	●		●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9503-9711	●	●	●	●		●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9712-9801		●	●	●			●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9712-9801		●	●				●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9712-9801	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9802-9802		●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9802-9802	●	●	●				●
48	09.262 BOLT; CLIP FIX 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9802-9802	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9803-	●	●	●			●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 00.738 M6X16 FLANGE	0-28080-616-0	02	1	9312-9312	●	●	●		●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 01.656 M6X14	8-94479-695-1	03	1	9405-9410	●	●	●		●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 04.686 M6X14 FLANGE	0-28080-614-0	03	1	9411-9510	●	●	●		●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 04.686 M6X14 FLANGE	0-28080-614-0	03	1	9511-9706	●	●	●		●		●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 04.686 M6X14 FLANGE	0-28080-614-0	02	1	9707-9711	●	●	●		●		●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9712-	●	●	●		●		●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9312-9409	●	●	●		●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9410-9502	●	●	●		●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9503-9510	●	●	●		●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9511-9711	●	●	●		●		●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9712-9802		●	●		●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9803-	●	●	●	●	●	●	●
50	08.846 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> FRT INDEPENDENT SUSPENSION(6PP) 03.405	8-97180-936-0	01	1	9712-			●
50	08.846 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.417	8-97072-530-0	01	1	9712-	●	●	●			●	●
73	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	9312-9510	●	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	9511-	●	●	●	●	●	●	●
77	08.866 NUT; WATER HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.540 M8 FLANGE	0-91150-208-0	02	1	9712-9802	●	●	●			●	●
77	08.866 NUT; WATER HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.540 M8 FLANGE	0-91150-208-0	02	1	9803-	●	●	●		●	●	●
77	08.866 NUT; WATER HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	02	1	9803-	●	●	●		●		●
77	08.866 NUT; WATER HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	01	1	9405-9409	●	●	●		●
77	08.866 NUT; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.540 M8 FLANGE	0-91150-208-0	01	1	9410-9510	●	●	●	●	●	●
77	08.866 NUT; WATER HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	01	1	9410-9510	●	●	●		●
77	08.866 NUT; WATER HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.540 M8 FLANGE	0-91150-208-0	01	1	9511-9711	●	●	●	●		●
77	08.866 NUT; WATER HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	01	1	9511-9711	●	●	●		●		●
77	08.866 NUT; WATER HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.540 M8 FLANGE	0-91150-208-0	01	1	9712-9801		●	●	●	●	●
77	08.866 NUT; WATER HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> FRT INDEPENDENT SUSPENSION(6PP) 01.540 M8 FLANGE	0-91150-208-0	01	1	9712-9801			●	●
77	08.866 NUT; WATER HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	01	1	9712-9801		●
77	08.866 NUT; WATER HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.540 M8 FLANGE	0-91150-208-0	01	1	9802-9802		●	●	●	●	●
77	08.866 NUT; WATER HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> FRT INDEPENDENT SUSPENSION(6PP) 01.540 M8 FLANGE	0-91150-208-0	01	1	9802-9802			●
77	08.866 NUT; WATER HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	01	1	9802-9802	●	●
77	08.866 NUT; WATER HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.540 M8 FLANGE	0-91150-208-0	01	1	9803-		●	●	●	●	●
77	08.866 NUT; WATER HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> FRT INDEPENDENT SUSPENSION(6PP) 01.540 M8 FLANGE	0-91150-208-0	01	1	9803-			●
77	08.866 NUT; WATER HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	01	1	9803-	●	●

48 48 20 20 13 13 35 27 50 48 35 35 18 63 77 27 63 15 56 56 63 56 56 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-94124-169-1	01	1	9312-9510	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-94124-169-1	01	1	9511-	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) B=18	9-83651-948-1	01	1	9312-9510	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) B=18	9-83651-948-1	01	1	9511-	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (F) ID=22	8-94382-401-0	02	1	9312-9801	●	●	●	●		●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (F) ID=22	8-94382-401-0	02	1	9802-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	5-83574-003-0	01	1	9312-9510	●	●	●		●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	5-83574-003-0	01	1	9511-	●	●	●		●		●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.866 (E) L=116	8-94148-972-0	01	1	9312-9510	●	●	●		●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.866 (E) L=116	8-94148-972-0	01	1	9511-	●	●	●		●		●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-94480-291-0	01	1	9312-9405	●	●	●		●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.866 (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	9406-9510	●	●	●		●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.866 (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	9511-	●	●	●		●		●
15	08.846 BRACKET; WATER HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97101-872-0	01	1	9312-9510	●	●	●	●	●	●
15	08.846 BRACKET; WATER HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97101-872-0	01	1	9511-	●	●	●	●	●	●	●
15	08.846 BRACKET; WATER HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97107-781-0	01	1	9312-	●	●
18	08.866 BOLT; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.680 M6X12 W/LK&PL WASHER	0-50140-612-0	01	1	9312-9312	●	●	●	●	●	●
18	08.866 BOLT; WATER HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 01.656 M6X14	8-94479-695-1	03	1	9401-9404	●	●	●		●
20	08.866 CLIP; WATER HOSE TO HTR PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 ID=22	8-94382-401-0	04	1	9312-9801	●	●	●	●		●
20	08.866 CLIP; WATER HOSE TO HTR PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 ID=22	8-94382-401-0	04	1	9802-	●	●	●	●	●	●
20	08.866 CLIP; WATER HOSE TO HTR PIPE 4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 ID=22	8-94382-401-0	02	1	9312-9510	●	●	●		●
20	08.866 CLIP; WATER HOSE TO HTR PIPE 4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 ID=22	8-94382-401-0	02	1	9511-	●	●	●		●		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) L=610 SERVICED BY L=3000	0-03266-300-0	01	1	9312-9505	●	●	●	●		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) L=610	8-97134-473-0	01	1	9506-9510	●	●	●	●		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) L=610 SERVICED BY L=3000	0-03266-300-0	01	1	9511-9801	●	●	●	●		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) L=610 SERVICED BY L=3000	0-03266-300-0	01	1	9802-	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BE1 ENG(RLH) HEATER & DEFROSTER(C41)	8-97069-963-3	01	1	9312-9504	●	●	●		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BE1 ENG(RLH) HEATER & DEFROSTER(C41)	8-97129-243-0	01	1	9505-9510	●	●	●		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BE1 ENG(RLH) HEATER & DEFROSTER(C41)	8-97129-243-0	01	1	9511-	●	●	●		●		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS)	8-97071-225-1	01	1	9312-9502	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97071-225-1	01	1	9503-9504	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97129-198-1	01	1	9505-	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-0	02	1	9312-9510	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	9511-	●	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-0	01	1	9312-9404	●	●
35	08.852 CLIP; WATER HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-0	01	1	9405-9510	●	●	●		●
35	08.852 CLIP; WATER HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	01	1	9511-	●	●	●		●		●
35	08.852 CLIP; WATER HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	02	1	9503-	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9707-9711	●	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9712-9801	●	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9802-	●	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9802-	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 00.738 M6X16 FLANGE	0-28080-616-0	01	1	9312-9312	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.656 M6X14	8-94479-695-1	02	1	9401-9410	●	●	●	●		●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.686 M6X14 FLANGE	0-28080-614-0	02	1	9411-9706	●	●	●	●		●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.686 M6X14 FLANGE	0-28080-614-0	01	1	9707-9711	●	●	●	●		●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 07.010 M8X20 FLANGE	0-28080-820-0	02	1	9312-9409	●	●	●	●		●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9410-9502	●	●	●	●		●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9503-9711	●	●	●	●		●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9712-9801		●	●	●			●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9712-9801		●	●				●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9712-9801	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9802-9802		●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9802-9802	●	●	●				●
48	09.262 BOLT; CLIP FIX 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9802-9802	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9803-	●	●	●			●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 00.738 M6X16 FLANGE	0-28080-616-0	02	1	9312-9312	●	●	●		●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 01.656 M6X14	8-94479-695-1	03	1	9405-9410	●	●	●		●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 04.686 M6X14 FLANGE	0-28080-614-0	03	1	9411-9510	●	●	●		●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 04.686 M6X14 FLANGE	0-28080-614-0	03	1	9511-9706	●	●	●		●		●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 04.686 M6X14 FLANGE	0-28080-614-0	02	1	9707-9711	●	●	●		●		●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9712-	●	●	●		●		●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9312-9409	●	●	●		●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9410-9502	●	●	●		●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9503-9510	●	●	●		●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9511-9711	●	●	●		●		●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9712-9802		●	●		●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9803-	●	●	●	●	●	●	●
50	08.846 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> FRT INDEPENDENT SUSPENSION(6PP) 03.405	8-97180-936-0	01	1	9712-			●
50	08.846 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.417	8-97072-530-0	01	1	9712-	●	●	●			●	●
56	08.846 CLAMP; HTR HOSE 4HF1 ENG(RLS) ID=22	8-94382-401-0	04	1	9312-9502	●	●
56	08.846 CLAMP; HTR HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22	8-94382-401-0	04	1	9503-	●	●
63	08.846 HOSE; WATER 4HF1 ENG(RLS) (A)	8-97095-830-0	01	1	9312-9502	●	●
63	08.846 HOSE; WATER 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97095-830-0	01	1	9503-	●	●
63	08.846 HOSE; WATER 4HF1 ENG(RLS) (B)	8-97095-831-0	01	1	9312-9502	●	●
63	08.846 HOSE; WATER 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97095-831-0	01	1	9503-	●	●
63	08.846 HOSE; WATER 4HF1 ENG(RLS) (C)	8-97107-611-0	01	1	9312-9502	●	●
63	08.846 HOSE; WATER 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97107-611-0	01	1	9503-	●	●
63	08.846 HOSE; WATER 4HF1 ENG(RLS) (D)	8-97107-612-0	01	1	9312-9502	●	●
63	08.846 HOSE; WATER 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-97107-612-0	01	1	9503-	●	●
77	08.866 NUT; WATER HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.540 M8 FLANGE	0-91150-208-0	02	1	9712-9802	●	●	●			●	●
77	08.866 NUT; WATER HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.540 M8 FLANGE	0-91150-208-0	02	1	9803-	●	●	●		●	●	●
77	08.866 NUT; WATER HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	02	1	9803-	●	●	●		●		●
77	08.866 NUT; WATER HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	01	1	9405-9409	●	●	●		●
77	08.866 NUT; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.540 M8 FLANGE	0-91150-208-0	01	1	9410-9510	●	●	●	●	●	●
77	08.866 NUT; WATER HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	01	1	9410-9510	●	●	●		●
77	08.866 NUT; WATER HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.540 M8 FLANGE	0-91150-208-0	01	1	9511-9711	●	●	●	●		●
77	08.866 NUT; WATER HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	01	1	9511-9711	●	●	●		●		●
77	08.866 NUT; WATER HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.540 M8 FLANGE	0-91150-208-0	01	1	9712-9801		●	●	●	●	●
77	08.866 NUT; WATER HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> FRT INDEPENDENT SUSPENSION(6PP) 01.540 M8 FLANGE	0-91150-208-0	01	1	9712-9801			●	●
77	08.866 NUT; WATER HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	01	1	9712-9801		●
77	08.866 NUT; WATER HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.540 M8 FLANGE	0-91150-208-0	01	1	9802-9802		●	●	●	●	●
77	08.866 NUT; WATER HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> FRT INDEPENDENT SUSPENSION(6PP) 01.540 M8 FLANGE	0-91150-208-0	01	1	9802-9802			●
77	08.866 NUT; WATER HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	01	1	9802-9802	●	●
77	08.866 NUT; WATER HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.540 M8 FLANGE	0-91150-208-0	01	1	9803-		●	●	●	●	●
77	08.866 NUT; WATER HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> FRT INDEPENDENT SUSPENSION(6PP) 01.540 M8 FLANGE	0-91150-208-0	01	1	9803-			●
77	08.866 NUT; WATER HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	01	1	9803-	●	●

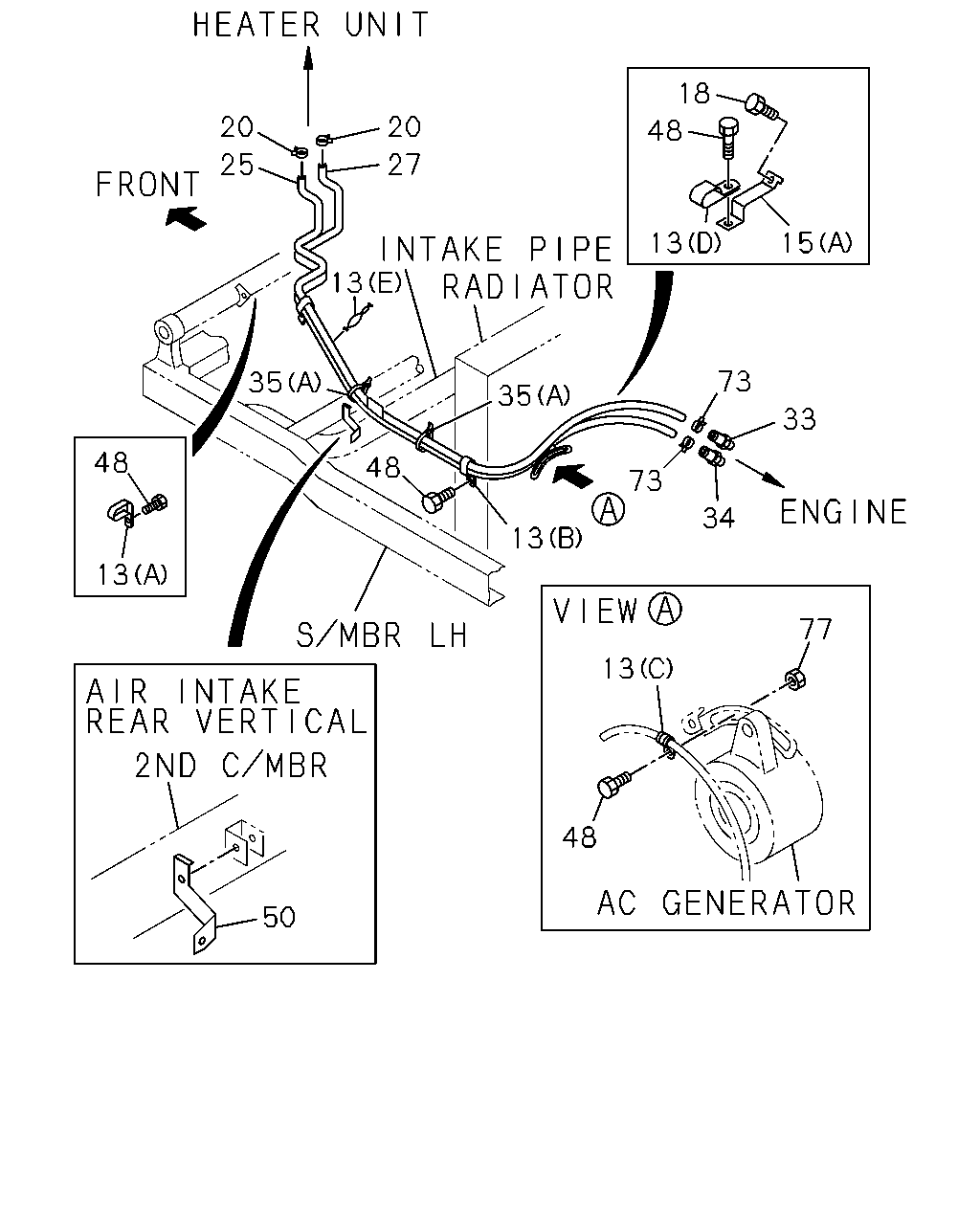

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
