8-28 — CHASSIS ELECTRICAL (#44353) — 68 parça

360 11 29 22 22 11 29 8 1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G

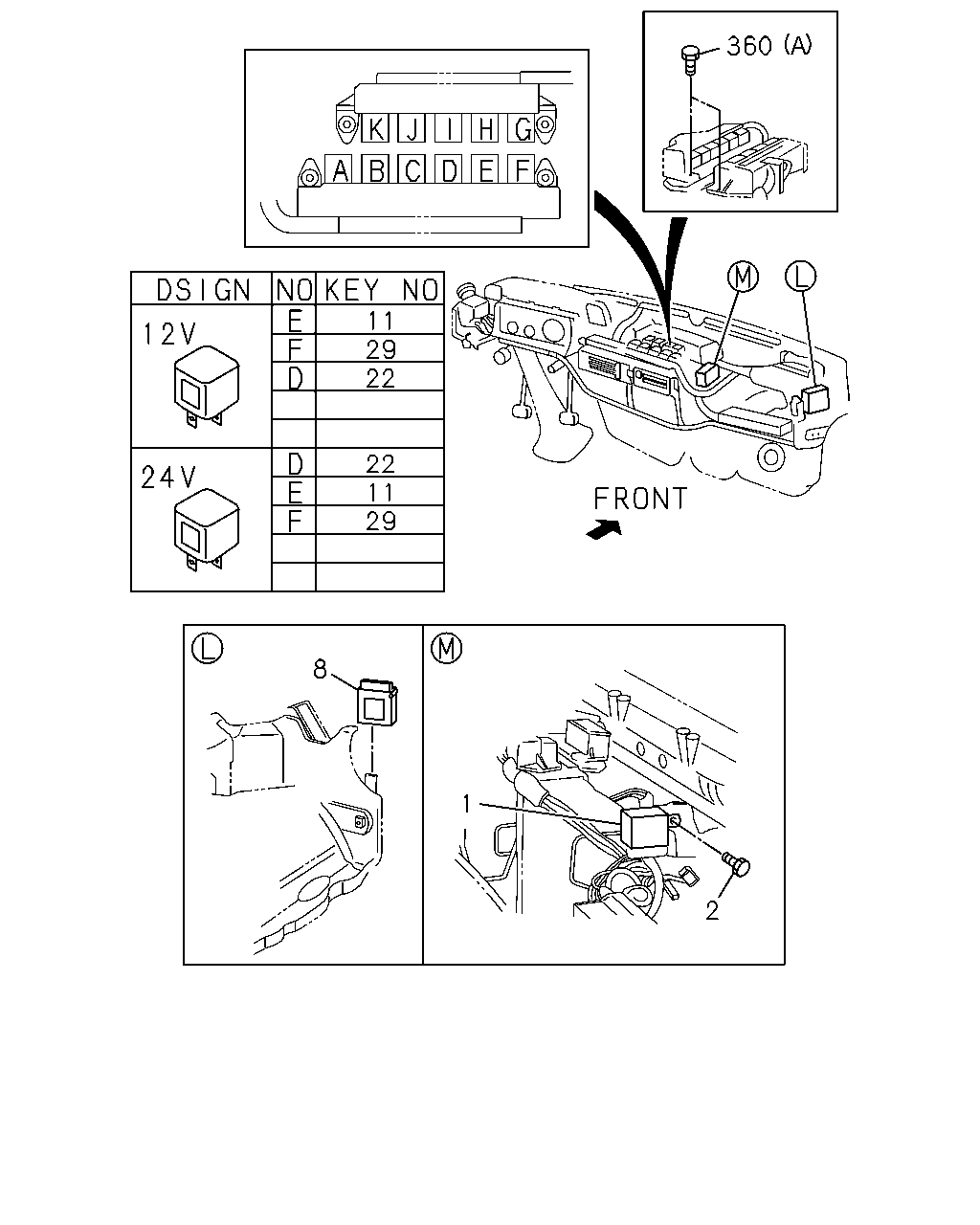

1	02.575 UNIT; FLASHER EXC. VOLTAGE 24V<7AE>	8-97086-509-1	01	1	9312-9801	●	●	●	●	●
1	02.575 UNIT; FLASHER EXC. VOLTAGE 24V<7AE>	8-97086-509-1	01	1	9802-	●	●	●	●	●	●
1	02.575 UNIT; FLASHER VOLTAGE 24V<7AE>	8-97086-508-1	01	1	9312-9510	●		●	●		●
1	02.575 UNIT; FLASHER VOLTAGE 24V<7AE>	8-97086-508-1	01	1	9511-	●		●	●		●	●
2	02.892 BOLT; FLASHER UNIT 08.225 M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9312-9510	●	●	●	●	●	●
2	02.892 BOLT; FLASHER UNIT 08.225 M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9511-9603	●	●	●	●	●	●	●
2	02.892 BOLT; FLASHER UNIT 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	01	1	9604-	●	●	●	●	●	●	●
8	16.067 RELAY; WIPER INTERMITTENT WIPER<C13> EXC. VOLTAGE 24V<7AE>	8-97855-014-0	01	1	9312-9711	●	●	●	●	●
8	16.067 RELAY; WIPER INTERMITTENT WIPER<C13> EXC. VOLTAGE 24V<7AE>	8-97855-186-0	01	1	9712-9801	●	●	●	●	●
8	16.067 RELAY; WIPER INTERMITTENT WIPER<C13> EXC. VOLTAGE 24V<7AE>	8-97855-186-0	01	1	9802-	●	●	●	●	●	●
8	16.067 RELAY; WIPER INTERMITTENT WIPER<C13> VOLTAGE 24V<7AE>	8-97855-015-0	01	1	9312-9510	●		●	●		●
8	16.067 RELAY; WIPER INTERMITTENT WIPER<C13> VOLTAGE 24V<7AE>	8-97855-015-0	01	1	9511-9711	●		●	●		●	●
8	16.067 RELAY; WIPER INTERMITTENT WIPER<C13> VOLTAGE 24V<7AE>	8-97184-233-0	01	1	9712-	●		●	●		●	●
11	02.485 RELAY; DIMMER EXC. VOLTAGE 24V<7AE> 08.852 12V 20A	8-97060-926-1	01	1	9312-9801	●	●	●	●	●
11	02.485 RELAY; DIMMER EXC. VOLTAGE 24V<7AE> 08.852 12V 20A	8-97060-926-1	01	1	9802-	●	●	●	●	●	●
11	02.485 RELAY; DIMMER VOLTAGE 24V<7AE> 02.510 24V 12.5A MITUBA	8-97062-815-0	01	1	9312-9510	●		●	●		●
11	02.485 RELAY; DIMMER VOLTAGE 24V<7AE> 02.510 24V 12.5A MITUBA	8-97062-815-1	01	1	9511-	●		●	●		●	●
22	02.679 RELAY; STOP LAMP EXC. VOLTAGE 24V<7AE> 08.852 12V 20A	8-97060-926-1	01	1	9312-9801	●	●	●	●	●
22	02.679 RELAY; STOP LAMP EXC. VOLTAGE 24V<7AE> 08.852 12V 20A	8-97060-926-1	01	1	9802-	●	●	●	●	●	●
22	02.679 RELAY; STOP LAMP VOLTAGE 24V<7AE> 02.510 24V 12.5A MITUBA	8-97062-815-0	01	1	9312-9510	●		●	●		●
22	02.679 RELAY; STOP LAMP VOLTAGE 24V<7AE> 02.510 24V 12.5A MITUBA	8-97062-815-1	01	1	9511-	●		●	●		●	●
29	02.815 RELAY; HORN EXC. VOLTAGE 24V<7AE> 08.852 12V 20A	8-97060-926-1	01	1	9312-9801	●	●	●	●	●
29	02.815 RELAY; HORN EXC. VOLTAGE 24V<7AE> 08.852 12V 20A	8-97060-926-1	01	1	9802-	●	●	●	●	●	●
29	02.815 RELAY; HORN VOLTAGE 24V<7AE> 02.510 24V 12.5A MITUBA	8-97062-815-0	01	1	9312-9510	●		●	●		●
29	02.815 RELAY; HORN VOLTAGE 24V<7AE> 02.510 24V 12.5A MITUBA	8-97062-815-1	01	1	9511-	●		●	●		●	●
360	02.483 BOLT; RELAY BOX 08.225 (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	9312-9510	●	●	●	●	●	●
360	02.483 BOLT; RELAY BOX 08.225 (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	9511-9603	●	●	●	●	●	●	●
360	02.483 BOLT; RELAY BOX 10.230 (A) M6X16 W/LK&PL WASHER	8-94139-963-0	04	1	9604-	●	●	●	●	●	●	●
360	02.483 BOLT; RELAY BOX 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) 01.531 (B) M8X25 FLANGE	0-28080-825-0	03	1	9312-9503	●	●	●	●	●	●
360	02.483 BOLT; RELAY BOX 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	9504-9510	●	●	●	●	●	●
360	02.483 BOLT; RELAY BOX 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	9511-	●	●	●	●	●	●	●
360	02.483 BOLT; RELAY BOX 4HF1 ENG(RLS) 01.062 (C) M8X16 FLANGE	0-28080-816-0	01	1	9312-			●	●
360	02.483 BOLT; RELAY BOX 4HF1 ENG(RLS) 01.531 (B) M8X25 FLANGE	0-28080-825-0	04	1	9312-9503			●	●
360	02.483 BOLT; RELAY BOX 4HF1 ENG(RLS) 02.559 (B) M8X25 FLANGE	0-28680-825-0	04	1	9504-9510			●	●

312 361 45 44 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G

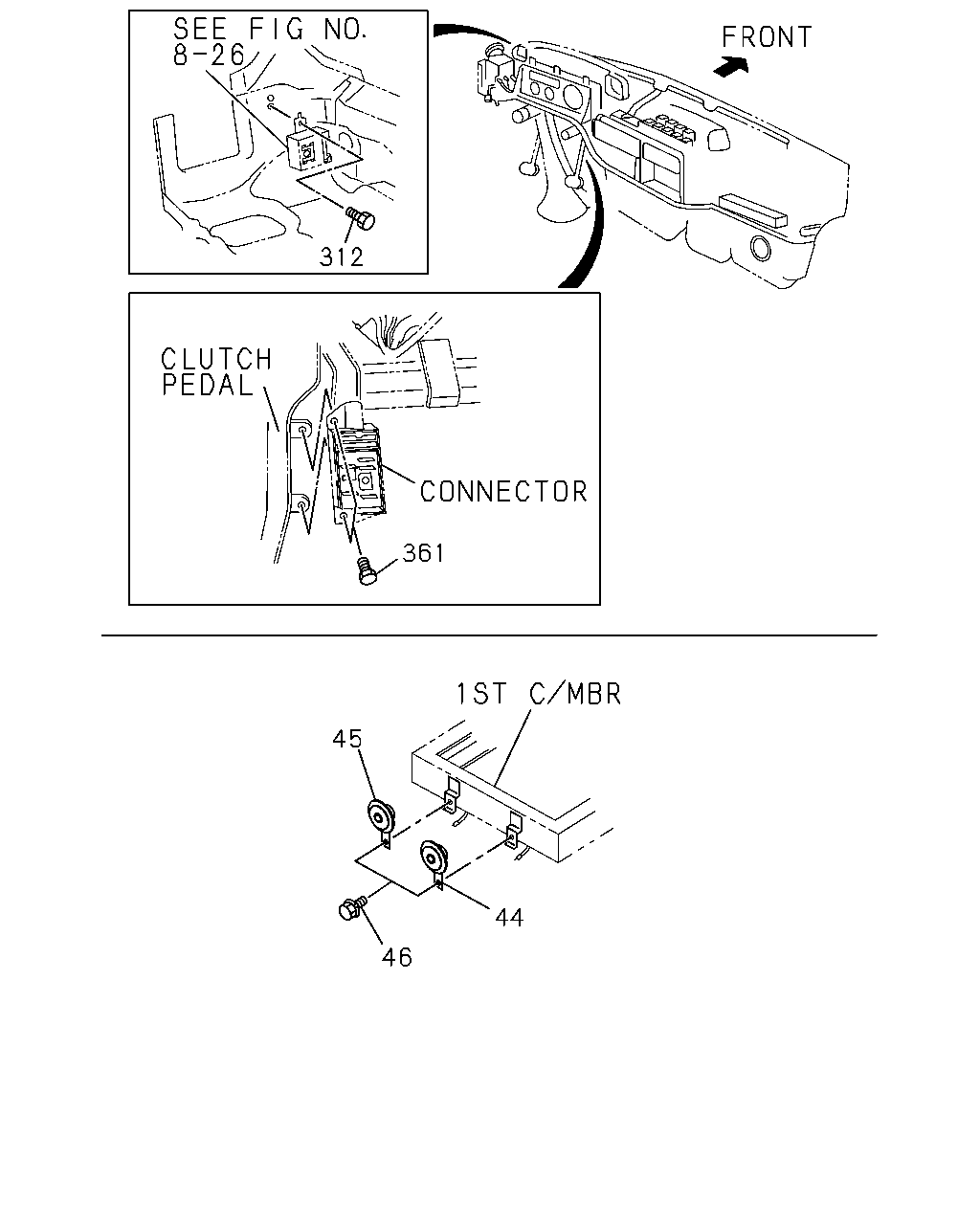

44	02.810 HORN; HIGH NOTE DUAL HEAVY DUTY HORN(6KK) EXC. VOLTAGE 24V<7AE>	8-97091-305-0	01	1	9312-9404	●	●	●	●	●
44	02.810 HORN; HIGH NOTE DUAL HEAVY DUTY HORN(6KK) EXC. VOLTAGE 24V<7AE>	8-97109-361-0	01	1	9405-9801	●	●	●	●	●
44	02.810 HORN; HIGH NOTE DUAL HEAVY DUTY HORN(6KK) EXC. VOLTAGE 24V<7AE>	8-97109-361-0	01	1	9802-	●	●	●	●	●	●
44	02.810 HORN; HIGH NOTE DUAL HEAVY DUTY HORN(6KK) VOLTAGE 24V<7AE>	8-97091-306-0	01	1	9312-9404	●		●	●		●
44	02.810 HORN; HIGH NOTE DUAL HEAVY DUTY HORN(6KK) VOLTAGE 24V<7AE>	8-97109-363-0	01	1	9405-9510	●		●	●		●
44	02.810 HORN; HIGH NOTE DUAL HEAVY DUTY HORN(6KK) VOLTAGE 24V<7AE>	8-97109-363-0	01	1	9511-	●		●	●		●	●
45	02.810 HORN; LOW NOTE SINGLE HEAVY DUTY HORN(6HG),DUAL HEAVY DUTY HORN(6KK) EXC. VOLTAGE 24V<7AE>	8-97091-303-0	01	1	9312-9404	●	●	●	●	●
45	02.810 HORN; LOW NOTE SINGLE HEAVY DUTY HORN(6HG),DUAL HEAVY DUTY HORN(6KK) EXC. VOLTAGE 24V<7AE>	8-97109-362-1	01	1	9405-9801	●	●	●	●	●
45	02.810 HORN; LOW NOTE SINGLE HEAVY DUTY HORN(6HG),DUAL HEAVY DUTY HORN(6KK) EXC. VOLTAGE 24V<7AE>	8-97109-362-1	01	1	9802-	●	●	●	●	●	●
45	02.810 HORN; LOW NOTE SINGLE HEAVY DUTY HORN(6HG),DUAL HEAVY DUTY HORN(6KK) VOLTAGE 24V<7AE>	8-97091-307-0	01	1	9312-9404	●		●	●		●
45	02.810 HORN; LOW NOTE SINGLE HEAVY DUTY HORN(6HG),DUAL HEAVY DUTY HORN(6KK) VOLTAGE 24V<7AE>	8-97109-364-0	01	1	9405-9510	●		●	●		●
45	02.810 HORN; LOW NOTE SINGLE HEAVY DUTY HORN(6HG),DUAL HEAVY DUTY HORN(6KK) VOLTAGE 24V<7AE>	8-97109-364-1	01	1	9511-	●		●	●		●	●
46	02.812 BOLT; HORN TO BODY SINGLE HEAVY DUTY HORN(6HG),DUAL HEAVY DUTY HORN(6KK) 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9312-	●	●	●	●	●	●	●
312	09.765 BOLT; BUZZER SAVE MECH TROUBLE DOOR LOCK<6LK> 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	01	1	9312-9703			●	●
312	09.765 BOLT; BUZZER SAVE MECH TROUBLE DOOR LOCK<6LK> 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	01	1	9704-			●	●		●
361	02.559 BOLT; CONNECTOR 08.225 M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9312-9510	●	●	●	●	●	●
361	02.559 BOLT; CONNECTOR 08.225 M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9511-	●	●	●	●	●	●	●

333 100 360 100 360 100 360 100 360 100 479 360

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G

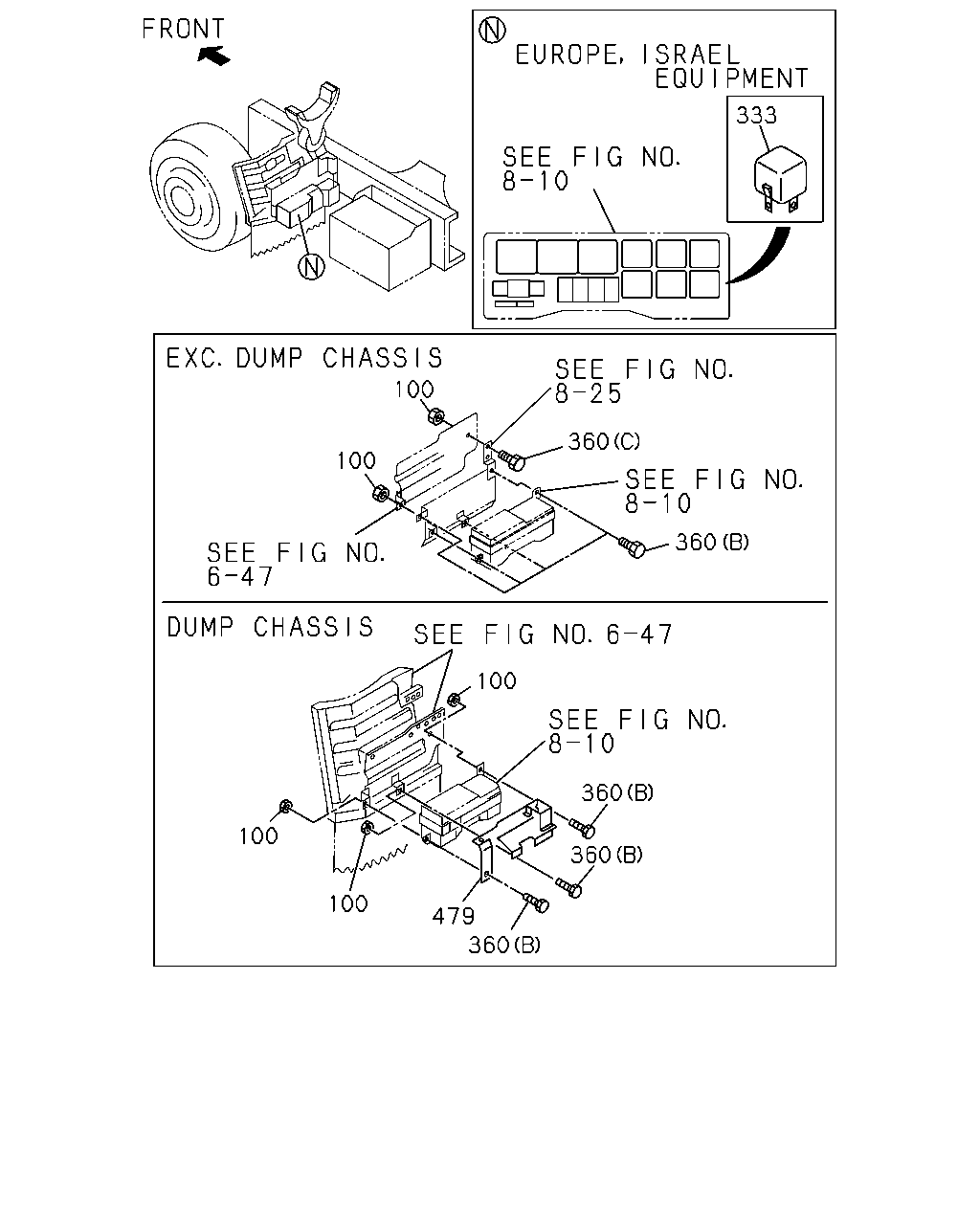

100	09.277 NUT; RELAY BOX COVER 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) 07.633 M8 FLANGE	0-91150-108-0	03	1	9312-9510	●	●	●	●	●	●
100	09.277 NUT; RELAY BOX COVER 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) 07.633 M8 FLANGE	0-91150-108-0	03	1	9511-	●	●	●	●	●	●	●
100	09.277 NUT; RELAY BOX COVER 4HF1 ENG(RLS) 07.633 M8 FLANGE	0-91150-108-0	02	1	9312-			●	●
333	09.277 RELAY; MARKER LAMP EUROPEAN BASIC EQUIPMENT(EK4) 08.852 12V 20A	8-97060-926-0	01	1	9312-9506				●
333	09.277 RELAY; MARKER LAMP EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) 08.852 12V 20A	8-97060-926-1	01	1	9507-9711				●
333	09.277 RELAY; MARKER LAMP EUROPEAN BASIC EQUIPMENT(EK4) 08.852 12V 20A	8-97060-926-1	01	1	9712-				●
360	02.483 BOLT; RELAY BOX 08.225 (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	9312-9510	●	●	●	●	●	●
360	02.483 BOLT; RELAY BOX 08.225 (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	9511-9603	●	●	●	●	●	●	●
360	02.483 BOLT; RELAY BOX 10.230 (A) M6X16 W/LK&PL WASHER	8-94139-963-0	04	1	9604-	●	●	●	●	●	●	●
360	02.483 BOLT; RELAY BOX 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) 01.531 (B) M8X25 FLANGE	0-28080-825-0	03	1	9312-9503	●	●	●	●	●	●
360	02.483 BOLT; RELAY BOX 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	9504-9510	●	●	●	●	●	●
360	02.483 BOLT; RELAY BOX 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	9511-	●	●	●	●	●	●	●
360	02.483 BOLT; RELAY BOX 4HF1 ENG(RLS) 01.062 (C) M8X16 FLANGE	0-28080-816-0	01	1	9312-			●	●
360	02.483 BOLT; RELAY BOX 4HF1 ENG(RLS) 01.531 (B) M8X25 FLANGE	0-28080-825-0	04	1	9312-9503			●	●
360	02.483 BOLT; RELAY BOX 4HF1 ENG(RLS) 02.559 (B) M8X25 FLANGE	0-28680-825-0	04	1	9504-9510			●	●
479	09.277 PROTECTOR; RELAY BOX DUMP CHASSIS(V4D)	8-97072-505-2	01	1	9312-9505			●
479	09.277 PROTECTOR; RELAY BOX DUMP CHASSIS(V4D)	8-97114-263-0	01	1	9506-			●
