Isuzu WW
▶
TRUCKS
▶
NKR
▶
50695 - NKR-LHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-26 - ELECTRICAL CONTROL AND OTHER PARTS
▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS
(#44352) — 48 parça
Tümü
A - NKB6SC
B - NKB6WC
C - NKC6SC
D - NKC6SF
E - NKC6WF
F - NKN6SC
G - NKC6SD
◀

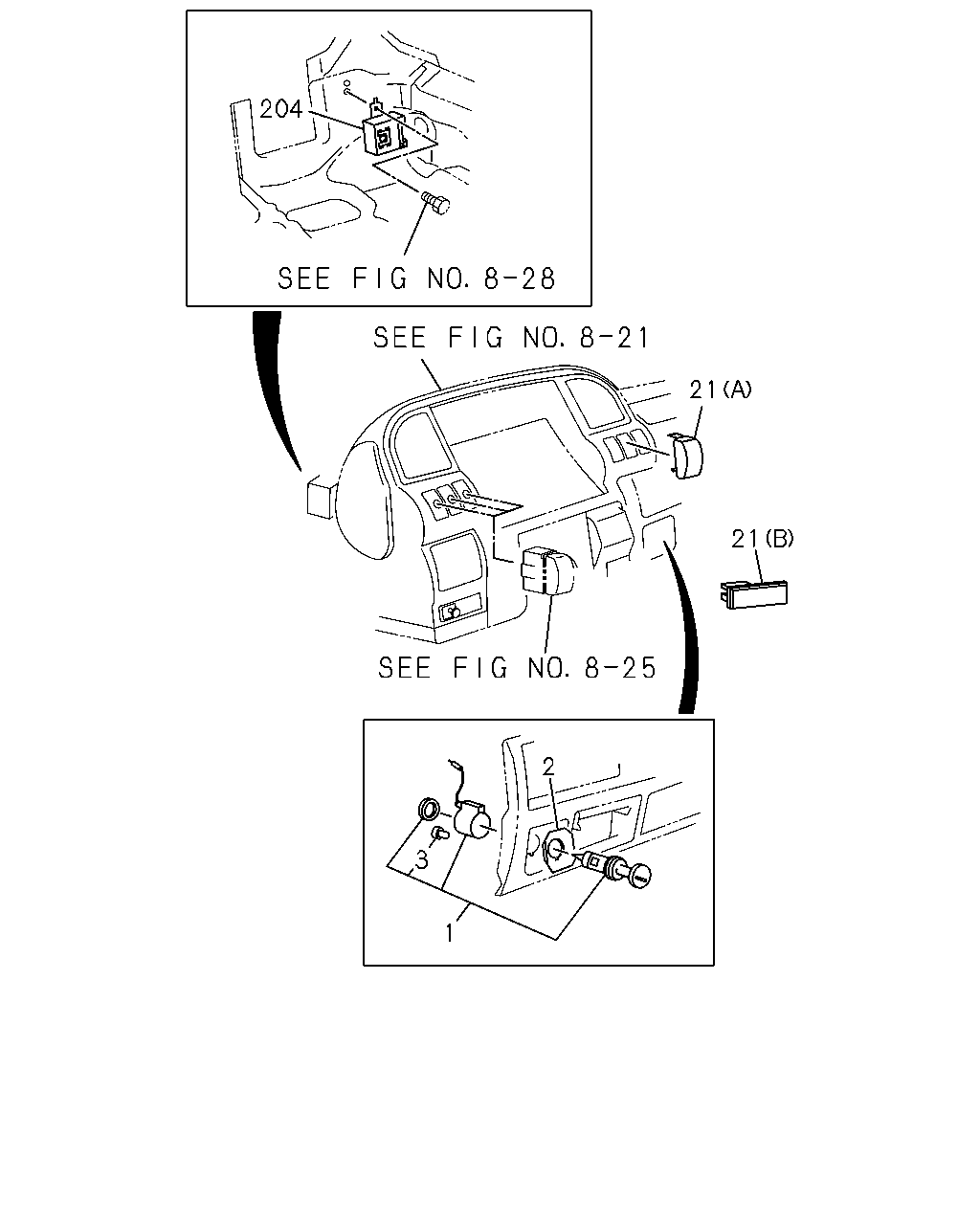

[826A] (NO.3) (16 parça)

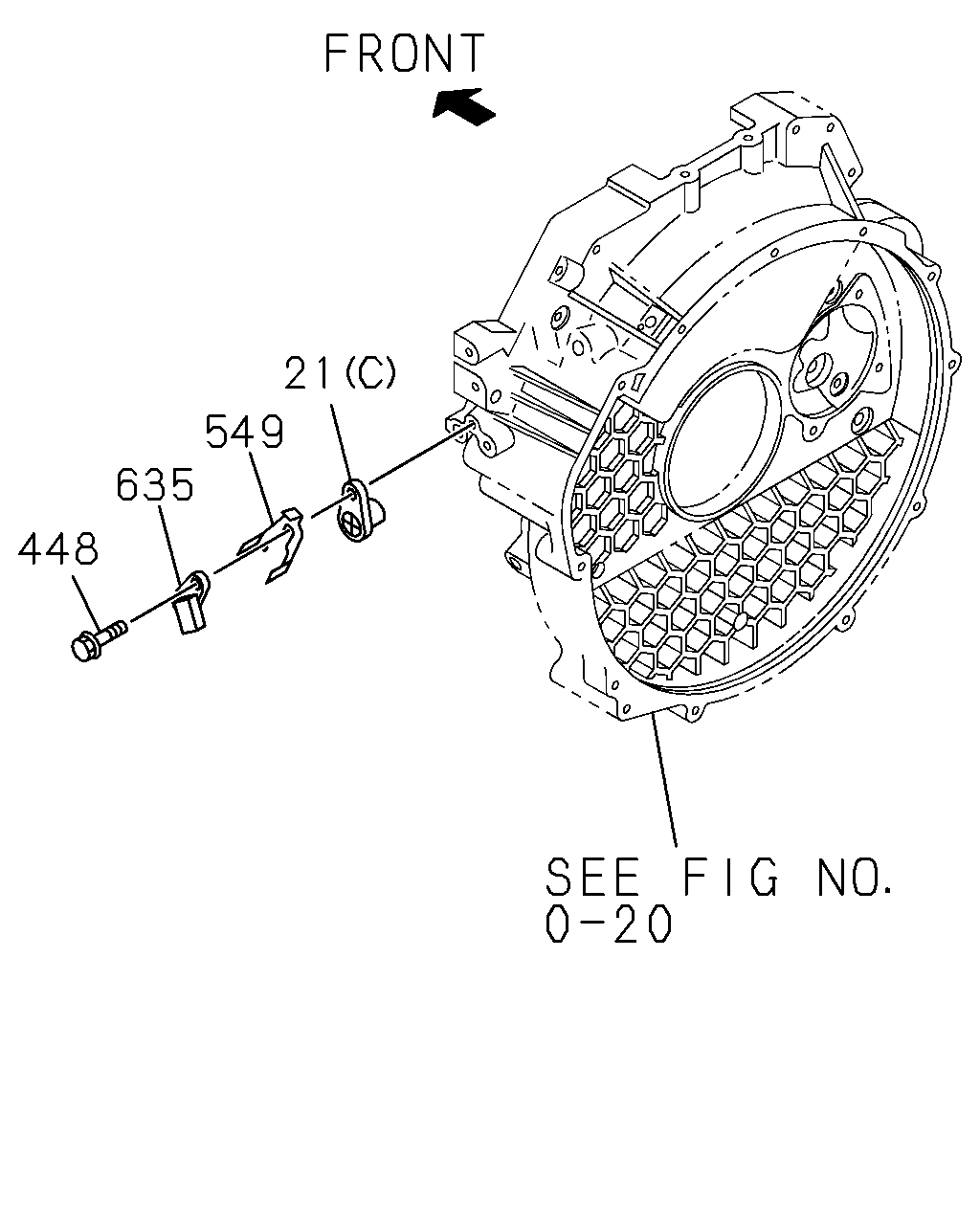

[826A] (NO.1) (24 parça)
[826A] (NO.2) (8 parça)
▶
21
549
635
448
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
G
21
09.744 COVER; HOLE
09.778 (A)
8-97047-694-1
02
1
9312-9510
●
●
●
●
●
●
21
09.744 COVER; HOLE
09.778 (A)
8-97047-694-1
02
1
9511-9711
●
●
●
●
●
●
●
21
09.744 COVER; HOLE
(A)
8-97136-694-0
02
1
9712-
●
●
●
●
●
●
●
21
09.744 COVER; HOLE
EXC. PTO TRANSMISSION SIDE(V66), ADJUST HEADLAMP<6RC> 02.485 (B)
8-94310-890-0
01
1
9410-9506
●
●
●
●
●
●
21
09.744 COVER; HOLE
EXC. PTO TRANSMISSION SIDE(V66) 02.485 (B)
8-94310-890-0
01
1
9507-9510
●
●
●
●
●
●
21
09.744 COVER; HOLE
EXC. PTO TRANSMISSION SIDE(V66) 02.485 (B)
8-94310-890-0
01
1
9511-
●
●
●
●
●
●
●
21
09.744 COVER; HOLE
EXC. RR FOG LAMP<T79> 09.778 (A)
8-97047-694-1
01
1
9312-9510
●
●
●
●
●
●
21
09.744 COVER; HOLE
EXC. RR FOG LAMP<T79> 09.778 (A)
8-97047-694-1
01
1
9511-9711
●
●
●
●
●
●
●
21
09.744 COVER; HOLE
EXC. RR FOG LAMP<T79> (A)
8-97136-694-0
01
1
9712-
●
●
●
●
●
●
●
21
09.744 COVER; HOLE
4HF1 ENG(RLS) EXC. TACHOMETER<U16> 09.748 (C)
8-97101-974-0
01
1
9511-
●
●
448
02.500 BOLT; SENSOR
4HF1 ENG(RLS) 00.738 M6X16 FLANGE
0-28080-616-0
01
1
9511-
●
●
549
02.510 SHEET
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 09.743
8-97130-170-0
01
1
9511-9711
●
●
549
02.510 SHEET
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 09.743
8-97161-633-2
01
1
9712-
●
●
635
09.750 SENSOR; TACHOMETER
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11>
8-97122-324-0
01
1
9511-9711
●
●
635
09.750 SENSOR; TACHOMETER
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> YAZAKI
8-97161-655-0
01
1
9712-9809
●
●
635
09.750 SENSOR; TACHOMETER
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> CALSONIC KANSEI
8-97163-104-0
01
1
9712-
●
●
204
21
21
2
3
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
G
1
09.709 LIGHTER; CIGAR
EXC. VOLTAGE 24V<7AE>
8-97073-936-1
01
1
9312-9801
●
●
●
●
●
1
09.709 LIGHTER; CIGAR
EXC. VOLTAGE 24V<7AE>
8-97073-936-1
01
1
9802-
●
●
●
●
●
●
1
09.709 LIGHTER; CIGAR
VOLTAGE 24V<7AE>
8-97064-970-0
01
1
9312-9510
●
●
●
●
1
09.709 LIGHTER; CIGAR
VOLTAGE 24V<7AE>
8-97064-970-1
01
1
9511-
●
●
●
●
●
2
09.709 BEZEL; CIGAR LIGHTER
8-97853-159-1
01
1
9312-9510
●
●
●
●
●
●
2
09.709 BEZEL; CIGAR LIGHTER
8-97853-159-1
01
1
9511-
●
●
●
●
●
●
●
3
08.991 BULB; CIGAR LIGHTER
EXC. VOLTAGE 24V<7AE>
8-97092-963-0
01
1
9312-9612
●
●
●
●
●
3
08.991 BULB; CIGAR LIGHTER
EXC. VOLTAGE 24V<7AE> 14V 1.4W
8-97173-160-0
01
1
9701-9801
●
●
●
●
●
3
08.991 BULB; CIGAR LIGHTER
EXC. VOLTAGE 24V<7AE> 14V 1.4W
8-97173-160-0
01
1
9802-
●
●
●
●
●
●
3
08.991 BULB; CIGAR LIGHTER
VOLTAGE 24V<7AE>
8-97092-962-0
01
1
9312-9510
●
●
●
●
3
08.991 BULB; CIGAR LIGHTER
VOLTAGE 24V<7AE>
8-97092-962-0
01
1
9511-9612
●
●
●
●
●
3
08.991 BULB; CIGAR LIGHTER
VOLTAGE 24V<7AE> 28V 1.8W
8-97173-159-0
01
1
9701-
●
●
●
●
●
21
09.744 COVER; HOLE
09.778 (A)
8-97047-694-1
02
1
9312-9510
●
●
●
●
●
●
21
09.744 COVER; HOLE
09.778 (A)
8-97047-694-1
02
1
9511-9711
●
●
●
●
●
●
●
21
09.744 COVER; HOLE
(A)
8-97136-694-0
02
1
9712-
●
●
●
●
●
●
●
21
09.744 COVER; HOLE
EXC. PTO TRANSMISSION SIDE(V66), ADJUST HEADLAMP<6RC> 02.485 (B)
8-94310-890-0
01
1
9410-9506
●
●
●
●
●
●
21
09.744 COVER; HOLE
EXC. PTO TRANSMISSION SIDE(V66) 02.485 (B)
8-94310-890-0
01
1
9507-9510
●
●
●
●
●
●
21
09.744 COVER; HOLE
EXC. PTO TRANSMISSION SIDE(V66) 02.485 (B)
8-94310-890-0
01
1
9511-
●
●
●
●
●
●
●
21
09.744 COVER; HOLE
EXC. RR FOG LAMP<T79> 09.778 (A)
8-97047-694-1
01
1
9312-9510
●
●
●
●
●
●
21
09.744 COVER; HOLE
EXC. RR FOG LAMP<T79> 09.778 (A)
8-97047-694-1
01
1
9511-9711
●
●
●
●
●
●
●
21
09.744 COVER; HOLE
EXC. RR FOG LAMP<T79> (A)
8-97136-694-0
01
1
9712-
●
●
●
●
●
●
●
21
09.744 COVER; HOLE
4HF1 ENG(RLS) EXC. TACHOMETER<U16> 09.748 (C)
8-97101-974-0
01
1
9511-
●
●
204
02.195 BUZZER; KEY REMIND
SAVE MECH TROUBLE DOOR LOCK<6LK> 09.765
8-97036-649-0
01
1
9312-9703
●
●
204
02.195 BUZZER; KEY REMIND
SAVE MECH TROUBLE DOOR LOCK<6LK> 09.765
8-97036-649-0
01
1
9704-
●
●
●
53
234
469
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
G
53
02.510 BREAKER; ELEC CIRCUIT
POWER WINDOW FRT DOOR<A32> 20A
8-94447-470-0
01
1
9312-9510
●
●
●
●
●
●
53
02.510 BREAKER; ELEC CIRCUIT
POWER WINDOW FRT DOOR<A32> 20A
8-94447-470-0
01
1
9511-9711
●
●
●
●
●
●
●
234
03.682 SENSOR; VEHICLE SPD
4 PULSE PPS RESIN DARK GRAY
8-97065-834-0
01
1
9312-9502
●
●
●
●
●
●
234
03.682 SENSOR; VEHICLE SPD
4 PULSE PPS RESIN BLACK
8-97129-704-0
01
1
9503-9510
●
●
●
●
●
●
234
03.682 SENSOR; VEHICLE SPD
4 PULSE PPS RESIN BLACK
8-97129-704-0
01
1
9511-
●
●
●
●
●
●
●
469
03.682 PROTECTOR; SPEED SENSOR
8-97094-699-2
01
1
9312-9510
●
●
●
●
●
●
469
03.682 PROTECTOR; SPEED SENSOR
4BE1 ENG(RLH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11>
8-97094-699-2
01
1
9511-9701
●
●
●
●
●
469
03.682 PROTECTOR; SPEED SENSOR
4BE1 ENG(RLH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11>
8-97168-308-0
01
1
9702-
●
●
●
●
●
