◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50695 - NKR-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#44349) — 1599 parça
çizim 16170
2 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 09.775 GROMMET; CLIP HOLE,HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 09.656 (A) OD=48 T=9.1 		8-94279-053-0 02 1 9312-9505 ● ● ● ● ● ●
2 09.775 GROMMET; CLIP HOLE,HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,ANTENNA<U73>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM /FM W/CASSETTE 2 SPEAKERS(6VL) 09.656 (A) OD=48 T=9.1 		8-94279-053-0 02 1 9506-9510 ● ● ● ● ● ●
2 09.775 GROMMET; CLIP HOLE,HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B) 		8-94279-736-0 02 1 9312-9505 ● ● ● ● ● ●
2 09.775 GROMMET; CLIP HOLE,HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,ANTENNA<U73>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM /FM W/CASSETTE 2 SPEAKERS(6VL) (B) 		8-94279-736-0 02 1 9506-9510 ● ● ● ● ● ●
çizim 16171
219 55 219
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
55 02.559 WASHER; PL,CLIP
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 02.587 ID=6.4 OD=18 		9-09160-706-0 01 1 9312- ● ● ● ● ● ● ●
219 02.559 NUT
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 07.633 (C) M8 FLANGE 		0-91150-108-0 02 1 9312-9512 ● ● ● ● ● ● ●
219 02.559 NUT
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 9601- ● ● ● ● ● ● ●
219 02.559 NUT
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 9601- ● ● ● ● ●
219 02.559 NUT
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 9601- ●
219 02.559 NUT
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 04.594 (B) M6 FLANGE 		0-91150-106-0 02 1 9312- ● ● ● ● ● ● ●
219 02.559 NUT
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (F) 		8-97108-658-0 01 1 9312- ● ● ● ● ● ● ●
219 02.559 NUT
4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 09.744 (A) M5 FLANGE 		5-09440-003-0 01 1 9312-9510 ● ● ● ● ●
219 02.559 NUT
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> 09.744 (A) M5 FLANGE 		5-09440-003-0 01 1 9312-9510 ● ● ● ●
219 02.559 NUT
4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 09.744 (A) M5 FLANGE 		5-09440-003-0 01 1 9511-9801 ● ● ● ● ●
219 02.559 NUT
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> 09.744 (A) M5 FLANGE 		5-09440-003-0 01 1 9511-9801 ● ● ● ● ●
219 02.559 NUT
4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 09.744 (A) M5 FLANGE 		5-09440-003-0 01 1 9802- ● ● ● ● ● ●
219 02.559 NUT
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> 09.744 (A) M5 FLANGE 		5-09440-003-0 01 1 9802- ● ● ● ● ●
219 02.559 NUT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 04.594 (B) M6 FLANGE 		0-91150-106-0 02 1 9312-9406 ● ● ● ● ●
219 02.559 NUT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9407-9801 ● ● ● ● ●
219 02.559 NUT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9802- ● ● ● ● ● ●
219 02.559 NUT
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) 07.829 (E) M6 FLANGE 		5-09440-004-0 01 1 9312-9510 ● ● ● ●
219 02.559 NUT
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) 07.829 (E) M6 FLANGE 		5-09440-004-0 01 1 9511- ● ● ● ● ●
çizim 16389
483 48 48 48 48 48 48 48 48 48
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (I) L=168 		8-97802-347-0 02 1 9312-9406 ●
48 02.559 CLIP; FRAME HARNESS
FRAME-KICK UP<7EW> (I) L=168 		8-97802-347-0 02 1 9312-9406 ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (W) L=170.3 		1-09987-182-0 02 1 9407- ●
48 02.559 CLIP; FRAME HARNESS
FRAME-KICK UP<7EW> (W) L=170.3 		1-09987-182-0 02 1 9407- ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) (U) L=21 ID=19 H=21 L=23 		5-09700-299-0 01 1 9312-9510 ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (U) L=21 ID=19 H=21 L=23 		5-09700-299-0 01 1 9312-9510 ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (U) L=21 ID=19 H=21 L=23 		5-09700-299-0 01 1 9511- ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (R) ID=5-12 L=14.5 		1-09987-221-0 01 1 9312- ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (AA) ID=28 L=32 		1-09701-064-1 01 1 9312- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (H) ID=31 L=33.5 		1-09987-165-0 02 1 9312-9410 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (G) ID=31 L=30 		1-09700-969-0 02 1 9411-9711 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (Q) ID=35 L=35 		1-09700-895-0 02 1 9712- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(O) L=155 		8-94125-241-1 01 1 9312-9405 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.785 (D) ID=9.6 		8-94147-870-0 01 1 9312-9510 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 04.785 (D) ID=9.6 		8-94147-870-0 01 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(N) ID=9 		8-97063-874-0 01 1 9312-9510 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(N) ID=9 		8-97063-874-0 01 1 9511- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
AIR CONDITIONER MANUAL CONT(C60) 03.162 (K) L=140 		5-09707-031-0 02 1 9312-9510 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
AIR CONDITIONER MANUAL CONT(C60) 03.162 (K) L=140 		5-09707-031-1 02 1 9511- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (L) ID=25 L=60 		1-09701-041-1 01 1 9312-9510 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (L) ID=25 L=60 		1-09701-041-1 01 1 9511-9511 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (L) ID=25 L=60 		1-09701-041-1 01 1 9512- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) (L) ID=25 L=60 		1-09701-041-1 01 1 9512- ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) (S) ID=19 L=60 		9-09525-893-0 01 1 9312-9801 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) (S) ID=19 L=60 		9-09525-893-0 01 1 9802- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9312-9606 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9607-9711 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9607-9711 ●
48 02.559 CLIP; FRAME HARNESS
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 01.240 (J) T=5.5 		5-09709-047-0 01 1 9607-9711 ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9712-9801 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 01.240 (J) T=5.5 		5-09709-047-0 01 1 9712-9801 ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9802- ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 01.240 (J) T=5.5 		5-09709-047-0 01 1 9802- ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9802- ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=33 L=63 		1-09700-807-0 05 1 9312-9409 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F),FRT INDEPENDENT SUSPENSION(6PP) (A) ID=33 L=63 		1-09700-807-0 05 1 9410-9801 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F),FRT INDEPENDENT SUSPENSION(6PP) (A) ID=33 L=63 		1-09700-807-0 05 1 9802- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 01.240 (B) ID=14 L=47 		5-09700-319-0 03 1 9312-9801 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 01.240 (B) ID=14 L=47 		5-09700-319-0 03 1 9802- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (M) ID=20 		5-09700-321-0 02 1 9312-9409 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) (M) ID=20 		5-09700-321-0 02 1 9312-9409 ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) (M) ID=20 		5-09700-321-0 02 1 9410-9510 ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) (M) ID=20 		5-09700-321-0 02 1 9410-9510 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) (M) ID=20 		5-09700-321-0 02 1 9511-9801 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) (M) ID=20 		5-09700-321-0 02 1 9802- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (C) ID=30 W/STUD 		8-97078-642-2 01 1 9312-9801 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (C) ID=30 W/STUD 		8-97078-642-2 01 1 9802- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 03.162 (K) L=140 		5-09707-031-0 03 1 9312-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (E) ID=20 		8-94156-624-1 02 1 9312-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (E) ID=20 		8-94156-624-1 02 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (F) ID=27 		8-94171-628-0 01 1 9312-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (F) ID=27 		8-94171-628-0 01 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (P) ID=18 		8-97026-193-0 01 1 9312-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (P) ID=18 		8-97026-193-0 01 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (A) ID=33 L=63 		1-09700-807-0 07 1 9312-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (A) ID=33 L=63 		1-09700-807-0 07 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (M) ID=20 		5-09700-321-0 01 1 9312-9409 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (M) ID=20 		5-09700-321-0 01 1 9410-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) (M) ID=20 		5-09700-321-0 01 1 9410-9510 ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (M) ID=20 		5-09700-321-0 01 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) (M) ID=20 		5-09700-321-0 01 1 9511- ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 03.162 (K) L=140 		5-09707-031-0 01 1 9312-9405 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> 03.162 (K) L=140 		5-09707-031-0 01 1 9406-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> 03.162 (K) L=140 		5-09707-031-1 01 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRAME-KICK UP<7EW> (H) ID=31 L=33.5 		1-09987-165-0 01 1 9312-9410 ●
48 02.559 CLIP; FRAME HARNESS
FRAME-KICK UP<7EW> (G) ID=31 L=30 		1-09700-969-0 01 1 9411-9711 ●
48 02.559 CLIP; FRAME HARNESS
FRAME-KICK UP<7EW> (Q) ID=35 L=35 		1-09700-895-0 01 1 9712- ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (I) L=168 		8-97802-347-0 01 1 9312-9405 ●
48 02.559 CLIP; FRAME HARNESS
(I) L=168 		8-97802-347-0 01 1 9406-9406 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(W) L=170.3 		1-09987-182-0 01 1 9407-9510 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(W) L=170.3 		1-09987-182-0 01 1 9511- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (W) L=170.3 		1-09987-182-0 01 1 9511- ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (I) L=168 		8-97802-347-0 05 1 9312-9406 ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (W) L=170.3 		1-09987-182-0 05 1 9407- ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (V) ID=19 H=70 L=25 		1-09700-773-0 01 1 9312- ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) (A) ID=33 L=63 		1-09700-807-0 06 1 9410- ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) (T) ID=21 L=28 		1-09700-673-1 AR 1 9312-9410 ● ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) (X) ID=20 		8-94169-650-0 AR 1 9411- ● ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) 01.240 (B) ID=14 L=47 		5-09700-319-0 04 1 9312- ● ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (Y) L=33 ID=19 H=33 L=45 		1-09701-045-0 01 1 9312-9512 ● ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (Z) T=9.2 		5-09709-013-0 01 1 9312- ●
483 02.559 CLIP; ENG HARNESS
4JB1 ENG(RLF) (C) ID=11 L=20 		9-09525-035-0 01 1 9712-9801 ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4JG2 ENG(RJC) FAN FLUID DRIVE<KA3> (C) ID=11 L=20 		9-09525-035-0 01 1 9712-9801 ● ● ●
483 02.559 CLIP; ENG HARNESS
(C) ID=11 L=20 		9-09525-035-0 01 1 9802- ● ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) 04.342 (A) L=197 		1-83574-032-0 01 1 9312-9711 ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4JB1 ENG(RLF) 04.342 (A) L=197 		1-83574-032-0 01 1 9712-9801 ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4JG2 ENG(RJC) FAN FLUID DRIVE<KA3> 04.342 (A) L=197 		1-83574-032-0 01 1 9712-9801 ● ● ●
483 02.559 CLIP; ENG HARNESS
04.342 (A) L=197 		1-83574-032-0 01 1 9802- ● ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4HF1 ENG(RLS) 03.162 (B) L=140 		5-09707-031-0 01 1 9312-9711 ● ●
483 02.559 CLIP; ENG HARNESS
4HF1 ENG(RLS) 03.162 (B) L=140 		5-09707-031-1 02 1 9712- ● ●

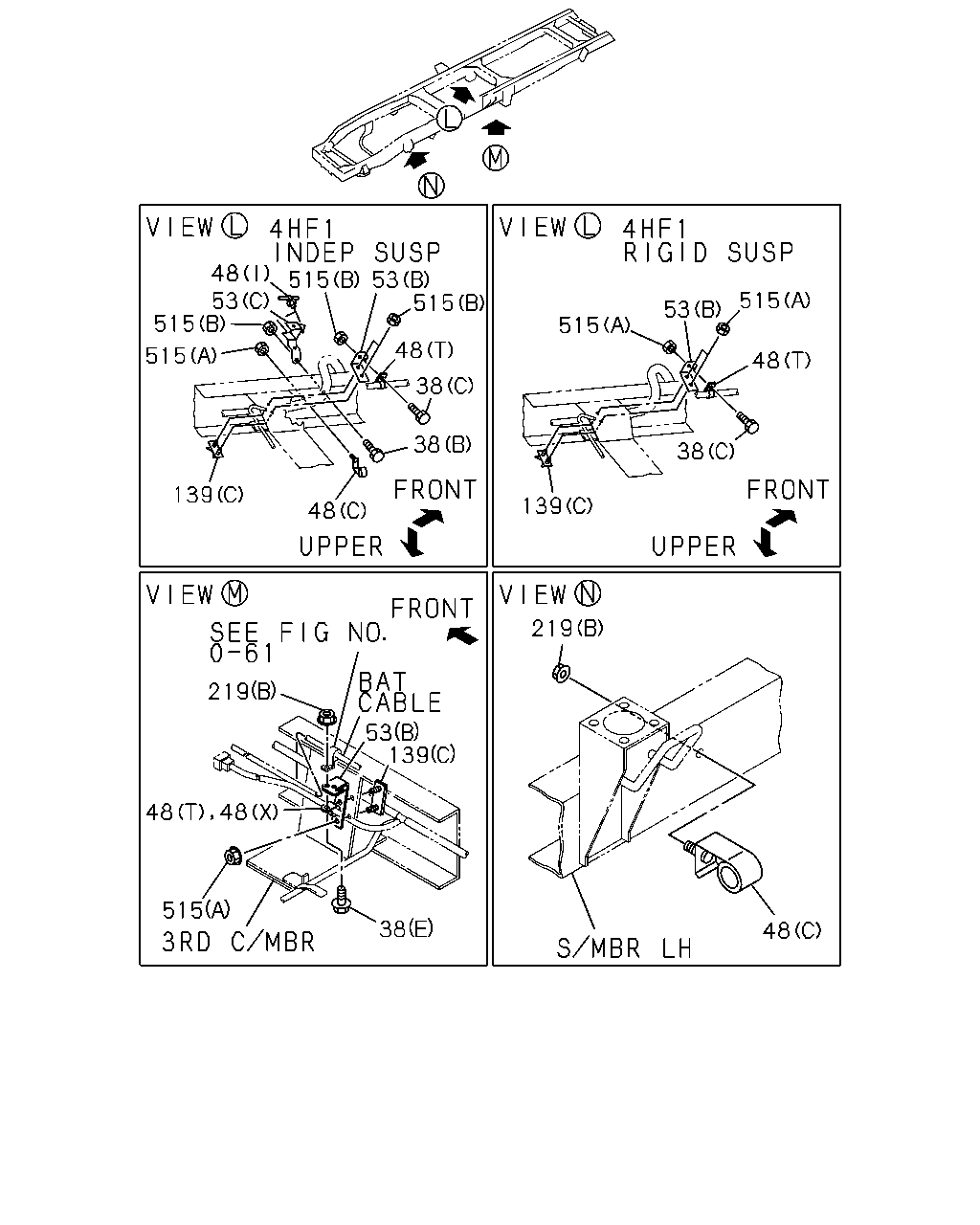

çizim 66760
48 53 515 515 53 515 515 53 515 48 515 48 38 38 38 139 139 48 219 219 53 139 48 48 515 38 48
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
38 02.559 BOLT; CLIP,HARNESS
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 04.595 (D) M8X20 FLANGE 		0-28480-820-0 01 1 9312-9510 ●
38 02.559 BOLT; CLIP,HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 04.595 (D) M8X20 FLANGE 		0-28480-820-0 01 1 9312-9510 ●
38 02.559 BOLT; CLIP,HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 04.595 (D) M8X20 FLANGE 		0-28480-820-0 01 1 9511-9601 ●
38 02.559 BOLT; CLIP,HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 04.595 (D) M8X20 FLANGE 		0-28480-820-0 01 1 9511-9601 ●
38 02.559 BOLT; CLIP,HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 02.664 (D) M8X20 FLANGE 		0-28680-820-0 01 1 9602- ●
38 02.559 BOLT; CLIP,HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 02.664 (D) M8X20 FLANGE 		0-28680-820-0 01 1 9602- ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.531 (B) M8X25 FLANGE 		0-28080-825-0 01 1 9312-9312 ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 01.531 (B) M8X25 FLANGE 		0-28080-825-0 01 1 9401-9503 ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (B) M8X25 FLANGE 		0-28680-825-0 01 1 9504-9510 ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (B) M8X25 FLANGE 		0-28680-825-0 01 1 9511-9711 ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (B) M8X25 FLANGE 		0-28680-825-0 01 1 9712- ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 04.686 (E) M6X25 FLANGE 		0-28080-625-0 02 1 9312-9406 ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 04.686 (E) M6X25 FLANGE 		0-28080-625-0 01 1 9407-9502 ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 04.686 (E) M6X25 FLANGE 		0-28080-625-0 01 1 9503-9510 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 ENG(RLF),4HF1 ENG(RLS) 04.686 (E) M6X25 FLANGE 		0-28080-625-0 01 1 9503-9510 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 04.686 (E) M6X25 FLANGE 		0-28080-625-0 02 1 9511-9702 ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 02.334 (E) M6X25 FLANGE 		0-28680-625-0 01 1 9703- ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 03.890 (E) M6X25 		0-28280-625-0 01 1 9312-9312 ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 04.686 (E) M6X25 FLANGE 		0-28080-625-0 01 1 9401-9406 ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 04.686 (E) M6X25 FLANGE 		0-28080-625-0 02 1 9407-9510 ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 04.686 (E) M6X25 FLANGE 		0-28080-625-0 01 1 9511-9702 ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 02.334 (E) M6X25 FLANGE 		0-28680-625-0 02 1 9703- ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 ENG(RLF),4HF1 ENG(RLS) 03.670 (C) M6X20 FLANGE 		0-28080-620-0 01 1 9312-9502 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 ENG(RLF),4HF1 ENG(RLS) 03.670 (C) M6X20 FLANGE 		0-28080-620-0 01 1 9511-9702 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 9312-9510 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 9312-9510 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 9511-9711 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 9511-9711 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 9712-9801 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 9712-9801 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 9802- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 9802- ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> 07.010 (D) M8X20 FLANGE 		0-28080-820-0 04 1 9312-9411 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> 02.664 (D) M8X20 FLANGE 		0-28680-820-0 04 1 9412-9510 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> 07.010 (D) M8X20 FLANGE 		0-28080-820-0 04 1 9511-9702 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> 02.664 (D) M8X20 FLANGE 		0-28680-820-0 04 1 9703- ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
FRAME-KICK UP<7EW> 00.785 (C) M6X20 FLANGE 		0-28480-620-0 01 1 9312-9605 ●
38 02.559 BOLT; CLIP,HARNESS
FRAME-KICK UP<7EW> 04.930 (C) M6X20 FLANGE 		0-28680-620-0 01 1 9606-9702 ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 ENG(RLF),4HF1 ENG(RLS) 04.930 (C) M6X20 FLANGE 		0-28680-620-0 01 1 9703-9801 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
FRAME-KICK UP<7EW> 04.930 (C) M6X20 FLANGE 		0-28680-620-0 01 1 9703-9801 ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 ENG(RLF),4HF1 ENG(RLS) 04.930 (C) M6X20 FLANGE 		0-28680-620-0 01 1 9802- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
FRAME-KICK UP<7EW> 04.930 (C) M6X20 FLANGE 		0-28680-620-0 01 1 9802- ●
38 02.559 BOLT; CLIP,HARNESS
FRAME-KICK UP<7EW> 06.008 (F) M8X28 L=50 W/NUT M8X12,M8X30 L=50 		8-97032-290-0 01 1 9401- ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (I) L=168 		8-97802-347-0 02 1 9312-9406 ●
48 02.559 CLIP; FRAME HARNESS
FRAME-KICK UP<7EW> (I) L=168 		8-97802-347-0 02 1 9312-9406 ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (W) L=170.3 		1-09987-182-0 02 1 9407- ●
48 02.559 CLIP; FRAME HARNESS
FRAME-KICK UP<7EW> (W) L=170.3 		1-09987-182-0 02 1 9407- ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) (U) L=21 ID=19 H=21 L=23 		5-09700-299-0 01 1 9312-9510 ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (U) L=21 ID=19 H=21 L=23 		5-09700-299-0 01 1 9312-9510 ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (U) L=21 ID=19 H=21 L=23 		5-09700-299-0 01 1 9511- ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (R) ID=5-12 L=14.5 		1-09987-221-0 01 1 9312- ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (AA) ID=28 L=32 		1-09701-064-1 01 1 9312- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (H) ID=31 L=33.5 		1-09987-165-0 02 1 9312-9410 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (G) ID=31 L=30 		1-09700-969-0 02 1 9411-9711 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (Q) ID=35 L=35 		1-09700-895-0 02 1 9712- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(O) L=155 		8-94125-241-1 01 1 9312-9405 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.785 (D) ID=9.6 		8-94147-870-0 01 1 9312-9510 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 04.785 (D) ID=9.6 		8-94147-870-0 01 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(N) ID=9 		8-97063-874-0 01 1 9312-9510 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(N) ID=9 		8-97063-874-0 01 1 9511- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
AIR CONDITIONER MANUAL CONT(C60) 03.162 (K) L=140 		5-09707-031-0 02 1 9312-9510 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
AIR CONDITIONER MANUAL CONT(C60) 03.162 (K) L=140 		5-09707-031-1 02 1 9511- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (L) ID=25 L=60 		1-09701-041-1 01 1 9312-9510 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (L) ID=25 L=60 		1-09701-041-1 01 1 9511-9511 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (L) ID=25 L=60 		1-09701-041-1 01 1 9512- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) (L) ID=25 L=60 		1-09701-041-1 01 1 9512- ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) (S) ID=19 L=60 		9-09525-893-0 01 1 9312-9801 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) (S) ID=19 L=60 		9-09525-893-0 01 1 9802- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9312-9606 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9607-9711 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9607-9711 ●
48 02.559 CLIP; FRAME HARNESS
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 01.240 (J) T=5.5 		5-09709-047-0 01 1 9607-9711 ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9712-9801 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 01.240 (J) T=5.5 		5-09709-047-0 01 1 9712-9801 ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9802- ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 01.240 (J) T=5.5 		5-09709-047-0 01 1 9802- ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9802- ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=33 L=63 		1-09700-807-0 05 1 9312-9409 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F),FRT INDEPENDENT SUSPENSION(6PP) (A) ID=33 L=63 		1-09700-807-0 05 1 9410-9801 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F),FRT INDEPENDENT SUSPENSION(6PP) (A) ID=33 L=63 		1-09700-807-0 05 1 9802- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 01.240 (B) ID=14 L=47 		5-09700-319-0 03 1 9312-9801 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 01.240 (B) ID=14 L=47 		5-09700-319-0 03 1 9802- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (M) ID=20 		5-09700-321-0 02 1 9312-9409 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) (M) ID=20 		5-09700-321-0 02 1 9312-9409 ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) (M) ID=20 		5-09700-321-0 02 1 9410-9510 ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) (M) ID=20 		5-09700-321-0 02 1 9410-9510 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) (M) ID=20 		5-09700-321-0 02 1 9511-9801 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) (M) ID=20 		5-09700-321-0 02 1 9802- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (C) ID=30 W/STUD 		8-97078-642-2 01 1 9312-9801 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (C) ID=30 W/STUD 		8-97078-642-2 01 1 9802- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 03.162 (K) L=140 		5-09707-031-0 03 1 9312-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (E) ID=20 		8-94156-624-1 02 1 9312-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (E) ID=20 		8-94156-624-1 02 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (F) ID=27 		8-94171-628-0 01 1 9312-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (F) ID=27 		8-94171-628-0 01 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (P) ID=18 		8-97026-193-0 01 1 9312-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (P) ID=18 		8-97026-193-0 01 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (A) ID=33 L=63 		1-09700-807-0 07 1 9312-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (A) ID=33 L=63 		1-09700-807-0 07 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (M) ID=20 		5-09700-321-0 01 1 9312-9409 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (M) ID=20 		5-09700-321-0 01 1 9410-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) (M) ID=20 		5-09700-321-0 01 1 9410-9510 ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (M) ID=20 		5-09700-321-0 01 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) (M) ID=20 		5-09700-321-0 01 1 9511- ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 03.162 (K) L=140 		5-09707-031-0 01 1 9312-9405 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> 03.162 (K) L=140 		5-09707-031-0 01 1 9406-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> 03.162 (K) L=140 		5-09707-031-1 01 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRAME-KICK UP<7EW> (H) ID=31 L=33.5 		1-09987-165-0 01 1 9312-9410 ●
48 02.559 CLIP; FRAME HARNESS
FRAME-KICK UP<7EW> (G) ID=31 L=30 		1-09700-969-0 01 1 9411-9711 ●
48 02.559 CLIP; FRAME HARNESS
FRAME-KICK UP<7EW> (Q) ID=35 L=35 		1-09700-895-0 01 1 9712- ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (I) L=168 		8-97802-347-0 01 1 9312-9405 ●
48 02.559 CLIP; FRAME HARNESS
(I) L=168 		8-97802-347-0 01 1 9406-9406 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(W) L=170.3 		1-09987-182-0 01 1 9407-9510 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(W) L=170.3 		1-09987-182-0 01 1 9511- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (W) L=170.3 		1-09987-182-0 01 1 9511- ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (I) L=168 		8-97802-347-0 05 1 9312-9406 ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (W) L=170.3 		1-09987-182-0 05 1 9407- ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (V) ID=19 H=70 L=25 		1-09700-773-0 01 1 9312- ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) (A) ID=33 L=63 		1-09700-807-0 06 1 9410- ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) (T) ID=21 L=28 		1-09700-673-1 AR 1 9312-9410 ● ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) (X) ID=20 		8-94169-650-0 AR 1 9411- ● ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) 01.240 (B) ID=14 L=47 		5-09700-319-0 04 1 9312- ● ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (Y) L=33 ID=19 H=33 L=45 		1-09701-045-0 01 1 9312-9512 ● ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (Z) T=9.2 		5-09709-013-0 01 1 9312- ●
53 02.483 BRACKET; HARNESS
4BE1 ENG(RLH) (A) 		8-97075-710-2 01 1 9312- ●
53 02.483 BRACKET; HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97062-325-1 01 1 9312-9510 ●
53 02.483 BRACKET; HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97062-324-1 01 1 9312-9510 ● ● ● ● ●
53 02.483 BRACKET; HARNESS
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) (E) 		8-97091-462-1 01 1 9312- ●
53 02.483 BRACKET; HARNESS
4HF1 ENG(RLS) (B) 		8-97062-178-3 01 1 9312- ● ●
53 02.483 BRACKET; HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (A) 		8-97075-709-3 01 1 9312-9510 ● ● ●
53 02.483 BRACKET; HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (A) 		8-97075-709-3 01 1 9511- ● ● ● ●
139 02.559 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) 04.595 (F) M8X20 FLANGE 		0-28480-820-0 02 1 9312-9601 ●
139 02.559 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) 02.664 (F) M8X20 FLANGE 		0-28680-820-0 02 1 9602- ●
139 02.559 BOLT; BRKT
EXC. FRAME-KICK UP<7EW> 01.540 (E) M8X35 W/LK WASHER 		0-50040-835-0 01 1 9312-9510 ● ● ● ● ● ● ●
139 02.559 BOLT; BRKT
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> 01.540 (E) M8X35 W/LK WASHER 		0-50040-835-0 01 1 9511-9711 ● ● ● ● ●
139 02.559 BOLT; BRKT
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) 01.540 (E) M8X35 W/LK WASHER 		0-50040-835-0 01 1 9511-9711 ●
139 02.559 BOLT; BRKT
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> 02.183 (E) M8X35 FLANGE 		0-28680-835-0 01 1 9712- ● ● ● ● ●
139 02.559 BOLT; BRKT
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) 02.183 (E) M8X35 FLANGE 		0-28680-835-0 01 1 9712- ●
139 02.559 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 01.062 (A) M8X16 FLANGE 		0-28080-816-0 03 1 9312-9801 ● ● ● ● ●
139 02.559 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 01.062 (A) M8X16 FLANGE 		0-28080-816-0 03 1 9802- ● ● ● ● ● ●
139 02.559 BOLT; BRKT
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (C) 		8-97028-451-3 01 1 9312-9510 ● ● ● ●
139 02.559 BOLT; BRKT
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (C) 		8-97028-451-3 01 1 9511- ● ● ● ● ●
139 02.559 BOLT; BRKT
REFRIGERATOR CHASSIS(V4R) (D) M10X12 		0-20801-012-0 01 1 9403-9711 ●
139 02.559 BOLT; BRKT
4BE1 ENG(RLH) EXC. REAR WIDE TREAD(V4T) 01.531 (B) M8X25 FLANGE 		0-28080-825-0 02 1 9312-9503 ●
139 02.559 BOLT; BRKT
4BE1 ENG(RLH) EXC. REAR WIDE TREAD(V4T) (B) M8X25 FLANGE 		0-28680-825-0 02 1 9504-9510 ●
139 02.559 BOLT; BRKT
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (B) M8X25 FLANGE 		0-28680-825-0 02 1 9511- ●
219 02.559 NUT
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 07.633 (C) M8 FLANGE 		0-91150-108-0 02 1 9312-9512 ● ● ● ● ● ● ●
219 02.559 NUT
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 9601- ● ● ● ● ● ● ●
219 02.559 NUT
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 9601- ● ● ● ● ●
219 02.559 NUT
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 9601- ●
219 02.559 NUT
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 04.594 (B) M6 FLANGE 		0-91150-106-0 02 1 9312- ● ● ● ● ● ● ●
219 02.559 NUT
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (F) 		8-97108-658-0 01 1 9312- ● ● ● ● ● ● ●
219 02.559 NUT
4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 09.744 (A) M5 FLANGE 		5-09440-003-0 01 1 9312-9510 ● ● ● ● ●
219 02.559 NUT
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> 09.744 (A) M5 FLANGE 		5-09440-003-0 01 1 9312-9510 ● ● ● ●
219 02.559 NUT
4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 09.744 (A) M5 FLANGE 		5-09440-003-0 01 1 9511-9801 ● ● ● ● ●
219 02.559 NUT
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> 09.744 (A) M5 FLANGE 		5-09440-003-0 01 1 9511-9801 ● ● ● ● ●
219 02.559 NUT
4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 09.744 (A) M5 FLANGE 		5-09440-003-0 01 1 9802- ● ● ● ● ● ●
219 02.559 NUT
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> 09.744 (A) M5 FLANGE 		5-09440-003-0 01 1 9802- ● ● ● ● ●
219 02.559 NUT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 04.594 (B) M6 FLANGE 		0-91150-106-0 02 1 9312-9406 ● ● ● ● ●
219 02.559 NUT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9407-9801 ● ● ● ● ●
219 02.559 NUT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9802- ● ● ● ● ● ●
219 02.559 NUT
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) 07.829 (E) M6 FLANGE 		5-09440-004-0 01 1 9312-9510 ● ● ● ●
219 02.559 NUT
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) 07.829 (E) M6 FLANGE 		5-09440-004-0 01 1 9511- ● ● ● ● ●
515 02.559 NUT; BRKT
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9312-9510 ● ● ● ● ● ● ●
515 02.559 NUT; BRKT
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9511- ● ● ● ● ●
515 02.559 NUT; BRKT
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9511- ●
515 02.559 NUT; BRKT
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 04.594 (A) M6 FLANGE 		0-91150-106-0 02 1 9312-9510 ● ● ● ●
515 02.559 NUT; BRKT
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 04.594 (A) M6 FLANGE 		0-91150-106-0 02 1 9511- ● ● ● ● ●
515 02.559 NUT; BRKT
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 07.633 (B) M8 FLANGE 		0-91150-108-0 02 1 9312- ●

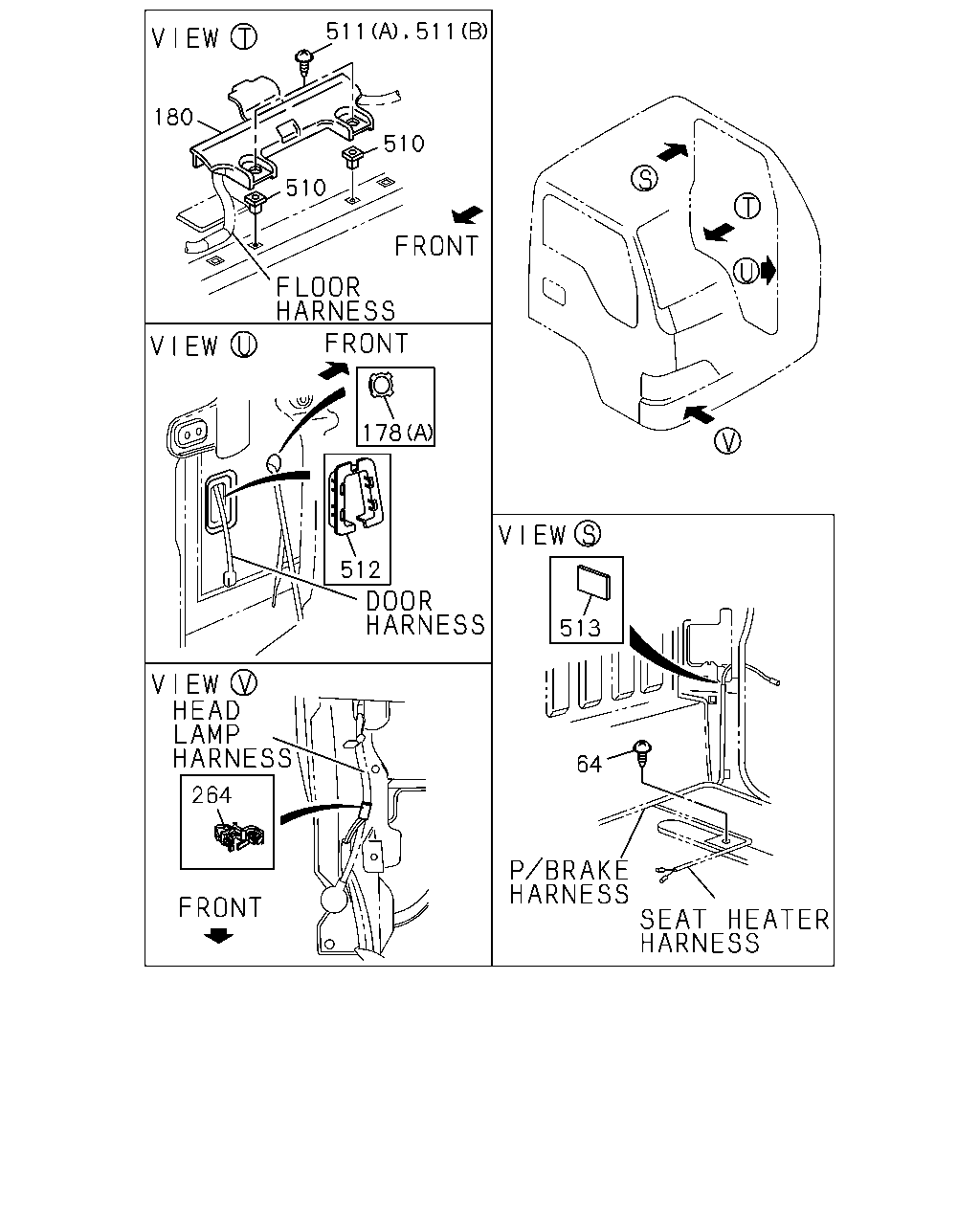

çizim 66761
511 511 180 510 510 178 512 513 64 264
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
64 02.559 SCREW; CLIP
16.742 M4X16 TAPPING 		1-09981-476-0 01 1 9312-9603 ● ●
64 02.559 SCREW; CLIP
16.742 M4X16 TAPPING 		1-09981-477-0 01 1 9604- ● ●
178 02.559 GROMMET; HARNESS
(A) ID=47 		8-94279-735-0 01 1 9312-9510 ● ● ● ● ● ●
178 02.559 GROMMET; HARNESS
(A) ID=47 		8-94279-735-0 01 1 9511- ● ● ● ● ● ● ●
178 02.559 GROMMET; HARNESS
02.343 (C) ID=17 		8-94128-319-2 01 1 9312-9312 ● ● ● ● ●
178 02.559 GROMMET; HARNESS
EXC. MINI BUS CHASSIS<V4B> 02.343 (C) ID=17 		8-94128-319-2 01 1 9401-9510 ● ● ● ● ●
178 02.559 GROMMET; HARNESS
EXC. MINI BUS CHASSIS<V4B> 02.343 (C) ID=17 		8-94128-319-2 01 1 9511-9604 ● ● ● ● ● ●
178 02.559 GROMMET; HARNESS
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (B) ID=20 OD=31 T=10.5 		9-09575-620-0 01 1 9312-9312 ● ●
178 02.559 GROMMET; HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) ID=20 OD=31 T=10.5 		9-09575-620-0 01 1 9312-9312 ● ●
178 02.559 GROMMET; HARNESS
MINI BUS CHASSIS<V4B> (B) ID=20 OD=31 T=10.5 		9-09575-620-0 01 1 9401-9501 ●
178 02.559 GROMMET; HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (B) ID=20 OD=31 T=10.5 		9-09575-620-0 01 1 9502-9604 ● ●
178 02.559 GROMMET; HARNESS
MINI BUS CHASSIS<V4B> (B) ID=20 OD=31 T=10.5 		9-09575-620-0 01 1 9502-9604 ●
180 02.559 COVER; HARNESS 8-97856-130-3 02 1 9312-9510 ● ● ● ● ● ●
180 02.559 COVER; HARNESS 8-97856-130-4 02 1 9511- ● ● ● ● ● ● ●
264 02.559 CLIP; HARNESS,HEADLAMP
02.343 ID=10 & 16 		8-94413-325-0 03 1 9312-9510 ● ● ● ● ● ●
264 02.559 CLIP; HARNESS,HEADLAMP
02.343 ID=10 & 16 		8-94413-325-0 03 1 9511- ● ● ● ● ● ● ●
510 02.559 GROMMET; SCREW
04.931 H=15 		8-94463-268-1 04 1 9312-9510 ● ● ● ● ● ●
510 02.559 GROMMET; SCREW
04.931 H=15 		8-94463-268-1 04 1 9511- ● ● ● ● ● ● ●
511 02.559 SCREW; HARNESS COVER
16.345 (A) M5X16 W/PL WASHER TAPPING 		8-94279-123-0 04 1 9312-9409 ● ● ● ● ● ●
511 02.559 SCREW; HARNESS COVER
08.845 (B) M5X14 TAPPING W/PL WASHER 		0-74110-514-0 04 1 9410-9510 ● ● ● ● ● ●
511 02.559 SCREW; HARNESS COVER
08.845 (B) M5X14 TAPPING W/PL WASHER 		0-74110-514-0 04 1 9511- ● ● ● ● ● ● ●
512 02.559 PROTECTOR; HARNESS 8-97072-950-0 02 1 9312-9510 ● ● ● ● ● ●
512 02.559 PROTECTOR; HARNESS 8-97072-950-0 02 1 9511- ● ● ● ● ● ● ●
513 02.559 TAPE; SOFT,HARNESS
02.480 50X45 		8-94232-630-0 02 1 9312-9404 ● ● ● ●
513 02.559 TAPE; SOFT,HARNESS
02.480 50X45 		8-94232-630-0 01 1 9405-9510 ● ● ● ●
513 02.559 TAPE; SOFT,HARNESS
02.480 50X45 		8-94232-630-0 01 1 9511-9707 ● ● ● ● ●

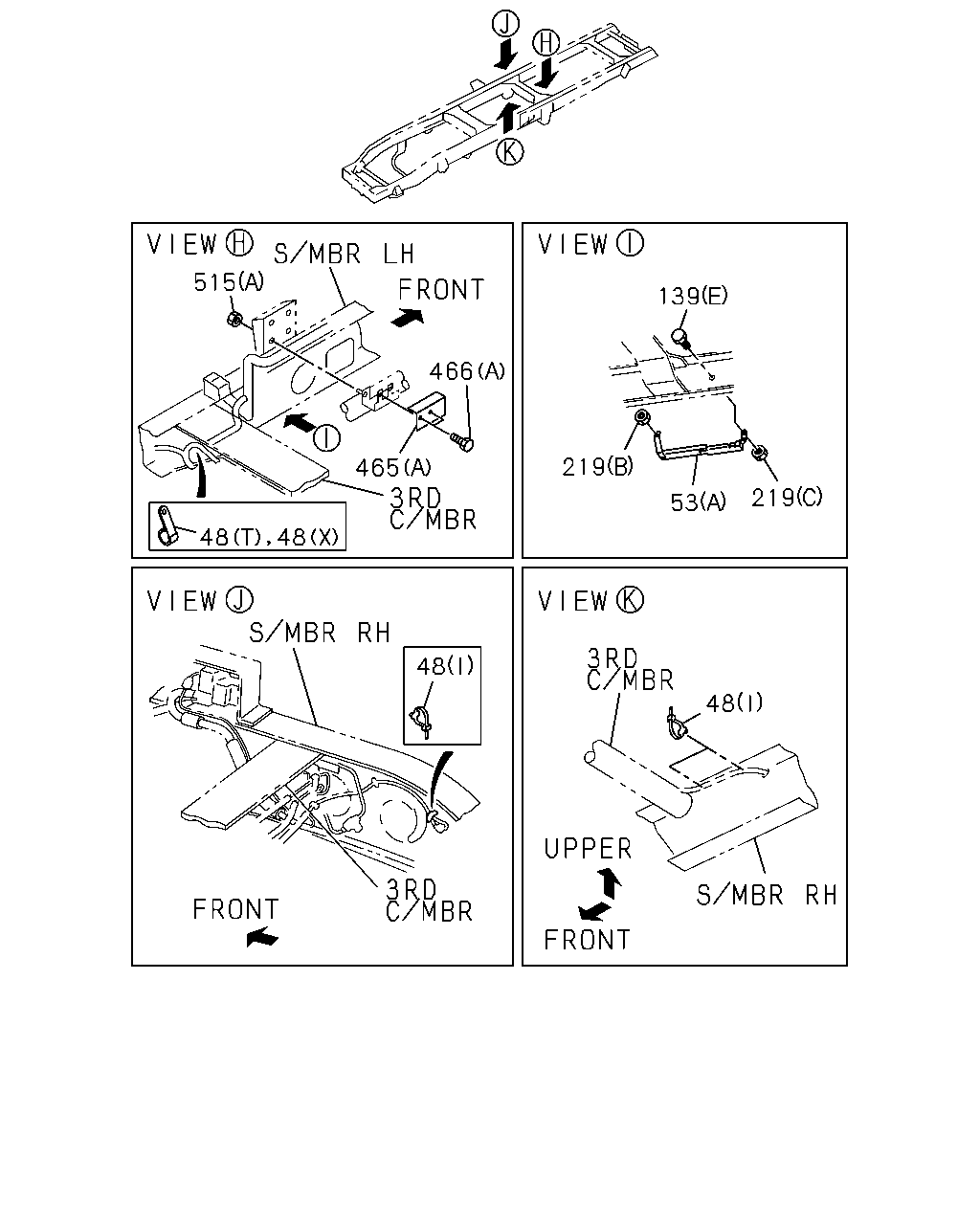

çizim 66763
515 139 466 219 465 219 53 48 48 48 48
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (I) L=168 		8-97802-347-0 02 1 9312-9406 ●
48 02.559 CLIP; FRAME HARNESS
FRAME-KICK UP<7EW> (I) L=168 		8-97802-347-0 02 1 9312-9406 ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (W) L=170.3 		1-09987-182-0 02 1 9407- ●
48 02.559 CLIP; FRAME HARNESS
FRAME-KICK UP<7EW> (W) L=170.3 		1-09987-182-0 02 1 9407- ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) (U) L=21 ID=19 H=21 L=23 		5-09700-299-0 01 1 9312-9510 ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (U) L=21 ID=19 H=21 L=23 		5-09700-299-0 01 1 9312-9510 ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (U) L=21 ID=19 H=21 L=23 		5-09700-299-0 01 1 9511- ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (R) ID=5-12 L=14.5 		1-09987-221-0 01 1 9312- ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (AA) ID=28 L=32 		1-09701-064-1 01 1 9312- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (H) ID=31 L=33.5 		1-09987-165-0 02 1 9312-9410 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (G) ID=31 L=30 		1-09700-969-0 02 1 9411-9711 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (Q) ID=35 L=35 		1-09700-895-0 02 1 9712- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(O) L=155 		8-94125-241-1 01 1 9312-9405 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.785 (D) ID=9.6 		8-94147-870-0 01 1 9312-9510 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 04.785 (D) ID=9.6 		8-94147-870-0 01 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(N) ID=9 		8-97063-874-0 01 1 9312-9510 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(N) ID=9 		8-97063-874-0 01 1 9511- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
AIR CONDITIONER MANUAL CONT(C60) 03.162 (K) L=140 		5-09707-031-0 02 1 9312-9510 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
AIR CONDITIONER MANUAL CONT(C60) 03.162 (K) L=140 		5-09707-031-1 02 1 9511- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (L) ID=25 L=60 		1-09701-041-1 01 1 9312-9510 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (L) ID=25 L=60 		1-09701-041-1 01 1 9511-9511 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (L) ID=25 L=60 		1-09701-041-1 01 1 9512- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) (L) ID=25 L=60 		1-09701-041-1 01 1 9512- ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) (S) ID=19 L=60 		9-09525-893-0 01 1 9312-9801 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) (S) ID=19 L=60 		9-09525-893-0 01 1 9802- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9312-9606 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9607-9711 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9607-9711 ●
48 02.559 CLIP; FRAME HARNESS
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 01.240 (J) T=5.5 		5-09709-047-0 01 1 9607-9711 ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9712-9801 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 01.240 (J) T=5.5 		5-09709-047-0 01 1 9712-9801 ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9802- ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 01.240 (J) T=5.5 		5-09709-047-0 01 1 9802- ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9802- ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=33 L=63 		1-09700-807-0 05 1 9312-9409 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F),FRT INDEPENDENT SUSPENSION(6PP) (A) ID=33 L=63 		1-09700-807-0 05 1 9410-9801 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F),FRT INDEPENDENT SUSPENSION(6PP) (A) ID=33 L=63 		1-09700-807-0 05 1 9802- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 01.240 (B) ID=14 L=47 		5-09700-319-0 03 1 9312-9801 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 01.240 (B) ID=14 L=47 		5-09700-319-0 03 1 9802- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (M) ID=20 		5-09700-321-0 02 1 9312-9409 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) (M) ID=20 		5-09700-321-0 02 1 9312-9409 ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) (M) ID=20 		5-09700-321-0 02 1 9410-9510 ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) (M) ID=20 		5-09700-321-0 02 1 9410-9510 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) (M) ID=20 		5-09700-321-0 02 1 9511-9801 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) (M) ID=20 		5-09700-321-0 02 1 9802- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (C) ID=30 W/STUD 		8-97078-642-2 01 1 9312-9801 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (C) ID=30 W/STUD 		8-97078-642-2 01 1 9802- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 03.162 (K) L=140 		5-09707-031-0 03 1 9312-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (E) ID=20 		8-94156-624-1 02 1 9312-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (E) ID=20 		8-94156-624-1 02 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (F) ID=27 		8-94171-628-0 01 1 9312-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (F) ID=27 		8-94171-628-0 01 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (P) ID=18 		8-97026-193-0 01 1 9312-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (P) ID=18 		8-97026-193-0 01 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (A) ID=33 L=63 		1-09700-807-0 07 1 9312-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (A) ID=33 L=63 		1-09700-807-0 07 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (M) ID=20 		5-09700-321-0 01 1 9312-9409 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (M) ID=20 		5-09700-321-0 01 1 9410-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) (M) ID=20 		5-09700-321-0 01 1 9410-9510 ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (M) ID=20 		5-09700-321-0 01 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) (M) ID=20 		5-09700-321-0 01 1 9511- ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 03.162 (K) L=140 		5-09707-031-0 01 1 9312-9405 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> 03.162 (K) L=140 		5-09707-031-0 01 1 9406-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> 03.162 (K) L=140 		5-09707-031-1 01 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRAME-KICK UP<7EW> (H) ID=31 L=33.5 		1-09987-165-0 01 1 9312-9410 ●
48 02.559 CLIP; FRAME HARNESS
FRAME-KICK UP<7EW> (G) ID=31 L=30 		1-09700-969-0 01 1 9411-9711 ●
48 02.559 CLIP; FRAME HARNESS
FRAME-KICK UP<7EW> (Q) ID=35 L=35 		1-09700-895-0 01 1 9712- ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (I) L=168 		8-97802-347-0 01 1 9312-9405 ●
48 02.559 CLIP; FRAME HARNESS
(I) L=168 		8-97802-347-0 01 1 9406-9406 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(W) L=170.3 		1-09987-182-0 01 1 9407-9510 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(W) L=170.3 		1-09987-182-0 01 1 9511- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (W) L=170.3 		1-09987-182-0 01 1 9511- ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (I) L=168 		8-97802-347-0 05 1 9312-9406 ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (W) L=170.3 		1-09987-182-0 05 1 9407- ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (V) ID=19 H=70 L=25 		1-09700-773-0 01 1 9312- ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) (A) ID=33 L=63 		1-09700-807-0 06 1 9410- ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) (T) ID=21 L=28 		1-09700-673-1 AR 1 9312-9410 ● ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) (X) ID=20 		8-94169-650-0 AR 1 9411- ● ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) 01.240 (B) ID=14 L=47 		5-09700-319-0 04 1 9312- ● ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (Y) L=33 ID=19 H=33 L=45 		1-09701-045-0 01 1 9312-9512 ● ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (Z) T=9.2 		5-09709-013-0 01 1 9312- ●
53 02.483 BRACKET; HARNESS
4BE1 ENG(RLH) (A) 		8-97075-710-2 01 1 9312- ●
53 02.483 BRACKET; HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97062-325-1 01 1 9312-9510 ●
53 02.483 BRACKET; HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97062-324-1 01 1 9312-9510 ● ● ● ● ●
53 02.483 BRACKET; HARNESS
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) (E) 		8-97091-462-1 01 1 9312- ●
53 02.483 BRACKET; HARNESS
4HF1 ENG(RLS) (B) 		8-97062-178-3 01 1 9312- ● ●
53 02.483 BRACKET; HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (A) 		8-97075-709-3 01 1 9312-9510 ● ● ●
53 02.483 BRACKET; HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (A) 		8-97075-709-3 01 1 9511- ● ● ● ●
139 02.559 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) 04.595 (F) M8X20 FLANGE 		0-28480-820-0 02 1 9312-9601 ●
139 02.559 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) 02.664 (F) M8X20 FLANGE 		0-28680-820-0 02 1 9602- ●
139 02.559 BOLT; BRKT
EXC. FRAME-KICK UP<7EW> 01.540 (E) M8X35 W/LK WASHER 		0-50040-835-0 01 1 9312-9510 ● ● ● ● ● ● ●
139 02.559 BOLT; BRKT
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> 01.540 (E) M8X35 W/LK WASHER 		0-50040-835-0 01 1 9511-9711 ● ● ● ● ●
139 02.559 BOLT; BRKT
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) 01.540 (E) M8X35 W/LK WASHER 		0-50040-835-0 01 1 9511-9711 ●
139 02.559 BOLT; BRKT
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> 02.183 (E) M8X35 FLANGE 		0-28680-835-0 01 1 9712- ● ● ● ● ●
139 02.559 BOLT; BRKT
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) 02.183 (E) M8X35 FLANGE 		0-28680-835-0 01 1 9712- ●
139 02.559 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 01.062 (A) M8X16 FLANGE 		0-28080-816-0 03 1 9312-9801 ● ● ● ● ●
139 02.559 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 01.062 (A) M8X16 FLANGE 		0-28080-816-0 03 1 9802- ● ● ● ● ● ●
139 02.559 BOLT; BRKT
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (C) 		8-97028-451-3 01 1 9312-9510 ● ● ● ●
139 02.559 BOLT; BRKT
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (C) 		8-97028-451-3 01 1 9511- ● ● ● ● ●
139 02.559 BOLT; BRKT
REFRIGERATOR CHASSIS(V4R) (D) M10X12 		0-20801-012-0 01 1 9403-9711 ●
139 02.559 BOLT; BRKT
4BE1 ENG(RLH) EXC. REAR WIDE TREAD(V4T) 01.531 (B) M8X25 FLANGE 		0-28080-825-0 02 1 9312-9503 ●
139 02.559 BOLT; BRKT
4BE1 ENG(RLH) EXC. REAR WIDE TREAD(V4T) (B) M8X25 FLANGE 		0-28680-825-0 02 1 9504-9510 ●
139 02.559 BOLT; BRKT
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (B) M8X25 FLANGE 		0-28680-825-0 02 1 9511- ●
219 02.559 NUT
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 07.633 (C) M8 FLANGE 		0-91150-108-0 02 1 9312-9512 ● ● ● ● ● ● ●
219 02.559 NUT
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 9601- ● ● ● ● ● ● ●
219 02.559 NUT
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 9601- ● ● ● ● ●
219 02.559 NUT
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 9601- ●
219 02.559 NUT
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 04.594 (B) M6 FLANGE 		0-91150-106-0 02 1 9312- ● ● ● ● ● ● ●
219 02.559 NUT
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (F) 		8-97108-658-0 01 1 9312- ● ● ● ● ● ● ●
219 02.559 NUT
4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 09.744 (A) M5 FLANGE 		5-09440-003-0 01 1 9312-9510 ● ● ● ● ●
219 02.559 NUT
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> 09.744 (A) M5 FLANGE 		5-09440-003-0 01 1 9312-9510 ● ● ● ●
219 02.559 NUT
4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 09.744 (A) M5 FLANGE 		5-09440-003-0 01 1 9511-9801 ● ● ● ● ●
219 02.559 NUT
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> 09.744 (A) M5 FLANGE 		5-09440-003-0 01 1 9511-9801 ● ● ● ● ●
219 02.559 NUT
4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 09.744 (A) M5 FLANGE 		5-09440-003-0 01 1 9802- ● ● ● ● ● ●
219 02.559 NUT
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> 09.744 (A) M5 FLANGE 		5-09440-003-0 01 1 9802- ● ● ● ● ●
219 02.559 NUT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 04.594 (B) M6 FLANGE 		0-91150-106-0 02 1 9312-9406 ● ● ● ● ●
219 02.559 NUT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9407-9801 ● ● ● ● ●
219 02.559 NUT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9802- ● ● ● ● ● ●
219 02.559 NUT
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) 07.829 (E) M6 FLANGE 		5-09440-004-0 01 1 9312-9510 ● ● ● ●
219 02.559 NUT
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) 07.829 (E) M6 FLANGE 		5-09440-004-0 01 1 9511- ● ● ● ● ●
465 02.483 PROTECTOR; HEAT,HARNESS
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97075-703-0 01 1 9312-9510 ●
465 02.483 PROTECTOR; HEAT,HARNESS
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (D) 		8-94464-755-1 01 1 9312-9510 ● ● ●
465 02.483 PROTECTOR; HEAT,HARNESS
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (D) 		8-94464-755-1 01 1 9511- ● ● ● ●
465 02.483 PROTECTOR; HEAT,HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (B) 		8-97075-702-0 01 1 9312- ●
465 02.483 PROTECTOR; HEAT,HARNESS
(C) 		8-94464-756-1 01 1 9312-9801 ●
465 02.483 PROTECTOR; HEAT,HARNESS
4BE1 ENG(RLH) (C) 		8-94464-756-1 01 1 9802- ●
466 02.483 BOLT; HEAT PROTECTOR
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 00.738 (A) M6X16 FLANGE 		0-28080-616-0 02 1 9312-9510 ●
466 02.483 BOLT; HEAT PROTECTOR
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 03.415 (B) M8X35 FLANGE 		0-28080-835-0 02 1 9511-9702 ●
466 02.483 BOLT; HEAT PROTECTOR
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 02.183 (B) M8X35 FLANGE 		0-28680-835-0 02 1 9703-9711 ●
466 02.483 BOLT; HEAT PROTECTOR
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 02.183 (B) M8X35 FLANGE 		0-28680-835-0 02 1 9712- ●
466 02.483 BOLT; HEAT PROTECTOR
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) 03.415 (B) M8X35 FLANGE 		0-28080-835-0 01 1 9511-9702 ● ● ● ● ●
466 02.483 BOLT; HEAT PROTECTOR
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) 02.183 (B) M8X35 FLANGE 		0-28680-835-0 01 1 9703-9801 ● ● ● ● ●
466 02.483 BOLT; HEAT PROTECTOR
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) 02.183 (B) M8X35 FLANGE 		0-28680-835-0 01 1 9802- ● ● ● ● ● ●
466 02.483 BOLT; HEAT PROTECTOR
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 03.417 (C) M10X25 FLANGE 		0-28081-025-0 01 1 9312-9510 ● ● ● ●
466 02.483 BOLT; HEAT PROTECTOR
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 03.417 (C) M10X25 FLANGE 		0-28081-025-0 01 1 9511-9711 ● ● ● ● ●
466 02.483 BOLT; HEAT PROTECTOR
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 03.405 (C) M10X25 FLANGE 		0-28681-025-0 01 1 9712- ● ● ● ● ●
515 02.559 NUT; BRKT
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9312-9510 ● ● ● ● ● ● ●
515 02.559 NUT; BRKT
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9511- ● ● ● ● ●
515 02.559 NUT; BRKT
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9511- ●
515 02.559 NUT; BRKT
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 04.594 (A) M6 FLANGE 		0-91150-106-0 02 1 9312-9510 ● ● ● ●
515 02.559 NUT; BRKT
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 04.594 (A) M6 FLANGE 		0-91150-106-0 02 1 9511- ● ● ● ● ●
515 02.559 NUT; BRKT
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 07.633 (B) M8 FLANGE 		0-91150-108-0 02 1 9312- ●
çizim 66771
464 16 16 48 48 16 397 183
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
16 02.559 CLIP; HARNESS
(O) L=170.3 		1-09987-182-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
16.065 (B) 1 SET=5 PIECE 		1-09987-214-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.240 (D) ID=14 L=47 		5-09700-319-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(Y) L=250 		5-09707-030-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (V) L=140 		5-09707-031-1 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (J) L=170 		5-09707-054-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(E) L=100 		8-94327-067-1 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(M) L=60 		8-94332-777-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(R) ID=13 		8-94147-320-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(Q) L=80 		5-09700-307-1 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
04.342 (L) ID=14-12 		8-94379-592-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.343 (F) ID=10 & 16 		8-94413-325-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) L=100 		8-94442-388-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(K) L=60 		8-94457-053-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(G) ID=16.5 & 16.5 		8-94468-380-0 AR 1 9312-9702 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(A) ID=7-10 		8-94472-578-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.694 (H) ID=6 & 10-13 		8-97069-515-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(I) ID=12.5-14.5 		8-97087-726-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(P) L=175 		8-97110-167-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(X) L=155 		8-97173-307-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(U) ID=15-32 		8-97174-404-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(N) L=168 		8-97802-347-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(G) ID=16.5 & 16.5 		8-94473-320-0 AR 1 9703- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.166 (W) ID=22 & 22 		8-94464-837-0 AR 1 9312- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (I) L=168 		8-97802-347-0 02 1 9312-9406 ●
48 02.559 CLIP; FRAME HARNESS
FRAME-KICK UP<7EW> (I) L=168 		8-97802-347-0 02 1 9312-9406 ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (W) L=170.3 		1-09987-182-0 02 1 9407- ●
48 02.559 CLIP; FRAME HARNESS
FRAME-KICK UP<7EW> (W) L=170.3 		1-09987-182-0 02 1 9407- ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) (U) L=21 ID=19 H=21 L=23 		5-09700-299-0 01 1 9312-9510 ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (U) L=21 ID=19 H=21 L=23 		5-09700-299-0 01 1 9312-9510 ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (U) L=21 ID=19 H=21 L=23 		5-09700-299-0 01 1 9511- ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (R) ID=5-12 L=14.5 		1-09987-221-0 01 1 9312- ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (AA) ID=28 L=32 		1-09701-064-1 01 1 9312- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (H) ID=31 L=33.5 		1-09987-165-0 02 1 9312-9410 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (G) ID=31 L=30 		1-09700-969-0 02 1 9411-9711 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (Q) ID=35 L=35 		1-09700-895-0 02 1 9712- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(O) L=155 		8-94125-241-1 01 1 9312-9405 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.785 (D) ID=9.6 		8-94147-870-0 01 1 9312-9510 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 04.785 (D) ID=9.6 		8-94147-870-0 01 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(N) ID=9 		8-97063-874-0 01 1 9312-9510 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(N) ID=9 		8-97063-874-0 01 1 9511- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
AIR CONDITIONER MANUAL CONT(C60) 03.162 (K) L=140 		5-09707-031-0 02 1 9312-9510 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
AIR CONDITIONER MANUAL CONT(C60) 03.162 (K) L=140 		5-09707-031-1 02 1 9511- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (L) ID=25 L=60 		1-09701-041-1 01 1 9312-9510 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (L) ID=25 L=60 		1-09701-041-1 01 1 9511-9511 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (L) ID=25 L=60 		1-09701-041-1 01 1 9512- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) (L) ID=25 L=60 		1-09701-041-1 01 1 9512- ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) (S) ID=19 L=60 		9-09525-893-0 01 1 9312-9801 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) (S) ID=19 L=60 		9-09525-893-0 01 1 9802- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9312-9606 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9607-9711 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9607-9711 ●
48 02.559 CLIP; FRAME HARNESS
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 01.240 (J) T=5.5 		5-09709-047-0 01 1 9607-9711 ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9712-9801 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 01.240 (J) T=5.5 		5-09709-047-0 01 1 9712-9801 ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9802- ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 01.240 (J) T=5.5 		5-09709-047-0 01 1 9802- ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9802- ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=33 L=63 		1-09700-807-0 05 1 9312-9409 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F),FRT INDEPENDENT SUSPENSION(6PP) (A) ID=33 L=63 		1-09700-807-0 05 1 9410-9801 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F),FRT INDEPENDENT SUSPENSION(6PP) (A) ID=33 L=63 		1-09700-807-0 05 1 9802- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 01.240 (B) ID=14 L=47 		5-09700-319-0 03 1 9312-9801 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 01.240 (B) ID=14 L=47 		5-09700-319-0 03 1 9802- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (M) ID=20 		5-09700-321-0 02 1 9312-9409 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) (M) ID=20 		5-09700-321-0 02 1 9312-9409 ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) (M) ID=20 		5-09700-321-0 02 1 9410-9510 ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) (M) ID=20 		5-09700-321-0 02 1 9410-9510 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) (M) ID=20 		5-09700-321-0 02 1 9511-9801 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) (M) ID=20 		5-09700-321-0 02 1 9802- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (C) ID=30 W/STUD 		8-97078-642-2 01 1 9312-9801 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (C) ID=30 W/STUD 		8-97078-642-2 01 1 9802- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 03.162 (K) L=140 		5-09707-031-0 03 1 9312-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (E) ID=20 		8-94156-624-1 02 1 9312-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (E) ID=20 		8-94156-624-1 02 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (F) ID=27 		8-94171-628-0 01 1 9312-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (F) ID=27 		8-94171-628-0 01 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (P) ID=18 		8-97026-193-0 01 1 9312-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (P) ID=18 		8-97026-193-0 01 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (A) ID=33 L=63 		1-09700-807-0 07 1 9312-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (A) ID=33 L=63 		1-09700-807-0 07 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (M) ID=20 		5-09700-321-0 01 1 9312-9409 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (M) ID=20 		5-09700-321-0 01 1 9410-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) (M) ID=20 		5-09700-321-0 01 1 9410-9510 ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (M) ID=20 		5-09700-321-0 01 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) (M) ID=20 		5-09700-321-0 01 1 9511- ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 03.162 (K) L=140 		5-09707-031-0 01 1 9312-9405 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> 03.162 (K) L=140 		5-09707-031-0 01 1 9406-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> 03.162 (K) L=140 		5-09707-031-1 01 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRAME-KICK UP<7EW> (H) ID=31 L=33.5 		1-09987-165-0 01 1 9312-9410 ●
48 02.559 CLIP; FRAME HARNESS
FRAME-KICK UP<7EW> (G) ID=31 L=30 		1-09700-969-0 01 1 9411-9711 ●
48 02.559 CLIP; FRAME HARNESS
FRAME-KICK UP<7EW> (Q) ID=35 L=35 		1-09700-895-0 01 1 9712- ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (I) L=168 		8-97802-347-0 01 1 9312-9405 ●
48 02.559 CLIP; FRAME HARNESS
(I) L=168 		8-97802-347-0 01 1 9406-9406 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(W) L=170.3 		1-09987-182-0 01 1 9407-9510 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(W) L=170.3 		1-09987-182-0 01 1 9511- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (W) L=170.3 		1-09987-182-0 01 1 9511- ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (I) L=168 		8-97802-347-0 05 1 9312-9406 ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (W) L=170.3 		1-09987-182-0 05 1 9407- ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (V) ID=19 H=70 L=25 		1-09700-773-0 01 1 9312- ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) (A) ID=33 L=63 		1-09700-807-0 06 1 9410- ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) (T) ID=21 L=28 		1-09700-673-1 AR 1 9312-9410 ● ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) (X) ID=20 		8-94169-650-0 AR 1 9411- ● ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) 01.240 (B) ID=14 L=47 		5-09700-319-0 04 1 9312- ● ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (Y) L=33 ID=19 H=33 L=45 		1-09701-045-0 01 1 9312-9512 ● ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (Z) T=9.2 		5-09709-013-0 01 1 9312- ●
183 02.559 CLIP; CONNECTOR
(B) L=15 		8-94315-436-1 02 1 9312- ● ●
183 02.559 CLIP; CONNECTOR
4HF1 ENG(RLS) 03.162 (A) ID=4.8 & 10 		8-94152-110-0 01 1 9312-9711 ● ●
183 02.559 CLIP; CONNECTOR
4HF1 ENG(RLS) 02.480 (C) ID=10.5 & 4.8 		8-97019-966-0 01 1 9712- ● ●
397 02.559 CLIP; RR DOOR HARNESS
AUTO DOOR LOCK<AU4> 10.154 ID=7 		8-97014-713-0 02 1 9312-9406 ● ●
397 02.559 CLIP; RR DOOR HARNESS
AUTO DOOR LOCK<AU4> ID=6.8 		8-97134-154-0 02 1 9506-9506 ● ●
397 02.559 CLIP; RR DOOR HARNESS
AUTO DOOR LOCK<AU4> 10.154 ID=7 		8-97014-713-0 02 1 9506- ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
02.559 (B) ID=6.5 		8-94257-639-0 01 1 9312-9510 ● ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 (B) ID=6.5 		8-94257-639-0 01 1 9511-9801 ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 02.559 (B) ID=6.5 		8-94257-639-0 01 1 9511-9801 ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B),FUEL SEDIMENTER WITH HEATER<6HU> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 9511-9801 ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 (B) ID=6.5 		8-94257-639-0 01 1 9802- ● ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 02.559 (B) ID=6.5 		8-94257-639-0 01 1 9802- ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B),FUEL SEDIMENTER WITH HEATER<6HU> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 9802- ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) 02.587 (A) L=112 		8-94232-618-0 01 1 9401-9510 ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) 02.587 (A) L=112 		8-94232-618-0 01 1 9511- ● ● ● ● ●
çizim 67533
219 38 317 317 16 519 521 483 483
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
16 02.559 CLIP; HARNESS
(O) L=170.3 		1-09987-182-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
16.065 (B) 1 SET=5 PIECE 		1-09987-214-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.240 (D) ID=14 L=47 		5-09700-319-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(Y) L=250 		5-09707-030-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (V) L=140 		5-09707-031-1 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (J) L=170 		5-09707-054-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(E) L=100 		8-94327-067-1 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(M) L=60 		8-94332-777-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(R) ID=13 		8-94147-320-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(Q) L=80 		5-09700-307-1 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
04.342 (L) ID=14-12 		8-94379-592-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.343 (F) ID=10 & 16 		8-94413-325-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) L=100 		8-94442-388-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(K) L=60 		8-94457-053-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(G) ID=16.5 & 16.5 		8-94468-380-0 AR 1 9312-9702 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(A) ID=7-10 		8-94472-578-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.694 (H) ID=6 & 10-13 		8-97069-515-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(I) ID=12.5-14.5 		8-97087-726-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(P) L=175 		8-97110-167-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(X) L=155 		8-97173-307-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(U) ID=15-32 		8-97174-404-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(N) L=168 		8-97802-347-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(G) ID=16.5 & 16.5 		8-94473-320-0 AR 1 9703- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.166 (W) ID=22 & 22 		8-94464-837-0 AR 1 9312- ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 04.595 (D) M8X20 FLANGE 		0-28480-820-0 01 1 9312-9510 ●
38 02.559 BOLT; CLIP,HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 04.595 (D) M8X20 FLANGE 		0-28480-820-0 01 1 9312-9510 ●
38 02.559 BOLT; CLIP,HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 04.595 (D) M8X20 FLANGE 		0-28480-820-0 01 1 9511-9601 ●
38 02.559 BOLT; CLIP,HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 04.595 (D) M8X20 FLANGE 		0-28480-820-0 01 1 9511-9601 ●
38 02.559 BOLT; CLIP,HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 02.664 (D) M8X20 FLANGE 		0-28680-820-0 01 1 9602- ●
38 02.559 BOLT; CLIP,HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 02.664 (D) M8X20 FLANGE 		0-28680-820-0 01 1 9602- ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.531 (B) M8X25 FLANGE 		0-28080-825-0 01 1 9312-9312 ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 01.531 (B) M8X25 FLANGE 		0-28080-825-0 01 1 9401-9503 ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (B) M8X25 FLANGE 		0-28680-825-0 01 1 9504-9510 ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (B) M8X25 FLANGE 		0-28680-825-0 01 1 9511-9711 ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (B) M8X25 FLANGE 		0-28680-825-0 01 1 9712- ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 04.686 (E) M6X25 FLANGE 		0-28080-625-0 02 1 9312-9406 ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 04.686 (E) M6X25 FLANGE 		0-28080-625-0 01 1 9407-9502 ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 04.686 (E) M6X25 FLANGE 		0-28080-625-0 01 1 9503-9510 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 ENG(RLF),4HF1 ENG(RLS) 04.686 (E) M6X25 FLANGE 		0-28080-625-0 01 1 9503-9510 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 04.686 (E) M6X25 FLANGE 		0-28080-625-0 02 1 9511-9702 ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 02.334 (E) M6X25 FLANGE 		0-28680-625-0 01 1 9703- ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 03.890 (E) M6X25 		0-28280-625-0 01 1 9312-9312 ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 04.686 (E) M6X25 FLANGE 		0-28080-625-0 01 1 9401-9406 ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 04.686 (E) M6X25 FLANGE 		0-28080-625-0 02 1 9407-9510 ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 04.686 (E) M6X25 FLANGE 		0-28080-625-0 01 1 9511-9702 ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 02.334 (E) M6X25 FLANGE 		0-28680-625-0 02 1 9703- ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 ENG(RLF),4HF1 ENG(RLS) 03.670 (C) M6X20 FLANGE 		0-28080-620-0 01 1 9312-9502 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 ENG(RLF),4HF1 ENG(RLS) 03.670 (C) M6X20 FLANGE 		0-28080-620-0 01 1 9511-9702 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 9312-9510 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 9312-9510 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 9511-9711 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 9511-9711 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 9712-9801 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 9712-9801 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 9802- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 9802- ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> 07.010 (D) M8X20 FLANGE 		0-28080-820-0 04 1 9312-9411 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> 02.664 (D) M8X20 FLANGE 		0-28680-820-0 04 1 9412-9510 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> 07.010 (D) M8X20 FLANGE 		0-28080-820-0 04 1 9511-9702 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> 02.664 (D) M8X20 FLANGE 		0-28680-820-0 04 1 9703- ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
FRAME-KICK UP<7EW> 00.785 (C) M6X20 FLANGE 		0-28480-620-0 01 1 9312-9605 ●
38 02.559 BOLT; CLIP,HARNESS
FRAME-KICK UP<7EW> 04.930 (C) M6X20 FLANGE 		0-28680-620-0 01 1 9606-9702 ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 ENG(RLF),4HF1 ENG(RLS) 04.930 (C) M6X20 FLANGE 		0-28680-620-0 01 1 9703-9801 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
FRAME-KICK UP<7EW> 04.930 (C) M6X20 FLANGE 		0-28680-620-0 01 1 9703-9801 ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 ENG(RLF),4HF1 ENG(RLS) 04.930 (C) M6X20 FLANGE 		0-28680-620-0 01 1 9802- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
FRAME-KICK UP<7EW> 04.930 (C) M6X20 FLANGE 		0-28680-620-0 01 1 9802- ●
38 02.559 BOLT; CLIP,HARNESS
FRAME-KICK UP<7EW> 06.008 (F) M8X28 L=50 W/NUT M8X12,M8X30 L=50 		8-97032-290-0 01 1 9401- ●
219 02.559 NUT
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 07.633 (C) M8 FLANGE 		0-91150-108-0 02 1 9312-9512 ● ● ● ● ● ● ●
219 02.559 NUT
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 9601- ● ● ● ● ● ● ●
219 02.559 NUT
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 9601- ● ● ● ● ●
219 02.559 NUT
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 9601- ●
219 02.559 NUT
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 04.594 (B) M6 FLANGE 		0-91150-106-0 02 1 9312- ● ● ● ● ● ● ●
219 02.559 NUT
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (F) 		8-97108-658-0 01 1 9312- ● ● ● ● ● ● ●
219 02.559 NUT
4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 09.744 (A) M5 FLANGE 		5-09440-003-0 01 1 9312-9510 ● ● ● ● ●
219 02.559 NUT
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> 09.744 (A) M5 FLANGE 		5-09440-003-0 01 1 9312-9510 ● ● ● ●
219 02.559 NUT
4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 09.744 (A) M5 FLANGE 		5-09440-003-0 01 1 9511-9801 ● ● ● ● ●
219 02.559 NUT
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> 09.744 (A) M5 FLANGE 		5-09440-003-0 01 1 9511-9801 ● ● ● ● ●
219 02.559 NUT
4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 09.744 (A) M5 FLANGE 		5-09440-003-0 01 1 9802- ● ● ● ● ● ●
219 02.559 NUT
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> 09.744 (A) M5 FLANGE 		5-09440-003-0 01 1 9802- ● ● ● ● ●
219 02.559 NUT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 04.594 (B) M6 FLANGE 		0-91150-106-0 02 1 9312-9406 ● ● ● ● ●
219 02.559 NUT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9407-9801 ● ● ● ● ●
219 02.559 NUT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9802- ● ● ● ● ● ●
219 02.559 NUT
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) 07.829 (E) M6 FLANGE 		5-09440-004-0 01 1 9312-9510 ● ● ● ●
219 02.559 NUT
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) 07.829 (E) M6 FLANGE 		5-09440-004-0 01 1 9511- ● ● ● ● ●
317 02.559 CLAMP; CONNECTOR
4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-94441-365-0 01 1 9312-9510 ● ● ● ● ●
317 02.559 CLAMP; CONNECTOR
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-94441-365-0 01 1 9312-9510 ● ● ● ●
317 02.559 CLAMP; CONNECTOR
4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-94441-365-0 01 1 9511-9801 ● ● ● ● ●
317 02.559 CLAMP; CONNECTOR
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-94441-365-0 01 1 9511-9801 ● ● ● ● ●
317 02.559 CLAMP; CONNECTOR
4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-94441-365-0 01 1 9802- ● ● ● ● ● ●
317 02.559 CLAMP; CONNECTOR
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-94441-365-0 01 1 9802- ● ● ● ● ●
317 02.559 CLAMP; CONNECTOR
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) (B) 		8-94366-903-0 01 1 9312-9510 ● ● ● ●
317 02.559 CLAMP; CONNECTOR
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) (B) 		8-94366-903-0 01 1 9511- ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4JB1 ENG(RLF) (C) ID=11 L=20 		9-09525-035-0 01 1 9712-9801 ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4JG2 ENG(RJC) FAN FLUID DRIVE<KA3> (C) ID=11 L=20 		9-09525-035-0 01 1 9712-9801 ● ● ●
483 02.559 CLIP; ENG HARNESS
(C) ID=11 L=20 		9-09525-035-0 01 1 9802- ● ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) 04.342 (A) L=197 		1-83574-032-0 01 1 9312-9711 ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4JB1 ENG(RLF) 04.342 (A) L=197 		1-83574-032-0 01 1 9712-9801 ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4JG2 ENG(RJC) FAN FLUID DRIVE<KA3> 04.342 (A) L=197 		1-83574-032-0 01 1 9712-9801 ● ● ●
483 02.559 CLIP; ENG HARNESS
04.342 (A) L=197 		1-83574-032-0 01 1 9802- ● ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4HF1 ENG(RLS) 03.162 (B) L=140 		5-09707-031-0 01 1 9312-9711 ● ●
483 02.559 CLIP; ENG HARNESS
4HF1 ENG(RLS) 03.162 (B) L=140 		5-09707-031-1 02 1 9712- ● ●
519 02.559 NUT; EARTH CABLE
EXC. FRAME-KICK UP<7EW> 00.413 (A) 		9-09110-506-0 01 1 9312-9406 ● ● ● ● ● ● ●
519 02.559 NUT; EARTH CABLE
EXC. FRAME-KICK UP<7EW> 16.176 (A) M6 		9-09110-406-0 01 1 9407-9510 ● ● ● ● ● ● ●
519 02.559 NUT; EARTH CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) 05.586 (B) M12 FLANGE 		0-91150-112-0 01 1 9312-9510 ● ● ● ● ● ●
519 02.559 NUT; EARTH CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) 05.586 (B) M12 FLANGE 		0-91150-112-0 01 1 9511- ● ● ● ● ● ● ●
521 02.559 BOLT; GRAND CABLE
04.785 M6X16 		0-20800-616-0 01 1 9312-9510 ● ● ● ● ● ●
çizim 67565
142 183 49
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
49 02.559 CLIP; GEN HARNESS
4BE1 ENG(RLH) 00.855 ID=8.3 & 16.5 		8-94169-027-0 01 1 9312-9510 ● ● ● ●
49 02.559 CLIP; GEN HARNESS
4BE1 ENG(RLH) EXC. REFRIGERATOR CHASSIS(V4R),FRT INDEPENDENT SUSPENSION(6PP) 00.855 ID=8.3 & 16.5 		8-94169-027-0 01 1 9511-9711 ● ● ● ● ●
49 02.559 CLIP; GEN HARNESS
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) 00.855 ID=8.3 & 16.5 		8-94169-027-0 01 1 9712- ● ● ● ● ●
142 02.559 CLIP; HARNESS,ENG
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 02.480 (C) ID=25 		8-94120-831-0 01 1 9511-9605 ● ● ● ● ●
142 02.559 CLIP; HARNESS,ENG
4BE1 ENG(RLH) 02.587 (A) L=112 		8-94232-618-0 01 1 9312-9510 ● ● ● ●
142 02.559 CLIP; HARNESS,ENG
4BE1 ENG(RLH) 02.587 (A) L=112 		8-94232-618-0 01 1 9511- ● ● ● ● ●
142 02.559 CLIP; HARNESS,ENG
4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) 01.240 (B) T=5.5 		5-09709-047-0 01 1 9312-9711 ●
183 02.559 CLIP; CONNECTOR
(B) L=15 		8-94315-436-1 02 1 9312- ● ●
183 02.559 CLIP; CONNECTOR
4HF1 ENG(RLS) 03.162 (A) ID=4.8 & 10 		8-94152-110-0 01 1 9312-9711 ● ●
183 02.559 CLIP; CONNECTOR
4HF1 ENG(RLS) 02.480 (C) ID=10.5 & 4.8 		8-97019-966-0 01 1 9712- ● ●
çizim 67904
469 16 465 38 515 467 38 48 48 48 48 48 48 48 38 48 48 38 16 48
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
16 02.559 CLIP; HARNESS
(O) L=170.3 		1-09987-182-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
16.065 (B) 1 SET=5 PIECE 		1-09987-214-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.240 (D) ID=14 L=47 		5-09700-319-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(Y) L=250 		5-09707-030-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (V) L=140 		5-09707-031-1 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (J) L=170 		5-09707-054-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(E) L=100 		8-94327-067-1 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(M) L=60 		8-94332-777-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(R) ID=13 		8-94147-320-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(Q) L=80 		5-09700-307-1 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
04.342 (L) ID=14-12 		8-94379-592-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.343 (F) ID=10 & 16 		8-94413-325-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) L=100 		8-94442-388-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(K) L=60 		8-94457-053-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(G) ID=16.5 & 16.5 		8-94468-380-0 AR 1 9312-9702 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(A) ID=7-10 		8-94472-578-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.694 (H) ID=6 & 10-13 		8-97069-515-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(I) ID=12.5-14.5 		8-97087-726-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(P) L=175 		8-97110-167-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(X) L=155 		8-97173-307-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(U) ID=15-32 		8-97174-404-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(N) L=168 		8-97802-347-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(G) ID=16.5 & 16.5 		8-94473-320-0 AR 1 9703- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.166 (W) ID=22 & 22 		8-94464-837-0 AR 1 9312- ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 04.595 (D) M8X20 FLANGE 		0-28480-820-0 01 1 9312-9510 ●
38 02.559 BOLT; CLIP,HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 04.595 (D) M8X20 FLANGE 		0-28480-820-0 01 1 9312-9510 ●
38 02.559 BOLT; CLIP,HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 04.595 (D) M8X20 FLANGE 		0-28480-820-0 01 1 9511-9601 ●
38 02.559 BOLT; CLIP,HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 04.595 (D) M8X20 FLANGE 		0-28480-820-0 01 1 9511-9601 ●
38 02.559 BOLT; CLIP,HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 02.664 (D) M8X20 FLANGE 		0-28680-820-0 01 1 9602- ●
38 02.559 BOLT; CLIP,HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 02.664 (D) M8X20 FLANGE 		0-28680-820-0 01 1 9602- ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.531 (B) M8X25 FLANGE 		0-28080-825-0 01 1 9312-9312 ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 01.531 (B) M8X25 FLANGE 		0-28080-825-0 01 1 9401-9503 ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (B) M8X25 FLANGE 		0-28680-825-0 01 1 9504-9510 ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (B) M8X25 FLANGE 		0-28680-825-0 01 1 9511-9711 ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (B) M8X25 FLANGE 		0-28680-825-0 01 1 9712- ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 04.686 (E) M6X25 FLANGE 		0-28080-625-0 02 1 9312-9406 ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 04.686 (E) M6X25 FLANGE 		0-28080-625-0 01 1 9407-9502 ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 04.686 (E) M6X25 FLANGE 		0-28080-625-0 01 1 9503-9510 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 ENG(RLF),4HF1 ENG(RLS) 04.686 (E) M6X25 FLANGE 		0-28080-625-0 01 1 9503-9510 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 04.686 (E) M6X25 FLANGE 		0-28080-625-0 02 1 9511-9702 ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 02.334 (E) M6X25 FLANGE 		0-28680-625-0 01 1 9703- ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 03.890 (E) M6X25 		0-28280-625-0 01 1 9312-9312 ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 04.686 (E) M6X25 FLANGE 		0-28080-625-0 01 1 9401-9406 ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 04.686 (E) M6X25 FLANGE 		0-28080-625-0 02 1 9407-9510 ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 04.686 (E) M6X25 FLANGE 		0-28080-625-0 01 1 9511-9702 ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 02.334 (E) M6X25 FLANGE 		0-28680-625-0 02 1 9703- ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 ENG(RLF),4HF1 ENG(RLS) 03.670 (C) M6X20 FLANGE 		0-28080-620-0 01 1 9312-9502 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 ENG(RLF),4HF1 ENG(RLS) 03.670 (C) M6X20 FLANGE 		0-28080-620-0 01 1 9511-9702 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 9312-9510 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 9312-9510 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 9511-9711 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 9511-9711 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 9712-9801 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 9712-9801 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 9802- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 9802- ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> 07.010 (D) M8X20 FLANGE 		0-28080-820-0 04 1 9312-9411 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> 02.664 (D) M8X20 FLANGE 		0-28680-820-0 04 1 9412-9510 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> 07.010 (D) M8X20 FLANGE 		0-28080-820-0 04 1 9511-9702 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> 02.664 (D) M8X20 FLANGE 		0-28680-820-0 04 1 9703- ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
FRAME-KICK UP<7EW> 00.785 (C) M6X20 FLANGE 		0-28480-620-0 01 1 9312-9605 ●
38 02.559 BOLT; CLIP,HARNESS
FRAME-KICK UP<7EW> 04.930 (C) M6X20 FLANGE 		0-28680-620-0 01 1 9606-9702 ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 ENG(RLF),4HF1 ENG(RLS) 04.930 (C) M6X20 FLANGE 		0-28680-620-0 01 1 9703-9801 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
FRAME-KICK UP<7EW> 04.930 (C) M6X20 FLANGE 		0-28680-620-0 01 1 9703-9801 ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 ENG(RLF),4HF1 ENG(RLS) 04.930 (C) M6X20 FLANGE 		0-28680-620-0 01 1 9802- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
FRAME-KICK UP<7EW> 04.930 (C) M6X20 FLANGE 		0-28680-620-0 01 1 9802- ●
38 02.559 BOLT; CLIP,HARNESS
FRAME-KICK UP<7EW> 06.008 (F) M8X28 L=50 W/NUT M8X12,M8X30 L=50 		8-97032-290-0 01 1 9401- ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (I) L=168 		8-97802-347-0 02 1 9312-9406 ●
48 02.559 CLIP; FRAME HARNESS
FRAME-KICK UP<7EW> (I) L=168 		8-97802-347-0 02 1 9312-9406 ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (W) L=170.3 		1-09987-182-0 02 1 9407- ●
48 02.559 CLIP; FRAME HARNESS
FRAME-KICK UP<7EW> (W) L=170.3 		1-09987-182-0 02 1 9407- ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) (U) L=21 ID=19 H=21 L=23 		5-09700-299-0 01 1 9312-9510 ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (U) L=21 ID=19 H=21 L=23 		5-09700-299-0 01 1 9312-9510 ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (U) L=21 ID=19 H=21 L=23 		5-09700-299-0 01 1 9511- ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (R) ID=5-12 L=14.5 		1-09987-221-0 01 1 9312- ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (AA) ID=28 L=32 		1-09701-064-1 01 1 9312- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (H) ID=31 L=33.5 		1-09987-165-0 02 1 9312-9410 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (G) ID=31 L=30 		1-09700-969-0 02 1 9411-9711 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (Q) ID=35 L=35 		1-09700-895-0 02 1 9712- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(O) L=155 		8-94125-241-1 01 1 9312-9405 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.785 (D) ID=9.6 		8-94147-870-0 01 1 9312-9510 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 04.785 (D) ID=9.6 		8-94147-870-0 01 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(N) ID=9 		8-97063-874-0 01 1 9312-9510 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(N) ID=9 		8-97063-874-0 01 1 9511- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
AIR CONDITIONER MANUAL CONT(C60) 03.162 (K) L=140 		5-09707-031-0 02 1 9312-9510 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
AIR CONDITIONER MANUAL CONT(C60) 03.162 (K) L=140 		5-09707-031-1 02 1 9511- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (L) ID=25 L=60 		1-09701-041-1 01 1 9312-9510 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (L) ID=25 L=60 		1-09701-041-1 01 1 9511-9511 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (L) ID=25 L=60 		1-09701-041-1 01 1 9512- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) (L) ID=25 L=60 		1-09701-041-1 01 1 9512- ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) (S) ID=19 L=60 		9-09525-893-0 01 1 9312-9801 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) (S) ID=19 L=60 		9-09525-893-0 01 1 9802- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9312-9606 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9607-9711 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9607-9711 ●
48 02.559 CLIP; FRAME HARNESS
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 01.240 (J) T=5.5 		5-09709-047-0 01 1 9607-9711 ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9712-9801 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 01.240 (J) T=5.5 		5-09709-047-0 01 1 9712-9801 ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9802- ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 01.240 (J) T=5.5 		5-09709-047-0 01 1 9802- ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9802- ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=33 L=63 		1-09700-807-0 05 1 9312-9409 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F),FRT INDEPENDENT SUSPENSION(6PP) (A) ID=33 L=63 		1-09700-807-0 05 1 9410-9801 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F),FRT INDEPENDENT SUSPENSION(6PP) (A) ID=33 L=63 		1-09700-807-0 05 1 9802- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 01.240 (B) ID=14 L=47 		5-09700-319-0 03 1 9312-9801 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 01.240 (B) ID=14 L=47 		5-09700-319-0 03 1 9802- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (M) ID=20 		5-09700-321-0 02 1 9312-9409 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) (M) ID=20 		5-09700-321-0 02 1 9312-9409 ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) (M) ID=20 		5-09700-321-0 02 1 9410-9510 ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) (M) ID=20 		5-09700-321-0 02 1 9410-9510 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) (M) ID=20 		5-09700-321-0 02 1 9511-9801 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) (M) ID=20 		5-09700-321-0 02 1 9802- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (C) ID=30 W/STUD 		8-97078-642-2 01 1 9312-9801 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (C) ID=30 W/STUD 		8-97078-642-2 01 1 9802- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 03.162 (K) L=140 		5-09707-031-0 03 1 9312-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (E) ID=20 		8-94156-624-1 02 1 9312-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (E) ID=20 		8-94156-624-1 02 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (F) ID=27 		8-94171-628-0 01 1 9312-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (F) ID=27 		8-94171-628-0 01 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (P) ID=18 		8-97026-193-0 01 1 9312-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (P) ID=18 		8-97026-193-0 01 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (A) ID=33 L=63 		1-09700-807-0 07 1 9312-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (A) ID=33 L=63 		1-09700-807-0 07 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (M) ID=20 		5-09700-321-0 01 1 9312-9409 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (M) ID=20 		5-09700-321-0 01 1 9410-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) (M) ID=20 		5-09700-321-0 01 1 9410-9510 ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (M) ID=20 		5-09700-321-0 01 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) (M) ID=20 		5-09700-321-0 01 1 9511- ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 03.162 (K) L=140 		5-09707-031-0 01 1 9312-9405 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> 03.162 (K) L=140 		5-09707-031-0 01 1 9406-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> 03.162 (K) L=140 		5-09707-031-1 01 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRAME-KICK UP<7EW> (H) ID=31 L=33.5 		1-09987-165-0 01 1 9312-9410 ●
48 02.559 CLIP; FRAME HARNESS
FRAME-KICK UP<7EW> (G) ID=31 L=30 		1-09700-969-0 01 1 9411-9711 ●
48 02.559 CLIP; FRAME HARNESS
FRAME-KICK UP<7EW> (Q) ID=35 L=35 		1-09700-895-0 01 1 9712- ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (I) L=168 		8-97802-347-0 01 1 9312-9405 ●
48 02.559 CLIP; FRAME HARNESS
(I) L=168 		8-97802-347-0 01 1 9406-9406 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(W) L=170.3 		1-09987-182-0 01 1 9407-9510 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(W) L=170.3 		1-09987-182-0 01 1 9511- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (W) L=170.3 		1-09987-182-0 01 1 9511- ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (I) L=168 		8-97802-347-0 05 1 9312-9406 ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (W) L=170.3 		1-09987-182-0 05 1 9407- ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (V) ID=19 H=70 L=25 		1-09700-773-0 01 1 9312- ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) (A) ID=33 L=63 		1-09700-807-0 06 1 9410- ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) (T) ID=21 L=28 		1-09700-673-1 AR 1 9312-9410 ● ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) (X) ID=20 		8-94169-650-0 AR 1 9411- ● ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) 01.240 (B) ID=14 L=47 		5-09700-319-0 04 1 9312- ● ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (Y) L=33 ID=19 H=33 L=45 		1-09701-045-0 01 1 9312-9512 ● ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (Z) T=9.2 		5-09709-013-0 01 1 9312- ●
465 02.483 PROTECTOR; HEAT,HARNESS
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97075-703-0 01 1 9312-9510 ●
465 02.483 PROTECTOR; HEAT,HARNESS
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (D) 		8-94464-755-1 01 1 9312-9510 ● ● ●
465 02.483 PROTECTOR; HEAT,HARNESS
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (D) 		8-94464-755-1 01 1 9511- ● ● ● ●
465 02.483 PROTECTOR; HEAT,HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (B) 		8-97075-702-0 01 1 9312- ●
465 02.483 PROTECTOR; HEAT,HARNESS
(C) 		8-94464-756-1 01 1 9312-9801 ●
465 02.483 PROTECTOR; HEAT,HARNESS
4BE1 ENG(RLH) (C) 		8-94464-756-1 01 1 9802- ●
467 02.559 BRACKET; HEAT PROTECTOR
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 		8-97075-704-2 01 1 9312- ●
469 02.559 NUT; PROTECTOR
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 02 1 9511- ●
469 02.559 NUT; PROTECTOR
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9511-9801 ● ● ● ● ●
469 02.559 NUT; PROTECTOR
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9802- ● ● ● ● ● ●
469 02.559 NUT; PROTECTOR
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 04.594 M6 FLANGE 		0-91150-106-0 02 1 9312- ●
515 02.559 NUT; BRKT
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9312-9510 ● ● ● ● ● ● ●
515 02.559 NUT; BRKT
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9511- ● ● ● ● ●
515 02.559 NUT; BRKT
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9511- ●
515 02.559 NUT; BRKT
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 04.594 (A) M6 FLANGE 		0-91150-106-0 02 1 9312-9510 ● ● ● ●
515 02.559 NUT; BRKT
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 04.594 (A) M6 FLANGE 		0-91150-106-0 02 1 9511- ● ● ● ● ●
515 02.559 NUT; BRKT
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 07.633 (B) M8 FLANGE 		0-91150-108-0 02 1 9312- ●
çizim 68423
16 116 521 518 519 504 519
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
16 02.559 CLIP; HARNESS
(O) L=170.3 		1-09987-182-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
16.065 (B) 1 SET=5 PIECE 		1-09987-214-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.240 (D) ID=14 L=47 		5-09700-319-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(Y) L=250 		5-09707-030-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (V) L=140 		5-09707-031-1 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (J) L=170 		5-09707-054-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(E) L=100 		8-94327-067-1 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(M) L=60 		8-94332-777-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(R) ID=13 		8-94147-320-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(Q) L=80 		5-09700-307-1 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
04.342 (L) ID=14-12 		8-94379-592-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.343 (F) ID=10 & 16 		8-94413-325-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) L=100 		8-94442-388-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(K) L=60 		8-94457-053-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(G) ID=16.5 & 16.5 		8-94468-380-0 AR 1 9312-9702 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(A) ID=7-10 		8-94472-578-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.694 (H) ID=6 & 10-13 		8-97069-515-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(I) ID=12.5-14.5 		8-97087-726-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(P) L=175 		8-97110-167-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(X) L=155 		8-97173-307-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(U) ID=15-32 		8-97174-404-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(N) L=168 		8-97802-347-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(G) ID=16.5 & 16.5 		8-94473-320-0 AR 1 9703- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.166 (W) ID=22 & 22 		8-94464-837-0 AR 1 9312- ● ● ● ● ● ● ●
116 02.559 CLIP; ROOF HARNESS
CAB-LOW ROOF<6XQ> 16.065 1 SET=5 PIECE 		1-09987-214-0 01 1 9511- ●
504 02.559 PROTECTOR; HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 16.225 L=200 SERVICED BY L=3060 		9-65731-223-1 01 1 9511- ● ● ● ● ● ● ●
518 02.559 WASHER; LK,EARTH CABLE
EXC. FRAME-KICK UP<7EW> ID=6 		9-09151-506-0 01 1 9312-9510 ● ● ● ● ● ● ●
519 02.559 NUT; EARTH CABLE
EXC. FRAME-KICK UP<7EW> 00.413 (A) 		9-09110-506-0 01 1 9312-9406 ● ● ● ● ● ● ●
519 02.559 NUT; EARTH CABLE
EXC. FRAME-KICK UP<7EW> 16.176 (A) M6 		9-09110-406-0 01 1 9407-9510 ● ● ● ● ● ● ●
519 02.559 NUT; EARTH CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) 05.586 (B) M12 FLANGE 		0-91150-112-0 01 1 9312-9510 ● ● ● ● ● ●
519 02.559 NUT; EARTH CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) 05.586 (B) M12 FLANGE 		0-91150-112-0 01 1 9511- ● ● ● ● ● ● ●
521 02.559 BOLT; GRAND CABLE
04.785 M6X16 		0-20800-616-0 01 1 9312-9510 ● ● ● ● ● ●
çizim 68454
14 16 16 264 16 14 16 514 514 16 16 16 16 16 16 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
14 02.559 CLIP; BAND,HARNESS
ADJUST HEADLAMP<6RC> 03.430 (A) L=200 		8-94464-835-0 01 1 9407-9711 ● ●
14 02.559 CLIP; BAND,HARNESS
ADJUST HEADLAMP<6RC> 03.162 (B) L=140 		5-09707-031-1 01 1 9312- ● ●
14 02.559 CLIP; BAND,HARNESS
4HF1 ENG(RLS) 03.162 (B) L=140 		5-09707-031-1 01 1 9312- ● ●
16 02.559 CLIP; HARNESS
(O) L=170.3 		1-09987-182-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
16.065 (B) 1 SET=5 PIECE 		1-09987-214-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.240 (D) ID=14 L=47 		5-09700-319-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(Y) L=250 		5-09707-030-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (V) L=140 		5-09707-031-1 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (J) L=170 		5-09707-054-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(E) L=100 		8-94327-067-1 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(M) L=60 		8-94332-777-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(R) ID=13 		8-94147-320-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(Q) L=80 		5-09700-307-1 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
04.342 (L) ID=14-12 		8-94379-592-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.343 (F) ID=10 & 16 		8-94413-325-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) L=100 		8-94442-388-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(K) L=60 		8-94457-053-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(G) ID=16.5 & 16.5 		8-94468-380-0 AR 1 9312-9702 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(A) ID=7-10 		8-94472-578-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.694 (H) ID=6 & 10-13 		8-97069-515-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(I) ID=12.5-14.5 		8-97087-726-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(P) L=175 		8-97110-167-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(X) L=155 		8-97173-307-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(U) ID=15-32 		8-97174-404-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(N) L=168 		8-97802-347-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(G) ID=16.5 & 16.5 		8-94473-320-0 AR 1 9703- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.166 (W) ID=22 & 22 		8-94464-837-0 AR 1 9312- ● ● ● ● ● ● ●
264 02.559 CLIP; HARNESS,HEADLAMP
02.343 ID=10 & 16 		8-94413-325-0 03 1 9312-9510 ● ● ● ● ● ●
264 02.559 CLIP; HARNESS,HEADLAMP
02.343 ID=10 & 16 		8-94413-325-0 03 1 9511- ● ● ● ● ● ● ●
514 02.559 FINISHER; HARNESS
16.550 (A) L=120 		1-71997-513-1 04 1 9312-9406 ● ● ● ● ● ●
514 02.559 FINISHER; HARNESS
16.550 (A) L=120 		1-71997-513-1 01 1 9407-9510 ● ● ● ● ● ●
514 02.559 FINISHER; HARNESS
16.550 (A) L=120 		1-71997-513-1 01 1 9511- ● ● ● ● ● ● ●
514 02.559 FINISHER; HARNESS
16.550 (A) L=120 		1-71997-513-1 04 1 9407-9409 ● ● ● ● ● ●
514 02.559 FINISHER; HARNESS
16.550 (A) L=120 		1-71997-513-1 03 1 9410-9510 ● ● ● ● ● ●
514 02.559 FINISHER; HARNESS
16.550 (A) L=120 		1-71997-513-1 03 1 9511- ● ● ● ● ● ● ●
514 02.559 FINISHER; HARNESS
16.550 (B) L=175 		1-71997-513-1 01 1 9410-9510 ● ● ● ● ● ●
514 02.559 FINISHER; HARNESS
16.550 (B) L=175 		1-71997-513-1 01 1 9511- ● ● ● ● ● ● ●
çizim 68492
16 294 21 22 142 21 21 524 206 206 516
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
16 02.559 CLIP; HARNESS
(O) L=170.3 		1-09987-182-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
16.065 (B) 1 SET=5 PIECE 		1-09987-214-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.240 (D) ID=14 L=47 		5-09700-319-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(Y) L=250 		5-09707-030-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (V) L=140 		5-09707-031-1 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (J) L=170 		5-09707-054-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(E) L=100 		8-94327-067-1 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(M) L=60 		8-94332-777-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(R) ID=13 		8-94147-320-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(Q) L=80 		5-09700-307-1 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
04.342 (L) ID=14-12 		8-94379-592-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.343 (F) ID=10 & 16 		8-94413-325-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) L=100 		8-94442-388-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(K) L=60 		8-94457-053-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(G) ID=16.5 & 16.5 		8-94468-380-0 AR 1 9312-9702 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(A) ID=7-10 		8-94472-578-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.694 (H) ID=6 & 10-13 		8-97069-515-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(I) ID=12.5-14.5 		8-97087-726-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(P) L=175 		8-97110-167-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(X) L=155 		8-97173-307-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(U) ID=15-32 		8-97174-404-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(N) L=168 		8-97802-347-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(G) ID=16.5 & 16.5 		8-94473-320-0 AR 1 9703- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.166 (W) ID=22 & 22 		8-94464-837-0 AR 1 9312- ● ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) (C) 		8-97068-801-1 01 1 9312-9510 ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
4BE1 ENG(RLH) (B) 		8-97061-053-1 01 1 9312-9510 ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
4BE1 ENG(RLH) (B) 		8-97061-053-1 01 1 9511- ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
4HF1 ENG(RLS) (A) 		8-97088-278-0 01 1 9503-9510 ● ●
22 02.559 CLIP; ENG HARNESS
4BE1 ENG(RLH),4HF1 ENG(RLS) 03.430 ID=17 		8-94449-734-1 01 1 9312-9404 ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4BE1 ENG(RLH) 03.430 ID=17 		8-94449-734-1 01 1 9405-9510 ● ● ● ●
142 02.559 CLIP; HARNESS,ENG
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 02.480 (C) ID=25 		8-94120-831-0 01 1 9511-9605 ● ● ● ● ●
142 02.559 CLIP; HARNESS,ENG
4BE1 ENG(RLH) 02.587 (A) L=112 		8-94232-618-0 01 1 9312-9510 ● ● ● ●
142 02.559 CLIP; HARNESS,ENG
4BE1 ENG(RLH) 02.587 (A) L=112 		8-94232-618-0 01 1 9511- ● ● ● ● ●
142 02.559 CLIP; HARNESS,ENG
4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) 01.240 (B) T=5.5 		5-09709-047-0 01 1 9312-9711 ●
206 02.559 CLIP; FUEL TANK HARNESS
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 03.162 (B) 		5-09709-095-0 03 1 9410-9503 ●
206 02.559 CLIP; FUEL TANK HARNESS
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 03.162 (A) L=140 		5-09707-031-1 01 1 9504- ●
206 02.559 CLIP; FUEL TANK HARNESS
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 03.162 (B) 		5-09709-095-0 01 1 9504-9510 ●
206 02.559 CLIP; FUEL TANK HARNESS
4HF1 ENG(RLS) EXHAUST BRAKE<NF8> FIRE TRUCK CHASSIS(V4F) 03.162 (B) 		5-09709-095-0 01 1 9504-9510 ●
206 02.559 CLIP; FUEL TANK HARNESS
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 03.162 (B) 		5-09709-095-0 01 1 9511- ●
206 02.559 CLIP; FUEL TANK HARNESS
4HF1 ENG(RLS) EXHAUST BRAKE<NF8> FIRE TRUCK CHASSIS(V4F) 03.162 (B) 		5-09709-095-0 01 1 9511- ●
294 02.559 NUT
RR BODY NON FLAT BED(RS5) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9312-9710 ●
294 02.559 NUT
4HF1 ENG(RLS) 04.594 M6 FLANGE 		0-91150-106-0 01 1 9312-9710 ● ●
294 02.559 NUT
RR BODY NON FLAT BED(RS5) 04.594 M6 FLANGE 		0-91150-106-0 01 1 9711- ●
294 02.559 NUT
4HF1 ENG(RLS) 04.594 M6 FLANGE 		0-91150-106-0 01 1 9711- ● ●
294 02.559 NUT
4HF1 ENG(RLS) 01.540 M8 FLANGE 		0-91150-208-0 01 1 9503-9510 ● ●
516 02.559 BOLT; HARNESS
4HF1 ENG(RLS) EXHAUST BRAKE<NF8> FIRE TRUCK CHASSIS(V4F) M8X25 FLANGE 		0-28680-825-0 01 1 9705- ●
516 02.559 BOLT; HARNESS
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) M8X25 FLANGE 		0-28680-825-0 03 1 9410-9503 ●
516 02.559 BOLT; HARNESS
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 04.686 M6X25 FLANGE 		0-28080-625-0 01 1 9504-9702 ●
516 02.559 BOLT; HARNESS
4HF1 ENG(RLS) EXHAUST BRAKE<NF8> FIRE TRUCK CHASSIS(V4F) 04.686 M6X25 FLANGE 		0-28080-625-0 01 1 9504-9702 ●
516 02.559 BOLT; HARNESS
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 9703-9704 ●
516 02.559 BOLT; HARNESS
4HF1 ENG(RLS) EXHAUST BRAKE<NF8> FIRE TRUCK CHASSIS(V4F) 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 9703-9704 ●
516 02.559 BOLT; HARNESS
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 9705- ●
524 02.559 NUT; HARNESS
4HF1 ENG(RLS) EXHAUST BRAKE<NF8> FIRE TRUCK CHASSIS(V4F) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9705- ●
524 02.559 NUT; HARNESS
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 07.633 M8 FLANGE 		0-91150-108-0 03 1 9410-9503 ●
524 02.559 NUT; HARNESS
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 04.594 M6 FLANGE 		0-91150-106-0 01 1 9504-9510 ●
524 02.559 NUT; HARNESS
4HF1 ENG(RLS) EXHAUST BRAKE<NF8> FIRE TRUCK CHASSIS(V4F) 04.594 M6 FLANGE 		0-91150-106-0 01 1 9504-9510 ●
524 02.559 NUT; HARNESS
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 04.594 M6 FLANGE 		0-91150-106-0 01 1 9511-9704 ●
524 02.559 NUT; HARNESS
4HF1 ENG(RLS) EXHAUST BRAKE<NF8> FIRE TRUCK CHASSIS(V4F) 04.594 M6 FLANGE 		0-91150-106-0 01 1 9511-9704 ●
524 02.559 NUT; HARNESS
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 04.594 M6 FLANGE 		0-91150-106-0 01 1 9705- ●
çizim 70635
48 139 16 48 48 48 48 183 48 312
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
16 02.559 CLIP; HARNESS
(O) L=170.3 		1-09987-182-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
16.065 (B) 1 SET=5 PIECE 		1-09987-214-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.240 (D) ID=14 L=47 		5-09700-319-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(Y) L=250 		5-09707-030-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (V) L=140 		5-09707-031-1 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (J) L=170 		5-09707-054-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(E) L=100 		8-94327-067-1 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(M) L=60 		8-94332-777-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(R) ID=13 		8-94147-320-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(Q) L=80 		5-09700-307-1 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
04.342 (L) ID=14-12 		8-94379-592-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.343 (F) ID=10 & 16 		8-94413-325-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) L=100 		8-94442-388-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(K) L=60 		8-94457-053-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(G) ID=16.5 & 16.5 		8-94468-380-0 AR 1 9312-9702 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(A) ID=7-10 		8-94472-578-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.694 (H) ID=6 & 10-13 		8-97069-515-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(I) ID=12.5-14.5 		8-97087-726-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(P) L=175 		8-97110-167-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(X) L=155 		8-97173-307-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(U) ID=15-32 		8-97174-404-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(N) L=168 		8-97802-347-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(G) ID=16.5 & 16.5 		8-94473-320-0 AR 1 9703- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.166 (W) ID=22 & 22 		8-94464-837-0 AR 1 9312- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (I) L=168 		8-97802-347-0 02 1 9312-9406 ●
48 02.559 CLIP; FRAME HARNESS
FRAME-KICK UP<7EW> (I) L=168 		8-97802-347-0 02 1 9312-9406 ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (W) L=170.3 		1-09987-182-0 02 1 9407- ●
48 02.559 CLIP; FRAME HARNESS
FRAME-KICK UP<7EW> (W) L=170.3 		1-09987-182-0 02 1 9407- ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) (U) L=21 ID=19 H=21 L=23 		5-09700-299-0 01 1 9312-9510 ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (U) L=21 ID=19 H=21 L=23 		5-09700-299-0 01 1 9312-9510 ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (U) L=21 ID=19 H=21 L=23 		5-09700-299-0 01 1 9511- ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (R) ID=5-12 L=14.5 		1-09987-221-0 01 1 9312- ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (AA) ID=28 L=32 		1-09701-064-1 01 1 9312- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (H) ID=31 L=33.5 		1-09987-165-0 02 1 9312-9410 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (G) ID=31 L=30 		1-09700-969-0 02 1 9411-9711 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (Q) ID=35 L=35 		1-09700-895-0 02 1 9712- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(O) L=155 		8-94125-241-1 01 1 9312-9405 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.785 (D) ID=9.6 		8-94147-870-0 01 1 9312-9510 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 04.785 (D) ID=9.6 		8-94147-870-0 01 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(N) ID=9 		8-97063-874-0 01 1 9312-9510 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(N) ID=9 		8-97063-874-0 01 1 9511- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
AIR CONDITIONER MANUAL CONT(C60) 03.162 (K) L=140 		5-09707-031-0 02 1 9312-9510 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
AIR CONDITIONER MANUAL CONT(C60) 03.162 (K) L=140 		5-09707-031-1 02 1 9511- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (L) ID=25 L=60 		1-09701-041-1 01 1 9312-9510 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (L) ID=25 L=60 		1-09701-041-1 01 1 9511-9511 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (L) ID=25 L=60 		1-09701-041-1 01 1 9512- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) (L) ID=25 L=60 		1-09701-041-1 01 1 9512- ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) (S) ID=19 L=60 		9-09525-893-0 01 1 9312-9801 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) (S) ID=19 L=60 		9-09525-893-0 01 1 9802- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9312-9606 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9607-9711 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9607-9711 ●
48 02.559 CLIP; FRAME HARNESS
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 01.240 (J) T=5.5 		5-09709-047-0 01 1 9607-9711 ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9712-9801 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 01.240 (J) T=5.5 		5-09709-047-0 01 1 9712-9801 ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9802- ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 01.240 (J) T=5.5 		5-09709-047-0 01 1 9802- ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9802- ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=33 L=63 		1-09700-807-0 05 1 9312-9409 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F),FRT INDEPENDENT SUSPENSION(6PP) (A) ID=33 L=63 		1-09700-807-0 05 1 9410-9801 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F),FRT INDEPENDENT SUSPENSION(6PP) (A) ID=33 L=63 		1-09700-807-0 05 1 9802- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 01.240 (B) ID=14 L=47 		5-09700-319-0 03 1 9312-9801 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 01.240 (B) ID=14 L=47 		5-09700-319-0 03 1 9802- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (M) ID=20 		5-09700-321-0 02 1 9312-9409 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) (M) ID=20 		5-09700-321-0 02 1 9312-9409 ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) (M) ID=20 		5-09700-321-0 02 1 9410-9510 ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) (M) ID=20 		5-09700-321-0 02 1 9410-9510 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) (M) ID=20 		5-09700-321-0 02 1 9511-9801 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) (M) ID=20 		5-09700-321-0 02 1 9802- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (C) ID=30 W/STUD 		8-97078-642-2 01 1 9312-9801 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (C) ID=30 W/STUD 		8-97078-642-2 01 1 9802- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 03.162 (K) L=140 		5-09707-031-0 03 1 9312-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (E) ID=20 		8-94156-624-1 02 1 9312-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (E) ID=20 		8-94156-624-1 02 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (F) ID=27 		8-94171-628-0 01 1 9312-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (F) ID=27 		8-94171-628-0 01 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (P) ID=18 		8-97026-193-0 01 1 9312-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (P) ID=18 		8-97026-193-0 01 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (A) ID=33 L=63 		1-09700-807-0 07 1 9312-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (A) ID=33 L=63 		1-09700-807-0 07 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (M) ID=20 		5-09700-321-0 01 1 9312-9409 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (M) ID=20 		5-09700-321-0 01 1 9410-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) (M) ID=20 		5-09700-321-0 01 1 9410-9510 ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (M) ID=20 		5-09700-321-0 01 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) (M) ID=20 		5-09700-321-0 01 1 9511- ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 03.162 (K) L=140 		5-09707-031-0 01 1 9312-9405 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> 03.162 (K) L=140 		5-09707-031-0 01 1 9406-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> 03.162 (K) L=140 		5-09707-031-1 01 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRAME-KICK UP<7EW> (H) ID=31 L=33.5 		1-09987-165-0 01 1 9312-9410 ●
48 02.559 CLIP; FRAME HARNESS
FRAME-KICK UP<7EW> (G) ID=31 L=30 		1-09700-969-0 01 1 9411-9711 ●
48 02.559 CLIP; FRAME HARNESS
FRAME-KICK UP<7EW> (Q) ID=35 L=35 		1-09700-895-0 01 1 9712- ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (I) L=168 		8-97802-347-0 01 1 9312-9405 ●
48 02.559 CLIP; FRAME HARNESS
(I) L=168 		8-97802-347-0 01 1 9406-9406 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(W) L=170.3 		1-09987-182-0 01 1 9407-9510 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(W) L=170.3 		1-09987-182-0 01 1 9511- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (W) L=170.3 		1-09987-182-0 01 1 9511- ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (I) L=168 		8-97802-347-0 05 1 9312-9406 ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (W) L=170.3 		1-09987-182-0 05 1 9407- ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (V) ID=19 H=70 L=25 		1-09700-773-0 01 1 9312- ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) (A) ID=33 L=63 		1-09700-807-0 06 1 9410- ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) (T) ID=21 L=28 		1-09700-673-1 AR 1 9312-9410 ● ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) (X) ID=20 		8-94169-650-0 AR 1 9411- ● ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) 01.240 (B) ID=14 L=47 		5-09700-319-0 04 1 9312- ● ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (Y) L=33 ID=19 H=33 L=45 		1-09701-045-0 01 1 9312-9512 ● ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (Z) T=9.2 		5-09709-013-0 01 1 9312- ●
139 02.559 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) 04.595 (F) M8X20 FLANGE 		0-28480-820-0 02 1 9312-9601 ●
139 02.559 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) 02.664 (F) M8X20 FLANGE 		0-28680-820-0 02 1 9602- ●
139 02.559 BOLT; BRKT
EXC. FRAME-KICK UP<7EW> 01.540 (E) M8X35 W/LK WASHER 		0-50040-835-0 01 1 9312-9510 ● ● ● ● ● ● ●
139 02.559 BOLT; BRKT
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> 01.540 (E) M8X35 W/LK WASHER 		0-50040-835-0 01 1 9511-9711 ● ● ● ● ●
139 02.559 BOLT; BRKT
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) 01.540 (E) M8X35 W/LK WASHER 		0-50040-835-0 01 1 9511-9711 ●
139 02.559 BOLT; BRKT
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> 02.183 (E) M8X35 FLANGE 		0-28680-835-0 01 1 9712- ● ● ● ● ●
139 02.559 BOLT; BRKT
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) 02.183 (E) M8X35 FLANGE 		0-28680-835-0 01 1 9712- ●
139 02.559 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 01.062 (A) M8X16 FLANGE 		0-28080-816-0 03 1 9312-9801 ● ● ● ● ●
139 02.559 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 01.062 (A) M8X16 FLANGE 		0-28080-816-0 03 1 9802- ● ● ● ● ● ●
139 02.559 BOLT; BRKT
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (C) 		8-97028-451-3 01 1 9312-9510 ● ● ● ●
139 02.559 BOLT; BRKT
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (C) 		8-97028-451-3 01 1 9511- ● ● ● ● ●
139 02.559 BOLT; BRKT
REFRIGERATOR CHASSIS(V4R) (D) M10X12 		0-20801-012-0 01 1 9403-9711 ●
139 02.559 BOLT; BRKT
4BE1 ENG(RLH) EXC. REAR WIDE TREAD(V4T) 01.531 (B) M8X25 FLANGE 		0-28080-825-0 02 1 9312-9503 ●
139 02.559 BOLT; BRKT
4BE1 ENG(RLH) EXC. REAR WIDE TREAD(V4T) (B) M8X25 FLANGE 		0-28680-825-0 02 1 9504-9510 ●
139 02.559 BOLT; BRKT
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (B) M8X25 FLANGE 		0-28680-825-0 02 1 9511- ●
183 02.559 CLIP; CONNECTOR
(B) L=15 		8-94315-436-1 02 1 9312- ● ●
183 02.559 CLIP; CONNECTOR
4HF1 ENG(RLS) 03.162 (A) ID=4.8 & 10 		8-94152-110-0 01 1 9312-9711 ● ●
183 02.559 CLIP; CONNECTOR
4HF1 ENG(RLS) 02.480 (C) ID=10.5 & 4.8 		8-97019-966-0 01 1 9712- ● ●
312 02.559 BRACKET; CLIP HARNESS
4HF1 ENG(RLS) 		8-97018-095-3 01 1 9312- ● ●
çizim 70705
16 16 208 208 52 16 48 142 208
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
16 02.559 CLIP; HARNESS
(O) L=170.3 		1-09987-182-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
16.065 (B) 1 SET=5 PIECE 		1-09987-214-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.240 (D) ID=14 L=47 		5-09700-319-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(Y) L=250 		5-09707-030-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (V) L=140 		5-09707-031-1 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (J) L=170 		5-09707-054-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(E) L=100 		8-94327-067-1 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(M) L=60 		8-94332-777-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(R) ID=13 		8-94147-320-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(Q) L=80 		5-09700-307-1 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
04.342 (L) ID=14-12 		8-94379-592-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.343 (F) ID=10 & 16 		8-94413-325-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) L=100 		8-94442-388-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(K) L=60 		8-94457-053-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(G) ID=16.5 & 16.5 		8-94468-380-0 AR 1 9312-9702 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(A) ID=7-10 		8-94472-578-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.694 (H) ID=6 & 10-13 		8-97069-515-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(I) ID=12.5-14.5 		8-97087-726-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(P) L=175 		8-97110-167-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(X) L=155 		8-97173-307-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(U) ID=15-32 		8-97174-404-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(N) L=168 		8-97802-347-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(G) ID=16.5 & 16.5 		8-94473-320-0 AR 1 9703- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.166 (W) ID=22 & 22 		8-94464-837-0 AR 1 9312- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (I) L=168 		8-97802-347-0 02 1 9312-9406 ●
48 02.559 CLIP; FRAME HARNESS
FRAME-KICK UP<7EW> (I) L=168 		8-97802-347-0 02 1 9312-9406 ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (W) L=170.3 		1-09987-182-0 02 1 9407- ●
48 02.559 CLIP; FRAME HARNESS
FRAME-KICK UP<7EW> (W) L=170.3 		1-09987-182-0 02 1 9407- ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) (U) L=21 ID=19 H=21 L=23 		5-09700-299-0 01 1 9312-9510 ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (U) L=21 ID=19 H=21 L=23 		5-09700-299-0 01 1 9312-9510 ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (U) L=21 ID=19 H=21 L=23 		5-09700-299-0 01 1 9511- ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (R) ID=5-12 L=14.5 		1-09987-221-0 01 1 9312- ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (AA) ID=28 L=32 		1-09701-064-1 01 1 9312- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (H) ID=31 L=33.5 		1-09987-165-0 02 1 9312-9410 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (G) ID=31 L=30 		1-09700-969-0 02 1 9411-9711 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (Q) ID=35 L=35 		1-09700-895-0 02 1 9712- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(O) L=155 		8-94125-241-1 01 1 9312-9405 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.785 (D) ID=9.6 		8-94147-870-0 01 1 9312-9510 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 04.785 (D) ID=9.6 		8-94147-870-0 01 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(N) ID=9 		8-97063-874-0 01 1 9312-9510 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(N) ID=9 		8-97063-874-0 01 1 9511- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
AIR CONDITIONER MANUAL CONT(C60) 03.162 (K) L=140 		5-09707-031-0 02 1 9312-9510 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
AIR CONDITIONER MANUAL CONT(C60) 03.162 (K) L=140 		5-09707-031-1 02 1 9511- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (L) ID=25 L=60 		1-09701-041-1 01 1 9312-9510 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (L) ID=25 L=60 		1-09701-041-1 01 1 9511-9511 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (L) ID=25 L=60 		1-09701-041-1 01 1 9512- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) (L) ID=25 L=60 		1-09701-041-1 01 1 9512- ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) (S) ID=19 L=60 		9-09525-893-0 01 1 9312-9801 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) (S) ID=19 L=60 		9-09525-893-0 01 1 9802- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9312-9606 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9607-9711 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9607-9711 ●
48 02.559 CLIP; FRAME HARNESS
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 01.240 (J) T=5.5 		5-09709-047-0 01 1 9607-9711 ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9712-9801 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 01.240 (J) T=5.5 		5-09709-047-0 01 1 9712-9801 ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9802- ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 01.240 (J) T=5.5 		5-09709-047-0 01 1 9802- ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9802- ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=33 L=63 		1-09700-807-0 05 1 9312-9409 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F),FRT INDEPENDENT SUSPENSION(6PP) (A) ID=33 L=63 		1-09700-807-0 05 1 9410-9801 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F),FRT INDEPENDENT SUSPENSION(6PP) (A) ID=33 L=63 		1-09700-807-0 05 1 9802- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 01.240 (B) ID=14 L=47 		5-09700-319-0 03 1 9312-9801 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 01.240 (B) ID=14 L=47 		5-09700-319-0 03 1 9802- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (M) ID=20 		5-09700-321-0 02 1 9312-9409 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) (M) ID=20 		5-09700-321-0 02 1 9312-9409 ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) (M) ID=20 		5-09700-321-0 02 1 9410-9510 ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) (M) ID=20 		5-09700-321-0 02 1 9410-9510 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) (M) ID=20 		5-09700-321-0 02 1 9511-9801 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) (M) ID=20 		5-09700-321-0 02 1 9802- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (C) ID=30 W/STUD 		8-97078-642-2 01 1 9312-9801 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (C) ID=30 W/STUD 		8-97078-642-2 01 1 9802- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 03.162 (K) L=140 		5-09707-031-0 03 1 9312-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (E) ID=20 		8-94156-624-1 02 1 9312-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (E) ID=20 		8-94156-624-1 02 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (F) ID=27 		8-94171-628-0 01 1 9312-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (F) ID=27 		8-94171-628-0 01 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (P) ID=18 		8-97026-193-0 01 1 9312-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (P) ID=18 		8-97026-193-0 01 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (A) ID=33 L=63 		1-09700-807-0 07 1 9312-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (A) ID=33 L=63 		1-09700-807-0 07 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (M) ID=20 		5-09700-321-0 01 1 9312-9409 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (M) ID=20 		5-09700-321-0 01 1 9410-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) (M) ID=20 		5-09700-321-0 01 1 9410-9510 ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (M) ID=20 		5-09700-321-0 01 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) (M) ID=20 		5-09700-321-0 01 1 9511- ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 03.162 (K) L=140 		5-09707-031-0 01 1 9312-9405 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> 03.162 (K) L=140 		5-09707-031-0 01 1 9406-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> 03.162 (K) L=140 		5-09707-031-1 01 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRAME-KICK UP<7EW> (H) ID=31 L=33.5 		1-09987-165-0 01 1 9312-9410 ●
48 02.559 CLIP; FRAME HARNESS
FRAME-KICK UP<7EW> (G) ID=31 L=30 		1-09700-969-0 01 1 9411-9711 ●
48 02.559 CLIP; FRAME HARNESS
FRAME-KICK UP<7EW> (Q) ID=35 L=35 		1-09700-895-0 01 1 9712- ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (I) L=168 		8-97802-347-0 01 1 9312-9405 ●
48 02.559 CLIP; FRAME HARNESS
(I) L=168 		8-97802-347-0 01 1 9406-9406 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(W) L=170.3 		1-09987-182-0 01 1 9407-9510 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(W) L=170.3 		1-09987-182-0 01 1 9511- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (W) L=170.3 		1-09987-182-0 01 1 9511- ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (I) L=168 		8-97802-347-0 05 1 9312-9406 ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (W) L=170.3 		1-09987-182-0 05 1 9407- ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (V) ID=19 H=70 L=25 		1-09700-773-0 01 1 9312- ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) (A) ID=33 L=63 		1-09700-807-0 06 1 9410- ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) (T) ID=21 L=28 		1-09700-673-1 AR 1 9312-9410 ● ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) (X) ID=20 		8-94169-650-0 AR 1 9411- ● ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) 01.240 (B) ID=14 L=47 		5-09700-319-0 04 1 9312- ● ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (Y) L=33 ID=19 H=33 L=45 		1-09701-045-0 01 1 9312-9512 ● ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (Z) T=9.2 		5-09709-013-0 01 1 9312- ●
52 02.559 CLIP; HARNESS TO BRKT
EXC. FRAME-KICK UP<7EW> 01.240 ID=14 L=47 		5-09700-319-0 01 1 9312-9510 ● ●
52 02.559 CLIP; HARNESS TO BRKT
EXC. FRAME-KICK UP<7EW> 01.240 ID=14 L=47 		5-09700-319-0 01 1 9511- ● ● ●
142 02.559 CLIP; HARNESS,ENG
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 02.480 (C) ID=25 		8-94120-831-0 01 1 9511-9605 ● ● ● ● ●
142 02.559 CLIP; HARNESS,ENG
4BE1 ENG(RLH) 02.587 (A) L=112 		8-94232-618-0 01 1 9312-9510 ● ● ● ●
142 02.559 CLIP; HARNESS,ENG
4BE1 ENG(RLH) 02.587 (A) L=112 		8-94232-618-0 01 1 9511- ● ● ● ● ●
142 02.559 CLIP; HARNESS,ENG
4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) 01.240 (B) T=5.5 		5-09709-047-0 01 1 9312-9711 ●
208 02.559 CLIP; HARNESS,MAG VLV
4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 03.162 (A) L=140 		5-09707-031-0 01 1 9312-9606 ● ● ● ● ●
208 02.559 CLIP; HARNESS,MAG VLV
4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 03.162 (A) L=140 		5-09707-031-0 01 1 9607-9701 ● ● ● ● ●
208 02.559 CLIP; HARNESS,MAG VLV
4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP) 03.162 (A) L=140 		5-09707-031-0 01 1 9702-9711 ●
208 02.559 CLIP; HARNESS,MAG VLV
4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP) EXC. TURBOCHARGER<K51> 03.162 (A) L=140 		5-09707-031-1 01 1 9712- ●
208 02.559 CLIP; HARNESS,MAG VLV
4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> (B) ID=6 		5-09700-316-0 02 1 9312-9606 ● ● ● ● ●
208 02.559 CLIP; HARNESS,MAG VLV
4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> (B) ID=6 		5-09700-316-0 02 1 9607-9711 ● ● ● ● ●
208 02.559 CLIP; HARNESS,MAG VLV
4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 02.557 (D) ID=10 		5-09700-318-0 02 1 9712-9801 ● ● ● ● ●
208 02.559 CLIP; HARNESS,MAG VLV
4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 02.557 (D) ID=10 		5-09700-318-0 02 1 9802- ● ● ● ● ● ●
208 02.559 CLIP; HARNESS,MAG VLV
4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51>,FRT INDEPENDENT SUSPENSION(6PP) 01.240 (C) T=5.5 		5-09709-047-0 01 1 9702-9801 ● ● ● ● ●
208 02.559 CLIP; HARNESS,MAG VLV
4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51>,FRT INDEPENDENT SUSPENSION(6PP) 01.240 (C) T=5.5 		5-09709-047-0 01 1 9802- ● ● ● ● ● ●
çizim 70706
217 464 488 16 16 16 48 16 217 16 48 217 488 16 16 48 162 208 16 217 488
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
16 02.559 CLIP; HARNESS
(O) L=170.3 		1-09987-182-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
16.065 (B) 1 SET=5 PIECE 		1-09987-214-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.240 (D) ID=14 L=47 		5-09700-319-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(Y) L=250 		5-09707-030-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (V) L=140 		5-09707-031-1 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (J) L=170 		5-09707-054-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(E) L=100 		8-94327-067-1 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(M) L=60 		8-94332-777-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(R) ID=13 		8-94147-320-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(Q) L=80 		5-09700-307-1 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
04.342 (L) ID=14-12 		8-94379-592-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.343 (F) ID=10 & 16 		8-94413-325-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) L=100 		8-94442-388-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(K) L=60 		8-94457-053-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(G) ID=16.5 & 16.5 		8-94468-380-0 AR 1 9312-9702 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(A) ID=7-10 		8-94472-578-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.694 (H) ID=6 & 10-13 		8-97069-515-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(I) ID=12.5-14.5 		8-97087-726-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(P) L=175 		8-97110-167-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(X) L=155 		8-97173-307-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(U) ID=15-32 		8-97174-404-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(N) L=168 		8-97802-347-0 AR 1 9312- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(G) ID=16.5 & 16.5 		8-94473-320-0 AR 1 9703- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.166 (W) ID=22 & 22 		8-94464-837-0 AR 1 9312- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (I) L=168 		8-97802-347-0 02 1 9312-9406 ●
48 02.559 CLIP; FRAME HARNESS
FRAME-KICK UP<7EW> (I) L=168 		8-97802-347-0 02 1 9312-9406 ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (W) L=170.3 		1-09987-182-0 02 1 9407- ●
48 02.559 CLIP; FRAME HARNESS
FRAME-KICK UP<7EW> (W) L=170.3 		1-09987-182-0 02 1 9407- ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) (U) L=21 ID=19 H=21 L=23 		5-09700-299-0 01 1 9312-9510 ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (U) L=21 ID=19 H=21 L=23 		5-09700-299-0 01 1 9312-9510 ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (U) L=21 ID=19 H=21 L=23 		5-09700-299-0 01 1 9511- ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (R) ID=5-12 L=14.5 		1-09987-221-0 01 1 9312- ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (AA) ID=28 L=32 		1-09701-064-1 01 1 9312- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (H) ID=31 L=33.5 		1-09987-165-0 02 1 9312-9410 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (G) ID=31 L=30 		1-09700-969-0 02 1 9411-9711 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (Q) ID=35 L=35 		1-09700-895-0 02 1 9712- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(O) L=155 		8-94125-241-1 01 1 9312-9405 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.785 (D) ID=9.6 		8-94147-870-0 01 1 9312-9510 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 04.785 (D) ID=9.6 		8-94147-870-0 01 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(N) ID=9 		8-97063-874-0 01 1 9312-9510 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(N) ID=9 		8-97063-874-0 01 1 9511- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
AIR CONDITIONER MANUAL CONT(C60) 03.162 (K) L=140 		5-09707-031-0 02 1 9312-9510 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
AIR CONDITIONER MANUAL CONT(C60) 03.162 (K) L=140 		5-09707-031-1 02 1 9511- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (L) ID=25 L=60 		1-09701-041-1 01 1 9312-9510 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (L) ID=25 L=60 		1-09701-041-1 01 1 9511-9511 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (L) ID=25 L=60 		1-09701-041-1 01 1 9512- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) (L) ID=25 L=60 		1-09701-041-1 01 1 9512- ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) (S) ID=19 L=60 		9-09525-893-0 01 1 9312-9801 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) (S) ID=19 L=60 		9-09525-893-0 01 1 9802- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9312-9606 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9607-9711 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9607-9711 ●
48 02.559 CLIP; FRAME HARNESS
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 01.240 (J) T=5.5 		5-09709-047-0 01 1 9607-9711 ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9712-9801 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 01.240 (J) T=5.5 		5-09709-047-0 01 1 9712-9801 ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9802- ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 01.240 (J) T=5.5 		5-09709-047-0 01 1 9802- ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9802- ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=33 L=63 		1-09700-807-0 05 1 9312-9409 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F),FRT INDEPENDENT SUSPENSION(6PP) (A) ID=33 L=63 		1-09700-807-0 05 1 9410-9801 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F),FRT INDEPENDENT SUSPENSION(6PP) (A) ID=33 L=63 		1-09700-807-0 05 1 9802- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 01.240 (B) ID=14 L=47 		5-09700-319-0 03 1 9312-9801 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 01.240 (B) ID=14 L=47 		5-09700-319-0 03 1 9802- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (M) ID=20 		5-09700-321-0 02 1 9312-9409 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) (M) ID=20 		5-09700-321-0 02 1 9312-9409 ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) (M) ID=20 		5-09700-321-0 02 1 9410-9510 ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) (M) ID=20 		5-09700-321-0 02 1 9410-9510 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) (M) ID=20 		5-09700-321-0 02 1 9511-9801 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) (M) ID=20 		5-09700-321-0 02 1 9802- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (C) ID=30 W/STUD 		8-97078-642-2 01 1 9312-9801 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (C) ID=30 W/STUD 		8-97078-642-2 01 1 9802- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 03.162 (K) L=140 		5-09707-031-0 03 1 9312-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (E) ID=20 		8-94156-624-1 02 1 9312-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (E) ID=20 		8-94156-624-1 02 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (F) ID=27 		8-94171-628-0 01 1 9312-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (F) ID=27 		8-94171-628-0 01 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (P) ID=18 		8-97026-193-0 01 1 9312-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (P) ID=18 		8-97026-193-0 01 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (A) ID=33 L=63 		1-09700-807-0 07 1 9312-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (A) ID=33 L=63 		1-09700-807-0 07 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (M) ID=20 		5-09700-321-0 01 1 9312-9409 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (M) ID=20 		5-09700-321-0 01 1 9410-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) (M) ID=20 		5-09700-321-0 01 1 9410-9510 ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (M) ID=20 		5-09700-321-0 01 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) (M) ID=20 		5-09700-321-0 01 1 9511- ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 03.162 (K) L=140 		5-09707-031-0 01 1 9312-9405 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> 03.162 (K) L=140 		5-09707-031-0 01 1 9406-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> 03.162 (K) L=140 		5-09707-031-1 01 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRAME-KICK UP<7EW> (H) ID=31 L=33.5 		1-09987-165-0 01 1 9312-9410 ●
48 02.559 CLIP; FRAME HARNESS
FRAME-KICK UP<7EW> (G) ID=31 L=30 		1-09700-969-0 01 1 9411-9711 ●
48 02.559 CLIP; FRAME HARNESS
FRAME-KICK UP<7EW> (Q) ID=35 L=35 		1-09700-895-0 01 1 9712- ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (I) L=168 		8-97802-347-0 01 1 9312-9405 ●
48 02.559 CLIP; FRAME HARNESS
(I) L=168 		8-97802-347-0 01 1 9406-9406 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(W) L=170.3 		1-09987-182-0 01 1 9407-9510 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(W) L=170.3 		1-09987-182-0 01 1 9511- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (W) L=170.3 		1-09987-182-0 01 1 9511- ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (I) L=168 		8-97802-347-0 05 1 9312-9406 ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (W) L=170.3 		1-09987-182-0 05 1 9407- ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (V) ID=19 H=70 L=25 		1-09700-773-0 01 1 9312- ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) (A) ID=33 L=63 		1-09700-807-0 06 1 9410- ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) (T) ID=21 L=28 		1-09700-673-1 AR 1 9312-9410 ● ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) (X) ID=20 		8-94169-650-0 AR 1 9411- ● ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) 01.240 (B) ID=14 L=47 		5-09700-319-0 04 1 9312- ● ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (Y) L=33 ID=19 H=33 L=45 		1-09701-045-0 01 1 9312-9512 ● ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (Z) T=9.2 		5-09709-013-0 01 1 9312- ●
162 02.559 CLIP; SW HARNESS
4BE1 ENG(RLH),4HF1 ENG(RLS) 03.162 L=140 		5-09707-031-0 01 1 9312-9510 ● ● ● ●
162 02.559 CLIP; SW HARNESS
4BE1 ENG(RLH),4HF1 ENG(RLS) 03.162 L=140 		5-09707-031-1 01 1 9511- ● ● ● ● ●
208 02.559 CLIP; HARNESS,MAG VLV
4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 03.162 (A) L=140 		5-09707-031-0 01 1 9312-9606 ● ● ● ● ●
208 02.559 CLIP; HARNESS,MAG VLV
4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 03.162 (A) L=140 		5-09707-031-0 01 1 9607-9701 ● ● ● ● ●
208 02.559 CLIP; HARNESS,MAG VLV
4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP) 03.162 (A) L=140 		5-09707-031-0 01 1 9702-9711 ●
208 02.559 CLIP; HARNESS,MAG VLV
4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP) EXC. TURBOCHARGER<K51> 03.162 (A) L=140 		5-09707-031-1 01 1 9712- ●
208 02.559 CLIP; HARNESS,MAG VLV
4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> (B) ID=6 		5-09700-316-0 02 1 9312-9606 ● ● ● ● ●
208 02.559 CLIP; HARNESS,MAG VLV
4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> (B) ID=6 		5-09700-316-0 02 1 9607-9711 ● ● ● ● ●
208 02.559 CLIP; HARNESS,MAG VLV
4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 02.557 (D) ID=10 		5-09700-318-0 02 1 9712-9801 ● ● ● ● ●
208 02.559 CLIP; HARNESS,MAG VLV
4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 02.557 (D) ID=10 		5-09700-318-0 02 1 9802- ● ● ● ● ● ●
208 02.559 CLIP; HARNESS,MAG VLV
4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51>,FRT INDEPENDENT SUSPENSION(6PP) 01.240 (C) T=5.5 		5-09709-047-0 01 1 9702-9801 ● ● ● ● ●
208 02.559 CLIP; HARNESS,MAG VLV
4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51>,FRT INDEPENDENT SUSPENSION(6PP) 01.240 (C) T=5.5 		5-09709-047-0 01 1 9802- ● ● ● ● ● ●
217 02.559 CLIP; RR BODY HARNESS
EXC. RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) (B) L=250 		5-09707-030-0 01 1 9312-9406 ● ● ● ● ● ● ●
217 02.559 CLIP; RR BODY HARNESS
EUROPEAN BASIC EQUIPMENT(EK4) (B) L=250 		5-09707-030-0 01 1 9312-9406 ● ●
217 02.559 CLIP; RR BODY HARNESS
RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6> 02.587 (A) L=112 		8-94232-618-0 04 1 9312-9406 ● ● ● ●
217 02.559 CLIP; RR BODY HARNESS
EUROPEAN BASIC EQUIPMENT(EK4) (C) L=168 		8-97802-347-0 02 1 9312-9406 ● ●
217 02.559 CLIP; RR BODY HARNESS
EUROPEAN BASIC EQUIPMENT(EK4) (D) L=170.3 		1-09987-182-0 02 1 9407-9407 ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
02.559 (B) ID=6.5 		8-94257-639-0 01 1 9312-9510 ● ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 (B) ID=6.5 		8-94257-639-0 01 1 9511-9801 ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 02.559 (B) ID=6.5 		8-94257-639-0 01 1 9511-9801 ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B),FUEL SEDIMENTER WITH HEATER<6HU> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 9511-9801 ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 (B) ID=6.5 		8-94257-639-0 01 1 9802- ● ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 02.559 (B) ID=6.5 		8-94257-639-0 01 1 9802- ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B),FUEL SEDIMENTER WITH HEATER<6HU> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 9802- ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) 02.587 (A) L=112 		8-94232-618-0 01 1 9401-9510 ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) 02.587 (A) L=112 		8-94232-618-0 01 1 9511- ● ● ● ● ●
488 02.559 CLIP; CABLE,TRAILER
EXC. RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) (A) L=250 		5-09707-030-0 01 1 9407-9506 ● ● ● ● ● ● ●
488 02.559 CLIP; CABLE,TRAILER
EUROPEAN BASIC EQUIPMENT(EK4) (A) L=250 		5-09707-030-0 01 1 9407-9506 ● ●
488 02.559 CLIP; CABLE,TRAILER
EXC. RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) (A) L=250 		5-09707-030-0 01 1 9507-9510 ● ● ● ● ● ●
488 02.559 CLIP; CABLE,TRAILER
EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) (A) L=250 		5-09707-030-0 01 1 9507-9510 ● ●
488 02.559 CLIP; CABLE,TRAILER
EXC. RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) (A) L=250 		5-09707-030-1 01 1 9511- ● ● ● ● ● ● ●
488 02.559 CLIP; CABLE,TRAILER
EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) (A) L=250 		5-09707-030-1 01 1 9511- ● ●
488 02.559 CLIP; CABLE,TRAILER
RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6> 02.587 (B) L=112 		8-94232-618-0 04 1 9407-9601 ● ● ● ●
488 02.559 CLIP; CABLE,TRAILER
RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6> 02.587 (B) L=112 		8-94232-618-0 04 1 9602-9711 ● ● ● ● ●
488 02.559 CLIP; CABLE,TRAILER
RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6> 02.587 (B) L=112 		8-94232-618-0 04 1 9712-9801 ● ● ● ●
488 02.559 CLIP; CABLE,TRAILER
RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6> 02.587 (B) L=112 		8-94232-618-0 04 1 9802- ● ● ● ● ●
488 02.559 CLIP; CABLE,TRAILER
EUROPEAN BASIC EQUIPMENT(EK4) (C) L=170.3 		1-09987-182-0 02 1 9407-9506 ● ●
488 02.559 CLIP; CABLE,TRAILER
EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) (C) L=170.3 		1-09987-182-0 02 1 9507-9711 ● ●
488 02.559 CLIP; CABLE,TRAILER
EUROPEAN BASIC EQUIPMENT(EK4) (C) L=170.3 		1-09987-182-0 02 1 9712- ● ●
çizim 70707
53 53 27 514 7 308 308 178 178 465 465 527
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
7 02.559 BRACKET; CONNECTOR 8-97102-247-1 01 1 9312-9510 ● ● ● ● ● ●
7 02.559 BRACKET; CONNECTOR 8-97102-247-2 01 1 9511- ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
4BE1 ENG(RLH) 03.008 L=80 		5-22439-006-0 01 1 9401-9406 ● ● ●
53 02.483 BRACKET; HARNESS
4BE1 ENG(RLH) (A) 		8-97075-710-2 01 1 9312- ●
53 02.483 BRACKET; HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97062-325-1 01 1 9312-9510 ●
53 02.483 BRACKET; HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97062-324-1 01 1 9312-9510 ● ● ● ● ●
53 02.483 BRACKET; HARNESS
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) (E) 		8-97091-462-1 01 1 9312- ●
53 02.483 BRACKET; HARNESS
4HF1 ENG(RLS) (B) 		8-97062-178-3 01 1 9312- ● ●
53 02.483 BRACKET; HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (A) 		8-97075-709-3 01 1 9312-9510 ● ● ●
53 02.483 BRACKET; HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (A) 		8-97075-709-3 01 1 9511- ● ● ● ●
178 02.559 GROMMET; HARNESS
(A) ID=47 		8-94279-735-0 01 1 9312-9510 ● ● ● ● ● ●
178 02.559 GROMMET; HARNESS
(A) ID=47 		8-94279-735-0 01 1 9511- ● ● ● ● ● ● ●
178 02.559 GROMMET; HARNESS
02.343 (C) ID=17 		8-94128-319-2 01 1 9312-9312 ● ● ● ● ●
178 02.559 GROMMET; HARNESS
EXC. MINI BUS CHASSIS<V4B> 02.343 (C) ID=17 		8-94128-319-2 01 1 9401-9510 ● ● ● ● ●
178 02.559 GROMMET; HARNESS
EXC. MINI BUS CHASSIS<V4B> 02.343 (C) ID=17 		8-94128-319-2 01 1 9511-9604 ● ● ● ● ● ●
178 02.559 GROMMET; HARNESS
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (B) ID=20 OD=31 T=10.5 		9-09575-620-0 01 1 9312-9312 ● ●
178 02.559 GROMMET; HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) ID=20 OD=31 T=10.5 		9-09575-620-0 01 1 9312-9312 ● ●
178 02.559 GROMMET; HARNESS
MINI BUS CHASSIS<V4B> (B) ID=20 OD=31 T=10.5 		9-09575-620-0 01 1 9401-9501 ●
178 02.559 GROMMET; HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (B) ID=20 OD=31 T=10.5 		9-09575-620-0 01 1 9502-9604 ● ●
178 02.559 GROMMET; HARNESS
MINI BUS CHASSIS<V4B> (B) ID=20 OD=31 T=10.5 		9-09575-620-0 01 1 9502-9604 ●
308 02.559 BRACKET; CLIP,ENG HARNESS
4BE1 ENG(RLH) (B) ID=9 		8-94337-138-0 01 1 9312-9510 ● ● ● ●
308 02.559 BRACKET; CLIP,ENG HARNESS
4BE1 ENG(RLH) (B) ID=9 		8-94337-138-0 01 1 9511- ● ● ● ● ●
308 02.559 BRACKET; CLIP,ENG HARNESS
REFRIGERATOR CHASSIS(V4R) (A) 		8-97031-948-2 01 1 9403-9711 ●
465 02.483 PROTECTOR; HEAT,HARNESS
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97075-703-0 01 1 9312-9510 ●
465 02.483 PROTECTOR; HEAT,HARNESS
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (D) 		8-94464-755-1 01 1 9312-9510 ● ● ●
465 02.483 PROTECTOR; HEAT,HARNESS
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (D) 		8-94464-755-1 01 1 9511- ● ● ● ●
465 02.483 PROTECTOR; HEAT,HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (B) 		8-97075-702-0 01 1 9312- ●
465 02.483 PROTECTOR; HEAT,HARNESS
(C) 		8-94464-756-1 01 1 9312-9801 ●
465 02.483 PROTECTOR; HEAT,HARNESS
4BE1 ENG(RLH) (C) 		8-94464-756-1 01 1 9802- ●
514 02.559 FINISHER; HARNESS
16.550 (A) L=120 		1-71997-513-1 04 1 9312-9406 ● ● ● ● ● ●
514 02.559 FINISHER; HARNESS
16.550 (A) L=120 		1-71997-513-1 01 1 9407-9510 ● ● ● ● ● ●
514 02.559 FINISHER; HARNESS
16.550 (A) L=120 		1-71997-513-1 01 1 9511- ● ● ● ● ● ● ●
514 02.559 FINISHER; HARNESS
16.550 (A) L=120 		1-71997-513-1 04 1 9407-9409 ● ● ● ● ● ●
514 02.559 FINISHER; HARNESS
16.550 (A) L=120 		1-71997-513-1 03 1 9410-9510 ● ● ● ● ● ●
514 02.559 FINISHER; HARNESS
16.550 (A) L=120 		1-71997-513-1 03 1 9511- ● ● ● ● ● ● ●
514 02.559 FINISHER; HARNESS
16.550 (B) L=175 		1-71997-513-1 01 1 9410-9510 ● ● ● ● ● ●
514 02.559 FINISHER; HARNESS
16.550 (B) L=175 		1-71997-513-1 01 1 9511- ● ● ● ● ● ● ●
527 02.559 TAPE; SOFT,CONNECTOR
100X100 		8-94232-622-0 01 1 9312-9510 ● ● ● ● ● ●
527 02.559 TAPE; SOFT,CONNECTOR
100X100 		8-94232-622-0 01 1 9511- ● ● ● ● ● ● ●
çizim 70940
8 386 460 150 150 139 377 8 150 159 38 466 139 466 10
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
8 02.559 BOLT; BRKT,CONNECTOR
08.225 (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9312-9510 ● ● ● ● ● ●
8 02.559 BOLT; BRKT,CONNECTOR
08.225 (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9511- ● ● ● ● ● ● ●
8 02.559 BOLT; BRKT,CONNECTOR
16.714 (B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 03 1 9312-9510 ● ● ● ● ● ●
8 02.559 BOLT; BRKT,CONNECTOR
16.714 (B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 03 1 9511-9702 ● ● ● ● ● ● ●
8 02.559 BOLT; BRKT,CONNECTOR
(B) M8X25 FLANGE 		0-28680-825-0 03 1 9703- ● ● ● ● ● ● ●
10 02.559 SCREW; BRKT TO BODY
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9312-9510 ● ● ● ● ● ●
10 02.559 SCREW; BRKT TO BODY
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9511- ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 04.595 (D) M8X20 FLANGE 		0-28480-820-0 01 1 9312-9510 ●
38 02.559 BOLT; CLIP,HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 04.595 (D) M8X20 FLANGE 		0-28480-820-0 01 1 9312-9510 ●
38 02.559 BOLT; CLIP,HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 04.595 (D) M8X20 FLANGE 		0-28480-820-0 01 1 9511-9601 ●
38 02.559 BOLT; CLIP,HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 04.595 (D) M8X20 FLANGE 		0-28480-820-0 01 1 9511-9601 ●
38 02.559 BOLT; CLIP,HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 02.664 (D) M8X20 FLANGE 		0-28680-820-0 01 1 9602- ●
38 02.559 BOLT; CLIP,HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 02.664 (D) M8X20 FLANGE 		0-28680-820-0 01 1 9602- ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.531 (B) M8X25 FLANGE 		0-28080-825-0 01 1 9312-9312 ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 01.531 (B) M8X25 FLANGE 		0-28080-825-0 01 1 9401-9503 ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (B) M8X25 FLANGE 		0-28680-825-0 01 1 9504-9510 ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (B) M8X25 FLANGE 		0-28680-825-0 01 1 9511-9711 ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (B) M8X25 FLANGE 		0-28680-825-0 01 1 9712- ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 04.686 (E) M6X25 FLANGE 		0-28080-625-0 02 1 9312-9406 ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 04.686 (E) M6X25 FLANGE 		0-28080-625-0 01 1 9407-9502 ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 04.686 (E) M6X25 FLANGE 		0-28080-625-0 01 1 9503-9510 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 ENG(RLF),4HF1 ENG(RLS) 04.686 (E) M6X25 FLANGE 		0-28080-625-0 01 1 9503-9510 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 04.686 (E) M6X25 FLANGE 		0-28080-625-0 02 1 9511-9702 ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 02.334 (E) M6X25 FLANGE 		0-28680-625-0 01 1 9703- ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 03.890 (E) M6X25 		0-28280-625-0 01 1 9312-9312 ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 04.686 (E) M6X25 FLANGE 		0-28080-625-0 01 1 9401-9406 ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 04.686 (E) M6X25 FLANGE 		0-28080-625-0 02 1 9407-9510 ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 04.686 (E) M6X25 FLANGE 		0-28080-625-0 01 1 9511-9702 ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 02.334 (E) M6X25 FLANGE 		0-28680-625-0 02 1 9703- ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 ENG(RLF),4HF1 ENG(RLS) 03.670 (C) M6X20 FLANGE 		0-28080-620-0 01 1 9312-9502 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 ENG(RLF),4HF1 ENG(RLS) 03.670 (C) M6X20 FLANGE 		0-28080-620-0 01 1 9511-9702 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 9312-9510 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 9312-9510 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 9511-9711 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 9511-9711 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 9712-9801 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 9712-9801 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 9802- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 9802- ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> 07.010 (D) M8X20 FLANGE 		0-28080-820-0 04 1 9312-9411 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> 02.664 (D) M8X20 FLANGE 		0-28680-820-0 04 1 9412-9510 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> 07.010 (D) M8X20 FLANGE 		0-28080-820-0 04 1 9511-9702 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> 02.664 (D) M8X20 FLANGE 		0-28680-820-0 04 1 9703- ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
FRAME-KICK UP<7EW> 00.785 (C) M6X20 FLANGE 		0-28480-620-0 01 1 9312-9605 ●
38 02.559 BOLT; CLIP,HARNESS
FRAME-KICK UP<7EW> 04.930 (C) M6X20 FLANGE 		0-28680-620-0 01 1 9606-9702 ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 ENG(RLF),4HF1 ENG(RLS) 04.930 (C) M6X20 FLANGE 		0-28680-620-0 01 1 9703-9801 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
FRAME-KICK UP<7EW> 04.930 (C) M6X20 FLANGE 		0-28680-620-0 01 1 9703-9801 ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 ENG(RLF),4HF1 ENG(RLS) 04.930 (C) M6X20 FLANGE 		0-28680-620-0 01 1 9802- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
FRAME-KICK UP<7EW> 04.930 (C) M6X20 FLANGE 		0-28680-620-0 01 1 9802- ●
38 02.559 BOLT; CLIP,HARNESS
FRAME-KICK UP<7EW> 06.008 (F) M8X28 L=50 W/NUT M8X12,M8X30 L=50 		8-97032-290-0 01 1 9401- ●
139 02.559 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) 04.595 (F) M8X20 FLANGE 		0-28480-820-0 02 1 9312-9601 ●
139 02.559 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) 02.664 (F) M8X20 FLANGE 		0-28680-820-0 02 1 9602- ●
139 02.559 BOLT; BRKT
EXC. FRAME-KICK UP<7EW> 01.540 (E) M8X35 W/LK WASHER 		0-50040-835-0 01 1 9312-9510 ● ● ● ● ● ● ●
139 02.559 BOLT; BRKT
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> 01.540 (E) M8X35 W/LK WASHER 		0-50040-835-0 01 1 9511-9711 ● ● ● ● ●
139 02.559 BOLT; BRKT
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) 01.540 (E) M8X35 W/LK WASHER 		0-50040-835-0 01 1 9511-9711 ●
139 02.559 BOLT; BRKT
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> 02.183 (E) M8X35 FLANGE 		0-28680-835-0 01 1 9712- ● ● ● ● ●
139 02.559 BOLT; BRKT
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) 02.183 (E) M8X35 FLANGE 		0-28680-835-0 01 1 9712- ●
139 02.559 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 01.062 (A) M8X16 FLANGE 		0-28080-816-0 03 1 9312-9801 ● ● ● ● ●
139 02.559 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 01.062 (A) M8X16 FLANGE 		0-28080-816-0 03 1 9802- ● ● ● ● ● ●
139 02.559 BOLT; BRKT
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (C) 		8-97028-451-3 01 1 9312-9510 ● ● ● ●
139 02.559 BOLT; BRKT
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (C) 		8-97028-451-3 01 1 9511- ● ● ● ● ●
139 02.559 BOLT; BRKT
REFRIGERATOR CHASSIS(V4R) (D) M10X12 		0-20801-012-0 01 1 9403-9711 ●
139 02.559 BOLT; BRKT
4BE1 ENG(RLH) EXC. REAR WIDE TREAD(V4T) 01.531 (B) M8X25 FLANGE 		0-28080-825-0 02 1 9312-9503 ●
139 02.559 BOLT; BRKT
4BE1 ENG(RLH) EXC. REAR WIDE TREAD(V4T) (B) M8X25 FLANGE 		0-28680-825-0 02 1 9504-9510 ●
139 02.559 BOLT; BRKT
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (B) M8X25 FLANGE 		0-28680-825-0 02 1 9511- ●
150 02.343 BOLT; CLIP
4JB1 ENG(RLF) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 9712-9801 ● ● ● ● ●
150 02.343 BOLT; CLIP
4JG2 ENG(RJC) FAN FLUID DRIVE<KA3> 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 9712-9801 ● ● ●
150 02.343 BOLT; CLIP
08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 9802- ● ● ● ● ● ●
150 02.343 BOLT; CLIP
RR BODY NON FLAT BED(RS5) 01.531 (B) M8X25 FLANGE 		0-28080-825-0 01 1 9312-9503 ●
150 02.343 BOLT; CLIP
RR BODY NON FLAT BED(RS5) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 9504-9710 ●
150 02.343 BOLT; CLIP
RR BODY NON FLAT BED(RS5) 02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 9711- ●
159 02.559 BOLT; GRAND ENG ELEC
02.343 M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9312-9510 ● ● ● ● ● ●
159 02.559 BOLT; GRAND ENG ELEC
02.343 M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9511- ● ● ● ● ● ● ●
377 02.559 BOLT; CAB EARTH
M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9312-9510 ● ● ● ● ● ●
377 02.559 BOLT; CAB EARTH
M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9511- ● ● ● ● ● ● ●
386 02.559 BOLT; GRAND HARNESS
02.343 M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9312-9510 ● ● ● ● ● ●
386 02.559 BOLT; GRAND HARNESS
02.343 M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9511- ● ● ● ● ● ● ●
460 02.559 BOLT; HARNESS PROTECTOR
FRT INDEPENDENT SUSPENSION(6PP) 00.785 M6X20 FLANGE 		0-28480-620-0 02 1 9312-9605 ●
460 02.559 BOLT; HARNESS PROTECTOR
FRAME-KICK UP<7EW> 00.785 M6X20 FLANGE 		0-28480-620-0 02 1 9312-9605 ●
460 02.559 BOLT; HARNESS PROTECTOR
FRT INDEPENDENT SUSPENSION(6PP) 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 9606- ●
460 02.559 BOLT; HARNESS PROTECTOR
FRAME-KICK UP<7EW> 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 9606- ●
466 02.483 BOLT; HEAT PROTECTOR
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 00.738 (A) M6X16 FLANGE 		0-28080-616-0 02 1 9312-9510 ●
466 02.483 BOLT; HEAT PROTECTOR
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 03.415 (B) M8X35 FLANGE 		0-28080-835-0 02 1 9511-9702 ●
466 02.483 BOLT; HEAT PROTECTOR
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 02.183 (B) M8X35 FLANGE 		0-28680-835-0 02 1 9703-9711 ●
466 02.483 BOLT; HEAT PROTECTOR
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 02.183 (B) M8X35 FLANGE 		0-28680-835-0 02 1 9712- ●
466 02.483 BOLT; HEAT PROTECTOR
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) 03.415 (B) M8X35 FLANGE 		0-28080-835-0 01 1 9511-9702 ● ● ● ● ●
466 02.483 BOLT; HEAT PROTECTOR
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) 02.183 (B) M8X35 FLANGE 		0-28680-835-0 01 1 9703-9801 ● ● ● ● ●
466 02.483 BOLT; HEAT PROTECTOR
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) 02.183 (B) M8X35 FLANGE 		0-28680-835-0 01 1 9802- ● ● ● ● ● ●
466 02.483 BOLT; HEAT PROTECTOR
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 03.417 (C) M10X25 FLANGE 		0-28081-025-0 01 1 9312-9510 ● ● ● ●
466 02.483 BOLT; HEAT PROTECTOR
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 03.417 (C) M10X25 FLANGE 		0-28081-025-0 01 1 9511-9711 ● ● ● ● ●
466 02.483 BOLT; HEAT PROTECTOR
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 03.405 (C) M10X25 FLANGE 		0-28681-025-0 01 1 9712- ● ● ● ● ●
çizim 70941
48 48 48 48 139 139 139 48 31 48 31 48 31
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
31 02.559 BRACKET; HARNESS CLIP,PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) 		8-97077-845-0 02 1 9312-9801 ● ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) 		8-97077-845-0 02 1 9802- ● ● ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (A) L=20 		8-94165-263-1 01 1 9312-9801 ● ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (A) L=20 		8-94165-263-1 01 1 9802- ● ● ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HF1 ENG(RLS) (C) 		8-97017-071-2 01 1 9312- ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HF1 ENG(RLS) (B) 		8-97077-845-0 01 1 9312- ● ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (I) L=168 		8-97802-347-0 02 1 9312-9406 ●
48 02.559 CLIP; FRAME HARNESS
FRAME-KICK UP<7EW> (I) L=168 		8-97802-347-0 02 1 9312-9406 ●
48 02.559 CLIP; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(6PP) (W) L=170.3 		1-09987-182-0 02 1 9407- ●
48 02.559 CLIP; FRAME HARNESS
FRAME-KICK UP<7EW> (W) L=170.3 		1-09987-182-0 02 1 9407- ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) (U) L=21 ID=19 H=21 L=23 		5-09700-299-0 01 1 9312-9510 ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (U) L=21 ID=19 H=21 L=23 		5-09700-299-0 01 1 9312-9510 ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (U) L=21 ID=19 H=21 L=23 		5-09700-299-0 01 1 9511- ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (R) ID=5-12 L=14.5 		1-09987-221-0 01 1 9312- ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (AA) ID=28 L=32 		1-09701-064-1 01 1 9312- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (H) ID=31 L=33.5 		1-09987-165-0 02 1 9312-9410 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (G) ID=31 L=30 		1-09700-969-0 02 1 9411-9711 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (Q) ID=35 L=35 		1-09700-895-0 02 1 9712- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(O) L=155 		8-94125-241-1 01 1 9312-9405 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.785 (D) ID=9.6 		8-94147-870-0 01 1 9312-9510 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 04.785 (D) ID=9.6 		8-94147-870-0 01 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(N) ID=9 		8-97063-874-0 01 1 9312-9510 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(N) ID=9 		8-97063-874-0 01 1 9511- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
AIR CONDITIONER MANUAL CONT(C60) 03.162 (K) L=140 		5-09707-031-0 02 1 9312-9510 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
AIR CONDITIONER MANUAL CONT(C60) 03.162 (K) L=140 		5-09707-031-1 02 1 9511- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (L) ID=25 L=60 		1-09701-041-1 01 1 9312-9510 ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (L) ID=25 L=60 		1-09701-041-1 01 1 9511-9511 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (L) ID=25 L=60 		1-09701-041-1 01 1 9512- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) (L) ID=25 L=60 		1-09701-041-1 01 1 9512- ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) (S) ID=19 L=60 		9-09525-893-0 01 1 9312-9801 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) (S) ID=19 L=60 		9-09525-893-0 01 1 9802- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9312-9606 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9607-9711 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9607-9711 ●
48 02.559 CLIP; FRAME HARNESS
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 01.240 (J) T=5.5 		5-09709-047-0 01 1 9607-9711 ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9712-9801 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 01.240 (J) T=5.5 		5-09709-047-0 01 1 9712-9801 ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9802- ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 01.240 (J) T=5.5 		5-09709-047-0 01 1 9802- ● ●
48 02.559 CLIP; FRAME HARNESS
4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.240 (J) T=5.5 		5-09709-047-0 01 1 9802- ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) ID=33 L=63 		1-09700-807-0 05 1 9312-9409 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F),FRT INDEPENDENT SUSPENSION(6PP) (A) ID=33 L=63 		1-09700-807-0 05 1 9410-9801 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F),FRT INDEPENDENT SUSPENSION(6PP) (A) ID=33 L=63 		1-09700-807-0 05 1 9802- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 01.240 (B) ID=14 L=47 		5-09700-319-0 03 1 9312-9801 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 01.240 (B) ID=14 L=47 		5-09700-319-0 03 1 9802- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (M) ID=20 		5-09700-321-0 02 1 9312-9409 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) (M) ID=20 		5-09700-321-0 02 1 9312-9409 ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) (M) ID=20 		5-09700-321-0 02 1 9410-9510 ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) (M) ID=20 		5-09700-321-0 02 1 9410-9510 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) (M) ID=20 		5-09700-321-0 02 1 9511-9801 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) (M) ID=20 		5-09700-321-0 02 1 9802- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (C) ID=30 W/STUD 		8-97078-642-2 01 1 9312-9801 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (C) ID=30 W/STUD 		8-97078-642-2 01 1 9802- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 03.162 (K) L=140 		5-09707-031-0 03 1 9312-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (E) ID=20 		8-94156-624-1 02 1 9312-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (E) ID=20 		8-94156-624-1 02 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (F) ID=27 		8-94171-628-0 01 1 9312-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (F) ID=27 		8-94171-628-0 01 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (P) ID=18 		8-97026-193-0 01 1 9312-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (P) ID=18 		8-97026-193-0 01 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (A) ID=33 L=63 		1-09700-807-0 07 1 9312-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (A) ID=33 L=63 		1-09700-807-0 07 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (M) ID=20 		5-09700-321-0 01 1 9312-9409 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (M) ID=20 		5-09700-321-0 01 1 9410-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) (M) ID=20 		5-09700-321-0 01 1 9410-9510 ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (M) ID=20 		5-09700-321-0 01 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) (M) ID=20 		5-09700-321-0 01 1 9511- ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 03.162 (K) L=140 		5-09707-031-0 01 1 9312-9405 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> 03.162 (K) L=140 		5-09707-031-0 01 1 9406-9510 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> 03.162 (K) L=140 		5-09707-031-1 01 1 9511- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRAME-KICK UP<7EW> (H) ID=31 L=33.5 		1-09987-165-0 01 1 9312-9410 ●
48 02.559 CLIP; FRAME HARNESS
FRAME-KICK UP<7EW> (G) ID=31 L=30 		1-09700-969-0 01 1 9411-9711 ●
48 02.559 CLIP; FRAME HARNESS
FRAME-KICK UP<7EW> (Q) ID=35 L=35 		1-09700-895-0 01 1 9712- ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (I) L=168 		8-97802-347-0 01 1 9312-9405 ●
48 02.559 CLIP; FRAME HARNESS
(I) L=168 		8-97802-347-0 01 1 9406-9406 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(W) L=170.3 		1-09987-182-0 01 1 9407-9510 ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(W) L=170.3 		1-09987-182-0 01 1 9511- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (W) L=170.3 		1-09987-182-0 01 1 9511- ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (I) L=168 		8-97802-347-0 05 1 9312-9406 ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (W) L=170.3 		1-09987-182-0 05 1 9407- ●
48 02.559 CLIP; FRAME HARNESS
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (V) ID=19 H=70 L=25 		1-09700-773-0 01 1 9312- ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) (A) ID=33 L=63 		1-09700-807-0 06 1 9410- ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) (T) ID=21 L=28 		1-09700-673-1 AR 1 9312-9410 ● ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) (X) ID=20 		8-94169-650-0 AR 1 9411- ● ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) 01.240 (B) ID=14 L=47 		5-09700-319-0 04 1 9312- ● ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (Y) L=33 ID=19 H=33 L=45 		1-09701-045-0 01 1 9312-9512 ● ●
48 02.559 CLIP; FRAME HARNESS
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (Z) T=9.2 		5-09709-013-0 01 1 9312- ●
139 02.559 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) 04.595 (F) M8X20 FLANGE 		0-28480-820-0 02 1 9312-9601 ●
139 02.559 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) 02.664 (F) M8X20 FLANGE 		0-28680-820-0 02 1 9602- ●
139 02.559 BOLT; BRKT
EXC. FRAME-KICK UP<7EW> 01.540 (E) M8X35 W/LK WASHER 		0-50040-835-0 01 1 9312-9510 ● ● ● ● ● ● ●
139 02.559 BOLT; BRKT
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> 01.540 (E) M8X35 W/LK WASHER 		0-50040-835-0 01 1 9511-9711 ● ● ● ● ●
139 02.559 BOLT; BRKT
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) 01.540 (E) M8X35 W/LK WASHER 		0-50040-835-0 01 1 9511-9711 ●
139 02.559 BOLT; BRKT
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> 02.183 (E) M8X35 FLANGE 		0-28680-835-0 01 1 9712- ● ● ● ● ●
139 02.559 BOLT; BRKT
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) 02.183 (E) M8X35 FLANGE 		0-28680-835-0 01 1 9712- ●
139 02.559 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 01.062 (A) M8X16 FLANGE 		0-28080-816-0 03 1 9312-9801 ● ● ● ● ●
139 02.559 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 01.062 (A) M8X16 FLANGE 		0-28080-816-0 03 1 9802- ● ● ● ● ● ●
139 02.559 BOLT; BRKT
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (C) 		8-97028-451-3 01 1 9312-9510 ● ● ● ●
139 02.559 BOLT; BRKT
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (C) 		8-97028-451-3 01 1 9511- ● ● ● ● ●
139 02.559 BOLT; BRKT
REFRIGERATOR CHASSIS(V4R) (D) M10X12 		0-20801-012-0 01 1 9403-9711 ●
139 02.559 BOLT; BRKT
4BE1 ENG(RLH) EXC. REAR WIDE TREAD(V4T) 01.531 (B) M8X25 FLANGE 		0-28080-825-0 02 1 9312-9503 ●
139 02.559 BOLT; BRKT
4BE1 ENG(RLH) EXC. REAR WIDE TREAD(V4T) (B) M8X25 FLANGE 		0-28680-825-0 02 1 9504-9510 ●
139 02.559 BOLT; BRKT
4BE1 ENG(RLH) FRAME-KICK UP<7EW> (B) M8X25 FLANGE 		0-28680-825-0 02 1 9511- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
