◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50695 - NKR-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#44348) — 258 parça

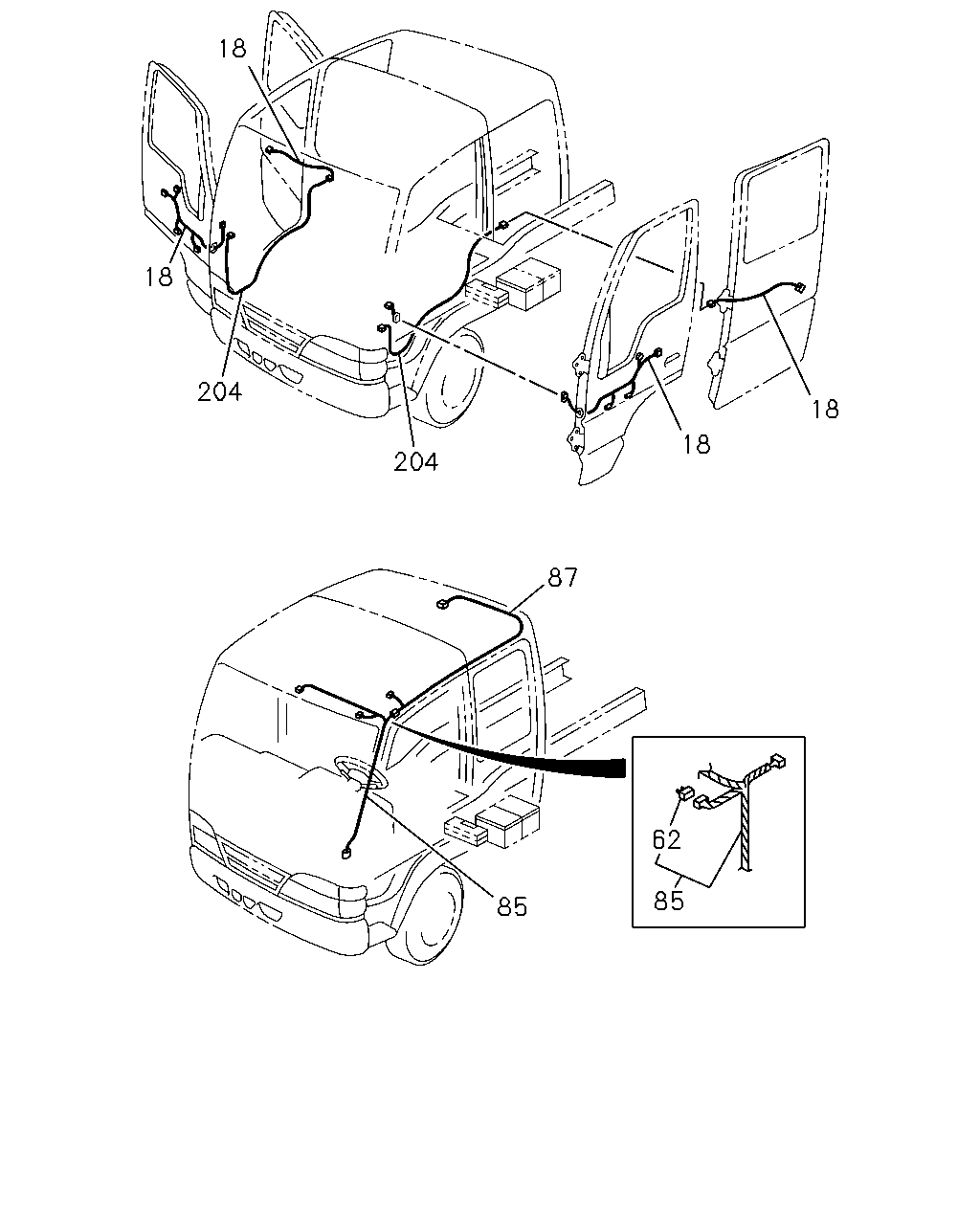

çizim 16334
18 18 204 18 18 204 87 62 85 85
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-571-0 01 1 9312- ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-572-1 01 1 9312- ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97100-293-0 01 1 9312-9510 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97100-293-0 01 1 9511-9708 ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97185-142-0 01 1 9709- ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97100-295-1 01 1 9312-9510 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97100-295-1 01 1 9511-9708 ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97185-144-1 01 1 9709- ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> REAR DOOR 		8-97075-738-2 02 1 9312- ● ●
62 02.530 DIODE; HARNESS
02.483 BLACK 2P-1.5A 		8-94422-639-1 AR 1 9312- ● ● ● ● ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97075-744-3 01 1 9312-9510 ● ● ● ● ● ●
85 06.495 HARNESS; ROOM LAMP
EXC. CAB-LOW ROOF<6XQ> 		8-97075-744-3 01 1 9511-9603 ● ● ● ● ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97075-744-3 01 1 9604-9705 ● ●
85 06.495 HARNESS; ROOM LAMP 8-97162-624-2 01 1 9706- ● ●
85 06.495 HARNESS; ROOM LAMP
EXC. CAB-LOW ROOF<6XQ> 		8-97145-825-0 01 1 9604-9705 ● ● ● ● ●
85 06.495 HARNESS; ROOM LAMP
EXC. CAB-LOW ROOF<6XQ> 		8-97164-610-1 01 1 9706- ● ● ● ● ●
85 06.495 HARNESS; ROOM LAMP
CAB-LOW ROOF<6XQ> 		8-97075-743-3 01 1 9511-9601 ●
85 06.495 HARNESS; ROOM LAMP
CAB-LOW ROOF<6XQ> 		8-97075-743-3 01 1 9602-9603 ● ●
85 06.495 HARNESS; ROOM LAMP
CAB-LOW ROOF<6XQ> 		8-97145-824-0 01 1 9604-9705 ● ●
85 06.495 HARNESS; ROOM LAMP
CAB-LOW ROOF<6XQ> 		8-97164-609-1 01 1 9706-9711 ● ●
85 06.495 HARNESS; ROOM LAMP
CAB-LOW ROOF<6XQ> 		8-97164-609-1 01 1 9712- ●
87 02.480 HARNESS; EXT,ROOM LAMP 8-97075-747-0 01 1 9312- ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97093-906-0 01 1 9312-9404 ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97095-382-1 01 1 9312-9510 ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97095-382-2 01 1 9511-9705 ● ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-629-1 01 1 9706- ● ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97093-907-1 01 1 9312-9705 ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-632-0 01 1 9706- ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97093-904-2 01 1 9312-9705 ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-626-1 01 1 9706- ● ●

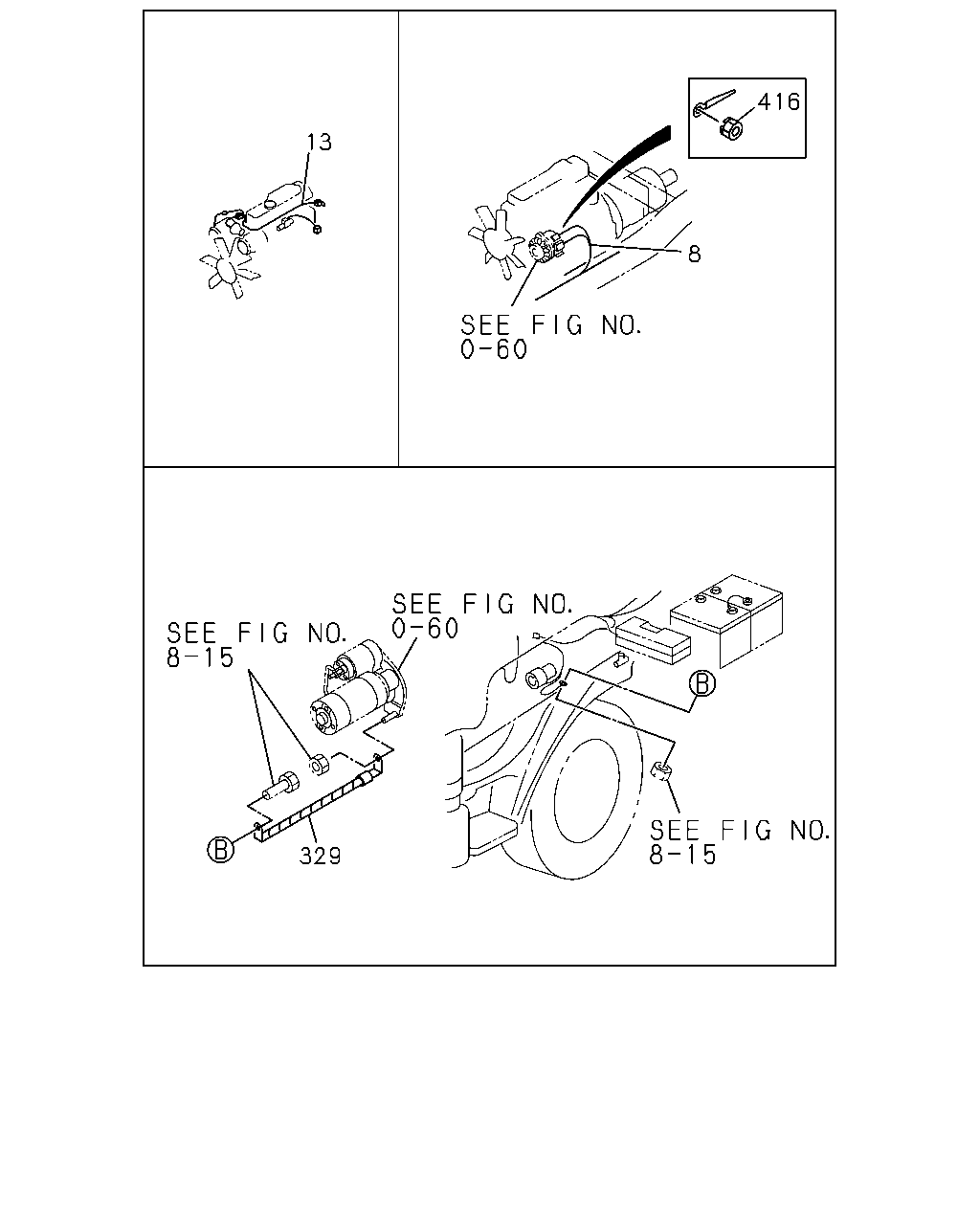

çizim 16621
416 13 8 329
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97106-614-0 01 1 9312-9407 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97115-189-0 01 1 9408-9510 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97131-766-0 01 1 9511-9711 ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 		8-97106-616-0 01 1 9312-9407 ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 		8-97115-190-0 01 1 9408-9510 ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 		8-97131-767-0 01 1 9511-9711 ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 		8-97188-710-2 01 1 9712- ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97106-612-1 01 1 9312-9510 ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) 		8-97131-763-0 01 1 9511-9606 ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) 		8-97131-763-0 01 1 9607-9711 ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) 		8-97188-699-1 01 1 9712-9801 ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) 		8-97188-699-1 01 1 9802- ● ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> 		8-97106-618-2 01 1 9312-9402 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) EXC. REFRIGERATOR CHASSIS(V4R), FRAME-KICK UP<7EW> 		8-97106-618-2 01 1 9403-9505 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) EXC. REFRIGERATOR CHASSIS(V4R), FRAME-KICK UP<7EW> 		8-97122-682-0 01 1 9506-9510 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) EXC. REFRIGERATOR CHASSIS(V4R), FRAME-KICK UP<7EW> 		8-97131-771-0 01 1 9511-9711 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> 		8-97188-717-1 01 1 9712- ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97106-615-1 01 1 9312-9510 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97131-769-0 01 1 9511-9711 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97188-705-2 01 1 9712- ● ● ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 		8-97106-621-0 01 1 9312-9505 ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 		8-97122-684-0 01 1 9506-9510 ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 		8-97131-777-0 01 1 9511-9711 ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 		8-97188-713-1 01 1 9712- ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) EXC. FRAME-KICK UP<7EW> 		8-97113-177-0 01 1 9403-9505 ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) EXC. FRAME-KICK UP<7EW> 		8-97122-690-0 01 1 9506-9510 ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) EXC. FRAME-KICK UP<7EW> 		8-97131-773-0 01 1 9511-9711 ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97118-797-0 01 1 9410-9502 ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97126-089-1 01 1 9503-9510 ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97131-780-0 01 1 9511-9711 ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97188-708-0 01 1 9712- ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) 		8-97131-765-0 01 1 9511-9711 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) 		8-97188-702-0 01 1 9712- ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) 		8-97106-624-0 01 1 9312-9409 ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97106-624-1 01 1 9410-9510 ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97131-779-0 01 1 9511-9711 ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97188-707-1 01 1 9712- ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) TURBOCHARGER<K51> 		8-97162-269-0 01 1 9607-9711 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97188-700-1 01 1 9712- ● ●
13 02.525 HARNESS; ENG
4JB1 ENG(RLF) 		8-97070-755-2 01 1 9312-9410 ● ● ● ● ●
13 02.525 HARNESS; ENG
4JB1 ENG(RLF) 		8-97121-894-0 01 1 9411-9711 ● ● ● ● ●
13 02.525 HARNESS; ENG
4JB1 ENG(RLF) 		8-97173-694-1 01 1 9712-9801 ● ● ● ● ●
13 02.525 HARNESS; ENG
4JB1 ENG(RLF) 		8-97173-694-1 01 1 9802- ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4BE1 ENG(RLH) 		8-97066-583-3 01 1 9312-9510 ● ● ● ●
13 02.525 HARNESS; ENG
4BE1 ENG(RLH) 		8-97131-761-0 01 1 9511- ● ● ● ● ●
13 02.525 HARNESS; ENG
4JG2 ENG(RJC) 		8-97068-756-3 01 1 9312-9410 ● ● ●
13 02.525 HARNESS; ENG
4JG2 ENG(RJC) 		8-97121-892-2 01 1 9411-9711 ● ● ●
13 02.525 HARNESS; ENG
4JG2 ENG(RJC) 		8-97173-696-1 01 1 9712- ● ● ●
13 02.525 HARNESS; ENG
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97066-581-3 01 1 9410-9510 ●
13 02.525 HARNESS; ENG
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97131-759-1 01 1 9511-9711 ●
13 02.525 HARNESS; ENG
4HF1 ENG(RLS) FAST GLOW SYSTEM<KM6> 		8-97170-515-1 01 1 9712- ●
13 02.525 HARNESS; ENG
4HF1 ENG(RLS) 		8-97061-733-3 01 1 9312-9501 ● ●
13 02.525 HARNESS; ENG
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97061-733-3 01 1 9502-9510 ● ●
13 02.525 HARNESS; ENG
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97131-758-1 01 1 9511-9711 ● ●
13 02.525 HARNESS; ENG
4HF1 ENG(RLS) EXC. FAST GLOW SYSTEM<KM6> 		8-97170-517-1 01 1 9712- ●
329 02.480 CABLE; ENG TO FRAME
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-94375-342-2 01 1 9312-9801 ● ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-94375-342-2 01 1 9802-9809 ● ● ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97213-192-0 01 1 9810- ● ● ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4BE1 ENG(RLH) 		8-94374-723-2 01 1 9312-9510 ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4BE1 ENG(RLH) 		8-94374-723-2 01 1 9511- ● ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HF1 ENG(RLS) 		8-97102-850-0 01 1 9312-9502 ● ●
329 02.480 CABLE; ENG TO FRAME
4HF1 ENG(RLS) 		8-97116-105-0 01 1 9503-9801 ● ●
329 02.480 CABLE; ENG TO FRAME
4HF1 ENG(RLS) 		8-97177-383-0 01 1 9802- ● ●
416 02.559 NUT; TERMINAL
4BE1 ENG(RLH) EXC. REFRIGERATOR CHASSIS(V4R) M5 W/LK WASHER 		8-94424-178-0 01 1 9312-9510 ● ● ● ●
416 02.559 NUT; TERMINAL
4BE1 ENG(RLH) EXC. REFRIGERATOR CHASSIS(V4R) M5 W/LK WASHER 		8-94424-178-0 01 1 9511-9711 ● ● ● ● ●
416 02.559 NUT; TERMINAL
4BE1 ENG(RLH) M5 W/LK WASHER 		8-94424-178-0 01 1 9712- ● ● ● ● ●
416 02.559 NUT; TERMINAL
4HF1 ENG(RLS) 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 9312- ● ●

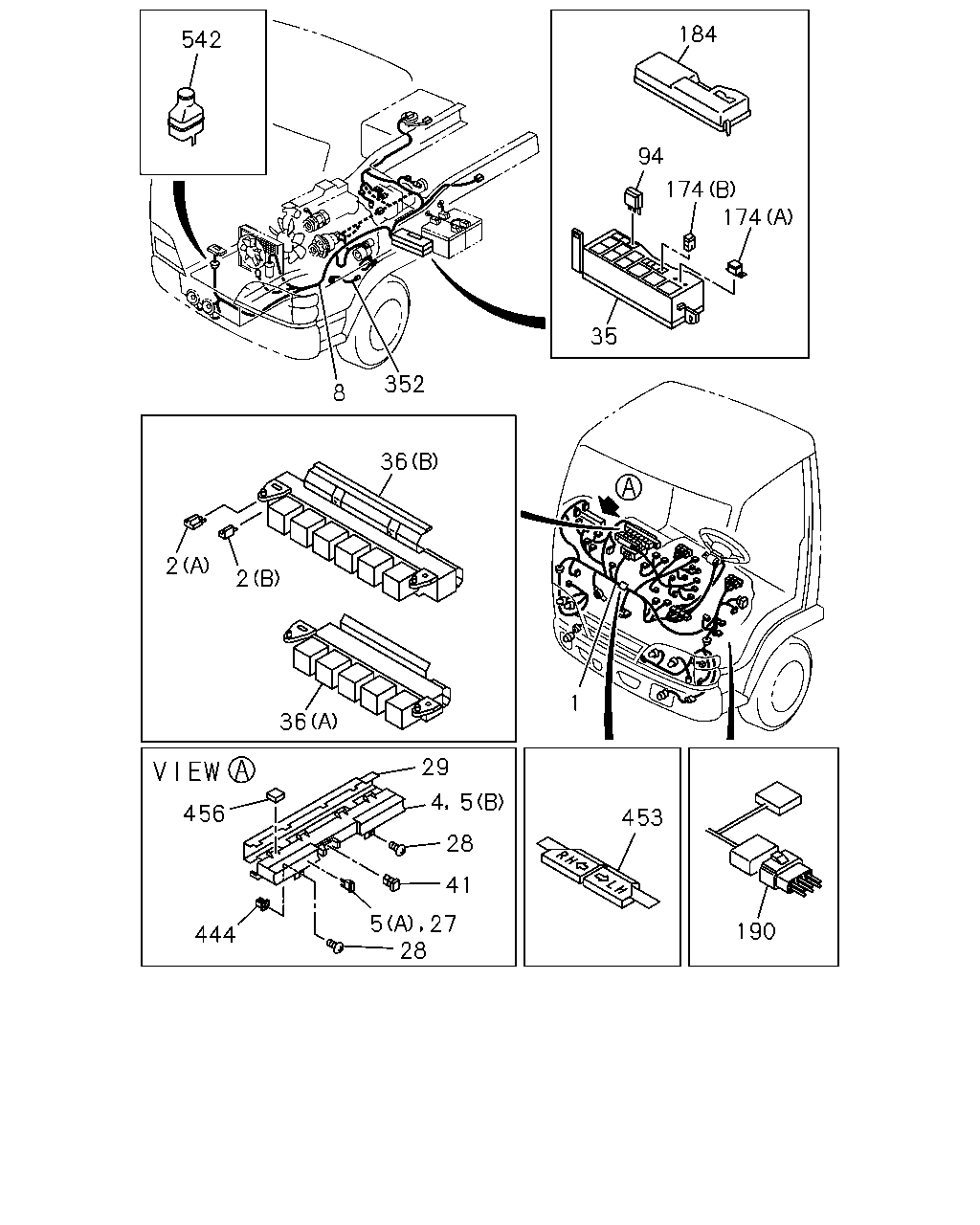

çizim 66764
184 542 94 174 174 35 352 8 36 2 2 1 36 29 5 4 456 453 28 41 5 28 190 444 27
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) 		8-97101-528-3 01 1 9312-9510 ● ● ● ● ●
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) 		8-97132-930-0 01 1 9511-9711 ● ● ● ● ●
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) 		8-97185-292-0 01 1 9712-9801 ● ● ● ● ●
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) 		8-97185-292-0 01 1 9802- ● ● ● ● ● ●
1 02.480 HARNESS; CAB
4BE1 ENG(RLH),4HF1 ENG(RLS) 		8-97101-531-3 01 1 9312-9510 ● ● ● ● ●
1 02.480 HARNESS; CAB
4BE1 ENG(RLH),4HF1 ENG(RLS) 		8-97132-932-0 01 1 9511-9711 ● ● ● ● ●
1 02.480 HARNESS; CAB
4BE1 ENG(RLH) 		8-97185-301-0 01 1 9712- ● ● ● ● ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4) 		8-97104-613-2 01 1 9312-9404 ● ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4) 		8-97113-539-1 01 1 9405-9506 ● ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) 		8-97113-539-1 01 1 9507-9510 ● ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) 		8-97132-931-0 01 1 9511-9711 ● ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4) 		8-97185-296-1 01 1 9712- ● ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) EXC. EUROPEAN BASIC EQUIPMENT(EK4) 		8-97101-532-3 01 1 9312-9506 ● ● ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) 		8-97101-532-3 01 1 9507-9510 ● ● ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) 		8-97132-933-0 01 1 9511-9711 ● ● ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) EXC. EUROPEAN BASIC EQUIPMENT(EK4) 		8-97185-295-0 01 1 9712- ● ● ●
1 02.480 HARNESS; CAB
4HF1 ENG(RLS) 		8-97185-299-0 01 1 9712- ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 9312- ● ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 9312- ● ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97077-664-0 01 1 9312-9510 ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97077-664-0 01 1 9511- ● ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 10A RED 		5-82516-002-0 AR 1 9312- ● ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 15A BLUE 		5-82516-003-0 AR 1 9312- ● ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 25A CLEAR 		5-82516-005-0 AR 1 9312- ● ● ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97106-614-0 01 1 9312-9407 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97115-189-0 01 1 9408-9510 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97131-766-0 01 1 9511-9711 ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 		8-97106-616-0 01 1 9312-9407 ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 		8-97115-190-0 01 1 9408-9510 ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 		8-97131-767-0 01 1 9511-9711 ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 		8-97188-710-2 01 1 9712- ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97106-612-1 01 1 9312-9510 ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) 		8-97131-763-0 01 1 9511-9606 ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) 		8-97131-763-0 01 1 9607-9711 ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) 		8-97188-699-1 01 1 9712-9801 ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) 		8-97188-699-1 01 1 9802- ● ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> 		8-97106-618-2 01 1 9312-9402 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) EXC. REFRIGERATOR CHASSIS(V4R), FRAME-KICK UP<7EW> 		8-97106-618-2 01 1 9403-9505 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) EXC. REFRIGERATOR CHASSIS(V4R), FRAME-KICK UP<7EW> 		8-97122-682-0 01 1 9506-9510 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) EXC. REFRIGERATOR CHASSIS(V4R), FRAME-KICK UP<7EW> 		8-97131-771-0 01 1 9511-9711 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> 		8-97188-717-1 01 1 9712- ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97106-615-1 01 1 9312-9510 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97131-769-0 01 1 9511-9711 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97188-705-2 01 1 9712- ● ● ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 		8-97106-621-0 01 1 9312-9505 ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 		8-97122-684-0 01 1 9506-9510 ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 		8-97131-777-0 01 1 9511-9711 ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 		8-97188-713-1 01 1 9712- ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) EXC. FRAME-KICK UP<7EW> 		8-97113-177-0 01 1 9403-9505 ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) EXC. FRAME-KICK UP<7EW> 		8-97122-690-0 01 1 9506-9510 ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) EXC. FRAME-KICK UP<7EW> 		8-97131-773-0 01 1 9511-9711 ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97118-797-0 01 1 9410-9502 ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97126-089-1 01 1 9503-9510 ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97131-780-0 01 1 9511-9711 ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97188-708-0 01 1 9712- ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) 		8-97131-765-0 01 1 9511-9711 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) 		8-97188-702-0 01 1 9712- ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) 		8-97106-624-0 01 1 9312-9409 ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97106-624-1 01 1 9410-9510 ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97131-779-0 01 1 9511-9711 ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97188-707-1 01 1 9712- ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) TURBOCHARGER<K51> 		8-97162-269-0 01 1 9607-9711 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97188-700-1 01 1 9712- ● ●
27 08.965 FUSE UNIT
10A RED 		5-82516-002-0 AR 1 9312- ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
15A BLUE 		5-82516-003-0 AR 1 9312- ● ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9312-9510 ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9511- ● ● ● ● ● ● ●
29 02.483 COVER; FUSE BOX 8-97074-955-0 01 1 9312-9510 ● ● ● ● ● ●
29 02.483 COVER; FUSE BOX 8-97074-955-0 01 1 9511-9711 ● ● ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE 8-97063-150-1 01 1 9312-9510 ● ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE 8-97063-150-1 01 1 9511- ● ● ● ● ● ● ●
36 02.530 BOX; RELAY
(A) 		8-97087-638-1 01 1 9312-9510 ● ● ● ● ● ●
36 02.530 BOX; RELAY
(A) 		8-97087-638-1 01 1 9511- ● ● ● ● ● ● ●
36 02.530 BOX; RELAY
(B) 		8-97087-639-1 01 1 9312-9510 ● ● ● ● ● ●
36 02.530 BOX; RELAY
(B) 		8-97087-639-1 01 1 9511- ● ● ● ● ● ● ●
41 08.821 PULLER; FUSE
02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 9312-9510 ● ● ● ● ● ●
41 08.821 PULLER; FUSE
02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 9511- ● ● ● ● ● ● ●
94 02.483 DIODE; FRAME HARNESS
BLACK 3P-1.5A 		8-94422-640-1 AR 1 9312- ● ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(A) 60A YELLOW 		8-94388-303-0 AR 1 9312- ● ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(A) 80A BLACK 		8-94388-305-0 AR 1 9312- ● ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 40A GREEN 		8-94468-662-0 AR 1 9312- ● ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
02.483 (B) 50A RED 		8-94468-663-0 AR 1 9312- ● ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
02.483 (B) 60A YELLOW 		8-94468-664-0 AR 1 9312- ● ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX 8-97063-152-1 01 1 9312-9510 ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX 8-97063-152-1 01 1 9511- ● ● ● ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT 5-82690-411-0 01 1 9312-9510 ● ● ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT 5-82690-411-0 01 1 9511- ● ● ● ● ● ● ●
352 02.480 HARNESS; CABLE,VSV
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 		8-97102-244-0 01 1 9312-9510 ● ● ● ●
444 02.483 GROMMET; SCREW,FUSE BOX
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9312-9510 ● ● ● ● ● ●
444 02.483 GROMMET; SCREW,FUSE BOX
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9511- ● ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS 8-97074-957-0 01 1 9511- ● ● ● ● ● ● ●
456 02.483 CUSHION; FUSE BOX
16.085 15X30 T=5 		8-94270-366-2 02 1 9312-9509 ● ● ● ● ● ●
456 02.483 CUSHION; FUSE BOX
16.085 15X30 T=5 		8-94270-366-2 01 1 9510-9510 ● ● ● ● ● ●
456 02.483 CUSHION; FUSE BOX
16.085 15X30 T=5 		8-94270-366-2 01 1 9511- ● ● ● ● ● ● ●
542 02.483 GROMMET; HARNESS 8-97041-956-1 01 1 9312-9510 ● ● ● ● ● ●
542 02.483 GROMMET; HARNESS 8-97041-956-1 01 1 9511- ● ● ● ● ● ● ●

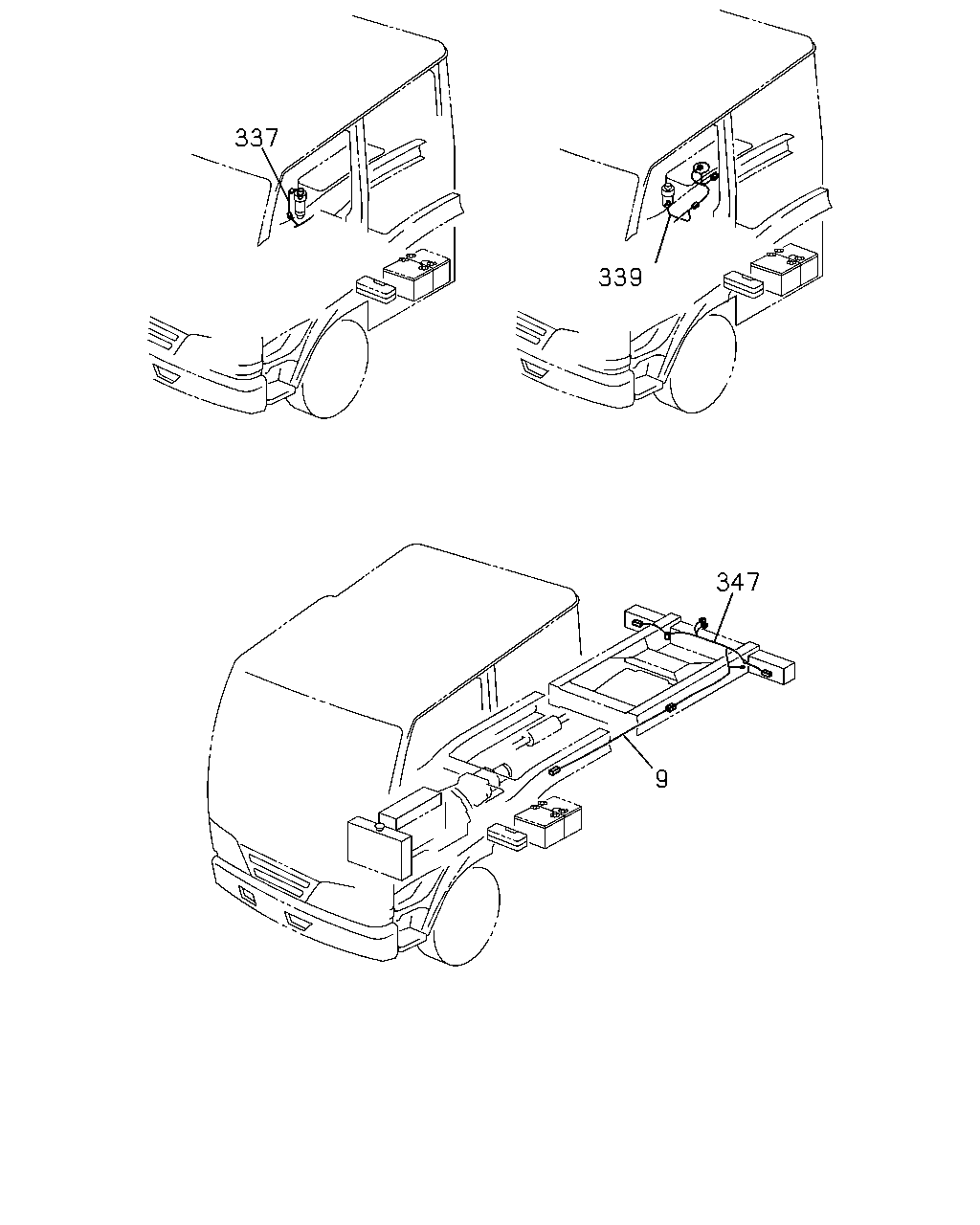

çizim 70616
337 339 347 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
9 02.480 HARNESS; FRAME,RR
EXC. DUMP CHASSIS(V4D) 		8-97066-525-2 01 1 9312-9510 ● ● ● ●
9 02.480 HARNESS; FRAME,RR
EXC. DUMP CHASSIS(V4D) 		8-97126-399-0 01 1 9511-9711 ● ● ● ●
9 02.480 HARNESS; FRAME,RR
DUMP CHASSIS(V4D) 		8-97036-079-3 01 1 9312-9510 ●
9 02.480 HARNESS; FRAME,RR
DUMP CHASSIS(V4D) 		8-97126-406-0 01 1 9511-9711 ●
9 02.480 HARNESS; FRAME,RR 8-97126-400-0 01 1 9511-9711 ●
9 02.480 HARNESS; FRAME,RR 8-97063-154-2 01 1 9312-9510 ● ●
9 02.480 HARNESS; FRAME,RR 8-97126-401-1 01 1 9511-9711 ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94470-823-0 01 1 9312-9510 ● ● ● ● ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94470-823-0 01 1 9511- ● ● ● ● ● ● ●
339 02.530 HARNESS; EXT,FUEL
02.480 		8-94318-759-0 01 1 9312- ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. EUROPEAN BASIC EQUIPMENT(EK4), RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 		8-97066-540-1 01 1 9312-9506 ● ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. EUROPEAN BASIC EQUIPMENT(EK4), RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D),ISRAEL EQUIPMENT(7LX) 		8-97066-540-1 01 1 9507-9510 ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. EUROPEAN BASIC EQUIPMENT(EK4), RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D),ISRAEL EQUIPMENT(7LX) 		8-97126-416-0 01 1 9511-9705 ● ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. EUROPEAN BASIC EQUIPMENT(EK4), RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D),ISRAEL EQUIPMENT(7LX) 		8-97147-856-1 01 1 9706-9711 ● ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. EUROPEAN BASIC EQUIPMENT(EK4), RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 		8-97147-856-2 01 1 9712- ● ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> EXC. EUROPEAN BASIC EQUIPMENT(EK4) 		8-97066-541-2 01 1 9312-9506 ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) 		8-97066-541-2 01 1 9507-9510 ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) 		8-97126-415-0 01 1 9511-9601 ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) 		8-97126-415-0 01 1 9602-9705 ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) 		8-97147-855-1 01 1 9706-9711 ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> EXC. EUROPEAN BASIC EQUIPMENT(EK4) 		8-97147-855-1 01 1 9712-9801 ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> EXC. EUROPEAN BASIC EQUIPMENT(EK4) 		8-97147-855-1 01 1 9802- ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EUROPEAN BASIC EQUIPMENT(EK4) 		8-97107-345-0 01 1 9312-9506 ● ●
347 02.480 HARNESS; CABLE,RR BODY
EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) 		8-97107-345-0 01 1 9507-9510 ● ●
347 02.480 HARNESS; CABLE,RR BODY
EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) 		8-97133-587-0 01 1 9511-9705 ● ●
347 02.480 HARNESS; CABLE,RR BODY
EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) 		8-97147-861-1 01 1 9706-9711 ● ●
347 02.480 HARNESS; CABLE,RR BODY
EUROPEAN BASIC EQUIPMENT(EK4) 		8-97147-861-1 01 1 9712- ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY NON FLAT BED(RS5) 		8-97066-543-1 01 1 9312-9510 ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY NON FLAT BED(RS5) 		8-97126-414-0 01 1 9511-9705 ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY NON FLAT BED(RS5) 		8-97147-854-2 01 1 9706- ●

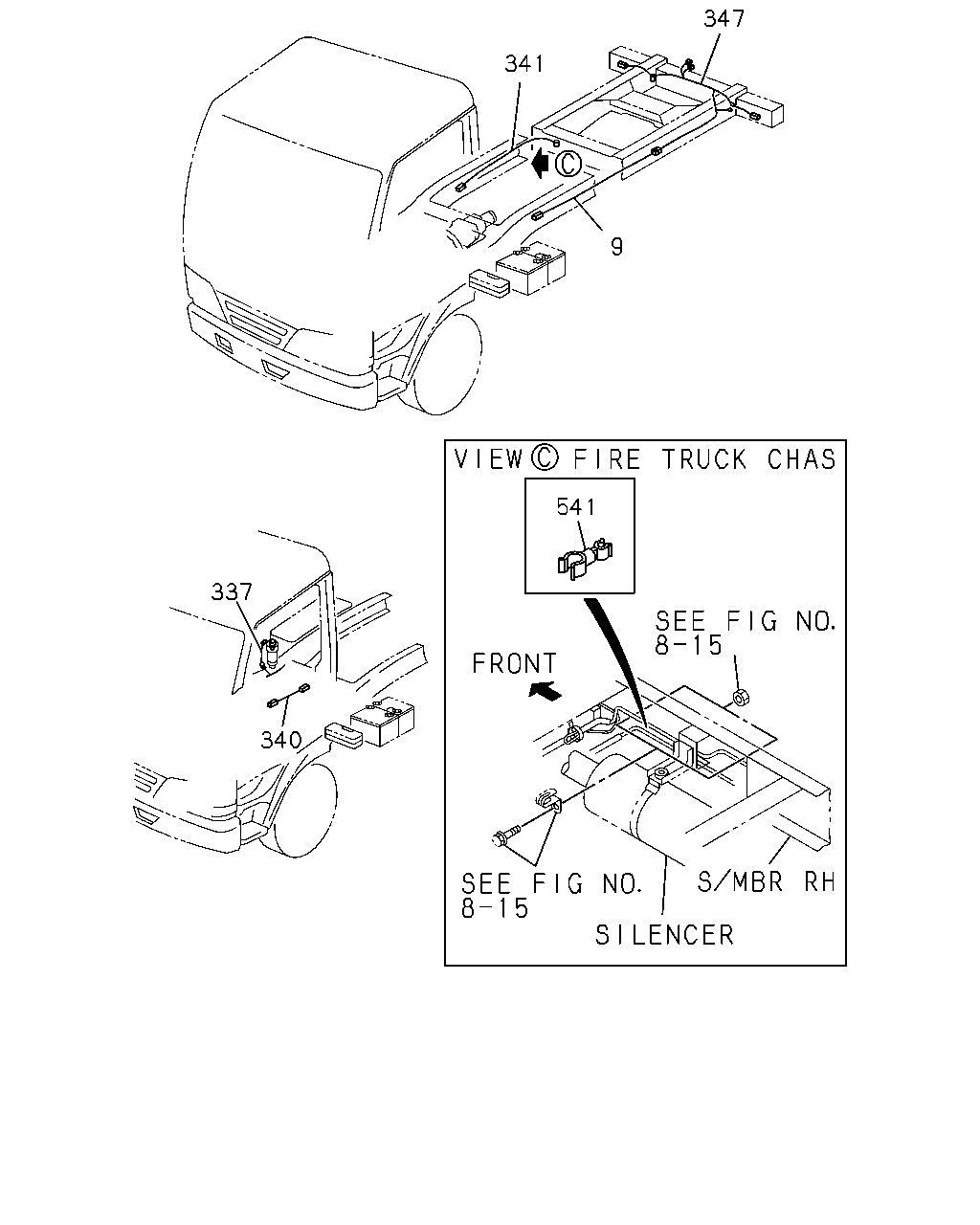

çizim 70623
347 341 9 541 337 340
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
9 02.480 HARNESS; FRAME,RR
EXC. DUMP CHASSIS(V4D) 		8-97066-525-2 01 1 9312-9510 ● ● ● ●
9 02.480 HARNESS; FRAME,RR
EXC. DUMP CHASSIS(V4D) 		8-97126-399-0 01 1 9511-9711 ● ● ● ●
9 02.480 HARNESS; FRAME,RR
DUMP CHASSIS(V4D) 		8-97036-079-3 01 1 9312-9510 ●
9 02.480 HARNESS; FRAME,RR
DUMP CHASSIS(V4D) 		8-97126-406-0 01 1 9511-9711 ●
9 02.480 HARNESS; FRAME,RR 8-97126-400-0 01 1 9511-9711 ●
9 02.480 HARNESS; FRAME,RR 8-97063-154-2 01 1 9312-9510 ● ●
9 02.480 HARNESS; FRAME,RR 8-97126-401-1 01 1 9511-9711 ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94470-823-0 01 1 9312-9510 ● ● ● ● ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94470-823-0 01 1 9511- ● ● ● ● ● ● ●
340 02.525 HARNESS; CABLE,SEDIMENTER
MINI BUS CHASSIS<V4B> 		8-94401-816-0 01 1 9401-9711 ●
341 02.530 HARNESS; CABLE,MAG VLV
4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 		8-97081-340-2 01 1 9312-9606 ● ● ● ● ●
341 02.530 HARNESS; CABLE,MAG VLV
4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 		8-97081-340-2 01 1 9607-9801 ● ● ● ● ●
341 02.530 HARNESS; CABLE,MAG VLV
4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 		8-97081-340-2 01 1 9802- ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. EUROPEAN BASIC EQUIPMENT(EK4), RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 		8-97066-540-1 01 1 9312-9506 ● ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. EUROPEAN BASIC EQUIPMENT(EK4), RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D),ISRAEL EQUIPMENT(7LX) 		8-97066-540-1 01 1 9507-9510 ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. EUROPEAN BASIC EQUIPMENT(EK4), RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D),ISRAEL EQUIPMENT(7LX) 		8-97126-416-0 01 1 9511-9705 ● ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. EUROPEAN BASIC EQUIPMENT(EK4), RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D),ISRAEL EQUIPMENT(7LX) 		8-97147-856-1 01 1 9706-9711 ● ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. EUROPEAN BASIC EQUIPMENT(EK4), RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 		8-97147-856-2 01 1 9712- ● ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> EXC. EUROPEAN BASIC EQUIPMENT(EK4) 		8-97066-541-2 01 1 9312-9506 ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) 		8-97066-541-2 01 1 9507-9510 ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) 		8-97126-415-0 01 1 9511-9601 ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) 		8-97126-415-0 01 1 9602-9705 ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) 		8-97147-855-1 01 1 9706-9711 ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> EXC. EUROPEAN BASIC EQUIPMENT(EK4) 		8-97147-855-1 01 1 9712-9801 ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> EXC. EUROPEAN BASIC EQUIPMENT(EK4) 		8-97147-855-1 01 1 9802- ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EUROPEAN BASIC EQUIPMENT(EK4) 		8-97107-345-0 01 1 9312-9506 ● ●
347 02.480 HARNESS; CABLE,RR BODY
EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) 		8-97107-345-0 01 1 9507-9510 ● ●
347 02.480 HARNESS; CABLE,RR BODY
EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) 		8-97133-587-0 01 1 9511-9705 ● ●
347 02.480 HARNESS; CABLE,RR BODY
EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) 		8-97147-861-1 01 1 9706-9711 ● ●
347 02.480 HARNESS; CABLE,RR BODY
EUROPEAN BASIC EQUIPMENT(EK4) 		8-97147-861-1 01 1 9712- ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY NON FLAT BED(RS5) 		8-97066-543-1 01 1 9312-9510 ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY NON FLAT BED(RS5) 		8-97126-414-0 01 1 9511-9705 ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY NON FLAT BED(RS5) 		8-97147-854-2 01 1 9706- ●
541 02.483 CLIP
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 00.855 ID=8.3 & 16.5 		8-94169-027-0 01 1 9410-9503 ●
541 02.483 CLIP
4HF1 ENG(RLS) EXHAUST BRAKE<NF8> FIRE TRUCK CHASSIS(V4F) 00.855 ID=8.3 & 16.5 		8-94169-027-0 01 1 9504- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
