◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50695 - NKR-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-43 - SUN VISOR AND ASSIST GRIP ▶
7-43 — SUN VISOR AND ASSIST GRIP (#44341) — 182 parça
çizim 16357
151
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
151 16.450 COVER; BRKT
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> (A) 		1-73318-553-1 01 1 9312-9510 ● ● ● ● ● ●
151 16.450 COVER; BRKT
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> (A) 		1-73318-553-1 01 1 9511-9711 ● ● ● ● ● ● ●
151 16.450 COVER; BRKT
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> (A) LIGHT GRAY 		8-97867-250-0 01 1 9712- ● ● ● ● ● ● ●
151 16.450 COVER; BRKT
EUROPEAN BASIC EQUIPMENT(EK4) 16.069 (B) 		8-97859-113-2 01 1 9402-9506 ● ●
151 16.450 COVER; BRKT
DOOR MIRROR<6VE> 16.069 (B) 		8-97859-113-2 01 1 9507-9510 ● ● ●
151 16.450 COVER; BRKT
DOOR MIRROR<6VE> 16.069 (B) 		8-97859-113-2 01 1 9511-9703 ● ● ● ●
151 16.450 COVER; BRKT
DOOR MIRROR<6VE> 16.069 (B) 		8-97859-113-2 01 1 9704-9710 ● ● ● ● ●
151 16.450 COVER; BRKT
EUROPEAN BASIC EQUIPMENT(EK4) 16.069 (B) 		8-97859-112-2 01 1 9402-9506 ● ●
151 16.450 COVER; BRKT
DOOR MIRROR<6VE> 16.069 (B) 		8-97859-112-2 01 1 9507-9510 ● ● ●
151 16.450 COVER; BRKT
DOOR MIRROR<6VE> 16.069 (B) 		8-97859-112-2 01 1 9511-9703 ● ● ● ●
151 16.450 COVER; BRKT
DOOR MIRROR<6VE> 16.069 (B) 		8-97859-112-2 01 1 9704-9710 ● ● ● ● ●

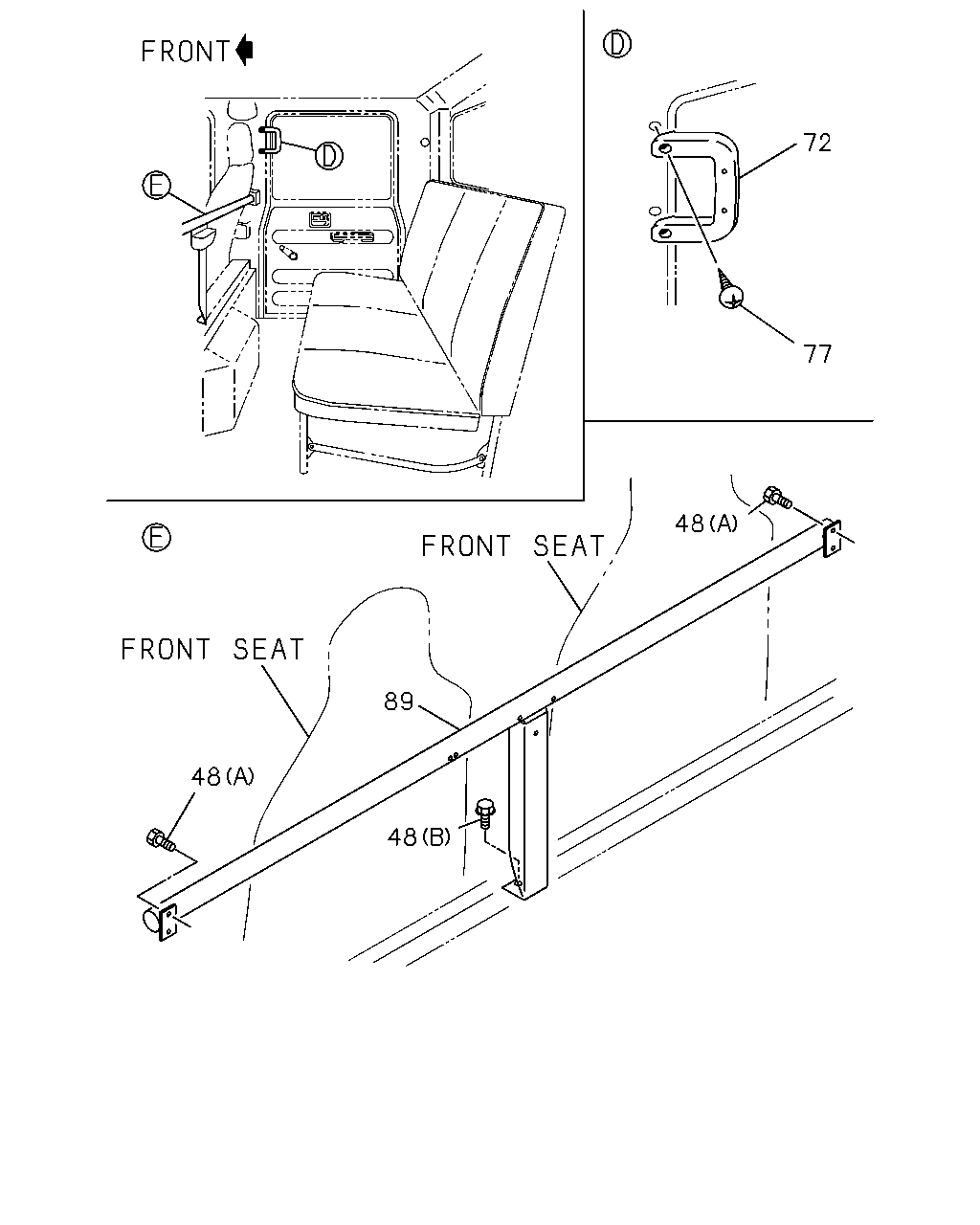

çizim 16540
72 77 48 89 48 48
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
48 16.450 BOLT; ASSIST GRIP
16.350 (A) M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9312- ● ●
48 16.450 BOLT; ASSIST GRIP
08.225 (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9312- ● ●
72 16.450 GRIP; ASSIST,CAB ENTRY,BACK
DARK BEIGE 		8-97853-802-2 02 1 9312-9608 ● ●
72 16.450 GRIP; ASSIST,CAB ENTRY,BACK
DARK BEIGE 		8-97867-883-0 02 1 9609-9711 ● ●
72 16.450 GRIP; ASSIST,CAB ENTRY,BACK
DARK GRAY 		8-97867-209-0 02 1 9712- ● ●
77 16.450 SCREW; ASSIST GRIP
M4X30 		8-94279-360-0 04 1 9312-9608 ● ●
77 16.450 SCREW; ASSIST GRIP
M6X34 W/LK&PL WASHER 		8-94279-411-0 04 1 9609- ● ●
89 16.560 HANDLE; ASSIST 8-97853-446-4 01 1 9312- ● ●

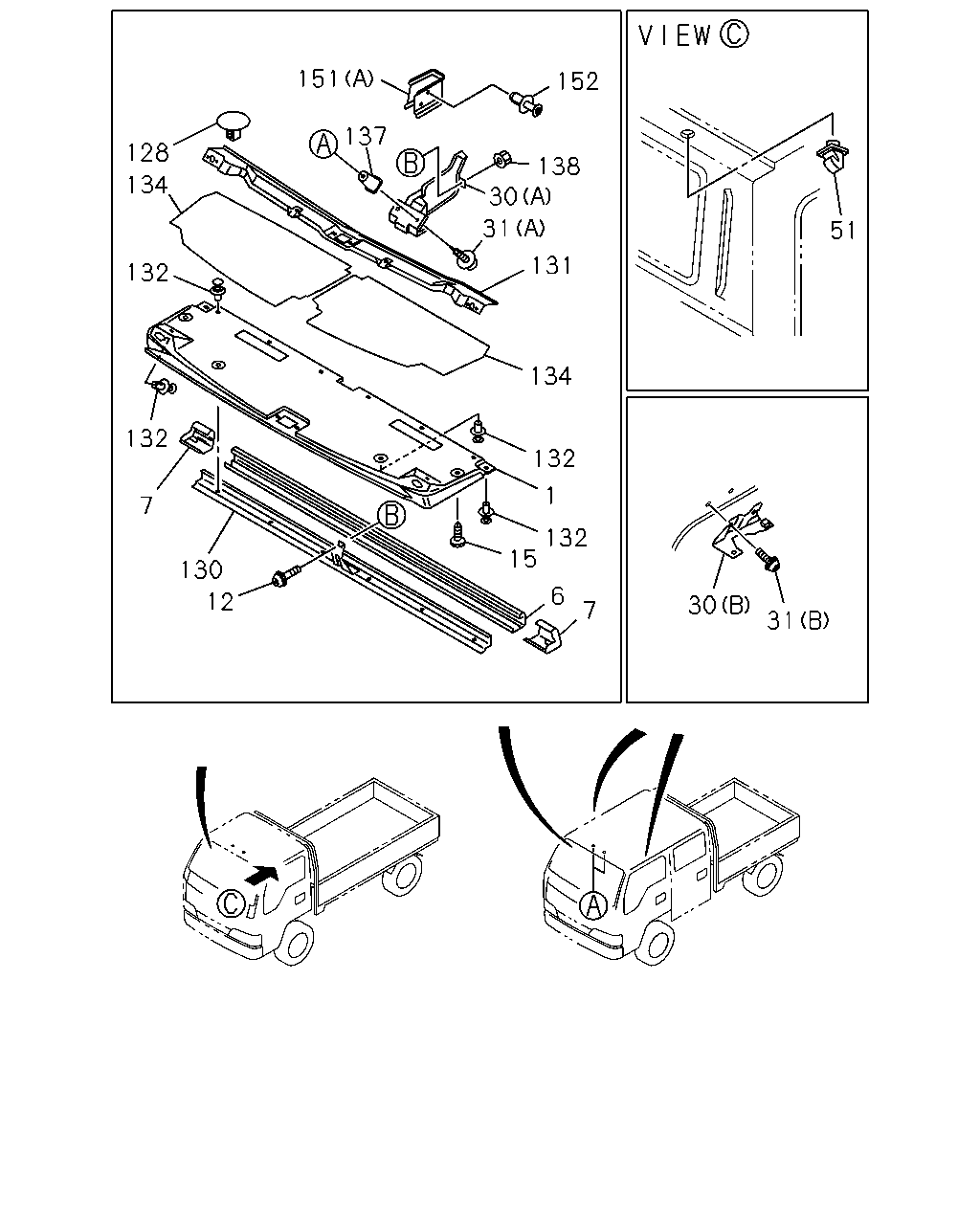

çizim 67820
151 152 137 128 138 134 30 31 51 131 132 134 132 132 1 7 132 15 130 6 12 30 7 31
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.742 BOARD; HEADER SHELF
TRAY ROOF HEAD<7EJ> GRAY 		8-97856-714-3 01 1 9312-9510 ● ● ● ● ● ●
1 16.742 BOARD; HEADER SHELF
TRAY ROOF HEAD<7EJ> GRAY 		8-97856-714-3 01 1 9511-9701 ● ● ● ● ● ● ●
1 16.742 BOARD; HEADER SHELF
TRAY ROOF HEAD<7EJ> GRAY 		8-97869-050-0 01 1 9702-9711 ● ● ● ● ● ● ●
1 16.742 BOARD; HEADER SHELF
TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97859-847-0 01 1 9712- ● ● ● ● ● ● ●
6 16.742 FINISHER; HEADER SHELF,REAR
TRAY ROOF HEAD<7EJ> GRAY 		8-97856-055-1 01 1 9312-9510 ● ● ● ● ● ●
6 16.742 FINISHER; HEADER SHELF,REAR
TRAY ROOF HEAD<7EJ> GRAY 		8-97856-055-1 01 1 9511-9711 ● ● ● ● ● ● ●
6 16.742 FINISHER; HEADER SHELF,REAR
TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97867-241-1 01 1 9712- ● ● ● ● ● ● ●
7 16.742 FINISHER; HEADER SHELF,CORNER
TRAY ROOF HEAD<7EJ> GRAY 		8-97856-057-3 01 1 9312-9510 ● ● ● ● ● ●
7 16.742 FINISHER; HEADER SHELF,CORNER
TRAY ROOF HEAD<7EJ> GRAY 		8-97856-057-3 01 1 9511-9711 ● ● ● ● ● ● ●
7 16.742 FINISHER; HEADER SHELF,CORNER
TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97859-849-3 01 1 9712- ● ● ● ● ● ● ●
7 16.742 FINISHER; HEADER SHELF,CORNER
TRAY ROOF HEAD<7EJ> GRAY 		8-97856-056-3 01 1 9312-9510 ● ● ● ● ● ●
7 16.742 FINISHER; HEADER SHELF,CORNER
TRAY ROOF HEAD<7EJ> GRAY 		8-97856-056-3 01 1 9511-9711 ● ● ● ● ● ● ●
7 16.742 FINISHER; HEADER SHELF,CORNER
TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97859-848-3 01 1 9712- ● ● ● ● ● ● ●
12 16.742 SCREW; HEADER SHELF
TRAY ROOF HEAD<7EJ> 16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 03 1 9312-9510 ● ● ● ● ● ●
12 16.742 SCREW; HEADER SHELF
TRAY ROOF HEAD<7EJ> 16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 03 1 9511- ● ● ● ● ● ● ●
15 16.742 FASTENER; HEADER SHELF BOARD
TRAY ROOF HEAD<7EJ> D6.8X11 PUSH RIVET 		8-97856-755-0 02 1 9312-9407 ● ●
15 16.742 FASTENER; HEADER SHELF BOARD
TRAY ROOF HEAD<7EJ> D6.8X11 PUSH RIVET 		8-97856-755-0 02 1 9408-9510 ● ● ● ● ● ●
15 16.742 FASTENER; HEADER SHELF BOARD
TRAY ROOF HEAD<7EJ> D6.8X11 PUSH RIVET 		8-97856-755-0 02 1 9511-9712 ● ● ● ● ● ● ●
15 16.742 FASTENER; HEADER SHELF BOARD
TRAY ROOF HEAD<7EJ> LIGHT GRAY, D6.8X11 PUSH RIVET 		8-97867-240-0 02 1 9801- ● ● ● ● ● ● ●
30 16.742 BRACKET ASM; HEADER SHELF
TRAY ROOF HEAD<7EJ> (A) 		8-97856-012-6 01 1 9312-9405 ● ● ● ● ● ●
30 16.742 BRACKET ASM; HEADER SHELF
TRAY ROOF HEAD<7EJ> (A) 		8-97859-388-1 01 1 9406-9510 ● ● ● ● ● ●
30 16.742 BRACKET ASM; HEADER SHELF
TRAY ROOF HEAD<7EJ> (A) 		8-97859-388-1 01 1 9511- ● ● ● ● ● ● ●
30 16.742 BRACKET ASM; HEADER SHELF
TRAY ROOF HEAD<7EJ> (B) 		8-97856-798-1 01 1 9312-9510 ● ● ● ● ● ●
30 16.742 BRACKET ASM; HEADER SHELF
TRAY ROOF HEAD<7EJ> (B) 		8-97856-798-2 01 1 9511- ● ● ● ● ● ● ●
30 16.742 BRACKET ASM; HEADER SHELF
TRAY ROOF HEAD<7EJ> (B) 		8-97856-797-1 01 1 9312-9510 ● ● ● ● ● ●
30 16.742 BRACKET ASM; HEADER SHELF
TRAY ROOF HEAD<7EJ> (B) 		8-97856-797-2 01 1 9511- ● ● ● ● ● ● ●
31 16.742 SCREW; BRKT,HEADER SHELF
TRAY ROOF HEAD<7EJ> 16.802 (A) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9312-9510 ● ● ● ● ● ●
31 16.742 SCREW; BRKT,HEADER SHELF
TRAY ROOF HEAD<7EJ> 16.802 (A) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9511- ● ● ● ● ● ● ●
31 16.742 SCREW; BRKT,HEADER SHELF
TRAY ROOF HEAD<7EJ> 16.320 (B) M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 9312-9510 ● ● ● ● ● ●
31 16.742 SCREW; BRKT,HEADER SHELF
TRAY ROOF HEAD<7EJ> 16.320 (B) M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 9511- ● ● ● ● ● ● ●
51 16.570 HOOK; COAT HANGER
INTERIOR DELUXE<RBB> GRAY 		8-97856-015-1 01 1 9507-9711 ● ●
51 16.570 HOOK; COAT HANGER
INTERIOR DELUXE<RBB> LIGHT GRAY 		8-97867-259-1 01 1 9712- ● ●
128 16.742 FASTENER; HEADER SHELF
TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> GRAY 		8-97853-998-2 01 1 9312-9510 ● ● ● ● ● ●
128 16.742 FASTENER; HEADER SHELF
TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> GRAY 		8-97853-998-2 01 1 9511-9711 ● ● ● ● ● ● ●
128 16.742 FASTENER; HEADER SHELF
TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY 		8-97867-230-2 01 1 9712- ● ● ● ● ● ● ●
130 16.742 REIFORCEMENT; HEADER SHELF,RR
TRAY ROOF HEAD<7EJ> 		8-97853-743-3 01 1 9312-9510 ● ● ● ● ● ●
130 16.742 REIFORCEMENT; HEADER SHELF,RR
TRAY ROOF HEAD<7EJ> 		8-97853-743-3 01 1 9511-9604 ● ● ● ● ● ● ●
130 16.742 REIFORCEMENT; HEADER SHELF,RR
TRAY ROOF HEAD<7EJ> 		8-97859-531-1 01 1 9605- ● ● ● ● ● ● ●
131 16.742 REIFORCEMENT; HEADER SHELF,FRT
TRAY ROOF HEAD<7EJ> 		8-97853-742-5 01 1 9312-9510 ● ● ● ● ● ●
131 16.742 REIFORCEMENT; HEADER SHELF,FRT
TRAY ROOF HEAD<7EJ> 		8-97853-742-6 01 1 9511- ● ● ● ● ● ● ●
132 16.742 FASTENER; BOARD,HEADER SHELF
TRAY ROOF HEAD<7EJ> D6.8X11 PUSH RIVET 		8-97856-755-0 10 1 9312-9407 ● ●
132 16.742 FASTENER; BOARD,HEADER SHELF
TRAY ROOF HEAD<7EJ> D6.8X11 PUSH RIVET 		8-97856-755-0 10 1 9408-9510 ● ● ● ● ● ●
132 16.742 FASTENER; BOARD,HEADER SHELF
TRAY ROOF HEAD<7EJ> D6.8X11 PUSH RIVET 		8-97856-755-0 08 1 9511-9712 ● ● ● ● ● ● ●
132 16.742 FASTENER; BOARD,HEADER SHELF
TRAY ROOF HEAD<7EJ> LIGHT GRAY, D6.8X11 PUSH RIVET 		8-97867-240-0 08 1 9801- ● ● ● ● ● ● ●
134 16.742 SHEET; HEADER SHELF
TRAY ROOF HEAD<7EJ> 		8-97856-394-2 01 1 9312-9510 ● ● ● ● ● ●
134 16.742 SHEET; HEADER SHELF
TRAY ROOF HEAD<7EJ> 		8-97856-394-2 01 1 9511-9602 ● ● ● ● ● ● ●
134 16.742 SHEET; HEADER SHELF
TRAY ROOF HEAD<7EJ> 		8-97856-393-2 01 1 9312-9510 ● ● ● ● ● ●
134 16.742 SHEET; HEADER SHELF
TRAY ROOF HEAD<7EJ> 		8-97856-393-2 01 1 9511-9602 ● ● ● ● ● ● ●
134 16.742 SHEET; HEADER SHELF
TRAY ROOF HEAD<7EJ> 		8-97867-478-0 02 1 9603- ● ● ● ● ● ● ●
137 16.742 GROMMET; SCREW,HEADER SHELF
TRAY ROOF HEAD<7EJ> 09.743 D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 01 1 9312-9503 ● ● ● ● ● ●
137 16.742 GROMMET; SCREW,HEADER SHELF
TRAY ROOF HEAD<7EJ> 16.588 		8-94279-039-0 01 1 9504-9510 ● ● ● ● ● ●
137 16.742 GROMMET; SCREW,HEADER SHELF
TRAY ROOF HEAD<7EJ> 16.588 		8-94279-039-0 01 1 9511- ● ● ● ● ● ● ●
138 16.742 NUT; BRKT,HEADER SHELF
TRAY ROOF HEAD<7EJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9312-9510 ● ● ● ● ● ●
138 16.742 NUT; BRKT,HEADER SHELF
TRAY ROOF HEAD<7EJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9511- ● ● ● ● ● ● ●
151 16.450 COVER; BRKT
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> (A) 		1-73318-553-1 01 1 9312-9510 ● ● ● ● ● ●
151 16.450 COVER; BRKT
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> (A) 		1-73318-553-1 01 1 9511-9711 ● ● ● ● ● ● ●
151 16.450 COVER; BRKT
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> (A) LIGHT GRAY 		8-97867-250-0 01 1 9712- ● ● ● ● ● ● ●
151 16.450 COVER; BRKT
EUROPEAN BASIC EQUIPMENT(EK4) 16.069 (B) 		8-97859-113-2 01 1 9402-9506 ● ●
151 16.450 COVER; BRKT
DOOR MIRROR<6VE> 16.069 (B) 		8-97859-113-2 01 1 9507-9510 ● ● ●
151 16.450 COVER; BRKT
DOOR MIRROR<6VE> 16.069 (B) 		8-97859-113-2 01 1 9511-9703 ● ● ● ●
151 16.450 COVER; BRKT
DOOR MIRROR<6VE> 16.069 (B) 		8-97859-113-2 01 1 9704-9710 ● ● ● ● ●
151 16.450 COVER; BRKT
EUROPEAN BASIC EQUIPMENT(EK4) 16.069 (B) 		8-97859-112-2 01 1 9402-9506 ● ●
151 16.450 COVER; BRKT
DOOR MIRROR<6VE> 16.069 (B) 		8-97859-112-2 01 1 9507-9510 ● ● ●
151 16.450 COVER; BRKT
DOOR MIRROR<6VE> 16.069 (B) 		8-97859-112-2 01 1 9511-9703 ● ● ● ●
151 16.450 COVER; BRKT
DOOR MIRROR<6VE> 16.069 (B) 		8-97859-112-2 01 1 9704-9710 ● ● ● ● ●
152 16.450 CLIP; BRKT
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> GRAY 		8-97857-053-0 02 1 9312-9510 ● ● ● ● ● ●
152 16.450 CLIP; BRKT
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> GRAY 		8-97857-053-0 02 1 9511-9711 ● ● ● ● ● ● ●
152 16.450 CLIP; BRKT
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> LIGHT GRAY 		8-97867-185-0 02 1 9712- ● ● ● ● ● ● ●

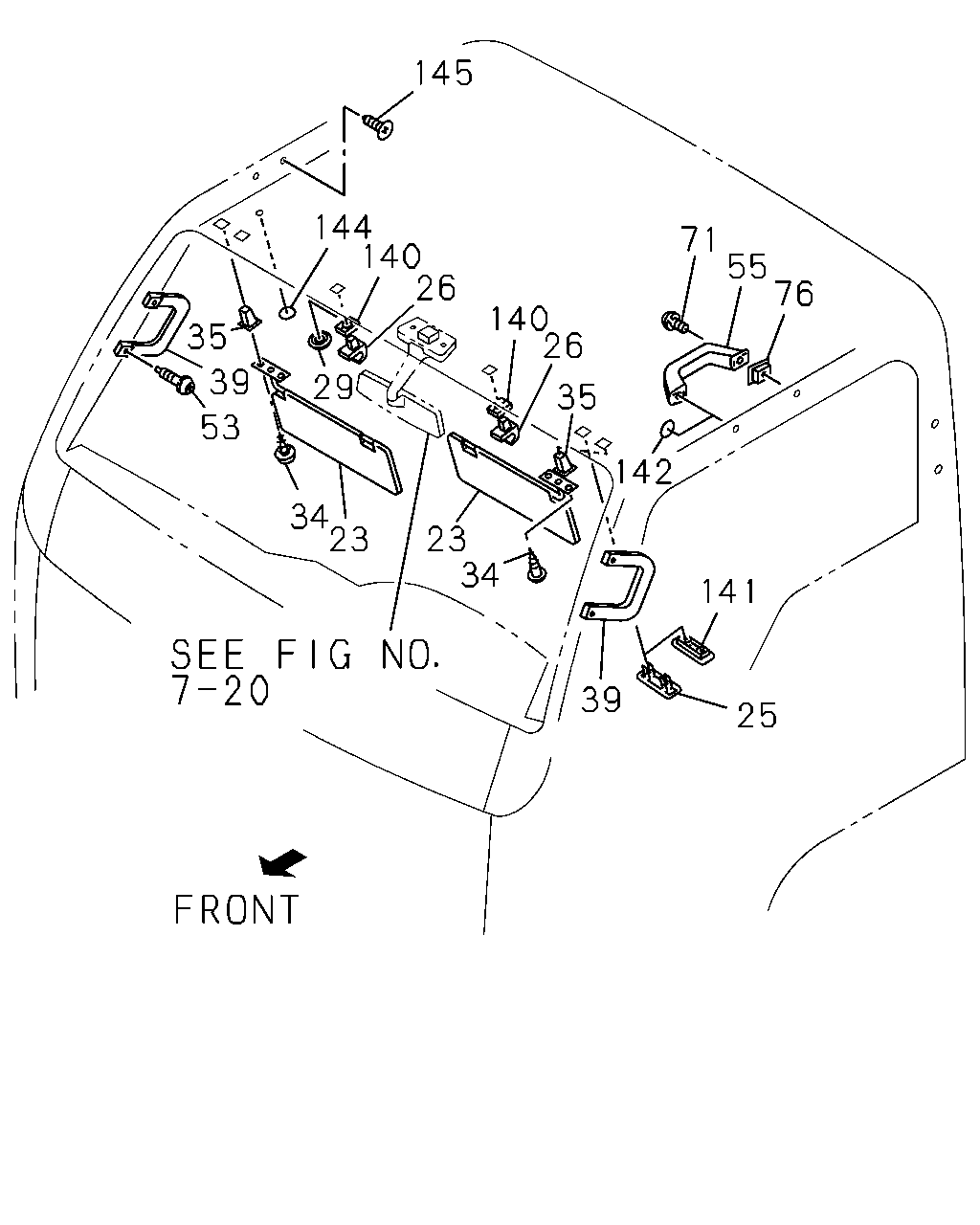

çizim 70621
145 144 140 26 71 55 76 140 26 35 39 29 35 142 53 34 23 23 34 141 39 25
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
23 16.070 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> PASSENGER GRAY 		8-97856-237-2 01 1 9312-9510 ● ● ● ● ● ●
23 16.070 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> EXC. CHINA EQUIPMENT(YT2) PASSENGER GRAY 		8-97856-237-2 01 1 9511-9711 ● ● ● ● ● ● ●
23 16.070 SUN VISOR
CHINA EQUIPMENT(YT2) TRAY ROOF HEAD<7EJ> PASSENGER GRAY 		8-97856-237-2 01 1 9511-9711 ● ● ● ●
23 16.070 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> PASSENGER LIGHT GRAY 		8-97868-631-2 01 1 9712- ● ● ● ● ● ● ●
23 16.070 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> PASSENGER GRAY 		8-97856-235-2 01 1 9312-9510 ● ● ● ● ● ●
23 16.070 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> EXC. CHINA EQUIPMENT(YT2),CAB-LOW ROOF<6XQ>,TRAY ROOF HEAD<7EJ> PASSENGER GRAY 		8-97856-235-2 01 1 9511-9711 ● ● ● ● ● ● ●
23 16.070 SUN VISOR
CHINA EQUIPMENT(YT2) EXC. TRAY ROOF HEAD<7EJ> PASSENGER GRAY 		8-97856-235-2 01 1 9511-9711 ● ● ● ●
23 16.070 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> EXC. CAB-LOW ROOF<6XQ>,TRAY ROOF HEAD<7EJ> PASSENGER LIGHT GRAY 		8-94351-820-3 01 1 9712- ● ● ● ● ● ● ●
23 16.070 SUN VISOR
TRAY ROOF HEAD<7EJ> DRIVER GRAY 		8-97856-034-3 01 1 9312-9510 ● ● ● ● ● ●
23 16.070 SUN VISOR
TRAY ROOF HEAD<7EJ> DRIVER GRAY 		8-97856-034-3 01 1 9511-9711 ● ● ● ● ● ● ●
23 16.070 SUN VISOR
TRAY ROOF HEAD<7EJ> DRIVER LIGHT GRAY 		8-97859-841-3 01 1 9712- ● ● ● ● ● ● ●
23 16.070 SUN VISOR
EXC. TRAY ROOF HEAD<7EJ> DRIVER GRAY 		8-97856-236-2 01 1 9312-9510 ● ● ● ● ● ●
23 16.070 SUN VISOR
EXC. CAB-LOW ROOF<6XQ>,TRAY ROOF HEAD<7EJ> DRIVER GRAY 		8-97856-236-2 01 1 9511-9711 ● ● ● ● ● ● ●
23 16.070 SUN VISOR
EXC. CAB-LOW ROOF<6XQ>,TRAY ROOF HEAD<7EJ> DRIVER LIGHT GRAY 		8-97868-630-3 01 1 9712- ● ● ● ● ● ● ●
23 16.070 SUN VISOR
CAB-LOW ROOF<6XQ> DRIVER GRAY 		8-97856-880-1 01 1 9511-9604 ●
23 16.070 SUN VISOR
CAB-LOW ROOF<6XQ> DRIVER GRAY 		8-97856-880-1 01 1 9605-9711 ● ●
23 16.070 SUN VISOR
CAB-LOW ROOF<6XQ> DRIVER LIGHT GRAY 		8-97859-843-1 01 1 9712- ●
23 16.070 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> CAB-LOW ROOF<6XQ> PASSENGER GRAY 		8-97856-879-1 01 1 9511-9604 ●
23 16.070 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> CAB-LOW ROOF<6XQ> PASSENGER GRAY 		8-97856-879-1 01 1 9605-9711 ● ●
23 16.070 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> CAB-LOW ROOF<6XQ> PASSENGER LIGHT GRAY 		8-97859-842-1 01 1 9712- ●
25 16.070 COVER; HOLE,SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>, TRAY ROOF HEAD<7EJ> GRAY 		8-97853-968-3 01 1 9312-9510 ● ● ● ● ● ●
25 16.070 COVER; HOLE,SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>, TRAY ROOF HEAD<7EJ> GRAY 		8-97853-968-3 01 1 9511-9711 ● ● ● ● ● ● ●
25 16.070 COVER; HOLE,SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>, TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97859-846-3 01 1 9712- ● ● ● ● ● ● ●
26 16.070 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> GRAY 		8-97853-966-2 02 1 9312-9510 ● ● ● ● ● ● ●
26 16.070 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> GRAY 		8-97853-966-2 02 1 9511-9702 ● ● ● ● ● ● ●
26 16.070 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> GRAY 		8-97853-966-2 02 1 9703-9711 ● ● ● ● ●
26 16.070 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> GRAY 		8-97853-966-2 02 1 9703-9711 ● ●
26 16.070 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> EXC. CAB-LOW ROOF<6XQ> LIGHT GRAY 		8-97867-184-2 02 1 9712- ● ● ● ● ● ● ●
26 16.070 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> CAB-LOW ROOF<6XQ> LIGHT GRAY 		8-97867-184-2 02 1 9712- ●
26 16.070 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> GRAY 		8-97856-239-0 02 1 9312-9510 ● ● ● ● ● ● ●
26 16.070 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> GRAY 		8-97856-239-0 02 1 9511-9702 ● ● ● ● ● ● ●
26 16.070 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> EXC. CAB-LOW ROOF<6XQ>,TRAY ROOF HEAD<7EJ> GRAY 		8-97856-239-0 02 1 9703-9711 ● ● ● ● ● ● ●
26 16.070 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> EXC. CAB-LOW ROOF<6XQ>,TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-94351-982-0 02 1 9712- ● ● ● ● ● ● ●
26 16.070 HOLDER; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>, TRAY ROOF HEAD<7EJ> GRAY 		8-97856-239-0 01 1 9312-9510 ● ● ● ● ● ●
26 16.070 HOLDER; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>, TRAY ROOF HEAD<7EJ> GRAY 		8-97856-239-0 01 1 9511-9702 ● ● ● ● ● ● ●
26 16.070 HOLDER; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>, CAB-LOW ROOF<6XQ>,TRAY ROOF HEAD<7EJ> GRAY 		8-97856-239-0 01 1 9703-9711 ● ● ● ● ● ● ●
26 16.070 HOLDER; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>, CAB-LOW ROOF<6XQ>,TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-94351-982-0 01 1 9712- ● ● ● ● ● ● ●
26 16.070 HOLDER; SUN VISOR
TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> GRAY 		8-97853-966-2 01 1 9312-9510 ● ● ● ● ● ●
26 16.070 HOLDER; SUN VISOR
TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> GRAY 		8-97853-966-2 01 1 9511-9702 ● ● ● ● ● ● ●
26 16.070 HOLDER; SUN VISOR
TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> GRAY 		8-97853-966-2 01 1 9703-9711 ● ● ● ● ●
26 16.070 HOLDER; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20> GRAY 		8-97853-966-2 01 1 9703-9711 ● ●
26 16.070 HOLDER; SUN VISOR
TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20>, CAB-LOW ROOF<6XQ> LIGHT GRAY 		8-97867-184-2 01 1 9712- ● ● ● ● ● ● ●
26 16.070 HOLDER; SUN VISOR
CAB-LOW ROOF<6XQ> EXC. SUNVISOR PASSENGER SIDE<D20>, TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97867-184-2 01 1 9712- ●
29 16.070 HOLDER; GROMMET,SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20> 16.547 OD=15.0 		8-94279-040-0 01 1 9312-9510 ● ● ● ● ● ●
29 16.070 HOLDER; GROMMET,SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20> 16.547 OD=15.0 		8-94279-040-0 01 1 9511-9806 ● ● ● ● ● ● ●
29 16.070 HOLDER; GROMMET,SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>, TRAY ROOF HEAD<7EJ> 16.547 OD=15.0 		8-94279-040-0 01 1 9807- ● ● ● ● ● ● ●
34 16.070 SCREW; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> 03.671 M5X20 		5-09981-059-0 04 1 9312-9510 ● ● ● ● ● ●
34 16.070 SCREW; SUN VISOR
TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> 03.671 M5X20 		5-09981-059-0 04 1 9312-9510 ● ● ● ● ● ●
34 16.070 SCREW; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> 03.671 M5X20 		5-09981-059-0 04 1 9511- ● ● ● ● ● ● ●
34 16.070 SCREW; SUN VISOR
TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> 03.671 M5X20 		5-09981-059-0 04 1 9511- ● ● ● ● ● ● ●
34 16.070 SCREW; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>, TRAY ROOF HEAD<7EJ> 03.671 M5X20 		5-09981-059-0 02 1 9312-9510 ● ● ● ● ● ●
34 16.070 SCREW; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>, TRAY ROOF HEAD<7EJ> 03.671 M5X20 		5-09981-059-0 02 1 9511- ● ● ● ● ● ● ●
35 16.070 GROMMET; SCREW,SUN VISOR
SUNVISOR PASSENGER SIDE<D20> 09.743 D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 9312-9503 ● ● ● ● ● ●
35 16.070 GROMMET; SCREW,SUN VISOR
TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> 09.743 D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 9312-9503 ● ● ● ● ● ●
35 16.070 GROMMET; SCREW,SUN VISOR
SUNVISOR PASSENGER SIDE<D20> 16.588 		8-94279-039-0 04 1 9504-9510 ● ● ● ● ● ●
35 16.070 GROMMET; SCREW,SUN VISOR
TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> 16.588 		8-94279-039-0 04 1 9504-9510 ● ● ● ● ● ●
35 16.070 GROMMET; SCREW,SUN VISOR
SUNVISOR PASSENGER SIDE<D20> 16.588 		8-94279-039-0 04 1 9511- ● ● ● ● ● ● ●
35 16.070 GROMMET; SCREW,SUN VISOR
TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> 16.588 		8-94279-039-0 04 1 9511- ● ● ● ● ● ● ●
35 16.070 GROMMET; SCREW,SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>, TRAY ROOF HEAD<7EJ> 09.743 D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 02 1 9312-9503 ● ● ● ● ● ●
35 16.070 GROMMET; SCREW,SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>, TRAY ROOF HEAD<7EJ> 16.588 		8-94279-039-0 02 1 9504-9510 ● ● ● ● ● ●
35 16.070 GROMMET; SCREW,SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>, TRAY ROOF HEAD<7EJ> 16.588 		8-94279-039-0 02 1 9511- ● ● ● ● ● ● ●
39 16.450 HANDLE; ASSIST,A-POST
DARK BEIGE 		8-97853-802-2 02 1 9312-9608 ● ● ● ● ● ● ●
39 16.450 HANDLE; ASSIST,A-POST
DARK BEIGE 		8-97867-883-0 02 1 9609-9711 ● ● ● ● ● ● ●
39 16.450 HANDLE; ASSIST,A-POST
DARK GRAY 		8-97867-209-0 02 1 9712- ● ● ● ● ● ● ●
53 16.450 SCREW; ASSIST HANDLE
M4X30 		8-94279-360-0 04 1 9312-9608 ● ● ● ● ● ● ●
53 16.450 SCREW; ASSIST HANDLE
M6X34 W/LK&PL WASHER 		8-94279-411-0 04 1 9609- ● ● ● ● ● ● ●
55 16.450 GRIP; ASSIST,CAB SIDE UPR
GRAY 		8-97853-837-2 01 1 9312-9510 ● ● ● ● ● ● ●
55 16.450 GRIP; ASSIST,CAB SIDE UPR
ASSIST GRIP PASSENGER<EG5> GRAY 		8-97853-837-2 01 1 9511-9711 ● ● ● ● ● ● ●
55 16.450 GRIP; ASSIST,CAB SIDE UPR
ASSIST GRIP PASSENGER<EG5> 16.346 DARK GRAY 		8-97098-476-2 01 1 9712- ● ● ● ● ● ● ●
71 16.450 SCREW
M4X30 		8-94279-360-0 02 1 9312-9510 ● ● ● ● ● ● ●
71 16.450 SCREW
M6X30 W/LK WASHER 		5-09981-064-0 02 1 9511-9511 ● ● ● ● ● ● ●
71 16.450 SCREW
ASSIST GRIP PASSENGER<EG5> M6X30 W/LK WASHER 		5-09981-064-0 02 1 9511- ● ● ● ● ● ● ●
76 16.742 SPACER; ASSIST GRIP
INTERIOR DELUXE<RBB> GRAY 		8-97856-673-0 02 1 9507-9711 ● ●
76 16.742 SPACER; ASSIST GRIP
INTERIOR DELUXE<RBB> DARK GRAY 		8-97859-854-0 02 1 9712- ● ●
140 16.742 SPACER; HOLDER,SUN VISOR
CAB-LOW ROOF<6XQ> EXC. SUNVISOR PASSENGER SIDE<D20> 16.070 GRAY 		8-97856-335-1 01 1 9511-9604 ●
140 16.742 SPACER; HOLDER,SUN VISOR
CAB-LOW ROOF<6XQ> EXC. SUNVISOR PASSENGER SIDE<D20> 16.070 GRAY 		8-97856-335-1 01 1 9605-9711 ● ●
140 16.742 SPACER; HOLDER,SUN VISOR
CAB-LOW ROOF<6XQ> EXC. SUNVISOR PASSENGER SIDE<D20> 16.070 LIGHT GRAY 		8-97867-152-1 01 1 9712- ●
140 16.742 SPACER; HOLDER,SUN VISOR
SUNVISOR PASSENGER SIDE<D20> CAB-LOW ROOF<6XQ> 16.070 GRAY 		8-97856-335-1 02 1 9511-9604 ●
140 16.742 SPACER; HOLDER,SUN VISOR
SUNVISOR PASSENGER SIDE<D20> CAB-LOW ROOF<6XQ> 16.070 GRAY 		8-97856-335-1 02 1 9605-9711 ● ●
140 16.742 SPACER; HOLDER,SUN VISOR
SUNVISOR PASSENGER SIDE<D20> CAB-LOW ROOF<6XQ> 16.070 LIGHT GRAY 		8-97867-152-1 02 1 9712- ●
141 16.070 COVER; SUN VISOR
TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> GRAY 		8-97853-967-1 01 1 9312-9510 ● ● ● ● ● ●
141 16.070 COVER; SUN VISOR
TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> GRAY 		8-97853-967-1 01 1 9511-9711 ● ● ● ● ● ● ●
141 16.070 COVER; SUN VISOR
TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY 		8-97859-845-1 01 1 9712- ● ● ● ● ● ● ●
142 16.742 SEAL; ASSIST GRIP
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY YE LLOW(916) EXC. ASSIST GRIP PASSENGER<EG5> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 9511-9602 ● ● ● ● ● ● ●
142 16.742 SEAL; ASSIST GRIP
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY YELLOW(916) EXC. ASSIST GRIP PASSENGER<EG5> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 9603- ● ● ● ● ● ● ●
142 16.742 SEAL; ASSIST GRIP
BODY COLOR ARC WHITE(729) EXC. ASSIST GRIP PASSENGER<EG5> 16.570 OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 9511- ● ● ● ● ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 9312-9403 ● ● ● ● ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY YE LLOW(916) EXC. TRAY ROOF HEAD<7EJ> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 9404-9602 ● ● ● ● ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY YELLOW(916) EXC. TRAY ROOF HEAD<7EJ> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 9603- ● ● ● ● ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729) 16.081 WHITE 		1-76777-076-0 02 1 9312-9402 ● ● ● ● ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729) 16.570 OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 9403-9403 ● ● ● ● ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> 16.570 OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 9404-9510 ● ● ● ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> 16.570 OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 9511- ● ● ● ● ● ● ●
145 16.070 PLUG; HOLE
EXC. TRAY ROOF HEAD<7EJ> 16.069 OD=12 L=14.8 		8-94279-921-0 04 1 9312-9510 ● ● ● ● ● ●
145 16.070 PLUG; HOLE
EXC. TRAY ROOF HEAD<7EJ> 16.069 OD=12 L=14.8 		8-94279-921-0 04 1 9511- ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
