2-40 — AUTO TRANS ASM AND REPAIR KIT (#4434) — 16 parça

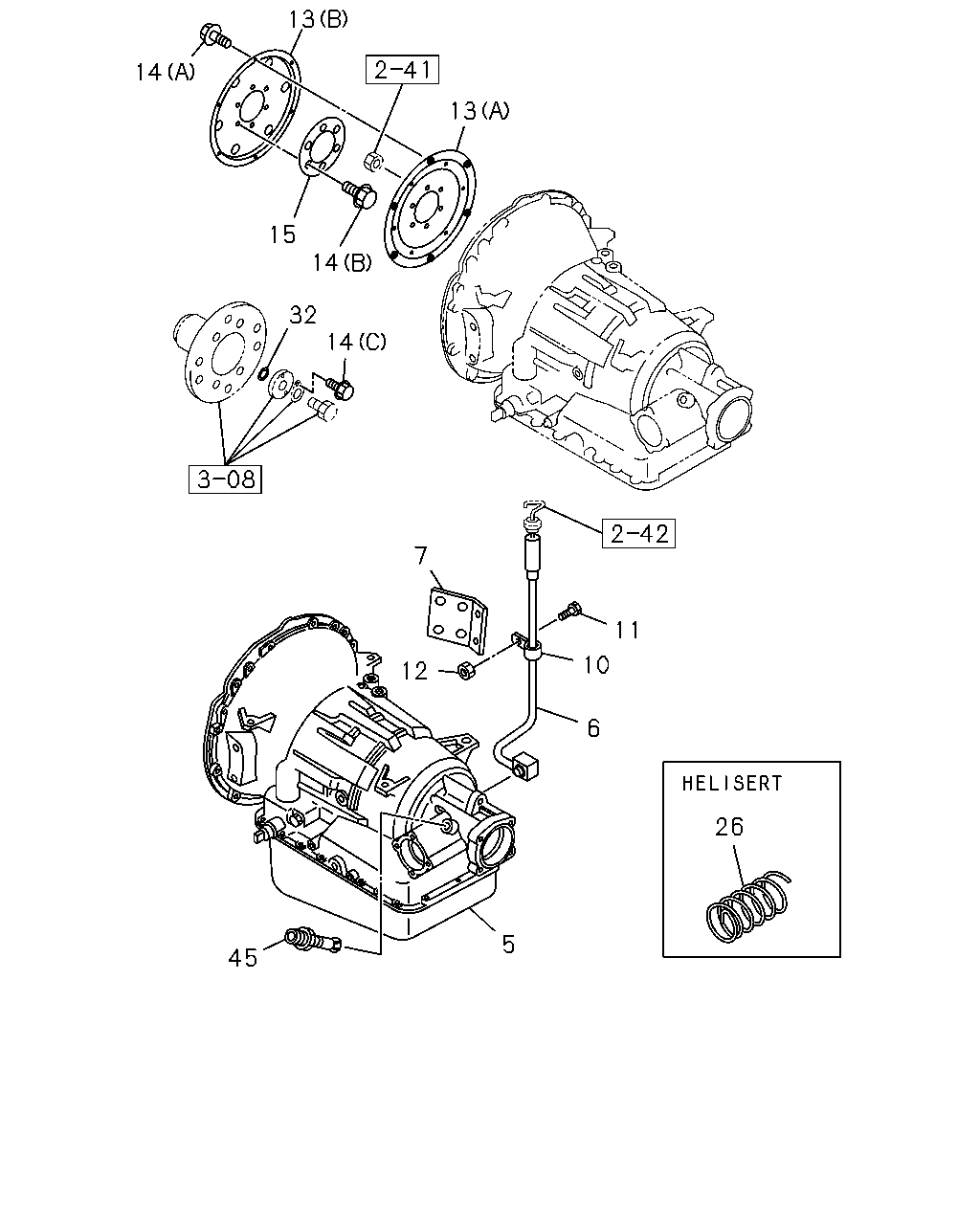

çizim 36579
13 14 13 15 14 32 14 7 11 10 12 6 26 5 45
BalonParca AdiParca NoAdetTipApplied Date
5 TRANSMISSION ASM; AUTO
6BD1 TC ENG(L29) EXH BRK<NF8> 		1-34000-228-1 01 1 9101-9504
5 TRANSMISSION ASM; AUTO
6BG1 STD ENG(16L) 		1-34000-207-1 01 1 9101-9504
6 FILLER; OIL 1-34129-041-0 01 1 9101-9504
7 BRACKET; OIL FILLER 1-34129-032-0 01 1 9101-9504
10 CLIP; OIL FILLER
ID=19 		1-09700-664-0 02 1 9101-9504
11 BOLT; CLIP
M8X16 W/LK&PL WASHER 		0-50140-816-0 04 1 9101-9504
12 NUT; BOLT
M8 		9-09110-408-0 04 1 9101-9504
13 PLATE; FLEX,A/T
(A) RING TYPE 		1-32213-037-0 01 1 9101-9504
13 PLATE; FLEX,A/T
(B) 		1-32213-040-0 01 1 9101-9504
14 BOLT; FLEX PLATE
(C) M6X14 W/LK WASHER 		0-50040-614-0 01 1 9101-9504
14 BOLT; FLEX PLATE
(A) M10X15 T/C SIDE 		1-89920-240-3 06 1 9101-9504
14 BOLT; FLEX PLATE
(B) M14X25 		9-92061-425-0 06 1 9101-9504
15 WASHER; FLEX PLATE 1-32213-009-1 01 1 9101-9504
26 HELISERT; A/T 9-09957-020-0 01 1 9101-9504
32 GASKET 9-09921-103-0 01 1 9101-9504
45 GEAR; DRIVEN,SPD,A/T 1-33372-085-0 01 1 9101-9504
