◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50695 - NKR-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-41 - UNDER COVER; INSTRUMENT ▶
7-41 — UNDER COVER; INSTRUMENT (#44339) — 11 parça

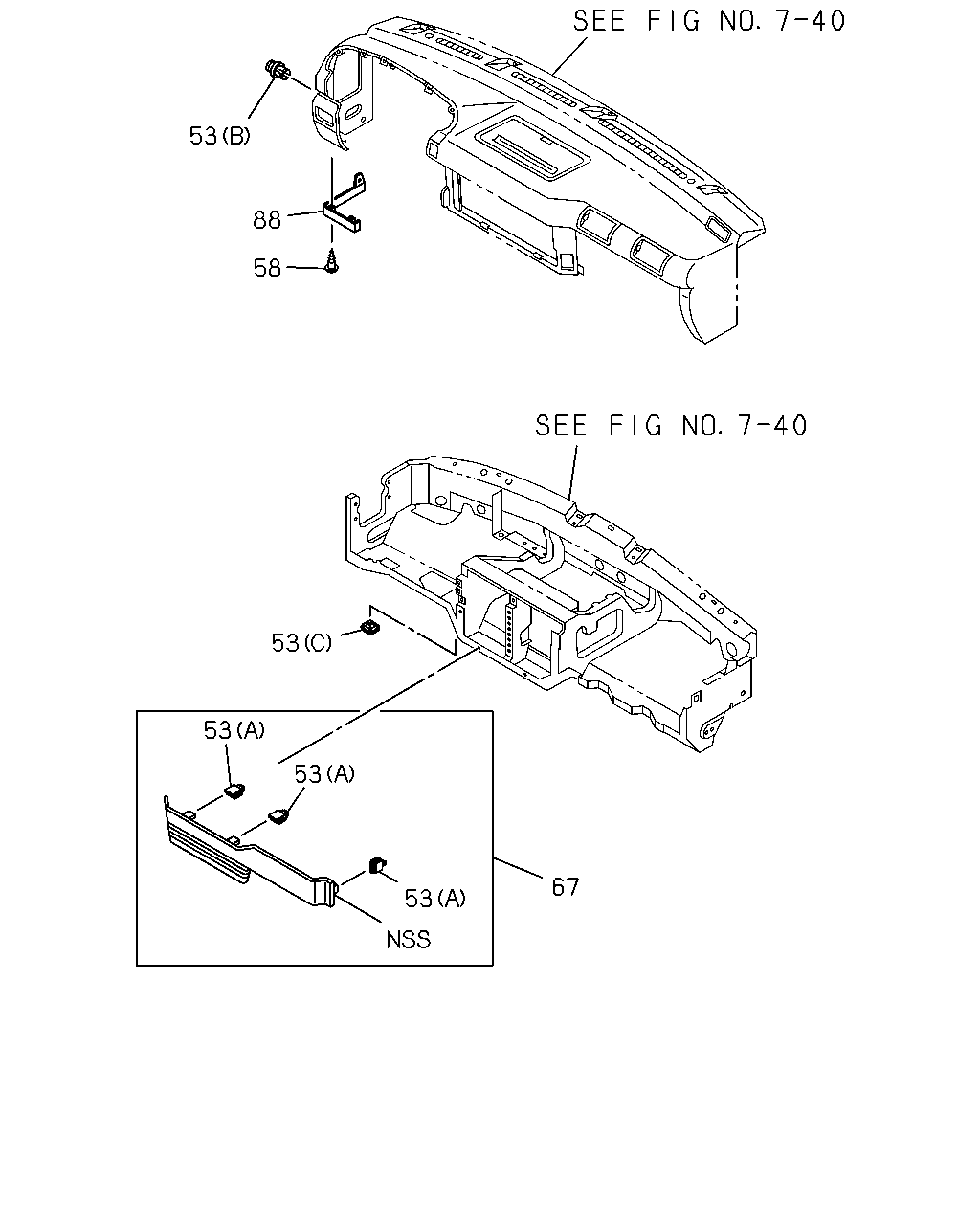

çizim 16356
53 88 58 53 53 53 67 53
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
53 16.085 CLIP; UNDER COVER
16.100 (A) 		8-97853-169-0 03 1 9312- ● ● ● ● ● ● ●
53 16.085 CLIP; UNDER COVER
06.521 (B) DARK BEIGE 		8-97856-011-0 01 1 9312-9506 ● ● ● ● ● ● ●
53 16.085 CLIP; UNDER COVER
EXC. DUMP CHASSIS(V4D) 06.521 (B) DARK BEIGE 		8-97856-011-0 01 1 9507-9510 ● ● ● ● ● ●
53 16.085 CLIP; UNDER COVER
EXC. DUMP CHASSIS(V4D) 06.521 (B) DARK BEIGE 		8-97856-011-0 01 1 9511-9711 ● ● ● ● ● ● ●
53 16.085 CLIP; UNDER COVER
EXC. DUMP CHASSIS(V4D) 06.521 (B) DARK GRAY 		8-97857-542-0 01 1 9712- ● ● ● ● ● ● ●
53 16.085 CLIP; UNDER COVER
(C) 		8-97853-249-5 03 1 9404- ● ● ● ● ● ● ●
53 16.085 CLIP; UNDER COVER
DUMP CHASSIS(V4D) 16.800 (B) BLACK 		8-94493-404-0 01 1 9507- ●
58 09.264 SCREW; UNDER COVER
16.067 M5X14 		8-94279-325-0 02 1 9312- ● ● ● ● ● ● ●
67 16.081 COVER; UNDER,INST PNL 8-97857-187-0 01 1 9312- ● ● ● ● ● ● ●
88 16.081 COVER; UNDER,INST PNL SIDE
DARK BEIGE 		8-97856-918-1 01 1 9312-9711 ● ● ● ● ● ● ●
88 16.081 COVER; UNDER,INST PNL SIDE
DARK GRAY 		8-97857-539-1 01 1 9712- ● ● ● ● ● ● ●
