7-40 — INSTRUMENT PANEL AND BOX (#44338) — 93 parça

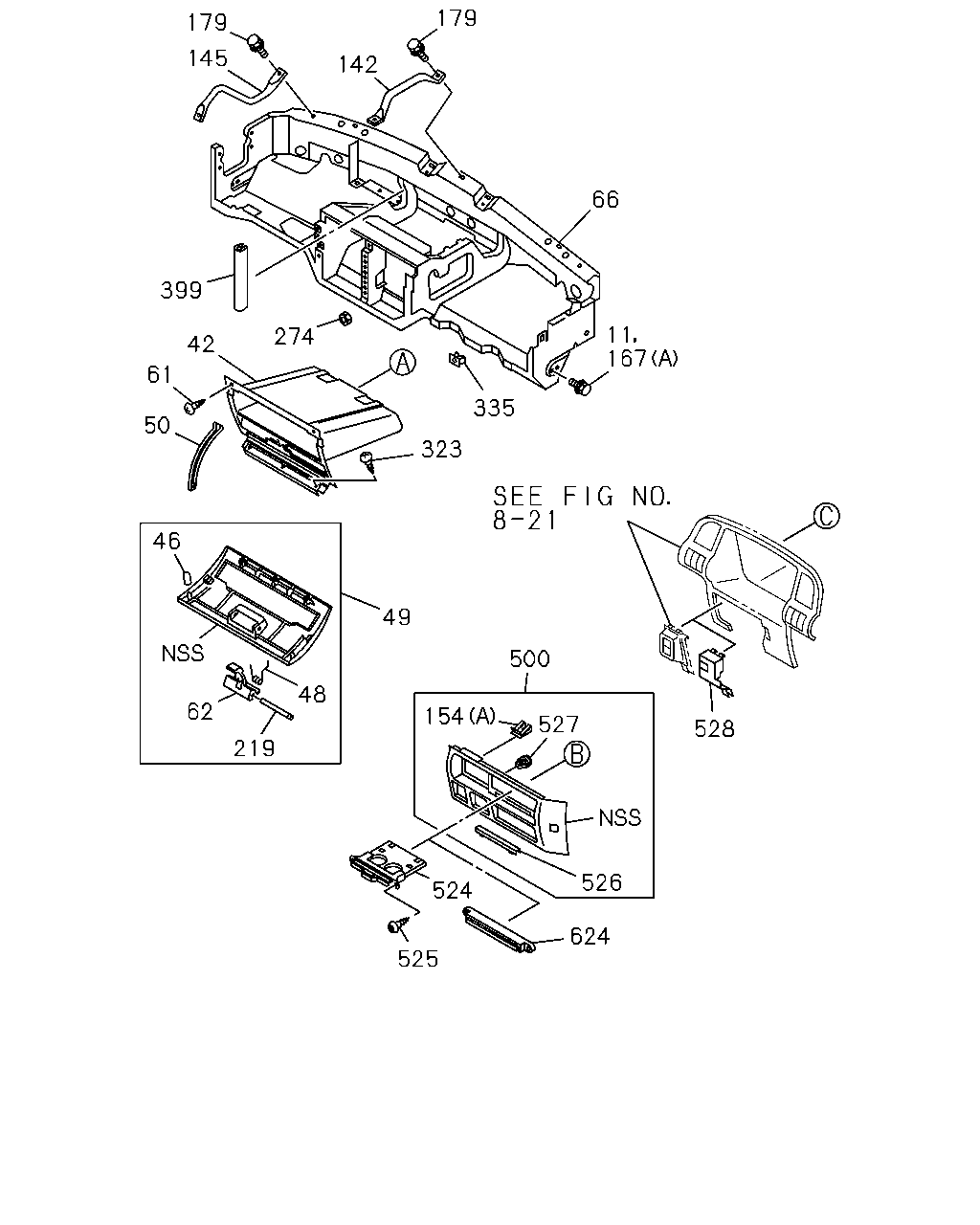

çizim 67819
179 179 145 142 66 399 11 167 274 42 61 335 50 323 46 49 500 48 62 154 527 528 219 524 526 624 525
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
11 16.090 BOLT; INST PNL
16.085 M8X20 FLANGE 		8-97114-431-0 04 1 9407- ● ● ● ● ● ● ●
42 16.100 BOX; GLOVE,INST PNL 8-97853-150-5 01 1 9312- ● ● ● ● ● ● ●
46 16.110 CAP; GLOVE BOX STOPPER 8-94270-538-0 02 1 9312- ● ● ● ● ● ● ●
48 16.110 SPRING; GLOVE BOX LID 8-97853-750-1 01 1 9312- ● ● ● ● ● ● ●
49 16.110 LID; GLOVE BOX
DARK BEIGE 		8-97853-859-3 01 1 9312-9711 ● ● ● ● ● ● ●
49 16.110 LID; GLOVE BOX
DARK GRAY 		8-97859-798-3 01 1 9712- ● ● ● ● ● ● ●
50 16.110 STOPPER; LID,GLOVE BOX,INST CLUS 8-97853-152-0 02 1 9312- ● ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 9312- ● ● ● ● ● ● ●
62 16.110 KNOB; GLOVE BOX LID
DARK BEIGE 		8-97853-861-1 01 1 9312-9711 ● ● ● ● ● ● ●
62 16.110 KNOB; GLOVE BOX LID
DARK GRAY 		8-97857-498-1 01 1 9712- ● ● ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL 8-97856-187-9 01 1 9312-9606 ● ● ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL 8-97867-898-5 01 1 9607- ● ● ● ● ● ● ●
142 16.085 STAY; INST PANEL 8-97856-196-2 01 1 9312- ● ● ● ● ● ● ●
145 16.085 STAY; INST PANEL SIDE 8-97856-197-2 01 1 9312- ● ● ● ● ● ● ●
154 16.085 NUT
16.081 (A) M5 SPIRE NUT 		8-94279-051-0 01 1 9312-9702 ● ● ● ● ● ● ●
154 16.085 NUT
16.742 (A) M6 SPIRE NUT 		8-94291-960-0 01 1 9703- ● ● ● ● ● ● ●
154 16.085 NUT
16.742 (B) M6 SPIRE NUT 		8-94291-960-0 03 1 9312-9806 ● ● ● ● ● ● ●
154 16.085 NUT
(B) M6 SPIRE NUT 		8-97210-973-1 03 1 9807- ● ● ● ● ● ● ●
167 16.085 BOLT; REINF TO INST
02.343 (A) M8X22 		8-94122-771-0 04 1 9312-9405 ● ● ● ● ● ● ●
167 16.085 BOLT; REINF TO INST
08.225 (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 9312- ● ● ● ● ● ● ●
167 16.085 BOLT; REINF TO INST
06.500 (C) M6X25 		8-94279-204-0 02 1 9312- ● ● ● ● ● ● ●
167 16.085 BOLT; REINF TO INST
(D) M6X24 FLANGE 		8-94279-231-1 02 1 9312- ● ● ● ● ● ● ●
179 16.085 BOLT; STAY,INST PANEL
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9312-9401 ● ● ● ● ● ● ●
179 16.085 BOLT; STAY,INST PANEL
16.350 M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 9402- ● ● ● ● ● ● ●
219 09.744 SHAFT; GLOVE BOX LID 5-72547-059-1 01 1 9312- ● ● ● ● ● ● ●
274 16.100 NUT; GLOVE BOX
16.081 M5 SPIRE NUT 		8-94279-051-0 02 1 9312- ● ● ● ● ● ● ●
323 16.110 SCREW; GLOVE BOX LK
16.067 M5X14 		8-94279-325-0 03 1 9312- ● ● ● ● ● ● ●
335 16.115 GROMMET; GLOVE BOX LK
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9312- ● ● ● ● ● ● ●
399 16.085 FINISHER; HARNESS
03.885 L=50 		8-94270-377-1 01 1 9312- ● ● ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK BEIGE 		8-97857-897-1 01 1 9312-9510 ● ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK BEIGE 		8-97857-897-2 01 1 9511-9711 ● ● ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK GRAY 		8-97868-657-3 01 1 9712- ● ● ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKE RS(6VL) DARK BEIGE 		8-97856-920-4 01 1 9312-9510 ● ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKE RS(6VL) DARK BEIGE 		8-97856-920-5 01 1 9511-9711 ● ● ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKE RS(6VL) DARK GRAY 		8-97868-656-6 01 1 9712- ● ● ● ● ● ● ●
524 16.100 STAND ASM; CUP,INST 8-97853-172-5 01 1 9312-9510 ● ● ● ● ● ● ●
524 16.100 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-97853-172-7 01 1 9511- ● ● ● ● ● ● ●
525 16.100 SCREW; CUP STAND
16.067 M5X14 		8-94279-325-0 02 1 9312- ● ● ● ● ● ● ●
526 16.100 GUIDE; POCKET,INST CLUSTER
DARK BEIGE 		8-97853-896-1 01 1 9312-9711 ● ● ● ● ● ● ●
526 16.100 GUIDE; POCKET,INST CLUSTER
DARK GRAY 		8-97857-503-1 01 1 9712- ● ● ● ● ● ● ●
527 16.100 CLIP; INST CLUSTER 8-97853-169-0 04 1 9312- ● ● ● ● ● ● ●
528 16.081 COVER; PTO LEVER
PTO TRANSMISSION SIDE(V66) DARK BEIGE 		8-97859-480-0 01 1 9407-9410 ● ● ●
528 16.081 COVER; PTO LEVER
PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH) DARK BEIGE 		8-97859-480-0 01 1 9411-9510 ● ● ●
528 16.081 COVER; PTO LEVER
PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH) DARK BEIGE 		8-97859-480-0 01 1 9511-9711 ● ● ● ●
528 16.081 COVER; PTO LEVER
PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH) BLACK 		8-97868-659-0 01 1 9712- ● ● ● ●
624 16.085 COVER; CUP STAND
EXC. CUP HOLDER<7KZ> 		1-72438-139-0 01 1 9511- ● ● ● ● ● ● ●

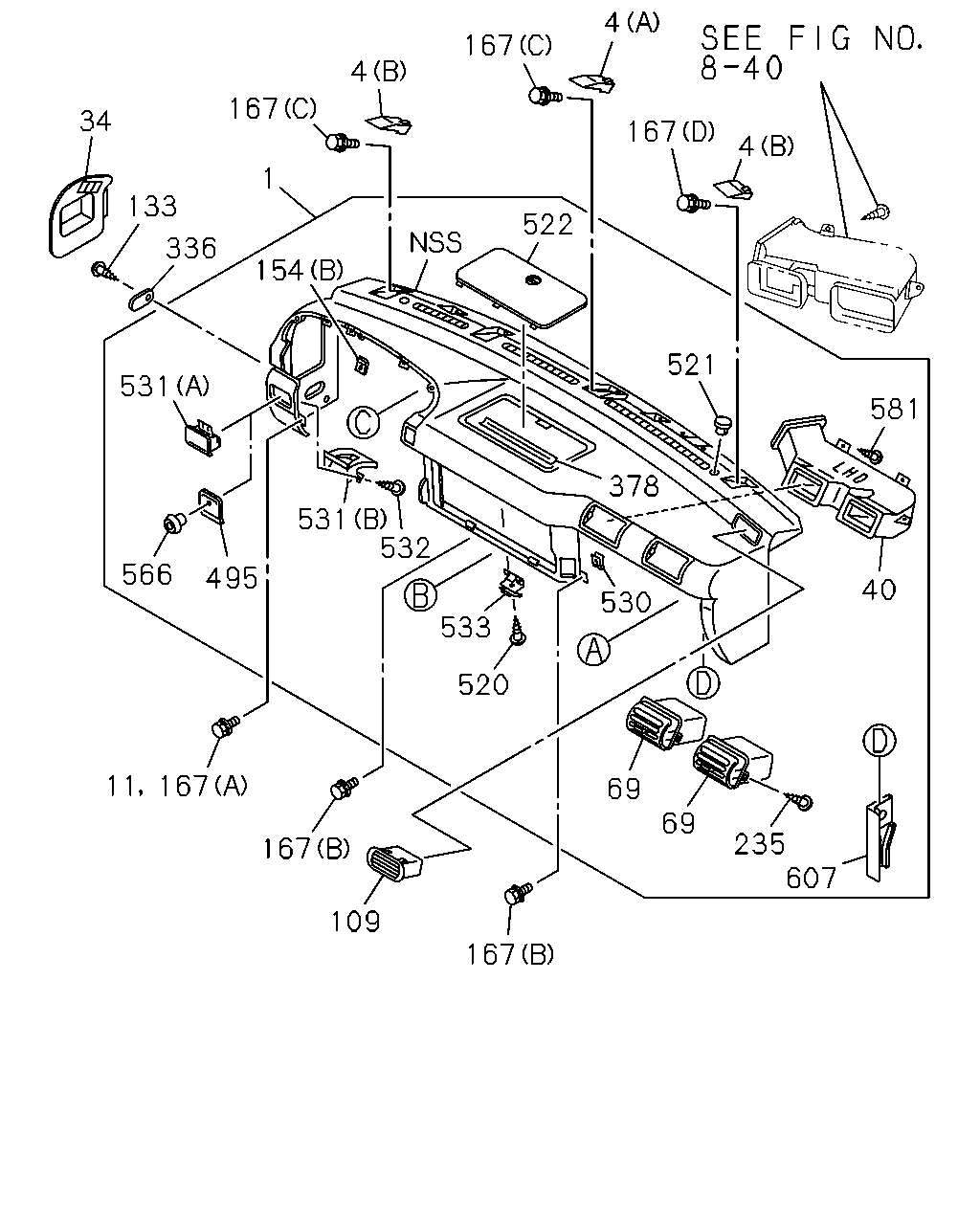

çizim 70530
4 167 4 167 34 167 4 1 133 522 336 154 521 531 581 378 531 532 566 495 40 530 533 520 167 11 69 69 235 607 167 109 167
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.080 PANEL; INST
DARK BEIGE 		8-97856-921-5 01 1 9312-9510 ● ● ● ● ● ● ●
1 16.080 PANEL; INST
DARK BEIGE 		8-97855-258-4 01 1 9511-9711 ● ● ● ● ● ● ●
1 16.080 PANEL; INST
DARK GRAY 		8-97195-961-0 01 1 9712- ● ● ● ● ● ● ●
4 16.080 COVER; INST PNL
(A) DARK BEIGE 		8-97853-880-3 02 1 9312-9711 ● ● ● ● ● ● ●
4 16.080 COVER; INST PNL
(A) DARK GRAY 		8-97857-523-3 02 1 9712- ● ● ● ● ● ● ●
4 16.080 COVER; INST PNL
(B) DARK BEIGE 		8-97853-882-3 01 1 9312-9711 ● ● ● ● ● ● ●
4 16.080 COVER; INST PNL
(B) DARK GRAY 		8-97857-525-3 01 1 9712- ● ● ● ● ● ● ●
4 16.080 COVER; INST PNL
(B) DARK BEIGE 		8-97853-881-3 01 1 9312-9711 ● ● ● ● ● ● ●
4 16.080 COVER; INST PNL
(B) DARK GRAY 		8-97857-524-3 01 1 9712- ● ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
16.085 M8X20 FLANGE 		8-97114-431-0 04 1 9407- ● ● ● ● ● ● ●
34 16.085 LID; OIL TANK
DARK BEIGE 		8-97856-919-5 01 1 9312-9711 ● ● ● ● ● ● ●
34 16.085 LID; OIL TANK
DARK GRAY 		8-97857-499-5 01 1 9712- ● ● ● ● ● ● ●
40 09.264 DUCT; VENT,SIDE CLUSTER BEZEL
09.786 		8-97069-824-0 01 1 9405- ● ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
DARK BEIGE 		8-97853-878-2 02 1 9312-9711 ● ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
DARK GRAY 		8-97890-631-0 02 1 9712- ● ● ● ● ● ● ●
109 16.081 GRILLE; INST PNL SIDE,UPR
DARK BEIGE 		8-97856-923-0 01 1 9312-9711 ● ● ● ● ● ● ●
109 16.081 GRILLE; INST PNL SIDE,UPR
DARK GRAY 		8-97857-530-0 01 1 9712- ● ● ● ● ● ● ●
133 16.081 SCREW; COVER,INST PNL
09.744 M5X20 TAPPING W/PL WASHER 		0-74110-520-0 02 1 9312- ● ● ● ● ● ● ●
154 16.085 NUT
16.081 (A) M5 SPIRE NUT 		8-94279-051-0 01 1 9312-9702 ● ● ● ● ● ● ●
154 16.085 NUT
16.742 (A) M6 SPIRE NUT 		8-94291-960-0 01 1 9703- ● ● ● ● ● ● ●
154 16.085 NUT
16.742 (B) M6 SPIRE NUT 		8-94291-960-0 03 1 9312-9806 ● ● ● ● ● ● ●
154 16.085 NUT
(B) M6 SPIRE NUT 		8-97210-973-1 03 1 9807- ● ● ● ● ● ● ●
167 16.085 BOLT; REINF TO INST
02.343 (A) M8X22 		8-94122-771-0 04 1 9312-9405 ● ● ● ● ● ● ●
167 16.085 BOLT; REINF TO INST
08.225 (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 9312- ● ● ● ● ● ● ●
167 16.085 BOLT; REINF TO INST
06.500 (C) M6X25 		8-94279-204-0 02 1 9312- ● ● ● ● ● ● ●
167 16.085 BOLT; REINF TO INST
(D) M6X24 FLANGE 		8-94279-231-1 02 1 9312- ● ● ● ● ● ● ●
235 16.081 SCREW; GRILLE
16.067 M5X14 		8-94279-325-0 04 1 9312- ● ● ● ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
DARK BEIGE 		8-97853-885-4 02 1 9312-9711 ● ● ● ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
DARK GRAY 		8-97857-528-4 02 1 9712- ● ● ● ● ● ● ●
378 09.743 SEAL; INST PANEL 8-97853-938-0 01 1 9312- ● ● ● ● ● ● ●
495 09.743 BEZEL; SW
EXC. ASH TRAY DRIVER SIDE<7KU> DARK BEIGE 		8-97859-977-4 01 1 9511-9711 ● ● ● ● ● ● ●
495 09.743 BEZEL; SW
EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY 		8-97857-548-4 01 1 9712- ● ● ● ● ● ● ●
520 16.085 SCREW; CLIP,SPRING
16.067 M5X14 		8-94279-325-0 03 1 9312- ● ● ● ● ● ● ●
521 16.081 COVER; SUN SENSOR
DARK BEIGE 		8-97853-890-2 01 1 9312-9711 ● ● ● ● ● ● ●
521 16.081 COVER; SUN SENSOR
DARK GRAY 		8-97857-529-2 01 1 9712- ● ● ● ● ● ● ●
522 16.085 LID; RELAY BOX
DARK BEIGE 		8-97853-876-4 01 1 9312-9711 ● ● ● ● ● ● ●
522 16.085 LID; RELAY BOX
DARK GRAY 		8-97857-520-5 01 1 9712- ● ● ● ● ● ● ●
530 16.100 CLIP; GLOVE BOX 8-97856-135-0 01 1 9312- ● ● ● ● ● ● ●
531 16.100 CASE; ASH TRAY
(B) 		8-97853-130-0 01 1 9312- ● ● ● ● ● ● ●
531 16.100 CASE; ASH TRAY
(A) DARK BEIGE 		8-97853-892-2 01 1 9312-9510 ● ● ● ● ● ● ●
532 16.100 SCREW; ASH TRAY
16.067 M5X14 		8-94279-325-0 02 1 9312- ● ● ● ● ● ● ●
533 16.100 CLIP; SPRING,CTR CLUSTER 8-97853-170-2 03 1 9312-9406 ● ● ● ● ● ● ●
533 16.100 CLIP; SPRING,CTR CLUSTER 8-97853-170-5 02 1 9407- ● ● ● ● ● ● ●
566 16.085 PLUG; HOLE
EXC. ASH TRAY DRIVER SIDE<7KU> DARK BEIGE 		8-97863-839-0 01 1 9511-9711 ● ● ● ● ● ● ●
566 16.085 PLUG; HOLE
EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY 		8-97868-413-0 01 1 9712- ● ● ● ● ● ● ●
581 09.744 SCREW
16.067 M5X14 		8-94279-325-0 02 1 9405- ● ● ● ● ● ● ●
607 16.085 FIXING ASM; CLIP INST TO M/CSTR 8-97857-893-2 01 1 9312- ● ● ● ● ● ● ●
