◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50695 - NKR-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#44335) — 160 parça

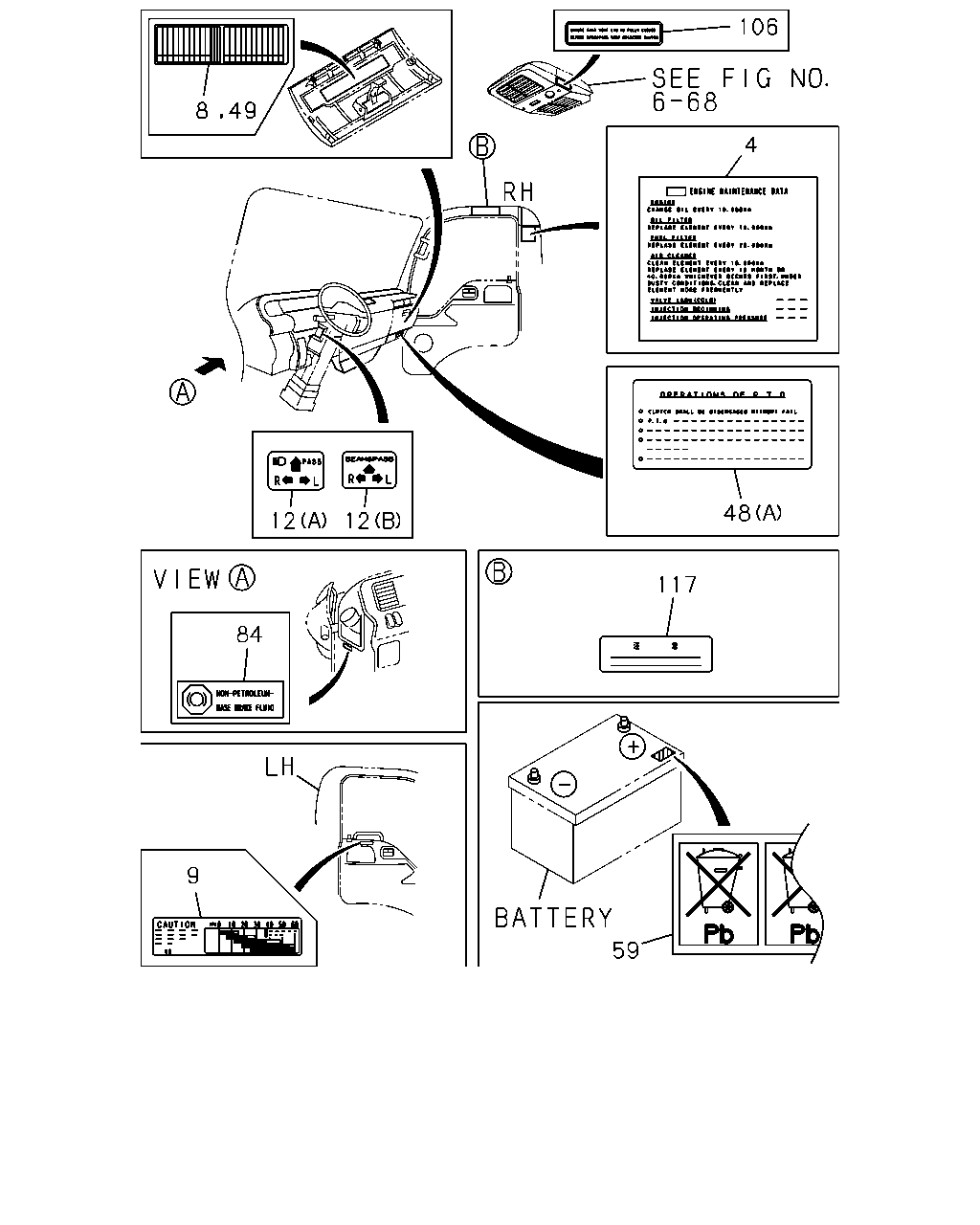

çizim 65819
106 49 8 4 48 12 12 117 84 9 59
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
4 00.004 LABEL; ENG MAINTENANCE
4JB1 ENG(RLF) CAUTION SPANISH<YN1> 		8-97102-128-0 01 1 9312-9606 ● ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JB1 ENG(RLF) CAUTION SPANISH<YN1> EXC. TURBOCHARGER<K51>,EURO1 SPECIFICATION<6YW> 		8-97102-128-0 01 1 9607-9711 ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JB1 ENG(RLF) EXC. CAUTION SPANISH<YN1> 		8-97102-126-0 01 1 9312-9606 ● ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,CAUTION SPANISH<YN1>,EURO1 SPECIFICATION<6YW> 		8-97102-126-0 01 1 9607-9711 ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4BE1 ENG(RLH) CAUTION SPANISH<YN1> 		8-97095-113-0 01 1 9312-9510 ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4BE1 ENG(RLH) CAUTION SPANISH<YN1> 		8-97095-113-0 01 1 9511-9712 ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4BE1 ENG(RLH) CAUTION SPANISH<YN1> 		8-97189-408-0 01 1 9801- ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4BE1 ENG(RLH) EXC. CAUTION SPANISH<YN1> 		8-97095-112-0 01 1 9312-9510 ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4BE1 ENG(RLH) EXC. CAUTION SPANISH<YN1> 		8-97095-112-0 01 1 9511-9712 ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4BE1 ENG(RLH) EXC. CAUTION SPANISH<YN1> 		8-97189-407-0 01 1 9801- ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JB1 ENG(RLF) CAUTION SPANISH<YN1> EURO1 SPECIFICATION<6YW> EXC. TURBOCHARGER<K51> 		8-97161-785-0 01 1 9607-9708 ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JB1 ENG(RLF) CAUTION SPANISH<YN1> EURO1 SPECIFICATION<6YW> EXC. TURBOCHARGER<K51>,COLOMBIA EQUIPMENT(X74) 		8-97161-785-0 01 1 9709-9711 ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JB1 ENG(RLF) CAUTION SPANISH<YN1> EURO1 SPECIFICATION<6YW> EXC. TURBOCHARGER<K51>,COLOMBIA EQUIPMENT(X74) 		8-97161-785-0 01 1 9712-9712 ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JB1 ENG(RLF) CAUTION SPANISH<YN1> EURO1 SPECIFICATION<6YW> EXC. TURBOCHARGER<K51>,COLOMBIA EQUIPMENT(X74) 		8-97189-414-0 01 1 9801-9801 ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JB1 ENG(RLF) CAUTION SPANISH<YN1> EURO1 SPECIFICATION<6YW> EXC. TURBOCHARGER<K51>,COLOMBIA EQUIPMENT(X74) 		8-97189-414-0 01 1 9802- ● ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JB1 ENG(RLF) EURO1 SPECIFICATION<6YW> EXC. TURBOCHARGER<K51>,CAUTION SPANISH<YN1> 		8-97161-784-0 01 1 9607-9711 ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JB1 ENG(RLF) EURO1 SPECIFICATION<6YW> EXC. TURBOCHARGER<K51>,CAUTION SPANISH<YN1> 		8-97161-784-0 01 1 9712-9712 ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JB1 ENG(RLF) EURO1 SPECIFICATION<6YW> EXC. TURBOCHARGER<K51>,CAUTION SPANISH<YN1> 		8-97189-413-0 01 1 9801-9801 ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JB1 ENG(RLF) EURO1 SPECIFICATION<6YW> EXC. TURBOCHARGER<K51>,CAUTION SPANISH<YN1> 		8-97189-413-0 01 1 9802- ● ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> 		8-97148-299-0 01 1 9602-9609 ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> 		8-97148-678-0 01 1 9610-9712 ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> 		8-97189-419-0 01 1 9801- ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4) 		8-97102-129-0 01 1 9312-9506 ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) 		8-97102-129-0 01 1 9507-9602 ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) EXC. EURO2 SPECIFICATION<7AF> 		8-97102-129-0 01 1 9603-9711 ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) EURO2 SPECIFICATION<7AF> 		8-97148-678-0 01 1 9603-9609 ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JG2 ENG(RJC) TAIWAN EQUIPMENT(RWV) 		8-97102-127-0 01 1 9312-9712 ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JG2 ENG(RJC) TAIWAN EQUIPMENT(RWV) 		8-97189-417-0 01 1 9801- ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JB1 ENG(RLF) COLOMBIA EQUIPMENT(X74) CAUTION SPANISH<YN1> EURO1 SPECIFICATION<6YW> 		8-97186-629-0 01 1 9709-9712 ●
4 00.004 LABEL; ENG MAINTENANCE
4JB1 ENG(RLF) COLOMBIA EQUIPMENT(X74) CAUTION SPANISH<YN1> EURO1 SPECIFICATION<6YW> 		8-97189-416-0 01 1 9801- ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1 ENG(RLS) CAUTION SPANISH<YN1> 		8-97093-308-0 01 1 9312-9510 ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1 ENG(RLS) CAUTION SPANISH<YN1> 		8-97133-030-0 01 1 9511-9803 ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1 ENG(RLS) CAUTION SPANISH<YN1> 		8-97189-399-0 01 1 9804- ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1 ENG(RLS) EXC. CAUTION SPANISH<YN1> 		8-97093-307-0 01 1 9312-9510 ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1 ENG(RLS) TAIWAN EQUIPMENT(RWV) EXC. CAUTION SPANISH<YN1> 		8-97146-023-0 01 1 9511-9803 ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1 ENG(RLS) TAIWAN EQUIPMENT(RWV) EXC. CAUTION SPANISH<YN1> 		8-97189-400-0 01 1 9804- ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1 ENG(RLS) EXC. TAIWAN EQUIPMENT(RWV),CAUTION SPANISH<YN1> 		8-97133-029-0 01 1 9511-9803 ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1 ENG(RLS) EXC. TAIWAN EQUIPMENT(RWV),CAUTION SPANISH<YN1> 		8-97189-398-0 01 1 9804- ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. CAUTION SPANISH<YN1> 		8-97161-786-0 01 1 9607-9711 ●
4 00.004 LABEL; ENG MAINTENANCE
4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. CAUTION SPANISH<YN1> 		8-97161-786-0 01 1 9712-9712 ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. CAUTION SPANISH<YN1> 		8-97189-415-0 01 1 9801- ● ●
8 03.680 LABEL; FUSE
EXC. VOLTAGE 24V<7AE> 		8-97857-282-0 01 1 9312-9711 ● ● ● ● ● ●
8 03.680 LABEL; FUSE
VOLTAGE 24V<7AE> 		8-97857-283-0 01 1 9312-9510 ● ● ● ●
8 03.680 LABEL; FUSE
VOLTAGE 24V<7AE> 		8-97857-283-0 01 1 9511-9711 ● ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JG2 ENG(RJC),4JB1 ENG(RLF) M/T MSB5M(RM5),M/T MSB5S(R45) CAUTION SPANISH<YN1> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-94158-938-0 01 1 9503-9801 ● ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JG2 ENG(RJC),4JB1 ENG(RLF) M/T MSB5M(RM5),M/T MSB5S(R45) CAUTION SPANISH<YN1> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-94158-938-0 01 1 9802- ● ● ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JG2 ENG(RJC),4JB1 ENG(RLF) M/T MSB5M(RM5),M/T MSB5S(R45) SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-944-0 01 1 9503-9801 ● ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JG2 ENG(RJC),4JB1 ENG(RLF) M/T MSB5M(RM5),M/T MSB5S(R45) SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-944-0 01 1 9802- ● ● ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JG2 ENG(RJC),4JB1 ENG(RLF) M/T MSB5M(RM5),M/T MSB5S(R45) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-936-0 01 1 9503-9801 ● ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JG2 ENG(RJC),4JB1 ENG(RLF) M/T MSB5M(RM5),M/T MSB5S(R45) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-936-0 01 1 9802- ● ● ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4BE1 ENG(RLH) M/T MSA5G(S7G) CAUTION SPANISH<YN1> EXC. SPEEDOMETER MILE<UC1> 		8-94158-942-0 01 1 9312-9505 ● ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4BE1 ENG(RLH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MSA5G(S7G) CAUTION SPANISH<YN1> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-94158-942-0 01 1 9506-9510 ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4BE1 ENG(RLH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MSA5G(S7G) CAUTION SPANISH<YN1> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-94158-942-0 01 1 9511- ● ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4BE1 ENG(RLH) M/T MSA5G(S7G) SPEEDOMETER MILE<UC1> EXC. CAUTION SPANISH<YN1> 		8-94158-946-0 01 1 9312-9505 ● ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4BE1 ENG(RLH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MSA5G(S7G) SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-946-0 01 1 9506-9510 ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4BE1 ENG(RLH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MSA5G(S7G) SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-946-0 01 1 9511- ● ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4BE1 ENG(RLH) M/T MSA5G(S7G) EXC. SPEEDOMETER MILE<UC1>,CAUTION SPANISH<YN1> 		8-94158-940-0 01 1 9312-9505 ● ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4BE1 ENG(RLH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MSA5G(S7G) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-940-0 01 1 9506-9510 ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4BE1 ENG(RLH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MSA5G(S7G) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-940-0 01 1 9511- ● ● ● ● ●
12 02.459 LABEL; TURN
(A) 		8-97853-934-0 01 1 9312-9402 ● ● ● ● ● ● ●
12 02.459 LABEL; TURN
(B) 		8-94273-445-0 01 1 9403- ● ● ● ● ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) (B) 		8-97116-561-0 01 1 9408-9409 ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH) (B) 		8-97116-561-0 01 1 9410-9510 ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH) (B) 		8-97116-561-0 01 1 9511- ● ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> (A) 		8-94313-054-0 01 1 9312-9508 ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH) CAUTION SPANISH<YN1> (A) 		8-94313-054-0 01 1 9509-9510 ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH) CAUTION SPANISH<YN1> (A) 		8-94313-054-0 01 1 9511- ● ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) EXC. CAUTION SPANISH<YN1> (A) 		8-94469-277-0 01 1 9312-9508 ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH) EXC. CAUTION SPANISH<YN1> (A) 		8-94469-277-0 01 1 9509-9510 ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH) EXC. CAUTION SPANISH<YN1> (A) 		8-94469-277-0 01 1 9511- ● ● ● ●
49 08.808 PLATE; CAUTION,FUSE BOX
EXC. VOLTAGE 24V<7AE> 		8-97182-190-0 01 1 9712-9801 ● ● ● ● ● ●
49 08.808 PLATE; CAUTION,FUSE BOX
EXC. VOLTAGE 24V<7AE> 		8-97182-190-0 01 1 9802- ● ● ● ● ● ●
49 08.808 PLATE; CAUTION,FUSE BOX
VOLTAGE 24V<7AE> 		8-97182-191-0 01 1 9712- ● ● ● ● ●
59 08.808 PLATE; CAUTION,BATTERY
EUROPEAN BASIC EQUIPMENT(EK4) 10 PER 1 SHEET 		8-97116-760-0 01 1 9408-9409 ● ●
59 08.808 PLATE; CAUTION,BATTERY
EUROPEAN BASIC EQUIPMENT(EK4) IDENTIFICATION LABEL FOR KD<6UT> 10 PER 1 SHEET 		8-97116-760-0 01 1 9410-9506 ● ●
59 08.808 PLATE; CAUTION,BATTERY
EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) 10 PER 1 SHEET 		8-97116-760-0 02 1 9507-9608 ● ●
59 08.808 PLATE; CAUTION,BATTERY
EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) EXC. LEYLAND EQUIPMENT<S9Z> 10 PER 1 SHEET 		8-97116-760-0 02 1 9609-9711 ● ●
59 08.808 PLATE; CAUTION,BATTERY
EUROPEAN BASIC EQUIPMENT(EK4) EXC. LEYLAND EQUIPMENT<S9Z> 10 PER 1 SHEET 		8-97116-760-0 02 1 9712- ● ●
84 08.808 PLATE; CAUTION,BRAKE FLUID
EUROPEAN BASIC EQUIPMENT(EK4) 		8-97062-755-2 01 1 9401-9506 ● ●
84 08.808 PLATE; CAUTION,BRAKE FLUID
EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) 		8-97062-755-2 01 1 9507-9711 ● ●
84 08.808 PLATE; CAUTION,BRAKE FLUID
EUROPEAN BASIC EQUIPMENT(EK4) 		8-97062-755-2 01 1 9712- ● ●
106 08.808 PLATE; CAUTION,ROOF VENT
ROOF VENTILATOR<C55> CAUTION SPANISH<YN1> 		8-97856-820-0 01 1 9312-9510 ● ● ● ● ● ●
106 08.808 PLATE; CAUTION,ROOF VENT
ROOF VENTILATOR<C55> CAUTION SPANISH<YN1> EXC. CAB-LOW ROOF<6XQ> 		8-97856-820-0 01 1 9511- ● ● ● ● ● ● ●
106 08.808 PLATE; CAUTION,ROOF VENT
ROOF VENTILATOR<C55> EXC. CAUTION SPANISH<YN1> 		8-94273-602-0 01 1 9312-9510 ● ● ● ● ● ●
106 08.808 PLATE; CAUTION,ROOF VENT
ROOF VENTILATOR<C55> EXC. CAUTION SPANISH<YN1>,CAB-LOW ROOF<6XQ> 		8-94273-602-0 01 1 9511- ● ● ● ● ● ● ●
117 08.808 PLATE; CAUTION,WATER HAMMER
CHINA EQUIPMENT(YT2) AIR INTAKE SYSTEM FRONT<6PC> 		8-94460-323-0 01 1 9312-9711 ● ● ● ●
117 08.808 PLATE; CAUTION,WATER HAMMER
CHINA EQUIPMENT(YT2) AIR INTAKE SYSTEM FRONT<6PC> 		8-94460-323-0 01 1 9712-9801 ● ● ●
117 08.808 PLATE; CAUTION,WATER HAMMER
CHINA EQUIPMENT(YT2) AIR INTAKE SYSTEM FRONT<6PC> 		8-94460-323-0 01 1 9802- ● ● ● ●

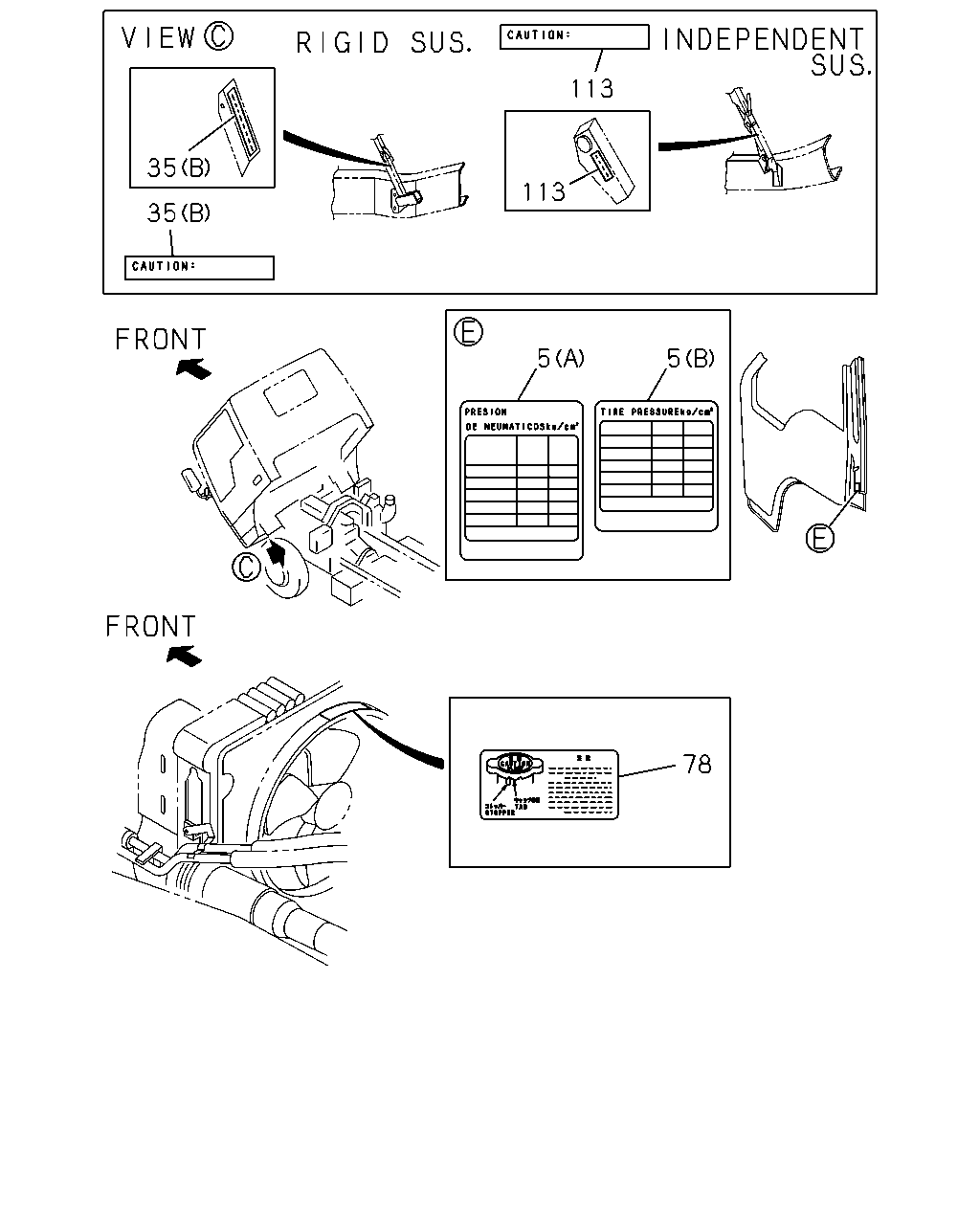

çizim 66120
113 35 113 35 5 5 78
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
5 05.880 LABEL; TIRE AIR PRESSURE
(ARX) CAUTION SPANISH<YN1> (A) 		8-97188-831-0 01 1 9712- ●
5 05.880 LABEL; TIRE AIR PRESSURE
(ARX) EXC. CAUTION SPANISH<YN1> (B) 		8-97188-830-0 01 1 9712- ●
5 05.880 LABEL; TIRE AIR PRESSURE
(ATB) CAUTION SPANISH<YN1> (A) 		8-97188-833-0 01 1 9712-9807 ●
5 05.880 LABEL; TIRE AIR PRESSURE
(ATB),FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX) CAUTION SPANISH<YN1> (A) 		8-97188-833-0 01 1 9808- ●
5 05.880 LABEL; TIRE AIR PRESSURE
(ATB) EXC. CAUTION SPANISH<YN1> (B) 		8-97188-832-0 01 1 9712-9807 ●
5 05.880 LABEL; TIRE AIR PRESSURE
(ATB),FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX) EXC. CAUTION SPANISH<YN1> (B) 		8-97188-832-0 01 1 9808- ●
5 05.880 LABEL; TIRE AIR PRESSURE
4JB1 ENG(RLF),4BE1 ENG(RLH) (AQD) CAUTION SPANISH<YN1> (A) 		8-97131-144-0 01 1 9504- ●
5 05.880 LABEL; TIRE AIR PRESSURE
4JB1 ENG(RLF),4BE1 ENG(RLH) (AQD) EXC. CAUTION SPANISH<YN1> (B) 		8-97131-139-0 01 1 9504- ●
5 05.880 LABEL; TIRE AIR PRESSURE
4JB1 ENG(RLF),4BE1 ENG(RLH) CAUTION SPANISH<YN1> (A) 		8-94400-943-0 01 1 9312-9503 ●
5 05.880 LABEL; TIRE AIR PRESSURE
4JB1 ENG(RLF),4BE1 ENG(RLH) (09V),(22H),(23H),(25H),(26H),(29H), (45C),(89C),(9EC),(9ED),(9EE),(9EF), (9YW) CAUTION SPANISH<YN1> (A) 		8-94400-943-0 01 1 9504-9711 ●
5 05.880 LABEL; TIRE AIR PRESSURE
4JB1 ENG(RLF),4BE1 ENG(RLH) (09V),(22H),(23H),(25H),(26H),(29H), (45C),(89C) CAUTION SPANISH<YN1> (A) 		8-94400-943-0 01 1 9712- ●
5 05.880 LABEL; TIRE AIR PRESSURE
4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. CAUTION SPANISH<YN1> (B) 		8-94178-979-0 01 1 9312-9503 ●
5 05.880 LABEL; TIRE AIR PRESSURE
4JB1 ENG(RLF),4BE1 ENG(RLH) (09V),(22H),(23H),(25H),(26H),(29H), (45C),(89C),(9EC),(9ED),(9EE),(9EF), (9YW) EXC. CAUTION SPANISH<YN1> (B) 		8-94178-979-0 01 1 9504-9711 ●
5 05.880 LABEL; TIRE AIR PRESSURE
4JB1 ENG(RLF),4BE1 ENG(RLH) (09V),(22H),(23H),(25H),(26H),(29H), (45C),(89C) EXC. CAUTION SPANISH<YN1> (B) 		8-94178-979-0 01 1 9712- ●
5 05.880 LABEL; TIRE AIR PRESSURE
CAUTION SPANISH<YN1> (A) 		8-94440-619-0 01 1 9312- ●
5 05.880 LABEL; TIRE AIR PRESSURE
EXC. CAUTION SPANISH<YN1> (B) 		8-94440-618-0 01 1 9312- ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> (B) 		5-85881-331-1 01 1 9312-9510 ● ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> (B) 		5-85881-331-1 01 1 9511-9801 ● ● ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> (A) 		8-97857-419-0 01 1 9312-9510 ● ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> (A) 		8-97857-419-0 01 1 9511- ● ● ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (B) 		5-85881-328-1 01 1 9312-9510 ● ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (B) 		5-85881-328-1 01 1 9511- ● ● ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (A) 		8-97856-228-0 01 1 9312-9510 ● ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (A) 		8-97856-228-0 01 1 9511- ● ● ● ● ●
78 08.808 PLATE; CAUTION,ENG COOLAN
4BE1 ENG(RLH),4HF1 ENG(RLS) 		8-97109-623-0 01 1 9401-9406 ● ● ● ● ●
78 08.808 PLATE; CAUTION,ENG COOLAN
4BE1 ENG(RLH) 		8-97109-623-0 01 1 9407-9502 ● ● ● ●
78 08.808 PLATE; CAUTION,ENG COOLAN
4BE1 ENG(RLH),4HF1 ENG(RLS) 		8-97109-623-0 01 1 9503-9603 ● ● ● ● ●
113 08.808 PLATE; CAUTION,CAB STAY
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) 		8-97108-090-0 01 1 9312-9802 ●
113 08.808 PLATE; CAUTION,CAB STAY
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) 		8-97108-090-0 01 1 9803- ●

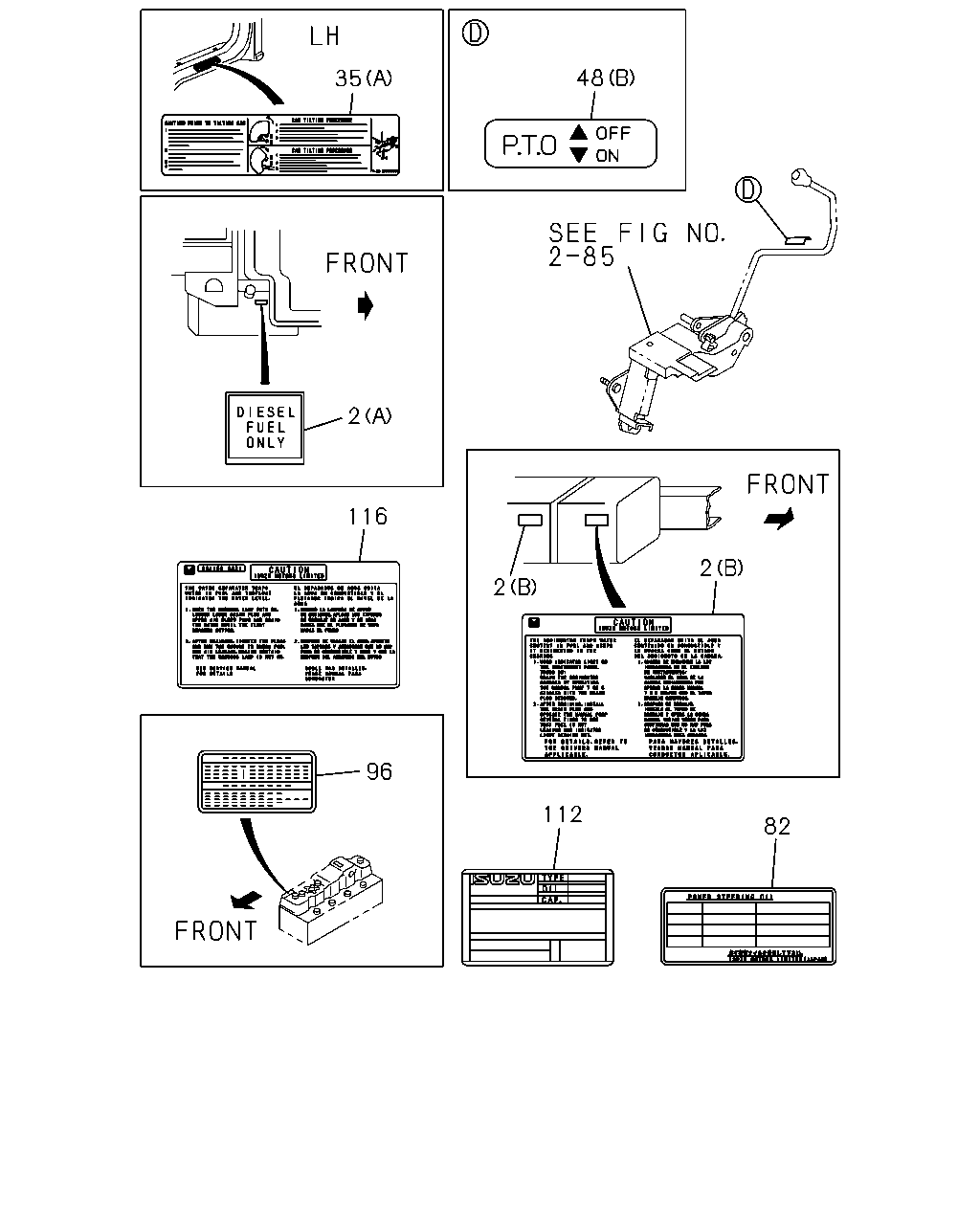

çizim 66121
48 35 2 116 2 2 96 112 82
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 03.680 LABEL; FUEL CAUTION
4JB1 ENG(RLF) (A) 		8-94246-254-0 01 1 9312-9410 ● ● ● ● ● ●
2 03.680 LABEL; FUEL CAUTION
(B) 		8-94242-996-1 01 1 9312- ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> (B) 		5-85881-331-1 01 1 9312-9510 ● ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> (B) 		5-85881-331-1 01 1 9511-9801 ● ● ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> (A) 		8-97857-419-0 01 1 9312-9510 ● ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> (A) 		8-97857-419-0 01 1 9511- ● ● ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (B) 		5-85881-328-1 01 1 9312-9510 ● ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (B) 		5-85881-328-1 01 1 9511- ● ● ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (A) 		8-97856-228-0 01 1 9312-9510 ● ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (A) 		8-97856-228-0 01 1 9511- ● ● ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) (B) 		8-97116-561-0 01 1 9408-9409 ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH) (B) 		8-97116-561-0 01 1 9410-9510 ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH) (B) 		8-97116-561-0 01 1 9511- ● ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> (A) 		8-94313-054-0 01 1 9312-9508 ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH) CAUTION SPANISH<YN1> (A) 		8-94313-054-0 01 1 9509-9510 ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH) CAUTION SPANISH<YN1> (A) 		8-94313-054-0 01 1 9511- ● ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) EXC. CAUTION SPANISH<YN1> (A) 		8-94469-277-0 01 1 9312-9508 ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH) EXC. CAUTION SPANISH<YN1> (A) 		8-94469-277-0 01 1 9509-9510 ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH) EXC. CAUTION SPANISH<YN1> (A) 		8-94469-277-0 01 1 9511- ● ● ● ●
82 08.808 LABEL; POWER STRG
POWER STEERING<N40> 		5-85887-023-2 01 1 9312-9403 ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97092-930-0 01 1 9312-9511 ● ● ● ● ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97092-930-0 01 1 9512-9801 ● ● ● ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97092-930-0 01 1 9802- ● ● ● ● ● ●
112 08.808 PLATE; CAUTION,T/M
4HF1 ENG(RLS) M/T MXA5R(RMT) MANUAL TILT CAB<RWZ> 		8-97037-377-0 01 1 9312-9402 ● ●
112 08.808 PLATE; CAUTION,T/M
4HF1 ENG(RLS) M/T MXA5R(RMT) 		8-97037-377-0 01 1 9403-9406 ● ●
116 08.808 LABEL; CAUTION,SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS) 		8-94153-282-1 01 1 9312-9510 ● ● ● ●
116 08.808 LABEL; CAUTION,SEDIMENTER
4BE1 ENG(RLH),4HF1 ENG(RLS) 		8-94153-282-1 01 1 9511-9711 ● ● ● ● ●
çizim 70633
130 135 134 7 135
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
7 03.680 LABEL; EMISSION
4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> 		8-97170-219-0 01 1 9610- ● ●
130 08.808 PLATE; CAUTION,GUARD FRAME
RR BODY FLAT BED<RS6> 		8-94192-480-0 02 1 9712-9801 ● ● ●
130 08.808 PLATE; CAUTION,GUARD FRAME
RR BODY FLAT BED<RS6> 		8-94192-480-0 02 1 9802- ● ● ● ●
134 08.808 PLATE; CAUTION,ENGINE O/FILTER
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40> 		8-97109-623-0 01 1 9402-9602 ● ● ● ● ● ● ●
134 08.808 PLATE; CAUTION,ENGINE O/FILTER
4JB1 ENG(RLF) TORRID ZONE<S6C> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97109-623-0 01 1 9402-9602 ● ● ● ● ● ● ●
134 08.808 PLATE; CAUTION,ENGINE O/FILTER
4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97109-623-0 01 1 9402-9602 ● ● ● ● ● ● ●
134 08.808 PLATE; CAUTION,ENGINE O/FILTER
4JG2 ENG(RJC) TAIWAN EQUIPMENT(RWV) EXC. HEATER & DEFROSTER(C41) 		8-97109-623-0 01 1 9603-9603 ● ● ● ● ● ● ●
134 08.808 PLATE; CAUTION,ENGINE O/FILTER
4JB1 ENG(RLF) EXC. HEATER & DEFROSTER(C41) 		8-97109-623-0 01 1 9603-9603 ● ● ● ● ● ● ●
134 08.808 PLATE; CAUTION,ENGINE O/FILTER
4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) EXC. EURO2 SPECIFICATION<7AF> 		8-97109-623-0 01 1 9604-9607 ● ●
134 08.808 PLATE; CAUTION,ENGINE O/FILTER
4JB1 ENG(RLF) NOISE PACK FOR CHINESE REGULATION<6QX> KD ENGINE<7MB> 		8-97109-623-0 01 1 9609-9612 ● ●
134 08.808 PLATE; CAUTION,ENGINE O/FILTER
NOISE PACK FOR CHINESE REGULATION<6QX> KD ENGINE<7MB> 		8-97109-623-0 01 1 9609-9612 ●
135 08.808 PLATE; CAUTION,ENGINE
4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4) (B) 		8-97109-154-0 01 1 9312-9506 ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) (B) 		8-97109-154-0 01 1 9507-9711 ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JG2 ENG(RJC) TAIWAN EQUIPMENT(RWV) (A) 		8-97109-153-0 01 1 9312- ● ● ●
135 08.808 PLATE; CAUTION,ENGINE
4HF1 ENG(RLS) (A) 		8-97109-187-0 01 1 9312-9606 ● ●
135 08.808 PLATE; CAUTION,ENGINE
4HF1 ENG(RLS) TAIWAN EQUIPMENT(RWV) (A) 		8-97109-187-0 01 1 9607- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
