Sayfa 6-90 - Isuzu EPC

6-90 — REAR BUMPER (#44333) — 217 parça

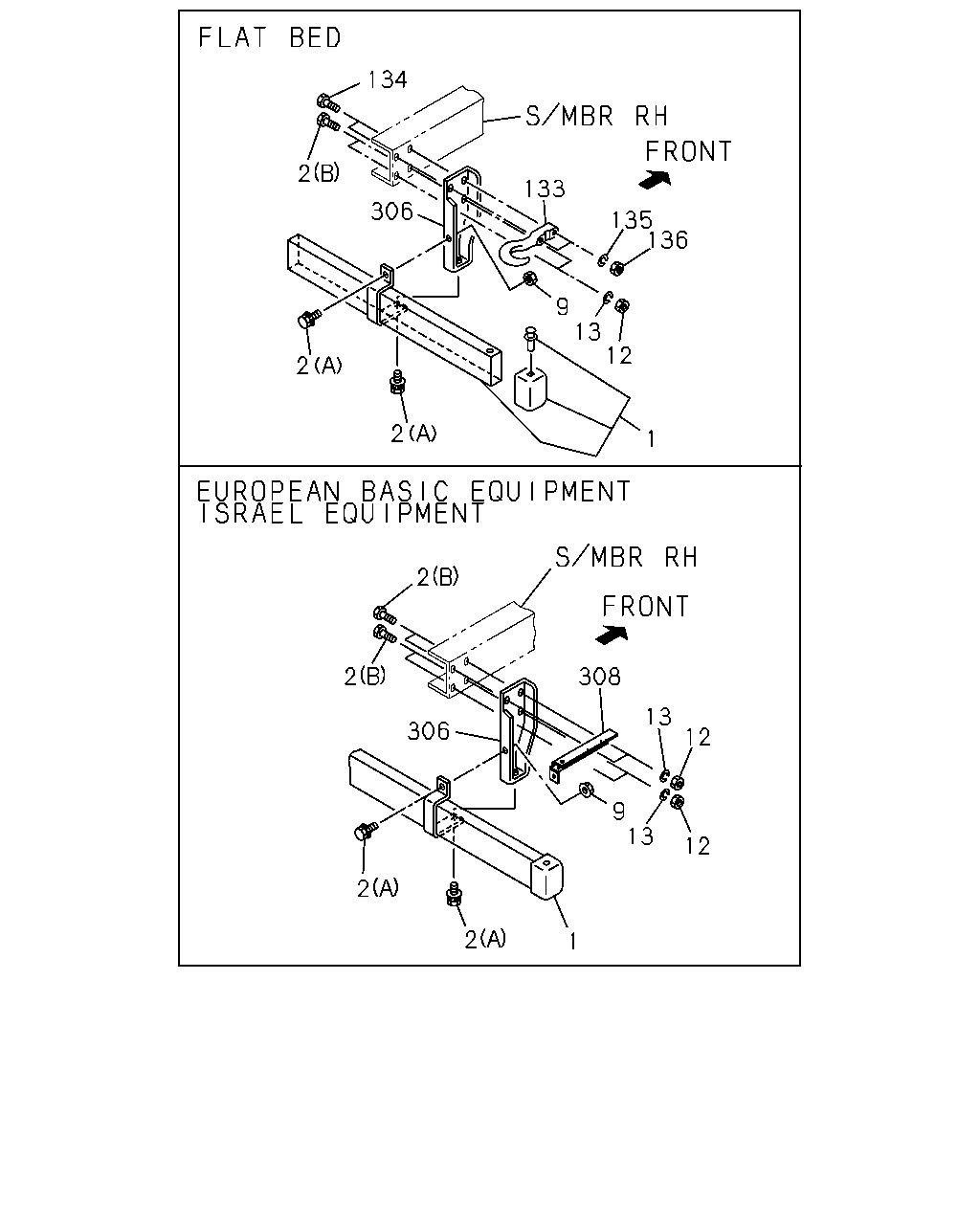

134 2 306 133 135 136 9 13 12 2 2 1 2 2 308 13 306 12 9 13 12 2 2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	07.070 BUMPER; RR EUROPEAN BASIC EQUIPMENT(EK4)	8-97091-644-0	01	1	9312-9405	●
1	07.070 BUMPER; RR BUMPER REAR<7HZ>	8-97091-644-1	01	1	9406-9702	●
1	07.070 BUMPER; RR BUMPER REAR<7HZ>	8-97174-004-1	01	1	9703-	●
1	07.070 BUMPER; RR BRAZIL EQUIPMENT(RWF) BUMPER REAR<7HZ>	8-94101-094-1	01	1	9712-		●
1	07.070 BUMPER; RR EUROPEAN BASIC EQUIPMENT(EK4)	8-97091-645-0	01	1	9312-9405		●
1	07.070 BUMPER; RR BUMPER REAR<7HZ>	8-97091-645-1	01	1	9406-9702		●
1	07.070 BUMPER; RR BUMPER REAR<7HZ>	8-97174-005-0	01	1	9703-9711		●
1	07.070 BUMPER; RR BUMPER REAR<7HZ> EXC. BRAZIL EQUIPMENT(RWF)	8-97174-005-1	01	1	9712-		●
2	07.874 BOLT; BACK BAR EUROPEAN BASIC EQUIPMENT(EK4) 07.347 (B) M14X30	0-20801-430-0	08	1	9312-9405	●	●
2	07.874 BOLT; BACK BAR BUMPER REAR<7HZ> 07.347 (B) M14X30	0-20801-430-0	08	1	9406-9711	●	●
2	07.874 BOLT; BACK BAR BUMPER REAR<7HZ> 07.347 (B) M14X30	0-20801-430-0	08	1	9712-	●
2	07.874 BOLT; BACK BAR BUMPER REAR<7HZ> EXC. BRAZIL EQUIPMENT(RWF) 07.347 (B) M14X30	0-20801-430-0	08	1	9712-		●
2	07.874 BOLT; BACK BAR EUROPEAN BASIC EQUIPMENT(EK4) (A) M10X35 W/LK&PL WASHER	8-97101-865-0	04	1	9312-9405	●	●
2	07.874 BOLT; BACK BAR BUMPER REAR<7HZ> (A) M10X35 W/LK&PL WASHER	8-97101-865-0	04	1	9406-9711	●	●
2	07.874 BOLT; BACK BAR BUMPER REAR<7HZ> (A) M10X35 W/LK&PL WASHER	8-97101-865-0	04	1	9712-9804	●
2	07.874 BOLT; BACK BAR BUMPER REAR<7HZ> EXC. BRAZIL EQUIPMENT(RWF) (A) M10X35 W/LK&PL WASHER	8-97101-865-0	04	1	9712-9804		●
2	07.874 BOLT; BACK BAR BUMPER REAR<7HZ> 01.271 (A) M10X30	8-94324-205-0	04	1	9805-	●
2	07.874 BOLT; BACK BAR BUMPER REAR<7HZ> EXC. BRAZIL EQUIPMENT(RWF) 01.271 (A) M10X30	8-94324-205-0	04	1	9805-		●
2	07.874 BOLT; BACK BAR BRAZIL EQUIPMENT(RWF) BUMPER REAR<7HZ> 07.347 (B) M14X30	0-20801-430-0	04	1	9712-		●
2	07.874 BOLT; BACK BAR BRAZIL EQUIPMENT(RWF) BUMPER REAR<7HZ> (A) M14X30 FLANGE	0-28681-430-0	02	1	9712-		●
9	07.070 NUT; BUMPER BUMPER REAR<7HZ> 08.917 M10 FLANGE	0-91150-210-0	02	1	9312-9711	●	●
9	07.070 NUT; BUMPER BUMPER REAR<7HZ> 08.917 M10 FLANGE	0-91150-210-0	02	1	9712-	●
9	07.070 NUT; BUMPER BUMPER REAR<7HZ> EXC. BRAZIL EQUIPMENT(RWF) 08.917 M10 FLANGE	0-91150-210-0	02	1	9712-		●
12	07.833 NUT; BRKT EUROPEAN BASIC EQUIPMENT(EK4) 07.529 M14	9-99110-514-0	08	1	9312-9405	●	●
12	07.833 NUT; BRKT BUMPER REAR<7HZ> 07.529 M14	9-99110-514-0	08	1	9406-9711	●	●
12	07.833 NUT; BRKT BUMPER REAR<7HZ> 07.529 M14	9-99110-514-0	08	1	9712-	●
12	07.833 NUT; BRKT BUMPER REAR<7HZ> EXC. BRAZIL EQUIPMENT(RWF) 07.529 M14	9-99110-514-0	08	1	9712-		●
12	07.833 NUT; BRKT BRAZIL EQUIPMENT(RWF) BUMPER REAR<7HZ> 07.529 M14	9-99110-514-0	04	1	9712-		●
13	07.833 WASHER; LK,BACK BAR TO FRAME EUROPEAN BASIC EQUIPMENT(EK4) 05.422 ID=14.2	9-09150-814-0	08	1	9312-9405	●	●
13	07.833 WASHER; LK,BACK BAR TO FRAME BUMPER REAR<7HZ> 05.422 ID=14.2	9-09150-814-0	08	1	9406-9711	●	●
13	07.833 WASHER; LK,BACK BAR TO FRAME BUMPER REAR<7HZ> 05.422 ID=14.2	9-09150-814-0	08	1	9712-	●
13	07.833 WASHER; LK,BACK BAR TO FRAME BUMPER REAR<7HZ> EXC. BRAZIL EQUIPMENT(RWF) 05.422 ID=14.2	9-09150-814-0	08	1	9712-		●
13	07.833 WASHER; LK,BACK BAR TO FRAME BRAZIL EQUIPMENT(RWF) BUMPER REAR<7HZ> 05.422 ID=14.2	9-09150-814-0	04	1	9712-		●
133	07.112 HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4) 07.330	8-94183-262-0	01	1	9312-9506	●		●	●
133	07.112 HOOK DUMP CHASSIS(V4D) 07.330	8-94183-262-0	01	1	9312-9506					●
133	07.112 HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) 07.330	8-94183-262-0	01	1	9507-9711	●		●	●
133	07.112 HOOK DUMP CHASSIS(V4D) 07.330	8-94183-262-0	01	1	9507-9711					●
133	07.112 HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4) 07.330	8-94183-262-0	01	1	9712-	●		●	●
133	07.112 HOOK DUMP CHASSIS(V4D) 07.330	8-94183-262-0	01	1	9712-					●
133	07.112 HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), DUMP CHASSIS(V4D) 07.068	8-94249-270-2	01	1	9312-9506		●			●	●
133	07.112 HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), DUMP CHASSIS(V4D),ISRAEL EQUIPMENT(7LX) 07.068	8-94249-270-2	01	1	9507-9510		●			●	●
133	07.112 HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), DUMP CHASSIS(V4D),ISRAEL EQUIPMENT(7LX) 07.068	8-94249-270-2	01	1	9511-9711		●			●	●	●
133	07.112 HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),DUMP CHASSIS(V4D) 07.068	8-94249-270-2	01	1	9712-		●			●	●	●
134	07.068 BOLT; HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4) 00.004 M10X45 W/LK WASHER	0-50041-045-0	02	1	9312-9506	●		●	●
134	07.068 BOLT; HOOK DUMP CHASSIS(V4D) 00.004 M10X45 W/LK WASHER	0-50041-045-0	02	1	9312-9506					●
134	07.068 BOLT; HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) 00.004 M10X45 W/LK WASHER	0-50041-045-0	02	1	9507-9703	●		●	●
134	07.068 BOLT; HOOK DUMP CHASSIS(V4D) 00.004 M10X45 W/LK WASHER	0-50041-045-0	02	1	9507-9703					●
134	07.068 BOLT; HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) 00.004 M10X40 W/LK WASHER	0-50041-040-0	02	1	9704-9711	●		●	●
134	07.068 BOLT; HOOK DUMP CHASSIS(V4D) 00.004 M10X40 W/LK WASHER	0-50041-040-0	02	1	9704-9711					●
134	07.068 BOLT; HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4) 00.004 M10X40 W/LK WASHER	0-50041-040-0	02	1	9712-9808	●		●	●
134	07.068 BOLT; HOOK DUMP CHASSIS(V4D) 00.004 M10X40 W/LK WASHER	0-50041-040-0	02	1	9712-9808					●
134	07.068 BOLT; HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4) 00.004 M10X45 W/LK WASHER	0-50041-045-0	02	1	9809-	●		●	●
134	07.068 BOLT; HOOK DUMP CHASSIS(V4D) 00.004 M10X45 W/LK WASHER	0-50041-045-0	02	1	9809-					●
134	07.068 BOLT; HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), DUMP CHASSIS(V4D) 07.039 M14X50	0-10806-450-0	02	1	9312-9506		●			●	●
134	07.068 BOLT; HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), DUMP CHASSIS(V4D),ISRAEL EQUIPMENT(7LX) 07.039 M14X50	0-10806-450-0	02	1	9507-9510		●			●	●
134	07.068 BOLT; HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), DUMP CHASSIS(V4D),ISRAEL EQUIPMENT(7LX) 07.039 M14X50	0-10806-450-0	02	1	9511-9711		●			●	●	●
134	07.068 BOLT; HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),DUMP CHASSIS(V4D) 07.039 M14X50	0-10806-450-0	02	1	9712-		●			●	●	●
135	07.068 WASHER; LK,HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), DUMP CHASSIS(V4D) 05.422 ID=14.2	9-09150-814-0	02	1	9312-9506		●			●	●
135	07.068 WASHER; LK,HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), DUMP CHASSIS(V4D),ISRAEL EQUIPMENT(7LX) 05.422 ID=14.2	9-09150-814-0	02	1	9507-9510		●			●	●
135	07.068 WASHER; LK,HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), DUMP CHASSIS(V4D),ISRAEL EQUIPMENT(7LX) 05.422 ID=14.2	9-09150-814-0	02	1	9511-9711		●			●	●	●
135	07.068 WASHER; LK,HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),DUMP CHASSIS(V4D) 05.422 ID=14.2	9-09150-814-0	02	1	9712-		●			●	●	●
136	07.068 NUT; HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4) 00.002 M10	9-09110-510-0	02	1	9312-9506	●		●	●
136	07.068 NUT; HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) 00.002 M10	9-09110-510-0	02	1	9507-9711	●		●	●
136	07.068 NUT; HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4) 00.002 M10	9-09110-510-0	02	1	9712-	●		●	●
136	07.068 NUT; HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), DUMP CHASSIS(V4D) 07.529 M14	9-99110-514-0	02	1	9312-9506		●			●	●
136	07.068 NUT; HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), DUMP CHASSIS(V4D),ISRAEL EQUIPMENT(7LX) 07.529 M14	9-99110-514-0	02	1	9507-9510		●			●	●
136	07.068 NUT; HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), DUMP CHASSIS(V4D),ISRAEL EQUIPMENT(7LX) 07.529 M14	9-99110-514-0	02	1	9511-9711		●			●	●	●
136	07.068 NUT; HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),DUMP CHASSIS(V4D) 07.529 M14	9-99110-514-0	02	1	9712-		●			●	●	●
306	07.836 BAR; BACK,RR EUROPEAN BASIC EQUIPMENT(EK4) STAMP BL	8-97040-308-2	01	1	9312-9405	●	●
306	07.836 BAR; BACK,RR BUMPER REAR<7HZ> STAMP BL	8-97040-308-2	01	1	9406-9502	●	●
306	07.836 BAR; BACK,RR BUMPER REAR<7HZ> STAMP BL	8-97128-333-0	01	1	9503-9711	●	●
306	07.836 BAR; BACK,RR BUMPER REAR<7HZ> STAMP BL	8-97128-333-0	01	1	9712-	●
306	07.836 BAR; BACK,RR BUMPER REAR<7HZ> EXC. BRAZIL EQUIPMENT(RWF) STAMP BL	8-97128-333-0	01	1	9712-		●
306	07.836 BAR; BACK,RR EUROPEAN BASIC EQUIPMENT(EK4) STAMP BR	8-97040-306-2	01	1	9312-9405	●	●
306	07.836 BAR; BACK,RR BUMPER REAR<7HZ> STAMP BR	8-97040-306-2	01	1	9406-9502	●	●
306	07.836 BAR; BACK,RR BUMPER REAR<7HZ> STAMP BR	8-97128-334-0	01	1	9503-9711	●	●
306	07.836 BAR; BACK,RR BUMPER REAR<7HZ> STAMP BR	8-97128-334-0	01	1	9712-	●
306	07.836 BAR; BACK,RR BUMPER REAR<7HZ> EXC. BRAZIL EQUIPMENT(RWF) STAMP BR	8-97128-334-0	01	1	9712-		●
306	07.836 BAR; BACK,RR BRAZIL EQUIPMENT(RWF) BUMPER REAR<7HZ> 07.829	5-71230-132-0	01	1	9712-		●
306	07.836 BAR; BACK,RR BRAZIL EQUIPMENT(RWF) BUMPER REAR<7HZ> 07.829	5-71230-131-0	01	1	9712-		●
308	07.068 BRACKET; RAIL EUROPEAN BASIC EQUIPMENT(EK4)	8-97094-278-1	01	1	9312-9506	●	●
308	07.068 BRACKET; RAIL EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX)	8-97094-278-1	01	1	9507-9711	●	●
308	07.068 BRACKET; RAIL EUROPEAN BASIC EQUIPMENT(EK4)	8-97094-278-1	01	1	9712-	●	●
308	07.068 BRACKET; RAIL EUROPEAN BASIC EQUIPMENT(EK4)	8-97094-277-1	01	1	9312-9506	●	●
308	07.068 BRACKET; RAIL EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX)	8-97094-277-1	01	1	9507-9711	●	●
308	07.068 BRACKET; RAIL EUROPEAN BASIC EQUIPMENT(EK4)	8-97094-277-1	01	1	9712-	●	●

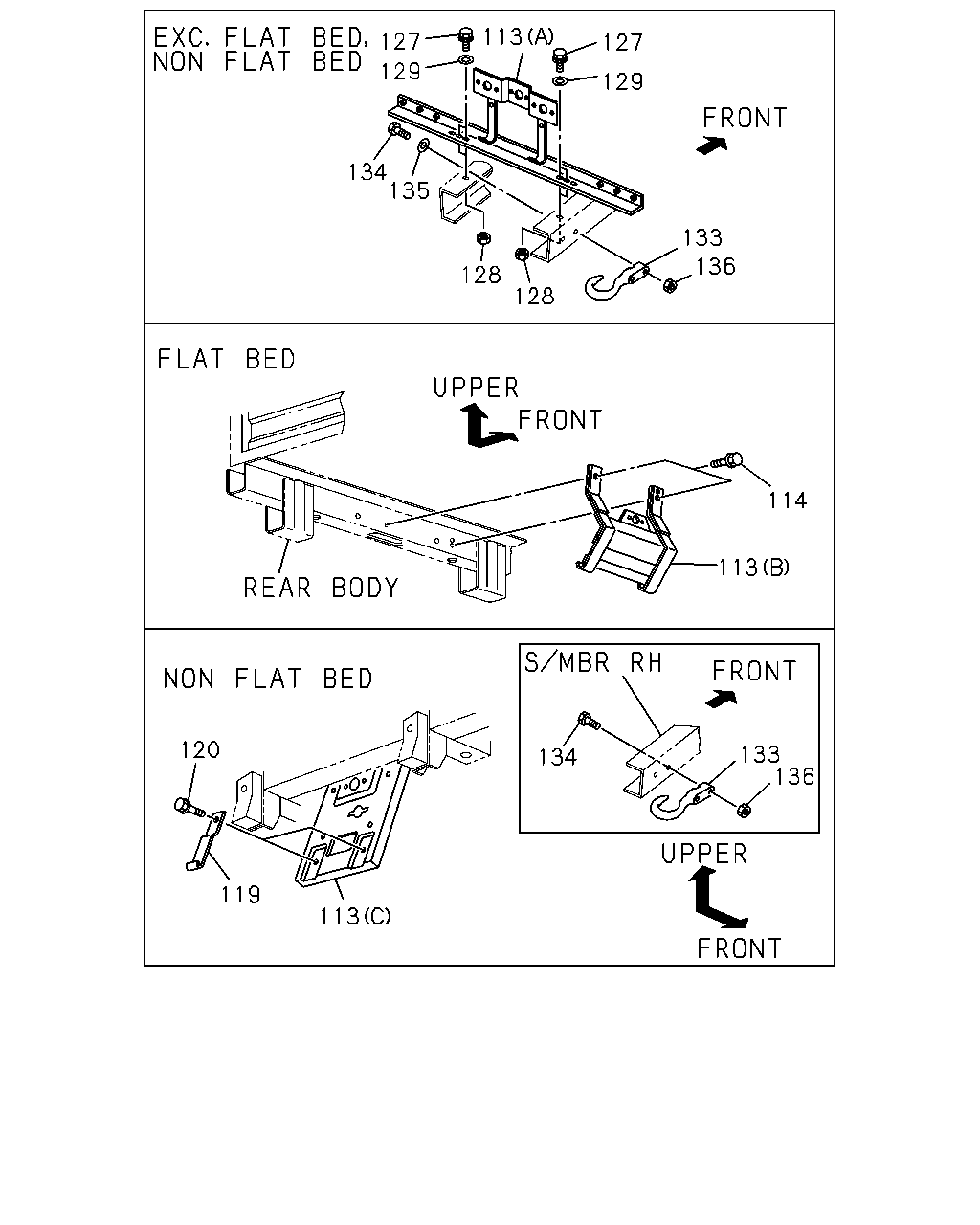

113 127 127 129 129 134 135 133 136 128 128 114 113 120 133 136 134 119 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
113	07.800 BRACKET; LICENSE PLATE EXC. EUROPEAN BASIC EQUIPMENT(EK4), RR BODY FLAT BED<RS6> 02.662 (A)	8-97096-644-0	01	1	9312-9401	●	●	●	●	●	●	●
113	07.800 BRACKET; LICENSE PLATE EXC. EUROPEAN BASIC EQUIPMENT(EK4), RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 02.662 (A)	8-97096-644-0	01	1	9402-9402	●	●	●	●	●	●	●
113	07.800 BRACKET; LICENSE PLATE EXC. EUROPEAN BASIC EQUIPMENT(EK4), RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 02.662 (A)	8-97096-644-0	01	1	9402-9506	●	●	●	●	●	●	●
113	07.800 BRACKET; LICENSE PLATE EXC. EUROPEAN BASIC EQUIPMENT(EK4), RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D),ISRAEL EQUIPMENT(7LX) 02.662 (A)	8-97096-644-0	01	1	9507-9510	●	●	●	●	●	●
113	07.800 BRACKET; LICENSE PLATE EXC. EUROPEAN BASIC EQUIPMENT(EK4), RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D),ISRAEL EQUIPMENT(7LX) 02.662 (A)	8-97096-644-0	01	1	9511-9711	●	●	●	●	●	●	●
113	07.800 BRACKET; LICENSE PLATE EXC. EUROPEAN BASIC EQUIPMENT(EK4), RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 02.662 (A)	8-97096-644-0	01	1	9712-9801	●	●	●	●	●	●	●
113	07.800 BRACKET; LICENSE PLATE EXC. EUROPEAN BASIC EQUIPMENT(EK4), RR BODY FLAT BED<RS6> 02.662 (A)	8-97096-644-0	01	1	9802-	●	●
113	07.800 BRACKET; LICENSE PLATE EXC. RR BODY NON FLAT BED(RS5) 02.662 (A)	8-97096-644-0	01	1	9802-			●
113	07.800 BRACKET; LICENSE PLATE EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 02.662 (A)	8-97096-644-0	01	1	9802-					●
113	07.800 BRACKET; LICENSE PLATE 02.662 (A)	8-97096-644-0	01	1	9802-				●			●
113	07.800 BRACKET; LICENSE PLATE EXC. RR BODY FLAT BED<RS6> 02.662 (A)	8-97096-644-0	01	1	9802-						●
113	07.800 BRACKET; LICENSE PLATE RR BODY FLAT BED<RS6> (B)	8-97077-573-1	01	1	9312-9601	●	●			●
113	07.800 BRACKET; LICENSE PLATE RR BODY FLAT BED<RS6> (B)	8-97077-573-2	01	1	9602-9710	●	●		●	●
113	07.800 BRACKET; LICENSE PLATE RR BODY FLAT BED<RS6> (B)	8-97077-573-2	01	1	9711-9801	●	●			●
113	07.800 BRACKET; LICENSE PLATE RR BODY FLAT BED<RS6>	8-97077-573-2	01	1	9802-	●	●			●	●
113	07.800 BRACKET; LICENSE PLATE RR BODY NON FLAT BED(RS5) (C)	8-94197-117-0	01	1	9312-			●
113	07.800 BRACKET; LICENSE PLATE 4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) 07.039 (D)	8-97033-248-2	01	1	9312-					●
114	07.800 BOLT; BRKT,LICENSE PLATE RR BODY FLAT BED<RS6> 01.540 M6X25 W/LK&PL WASHER	0-50140-625-0	02	1	9312-9601	●	●			●
114	07.800 BOLT; BRKT,LICENSE PLATE RR BODY FLAT BED<RS6> 01.540 M6X25 W/LK&PL WASHER	0-50140-625-0	02	1	9602-9710	●	●		●	●
114	07.800 BOLT; BRKT,LICENSE PLATE RR BODY FLAT BED<RS6> 01.540 M6X25 W/LK&PL WASHER	0-50140-625-0	02	1	9711-9801	●	●			●
114	07.800 BOLT; BRKT,LICENSE PLATE RR BODY FLAT BED<RS6> 01.540 M6X25 W/LK&PL WASHER	0-50140-625-0	02	1	9802-	●	●			●	●
119	07.800 HOOK; LICENSE PLATE BRKT RR BODY NON FLAT BED(RS5)	8-97069-728-0	02	1	9312-			●
120	07.800 BOLT RR BODY NON FLAT BED(RS5)	8-97069-572-0	02	1	9312-			●
127	02.662 BOLT; CROSS PLATE EXC. EUROPEAN BASIC EQUIPMENT(EK4), RR BODY FLAT BED<RS6> 01.252 M8X35 W/LK&PL WASHER	0-50140-835-0	02	1	9312-9401	●	●	●	●	●	●	●
127	02.662 BOLT; CROSS PLATE EXC. EUROPEAN BASIC EQUIPMENT(EK4), RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 01.252 M8X35 W/LK&PL WASHER	0-50140-835-0	02	1	9402-9402	●	●	●	●	●	●	●
127	02.662 BOLT; CROSS PLATE EXC. EUROPEAN BASIC EQUIPMENT(EK4), RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 01.252 M8X35 W/LK&PL WASHER	0-50140-835-0	02	1	9402-9506	●	●	●	●	●	●	●
127	02.662 BOLT; CROSS PLATE EXC. EUROPEAN BASIC EQUIPMENT(EK4), RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D),ISRAEL EQUIPMENT(7LX) 01.252 M8X35 W/LK&PL WASHER	0-50140-835-0	02	1	9507-9510	●	●	●	●	●	●
127	02.662 BOLT; CROSS PLATE EXC. EUROPEAN BASIC EQUIPMENT(EK4), RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D),ISRAEL EQUIPMENT(7LX) 01.252 M8X35 W/LK&PL WASHER	0-50140-835-0	02	1	9511-9711	●	●	●	●	●	●	●
127	02.662 BOLT; CROSS PLATE EXC. EUROPEAN BASIC EQUIPMENT(EK4), RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 01.252 M8X35 W/LK&PL WASHER	0-50140-835-0	02	1	9712-9801	●	●	●	●	●	●	●
127	02.662 BOLT; CROSS PLATE EXC. EUROPEAN BASIC EQUIPMENT(EK4), RR BODY FLAT BED<RS6> 01.252 M8X35 W/LK&PL WASHER	0-50140-835-0	02	1	9802-	●	●
127	02.662 BOLT; CROSS PLATE EXC. RR BODY NON FLAT BED(RS5) 01.252 M8X35 W/LK&PL WASHER	0-50140-835-0	02	1	9802-			●
127	02.662 BOLT; CROSS PLATE EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 01.252 M8X35 W/LK&PL WASHER	0-50140-835-0	02	1	9802-					●
127	02.662 BOLT; CROSS PLATE 01.252 M8X35 W/LK&PL WASHER	0-50140-835-0	02	1	9802-				●			●
127	02.662 BOLT; CROSS PLATE EXC. RR BODY FLAT BED<RS6> 01.252 M8X35 W/LK&PL WASHER	0-50140-835-0	02	1	9802-						●
128	02.662 NUT; CROSS PLATE EXC. EUROPEAN BASIC EQUIPMENT(EK4), RR BODY FLAT BED<RS6> 02.559 M8	9-09110-408-0	02	1	9312-9401	●	●	●	●	●	●	●
128	02.662 NUT; CROSS PLATE EXC. EUROPEAN BASIC EQUIPMENT(EK4), RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 02.559 M8	9-09110-408-0	02	1	9402-9402	●	●	●	●	●	●	●
128	02.662 NUT; CROSS PLATE EXC. EUROPEAN BASIC EQUIPMENT(EK4), RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 02.559 M8	9-09110-408-0	02	1	9402-9506	●	●	●	●	●	●	●
128	02.662 NUT; CROSS PLATE EXC. EUROPEAN BASIC EQUIPMENT(EK4), RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D),ISRAEL EQUIPMENT(7LX) 02.559 M8	9-09110-408-0	02	1	9507-9510	●	●	●	●	●	●
128	02.662 NUT; CROSS PLATE EXC. EUROPEAN BASIC EQUIPMENT(EK4), RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D),ISRAEL EQUIPMENT(7LX) 02.559 M8	9-09110-408-0	02	1	9511-9711	●	●	●	●	●	●	●
128	02.662 NUT; CROSS PLATE EXC. EUROPEAN BASIC EQUIPMENT(EK4), RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 02.559 M8	9-09110-408-0	02	1	9712-9801	●	●	●	●	●	●	●
128	02.662 NUT; CROSS PLATE EXC. EUROPEAN BASIC EQUIPMENT(EK4), RR BODY FLAT BED<RS6> 02.559 M8	9-09110-408-0	02	1	9802-	●	●
128	02.662 NUT; CROSS PLATE EXC. RR BODY NON FLAT BED(RS5) 02.559 M8	9-09110-408-0	02	1	9802-			●
128	02.662 NUT; CROSS PLATE EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 02.559 M8	9-09110-408-0	02	1	9802-					●
128	02.662 NUT; CROSS PLATE 02.559 M8	9-09110-408-0	02	1	9802-				●			●
128	02.662 NUT; CROSS PLATE EXC. RR BODY FLAT BED<RS6> 02.559 M8	9-09110-408-0	02	1	9802-						●
129	03.162 WASHER; PL,CROSS PLATE 02.334 ID=8.4 OD=26	9-09164-808-0	02	1	9312-9601				●
129	03.162 WASHER; PL,CROSS PLATE EXC. RR BODY FLAT BED<RS6> 02.334 ID=8.4 OD=26	9-09164-808-0	02	1	9602-9711				●
129	03.162 WASHER; PL,CROSS PLATE 02.334 ID=8.4 OD=26	9-09164-808-0	02	1	9712-				●
133	07.112 HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4) 07.330	8-94183-262-0	01	1	9312-9506	●		●	●
133	07.112 HOOK DUMP CHASSIS(V4D) 07.330	8-94183-262-0	01	1	9312-9506					●
133	07.112 HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) 07.330	8-94183-262-0	01	1	9507-9711	●		●	●
133	07.112 HOOK DUMP CHASSIS(V4D) 07.330	8-94183-262-0	01	1	9507-9711					●
133	07.112 HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4) 07.330	8-94183-262-0	01	1	9712-	●		●	●
133	07.112 HOOK DUMP CHASSIS(V4D) 07.330	8-94183-262-0	01	1	9712-					●
133	07.112 HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), DUMP CHASSIS(V4D) 07.068	8-94249-270-2	01	1	9312-9506		●			●	●
133	07.112 HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), DUMP CHASSIS(V4D),ISRAEL EQUIPMENT(7LX) 07.068	8-94249-270-2	01	1	9507-9510		●			●	●
133	07.112 HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), DUMP CHASSIS(V4D),ISRAEL EQUIPMENT(7LX) 07.068	8-94249-270-2	01	1	9511-9711		●			●	●	●
133	07.112 HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),DUMP CHASSIS(V4D) 07.068	8-94249-270-2	01	1	9712-		●			●	●	●
134	07.068 BOLT; HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4) 00.004 M10X45 W/LK WASHER	0-50041-045-0	02	1	9312-9506	●		●	●
134	07.068 BOLT; HOOK DUMP CHASSIS(V4D) 00.004 M10X45 W/LK WASHER	0-50041-045-0	02	1	9312-9506					●
134	07.068 BOLT; HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) 00.004 M10X45 W/LK WASHER	0-50041-045-0	02	1	9507-9703	●		●	●
134	07.068 BOLT; HOOK DUMP CHASSIS(V4D) 00.004 M10X45 W/LK WASHER	0-50041-045-0	02	1	9507-9703					●
134	07.068 BOLT; HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) 00.004 M10X40 W/LK WASHER	0-50041-040-0	02	1	9704-9711	●		●	●
134	07.068 BOLT; HOOK DUMP CHASSIS(V4D) 00.004 M10X40 W/LK WASHER	0-50041-040-0	02	1	9704-9711					●
134	07.068 BOLT; HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4) 00.004 M10X40 W/LK WASHER	0-50041-040-0	02	1	9712-9808	●		●	●
134	07.068 BOLT; HOOK DUMP CHASSIS(V4D) 00.004 M10X40 W/LK WASHER	0-50041-040-0	02	1	9712-9808					●
134	07.068 BOLT; HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4) 00.004 M10X45 W/LK WASHER	0-50041-045-0	02	1	9809-	●		●	●
134	07.068 BOLT; HOOK DUMP CHASSIS(V4D) 00.004 M10X45 W/LK WASHER	0-50041-045-0	02	1	9809-					●
134	07.068 BOLT; HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), DUMP CHASSIS(V4D) 07.039 M14X50	0-10806-450-0	02	1	9312-9506		●			●	●
134	07.068 BOLT; HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), DUMP CHASSIS(V4D),ISRAEL EQUIPMENT(7LX) 07.039 M14X50	0-10806-450-0	02	1	9507-9510		●			●	●
134	07.068 BOLT; HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), DUMP CHASSIS(V4D),ISRAEL EQUIPMENT(7LX) 07.039 M14X50	0-10806-450-0	02	1	9511-9711		●			●	●	●
134	07.068 BOLT; HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),DUMP CHASSIS(V4D) 07.039 M14X50	0-10806-450-0	02	1	9712-		●			●	●	●
135	07.068 WASHER; LK,HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), DUMP CHASSIS(V4D) 05.422 ID=14.2	9-09150-814-0	02	1	9312-9506		●			●	●
135	07.068 WASHER; LK,HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), DUMP CHASSIS(V4D),ISRAEL EQUIPMENT(7LX) 05.422 ID=14.2	9-09150-814-0	02	1	9507-9510		●			●	●
135	07.068 WASHER; LK,HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), DUMP CHASSIS(V4D),ISRAEL EQUIPMENT(7LX) 05.422 ID=14.2	9-09150-814-0	02	1	9511-9711		●			●	●	●
135	07.068 WASHER; LK,HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),DUMP CHASSIS(V4D) 05.422 ID=14.2	9-09150-814-0	02	1	9712-		●			●	●	●
136	07.068 NUT; HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4) 00.002 M10	9-09110-510-0	02	1	9312-9506	●		●	●
136	07.068 NUT; HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) 00.002 M10	9-09110-510-0	02	1	9507-9711	●		●	●
136	07.068 NUT; HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4) 00.002 M10	9-09110-510-0	02	1	9712-	●		●	●
136	07.068 NUT; HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), DUMP CHASSIS(V4D) 07.529 M14	9-99110-514-0	02	1	9312-9506		●			●	●
136	07.068 NUT; HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), DUMP CHASSIS(V4D),ISRAEL EQUIPMENT(7LX) 07.529 M14	9-99110-514-0	02	1	9507-9510		●			●	●
136	07.068 NUT; HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), DUMP CHASSIS(V4D),ISRAEL EQUIPMENT(7LX) 07.529 M14	9-99110-514-0	02	1	9511-9711		●			●	●	●
136	07.068 NUT; HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),DUMP CHASSIS(V4D) 07.529 M14	9-99110-514-0	02	1	9712-		●			●	●	●

113 133 136 134

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
113	07.800 BRACKET; LICENSE PLATE EXC. EUROPEAN BASIC EQUIPMENT(EK4), RR BODY FLAT BED<RS6> 02.662 (A)	8-97096-644-0	01	1	9312-9401	●	●	●	●	●	●	●
113	07.800 BRACKET; LICENSE PLATE EXC. EUROPEAN BASIC EQUIPMENT(EK4), RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 02.662 (A)	8-97096-644-0	01	1	9402-9402	●	●	●	●	●	●	●
113	07.800 BRACKET; LICENSE PLATE EXC. EUROPEAN BASIC EQUIPMENT(EK4), RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 02.662 (A)	8-97096-644-0	01	1	9402-9506	●	●	●	●	●	●	●
113	07.800 BRACKET; LICENSE PLATE EXC. EUROPEAN BASIC EQUIPMENT(EK4), RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D),ISRAEL EQUIPMENT(7LX) 02.662 (A)	8-97096-644-0	01	1	9507-9510	●	●	●	●	●	●
113	07.800 BRACKET; LICENSE PLATE EXC. EUROPEAN BASIC EQUIPMENT(EK4), RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D),ISRAEL EQUIPMENT(7LX) 02.662 (A)	8-97096-644-0	01	1	9511-9711	●	●	●	●	●	●	●
113	07.800 BRACKET; LICENSE PLATE EXC. EUROPEAN BASIC EQUIPMENT(EK4), RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 02.662 (A)	8-97096-644-0	01	1	9712-9801	●	●	●	●	●	●	●
113	07.800 BRACKET; LICENSE PLATE EXC. EUROPEAN BASIC EQUIPMENT(EK4), RR BODY FLAT BED<RS6> 02.662 (A)	8-97096-644-0	01	1	9802-	●	●
113	07.800 BRACKET; LICENSE PLATE EXC. RR BODY NON FLAT BED(RS5) 02.662 (A)	8-97096-644-0	01	1	9802-			●
113	07.800 BRACKET; LICENSE PLATE EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 02.662 (A)	8-97096-644-0	01	1	9802-					●
113	07.800 BRACKET; LICENSE PLATE 02.662 (A)	8-97096-644-0	01	1	9802-				●			●
113	07.800 BRACKET; LICENSE PLATE EXC. RR BODY FLAT BED<RS6> 02.662 (A)	8-97096-644-0	01	1	9802-						●
113	07.800 BRACKET; LICENSE PLATE RR BODY FLAT BED<RS6> (B)	8-97077-573-1	01	1	9312-9601	●	●			●
113	07.800 BRACKET; LICENSE PLATE RR BODY FLAT BED<RS6> (B)	8-97077-573-2	01	1	9602-9710	●	●		●	●
113	07.800 BRACKET; LICENSE PLATE RR BODY FLAT BED<RS6> (B)	8-97077-573-2	01	1	9711-9801	●	●			●
113	07.800 BRACKET; LICENSE PLATE RR BODY FLAT BED<RS6>	8-97077-573-2	01	1	9802-	●	●			●	●
113	07.800 BRACKET; LICENSE PLATE RR BODY NON FLAT BED(RS5) (C)	8-94197-117-0	01	1	9312-			●
113	07.800 BRACKET; LICENSE PLATE 4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) 07.039 (D)	8-97033-248-2	01	1	9312-					●
133	07.112 HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4) 07.330	8-94183-262-0	01	1	9312-9506	●		●	●
133	07.112 HOOK DUMP CHASSIS(V4D) 07.330	8-94183-262-0	01	1	9312-9506					●
133	07.112 HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) 07.330	8-94183-262-0	01	1	9507-9711	●		●	●
133	07.112 HOOK DUMP CHASSIS(V4D) 07.330	8-94183-262-0	01	1	9507-9711					●
133	07.112 HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4) 07.330	8-94183-262-0	01	1	9712-	●		●	●
133	07.112 HOOK DUMP CHASSIS(V4D) 07.330	8-94183-262-0	01	1	9712-					●
133	07.112 HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), DUMP CHASSIS(V4D) 07.068	8-94249-270-2	01	1	9312-9506		●			●	●
133	07.112 HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), DUMP CHASSIS(V4D),ISRAEL EQUIPMENT(7LX) 07.068	8-94249-270-2	01	1	9507-9510		●			●	●
133	07.112 HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), DUMP CHASSIS(V4D),ISRAEL EQUIPMENT(7LX) 07.068	8-94249-270-2	01	1	9511-9711		●			●	●	●
133	07.112 HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),DUMP CHASSIS(V4D) 07.068	8-94249-270-2	01	1	9712-		●			●	●	●
134	07.068 BOLT; HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4) 00.004 M10X45 W/LK WASHER	0-50041-045-0	02	1	9312-9506	●		●	●
134	07.068 BOLT; HOOK DUMP CHASSIS(V4D) 00.004 M10X45 W/LK WASHER	0-50041-045-0	02	1	9312-9506					●
134	07.068 BOLT; HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) 00.004 M10X45 W/LK WASHER	0-50041-045-0	02	1	9507-9703	●		●	●
134	07.068 BOLT; HOOK DUMP CHASSIS(V4D) 00.004 M10X45 W/LK WASHER	0-50041-045-0	02	1	9507-9703					●
134	07.068 BOLT; HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) 00.004 M10X40 W/LK WASHER	0-50041-040-0	02	1	9704-9711	●		●	●
134	07.068 BOLT; HOOK DUMP CHASSIS(V4D) 00.004 M10X40 W/LK WASHER	0-50041-040-0	02	1	9704-9711					●
134	07.068 BOLT; HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4) 00.004 M10X40 W/LK WASHER	0-50041-040-0	02	1	9712-9808	●		●	●
134	07.068 BOLT; HOOK DUMP CHASSIS(V4D) 00.004 M10X40 W/LK WASHER	0-50041-040-0	02	1	9712-9808					●
134	07.068 BOLT; HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4) 00.004 M10X45 W/LK WASHER	0-50041-045-0	02	1	9809-	●		●	●
134	07.068 BOLT; HOOK DUMP CHASSIS(V4D) 00.004 M10X45 W/LK WASHER	0-50041-045-0	02	1	9809-					●
134	07.068 BOLT; HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), DUMP CHASSIS(V4D) 07.039 M14X50	0-10806-450-0	02	1	9312-9506		●			●	●
134	07.068 BOLT; HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), DUMP CHASSIS(V4D),ISRAEL EQUIPMENT(7LX) 07.039 M14X50	0-10806-450-0	02	1	9507-9510		●			●	●
134	07.068 BOLT; HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), DUMP CHASSIS(V4D),ISRAEL EQUIPMENT(7LX) 07.039 M14X50	0-10806-450-0	02	1	9511-9711		●			●	●	●
134	07.068 BOLT; HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),DUMP CHASSIS(V4D) 07.039 M14X50	0-10806-450-0	02	1	9712-		●			●	●	●
136	07.068 NUT; HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4) 00.002 M10	9-09110-510-0	02	1	9312-9506	●		●	●
136	07.068 NUT; HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) 00.002 M10	9-09110-510-0	02	1	9507-9711	●		●	●
136	07.068 NUT; HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4) 00.002 M10	9-09110-510-0	02	1	9712-	●		●	●
136	07.068 NUT; HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), DUMP CHASSIS(V4D) 07.529 M14	9-99110-514-0	02	1	9312-9506		●			●	●
136	07.068 NUT; HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), DUMP CHASSIS(V4D),ISRAEL EQUIPMENT(7LX) 07.529 M14	9-99110-514-0	02	1	9507-9510		●			●	●
136	07.068 NUT; HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), DUMP CHASSIS(V4D),ISRAEL EQUIPMENT(7LX) 07.529 M14	9-99110-514-0	02	1	9511-9711		●			●	●	●
136	07.068 NUT; HOOK EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),DUMP CHASSIS(V4D) 07.529 M14	9-99110-514-0	02	1	9712-		●			●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
