6-80 — BACK PANEL (#44330) — 85 parça
çizim 18047
6 5 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
5 16.587 PANEL; CAB BACK
4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4) MANUAL TILT CAB<RWZ> 		8-97084-132-4 01 1 9312-9506 ● ●
5 16.587 PANEL; CAB BACK
4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) MANUAL TILT CAB<RWZ> 		8-97084-132-4 01 1 9507-9711 ● ●
5 16.587 PANEL; CAB BACK
4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4) MANUAL TILT CAB<RWZ> 		8-97084-132-4 01 1 9712-9801 ● ●
5 16.587 PANEL; CAB BACK
4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97084-132-4 01 1 9802- ● ●
6 16.587 BOLT; BACK PANEL
4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4) MANUAL TILT CAB<RWZ> 04.595 M8X20 FLANGE 		0-28480-820-0 02 1 9312-9506 ● ●
6 16.587 BOLT; BACK PANEL
4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) MANUAL TILT CAB<RWZ> 04.595 M8X20 FLANGE 		0-28480-820-0 02 1 9507-9702 ● ●
6 16.587 BOLT; BACK PANEL
4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) MANUAL TILT CAB<RWZ> 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 9703-9711 ● ●
6 16.587 BOLT; BACK PANEL
4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4) MANUAL TILT CAB<RWZ> 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 9712-9801 ● ●
6 16.587 BOLT; BACK PANEL
4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 9802- ● ●
8 16.587 NUT; BACK PANEL
4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4) MANUAL TILT CAB<RWZ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9312-9506 ● ●
8 16.587 NUT; BACK PANEL
4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) MANUAL TILT CAB<RWZ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9507-9711 ● ●
8 16.587 NUT; BACK PANEL
4JG2 ENG(RJC) EUROPEAN BASIC EQUIPMENT(EK4) MANUAL TILT CAB<RWZ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9712-9801 ● ●
8 16.587 NUT; BACK PANEL
4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9802- ● ●

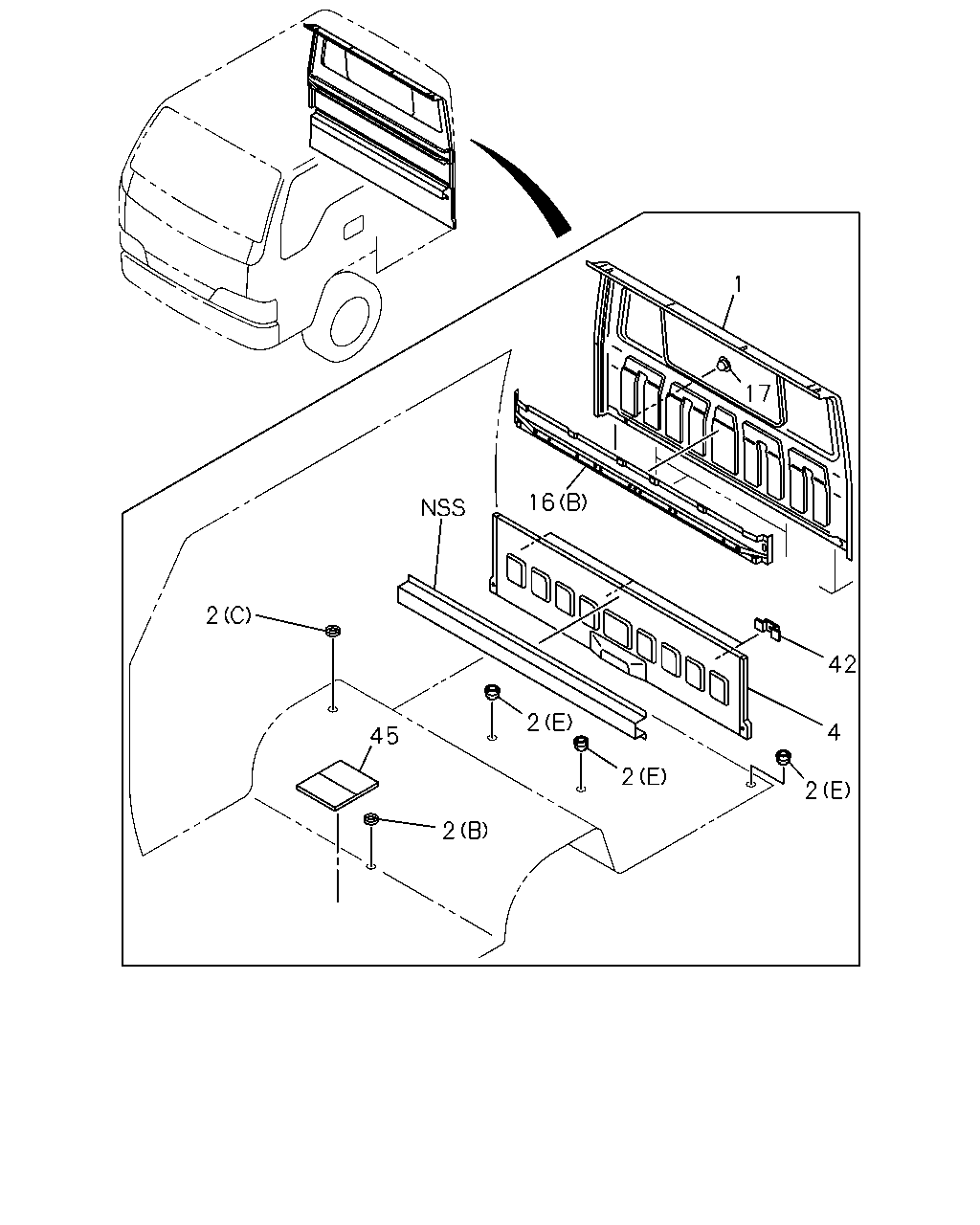

çizim 68146
1 17 16 2 42 2 45 4 2 2 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.587 PANEL; BACK OUTER
EXC. CAB-LOW ROOF<6XQ> 		8-97851-352-2 01 1 9511- ● ● ● ● ● ● ●
1 16.587 PANEL; BACK OUTER
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> 		8-97851-479-2 01 1 9312-9404 ● ● ● ●
1 16.587 PANEL; BACK OUTER
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> 		8-97851-479-2 01 1 9405-9510 ● ● ● ● ●
1 16.587 PANEL; BACK OUTER
4JG2 ENG(RJC) INTERIOR DELUXE<RBB> AIR INTAKE SYSTEM FRONT<6PC> 		8-97851-008-6 01 1 9507-9510 ● ●
1 16.587 PANEL; BACK OUTER
4JG2 ENG(RJC) 		8-97851-352-2 01 1 9312-9404 ● ● ●
1 16.587 PANEL; BACK OUTER
4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. AIR INTAKE REAR VERTICAL<KJ3> 		8-97851-352-2 01 1 9312-9404 ● ● ●
1 16.587 PANEL; BACK OUTER
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 		8-97851-352-2 01 1 9405-9408 ● ● ●
1 16.587 PANEL; BACK OUTER
4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. AIR INTAKE REAR VERTICAL<KJ3> 		8-97851-352-2 01 1 9405-9408 ● ● ●
1 16.587 PANEL; BACK OUTER
AIR INTAKE SYSTEM FRONT<6PC> 		8-97851-352-2 01 1 9409-9411 ● ● ●
1 16.587 PANEL; BACK OUTER 8-97851-273-5 01 1 9312-9510 ● ●
1 16.587 PANEL; BACK OUTER
4HF1 ENG(RLS) CAB-LOW ROOF<6XQ> 		8-97851-544-1 01 1 9511-9604 ●
1 16.587 PANEL; BACK OUTER
4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) CAB-LOW ROOF<6XQ> 		8-97851-544-1 01 1 9605-9711 ●
1 16.587 PANEL; BACK OUTER
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CAB-LOW ROOF<6XQ> 		8-97851-544-1 01 1 9605-9711 ●
1 16.587 PANEL; BACK OUTER
4HF1 ENG(RLS) CAB-LOW ROOF<6XQ> 		8-97851-544-1 01 1 9712- ●
1 16.587 PANEL; BACK OUTER
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 		8-97851-480-2 01 1 9312-9510 ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
08.155 (B) OD=28.5 		8-94279-711-0 02 1 9312-9510 ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
08.155 (B) OD=28.5 		8-94279-711-0 02 1 9511- ● ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
00.785 (C) OD=16.2 		8-94492-493-0 02 1 9312-9510 ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
00.785 (C) OD=16.2 		8-94492-493-0 02 1 9511- ● ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (D) OD=36 BLACK 		1-76798-018-0 02 1 9312-9510 ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (D) OD=36 BLACK 		1-76798-018-0 02 1 9511- ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 04 1 9312-9510 ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 04 1 9511- ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222 (E) OD=35 		8-94122-971-0 04 1 9312- ● ●
4 16.575 PANEL; CAB BACK LWR 8-97851-145-6 01 1 9312- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97851-055-5 01 1 9312-9702 ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97851-055-5 01 1 9703-9703 ● ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> EXC. INTERIOR DELUXE<RBB>,CAB-LOW ROOF<6XQ> (A) 		8-97851-055-5 01 1 9703-9703 ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. AIR INTAKE REAR VERTICAL<KJ3>, CAB-LOW ROOF<6XQ> (A) 		8-97851-055-5 01 1 9703-9703 ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS) EXC. CAB-LOW ROOF<6XQ> (A) 		8-97851-055-5 01 1 9703-9703 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4JG2 ENG(RJC) INTERIOR DELUXE<RBB> AIR INTAKE SYSTEM FRONT<6PC> (A) 		8-97867-215-0 01 1 9703-9703 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS) CAB-LOW ROOF<6XQ> (A) 		8-97867-215-0 01 1 9703-9703 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97867-215-0 01 1 9704-9711 ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97867-215-0 01 1 9712- ● ● ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(B) 		8-97851-300-1 01 1 9312- ● ●
17 16.592 GROMMET; LOCATION HOLE,CAB RR MT
09.647 		1-09983-097-0 02 1 9312-9411 ● ●
42 16.587 BRACKET; HEAT PROTECTOR
16.588 		8-94265-170-1 03 1 9312- ● ●
45 16.587 SHEET; MELTING,BACK PANEL
16.850 NON ASBESTOS 1000X600 T=1.5; PARTS O NLY 		8-94262-093-0 02 1 9312- ● ●
çizim 68183
1 2 2 2 16 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.587 PANEL; BACK OUTER
EXC. CAB-LOW ROOF<6XQ> 		8-97851-352-2 01 1 9511- ● ● ● ● ● ● ●
1 16.587 PANEL; BACK OUTER
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> 		8-97851-479-2 01 1 9312-9404 ● ● ● ●
1 16.587 PANEL; BACK OUTER
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> 		8-97851-479-2 01 1 9405-9510 ● ● ● ● ●
1 16.587 PANEL; BACK OUTER
4JG2 ENG(RJC) INTERIOR DELUXE<RBB> AIR INTAKE SYSTEM FRONT<6PC> 		8-97851-008-6 01 1 9507-9510 ● ●
1 16.587 PANEL; BACK OUTER
4JG2 ENG(RJC) 		8-97851-352-2 01 1 9312-9404 ● ● ●
1 16.587 PANEL; BACK OUTER
4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. AIR INTAKE REAR VERTICAL<KJ3> 		8-97851-352-2 01 1 9312-9404 ● ● ●
1 16.587 PANEL; BACK OUTER
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 		8-97851-352-2 01 1 9405-9408 ● ● ●
1 16.587 PANEL; BACK OUTER
4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. AIR INTAKE REAR VERTICAL<KJ3> 		8-97851-352-2 01 1 9405-9408 ● ● ●
1 16.587 PANEL; BACK OUTER
AIR INTAKE SYSTEM FRONT<6PC> 		8-97851-352-2 01 1 9409-9411 ● ● ●
1 16.587 PANEL; BACK OUTER 8-97851-273-5 01 1 9312-9510 ● ●
1 16.587 PANEL; BACK OUTER
4HF1 ENG(RLS) CAB-LOW ROOF<6XQ> 		8-97851-544-1 01 1 9511-9604 ●
1 16.587 PANEL; BACK OUTER
4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) CAB-LOW ROOF<6XQ> 		8-97851-544-1 01 1 9605-9711 ●
1 16.587 PANEL; BACK OUTER
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CAB-LOW ROOF<6XQ> 		8-97851-544-1 01 1 9605-9711 ●
1 16.587 PANEL; BACK OUTER
4HF1 ENG(RLS) CAB-LOW ROOF<6XQ> 		8-97851-544-1 01 1 9712- ●
1 16.587 PANEL; BACK OUTER
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 		8-97851-480-2 01 1 9312-9510 ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
08.155 (B) OD=28.5 		8-94279-711-0 02 1 9312-9510 ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
08.155 (B) OD=28.5 		8-94279-711-0 02 1 9511- ● ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
00.785 (C) OD=16.2 		8-94492-493-0 02 1 9312-9510 ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
00.785 (C) OD=16.2 		8-94492-493-0 02 1 9511- ● ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (D) OD=36 BLACK 		1-76798-018-0 02 1 9312-9510 ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (D) OD=36 BLACK 		1-76798-018-0 02 1 9511- ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 04 1 9312-9510 ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 04 1 9511- ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222 (E) OD=35 		8-94122-971-0 04 1 9312- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97851-055-5 01 1 9312-9702 ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97851-055-5 01 1 9703-9703 ● ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> EXC. INTERIOR DELUXE<RBB>,CAB-LOW ROOF<6XQ> (A) 		8-97851-055-5 01 1 9703-9703 ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. AIR INTAKE REAR VERTICAL<KJ3>, CAB-LOW ROOF<6XQ> (A) 		8-97851-055-5 01 1 9703-9703 ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS) EXC. CAB-LOW ROOF<6XQ> (A) 		8-97851-055-5 01 1 9703-9703 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4JG2 ENG(RJC) INTERIOR DELUXE<RBB> AIR INTAKE SYSTEM FRONT<6PC> (A) 		8-97867-215-0 01 1 9703-9703 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS) CAB-LOW ROOF<6XQ> (A) 		8-97867-215-0 01 1 9703-9703 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97867-215-0 01 1 9704-9711 ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97867-215-0 01 1 9712- ● ● ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(B) 		8-97851-300-1 01 1 9312- ● ●
