6-75 — MAT AND CARPET (#44327) — 76 parça

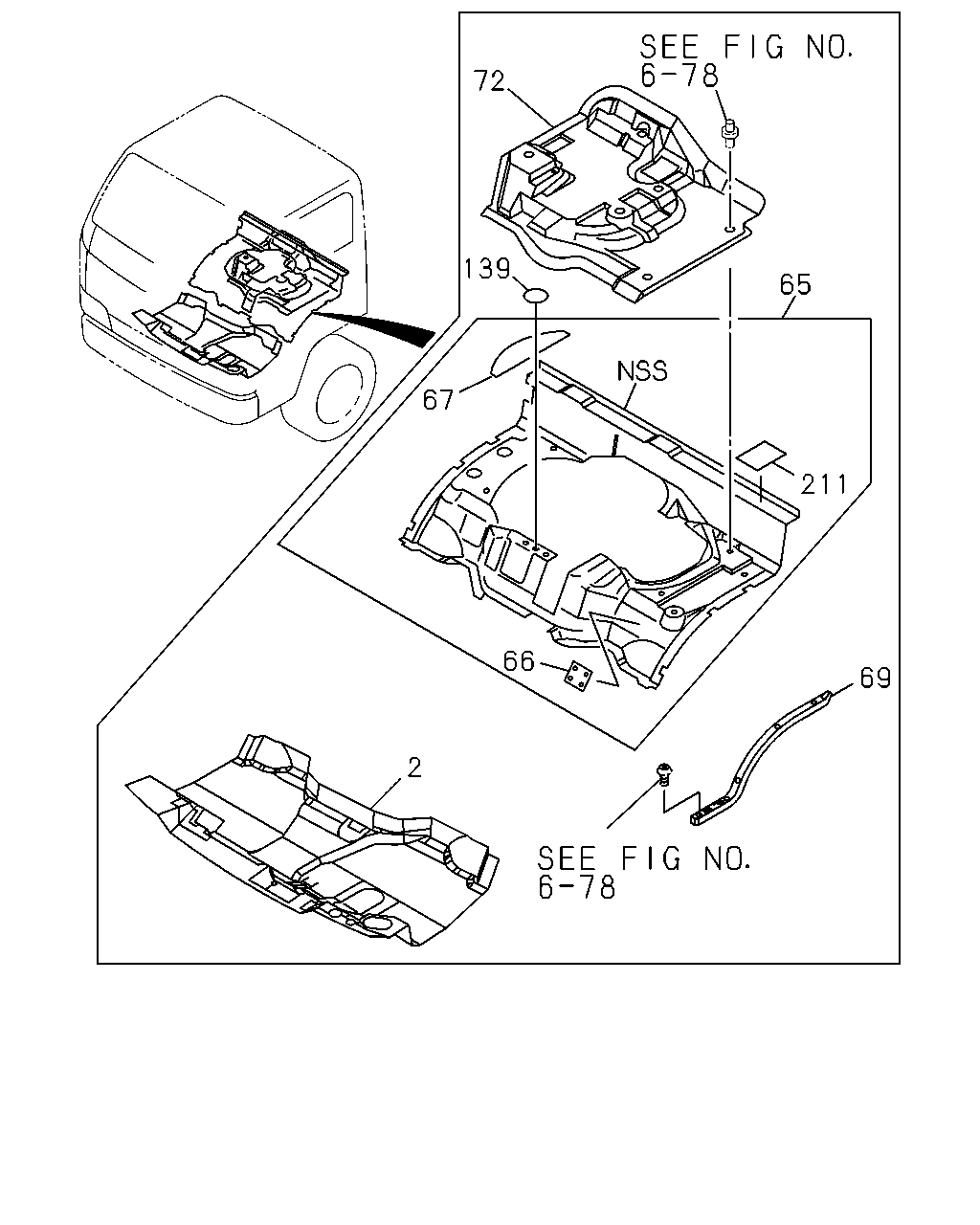

72 139 65 67 211 66 69 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) DARK BEIGE	8-97097-153-2	01	1	9312-9504	●	●	●	●	●	●
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) FLOOR REMOTE SHIFT<M11> DARK BEIGE	8-97097-153-2	01	1	9505-9510	●	●	●	●	●	●
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) FLOOR REMOTE SHIFT<M11> DARK BEIGE	8-97097-153-2	01	1	9511-9608	●	●	●	●	●	●	●
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) DARK BEIGE	8-97097-153-2	01	1	9609-9711	●	●	●	●	●	●	●
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97868-589-2	01	1	9712-	●	●	●	●	●	●	●
2	16.800 MAT; FLOOR EXC. AIR CONDITIONER MANUAL CONT(C60) DARK BEIGE	8-97097-152-2	01	1	9312-9504	●	●	●	●	●	●
2	16.800 MAT; FLOOR FLOOR REMOTE SHIFT<M11> EXC. AIR CONDITIONER MANUAL CONT(C60) DARK BEIGE	8-97097-152-2	01	1	9505-9510	●	●	●	●	●	●
2	16.800 MAT; FLOOR FLOOR REMOTE SHIFT<M11> EXC. AIR CONDITIONER MANUAL CONT(C60) DARK BEIGE	8-97097-152-2	01	1	9511-9608	●	●	●	●	●	●	●
2	16.800 MAT; FLOOR EXC. AIR CONDITIONER MANUAL CONT(C60) DARK BEIGE	8-97097-152-2	01	1	9609-9711	●	●	●	●	●	●	●
2	16.800 MAT; FLOOR EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97868-588-2	01	1	9712-	●	●	●	●	●	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. MANUAL TILT CAB<RWZ> DARK BEIGE	8-97856-764-2	01	1	9312-9312	●		●	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK BEIGE	8-97856-764-5	01	1	9401-9510	●		●	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK BEIGE	8-97856-764-5	01	1	9511-9711	●		●	●		●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97868-638-5	01	1	9712-	●		●	●		●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK BEIGE	8-97856-766-5	01	1	9312-9711		●			●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97868-639-5	01	1	9712-		●			●
66	16.549 HOOK; COVER EXC. MANUAL TILT CAB<RWZ> DARK BEIGE	8-97857-192-0	02	1	9312-9312	●	●	●	●	●	●	●
66	16.549 HOOK; COVER DARK BEIGE	8-97857-192-0	02	1	9401-9510	●	●	●	●	●	●
66	16.549 HOOK; COVER DARK BEIGE	8-97857-192-0	02	1	9511-9711	●	●	●	●	●	●	●
66	16.549 HOOK; COVER DARK GRAY	8-97859-705-0	02	1	9712-	●	●	●	●	●	●	●
67	16.549 LID; COVER EXC. MANUAL TILT CAB<RWZ> DARK BEIGE	8-97857-924-0	01	1	9312-9312	●	●	●	●	●	●	●
67	16.549 LID; COVER DARK BEIGE	8-97857-924-0	01	1	9401-9510	●	●	●	●	●	●
67	16.549 LID; COVER DARK BEIGE	8-97857-924-0	01	1	9511-9711	●	●	●	●	●	●	●
67	16.549 LID; COVER DARK GRAY	8-97868-518-0	01	1	9712-	●	●	●	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE	8-97853-958-0	01	1	9312-9510	●	●	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE DARK BEIGE	8-97853-958-0	01	1	9511-9711	●	●	●	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE DARK GRAY	8-97857-552-0	01	1	9712-	●	●	●	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE	8-97853-957-0	01	1	9312-9510	●	●	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE DARK BEIGE	8-97853-957-0	01	1	9511-9711	●	●	●	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE DARK GRAY	8-97857-551-0	01	1	9712-	●	●	●	●	●	●	●
72	16.800 MAT; SILENCER,ENG COVER DARK BEIGE	8-97856-770-4	01	1	9312-9510	●	●	●	●	●	●
72	16.800 MAT; SILENCER,ENG COVER DARK BEIGE	8-97856-770-4	01	1	9511-9711	●	●	●	●	●	●	●
72	16.800 MAT; SILENCER,ENG COVER DARK GRAY	8-97890-495-0	01	1	9712-	●	●	●	●	●	●	●
211	16.800 COVER; HINGE EXC. MANUAL TILT CAB<RWZ>	8-97857-191-0	02	1	9312-9312	●	●	●	●	●	●	●
211	16.800 COVER; HINGE	8-97857-191-1	02	1	9401-9405	●	●	●	●	●	●

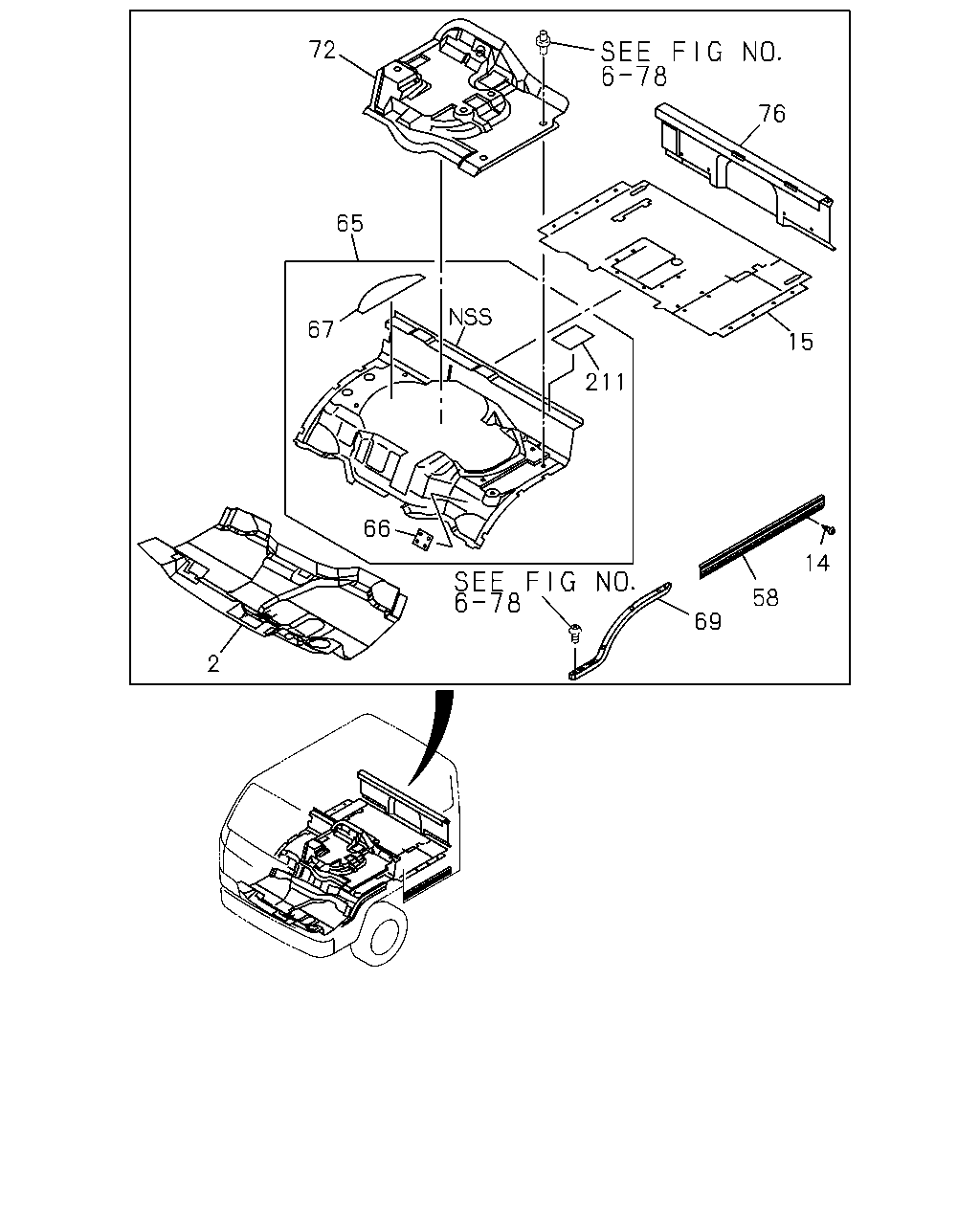

72 76 65 67 15 211 66 14 58 69 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) DARK BEIGE	8-97097-153-2	01	1	9312-9504	●	●	●	●	●	●
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) FLOOR REMOTE SHIFT<M11> DARK BEIGE	8-97097-153-2	01	1	9505-9510	●	●	●	●	●	●
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) FLOOR REMOTE SHIFT<M11> DARK BEIGE	8-97097-153-2	01	1	9511-9608	●	●	●	●	●	●	●
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) DARK BEIGE	8-97097-153-2	01	1	9609-9711	●	●	●	●	●	●	●
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97868-589-2	01	1	9712-	●	●	●	●	●	●	●
2	16.800 MAT; FLOOR EXC. AIR CONDITIONER MANUAL CONT(C60) DARK BEIGE	8-97097-152-2	01	1	9312-9504	●	●	●	●	●	●
2	16.800 MAT; FLOOR FLOOR REMOTE SHIFT<M11> EXC. AIR CONDITIONER MANUAL CONT(C60) DARK BEIGE	8-97097-152-2	01	1	9505-9510	●	●	●	●	●	●
2	16.800 MAT; FLOOR FLOOR REMOTE SHIFT<M11> EXC. AIR CONDITIONER MANUAL CONT(C60) DARK BEIGE	8-97097-152-2	01	1	9511-9608	●	●	●	●	●	●	●
2	16.800 MAT; FLOOR EXC. AIR CONDITIONER MANUAL CONT(C60) DARK BEIGE	8-97097-152-2	01	1	9609-9711	●	●	●	●	●	●	●
2	16.800 MAT; FLOOR EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97868-588-2	01	1	9712-	●	●	●	●	●	●	●
14	16.870 SCREW; PLATE 16.345 M5X16 W/PL WASHER TAPPING	8-94279-123-0	08	1	9312-		●			●
15	16.800 MAT; FLOOR REAR DARK BEIGE	8-97098-711-0	01	1	9312-9711		●			●
15	16.800 MAT; FLOOR REAR DARK GRAY	8-97868-592-0	01	1	9712-		●			●
58	08.153 PLATE; GUARD,RR FLOOR MAT	8-97081-344-3	02	1	9312-		●			●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. MANUAL TILT CAB<RWZ> DARK BEIGE	8-97856-764-2	01	1	9312-9312	●		●	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK BEIGE	8-97856-764-5	01	1	9401-9510	●		●	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK BEIGE	8-97856-764-5	01	1	9511-9711	●		●	●		●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97868-638-5	01	1	9712-	●		●	●		●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK BEIGE	8-97856-766-5	01	1	9312-9711		●			●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97868-639-5	01	1	9712-		●			●
66	16.549 HOOK; COVER EXC. MANUAL TILT CAB<RWZ> DARK BEIGE	8-97857-192-0	02	1	9312-9312	●	●	●	●	●	●	●
66	16.549 HOOK; COVER DARK BEIGE	8-97857-192-0	02	1	9401-9510	●	●	●	●	●	●
66	16.549 HOOK; COVER DARK BEIGE	8-97857-192-0	02	1	9511-9711	●	●	●	●	●	●	●
66	16.549 HOOK; COVER DARK GRAY	8-97859-705-0	02	1	9712-	●	●	●	●	●	●	●
67	16.549 LID; COVER EXC. MANUAL TILT CAB<RWZ> DARK BEIGE	8-97857-924-0	01	1	9312-9312	●	●	●	●	●	●	●
67	16.549 LID; COVER DARK BEIGE	8-97857-924-0	01	1	9401-9510	●	●	●	●	●	●
67	16.549 LID; COVER DARK BEIGE	8-97857-924-0	01	1	9511-9711	●	●	●	●	●	●	●
67	16.549 LID; COVER DARK GRAY	8-97868-518-0	01	1	9712-	●	●	●	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE	8-97853-958-0	01	1	9312-9510	●	●	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE DARK BEIGE	8-97853-958-0	01	1	9511-9711	●	●	●	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE DARK GRAY	8-97857-552-0	01	1	9712-	●	●	●	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE	8-97853-957-0	01	1	9312-9510	●	●	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE DARK BEIGE	8-97853-957-0	01	1	9511-9711	●	●	●	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE DARK GRAY	8-97857-551-0	01	1	9712-	●	●	●	●	●	●	●
72	16.800 MAT; SILENCER,ENG COVER DARK BEIGE	8-97856-770-4	01	1	9312-9510	●	●	●	●	●	●
72	16.800 MAT; SILENCER,ENG COVER DARK BEIGE	8-97856-770-4	01	1	9511-9711	●	●	●	●	●	●	●
72	16.800 MAT; SILENCER,ENG COVER DARK GRAY	8-97890-495-0	01	1	9712-	●	●	●	●	●	●	●
76	16.800 MAT; FLOOR,REINF,CAB RR MTG DARK BEIGE	8-97856-769-4	01	1	9312-9711		●			●
76	16.800 MAT; FLOOR,REINF,CAB RR MTG DARK GRAY	8-97868-640-4	01	1	9712-		●			●
211	16.800 COVER; HINGE EXC. MANUAL TILT CAB<RWZ>	8-97857-191-0	02	1	9312-9312	●	●	●	●	●	●	●
211	16.800 COVER; HINGE	8-97857-191-1	02	1	9401-9405	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
