◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50695 - NKR-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#44326) — 226 parça
çizim 18413
377 378 380 380 398 381 378
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
377 16.545 RAIL ASM; MTG,FRT
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-351-7 01 1 9511- ● ● ● ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-350-5 01 1 9312-9501 ● ● ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-350-5 01 1 9502-9510 ● ● ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-691-0 01 1 9502-9510 ● ● ●
377 16.545 RAIL ASM; MTG,FRT
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-481-7 01 1 9511-9801 ● ● ●
377 16.545 RAIL ASM; MTG,FRT
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-481-7 01 1 9802- ● ● ● ●
378 16.545 GASSET; LWR 8-97850-355-2 01 1 9312-9403 ● ● ● ● ● ●
378 16.545 GASSET; LWR 8-97850-052-9 01 1 9404-9407 ● ● ● ● ● ●
378 16.545 GASSET; LWR 8-97850-672-0 01 1 9408-9501 ● ● ● ● ● ●
378 16.545 GASSET; LWR
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-672-1 01 1 9502-9510 ● ● ● ● ● ●
378 16.545 GASSET; LWR
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-672-1 01 1 9502-9510 ● ●
378 16.545 GASSET; LWR
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-672-1 01 1 9511- ● ● ● ● ● ● ●
378 16.545 GASSET; LWR
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-672-1 01 1 9511- ● ●
378 16.545 GASSET; LWR 8-97850-354-2 01 1 9312-9403 ● ● ● ● ● ●
378 16.545 GASSET; LWR 8-97850-051-9 01 1 9404-9407 ● ● ● ● ● ●
378 16.545 GASSET; LWR 8-97850-671-0 01 1 9408-9501 ● ● ● ● ● ●
378 16.545 GASSET; LWR
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-671-0 01 1 9502-9510 ● ● ● ● ● ●
378 16.545 GASSET; LWR
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-671-0 01 1 9502-9510 ● ●
378 16.545 GASSET; LWR
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-671-0 01 1 9511- ● ● ● ● ● ● ●
378 16.545 GASSET; LWR
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-671-0 01 1 9511- ● ●
380 16.545 BRACKET; HEAD LAMP 8-97850-359-1 01 1 9312-9501 ● ● ● ● ● ●
380 16.545 BRACKET; HEAD LAMP
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-359-1 01 1 9502-9510 ● ● ● ● ● ●
380 16.545 BRACKET; HEAD LAMP
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-359-1 01 1 9502-9510 ● ●
380 16.545 BRACKET; HEAD LAMP
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-359-1 01 1 9511- ● ● ● ● ● ● ●
380 16.545 BRACKET; HEAD LAMP
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-359-1 01 1 9511- ● ●
380 16.545 BRACKET; HEAD LAMP 8-97850-358-1 01 1 9312-9501 ● ● ● ● ● ●
380 16.545 BRACKET; HEAD LAMP 8-97850-704-0 01 1 9502-9502 ● ● ● ● ● ●
380 16.545 BRACKET; HEAD LAMP
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-704-0 01 1 9502-9510 ● ● ● ● ● ●
380 16.545 BRACKET; HEAD LAMP
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-704-0 01 1 9502-9510 ● ●
380 16.545 BRACKET; HEAD LAMP
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-704-0 01 1 9511- ● ● ● ● ● ● ●
380 16.545 BRACKET; HEAD LAMP
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-704-0 01 1 9511- ● ●
381 16.545 BRACKET; AIR INTAKE DUCT,FRT 8-97850-352-1 01 1 9312-9501 ● ● ● ● ● ●
381 16.545 BRACKET; AIR INTAKE DUCT,FRT
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-352-1 01 1 9502-9510 ● ● ● ● ● ●
381 16.545 BRACKET; AIR INTAKE DUCT,FRT
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-352-1 01 1 9502-9510 ● ●
381 16.545 BRACKET; AIR INTAKE DUCT,FRT
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-352-1 01 1 9511- ● ● ● ● ● ● ●
381 16.545 BRACKET; AIR INTAKE DUCT,FRT
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-352-1 01 1 9511- ● ●
398 16.545 BRACKET; PIPE SUPPORT 8-97850-318-1 01 1 9312-9501 ● ● ● ● ● ●
398 16.545 BRACKET; PIPE SUPPORT
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-318-1 01 1 9502-9510 ● ● ● ● ● ●
398 16.545 BRACKET; PIPE SUPPORT
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-318-1 01 1 9502-9510 ● ●
398 16.545 BRACKET; PIPE SUPPORT
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-318-1 01 1 9511- ● ● ● ● ● ● ●
398 16.545 BRACKET; PIPE SUPPORT
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-318-1 01 1 9511- ● ●

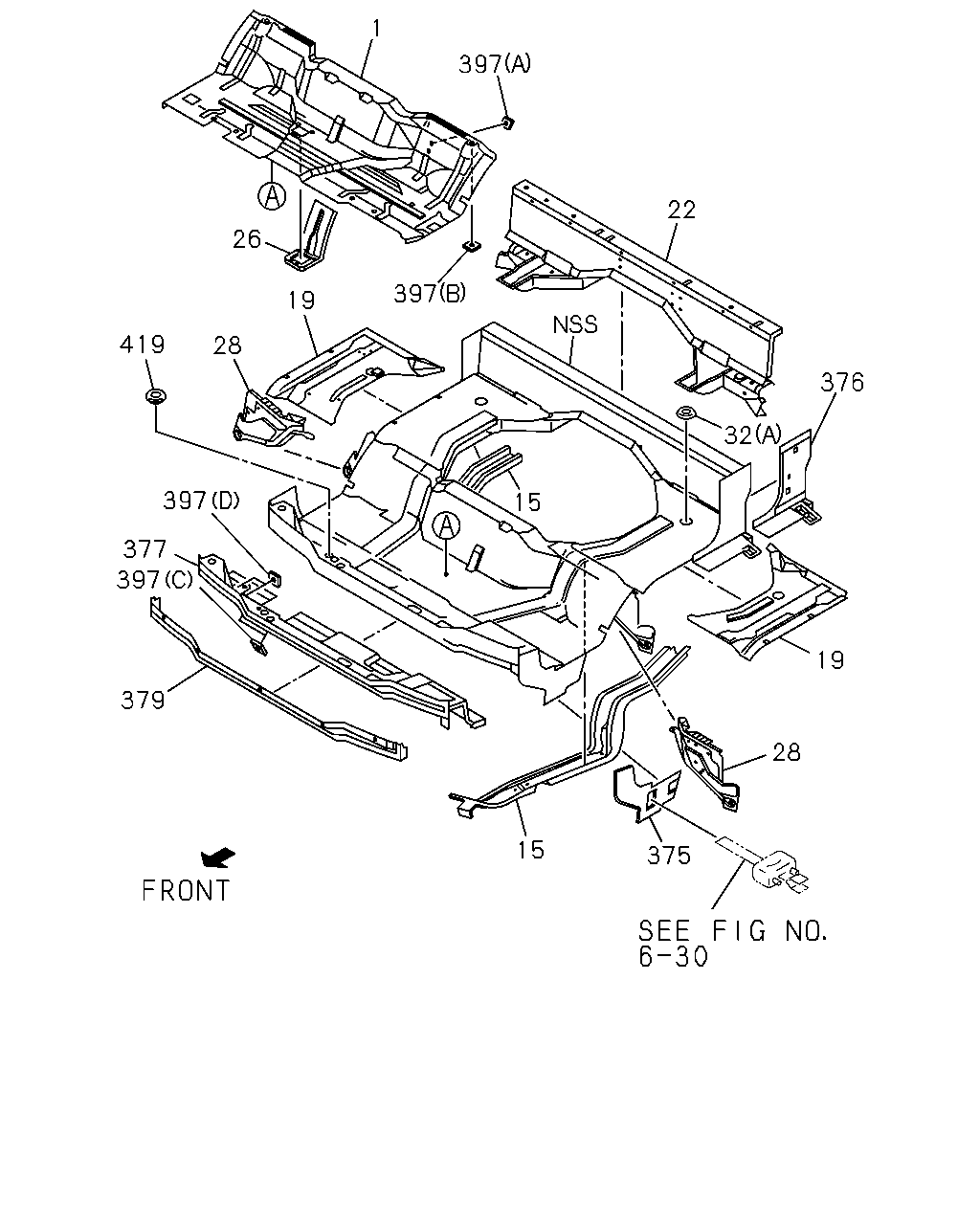

çizim 68422
1 397 22 26 397 19 419 28 376 32 397 15 377 397 19 379 28 15 375
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.545 PANEL; FLOOR 8-97850-332-5 01 1 9312-9406 ● ● ● ● ● ●
1 16.545 PANEL; FLOOR 8-97850-332-5 01 1 9407-9501 ● ● ● ● ● ●
1 16.545 PANEL; FLOOR
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-332-5 01 1 9502-9510 ● ● ● ● ● ●
1 16.545 PANEL; FLOOR
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-332-6 01 1 9511- ● ● ● ● ● ● ●
1 16.545 PANEL; FLOOR
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-510-6 01 1 9502-9801 ● ● ●
1 16.545 PANEL; FLOOR
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-510-6 01 1 9802- ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-060-9 01 1 9312-9501 ● ● ● ● ● ●
15 16.545 FRAME; UNDER
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-060-9 01 1 9502-9510 ● ● ● ● ● ●
15 16.545 FRAME; UNDER
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-060-9 01 1 9502-9510 ● ●
15 16.545 FRAME; UNDER
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-060-9 01 1 9511- ● ● ● ● ● ● ●
15 16.545 FRAME; UNDER
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-060-9 01 1 9511- ● ●
15 16.545 FRAME; UNDER 8-97850-059-9 01 1 9312-9501 ● ● ● ● ● ●
15 16.545 FRAME; UNDER
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-059-9 01 1 9502-9510 ● ● ● ● ● ●
15 16.545 FRAME; UNDER
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-059-9 01 1 9502-9510 ● ●
15 16.545 FRAME; UNDER
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-059-9 01 1 9511- ● ● ● ● ● ● ●
15 16.545 FRAME; UNDER
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-059-9 01 1 9511- ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-337-2 01 1 9312-9501 ● ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-337-2 01 1 9502-9510 ● ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-337-2 01 1 9502-9510 ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-337-4 01 1 9511- ● ● ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-337-4 01 1 9511- ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-335-2 01 1 9312-9501 ● ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-335-2 01 1 9502-9510 ● ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-335-2 01 1 9502-9510 ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-335-4 01 1 9511- ● ● ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-335-4 01 1 9511- ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-97850-345-4 01 1 9312-9501 ● ● ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-345-5 01 1 9502-9510 ● ● ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-345-6 01 1 9511- ● ● ● ● ●
22 16.545 FRAME; FLOOR REAR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-537-4 01 1 9312-9510 ● ● ● ●
22 16.545 FRAME; FLOOR REAR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-537-5 01 1 9511-9711 ● ● ● ● ●
22 16.545 FRAME; FLOOR REAR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-537-5 01 1 9712- ● ● ● ● ●
22 16.545 FRAME; FLOOR REAR 8-97850-383-7 01 1 9312- ● ●
26 16.545 PANEL; GEAR CONT REINF 8-97850-005-6 01 1 9312-9501 ● ● ● ● ● ●
26 16.545 PANEL; GEAR CONT REINF
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-005-6 01 1 9502-9510 ● ● ● ● ● ●
26 16.545 PANEL; GEAR CONT REINF
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-005-6 01 1 9502-9510 ● ●
26 16.545 PANEL; GEAR CONT REINF
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-005-6 01 1 9511- ● ● ● ● ● ● ●
26 16.545 PANEL; GEAR CONT REINF
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-005-6 01 1 9511- ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-339-2 01 1 9312-9403 ● ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-017-5 01 1 9404-9501 ● ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-017-5 01 1 9502-9510 ● ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-017-5 01 1 9502-9510 ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-017-7 01 1 9511- ● ● ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-017-7 01 1 9511- ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-338-3 01 1 9312-9501 ● ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-338-3 01 1 9502-9510 ● ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-338-3 01 1 9502-9510 ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-338-5 01 1 9511- ● ● ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-338-5 01 1 9511- ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
08.131 (A) OD=53.5 		8-94356-253-0 02 1 9312-9510 ● ● ● ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
08.131 (A) OD=53.5 		8-94356-253-0 02 1 9511- ● ● ● ● ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
15.222 (B) OD=35 		8-94122-971-0 04 1 9312- ● ●
375 16.545 CLOSING; PILLAR 8-97850-087-3 01 1 9312-9501 ● ● ● ● ● ●
375 16.545 CLOSING; PILLAR
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-087-3 01 1 9502-9510 ● ● ● ● ● ●
375 16.545 CLOSING; PILLAR
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-087-3 01 1 9502-9510 ● ●
375 16.545 CLOSING; PILLAR
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-087-3 01 1 9511- ● ● ● ● ● ● ●
375 16.545 CLOSING; PILLAR
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-087-3 01 1 9511- ● ●
375 16.545 CLOSING; PILLAR 8-97850-086-4 01 1 9312-9501 ● ● ● ● ● ●
375 16.545 CLOSING; PILLAR
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-086-4 01 1 9502-9510 ● ● ● ● ● ●
375 16.545 CLOSING; PILLAR
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-086-4 01 1 9502-9510 ● ●
375 16.545 CLOSING; PILLAR
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-086-4 01 1 9511- ● ● ● ● ● ● ●
375 16.545 CLOSING; PILLAR
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-086-4 01 1 9511- ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-024-5 01 1 9312-9501 ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-024-5 01 1 9502-9510 ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-024-5 01 1 9502-9510 ● ●
376 16.545 CLOSING; PILLAR,LWR
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-024-6 01 1 9511- ● ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-024-6 01 1 9511- ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-320-5 01 1 9312-9501 ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-320-5 01 1 9502-9510 ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-320-5 01 1 9502-9510 ● ●
376 16.545 CLOSING; PILLAR,LWR
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-320-6 01 1 9511- ● ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-320-6 01 1 9511- ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-187-3 01 1 9312- ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-186-3 01 1 9312- ● ●
377 16.545 RAIL ASM; MTG,FRT
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-351-7 01 1 9511- ● ● ● ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-350-5 01 1 9312-9501 ● ● ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-350-5 01 1 9502-9510 ● ● ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-691-0 01 1 9502-9510 ● ● ●
377 16.545 RAIL ASM; MTG,FRT
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-481-7 01 1 9511-9801 ● ● ●
377 16.545 RAIL ASM; MTG,FRT
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-481-7 01 1 9802- ● ● ● ●
379 16.545 PANEL 8-97850-050-2 01 1 9312-9501 ● ● ● ● ● ●
379 16.545 PANEL
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-050-2 01 1 9502-9510 ● ● ● ● ● ●
379 16.545 PANEL
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-050-2 01 1 9502-9510 ● ●
379 16.545 PANEL
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-050-2 01 1 9511- ● ● ● ● ● ● ●
379 16.545 PANEL
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-050-2 01 1 9511- ● ●
397 16.545 NUT; PIERCE
EXC. CHINA CHONGQING EQUIPMENT<R5B> (D) M10 		9-09114-030-0 03 1 9312- ● ● ● ● ● ● ●
397 16.545 NUT; PIERCE
EXC. CHINA CHONGQING EQUIPMENT<R5B> (A) M6 		9-09114-046-0 04 1 9312- ● ● ● ● ● ● ●
397 16.545 NUT; PIERCE
EXC. CHINA CHONGQING EQUIPMENT<R5B> 16.588 (B) M8 		9-09114-048-0 03 1 9312- ● ● ● ● ● ● ●
397 16.545 NUT; PIERCE
EXC. CHINA CHONGQING EQUIPMENT<R5B> 16.588 (C) M8 		9-09114-048-0 04 1 9312- ● ● ● ● ● ● ●
419 04.012 GROMMET; CONT SHAFT,FLOOR PANEL
EXC. PTO TRANSMISSION SIDE(V66) 16.802 OD=36 		1-09983-092-0 01 1 9407- ● ● ● ● ● ● ●

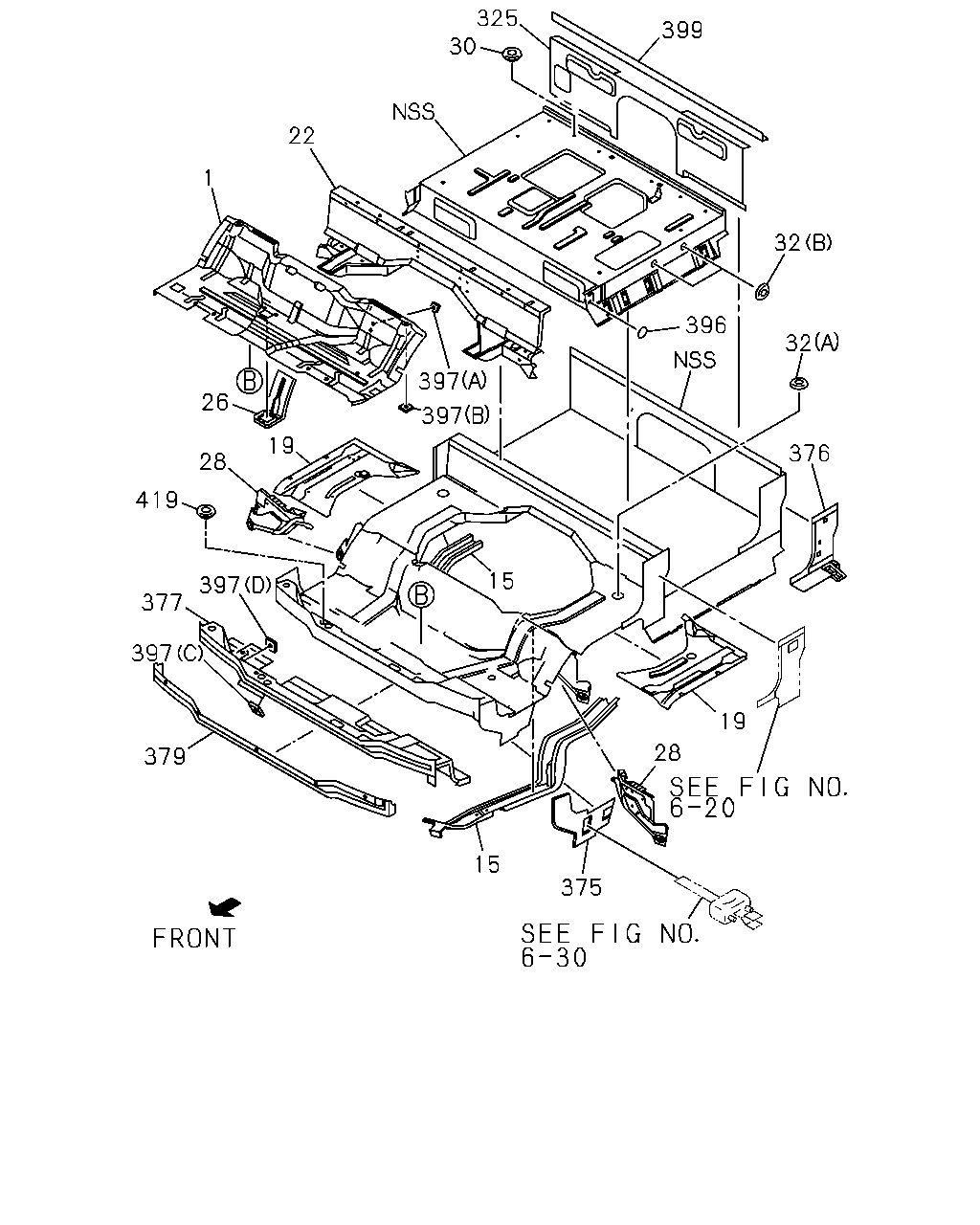

çizim 68455
325 30 399 22 1 32 396 32 397 26 397 19 376 28 419 15 397 377 397 19 28 379 15 375
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.545 PANEL; FLOOR 8-97850-332-5 01 1 9312-9406 ● ● ● ● ● ●
1 16.545 PANEL; FLOOR 8-97850-332-5 01 1 9407-9501 ● ● ● ● ● ●
1 16.545 PANEL; FLOOR
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-332-5 01 1 9502-9510 ● ● ● ● ● ●
1 16.545 PANEL; FLOOR
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-332-6 01 1 9511- ● ● ● ● ● ● ●
1 16.545 PANEL; FLOOR
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-510-6 01 1 9502-9801 ● ● ●
1 16.545 PANEL; FLOOR
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-510-6 01 1 9802- ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-060-9 01 1 9312-9501 ● ● ● ● ● ●
15 16.545 FRAME; UNDER
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-060-9 01 1 9502-9510 ● ● ● ● ● ●
15 16.545 FRAME; UNDER
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-060-9 01 1 9502-9510 ● ●
15 16.545 FRAME; UNDER
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-060-9 01 1 9511- ● ● ● ● ● ● ●
15 16.545 FRAME; UNDER
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-060-9 01 1 9511- ● ●
15 16.545 FRAME; UNDER 8-97850-059-9 01 1 9312-9501 ● ● ● ● ● ●
15 16.545 FRAME; UNDER
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-059-9 01 1 9502-9510 ● ● ● ● ● ●
15 16.545 FRAME; UNDER
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-059-9 01 1 9502-9510 ● ●
15 16.545 FRAME; UNDER
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-059-9 01 1 9511- ● ● ● ● ● ● ●
15 16.545 FRAME; UNDER
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-059-9 01 1 9511- ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-337-2 01 1 9312-9501 ● ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-337-2 01 1 9502-9510 ● ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-337-2 01 1 9502-9510 ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-337-4 01 1 9511- ● ● ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-337-4 01 1 9511- ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-335-2 01 1 9312-9501 ● ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-335-2 01 1 9502-9510 ● ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-335-2 01 1 9502-9510 ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-335-4 01 1 9511- ● ● ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-335-4 01 1 9511- ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-97850-345-4 01 1 9312-9501 ● ● ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-345-5 01 1 9502-9510 ● ● ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-345-6 01 1 9511- ● ● ● ● ●
22 16.545 FRAME; FLOOR REAR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-537-4 01 1 9312-9510 ● ● ● ●
22 16.545 FRAME; FLOOR REAR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-537-5 01 1 9511-9711 ● ● ● ● ●
22 16.545 FRAME; FLOOR REAR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-537-5 01 1 9712- ● ● ● ● ●
22 16.545 FRAME; FLOOR REAR 8-97850-383-7 01 1 9312- ● ●
26 16.545 PANEL; GEAR CONT REINF 8-97850-005-6 01 1 9312-9501 ● ● ● ● ● ●
26 16.545 PANEL; GEAR CONT REINF
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-005-6 01 1 9502-9510 ● ● ● ● ● ●
26 16.545 PANEL; GEAR CONT REINF
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-005-6 01 1 9502-9510 ● ●
26 16.545 PANEL; GEAR CONT REINF
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-005-6 01 1 9511- ● ● ● ● ● ● ●
26 16.545 PANEL; GEAR CONT REINF
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-005-6 01 1 9511- ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-339-2 01 1 9312-9403 ● ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-017-5 01 1 9404-9501 ● ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-017-5 01 1 9502-9510 ● ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-017-5 01 1 9502-9510 ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-017-7 01 1 9511- ● ● ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-017-7 01 1 9511- ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-338-3 01 1 9312-9501 ● ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-338-3 01 1 9502-9510 ● ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-338-3 01 1 9502-9510 ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-338-5 01 1 9511- ● ● ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-338-5 01 1 9511- ● ●
30 16.547 GROMMET; CAB MTG RAIL
OD=74 		8-94279-731-0 02 1 9312- ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
08.131 (A) OD=53.5 		8-94356-253-0 02 1 9312-9510 ● ● ● ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
08.131 (A) OD=53.5 		8-94356-253-0 02 1 9511- ● ● ● ● ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
15.222 (B) OD=35 		8-94122-971-0 04 1 9312- ● ●
325 16.545 REINFORCEMENT ASM; RR MTG 8-97850-189-9 01 1 9312-9404 ● ●
325 16.545 REINFORCEMENT ASM; RR MTG 8-97850-652-0 01 1 9405- ● ●
375 16.545 CLOSING; PILLAR 8-97850-087-3 01 1 9312-9501 ● ● ● ● ● ●
375 16.545 CLOSING; PILLAR
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-087-3 01 1 9502-9510 ● ● ● ● ● ●
375 16.545 CLOSING; PILLAR
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-087-3 01 1 9502-9510 ● ●
375 16.545 CLOSING; PILLAR
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-087-3 01 1 9511- ● ● ● ● ● ● ●
375 16.545 CLOSING; PILLAR
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-087-3 01 1 9511- ● ●
375 16.545 CLOSING; PILLAR 8-97850-086-4 01 1 9312-9501 ● ● ● ● ● ●
375 16.545 CLOSING; PILLAR
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-086-4 01 1 9502-9510 ● ● ● ● ● ●
375 16.545 CLOSING; PILLAR
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-086-4 01 1 9502-9510 ● ●
375 16.545 CLOSING; PILLAR
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-086-4 01 1 9511- ● ● ● ● ● ● ●
375 16.545 CLOSING; PILLAR
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-086-4 01 1 9511- ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-024-5 01 1 9312-9501 ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-024-5 01 1 9502-9510 ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-024-5 01 1 9502-9510 ● ●
376 16.545 CLOSING; PILLAR,LWR
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-024-6 01 1 9511- ● ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-024-6 01 1 9511- ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-320-5 01 1 9312-9501 ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-320-5 01 1 9502-9510 ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-320-5 01 1 9502-9510 ● ●
376 16.545 CLOSING; PILLAR,LWR
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-320-6 01 1 9511- ● ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-320-6 01 1 9511- ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-187-3 01 1 9312- ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-186-3 01 1 9312- ● ●
377 16.545 RAIL ASM; MTG,FRT
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-351-7 01 1 9511- ● ● ● ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-350-5 01 1 9312-9501 ● ● ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-350-5 01 1 9502-9510 ● ● ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-691-0 01 1 9502-9510 ● ● ●
377 16.545 RAIL ASM; MTG,FRT
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-481-7 01 1 9511-9801 ● ● ●
377 16.545 RAIL ASM; MTG,FRT
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-481-7 01 1 9802- ● ● ● ●
379 16.545 PANEL 8-97850-050-2 01 1 9312-9501 ● ● ● ● ● ●
379 16.545 PANEL
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-050-2 01 1 9502-9510 ● ● ● ● ● ●
379 16.545 PANEL
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-050-2 01 1 9502-9510 ● ●
379 16.545 PANEL
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97850-050-2 01 1 9511- ● ● ● ● ● ● ●
379 16.545 PANEL
CHINA CHONGQING EQUIPMENT<R5B> EXC. MANUAL TILT CAB<RWZ> 		8-97850-050-2 01 1 9511- ● ●
396 16.547 GROMMET; LOCATION HOLE 1-09983-049-0 02 1 9312- ● ●
397 16.545 NUT; PIERCE
EXC. CHINA CHONGQING EQUIPMENT<R5B> (D) M10 		9-09114-030-0 03 1 9312- ● ● ● ● ● ● ●
397 16.545 NUT; PIERCE
EXC. CHINA CHONGQING EQUIPMENT<R5B> (A) M6 		9-09114-046-0 04 1 9312- ● ● ● ● ● ● ●
397 16.545 NUT; PIERCE
EXC. CHINA CHONGQING EQUIPMENT<R5B> 16.588 (B) M8 		9-09114-048-0 03 1 9312- ● ● ● ● ● ● ●
397 16.545 NUT; PIERCE
EXC. CHINA CHONGQING EQUIPMENT<R5B> 16.588 (C) M8 		9-09114-048-0 04 1 9312- ● ● ● ● ● ● ●
399 16.545 PANEL; EXTENSION,RR MTG RAIL 8-97850-170-2 01 1 9312- ● ●
419 04.012 GROMMET; CONT SHAFT,FLOOR PANEL
EXC. PTO TRANSMISSION SIDE(V66) 16.802 OD=36 		1-09983-092-0 01 1 9407- ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
