◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50695 - NKR-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-60 - ROOF PANEL ▶
6-60 — ROOF PANEL (#44323) — 71 parça

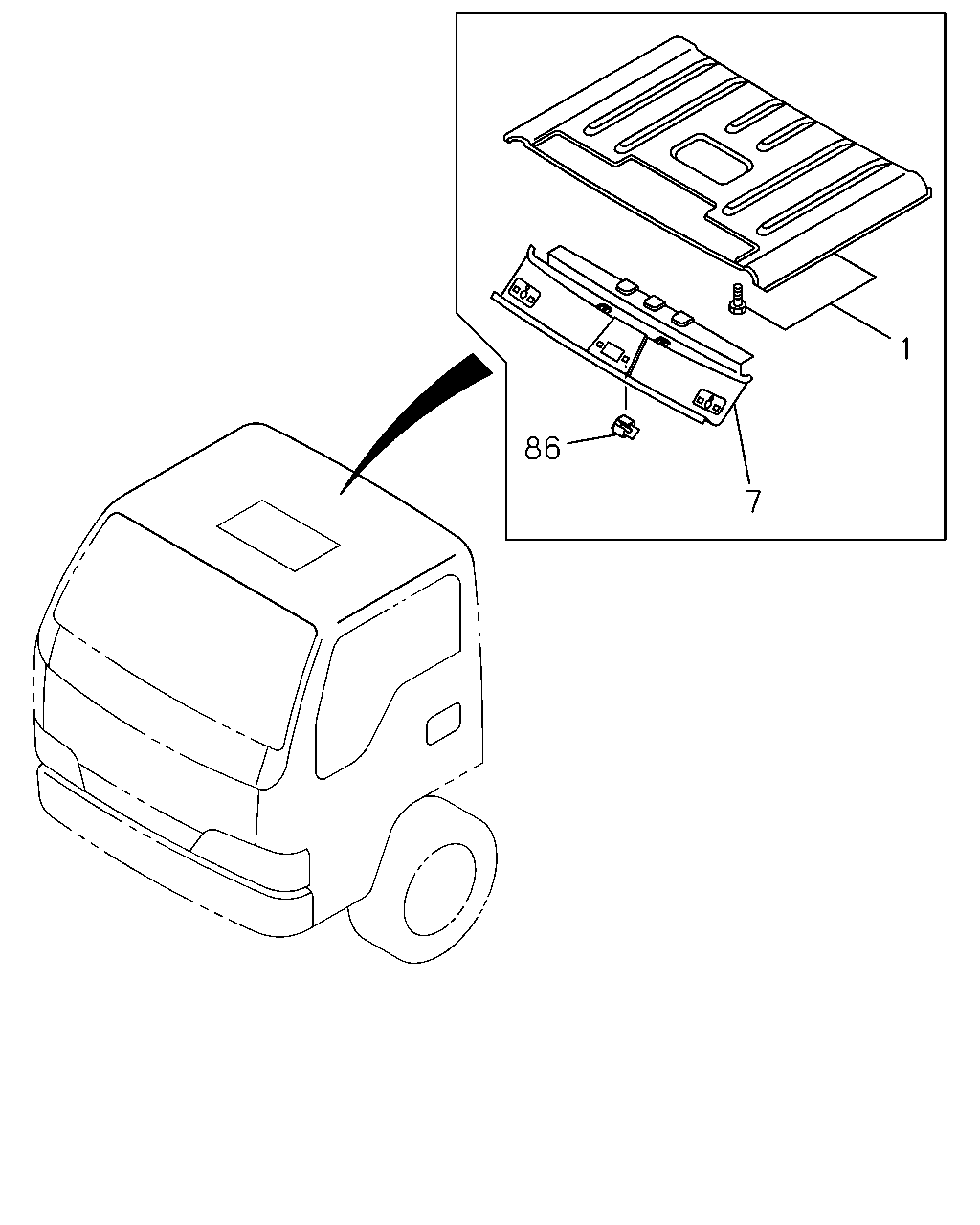

çizim 16959
1 86 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> 		8-97851-109-1 01 1 9312-9510 ● ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> 		8-97851-109-1 01 1 9511-9602 ● ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> EXC. CAB-LOW ROOF<6XQ> 		8-97851-109-1 01 1 9511-9602 ● ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> EXC. CAB-LOW ROOF<6XQ> 		8-97851-109-1 01 1 9603- ● ● ● ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-369-0 01 1 9312-9510 ● ● ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,CAB-LOW ROOF<6XQ>,TRAY ROOF HEAD<7EJ> 		8-97851-369-0 01 1 9511- ● ● ● ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-450-0 01 1 9312-9510 ● ● ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-450-0 01 1 9511-9602 ● ● ● ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>,CAB-LOW ROOF<6XQ> 		8-97851-450-0 01 1 9603- ● ● ● ● ●
1 16.585 PANEL; ROOF
CHINA CHONGQING EQUIPMENT<R5B> EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97850-694-0 01 1 9502-9801 ●
1 16.585 PANEL; ROOF
CHINA CHONGQING EQUIPMENT<R5B> EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97850-694-0 01 1 9802- ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> 		8-97851-378-4 01 1 9312- ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-266-2 01 1 9312-9501 ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,CHINA CHONGQING EQUIPMENT<R5B>,TRAY ROOF HEAD<7EJ> 		8-97851-266-4 01 1 9502-9801 ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,CHINA CHONGQING EQUIPMENT<R5B>,TRAY ROOF HEAD<7EJ> 		8-97851-266-4 01 1 9802- ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-451-2 01 1 9312-9501 ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>,CHINA CHONGQING EQUIPMENT<R5B> 		8-97851-451-4 01 1 9502-9801 ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>,CHINA CHONGQING EQUIPMENT<R5B> 		8-97851-451-4 01 1 9802- ● ●
1 16.585 PANEL; ROOF
CAB-LOW ROOF<6XQ> 		8-97851-046-1 01 1 9511-9604 ●
1 16.585 PANEL; ROOF
CAB-LOW ROOF<6XQ> 		8-97851-046-1 01 1 9605-9711 ● ●
1 16.585 PANEL; ROOF
CAB-LOW ROOF<6XQ> 		8-97851-046-1 01 1 9712- ●
7 16.585 PANEL; FRT WINDSHIELD UPR 8-97851-281-4 01 1 9312-9510 ● ● ● ● ● ●
7 16.585 PANEL; FRT WINDSHIELD UPR
EXC. CAB-LOW ROOF<6XQ> 		8-97851-281-4 01 1 9511-9604 ● ● ● ● ● ● ●
7 16.585 PANEL; FRT WINDSHIELD UPR
EXC. CAB-LOW ROOF<6XQ> 		8-97859-530-0 01 1 9605- ● ● ● ● ● ● ●
7 16.585 PANEL; FRT WINDSHIELD UPR
CAB-LOW ROOF<6XQ> 		8-97851-209-5 01 1 9511-9604 ●
7 16.585 PANEL; FRT WINDSHIELD UPR
CAB-LOW ROOF<6XQ> 		8-97859-529-0 01 1 9605-9711 ● ●
7 16.585 PANEL; FRT WINDSHIELD UPR
CAB-LOW ROOF<6XQ> 		8-97859-529-0 01 1 9712- ●
86 16.585 NUT; ROOF
16.069 M5 		8-94279-075-1 01 1 9312-9510 ● ● ● ● ● ●
86 16.585 NUT; ROOF
16.069 M5 		8-94279-075-1 01 1 9511- ● ● ● ● ● ● ●

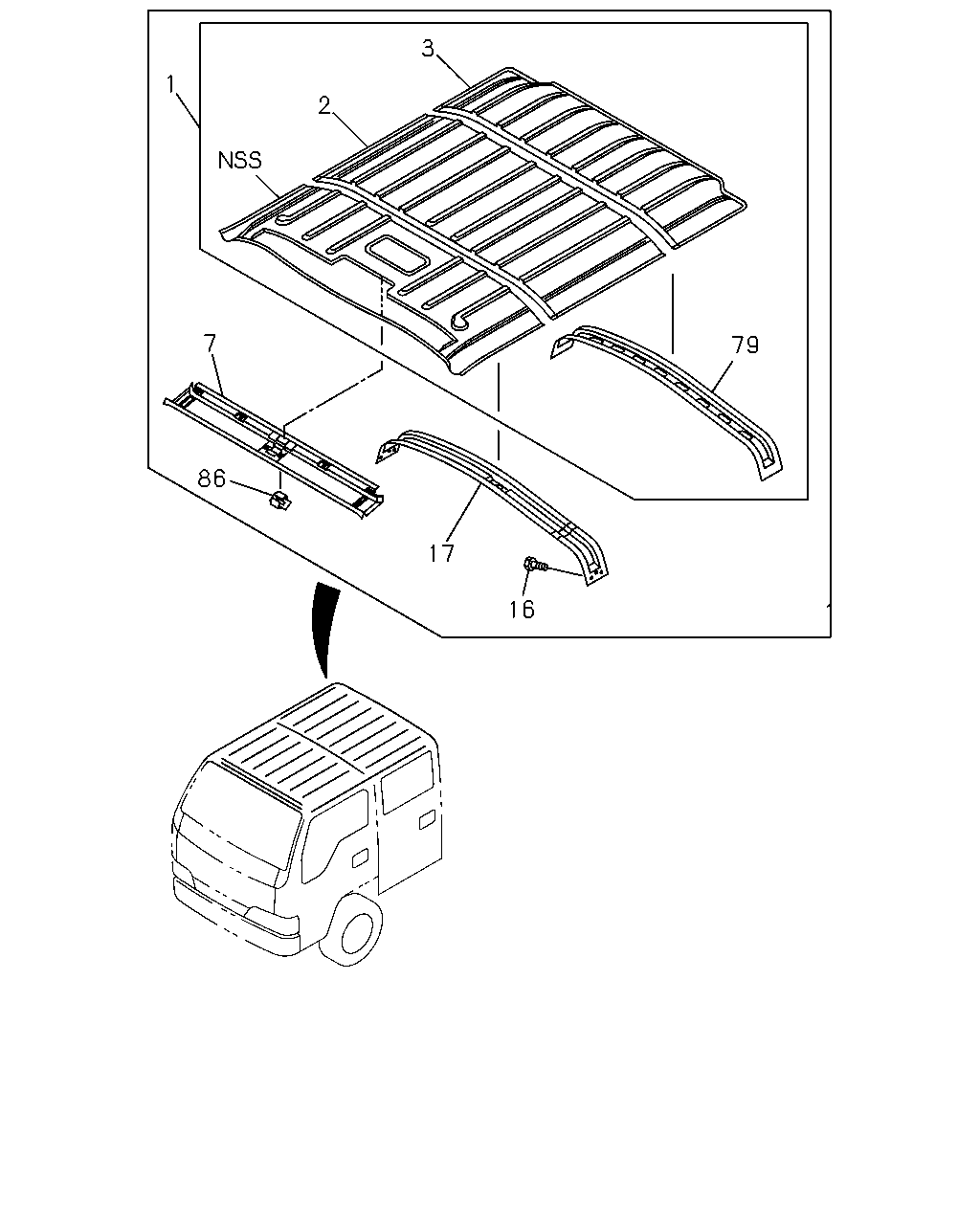

çizim 70482
3 1 2 7 79 86 17 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> 		8-97851-109-1 01 1 9312-9510 ● ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> 		8-97851-109-1 01 1 9511-9602 ● ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> EXC. CAB-LOW ROOF<6XQ> 		8-97851-109-1 01 1 9511-9602 ● ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> EXC. CAB-LOW ROOF<6XQ> 		8-97851-109-1 01 1 9603- ● ● ● ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-369-0 01 1 9312-9510 ● ● ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,CAB-LOW ROOF<6XQ>,TRAY ROOF HEAD<7EJ> 		8-97851-369-0 01 1 9511- ● ● ● ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-450-0 01 1 9312-9510 ● ● ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-450-0 01 1 9511-9602 ● ● ● ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>,CAB-LOW ROOF<6XQ> 		8-97851-450-0 01 1 9603- ● ● ● ● ●
1 16.585 PANEL; ROOF
CHINA CHONGQING EQUIPMENT<R5B> EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97850-694-0 01 1 9502-9801 ●
1 16.585 PANEL; ROOF
CHINA CHONGQING EQUIPMENT<R5B> EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97850-694-0 01 1 9802- ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> 		8-97851-378-4 01 1 9312- ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-266-2 01 1 9312-9501 ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,CHINA CHONGQING EQUIPMENT<R5B>,TRAY ROOF HEAD<7EJ> 		8-97851-266-4 01 1 9502-9801 ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,CHINA CHONGQING EQUIPMENT<R5B>,TRAY ROOF HEAD<7EJ> 		8-97851-266-4 01 1 9802- ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-451-2 01 1 9312-9501 ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>,CHINA CHONGQING EQUIPMENT<R5B> 		8-97851-451-4 01 1 9502-9801 ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>,CHINA CHONGQING EQUIPMENT<R5B> 		8-97851-451-4 01 1 9802- ● ●
1 16.585 PANEL; ROOF
CAB-LOW ROOF<6XQ> 		8-97851-046-1 01 1 9511-9604 ●
1 16.585 PANEL; ROOF
CAB-LOW ROOF<6XQ> 		8-97851-046-1 01 1 9605-9711 ● ●
1 16.585 PANEL; ROOF
CAB-LOW ROOF<6XQ> 		8-97851-046-1 01 1 9712- ●
2 16.585 PANEL; ROOF,CENTER 8-97851-264-1 01 1 9312-9801 ● ●
2 16.585 PANEL; ROOF,CENTER
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>,CHINA CHONGQING EQUIPMENT<R5B> 		8-97851-264-1 01 1 9802- ● ●
2 16.585 PANEL; ROOF,CENTER
ROOF VENTILATOR<C55> 		8-97851-264-1 01 1 9802- ● ●
2 16.585 PANEL; ROOF,CENTER
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-264-1 01 1 9802- ● ●
3 16.585 PANEL; ROOF,RR 8-97851-265-3 01 1 9312-9801 ● ●
3 16.585 PANEL; ROOF,RR
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>,CHINA CHONGQING EQUIPMENT<R5B> 		8-97851-265-3 01 1 9802- ● ●
3 16.585 PANEL; ROOF,RR
ROOF VENTILATOR<C55> 		8-97851-265-3 01 1 9802- ● ●
3 16.585 PANEL; ROOF,RR
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-265-3 01 1 9802- ● ●
7 16.585 PANEL; FRT WINDSHIELD UPR 8-97851-281-4 01 1 9312-9510 ● ● ● ● ● ●
7 16.585 PANEL; FRT WINDSHIELD UPR
EXC. CAB-LOW ROOF<6XQ> 		8-97851-281-4 01 1 9511-9604 ● ● ● ● ● ● ●
7 16.585 PANEL; FRT WINDSHIELD UPR
EXC. CAB-LOW ROOF<6XQ> 		8-97859-530-0 01 1 9605- ● ● ● ● ● ● ●
7 16.585 PANEL; FRT WINDSHIELD UPR
CAB-LOW ROOF<6XQ> 		8-97851-209-5 01 1 9511-9604 ●
7 16.585 PANEL; FRT WINDSHIELD UPR
CAB-LOW ROOF<6XQ> 		8-97859-529-0 01 1 9605-9711 ● ●
7 16.585 PANEL; FRT WINDSHIELD UPR
CAB-LOW ROOF<6XQ> 		8-97859-529-0 01 1 9712- ●
16 16.585 SCREW; ROOF SUPPORT
16.085 M6X16 W/LK&PL WASHER 		1-09981-141-0 04 1 9312- ● ●
17 16.570 REINFORCEMENT; ROOF PNL CENTER 8-97853-628-2 01 1 9312- ● ●
79 16.570 REINFORCEMENT; ROOF PANEL,RR 8-97851-410-0 01 1 9312-9801 ● ●
79 16.570 REINFORCEMENT; ROOF PANEL,RR
ROOF VENTILATOR<C55> 		8-97851-410-0 01 1 9802- ● ●
79 16.570 REINFORCEMENT; ROOF PANEL,RR
EXC. ROOF VENTILATOR<C55>,CHINA CHONGQING EQUIPMENT<R5B> 		8-97851-410-0 01 1 9802- ● ●
86 16.585 NUT; ROOF
16.069 M5 		8-94279-075-1 01 1 9312-9510 ● ● ● ● ● ●
86 16.585 NUT; ROOF
16.069 M5 		8-94279-075-1 01 1 9511- ● ● ● ● ● ● ●
