2-37B — MANUAL TRANSMISSION CONT; MISSION SIDE (#4432) — 412 parça

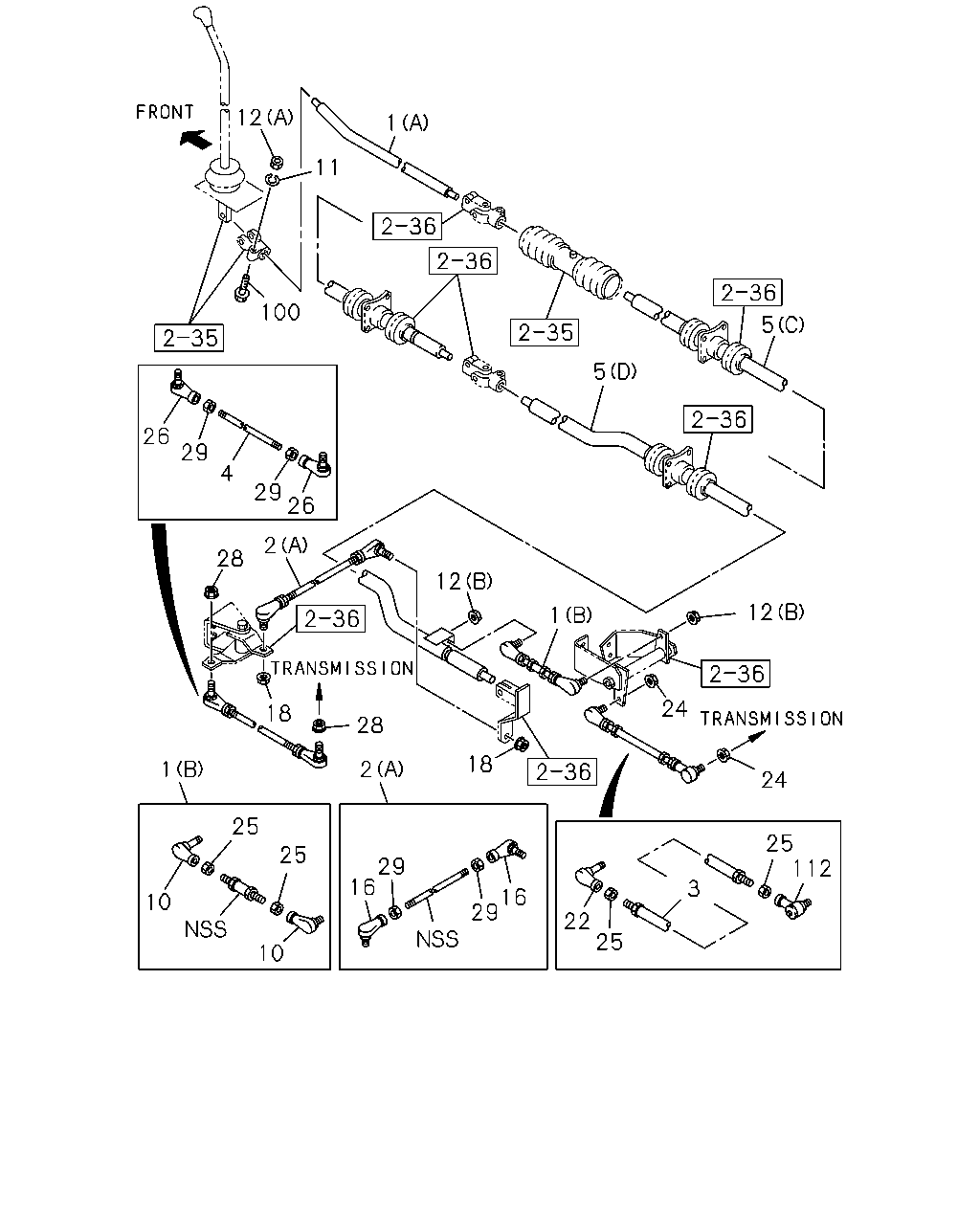

çizim 4974
12 1 11 100 5 5 26 29 4 29 26 2 28 12 12 1 24 18 28 18 1 2 24 25 25 112 25 29 16 3 16 29 10 22 25 10
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 ROD; LINK,1ST SHIFT
(A) L=1846 		1-33652-747-1 01 1 9505-9705 ● ● ●
1 ROD; LINK,1ST SHIFT
EXC. CENTER SPLIT TYPE FRAME<TLW> (A) L=1846 		1-33652-747-1 01 1 9706-9805 ● ● ● ●
1 ROD; LINK,1ST SHIFT
EXC. CENTER SPLIT TYPE FRAME<TLW> (A) L=1846 		1-33652-747-1 01 1 9806- ● ● ● ● ●
1 ROD; LINK,1ST SHIFT
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) L=1866 		1-33652-404-0 01 1 9101-9504 ● ● ●
1 ROD; LINK,1ST SHIFT
(B) L=383 		1-33670-552-2 01 1 9505-9706 ● ● ●
1 ROD; LINK,1ST SHIFT
(B) L=383 		1-33670-552-2 01 1 9703-9805 ● ● ● ●
1 ROD; LINK,1ST SHIFT
(B) L=383 		1-33670-552-2 01 1 9806-0106 ● ● ● ● ●
1 ROD; LINK,1ST SHIFT
(B) L=383 		1-33671-821-1 01 1 0107- ● ● ● ● ●
1 ROD; LINK,1ST SHIFT
CENTER SPLIT TYPE FRAME<TLW> (A) L=1465 		1-33652-786-0 01 1 9706-9805 ● ● ● ●
1 ROD; LINK,1ST SHIFT
CENTER SPLIT TYPE FRAME<TLW> (A) L=1465 		1-33652-786-0 01 1 9806- ● ● ● ● ●
1 ROD; LINK,1ST SHIFT
CENTER SPLIT TYPE FRAME<TLW> (C) L=320 		1-33671-137-0 01 1 9706-9805 ● ● ● ●
1 ROD; LINK,1ST SHIFT
CENTER SPLIT TYPE FRAME<TLW> (C) L=320 		1-33671-137-0 02 1 9806- ● ● ● ● ●
1 ROD; LINK,1ST SHIFT
CENTER SPLIT TYPE FRAME<TLW> (D) L=320 		1-33671-138-0 01 1 9706-9805 ● ● ● ●
1 ROD; LINK,1ST SHIFT
CENTER SPLIT TYPE FRAME<TLW> (D) L=320 		1-33671-138-0 02 1 9806- ● ● ● ● ●
2 ROD; LINK,1ST SELECT
(A) 		1-33670-554-1 01 1 9505-9805 ● ● ●
2 ROD; LINK,1ST SELECT
(A) 		1-33670-554-1 01 1 9806-0106 ● ● ● ●
2 ROD; LINK,1ST SELECT
(A) 		1-33671-822-1 01 1 0107- ● ● ● ●
2 ROD; LINK,1ST SELECT
CENTER SPLIT TYPE FRAME<TLW> (B) 		1-33671-139-0 02 1 9706-9805 ● ● ● ●
2 ROD; LINK,1ST SELECT
CENTER SPLIT TYPE FRAME<TLW> (B) 		1-33671-139-0 02 1 9806- ● ● ● ● ●
2 ROD; LINK,1ST SELECT
(A) 		1-33671-019-0 01 1 9702-0106 ●
2 ROD; LINK,1ST SELECT
(A) 		1-33671-823-1 01 1 0107- ●
3 ROD; LINK,2ND SHIFT
L=370 		8-94300-307-0 01 1 9505-9701 ● ● ●
3 ROD; LINK,2ND SHIFT
L=370 		8-94300-307-0 01 1 9702-9805 ● ● ● ●
3 ROD; LINK,2ND SHIFT
L=370 		8-94300-307-0 01 1 9806- ● ● ● ● ●
4 ROD; LINK,2ND SELECT
L=390 		1-33652-634-0 01 1 9505-9805 ● ● ●
4 ROD; LINK,2ND SELECT
L=390 		1-33652-634-0 01 1 9806- ● ● ● ●
4 ROD; LINK,2ND SELECT
L=567 		1-33652-256-0 01 1 9702- ●
5 ROD; LINK,3RD SHIFT
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) L=2293 		1-33652-414-0 01 1 9101-9504 ● ● ●
5 ROD; LINK,3RD SHIFT
(D) L=2386 		1-33652-750-0 01 1 9505-9705 ● ● ●
5 ROD; LINK,3RD SHIFT
EXC. CENTER SPLIT TYPE FRAME<TLW> (D) L=2386 		1-33652-750-0 01 1 9706-9805 ● ● ●
5 ROD; LINK,3RD SHIFT
EXC. CENTER SPLIT TYPE FRAME<TLW> (D) L=2386 		1-33652-750-0 01 1 9806- ● ● ● ●
5 ROD; LINK,3RD SHIFT
WHEEL BASE 5000MM(50W) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) L=2677 		1-33652-411-0 01 1 9101-9504 ●
5 ROD; LINK,3RD SHIFT
WHEEL BASE 5000MM(50W) (C) L=2629 		1-33652-751-0 01 1 9505-9805 ● ● ● ●
5 ROD; LINK,3RD SHIFT
WHEEL BASE 5000MM(50W) (C) L=2629 		1-33652-751-0 01 1 9806- ● ● ● ● ●
5 ROD; LINK,3RD SHIFT
WHEEL BASE 5000MM(50W) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) L=2792 		1-33652-183-0 01 1 9101-9504 ●
5 ROD; LINK,3RD SHIFT
WHEEL BASE 5700MM(57W) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) L=3377 		1-33652-495-0 01 1 9101-9504 ●
5 ROD; LINK,3RD SHIFT
WHEEL BASE 5700MM(57W) (C) L=3329 		1-33652-752-0 01 1 9505-9705 ● ● ● ●
5 ROD; LINK,3RD SHIFT
WHEEL BASE 5700MM(57W) EXC. CENTER SPLIT TYPE FRAME<TLW> (C) L=3329 		1-33652-752-0 01 1 9706-9805 ● ● ● ●
5 ROD; LINK,3RD SHIFT
WHEEL BASE 5700MM(57W) EXC. CENTER SPLIT TYPE FRAME<TLW> (C) L=3329 		1-33652-752-0 01 1 9806- ● ● ● ● ●
5 ROD; LINK,3RD SHIFT
CENTER SPLIT TYPE FRAME<TLW> (C) L=850 		1-33652-787-0 01 1 9706-9805 ● ● ● ●
5 ROD; LINK,3RD SHIFT
CENTER SPLIT TYPE FRAME<TLW> (C) L=850 		1-33652-787-0 01 1 9806- ● ● ● ● ●
5 ROD; LINK,3RD SHIFT
CENTER SPLIT TYPE FRAME<TLW> (D) L=1695 		1-33652-788-0 01 1 9706-9805 ● ● ● ●
5 ROD; LINK,3RD SHIFT
CENTER SPLIT TYPE FRAME<TLW> (D) L=1695 		1-33652-788-0 01 1 9806- ● ● ● ● ●
5 ROD; LINK,3RD SHIFT
(D) L=2386 		1-33652-773-0 01 1 9702-9705 ●
5 ROD; LINK,3RD SHIFT
EXC. CENTER SPLIT TYPE FRAME<TLW> (D) L=2386 		1-33652-773-0 01 1 9706-9805 ●
5 ROD; LINK,3RD SHIFT
EXC. CENTER SPLIT TYPE FRAME<TLW> (D) L=2386 		1-33652-773-0 01 1 9806- ●
10 JOINT ASM; BALL,SELECT ROD
RH THREAD 		1-09760-078-0 02 1 9505-9706 ● ● ●
10 JOINT ASM; BALL,SELECT ROD
RH THREAD 		1-09760-078-0 02 1 9707-9805 ● ● ● ●
10 JOINT ASM; BALL,SELECT ROD
RH THREAD 		1-09760-078-0 02 1 9806-0106 ● ● ● ● ●
10 JOINT ASM; BALL,SELECT ROD
RH THREAD 		1-09760-116-0 01 1 0107- ● ● ● ● ●
10 JOINT ASM; BALL,SELECT ROD
CENTER SPLIT TYPE FRAME<TLW> RH THREAD 		1-09760-124-0 04 1 9706-9805 ● ● ● ●
10 JOINT ASM; BALL,SELECT ROD
CENTER SPLIT TYPE FRAME<TLW> RH THREAD 		1-09760-124-0 04 1 9806- ● ● ● ● ●
10 JOINT ASM; BALL,SELECT ROD
LH THREAD 		1-09760-115-0 01 1 0107- ● ● ● ● ●
11 WASHER; LK,1ST LINK ROD,SHIFT
ID=10.2 		9-09150-610-0 01 1 9101-9504 ● ● ●
11 WASHER; LK,1ST LINK ROD,SHIFT
ID=10.2 		9-09150-610-0 01 1 9505-9606 ● ● ●
11 WASHER; LK,1ST LINK ROD,SHIFT
ID=10.2 		9-09150-510-0 01 1 9702-9805 ● ● ● ●
11 WASHER; LK,1ST LINK ROD,SHIFT
ID=10.2 		9-09150-510-0 01 1 9806-0603 ● ● ● ● ●
11 WASHER; LK,1ST LINK ROD,SHIFT
ID=10.2 		0-91510-510-0 01 1 0604- ● ● ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
(C) M10 		9-09110-510-0 01 1 9101-9504 ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
(B) 		1-09440-050-0 02 1 9505-9710 ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
(B) M10 FLANGE 		1-09440-056-0 02 1 9711-0203 ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
(B) M10 FLANGE 		1-09440-056-0 02 1 0204- ● ● ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
(A) M10 FLANGE 		0-91150-210-0 01 1 9607-9701 ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
(A) M10 		9-09110-510-0 01 1 9702-9805 ● ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
(A) M10 		9-09110-510-0 01 1 9806-0512 ● ● ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
(A) M10 		0-91110-510-0 01 1 0601- ● ● ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
CENTER SPLIT TYPE FRAME<TLW> (B) M10 FLANGE 		1-09440-056-0 04 1 9706-9805 ● ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
CENTER SPLIT TYPE FRAME<TLW> (B) M10 FLANGE 		1-09440-056-0 08 1 9806- ● ● ● ● ●
16 JOINT ASM; BALL,CONT ROD
RH THREAD 		1-09760-078-0 02 1 9505-9805 ● ● ●
16 JOINT ASM; BALL,CONT ROD
RH THREAD 		1-09760-078-0 02 1 9806-0106 ● ● ● ●
16 JOINT ASM; BALL,CONT ROD
RH THREAD 		1-09760-116-0 01 1 0107-0203 ● ● ● ●
16 JOINT ASM; BALL,CONT ROD
RH THREAD 		1-09760-116-0 01 1 0204- ● ● ● ● ●
16 JOINT ASM; BALL,CONT ROD
CENTER SPLIT TYPE FRAME<TLW> RH THREAD 		1-09760-124-0 04 1 9706-9805 ● ● ● ●
16 JOINT ASM; BALL,CONT ROD
CENTER SPLIT TYPE FRAME<TLW> RH THREAD 		1-09760-124-0 04 1 9806- ● ● ● ● ●
16 JOINT ASM; BALL,CONT ROD 1-09760-110-0 02 1 9702-9706 ●
16 JOINT ASM; BALL,CONT ROD 1-09760-110-0 02 1 9706-0106 ●
16 JOINT ASM; BALL,CONT ROD
LH THREAD 		1-09760-115-0 01 1 0107-0203 ● ● ● ●
16 JOINT ASM; BALL,CONT ROD
LH THREAD 		1-09760-115-0 01 1 0204- ● ● ● ● ●
18 NUT; 1ST LINK ROD
M10 FLANGE 		1-09440-050-0 02 1 9505-9706 ● ● ●
18 NUT; 1ST LINK ROD
M10 FLANGE 		1-09440-050-0 02 1 9707-9710 ● ● ● ●
18 NUT; 1ST LINK ROD
M10 FLANGE 		1-09440-056-0 02 1 9706-9805 ● ● ● ●
18 NUT; 1ST LINK ROD
M10 FLANGE 		1-09440-056-0 02 1 9806- ● ● ● ● ●
18 NUT; 1ST LINK ROD
CENTER SPLIT TYPE FRAME<TLW> M10 FLANGE 		1-09440-056-0 04 1 9706-9805 ● ● ● ●
18 NUT; 1ST LINK ROD
CENTER SPLIT TYPE FRAME<TLW> M10 FLANGE 		1-09440-056-0 04 1 9806- ● ● ● ● ●
22 JOINT; BALL,SCREW,LINK ROD 1-09760-078-0 01 1 9505-9805 ● ● ●
22 JOINT; BALL,SCREW,LINK ROD 1-09760-078-0 01 1 9806- ● ● ● ●
22 JOINT; BALL,SCREW,LINK ROD 1-09760-110-0 01 1 9702- ●
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-050-0 02 1 9505-9706 ● ● ●
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-050-0 02 1 9707-9710 ● ● ● ●
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-056-0 02 1 9711-9805 ● ● ● ●
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-056-0 02 1 9806- ● ● ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 04 1 9505-9701 ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 04 1 9702-9805 ● ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 04 1 9806-0106 ● ● ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 0107-0203 ● ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 0204-0512 ● ● ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
M10 		0-91111-510-0 02 1 0601- ● ● ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
M12 LH THREAD 		9-09840-247-1 01 1 0107- ● ● ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 01 1 0107-0512 ● ● ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
M12 		0-91111-512-0 01 1 0601- ● ● ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
CENTER SPLIT TYPE FRAME<TLW> M10 		9-09111-410-0 08 1 9706-9805 ● ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
CENTER SPLIT TYPE FRAME<TLW> M10 		9-09111-410-0 08 1 9806-0512 ● ● ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
CENTER SPLIT TYPE FRAME<TLW> M10 		0-91111-510-0 08 1 0601- ● ● ● ● ●
26 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-078-0 02 1 9505-9805 ● ● ●
26 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-078-0 02 1 9806- ● ● ● ●
26 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-110-0 02 1 9702- ●
28 NUT; 2ND LINK ROD
M10 FLANGE 		1-09440-050-0 02 1 9505-9706 ● ● ●
28 NUT; 2ND LINK ROD
M10 FLANGE 		1-09440-050-0 02 1 9707-9710 ● ● ● ●
28 NUT; 2ND LINK ROD
M10 FLANGE 		1-09440-056-0 02 1 9711-9805 ● ● ● ●
28 NUT; 2ND LINK ROD
M10 FLANGE 		1-09440-056-0 02 1 9806- ● ● ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 04 1 9505-9701 ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 04 1 9702-9705 ● ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
CENTER SPLIT TYPE FRAME<TLW> M10 		9-09111-410-0 04 1 9706-9805 ● ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 04 1 9706-9805 ● ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
CENTER SPLIT TYPE FRAME<TLW> M10 		9-09111-410-0 04 1 9806-0106 ● ● ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 04 1 9806-0106 ● ● ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
CENTER SPLIT TYPE FRAME<TLW> M10 		9-09111-410-0 04 1 0107-0512 ● ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
CENTER SPLIT TYPE FRAME<TLW> M10 		0-91111-510-0 04 1 0601- ● ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 0107-0203 ● ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 0204-0512 ● ● ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M10 		0-91111-510-0 02 1 0601- ● ● ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M12 LH THREAD 		9-09840-247-1 01 1 0107-0203 ● ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M12 LH THREAD 		9-09840-247-1 01 1 0204- ● ● ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 01 1 0107-0203 ● ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 01 1 0204-0512 ● ● ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M12 		0-91111-512-0 01 1 0601- ● ● ● ● ●
100 BOLT; CONT ROD
M10X47 		1-09029-025-0 01 1 9101-9504 ● ● ●
100 BOLT; CONT ROD
M10X47 		1-09029-025-0 01 1 9505-9706 ● ● ●
100 BOLT; CONT ROD
M10X47 		1-09029-025-0 01 1 9707-9805 ● ● ● ●
100 BOLT; CONT ROD
M10X47 		1-09029-025-0 01 1 9806-9806 ● ● ● ● ●
100 BOLT; CONT ROD
M10X47 		1-09029-025-0 01 1 9806- ● ● ● ● ●
112 JOINT; RUBBER 1-33660-157-1 01 1 9505-9701 ● ● ●
112 JOINT; RUBBER 1-33660-157-2 01 1 9702-9805 ● ● ● ●
112 JOINT; RUBBER 1-33660-157-2 01 1 9806- ● ● ● ● ●

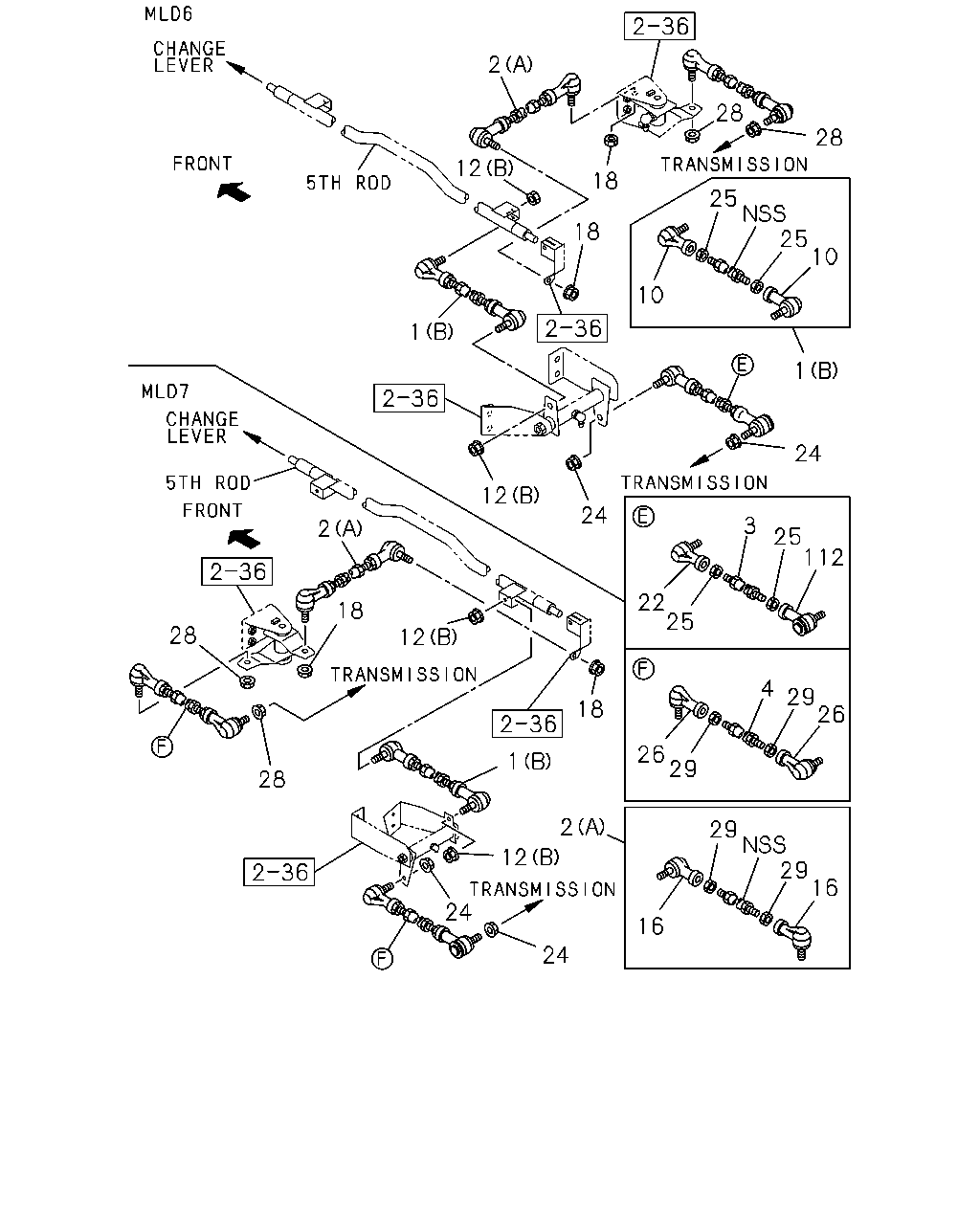

çizim 6379
2 28 28 12 18 25 25 10 18 10 1 1 24 12 24 3 2 25 112 22 25 18 28 12 4 29 26 18 26 29 1 28 2 29 29 16 12 24 16 24
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 ROD; LINK,1ST SHIFT
(A) L=1846 		1-33652-747-1 01 1 9505-9705 ● ● ●
1 ROD; LINK,1ST SHIFT
EXC. CENTER SPLIT TYPE FRAME<TLW> (A) L=1846 		1-33652-747-1 01 1 9706-9805 ● ● ● ●
1 ROD; LINK,1ST SHIFT
EXC. CENTER SPLIT TYPE FRAME<TLW> (A) L=1846 		1-33652-747-1 01 1 9806- ● ● ● ● ●
1 ROD; LINK,1ST SHIFT
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) L=1866 		1-33652-404-0 01 1 9101-9504 ● ● ●
1 ROD; LINK,1ST SHIFT
(B) L=383 		1-33670-552-2 01 1 9505-9706 ● ● ●
1 ROD; LINK,1ST SHIFT
(B) L=383 		1-33670-552-2 01 1 9703-9805 ● ● ● ●
1 ROD; LINK,1ST SHIFT
(B) L=383 		1-33670-552-2 01 1 9806-0106 ● ● ● ● ●
1 ROD; LINK,1ST SHIFT
(B) L=383 		1-33671-821-1 01 1 0107- ● ● ● ● ●
1 ROD; LINK,1ST SHIFT
CENTER SPLIT TYPE FRAME<TLW> (A) L=1465 		1-33652-786-0 01 1 9706-9805 ● ● ● ●
1 ROD; LINK,1ST SHIFT
CENTER SPLIT TYPE FRAME<TLW> (A) L=1465 		1-33652-786-0 01 1 9806- ● ● ● ● ●
1 ROD; LINK,1ST SHIFT
CENTER SPLIT TYPE FRAME<TLW> (C) L=320 		1-33671-137-0 01 1 9706-9805 ● ● ● ●
1 ROD; LINK,1ST SHIFT
CENTER SPLIT TYPE FRAME<TLW> (C) L=320 		1-33671-137-0 02 1 9806- ● ● ● ● ●
1 ROD; LINK,1ST SHIFT
CENTER SPLIT TYPE FRAME<TLW> (D) L=320 		1-33671-138-0 01 1 9706-9805 ● ● ● ●
1 ROD; LINK,1ST SHIFT
CENTER SPLIT TYPE FRAME<TLW> (D) L=320 		1-33671-138-0 02 1 9806- ● ● ● ● ●
2 ROD; LINK,1ST SELECT
(A) 		1-33670-554-1 01 1 9505-9805 ● ● ●
2 ROD; LINK,1ST SELECT
(A) 		1-33670-554-1 01 1 9806-0106 ● ● ● ●
2 ROD; LINK,1ST SELECT
(A) 		1-33671-822-1 01 1 0107- ● ● ● ●
2 ROD; LINK,1ST SELECT
CENTER SPLIT TYPE FRAME<TLW> (B) 		1-33671-139-0 02 1 9706-9805 ● ● ● ●
2 ROD; LINK,1ST SELECT
CENTER SPLIT TYPE FRAME<TLW> (B) 		1-33671-139-0 02 1 9806- ● ● ● ● ●
2 ROD; LINK,1ST SELECT
(A) 		1-33671-019-0 01 1 9702-0106 ●
2 ROD; LINK,1ST SELECT
(A) 		1-33671-823-1 01 1 0107- ●
3 ROD; LINK,2ND SHIFT
L=370 		8-94300-307-0 01 1 9505-9701 ● ● ●
3 ROD; LINK,2ND SHIFT
L=370 		8-94300-307-0 01 1 9702-9805 ● ● ● ●
3 ROD; LINK,2ND SHIFT
L=370 		8-94300-307-0 01 1 9806- ● ● ● ● ●
4 ROD; LINK,2ND SELECT
L=390 		1-33652-634-0 01 1 9505-9805 ● ● ●
4 ROD; LINK,2ND SELECT
L=390 		1-33652-634-0 01 1 9806- ● ● ● ●
4 ROD; LINK,2ND SELECT
L=567 		1-33652-256-0 01 1 9702- ●
10 JOINT ASM; BALL,SELECT ROD
RH THREAD 		1-09760-078-0 02 1 9505-9706 ● ● ●
10 JOINT ASM; BALL,SELECT ROD
RH THREAD 		1-09760-078-0 02 1 9707-9805 ● ● ● ●
10 JOINT ASM; BALL,SELECT ROD
RH THREAD 		1-09760-078-0 02 1 9806-0106 ● ● ● ● ●
10 JOINT ASM; BALL,SELECT ROD
RH THREAD 		1-09760-116-0 01 1 0107- ● ● ● ● ●
10 JOINT ASM; BALL,SELECT ROD
CENTER SPLIT TYPE FRAME<TLW> RH THREAD 		1-09760-124-0 04 1 9706-9805 ● ● ● ●
10 JOINT ASM; BALL,SELECT ROD
CENTER SPLIT TYPE FRAME<TLW> RH THREAD 		1-09760-124-0 04 1 9806- ● ● ● ● ●
10 JOINT ASM; BALL,SELECT ROD
LH THREAD 		1-09760-115-0 01 1 0107- ● ● ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
(C) M10 		9-09110-510-0 01 1 9101-9504 ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
(B) 		1-09440-050-0 02 1 9505-9710 ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
(B) M10 FLANGE 		1-09440-056-0 02 1 9711-0203 ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
(B) M10 FLANGE 		1-09440-056-0 02 1 0204- ● ● ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
(A) M10 FLANGE 		0-91150-210-0 01 1 9607-9701 ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
(A) M10 		9-09110-510-0 01 1 9702-9805 ● ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
(A) M10 		9-09110-510-0 01 1 9806-0512 ● ● ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
(A) M10 		0-91110-510-0 01 1 0601- ● ● ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
CENTER SPLIT TYPE FRAME<TLW> (B) M10 FLANGE 		1-09440-056-0 04 1 9706-9805 ● ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
CENTER SPLIT TYPE FRAME<TLW> (B) M10 FLANGE 		1-09440-056-0 08 1 9806- ● ● ● ● ●
16 JOINT ASM; BALL,CONT ROD
RH THREAD 		1-09760-078-0 02 1 9505-9805 ● ● ●
16 JOINT ASM; BALL,CONT ROD
RH THREAD 		1-09760-078-0 02 1 9806-0106 ● ● ● ●
16 JOINT ASM; BALL,CONT ROD
RH THREAD 		1-09760-116-0 01 1 0107-0203 ● ● ● ●
16 JOINT ASM; BALL,CONT ROD
RH THREAD 		1-09760-116-0 01 1 0204- ● ● ● ● ●
16 JOINT ASM; BALL,CONT ROD
CENTER SPLIT TYPE FRAME<TLW> RH THREAD 		1-09760-124-0 04 1 9706-9805 ● ● ● ●
16 JOINT ASM; BALL,CONT ROD
CENTER SPLIT TYPE FRAME<TLW> RH THREAD 		1-09760-124-0 04 1 9806- ● ● ● ● ●
16 JOINT ASM; BALL,CONT ROD 1-09760-110-0 02 1 9702-9706 ●
16 JOINT ASM; BALL,CONT ROD 1-09760-110-0 02 1 9706-0106 ●
16 JOINT ASM; BALL,CONT ROD
LH THREAD 		1-09760-115-0 01 1 0107-0203 ● ● ● ●
16 JOINT ASM; BALL,CONT ROD
LH THREAD 		1-09760-115-0 01 1 0204- ● ● ● ● ●
18 NUT; 1ST LINK ROD
M10 FLANGE 		1-09440-050-0 02 1 9505-9706 ● ● ●
18 NUT; 1ST LINK ROD
M10 FLANGE 		1-09440-050-0 02 1 9707-9710 ● ● ● ●
18 NUT; 1ST LINK ROD
M10 FLANGE 		1-09440-056-0 02 1 9706-9805 ● ● ● ●
18 NUT; 1ST LINK ROD
M10 FLANGE 		1-09440-056-0 02 1 9806- ● ● ● ● ●
18 NUT; 1ST LINK ROD
CENTER SPLIT TYPE FRAME<TLW> M10 FLANGE 		1-09440-056-0 04 1 9706-9805 ● ● ● ●
18 NUT; 1ST LINK ROD
CENTER SPLIT TYPE FRAME<TLW> M10 FLANGE 		1-09440-056-0 04 1 9806- ● ● ● ● ●
22 JOINT; BALL,SCREW,LINK ROD 1-09760-078-0 01 1 9505-9805 ● ● ●
22 JOINT; BALL,SCREW,LINK ROD 1-09760-078-0 01 1 9806- ● ● ● ●
22 JOINT; BALL,SCREW,LINK ROD 1-09760-110-0 01 1 9702- ●
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-050-0 02 1 9505-9706 ● ● ●
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-050-0 02 1 9707-9710 ● ● ● ●
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-056-0 02 1 9711-9805 ● ● ● ●
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-056-0 02 1 9806- ● ● ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 04 1 9505-9701 ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 04 1 9702-9805 ● ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 04 1 9806-0106 ● ● ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 0107-0203 ● ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 0204-0512 ● ● ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
M10 		0-91111-510-0 02 1 0601- ● ● ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
M12 LH THREAD 		9-09840-247-1 01 1 0107- ● ● ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 01 1 0107-0512 ● ● ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
M12 		0-91111-512-0 01 1 0601- ● ● ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
CENTER SPLIT TYPE FRAME<TLW> M10 		9-09111-410-0 08 1 9706-9805 ● ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
CENTER SPLIT TYPE FRAME<TLW> M10 		9-09111-410-0 08 1 9806-0512 ● ● ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
CENTER SPLIT TYPE FRAME<TLW> M10 		0-91111-510-0 08 1 0601- ● ● ● ● ●
26 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-078-0 02 1 9505-9805 ● ● ●
26 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-078-0 02 1 9806- ● ● ● ●
26 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-110-0 02 1 9702- ●
28 NUT; 2ND LINK ROD
M10 FLANGE 		1-09440-050-0 02 1 9505-9706 ● ● ●
28 NUT; 2ND LINK ROD
M10 FLANGE 		1-09440-050-0 02 1 9707-9710 ● ● ● ●
28 NUT; 2ND LINK ROD
M10 FLANGE 		1-09440-056-0 02 1 9711-9805 ● ● ● ●
28 NUT; 2ND LINK ROD
M10 FLANGE 		1-09440-056-0 02 1 9806- ● ● ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 04 1 9505-9701 ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 04 1 9702-9705 ● ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
CENTER SPLIT TYPE FRAME<TLW> M10 		9-09111-410-0 04 1 9706-9805 ● ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 04 1 9706-9805 ● ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
CENTER SPLIT TYPE FRAME<TLW> M10 		9-09111-410-0 04 1 9806-0106 ● ● ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 04 1 9806-0106 ● ● ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
CENTER SPLIT TYPE FRAME<TLW> M10 		9-09111-410-0 04 1 0107-0512 ● ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
CENTER SPLIT TYPE FRAME<TLW> M10 		0-91111-510-0 04 1 0601- ● ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 0107-0203 ● ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 0204-0512 ● ● ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M10 		0-91111-510-0 02 1 0601- ● ● ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M12 LH THREAD 		9-09840-247-1 01 1 0107-0203 ● ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M12 LH THREAD 		9-09840-247-1 01 1 0204- ● ● ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 01 1 0107-0203 ● ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 01 1 0204-0512 ● ● ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M12 		0-91111-512-0 01 1 0601- ● ● ● ● ●
112 JOINT; RUBBER 1-33660-157-1 01 1 9505-9701 ● ● ●
112 JOINT; RUBBER 1-33660-157-2 01 1 9702-9805 ● ● ● ●
112 JOINT; RUBBER 1-33660-157-2 01 1 9806- ● ● ● ● ●
çizim 36808
12 11 1 100 5 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 ROD; LINK,1ST SHIFT
(A) L=1846 		1-33652-747-1 01 1 9505-9705 ● ● ●
1 ROD; LINK,1ST SHIFT
EXC. CENTER SPLIT TYPE FRAME<TLW> (A) L=1846 		1-33652-747-1 01 1 9706-9805 ● ● ● ●
1 ROD; LINK,1ST SHIFT
EXC. CENTER SPLIT TYPE FRAME<TLW> (A) L=1846 		1-33652-747-1 01 1 9806- ● ● ● ● ●
1 ROD; LINK,1ST SHIFT
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) L=1866 		1-33652-404-0 01 1 9101-9504 ● ● ●
1 ROD; LINK,1ST SHIFT
(B) L=383 		1-33670-552-2 01 1 9505-9706 ● ● ●
1 ROD; LINK,1ST SHIFT
(B) L=383 		1-33670-552-2 01 1 9703-9805 ● ● ● ●
1 ROD; LINK,1ST SHIFT
(B) L=383 		1-33670-552-2 01 1 9806-0106 ● ● ● ● ●
1 ROD; LINK,1ST SHIFT
(B) L=383 		1-33671-821-1 01 1 0107- ● ● ● ● ●
1 ROD; LINK,1ST SHIFT
CENTER SPLIT TYPE FRAME<TLW> (A) L=1465 		1-33652-786-0 01 1 9706-9805 ● ● ● ●
1 ROD; LINK,1ST SHIFT
CENTER SPLIT TYPE FRAME<TLW> (A) L=1465 		1-33652-786-0 01 1 9806- ● ● ● ● ●
1 ROD; LINK,1ST SHIFT
CENTER SPLIT TYPE FRAME<TLW> (C) L=320 		1-33671-137-0 01 1 9706-9805 ● ● ● ●
1 ROD; LINK,1ST SHIFT
CENTER SPLIT TYPE FRAME<TLW> (C) L=320 		1-33671-137-0 02 1 9806- ● ● ● ● ●
1 ROD; LINK,1ST SHIFT
CENTER SPLIT TYPE FRAME<TLW> (D) L=320 		1-33671-138-0 01 1 9706-9805 ● ● ● ●
1 ROD; LINK,1ST SHIFT
CENTER SPLIT TYPE FRAME<TLW> (D) L=320 		1-33671-138-0 02 1 9806- ● ● ● ● ●
5 ROD; LINK,3RD SHIFT
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) L=2293 		1-33652-414-0 01 1 9101-9504 ● ● ●
5 ROD; LINK,3RD SHIFT
(D) L=2386 		1-33652-750-0 01 1 9505-9705 ● ● ●
5 ROD; LINK,3RD SHIFT
EXC. CENTER SPLIT TYPE FRAME<TLW> (D) L=2386 		1-33652-750-0 01 1 9706-9805 ● ● ●
5 ROD; LINK,3RD SHIFT
EXC. CENTER SPLIT TYPE FRAME<TLW> (D) L=2386 		1-33652-750-0 01 1 9806- ● ● ● ●
5 ROD; LINK,3RD SHIFT
WHEEL BASE 5000MM(50W) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) L=2677 		1-33652-411-0 01 1 9101-9504 ●
5 ROD; LINK,3RD SHIFT
WHEEL BASE 5000MM(50W) (C) L=2629 		1-33652-751-0 01 1 9505-9805 ● ● ● ●
5 ROD; LINK,3RD SHIFT
WHEEL BASE 5000MM(50W) (C) L=2629 		1-33652-751-0 01 1 9806- ● ● ● ● ●
5 ROD; LINK,3RD SHIFT
WHEEL BASE 5000MM(50W) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) L=2792 		1-33652-183-0 01 1 9101-9504 ●
5 ROD; LINK,3RD SHIFT
WHEEL BASE 5700MM(57W) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) L=3377 		1-33652-495-0 01 1 9101-9504 ●
5 ROD; LINK,3RD SHIFT
WHEEL BASE 5700MM(57W) (C) L=3329 		1-33652-752-0 01 1 9505-9705 ● ● ● ●
5 ROD; LINK,3RD SHIFT
WHEEL BASE 5700MM(57W) EXC. CENTER SPLIT TYPE FRAME<TLW> (C) L=3329 		1-33652-752-0 01 1 9706-9805 ● ● ● ●
5 ROD; LINK,3RD SHIFT
WHEEL BASE 5700MM(57W) EXC. CENTER SPLIT TYPE FRAME<TLW> (C) L=3329 		1-33652-752-0 01 1 9806- ● ● ● ● ●
5 ROD; LINK,3RD SHIFT
CENTER SPLIT TYPE FRAME<TLW> (C) L=850 		1-33652-787-0 01 1 9706-9805 ● ● ● ●
5 ROD; LINK,3RD SHIFT
CENTER SPLIT TYPE FRAME<TLW> (C) L=850 		1-33652-787-0 01 1 9806- ● ● ● ● ●
5 ROD; LINK,3RD SHIFT
CENTER SPLIT TYPE FRAME<TLW> (D) L=1695 		1-33652-788-0 01 1 9706-9805 ● ● ● ●
5 ROD; LINK,3RD SHIFT
CENTER SPLIT TYPE FRAME<TLW> (D) L=1695 		1-33652-788-0 01 1 9806- ● ● ● ● ●
5 ROD; LINK,3RD SHIFT
(D) L=2386 		1-33652-773-0 01 1 9702-9705 ●
5 ROD; LINK,3RD SHIFT
EXC. CENTER SPLIT TYPE FRAME<TLW> (D) L=2386 		1-33652-773-0 01 1 9706-9805 ●
5 ROD; LINK,3RD SHIFT
EXC. CENTER SPLIT TYPE FRAME<TLW> (D) L=2386 		1-33652-773-0 01 1 9806- ●
11 WASHER; LK,1ST LINK ROD,SHIFT
ID=10.2 		9-09150-610-0 01 1 9101-9504 ● ● ●
11 WASHER; LK,1ST LINK ROD,SHIFT
ID=10.2 		9-09150-610-0 01 1 9505-9606 ● ● ●
11 WASHER; LK,1ST LINK ROD,SHIFT
ID=10.2 		9-09150-510-0 01 1 9702-9805 ● ● ● ●
11 WASHER; LK,1ST LINK ROD,SHIFT
ID=10.2 		9-09150-510-0 01 1 9806-0603 ● ● ● ● ●
11 WASHER; LK,1ST LINK ROD,SHIFT
ID=10.2 		0-91510-510-0 01 1 0604- ● ● ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
(C) M10 		9-09110-510-0 01 1 9101-9504 ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
(B) 		1-09440-050-0 02 1 9505-9710 ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
(B) M10 FLANGE 		1-09440-056-0 02 1 9711-0203 ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
(B) M10 FLANGE 		1-09440-056-0 02 1 0204- ● ● ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
(A) M10 FLANGE 		0-91150-210-0 01 1 9607-9701 ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
(A) M10 		9-09110-510-0 01 1 9702-9805 ● ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
(A) M10 		9-09110-510-0 01 1 9806-0512 ● ● ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
(A) M10 		0-91110-510-0 01 1 0601- ● ● ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
CENTER SPLIT TYPE FRAME<TLW> (B) M10 FLANGE 		1-09440-056-0 04 1 9706-9805 ● ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
CENTER SPLIT TYPE FRAME<TLW> (B) M10 FLANGE 		1-09440-056-0 08 1 9806- ● ● ● ● ●
100 BOLT; CONT ROD
M10X47 		1-09029-025-0 01 1 9101-9504 ● ● ●
100 BOLT; CONT ROD
M10X47 		1-09029-025-0 01 1 9505-9706 ● ● ●
100 BOLT; CONT ROD
M10X47 		1-09029-025-0 01 1 9707-9805 ● ● ● ●
100 BOLT; CONT ROD
M10X47 		1-09029-025-0 01 1 9806-9806 ● ● ● ● ●
100 BOLT; CONT ROD
M10X47 		1-09029-025-0 01 1 9806- ● ● ● ● ●

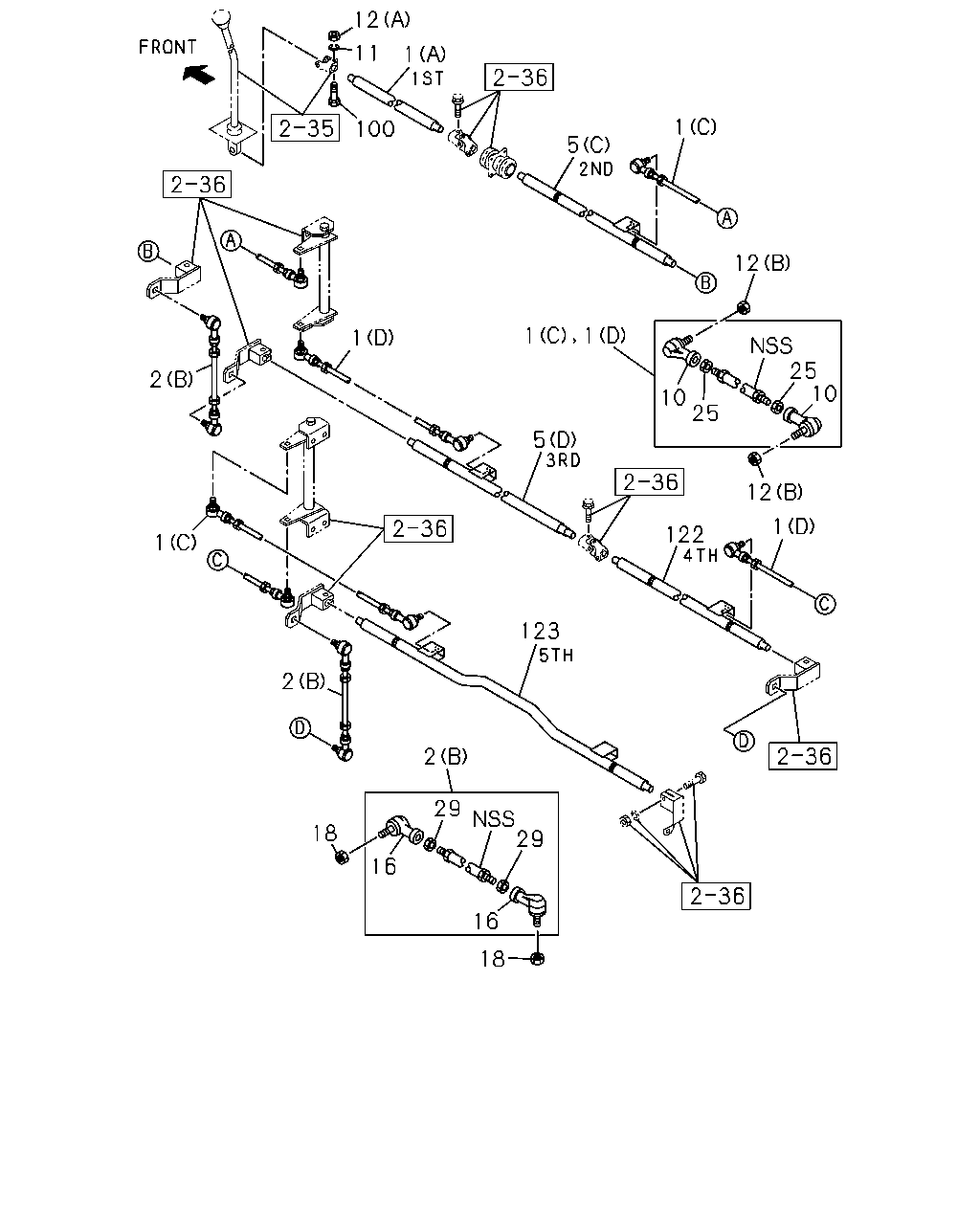

çizim 39111
12 11 1 1 100 5 12 1 10 10 25 10 28 10 25 5 12 10 122 1 123 2 2 29 29 18 16 16 18
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 ROD; LINK,1ST SHIFT
(A) L=1846 		1-33652-747-1 01 1 9505-9705 ● ● ●
1 ROD; LINK,1ST SHIFT
EXC. CENTER SPLIT TYPE FRAME<TLW> (A) L=1846 		1-33652-747-1 01 1 9706-9805 ● ● ● ●
1 ROD; LINK,1ST SHIFT
EXC. CENTER SPLIT TYPE FRAME<TLW> (A) L=1846 		1-33652-747-1 01 1 9806- ● ● ● ● ●
1 ROD; LINK,1ST SHIFT
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) L=1866 		1-33652-404-0 01 1 9101-9504 ● ● ●
1 ROD; LINK,1ST SHIFT
(B) L=383 		1-33670-552-2 01 1 9505-9706 ● ● ●
1 ROD; LINK,1ST SHIFT
(B) L=383 		1-33670-552-2 01 1 9703-9805 ● ● ● ●
1 ROD; LINK,1ST SHIFT
(B) L=383 		1-33670-552-2 01 1 9806-0106 ● ● ● ● ●
1 ROD; LINK,1ST SHIFT
(B) L=383 		1-33671-821-1 01 1 0107- ● ● ● ● ●
1 ROD; LINK,1ST SHIFT
CENTER SPLIT TYPE FRAME<TLW> (A) L=1465 		1-33652-786-0 01 1 9706-9805 ● ● ● ●
1 ROD; LINK,1ST SHIFT
CENTER SPLIT TYPE FRAME<TLW> (A) L=1465 		1-33652-786-0 01 1 9806- ● ● ● ● ●
1 ROD; LINK,1ST SHIFT
CENTER SPLIT TYPE FRAME<TLW> (C) L=320 		1-33671-137-0 01 1 9706-9805 ● ● ● ●
1 ROD; LINK,1ST SHIFT
CENTER SPLIT TYPE FRAME<TLW> (C) L=320 		1-33671-137-0 02 1 9806- ● ● ● ● ●
1 ROD; LINK,1ST SHIFT
CENTER SPLIT TYPE FRAME<TLW> (D) L=320 		1-33671-138-0 01 1 9706-9805 ● ● ● ●
1 ROD; LINK,1ST SHIFT
CENTER SPLIT TYPE FRAME<TLW> (D) L=320 		1-33671-138-0 02 1 9806- ● ● ● ● ●
2 ROD; LINK,1ST SELECT
(A) 		1-33670-554-1 01 1 9505-9805 ● ● ●
2 ROD; LINK,1ST SELECT
(A) 		1-33670-554-1 01 1 9806-0106 ● ● ● ●
2 ROD; LINK,1ST SELECT
(A) 		1-33671-822-1 01 1 0107- ● ● ● ●
2 ROD; LINK,1ST SELECT
CENTER SPLIT TYPE FRAME<TLW> (B) 		1-33671-139-0 02 1 9706-9805 ● ● ● ●
2 ROD; LINK,1ST SELECT
CENTER SPLIT TYPE FRAME<TLW> (B) 		1-33671-139-0 02 1 9806- ● ● ● ● ●
2 ROD; LINK,1ST SELECT
(A) 		1-33671-019-0 01 1 9702-0106 ●
2 ROD; LINK,1ST SELECT
(A) 		1-33671-823-1 01 1 0107- ●
5 ROD; LINK,3RD SHIFT
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) L=2293 		1-33652-414-0 01 1 9101-9504 ● ● ●
5 ROD; LINK,3RD SHIFT
(D) L=2386 		1-33652-750-0 01 1 9505-9705 ● ● ●
5 ROD; LINK,3RD SHIFT
EXC. CENTER SPLIT TYPE FRAME<TLW> (D) L=2386 		1-33652-750-0 01 1 9706-9805 ● ● ●
5 ROD; LINK,3RD SHIFT
EXC. CENTER SPLIT TYPE FRAME<TLW> (D) L=2386 		1-33652-750-0 01 1 9806- ● ● ● ●
5 ROD; LINK,3RD SHIFT
WHEEL BASE 5000MM(50W) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) L=2677 		1-33652-411-0 01 1 9101-9504 ●
5 ROD; LINK,3RD SHIFT
WHEEL BASE 5000MM(50W) (C) L=2629 		1-33652-751-0 01 1 9505-9805 ● ● ● ●
5 ROD; LINK,3RD SHIFT
WHEEL BASE 5000MM(50W) (C) L=2629 		1-33652-751-0 01 1 9806- ● ● ● ● ●
5 ROD; LINK,3RD SHIFT
WHEEL BASE 5000MM(50W) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) L=2792 		1-33652-183-0 01 1 9101-9504 ●
5 ROD; LINK,3RD SHIFT
WHEEL BASE 5700MM(57W) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) L=3377 		1-33652-495-0 01 1 9101-9504 ●
5 ROD; LINK,3RD SHIFT
WHEEL BASE 5700MM(57W) (C) L=3329 		1-33652-752-0 01 1 9505-9705 ● ● ● ●
5 ROD; LINK,3RD SHIFT
WHEEL BASE 5700MM(57W) EXC. CENTER SPLIT TYPE FRAME<TLW> (C) L=3329 		1-33652-752-0 01 1 9706-9805 ● ● ● ●
5 ROD; LINK,3RD SHIFT
WHEEL BASE 5700MM(57W) EXC. CENTER SPLIT TYPE FRAME<TLW> (C) L=3329 		1-33652-752-0 01 1 9806- ● ● ● ● ●
5 ROD; LINK,3RD SHIFT
CENTER SPLIT TYPE FRAME<TLW> (C) L=850 		1-33652-787-0 01 1 9706-9805 ● ● ● ●
5 ROD; LINK,3RD SHIFT
CENTER SPLIT TYPE FRAME<TLW> (C) L=850 		1-33652-787-0 01 1 9806- ● ● ● ● ●
5 ROD; LINK,3RD SHIFT
CENTER SPLIT TYPE FRAME<TLW> (D) L=1695 		1-33652-788-0 01 1 9706-9805 ● ● ● ●
5 ROD; LINK,3RD SHIFT
CENTER SPLIT TYPE FRAME<TLW> (D) L=1695 		1-33652-788-0 01 1 9806- ● ● ● ● ●
5 ROD; LINK,3RD SHIFT
(D) L=2386 		1-33652-773-0 01 1 9702-9705 ●
5 ROD; LINK,3RD SHIFT
EXC. CENTER SPLIT TYPE FRAME<TLW> (D) L=2386 		1-33652-773-0 01 1 9706-9805 ●
5 ROD; LINK,3RD SHIFT
EXC. CENTER SPLIT TYPE FRAME<TLW> (D) L=2386 		1-33652-773-0 01 1 9806- ●
10 JOINT ASM; BALL,SELECT ROD
RH THREAD 		1-09760-078-0 02 1 9505-9706 ● ● ●
10 JOINT ASM; BALL,SELECT ROD
RH THREAD 		1-09760-078-0 02 1 9707-9805 ● ● ● ●
10 JOINT ASM; BALL,SELECT ROD
RH THREAD 		1-09760-078-0 02 1 9806-0106 ● ● ● ● ●
10 JOINT ASM; BALL,SELECT ROD
RH THREAD 		1-09760-116-0 01 1 0107- ● ● ● ● ●
10 JOINT ASM; BALL,SELECT ROD
CENTER SPLIT TYPE FRAME<TLW> RH THREAD 		1-09760-124-0 04 1 9706-9805 ● ● ● ●
10 JOINT ASM; BALL,SELECT ROD
CENTER SPLIT TYPE FRAME<TLW> RH THREAD 		1-09760-124-0 04 1 9806- ● ● ● ● ●
10 JOINT ASM; BALL,SELECT ROD
LH THREAD 		1-09760-115-0 01 1 0107- ● ● ● ● ●
11 WASHER; LK,1ST LINK ROD,SHIFT
ID=10.2 		9-09150-610-0 01 1 9101-9504 ● ● ●
11 WASHER; LK,1ST LINK ROD,SHIFT
ID=10.2 		9-09150-610-0 01 1 9505-9606 ● ● ●
11 WASHER; LK,1ST LINK ROD,SHIFT
ID=10.2 		9-09150-510-0 01 1 9702-9805 ● ● ● ●
11 WASHER; LK,1ST LINK ROD,SHIFT
ID=10.2 		9-09150-510-0 01 1 9806-0603 ● ● ● ● ●
11 WASHER; LK,1ST LINK ROD,SHIFT
ID=10.2 		0-91510-510-0 01 1 0604- ● ● ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
(C) M10 		9-09110-510-0 01 1 9101-9504 ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
(B) 		1-09440-050-0 02 1 9505-9710 ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
(B) M10 FLANGE 		1-09440-056-0 02 1 9711-0203 ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
(B) M10 FLANGE 		1-09440-056-0 02 1 0204- ● ● ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
(A) M10 FLANGE 		0-91150-210-0 01 1 9607-9701 ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
(A) M10 		9-09110-510-0 01 1 9702-9805 ● ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
(A) M10 		9-09110-510-0 01 1 9806-0512 ● ● ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
(A) M10 		0-91110-510-0 01 1 0601- ● ● ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
CENTER SPLIT TYPE FRAME<TLW> (B) M10 FLANGE 		1-09440-056-0 04 1 9706-9805 ● ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
CENTER SPLIT TYPE FRAME<TLW> (B) M10 FLANGE 		1-09440-056-0 08 1 9806- ● ● ● ● ●
16 JOINT ASM; BALL,CONT ROD
RH THREAD 		1-09760-078-0 02 1 9505-9805 ● ● ●
16 JOINT ASM; BALL,CONT ROD
RH THREAD 		1-09760-078-0 02 1 9806-0106 ● ● ● ●
16 JOINT ASM; BALL,CONT ROD
RH THREAD 		1-09760-116-0 01 1 0107-0203 ● ● ● ●
16 JOINT ASM; BALL,CONT ROD
RH THREAD 		1-09760-116-0 01 1 0204- ● ● ● ● ●
16 JOINT ASM; BALL,CONT ROD
CENTER SPLIT TYPE FRAME<TLW> RH THREAD 		1-09760-124-0 04 1 9706-9805 ● ● ● ●
16 JOINT ASM; BALL,CONT ROD
CENTER SPLIT TYPE FRAME<TLW> RH THREAD 		1-09760-124-0 04 1 9806- ● ● ● ● ●
16 JOINT ASM; BALL,CONT ROD 1-09760-110-0 02 1 9702-9706 ●
16 JOINT ASM; BALL,CONT ROD 1-09760-110-0 02 1 9706-0106 ●
16 JOINT ASM; BALL,CONT ROD
LH THREAD 		1-09760-115-0 01 1 0107-0203 ● ● ● ●
16 JOINT ASM; BALL,CONT ROD
LH THREAD 		1-09760-115-0 01 1 0204- ● ● ● ● ●
18 NUT; 1ST LINK ROD
M10 FLANGE 		1-09440-050-0 02 1 9505-9706 ● ● ●
18 NUT; 1ST LINK ROD
M10 FLANGE 		1-09440-050-0 02 1 9707-9710 ● ● ● ●
18 NUT; 1ST LINK ROD
M10 FLANGE 		1-09440-056-0 02 1 9706-9805 ● ● ● ●
18 NUT; 1ST LINK ROD
M10 FLANGE 		1-09440-056-0 02 1 9806- ● ● ● ● ●
18 NUT; 1ST LINK ROD
CENTER SPLIT TYPE FRAME<TLW> M10 FLANGE 		1-09440-056-0 04 1 9706-9805 ● ● ● ●
18 NUT; 1ST LINK ROD
CENTER SPLIT TYPE FRAME<TLW> M10 FLANGE 		1-09440-056-0 04 1 9806- ● ● ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 04 1 9505-9701 ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 04 1 9702-9805 ● ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 04 1 9806-0106 ● ● ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 0107-0203 ● ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 0204-0512 ● ● ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
M10 		0-91111-510-0 02 1 0601- ● ● ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
M12 LH THREAD 		9-09840-247-1 01 1 0107- ● ● ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 01 1 0107-0512 ● ● ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
M12 		0-91111-512-0 01 1 0601- ● ● ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
CENTER SPLIT TYPE FRAME<TLW> M10 		9-09111-410-0 08 1 9706-9805 ● ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
CENTER SPLIT TYPE FRAME<TLW> M10 		9-09111-410-0 08 1 9806-0512 ● ● ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
CENTER SPLIT TYPE FRAME<TLW> M10 		0-91111-510-0 08 1 0601- ● ● ● ● ●
28 NUT; 2ND LINK ROD
M10 FLANGE 		1-09440-050-0 02 1 9505-9706 ● ● ●
28 NUT; 2ND LINK ROD
M10 FLANGE 		1-09440-050-0 02 1 9707-9710 ● ● ● ●
28 NUT; 2ND LINK ROD
M10 FLANGE 		1-09440-056-0 02 1 9711-9805 ● ● ● ●
28 NUT; 2ND LINK ROD
M10 FLANGE 		1-09440-056-0 02 1 9806- ● ● ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 04 1 9505-9701 ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 04 1 9702-9705 ● ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
CENTER SPLIT TYPE FRAME<TLW> M10 		9-09111-410-0 04 1 9706-9805 ● ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 04 1 9706-9805 ● ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
CENTER SPLIT TYPE FRAME<TLW> M10 		9-09111-410-0 04 1 9806-0106 ● ● ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 04 1 9806-0106 ● ● ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
CENTER SPLIT TYPE FRAME<TLW> M10 		9-09111-410-0 04 1 0107-0512 ● ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
CENTER SPLIT TYPE FRAME<TLW> M10 		0-91111-510-0 04 1 0601- ● ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 0107-0203 ● ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 0204-0512 ● ● ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M10 		0-91111-510-0 02 1 0601- ● ● ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M12 LH THREAD 		9-09840-247-1 01 1 0107-0203 ● ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M12 LH THREAD 		9-09840-247-1 01 1 0204- ● ● ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 01 1 0107-0203 ● ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 01 1 0204-0512 ● ● ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M12 		0-91111-512-0 01 1 0601- ● ● ● ● ●
100 BOLT; CONT ROD
M10X47 		1-09029-025-0 01 1 9101-9504 ● ● ●
100 BOLT; CONT ROD
M10X47 		1-09029-025-0 01 1 9505-9706 ● ● ●
100 BOLT; CONT ROD
M10X47 		1-09029-025-0 01 1 9707-9805 ● ● ● ●
100 BOLT; CONT ROD
M10X47 		1-09029-025-0 01 1 9806-9806 ● ● ● ● ●
100 BOLT; CONT ROD
M10X47 		1-09029-025-0 01 1 9806- ● ● ● ● ●
122 ROD ASM; LINK,3RD & 4TH
CENTER SPLIT TYPE FRAME<TLW> 		1-33652-789-0 01 1 9706-9805 ● ● ● ●
122 ROD ASM; LINK,3RD & 4TH
CENTER SPLIT TYPE FRAME<TLW> 		1-33652-789-0 01 1 9806- ● ● ● ● ●
123 ROD ASM; LINK,5TH
CENTER SPLIT TYPE FRAME<TLW> 		1-33652-791-0 01 1 9706-9805 ● ● ●
123 ROD ASM; LINK,5TH
CENTER SPLIT TYPE FRAME<TLW> 		1-33652-791-0 01 1 9806- ● ● ● ●
123 ROD ASM; LINK,5TH
CENTER SPLIT TYPE FRAME<TLW> 		1-33652-792-0 01 1 9706- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
