◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11418 - FSR(AUST)EU4 EXC.SPA ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-85 - POWER TAKE OFF CONTROL ▶
2-85 — POWER TAKE OFF CONTROL (#44305) — 12 parça

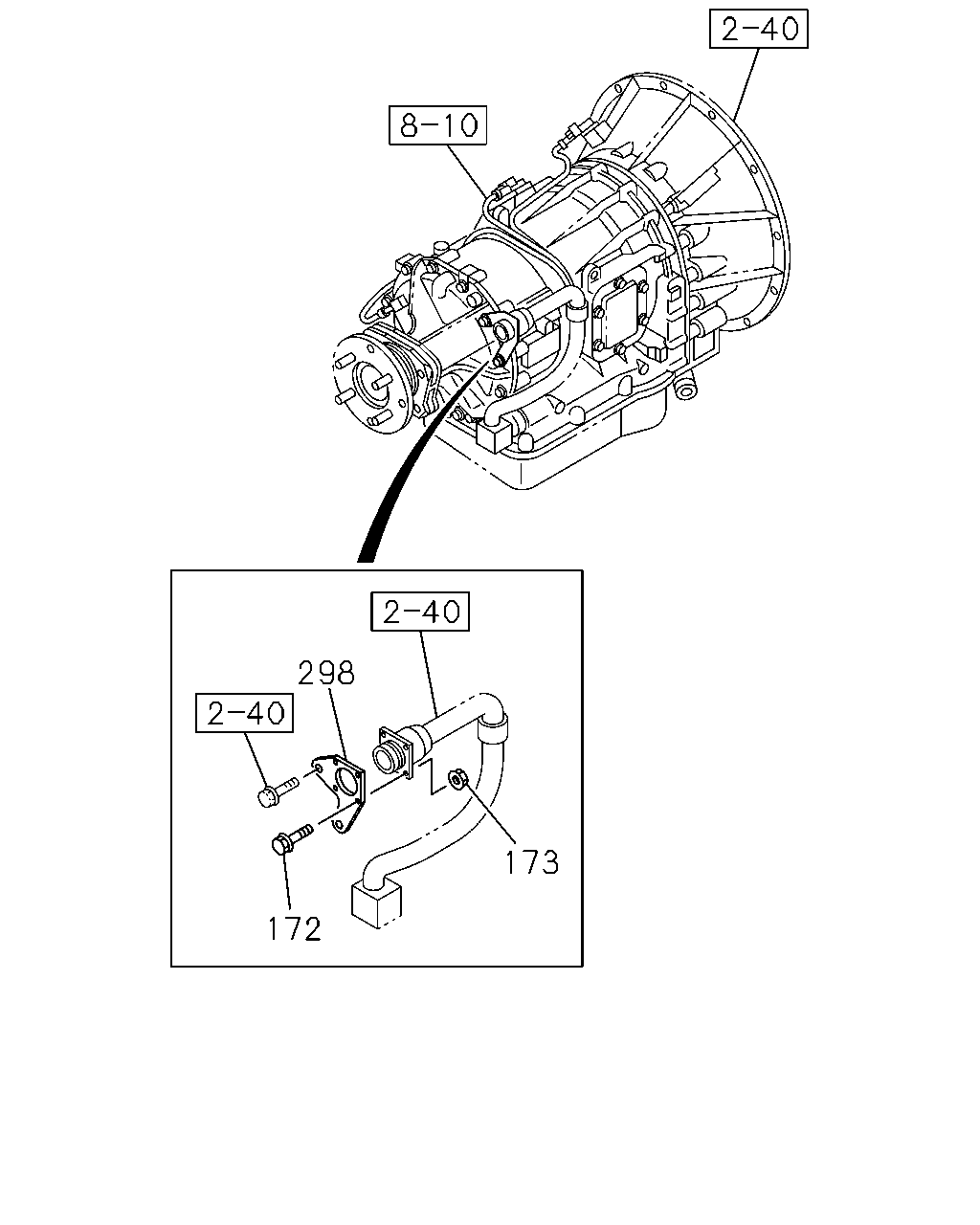

çizim 109286
298 173 172
BalonParca AdiParca NoAdetTipApplied Date A B
172 BOLT; BRKT
LCT2000 A/T ALLISON(Y4F) M4X16 		9-03494-416-0 04 1 0710- ●
173 NUT; BRKT
LCT2000 A/T ALLISON(Y4F) M4 FLANGE 		8-97368-853-0 04 1 0710- ●
298 BRACKET; HARNESS
LCT2000 A/T ALLISON(Y4F) 		8-98081-822-0 01 1 0710- ●
çizim 109297
3 3 15
BalonParca AdiParca NoAdetTipApplied Date A B
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0710- ● ●
15 LEVER ASM; PTO CONT
DUMP CONTROL LEVER<RC4> 		1-79996-092-0 01 1 0710- ● ●

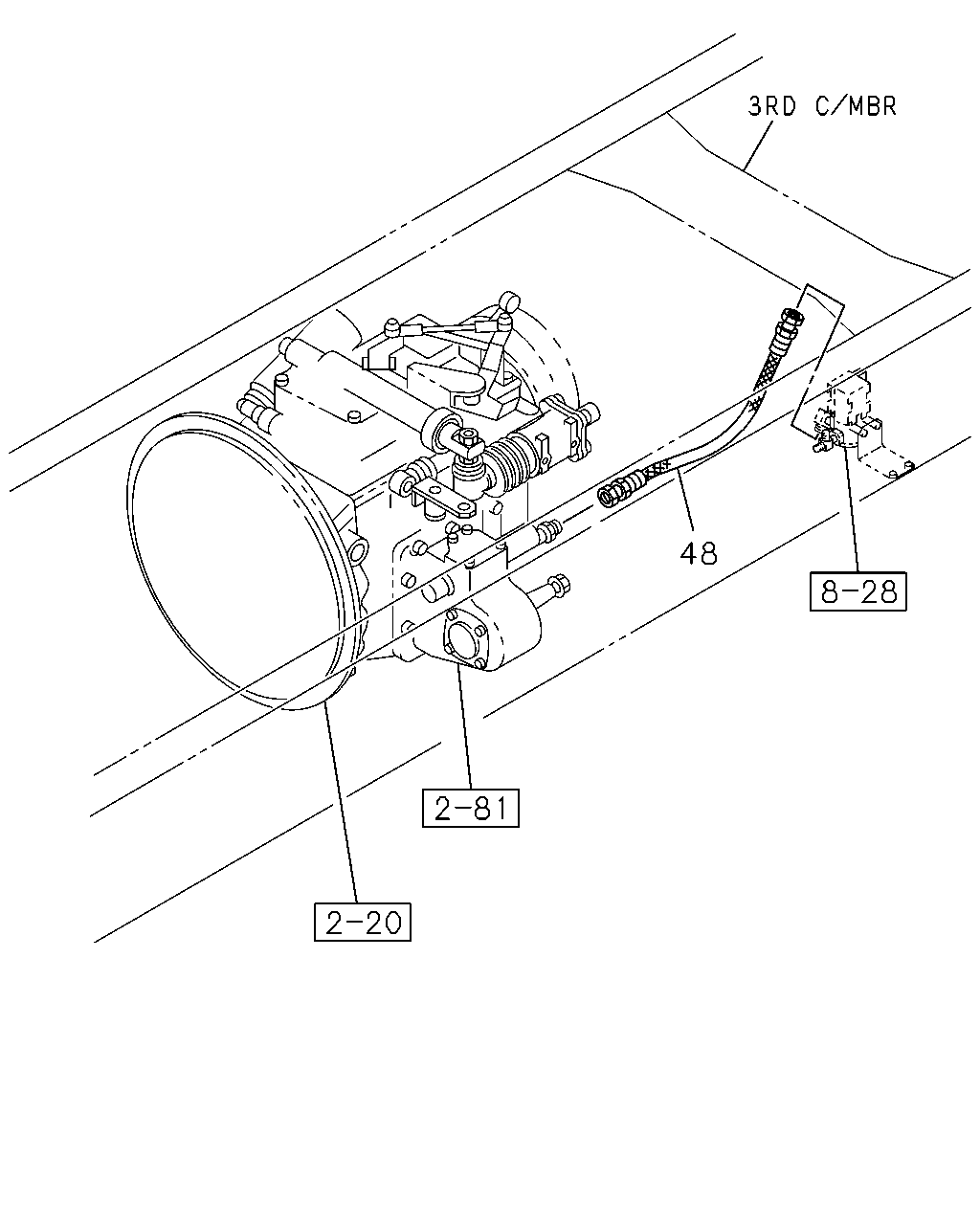

çizim 109477
48
BalonParca AdiParca NoAdetTipApplied Date A B
48 HOSE; FLEX,PTO
MLD6W M/T(Y2C) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=410 		1-09363-895-0 01 1 0806-0906 ● ●
48 HOSE; FLEX,PTO
MZW6P M/T(RSZ),MLD6W M/T(Y2C) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=410 		1-09363-895-0 01 1 0907- ● ●
48 HOSE; FLEX,PTO
MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF) L=330 		1-09363-636-0 01 1 0907- ● ●
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF) L=320 		1-09363-625-0 01 1 0710-0803 ● ●
48 HOSE; FLEX,PTO
MZX6P M/T(RSW) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF) L=320 		1-09363-625-0 01 1 0804- ● ●
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=390 		1-09363-616-0 01 1 0710-0803 ● ●
48 HOSE; FLEX,PTO
MZX6P M/T(RSW) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=390 		1-09363-616-0 01 1 0804- ● ●
