Isuzu WW
▶
TRUCKS
▶
FSR
▶
11418 - FSR(AUST)EU4 EXC.SPA
▶
2 - Clutch, Transmission, Trans Axle
▶
2-55B - AUTO TRANS SHIFT CONTROL LEVER
▶

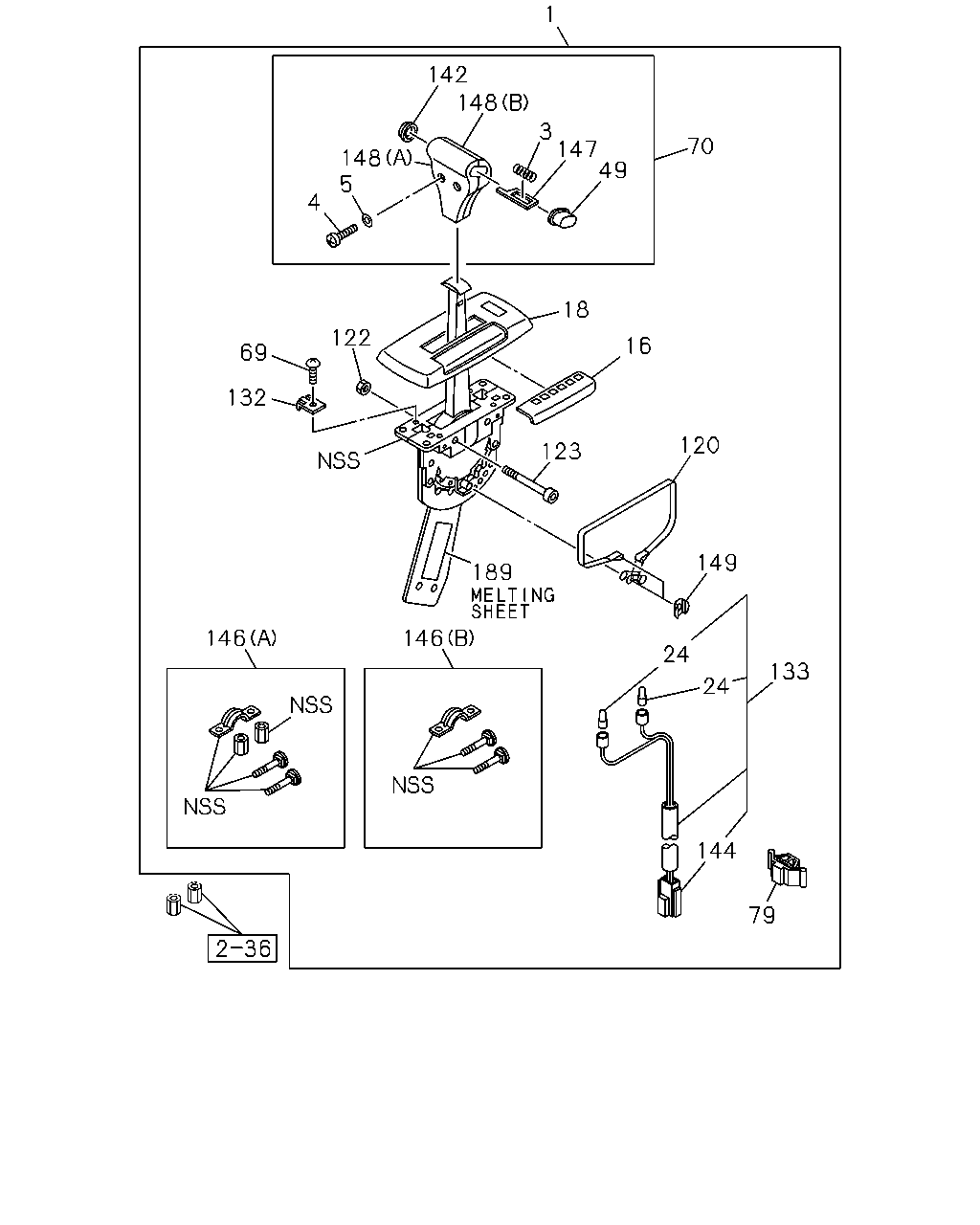

2-55B — AUTO TRANS SHIFT CONTROL LEVER
(#44302) — 39 parça
◀
[255B] COMPONENT;SHIFT LEVER (26 parça)
[255B] FIXING (13 parça)
▶
1
142
148
3
147
49
70
148
5
4
18
122
16
69
132
120
123
149
189
146
146
24
133
24
144
79
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LEVER; SHIFT,A/T
8-98017-517-1
01
1
0710-
3
SPRING; RETURN,KNOB
1-34619-104-0
01
1
0710-
4
SCREW; KNOB TO LEVER
1-34619-106-0
02
1
0710-
5
WASHER; KNOB TO LEVER
1-34619-107-0
02
1
0710-
16
LENS; INDICATOR
8-98096-402-0
01
1
0710-
18
COVER; INDICATOR,UPR
1-34615-003-0
01
1
0710-0710
24
BULB; SHIFT LEVER,A/T
8-98096-404-0
02
1
0710-0710
24
BULB; SHIFT LEVER,A/T
12V 3.4W
1-34619-115-0
02
1
0711-
49
BUTTON; PUSH,KNOB
1-34619-102-0
01
1
0710-
69
SCREW; COVER,SHIFT LEVER
1-34619-056-0
04
1
0710-
70
KNOB; SHIFT LEVER
1-34612-003-0
01
1
0710-
79
CLIP; LAMP CABLE,A/T CONT LEVER
8-94333-150-0
01
1
0710-0710
120
BELT; INDICATOR
1-34619-096-0
01
1
0710-
122
NUT; SHIFT LEVER
1-34619-109-0
02
1
0710-
123
BOLT; SHIFT LEVER
1-34619-108-0
02
1
0710-
132
CLIP; COVER
1-34619-057-0
04
1
0710-
133
HARNESS; INDICATOR
8-98096-403-0
01
1
0710-
142
CAP; KNOB,SHIFT LEVER
1-34619-105-0
01
1
0710-
144
CONNECTOR KIT; HARNESS
8-94437-417-0
01
1
0710-
146
ATTACHMENT KIT; SHIFT LEVER
(A)
1-34619-112-0
01
1
0710-0710
146
ATTACHMENT KIT; SHIFT LEVER
(B)
8-98100-080-0
01
1
0711-
147
PLATE; SLIDE,SHIFT LEVER
1-34619-103-0
01
1
0710-
148
GRIP; SHIFT LEVER
(A)
1-34619-100-0
01
1
0710-
148
GRIP; SHIFT LEVER
(B)
1-34619-101-0
01
1
0710-
149
NUT; INDICATOR BELT
1-34619-094-0
02
1
0710-
189
SHEET; MELTING
8-98083-626-0
01
1
0710-
37
125
127
127
1
121
128
39
178
178
178
130
178
178
178
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LEVER; SHIFT,A/T
8-98017-517-1
01
1
0710-
37
STAND; A/T CONT LEVER
GRAY
8-97409-846-2
01
1
0909-
39
SCREW; SHIFT LEVER
M6X13
1-09981-540-0
04
1
0710-
121
BRACKET
1-79998-916-3
01
1
0710-
125
COVER; SHIFT LEVER
GRAY
8-97409-846-0
01
1
0710-0908
127
FASTENER; COVER
GRAY
8-97407-955-0
05
1
0710-0908
128
NUT; BRKT
M8 FLANGE
8-97046-127-0
02
1
0710-0805
128
NUT; BRKT
M8 W/DISHED WASHER
8-97329-625-0
02
1
0806-
130
BOLT; BRKT
M8X25 W/WAVE&PL WASHER
8-94412-342-0
02
1
0710-
178
SHEET; SHIFT LEVER
(D)
8-98106-251-0
04
1
0712-
178
SHEET; SHIFT LEVER
(A)
8-98106-252-0
02
1
0712-
178
SHEET; SHIFT LEVER
(B)
8-98106-253-0
04
1
0712-
178
SHEET; SHIFT LEVER
(C)
8-98106-254-0
02
1
0712-
